Methodology for Assessing Ports as Testbeds for Emerging Sustainable Wave Energy Technologies: Application to Sines Port with the REEFS WEC

Abstract

This article proposes a methodology to assess the feasibility of using seaports as testbeds for emerging WEC models, supporting innovation to accelerate sustainable energy transition. The development of wave energy converters (WECs) requires experimental tests at increasing scales, with wave tanks eventually becoming inadequate due to size limitations. The method includes evaluating model requirements, ocean wave conditions at the port entrance, local wind-generated waves, tides, bathymetry, seabed composition, wave propagation within the port, and operational constraints to identify viable test zones. The methodology was applied to the Port of Sines, Portugal, considering a 1:10 REEFS WEC model. Three potential sites were identified. Shelter is adequate but wave conditions matching the model’s requirements (periods from 1.9 to 3.8 s) only occur approximately 100 h per summer. Local wind-generated waves contribute marginally, limited by the short fetch. Upscaling the model (larger than 1:10) may allow testing under longer-period waves, which occur more frequently. A key limitation of port-based testing is the lack of environmental control. Despite statistical planning, suitable conditions during test campaigns cannot be guaranteed. This trade-off offsets the benefits of unrestricted space and no need for a wave-maker. The methodology proved effective, simplifying site assessment and saving resources.

1. Introduction

The world’s growing energy demand and the urgent need for decarbonization are driving the adoption of renewable energy and fueling the search for new alternatives.

Among renewable energy sources, ocean wave energy stands out as one of the most promising sustainable alternatives [1]. The key advantages of wave energy include the following: (i) higher power density than wind and solar [2]; (ii) high predictability [3,4]; and (iii) minimal environmental and visual impacts compared to conventional energy sources [5], combined with the added benefit of coastal protection. Specifically, wave farms can reduce shoreline erosion, as evidenced in studies by Rusu and Onea [6] and Iglesias and Carballo [7]. These features highlight the potential of wave energy to the sustainable energy transition, aiming to contribute to the United Nations Sustainable Development Goals (SDGs) [8], particularly affordable and clean energy (SDG 7), climate action (SDG 13), and sustainable communities (SDG 11).

1.1. WECs Development Process

In the quest to harness ocean wave energy potential, several wave energy converters (WECs) have been developed over recent decades, employing various concepts, mechanisms, and systems tailored to different wave state scenarios and deployment locations. Recent research has identified around one hundred WECs in different stages of development [9,10].

Despite various technological improvements, the development trajectory of WECs typically follows a similar path. This process begins with mathematical, numerical, and small-scale laboratory models. As the understanding and knowledge of both global and specific aspects of the emerging WEC is refined, progressively improved and scaled-up models are developed, eventually leading to prototype and commercial versions. This progression is very well-measured by the technology readiness level (TRL) scale, a widely recognized framework used to assess the maturity of technologies over time and monitor their development toward real-world applications [11,12].

1.2. The REEFS WEC Technology

The nearshore WEC designated by the acronym REEFS (Renewable Electric Energy from the Sea) consists of a fixed submerged caisson with a prismatic shape placed at low depths directly on the seabed or alternatively supported by pillars. Its enveloping surface is covered by a variable porosity system that controls the entrance and exit of water, creating an inner flow that drives a low-head hydropower turbine installed inside. It can also be seen as an artificial reef, which contributes to shore protection by inducing storm-wave breaking [13].

Several studies have already been published using a small-scale (1.5:100) laboratory model of the REEFS WEC, for instance, ref. [14]. More recently, ref. [15] provides a comprehensive review of the REEFS development pathway, emphasizing both resolved and persisting challenges, while framing its current research development efforts. Presently, studies are being conducted at the University of Coimbra (UC) using two alternative (3:100) small-scale versions of the REEFS WEC. As the model size increases, bigger wave tanks and larger laboratory facilities are needed, leading to a considerable cost increase.

Currently, the REEFS technology is at a TRL of 4.

1.3. Using Ports as Testbeds for WECs

The most recent (3:100) small-scale versions of the REEFS WEC have dimensions still compatible with the available wave tank of the Laboratory of Hydraulics, Water Resources and Environment (LHWRE) of the UC which consists of a piston wave flume 36 m long, 1.2 m in height, and 1 m large [13]. Unfortunately, the size of the model has already reached the power limit of the piston wave-maker in terms of being able to generate a complete set of operational wave state conditions. The next step for REEFS WEC development is the construction of a (1:10) small-scale model, which turns out to be a problem due to the limitations of the LHWRE wave tank. A possible way to overcome this problem is to look for natural conditions in sheltered waters such as those created inside maritime harbors and ports. In such locations, waves are small enough to directly feed the REEFS (1:10) small-scale model without endangering the integrity of the device. However, control over the wave characteristics is no longer possible, requiring a completely different approach, as we shall describe herein.

Several dedicated test sites have been established worldwide to support the development of WECs. In [16,17,18], comprehensive lists and descriptions of these locations are provided. Complementing this global perspective, ref. [19] highlights the significant role of national strategies and test infrastructures in the Iberian and Macaronesian regions in advancing marine renewable energy technologies toward higher technology readiness levels.

In Portugal, progress has been mainly driven by offshore pilot zones. The Aguçadoura test site, deployed in 2001, has enabled the real-sea demonstration of several high-profile technologies—including AWS Waveswing, the Pelamis WEC, and the WindFloat 1 floating wind prototype—and currently hosts CorPower’s Hi-Wave5 project [19]. A second designated area near São Pedro de Moel, however, did not achieve operational relevance due to limited associated infrastructure. More recently, a new offshore zone off Viana do Castelo was established to benefit from stronger wave and wind climates and to streamline permitting and operational procedures for floating devices [19].

Spain follows a complementary approach, also centered on facilitating innovation through state-supported testing facilities. The Oceanic Platform of the Canary Islands (PLOCAN) has hosted several floating wind developments and WEC prototypes, while the Biscay Marine Energy Platform (BiMEP) has provided real-sea testing conditions for multiple technologies and is prepared to receive new demonstration campaigns. An offshore experimental zone near Punta Langosteira in Galicia has likewise been initiated to exploit strong maritime resources and existing industrial capabilities [19].

Despite this solid infrastructure base, ref. [19] notes that deployment challenges persist. In Portugal, early project setbacks and the removal of a wave energy feed-in tariff reduced political momentum, while Spain continues to lack dedicated investment-support mechanisms. Nonetheless, Spain’s Offshore Wind and Marine Energies Roadmap—featuring defined capacity targets for 2030—signals a renewed commitment to accelerating commercial progress in the marine renewable energy sector.

As presented in [20], maritime ports may be utilized to install oscillating-water-column (OWC) devices, overtopping devices (OTDs), and wave-activated bodies (WABs), as their designs align well with port breakwater structures. In [20], a comparative analysis of many of these WEC technologies is presented in various stages of development, with the aim of identifying the most suitable option for integration into the port of Valencia in Spain. Another notable study is presented in the “Sustainable Energy at Sea Ports” project (SE@Ports) [21], which explores the feasibility of integrating WECs into port infrastructures. The test sites of this project are located in the port of Leixões in Portugal and in the port of Las Palmas de Gran Canaria in Spain.

In all previously presented cases of WEC installations at test sites or ports, the devices correspond to full-scale prototypes deployed under real-sea wave conditions. However, none of these cases involves the use of ports as large seawater experimental laboratories where more advanced, yet still small-scale, models could be realistically tested. Such an approach would allow uncontrolled, yet more realistic, maritime wave propagation into sheltered environments, enabling small-scale simulations. The use of ports can broaden the opportunities for experimental development of WECs, increasing test sites’ availability and potentially reducing test costs. The elimination of a wave-maker potentially enables unlimited hours of tests for many different wave and depth conditions (the latter because of the tide influence). It is also an opportunity to test not only the hydraulic aspects but also deployment, survivability, and durability once the device is exposed to the real sea, which means random waves, salinity, sediments, biofouling, seafloor irregularity, sunlight, and local wind. In this sense, they can be a valuable resource for accelerating the development of new WECs, thereby contributing to the desired sustainable energy transition. However, their utilization requires careful planning and adequate procedures according to each type of WEC.

1.4. Scope of the Article

The main objective of this article is to present and discuss a methodology to analyze the potential of using maritime ports as testbeds for small-scale models of wave energy converters. The proposed methodology will be applied to the Port of Sines in Portugal, considering the submerged nearshore REEFS WEC model as a case study. The main aspects involved in the selection of the deployment zone and testing time window will be described and corresponding conclusions will be drawn.

2. Materials and Methods

In order to check the possibility of using ports as testbeds for WEC models, large amounts of data must be gathered and analyzed. Several aspects are involved such as ocean wave state characterization, ocean wave propagation into the port, computation of local wind effect on waves inside the port, port tide characterization, port bathymetry, port jurisdiction area, port reserved areas for navigation, mooring, docking, fisheries, and port seabed morphology and geology. Such analysis is complex, requiring considerable time and resources.

2.1. Methodology

The adoption of a methodological approach based on a structured sequential step-by-step process can be useful to reduce complexity and save time and resources.

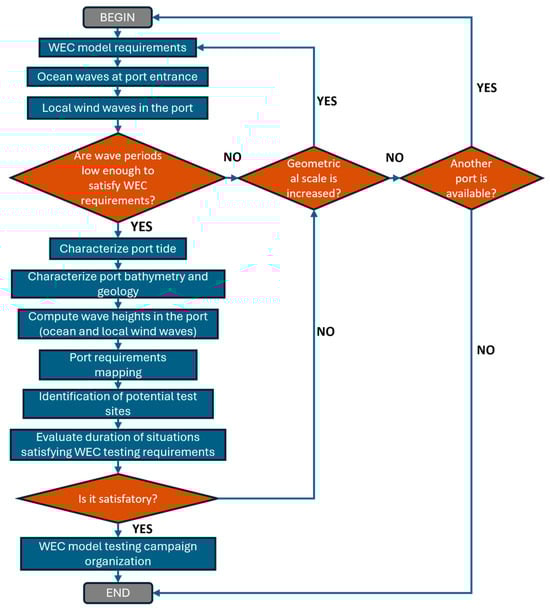

Figure 1 presents a flowchart of the methodology proposed by the authors to guide WEC model developers in the analysis of the possibility of using ports as testbeds. The details of this methodology are described in the text herein.

Figure 1. Methodology flowchart for analyzing the possibility of using ports as testbeds for WEC models.

2.1.1. WEC Model Requirements

The first step involves defining the wave requirements for WEC testing based on the geometric scale and similitude law. This includes computing the necessary wave heights, wave periods, wave directions, and water depths required for the WEC model testing. These parameters are critical to ensure that the model testing environment accurately represents the conditions the WEC will encounter in real-world applications.

2.1.2. Ocean Waves at Port Entrance

Since the use of ports as testbeds implies a lack of control over the wave generation process, the wave conditions at the port entrance must be analyzed. This involves a seasonal statistical examination of the wave state (wave height, period, and direction) aloof from the port entrance to determine when the required wave periods for WEC testing are available. The focus is on the incoming wave period, as port sheltering can reduce wave height but not wave period, except in localized cases where wave–structure interactions may cause substantial wave superposition, altering the period. The analysis should be conducted over months or weeks to identify the most suitable seasonal periods for testing activities.

2.1.3. Local Wind Waves Inside the Port

For WEC models that require small wave periods that may be lacking in the ocean waves at the port entrance, an analysis of local wind-generated waves is necessary. This involves a statistical evaluation of local wind patterns (direction, velocity, duration, and fetch) to estimate the distribution of small wave periods throughout the year. If incoming ocean waves or local wind waves can provide the required wave periods, the process proceeds to the next step.

2.1.4. Characterize Port Tide

The use of ports as testbeds also implies a lack of control over the mean water level. Therefore, tide characterization is essential for calculating the continuous variation in the sea water level in the port during the test campaigns. Tide charts are readily available from the port authority.

2.1.5. Characterize Port Bathymetry and Geology

The wave propagation within the port is influenced by water depth. Bathymetric charts are used to determine the water depth relative to a fixed datum. However, since sea level varies cyclically due to tides, the characterization of the port’s water depth must also rely on the port’s tide charts. The mapping of locations that meet the target values of depth and seabed slope, can be derived from the data gathered at this stage.

2.1.6. Compute Wave Heights in the Port (Ocean and Local Wind Waves)

Wave propagation simulations within the port require both bathymetry and tide characterization. A numerical model can be used to simulate the propagation of ocean waves from the port entrance to the interior and surrounding areas. This simulation provides a wave height map for the port. For local wind-generated waves, empirical models or modern software packages can be used to estimate wave heights based on water depth, wind direction, fetch, wind velocity, and duration. Wave height calculations should be performed for mean sea level, high tide, and low tide, if necessary. The resulting spatial distribution of the local wind wave heights will support the selection of suitable test sites.

2.1.7. Port Requirements Mapping

In addition to meeting the WEC wave requirements, potential test sites must also meet port requirements. These include locations within port jurisdiction and avoiding reserved areas for activities such as navigation, mooring, docking, and fisheries.

2.1.8. Identification of Potential Test Sites

The identification of potential sites for testing the WEC model begins with the preliminary delineation of promising zones. These zones are determined by overlaying the areas describing zones with adequate conditions. Subsequently, these zones undergo refinement through on-site inspections and meetings with port authorities. Following this stage, a detailed assessment of the specific characteristics of each site is performed, focusing primarily on wave behavior under various conditions. The objective is to identify locations that provide adequate shelter from extreme wave conditions while remaining sufficiently exposed to ensure enough wave energy resource. In addition, factors such as accessibility, seabed characteristics, available nearby technical infrastructure, and required deployment logistics are carefully analyzed.

2.1.9. Evaluate Duration of Situations Satisfying WEC Testing Requirements

Once a potential test site is identified, the total duration of testing periods with wave conditions that meet WEC requirements must be calculated. It should be underlined that the lack of control over the wave generation process, as well as over the depth (which is constantly varying due to the tide), is not necessarily inconvenient. In fact, they can broaden the WEC testing scenarios by creating other operating conditions that may be useful to better understand the response of the model under different operating conditions.

If the duration is sufficient, testing campaigns can be organized. If not, another geometrical model scale may be adopted and the process repeated. Still, if no adequate site is found, an alternative port should be selected and a new process initiated.

2.1.10. WEC Model Testing Campaign Organization

Once the location and testing period of the year are defined, final adaptations can be made to the device to ensure its suitability for the specific installation conditions. This stage involves refining technical-constructive aspects, optimizing equipment configuration, defining logistical procedures, and detailing test campaign planning.

2.2. Materials

To apply the proposed methodology, a large amount of data must be gathered. In general, most of the data is held by the port administration. Therefore, the first step involves establishing contact with the port administration to access their receptivity to using the port as a testbed for WEC devices. In case of novel WEC technologies, the port administration may be interested in following the development process to observe, in advance, the feasibility of future incorporation of such WECs in the port energy system.

Obtaining receptiveness from port administrations facilitates access to extensive port-related data. Data is vast and comprises blueprints of the present and future expansion projects of the port and associated facilities, nautical maps, bathymetry data, tide data, local wave buoy data, local wind data, and maps with the constraints associated with the port utilization.

In addition to port administration, several national and international geophysical, meteorological, geological, hydrological, and maritime institutions regularly publish data that can be used to complement port characterization.

In this article, the proposed methodology was applied to the Port of Sines to analyze the possibility of using it as a testbed for the REEFS WEC model. The different kinds of data sources involved will be exemplified in the case study presented in the next section.

3. Results and Discussion

The proposed methodology was applied to the Port of Sines to check its potential as a testbed for a (1:10) small-scale model of the REEFS WEC.

3.1. The Port of Sines

The Port of Sines is located in the city of Sines, in the southwestern region of Portugal and Europe, about 58 nautical miles south of Lisbon, at the convergence of major international maritime routes, both east–west and north–south. As a deep-water port, it leads the country in cargo throughput and serves as the main energy supply hub of Portugal, handling oil, petroleum products, and natural gas. Its strategic location, free of urban constraints, allows long-term expansion opportunities, supported by well-developed logistics infrastructure [22].

The port infrastructure is composed of multiple ports and terminals. In addition, it is supported by an industrial and logistics zone in its hinterland, spanning over 2000 hectares. At the port entrance, there is a wave buoy operated by the Hydrographic named “Sines” buoy. At the south-eastern border of the Port of Sines’ jurisdiction area, there is a decommissioned thermal power plant, followed by the São Torpes beach.

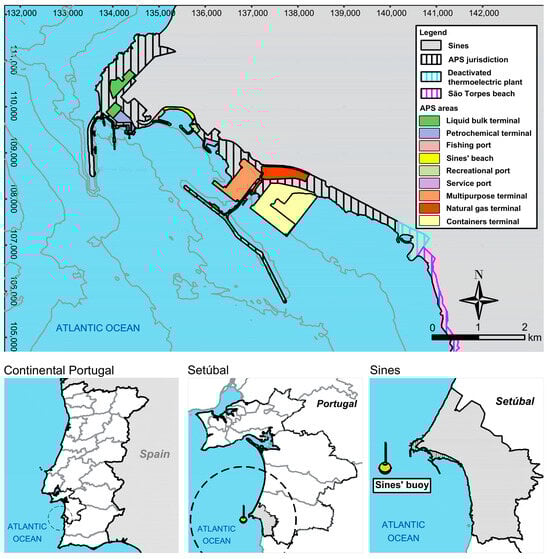

Figure 2 summarizes the information presented in this paragraph.

Figure 2. (Top) Port of Sines’ constitution; (Bottom-Left) Port of Sines’ location in Portugal; (Bottom-Middle) Port and Sines’ buoy location in Setúbal district; (Bottom-Right) Port and Sines’ buoy location in Sines municipality—Lisboa Hayford Gauss IgeoE coordinate system, Tranverse Mercator projection.

Scientific understanding of the wave climate off Sines has progressed over the past three decades, largely motivated by maritime infrastructure design and operational safety. The first major characterization, performed in 1993 [23], demonstrated that local agitation is strongly dominated by NW swells, representing more than 80% of occurrences, while waves from the W–SW remain critical due to their influence on port tranquility. Extreme value analyses identified design conditions reaching significant wave height ($H_S$) ≈ 12 m and peak wave period ($T_P$) ≈ 20 s, confirming the severity of the Atlantic forcing and the importance of coastal bathymetry in limiting breaking wave heights near the harbor.

Further expansion of observational evidence was provided in 1998 [24], based on nearly 20 years of buoy data. This work reinforced the predominance of WNW–NW swells and documented intense storm activity, with 57 severe events ($H_S$ > 5 m) between 1981 and 1998. The strongest recorded extremes reached $H_S$ ≈ 9.6 m and maximum wave height ($H_{MAX}$) ≈ 15 m, confirming the exposure of Sines to energetic Atlantic winter conditions, although mean sea states remain moderate most of the year.

The application of advanced nested numerical modeling in 2005 [25] enabled detailed reanalysis of storm evolution and coastal transformation processes during one of the most energetic Portuguese winters on record (2000–2001). Model–data comparisons showed excellent agreement, validating the reliability of WAM–SWAN systems in simulating wave dynamics approaching Sines even under severe forcing.

More recently, studies have linked wave climate characterization to coastal energy resource assessment. In 2018 [26], high-resolution simulations indicated strong spatial variability near Sines, with pronounced sheltering south of the port for NW waves, but increased exposure under westerly swells—suggesting that coastal morphology plays a key role in nearshore energy distribution. The most comprehensive hindcast to date, published in 2023 [27], confirmed these patterns over a 22-year period and highlighted consistent but moderate wave energy potential in the region, with energetic winters and considerably calmer summers.

Collectively, these studies demonstrate that the Sines coastline is exposed to a high-energy North Atlantic wave climate with marked seasonality and directional persistence. While structural sheltering mitigates nearshore agitation in specific sectors, the region’s offshore conditions remain severe enough to influence coastal engineering decisions and support future wave energy exploitation.

In light of these findings regarding the offshore wave climate and port conditions, the use of Sines as a real-sea validation platform emerges as a logical and strategic next step.

Initial consultations with the Ports of Sines and the Algarve Authority, SA (APS) confirmed their receptiveness to study the possibility of using the port as a testbed for WEC models. In this study, the novel REEFS WEC, first mentioned in [13], was considered.

In the next section, we will present the REEFS WEC model requirements which constitute the starting point of the proposed methodology.

3.2. WEC Model Requirements

The REEFS WEC was initially designed considering the typical wave characteristics of the western Portuguese coast near Figueira da Foz. A design wave period of approximately 8 s was assumed, with an operating range from 6 to 12 s and an extreme period of 17 s, propagating over a water depth of 15–20 m, with wave heights in a range between 0.75 m and 5.25 m [14]. These values were already considered in previous studies; therefore, they will be used as a reference in the present one. They can be converted using the geometric scale of ($e_L$ = 1 : 10) and a Froude similarity time scale of ($e_T=\sqrt{e_L}\cong 3.16 \times {10}^{-1}$), resulting in a period of approximately 2.5 s, with an operating range between 1.9 and 3.8 s and an extreme period of 5.4 s, water depth from 1.5 to 2 m, and wave heights between 7.5 and 52.5 cm (roughly, we will consider periods from 2 to 4 s and wave heights from 7 to 53 cm).

In the western Portuguese coast, the tide is typically semi-diurnal with an average amplitude of approximately 2 m. This means that for the small-scale model ($e_L$ = 1 : 10), a tide with a period of 3.8 h and an average amplitude of 0.2 m would be needed. In a controlled laboratory setup, it is possible to implement such a small tide. Therefore, if a water depth of 1.5 m is considered at low tide, the corresponding water depth at high tide would be 1.7 m. However, in a real maritime environment, such as the Port of Sines, it is not possible to change the natural tide. Therefore, if a water depth of 1.5 m is considered at low tide, the corresponding water depth at high tide will be 3.5 m. This important aspect must be considered ad initio when designing small-scale model testbed campaigns. A possible strategy will be to discard the experimental data collected for water depths greater than 1.7 m. Another approach is to assume that a much wider range of possible deployment water depths is being investigated. A third possible option is to attach the device to a tide-level-adjusting system.

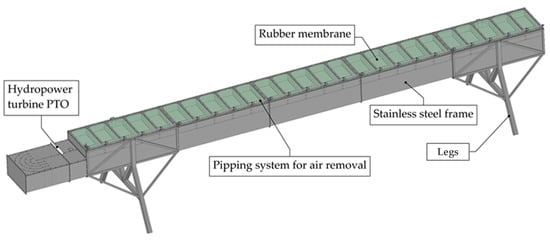

Figure 3 presents a perspective drawing of the metallic (1:10) small-scale model of the REEFS WEC.

Figure 3. Perspective view of the metallic (1:10) small-scale model of the REEFS WEC.

3.3. Ocean Waves at Port Entrance

Two wave buoys operated by the Hydrographic Institute are deployed near Sines: the “Oceanic Sines” buoy and the “Sines” buoy. The Oceanic Sines’ buoy is too far from the Port of Sines (approximately 81 km). Therefore, in this study, only Sines’ buoy data (Figure 2(Bottom-Left–Bottom-Right)) was considered [28].

The buoy is moored at coordinates 37°55.3′ N 8°55.7′ W, approximately 6.5 km aloof from the Port of Sines at a water depth of approximately 97 m.

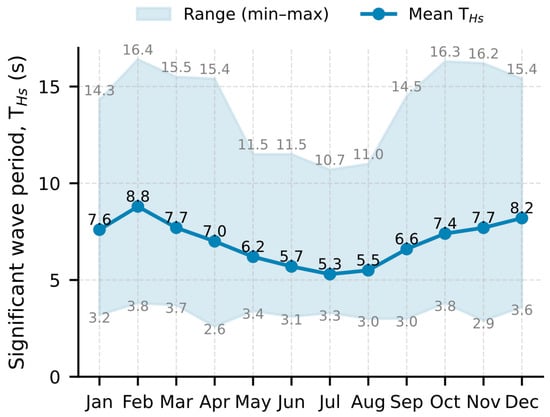

The initial analysis characterized wave period distributions (Figure 4) through monthly statistics (minimum, average, and maximum) of significant wave period ($T_{H_S}$), revealing shorter $T_{H_S}$ during the summer months (June–August). However, some extreme minimum values of $T_{H_S}$ occur outside the summer season as for April (2.6 s) and November (2.9 s).

Figure 4. Significant wave period, $T_{H_S}$ (minimum, average, and maximum values) at Sines’ buoy—Portugal.

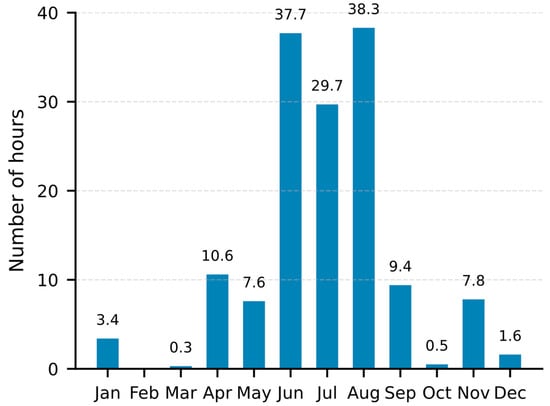

A key aspect is quantifying the monthly duration of wave states with periods within the WEC requirements (2–4 s). Figure 5 presents the monthly distribution derived from wave buoy data. The analysis reveals that the summer months (June–August) contain approximately 70% of annual occurrences.

Figure 5. Monthly number of hours of sea states with 2 s ≤ $T_{H_S}$ ≤ 4 s at Sines’ buoy—Portugal.

Once adequate wave period conditions are identified, the next parameter to be investigated is the corresponding $H_S$. Figure 6 presents the average, maximum, and minimum wave heights associated with the situations described in Figure 5.

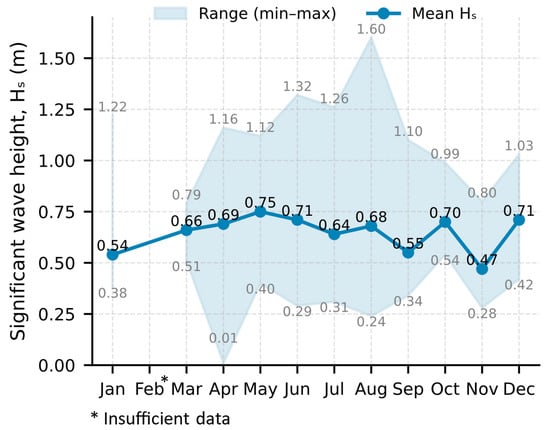

Figure 6. Significant wave height, $H_S$ (minimum, average and maximum) at Sines’ buoy for 2 s ≤ $T_{H_S}$ ≤ 4 s (2017–2022).

Directional analysis is also important because the REEFS model achieves optimal efficiency when waves propagate along its longitudinal axis. Figure 7 presents the wave direction distribution (average, maximum, and minimum) associated with the situations presented in Figure 6. The extreme directions were computed, discarding rare occurrences with relative frequencies lower than or equal to 2%.

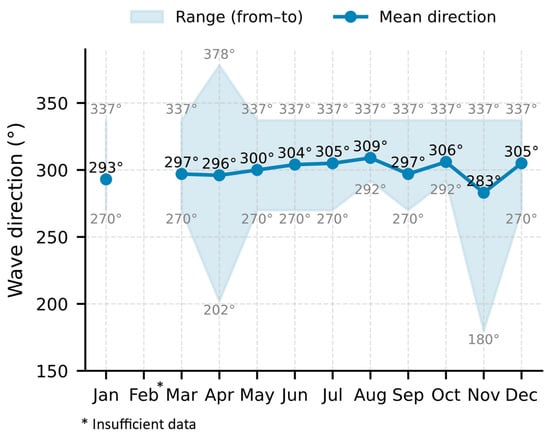

Figure 7. Significant wave direction (minimum, average, and maximum) at Sines’ buoy for 2 s ≤ $T_{H_S}$ ≤ 4 s (2017–2022).

Overall, the wave height and direction patterns observed in Figure 6 and Figure 7 are consistent with previously published characterizations of the Sines’ offshore wave climate. Prior studies based on long-term buoy data and numerical modeling [23,24,25,26,27] have shown that the region is persistently exposed to energetic North Atlantic swell from the WNW–NW quadrants, with more moderate but operationally relevant short-period waves occurring mainly during summer.

3.4. Local Wind Waves Inside the Port

Inside the Port of Sines, wind action over the surface of the sheltered waters may produce short-period waves with low height. These small waves may be very interesting to feed small-scale tests. Therefore, it is necessary to characterize the direction, duration, and speed of the wind inside the port. Next, local wind waves can be estimated by recurring to empirical models based on the fetch length of the water bodies inside the port.

Information for wind characterization was taken from the APS meteorological database, consisting of 10 min interval measurements from 1 January 2017 at 12:00 A.M to 23 September 2022 at 12:40 P.M on 23 September 2022 (missing data was only 2.6%). Data was analyzed quarterly according to the annual seasons.

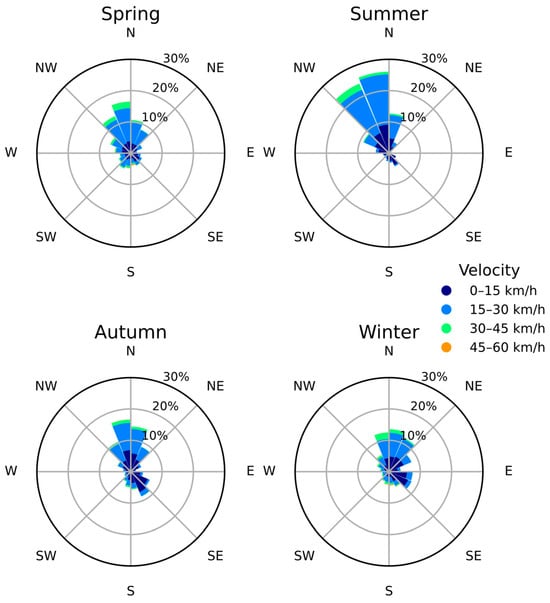

In Figure 8, wind characterization in Port of Sines is presented during spring, summer, autumn, and winter through wind roses.

Figure 8. Wind characterization in the Port of Sines computed from APS meteorological database (2017–2022).

When the wind blows at a constant speed ($U$), for a sufficiently long time, along a fetch length ($F$), the $H_S$ and the $T_{H_S}$ can be estimated using empirical models such as Basil Wrigley Wilson formulas [29], where $g$ is the acceleration of gravity:

• Significant Wave Height ($H_S$)

$${\displaystyle \frac{g{H}_s}{U^2}}=0.30\left\{1-{\left[1+0.004{\left({\displaystyle \frac{gF}{U^2}}\right)}^{1/2}\right]}^{-2}\right\}$$

(1)

• Significant Wave Period ($T_{H_S}$)

$${\displaystyle \frac{g{T}_{Hs}}{2\pi U}}=1.37\left\{1-{\left[1+0.008{\left({\displaystyle \frac{gF}{U^2}}\right)}^{1/3}\right]}^{-5}\right\}$$

(2)

These formulas show that only the upper wind speed class of 30–45 km/h can generate relevant waves, because the water bodies located inside the Port of Sines have a short fetch length (2–5 km).

During spring and summer, the highest speed class of 30–45 km/h presents a dominant NWN wind direction. If testbed zones are considered next to shore, average fetches of 1.9 km to 2.2 km can be estimated (e.g., zones A and B depicted in Figure 9). The corresponding local wind waves in zones A and B of Figure 9 are as follows:

-

(A) $H_S=0.25 \mathrm{m}$, $T_{H_S}=1.63 \mathrm{s}$ for $U=30 \mathrm{k}\mathrm{m}/\mathrm{h}$ and $H_S=0.39 \mathrm{m}$, $T_{H_S}=1.93 \mathrm{s}$ for $U=45 \mathrm{k}\mathrm{m}/\mathrm{h}$;

-

(B) $H_S=0.27 \mathrm{m}$, $T_{H_S}=1.70 \mathrm{s}$ for $U=30 \mathrm{k}\mathrm{m}/\mathrm{h}$ and $H_S=0.42 \mathrm{m}$, $T_{H_S}=2.01 \mathrm{s}$ for $U=45 \mathrm{k}\mathrm{m}/\mathrm{h}$.

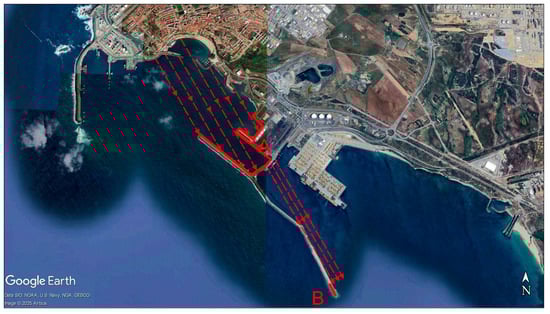

Figure 9. Illustration of fetch length for NWN wind direction and testbed zones A and B next to shore. Adapted from [30].

If testbed zones are considered far from shore, the fetch can reach up to 5 km. In that case, local wind waves vary from $H_S=0.39 \mathrm{m}$ and $T_{H_S}=2.13 \mathrm{s}$ for $U=30 \mathrm{k}\mathrm{m}/\mathrm{h}$ up to $H_S=0.61 \mathrm{m}$ and $T_{H_S}=2.55 \mathrm{s}$ for $U=45 \mathrm{k}\mathrm{m}/\mathrm{h}$.

During autumn and winter, the wind becomes less frequent and the wind direction associated with the most important speed class of 30–45 km/h rotates to N. For this direction, the testbed zones will have a short fetch length leading to irrelevant local wind waves.

Figure 9 illustrates the fetch length for the NWN wind direction and location of the testbed zones A and B.

3.5. Verify If Wave Periods Are Low Enough to Satisfy WEC Requirements

The analysis of the ocean waves at the entrance of the Port of Sines revealed that summer concentrates most of the occurrences of significant wave periods of $T_{H_S}\le 4 \mathrm{s}$.

The analysis of local winds showed that, during summer, the upper wind speed class of 30–45 km/h can produce significant wave periods of 1.6–2.6 s inside the Port of Sines.

Bearing in mind both contributions (ocean waves and local wind waves), it is possible to consider that wave periods are low enough to meet WEC requirements. Therefore, the process may proceed to the next steps presented herein.

3.6. Characterize Port Tide

The annual tide table forecast is provided by the APS website [31] at the beginning of each year. The tide level is relative to the ZH datum (the “Zero Hidrográfico” (ZH), which means hydrographic zero is the hydrographic chart datum of Portugal). The ZH is located below the water level of the Lowest Astronomical Tide (LAT) [32].

A monthly analysis of tide levels was performed, determining the average amplitude and extreme levels for each month (Table 1). All months exhibited similar patterns, with an average tidal amplitude of approximately 2.08 m.

Table 1. Tide average amplitude and extreme levels during the months of the year 2025 according to tide table forecast provided by the APS website [31].

Month	Average Amplitude (m)	Max (m Z.H)	Min (m Z.H)
January	2.0	+3.5	+0.4
February	2.0	+3.6	+0.3
March	2.2	+3.7	+0.2
April	2.1	+3.6	+0.3
May	2.1	+3.5	+0.4
June	2.1	+3.5	+0.5
July	2.0	+3.5	+0.6
August	2.1	+3.5	+0.5
September	2.1	+3.6	+0.3
October	2.1	+3.7	+0.3
November	2.1	+3.6	+0.3
December	2.0	+3.6	+0.4

3.7. Characterize Port Bathymetry and Geology

3.7.1. Bathymetry

The REEFS WEC is a fully submerged device that operates under the seabed. Therefore, a previous bathymetry analysis is of prior importance to identify adequate deployment conditions. The APS collaborated in this task, providing the Digital Elevation file in TIFF format dated from 2020, with the Projected Coordinate System ETRS 1989 Portugal TM06 and a resolution of 80 × 80 m covering a 226.58 km² area, englobing the Port of Sines and surrounding areas. Figure 10 presents the corresponding tridimensional view of the bathymetry produced with the mentioned digital elevation model (DEM).

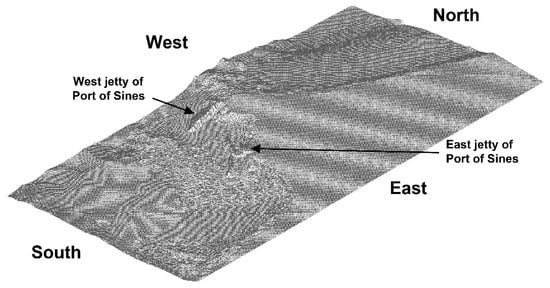

Figure 10. Digital elevation model of the Port of Sines (vertical scale increased by 15×).

Another way to analyze bathymetry is to compute the contour lines of the DEM and then highlight eligible depths and slopes. In previous studies the deployment depth of the REEFS prototype was considered between 15 and 20 m, as mentioned in Section 3.2. This means that for a (1:10) small-scale model, the deployment depths will be 1.5–2 m. These deployment depths must be ensured for the extreme low tide of +0.2 m (datum: ZH). In bathymetric charts (datum: MSL—mean sea level), these deployment depths correspond to –3.3 m (vide Figure 11) up to –3.8 m.

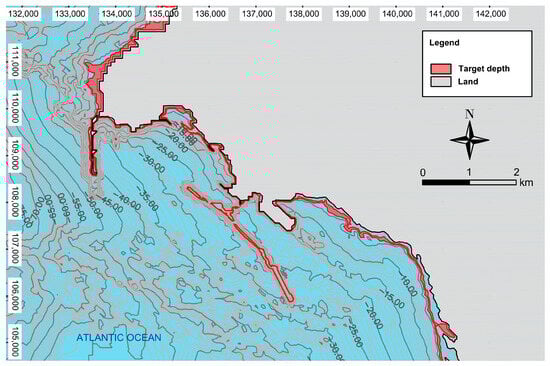

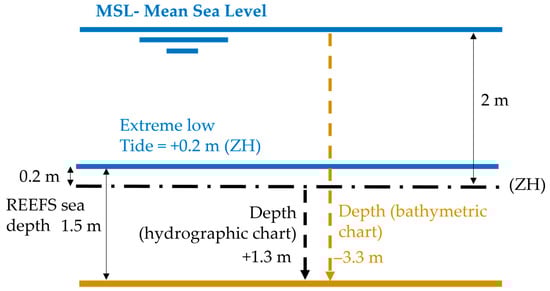

Figure 11. Depth of 1.5 m in extreme low tide (datum: ZH) and corresponding bathymetric depth of −3.3 m (datum: MSL).

Figure 12 presents eligible deployment zones with bathymetric depths ranging from −3 to −4 m (approximately the REEFS deployment depth range).

Figure 12. Eligible deployment zones with bathymetric depths varying from −3 to −4 m generated from the digital elevation model and from the bathymetry survey provided by APS. Lisboa Hayford Gauss IgeoE coordinate system, Tranverse Mercator projection.

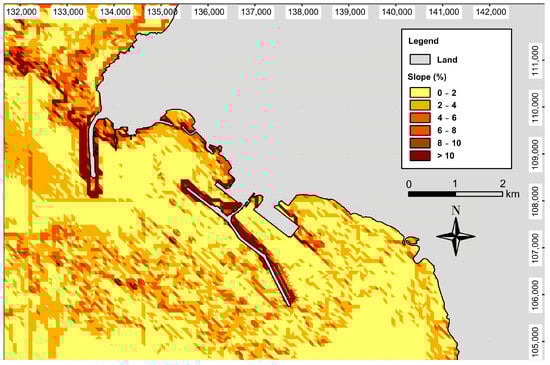

The seabed slope is also important, although flat seafloor is not mandatory because the adjustable legs of the model can adapt to the irregularity of the seabed by up to 6%. Figure 13 presents the slope characterization in the Port of Sines. We can perceive that steeper zones concentrate next to the jetties and docks, while flatter zones dominate in vast areas of the port bay as well as in stretches of the coastline with low man-made interventions.

Figure 13. Slope map of Port of Sines generated from the digital elevation model and on the bathymetry survey provided by APS. Lisboa Hayford Gauss IgeoE coordinate system, Tranverse Mercator projection.

3.7.2. Geology and Geomorphology

Geology and geomorphology data can be collected from previous studies on the evaluation of biophysical and socioeconomic impacts of the Port of Sines’ expansion [33], from which a seabed composition analysis was derived. The geology of the port is marked by deep-water conditions, extensive rocky outcrops, and a history of dredging. Sedimentary patterns vary spatially: the XXI Terminal exhibits thin, discontinuous sandy pockets overlying an irregular rocky substrate, while the General Cargo Terminal features fine silts. Near São Torpes beach, sediments transition from fine to coarse sand on the deeper marine platform. The adjacent continental shelf predominantly comprises sand (73%), with gravel (6%) and silt-clay mixtures (21%). Rocky outcrops dominate the coastal zone of São Torpes, promoting differential erosion and irregular bathymetry (≤10 m depth) near the shoreline.

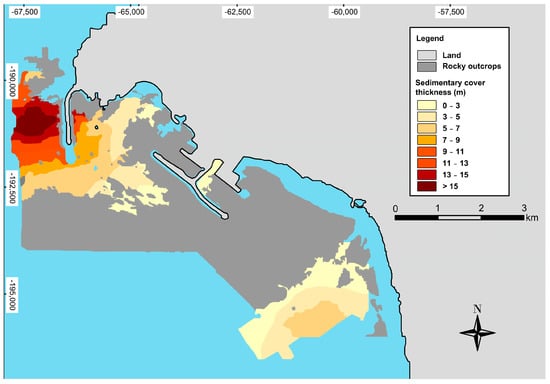

Figure 14 presents a map with the rocky outcrops and sedimentary layers in the Port of Sines.

Figure 14. Illustration of the rocky outcrops and sedimentary layers in Port of Sines adapted from [33]—Coordinate system: TM06-PT, Datum ETRS89.

3.8. Compute Wave Height in the Port (Ocean Waves and Local Wind Waves)

3.8.1. Local Wind Waves

Local wind waves have already been estimated in Section 3.4. Summer was identified as the most suitable season to concentrate small period waves from ${1.6 \mathrm{s} \le T}_{H_S}\le 2.6 \mathrm{s}$ generated by the upper wind class of 30–45 km/h. Depending on whether the location of the testbed is near the shore or far away in the port bay, the wave heights may vary from $H_S=0.25-0.42 \mathrm{m}$ to $H_S=0.39-0.61 \mathrm{m}$, respectively. The relative frequency of this wind class (vide Figure 9) corresponds to approximately 60 h each summer.

3.8.2. Ocean Waves

Ocean waves have been characterized at the entrance of the Port of Sines. However, to study possible testbed locations inside the port, it is necessary to propagate the ocean waves into the interior of the port. Following the wave characterization from Sines’ buoy, the propagation of the waves toward the interior of the port was modeled using the coastal hydrodynamic modeling software AQUAVEO SMS—Surface-water Modeling System v13.4 [34]. The simulations were conducted by the INEGI team—Institute of Science and Innovation in Mechanical and Industrial Engineering—based on scenarios provided by the DEC-FCTUC team—Department of Civil Engineering of the Faculty of Science and Technology of the University of Coimbra.

The wave propagation model integrates local bathymetry and user-defined wave parameters. To optimize computational effort, a limited number of scenarios were established considering two different objectives: energy-harnessing operating conditions and extreme waves conditions.

• Energy-harnessing operating conditions

The data from the Sines’ buoy (May–October) was filtered to extract significant wave periods between 2 and 4 s (targeting wave energy-harnessing operating conditions). Data was categorized into seven directional classes (from 202 to 359°) to cover the recorded wave states. The average $H_S$ and $T_{H_S}$ per class were calculated and associated with the corresponding central class direction (e.g., 349° for 338–359°). As presented in Figure 5, the total duration of such situations is approximately 100 h each summer. Figure 15 presents the corresponding distribution of wave directions.

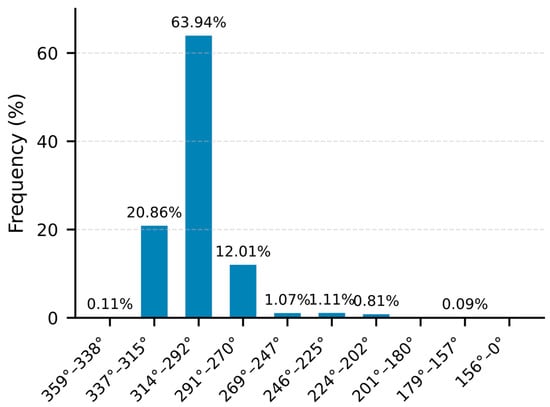

Figure 15. Wave directional distribution at Sines’ buoy for $2 \mathrm{s}\le T_{H_S}\le 4 \mathrm{s}$ from May to October (2017–2022).

• Extreme waves conditions

During simulations of energy-harnessing operating conditions (May–October), the WEC model will be exposed to real waves that cannot be controlled. These waves may endanger the physical integrity of the device. Therefore, it is also important to inspect the Sines’ buoy data to select $H_{MAX}$ and associated periods ($T_{H_{MAX}}$) for each directional class.

Table 2 summarizes the sea state scenarios, where numbers 1 to 7 present the extreme wave conditions and, from 8 to 14, the energy-harnessing conditions.

Table 2. Selected sea state conditions at Sines’ buoy for the (1:10) small-scale REEFS model.

Scenario—Characteristics at Buoy (37°55.3′ N, 8°55.7′ W)
Nº	Direction (°)	${\mathit{H}}_{\mathit{M}\mathit{A}\mathit{X}}$ (m)	${\mathit{T}}_{{\mathit{H}}_{\mathit{M}\mathit{A}\mathit{X}}}$ (s)
1	349	4.93	12.50
2	326	8.94	11.70
3	303	9.02	12.50
4	280	7.92	10.90
5	257	7.29	11.70
6	234	6.03	8.60
7	211	5.66	7.80
Nº	Direction (°)	${\mathit{H}}_{\mathit{S}}$ (m)	${\mathit{T}}_{{\mathit{H}}_{\mathit{S}}}$ (s)
8	349	0.98	4.00
9	326	0.75	3.80
10	303	0.68	3.83
11	280	0.49	3.76
12	257	0.50	3.77
13	234	0.50	3.79
14	211	0.46	3.79

Wave propagation maps in the Port of Sines were generated for all scenarios of Table 2. However, for clarity and brevity, only four were selected as illustrative cases. These comprise the scenarios 3 and 10, representing the most frequent wave direction of the fourth quadrant (e.g., 303° for 292–314°), presented in Figure 16A and Figure 17A, and the scenarios 5 and 12 of the most relevant wave direction of the third quadrant (e.g., 257° for 247–269°), presented in Figure 16B and Figure 17B.

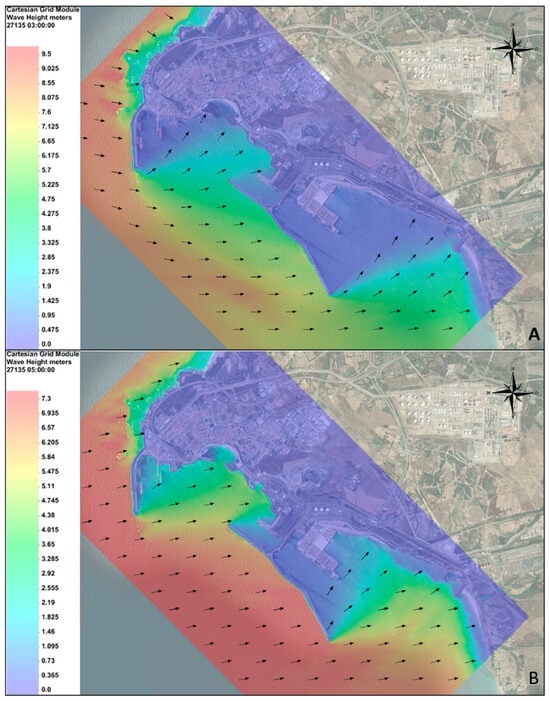

Figure 16. Numerical simulation of sea state conditions within the Port of Sines. Wave directions are represented by vectors, while significant wave heights are shown using a chromatographic color scale. Results are presented for (A) Scenario 3 and (B) Scenario 5 (see Table 2).

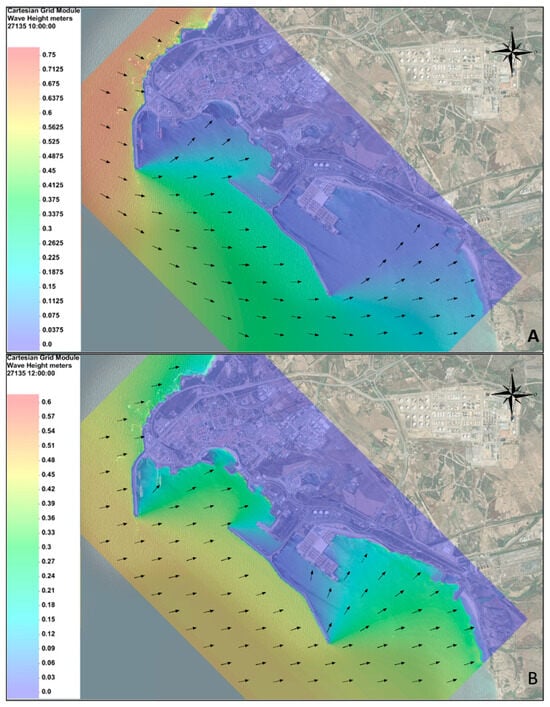

Figure 17. Numerical simulation of sea state conditions within the Port of Sines. Wave directions are represented by vectors, while significant wave heights are shown using a chromatographic color scale. Results are presented for (A) Scenario 10 and (B) Scenario 12 (see Table 2).

The northern sector shows limited attenuation of short-period waves (T < 4 s), suggesting favorable conditions for wave energy extraction. It remains highly exposed during extreme events despite reductions of approximately 50% in significant wave height.

The area between the west and east jetties (see Figure 10) shows moderate exposure to storms and moderate wave energy production potential for northwesterly waves, whereas the zone near São Torpes Beach (see Figure 2(Top)) experiences lower $H_S$ and greater sheltering, with wave heights approaching minimum operational thresholds.

When waves approach from the third quadrant direction (between South and West directions), overall port vulnerability increases and exposure levels among potential test zones become more uniform.

3.9. Port Requirements Mapping

Eligible areas for WEC model testing must fulfill port requirements such as jurisdictional boundaries, reserved zones for navigation, mooring, docking, fisheries, and compatibility with existing or planned infrastructures. To support this study, the APS provided three planning documents: Functional Plan of the Port, Future Expansion Plan and Plan of Exploration, and Environmental and Safety Regulations.

• Navigation constraints

Navigation channels, maneuver bays, approach routes, and access corridors for merchant and fishing vessels were delineated using the Plan of Exploration, Environmental and Safety Regulations to ensure that the deployment of the WEC avoids conflicts with maritime traffic.

• Fishing constraints

The Functional Plan of the Port identifies a fishing port and aquaculture zone within the port jurisdiction area. Although recreational and fishing vessel access routes were not explicitly mapped, they were inferred and incorporated into the global constraints map (Figure 18). Industrial fishing is assigned to aquaculture farms that were considered ineligible for the deployment of the WEC model.

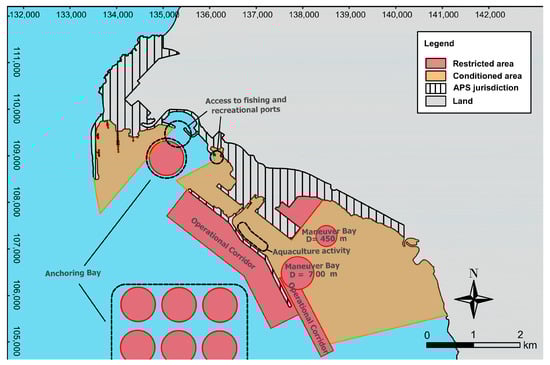

Figure 18. Global constraints map (navigation, fishing, port infrastructure and expansion plan) of the Port of Sines, based on APS mapping data and [30]. Lisboa Hayford Gauss IgeoE coordinate system, Tranverse Mercator projection.

• Port infrastructure

Inconvenience resulting from proximity to existing infrastructure (e.g., terminals, docks) was evaluated using the Functional Plan of the Port and the Plan of Exploration, Environmental and Safety Regulations. The Future Expansion Plan further clarified possible expansions of the infrastructure, ensuring that the deployment of the WEC model avoids conflicts with future developments.

All maps were standardized to a common coordinate system and scale. The restricted zones of each document were digitized, overlaid, and aggregated to generate a global constraints map, as shown in Figure 18.

3.10. Identification of Potential Test Sites

The identification of potential test sites was initiated by spatial overlaying data and constraints. Concerning geology, no limitations were found because the REEFS model can accommodate both types of seabed constitution: rocky or sandy. However, the target depth (vide Figure 13), combined with the constraint of a maximum admissible seabed slope of 6%, limited the potential test sites to elongated zones close to shore and infrastructures. In these elongated zones, the port requirements were overlaid to identify admissible zones.

The Future Expansion Plan was also used to evaluate the present and future availability of possible test sites. After some complementary analysis, based on aerial photographs and field visits, three deployment spots were finally established, as shown in Figure 19: Zone 1—deactivated pontoon in the southern extremity of the West Jetty; Zone 2—vicinity of the Multipurpose Terminal; and Zone 3—near the northern jetty of the decommissioned Thermoelectric Power Plant adjacent to São Torpes beach.

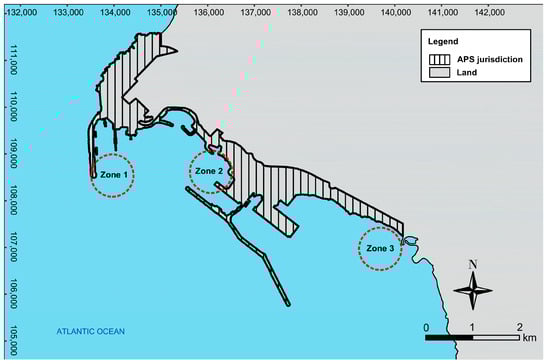

Figure 19. Possible Test Sites adapted from APS mapping data. Lisboa Hayford Gauss IgeoE coordinate system, Tranverse Mercator projection.

Zone 1 is adjacent to the West Jetty at the port entrance and exhibits a steep bathymetric gradient. However, it was chosen because detailed analysis revealed that a deactivated pontoon was available to attach the REEFS model.

Regarding the port expansion plan, Zone 3 is fully available until the end of 2025. Zone 2 is fully available until June 2026. For Zone 1, the start date for the West Jetty extension is still unknown. Figure 20 exhibits photographs of Zones 1, 2, and 3, schematically delimitated in Figure 19. A systematic evaluation of wave characteristics was conducted in Zones 1, 2, and 3.

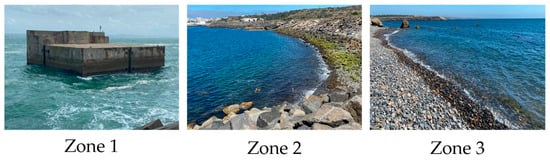

Figure 20. Possible Test Sites: Zone 1—deactivated pontoon in West Jetty extremity; Zone 2—vicinity of the Multipurpose Terminal; Zone 3—near jetty of decommissioned Thermoelectric Power Plant of São Torpes beach.

• Local wind waves

Regarding local wind waves inside the port, Zones 1 and 3 have an insignificant fetch length for the dominant wind direction of NWN. Therefore, no significant wind waves are expected to occur in these areas. Zone 2 is close to Zone A depicted in Figure 9, where there will be some local wind waves with $H_S=0.25-0.39 \mathrm{m}$ and $T_{H_S}=1.63-1.93 \mathrm{s}$, as calculated in Section 3.4.

• Ocean waves

The wave characteristics in Zones 1, 2, and 3 were obtained by inspecting the wave propagation maps for the 14 scenarios presented in Table 2. A comparative assessment is presented in Table 3.

Table 3. Wave characteristics in Zones 1, 2, and 3, for the 14 scenarios presented in paragraph 8.4.

Sines Buoy				Zone 1		Zone 2		Zone 3
Nº	Direc. (°)	${\mathit{H}}_{\mathit{M}\mathit{A}\mathit{X}}$ (m)	${\mathit{T}}_{{\mathit{H}}_{\mathit{M}\mathit{A}\mathit{X}}}$ (s)	Direc. (°)	${\mathit{H}}_{\mathit{M}\mathit{A}\mathit{X}}$ (m)	Direc. (°)	${\mathit{H}}_{\mathit{M}\mathit{A}\mathit{X}}$ (m)	Direc. (°)	${\mathit{H}}_{\mathit{M}\mathit{A}\mathit{X}}$ (m)
1	349	4.93	12.5	282	1.5	282	1.1	238	0.75
2	326	8.94	11.7	245	0.9	263	2.7	245	2.30
3	303	9.02	12.5	213	0.9	245	3.0	227	2.62
4	280	7.92	10.9	190	0.9	225	3.5	204	2.60
5	257	7.29	11.7	235	4.5	257	4.4	257	3.65
6	234	6.03	8.6	219	4.7	234	3.15	234	3.47
7	211	5.66	7.8	189	4.4	211	2.98	202	2.90
Nº	Direc. (°)	${\mathit{H}}_{\mathit{S}}$ (m)	${\mathit{T}}_{{\mathit{H}}_{\mathit{S}}}$ (s)	Direc. (°)	${\mathit{H}}_{\mathit{S}}$ (m)	Direc. (°)	${\mathit{H}}_{\mathit{S}}$ (m)	Direc. (°)	${\mathit{H}}_{\mathit{S}}$ (m)
8	349	0.98	3.8	291	0.3	291	0.1	268	0.0
9	326	0.75	3.8	268	0.22	268	0.12	259	0.02
10	303	0.68	3.83	240	0.23	245	0.11	236	0.00
11	280	0.55	3.8	217	0.18	231	0.12	213	0.00
12	257	0.39	3.76	257	0.39	257	0.27	240	0.36
13	234	0.5	3.77	234	0.30	234	0.16	234	0.16
14	211	0.46	3.79	193	0.46	211	0.27	189	0.36

Among the sites evaluated, Zone 1 (Deactivated West Jetty Pontoon) demonstrated the best potential for wave energy-harnessing simulation, exhibiting good values of HS is several directions, ranging from $H_S=0.18-0.46 \mathrm{m}$. On the other hand, it is the most exposed zone to extreme waves that can reach $H_{MAX}=4.70 \mathrm{m}$.

In contrast, Zone 3 (Decommissioned Thermoelectric Power Plant) exhibits null values of $H_S$ in all forth quadrant wave directions. Only the third quadrant wave directions present interesting values that range from $H_S=0.16-0.36 \mathrm{m}$. However, it is the least exposed to extreme waves that do not exceed $H_{MAX}=3.65 \mathrm{m}$.

Zone 2 (Vicinity of Multipurpose Terminal) exhibited low values of $H_S$ in forth quadrant directions and moderate ones in the third quadrant direction. Globally, $H_S$ ranges from $H_S=0.10-0.27 \mathrm{m}$. Exposure to extreme wave conditions is a bit inferior to Zone 1, not exceeding $H_{MAX}=4.40 \mathrm{m}$.

Zone 1 emerges as the most favorable location for wave energy-harnessing simulations. However, Zones 2 and 3 have lower depths, making them more adequate to simulate the short wavelength required by the model. Zone 2 is next to the Multipurpose Terminal, which is very favorable from a logistic point of view, facilitating deployment, observation, and access for maintenance or repair. The depth is adequate, but the natural seabed slope was altered by port construction works. Despite presenting the lowest potential in terms of energy-harnessing operating conditions, Zone 3 stands out as the most realistic location because the seabed presents a mild slope that mimics the real seabed slope of coastal zones where the REEFS WEC is intended to be installed. However, it is the most unfavorable location from a logistic point of view because there is no infrastructural support available.

To rank the candidate zones and identify the most suitable location, Table 4 presents a scoring framework based on five equally weighted criteria: potential for energy harnessing, shelter from extreme waves, site depth, seabed slope and composition, and site accessibility. Each criterion was assigned a score from 1 to 3, where 1 represents a favorable assessment, 2 a moderate assessment, and 3 an unfavorable assessment. The final ranking for each zone was obtained by summing the scores across all criteria, with lower total scores indicating better overall suitability.

Table 4. Multi-criteria ranking of candidate deployment zones (1 = favorable; 2 = moderate; 3 = unfavorable).

Deployment Zone	Potential for Energy Harnessing	Shelter from Extreme Waves	Site Depth	Seabed Slope and Composition	Site Accessibility	Total
Zone 1	1	3	3	3	1	11
Zone 2	2	2	1	2	1	8
Zone 3	3	1	1	1	3	9

Zone 2 achieves the lowest total score, indicating the most favorable overall conditions among the three candidate sites.

3.11. Evaluate Duration of Situations Satisfying WEC Testing Requirements

The analysis presented in Section 3.4 and Section 3.8 showed that local wind waves can meet significant wave height requirements but with wave periods slightly inferior to the minimum REEFS model requirements. They correspond to approximately 60 h each summer.

Regarding small ocean waves, previous analysis showed that they can meet REEFS model’s significant wave height and period requirements for approximately 100 h each summer, except for Zone 3 where significant wave height is too small in case of fourth quadrant wave directions.

Despite being small (100 h in 3 months), the duration of situations satisfying WEC testing requirements can be considered acceptable, bearing in mind the concept proof purpose of the tests. Effectively, it would correspond to an appreciable investment of about 3 weeks of tests in a large laboratory facility.

3.12. WEC Model Testing Campaign Organization

Summer was identified as the most suitable season to conduct the tests of the small-scale REEFS model. In terms of location, three potential zones were identified. Before proceeding with the installation of the REEFS model, site visits are required in each of these three zones to gather additional information. Measurements of local sea state conditions and observations of seabed constitution and configuration, using submarine video cameras, should be made to complement the previous estimates. Local depth surveys must also be conducted to validate the bathymetric analysis based on digital models of the seabed. Depending on site-specific characteristics, adaptations can be made to improve device installation. This stage involves refining technical-constructive aspects and equipment configuration, establishing logistical procedures, and detailing planning scheduling.

4. Conclusions

A methodology for analyzing the potential of using ports as testbeds for wave energy was presented and discussed. The proposed methodology was applied to the Port of Sines using a (1:10) small-scale model of the REEFS WEC and its implementation was found to be feasible. The results indicated that the Port of Sines can serve as a testbed for this technology. Among three possible locations, Zone 2 in the vicinity of the multipurpose terminal emerged as the most favorable. However, the total number of hours with suitable energy-harnessing conditions was found to be low (100 h in 3 months), because the short waves required by the small-scale model are relatively rare. Following the proposed methodology, this limitation could be mitigated by increasing the geometrical scale of the model, allowing operation under longer wave periods, which occur more frequently.

The application of the methodology revealed that a key limitation of using ports as testbeds is the lack of control over the environmental conditions to which the model would be exposed. Despite extensive statistical analyses of environmental parameters, such as sea state and wind, these remain probabilistic forecasts and it cannot be ensured that all the projected conditions will occur during the test campaign scenarios, particularly when very small-scale models are used. Local wind waves in the Port of Sines were found to be short, with the upper wind class generating significant wave periods ($T_{H_S}$) ranging from 1.6 to 2.6 s, contributing only to the lower bound of the 1:10 small-scale testing scenarios. Overall, the proposed methodology proved to be effective, guiding site assessment and providing results upon the use of ports as testbeds for small-scale WECs.

5. Patents

The REEFS—Renewable Electric Energy From Sea—was the subject of a patent application that was subsequently granted in 2019 (Invention patent EP3078844—Artificial coastal protection reef with energy generation unit with or without direct contact with seawater).
