1. Introduction
The COVID-19 pandemic has caused more disruption in the energy sector than any other event in recent history. Before the COVID-19 crisis, the increase in energy demand between 2019 and 2030 was estimated at 12%. Currently, it is quantified as between 4% and 9%. Renewable energies play a fundamental role in meeting the increasing energy demand, since they can satisfy 80% of this increase in global energy demand until 2030. Solar energy is the main engine for growth, setting new highs for installed capacity every year after 2022 [
1]. In the last year, solar energy has increased installed power worldwide by almost 20% [
2].
Large-scale electricity generation using solar energy is currently feasible through two perfectly differentiated technologies: photovoltaic (PV) solar technology and concentrated solar power (CSP) technology. PV technology consists in the direct conversion of sunlight into electrical energy by means of photovoltaic cells. On the other hand, CSP technology is based on the indirect conversion of sunlight by means of steam turbines [
3].
Both technologies are nowadays in times of competitiveness and complementarity. PV technology presents learning curves with large slopes and a modular and simple nature that favors the rapid start-up of plants. Currently, PV technology is a mature technology, with competitive production costs [
4]. PV systems hardly present moving parts and generate electrical energy directly from solar radiation, which simplifies the process. Their power generation is sensitive to radiation disturbances. These systems present a fast response time, sometimes generating inconveniences from the point of view of the stability of the grid. On the other hand, their costs are significantly lower than those of CSP. Their main disadvantage is their inability to store large amounts of energy efficiently at a competitive cost [
5].
CSP systems’ complexity is generally higher. They broadly consist in a concentrator, a receiver, a power block and a thermal energy storage (TES) system, which has a significant impact on the higher cost of the electricity production in these plants. CSP plants make use of synchronous generators identical to those used in conventional power plants, reducing the impact of the cloud transients on the stability of the grid. However, CSP systems exploit the direct component of the solar radiation, which presents steeper ramps due to the cloud transients than the global radiation exploited by PV systems [
6].
In any case, the great advantage of CSP systems consists in their availability to store the thermal energy obtained from the concentration of direct solar radiation into a thermal fluid in the solar field. The thermal energy storage (TES) system, generally compounded by molten salts [
7], allows large amounts of energy to be stored, increasing the dispatchability of the system and favoring the decoupling of electrical energy generation [
8]. CSP has recently reached production costs higher than PV and is less competitive [
4].
Both PV and CSP systems are complementary: on one hand, high-quality energy production at low cost, and on the other hand, the capability of decoupling power production from the solar resource availability. Maximizing their synergies would be an interesting alternative to the global electricity system and would promote sustainable development [
9]. The literature includes different hybridization alternatives, although we can classify hybrid systems into two groups, compact and non-compact systems [
10]:
Non-compact hybrid systems consist in the hybridization of a PV plant and a CSP plant that can operate independently. The hybridization is conducted by the control system by means of the electric power dispatch selection. We can find two configurations in this hybridization technology: PV-CSP and concentrated PV-CSP (CPV-CSP).
In compact hybrid systems, the integration is carried out by a single system in which photons with enough energy to overcome the band gap of a PV semiconductor material are used by the PV system for the direct conversion of solar energy into electricity. Photons that do not have enough energy to exceed the band gap are converted into heat, taking advantage of this thermal energy for the subsequent production of electricity through a Rankine cycle. There are three subsystems in this technology: PV topping, spectral beam splitting (SBS) and combined PV topping and SBS.
Hybrid PV-CSP projects are an attractive solution for the main companies in the sector, who value the increase in the capacity factor (CF) and the reduction in the levelized cost of energy (LCOE) [
11,
12,
13] of the combined systems. There are several commercial PV-CSP projects in operation or under construction; all of them present non-compact configurations.
Table 1 presents the most relevant commercial hybrid PV-CSP projects.
The development of hybrid system simulation tools is crucial for a deeper knowledge of the performance of hybrid CSP + PV systems. At the moment, the common practice is to use in-house simple built algorithms to run hybrid plant simulations [
20] or to combine outputs of independent solar plant simulations from well-known simulation tools [
21,
22,
23]. However, there is a rising interest in the availability of open and flexible tools for the simulation of hybrid solar plant performance, in which the operation strategies and modes are crucial. In recent approaches, the implemented operation strategies and modes in the simulation tools were developed focusing on several aims. Platzer et al. [
24] simulated a CPV-CSP plant to check the cost reduction of the heliostat field, with an operation strategy based on PV production during the day and TES during the night. Cocco et al. [
25] studied the improvement of the manageability of hybrid solar plants. The aim was to soften the effects of the variability and intermittency of the solar energy production. Two different control strategies were considered: one focusing on a full integration in which the CPV and CSP plants operate in a complementary way, keeping the output power fixed and maximizing the duration of the application of the power, and the other focusing on a partial integration where the CPV and CSP operate independently, keeping the total output power of the system fixed. The result of the study showed that the fully integrated strategy maximizes the hybrid plant total production time while the partially integrated strategy maximizes each plant’s production separately. The fully integrated strategy reaches higher production performances and a higher number of operation hours. Zurita et al. [
26,
27] studied a hybrid plant with a TES system and a battery energy storage system (BESS) to store the electrical energy produced in the PV field. The results show the necessity of a cost reduction of the BESS in order to achieve a competitive technology. In another approach, they also implemented two different operation modes in a plant with TES and BESS [
28]. The first operation mode controls the CSP plant as a back-up of the PV plant and activates the BESS only when the TES needs to be supplemented. The second operation mode operates the BESS as the first back-up of the PV plant, activating the CSP plant only when the BESS reaches its minimum operational capacity.
In the present study, we elaborate the operation modes of integrated hybrid non-compact PV + CSP systems focusing on two operation strategies: maximum capacity factor and real-time demand coverage, where the CSP field consists in a parabolic trough (PT) field [
29]. The approach we present can be used for the development of other operation strategies for near-future hybrid solar plant configurations. We differentiate three subsystems: a PT solar field, a PV solar field, and a TES in which the thermal and electrical energy produced from the solar fields will be integrated. The common TES of PT plants is thought to be retrofitted in order to be able to also absorb the electrical energy produced from the PV field. There is an active investigation on this matter [
30,
31].
This research presents, for the first time, a step-by-step procedure for the determination of the energy flows within the subsystems of hybrid integrated CSP + PV systems. We propose a systematic method to determine operation modes and their transitions depending on the operation strategy, scalable to other hybrid solar plant configurations. This paper is the first step of a greater endeavor in which we intend to optimize the relative sizes of the subsystems constituting a hybrid integrated non-compact PT + PV system, assuming the boundary conditions established by the CSP plants in operation in Andalusia, in the south of Spain. We first create the brain of a simulation tool for the decision making in terms of the energy flows within the solar plant to develop an open-source simulation tool, which at least will be used to facilitate evaluation of a possible retrofitting of the CSP plants in operation in Andalusia by means of the integration of a PV system [
32]. There are 50 CSP plants in Spain, most of them located in Andalusia [
33]. Retrofitting of CSP plants is highly attractive in Spain due to the common plant configurations where the options for improvement are remarkable.
The paper is organized as follows:

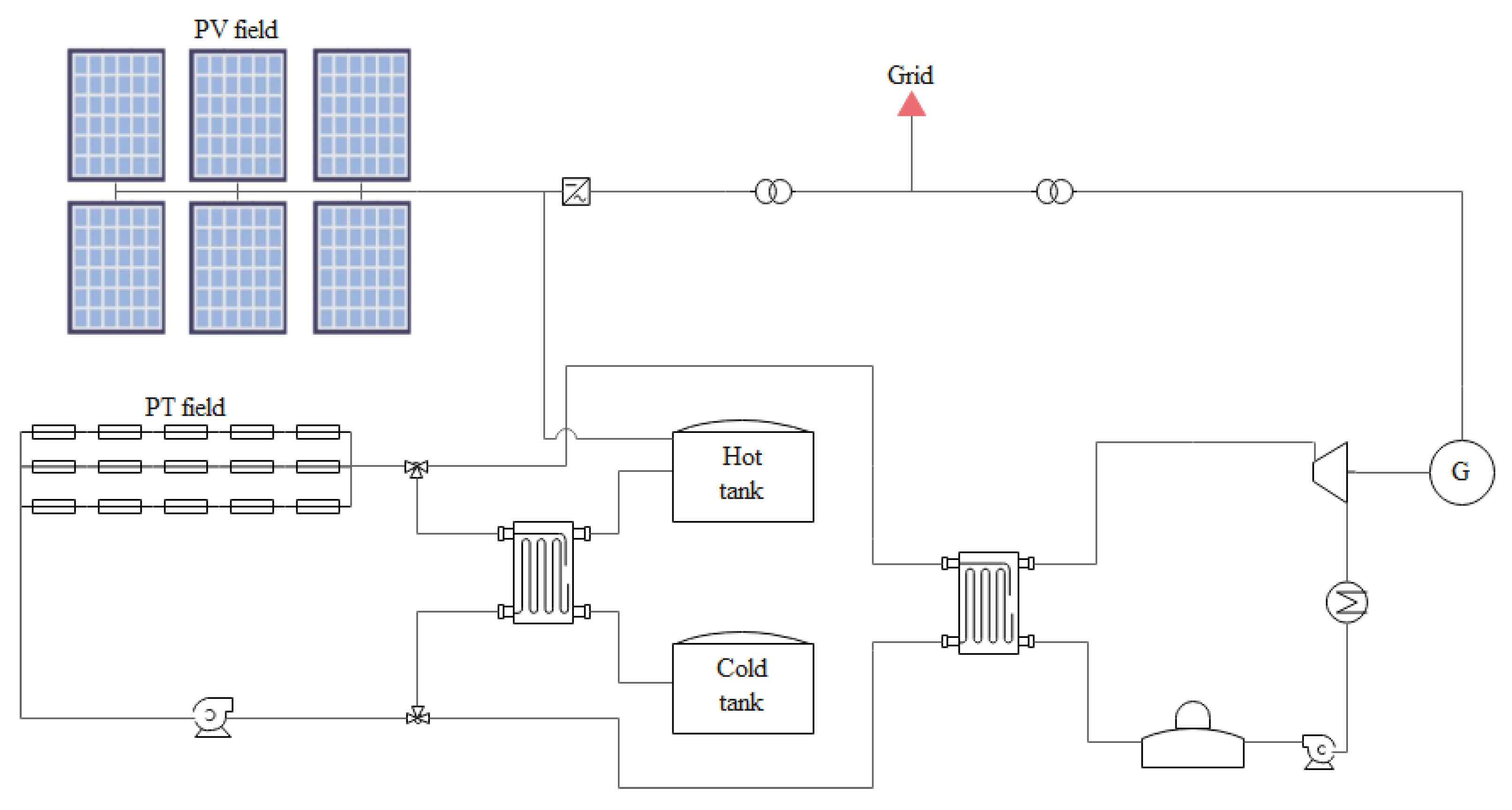

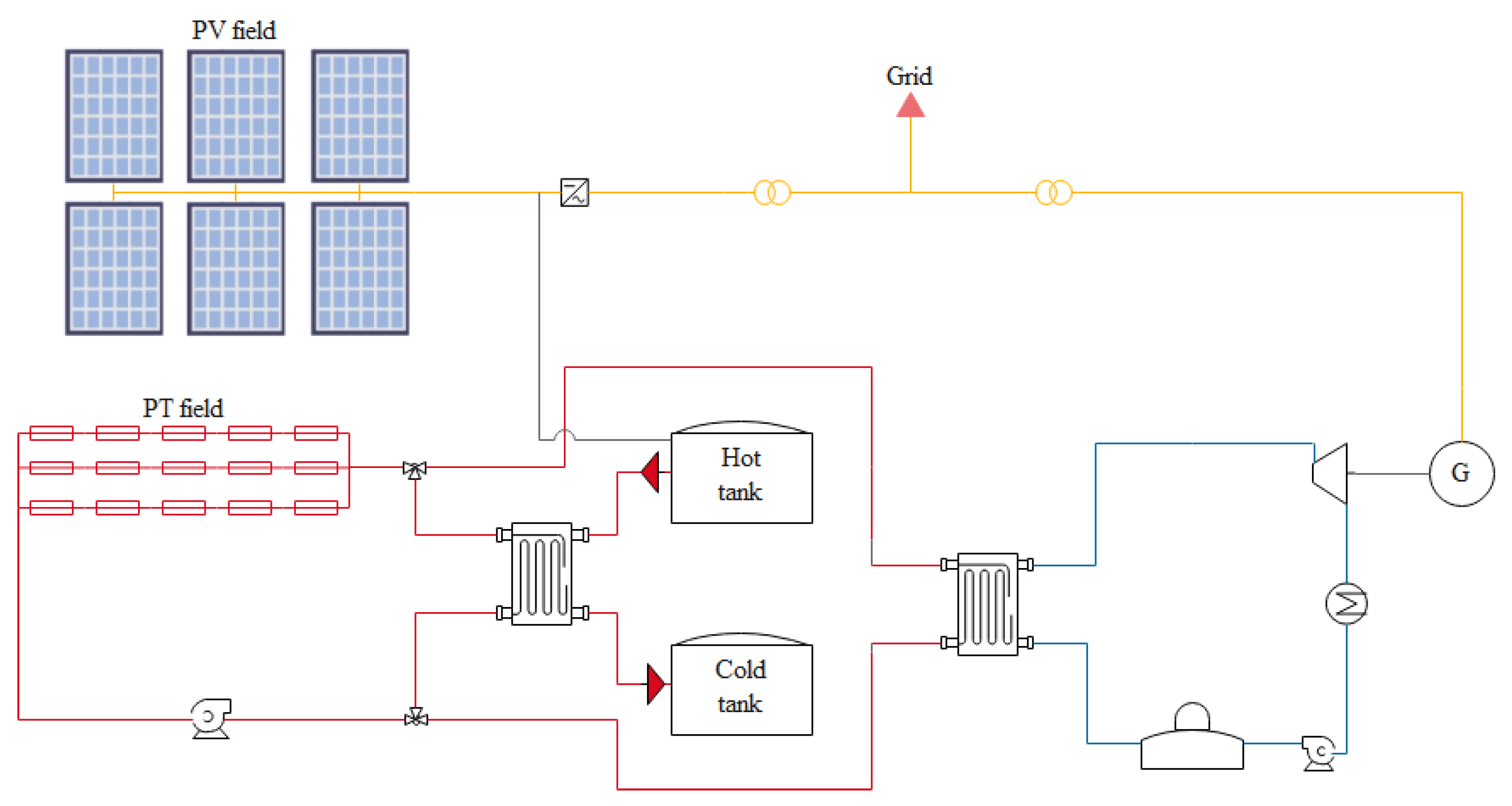

Section 2 presents the solar system under analysis, defining the subsystems and their possible states.
Section 3 presents the proposed operation modes. Finally, in
Section 4, we propose two operation strategies by defining the transitions between the operation modes.
4. Hybrid Solar Plant Strategies
We can find two different categories within renewable power generators: dispatchable and variable [
35].
Dispatchable power generator works like the traditional baseload power plants (such as coal or nuclear), and they can provide baseload power if needed, while variable power generators are not controllable due their high dependency on the resource. CSP with TES is a dispatchable power generator, and PV is a variable power generator [
35,
36].
Hybrid solar PV-CSP systems produce stable and distributable electricity from the solar resource, taking solar plants to the next level, matching with conventional fossil fuel-based power plants by combining the advantages of the two different technologies.
In this work, we present the operation modes that allow the carrying out of the transition between CSP and PV conventional plants towards hybrid solar plants able to procure a demand coverage or to work as a base load.
Following [
37], we can differentiate between three categories of operation strategies:
Level 1 comprises commonly used, simple and easy operation strategies that can be defined by a small number of parameters with no dependences on the plant status.
Level 2 involves more complex decision-making logics that require a detailed knowledge of the plant status.
Level 3 includes complex strategies that require optimization processes within a simulation and most of the time include the dependency on weather and electricity price forecasts.
In this paper, we propose two Level 2 operation strategies. The status of the plant and external information such as time-dependent demand shall be required. The conditions for the transition between the operation modes would be pre-defined prior to simulations when implementing this operation strategy in a simulation tool.
4.1. Base Load Production
In this operation strategy, the hybrid plant operates trying to maintain a constant pre-defined nominal output power (base load). We prioritize the use of PV during the sun hours. Meanwhile the CSP supports the PV during the day and stores the surpluses into the TES to extend the production to night hours. The TES, which includes an electrical resistance, receives the energy surpluses of the PV.
In

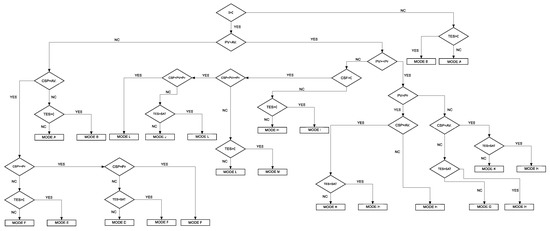

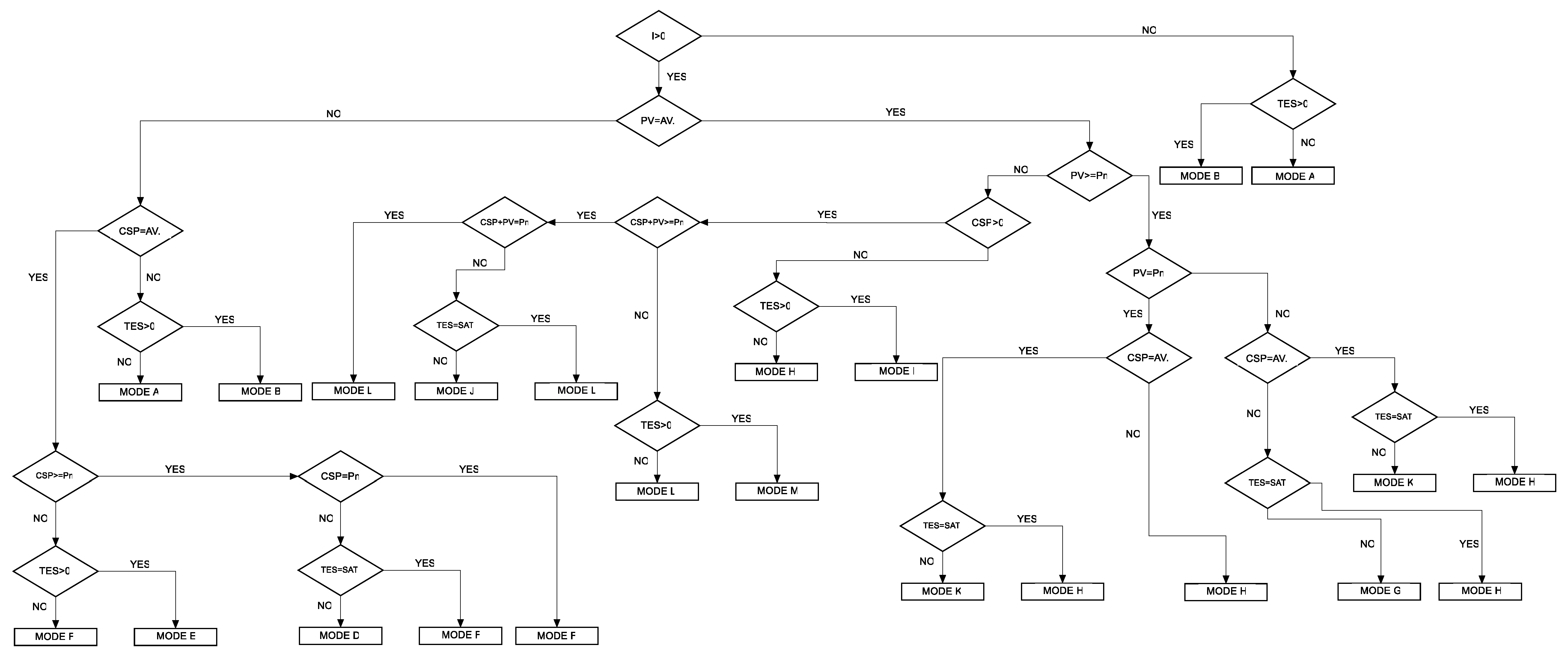

Figure 15 we can observe the flow diagram of the base load production operation strategy. The transitions between the operation modes (see
Section 3) require the following variables related to the plant status:
To understand the flow diagram in
Figure 15, we have 11 questions to decide the most suitable operation mode at any time:
Is solar irradiance (Global Horizontal Irradiance to PV and Direct Normal Irradiance to CSP) greater than zero? (I > 0)
Is the PV solar field available? (PV = AV)
Is the PV power produced greater than or equal to the nominal power? (PV ≥ Pn)
Is the PV power produced equal to the nominal power? (PV = Pn)
Is the CSP solar field available? (CSP = AV)
Is the CSP power produced greater than or equal to the nominal power? (CSP ≥ Pn)
Is the CSP power produced equal to the nominal power? (CSP = Pn)
Is the CSP and PV power produced greater than or equal to the nominal power? (CSP + PV ≥ Pn)
Is the PV and CSP power produced equal to the nominal power? (CSP + PV = Pn)
Is the energy stored in the TES greater than zero? (TES > 0)
Is the TES saturated? (TES = Sat)
PV and CSP solar field unavailability is caused by maintenance work, which is a periodic task in solar power plants. We use the following acronyms in
Figure 15.
AV: Availability
Pn: Nominal power
Sat: Saturated

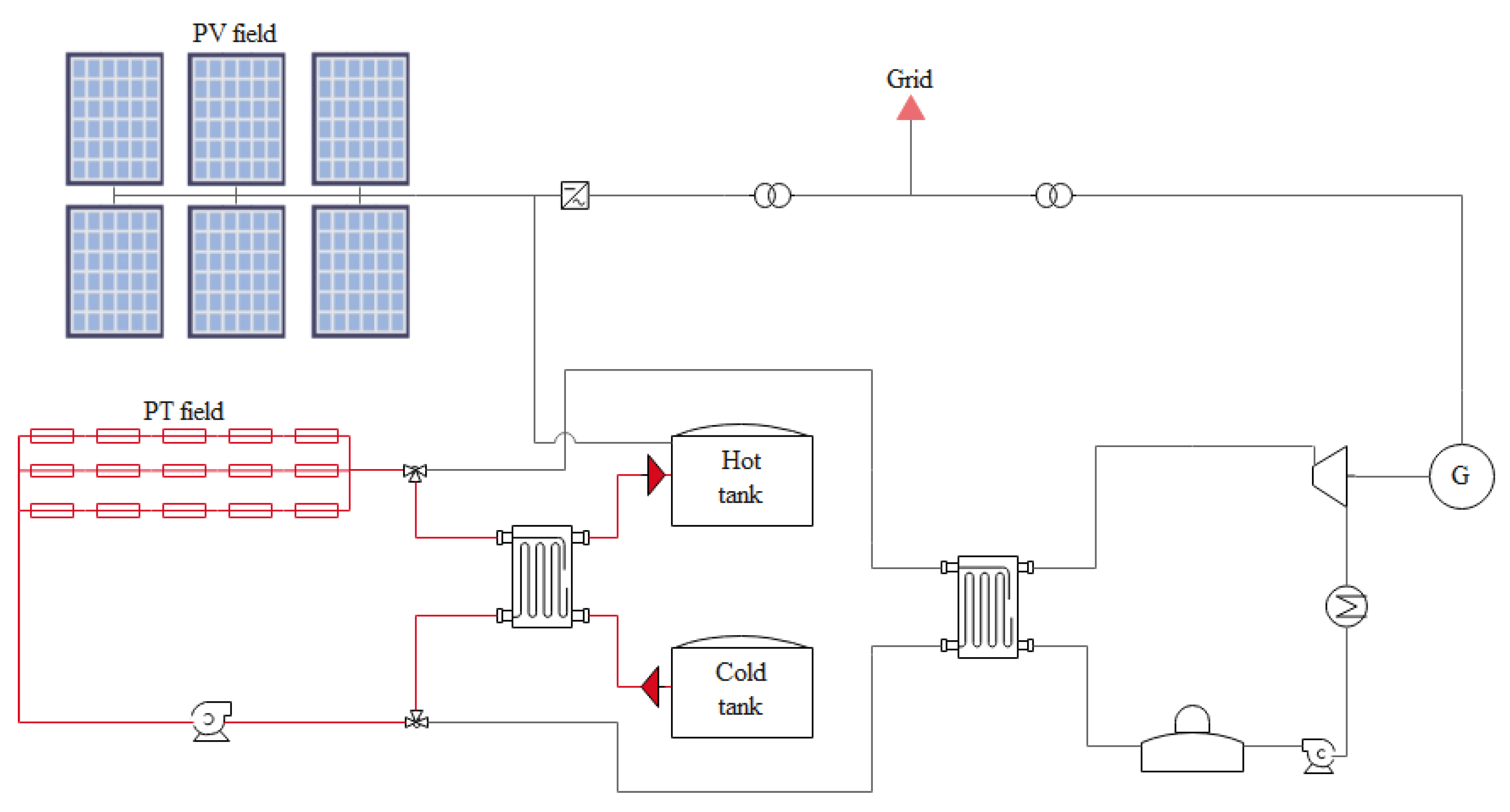

In the base load operation strategy, we do not ever arrive at mode C. We intend to satisfy a base load constantly achieving the maximum capacity factor. In mode C, the PV field is unavailable and TES receives the thermal energy from the CSP field. In the search for the maximum capacity factor, if the PV field is unavailable, the thermal energy from the CSP solar field will be sent to the power block in order to produce electrical energy.

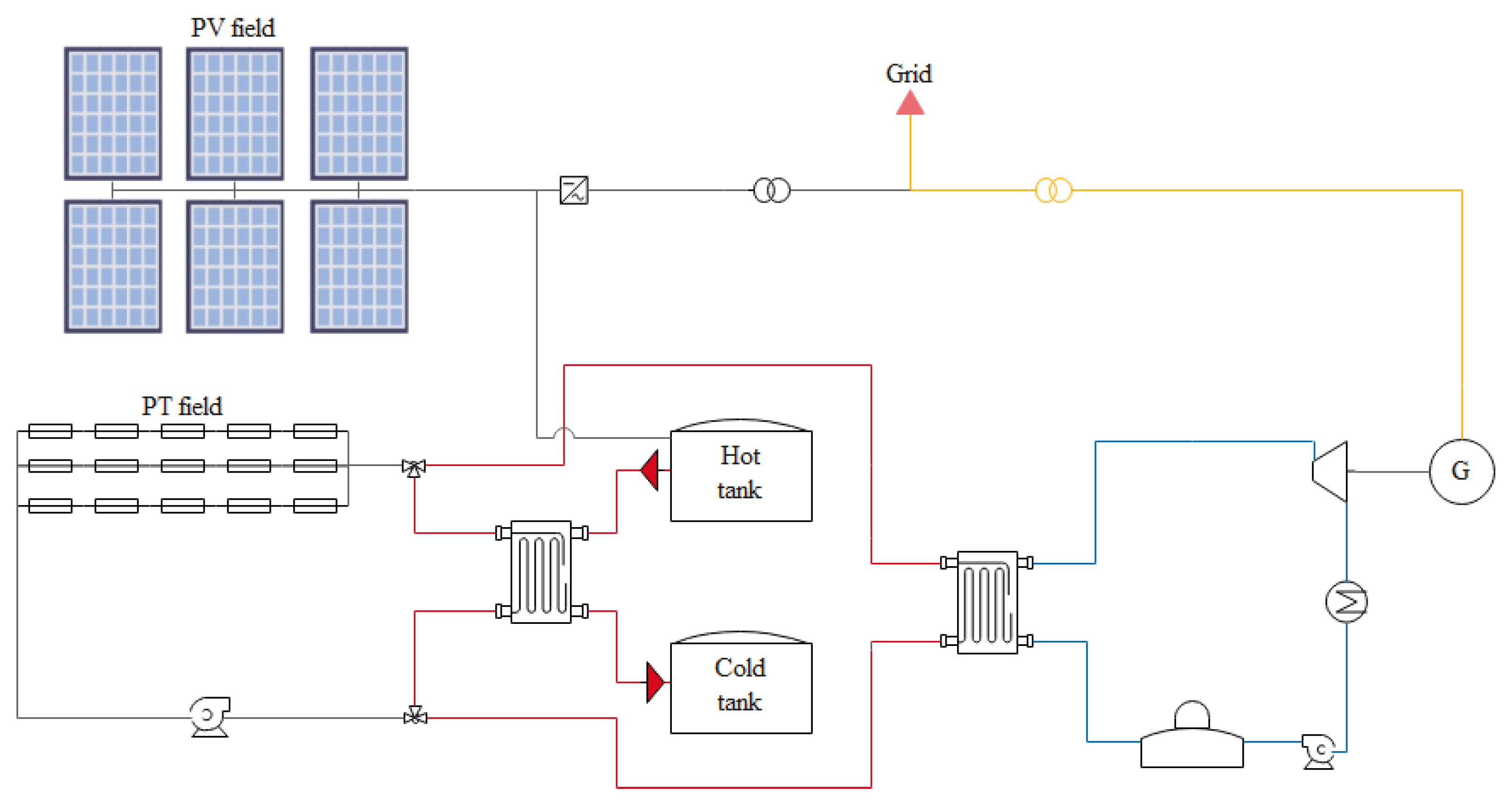

The flow diagram starts by questioning the availability of the solar irradiance on the solar fields. If the answer is negative, we can only produce from the TES (mode B). If the TES has stored energy, we use it until the TES is empty. If the TES is empty and solar irradiance on the solar fields is not available, no electrical power can be produced (mode A). Once there is available solar irradiation over the solar fields, we check the availability of the PV field. If we find a negative response, we check on the CSP availability. If it is available, the plant operates as a conventional CSP plant (modes D, E and F). If both solar fields are unavailable, again, we can only produce electrical energy from the TES.

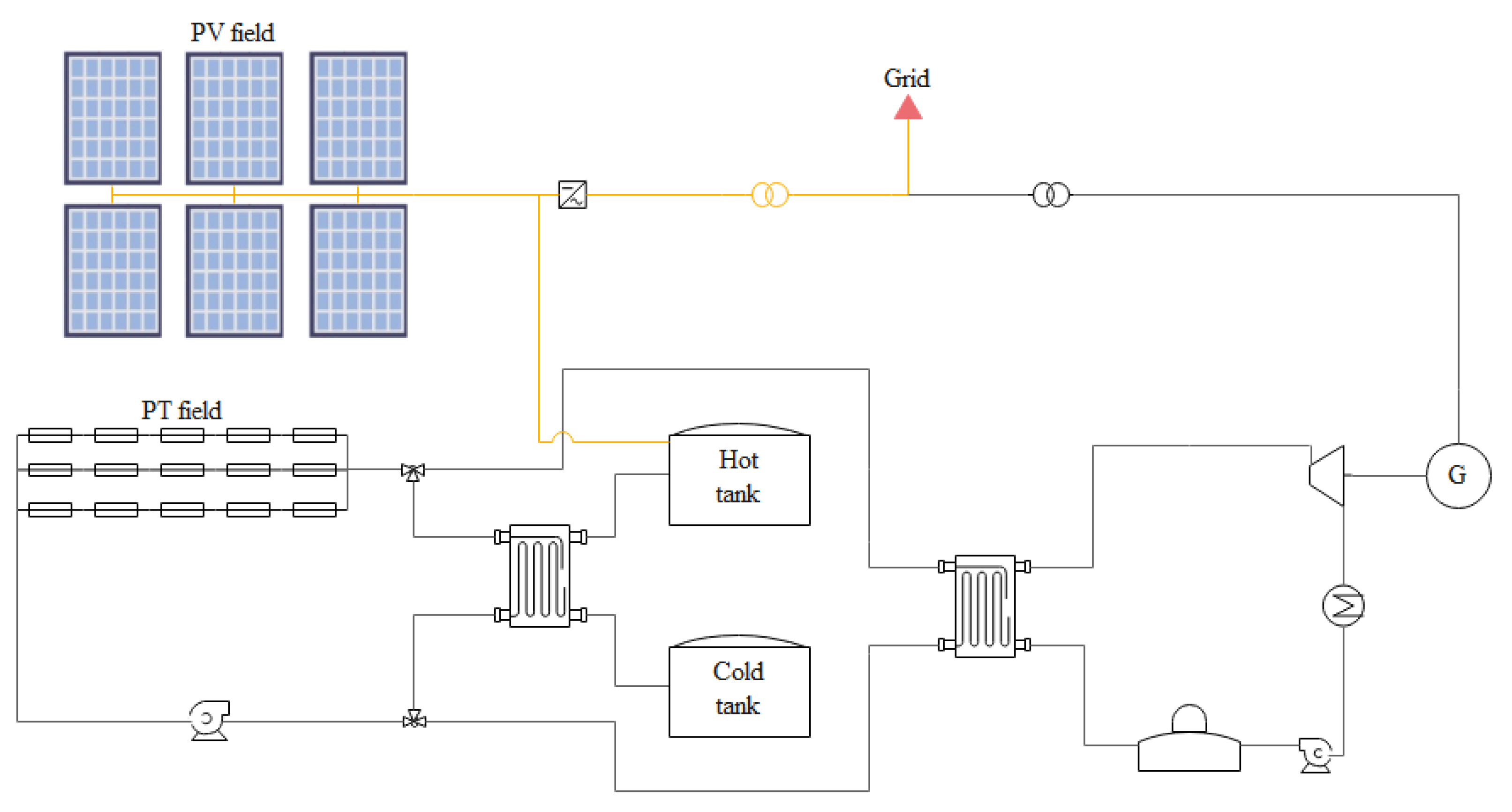

If the PV is available, we check the PV production and whether it can reach the nominal power. If true, we see if the CSP is available to store the thermal energy produced in the solar field into the TES. If not, the hybrid plant works as a conventional PV plant (mode H) and any PV energy surpluses are stored in the TES (mode G). If the CSP is available, it will store the thermal energy produced in the solar field into the TES (mode K) until it is saturated.

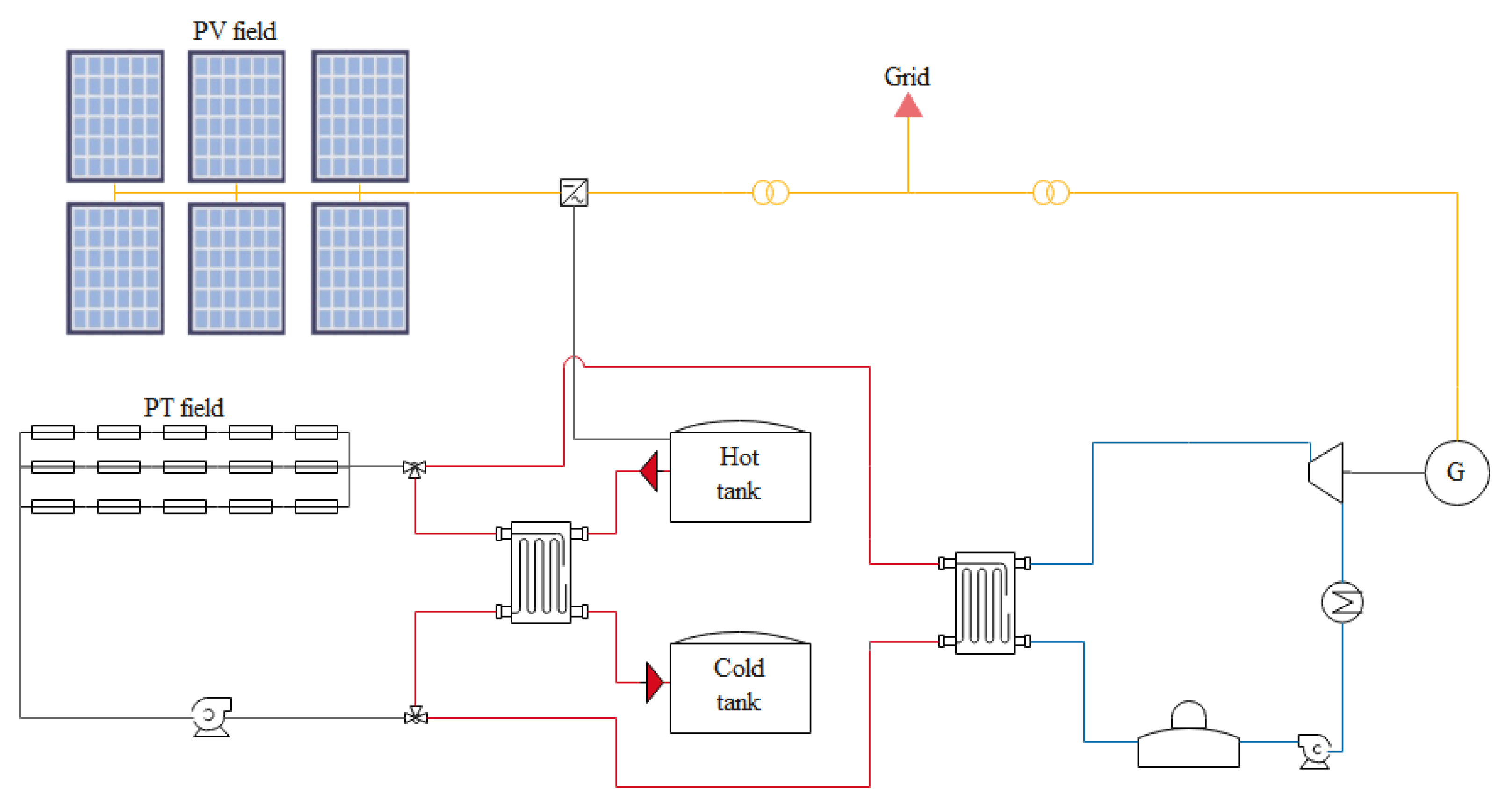

If the power produced in the PV field is lower than the nominal power, we check if the CSP solar field is available. If not, we produce from the PV solar field and the TES (mode I). In the case that the CSP solar field is available, we also have to ask if the combined power produced from both solar fields achieves the nominal power. In the case of a negative response, we use the available energy stored in the TES (mode M) if possible (L). If the combined power produced from both solar fields achieves the nominal power, we can send the power surpluses from the solar fields to the TES (mode L) if it is not saturated (mode J).
4.2. Demand Coverage
In this strategy, the hybrid plant operates trying to supply a known demand. The basics of the performance of the plant are similar to those in the other strategy. We prioritize the PV field production during the sun hours. CSP thermal energy produced will support the PV field production when required. The surpluses will be stored in the TES to be used as a third source of power if necessary. The PV field energy surpluses are stored in the TES in the integrated hybrid plant through an electrical resistance.
In

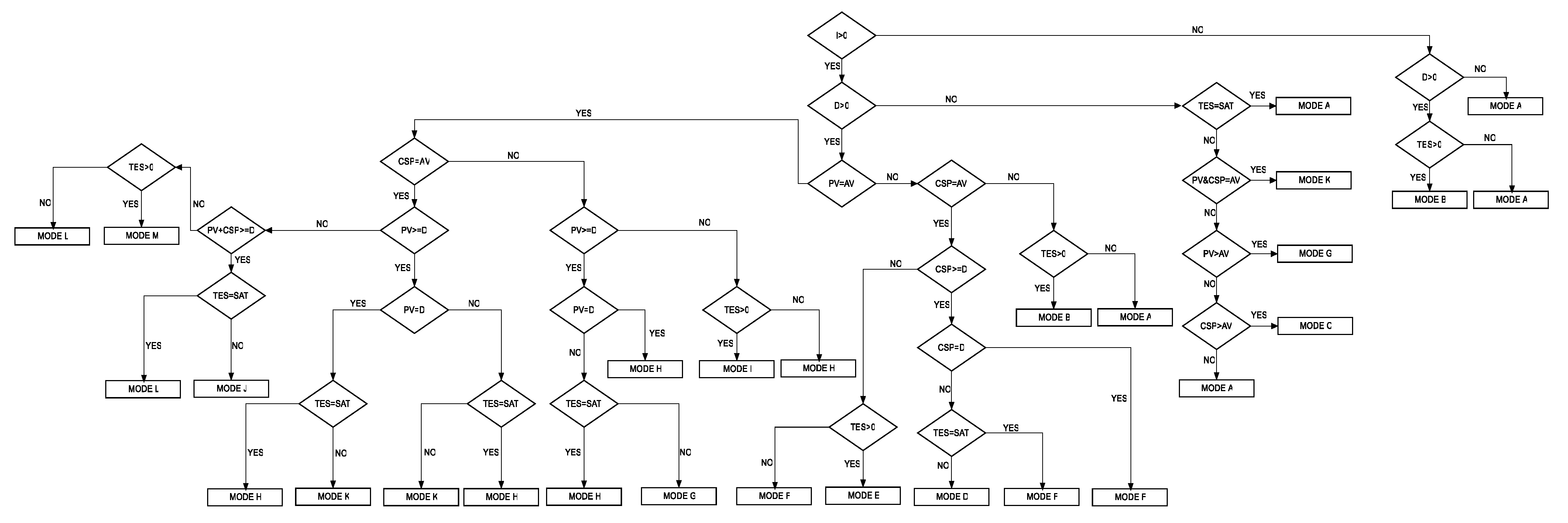

Figure 16 we can observe the flow diagram of the demand coverage operation strategy. The transitions between the operation modes require the same variables for input as the base load production operation strategy related to the plant status.
The questions that come to light from
Figure 16 are the following, when D represents the electrical demand:
Is solar irradiance (Global Horizontal Irradiance to PV and Direct Normal Irradiance to CSP) greater than zero? (I > 0)
Is demand greater than zero? (D > 0)
Is the PV power produced equal to the demand? (PV = D)
Is the CSP power produced equal to the demand? (CSP = D)
Is the PV power produced greater than the demand? (PV > D)
Is the CSP power produced greater than the demand? (CSP > D)
Is the PV power produced greater than or equal to the demand? (PV ≥ D)
Is the CSP power produced greater than or equal to the demand? (CSP ≥ D)
Is the PV solar field available? (PV = AV)
Is the CSP solar field available? (CSP = AV)
Is the CSP and PV power produced greater than or equal to the demand? (CSP + PV ≥ D)
Are the PV and CSP available? (CSP + PV = AV)
Is the energy stored in the TES greater than zero? (TES > 0)
Is the TES saturated? (TES = Sat)
In the demand coverage operation strategy, we intend to supply a known electrical energy demand. The capability of the plant to fulfil the demand will strongly depend on the solar fields’ sizes and the demand profile.
The first question is the availability of the solar irradiation over the fields. When there is no irradiance but an energy demand, we use the energy stored in the TES if available (mode B). If the TES is empty and solar irradiance on the solar fields is not available, the demand cannot be met through PV and CSP solar power plants (mode A).
When there is irradiance available, we check the demand. If there is no demand, we check the availability of the PV and CSP solar fields, and the energy produced in any of both solar fields is sent to the TES (modes K, G and C).
In the case that there is irradiance over the solar fields and an energy demand, we check, firstly, the availability of the PV field. If the PV field is available, we then check the CSP field status. If the CSP field is not available, the hybrid plant operates as a PV plant with a TES system. The PV energy produced is exclusively used to fulfil the demand when the demand is equal to the production (mode H). The TES is used to support the production when available (mode I) or to absorb the surpluses of the PV solar field if the demand is lower than the PV production (mode G).
In the case that the PV field is not available but there is solar irradiance over the fields, we check the CSP system availability. If there is a positive response, the hybrid plant operates as a CSP conventional plant with TES, producing directly from the solar field (mode F) and the TES (mode E) or sending the surpluses to the TES (mode D). In the case that the PV and CSP fields are unavailable, the operation modes are the same as if there was no irradiance (modes A and B).
When both systems are available, we prioritize the PV production if it is enough to cover the demand. In that case, the CSP thermal energy produced is sent to the TES together with the surpluses of the PV field if any (mode K), until the TES is saturated (mode H). When both solar fields are available but the PV production is not enough to cover the demand, we use PV, CSP and TES energy to fulfil the demand as far as possible (mode M). If there is no energy stored in the TES we produce only from the solar fields (mode L), and if there is enough energy produced to cover the demand from the solar fields with energy surpluses, we send those surpluses to the TES (mode J).
