Biochars and Engineered Biochars for Water and Soil Remediation: A Review

by
Tariqul Islam
1,2,3,
Yanliang Li
1 and
Hefa Cheng
2,*
1
School of Environment and Civil Engineering, Dongguan University of Technology, Dongguan 523808, China
2
College of Urban and Environmental Sciences, Peking University, Beijing 100871, China
3
Department of Agricultural Construction and Environmental Engineering, Sylhet Agricultural University, Sylhet 3100, Bangladesh
*
Author to whom correspondence should be addressed.
Sustainability 2021, 13(17), 9932; https://doi.org/10.3390/su13179932
Submission received: 20 July 2021 / Revised: 20 August 2021 / Accepted: 1 September 2021 / Published: 4 September 2021
(This article belongs to the Special Issue Waste to Biochar for a Sustainable Future)
Browse Figures
Versions Notes

Abstract

:
Biochars (BCs) are considered as ecofriendly and multifunctional materials with significant potential for remediation of contaminated water and soils, while engineered biochars (E-BCs) with enlarged surface areas and abundant surface functional groups can perform even better in environmental remediation. This review systematically summarizes the key physical and chemical properties of BCs that affect their pollutant sorption capacities, major methods employed for modification of E-BCs, the performance of BCs/E-BCs in removing major types of organic (e.g., antibiotics and pesticides) and inorganic pollutants (e.g., heavy metals), and the corresponding removal mechanisms. The physical and chemical properties of BCs—such as ash or mineral contents, aromaticity, surface structures, pH, and surface functional groups (e.g., C=O, -COOH, -OH, and -NH2)—depend primarily on their feedstock sources (i.e., plant, sludge, or fecal) and the pyrolysis temperature. Ion exchange, precipitation, electrostatic attraction, and complexation are the main mechanisms involved in the adsorption of inorganic pollutants on BCs/E-BCs, whereas hydrogen bonding, pore filling, electrostatic attraction, hydrophobic interaction, and van der Waals forces are the major driving forces for the uptake of organic pollutants. Despite their significant promises, more pilot and field scale investigations are necessary to demonstrate the practical applicability and viability of BCs/E-BCs in water and soil remediation.

1. Introduction

Pollution of surface water and soils by a wide range of organic pollutants, such as pesticides, antibiotics, and inorganic pollutants—e.g., arsenic (As), lead (Pb), and mercury (Hg)—has become a major environmental problem over the last decades [1,2]. Pollution of surface water and soils threats food security and poses risk to the ecosystem and human health, which has attracted wide attention of the regulatory authority and the general public [3]. As a result, there has been significant need to develop eco-friendly and cost-effective technologies to remediate contaminated water and soils [4]. In this endeavor, application of biochars (BCs) and engineered biochars (E-BCs) converted from various types of biomass has emerged as a promising approach.
BCs are porous carbonaceous materials produced from biomass (wood, leaves, manure, and other waste materials) pyrolyzed under elevated temperatures (300–700 °C) with the absence of air or the presence of insufficient air [5]. Waste biomass derived from green sources—such as food, forestry, and agricultural wastes—are often used as feedstocks to produce biochar [6]. After being pyrolyzed, the labile carbon in the feedstocks is converted into more recalcitrant forms in BCs, which can last hundreds of years [7]. Although greenhouse gas emissions occur during the production of BCs, they could still be used as an aid to mitigate climate change [7]. With the feedstocks being mostly waste materials, BC production is a great approach for waste management, and bioenergy (bio-oil/syngas) can also be captured as by-product during the production process [2]. Furthermore, BCs have porous structures, high surface areas, and abundant surface functional groups that are similar to those present on activated carbon, making them excellent sorbents for both organic and inorganic pollutants in contaminated water and soils [8].

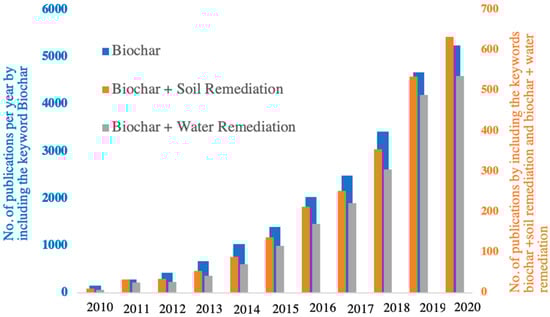

BCs have received significant attention in various fields of research (e.g., agriculture, material science, and environmental science) over the past decade. A recent study proposed that they are even more promising in environmental management applications compared to carbon sequestration and soil improvement [8]. As depicted on Figure 1, the number of publications on the topic of “biochar” has increased by more than 30-fold from 2010 to 2020. Over the same period, the number of publications related to application of BCs in soil remediation and water remediation also grew quickly, with slightly more papers published on the former topic. Overall, a growing body of literature indicates that BCs hold great promises for the removal of different types of pollutants from contaminated water and soils. Comprehensive understanding on the characteristics of BCs, how are they produced, their physical and chemical properties, as well as the specific mechanisms involved in the removal of organic and inorganic pollutants by BCs and E-BCs is needed for their successful application in remediating targeted pollutants from surface water and soils. This review presents an overview on the feedstock materials, synthesis processes, and functional properties of BCs/E-BCs, and their application in the remediation of contaminated water and soils. Special attention is paid to the mechanistic interactions between BCs/E-BCs with the pollutants in surface water and soils. Previous studies focused either on the properties of BCs and E-BCs and synthesis methods, the factors influencing their properties, or the mechanisms of pollutant adsorption on them. The present work intended to provide a systematic review on the BCs/E-BCs for water and soil remediation. The specific objectives of this review include: (i) introducing the key physical and chemical properties of BCs with their driven factors (pyrolysis temperature, type of feedstocks, etc.); (ii) summarizing the physical, chemical, and biological methods employed for tuning engineered BCs; (iii) discussing the potential of BCs/E-BCs in removing organic and inorganic pollutants from water and soil media; (iv) elucidating the mechanisms involved in the adsorption of organic and inorganic pollutants on BCs/E-BCs; and (v) identifying the current knowledge gap and priorities in future research on BCs/E-BCs.

2. Types of BCs and Their Physical and Chemical Properties

BCs are derived from thermal decomposition of biomass with little oxygen supply, and several major approaches have been developed for their production, including pyrolysis, gasification, and hydrothermal carbonization [9]. The type of feedstock, the production methods, and the pyrolysis temperatures all affect the physical and chemical properties of BCs produced. With distinctly different properties, the type of feedstock plays an important role in the production of BCs [10]. In general, BCs produced from wood materials contain greater amounts of carbon and less nutrients, whereas the manure-based BCs are the opposite, and the characteristics of BCs produced from grasses are in between [11]. Nonetheless, the characteristics of BCs can be altered by the pyrolysis techniques and the pyrolysis temperatures used. In particular, pyrolysis temperature directly influences the chemical and structural properties of BCs, and the nutrient availability in BCs can be drastically changed with increases in the pyrolysis temperature [12]. It has been well observed that the contents of C, Ca, P, K, and ash, as well as the pH of BCs increased with the pyrolysis temperature, while their O, N, and H contents exhibited the opposite trend [6]. In addition, slow pyrolysis produces BCs with greater contents of N, P, Ca, and Mg, as well as higher cationic exchange capacity (CEC) and surface area, compared to those produced by fast pyrolysis [6].

2.1. Types of BCs

Several types of carbonaceous materials are related to BCs, but should be clearly differentiated:
Char and charcoal: The term char represents any solid stuffs resulting from the natural or synthetic decomposition of organic substances. Both char and charcoal are produced by pyrolysis in the environment with little or no oxygen [13]. Charcoal is usually used as a fuel for heating, cooking, and other energy-producing purposes, whereas BCs are produced for carbon sequestration and/or as amendment for environmental remediation [14].
Hydrochar: Hydrochar is usually produced as a slurry in water through hydrothermal carbonization. After hydrothermal processing under pressure, the biomass is further used as feedstock to produce BC through pyrolysis, carbonization, or gasification. Hydrochar can be produced from a range of wet waste materials, such as sewage sludge, municipal solid waste, algal residues, aquaculture waste, and animal manure without drying [15].
Agrichar: BC, when used in agricultural applications, is called agrichar or black carbon. It is produced by pyrolyzing the green materials and is applied to farmlands to increase their fertility and productivity. Amendment of agrichar can reduce nutrient leaching in soils, and thus lower the need of chemical fertilizers. Besides minimizing the use of chemical fertilizers and increasing the yields of crops, agrichar can also alleviate the contamination level of soils [13].

2.2. Modification of BCs

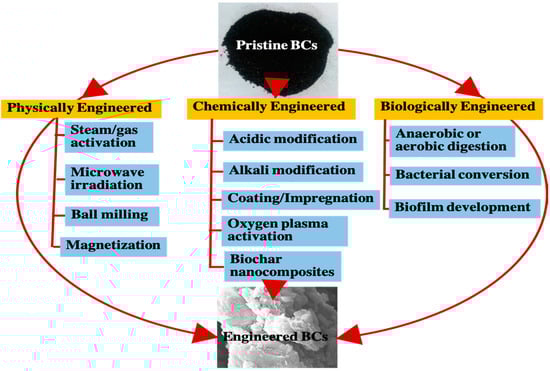

With wide availability of raw materials, tunable physical and chemical properties, BCs have received significant attention in wastewater treatment and carbon sequestration [16]. Nonetheless, the adsorption capacities of raw BCs are often rather low and they are not stable enough for subsequent separation from the treated solutions [17]. To improve the adsorption capacity and stability, E-BCs have been developed by incorporating other materials. The characteristics of nanoparticles can also be imparted into biochar-based nanocomposites (BNCs) [18]. Generally, BNCs are categorized as metal oxide/hydroxide biochar composites, magnetic biochar composites, functional nanoparticle (e.g., graphene oxide, carbon nanotube, chitosan, and nanoscale zerovalent iron) coated biochars [19]. To date, various methods have been developed to prepare modified/engineered BCs. As an example, Figure 2 shows the processes involved in the preparation of magnetic rice husk BC and its application in removing an organic pollutant from aqueous solution. In this case, impregnation of iron nanoparticles increased the surface area of rice husk BC and significantly improved its adsorption capacity. In addition, the coating by iron nanoparticles not only renders the BC magnetic property, which facilitates its separation from aqueous solution, but also improves its stability [20]. With improved sorption capacities for pollutants and greater stability, such E-BCs are quite promising for application in environmental remediation. The methods that can be used to produce E-BCs from pristine BCs include.

2.2.1. Physical Modification

Modification of BCs using physical methods is low cost and environmental friendly compared to the chemical ones. It improves the physicochemical properties of BCs, such as porosity and permeability, with easy and controllable treatments. The most commonly used techniques in the physical modification of BCs include steam/gas activation, microwave irradiation, ball milling, and magnetization (Figure 3).
Gas/steam activation techniques can increase the surface areas and induce porosity by removing the residues that are trapped inside the porous structures of BCs due to the incomplete combustion. When steam is applied on BCs, they can be activated with hydrogen and carbon dioxide through surface oxidation reactions [21]. As a result, the steam activated E-BCs show greater adsorption capacities towards methane and nitrogen dioxide over the pristine BCs [22].
Microwave irradiation, which rises the temperature of BCs by 200–300 °C through microwave heating within a short duration, is an emerging technique for modifying BCs. E-BCs prepared from microwave irradiation have greater surface areas compared to those prepared from conventional pyrolysis, and exhibit higher absorption capacities for many pollutants with hydrophilic functional groups [23]. Integration of microwave irradiation with steam activation or impregnation significantly improves the physicochemical properties, such as CEC and water holding capacity, of BCs [24].
Ball milling, in which pristine BCs are broken into powder or nanoparticles, is another common physical modification method. Due to the significant reduction in particle size and significant increase in surface area, the adsorption capacities of BCs are greatly increased [25]. Ball milling can be classified as physical ball milling and chemical ball milling. Physical ball milling is the process where the pristine BCs are grinded into finer particles, whereas chemicals are also added in chemical ball milling for modifying their chemical properties. Particle size and the surface area of BCs are greatly influenced by physical ball milling, whereas chemical ball milling can also modify the functional groups and microporous structure of BCs. The major disadvantages are that the ball milled BCs can easily be transported in soils through pores due to their finer sizes, which poses potential risk to groundwater. Moreover, the stability of BCs after pollutant adsorption is also of concern. Magnetic BCs prepared from chemical ball milling can be easily recovered using an external magnetic field. Magnetic BCs have been proven as an efficient adsorbent for organic and inorganic pollutants from water/wastewater [26]. In addition, magnetization process also boosts the catalytic activity and surface charge of BCs, and thus makes them better candidates in environmental remediation.

2.2.2. Chemical Modification

Pristine BCs can be modified through reactions with different chemicals to make them efficient for specific applications by improving their physiochemical characteristics. Chemical modification of BCs can be achieved with a range of processes, such as acidic/alkali modification, coating/impregnation, oxygen plasma activation, and nanocomposite synthesis (Figure 3). BCs modified with acids (e.g., H2SO4, HCl, HNO3, and H3PO4) contain greater amount of oxygen-containing functional groups, while those modified with alkali (e.g., KOH and NaOH) have greater contents of carbon [21]. In addition, treatment with oxidizing agents (e.g., KMnO4 and Fe(III)) can significantly increase the pore size and specific surface area of BCs [27].
Recently, oxygen plasma activation has been developed as a novel technique for BC modification, and it bears the advantages of low cost, high efficiency, and environmental friendliness compared to other chemical-based methods [22]. In the modification process, oxygen gas flows through a chamber that has dielectric barrier discharge under a certain pressure. When the reactive gas goes through the plasma chamber, it is converted into many reactive species, including electrons, excited atoms, and oxygen ions [28]. These species react with the functional groups on the surfaces of BCs, which renders the oxygen plasma-activated BCs more active compared to the conventional chemically modified ones.

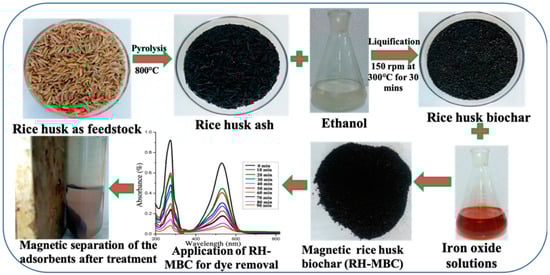

Chemical modification of pristine BCs by coating or impregnation to form nanocomposites with different metal nanoparticles (NPs) can also increase their functional groups, surface area, porosity, and CEC. The impregnation can be achieved through pre-treating feedstock biomass with metal salts, supporting BCs with functional NPs, or forming composites with metal oxide NPs [16]. Pre-treating the biomass with metal salts, clays, or other chemical reagents can enrich the BC with metal hydroxides or nano-metal oxides after pyrolysis [17]. NPs have unique characteristics (e.g., higher surface area and multiple functional groups), which renders them with high affinity for various pollutants. However, instability is a major disadvantage of NPs, which can be simply overcome by immobilizing them on BC matrices. BC-NP composites can have higher porosity and surface areas, multiple functional groups, and good thermal stability, and are proven to be highly efficient in contaminant removal [29].

2.2.3. Biological Modification

Biological modification of BCs can be achieved through pre-treating the feedstock biomass with bacterial conversion or anaerobic digestions, and developing biofilms on the external or internal surfaces of BCs (Figure 3). Digestion of waste biomass through anaerobic or aerobic bacteria generates economic value by producing biofuel and biofertilizers. BCs produced from pyrolyzed digestion residues (after anaerobic digestion) have been shown to be highly efficient for removing heavy metals and cationic dyes due to their higher surface areas, high anion exchange capacity, and hydrophobicity [30]. Microorganisms can increase the performance of BCs in pollutant removal by developing biofilms. Biological modified BCs through biofilm are quite promising for removal of pharmaceuticals and other pollutants through immobilization and biotransformation processes [22].

2.3. Physical and Chemical Properties of BCs

The physical and chemical properties of BCs depend mostly on the type of biomass used as the feedstock material. They can be classified into three types on the basis of the raw materials used, namely, plant BCs, sludge BCs, and fecal BCs. Out of convenience, BCs are often named directly after their feedstocks, such as bamboo BCs, rice husk BCs, wood BCs, straw BCs, and animal excrement BCs [30]. As a result of the significant difference in the types of feedstocks, as well as the production conditions, the functional properties of BCs can vary largely. Figure 4 schematically illustrates the characteristics of BCs in terms of molecular structure, surface morphology, and elemental composition [20].

2.3.1. Ash and Mineral Contents

BCs are mainly composed of carbon (typically around 60%), along with other elements, such as hydrogen, oxygen, nitrogen, and sulfur. Carbon exists in BCs in the forms of hydrocarbons, elemental carbon, and carbon with graphite structure [30]. The chemical composition of raw materials and the pyrolysis temperature have major impact on the structure and characteristics of BCs. As shown in Table 1, increasing the pyrolysis temperature reduces the contents of volatile components, as well as the oxygen and nitrogen contents of BCs. During the pyrolysis process, the contents of many elements (e.g., K, Na, Ca, and Mg) and nutrients (e.g., N and P) increased in the BCs produced from animal waste and sludge, which resulted from the gradual removal of the volatile components [30]. Due to the presence of greater amount of inorganic components, the ash contents in animal waste and sludge-derived BCs were higher than those in the plant-based ones, while the former also had a greater number of exchangeable ions and higher CEC.

2.3.2. Aromaticity and Surface Functional Groups

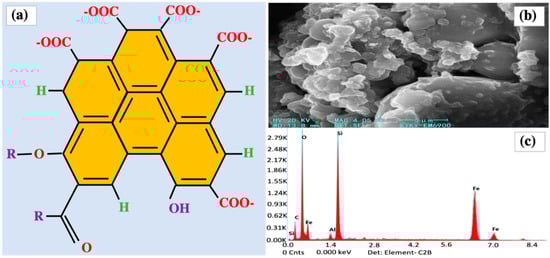

The aromaticity of BCs plays an important role in pollutant adsorption as the aromatic structures can function as π electron donors or acceptors and form π bonds with the pollutants [31]. The ratios of H/C and O/C of BCs indicate their aromaticity, which is largely determined by the pyrolysis temperature. Figure 5 shows the van Krevelen diagram for various BCs derived from different sources under different pyrolysis temperatures [32]. Increasing the pyrolysis temperature destroys the alkyl and ester groups, and exposes the aromatic lignin to the BC surface [32]. With the lignin and cellulose present in plant residue broken down into smaller molecules, the H/C and O/C ratios in plant-residue BCs decreased during the process of depolymerization or dehydration. In contrast, animal fecal and sludge BCs did not undergo depolymerization due to the absence of lignocellulosic compounds in their raw materials. As the carbon contents are higher in plant residue BCs, their aromaticity is also higher than in faecal and sludge BCs. The functional groups on BC surface vary significantly with the pyrolysis temperature, which affects their affinity towards pollutants. In general, BCs produced under higher pyrolysis temperatures have greater affinity towards heavy metals due to their higher aromaticity and specific surface areas. Nonetheless, BCs produced under lower pyrolysis temperatures have more oxygenic functional groups, and thus can still be effective for heavy metal adsorption through complexation [32].

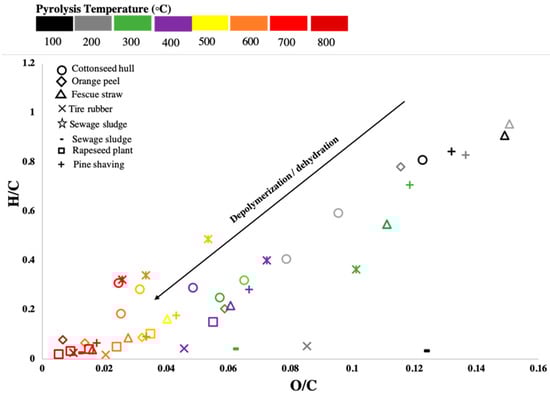

The pyrolysis temperature greatly influences the surface functional groups of BCs. It has been observed that the amount of -OH, C=O, and C-O-C functional groups on BCs decreased with increasing pyrolysis temperature, whereas the C=C and -CH2 functional groups could be well preserved in pyrolysis [21]. In general, the acidic functional groups and the yield of BCs both decreased, whereas the alkaline functional groups, pH, and ash contents of BC increased with increases in pyrolysis temperature [33]. Based on the heating rate, the pyrolysis process can be classified as slow pyrolysis and fast pyrolysis. In the slow pyrolysis process, heating occurs over a rather long time (minute to hours), while heating takes place for milliseconds to produce char, biogas, and syngas in the latter. Consequently, BC produced from fast pyrolysis contains greater amount of un-pyrolyzed biomass compared to those produced with slow pyrolysis. Subsequently, BCs produced under these conditions could have significantly different physiochemical properties [33].

2.3.3. Surface Area and Pore Structure

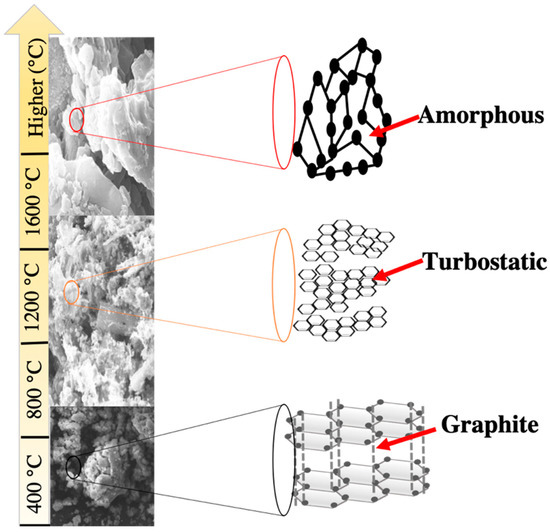

The morphology and structure of BCs are closely related to the types of raw materials and the pyrolysis temperature. For BCs produced from the same feedstock, their surface areas typically increase with the pyrolysis temperature [2]. In general, the surface areas of BCs produced from animal fecal waste and sludge are lower than those derived from plant residues because of their lower carbon contents and lower degree of aromatization. Pyrolysis temperature affects the crystalline structure and pore structure of BCs. Park and co-workers reported that the surface area of sesame straw BCs increased from 6.9 to 289.2 m2·g−1 while their pore volume increased from 0.0716 to 0.1433 cm3·g−1 when the pyrolysis temperature was increased from 500 to 600 °C [9]. During the pyrolysis process of BCs, cleavage of chemical bonds and formation of different functional groups (e.g., -COOH and -CO) occur in the first stage at temperature <200 °C, due to the evaporation of moisture and light volatiles. Decomposition of cellulose and hemicellulose occurs in the second stage with temperature ranging from 200 to 500 °C. The strong bonds of lignin and organic matter are broken in the third state at temperatures above 500 °C [34]. As a result, the physicochemical properties and structure of BCs are strongly correlated with the pyrolysis temperature. The structure of carbon (C-structure) present in BC has been observed to respond directly to the change in pyrolysis temperature (Figure 6). BCs produced through pyrolysis in the temperature range of 300 to 400 °C have amorphous C-structure, while those pyrolyzed between 600 and 700 °C and above 1200 °C have turbostatic and graphite structures, respectively [34].

2.3.4. Alkalinity and pH

Due to the presence of carbonates and other alkaline components formed during pyrolysis, BCs are capable of accepting protons without significant changes in their structure. The alkalinity and pH of BCs typically increase with the pyrolysis temperature [30]. BCs produced from different feedstocks also vary in alkalinity and pH, with plant-residue BCs being less alkaline than those produced from animal manure. As a result of their alkalinity, amendment with BCs increases and buffers the soil pH [5]. In addition, BCs produced under higher pyrolysis temperatures, which are more alkaline, are good sorbents for heavy metals, and they could also promote the formation of metal hydroxide precipitates on their surfaces.

2.3.5. Hydrologic Properties

Water repellency of BCs and E-BCs is an important property, which has significant influence on the water retention of soils. The hydraulic properties of soil amended with BCs can be significantly correlated with the contents of BCs, although these correlations are still not fully understood yet [49]. The hydrologic properties of BCs are directly influenced by the production process/method, type of feedstock, and their particle size and wetting properties [49]. Among these factors, the pyrolysis temperature has the most significant impact on the hydrologic properties of BCs, and thus those of the amended soils (field capacity). It is reported that BCs produced at higher temperatures (400–600 °C) possessed the most desirable hydrologic properties, whereas hydrophobicity is strongly correlated with the presence of aliphatic domains on the surface of BCs produced at lower temperatures [50].

3. Adsorption of Pollutants on BCs

Porous carbonaceous materials have been used as efficient sorbents for removing organic and inorganic pollutants from water and soils, with activated carbon being the most widely used one. Activated carbon is essentially charcoal treated with oxygen to increase the surface area and porosity. Both activated carbon and BC are produced through pyrolysis, while the latter is usually not further treated or activated [51]. Moreover, BCs can contain some non-carbonized surface functional groups, such as phenolic, carboxyl, and hydroxyl groups, which could bind effectively with certain pollutants. The multifunctional nature of BCs makes them effective sorbents for both organic and inorganic pollutants [52]. As discussed earlier, the feedstock and pyrolysis temperature largely determine the physical and chemical properties of BCs, and thus their performance in adsorbing pollutants.

3.1. Adsorption of Organic Pollutants

Due to their good affinity towards a wide range of organic pollutants and low cost, there has been significant interest in using BCs or E-BCs, instead of activated carbon, to remove organic pollutants from water and soils [53]. Table 2 and Table 3 summarize the organic pollutants removed by BCs and E-BCs from water and soils reported in recent studies, respectively. The most widely occurring organic pollutants, including antibiotics, organic dyes, herbicides, pesticides, and polycyclic aromatic hydrocarbons, could all be efficiently removed with BCs and E-BCs through adsorption [20,54,55,56,57].
With high specific surface area and microporosity, as well as carbonized surface and a range of functional groups, BCs are good sorbents for organic pollutants [58]. BCs pyrolyzed at low temperatures (below 400 °C) have high affinity for organic pollutants due to the partitioning of these compounds into their non-carbonized compartments [31]. Meanwhile, aromaticity and surface polarity are also important properties of BCs that affect the sorption of organic compounds. With increases in the pyrolysis temperature, the surface of BCs becomes more aromatic due to the gradual loss of the oxygen- and hydrogen-containing functional groups [59]. It has been observed that the sorption of deisopropylatrazine on BCs produced from broiler litter increased with the pyrolysis temperature (up to 700 °C) due to the increase in its aromaticity. Nonetheless, an opposite trend was observed in the adsorption of norflurazon and fluridone, with the BC produced at 400 °C exhibiting the highest sorption capacity [21]. This could be explained by the different dominant sorption mechanisms involved with different pollutants. It appears that desisopropylatrazine primarily interacts with the aromatic functional groups of the BCs, while norflurazon and fluridone interact mostly with their polar functional groups. Cationic organic compounds, such as crystal violet dye and norfloxacin, also adsorb on the negatively charged surface of BCs through electrostatic attraction [20,29]. The major mechanisms responsible for the removal of various organic pollutants from water by BCs are presented in Table 2. While adsorption of organic pollutants on BCs depends primarily on the interactions between them, solution chemistry, such as pH and ionic strength, can have significant impact through altering the surface charge of the BCs, the speciation of the organic pollutants, and the salting out effect.
Besides removing organic pollutants from water, BCs can also be used to adsorb organic pollutants in soils, and thus reduce their bioavailability and risk. Table 3 summarizes the organic pollutants in contaminated soils that could be removed by BCs and the corresponding mechanisms involved. Overall, BCs produced under higher pyrolysis temperatures exhibited higher adsorption capacities for organic pollutants from both water and soils (Table 2 and Table 3). This could be attributed to the increases in specific surface areas and microporosity of the BCs produced under higher pyrolysis temperatures. BCs produced from hardwood at pyrolysis temperatures above 400 °C were found to be effective at suppressing the leaching and biodegradation of simazine in groundwater, which resulted from its effective sorption in the micropores [73,74]. BCs produced from cotton straws at a pyrolysis temperature of 850 °C could effectively adsorb chlorpyrifos and increased its apparent microbial degradation half-life by 1.6 times [66,75]. As shown in Table 3, BCs produced at lower pyrolysis temperatures are generally less efficient at adsorbing organic pollutants from soils. It is worth noting that the soil matrix is much more complex than that of water, which could complicate the adsorption of organic pollutants. For example, the bioaccessibility of pesticides in soils could be significantly reduced due to coating of the BC particles by the organic matter present in natural soils [76]. Adsorption of organic pollutants on BCs could also be reduced due to blockage of their micropore spaces.

3.2. Adsorption of Inorganic Pollutants in Water and Soils

BCs are promising sorbents for a range of inorganic pollutants due to their diverse surface characteristics. Heavy metals are the most common inorganic pollutants of significant concerns found in surface water and soils. They can come from a wide range of anthropogenic sources, such as mining and smelting operations, industrial production, power plants, fertilizers, sewage sludge, and animal manure [83,84,85]. Unlike organic pollutants, heavy metals are not biodegradable and can be easily uptaken by plants, and subsequently transferred to animals and humans through the food chain [5]. BCs produced from different sources can stabilize heavy metals through adsorption [2]. It has been observed that pinewood BCs produced at higher pyrolysis temperatures had greater adsorption capacities towards uranium than those produced at lower temperatures [86], which could be attributed to the increases in the pore space and surface area of the BCs with greater degree of carbonization. The sorption capacities of BCs towards different heavy metals could vary significantly due to the difference in sorption mechanisms and valence of the metal ions.
BCs have significant sorption capacities for heavy metals, and different binding mechanisms could be involved, depending on the types of BCs and solution matrix [6]. Table 4 summarizes the removal of heavy metals from water by BCs and the major mechanisms as reported in recent investigations. Common mechanisms involved in the uptake of heavy metals from water by BCs are physical adsorption, surface precipitation, electrostatic outer-sphere complexation, inner-sphere complexation, cation-π bonding, and surface complexation [8,29,83,85]. More details on the interaction mechanisms between BCs and heavy metals are discussed later. Besides adsorption, BCs also have redox-active oxygen-containing functional groups (e.g., quinone/hydroquinone groups), which could promote redox transformation of the sorbed metal species. For example, BCs could efficiently adsorb Cr(VI) from water, while they are also capable of converting Cr(VI) into less toxic Cr(III), which significantly reduces the risk of pollution [5].
There have been significant interests in applying BCs for in situ stabilization of heavy metals in agricultural soils to reduce their bioavailability. Table 5 summarizes the heavy metals in contaminated soils that were removed by BCs and the corresponding removal mechanisms as reported in the literature. BCs produced from a range of materials exhibited strong sorption capacities towards heavy metals—including As, Cu, Cd, Ni, Zn, and Pb—in soils [2,21,90,91,92,93]. The alkalinity of BCs, which increases the pH of the amended soil, plays an important role in the immobilization of heavy metals. It is worth noting that some BCs could be enriched with certain heavy metals, depending on the feedstock. For example, Namgay and co-workers reported that the BC produced from Sydney blue gum increased the content of As in the amended soil [94]. With the complicated compositions of BCs and soils, the interactions between heavy metals and the BC-amended soil are still not fully understood. For example, it has been observed that application of wood derived BCs immobilized Cd and Zn in the soil, but mobilized Cu and As [5,80].

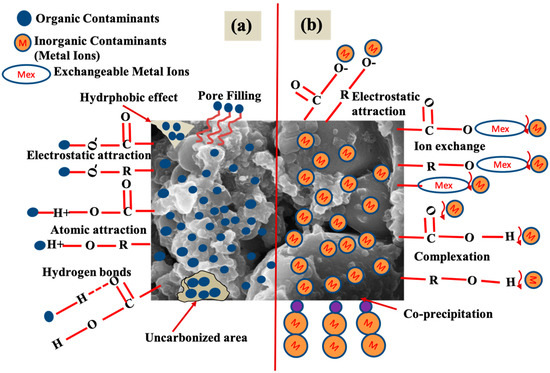

3.3. Mechanisms of Pollutant Removal by BCs

While the physical and chemical properties of organic pollutants are quite different from those of inorganic ones, most of the surface sites and functional groups present on BCs can interact with both types of pollutants. As a result, the sorption mechanisms involved in the adsorption of both organic and inorganic pollutants are discussed together to avoid redundancy. The major mechanisms involved in the adsorption of organic and inorganic pollutants on BC particles are schematically depicted on parts a and b of Figure 7, respectively. Organic pollutants adsorb onto BCs through a range of mechanisms, including hydrogen bonding, miocropore filling, electrostatic attraction, hydrophobic interaction, and van der Waals forces. Carbonyl (C=O), carboxyl (-COOH), hydroxyl (-OH), and amino (-NH2) functional groups are the main sites for the adsorption of organic pollutants on the BC surface, and they are typically more abundant on plant-based BCs pyrolyzed at relatively low temperatures. The adsorption of inorganic pollutants (primarily heavy metal cations) on BCs occurs primarily through ion exchange, precipitation/co-precipitation, electrostatic attraction, and complexion. In addition, surface precipitation (in the forms of hydroxides, phosphates, and carbonates) could occur for metal cations on the BCs with high alkalinity.
In general, only physical adsorption, which does not involve the formation of strong chemical bonds, occurs in the adsorption of organic pollutants on BCs. That is, organic molecules attach to the surface of BC through weak bonds, including van der Waals forces, hydrogen bonding, electrostatic forces, and hydrophobic interactions. Van der Waals forces encompass all intermolecular forces that are distance-dependent between the atoms and molecules not associated with covalent or ionic bonds. Adsorption of heavy metals on BCs also occurs through physicochemical interactions, including electrostatic interactions, ion exchange, and complexation, between the metal ions and the functional groups on the BC surface. Chemical forces resulting from short-range interactions could lead to adsorption of metal ions on the BC surface through inner-sphere complexation. In addition, due to the change in the chemical conditions in bulk solution or in the micro-environment, precipitation/co-precipitation of heavy metal ions could also occur on the BC surface. Details on the major sorption mechanisms are discussed further below.

3.3.1. Hydrogen Bonding

Hydrogen bonding forms through the electrostatic forces between the hydrogen atom (covalently bound to a more electronegative atom or group, e.g., nitrogen, oxygen, and fluorine) and an electronegative atom (as hydrogen bond acceptor) bearing a pair of unshared electrons. As the strength of H-bond is higher than van der Waals forces but less than that of covalent bond, it could play an important role in the sorption of organic pollutants on BCs. BCs manufactured from various feedstocks have abundant oxygen-containing functional groups on their surface, which can act as hydrogen bond donor [31]. Thus, organic pollutants having electronegative elements could attach to the O-containing functional groups of BC through H-bonding [94]. It has been found that the sorption of organic pollutants (e.g., bisphenol A and 7a-ethinyl estradiol) on the BCs with abundant O-containing surface functional groups was much higher than on those with less O-containing functional groups [2].

3.3.2. Electrostatic Attraction

Adsorption of ionizable organic pollutants on the charged surface of BCs occurs through electrostatic attraction. Ionic strength and pH of the solution have significant effect on the electrostatic interaction between sorbate and sorbent [75]. Reducing solution pH increases the positive charge of the BC surface, which could enhance the adsorption of negatively charged organic species. Inyang and co-workers showed that adsorption of methylene blue decreased on BC (from 4.5 to 3 mg·g−1) with the increase in solution ion strength (from 0.01 to 0. 1 M NaCl), which could be attributed to the reduction in electrostatic attraction in the presence of more ions in the solution [97]. Electrostatic interaction was reported to be responsible for the removal of sulfamethazine and norfloxacin by BCs produced from burcucumber (Sicyos angulatus L.), corn stalks, willow branch, and reed stalks [29,64]. Overall, electrostatic interaction appears to be important for the adsorption of organic pollutants on plant-based BCs, which might result from the presence of greatersurface charges on them.

3.3.3. Hydrophobic Interaction

Hydrophobic interaction originates from the entropic effect brought by destruction of the hydrogen bonds between water molecules by nonpolar solutes in aqueous solution, and drives the assemblage of nonplolar molecules to form anhydrous domains. Hydrophobic interaction is important for the adsorption of neutral or hydrophobic organic pollutants on BCs. Compared to the partitioning mechanism, hydrophobic interaction requires less energy [98]. Adsorption of perfluoro octane sulfonate (PFOS) on BC produced from maize straw was reported to occur through hydrophobic interaction, which was attributed to the highly hydrophobic moiety of the PFOS molecules [99]. In general, BCs produced under higher pyrolysis temperatures have greater adsorption capacities towards non-polar organic pollutants due to the destruction of polar functional groups on the surface of BCs.

3.3.4. Anion/Cation Exchange

The main principle of anion/cation exchange mechanism is the exchange of ionic species on the surface of BCs by the ionizable organic pollutants and cationic metal species [21]. Ion exchange is a nonspecific adsorption process, and involves electrostatic interactions. For heavy metal ions, ion exchange is also considered as outer-sphere complexation, which is weak, but rapid and reversible. The anion/cation exchange capacity of BC is determined by the functional groups present on its surface, while the adsorption of specific pollutant is also influenced by the valence and radius of the ionic species [100]. Pyrolysis temperature affects the anion/cation exchange capacity of the BC produced, with the anion/cation exchange capacity decreases with the pyrolysis temperature above 350 °C [98], which probably results from the destruction of O-containing functional groups at high temperatures. It is observed that the presence of more aromatic structure in BCs increases the negative charge in the pi orbital, which creates the opportunity to lose the electrons of existing functional groups, and enhances the adsorption of ionic species through ion exchange [17]. The presence of iron oxides in the feedstock could enhance the ion exchange capacities of BCs. For example, Trakal and co-workers reported that the CECs of BCs produced from various feedstocks—including grape stalk, nutshell, grape husk, wheat straw, and plum stone—all increased with iron oxide impregnation, which enhanced the adsorption of Cd(II) and Pb(II) on them [101].

3.3.5. Partitioning

Partitioning of sorbate into the sorbent matrix is driven by the van der Waals forces. BC can be essentially divided into carbonized (graphene, crystalline) and non-carbonized (amorphous, non-crystalline) fractions, which interact with pollutant molecules differently. Partitioning is the process in which the organic sorbate molecules diffuse into the non-carbonized portion of BC. In general, BCs with higher contents of volatile matter allow greater partitioning of organic pollutants, and thus exhibit higher sorption capacities [102]. Partitioning was responsible for the high adsorption capacities of BCs produced from soybean stalk (pyrolysis temperature: 300–700 °C), dairy manure (pyrolysis temperature: 200 °C), and pig manure (pyrolysis temperature: 350–700 °C) towards organic pollutants (phenanthrene and atrazine) [98,99]. Partitioning was also the dominant mechanism for adsorption of norflurazon and fluoridone on BCs produced from wood and grass [99].

3.3.6. Pore Filling

The micropores (<2 nm) and the narrow mesopores (2–50 nm) on the surface of BCs can adsorb organic pollutants through pore filling due to the enhanced dispersion potential within the molecular dimension spaces [98]. The pore filling mechanism depends on the pore size distribution of the BC, with little dependence on the properties of the organic pollutant. Pore filling can be a prominent sorption mechanism when the concentrations of organic pollutants in water are low. It has been reported that adsorption of dyes and carbaryl on BCs produced from rice husk and pig manure occurred primarily through the pore filling mechanism [20,71].

3.3.7. Complexation

Complexation is a type of specific adsorption that involves ligand exchange with electron transfer occurring via the bridging ligands. Metal ions can accept the electrons from a range of chelate-forming, electron-donating functional groups present on the surface of BCs, promoting the adsorption of metal ions through complexation [84]. BCs produced at low pyrolysis temperatures have higher tendency to bind heavy metal ions through complexion as they contain more electron-donating functional groups, e.g., carboxyl (-COOH), hydroxyl (-OH), and amino (-NH2) [17,21]. The presence of more oxygen during the pyrolysis of BC can increase the adsorption of metal ions through complexion due to the greater extent of surface oxidation. It is observed that BCs produced from plant feedstocks have higher complexation affinity towards heavy metals (e.g., Cr, Pb, Zn, Ni, Hg, Cu, and As) than those produced from animal sources, e.g., poultry litter and dairy manure [5,83,84]. This is attributed to the greater abundance of oxygenic functional groups present in plant-based BCs compared to the latter. Sophisticated spectroscopic techniques, such as Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), scanning electron microscope (SEM), energy-dispersive X-ray (EDX), X-ray photoelectron spectroscopy (XPS), and transmission electron microscopy (TEM) can help reveal more insights on the binding mechanism of heavy metal ions on BCs and better understand the contribution of complexation to the overall sorption.

3.3.8. Precipitation/Co-Precipitation

Precipitation/co-precipitation is an important mechanism responsible for the adsorption of heavy metals onto BCs [21]. Dissolution of the mineral components in BCs alters the chemistry of water and soil solution, which may cause precipitation/co-precipitation of the heavy metals present. It has been reported that the pH of soil could increase after application of BCs, which are alkaline, and precipitation of heavy metal ions in the forms of hydroxide, phosphate, and carbonate salts could occur [103]. The type of feedstock and pyrolysis temperature affect the alkalinity of the BC produced, and thus the contribution of precipitation in the adsorption of heavy metals. BCs produced from cellulose and hemicellulose materials under relatively high pyrolysis temperatures (>300 °C) have high alkalinity and tend to induce mineral precipitation, either on the surface of the BCs or in the solution [104]. BCs produced from sugar beet tailing, banana peels, dairy manure, and residue of biogas production were shown to be effective in the removal of heavy metals (Cr, Pb, Zn, and Ni) through inducing their precipitation [83,85].

4. Conclusions and Future Prospects

With high specific surface areas, aromatic surface, and multiple functional groups, BCs can efficiently remove a range of organic and inorganic pollutants, such as pesticides, synthetic dyes, and heavy metals from water and soils. Although BCs are less efficient than activated carbon, they could be produced from a wide variety of organic waste at low cost, and the use of BCs in pollution control has received growing interests. The types of feedstock and the pyrolysis temperature significantly impact the physical and chemical properties of the BC produced, and thus its affinity towards organic and inorganic pollutants. Hydrogen bonding, pore filling, electrostatic attraction, hydrophobic interaction, and van der Waals forces can be involved in the adsorption of organic pollutants from water and soils by BC, whereas ion exchange, precipitation, electrostatic attraction, and complexation are among the major mechanisms responsible for the removal of inorganic pollutants by them. Despite the significant advances that have been made in the development of BCs/E-BCs and understanding of the mechanisms of pollutant adsorption on them, more research and development efforts are still needed to make the application of BCs/E-BCs in environmental remediation cost-effective. Attention should be paid to the following research priorities to make BCs/E-BCs viable for environmental remediation:
  • The relationships between the physical and chemical properties of BCs and their feedstock type and pyrolysis temperature are still not fully understood. More study is needed to characterize the morphology and structure of BCs, their chemical compositions and surface functional groups to link them with their production conditions (i.e., feedstock and pyrolysis temperature). Such understanding will help to guide the production of BCs with suitable properties for the removal of the targeted pollutants.
  • Many studies have reported promising results on the use of BCs/E-BCs in removing organic and inorganic pollutants from water and soils. However, most of these studies were conducted in the lab or as small pilot tests under well controlled conditions. Large scale pilot tests and field studies on the applications of BCs/E-BCs in pollution control are necessary to evaluate their performance. In particular, the long-term effectiveness of BCs/E-BCs in retaining pollutants, and the effect of natural aging and precipitation on the stability of the BCs/E-BCs and the adsorbed pollutants should be quantified.
  • Similar to activated carbon, once the adsorption capacities of the BCs/E-BCs are saturated, they can no longer be effectively used. In the treatment of water, the “spent” BCs/E-BCs need to be separated from the aqueous phase, which can be subsequently regenerated and reused. Pyrolysis treatment may cause degradation of the sorbed organic pollutants on BCs/E-BCs and thus efficiently regenerate their adsorption capacities. In contrast, desorption of the heavy metals from BCs/E-BCs would unavoidably generate a stream of secondary waste that needs to be properly disposed of. For BC/E-BC amended soils, separation of the BC/E-BC particles from the soil mixtures is not practical, and their physical and chemical stability is critical for the immobilization of the pollutants sorbed on them. Thus, the stability, regeneration, and reuse of BCs/E-BCs should be further improved to enhance their performance in environmental remediation.
  • For any environmental remediation technologies, cost is always a very important factor. Production of BCs and their modification through various methods should be assessed in terms of cost, and the use of alternative waste organic materials as BC feedstocks should be explored to lower their production cost. With surface modification and functionalization, E-BCs can have enhanced adsorption capacities for the targeted pollutants, while BCs can also be modified to increase their recyclability and facilitate the separation of the adsorbed pollutants. More research is needed to develop eco-friendly synthesis processes of E-BC nanocomposites using green waste materials and evaluate the performance of such nanocomposites as sorbents in environmental remediation.
  • A limited number of studies have shown that some BCs have an adverse effect on the microorganisms, plants, and fauna in soils. Thus, thorough examination of environmental risk of the BCs produced from various feedstocks and under different pyrolysis temperatures, as well as the E-BCs modified with different methods, should be conducted before applying them in environmental remediation.

Author Contributions

Conceptualization, T.I. and H.C.; Writing—original draft preparation, T.I., Y.L. and H.C.; Writing—review and editing, T.I., Y.L. and H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Natural Science Foundation of China (grant nos. U2006212 and 41725015).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
