Article

Relationships between Riparian Vegetation Pattern and the Hydraulic Characteristics of Upslope Runoff

1
Key Laboratory of Geospatial Technology for the Middle and Lower Yellow River Regions (Henan University), Ministry of Education, Kaifeng 475004, China
2
College of Environment and Planning, Henan University, Kaifeng 475004, China
*
Author to whom correspondence should be addressed.
Sustainability 2019, 11(10), 2966; https://doi.org/10.3390/su11102966
Received: 5 April 2019 / Revised: 8 May 2019 / Accepted: 20 May 2019 / Published: 24 May 2019
(This article belongs to the Special Issue Soil Erosion and the Sustainable Management of the Landscape)

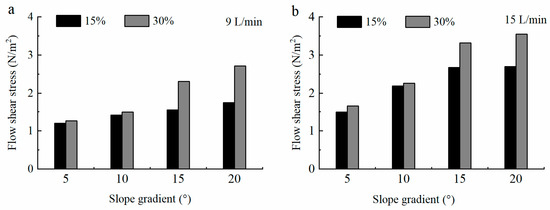

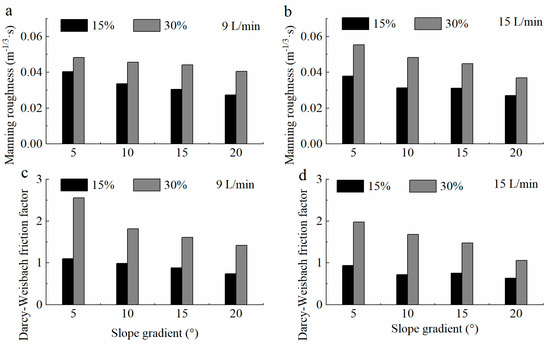

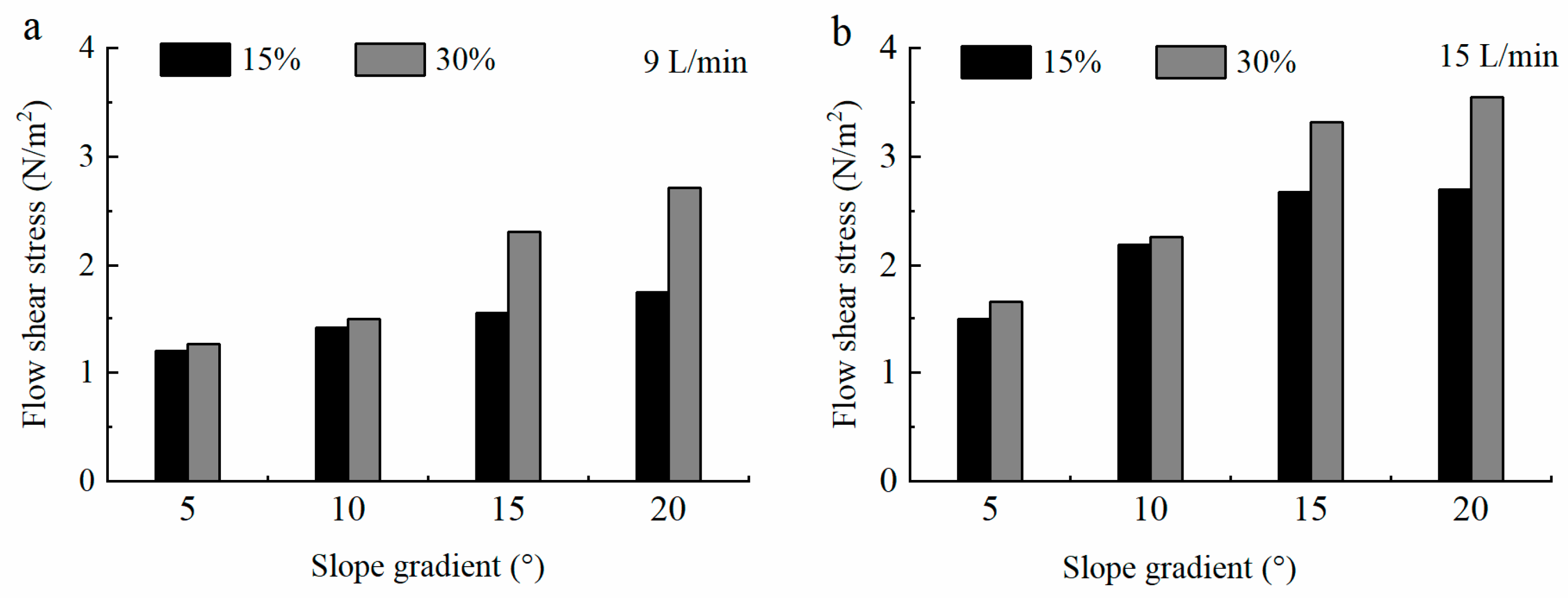

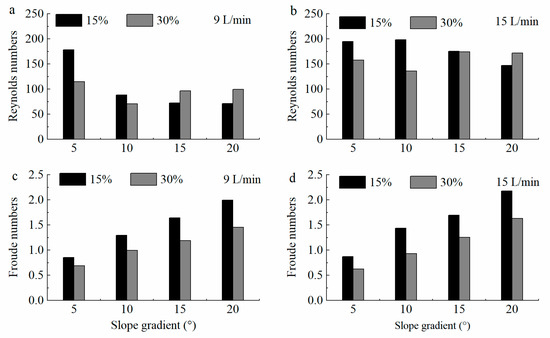

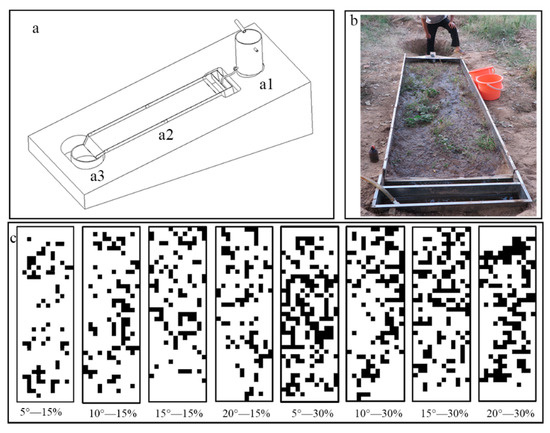

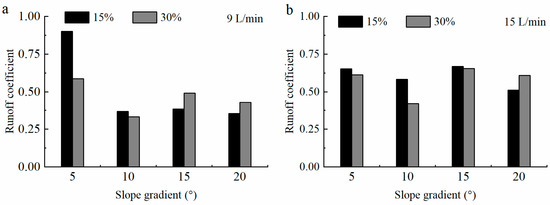

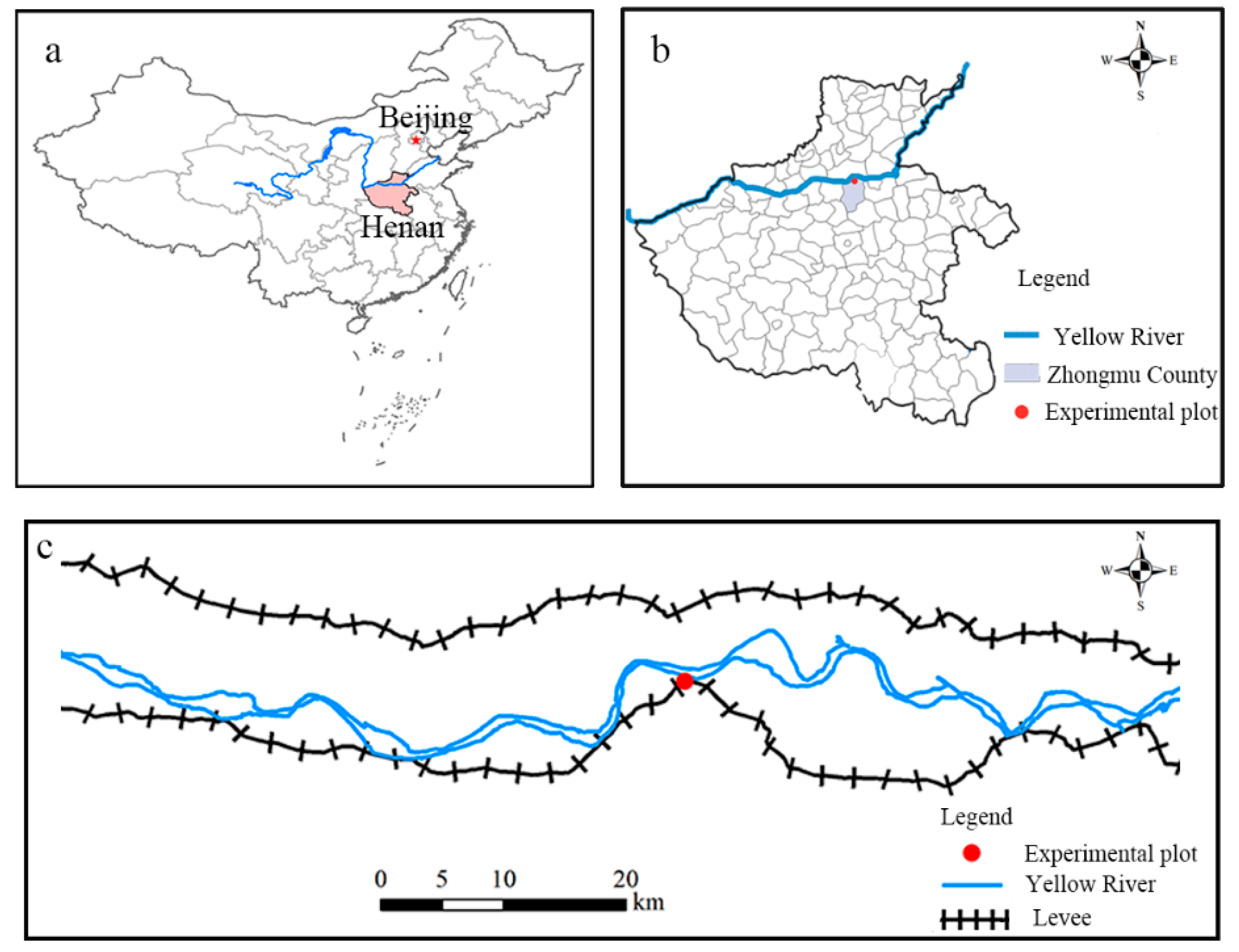

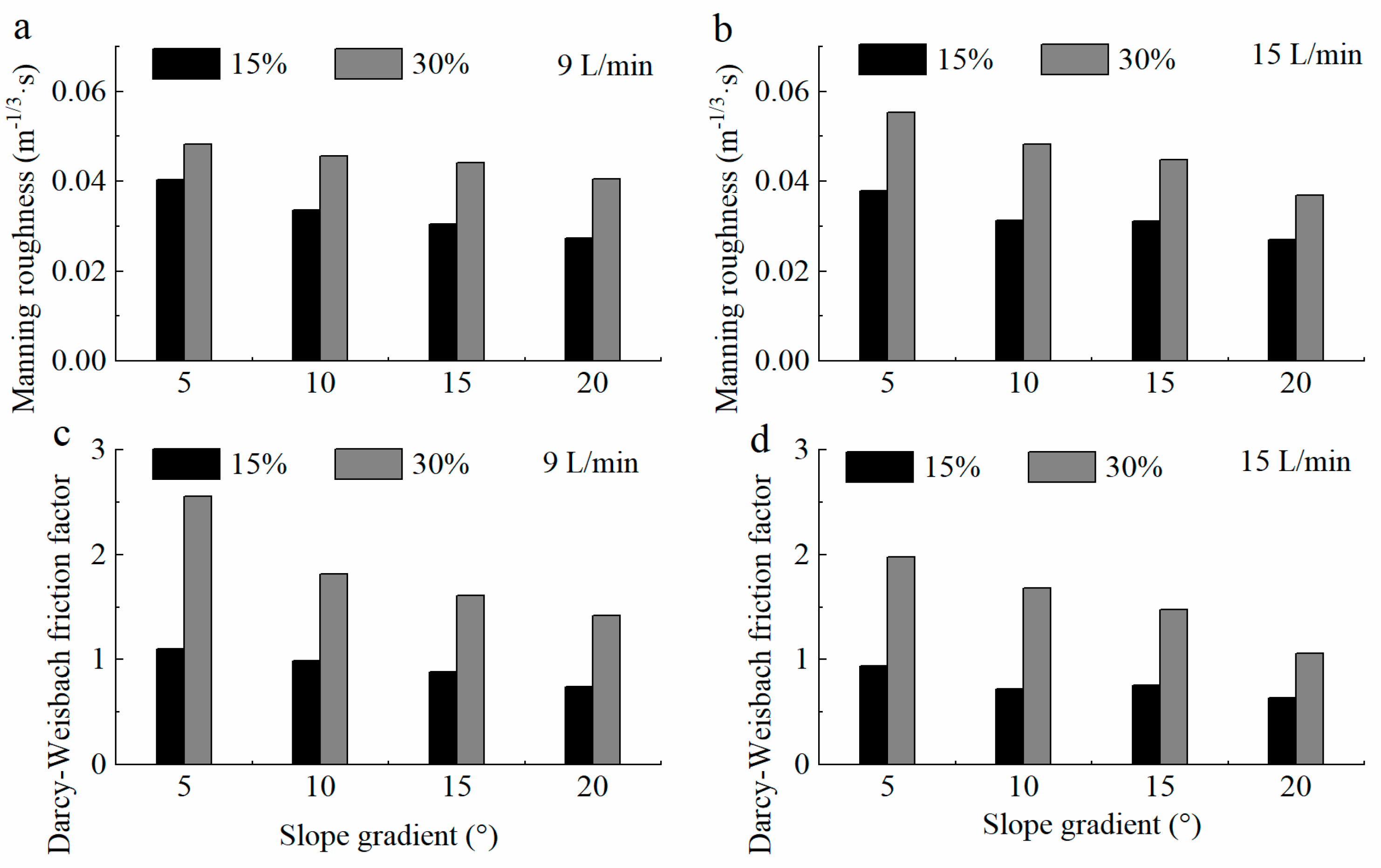

Riparian vegetation plays a vital role in inhibiting soil and water loss, but few studies have quantified the relationships between vegetation spatial pattern and the hydraulic characteristics of upslope runoff. This study investigated how hydraulic characteristics (e.g., runoff coefficient, flow regime, flow resistance, and flow shear stress of overland flow) responded to differences in vegetation cover (15% and 30%), slope gradient (5°, 10°, 15°, and 20°), and vegetation pattern in the riparian zone along the lower Yellow River, China, based on landscape pattern analysis and a runoff scouring experiment with flow rates of 9 and 15 L/min and an experimental plot size of 1 m × 3 m. We found that runoff generation on shallow slopes was moderated by increasing vegetation cover, but that this moderating effect decreased on steeper slopes. The regime of overland flow switched from laminar and subcritical on the 5° slope (Fr = 0.56–0.87) to laminar and critical on the 10°, 15°, and 20° slopes (Fr = 1.02–2.18). Flow resistance increased with vegetation cover and flow rate and decreased with slope gradients, and it was larger on shallow slopes with high vegetation cover. Flow shear stress had a range of 1.42–3.55 N m−2, and it increased with increasing slope gradient, vegetation cover, and flow rate. The hydraulic characteristics of upslope runoff, especially flow resistance, were significantly related to vegetation pattern at both the landscape and class levels. Flow resistance was negatively related to patch density, and positively related to perimeter–area fractal dimension and connectance index. The influencing mechanism of landscape patterns on soil erosion processes is dependent on the landscape scale, since the relationships between flow resistance and some landscape pattern indices (aggregation index, effective mesh size, and splitting index) were opposite at the landscape level compared to the class level. We conclude that fragmented vegetation distributions reduce flow resistance, and that riparian vegetation could be managed to inhibit slope erosion by increasing flow resistance. View Full-Text
Keywords: soil and water conservation; upslope runoff scouring; hydraulic characteristics; riparian vegetation pattern; the lower Yellow River soil and water conservation; upslope runoff scouring; hydraulic characteristics; riparian vegetation pattern; the lower Yellow River
Show Figures

Figure 1

MDPI and ACS Style

Zhao, Q.; Zhang, Y.; Xu, S.; Ji, X.; Wang, S.; Ding, S. Relationships between Riparian Vegetation Pattern and the Hydraulic Characteristics of Upslope Runoff. Sustainability 2019, 11, 2966. https://doi.org/10.3390/su11102966

AMA Style

Zhao Q, Zhang Y, Xu S, Ji X, Wang S, Ding S. Relationships between Riparian Vegetation Pattern and the Hydraulic Characteristics of Upslope Runoff. Sustainability. 2019; 11(10):2966. https://doi.org/10.3390/su11102966

Chicago/Turabian Style

Zhao, Qinghe, Yifan Zhang, Shanshan Xu, Xiaoyu Ji, Shuoqian Wang, and Shengyan Ding. 2019. "Relationships between Riparian Vegetation Pattern and the Hydraulic Characteristics of Upslope Runoff" Sustainability 11, no. 10: 2966. https://doi.org/10.3390/su11102966
