# Parameter Matching Method of a Battery-Supercapacitor Hybrid Energy Storage System for Electric Vehicles

^{*}

## Abstract

**:**

## 1. Introduction

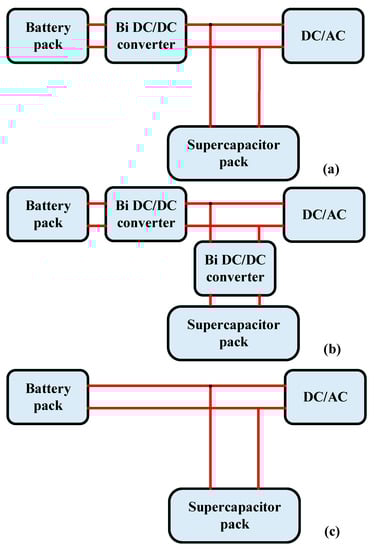

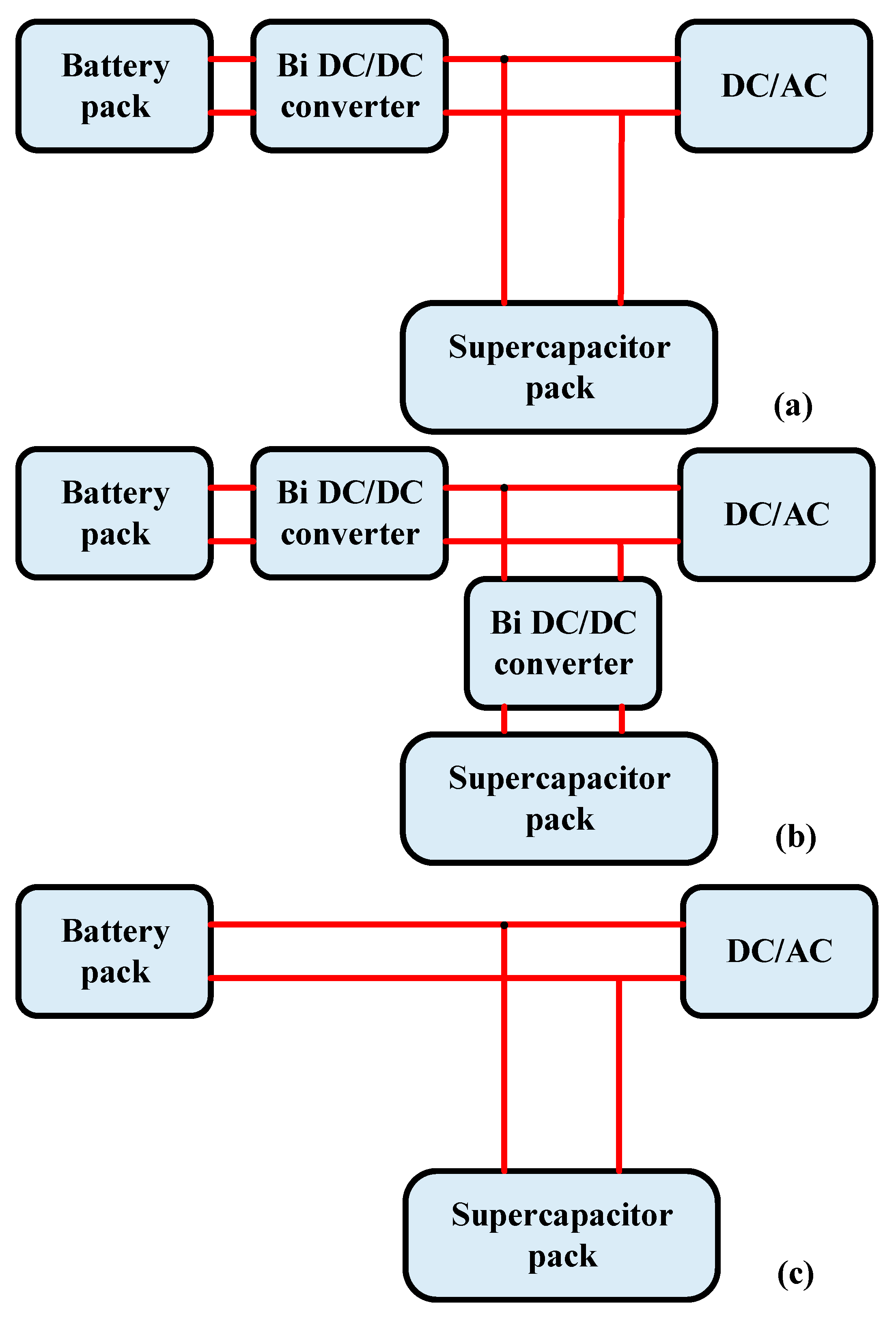

## 2. HESS Topology

## 3. Analysis of Six Typical Driving Cycles

## 4. HESS Parameter Matching Method and Optimization

#### 4.1. Energy Matching of Batteries

#### 4.2. Energy Matching of Supercapacitors

#### 4.3. Power Matching Method

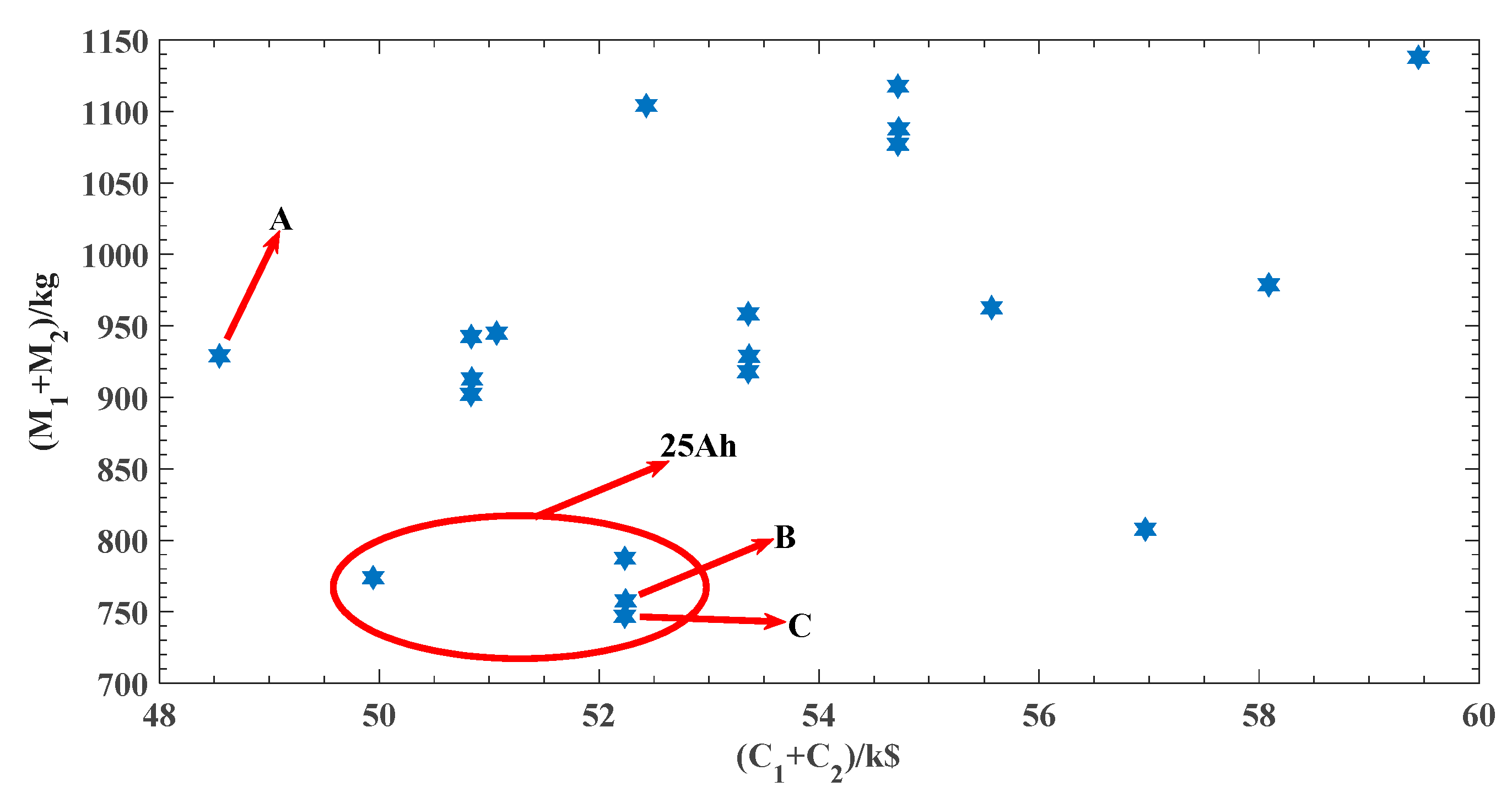

#### 4.4. Optimization Results

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Yan, Z.; Zhang, Y.; Liang, R.; Jin, W. An allocative method of hybrid electrical and thermal energy storage capacity for load shifting based on seasonal difference in district energy planning. Energy
**2020**, 207, 118139. [Google Scholar] [CrossRef] - Chen, Z.; Guo, N.; Shen, J.; Xiao, R.; Dong, P. A hierarchical energy management strategy for power-split plug-in hybrid electric vehicles considering velocity prediction. IEEE Access
**2018**, 6, 33261–33274. [Google Scholar] [CrossRef] - Xiong, R.; Sun, F.C.; Gong, X.Z.; Gao, C.C. A data-driven based adaptive state of charge estimator of lithium-ion polymer battery used in electric vehicles. Appl. Energy
**2014**, 113, 1421–1433. [Google Scholar] [CrossRef] - Hannan, M.A.; Lipu, M.S.H.; Ker, P.J.; Begum, R.A.; Agelidis, V.G.; Blaabjerg, F. Power electronics contribution to renewable energy conversion addressing emission reduction: Applications, issues, and recommendations. Appl. Energy
**2019**, 251, 113404. [Google Scholar] [CrossRef] - Randive, V.; Subramanian, S.C.; Thondiyath, A. Design and Analysis of a Hybrid Electric Powertrain for Military Tracked Vehicles. Energy
**2021**, 229, 120768. [Google Scholar] [CrossRef] - Song, Z.; Li, J.; Hou, J.; Hofmann, H.; Ouyang, M.; Du, J. The battery-supercapacitor hybrid energy storage system in electric vehicle applications: A case study. Energy
**2018**, 154, 433–441. [Google Scholar] [CrossRef] - Zhang, S.; Xiong, R.; Cao, J.Y. Battery durability and longevity based power management for plug-in hybrid electric vehicle with hybrid energy storage system. Appl. Energy
**2016**, 179, 316–328. [Google Scholar] [CrossRef] - Liu, K.; Yu, C.; Guo, W.; Lin, N.; Yu, J.; Xie, Y.; Wang, Z.; Ren, Y.; Qiu, J. Recent research advances of self-discharge in supercapacitors: Mechanisms and suppressing strategies. J. Energy Chem.
**2021**, 58, 94–109. [Google Scholar] [CrossRef] - Gomez-Gonzalez, M.; Hernández, J.C.; Vidal, P.G.; Jurado, F. Novel optimization algorithm for the power and energy management and component sizing applied to hybrid storage-based photovoltaic household-prosumers for the provision of complementarity services. J. Power Sources
**2021**, 482, 228918. [Google Scholar] [CrossRef] - Wang, C.; Huang, B.; Xu, W. An integrated energy management strategy with parameter match method for plug-in hybrid electric vehicles. IEEE Access
**2018**, 6, 62204–62214. [Google Scholar] [CrossRef] - Grün, T.; Smith, A.; Ehrenberg, H.; Doppelbauer, M. Passive Hybrid Storage Systems: Influence of circuit and system design on performance and lifetime. Energy Procedia
**2018**, 155, 336–349. [Google Scholar] [CrossRef] - Catenaro, E.; Rizzo, D.M.; Onori, S. Framework for energy storage selection to design the next generation of electrified military vehicles. Energy
**2021**, 231, 120695. [Google Scholar] [CrossRef] - Zeng, T.; Zhang, C.; Zhang, Y.; Deng, C.; Hao, D.; Zhu, Z.; Ran, H.; Cao, D. Optimization-oriented adaptive equivalent consumption minimization strategy based on short-term demand power prediction for fuel cell hybrid vehicle. Energy
**2021**, 227, 120305. [Google Scholar] [CrossRef] - Yang, J.B.; Xu, X.H.; Peng, Y.Q. Optimal Parameter Matching of Hybrid Energy Storage System Based on NSGA-Ⅱ Algorithm for Energy Storage Type Tram. Chin. J. Mech. Eng.
**2020**, 56, 181–189. [Google Scholar] - Kouchachvili, L.; Yaïci, W.; Entchev, E. Hybrid battery/supercapacitor energy storage system for the electric vehicles. J. Power Sources
**2018**, 374, 237–248. [Google Scholar] [CrossRef] - Khasim, S.R.; Dhanamjayulu, C. Selection parameters and synthesis of multi-input converters for electric vehicles: An overview. Renew. Sustain. Energy Rev.
**2021**, 141, 110804. [Google Scholar] [CrossRef] - Wieczorek, M.; Lewandowski, M. A mathematical representation of an energy management strategy for hybrid energy storage system in electric vehicle and real time optimization using a genetic algorithm. Appl. Energy
**2017**, 192, 222–233. [Google Scholar] [CrossRef] - Li, Y.; Huang, X.; Liu, D.; Wang, M.; Xu, J. Hybrid energy storage system and energy distribution strategy for four-wheel independent-drive electric vehicles. J. Clean. Prod.
**2019**, 220, 756–770. [Google Scholar] [CrossRef] - Wang, C.; Xiong, R.; He, H.W.; Ding, X.F.; Shen, W.X. Efficiency analysis of a bidirectional DC/DC converter in a hybrid energy storage system for plug-in hybrid electric vehicles. Appl. Energy
**2016**, 183, 612–622. [Google Scholar] [CrossRef] - Wang, Y.; Sun, Z.; Chen, Z. Development of energy management system based on a rule-based power distribution strategy for hybrid power sources. Energy
**2019**, 175, 1055–1066. [Google Scholar] [CrossRef] - Xiong, R.; Cao, J.; Yu, Q. Reinforcement learning-based real-time power management for hybrid energy storage system in the plug-in hybrid electric vehicle. Appl. Energy
**2018**, 211, 538–548. [Google Scholar] [CrossRef] - Chen, H.; Zhang, Z.; Guan, C.; Gao, H. Optimization of sizing and frequency control in battery/supercapacitor hybrid energy storage system for fuel cell ship. Energy
**2020**, 197, 117285. [Google Scholar] [CrossRef] - Xiong, R.; Chen, H.; Wang, C.; Sun, F. Towards a smarter hybrid energy storage system based on battery and ultracapacitor—A critical review on topology and energy management. J. Clean. Prod.
**2018**, 202, 1228–1240. [Google Scholar] [CrossRef] - Zhou, F.; Xiao, F.; Chang, C.; Shao, Y.; Song, C. Adaptive model predictive control-based energy management for semi-active hybrid energy storage systems on electric vehicles. Energies
**2017**, 10, 1063. [Google Scholar] [CrossRef] [Green Version] - Sarwar, W.; Engstrom, T.; Marinescu, M.; Green, N.; Taylor, N.; Offer, G. Experimental analysis of Hybridised Energy Storage Systems for automotive applications. J. Power Sources
**2016**, 324, 388–401. [Google Scholar] [CrossRef] - Wang, Y.; Wang, L.; Li, M.; Chen, Z. A review of key issues for control and management in battery and ultra-capacitor hybrid energy storage systems. eTransportation
**2020**, 4, 100064. [Google Scholar] [CrossRef] - Song, Z.; Hou, J.; Xu, S.; Ouyang, M.; Li, J. The influence of driving cycle characteristics on the integrated optimization of hybrid energy storage system for electric city buses. Energy
**2017**, 135, 91–100. [Google Scholar] [CrossRef] - Wu, Y.; Li, C.; Tian, Z.; Sun, J. Solar-driven integrated energy systems: State of the art and challenges. J. Power Sources
**2020**, 478, 228762. [Google Scholar] [CrossRef] - Hu, J.J.; Xiao, J.; Yan, J.J. Control strategy and parameter optimization of hybrid energy storage device for electric vehicles. J. Chongqing Univ.
**2016**, 39, 1–11. [Google Scholar] - Liu, C.; Wang, Y.; Wang, L.; Chen, Z. Load-adaptive real-time energy management strategy for battery/ultracapacitor hybrid energy storage system using dynamic programming optimization. J. Power Sources
**2019**, 438, 227024. [Google Scholar] [CrossRef] - Song, Z.; Hofmann, H.; Li, J.; Han, X.; Ouyang, M. Optimization for a hybrid energy storage system in electric vehicles using dynamic programing approach. Appl. Energy
**2015**, 139, 151–162. [Google Scholar] [CrossRef]

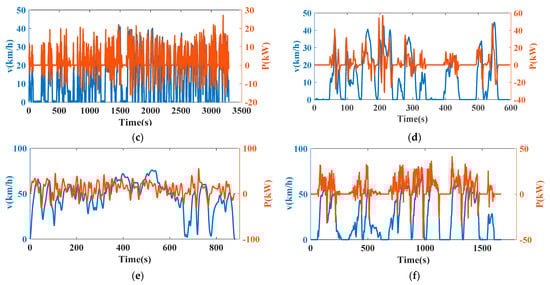

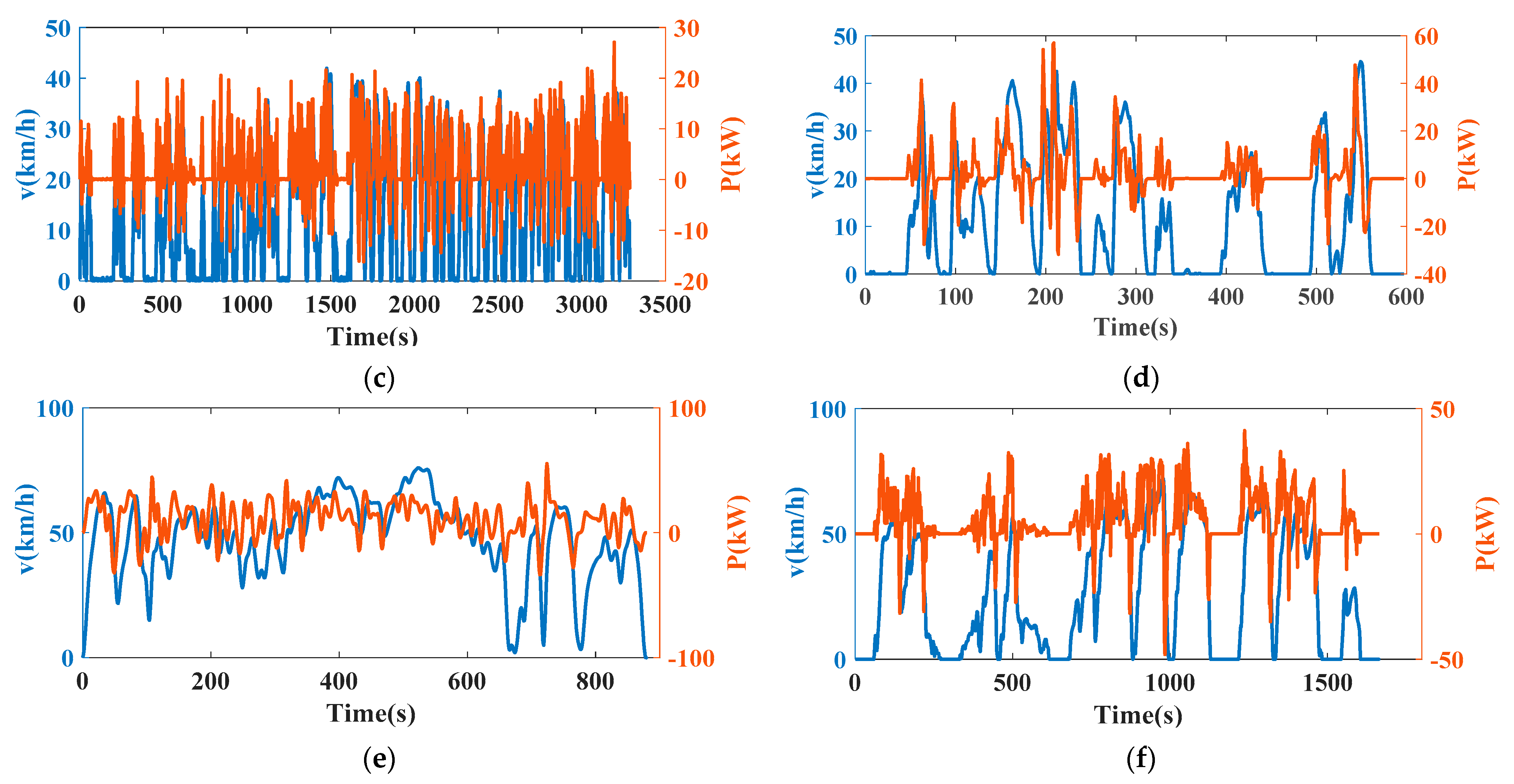

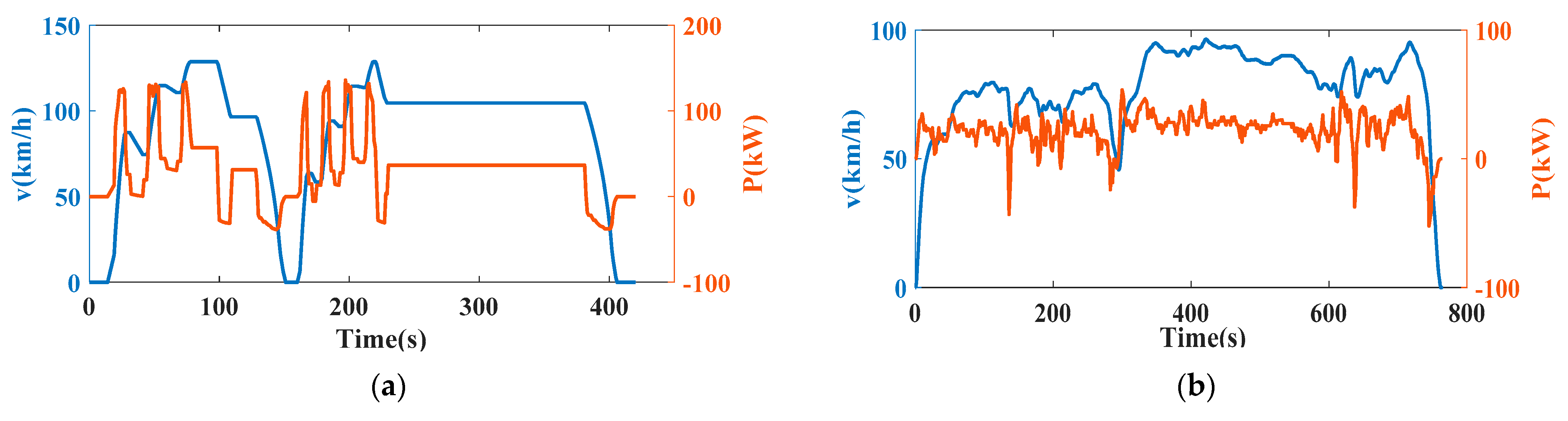

**Figure 2.**Velocity and power curves for six standard driving cycles. (

**a**) HL07. (

**b**) HWFET. (

**c**) UKBUS6. (

**d**) NYCC. (

**e**) INDIA-HWY-SAMPLE. (

**f**) WVUSUB.

Parameter | Values |
---|---|

Curb weight $M$ | 1845 kg |

Coefficient of air resistance ${C}_{D}$ | 0.36 |

Frontal area $A$ | 2.53 m² |

Rotating mass conversion factor $\delta $ | 1.03 |

Acceleration of gravity $g$ | 9.8 m/s² |

Rolling resistance coefficient $f$ | 0.025 |

Transmission efficiency $\eta $ | 0.9 |

Driving ranges $S$ | 300 km |

Maximum speed | 130 km/h |

Maximum grade $\alpha $ | 25% |

Rated busbar voltage ${U}_{\mathrm{m}}$ | 360 V |

Assisted acceleration time | 15 s |

0~50 km/h Acceleration time | ≤10 s |

Driving Cycles/ Parameters | Maximum Acceleration (m/s²) | Positive Peak Power (kW) | Positive Average Power (kW) | Negative Peak Power (kW) |
---|---|---|---|---|

HL07 | 3.576 | 135.822 | 45.816 | −38.403 |

HWFET | 1.431 | 53.606 | 24.790 | −52.259 |

UKBUS6 | 1.313 | 27.093 | 4.871 | −16.221 |

NYCC | 2.682 | 56.956 | 9.564 | −31.743 |

INDIA_HWY_SAMPLE | 2.121 | 55.345 | 16.845 | −33.525 |

WVUSUB | 1.295 | 41.270 | 11.179 | −48.049 |

${\mathit{N}}_{\mathit{B}\mathit{a}\mathit{t}-\mathit{p}}$ | ${\mathit{C}}_{\mathit{B}\mathit{a}\mathit{t}-\mathit{c}\mathit{e}\mathit{l}\mathit{l}}\left(\mathbf{Ah}\right)$ | ${\mathit{N}}_{\mathbf{sc}-\mathit{p}}$ | ${\mathit{C}}_{\mathbf{sc}}\left(\mathbf{F}\right)$ |
---|---|---|---|

1 | ≥233.790 | 1 | ≥3658.198 |

2 | ≥116.900 | 2 | ≥1829.099 |

3 | ≥77.930 | 3 | ≥1219.399 |

4 | ≥58.450 | 4 | ≥914.549 |

5 | ≥46.760 | 5 | ≥731.639 |

6 | ≥38.965 | 6 | ≥609.699 |

7 | ≥33.400 | 7 | ≥522.599 |

8 | ≥29.220 | 8 | ≥457.275 |

9 | ≥25.970 | 9 | ≥406.466 |

10 | ≥23.380 | 10 | ≥365.820 |

${\mathit{C}}_{\mathit{B}\mathit{a}\mathit{t}-\mathit{c}\mathit{e}\mathit{l}\mathit{l}}\left(\mathbf{Ah}\right)$ | ${\mathit{N}}_{\mathit{B}\mathit{a}\mathit{t}-\mathit{p}}$ | $\mathit{m}\left(\mathbf{kg}\right)$ | ${\mathit{\rho}}_{\mathbf{bat}}\left(\mathbf{Wh}/\mathbf{kg}\right)$ | ${\mathit{W}}_{\mathbf{bat}}\left(\$/\mathbf{Wh}\right)$ |
---|---|---|---|---|

25 | ≥9.352 | 0.585 | 170 | 0.430 |

35 | ≥6.680 | 1.080 | 135 | 0.430 |

60 | ≥3.900 | 1.850 | 130 | 0.430 |

100 | ≥2.338 | 3.050 | 115 | 0.430 |

${\mathit{C}}_{\mathit{s}\mathit{c}}\left(\mathbf{F}\right)$ | ${\mathit{\rho}}_{\mathit{E}\mathbf{sc}}\left(\mathbf{Wh}/\mathbf{kg}\right)$ | $\mathit{m}\left(\mathbf{kg}\right)$ | ${\mathit{\rho}}_{\mathbf{sc}}\left(\mathbf{W}/\mathbf{kg}\right)$ | ${\mathit{W}}_{\mathbf{sc}}\left(\$/\mathbf{Wh}\right)$ | ${\mathit{N}}_{\mathbf{sc}-\mathit{p}}$ |
---|---|---|---|---|---|

650 | 3.29 | 0.20 | 5400 | 11.55 | ≥6.173 |

1200 | 4.05 | 0.30 | 5000 | 11.55 | ≥4.444 |

1500 | 4.75 | 0.32 | 5800 | 11.55 | ≥3.592 |

2000 | 5.06 | 0.40 | 6200 | 11.55 | ≥2.688 |

3000 | 5.52 | 0.55 | 5400 | 11.55 | ≥2.245 |

${\mathit{C}}_{\mathit{B}\mathit{a}\mathit{t}-\mathit{c}\mathit{e}\mathit{l}\mathit{l}}\left(\mathbf{Ah}\right)$ | 25 | 35 | 60 | 100 |
---|---|---|---|---|

$\mathrm{min}{N}_{Bat-p}$ | 10 | 7 | 4 | 3 |

min weight (kg) | 585 | 756 | 740 | 915 |

min cost (k$) | 42.763 | 43.886 | 41.366 | 45.247 |

${\mathit{C}}_{\mathit{s}\mathit{c}}\left(\mathbf{F}\right)$ | 650 | 1200 | 1500 | 2000 | 3000 |
---|---|---|---|---|---|

$\mathrm{min}{N}_{\mathrm{sc}-p}$ | 7 | 5 | 4 | 3 | 3 |

min weight (kg) | 189.0 | 202.5 | 172.8 | 162.0 | 222.8 |

min cost (k$) | 7.181 | 9.472 | 9.480 | 9.468 | 14.201 |
