# Numerical and Analytical Study of a Battery Powered Vehicle Moving in a Vacuum Tunnel

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Vacuum Vehicle Geometry

#### 2.2. Analytical Study

#### 2.2.1. Analytical Analysis of Aerodynamics

- Isentropic characterization of a Mach number equal to 1 for different freestream velocity and blocking ratio.
- The critical blocking ratio characterization for $M{a}_{\infty}$ = 0.5 in freestream (see Figure 3b).

#### 2.2.2. Analytical Analysis for Heat Transfer

^{2}. Based on the specifications of the available lithium polymer batteries, the maximum allowed temperature was assumed as 55 °C. The calculations were based on the air properties at reference temperature equal to 0 °C and Sutherland’s law was used for dynamic viscosity estimation.

#### 2.3. Numerical Model

^{2}. During the aerodynamic calculations, the heat flux emitted by the batteries was not included.

## 3. Results and Discussion

#### 3.1. Aerodynamic Analytical Results

#### 3.2. Aerodynamic Numerical Results

#### 3.2.1. Pressure, Velocity and Drag Coefficient.

#### 3.2.2. Boundary Layer Separation, Back Flow and Velocity Profiles

#### 3.3. Heat Transfer

#### 3.3.1. Validation – Battery Cooling in Freestream Flow

^{2}. It was assumed that the whole emitted heat power was transferred to the passing air. Every considered case in the analysis is characterized by an order of magnitude difference in Reynolds number and is directly related to the value of the considered tunnel pressure. Consequently, Equation (7) was used to calculate the Nusselt number and Equation (9) was used to calculate the heat transfer coefficient.

^{2}/K and increases with Reynolds number. For very high Reynolds numbers, higher than 107, α ≈ 350 W/m

^{2}/K. The received values of α compare well with values reported in [38,44]. Consequently, the temperature of the batteries after cooling was calculated using Equation (10). Table 2 contains the analytical results of heat transfer calculations for the freestream velocity of 166 and 125 m/s. It can be noticed that $\alpha $ is higher for 166 m/s and the average temperature for the operating batteries is smaller for the 125 m/s velocity. It should be noted that, only for 100 kPa, the temperature was set below 55 °C (309 K) and stayed in the range of the recommended working temperature of the considered batteries.

#### 3.3.2. Analytical Analysis of Heat Transfer for Vehicle with Batteries

#### 3.3.3. Numerical Results—Vehicle with Batteries

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Clark, D.K. Railway Machinery; Blackie and Son: Glasgow, UK; Edinburgh, UK; London, UK; New York, NY, USA, 1855. [Google Scholar]
- Harding, W. On the resistances to railway trains at different velocities. Minutes Proc. Inst. Civ. Eng.
**1846**, 5, 369–411. [Google Scholar] [CrossRef] - Gooch, D. Observations on the resistances to railway trains at different velocities. Minutes Proc. Inst. Civ. Eng.
**1848**, 7, 292–294. [Google Scholar] [CrossRef] - Buhle, M.; Pfitzner, W. Die Schnellbahnwagen der Studiengesellschaft für elektrische Schnellbahnen in Berlin. Polytech. J.
**1904**, 85, 449–452. [Google Scholar] - Davis, W.J. The tractive resistance of electric locomotives and cars. Gen. Electr. Rev.
**1926**, 29, 685–708. [Google Scholar] - Baker, C.J.; Brockie, N.J. The aerodynamic drag of high speed trains. J. Wind Eng. Ind. Aerodyn.
**1990**, 34, 273–290. [Google Scholar] [CrossRef] - Rochard, B.P.; Schmid, F. A review of methods to measure and calculate train resistances. Proc. Inst. Mech. Eng. Part F J. Rail Rapid Transit
**2000**, 214, 185–199. [Google Scholar] [CrossRef] - Schetz, J.A. Aerodynamics of high-speed trains. Annu. Rev. Fluid Mech.
**2001**, 33, 371–414. [Google Scholar] [CrossRef][Green Version] - Mossi, M.; Sibilla, S. Swissmetro: Aerodynamic Drag and Wave Effects in Tunnels Under Partial Vacuum. 2002. Available online: https://www.semanticscholar.org/paper/Swissmetro-%3A-aerodynamic-drag-and-wave-effects-in-Mossi-Sibilla/a6d97c409f9a24e4f51239dafd9ccb506bbbc49b (accessed on 13 March 2020).
- Cassat, A.; Bourquin, V.; Mossi, M.; Badoux, M.; Vernez, D.; Jufer, M.; Macabrey, N.; Rossel, P. D504 SWISSMETRO-Project Development Status; Swissmetro—Project Development Status: Tokyo, Japan, 2003; pp. 453–460. [Google Scholar]
- Vardy, A.E. Aerodynamic drag on trains in tunnels part 1: Synthesis and definitions. Proc. Inst. Mech. Eng. Part F J. Rail Rapid Transit
**1996**, 210, 29–38. [Google Scholar] [CrossRef] - Vardy, A.E. Aerodynamic drag on trains in tunnels part 2: Prediction and validation. Proc. Inst. Mech. Eng. Part F J. Rail Rapid Transit
**1996**, 210, 39–49. [Google Scholar] [CrossRef] - Baker, C.J.; Brockie, N.J. Wind tunnel tests to obtain train aerodynamic drag coefficients: Reynolds number and ground simulation effects. J. Wind Eng. Ind. Aerodyn.
**1991**, 38, 23–28. [Google Scholar] [CrossRef] - Bourquin, V.; Béguin, C.; Monkewitz, P.A. Aerodynamic Effects in Railway Tunnels as Speed is Increased. In The Aerodynamics of Heavy Vehicles: Trucks, Buses, and Trains. Lecture Notes in Applied and Computational Mechanics; McCallen, R., Browand, F., Ross, J., Eds.; Springer: Berlin/Heidelberg, Germany, 2004; Volume 19. [Google Scholar]
- Yang, Y.; Ma, D.; Mei, Y. Numerical Simulation of Aerodynamic Drag of Single High-Speed Train Passing through a Tunnel. In Proceedings of the 2nd International Conference on Industrial Aerodynamics (ICIA 2017), Qingdao, China, 18–20 October 2017; ISBN 978-1-60595-481-3. [Google Scholar]
- Raghunathan, R.S.; Kim, H.-D.; Setoguchi, T. Aerodynamics of high-speed railway train. Prog. Aerosp. Sci.
**2002**, 38, 469–514. [Google Scholar] [CrossRef] - Faramehr, S.; Hemida, H. Aerodynamics of trains in tunnels. In Proceedings of the Third International Conference on Railway Technology: Research, Development and Maintenance, Cagliari, Sardinia, Italy, 5–8 April 2016. [Google Scholar]
- Jiang, Z.; Matsuoka, K.; Sasoh, A.; Takayama, K. Investigation of Shock-Wave Generation by a High-Speed Rain Running into a Tunnel. In Proceeding of the 7th ISCFD, Beijing, China, 4–8 September 1997; pp. 779–784. [Google Scholar]
- Liu, T.; Jiang, Z.; Chen, X.; Zhang, J.; Liang, X. Wave effects in a realistic tunnel induced by the passage of high-speed trains. Tunn. Undergr. Space Technol.
**2019**, 86, 224–235. [Google Scholar] [CrossRef] - Houghton, E.L.; Carpenter, P.W. Aerodynamics for Engineering Students, 5th ed.; Butterworth-Heinemann: Burlington, MA, USA, 2003. [Google Scholar]
- Wang, J.; Gao, G.; Li, X.; Liang, X.; Zhang, J. Effect of bogie fairings on the flow behaviours and aerodynamic performance of a high-speed train. Veh. Syst. Dyn.
**2019**. Available online: https://www.tandfonline.com/doi/abs/10.1080/00423114.2019.1607400 (accessed on 13 March 2020). [CrossRef] - Niu, J.Q.; Zhou, D.; Liu, T.H.; Liang, X.F. Numerical simulation of aerodynamic performance of a couple multiple units high-speed train. Veh. Syst. Dyn.
**2017**, 55, 681–703. [Google Scholar] [CrossRef] - Decker, K.; Chin, J.; Peng, A.; Summers, C.; Nguyen, G.; Oberlander, A.; Sakib, G.; Sharifrazi, N.; Heath, C.; Gray, J.S.; et al. Conceptual feasibility study of the hyperloop vehicle for next-generation transport. In Proceedings of the 55th AIAA Aerospace Sciences Meeting, AIAA SciTech Forum (2017), Grapevine, TX, USA, 9–13 January 2017. [Google Scholar]
- Mok, J.K.; Yoo, J. Numerical study on high speed train and tunnel hood interaction. J. Wind Eng. Ind. Aerodyn.
**2001**, 89, 17–29. [Google Scholar] [CrossRef] - Chin, J.C.; Gray, J.S. Open-Source Conceptual Sizing Models for the Hyperloop Passenger Vehicle. In Proceedings of the 56th AIAA/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference, Kissimmee, FL, USA, 5–9 January 2015. [Google Scholar] [CrossRef][Green Version]
- Blomgren, G.E. The Development and Future of Lithium Ion Batteries. J. Electrochem. Soc.
**2017**, 164, A5019–A5025. [Google Scholar] [CrossRef][Green Version] - Yoshino, A. Development of the Lithium-Ion Battery and Recent Technological Trends. In Lithium-Ion Batteries; Pistoia, G., Ed.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 1–20. [Google Scholar] [CrossRef]
- Mohammadi, F. Electric Vehicle Battery Market Analysis: Lithium-Ion. In Proceedings of the 1st International Conference on Modern Approaches in Engineering Science (ICMAES), Tbilisi, Georgia, 21 November 2018. [Google Scholar]
- Budde-Meiwes, H.; Drillkens, J.; Lunz, B.; Muennix, J.; Rothgang, S.; Kowal, J.; Sauer, D.U. A review of current automotive battery technology and future prospects. Proc. Inst. Mech. Eng. Part D J. Automob. Eng.
**2013**, 227, 761–776. [Google Scholar] [CrossRef] - Agwu, D.D.; Opara, F.; Chukwuchekwa, N.; Dike, D.; Uzoechi, L. Review of Comparative Battery Energy Storage Systems (Bess) for Energy Storage Applications in Tropical Enviroments. In IEEE 3rd International Conference on Electro-Technology for National Development; IEEE: Danvers, MA, USA, 2018. [Google Scholar]
- Leng, F.; Tan, C.M.; Pecht, M. Effect of Temperature on the Aging rate of Li Ion Battery Operating above Room Temperature. Sci. Rep.
**2015**, 5, 12967. [Google Scholar] [CrossRef][Green Version] - Ma, S.; Jiang, M.; Tao, P.; Song, C.; Wu, J.; Wang, J.; Deng, T.; Shang, W. Temperature effect and thermal impact in lithium-ion batteries: A review. Prog. Nat. Sci. Mater. Int.
**2018**, 28, 653–666. [Google Scholar] [CrossRef] - Kudela, H.; Malecha, Z.M. Investigation of unsteady vorticity layer eruption induced by vortex patch using vortex particles method. J. Theor. Appl. Mech.
**2007**, 45, 785–800. [Google Scholar] - Marcantoni, L.F.G.; Tamagno, J.P.; Elaskar, S.A. High speed flow simulation using openfoam. Mec. Comput.
**2012**, 16, 2939–2959. [Google Scholar] - Kraposhin, M.; Bovtrikova, A.; Strijhak, S. Adaptation of Kurganov-Tadmor Numerical Scheme for Applying in Combination with the PISO Method in Numerical Simulation of Flows in a Wide Range of Mach Numbers. Procedia Comput. Sci.
**2015**, 66, 43–52. [Google Scholar] [CrossRef][Green Version] - Spalart, P.; Allmaras, S. A One-Equation Turbulence Model for Aerodynamic Flows. In Proceedings of the 30th Aerospace Sciences Meeting and Exhibit (AIAA), Reno, NV, USA, 6–9 January 1992. [Google Scholar] [CrossRef]
- Winter, M. Benchmark and Validation of Open Source CFD Codes, with Focus on Compressible and Rotating Capabilities, for Integration on the SimScale Platform. Master’s Thesis, Department of Applied Mechanics Chalmers, University of Technology, Gothenburg, Sweden, 2013. [Google Scholar]
- Yanus, A.C.; Michale, A.B. Thermodynamics—An Engineering Approach, 5th ed.; McGraw Hill: New York, NY, USA, 2006. [Google Scholar]
- Rohsenow, W.M.; Harnett, J.P.; Cho, Y.I. Handbook of Heat Transfer, 3rd ed.; McGraw-Hill: New York, NY, USA, 1998. [Google Scholar]
- Keith, F. The CRC Handbook of Thermal Engineering; CRC Press LLC: Boca Raton, FL, USA, 2000. [Google Scholar]
- Nagib, H.; Christophorou, C.; Ruedi, J.D.; Monkewitz, P.; Osterlund, J.; Gravante, S.; Chauhan, K.; Pelivan, I. Can We Ever Rely on Results from Wall-Bounded Turbulent Flows Without Direct Measurements of Wall Shear Stress? In Proceedings of the 24th AIAA Aerodynamic Measurement Technology and Ground Testing Conference, Portland, OR, USA, 28 June–1 July 2004. [Google Scholar] [CrossRef]
- Schultz, M.P.; Flack, K.A. Reynolds-number scaling of turbulent channel flow. Phys. Fluids
**2013**, 25, 025104. [Google Scholar] [CrossRef][Green Version] - Manceau, R.; Carlson, J.R.; Gatski, T.B. A rescaled elliptic relaxation approach: Neutralizing the effect on the log layer. Phys. Fluids
**2002**, 14, 3868–3879. [Google Scholar] [CrossRef] - Moran, M.J.; Shapiro, H.N.; Boettner, D.D.; Bailey, M.B. Fundamentals of Engineering Thermodynamics; John Wiley & Sons: Hoboken, NJ, USA, 2008. [Google Scholar]

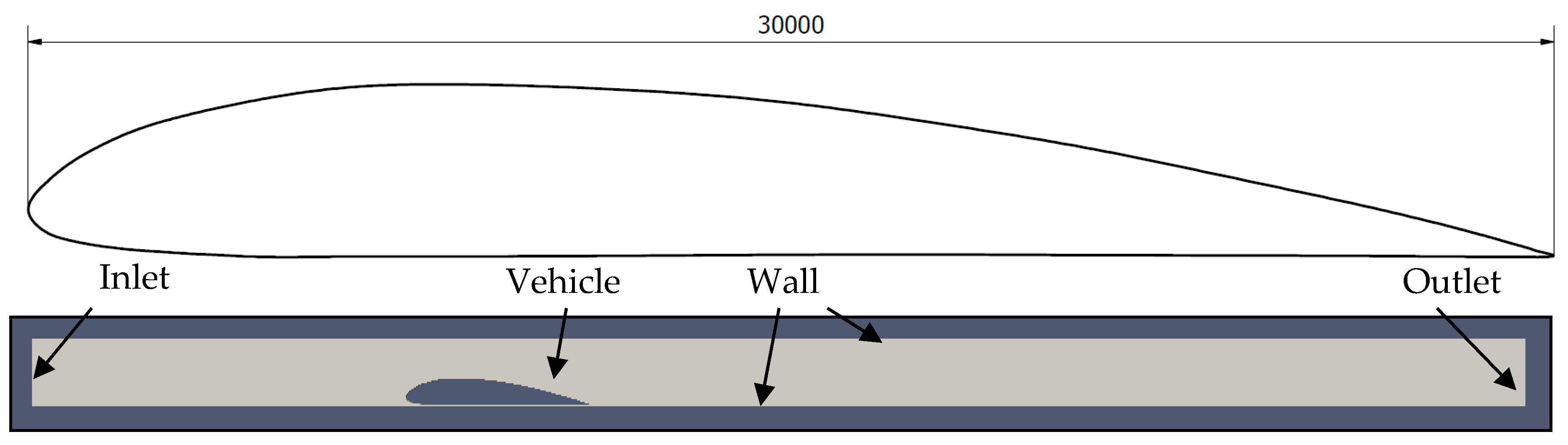

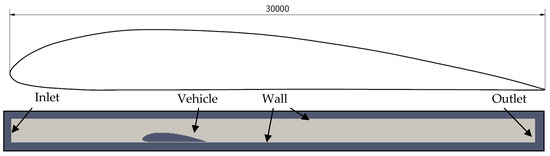

**Figure 1.**The N-10 airfoil shape used as a base for the considered vacuum vehicle and its position in the tunnel. Numerical geometry used for the aerodynamic calculations.

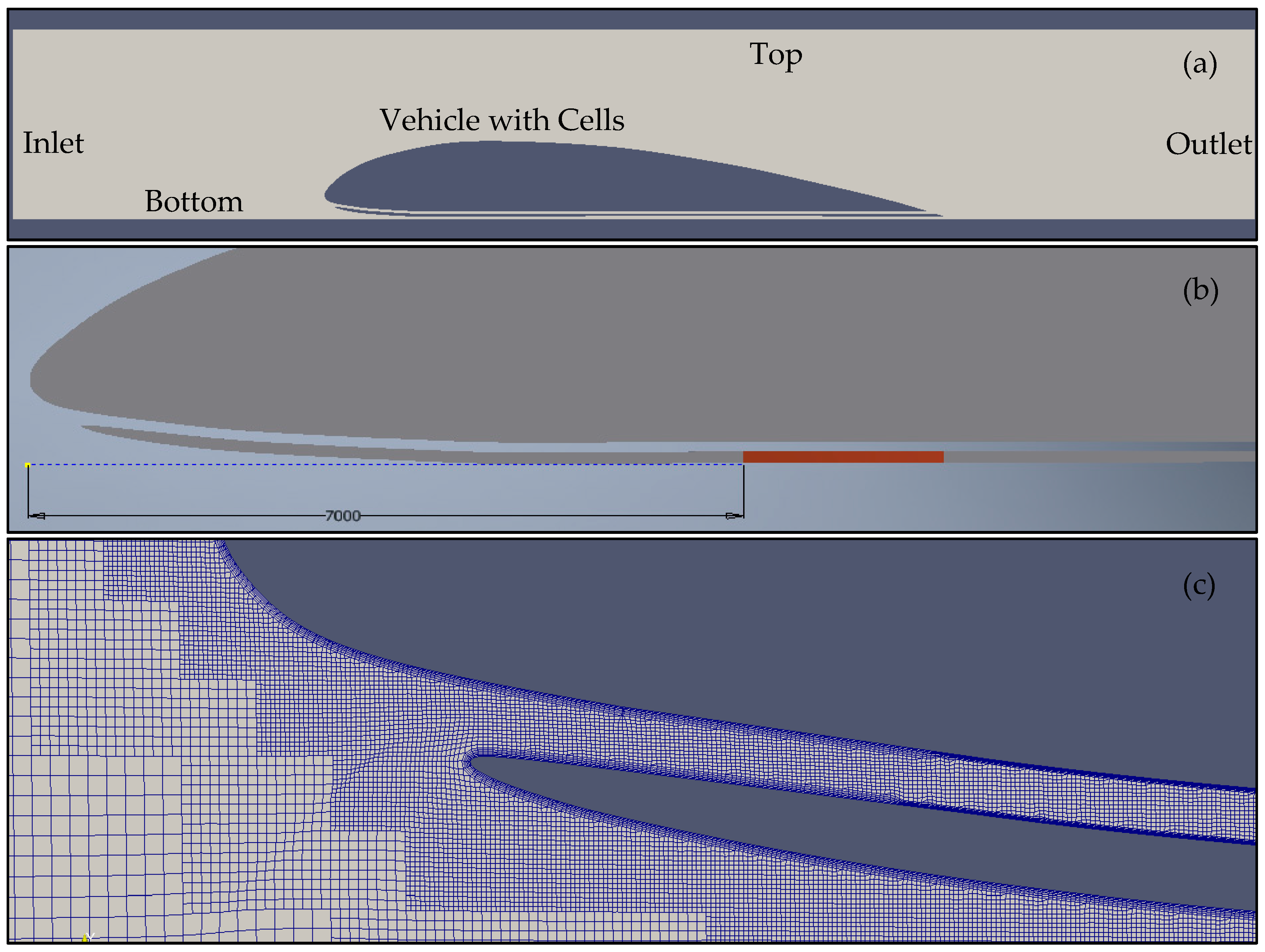

**Figure 2.**Numerical domain for the vehicle with batteries and heat transfer calculations: (

**a**) numerical geometry and boundary conditions, (

**b**) position of the batteries in the vehicle (red), (

**c**) detail of the numerical mesh in the vicinity of the cooling ducts (the inner duct and the duct below the tunnel).

**Figure 3.**(

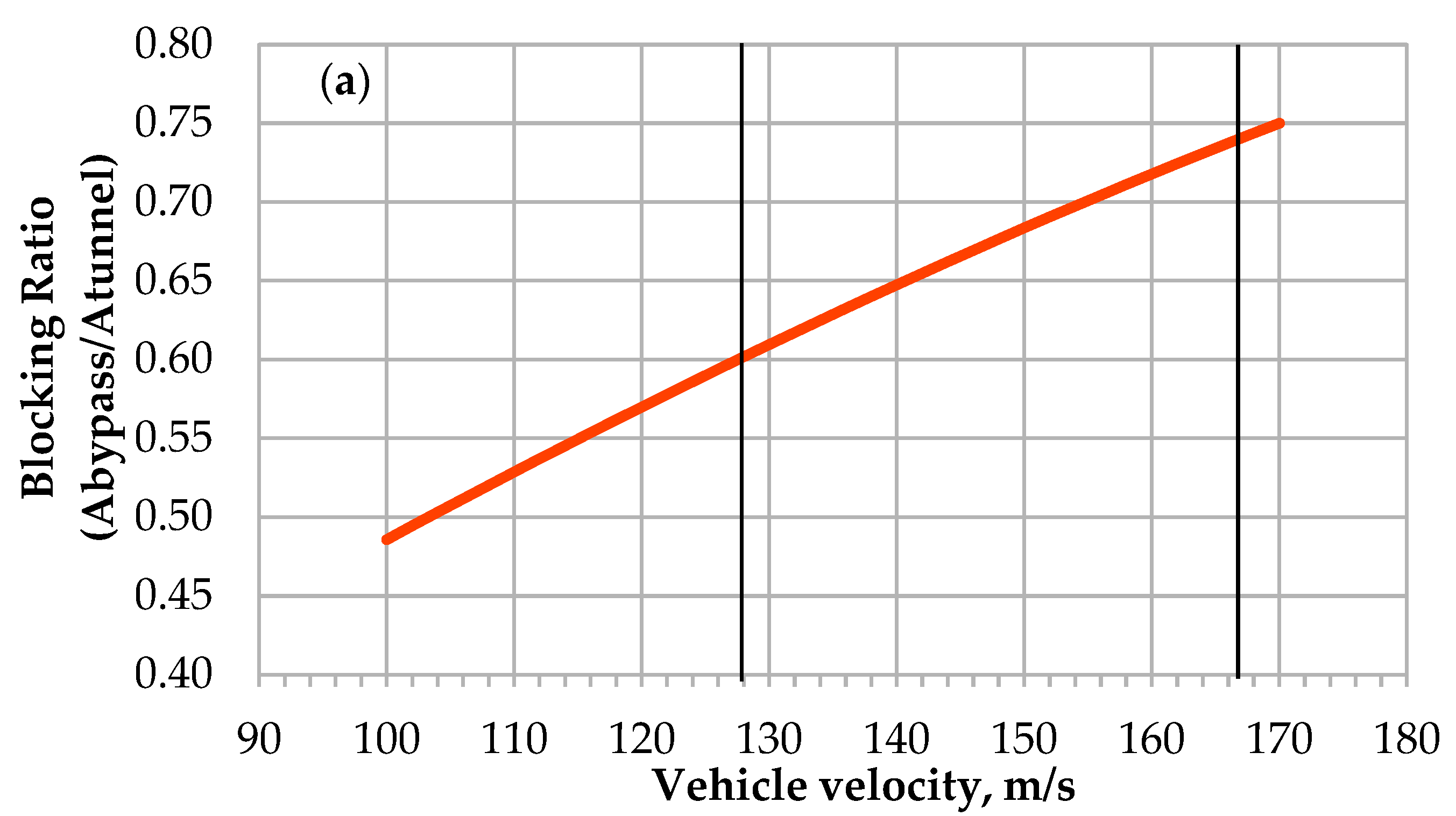

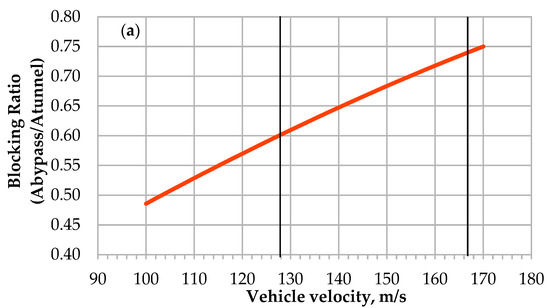

**a**) Isentropic characteristic of blocking ratio in function of the vehicle velocity, with the assumption Ma = 1 in bypass between the vehicle and the tunnel; (

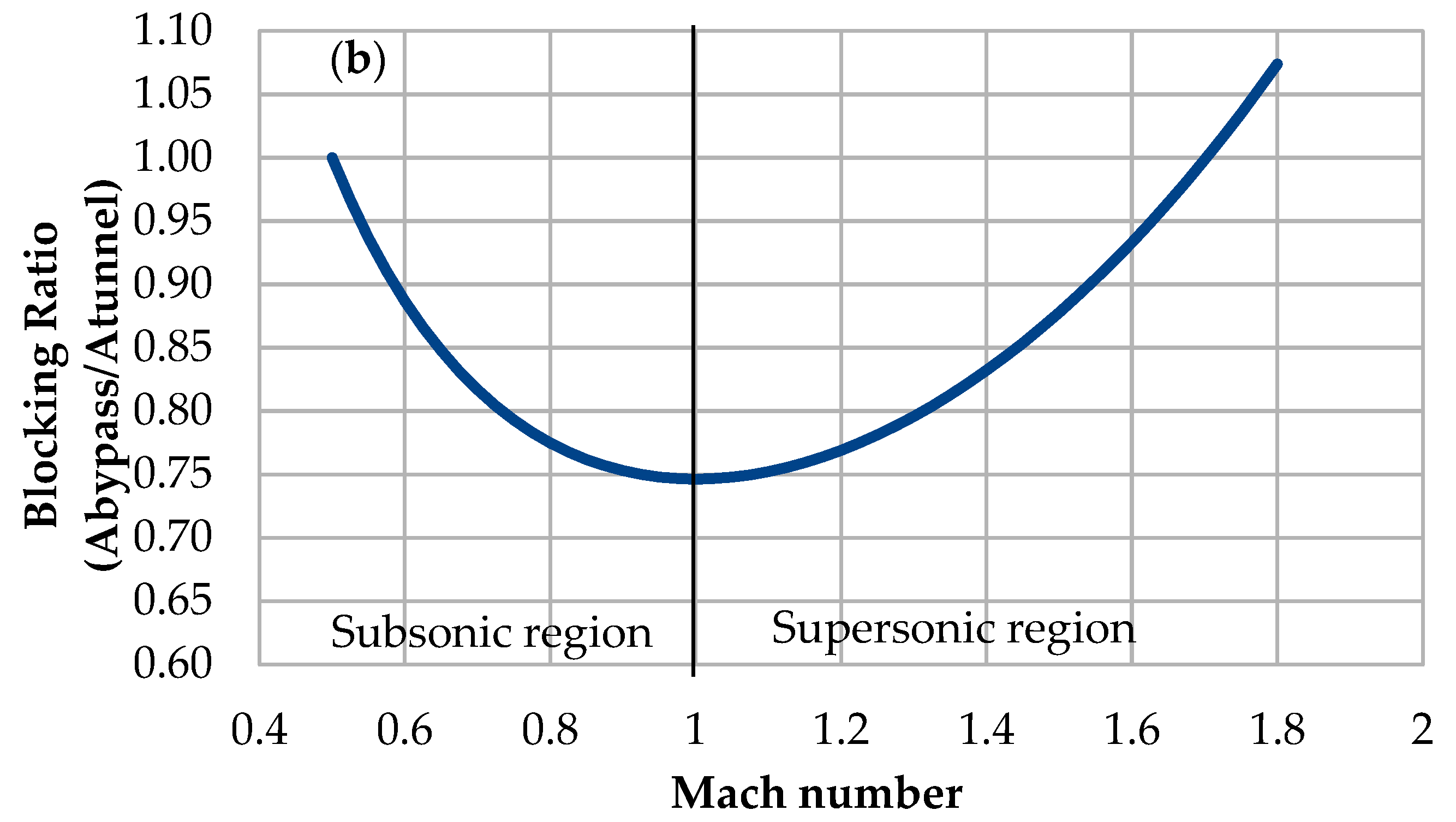

**b**) isentropic characteristic of blocking ratio in function of Mach number for 166 m/s velocity of the vehicle.

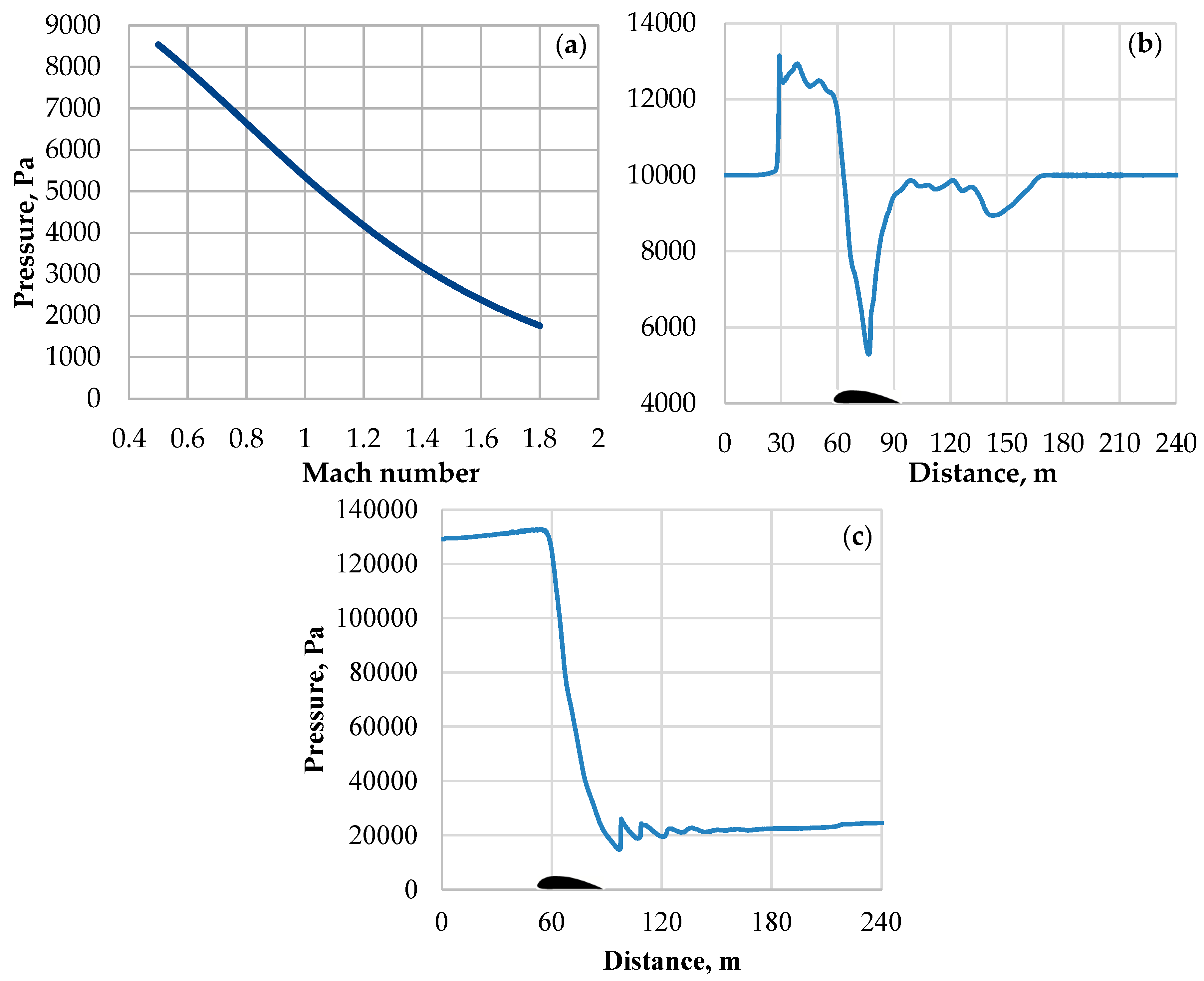

**Figure 4.**(

**a**) Change in the pressure in the bypass in the function of Mach number in the bypass for a fixed free stream pressure 10 kPa and $M{a}_{\infty}$ = 0.5; (

**b**) pressure distribution in the tunnel after 0.15 s—the value of pressure is equal to the sonic state pressure; (

**c**) pressure distribution after 4.65 s.

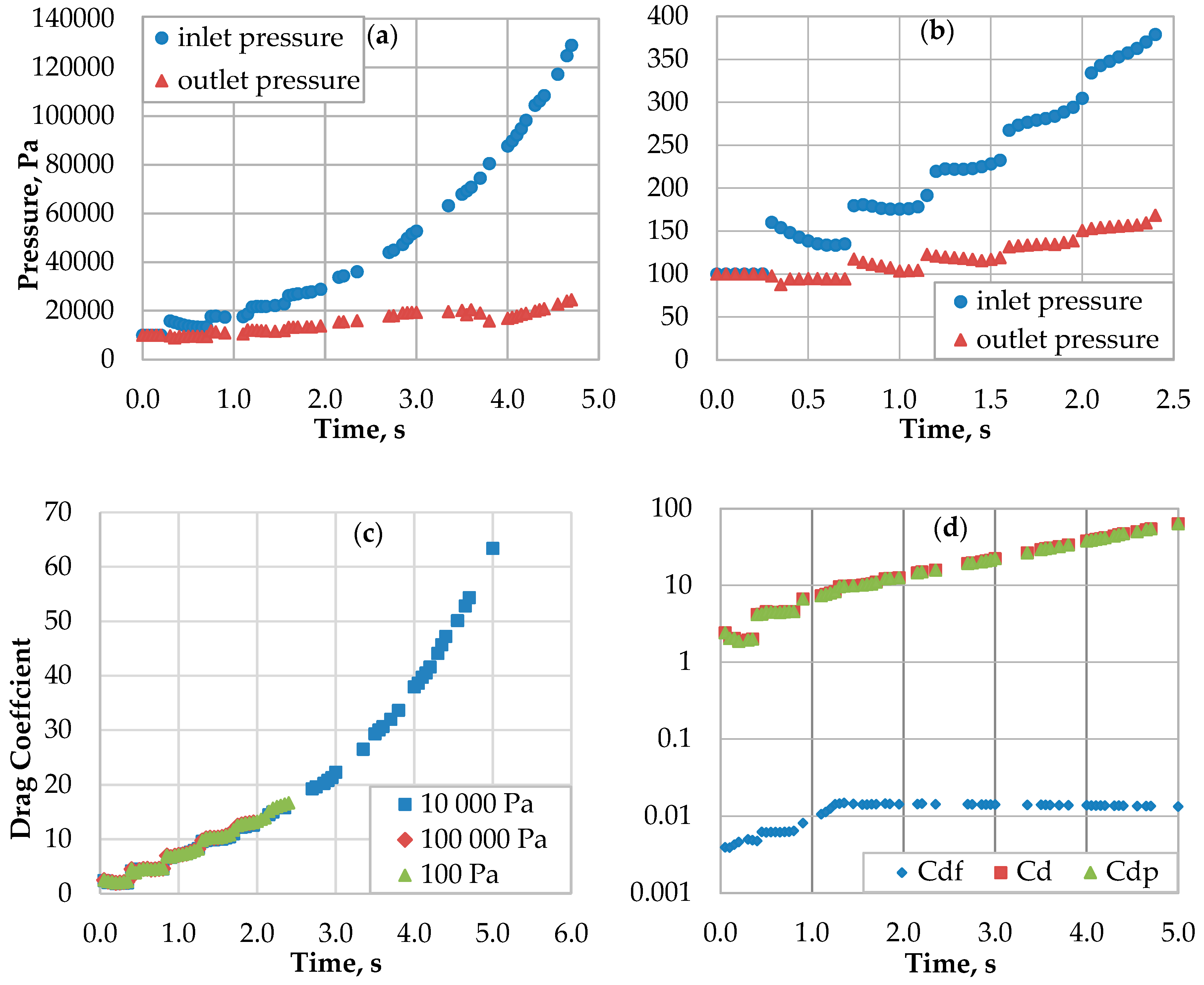

**Figure 5.**(

**a**) The average pressure at the inlet and outlet from the tunnel for 10 kPa; (

**b**) for 100 Pa. Results for 166m/s freestream air velocity. The effect of the increasing pressure due to the collection of air in front of the vehicle is visible. (

**c**) Drag coefficient for vehicle velocity 166 m/s and various initial tunnel pressure. (

**d**) Total drag coefficient and their components, the impact of the skin-friction drag is negligibly small.

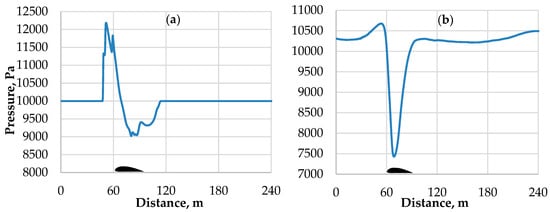

**Figure 6.**Pressure distribution along the tunnel 4 m above the ground and 0.7 m above the thickest section of the vehicle: (

**a**) shows the state after 0.05 s and (

**b**) shows the state after 4.65 s.

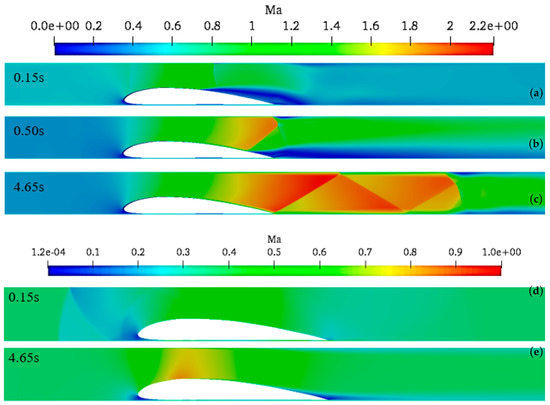

**Figure 7.**Mach number field visualization: (

**a**–

**c**) results for ${p}_{\infty}$ = 100 Pa and 166 m/s velocity of the vehicle; (

**d**,

**e**) results for ${p}_{\infty}$ = 10 kPa and 125 m/s velocity of the vehicle.

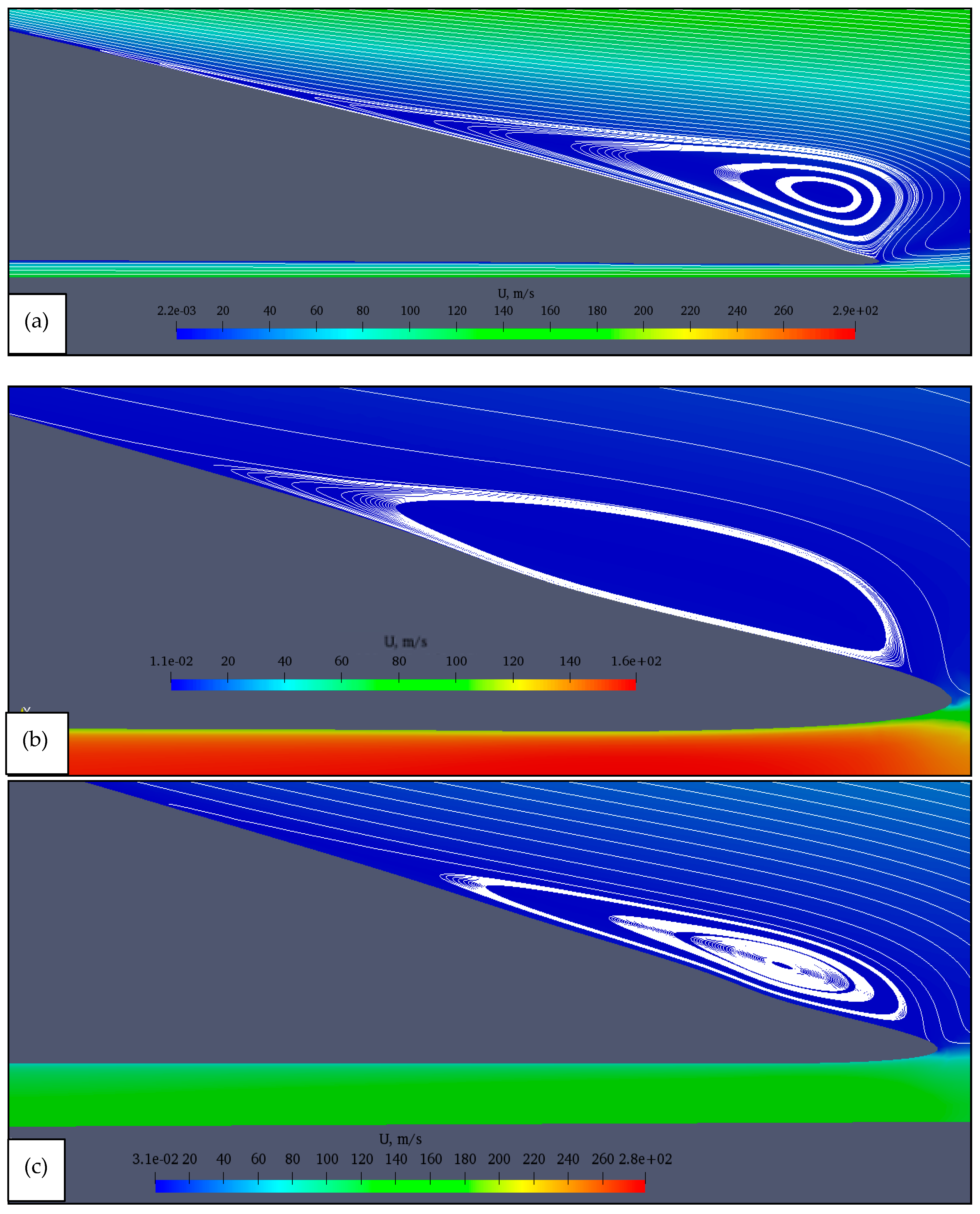

**Figure 8.**Recirculation zone and separation point for: (

**a**) 100 Pa, (

**b**) 10 kPa, (

**c**) 1 bar in the tunnel.

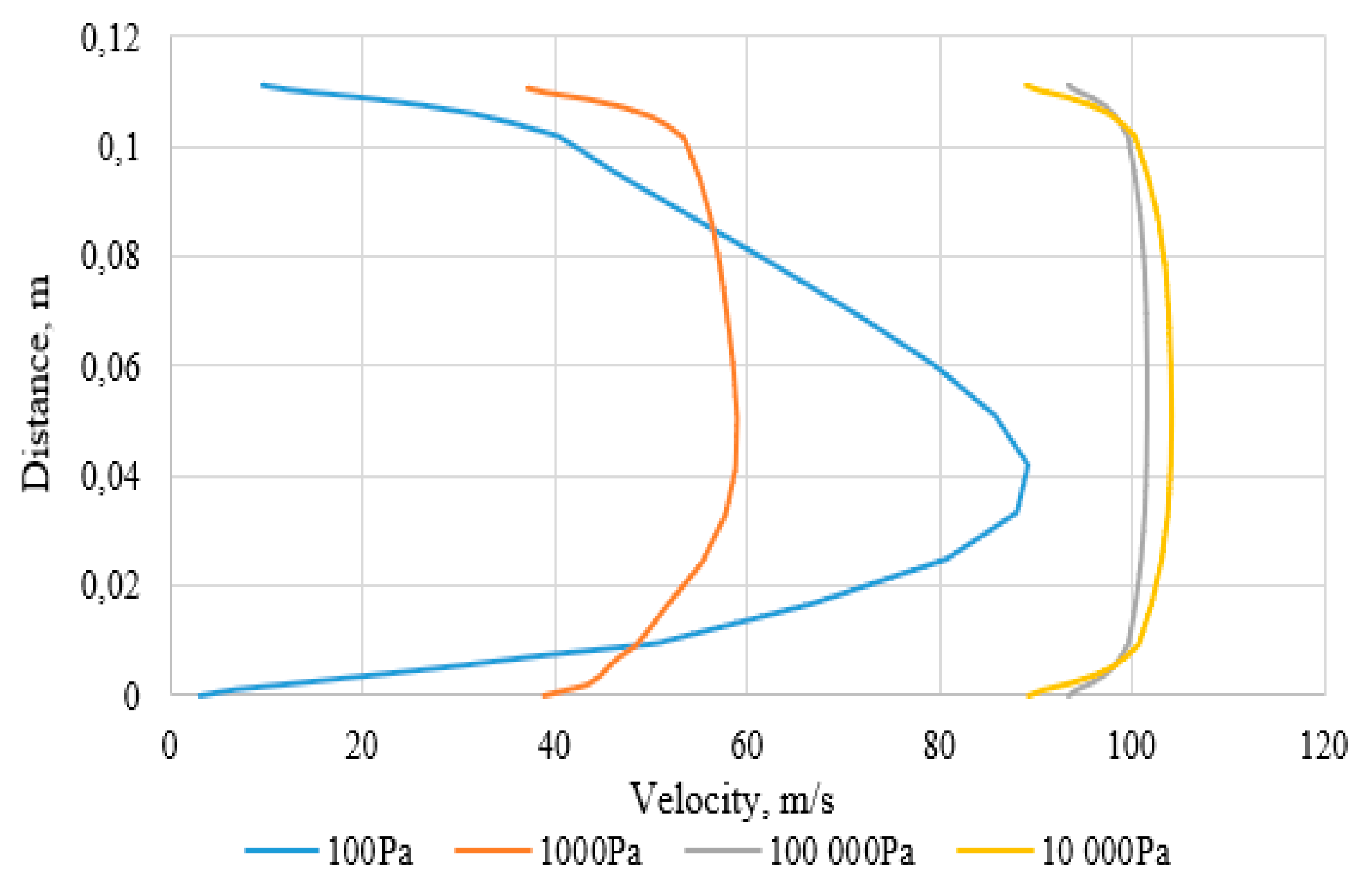

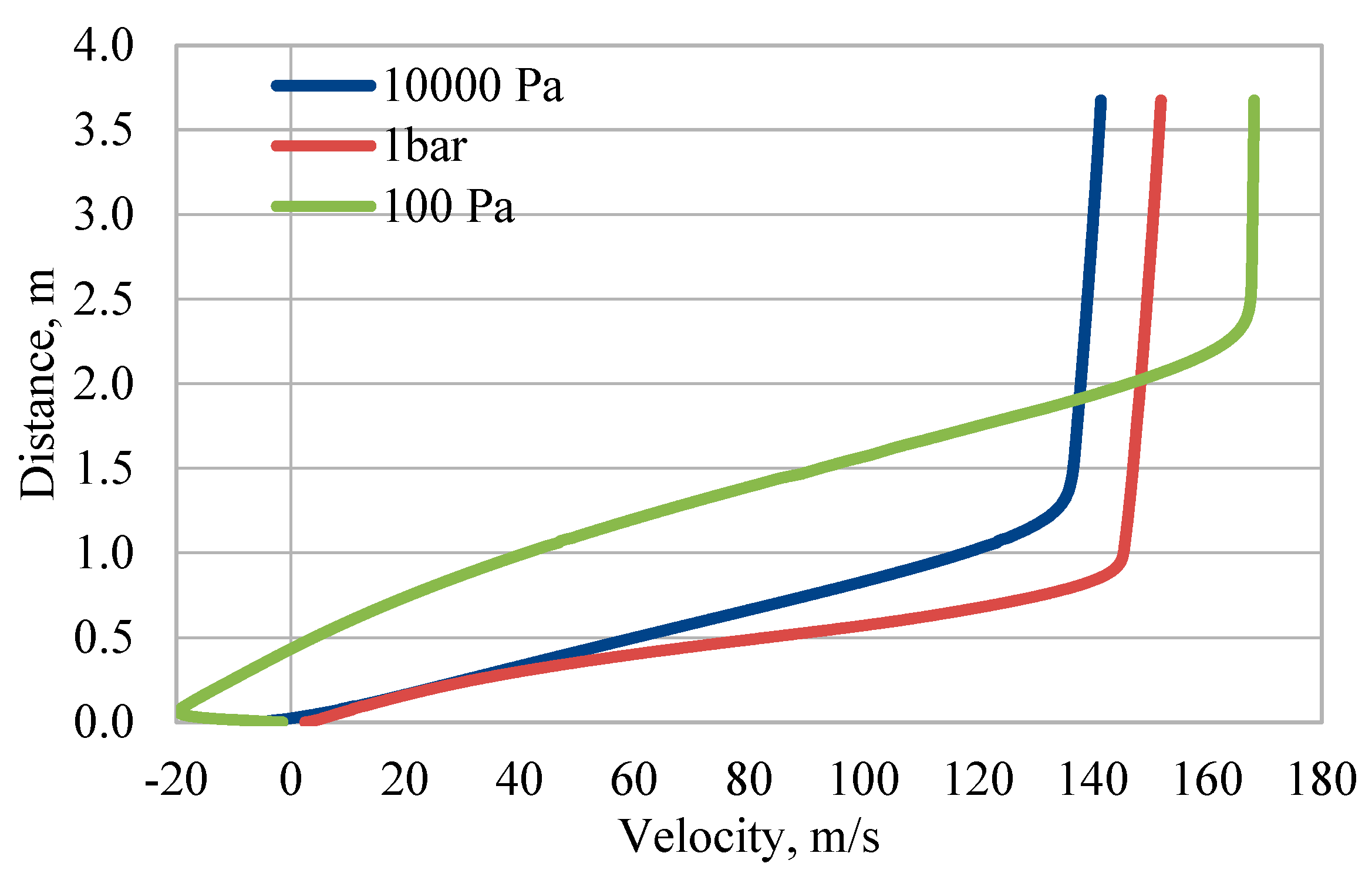

**Figure 9.**The velocity profile at 29 m of the vehicle length for 100 Pa, 10 kPa, and 1 bar. There is no separation for 1 bar pressure in the tunnel at this location.

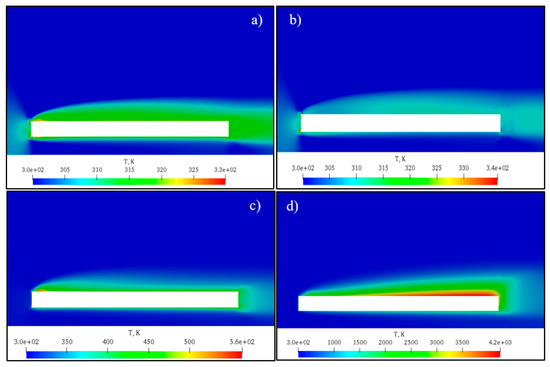

**Figure 10.**Temperature distribution around the batteries for pressure: (

**a**) 100 kPa, (

**b**) 10 kPa, (

**c**) 1 kPa and (

**d**) 100 Pa.

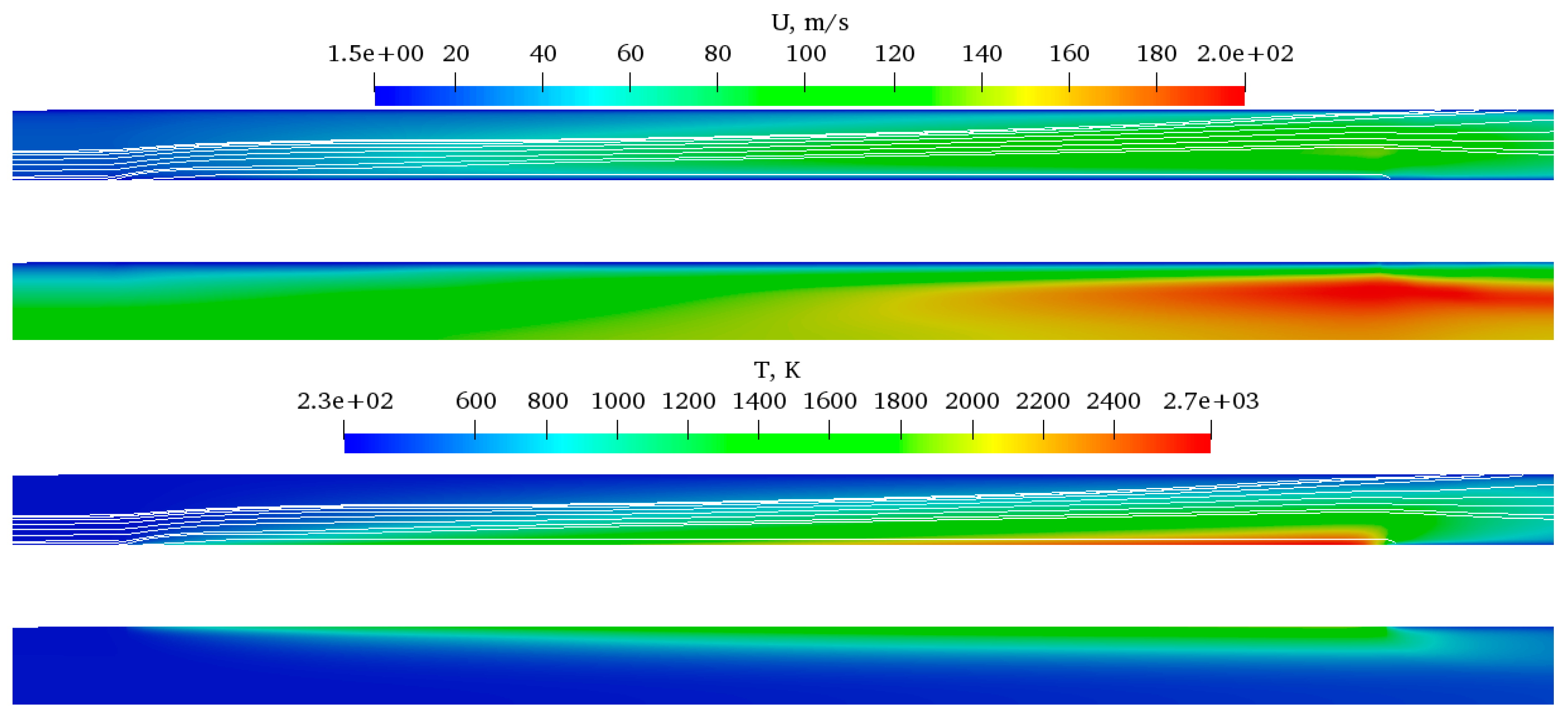

**Figure 12.**Temperature and velocity distribution around the batteries in the duct for the 100 Pa case.

**Table 1.**Average values of drag coefficient components and power related to the drag force. Ratio of drag acting on a moving vehicle in the tunnel to the drag in open space.

Type | 100 Pa | 1 kPa | 10 kPa | 100 kPa | 100 kPa Open |
---|---|---|---|---|---|

${c}_{d}$ | 0.554 | 0.503 | 0.314 | 0.344 | 0.029 |

${c}_{dp}$ | 0.547 | 0.500 | 0.309 | 0.341 | 0.027 |

${c}_{df}$ | 6.51 × 10^{−3} | 2.94 × 10^{−3} | 4.56 × 10^{−3} | 3.53 × 10^{−3} | 1.90 × 10^{−3} |

$\frac{{c}_{d}}{{c}_{d\_OPEN}}$ | 18.6 | 17.1 | 10.7 | 11.7 | 1 |

$\frac{{c}_{dp}}{{c}_{d\_OPEN}}$ | 19.7 | 18.2 | 11.3 | 12.4 | 1 |

$\frac{{c}_{df}}{{c}_{df\_OPEN}}$ | 3.42 | 1.55 | 2.39 | 1.86 | 1 |

$P$ for ${c}_{d}$, kW | 2.20 | 19.9 | 124 | 1360 | 115 |

**Table 2.**Thermo-physical properties for 166 and 125m/s and comparison of analytical temperature results after cooling with numerical results for 166m/s.

Properties | Case 1, 100Pa | Case 2, 1 kPa | Case 3, 10 kPa | Case 4, 100 kPa |
---|---|---|---|---|

166 m/s | ||||

$Re$ | 2.04 × 10^{4} | 2.04 × 10^{5} | 2.04 × 10^{6} | 2.04 × 10^{7} |

$Nu$ | 84 | 579 | 3526 | 24109 |

$\alpha $, W/m^{2}/K | 1.22 | 8.42 | 51 | 350 |

Analytical $T$, K | 2935 | 682 | 363 | 309 |

Numerical $T$, K | 2498 | 553 | 409 | 339 |

125 m/s | ||||

$Re$ | 1.53 × 10^{4} | 1.53 × 10^{5} | 1.53 × 10^{6} | 1.53 × 10^{7} |

$Nu$ | 73 | 460 | 2785 | 18906 |

$\alpha $, W/m^{2}/K | 1.08 | 6.91 | 42 | 285 |

$T$, K | 3280 | 765 | 377 | 311 |

**Table 3.**Analytical and numerical results for the vehicle moving at 125 m/s and thermo-physical properties of air in the cooling duct estimated by analytical calculations and average hydraulic diameter of the duct d

_{h}= 0.115 m.

Properties | Case 1, 100 Pa | Case 2, 1 kPa | Case 3, 10 kPa | Case 4, 100 kPa |
---|---|---|---|---|

Analytical Results of the Vehicle Cooling | ||||

Re | 10^{3} | 10^{4} | 10^{5} | 10^{6} |

Nu | 5.76 | 38.7 | 206 | 1301 |

α, W/(m^{2}K) | 1.34 | 8.99 | 48 | 302 |

T, K | 1500 | 479 | 334 | 305 |

Numerical Results of the Vehicle Cooling | ||||

T, K | 1385 | 464 | 342 | 308 |
