Article

Magnetoliposomes Containing Calcium Ferrite Nanoparticles for Applications in Breast Cancer Therapy

by
Daniela S. M. Pereira
1,
Beatriz D. Cardoso
1,
Ana Rita O. Rodrigues
1,
Carlos O. Amorim
2,
Vítor S. Amaral
2,
Bernardo G. Almeida
1,
Maria-João R. P. Queiroz
3,
Olga Martinho
4,5,
Fátima Baltazar
4,5,
Ricardo C. Calhelha
6,
Isabel C. F. R. Ferreira
6,
Paulo J. G. Coutinho
1 and
Elisabete M. S. Castanheira
1,*
1
Centre of Physics (CFUM), University of Minho, Campus de Gualtar, 4710-057 Braga, Portugal
2
Physics Department and CICECO, University of Aveiro, Campus de Santiago, 3810-193 Aveiro, Portugal
3
Centre of Chemistry, University of Minho, Campus de Gualtar, 4710-057 Braga, Portugal
4
Life and Health Sciences Research Institute (ICVS), School of Medicine, University of Minho, Campus de Gualtar, 4710-057 Braga, Portugal
5
ICVS/3B’s-PT Government Associate Laboratory, 4710-057 Braga/4806-909 Guimarães, Portugal
6
Mountain Research Centre, Polytechnic Institute of Bragança, Campus de Santa Apolónia, 5300-253 Bragança, Portugal
*
Author to whom correspondence should be addressed.
Pharmaceutics 2019, 11(9), 477; https://doi.org/10.3390/pharmaceutics11090477
Submission received: 29 June 2019 / Revised: 9 September 2019 / Accepted: 11 September 2019 / Published: 14 September 2019
(This article belongs to the Special Issue Novel Anticancer Drug Delivery Systems)

Abstract

:
Magnetoliposomes containing calcium ferrite (CaFe2O4) nanoparticles were developed and characterized for the first time. CaFe2O4 nanoparticles were covered by a lipid bilayer or entrapped in liposomes forming, respectively, solid or aqueous magnetoliposomes as nanocarriers for new antitumor drugs. The magnetic nanoparticles were characterized by UV/Visible absorption, XRD, HR-TEM, and SQUID, exhibiting sizes of 5.2 ± 1.2 nm (from TEM) and a superparamagnetic behavior. The magnetoliposomes were characterized by DLS and TEM. The incorporation of two new potential antitumor drugs (thienopyridine derivatives) specifically active against breast cancer in these nanosystems was investigated by fluorescence emission and anisotropy. Aqueous magnetoliposomes, with hydrodynamic diameters around 130 nm, and solid magnetoliposomes with sizes of ca. 170 nm, interact with biomembranes by fusion and are able to transport the antitumor drugs with generally high encapsulation efficiencies (≥70%). These fully biocompatible drug-loaded magnetoliposomes can be promising as therapeutic agents in future applications of combined breast cancer therapy.

Graphical Abstract

1. Introduction

Cancer still represents a leading cause of morbidity and mortality worldwide, although new treatments have improved the prognosis of cancer patients over the past years [1]. According to the WHO, cancer was responsible for 8.8 million deaths in 2015, representing the second leading cause of death [2]. Therefore, oncology is the first therapeutic area covered by nanomedicine [3]. Considering the possibility of targeted chemotherapy, simultaneous hyperthermia and individualized therapies, the so-called “magic bullets” are one of the most promising therapeutic approaches. These “magic bullets” can selectively target cancerous tissues, as well as remotely release antitumor drugs at optimal dosage. Numerous formulations based on different materials have been investigated to design the “magic bullet” formulation with the best properties, including, for example, liposomes, micelles, hydrogels, polymers, and magnetic nanoparticles [4]. The use of magnetic nanoparticles has been widely investigated for their ability to target specific sites of interest, produce local heat, and act as contrast agents [5]. However, toxicity issues have been raised, pointing to the need of fully biocompatible nanomaterials [6]. Therefore, increasing attention has been given to the synthesis of magnetic nanoparticles without transition metals on their constituents. Ions such as Ca2+ and Mg2+ have been proposed to substitute transition metals in the crystalline structure of ferrite nanoparticles, as they may promote a higher biocompatibility [7]. Calcium ferrite nanoparticles have shown to be biocompatible at concentrations below 250 mg/mL, in in vitro cytotoxicity tests on T-cell lines, exhibiting enhanced cell viability when compared to other ferrites [8]. The high heating capacity of calcium ferrite and calcium/magnesium ferrite nanoparticles also make them suitable for magnetic hyperthermia [9,10].
Magneto-sensitive liposomes result from the incorporation of magnetic nanoparticles into liposomes (aqueous magnetoliposomes) or from the covering of a nanoparticles cluster with a lipid bilayer (solid or dry magnetoliposomes, SMLs). These magnetoliposomes can overcome individual problems of liposomes and magnetic nanoparticles and, at the same time, gather the outstanding properties of each in a single nanosystem [11]. Recently, magnetoliposomes based on several types of superparamagnetic ferrite nanoparticles have been developed, namely iron oxide [12,13,14,15,16,17], manganese ferrite [18,19], nickel ferrite [20], and magnesium ferrite nanoparticles [21].
Pursuing both high biocompatibility and heating capability, together with the ability to transport antitumor drugs, in this work magnetoliposomes based on calcium ferrite nanoparticles were developed. These systems were tested as nanocarriers for new potential antitumor drugs, diarylurea derivatives of thienopyridine (Figure 1). Thienopyridine-based compounds have been described as promising antitumoral agents and receptor tyrosine kinase inhibitors [22,23]. Moreover, a high antiproliferative activity on human breast cancer cell lines, MCF-7 (hormone dependent breast adenocarcinoma) and MDA-MB-231 (hormone independent, triple-negative breast cancer), was described for these compounds [24], with very low growth inhibitory concentrations for 50% of cells, GI50 (Table 1). Therefore, drug-loaded magnetoliposomes containing biocompatible calcium ferrite nanoparticles and the antitumor compounds 1 or 2 can be promising nanosystems for breast cancer therapy.

2. Materials and Methods

All the solutions were prepared using spectroscopic grade solvents and ultrapure water of Milli-Q grade (MilliporeSigma, St. Louis, MO, USA).

2.1. Preparation of Calcium Ferrite Nanoparticles

Calcium ferrite (CaFe2O4) nanoparticles were synthesized in 2 mL aqueous solution, by the co-precipitation method, as previously described by Hirazawa et al. [9]. First, a basic aqueous solution of 50% NaOH was heated to 90 °C. Then, a mixture of solutions, 0.5 M calcium acetate dihydrate and 1.0 M FeCl3·6H2O solution was added, drop by drop, to the previously warmed basic solution under magnetic stirring. After two hours at 90 °C, calcium ferrite nanoparticles were formed. For purification, the obtained sample was washed several times by centrifugation (14,000 g) and magnetic decantation. Then, the samples were dried overnight at 60 °C. A calcination step at 600 °C was carried out for 30 min [9]. At this temperature, the formation of brownmillerite (Ca2Fe2O5) is avoided [9].

2.2. Preparation of Magnetoliposomes

For magnetoliposomes preparation, the lipids l-α-phosphatidylcholine from egg yolk (Egg-PC), and 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC), from Sigma-Aldrich (St. Louis, MO, USA), were used in a final concentration of 1 mM. The ethanol injection method was employed to obtain aqueous magnetoliposomes (AMLs) [25]. Accordingly, a 20 mM lipid solution in ethanol was injected, under vigorous vortexing, to an aqueous dispersion of magnetic nanoparticles (with 4 mg/mL concentration). After encapsulation, the ferrofluid was washed with water and purified by magnetic decantation to remove all the non-encapsulated nanoparticles. Considering the strong difference in maximum magnetization of magnetic nanoparticles and aqueous magnetoliposomes (as previously reported [26,27]), due to the diamagnetic contribution of water, the aqueous magnetoliposomes are not attracted to the magnet. Therefore, only non-encapsulated magnetic nanoparticles are separated by this technique, keeping the magnetoliposomes in the supernatant phase. The lipid phase (in the supernatant) remains unchanged upon decantation, the initial and final lipid concentrations being the same.
For the preparation of solid magnetoliposomes, a method previously developed was used [19,20]. First, 10 μL of a solution of the synthesized magnetic nanoparticles (0.02 mg/mL) were ultrasonicated for one minute at 189 W, and 3 mL of chloroform were added to the solution. Then, immediately after vigorous agitation, 150 μL of a 20 mM methanolic solution of the lipid DPPC (1,2-dipalmitoyl-sn-glycero-3-phosphocholine) were injected under vortexing, to form the first lipid layer of the SMLs. To remove the lipid that was not attached to the nanoparticles surface, the particles were washed twice by magnetic decantation with ultrapure water. The lipid bilayer was completed by a new injection of 150 μL of 20 mM lipid methanolic solution, under vortexing, in 3 mL of aqueous dispersion of the particles with the first lipid layer. The solid magnetoliposomes obtained were then washed and purified with ultrapure water by magnetic decantation.
The antitumor thieno[3,2-b]pyridine derivatives 1 or 2 were incorporated into aqueous magnetoliposomes by simultaneous injection of compound and lipid (co-injection method), in a final compound concentration of 5 μM. Neat liposomes (without magnetic nanoparticles) with encapsulated compounds were also prepared in the same manner. In solid magnetoliposomes, the compound was incorporated by injection of an ethanolic solution (0.2 mM) immediately before the formation of the second lipid layer.

2.3. Preparation of Giant Unilamellar Vesicles (GUVs)

GUVs of soybean lecithin (l-α-phosphatidylcholine from soybean), from Sigma-Aldrich (St. Louis, MO, USA), were obtained by the thin film hydration method, as described by Tamba et al. [28,29]. A lipid film of 100 μL of soybean lecithin solution (1 mM) was obtained by solvent evaporation under an ultrapure nitrogen stream, and 40 μL of water were added, followed by incubation at 45 °C for 30 min. Then, 3 mL of glucose aqueous solution (0.1 M) were added and the resulting solution was again incubated at 37 °C for 2 h. After incubation, the GUVs suspension was centrifuged at 14,000 g for 30 min at 20 °C, to remove multilamellar vesicles and lipid aggregates.

2.4. Spectroscopic Measurements

2.4.1. General Methods

Absorption spectra were performed in a Shimadzu UV-3600 Plus UV-vis-NIR (Shimadzu Corporation, Kyoto, Japan) spectrophotometer. Fluorescence measurements were recorded using a Horiba Fluorolog 3 spectrofluorimeter (HORIBA Jobin Yvon IBH Ltd., Glasgow, UK), equipped with double monochromators in both excitation and emission, Glan-Thompson polarizers and a temperature controlled cuvette holder. Fluorescence spectra were corrected for the instrumental response of the system.

2.4.2. FRET Measurements

Förster resonance energy transfer (FRET) assays were used to confirm the formation of the lipid bilayer in the solid magnetoliposomes containing CaFe2O4 nanoparticles. For that purpose, the nitrobenzoxazole labeled lipid NBD-C12-HPC, 1-palmitoyl-2-{12-[(7-nitro-2-1,3-benzoxadiazol- 4-yl)-amino]hexanoyl}-sn-glycero-3-phosphocholine (from Avanti Polar Lipids, Alabaster, AL, USA) was included in the first lipid layer, while the rhodamine B labeled lipid Rhodamine B-DOPE (1,2-dioleoyl-sn-glycero-3-phosphoethanol-amine-N-lissamine rhodamine B sulfonyl (ammonium salt)) (from Avanti Polar Lipids, Alabaster, AL, USA) was included the second lipid layer (structures of the labeled lipids in Figure 2).
FRET efficiency, ΦRET, defined as the proportion of donor molecules that have transferred their excess energy to the acceptor molecules, was calculated through donor emission quenching, by taking the ratio of the donor integrated fluorescence intensities in the presence of acceptor (FDA) and in the absence of acceptor (FD) (Equation (1)) [30],
Φ RET = 1 F DA F D
The distance between the donor and acceptor molecules was determined through the FRET efficiency (Equation (2)),
r = R 0 [ 1 Φ RET Φ RET ] 1 6 ,
where R0 is the Förster radius (critical distance), that can be obtained by the spectral overlap, J(λ), between the donor emission and the acceptor absorption, according to Equations (3) and (4) (with R0 in Å, λ in nm, εA(λ) in M−1·cm−1) [30],
R 0 = 0.2108 [ k 2 Φ D 0 n 4 J ( λ ) ] 1 6 ,
J ( λ ) = 0 I D ( λ ) ε A ( λ ) λ 4 d λ ,
where k 2 = 2 3 is the orientational factor assuming random orientation of the dyes, n is the refraction index of the medium, ID(λ) is the fluorescence spectrum of the donor normalized so that 0 I D ( λ ) d λ = 1 , and εA(λ) is the molar absorption coefficient of the acceptor. Φ D 0 , the fluorescence quantum yield of the donor in the absence of energy transfer, was determined by the standard method (Equation (5)) [31,32],
Φ D 0 = A r F D n D 2 A D F r n r 2 Φ r ,
where A is the absorbance at the excitation wavelength, F the integrated emission area and n the refraction index of the solvents used. Subscripts refer to the reference (r) or donor (D). The absorbance at the excitation wavelength was always lower than 0.1 to avoid the inner filter effects. The NBD-C12-HPC molecule intercalated in lipid membranes was used as reference, Φr = 0.32 at 25 °C, as reported by Invitrogen [33].

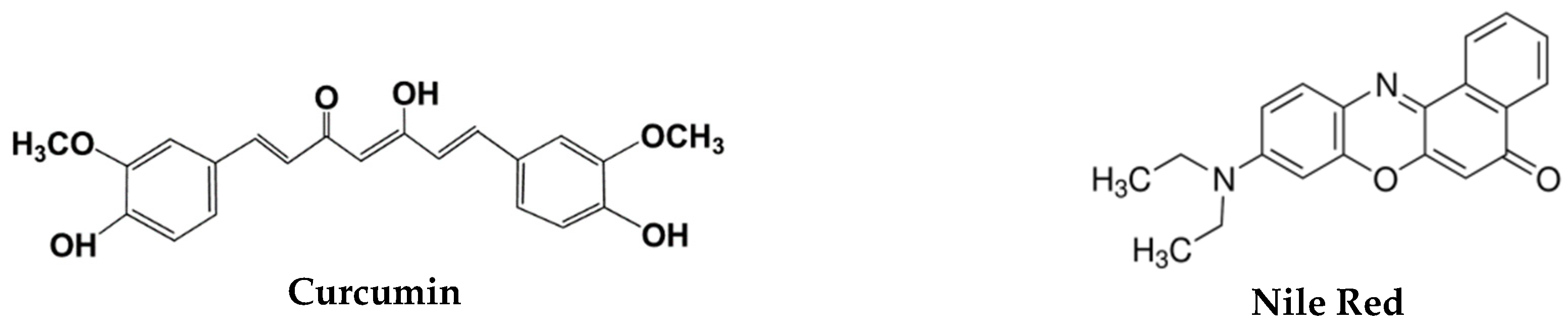

The hydrophobic dyes curcumin (energy donor) and Nile Red (energy acceptor) (Figure 3) were also incorporated in magnetoliposomes for monitoring the interaction of magnetoliposomes with giant unilamellar vesicles (GUVs) by FRET.

2.4.3. Fluorescence Anisotropy Measurements

The steady-state fluorescence anisotropy, r, is calculated by
r = I VV G I VH I VV + 2 G I VH ,
where IVV and IVH are the intensities of the emission spectra obtained with vertical and horizontal polarization, respectively (for vertically polarized excitation light), and G = I HV / I HH is the instrument correction factor, where IHV and IHH are the emission intensities obtained with vertical and horizontal polarization (for horizontally polarized excitation light).

2.4.4. Drug Encapsulation Efficiency

The encapsulation efficiency, EE(%), of the potential antitumor drugs in magnetoliposomes, was determined through fluorescence emission measurements. For that, drug loaded magnetoliposomes were subjected to centrifugation at 11,000 rpm for 60 min using Amicon® Ultra centrifugal filter units 100 kDa (Merck Millipore, Darmstadt, Germany). Then, the filtrate (containing the non-encapsulated drug) was pipetted out, the water was evaporated and the same amount of ethanol was added. After vigorous agitation, its fluorescence was measured, allowing to determine the drug concentration using a calibration curve (fluorescence intensity vs. concentration) previously obtained in the same solvent. Three independent measurements were performed for each system and standard deviations (SD) were calculated. The encapsulation efficiency was determined using Equation (7),
E E ( % ) = ( t o t a l   a m o u n t a m o u n t   o f   n o n   e n c a p s u l a t e d   c o m p o u n d ) t o t a l   a m o u n t × 100

2.5. Structural Characterization

2.5.1. Electron Microscopy (TEM and SEM)

HR-TEM images of magnetic nanoparticles were recorded using a Transmission Electron Microscope JEOL JEM 2010F (JEOL Ltd., Tokyo, Japan) operating at 200 kV coupled to an Electron Dispersive Spectroscopic analyzer (EDS) at C.A.C.T.I (Centro de Apoio Científico e Tecnolóxico á Investigación), Vigo, Spain. SEM images of solid magnetoliposomes were recorded using a Scanning Electron Microscope FEI—Nova 200 NanoSEM (FEI Technologies, Inc., Hillsboro, OR, USA), operating in transmission mode (STEM). For SMLs, a negative staining was employed, using a 2% aqueous solution of ammonium molybdate tetrahydrate. 20 μL of sample and 20 μL of staining solution were mixed and a drop of the mixture was placed onto a Formvar grid (Agar Scientific Ltd, Essex, UK), held by tweezers. After 20 s, almost all the solution was removed with filter paper and left dry. TEM images were processed using ImageJ software (National Institutes of Health (NIH), Bethesda, MD, USA) [34]. The area of each particle allowed an estimation of the particle diameter. The resulting histogram was fitted to a Gaussian distribution.

2.5.2. X-Ray Diffraction (XRD)

X-ray diffraction (XRD) analyses were performed using a conventional Philips PW 1710 (Royal Philips, Amsterdam, The Netherlands) diffractometer, operating with Cu Kα radiation, in a Bragg-Brentano configuration.

2.5.3. Dynamic Light Scattering (DLS)

The mean diameter and size distribution (polydispersity index) of aqueous and solid magnetoliposomes (1 mM lipid concentration) were measured using a dynamic light scattering (DLS) equipment NANO ZS Malvern Zetasizer (Malvern Panalytical Ltd., Malvern, UK) at 25 °C, using a He-Ne laser of λ = 632.8 nm and a detector angle of 173°. Five independent measurements were performed for each sample.

2.6. Magnetic Measurements

Magnetization measurements were done in a MPMS3 SQUID magnetometer MPMS5XL (Quantum Design Inc., San Diego, CA, USA). The hysteresis cycles (magnetization versus magnetic field) of the samples were measured in the convenient field range for each sample. The measurement method was by DC extraction or VSM oscillation at a frequency of 14 Hz. A specific magnetic field correction for the trapped flux in the superconducting coil was made achieving an accuracy of residual less than 2 Oe.

2.7. Nanoparticles Encapsulation Efficiency

The nanoparticles encapsulation efficiency in aqueous magnetoliposomes (AMLs) was estimated from the spectrophotometric determination of iron (III) content, through the formation of a phenylfluorone complex sensitized with Triton X-100 [35]. To obtain iron (III) from the magnetoliposomes, the latter were digested by heating at 500 °C overnight, to remove all the biological components. Then, 1 mL of concentrated nitric acid (from Sigma-Aldrich) was added and the sample was heated to 80 °C for 2 h. The temperature was then raised to 150 °C for 48 h, and the pH was increased until 5.5 by successive cycles of addition and evaporation of ultrapure water (Milli-Q grade). Finally, 1 mL of water was added to the digested sample and, after ultrasonication for one hour, the iron (III) content of magnetoliposomes was released.
For the spectrophotometric measurements, the standard addition method was employed. 100 μL of the digested sample and 2 × 10−5 M, 3 × 10−5 M, 4 × 10−5 M, 5 × 10−5 M, or 6 × 10−5 M of iron (III) stock solution were added to 1.6 × 10−4 M phenylfluorone and 4 × 10−3 M Triton X-100 solutions. The pH was then adjusted to 9 using 0.05 M borax buffer [35]. A calibration curve for the determination of iron (III) concentration was previously obtained. Three independent measurements were performed and standard deviations (SD) were calculated. The encapsulation efficiency, EE(%), of calcium ferrite nanoparticles (NPs) in AMLs was determined by equation:
E E ( % ) = ( t o t a l   a m o u n t   o f   N P s a m o u n t   o f   n o n e n c a p s u l a t e d   N P s ) t o t a l   a m o u n t   o f   N P s × 100

2.8. Studies in Cell Lines

Compound 1 and compound 2 were tested in several cell lines, using different compound concentrations (0.03 to 125 µM). In vitro cytotoxicity evaluation was assessed for four human tumor cell lines, namely NCI-H460 (non-small cell lung cancer), HeLa (cervical carcinoma), and HepG2 (hepatic cancer). The cell line PLP2 (non-tumor cells) was used to evaluate the toxicity to healthy tissues. The cells were routinely maintained as adherent cell cultures in RPMI-1640 medium containing 10% heat-inactivated FBS, at 37 °C, in a humidified air incubator containing 5% CO2. Each cell line was plated at an appropriate density (1.0 × 104 cells per well) in 96-well plates and allowed to attach for 24 h. The cells were then treated for 48 h with the different solutions. Following this incubation period, the adherent cells were fixed by adding cold 10% TCA (100 μL) and incubated for 60 min at 4 °C. Plates were then washed with deionized water and dried. A sulforhodamine B (SRB) solution (0.1% in 1% acetic acid, 100 μL) was then added to each plate-well and incubated for 30 min at room temperature. Unbound SRB was removed by washing with 1% acetic acid. The plates were air-dried and the bound SRB was solubilized with 10 mM Tris-HCl buffer (200 μL, pH = 7.4). The absorbance was then measured at 540 nm in a microplate reader [36,37]. The results were expressed in GI50 values (concentration that inhibited 50% of net cell growth).
Drug-loaded aqueous and solid magnetoliposomes were preliminary tested against breast cancer cell lines, namely MCF-7 and MDA-MB-231.

3. Results and Discussion

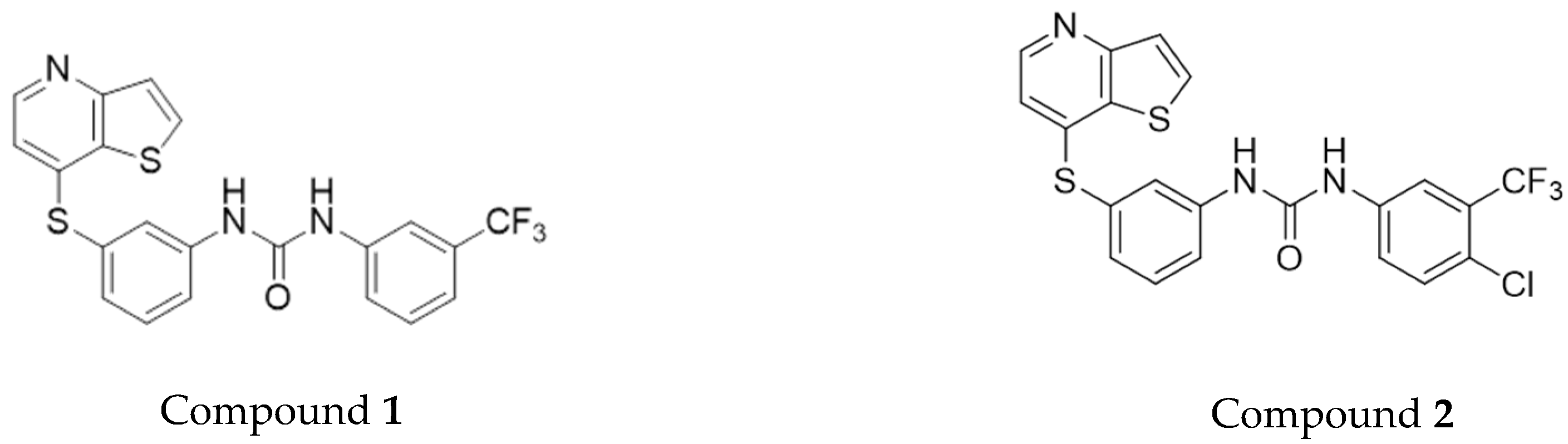

3.1. Properties of the Antitumor Compounds

3.1.1. Studies in Cell Lines

Studies of the growth inhibitory activity in human tumor cell lines were performed to get a deeper understanding of the antitumor capabilities of compounds 1 and 2. The assays were carried out for NCI-H460 (non-small cell lung cancer), HeLa (cervical carcinoma) and HepG2 (hepatocellular carcinoma). Assays using the non-tumor cell line PLP2 (porcine liver primary cells) were also performed to evaluate compound toxicity to healthy tissues (Table 2).
The results on Table 2 clearly show that both compounds are non-toxic for normal (non-tumor) cells (PLP2), as the GI50 values are generally much higher than in human tumor cell lines. Besides, the compounds show a notable specificity for breast cancer, exhibiting very low inhibitory concentrations in MCF-7 breast adenocarcinoma cells (Table 1) and also in the highly aggressive, invasive and poorly differentiated triple-negative breast cancer (MDA-MB-231 cell line) [24]. Compound 2 is slightly less active in breast cancer cell lines (Table 1), but more active in the other tumor cell lines, being also less toxic to non-tumor cells (Table 2). Therefore, the in vitro studies of cell inhibitory activity point to a potential efficacy of these thienopyridine derivatives in oncological therapies focusing breast cancer.

3.1.2. Fluorescence Properties

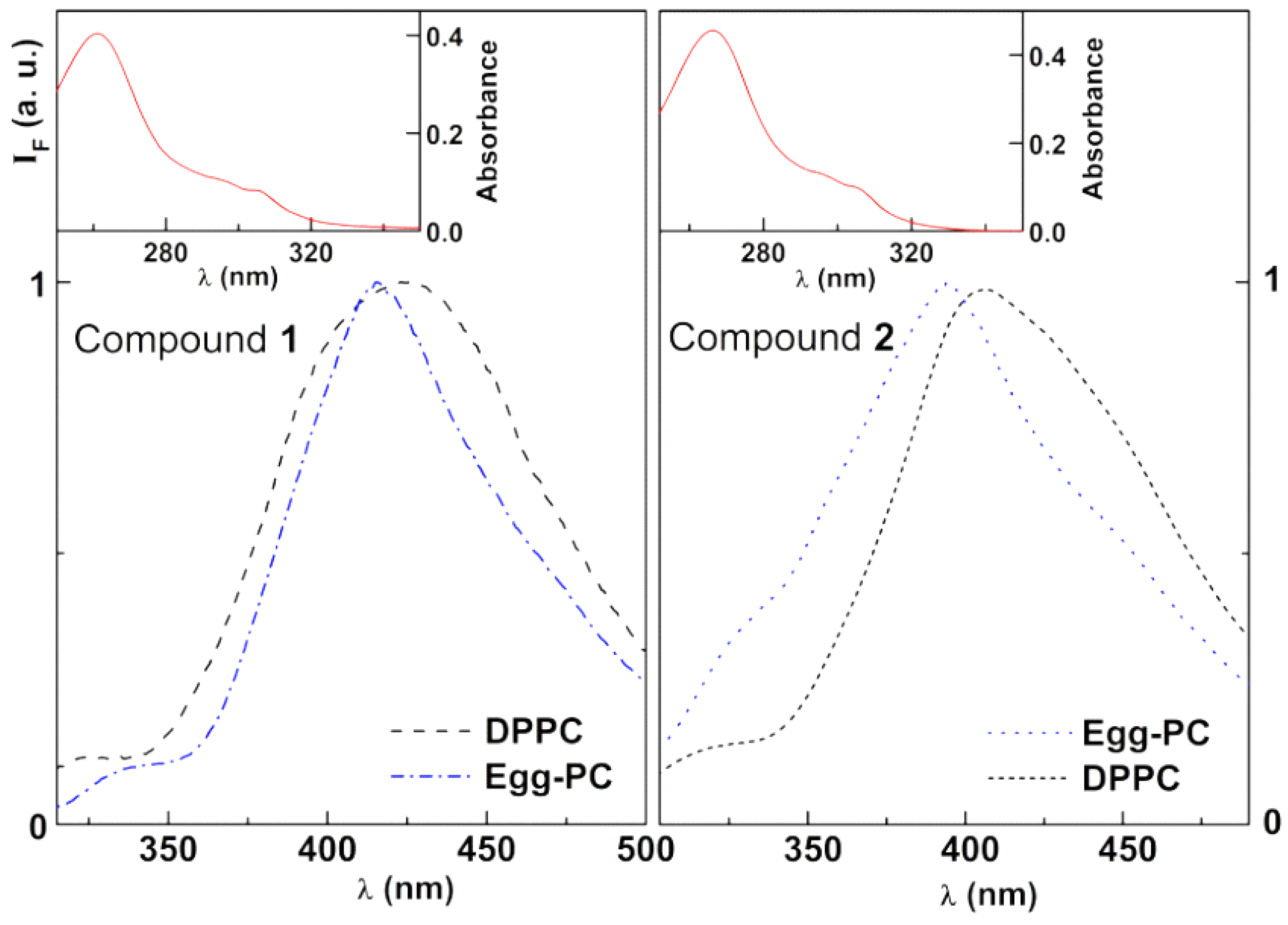

Both compounds 1 and 2 exhibit fluorescence emission in several solvents but not in water, which is a common behavior to other thienopyridine derivatives [38]. However, these compounds display significant fluorescence when entrapped in liposomes, pointing to their location mainly in the lipid bilayer [38]. Figure 4 shows the fluorescence spectra of antitumor compounds 1 and 2 in neat liposomes, as well as examples of absorption spectra.
The emission spectra of both compounds show some sensitivity to the environment felt by the compound in liposomes, especially compound 2. In DPPC liposomes, which are in the gel phase at room temperature, the thienopyridines may be located near the lipid polar head groups, feeling a more hydrated environment than in Egg-PC liposomes, which are in the fluid phase (with a deeper penetration in the bilayer of the latter). This behavior allows the use of fluorescence emission to investigate compounds location in magnetoliposomes and to determine the encapsulation efficiency in these nanocarriers.

3.2. Nanoparticles Characterization

As referred, the interest in calcium ferrite nanoparticles is the substitution of transition metals (Ni, Mn, Co…) in ferrite nanoparticles, due to the toxicity of these elements. No doubt, iron oxide nanoparticles have been the most widely used magnetic nanoparticles in biomedical applications and are considered biocompatible. Compound 1 was even preliminary tested in magnetoliposomes containing magnetite nanoparticles, in a previous work [39]. However, it has been reported that these nanoparticles induce the production of reactive oxygen species (ROS) in mammalian cells [40], causing severe DNA and protein damage and inflammatory responses, which may be a safety concern [40,41,42]. Therefore, the development of magnetoliposomes containing other biocompatible magnetic nanoparticles that may avoid these adverse effects is advantageous. In this respect, CaFe2O4 is a very attracting magnetic material because of its thermal and chemical stability, as well as the proven high biocompatibility [8]. Considering all these aspects, in this work, calcium ferrite nanoparticles were chosen for the preparation of magnetoliposomes, with the aim of a future application in cancer therapy.

3.2.1. Absorption Spectra

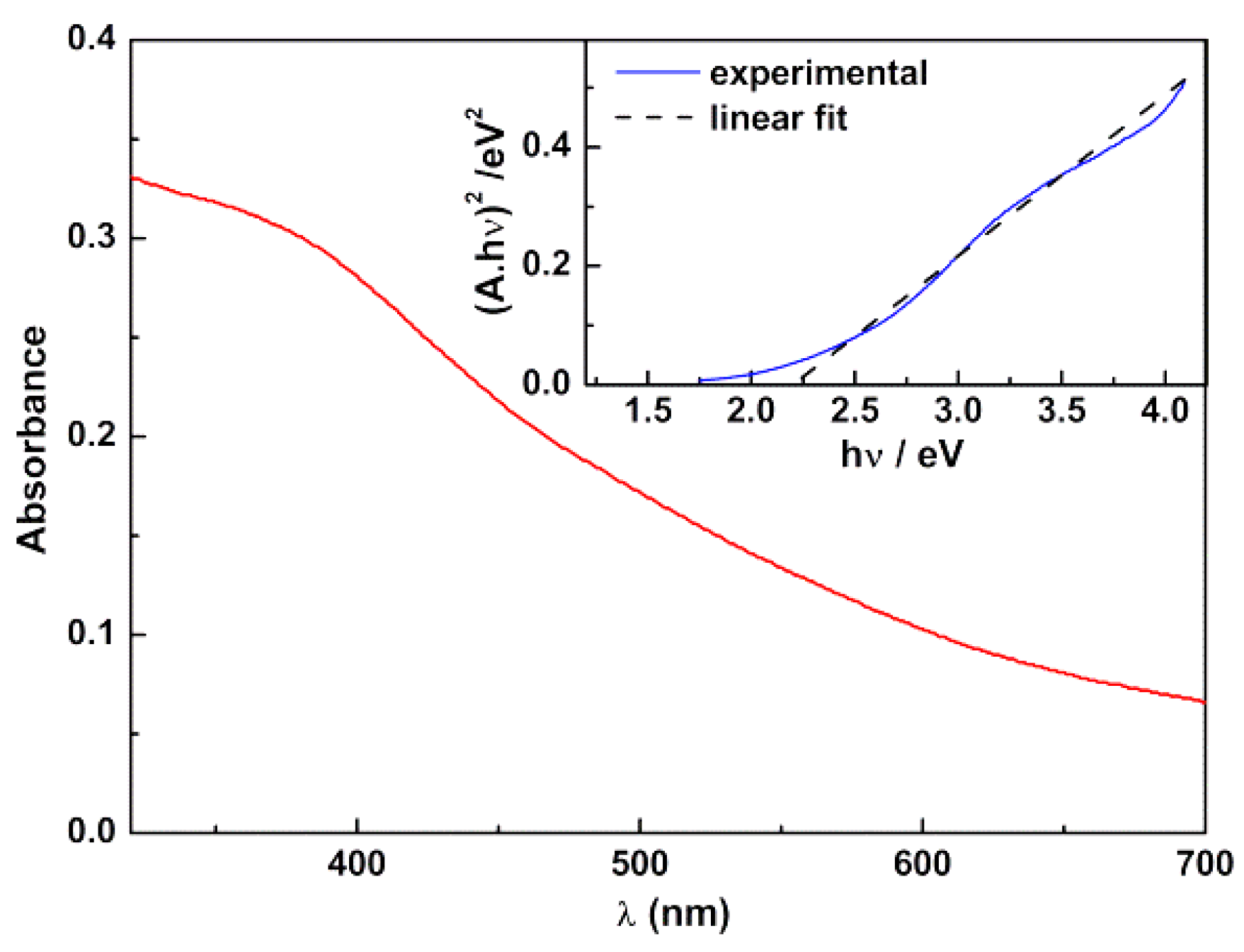

Figure 5 displays the UV/Visible absorption spectrum of the synthesized calcium ferrite nanoparticles, exhibiting a wide wavelength range of absorption. Using a Tauc plot (Equation (9)),
( α h ν ) n ( h ν E g ) ,
where α is the absorption coefficient (proportional to the absorbance), n is an exponent that depends on the nature of the transition (being n = 2 for a direct semiconductor and n = 1/2 for an indirect one) and Eg is the optical band gap [43], a linear relation was obtained for n = 2 (direct semiconductor). A band gap of 2.19 eV was estimated from the intercept of inset of Figure 5, in agreement with the value of 1.90 eV reported by Kim et al. [44].
For the objectives of this work, the important feature is the wide absorption range of CaFe2O4 nanoparticles, which may quench drugs fluorescence emission in drug-loaded magnetoliposomes, as previously described [19,21].

3.2.2. X-Ray Diffraction (XRD) Measurements

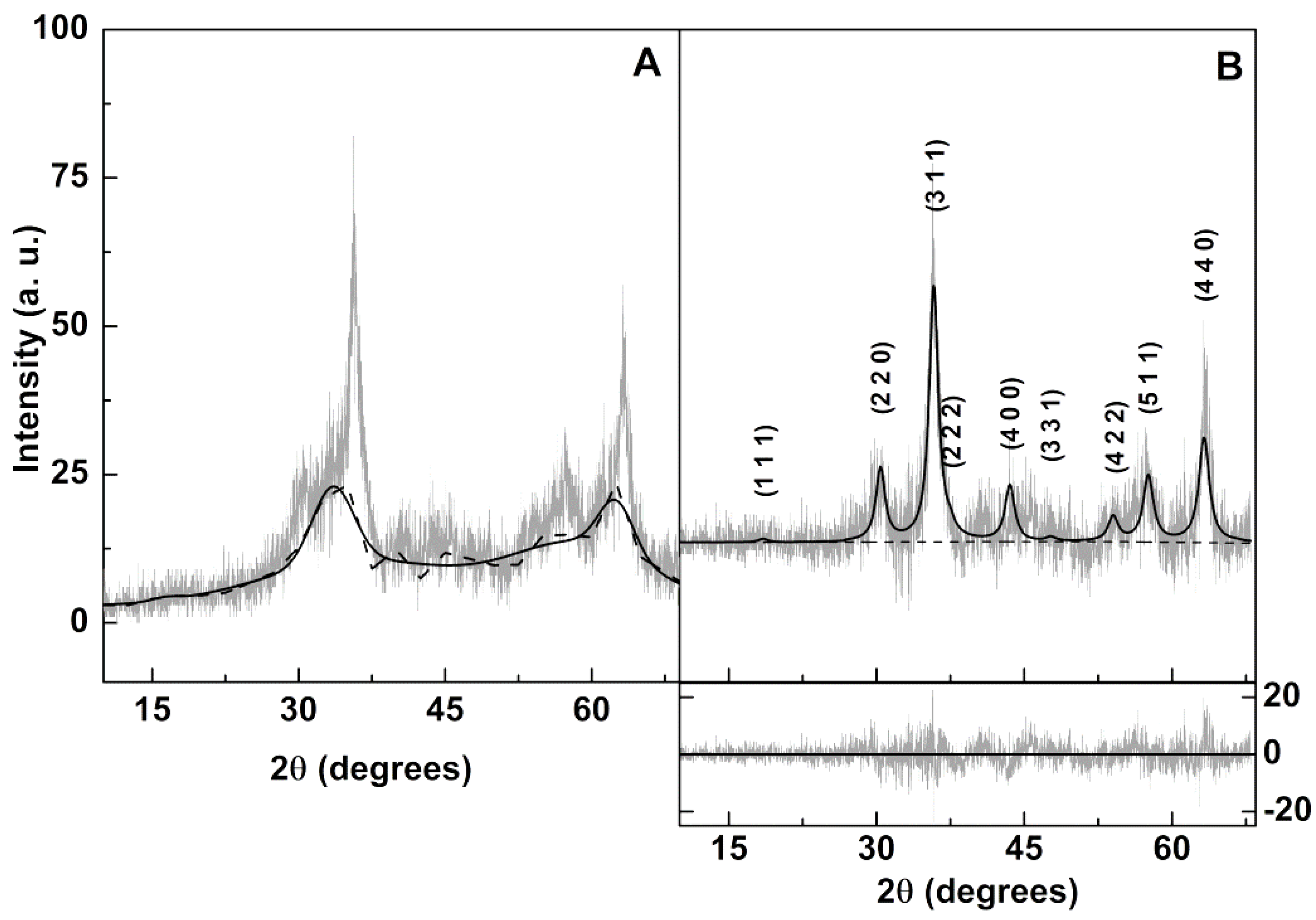

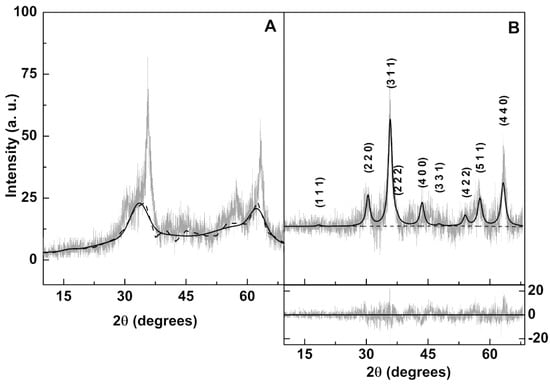

The XRD diffractogram of the prepared calcium ferrite nanoparticles shows low intensity peaks with large width characteristic of small crystalline nanoparticles (Figure 6A). The baseline is composed of broad bands indicating the presence of amorphous content. Using FullProf software suite [45], the diffractogram was fitted to a cubic spinel phase (space group Fd 3 ¯ m, adapted from magnetite CIF 9000926), with a degree of inversion i = 0.85, as reported by Lal et al. [46] and using, as background, a set of 22 equally spaced points with adjustable intensities joined by linear regression lines. This yielded a very good fit, with a RF value of 2.90 (Table 3). The resulting background (dashed line in Figure 6A) was then fitted to a minimal set of Gaussian functions and subtracted from the experimental XRD data. The resulting diffractogram was then analyzed using a much reduced set of 3 background points (Figure 6B). A reasonable value of RF = 4.2 was obtained, confirming the synthesis of a pure crystalline phase of calcium ferrite nanoparticles, since all their characteristic peaks, marked by their indices, are observed (Figure 6B). Using the Debye-Scherrer method, as implemented by FullProf [45], the resulting average size was 5.4 nm. The lattice parameter is in accordance with values already reported for CaFe2O4 spinel structure, which are between 8.33 Å and 8.37 Å using a sol-gel combustion method [46,47], and 8.37 Å using a coprecipitation protocol [9].

3.2.3. Transmission Electron Microscopy (TEM)

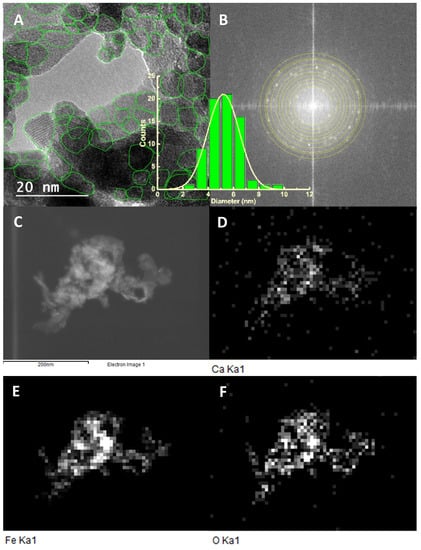

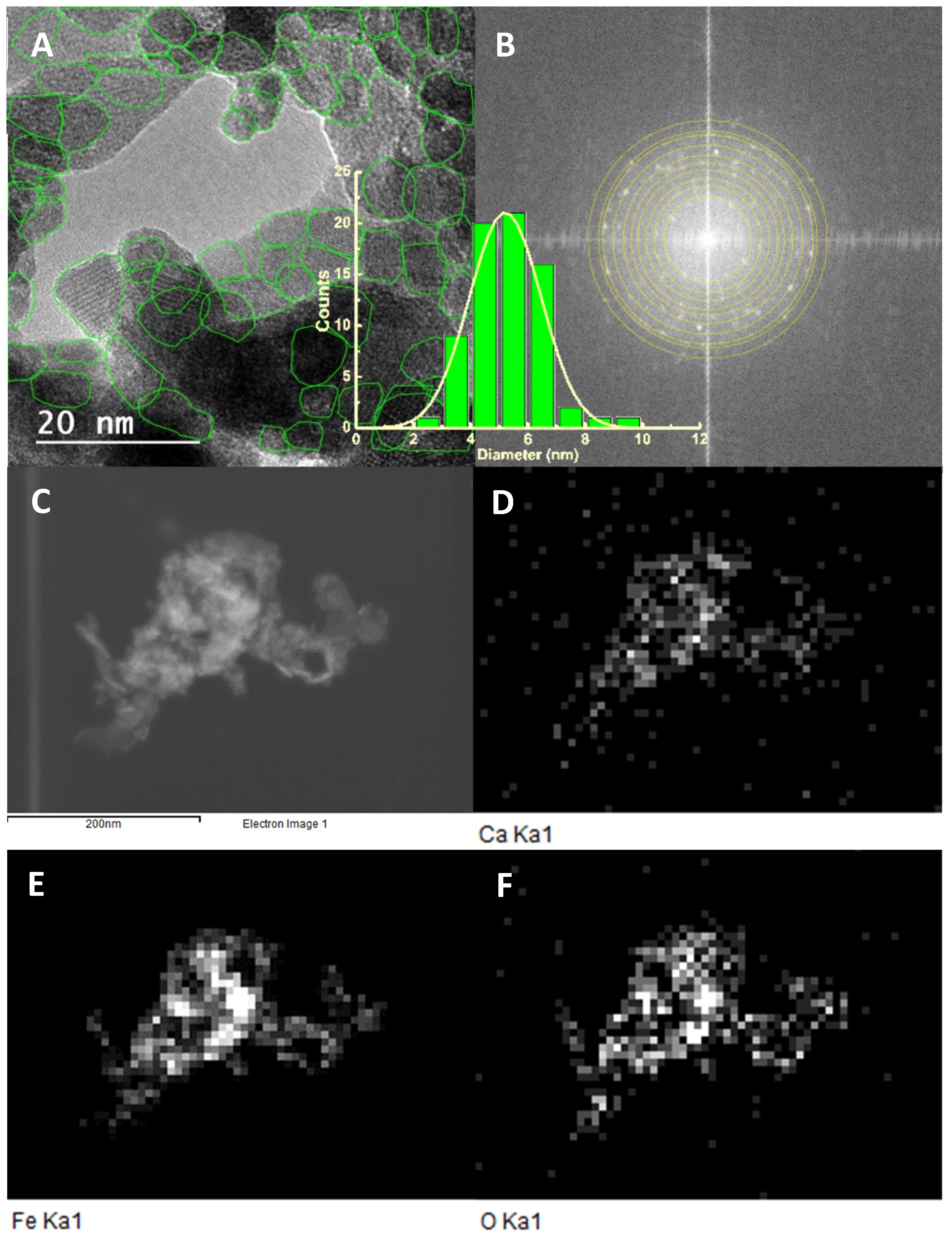

TEM images (Figure 7A) of the CaFe2O4 prepared nanoparticles reveal cuboid/spherical nanoparticles with line patterns that arise from electron beam diffraction at crystal planes. The limits of these patterns helped on the identification of individual particles, as shown by the green lines in Figure 7A. The shown histogram results from the area of 71 nanoparticles and is well described by a Gaussian distribution of 5.2 ± 1.2 nm. This is in excellent agreement with the XRD results. Figure 7B is the fast Fourier transform (FFT) of Figure 7A, using ImageJ image processing software. The bright spots allowed identifying a set of d-spacing values that, using a cubic fcc crystal structure (equation 10), are compatible with a lattice constant a = 8.37 Å and Miller indices (h k l) = (1 1 0), (1 1 1), (2 0 0), (1 2 0), (2 1 1), (2 2 0), (2 2 1), (2 2 2), (3 2 0), and (3 2 1).
d h k l = a h 2 + k 2 + l 2
These results are again in agreement with the previous XRD analysis of the obtained CaFe2O4 nanoparticles. A further confirmation of the identity of the nanoparticles observed in TEM images was achieved from EDX measurements (Figure 7D–F). It is clearly observed that most of the particles in Figure 7C have simultaneously Ca, Fe, and O atoms, thus being compatible with the expected calcium ferrite phase.

3.2.4. Magnetic Properties

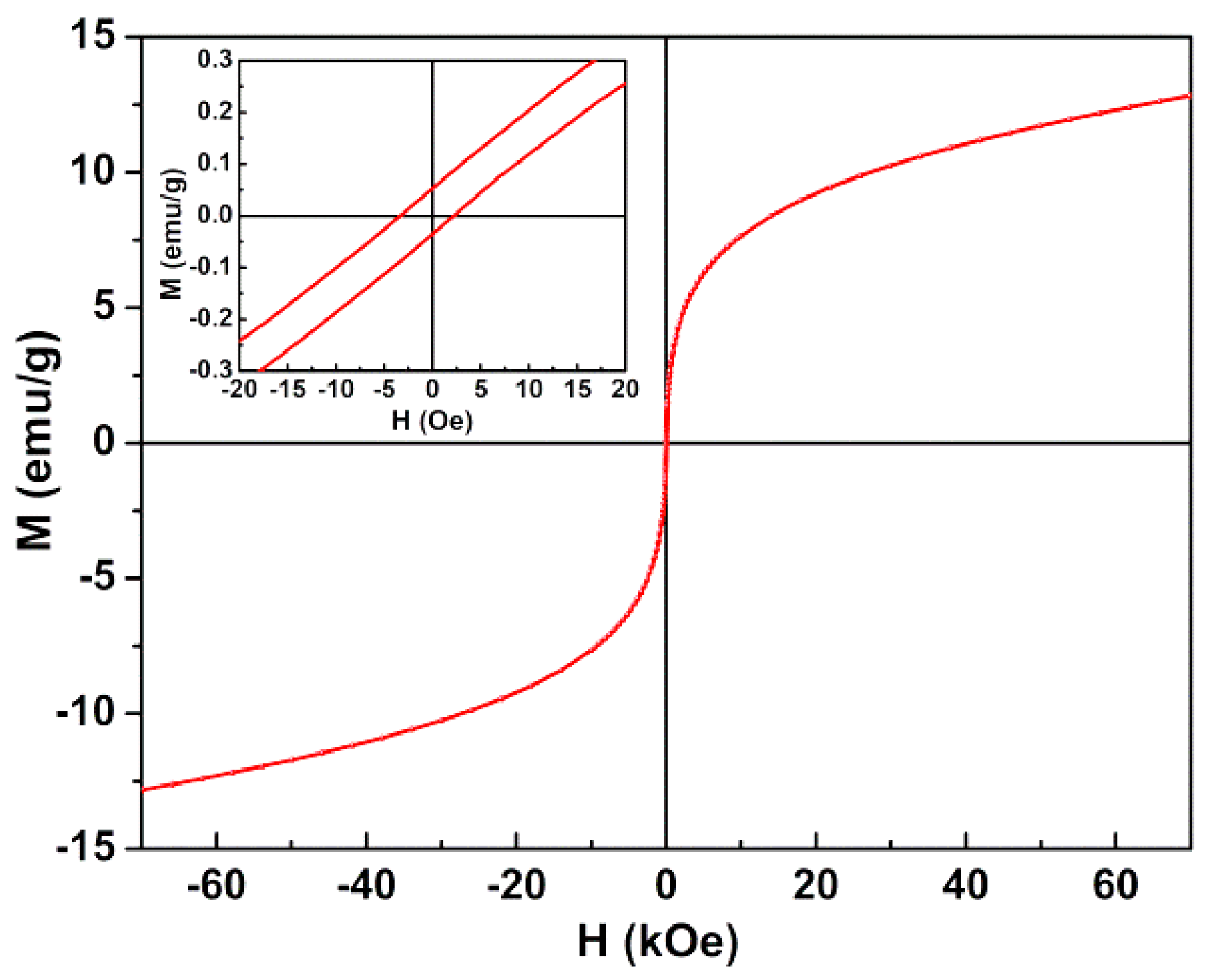

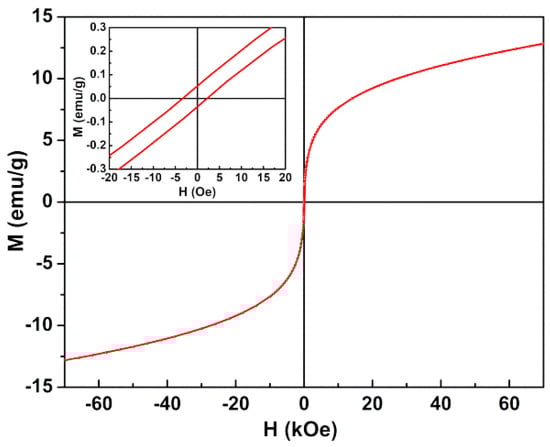

The magnetic properties of CaFe2O4 nanoparticles were characterized by their magnetic hysteresis loop, obtained using a SQUID magnetometer, where the relation between the induced magnetic moment (M) and the applied magnetic field (H) is evidenced. The M-H curve at room temperature is plotted in Figure 8. From the hysteresis loop, a slight coercivity (Hc) of 3.41 Oe and a low remanent magnetization (Mr) of 0.06 emu/g were determined, pointing to a superparamagnetic behavior. Superparamagnetism can be related to the magnetic squareness value of the hysteresis cycle, which is the ratio between the remanescent magnetizations and the saturation magnetization (Ms). If below 0.1, this ratio indicates that more than 90% of the magnetization is lost upon the removal of the applied magnetic field [48,49]. Here, the obtained magnetic squareness value of 0.005 (using the maximum magnetization of 12.81 emu/g at H = 70 kOe) clearly indicates that the synthesized CaFe2O4 nanoparticles are superparamagnetic at room temperature. Saturation in magnetization was not achieved at the maximum applied field of 70 kOe, which can be due to non collinear canted magnetic structure (typical of small nanoparticles with high surface-to-volume ratio).
As used in the analysis of XRD results, the obtained CaFe2O4 nanoparticles have a strongly inverted spinel structure, with an inversion degree of 0.85. Therefore, its lattice can be written as (Ca0.15 Fe0.85↑) [Ca0.85 Fe1.15↓]O4, where parentheses depict the cations at the tetrahedral sites and square brackets the amount of cations at octahedral ones. Lal et al. [46] have computed an expected magnetic moment per unit formula of 1.78 μB for CaFe2O4 nanoparticles with the same lattice structure. Here, a value of 0.49 μB is obtained through the relation ηB = (MW × Ms)/5585 (where ηB is the magnetic moment in Bohr units and MW is the molecular weight) [49,50]. The difference between this estimation and the computed value of magnetic moment [46] can be attributed to the spin canting phenomenon typical of this type of ferrites [49,50,51] and to the amorphous content of the prepared nanoparticles (as evidenced from the XRD data).
The maximum magnetization of calcium ferrite nanoparticles is slightly lower than the one previously obtained for magnesium ferrite nanoparticles also prepared by coprecipitation [21], however keeping the superparamagnetic character. Despite the low maximum magnetization, these nanoparticles guarantee enhanced biocompatibility [8] and superparamagnetic characteristics, avoiding the undesirable oxidation and production of reactive oxygen species (ROS) in mammalian cells by iron oxide nanoparticles that cause DNA and protein damage and inflammatory responses [40,41,52].

3.3. Development of Magnetoliposomes

The obtained magnetic nanoparticles were either entrapped in liposomes (aqueous magnetoliposomes, AMLs) or covered by a lipid bilayer, forming solid magnetoliposomes (SMLs). As previously reported, solid magnetoliposomes are only suitable as carriers for hydrophobic drugs, but exhibit magnetic properties similar to those of the neat nanoparticles. On the other hand, aqueous magnetoliposomes can be used as nanocarriers for both hydrophilic and hydrophobic drugs, but their magnetic properties are poorer, due to the diamagnetic contribution of water [26,27].

3.3.1. Magnetoliposomes Characterization

The calcium ferrite nanoparticles were entrapped in liposomes composed either by the phospholipid Egg-PC or DPPC. The hydrodynamic diameter and polydispersity (PDI) of these aqueous magnetoliposomes were determined by DLS (Table 4).
The nanoparticles encapsulation efficiency in aqueous Egg-PC liposomes was calculated from the spectrophotometric determination of iron (III) [35]. The encapsulation efficiency, EE(%), obtained from three independent assays, was EE(%) ± SD(%) = 70.(4) ± 9. This percentage is slightly higher than the one reported for magnetite nanoparticles using the same encapsulation method [39].
Considering solid magnetoliposomes, the phospholipid DPPC was chosen, due to its melting transition temperature (41 °C [53]) is near mild hyperthermia temperatures [54]. At this transition temperature, the bilayer liquid-crystalline phase is attained, with an increase in membrane permeability, enhancing drug release into cell membranes. Therefore, a local temperature rise promoted by the magnetic nanoparticles under an alternating magnetic field (AMF) can trigger drug release.
The values of hydrodynamic diameter determined by DLS are similar to those previously reported [21,39,55] for magnetoliposomes of the same lipids (and containing different nanoparticles), evidencing that small magnetic nanoparticles does not influence the magnetoliposomes size. The polydispersity index (PDI) is generally low and point to systems that are monodisperse in size. The diameter of magnetoliposomes must be small to guarantee an enhanced permeability and retention (EPR) effect of loaded drugs. The successful extravasation into tumors has been shown to occur for nanocarriers with sizes below 200 nm [56], which is the case of the nanosystems developed here.
Considering solid magnetoliposomes (SMLs), calcium ferrite nanoparticles are being used for the first time to synthesize this type of magnetoliposomes. It is, therefore, important to prove that a lipid bilayer is formed around a cluster of these magnetic nanoparticles. This can be done using FRET assays, where the labeled lipid NBD-C12-HPC (NBD as the energy donor, Figure 2) was included in the first lipid layer of SMLs and the lipid Rhodamine B-DOPE (rhodamine B as the acceptor, Figure 2) was included in the second lipid layer. The emission of SMLs containing only the NBD-labeled lipid and SMLs containing both donor and acceptor labeled lipids were measured (Figure 9A), exciting only the donor NBD. The fluorescence spectrum of SMLs with only the donor exhibits the NBD emission band (λmax = 535 nm), while the spectra of SMLs containing both donor and acceptor reveals a strong decrease in the NDB emission and the notable appearance of rhodamine B band, evidencing the occurrence of energy transfer from the excited NBD moiety to Rhodamine B. A FRET efficiency of 0.723 was estimated (using equations 2–5), corresponding to a donor-acceptor distance of 3.8 nm. These distance values prove the formation of the double lipid layer in SMLs, taking into account the usual cell membrane thickness, varying from 7 to 9 nm [57]. SEM images of these SMLs (Figure 9B) show roughly spherical structures containing nanoparticles aggregates, with sizes slightly around 170 nm, in accordance with those determined by DLS.

3.3.2. Interaction with Model Membranes

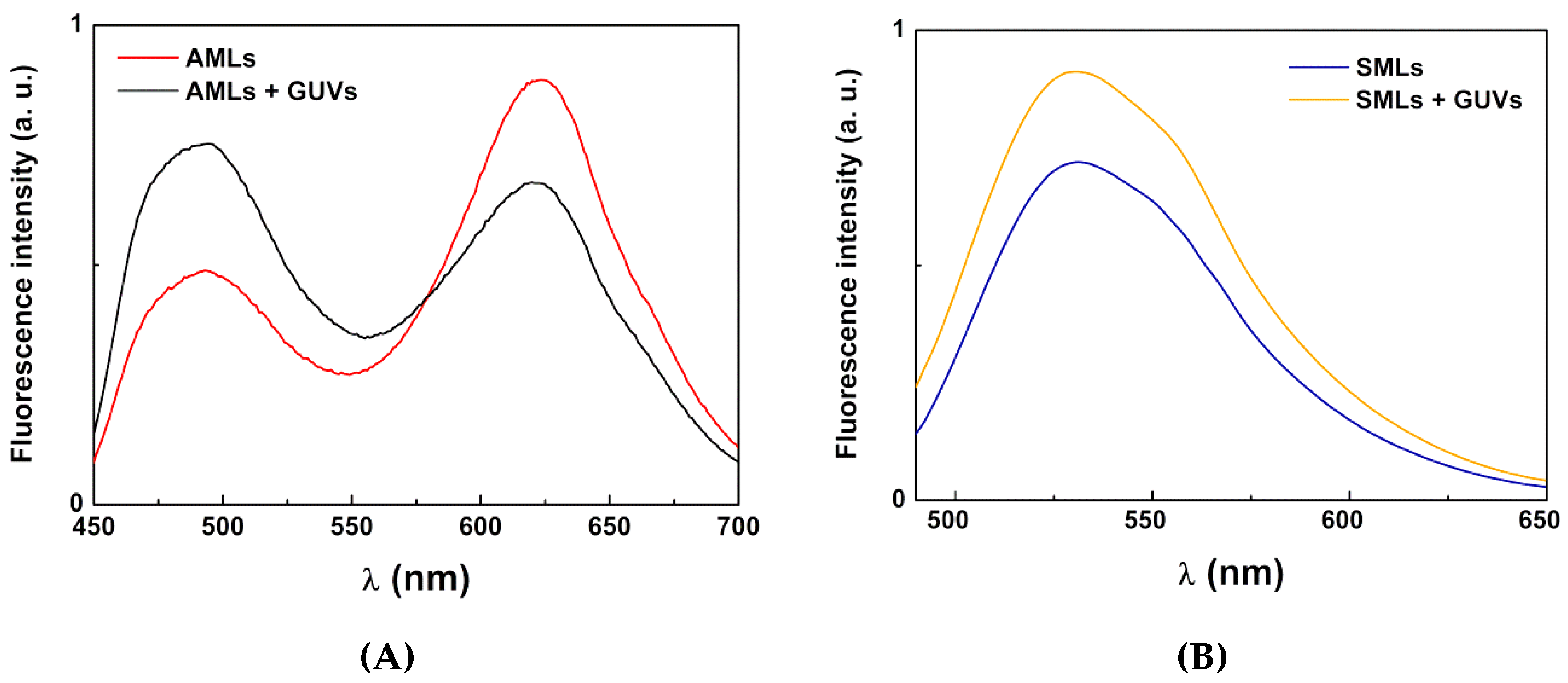

For drug delivery purposes, it is also important that magnetoliposomes have some fusogenic capability with the cell membranes. This was assessed by investigating the non-specific interaction with giant unilamellar vesicles (GUVs), used as membrane models. This investigation was carried out using FRET (Förster resonance energy transfer) assays, where the aqueous magnetoliposomes (AMLs) containing two hydrophobic dyes, curcumin (acting as the energy donor, Figure 3) and Nile Red (as the energy acceptor, Figure 3), were prepared. Curcumin is a highly hydrophobic fluorescent compound [58], being located in the lipid bilayer of liposomes [21]. On the other hand, Nile Red has been widely used as lipid probe [59,60,61], the pair curcumin/Nile Red being a very favorable donor–acceptor pair in FRET assays [21]. Exciting only the donor curcumin, a strong fluorescence band due to Nile Red emission is observed (with maximum wavelength around 630 nm), resulting from energy transfer from curcumin to Nile Red (Figure 10A). After interaction with GUVs, the donor fluorescence (λmax ~ 500 nm) increases and the acceptor emission band decreases, evidencing the diminution of FRET process efficiency and, consequently, proving the membrane fusion between AMLs and GUVs.

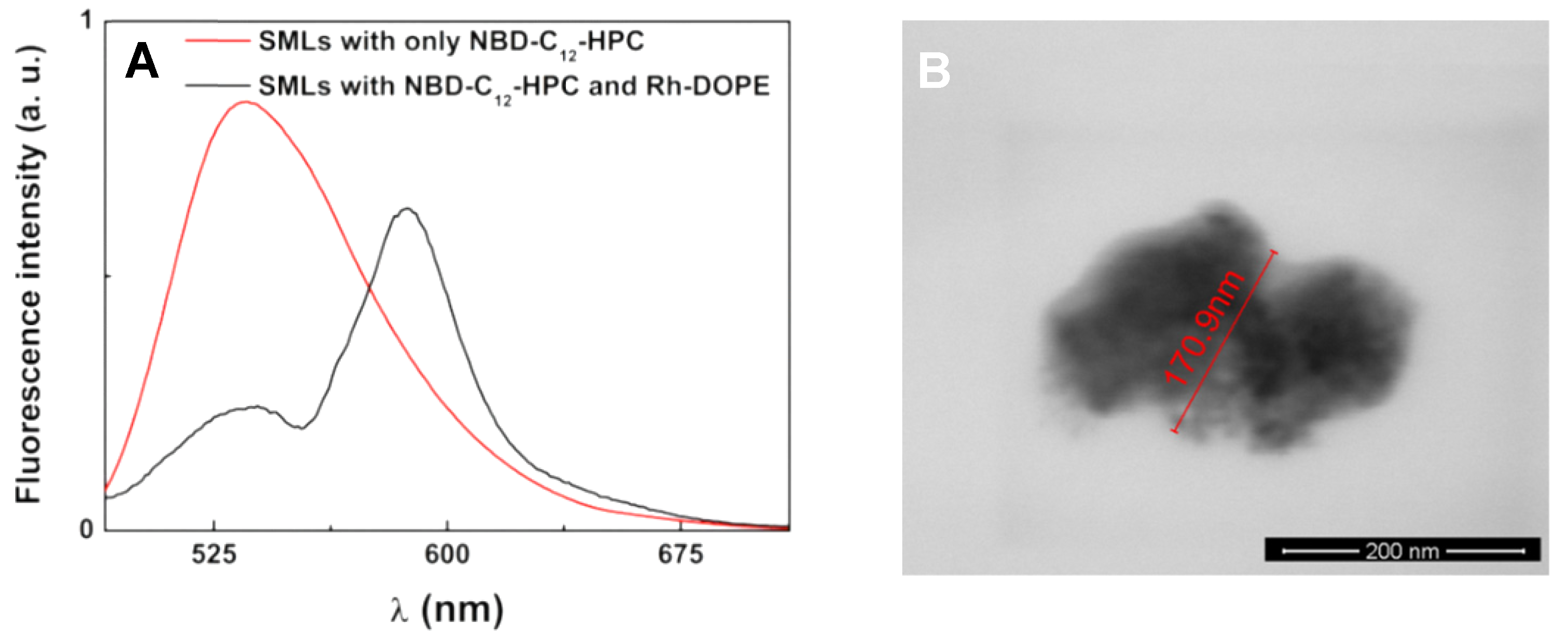

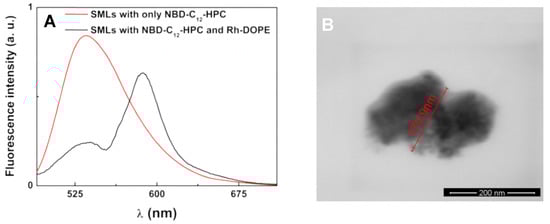

For SMLs, as previously described [19,20,21], FRET process is usually not observed due to the strong quenching of both donor and acceptor emissions by the cluster of magnetic nanoparticles. Instead, the lipid bilayer of SMLs was labeled with only a fluorescent lipid, NBD-C12-HPC (Figure 2). Upon interaction with GUVs, a significant rise in NBD fluorescence is observed (unquenching effect), proving the increase in the distance between the nanoparticles and the fluorescent moiety (NBD, λmax = 535 nm), and thus membrane fusion occurs (Figure 10B).

3.4. Drug-Loaded Magnetoliposomes

The antitumor compounds 1 and 2 were incorporated in both aqueous and solid magnetoliposomes. The two compounds exhibit fluorescence in these nanocarriers, indicating that they must be located in the lipid bilayer (as they are non-emissive in aqueous media). An emission quenching by the nanoparticles is observed for these thienopyridine derivatives, more significant in SMLs, where the cluster of nanoparticles is closer to the antitumor compound (comparing to the case of AMLs) (Figure 11). A similar behavior was previously observed for other antitumor drugs [19,21] and for compound 1 in magnetoliposomes containing iron oxide nanoparticles [39].

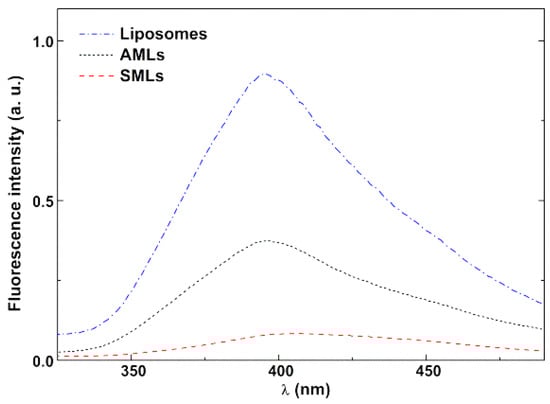

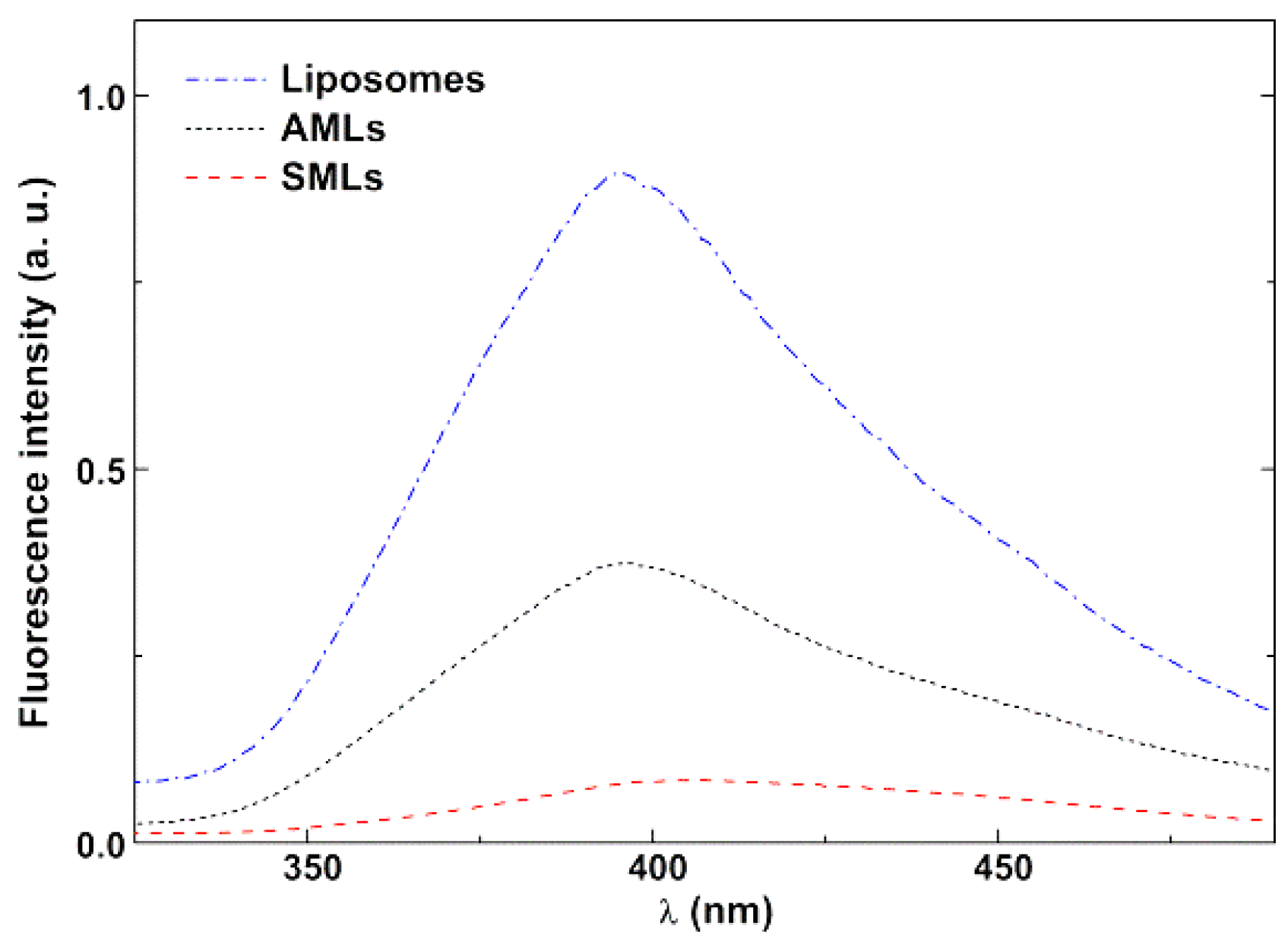

Fluorescence anisotropy measurements of both compounds (Table 5) were determined in liposomes (without the magnetic nanoparticles), in AMLs and in SMLs. The values in glycerol are presented for comparison, as in this highly viscous medium (η = 993.4 cP at room temperature [62]), compound molecules rotate slowly and anisotropy value approaches the fundamental anisotropy [30]. From the anisotropy results, one can observe that the values in liposomes are similar to the ones in AMLs and SMLs, pointing to the compound location in the lipid membrane in all the nanocarriers. This is not surprising, as these compounds are hydrophobic molecules. Moreover, a decrease in anisotropy is observed for DPPC at 55 °C, where the lipid bilayer is in the liquid-crystalline phase. This indicates that compounds are experiencing a higher degree of rotation in this case, with a consequent decrease in fluorescence anisotropy. Also, in phosphatidylcholine from egg yolk (Egg-PC), which is a phosphatidylcholine mixture with some unsaturated lipid chains (main components are 16:0 PC, 18:0 PC, and 18:1 PC), the anisotropy values are lower than in DPPC (16:0 PC) at room temperature, signifying larger freedom for the antitumor drugs in Egg-PC.
The drug encapsulation efficiencies were determined for both antitumor compounds in AMLs and SMLs (Table 6). The encapsulation efficiency is higher for aqueous magnetoliposomes, compound 2 being the one exhibiting greater percentages. Nevertheless, in solid magnetoliposomes, the encapsulation efficiencies are still very reasonable. Generally, the high EE% obtained point to a promising future utility of the drug-loaded nanocarriers containing biocompatible calcium ferrite nanoparticles in cancer therapeutics, specifically for breast cancer therapy.
Preliminary assays using drug-loaded magnetoliposomes (AMLs and SMLs) in breast cancer cell lines, MCF-7 and MDA-MB-231, were performed (Figure 12). Free (non-encapsulated) drugs were already tested in previous publications [23,24], using the same human breast cancer cell lines, with the determination of GI50 values [24] (values indicated in Table 1).

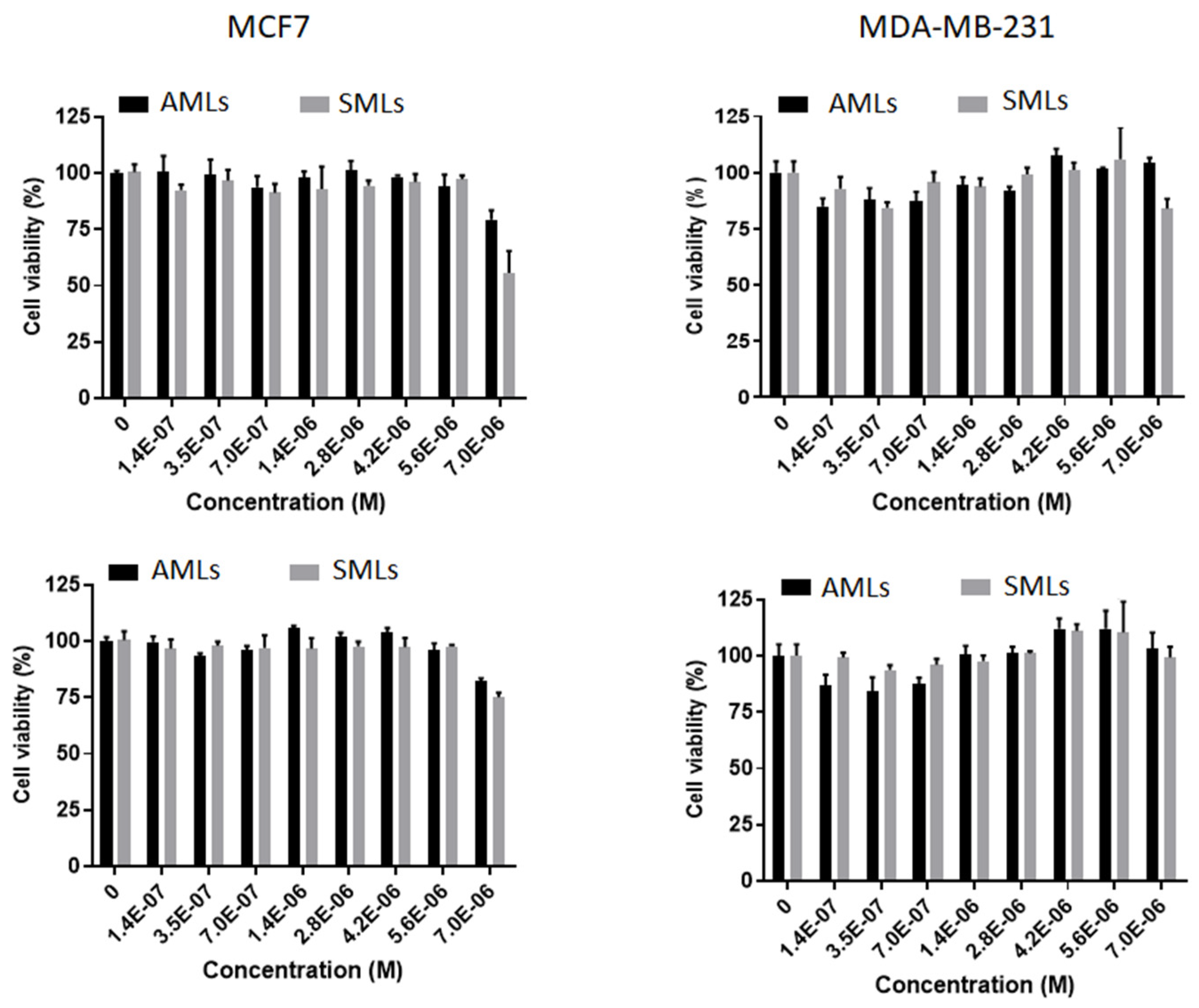

Figure 12 shows a generally low inhibitory activity of cells for all formulations, indicating a lack of toxicity of the drug-loaded magnetoliposomes in the absence of an alternating magnetic field (AMF). The most significant activity was observed for SMLs loaded with compound 1 in MCF-7 cell line, yet, no cytotoxicity was observed, but only a reduced cell viability. Typically, encapsulated drugs present lower bioavailability when compared to free drugs and, therefore, less cytotoxicity is observed for encapsulated drugs. In both solid and aqueous magnetoliposomes, compounds 1 and 2 remain encapsulated for more than two days (in the conditions used in cell culture) and no release is observed to the surrounding medium, which was expected considering the hydrophobic nature of the compounds. So, these assays prove that drug-loaded magnetoliposomes have practically absence of toxicity, which makes them advantageous systems for triggered drug release by application of an AMF to promote local heating, that increases liposomes membrane fluidity. Therefore, in future work, the drug-loaded magnetoliposomes (without the application of AMF) will act as a control. The results obtained here are promising for future applications, by showing that these systems only release the loaded cargo upon the application of an alternating magnetic field, that causes a local heating effect (hyperthermia), also synergistically inducing cell death.

4. Conclusions

In this work, both aqueous and solid magnetoliposomes containing calcium ferrite nanoparticles were developed. The nanosystems obtained, with sizes below or around 170 nm, revealed to be promising as nanocarriers for two new thienopyridine-based anticancer drugs active against breast cancer (including the highly aggressive MDA-MB-231 cells). Solid and aqueous magnetoliposomes were able to interact with model membranes (GUVs) by fusion. Considering the high drug encapsulation efficiencies, the lack of toxicity of the drug-loaded systems and the selective antitumor activity of both compounds, the drug-loaded magnetoliposomes containing CaFe2O4 nanoparticles are promising to future applications in dual therapy (combining magnetic-triggered chemotherapy and magnetic hyperthermia) for breast cancer.

Author Contributions

P.J.G.C. and E.M.S.C. conceived and designed the experiments; D.S.M.P. and B.D.C. performed the synthesis and structural characterization of magnetic nanoparticles, liposomes and magnetoliposomes; D.S.M.P., B.D.C., and A.R.O.R. performed the photophysical studies; P.J.G.C. supervised the structural characterization and analysis of results; C.O.A., V.S.A., and B.G.A. performed the experimental magnetic measurements and the analysis of the magnetic properties; M.-J.R.P.Q. synthesized the antitumor compounds and contributed to the interpretation of results; R.C.C. and I.C.F.R.F. performed the assays of neat compounds in cell lines; O.M. and F.B. performed the assays of drug-loaded nanosystems in breast cancer cell lines; E.M.S.C. supervised the photophysical measurements and the interpretation of results; P.J.G.C. and E.M.S.C. wrote the final manuscript; all the authors revised and approved the manuscript.

Funding

This research was funded by the Portuguese Foundation for Science and Technology (FCT) in the framework of the Strategic Funding of CF-UM-UP (UID/FIS/04650/2013; UID/FIS/04650/2019), CQUM (UID/QUI/00686/2016; UID/QUI/00686/2019) and LA-26 (PEst-C/SAU/LA0026/2013), and through the research project PTDC/QUI-QFI/28020/2017 (POCI-01-0145-FEDER-028020), financed by FCT, European Fund of Regional Development (FEDER), COMPETE2020 and Portugal2020. The magnetic measurements were supported by projects UTAP-EXPL/NTec/0046/2017, NORTE-01-0145-FEDER-028538 e PTDC/FIS-MAC/29454/2017. The APC was also funded by FCT. B.D.C. acknowledges FCT for a PhD grant (SFRH/BD/141936/2018).

Acknowledgments

The authors acknowledge Centre for Biological Engineering (CEB) of University of Minho for the availability of DLS equipment.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Peer, D.; Karp, J.M.; Hong, S.; Farokhzad, O.C.; Margalit, R.; Langer, R. Nanocarriers as an emerging platform for cancer therapy. Nat. Nanotechnol. 2007, 2, 751–760. [Google Scholar] [CrossRef] [PubMed]
  2. Bremer-Hoffmann, S.; Amenta, V.; Rossi, F. Nanomedicines in the European translational process. Eur. J. Nanomed. 2015, 7, 191–202. [Google Scholar] [CrossRef]
  3. Chang, E.H.; Harford, J.B.; Eatin, M.A.; Boisseau, P.M.; Dube, A.; Hayeshi, R.; Swai, H.; Lee, D.S. Nanomedicine: Past, present and future—A global perspective. Biochem. Biophys. Res. Commun. 2015, 468, 511–517. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, J.; Hu, X.; Xiang, D. Nanoparticles drug delivery systems: An excellent carrier for tumor peptide vaccines. Drug Deliv. 2018, 25, 1319–1327. [Google Scholar] [CrossRef] [PubMed]
  5. Gobbo, O.L.; Sjaatsad, K.; Radomski, M.K.; Volkov, Y.; Prina-Mello, A. Magnetic Nanoparticles in Cancer Theranostics. Theranostics 2015, 5, 1249–1263. [Google Scholar] [CrossRef] [PubMed]
  6. Rahman, M.; Ahmad, M.Z.; Kazmi, I.; Akhter, S.; Afzal, M.; Gupta, G.; Sinha, V.R. Emergence of Nanomedicine as Cancer Targeted Magic Bullets: Recent Development and Need to Address the Toxicity Apprehension. Curr. Drug Discov. Technol. 2012, 9, 319–329. [Google Scholar] [CrossRef] [PubMed]
  7. Saldívar-Ramírez, M.M.G.; Sánchez-Torres, C.G.; Cortés-Hernández, D.A.; Escobedo-Bocardo, J.C.; Almanza-Robles, J.M.; Larson, A.; Reséndiz-Hernández, P.J.; Acunã-Gutiérrez, I.O. Study on the efficiency of nanosized magnetite and mixed ferrites in magnetic hyperthermia. J. Mater. Sci. Mater. Electron. 2014, 25, 2229–2236. [Google Scholar] [CrossRef]
  8. Khanna, L.; Verma, N.K. Synthesis, characterization and in vitro cytotoxicity study of calcium ferrite nanoparticles. Mater. Sci. Semicond. Process. 2013, 16, 1842–1848. [Google Scholar] [CrossRef]
  9. Hirazawa, H.; Kusamoto, S.; Aono, H.; Naohara, T.; Mori, K.; Hattori, Y.; Maehara, T.; Watanabe, Y. Preparation of fine Mg1−xCaxFe2O4 powder using reverse coprecipitation method for thermal coagulation therapy in an AC magnetic field. J. Alloys Compd. 2008, 4, 467–473. [Google Scholar] [CrossRef]
  10. Sulaiman, N.H.; Ghazali, M.J.; Majlis, B.Y.; Yunas, J.; Razalia, M. Superparamagnetic calcium ferrite nanoparticles synthesized using a simple sol-gel method. Bio. Med. Mater. Eng. 2015, 26, S103–S110. [Google Scholar] [CrossRef]
  11. Monnier, C.A.; Burnand, D.; Rothen-Rutishauser, B.; Lattuada, M.; Petri-Fink, A. Magnetoliposomes: Opportunities and challenges. Eur. J. Nanomed. 2014, 6, 201–215. [Google Scholar] [CrossRef]
  12. Yanase, M.; Shinkai, M.; Honda, H.; Wakabayashi, T. Antitumor immunity induction by intracellular hyperthermia using magnetite cationic liposomes. Jpn. J. Cancer Res. 1998, 89, 775–782. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, J.Q.; Zhang, Z.R.; Yang, H.; Tan, Q.Y.; Qin, Q.Y.; Qiu, X.L. Lyophilized paclitaxel magnetoliposomes as a potential drug delivery system for breast carcinoma via parenteral administration: In vitro and in vivo studies. Pharm. Res. 2005, 22, 573–583. [Google Scholar] [CrossRef] [PubMed]
  14. Sabaté, R.; Barnadas-Rodríguez, R.; Callejas-Fernández, J.; Hidalgo-Alvarez, R.; Estelrich, J. Preparation and characterization of extruded magnetoliposomes. Int. J. Pharm. 2008, 347, 156–162. [Google Scholar] [CrossRef] [PubMed]
  15. García-Jimeno, S.; Escribano, E.; Queralt, J.; Estelrich, J. Magnetoliposomes prepared by reverse-phase followed by sequential extrusion: Characterization and possibilities in the treatment of inflammation. Int. J. Pharm. 2011, 405, 181–187. [Google Scholar] [CrossRef] [PubMed]
  16. Ferreira, R.V.; Martins, T.M.M.; Goes, A.M.; Fabris, J.D.; Cavalcante, L.C.D.; Outon, L.E.F.; Domingues, R.Z. Thermosensitive gemcitabine-magnetoliposomes for combined hyperthermia and chemotherapy. Nanotechnology 2016, 27, 085105. [Google Scholar] [CrossRef] [PubMed]
  17. Estelrich, J.; Busquets, M.A.; Morán, M.C. Effect of PEGylation on Ligand-Targeted Magnetoliposomes: A Missed Goal. ACS Omega 2017, 2, 6544–6555. [Google Scholar] [CrossRef]
  18. Pradhan, P.; Giri, J.; Banerjee, R.; Bellare, J.; Bahadur, D. Preparation and characterization of manganese ferrite-based magnetic liposomes for hyperthermia treatment of cancer. J. Magn. Magn. Mater. 2007, 311, 208–215. [Google Scholar] [CrossRef]
  19. Rodrigues, A.R.O.; Ramos, J.M.F.; Gomes, I.T.; Almeida, B.G.; Araújo, J.P.; Queiroz, M.-J.R.P.; Coutinho, P.J.G.; Castanheira, E.M.S. Magnetoliposomes based on manganese ferrite nanoparticles as nanocarriers for antitumor drugs. RSC Adv. 2016, 6, 17302–17313. [Google Scholar] [CrossRef] [Green Version]
  20. Rodrigues, A.R.O.; Gomes, I.T.; Almeida, B.G.; Araújo, J.P.; Castanheira, E.M.S.; Coutinho, P.J.G. Magnetoliposomes based on nickel ferrite nanoparticles for biomedical applications. Phys. Chem. Chem. Phys. 2015, 17, 18011–18021. [Google Scholar] [CrossRef]
  21. Cardoso, B.D.; Rio, I.S.R.; Rodrigues, A.R.O.; Fernandes, F.C.T.; Almeida, B.G.; Pires, A.; Pereira, A.M.; Araújo, J.P.; Castanheira, E.M.S.; Coutinho, P.J.G. Magnetoliposomes containing magnesium ferrite nanoparticles as nanocarriers for the model drug curcumin. R. Soc. Open Sci. 2018, 5, 181017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Heyman, H.R.; Frey, R.R.; Bousquet, P.F.; Cunha, G.A.; Moskey, M.D.; Ahmed, A.A.; Soni, N.B.; Marcotte, P.A.; Pease, L.J.; Glaser, K.B.; et al. Thienopyridine urea inhibitors of KDR kinase. Bioorg. Med. Chem. Lett. 2007, 17, 1246–1249. [Google Scholar] [CrossRef] [PubMed]
  23. Machado, V.A.; Peixoto, D.R.; Costa, H.J.C.; Froufe, R.C.; Calhelha, R.M.V.; Abreu, I.C.F.R.; Ferreira, R.; Soares, R. Queiroz, Synthesis, antiangiogenesis evaluation and molecular docking studies of 1-aryl-3-[(thieno[3,2-b]pyridin-7-ylthio)phenyl]ureas: Discovery of a new substitution pattern for type II VEGFR-2 Tyr kinase inhibitors. Bioorg. Med. Chem. 2015, 23, 6497–6509. [Google Scholar] [CrossRef] [PubMed]
  24. Machado, V.A.; Peixoto, D.; Queiroz, M.-J.; Soares, R. Antiangiogenic 1-aryl-3-[3-(thieno[3,2-b] pyridin-7-ylthio)phenyl]ureas inhibit MCF-7 and MDA-MB-231 human breast cancer cell lines through PI3K/Akt and MAPK/Erk pathways. J. Cell. Biochem. 2016, 117, 2791–2799. [Google Scholar] [CrossRef] [PubMed]
  25. Kremer, J.M.H.; Van Der Esker, M.W.; Pathmamanoharan, C.; Wiersema, P.H. Vesicles of variable diameter prepared by a modified injection method. Biochemistry 1977, 16, 3932–3935. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, S.; Niu, H.; Zhang, Y.; Liu, J.; Shia, Y.; Zhang, X.; Cai, Y. Biocompatible phosphatidylcholine bilayer coated on magnetic nanoparticles and their application in the extraction of several polycyclic aromatic hydrocarbons from environmental water and milk samples. J. Chromatogr. A 2012, 1238, 38–45. [Google Scholar] [CrossRef] [PubMed]
  27. Rodrigues, A.R.O.; Almeida, B.G.; Rodrigues, J.M.; Queiroz, M.-J.R.P.; Calhelha, R.C.; Ferreira, I.C.F.R.; Pires, A.; Pereira, A.M.; Araújo, J.P.; Coutinho, P.J.G.; et al. Magnetoliposomes as carriers for promising antitumor thieno[3,2-b]pyridin-7-arylamines: Photophysical and biological studies. RSC Adv. 2017, 7, 15352–15361. [Google Scholar] [CrossRef]
  28. Tamba, Y.; Terashima, H.; Yamazaki, M. A membrane filtering method for the purification of giant unilamellar vesicles. Chem. Phys. Lipids 2011, 164, 351–358. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Tanaka, T.; Tamba, Y.; Masum, S.M.; Yamashita, Y.; Yamazaki, M. La3+ and Gd3+ induce shape change of giant unilamellar vesicles of phosphatidylcholine. Biochim. Biophys. Acta 2002, 1564, 173–182. [Google Scholar] [CrossRef]
  30. Valeur, B. Molecular Fluorescence—Principles and Applications, 1st ed.; Wiley-VCH: Weinheim, Germany, 2001; pp. 247–261. [Google Scholar]
  31. Demas, J.N.; Crosby, G.A. The measurement of photoluminescence quantum yields—Review. J. Phys. Chem. 1971, 75, 991–1024. [Google Scholar]
  32. Fery-Forgues, S.; Lavabre, D. Are fluorescence quantum yields so tricky to measure? A demonstration using familiar stationery products. J. Chem. Educ. 1999, 76, 1260–1264. [Google Scholar] [CrossRef]
  33. Johnson, I.; Spence, M.T.Z. Molecular Probes Handbook: A Guide to Fluorescent Probes and Labeling Technologies, 11th ed.; Life Technologies: Carlsbad, CA, USA, 2010; pp. 545–587. [Google Scholar]
  34. Wagner, T.; Eglinger, J. Thorstenwagner/ij-Particlesizer: V1.0.9 Snapshot Release (Version V1.0.9-SNAPSHOT); Zenodo: Genève, Switzerland, 2017. [Google Scholar]
  35. Tarek, M.; Zaki, M.; EI-Sayed, A.Y. Spectrophotometric determination of iron as phenylfluorone complex sensitized with Triton X-100. Anal. Bioanal. Chem. 1989, 334, 335–339. [Google Scholar] [CrossRef]
  36. Dias, M.I.; Barros, L.; Dueñas, M.; Pereira, E.; Carvalho, A.M.; Alves, R.C.; Oliveira, M.B.P.P.; Santos-Buelga, C.; Ferreira, I.C.F.R. Chemical composition of wild and commercial Achillea millefolium L. and bioactivity of the methanolic extract, infusion and decoction. Food Chem. 2013, 141, 4152–4160. [Google Scholar] [CrossRef] [PubMed]
  37. Vichai, V.; Kirtikara, K. Sulforhodamine B colorimetric assay for cytotoxicity screening. Nat. Protoc. 2006, 1, 1112–1116. [Google Scholar] [CrossRef] [PubMed]
  38. Costa, C.N.C.; Hortelão, A.C.L.; Ramos, J.M.F.; Oliveira, A.D.S.; Calhelha, R.C.; Queiroz, M.-J.R.P.; Coutinho, P.J.G.; Castanheira, E.M.S. A new antitumoral heteroarylaminothieno[3,2-b]pyridine derivative: Its incorporation into liposomes and interaction with proteins monitored by fluorescence. Photochem. Photobiol. Sci. 2014, 13, 1730–1740. [Google Scholar] [CrossRef] [PubMed]
  39. Rodrigues, A.R.O.; Mendes, P.M.F.; Silva, P.M.L.; Machado, V.A.; Almeida, B.G.; Araújo, J.P.; Queiroz, M.J.R.P.; Castanheira, E.M.S.; Coutinho, P.J.G. Solid and aqueous magnetoliposomes as nanocarriers for a new potential drug active against breast cancer. Colloids Surf. B Biointerfaces 2017, 158, 460–468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Kawanishi, M.; Ogo, S.; Ikemoto, M.; Totsuka, Y.; Ishino, K.; Wakabayashi, K.; Yagi, T. Genotoxicity and reactive oxygen species production induced by magnetite nanoparticles in mammalian cells. J. Toxicol. Sci. 2013, 38, 503–511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Liu, G.; Gao, J.; Ai, H.; Chen, X. Applications and potential toxicity of magnetic iron oxide nanoparticles. Small 2013, 9, 1533–1545. [Google Scholar] [CrossRef] [PubMed]
  42. Yarjanli, Z.; Ghaedi, K.; Esmaeili, A.; Rahgozar, S.; Zarrabi, A. Iron oxide nanoparticles may damage to the neural tissue through iron accumulation, oxidative stress, and protein aggregation. BMC Neurosci. 2017, 18, 51. [Google Scholar] [CrossRef]
  43. Liu, Z.; Zhao, Z.-G.; Miyauchi, M. Efficient Visible Light Active CaFe2O4/WO3 based composite photocatalysts: Effect of interfacial modification. J. Phys. Chem. C 2009, 113, 17132–17137. [Google Scholar] [CrossRef]
  44. Kim, H.G.; Borse, P.H.; Jang, J.S.; Jeong, E.D.; Jung, O.S.; Suh, Y.J.; Lee, J.S. Fabrication of CaFe2O4/MgFe2O4 bulk heterojunction for enhanced visible light photocatalysis. Chem. Comm. 2009, 39, 5889–5891. [Google Scholar] [CrossRef] [PubMed]
  45. Rodriguez-Carvajal, J. Recent advances in magnetic structure determination by neutron powder diffraction. Physi. B Condens. Matter 1993, 192, 55–69. [Google Scholar] [CrossRef]
  46. Lal, G.; Punia, K.; Dolia, S.N.; Alvi, P.A.; Dalela, S.; Kumar, S. Rietveld refinement, Raman, optical, dielectric, Mössbauer and magnetic characterization of superparamagnetic fcc-CaFe2O4 nanoparticles. Ceram. Int. 2019, 45, 5837–5847. [Google Scholar] [CrossRef]
  47. Samariya, A.; Dolia, S.N.; Prasad, A.S.; Sharma, P.K.; Pareek, S.P.; Dhawan, M.S.; Kumar, S. Size dependent structural and magnetic behaviour of CaFe2O4. Curr. Appl. Phys. 2013, 13, 830–835. [Google Scholar] [CrossRef]
  48. Mathew, D.S.; Juang, R.-S. An overview of the structure and magnetism of spinel nanoparticles and their synthesis in microemulsions. Chem. Eng. J. 2007, 129, 51–65. [Google Scholar] [CrossRef]
  49. Smit, J. Magnetic Properties of Materials; McGraw Hill: New York, NY, USA, 1971; p. 89. [Google Scholar]
  50. Chauhan, B.S.; Kumar, R.; Jadhav, K.M.; Singh, M. Magnetic study of substituted Mg-Mn ferrites synthesized by citrate precursor method. J. Magn. Magn. Mater. 2004, 283, 71–81. [Google Scholar] [CrossRef]
  51. Nikam, D.S.; Jadhav, S.V.; Khot, V.M.; Bohara, R.A.; Hong, C.K.; Mali, S.S.; Pawar, S.H. Cation distribution, structural, morphological and magnetic properties of Co1−xZnxFe2O4 (x = 0–1) nanoparticles. RSC Adv. 2015, 5, 2338–2345. [Google Scholar] [CrossRef]
  52. Widdrat, M.; Kumari, M.; Tompa, E.; Pósfai, M.; Hirt, A.M.; Faivre, D. Keeping nanoparticles fully functional: Long-term storage and alteration of magnetite. ChemPlusChem 2014, 79, 1225–1233. [Google Scholar] [CrossRef] [PubMed]
  53. Lentz, B. Membrane ‘fluidity’ as detected by diphenylhexatriene probes. Chem. Phys. Lipids 1989, 50, 171–190. [Google Scholar] [CrossRef]
  54. Hervault, A.; Thanh, N.T.K. Magnetic nanoparticle-based therapeutic agents for thermo-chemotherapy treatment of cancer. Nanoscale 2014, 6, 11553–11573. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Rodrigues, A.R.O.; Matos, J.O.G.; Nova Dias, A.M.; Almeida, B.G.; Pires, A.; Pereira, A.M.; Araújo, J.P.; Queiroz, M.J.R.P.; Castanheira, E.M.S.; Coutinho, P.J.G. Development of Multifunctional Liposomes Containing Magnetic/Plasmonic MnFe2O4/Au Core/Shell Nanoparticles. Pharmaceutics 2019, 11, 10. [Google Scholar] [CrossRef] [PubMed]
  56. Sawant, R.R.; Torchilin, V.P. Challenges in development of targeted liposomal therapeutics. AAPS J. 2012, 14, 303–315. [Google Scholar] [CrossRef] [PubMed]
  57. Curtis, H.; Barnes, N.S. Biology, 5th ed.; Worth Publishers: New York, NY, USA, 1989. [Google Scholar]
  58. Anand, P.; Kunnumakkara, A.B.; Newman, R.A.; Aggarwal, B.B. Bioavailability of curcumin: Problems and promises. Mol. Pharm. 2007, 4, 807–818. [Google Scholar] [CrossRef] [PubMed]
  59. Greenspan, P.; Mayer, E.P.; Fowler, S.D. Nile red: A selective fluorescent stain for intracellular lipid droplets. J. Cell Biol. 1985, 100, 965–973. [Google Scholar] [CrossRef] [PubMed]
  60. Coutinho, P.J.G.; Castanheira, E.M.S.; Rei, M.C.; Real Oliveira, M.E.C.D. Nile Red and DCM fluorescence anisotropy studies in C12E7/DPPC mixed systems. J. Phys. Chem. B 2002, 106, 12841–12846. [Google Scholar] [CrossRef]
  61. Feitosa, E.; Alves, F.R.; Niemiec, A.; Oliveira, M.E.C.D.R.; Castanheira, E.M.S.; Baptista, A.L.F. Cationic liposomes in mixed didodecyldimethylammonium bromide and dioctadecyldimethylammonium bromide aqueous dispersions studied by differential scanning calorimetry, Nile Red fluorescence, and turbidity. Langmuir 2006, 22, 3579–3585. [Google Scholar] [CrossRef]
  62. Lide, D.R. CRC Handbook of Chemistry and Physics, 89th ed.; CRC Press: Boca Raton, FL, USA; Taylor and Francis: Abingdon, UK, 2009. [Google Scholar]
Figure 1. Structure of the 1-aryl-3-[3-(thieno[3,2-b]pyridin-7-ylthio)phenyl]urea derivatives.
Figure 1. Structure of the 1-aryl-3-[3-(thieno[3,2-b]pyridin-7-ylthio)phenyl]urea derivatives.
Pharmaceutics 11 00477 g001

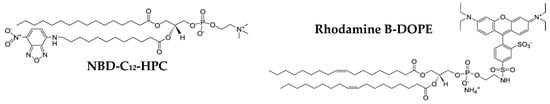

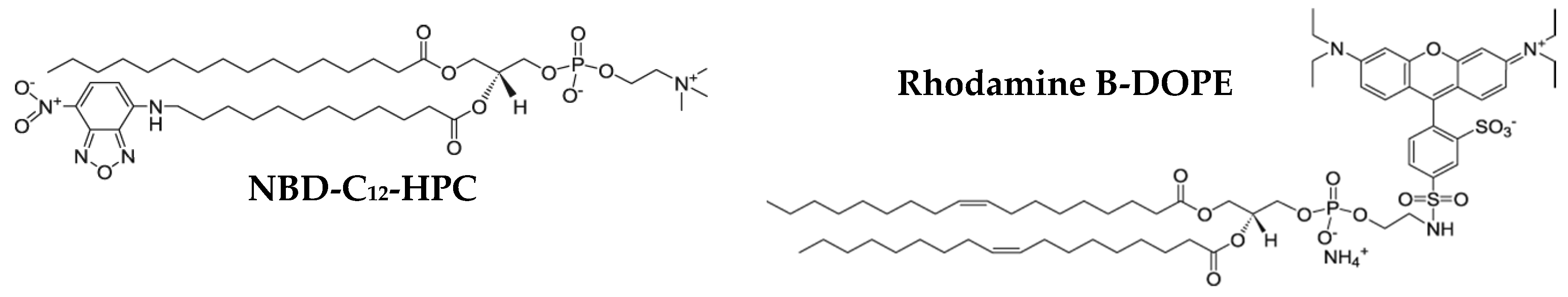

Figure 2. Structure of the fluorescent labeled lipids used in Förster resonance energy transfer (FRET) assays.
Figure 2. Structure of the fluorescent labeled lipids used in Förster resonance energy transfer (FRET) assays.
Pharmaceutics 11 00477 g002
Figure 3. Structures of the dyes used in FRET assays for interaction with giant unilamellar vesicles (GUVs).
Figure 3. Structures of the dyes used in FRET assays for interaction with giant unilamellar vesicles (GUVs).
Pharmaceutics 11 00477 g003
Figure 4. Fluorescence spectra (λexc = 270 nm) of compound 1 (left) and compound 2 (right) in liposomes of 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) and l-α-phosphatidylcholine from egg yolk (Egg-PC), with compound concentration 5 × 10−6 M (T = 25 °C). Insets: Examples of absorption spectra (compound concentration: 1 × 10−5 M).
Figure 4. Fluorescence spectra (λexc = 270 nm) of compound 1 (left) and compound 2 (right) in liposomes of 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) and l-α-phosphatidylcholine from egg yolk (Egg-PC), with compound concentration 5 × 10−6 M (T = 25 °C). Insets: Examples of absorption spectra (compound concentration: 1 × 10−5 M).
Pharmaceutics 11 00477 g004
Figure 5. UV/visible absorption spectra of an aqueous dispersion of CaFe2O4 magnetic nanoparticles. Inset: Tauc plot.
Figure 5. UV/visible absorption spectra of an aqueous dispersion of CaFe2O4 magnetic nanoparticles. Inset: Tauc plot.
Pharmaceutics 11 00477 g005
Figure 6. XRD diffractogram of calcium ferrite nanoparticles. (A) Original; (B) Background subtracted.
Figure 6. XRD diffractogram of calcium ferrite nanoparticles. (A) Original; (B) Background subtracted.
Pharmaceutics 11 00477 g006
Figure 7. TEM images of the synthesized CaFe2O4 nanoparticles. (A) Selection of particles (Scale bar: 20 nm). Inset: Particles size histogram of image (A); (B) Fast Fourier transform (FFT) and diffraction rings; (DF): EDX images of TEM image (C), using Ca (D), Fe (E), and O (F) X-ray emission lines (Scale bar is the same of image (C): 200 nm).
Figure 7. TEM images of the synthesized CaFe2O4 nanoparticles. (A) Selection of particles (Scale bar: 20 nm). Inset: Particles size histogram of image (A); (B) Fast Fourier transform (FFT) and diffraction rings; (DF): EDX images of TEM image (C), using Ca (D), Fe (E), and O (F) X-ray emission lines (Scale bar is the same of image (C): 200 nm).
Pharmaceutics 11 00477 g007
Figure 8. Magnetization hysteresis loop of calcium ferrite nanoparticles measured at room temperature (T = 300 K). Inset: Enlargement of the loop in the low field region.
Figure 8. Magnetization hysteresis loop of calcium ferrite nanoparticles measured at room temperature (T = 300 K). Inset: Enlargement of the loop in the low field region.
Pharmaceutics 11 00477 g008
Figure 9. (A) Fluorescence spectra (λexc = 470 nm, no rhodamine excitation) of solid magnetoliposomes (SMLs) labelled with only NBD-C12-HPC and labeled with both NBD-C12-HPC and rhodamine B-DOPE; (B) SEM image (scale bar: 200 nm) of an aggregate of two SMLs containing CaFe2O4 nanoparticles (obtained with a negative staining).
Figure 9. (A) Fluorescence spectra (λexc = 470 nm, no rhodamine excitation) of solid magnetoliposomes (SMLs) labelled with only NBD-C12-HPC and labeled with both NBD-C12-HPC and rhodamine B-DOPE; (B) SEM image (scale bar: 200 nm) of an aggregate of two SMLs containing CaFe2O4 nanoparticles (obtained with a negative staining).
Pharmaceutics 11 00477 g009

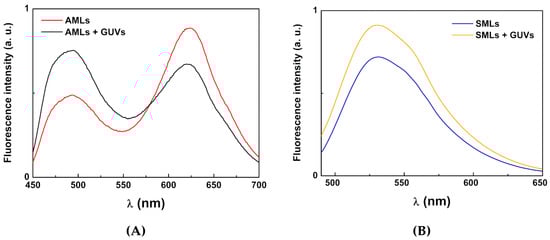

Figure 10. (A). Fluorescence spectra (λexc = 440 nm) of aqueous magnetoliposomes (AMLs) of CaFe2O4 nanoparticles containing both curcumin (2 × 10−6 M) and Nile Red (2 × 10−6 M), before and after interaction with GUVs. (B) Fluorescence spectra (λexc = 470 nm) of SMLs of CaFe2O4 nanoparticles containing NBD-C12-HPC (3 × 10−6 M) before and after interaction with GUVs.
Figure 10. (A). Fluorescence spectra (λexc = 440 nm) of aqueous magnetoliposomes (AMLs) of CaFe2O4 nanoparticles containing both curcumin (2 × 10−6 M) and Nile Red (2 × 10−6 M), before and after interaction with GUVs. (B) Fluorescence spectra (λexc = 470 nm) of SMLs of CaFe2O4 nanoparticles containing NBD-C12-HPC (3 × 10−6 M) before and after interaction with GUVs.
Pharmaceutics 11 00477 g010
Figure 11. Fluorescence spectra of antitumor compound 2 in liposomes, AMLs and SMLs.
Figure 11. Fluorescence spectra of antitumor compound 2 in liposomes, AMLs and SMLs.
Pharmaceutics 11 00477 g011
Figure 12. Viability of breast cancer cells MCF-7 and MDA-MB-231 in presence of drug-loaded aqueous (AMLs) and solid (SMLs) magnetoliposomes for compound 1 (above) and compound 2 (below). GI50 values of free drugs in breast cancer cells: MCF-7—Compound 1: (1.2 ± 0.2) × 10−6 M, Compound 2: (1.6 ± 0.3) × 10−6 M; MDA-MB-231—Compound 1: (5.0 ± 0.7) × 10−6 M, Compound 2: (7.0 ± 0.8) × 10−6 M.
Figure 12. Viability of breast cancer cells MCF-7 and MDA-MB-231 in presence of drug-loaded aqueous (AMLs) and solid (SMLs) magnetoliposomes for compound 1 (above) and compound 2 (below). GI50 values of free drugs in breast cancer cells: MCF-7—Compound 1: (1.2 ± 0.2) × 10−6 M, Compound 2: (1.6 ± 0.3) × 10−6 M; MDA-MB-231—Compound 1: (5.0 ± 0.7) × 10−6 M, Compound 2: (7.0 ± 0.8) × 10−6 M.
Pharmaceutics 11 00477 g012
Table 1. Growth inhibitory concentrations (GI50) of compounds 1 and 2 in breast cancer cell lines.
Table 1. Growth inhibitory concentrations (GI50) of compounds 1 and 2 in breast cancer cell lines.
GI50 (μM) [24]Compound 1Compound 2
MCF-71.2 ± 0.21.6 ± 0.3
MDA-MB-2315.0 ± 0.77.0 ± 0.8
Table 2. Growth inhibitory concentrations (GI50) of compounds 1 and 2 in tumor cell lines and normal (non-tumor) PLP2 cells.
Table 2. Growth inhibitory concentrations (GI50) of compounds 1 and 2 in tumor cell lines and normal (non-tumor) PLP2 cells.
GI50 (μM) aCompound 1Compound 2
NCI-H46034.6 ± 1.030.4 ± 1.3
HeLa13.7 ± 0.613.0 ± 0.7
HepG225.4 ± 2.524.2 ± 1.5
PLP234.2 ± 3.346.8 ± 2.1
a GI50 values correspond to the concentration which inhibited 50% of cell growth. Results are from three independent experiments (performed in triplicate), and are expressed as mean ± standard deviation (SD).
Table 3. Selected Rietveld analysis parameters.
Table 3. Selected Rietveld analysis parameters.
SampleOx,y,zi *Lattice Constant (nm)Size (nm)RFχ2
CaFe2O4 (original XRD data)0.2430.850.83404.832.901.06
CaFe2O4 (background subtracted XRD data)0.2410.850.83385.264.980.91
* fixed value.
Table 4. Size and polydispersity of solid and aqueous magnetoliposomes determined by dynamic light scattering (DLS) (SD: standard deviation).
Table 4. Size and polydispersity of solid and aqueous magnetoliposomes determined by dynamic light scattering (DLS) (SD: standard deviation).
SystemLipidSize ± SD (nm)PDI ± SD
AMLsEgg-PC129 ± 120.139 ± 0.04
DPPC132 ± 150.185 ± 0.08
SMLsDPPC164 ± 230.203 ± 0.02
Table 5. Steady-state fluorescence anisotropy (r) values for the antitumor compounds 1 and 2 in magnetoliposomes and comparison with the values in neat liposomes.
Table 5. Steady-state fluorescence anisotropy (r) values for the antitumor compounds 1 and 2 in magnetoliposomes and comparison with the values in neat liposomes.
LipidAnisotropy, r
Compound 1Compound 2
LiposomesEgg-PC (25 °C)0.182 [39]0.155
DPPC (25 °C)0.251 [39]0.181
DPPC (55 °C)0.157 [39]0.115
AMLsEgg-PC (25 °C)0.1760.138
DPPC (25 °C)0.2320.189
DPPC (55 °C)0.1060.105
SMLsDPPC (25 °C)0.2120.175
DPPC (55 °C)0.0940.106
Glycerol---- 0.308 [39]0.255
Table 6. Encapsulation efficiencies of antitumor compounds 1 and 2 in both AMLs and SMLs.
Table 6. Encapsulation efficiencies of antitumor compounds 1 and 2 in both AMLs and SMLs.
SystemEE% ± SD
Compound 1Compound 2
AMLs (Egg-PC)81.9 ± 8.586.3 ± 8.2
SMLs (DPPC)68.2 ± 9.175.8 ± 10.9

Share and Cite

MDPI and ACS Style

Pereira, D.S.M.; Cardoso, B.D.; Rodrigues, A.R.O.; Amorim, C.O.; Amaral, V.S.; Almeida, B.G.; Queiroz, M.-J.R.P.; Martinho, O.; Baltazar, F.; Calhelha, R.C.; et al. Magnetoliposomes Containing Calcium Ferrite Nanoparticles for Applications in Breast Cancer Therapy. Pharmaceutics 2019, 11, 477. https://doi.org/10.3390/pharmaceutics11090477

AMA Style

Pereira DSM, Cardoso BD, Rodrigues ARO, Amorim CO, Amaral VS, Almeida BG, Queiroz M-JRP, Martinho O, Baltazar F, Calhelha RC, et al. Magnetoliposomes Containing Calcium Ferrite Nanoparticles for Applications in Breast Cancer Therapy. Pharmaceutics. 2019; 11(9):477. https://doi.org/10.3390/pharmaceutics11090477

Chicago/Turabian Style

Pereira, Daniela S. M., Beatriz D. Cardoso, Ana Rita O. Rodrigues, Carlos O. Amorim, Vítor S. Amaral, Bernardo G. Almeida, Maria-João R. P. Queiroz, Olga Martinho, Fátima Baltazar, Ricardo C. Calhelha, and et al. 2019. "Magnetoliposomes Containing Calcium Ferrite Nanoparticles for Applications in Breast Cancer Therapy" Pharmaceutics 11, no. 9: 477. https://doi.org/10.3390/pharmaceutics11090477

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
