Effect of Water Leaching on Photodegraded Scots Pine and Spruce Timbers Monitored by FTIR Spectroscopy

Abstract

The goal of this research was the systematic study and comparison of the divided individual effects of UV light irradiation and water leaching during artificial weathering. Spruce (Picea abies Karst.) and Scots pine (Pinus sylvestris L.) samples were irradiated by ultraviolet (UV) light. Another sequence of samples was treated with the combination of UV irradiation and water leaching. The total extent of UV treatment was 20 days for both series of samples. Time relation of UV irradiation and water leaching was 2:1. The chemical changes were observed by FTIR spectroscopy. The difference spectrum was used for determination of the chemical changes. Degradation of lignin was greater for the leached samples than for the pure UV treated samples. Scots pine suffered greater lignin degradation than spruce, and produced higher absorption increase on the absorption region of unconjugated carbonyls. The unconjugated carbonyl groups were the most responsive chemical elements to leaching. Spruce was more susceptible to leaching of unconjugated carbonyl groups than Scots pine. Two absorption bands of unconjugated carbonyl groups at 1706 and 1764 cm⁻¹ wavenumbers were produced by photodegradation. The absorption band at 1764 cm⁻¹ was more sensitive to water leaching than the band at 1706 cm⁻¹.

1. Introduction

Sunlight, rain, heat, frost, air humidity, atmospheric pollutants and other environmental factors affect the surfaces of wooden objects placed outdoors [1,2]. The attractive colour hue and colour variety of wood is sensitive to these environmental factors. After some years, the wooden surface succumbs to greying. Greying is generated mainly by the leaching effect of rain. Rain is able to leach out the water-leachable extractives and partly leach out the degradation products of lignin [2,3]. Afterwards, the pure grey cellulose remains on the surface [4].

The most degradative phenomena for outdoor wooden constructions are sun radiation and the leaching effect of rain. The photodegradation of wood is a widely studied phenomenon [5,6,7,8,9,10]. The main chemical change generated by the photodegradation is the decomposition of lignin [11,12,13,14,15]. New carbonyl groups are generated as a product of lignin degradation [16,17,18].

Rate of photodegradation is partly determined by the applied temperature. In a previous research, we irradiated samples with UV emitter mercury lamp at 30, 80, 120, and 160 °C to investigate the effects of the temperature increases. The same light irradiation produced greater absorption change at 160 °C than at 30 °C. “The simultaneous thermal and UV treatment was found to generate much greater absorption increase than the sum of absorption increases generated by the individual thermal treatment and UV radiation, separately” [17,19]. The investigations presented that the Arrhenius law was effective in interpreting the kinetics of photochemical alterations during the photodegradation of timber [20].

The leaching effect of rain is a recently studied phenomenon. Some research studied the effect of simultaneous light exposure and water leaching [21,22,23]. In these studies, the combined result of photodegradation and water leaching was investigated, but the individual effect of light irradiation and water leaching was not separated. A new paper studied the colour modification effect of water leaching during photodegradation of timber [3]. The leaching partly removed the chromophore molecules of the samples. The specimens become lighter by water leaching. The leaching effect of water on photodegraded hardwood species was studied in two new papers [24,25]. The time relation of UV radiation and water leaching was 2:1. The results are as follows: “Lignin degradation was found to be more intensive in leached samples than in purely UV-irradiated samples. Guaiacyl and syringyl lignin showed similar degradation properties. Unconjugated carbonyl groups generated by the photodegradation were the most sensitive chemical components to leaching. Photodegradation generated two absorption bands of unconjugated carbonyl groups at around the 1710 and 1760 cm⁻¹ wavenumbers in the FTIR spectrum. The band at 1760 cm⁻¹ was much more sensitive to water leaching than the band at 1710 cm⁻¹. Three to ten days of water leaching was enough to remove all unconjugated carbonyls generated by the photodegradation, depending on the species. Sessile oak was the most sensitive species to water leaching, whereas black locust proved to be the most stable against both photodegradation and water leaching. Water was able to leach out unconjugated carbonyl groups (absorbing at 1745 cm⁻¹) originally presented in all investigated hardwood species” [24]. One publication was found studying the leaching effect of water during photodegradation of spruce wood [26]. The results were similar as presented above for hardwood species. The time relation of UV radiation and water leaching was rather asymmetric 4:1, and the UV irradiation was continued only up to 10 days. The total leaching time was only 2.5 days. In accordance to the results described above, the current study chose a 2:1 time relation of UV radiation and water-leaching, and prolonged the treatment time of up to 20 days UV irradiation and 10 days water leaching.

The goal of this research was the systematic investigation and comparison of the individual effects of UV light irradiation and water leaching during accelerated weathering of spruce and Scots pine species. We intend to find the similarities and the differences between the weathering properties of Scots pine and spruce timbers.

2. Materials and Methods

For the investigations, the timber of spruce (Picea abies Karst.) and Scots pine (Pinus sylvestris L.) were chosen, as these are the most frequently processed softwoods by the Hungarian wood industry. Spruce timber is characterized by low extractive content while Scots pine contains moderate amount of extractives. One defect-free central board was used for sample preparation. The board contained 71- and 72-year rings for spruce and Scots pine, respectively, and the specimens were cut containing the thirty fifth year ring. The dimensions of samples were 30 mm × 10 mm × 5 mm (long. × tang. × rad.). Three samples were prepared for all investigated series. FTIR measurement was made on two fixed locations of the tangential surface of each sample. The measured surface of the samples contained only earlywood for determining the photodegradation properties of earlywood. Sun radiation and the leaching effect of the rain were imitated by the following experiments. After UV irradiation, the samples were submerged into distilled water at 22 °C (wet treatment). Leaching was carried out in a commercial pot. The UV irradiation was produced by a mercury vapour lamp with a total electric power of 800 W. The power density of light radiation was 76 W/m² on the surface of the samples. The UV irradiation was 80% of the total emission of the lamp (31% UV-A, 24% UV-B, and 25% UV-C). The chamber temperature was 50 °C. Samples were randomly rotated to ensure all samples receiving equivalent UV exposure. First cycle contained 24 h UV irradiation, followed by 24 h water leaching. During the second cycle, the UV irradiation time was 48 h followed by 24 h water leaching. The second cycle was repeated for up to 20 days of UV irradiation and 10 days of water leaching (

Table 1. The order of UV irradiation and water leaching during the treatment.

Cycles	UV Irradiation (UV)	Water Leaching (w)	Result
1. cycle	1 day		1 UV
		1 day	1 UV + 1 w
2. cycle	2 days		3 UV + 1 w
		1 day	3 UV + 2 w
3. cycle	2 days		5 UV + 2 w
		1 day	5 UV + 3 w
4. cycle	2 days		7 UV + 3 w
		1 day	7 UV + 4 w
5. cycle	2 days		9 UV + 4 w
		1 day	9 UV + 5 w
6. cycle	2 days		11 UV + 5 w
		1 day	11 UV + 6 w
7. cycle	2 days		13 UV + 6 w
		1 day	13 UV + 7 w
8. cycle	2 days		15 UV + 7 w
		1 day	15 UV + 8 w
9. cycle	2 days		17 UV + 8 w
		1 day	17 UV + 9 w
10. cycle	3 days		20 UV + 9 w
		1 day	20 UV + 10 w

). The shorter UV radiation time was chosen at the beginning of the treatment because the degradation effect of UV radiation is very intensive at the beginning of the treatment. The second series of specimens was only exposed to UV irradiation without water leaching (dry treatment). Wet samples were dried at room temperature in total darkness to reach the initial weight. This procedure guarantied equal moisture content for infrared (IR) measurements. Measurements were carried out using an FTIR spectrophotometer (JASCO FT/IR 6300). The sample holder of the spectrophotometer guaranteed that always the same area of the sample was measured. The IR beam scanned approximately 12 mm² area of the sample. Diffuse reflectance infrared Fourier transform (DRIFT) spectrum of the samples was measured before and after treatments. The average spectrum of 6 individual spectra were calculated for evaluation. Details of IR measurement and data manipulations are presented in a previous work [2].

3. Results and Discussion

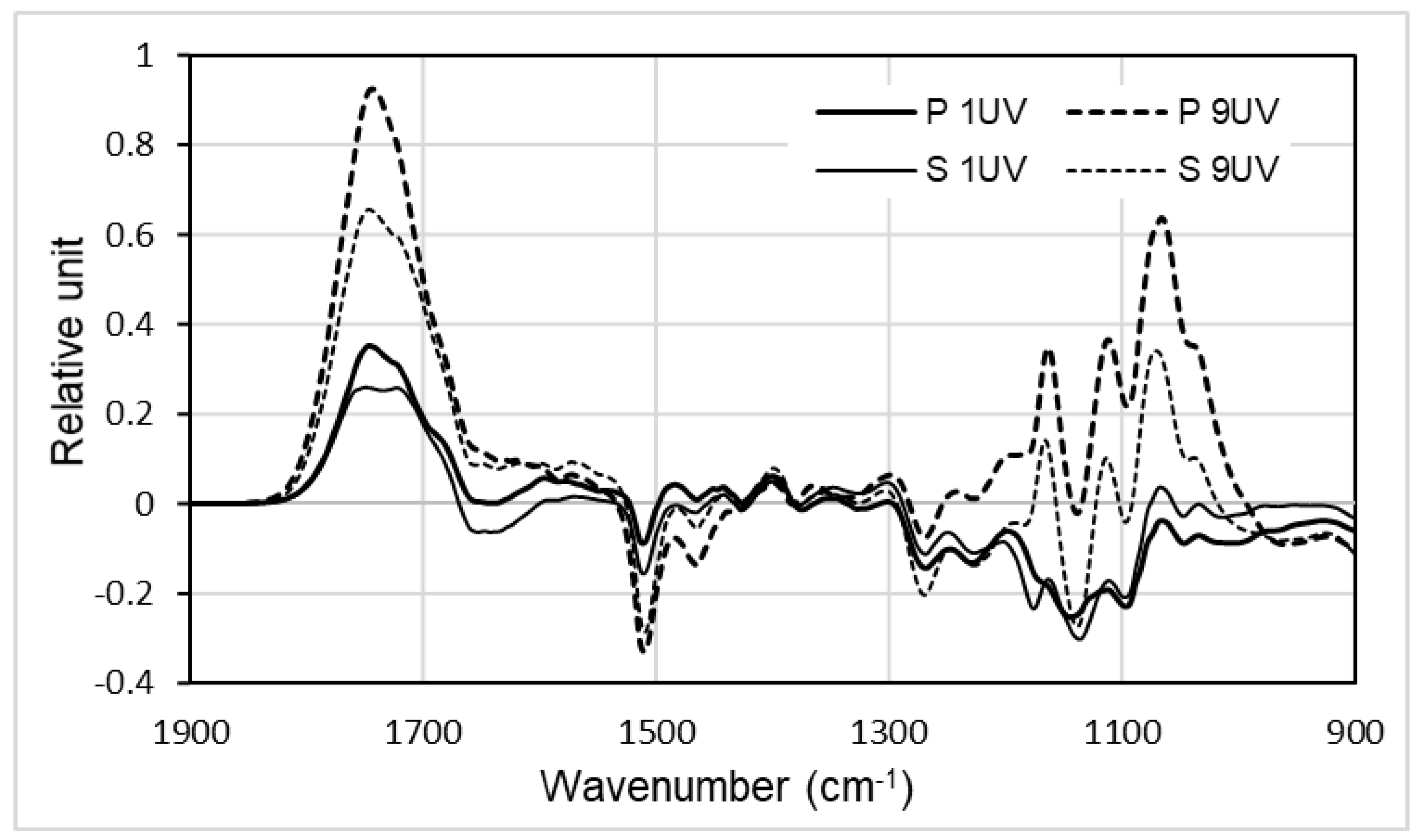

The chemical changes produced by the UV irradiation and water leaching were monitored by diffuse reflectance IR spectroscopy. This method is useful for studying the chemical effects within a thin surface layer. Fortunately, photodegradation produces changes within the same layer. Figure 1 represents the difference spectrum of Scots pine and spruce species created by one day and by nine days of UV irradiation, respectively. The fingerprint region (900–1900 cm⁻¹) is presented in this study. This region shows most of chemical changes caused by photodegradation. One-day UV irradiation was enough to generate clearly visible changes. The absorption of guaiacyl lignin around 1510 cm⁻¹ decreased [2,17,27]. This negative change was visible together with the absorption reduction of the aromatic C-H deformation at 1469 cm⁻¹ and with the absorption reduction of the guaiacyl ring breathing at 1269 cm⁻¹. The free radicals produced by the photodegradation react with oxygen and produce unconjugated carbonyl groups. Many studies have analysed the overview of the large number of carbonyl compounds formed during the photodegradation of lignin [28,29,30,31,32].

The newly generated unconjugated carbonyl groups absorb between 1650 and 1820 cm⁻¹. This broad band is a sum of individual absorption bands. The spectrum of spruce consists of 3 absorption bands generated by one-day UV irradiation. Two maxima around 1706 and 1764 cm⁻¹ and a shoulder around the 1690 cm⁻¹ wavenumbers are clearly visible. The band at 1764 cm⁻¹ belongs to the absorption of CO stretching for unconjugated ketones and γ lactones produced by the oxidation after the degradation of the aromatic ring. The aliphatic carboxyl groups absorb at 1705 cm⁻¹. The absorption increase of Scots pine shows only one real maximum and two shoulders after one-day of UV irradiation. The prolonged irradiation time amplified the absorption changes of both the aromatic ring and the unconjugated carbonyl groups. The effect of nine-day irradiation is presented in Figure 1 as well. The nine-day treatment produced one integrated absorption increase with a maximum at 1748 cm⁻¹. The shoulders are hardly visible. The visible band is the mathematical integration of the overlapping individual bands. The figure below clearly illustrates that the visible band is sometimes not a real one but occurs if the individual bands highly overlap each other.

Two absorption decreases can be seen at 1174 and 1137 cm⁻¹. The first decrease represents the asymmetric stretching of the ether bond while the second decrease shows the symmetric stretching of the ether bond together whit the aromatic C-H deformation and the glucose ring vibration. These absorption decreases present the ether bond splitting and the degradation of cellulose [5]. There is an absorption decrease at 1096 cm⁻¹, but the meaning of this absorption decrease is unknown. The nine-day irradiation generated unusual changes in the 1000–1200 cm⁻¹ wavenumber region. Absorption increases are visible for both examined conifers in this whole wavenumber region. This is not a real absorption increase in a wide wavenumber interval. The Kubelka–Munk equation does not generate the absorption spectrum correctly for intensive absorption bands if the surface roughness alters. This phenomenon lifts up the difference spectrum. The spruce spectrum shows a moderate lifting effect, but the pine spectrum shows a major lifting effect. Nine-day UV irradiation produced much greater absorption decrease at the 1137 cm⁻¹ wavenumber than one-day treatment did. Though it is clearly visible for spruce, this negative band seems to be a positive valley between two positive bands for pine. The lifting effect created this anomaly. The large K-M value increase covers the real absorption changes, preventing the assessment of IR spectrum in the 1000–1200 cm⁻¹ wavenumber region. The current study will disregard discussion of the changes in the 1000–1200 cm⁻¹ interval. A previous work gives detailed discussion of this phenomenon [33].

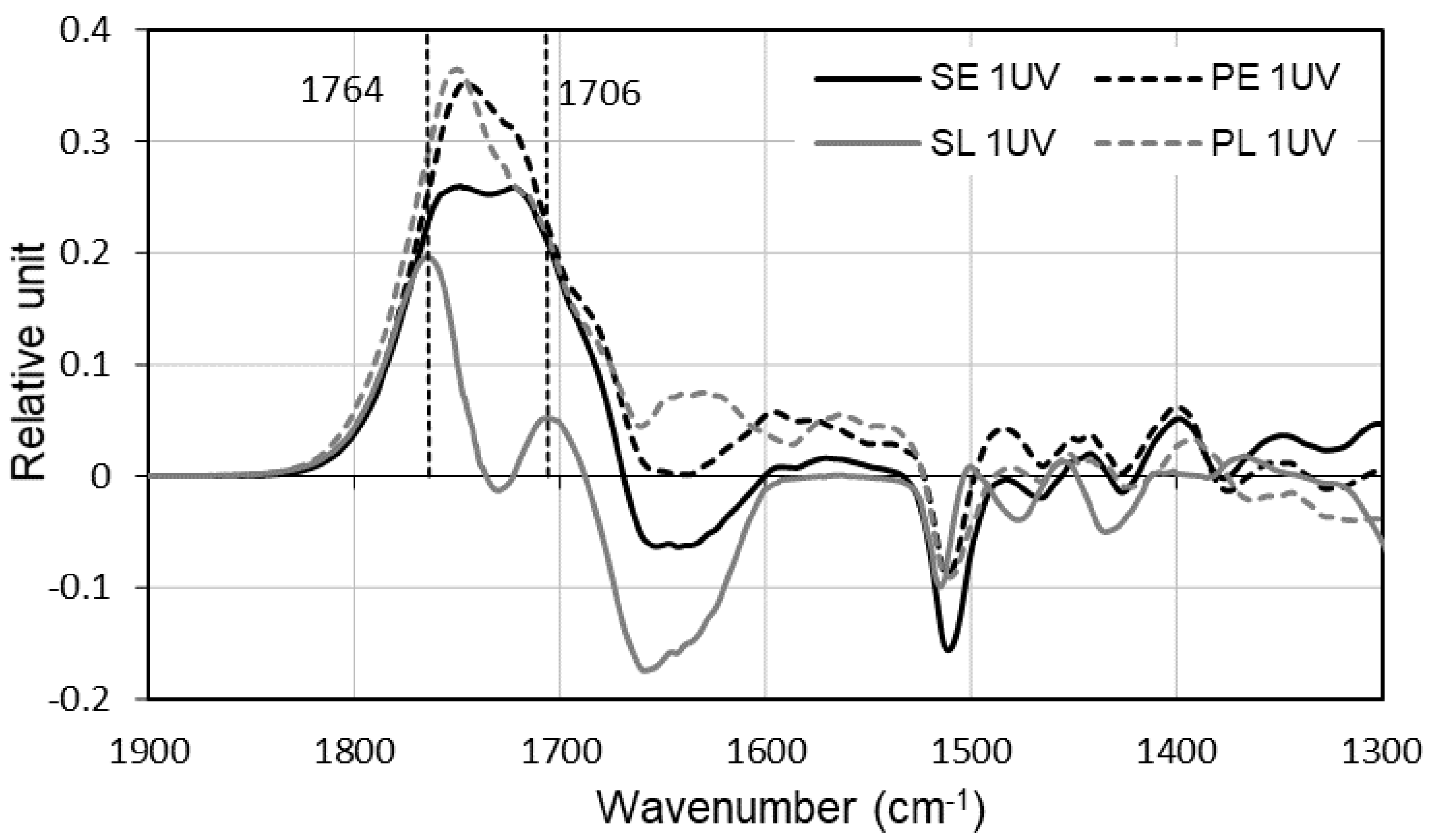

As mentioned above, the broad absorption band of unconjugated carbonyls is the integration of two absorption bands. Knowing the exact place of the maxima of the bands is important. Figure 1 demonstrates that lower intensity generates greater separation between the bands. The photodegradation properties of spruce latewood can help to find the exact place of the individual maximum of the bands. Figure 2 presents the difference spectra of both earlywood and latewood for Scots pine and spruce species produced by one-day UV irradiation. (The spectra of latewood samples were borrowed from a parallel investigation, where the photodegradation behaviours of earlywood and latewood were studied [34].) The latewood part of spruce is less sensitive to photodegradation than earlywood, and the two bands are well separated. That is why this latewood is suitable for finding the proper place of the two maxima. These two maxima are located at the 1706 and 1764 cm⁻¹ wavenumbers. This figure assuredly demonstrates that the increasing rate of overlapping pushes the places of maxima towards each other. The intensity differences between the two bands also determine the place of the visible maximum. The shapes of the absorption bands of unconjugated carbonyls for Scots pine and spruce are mainly identical. This finding gives us the possibility to use the same two wavenumbers as the place of maxima for both investigated conifer species as the place of maxima.

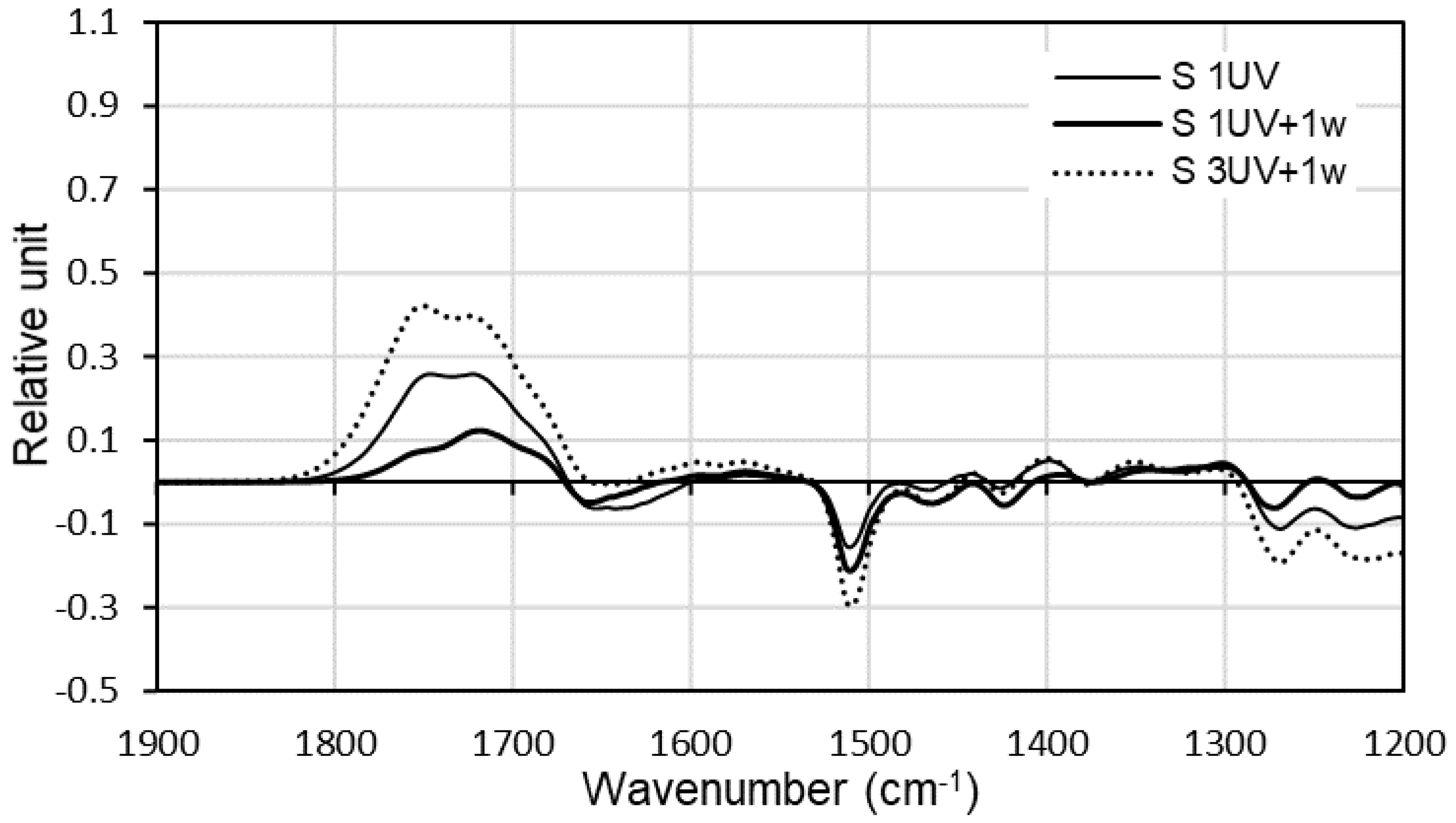

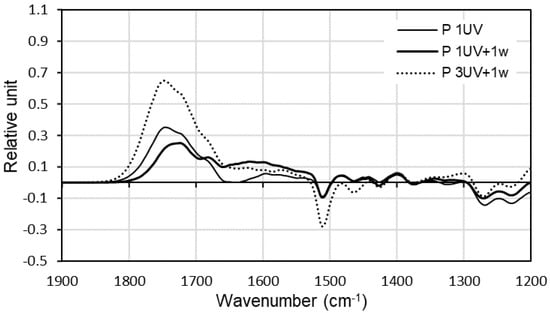

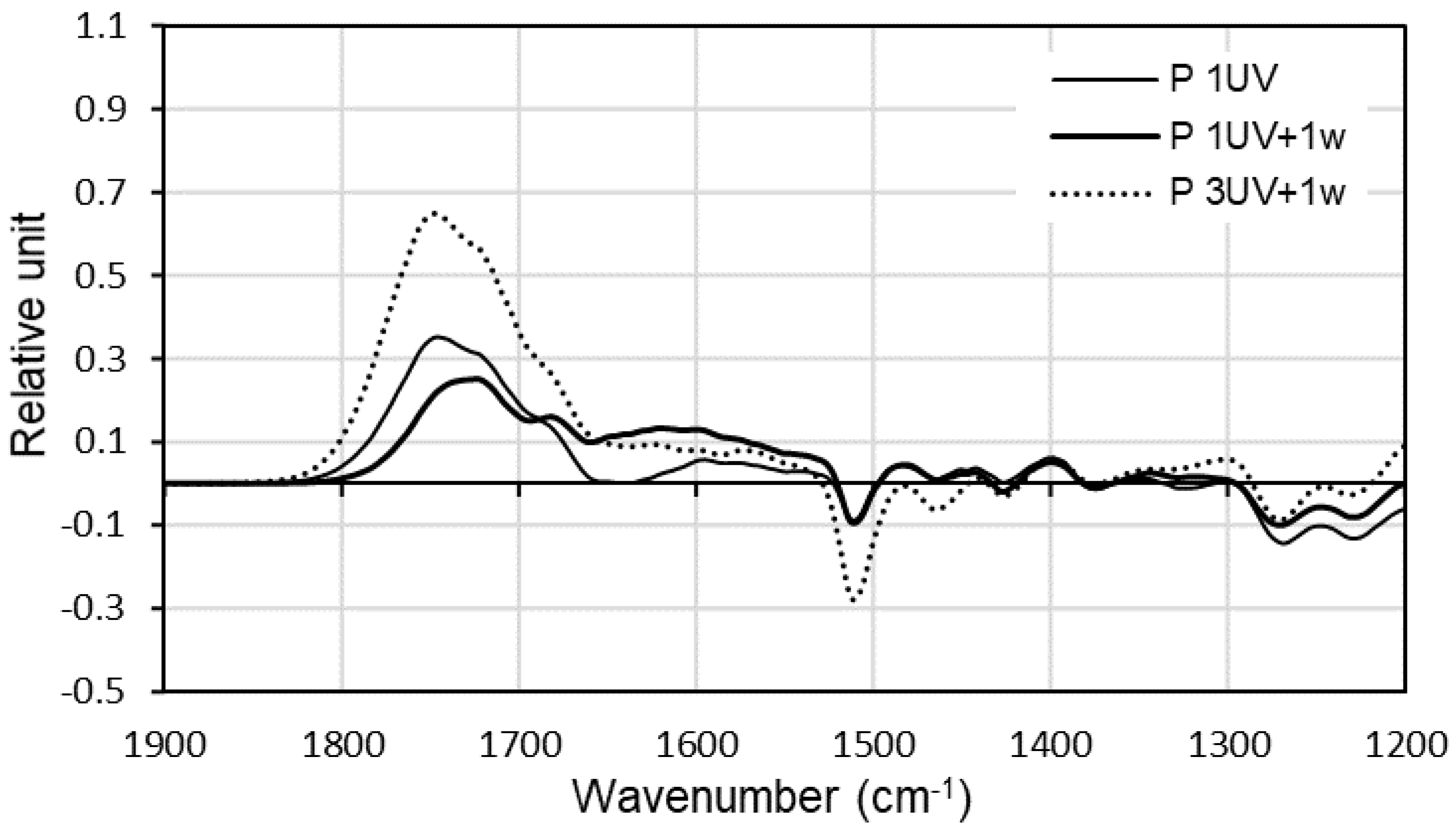

Figure 3 and Figure 4 present the effects of UV treatment and water leaching for Scots pine and spruce samples, respectively. The thin solid line presents the chemical changes after one-day UV treatment (1 UV). The thick solid line shows the effect of one-day water leaching (1 UV + 1 w), and the dotted line represents the effect of two-day UV irradiation after the first water leaching (3 UV + 1 w). (The intensity interval of the vertical axes is the same for Figure 3, Figure 4, Figure 5 and Figure 6 to keep the correct comparison.)

The leaching did not modify the intensity decrease of the lignin band at the 1510 cm⁻¹ wavenumber, but the next two-day UV irradiation generated further lignin degradation for both Scots pine and spruce specimens. Detailed alteration of this lignin band will be discussed later. The UV radiation produced larger absorption increase in the unconjugated carbonyl region (between 1650 and 1820 cm⁻¹) for Scots pine than for spruce. The presence of two absorption bands is decidedly visible for both Scots pine and spruce species. The first water leaching reduced the absorption intensity of the unconjugated carbonyl groups at 1706 and 1764 cm⁻¹ in different way. The band at 1764 cm⁻¹ showed greater leaching effect than the band at 1706 cm⁻¹. The band at 1764 cm⁻¹ became hardly visible for spruce. Spruce samples presented greater absorption decrease than Scots pine samples in the whole unconjugated carbonyl region caused by water leaching. The two-day UV irradiation (after water leaching) created further lignin degradation and unconjugated carbonyl group production, presented by negative absorption increase at 1510 cm⁻¹ and positive absorption increase between 1650 and 1820 cm⁻¹. Scots pine showed greater changes than spruce from both the viewpoint of lignin degradation and the viewpoint of unconjugated carbonyls generation.

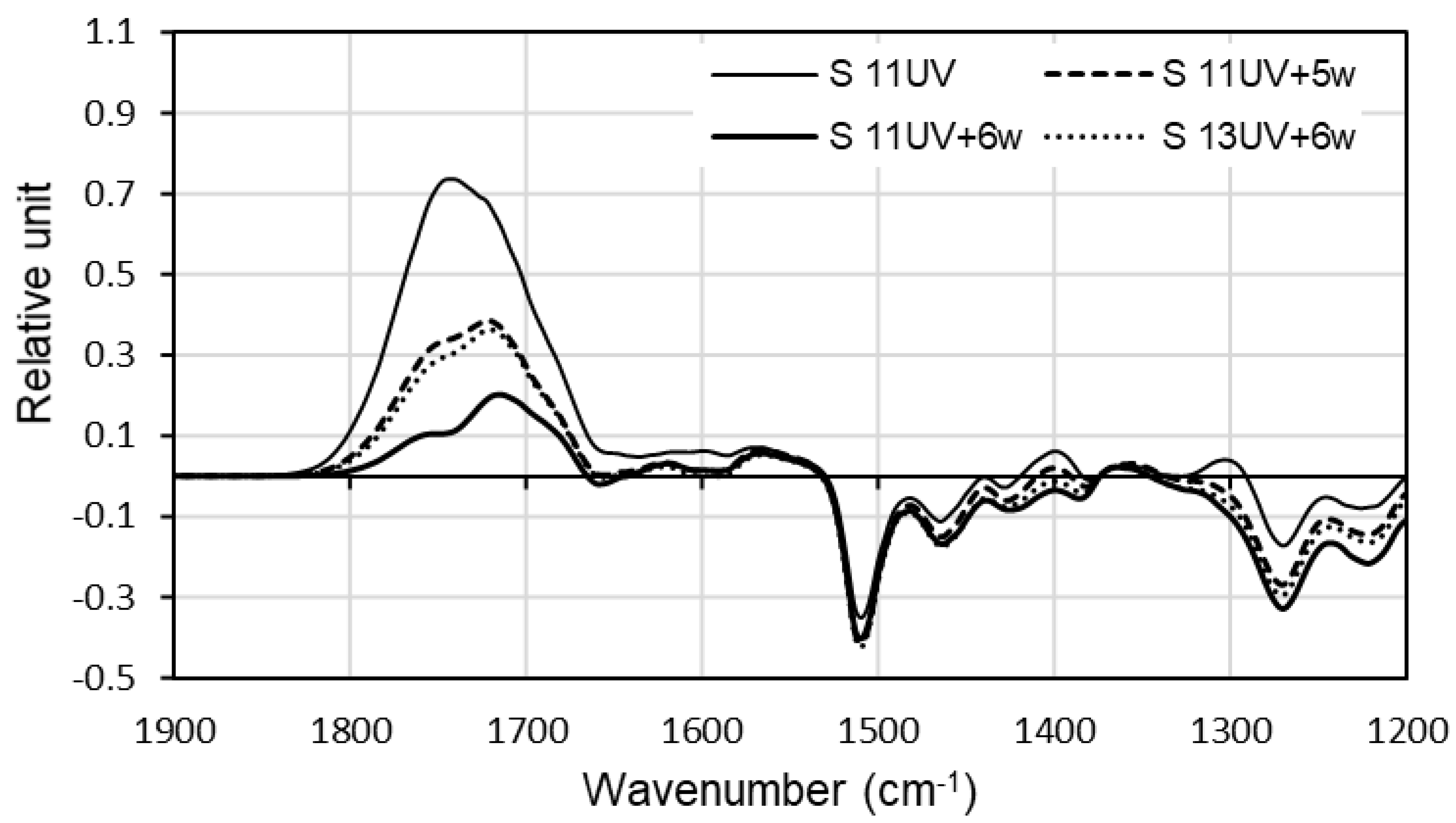

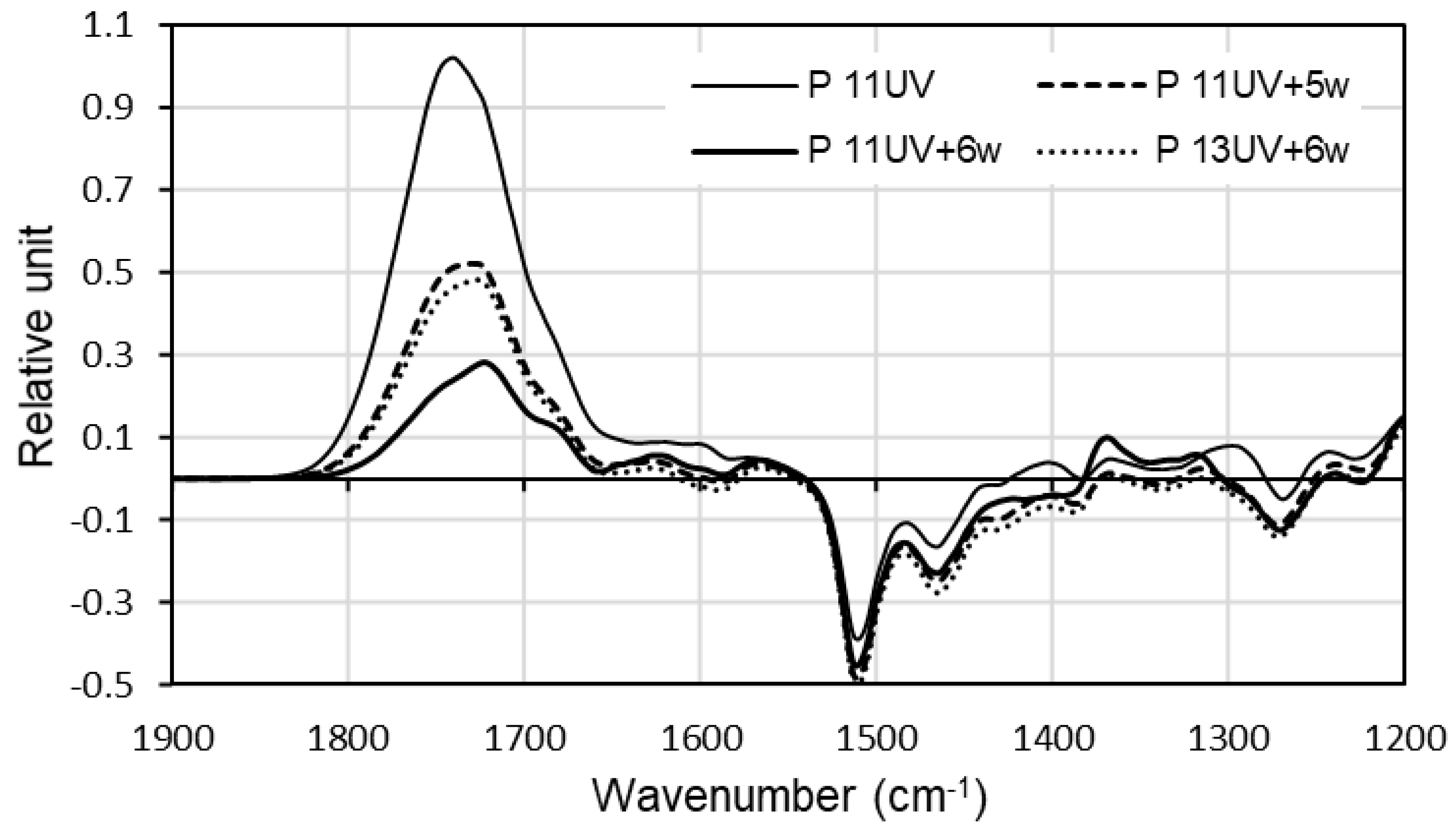

The negative intensity of absorption change for the aromatic ring at 1510 cm⁻¹ increased continuously during further treatment cycles. This increase was slow for spruce, but the increase was a little faster in the first 11 days of UV irradiation for Scots pine than for spruce. Figure 5 and Figure 6 present the absorption changes after 11-day UV treatment for Scots pine and spruce, respectively. These figures do not clearly show the intensity differences for the negative lignin band at 1510 cm⁻¹ because the individual curves highly overlap each other. However, the figures visibly show that Scots pine suffered greater lignin degradation than spruce.

The number of newly generated unconjugated carbonyl groups was greater for Scots pine than for spruce. The maximum intensity value of the unconjugated carbonyl band was 1.01 and 0.72 after 11-day pure UV irradiation (11 UV) for Scots pine and spruce, respectively. These intensity values were reduced considerably by leaching (11 UV + 6 w). The bands at 1764 cm⁻¹ mostly disappeared and remained visible as shoulder after 6-day leaching. The 6-day leaching reduced the band intensity at 1706 cm⁻¹ as well. The intensity values were reduced up to 0.27 and 0.19 by 6-day leaching for Scots pine and spruce, respectively. The next 2-day UV irradiation (13 UV + 6 w) generated new unconjugated carbonyl groups producing absorption increase. This absorption increase was able to compensate the effect of the previous water leaching, generating the same curve as (11 UV + 5 w) produced. This tendency remained up to the end of treatments; only the peak intensities decreased slightly.

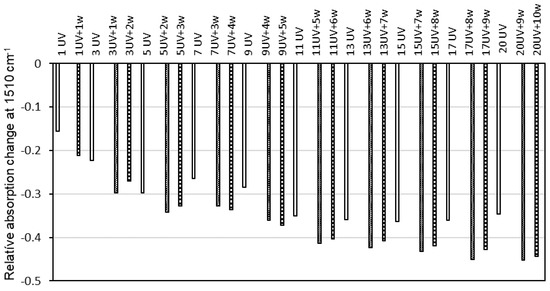

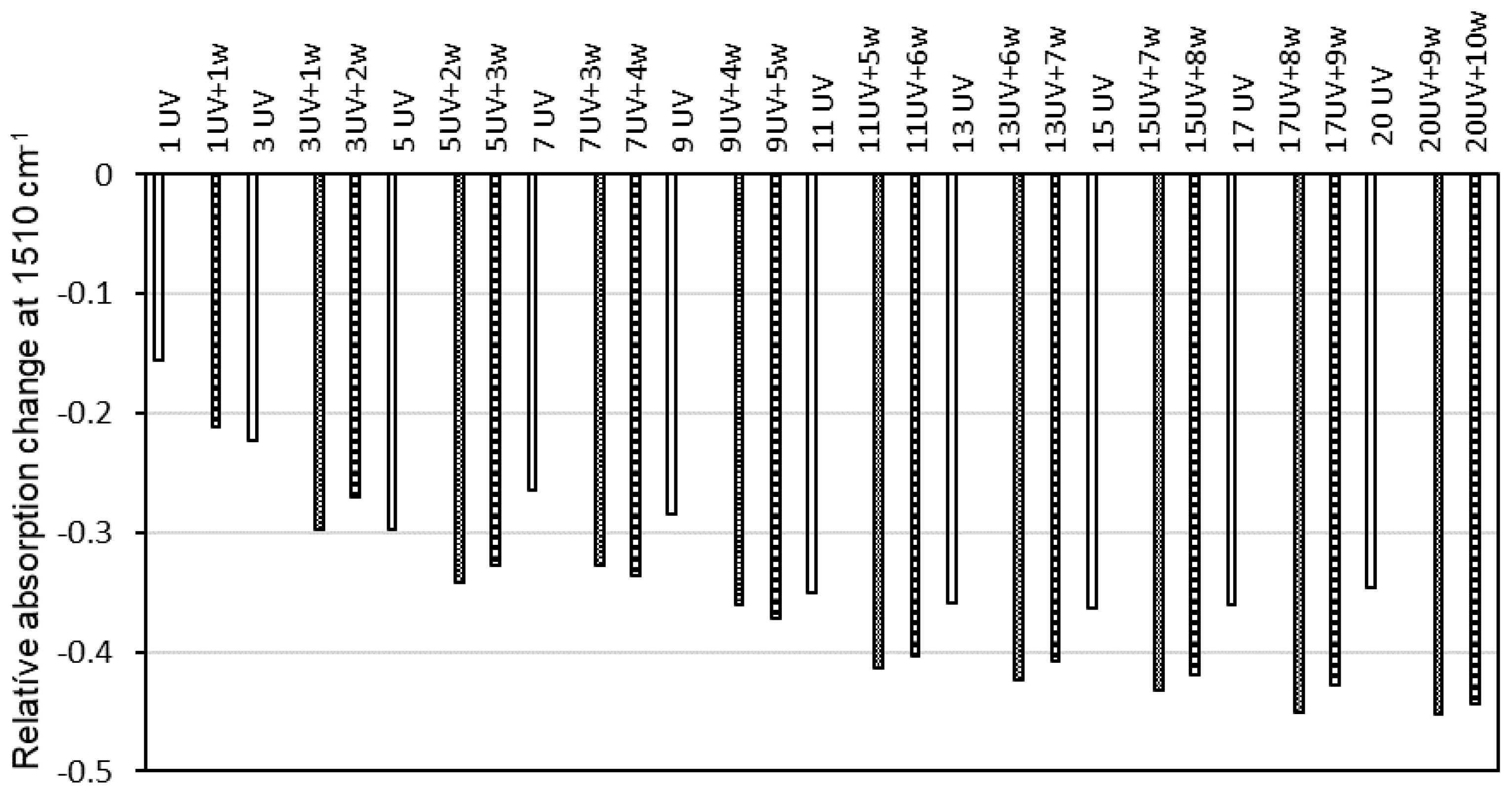

Figure 3, Figure 4, Figure 5 and Figure 6 show the difference IR spectra generated during the 20-day treatments. Figure 7 represents the absorption changes of spruce at the 1510 cm⁻¹ wavenumber. This absorption represents the vibration of the aromatic ring in guaiacyl lignin. Negative values imply the breaking of the aromatic ring generated by UV irradiation. The first empty column in Figure 7 represents the effect of one-day UV irradiation, followed by the columns of repeated one-day water leachings and two-day UV irradiations. The photodegradation of guaiacyl lignin was intensive during the first day of UV irradiation. The next two-day irradiations produced moderate absorption intensity decreases up to the thirteenth day for spruce. There is an abnormal intensity decrease at 7-day UV irradiation. This anomaly is visible in all similar figures (Figure 7, Figure 8, Figure 9 and Figure 10). The reason might be that the mercury lamp was not operational for a few hours due to a power outage. (This anomaly was ignored during further evaluation.) The intensity of the lignin band at 1510 cm⁻¹ did not change during the leaching processes. Leached specimens presented considerably larger lignin degradation compared to the samples receiving pure UV irradiation. The reason for this phenomenon can be that water leaching generated further opportunity for the UV radiation to degrade the lignin in deeper layers of the specimens. Scots pine samples presented similar changes at the 1510 cm⁻¹ wavenumber compared to spruce, only the intensities were greater. The maximum absorption intensity changes were −0.36 for pure UV irradiated samples and −0.45 for UV irradiated + leached samples for spruce. The same type of intensities for Scots pine were −0.42 and −0.52. For pure UV irradiated samples, 15 days were enough to generate the maximum lignin degradation. In contrast, leached samples produced continuously increasing lignin degradation during the 20-day UV irradiation. The chosen UV irradiation and leaching times were not long enough to determine the maximum of lignin degradation.

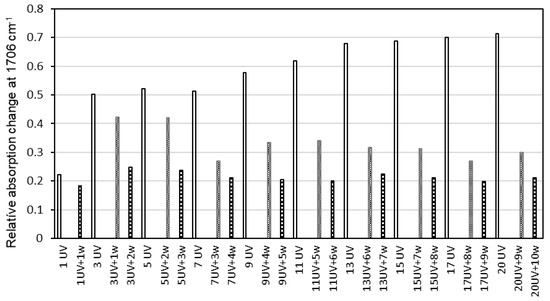

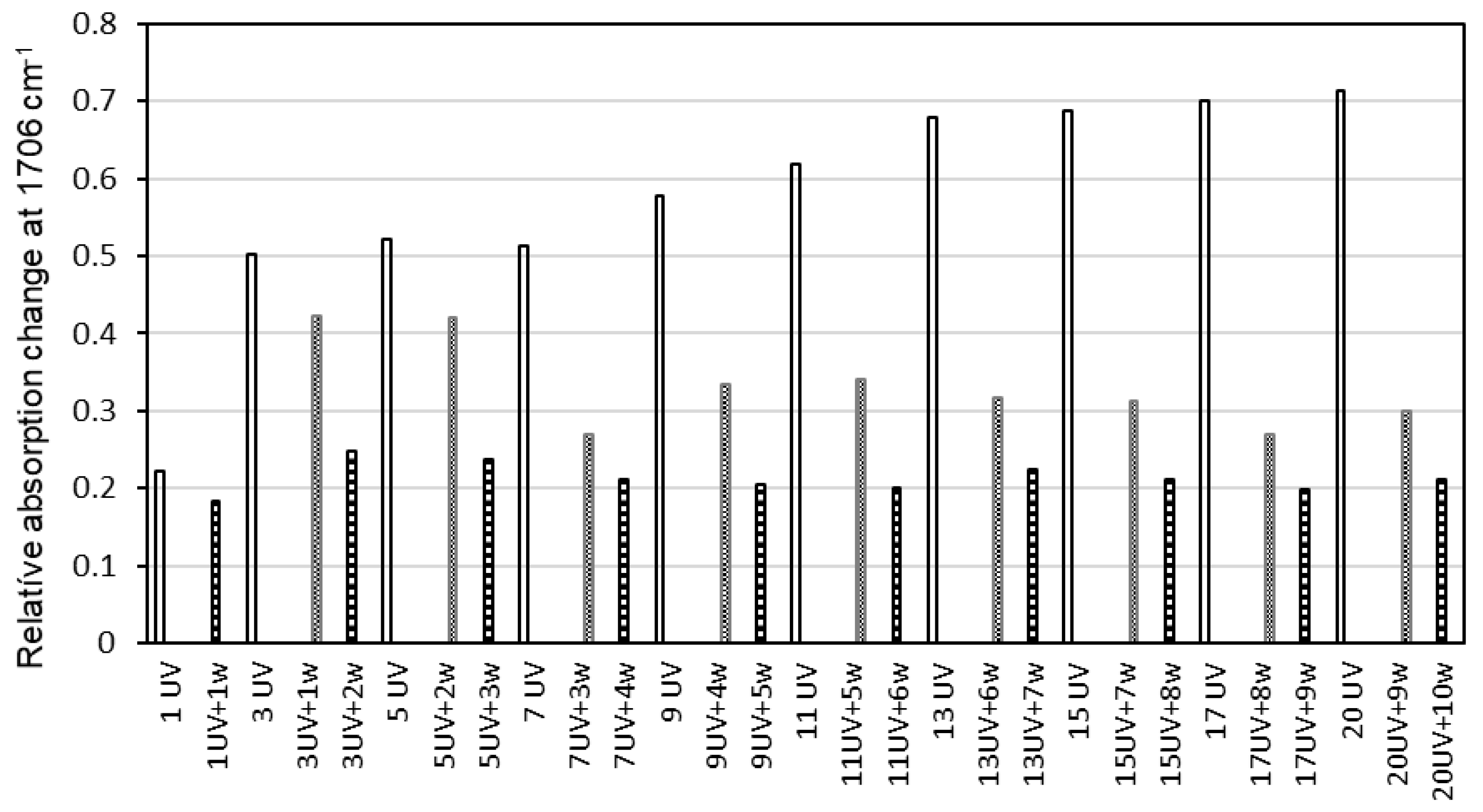

Lignin degradation increased the number of unconjugated carbonyl groups. Time dependence of this phenomenon is presented in Figure 8, Figure 9 and Figure 10. The time dependence of unconjugated carbonyls absorbing at 1706 cm⁻¹ is presented in Figure 8 for Scots pine. The absorption increase was rapid up to the third day of UV treatment. This was followed by a continuous but moderate absorption increase for pure UV treated samples. The leached samples followed the changing tendency of pure UV treated samples up to the third day of leaching. After this period, the two types of changes diverged from each other. The new two-day UV irradiations always produced new unconjugated carbonyl groups, but the next water leaching reduced the number of carbonyl groups up to a constant level during the total examined period. This constant level was 0.2 unit for both investigated species. The first leaching alienated 18% of the carbonyls absorbing at 1706 cm⁻¹ and the last (tenth) leaching also reduced by 29%. The maximum reduction was 44% during the third leaching period. Spruce samples showed properties that were similar to those of Scots pine. Not only the tendencies were similar, but the absorption values were similar as well. The leaching data of spruce were: first leaching, 49% (it was the maximum as well), and last leaching, 38%. These data show that spruce species were more sensitive to leaching than Scots pine.

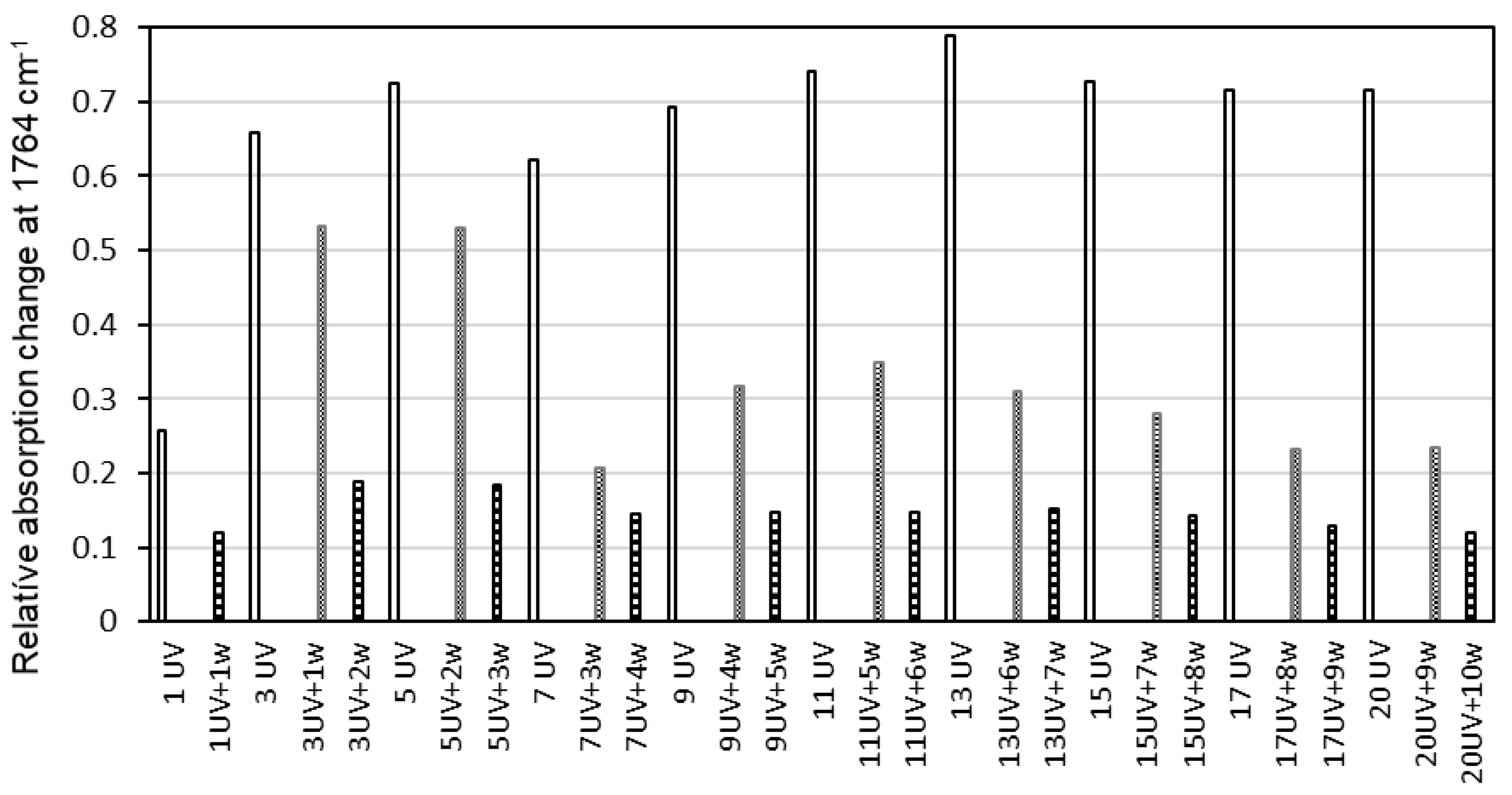

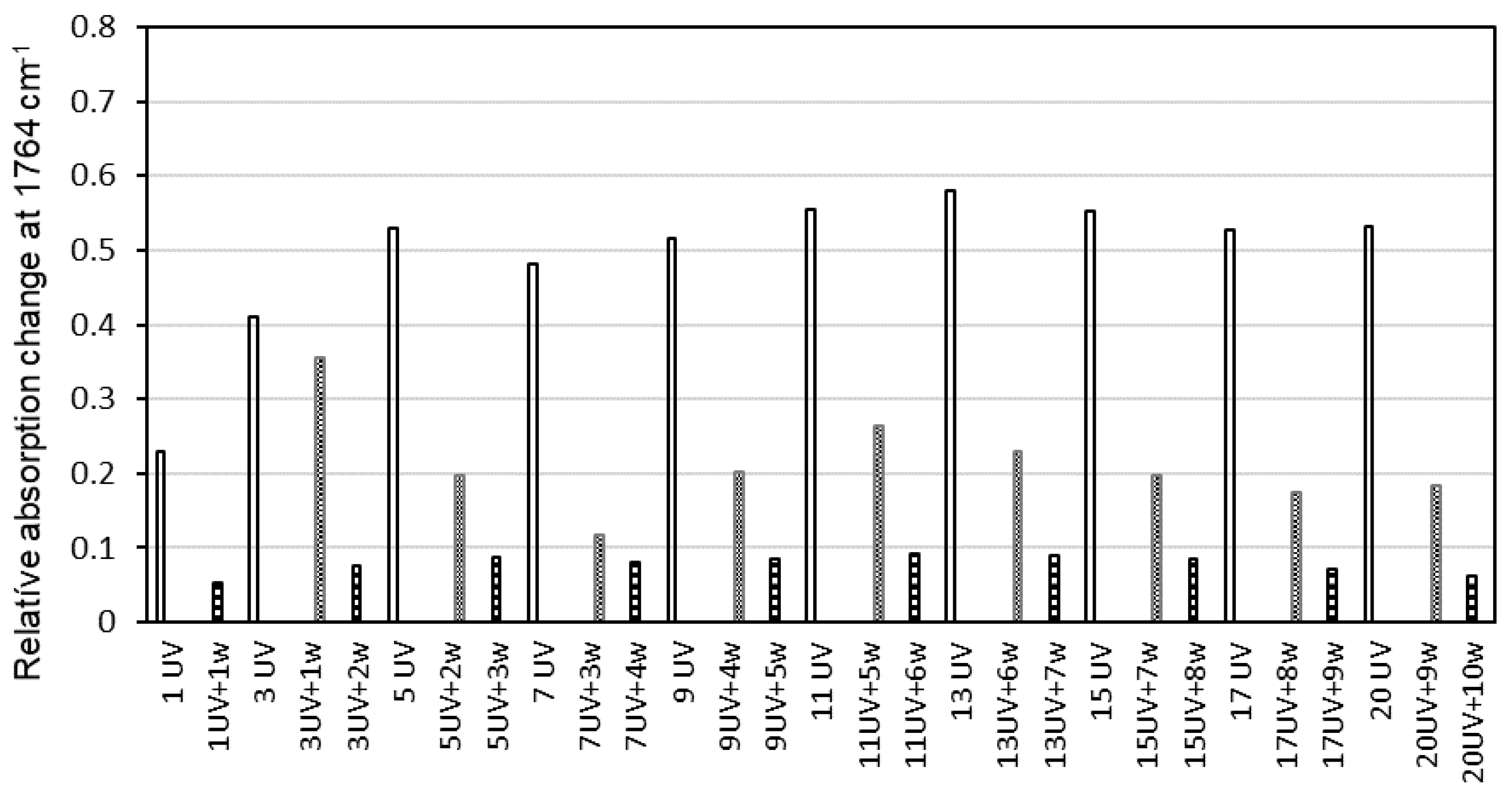

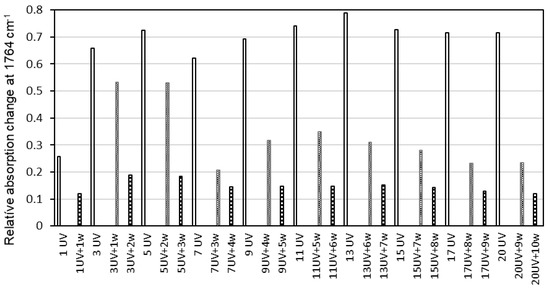

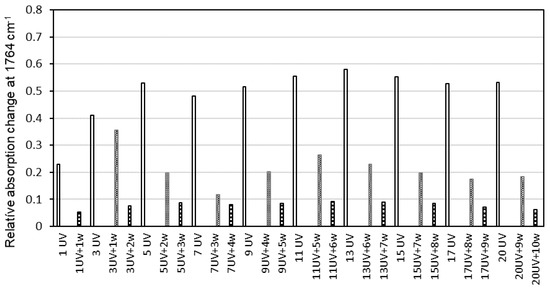

Figure 9 and Figure 10 represent the absorption changes of unconjugated carbonyl groups absorbing at 1764 cm⁻¹ wavenumber for Scots pine and spruce, respectively. Changing tendencies of absorption intensities were similar for both investigated species. Differences were found in the intensity values. Samples receiving only UV irradiation presented a rapid absorption increase during the first five days of treatment. This intensity increase was slow up to the thirteenth day of irradiation and continued to slow down until the end of treatment. The maximum absorption intensity changes were 0.79 for pure UV irradiated samples and 0.53 for UV irradiated + leached samples for Scots pine. Spruce samples produced smaller absorption increase at 1764 cm⁻¹ than Scots pine did. The same type of intensities for spruce were 0.58 and 0.36. The leached samples followed the changing tendency of pure UV treated samples up to the third day of treatment. After this period, the two types of changes diverged. The new two-day UV irradiations always produced new unconjugated carbonyl groups, but the next water leaching reduced the number of carbonyl groups considerably. This reduction produced almost constant absorption values (slightly below 0.1 unit) for spruce. The similar intensity values were between 0.2 and 0.1 for Scots pine showing slow intensity decrease. The first leaching reduced 54% of the carbonyls absorbing at 1764 cm⁻¹, and the last leaching reduced 48%. The maximum reduction was 65% during the second leaching period. Spruce samples showed similar leaching properties as Scots pine, but the leaching was much more effective. The leaching data of spruce were the following: first leaching, 77%, last leaching, 66%, and the maximum was 79% during the second leaching period. These data show that spruce species were much more sensitive to leaching than Scots pine.

The results present the diverse leaching properties of the two investigated unconjugated carbonyl groups. Time dependence of the absorption change at 1764 cm⁻¹ was similar to the time dependence of the guaiacyl lignin degradation. In contrast, the time dependence of the absorption increase at 1706 cm⁻¹ did not follow the changing tendency of the lignin band at 1510 cm⁻¹. Consequently, the absorption increase at 1706 cm⁻¹ must be related to the degradation of cellulose and/or hemicelluloses. The origin of the absorption increase at 1706 cm⁻¹ needs further chemical investigation.

4. Conclusions

A series of spruce and Scots pine specimens was irradiated by UV light. The second series of samples was treated with the combination of UV radiation and water leaching. The FTIR measurement was completed after both UV radiation and water leaching to determine both effects separately.

• Leached samples produced greater lignin degradation than in purely UV treated samples. This finding presents that the leaching effect of rain opens deeper layers for UV degradation raising the rate of degradation of the timber.
• Scots pine suffered greater lignin degradation than spruce and produced higher absorption increase on the absorption region of unconjugated carbonyls. Unconjugated carbonyl groups showed the greatest sensitive to leaching. Spruce was more susceptible to leaching of unconjugated carbonyl groups than Scots pine. These results show that both Scots pine and spruce timbers need proper surface finishing in case of outdoor applications.
• For pure UV irradiated samples, 15 days were enough to generate the maximum lignin degradation. In contrast, leached samples produced continuously increasing lignin degradation during the 20-day UV irradiation. The chosen UV irradiation and leaching times were not long enough to determine the maximum of lignin degradation. These results highlight that combined UV irradiation and water leaching generate degradation of wood in deeper layers than the treatments separately.
• The photodegradation produced two absorption increases in the unconjugated carbonyl region at 1706 and 1764 cm⁻¹ wavenumbers. The absorption band at 1764 cm^-1 showed much greater leaching effect than the band at 1706 cm^-1. These results strengthen the different origin of these two types of absorption increases.
