# Sliding Mode Control Algorithms for Anti-Lock Braking Systems with Performance Comparisons

^{*}

## Abstract

**:**

## 1. Introduction

- -
- The ABS dynamics in braking mode are extremely nonlinear and many parameters of the underlying model change with time.
- -

## 2. The Anti-Lock Braking System Model

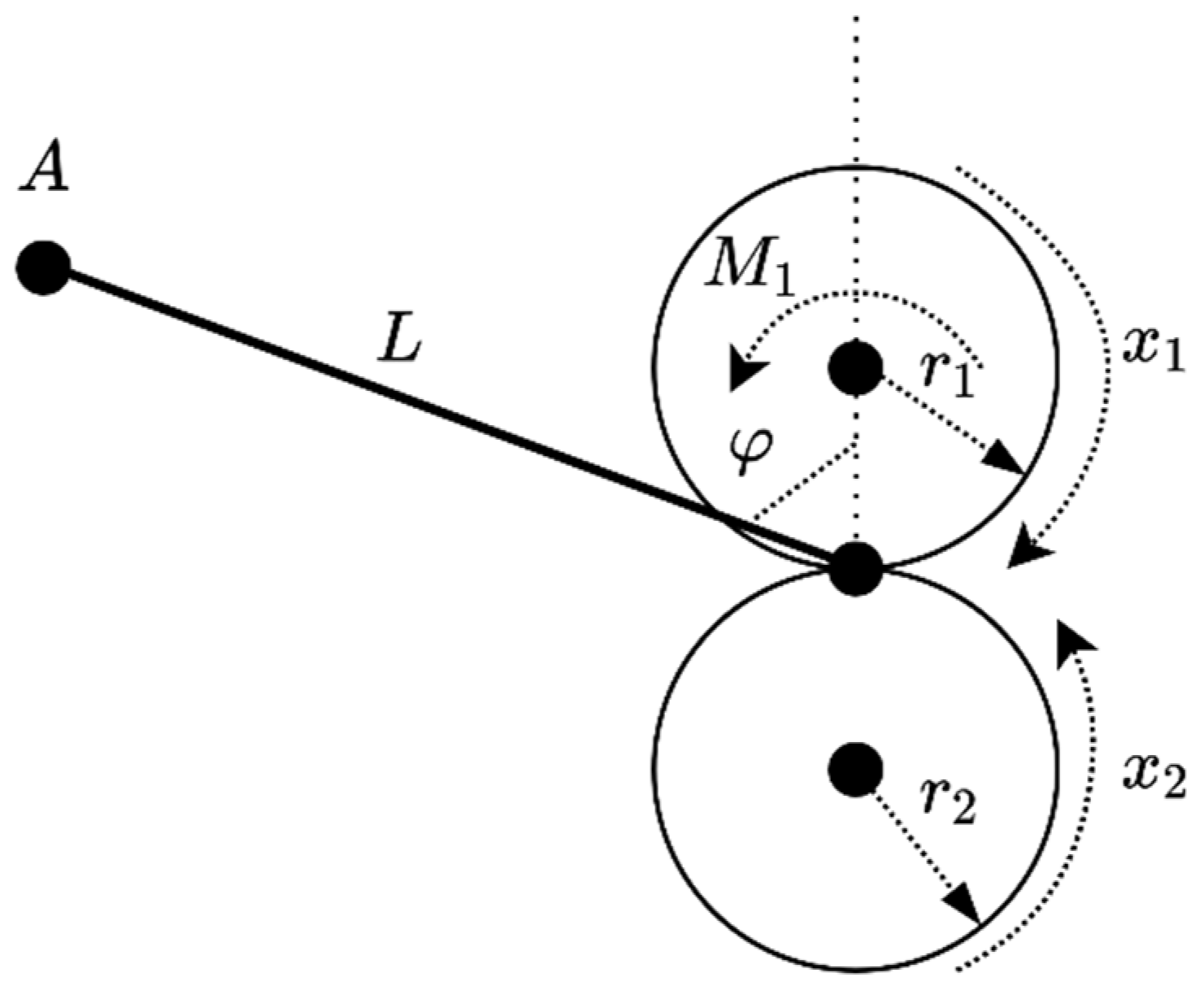

_{1}(t) is the braking torque evolving according to the third differential equation, where constants b

_{1}and b

_{2}model the actuator dead-zone dynamics whose threshold is u

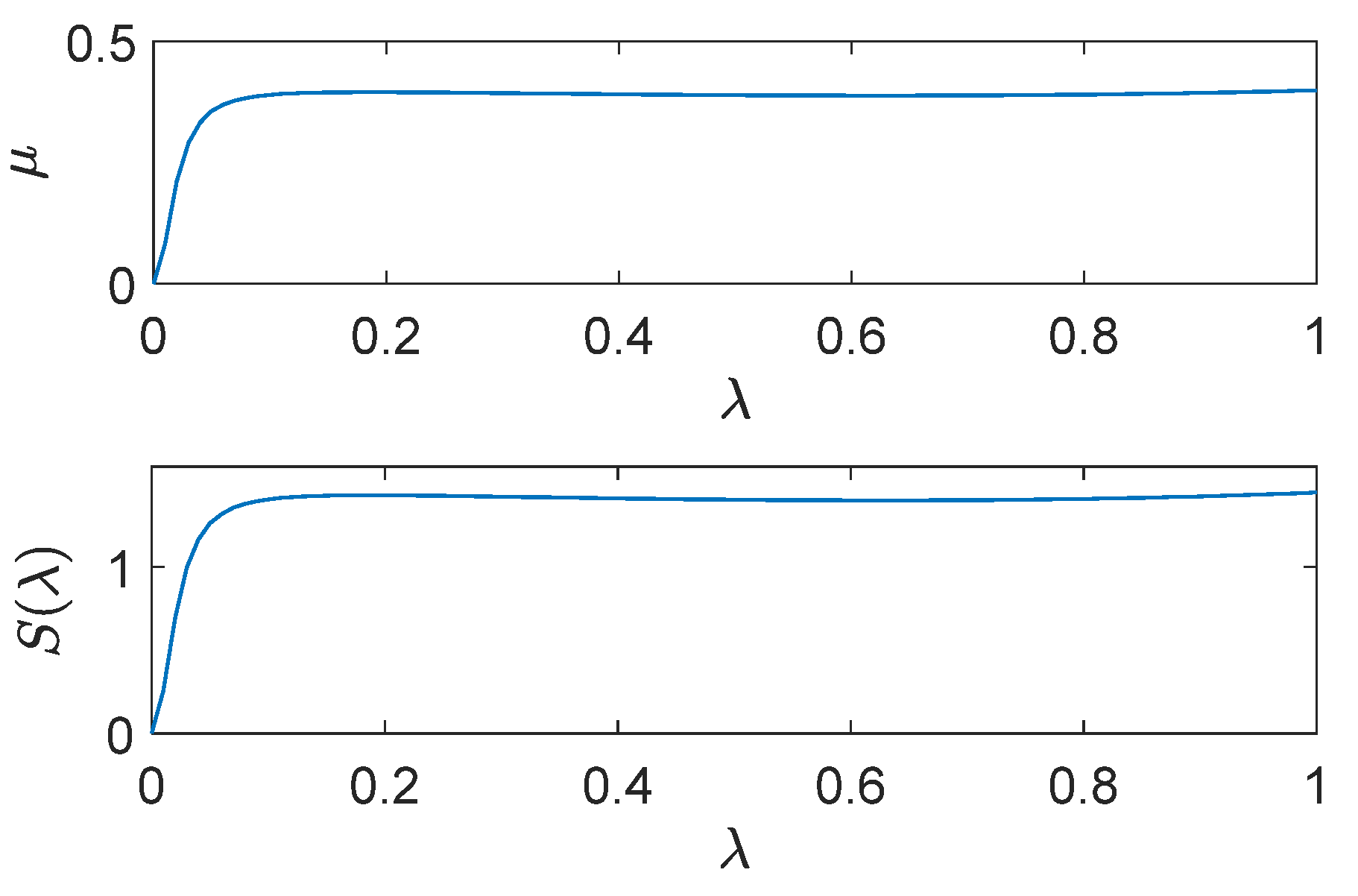

_{0}, while $S(\lambda )=\frac{s\mu (\lambda )}{L(\mathrm{sin}\varphi -s\mu (\lambda )\mathrm{cos}\varphi )}$ depends on the constant angle $\varphi $ and $\mu (\lambda )={w}_{4}{\lambda}^{p}/(a+{\lambda}^{p})+{w}_{3}{\lambda}^{3}+{w}_{2}{\lambda}^{2}+{w}_{1}\lambda $ is the friction coefficient ($\mu $)-slip coefficient ($\lambda $) static characteristic with ${w}_{i},i=\overline{1,4},a,p$ being known constants. Notice at this point that the model (1) is not obtained directly, but its coefficients depend on many physical parameters of the ABS system and can be recovered in the original documentation [15]. Some of them are properly presented throughout the paper when needed.

_{1}, r

_{2}are the radii of the two wheels in contact. For the given laboratory model, since the two radii are approximately equal, it will be considered that r

_{1}= r

_{2}= 0.99 [m], leading to a simpler slip in (2), i.e., $\lambda =({x}_{2}-{x}_{1})/{x}_{2}$.

_{1}, the friction torque in the upper bearing and the friction torque among the wheels. There are two torques acting on the lower wheel: the friction torque in the lower bearing and the friction torque among the wheels. Besides these, two gravity force of the upper wheel and the pressing force of a shock absorber of the upper wheel force the contact between the two wheels [15].

## 3. Sliding Mode Control Design

#### 3.1. Lyapunov-Based Sliding Mode Control Design with Included Uncertainties in the Process Model

_{1}and v

_{2}are additive terms accounting for unmodeled dynamics, external disturbances and parametric uncertainties. A switching variable is defined as $g(t)=\lambda (t)-{\lambda}_{d}(t)$, with ${\lambda}_{d}(t)$ the desired slip. We notice that since the simplified slip in (2) is $\lambda =1-{x}_{1}/{x}_{2}$, then $g(t)=\lambda -{\lambda}_{d}=1-{x}_{1}/{x}_{2}-{\lambda}_{d}=0$ is equivalent to the sliding surface line equation ${x}_{1}-(1-{\lambda}_{d}){x}_{2}=0$ which is consistent with the more familiar definition of the sliding surface in the form $g(x,t)=0$.

Algorithm 1. The LSMC Algorithm |

Selected initial parameters $\Delta ,\delta ,{v}_{\mathrm{max}}$ 1. Read the desired slip value ${\lambda}_{d}(t)$ and the angular speed values ${x}_{1},{x}_{2}$. 2. Calculate $\lambda (t)$ from (2), then calculate $g(t)=\lambda (t)-{\lambda}_{d}(t)$. Find $F(t)$, $G(t)$ from (6), calculate $\tau (t)$ from (7). 3. Calculate $u(t)$ from (8) and send it to the process. 4. After the current integration step is finished, go to step 1. |

**Theorem**

**1.**

**Proof of Theorem**

**1.**

#### 3.2. Reaching Law Sliding Mode Control Design with Partial Process Model Uncertainty

- $g>0$ involves $\dot{g}=-k\xb71\Rightarrow \dot{g}<0$, meaning that $g$ is decreasing to zero.
- $g<0$ involves $\dot{g}=k\Rightarrow \text{}\dot{g}0$, meaning that $g$ is increasing to zero.

- The case $g>0$. For a finite reaching time, it is necessary that $\text{}\dot{g}-\eta $, with $\eta >0$ as a positive constant. In this case, it is necessary that $\widehat{f}-f-k\le -\eta \iff k\ge \widehat{f}-f+\eta $. Since $\left|\widehat{f}-f+\eta \right|\le $ $\left|\widehat{f}-f\right|+\eta \le {U}_{F}+\eta $, a value $k\ge {U}_{F}+\eta $ ensures a finite reaching time at most equal to $\left|g(0)\right|/\eta $.
- The case $g<0$. In similar reasoning, a value as $k\ge {U}_{F}+\eta $ ensures $\dot{g}>\eta $ which involves that the attainment of the finite reaching time is $\left|g(0)\right|/\eta $ at most.

Algorithm 2. The RSMC Algorithm |

Selected initial parameter $k$ 1. Read the desired slip value ${\lambda}_{d}(t)$ and the angular speed values ${x}_{1},{x}_{2}$. 2. Calculate $\lambda (t)$ from (2), then calculate $g(t)=\lambda (t)-{\lambda}_{d}(t)$. Find $f(t),b(t)$ from (12). Compute the derivative ${\dot{\lambda}}_{d}(t)$. 3. Calculate $u(t)$ as in (13) then send it to the process. 4. After the current integration step is finished, go to step 1. |

**Theorem**

**2.**

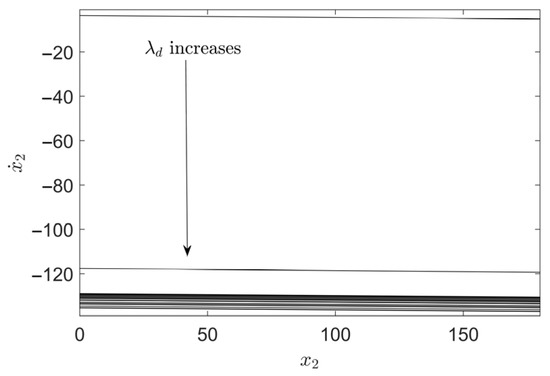

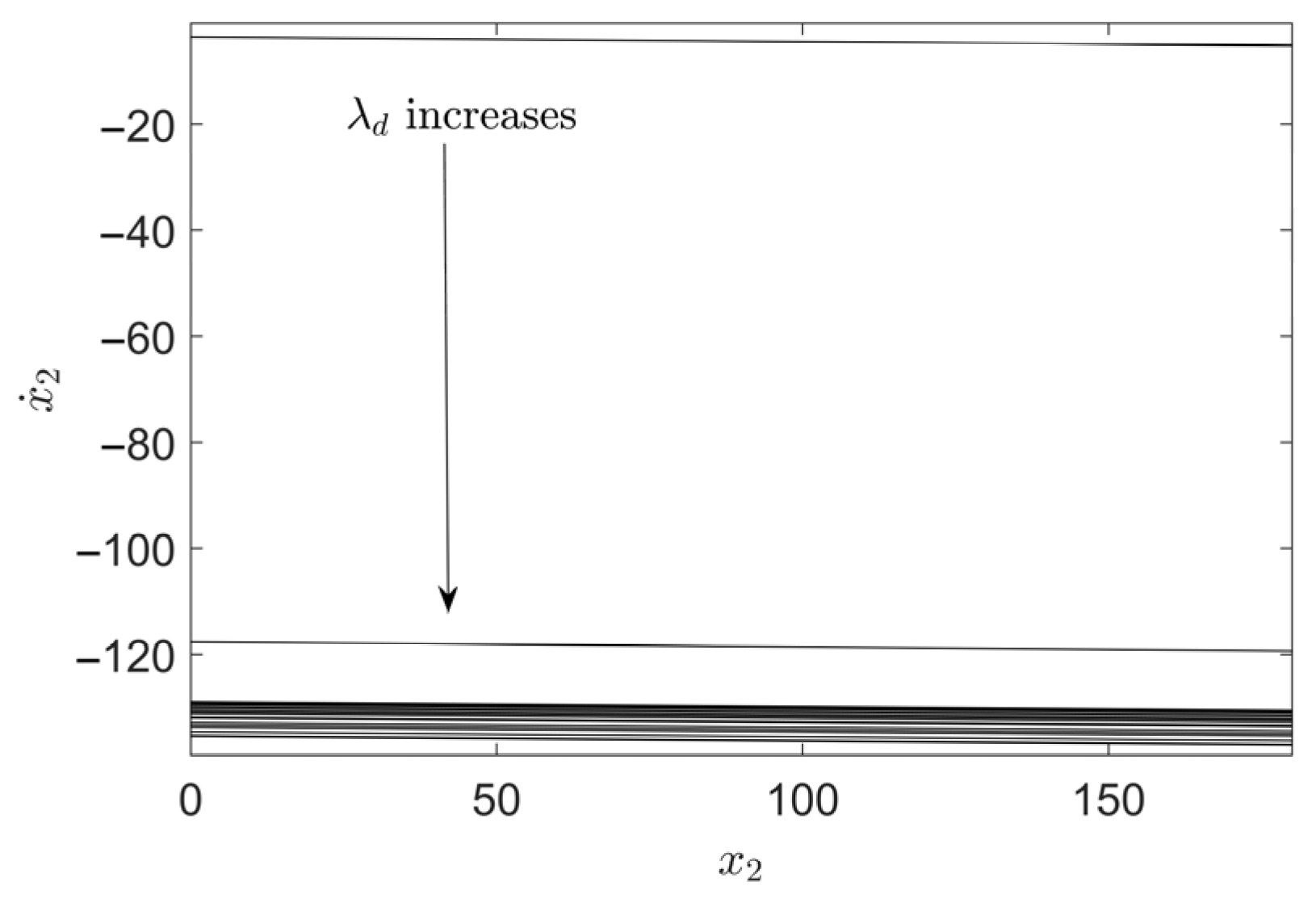

**Proof of Theorem**

**2.**

## 4. Validation Case Study

^{–3}seconds (s), which is consistent with the real-world execution times. The sampling time corresponding to the fixed step solver allows for data acquisition in order to collect the discrete-time values of $\lambda (t),{\lambda}_{d}(t)$ as $\lambda (k),{\lambda}_{d}(k)$, respectively. Which in turn allows the computation of the following performance index

_{i}is the sampling instant index corresponding to the start of the braking process, and N samples of the controlled slip and desired slip are measured, until the angular speed x

_{2}of the lower wheel (the “car”) drops below 10 rad/s towards the end of the braking cycle.

^{2}], the viscous frictions ${d}_{1}=120\times {10}^{-6},{J}_{2}=225\times {10}^{-6}$ are measured in [kg m

^{2}/s], the static frictions in the upper and lower wheel are ${M}_{10}=3\times {10}^{-3},{M}_{20}=93\times {10}^{-3}$ in [Nm]. The terms $\phi (\lambda )=\mathrm{sin}({C}_{x}\mathrm{arctan}({B}_{x}\lambda )),\theta =\mu {D}_{x}$ are used to approximate the original term $\mu {F}_{n}(\lambda )=\theta \phi (\lambda )$ related to the normal force F

_{n}from the original ABS equations [1], with the so-called Pacejka’s magic formula, for the parameter’s values ${C}_{x}=1.68,{B}_{x}=28,{D}_{x}=22.9,\mu =0.95$.

_{1}, thus neglecting the actuator dynamics. To make the controller (16) compatible with controllers (8) and (13), M

_{1}is transformed back into control input u by using the simplified actuator model, that is $u(t)={M}_{1}(t)/\chi $. To be consistent with the control inputs calculated by the LSMC and RSMC laws (8) and (13), respectively, the braking torque ${M}_{1}(t)$ is further saturated to [–9;9] after being calculated from (16).

**A**and

**B**, ensuring that $CB\ne 0$. Possible exogeneous disturbances, unmodeled dynamic as well as parametric uncertainties are modeled under terms ${v}_{1}(t),{v}_{2}(t)$ who enter the larger disturbance term $d(t)$ for which a simplifying upper bound $\overline{d}$ is found. In the following, the control law (17) from [38] is implemented based on Equations (5), (14), (16), (18) and (23) from the same work. This control scheme is designed for output model reference tracking control, it includes dynamical filters for the underlying uncertain controlled system missing full state measurement. The proposed PSSMC structure was tested in [38] on a linear, simplified, first order ABS model. Although the control system structure is simple, there are many equations and parameters involved in calculating the redesigned modulating function $\rho (t)$ from Equation (23) in [38]. The tuning parameters were selected as ${\underset{\_}{k}}_{p}=0.2$, ${c}_{1}=0.5$, the parameters of the reference model transfer function $1/(0.01s+1)$ were set as ${a}_{m}=100$, ${k}_{m}=100$, then $\beta =100$, $\overline{\theta}=5$, $\delta =0.1$, $\Lambda =-100$, $g=0.1$, ${\varphi}_{1}={\varphi}_{2}=0$, $\overline{d}=2$, ${c}_{d}=100$, ${\lambda}_{d}=100$. The three most influential parameters of this PSSMC scheme were found ${\lambda}_{1}=21.57,{\lambda}_{2}=9.13$ and $\epsilon =0.012$ using a GA to minimize the performance index ${I}_{test}$ on the test scenario under control input saturation in [–1;1]. While the others parameters have been determined starting from the values in [38]. The tuned parameters were searched within the domain $[0;100]\times [0;100]\times [0;10]$. Except for ${a}_{m}$, ${k}_{m}$, there is a number of 15 tuning parameters to search for, a large number with respect to the other controllers used for comparisons. The GA solver parameters were set to ensure convergence to approximately the same solution on five runs.

_{LSMC}= 1272, N

_{RSMC}= 1272, N

_{ADC}= 1262, N

_{RL}= 1330, N

_{MFSMC}= 1275, N

_{PSSMC}= 1298. Revealing that the LSMC and RSMC controllers lead to very similar braking scenarios in terms of the car speed and measured performance.

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

## References

- Formentin, S.; Novara, C.; Savaresi, S.M.; Milanese, M. Active braking control system design: The D2-IBC Approach. IEEE Trans. Mech.
**2015**, 20, 1573–1584. [Google Scholar] [CrossRef] - Liu, Y.; Sun, J. Target slip tracking using gain-scheduling for antilock braking system. In Proceedings of the IEEE American Control Conference, Seattle, WA, USA, 21–23 June 1995; pp. 1178–1182. [Google Scholar]
- Unsal, C.; Kachroo, P. Sliding mode measurement feedback control for antilock braking systems. IEEE Trans. Control Syst. Technol.
**1999**, 7, 271–281. [Google Scholar] [CrossRef] [Green Version] - Tang, Y.; Zhan, X.; Zhang, D.; Zhao, G.; Guan, X. Fractional order sliding mode controller design for antilock braking systems. Neurocomputing
**2013**, 111, 122–130. [Google Scholar] [CrossRef] - Mirzaeinejad, H.; Mirzaei, M. A novel method for non-linear control of wheel slip in anti-lock braking systems. Control Eng. Pract.
**2010**, 18, 918–926. [Google Scholar] [CrossRef] - Chereji, E. Soluții de Reglare în Mod Alunecător Pentru un Echipament de Laborator cu Frânare cu ABS. Bachelor’s Thesis, Politehnica University of Timisoara, Timisoara, Romania, June 2019. [Google Scholar]
- Safe Braking. 50 Years Start of Developing Bosch’s Anti-Lock Braking System ABS. Available online: https://www.bosch.com/stories/beginnings-of-abs/ (accessed on 19 August 2020).
- Mercedes-Benz and the Invention of the Anti-Lock Braking System: ABS, Ready for Production in 1978. Available online: https://media.daimler.com/marsMediaSite/en/instance/ko/Mercedes-Benz-and-the-invention-of-the-anti-lock-braking-system-ABS-ready-for-production-in-1978.xhtml?oid=9913502 (accessed on 19 August 2020).
- Robert Bosch GmbH. Bosch Automotive Handbook, 8th ed.; Bentley Publishers: Cambridge, MA, USA, 2011. [Google Scholar]
- Lua, C.A.; Toledo, B.C.; di Gennaro, S.; Martinez-Gardea, M. Dynamic control applied to a laboratory antilock braking system. Math. Probl. Eng.
**2015**. [Google Scholar] [CrossRef] - Drakunov, S.; Ozguner, U.; Dix, P.; Ashrafi, B. ABS control using optimum search via sliding modes. IEEE Trans. Control Syst. Technol.
**1995**, 3, 79–85. [Google Scholar] [CrossRef] [Green Version] - Will, A.B.; Hui, S.; Zak, S.H. Sliding mode wheel slip controller for an antilock braking system. Int. J. Veh. Des.
**1998**, 19, 523–539. [Google Scholar] - Ivanov, V.; Savitski, D.; Shyrokau, B. A survey of traction control and antilock braking systems of full electric vehicles with individually controlled electric motors. IEEE Trans. Veh. Technol.
**2015**, 64, 3878–3896. [Google Scholar] [CrossRef] - Pretagostini, F.; Ferranti, L.; Berardo, G.; Ivanov, V.; Shyrokau, B. Survey on wheel slip control design strategies, evaluation and application to antilock braking systems. IEEE Access
**2020**, 8, 10951–10970. [Google Scholar] [CrossRef] - The Laboratory Anti-Lock Braking System Controlled from PC—User Manual; Inteco Sp.: Krakow, Poland, 2007.
- Radac, M.B.; Precup, R.E.; Preitl, S.; Tar, J.K.; Burnham, K.J. Tire slip fuzzy control of a laboratory anti-lock braking system. In Proceedings of the European Control Conference, Budapest, Hungary, 23–26 August 2009; pp. 940–945. [Google Scholar]
- Harifi, A.; Aghagolzadeh, A.; Alizadeh, G.; Sadeghi, M. Designing a sliding mode controller for slip control of antilock brake systems. Transp. Res. Part C Emerg. Technol.
**2008**, 16, 731–741. [Google Scholar] [CrossRef] - Lin, C.M.; Hsu, C.F. Self-learning fuzzy sliding-mode control for antilock braking systems. IEEE Trans. Control Technol.
**2003**, 11, 273–278. [Google Scholar] [CrossRef] [Green Version] - Bartoszewicz, A.; Adamiak, K. Discrete-time sliding-mode control with a desired switching variable generator. IEEE Trans. Autom. Control
**2019**, 65, 1807–1814. [Google Scholar] [CrossRef] - Bartoszewicz, A.; Adamiak, K. Model reference discrete-time variable structure control. Int. J. Adapt. Control Signal Process.
**2019**, 32, 1440–1452. [Google Scholar] [CrossRef] - Shah, D.; Mehta, A.; Patel, K.; Bartoszewicz, A. Event-triggered discrete higher-order SMC for networked control system having network irregularities. IEEE Trans. Ind. Inf.
**2020**, 16, 6837–6847. [Google Scholar] [CrossRef] - Latosinski, P.; Bartoszewicz, A. Model reference DSMC with a relative degree two switching variable. IEEE Trans. Autom. Control
**2020**. [Google Scholar] [CrossRef] - Schinkel, M.; Junt, K. Anti-lock braking control using a sliding mode like approach. In Proceedings of the American Control Conference, Anchorage, AK, USA, 8–10 May 2002; pp. 2386–2391. [Google Scholar]
- Lin, C.M.; Hsu, C.F. Neural-network hybrid control for antilock braking systems. IEEE Trans. Neural Netw.
**2003**, 14, 351–359. [Google Scholar] [CrossRef] - Wu, M.C.; Shih, M.C. Simulated and experimental study of hydraulic anti-lock braking system using sliding-mode PWM control. Mechatronics
**2003**, 13, 331–351. [Google Scholar] [CrossRef] - Peric, S.L.; Antic, D.S.; Milovanovic, M.B.; Mitic, D.B.; Milojkovic, M.T.; Nikolic, S.S. Quasi-sliding mode control with orthogonal endocrine neural network-based estimator applied in anti-lock braking system. IEEE Trans. Mech.
**2016**, 21, 754–764. [Google Scholar] [CrossRef] - Topalov, A.V.; Oniz, Y.; Kayacan, E.; Kaynak, O. Neuro-fuzzy control of antilock braking system using sliding mode incremental learning algorithm. Neurocomputing
**2011**, 74, 1883–1893. [Google Scholar] [CrossRef] - Kayacan, E.; Oniz, Y.; Kaynak, O. A grey system modeling approach for sliding-mode control of antilock braking system. IEEE Trans. Ind. Electron.
**2009**, 56, 3244–3252. [Google Scholar] [CrossRef] - Gong, X.; Qian, L.; Ge, W.; Wang, L. Research on the anti-disturbance control method of brake-by-wire unit for electric vehicles. World Electr. Veh. J.
**2019**, 10, 44. [Google Scholar] [CrossRef] [Green Version] - Sardarmehni, T.; Heydari, A. Sub-optimal switching in anti-lock brake systems using approximate dynamic programming. IET Control Theory Appl.
**2019**, 13, 1413–1424. [Google Scholar] [CrossRef] - He, Y.; Lu, C.; Shen, J.; Yuan, C. Design and analysis of output feedback constraint control for antilock braking system with time-varying slip ratio. Math. Probl. Eng.
**2019**. [Google Scholar] [CrossRef] - Lin, C.L.; Hung, H.C.; Li, J.C. Active control of regenerative brake for electric vehicles. Actuators
**2018**, 7, 84. [Google Scholar] [CrossRef] [Green Version] - Radac, M.B.; Precup, R.E. Data-driven model-free slip control of anti-lock braking systems using reinforcement Q-learning. Neurocomputing
**2018**, 275, 317–329. [Google Scholar] [CrossRef] - Bhat, S.P.; Bernstein, D.S. Finite-time stability of continuous autonomous systems. SIAM J. Control. Optim.
**2000**, 38, 751–766. [Google Scholar] [CrossRef] - Nersesov, S.G.; Ashrafiuon, H.; Ghorbanian, P. On the stability of sliding mode control for a class of underactuated nonlinear systems. In Proceedings of the 2010 American Control Conference, Baltimore, MD, USA, 30 June–2 July 2010; pp. 3446–3451. [Google Scholar]
- Lua, C.A.; di Gennaro, S.; Morales, M.E.S. Nonlinear adaptive controller applied to an antilock braking system with parameters variations. Int. J. Control Autom. Syst.
**2017**, 15, 2043–2052. [Google Scholar] - Precup, R.E.; Radac, M.B.; Roman, R.C.; Petriu, E.M. Model-free sliding mode control of nonlinear systems: Algorithms and experiments. Inf. Sci.
**2017**, 381, 176–192. [Google Scholar] [CrossRef] - Oliveira, T.R.; Hsu, L.; Peixoto, A.J. Output-feedback global tracking for unknown control direction plants with application to extremum-seeking control. Automatica
**2011**, 47, 2029–2038. [Google Scholar] [CrossRef]

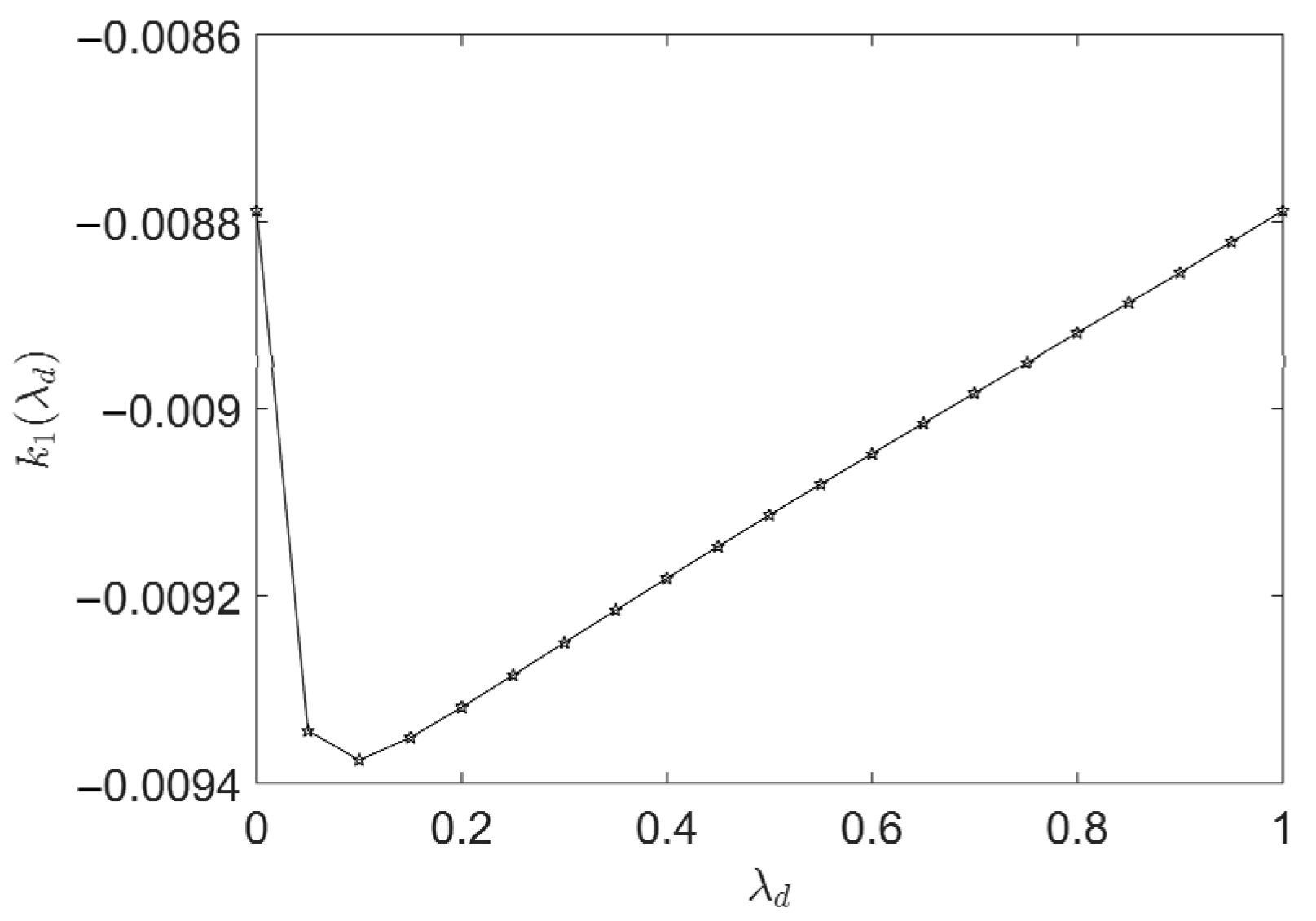

**Figure 3.**The dependence ${k}_{1}({\lambda}_{d})$ for the reaching-law-based sliding mode controller (RSMC) stability analysis case.

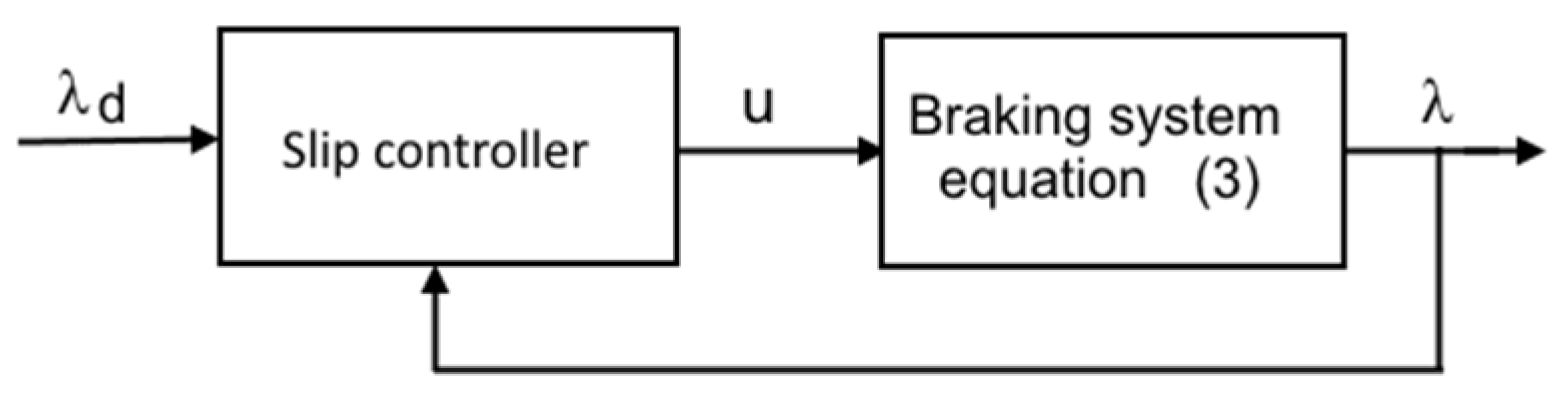

**Figure 5.**The slip feedback control system where the slip controller is replaceable with any of the following designed controllers.

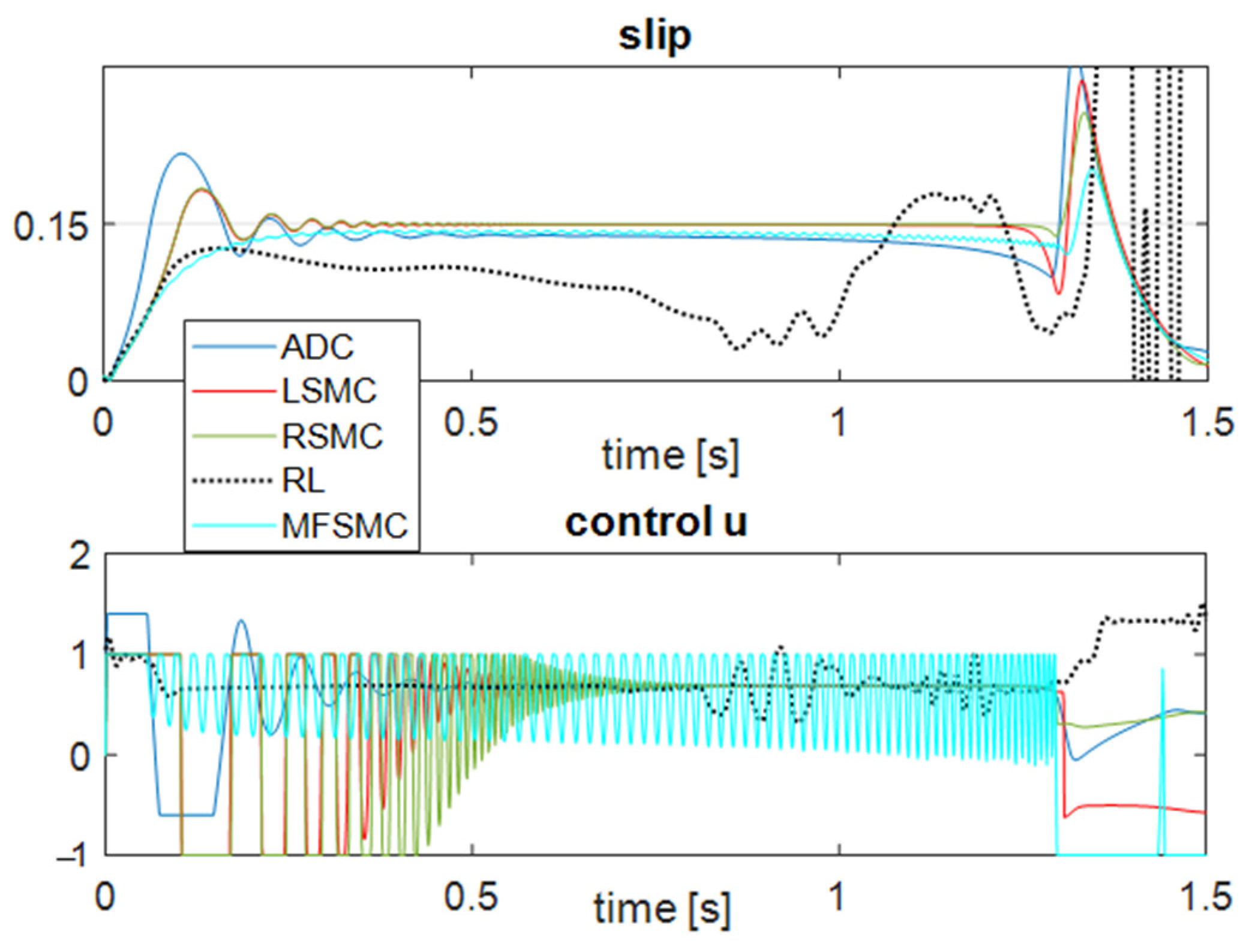

**Figure 6.**The slip control results obtained with the Lyapunov-based sliding mode controller (LSMC), RSMC, active dynamic controller (ADC), reinforcement learning (RL) and model-free sliding-mode controller (MFSMC) structures.

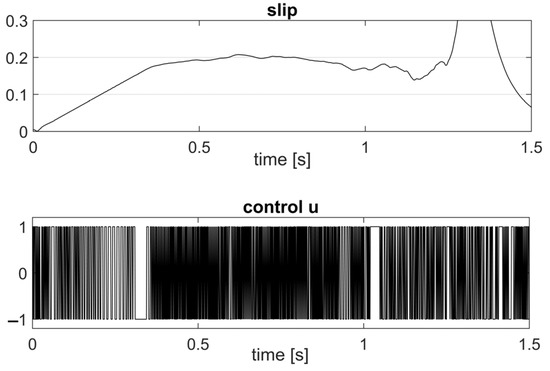

**Figure 7.**The slip control result obtained with the periodic switching sliding mode controller (PSSMC) structure.
