Negative Thermal Expansion in Ba0.5Sr0.5Zn2SiGeO7
Otto-Schott-Institut für Materialforschung, Jena University, Fraunhoferstr. 6, Jena 07743, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Tamas Varga
Materials 2016, 9(8), 631; https://doi.org/10.3390/ma9080631
Received: 30 June 2016
/
Revised: 16 July 2016
/
Accepted: 21 July 2016
/
Published: 27 July 2016
(This article belongs to the Special Issue Negative Thermal Expansion Materials)

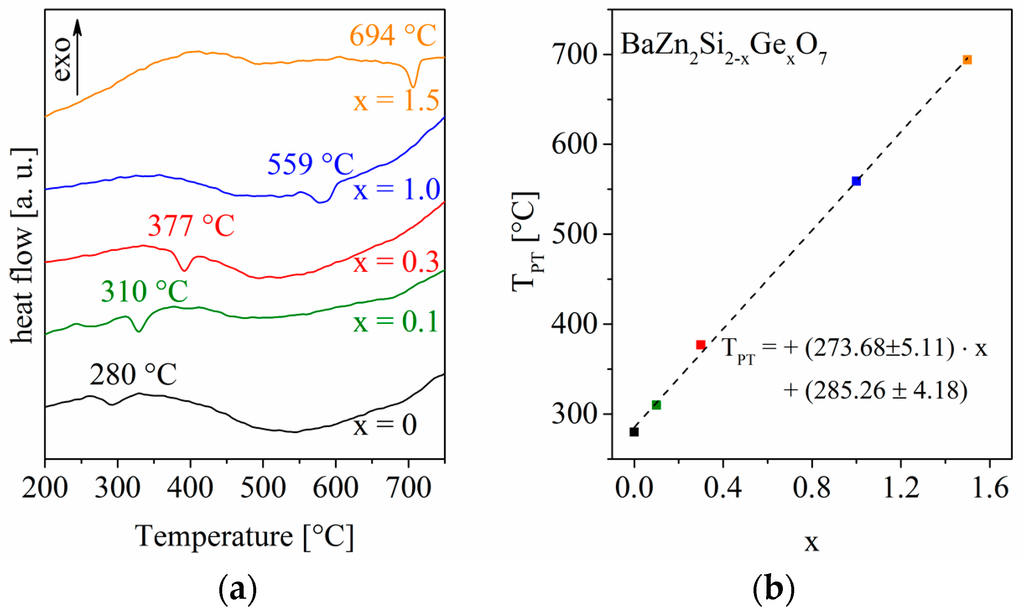

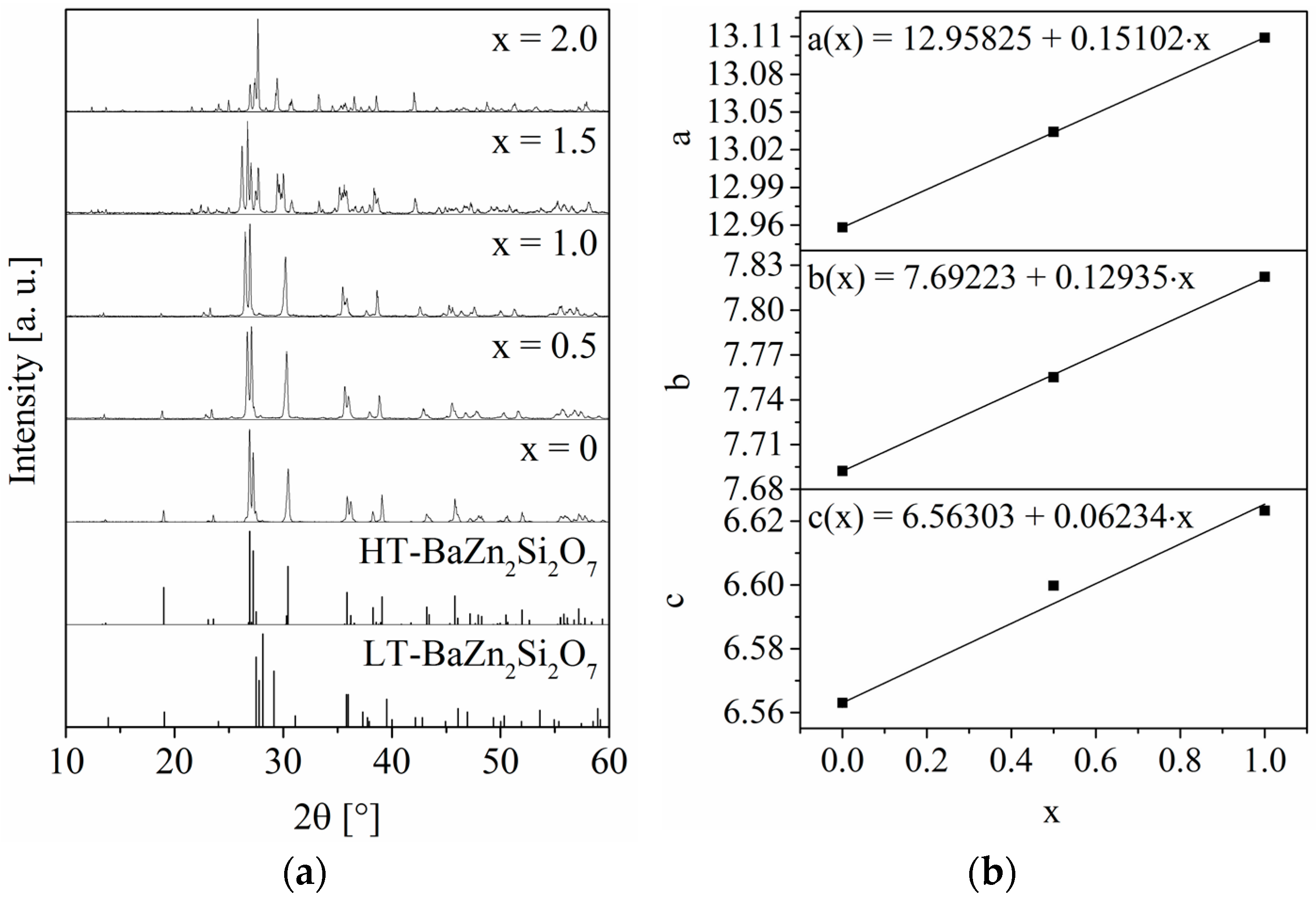

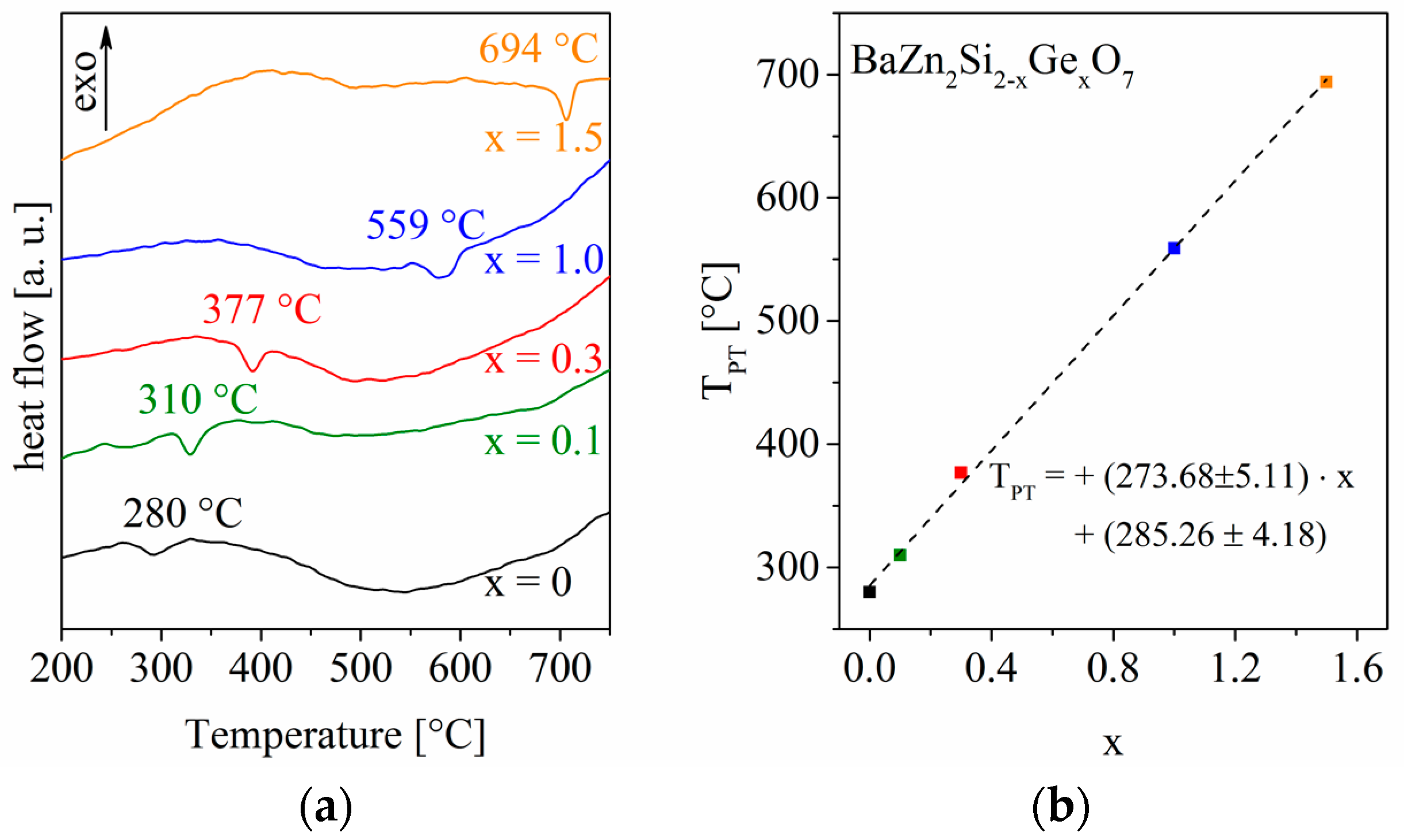

Solid solutions with the composition Ba0.5Sr0.5Zn2Si2-xGexO7 and BaZn2Si2-xGexO7 were prepared with different values of x using a conventional mixed oxide route. Both compounds exhibit very different thermal expansion, which is due to the different crystal structures. Ba0.5Sr0.5Zn2Si2-xGexO7 solid solutions exhibit the structure of high-temperature BaZn2Si2O7 and show negative thermal expansion, which was proven via high-temperature X-ray diffraction. Up to around x = 1, the crystal structure remains the same. Above this value, the low-temperature phase becomes stable. The Sr-free solid solutions have the crystal structure of low-temperature BaZn2Si2O7 and show also a limited solubility of Ge. These Sr-free compositions show transitions of low- to high-temperature phases, which are shifted to higher temperatures with increasing Ge-concentration.
View Full-Text
▼
Show Figures

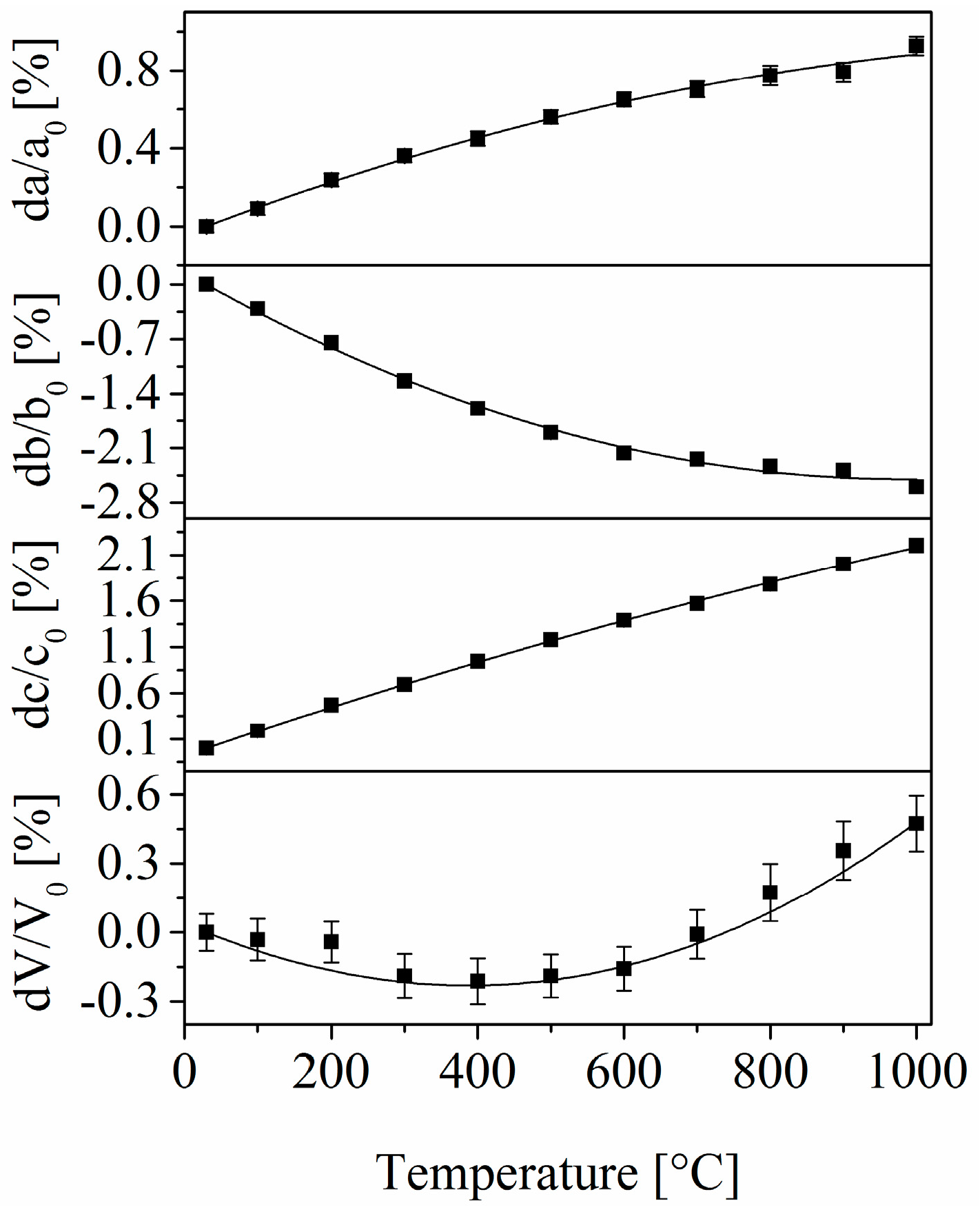

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Thieme, C.; Rüssel, C. Negative Thermal Expansion in Ba0.5Sr0.5Zn2SiGeO7. Materials 2016, 9, 631. https://doi.org/10.3390/ma9080631
AMA Style
Thieme C, Rüssel C. Negative Thermal Expansion in Ba0.5Sr0.5Zn2SiGeO7. Materials. 2016; 9(8):631. https://doi.org/10.3390/ma9080631
Chicago/Turabian StyleThieme, Christian, and Christian Rüssel. 2016. "Negative Thermal Expansion in Ba0.5Sr0.5Zn2SiGeO7" Materials 9, no. 8: 631. https://doi.org/10.3390/ma9080631
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
