Next Article in Journal
The Enhancement of Mg Corrosion Resistance by Alloying Mn and Laser-Melting
Previous Article in Journal
Antimicrobial Silver Chloride Nanoparticles Stabilized with Chitosan Oligomer for the Healing of Burns
Open AccessArticle

In Vitro Cell Proliferation and Mechanical Behaviors Observed in Porous Zirconia Ceramics

1
State Key Laboratory of New Ceramics and Fine Processing, School of Materials Science and Engineering, Tsinghua University, Beijing 100084, China
2
School & Hospital of Stomatology, Department of Geriatric Dentistry, Peking University, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Academic Editor: Maryam Tabrizian
Materials 2016, 9(4), 218; https://doi.org/10.3390/ma9040218
Received: 19 January 2016 / Revised: 10 March 2016 / Accepted: 16 March 2016 / Published: 23 March 2016
Zirconia ceramics with porous structure have been prepared by solid-state reaction using yttria-stabilized zirconia and stearic acid powders. Analysis of its microstructure and phase composition revealed that a pure zirconia phase can be obtained. Our results indicated that its porosity and pore size as well as the mechanical characteristics can be tuned by changing the content of stearic acid powder. The optimal porosity and pore size of zirconia ceramic samples can be effective for the increase of surface roughness, which results in higher cell proliferation values without destroying the mechanical properties. View Full-Text
Keywords: zirconia ceramics; porous; proliferation zirconia ceramics; porous; proliferation
Show Figures

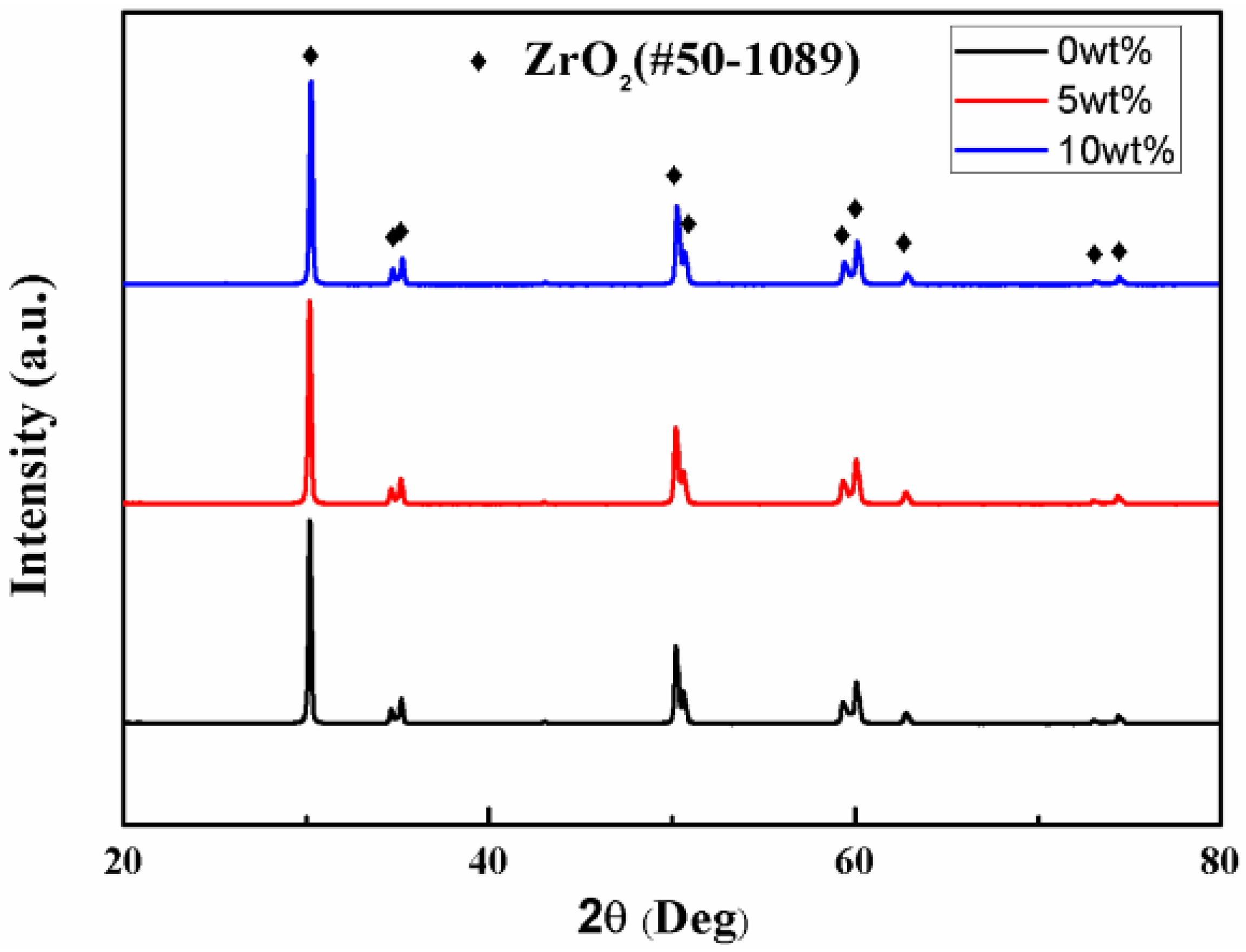

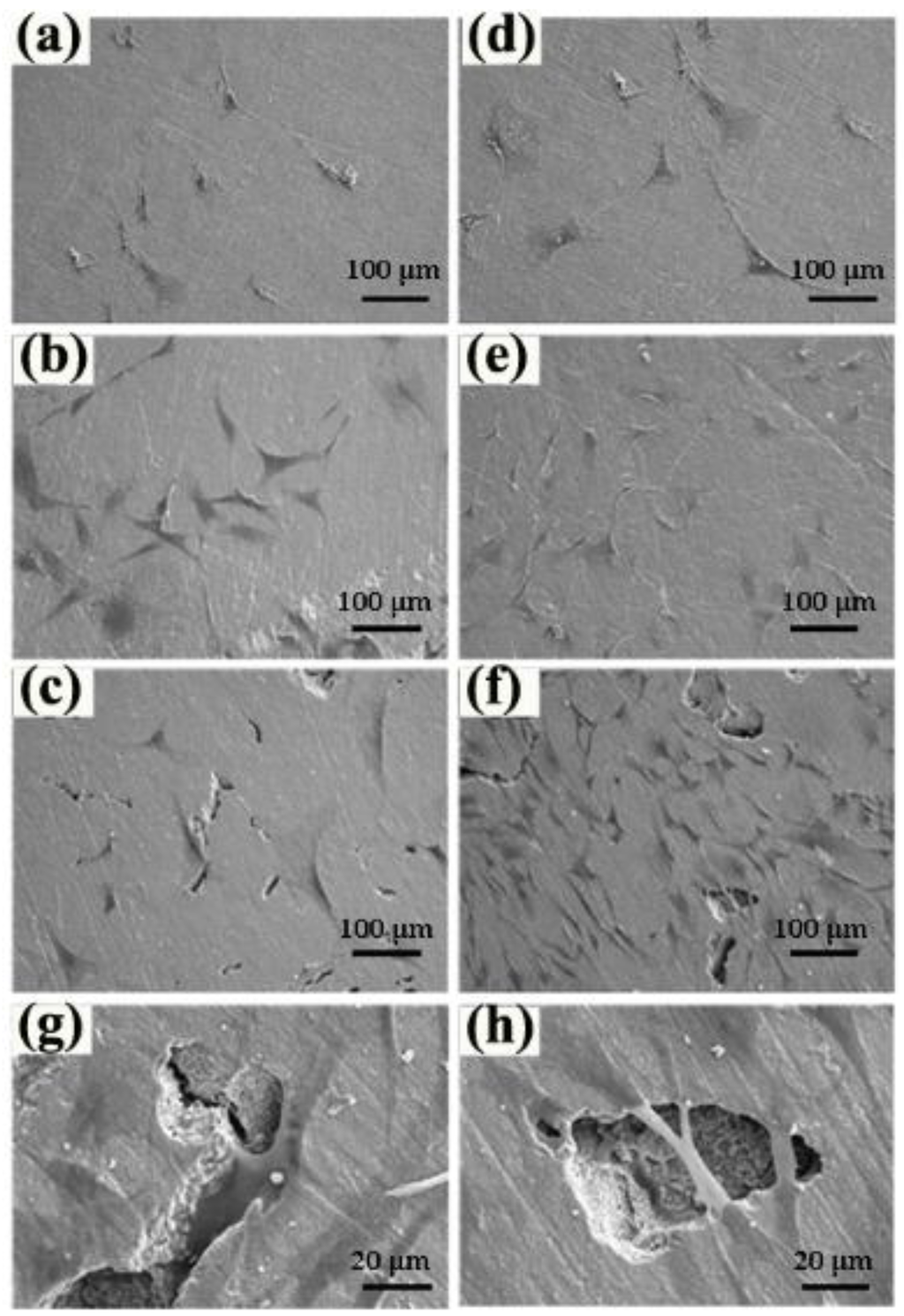

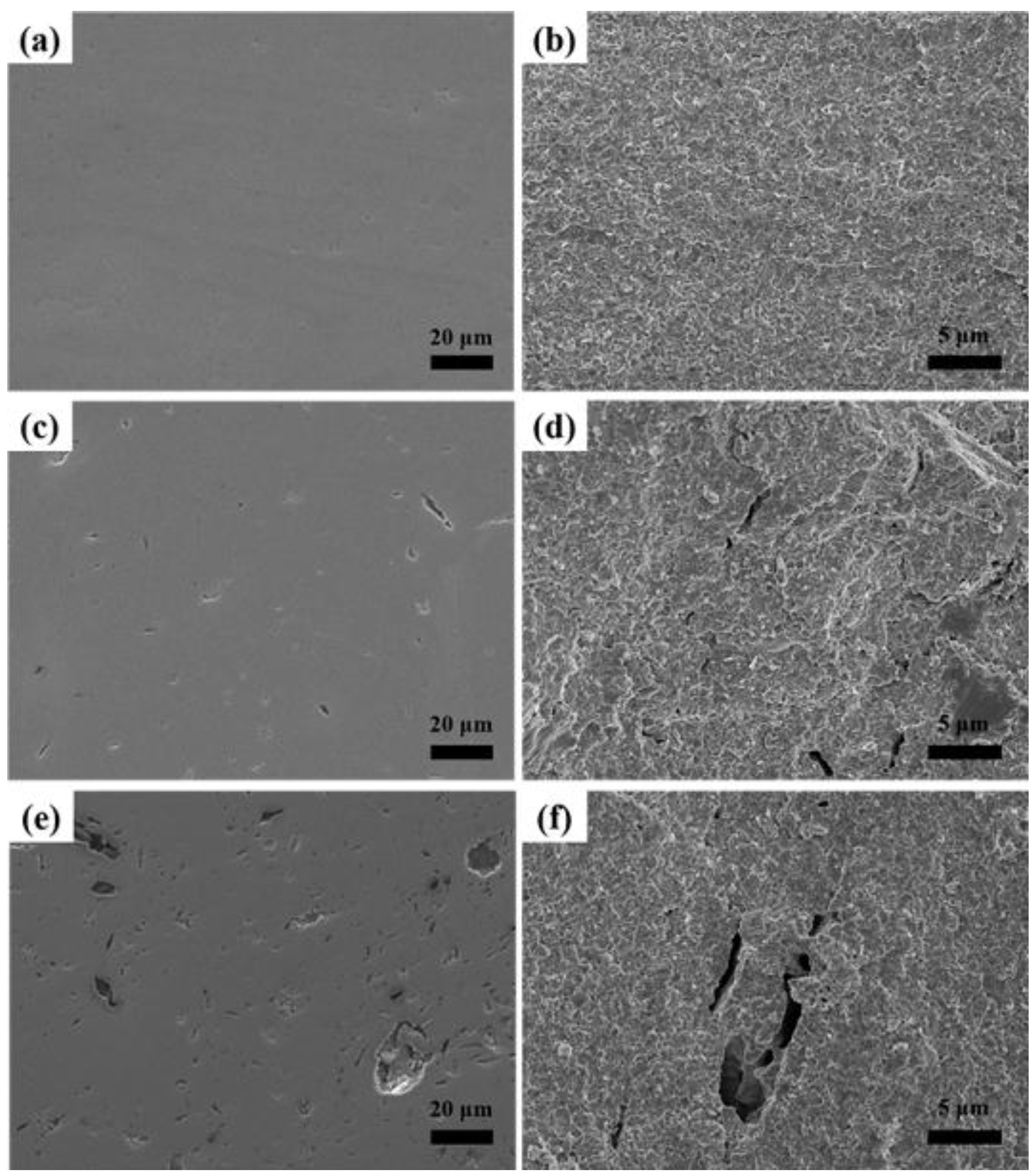

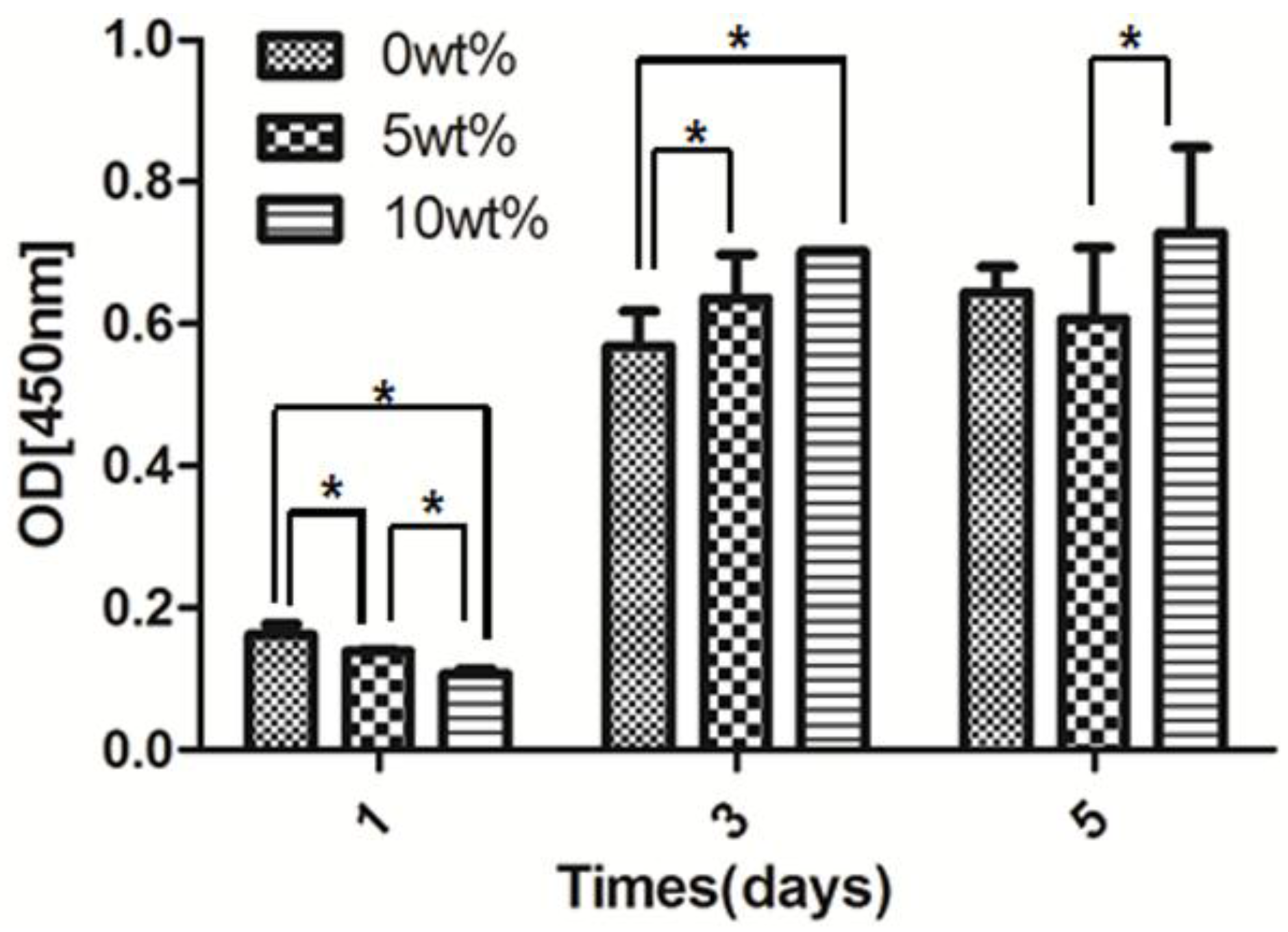

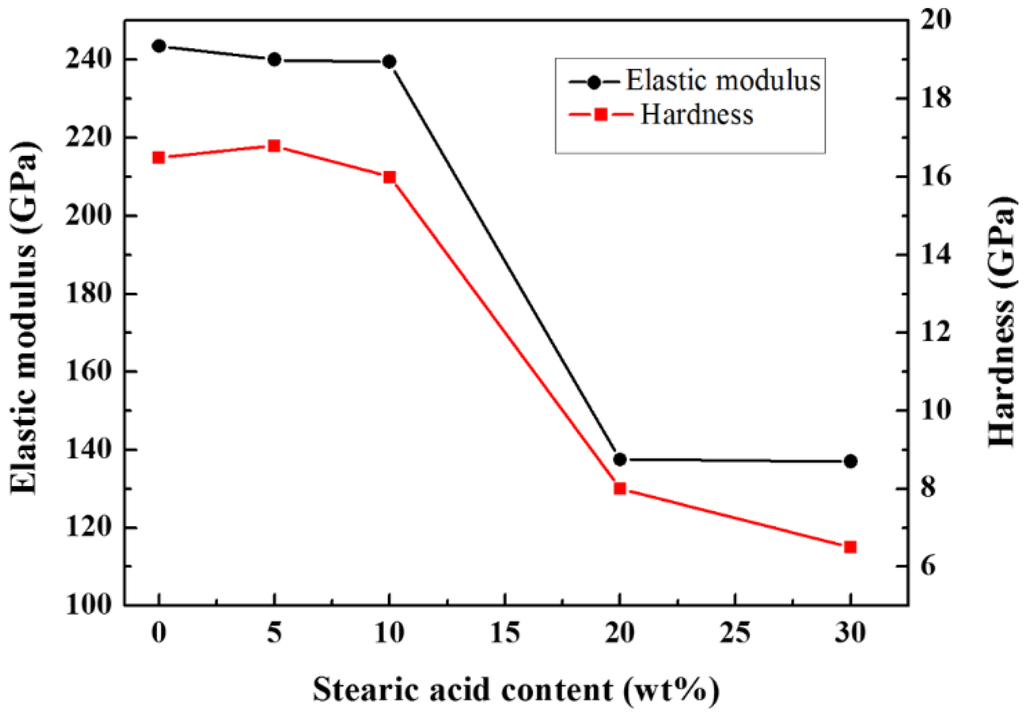

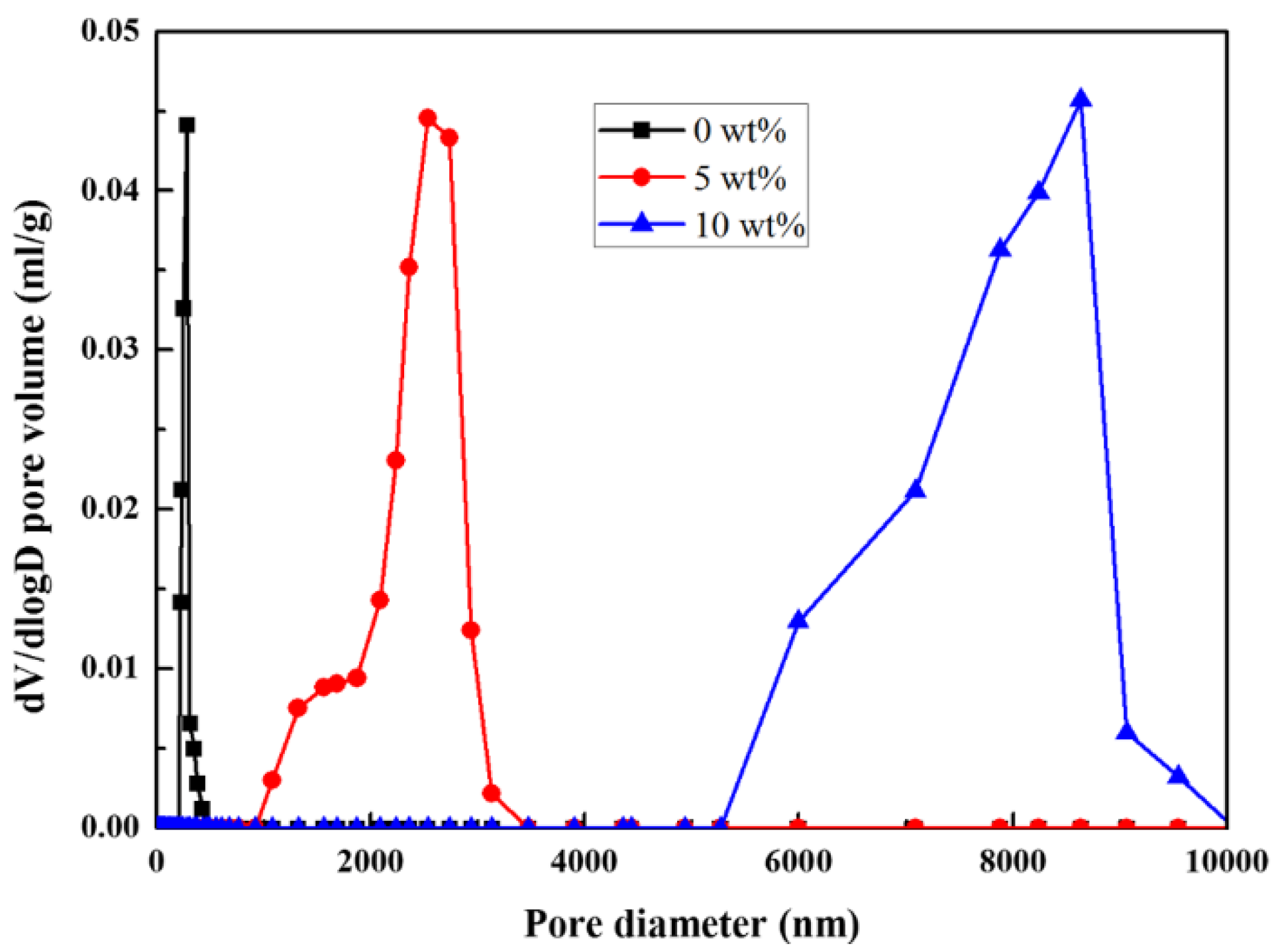

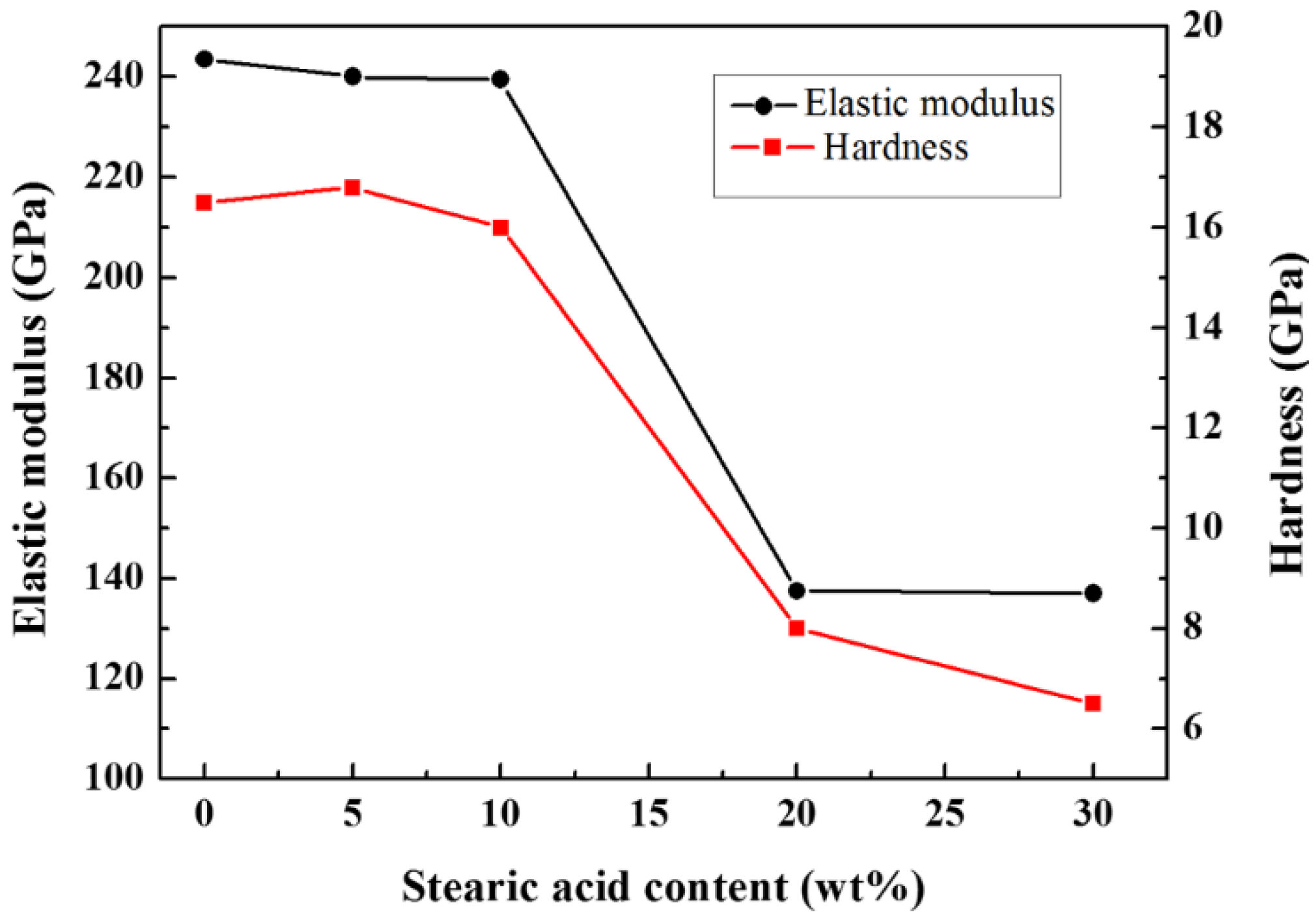

Figure 1

MDPI and ACS Style

Li, J.; Wang, X.; Lin, Y.; Deng, X.; Li, M.; Nan, C. In Vitro Cell Proliferation and Mechanical Behaviors Observed in Porous Zirconia Ceramics. Materials 2016, 9, 218.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
