Next Article in Journal
Glycopolymeric Materials for Advanced Applications
Next Article in Special Issue
Microscopic Characterization of Individual Submicron Bubbles during the Layer-by-Layer Deposition: Towards Creating Smart Agents
Previous Article in Journal
Water Absorption Behavior of Hemp Hurds Composites
Previous Article in Special Issue
Preparation of High Density Polyethylene/Waste Polyurethane Blends Compatibilized with Polyethylene-Graft-Maleic Anhydride by Radiation
Open AccessArticle

Low-Pressure H2, NH3 Microwave Plasma Treatment of Polytetrafluoroethylene (PTFE) Powders: Chemical, Thermal and Wettability Analysis

1
Institute for Materials Research & Innovation (IMRI), University of Bolton, Deane Road, Bolton BL3 5AB, UK
2
Institute of Polymer Engineering, University of Applied Sciences (UAS), Northwestern Switzerland, 5210 Windisch, Switzerland
3
Center for Lipid Research, Indian Institute of Chemical Technology (IICT), Hyderabad 500007, India
*
Author to whom correspondence should be addressed.
Academic Editor: Reza Montazami
Materials 2015, 8(5), 2258-2275; https://doi.org/10.3390/ma8052258
Received: 1 March 2015 / Revised: 16 April 2015 / Accepted: 20 April 2015 / Published: 28 April 2015
(This article belongs to the Special Issue Smart Materials)

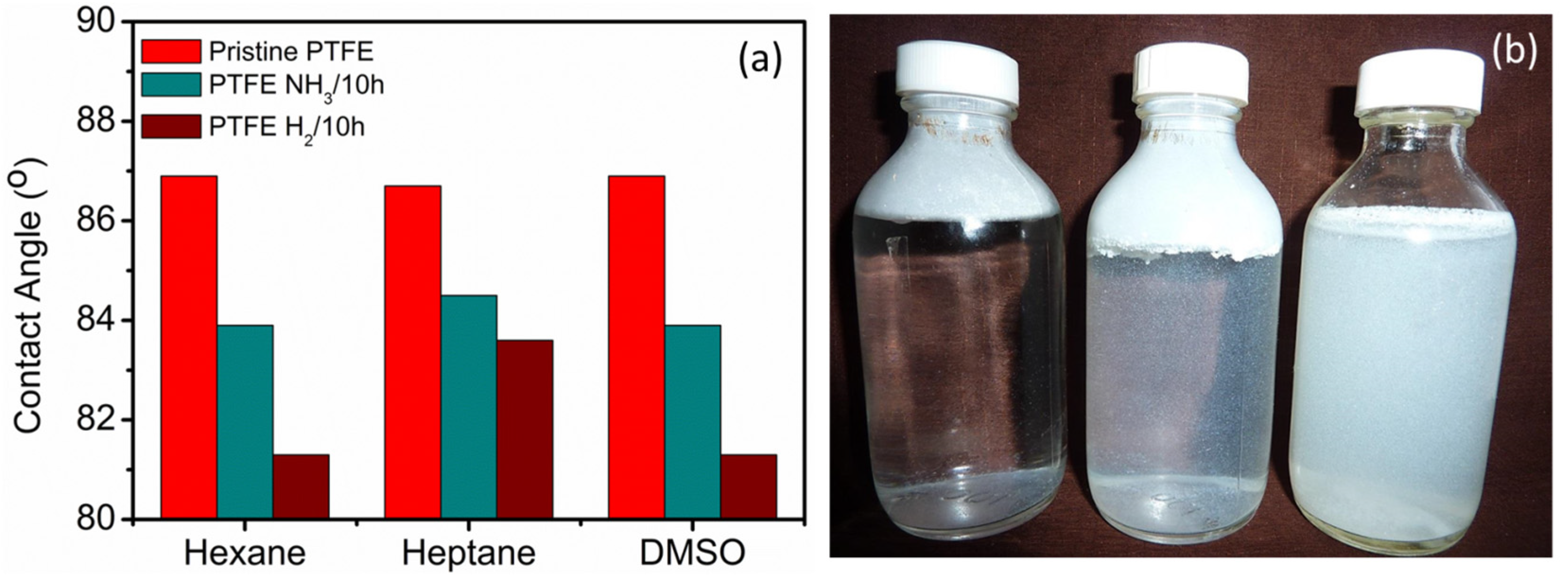

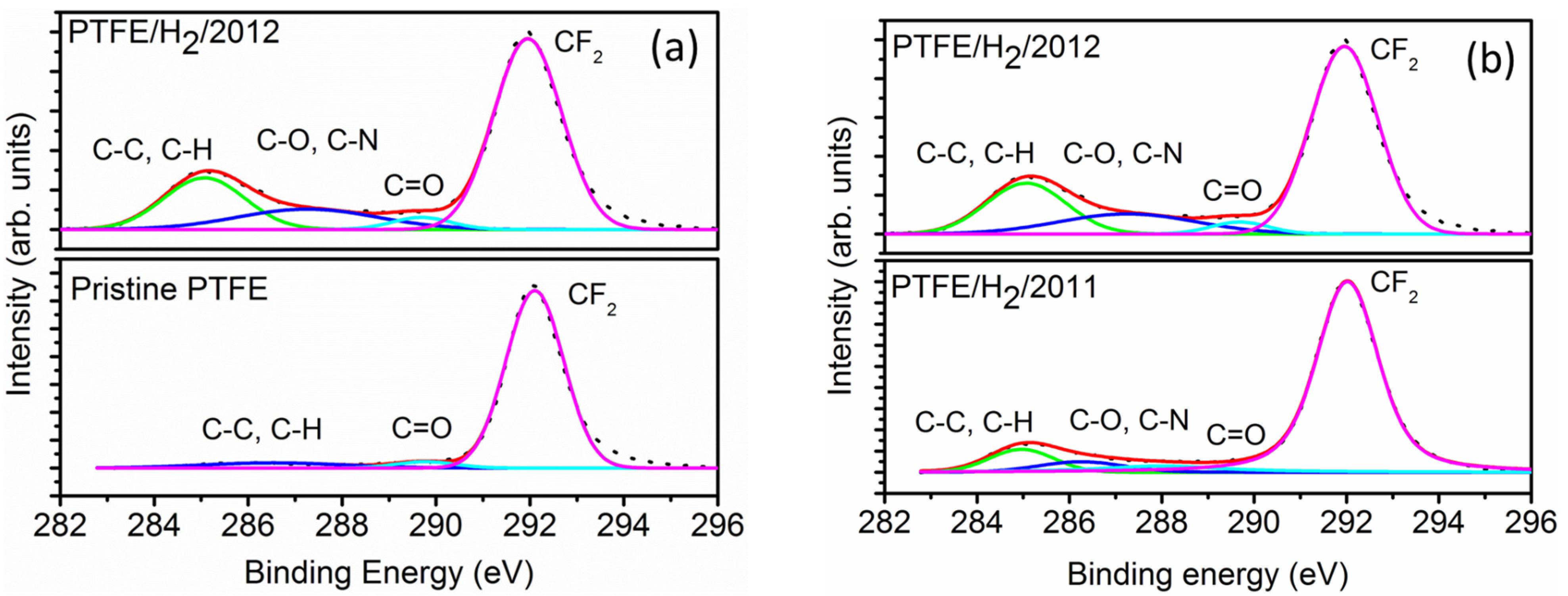

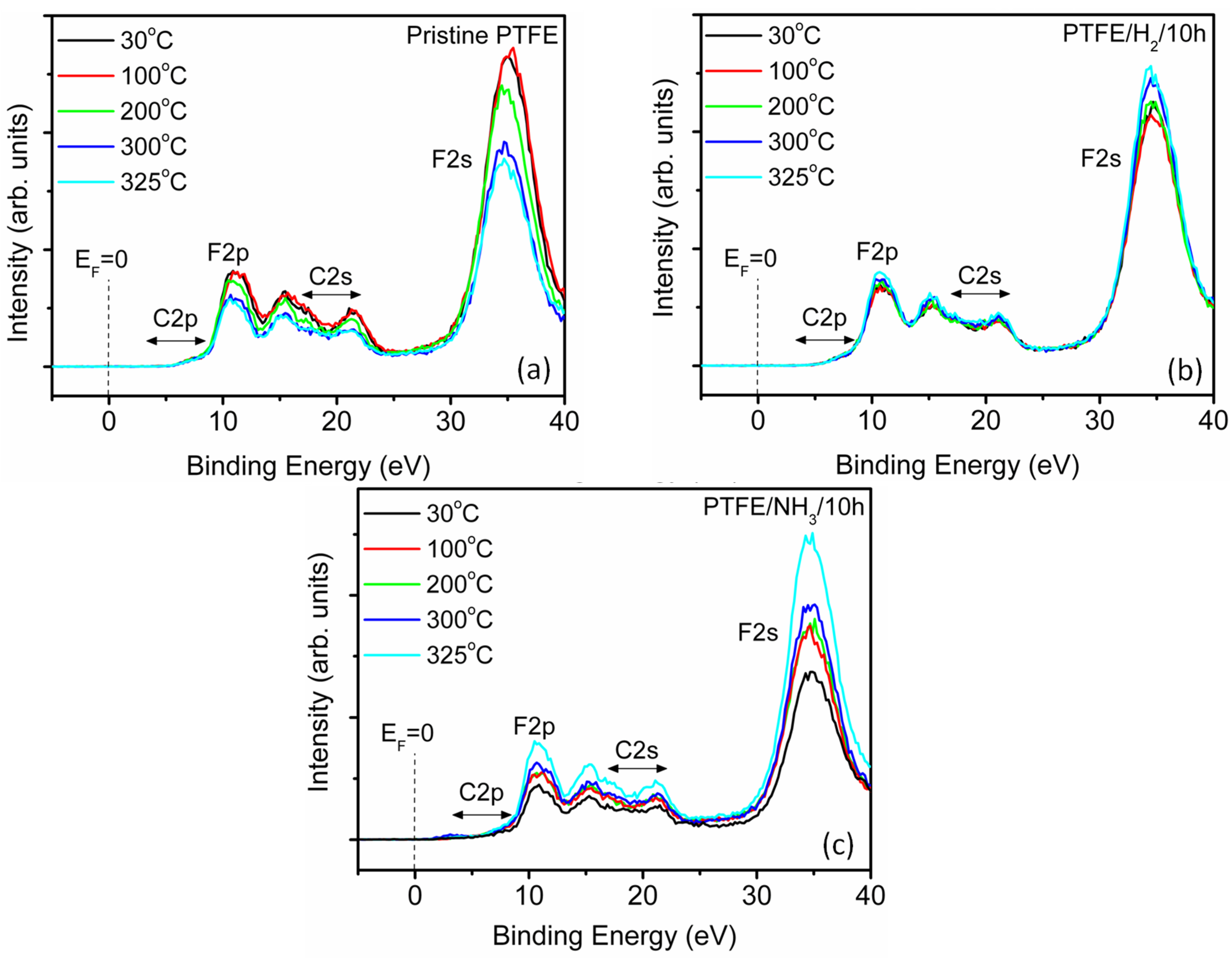

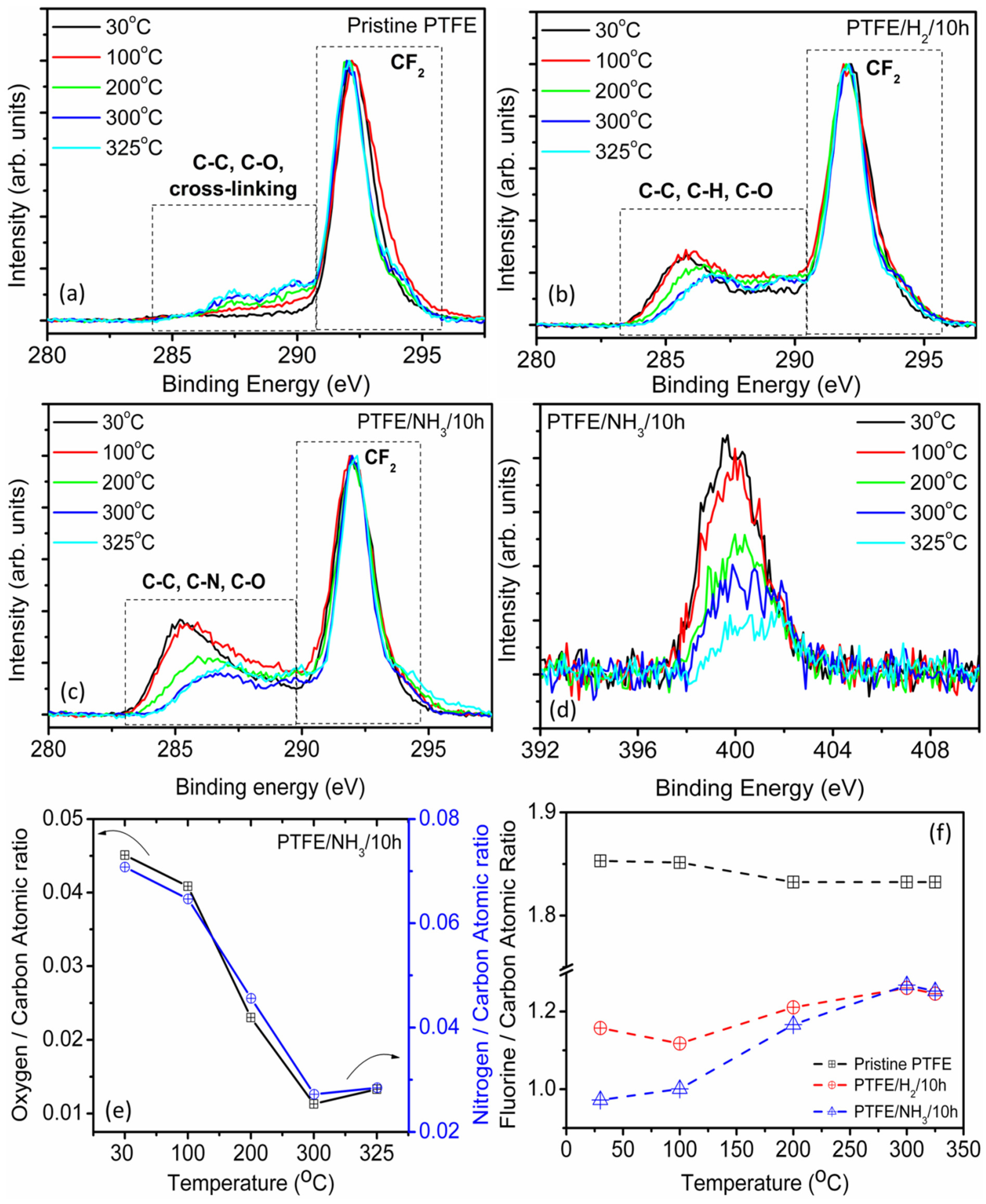

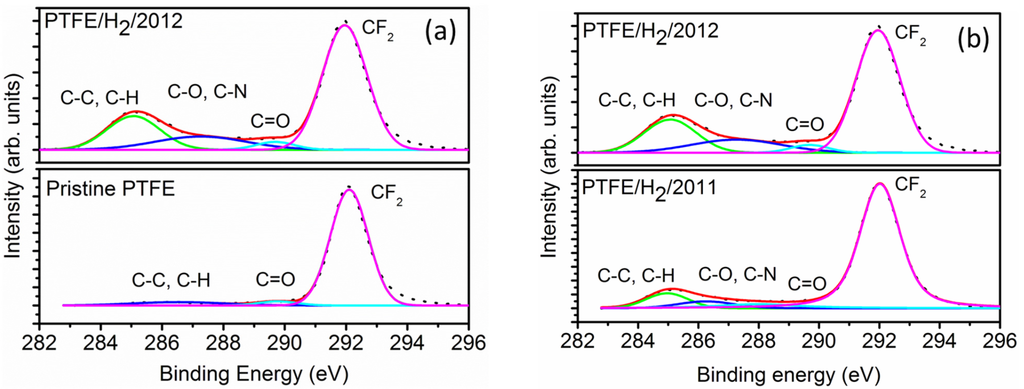

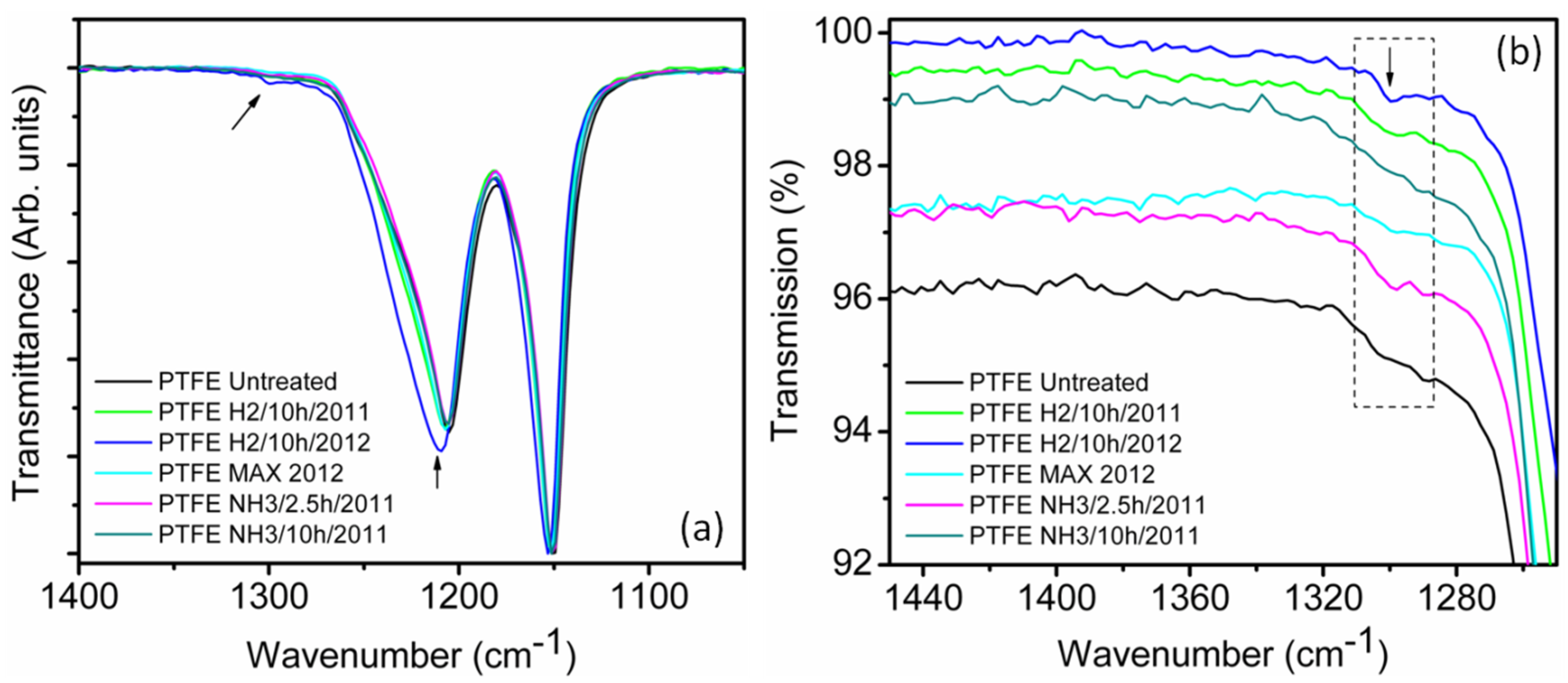

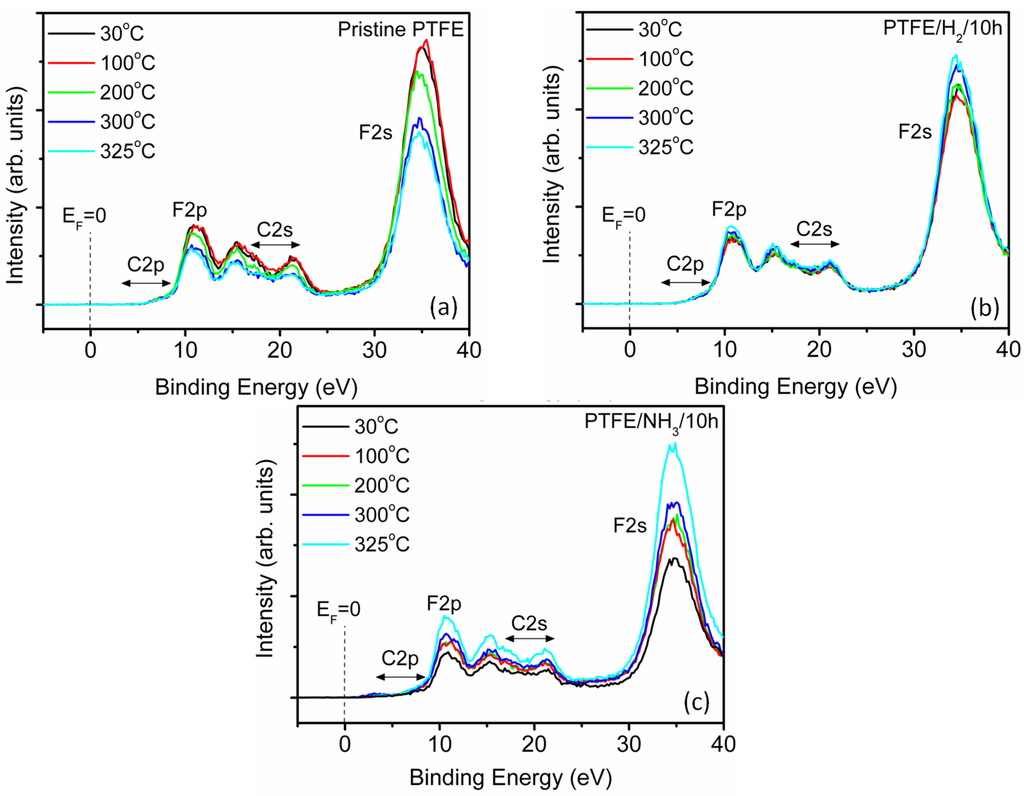

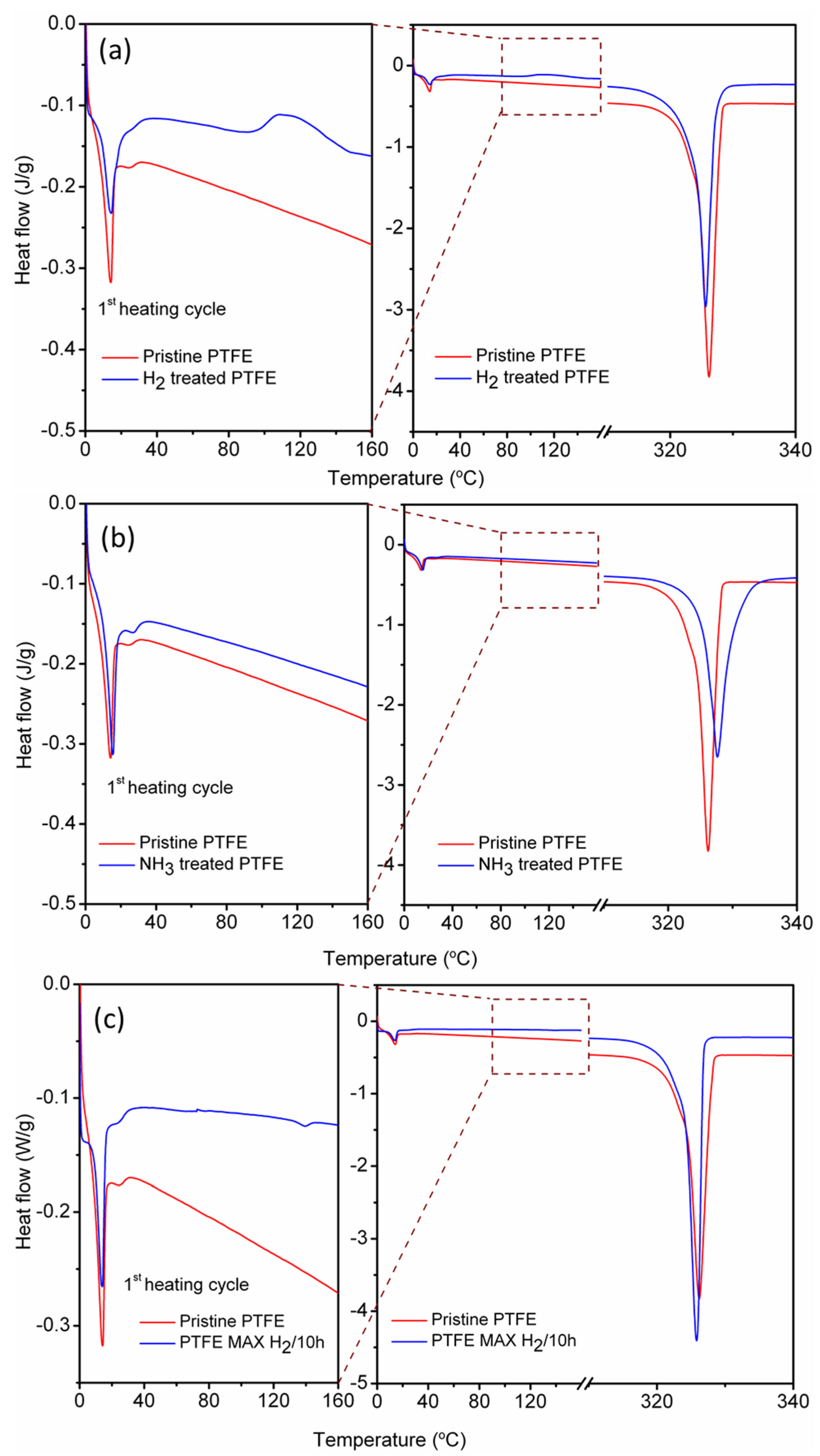

Functionalization of Polytetrafluoroethylene (PTFE) powders of ~6 μm particle size is carried out using low-pressure 2.45 GHz H2, NH3 microwave plasmas for various durations (2.5, 10 h) to chemically modify their surface and alter their surface energy. The X-ray Photoelectron Spectroscopy (XPS) analyses reveal that plasma treatment leads to significant defluorination (F/C atomic ratio of 1.13 and 1.30 for 10 h NH3 and H2 plasma treatments, respectively vs. 1.86 for pristine PTFE), along with the incorporation of functional polar moieties on the surface, resulting in enhanced wettability. Analysis of temperature dependent XPS revealed a loss of surface moieties above 200 °C, however, the functional groups are not completely removable even at higher temperatures (>300 °C), thus enabling the use of plasma treated PTFE powders as potential tribological fillers in high temperature engineering polymers. Ageing studies carried over a period of 12 months revealed that while the surface changes degenerate over time, again, they are not completely reversible. These functionalised PTFE powders can be further used for applications into smart, high performance materials such as tribological fillers for engineering polymers and bio-medical, bio-material applications. View Full-Text
Keywords: polytetrafluoroethylene (PTFE); low-pressure microwave plasma; ESCA/XPS; degeneration; thermal stability polytetrafluoroethylene (PTFE); low-pressure microwave plasma; ESCA/XPS; degeneration; thermal stability
Show Figures

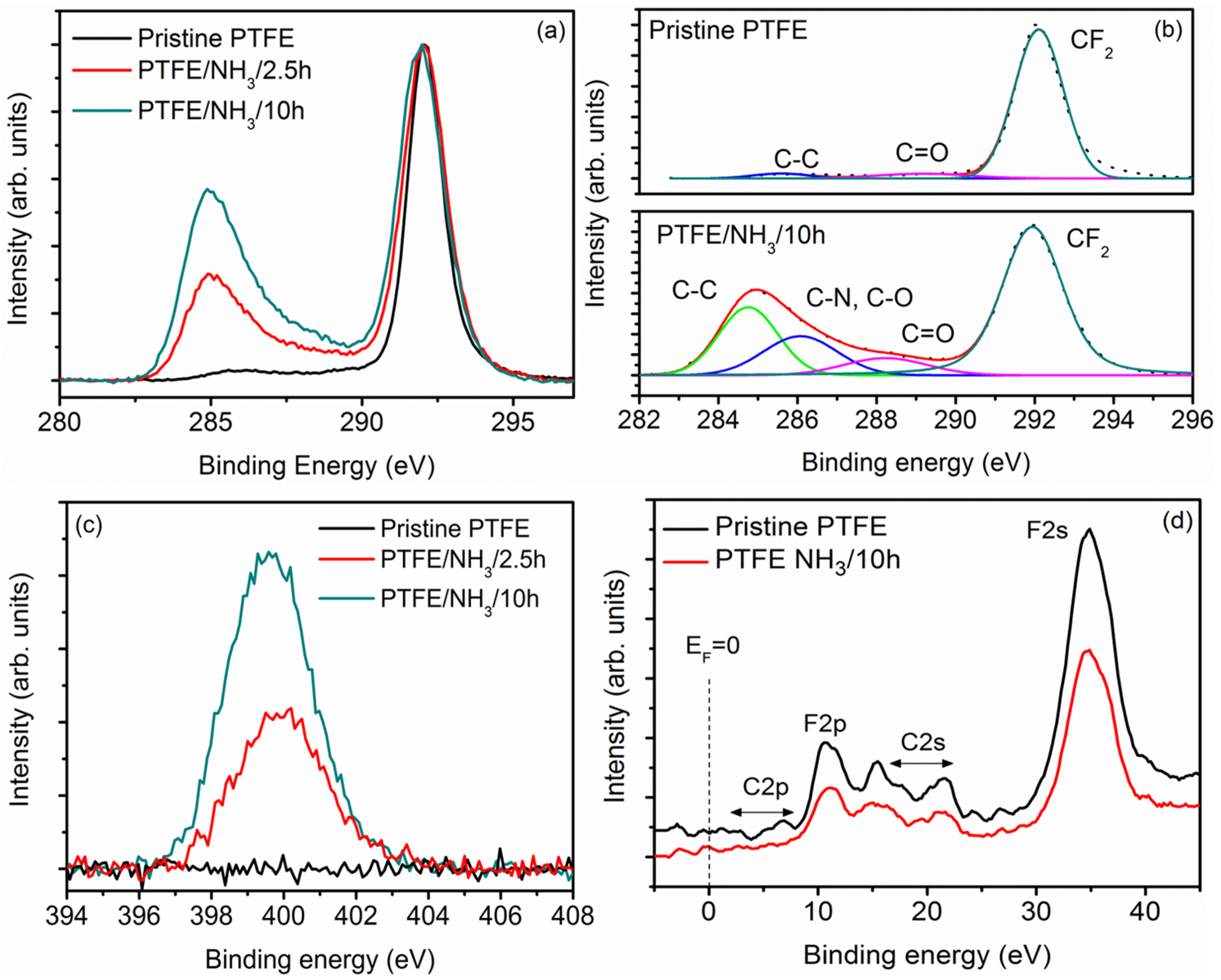

Figure 1

MDPI and ACS Style

Hunke, H.; Soin, N.; Shah, T.H.; Kramer, E.; Pascual, A.; Karuna, M.S.L.; Siores, E. Low-Pressure H2, NH3 Microwave Plasma Treatment of Polytetrafluoroethylene (PTFE) Powders: Chemical, Thermal and Wettability Analysis. Materials 2015, 8, 2258-2275.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
