Next Article in Journal
Property Relationship in Organosilanes and Nanotubes Filled Polypropylene Hybrid Composites
Previous Article in Journal
Effect of Isomorphous Substitution on the Thermal Decomposition Mechanism of Hydrotalcites
Open AccessArticle

Flux-Aided Synthesis of Lu2O3 and Lu2O3:Eu—Single Crystal Structure, Morphology Control and Radioluminescence Efficiency

1
Faculty of Chemistry, University of Wroclaw, 14. F. Joliot-Curie Street, 50-383 Wroclaw, Poland
2
Wroclaw Research Centre EIT+, 147 Stablowicka Street, 54-066 Wroclaw, Poland
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Materials 2014, 7(10), 7059-7072; https://doi.org/10.3390/ma7107059
Received: 21 July 2014 / Revised: 11 September 2014 / Accepted: 22 September 2014 / Published: 20 October 2014

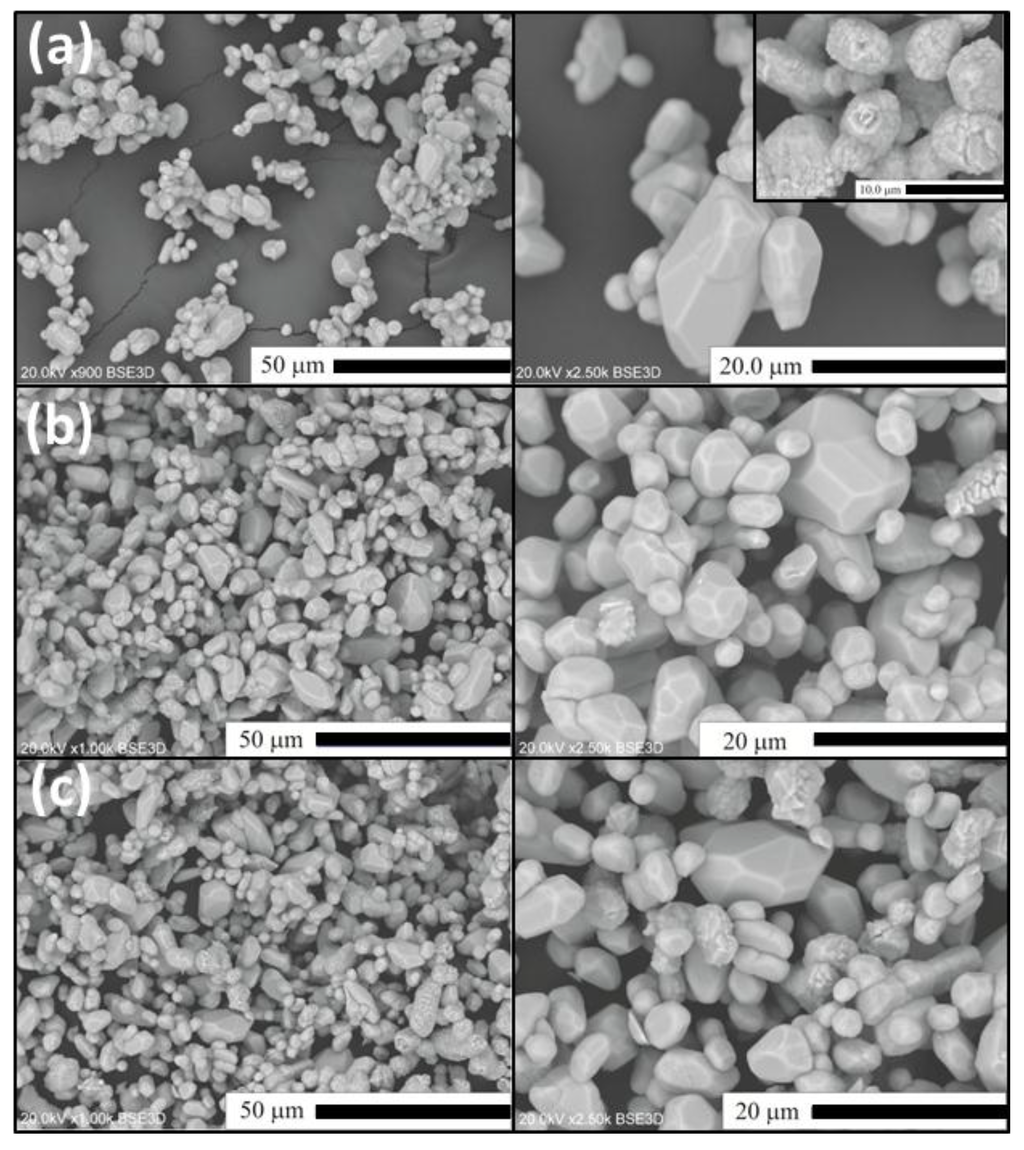

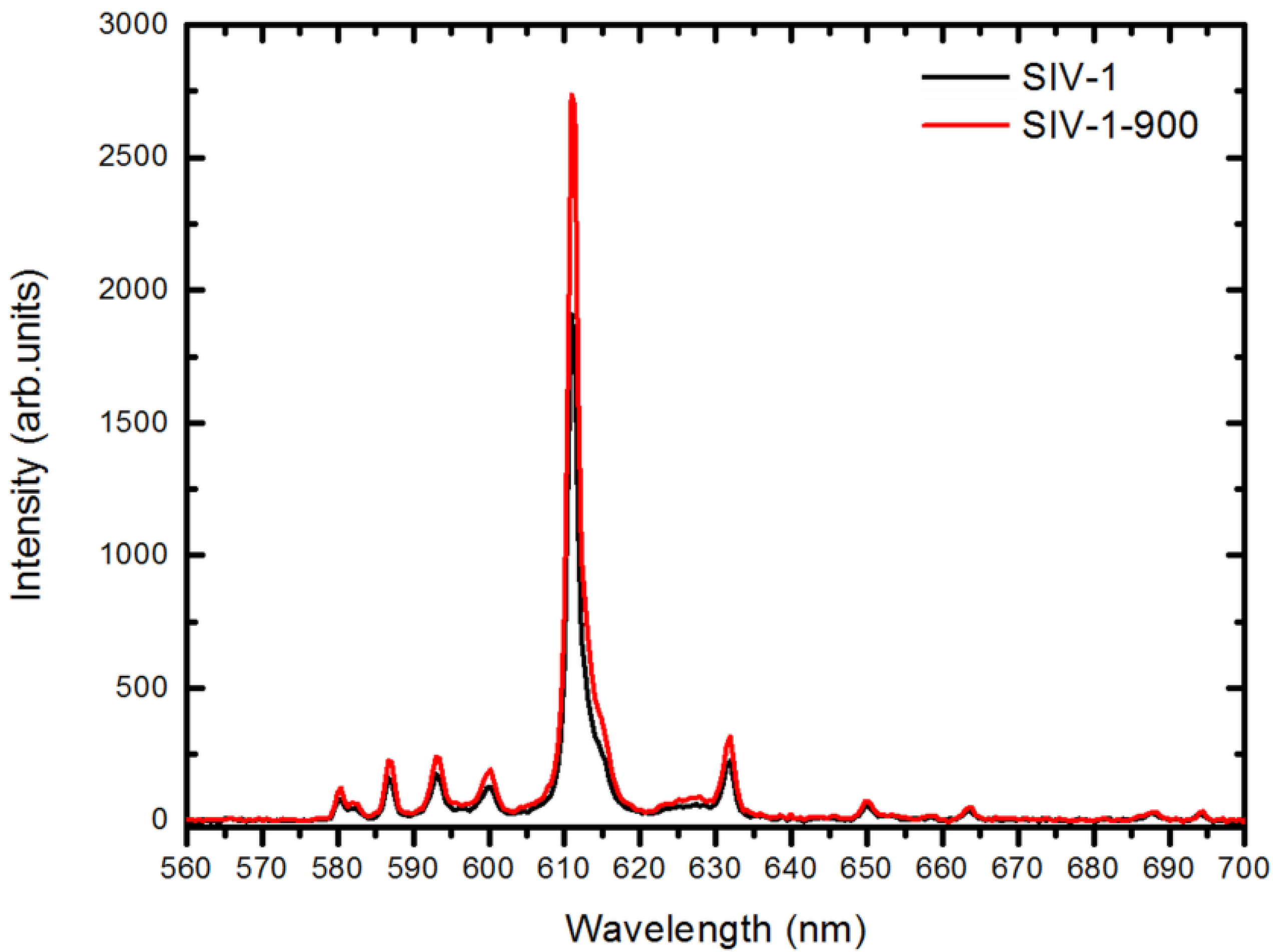

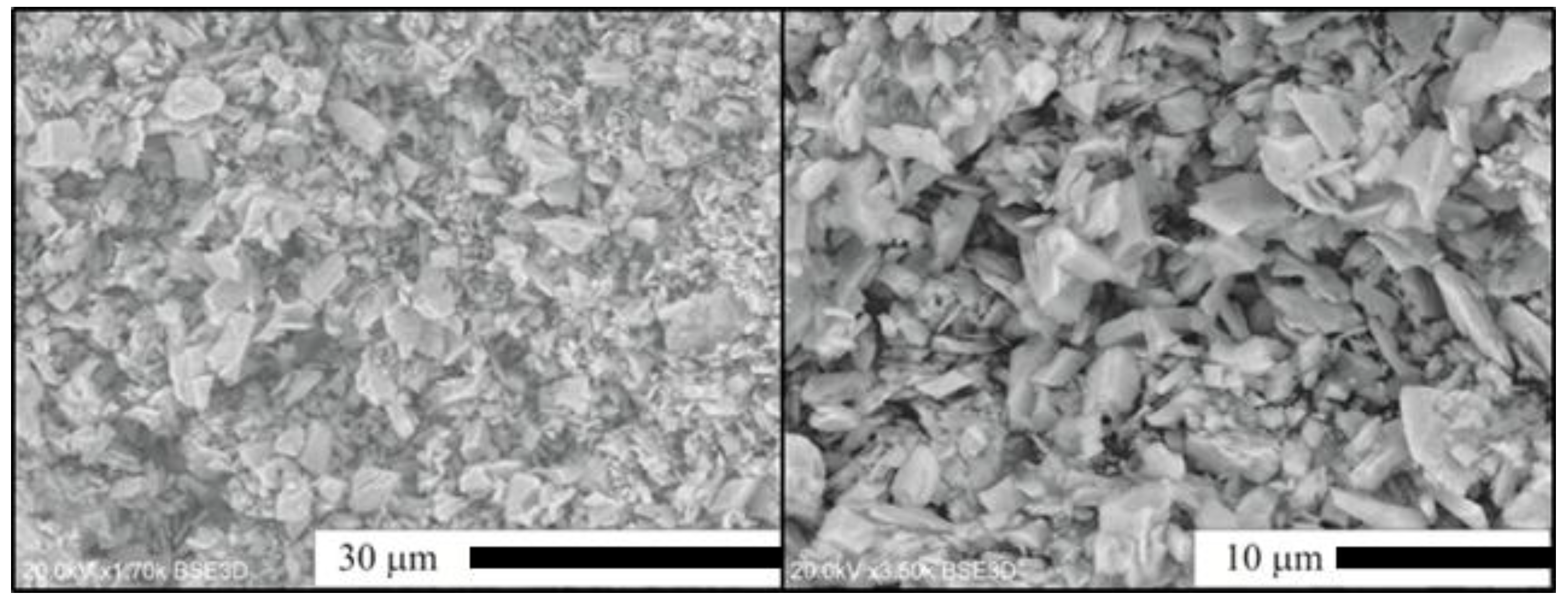

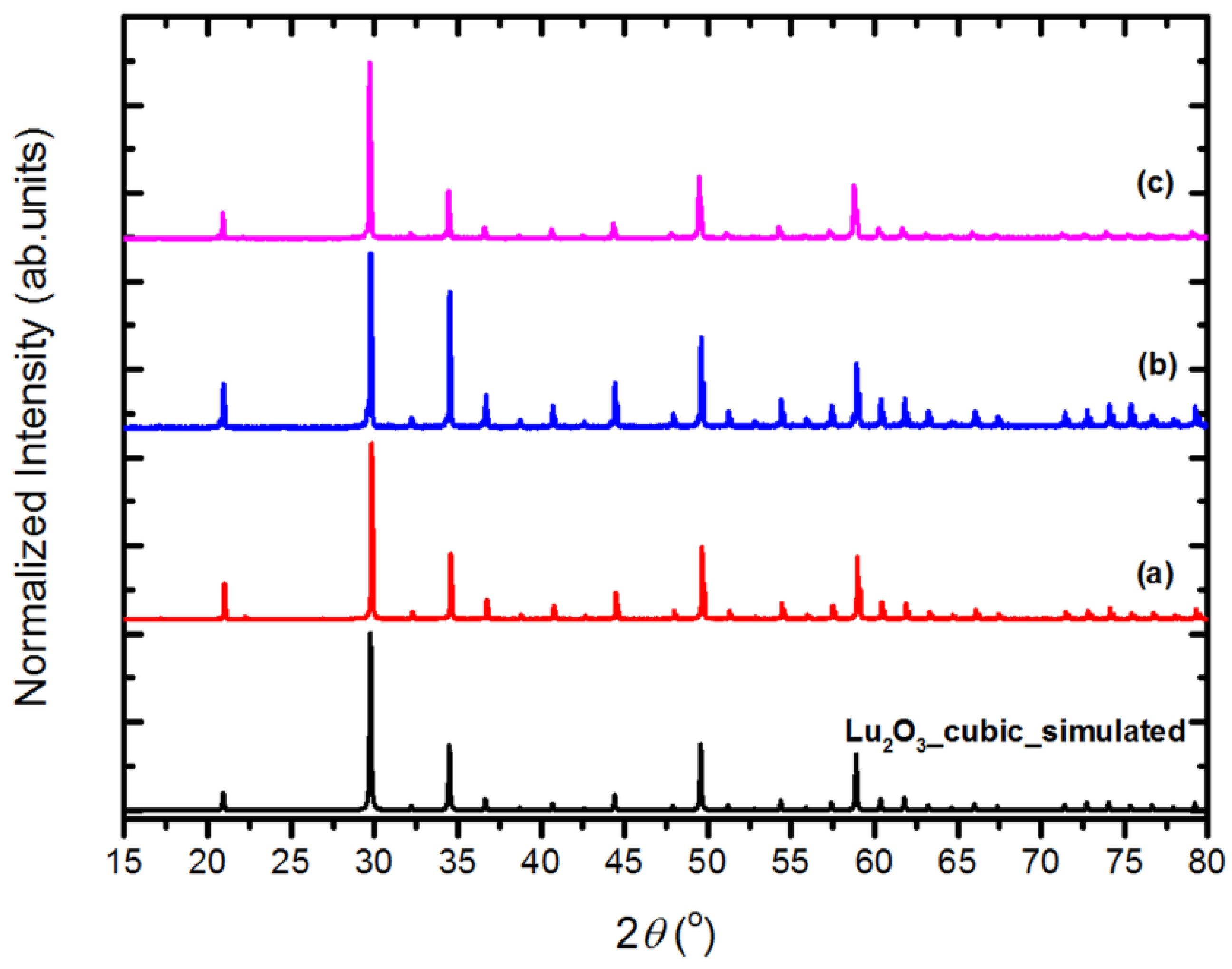

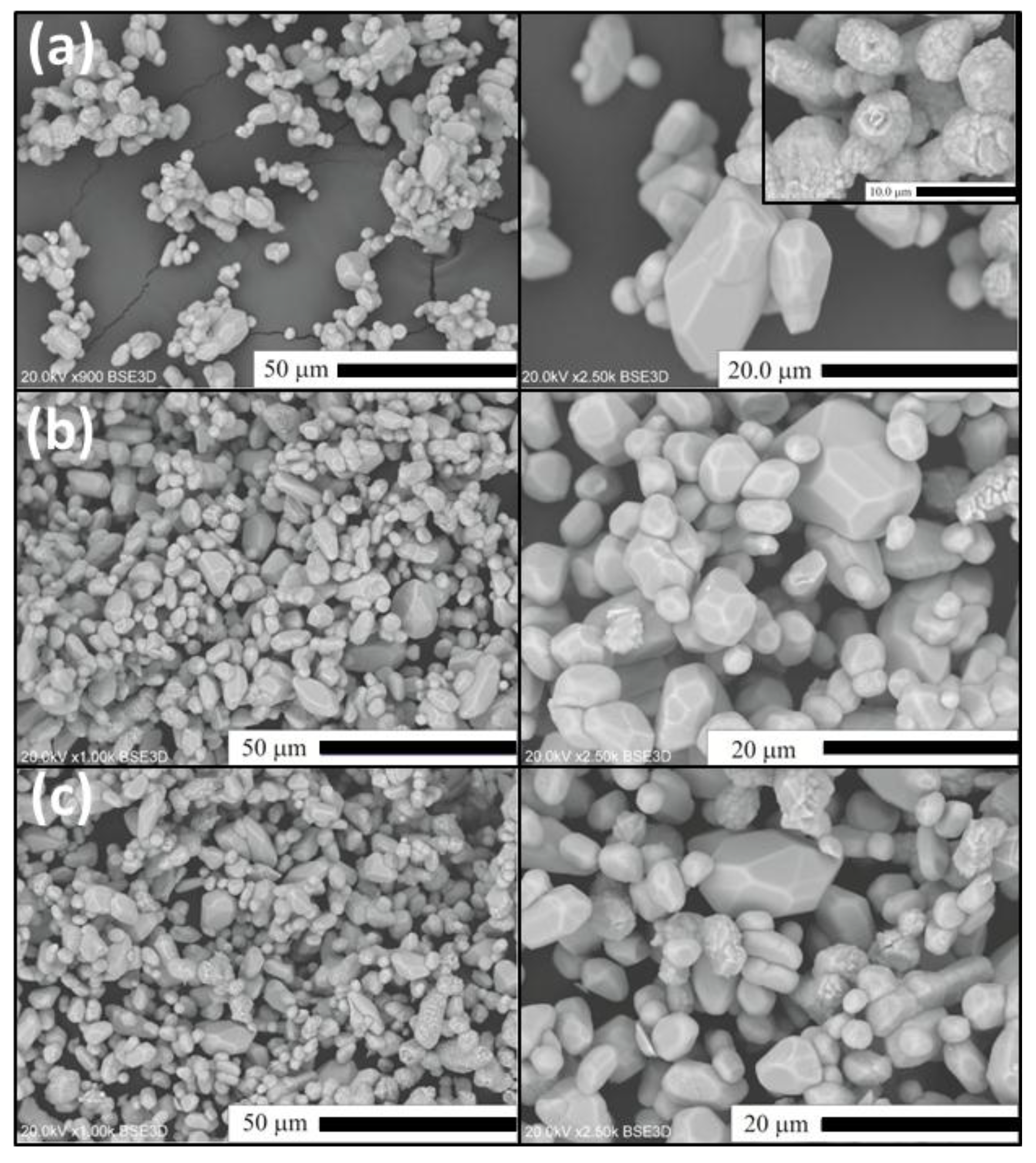

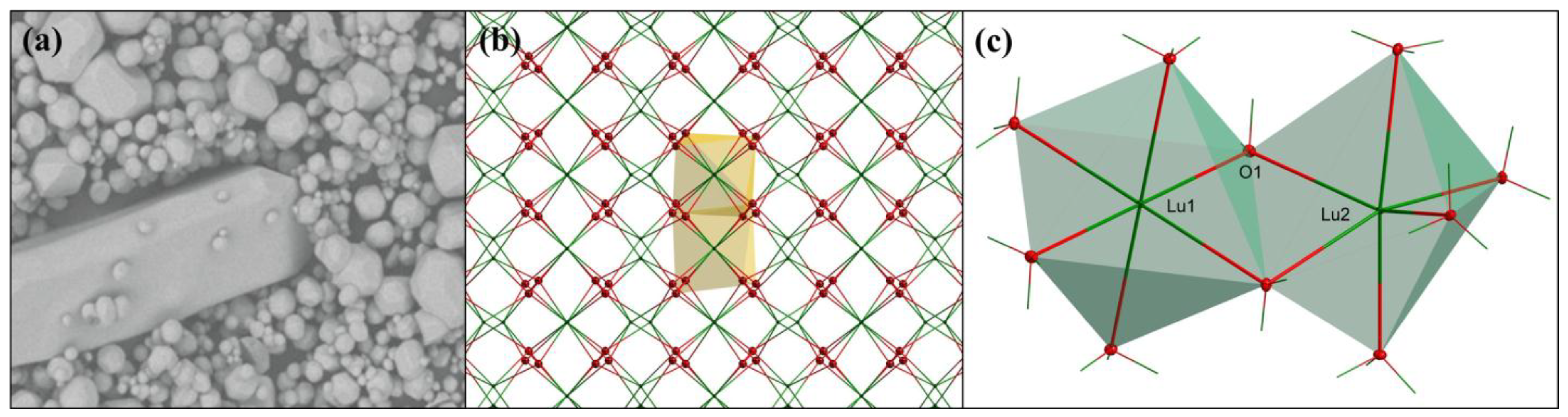

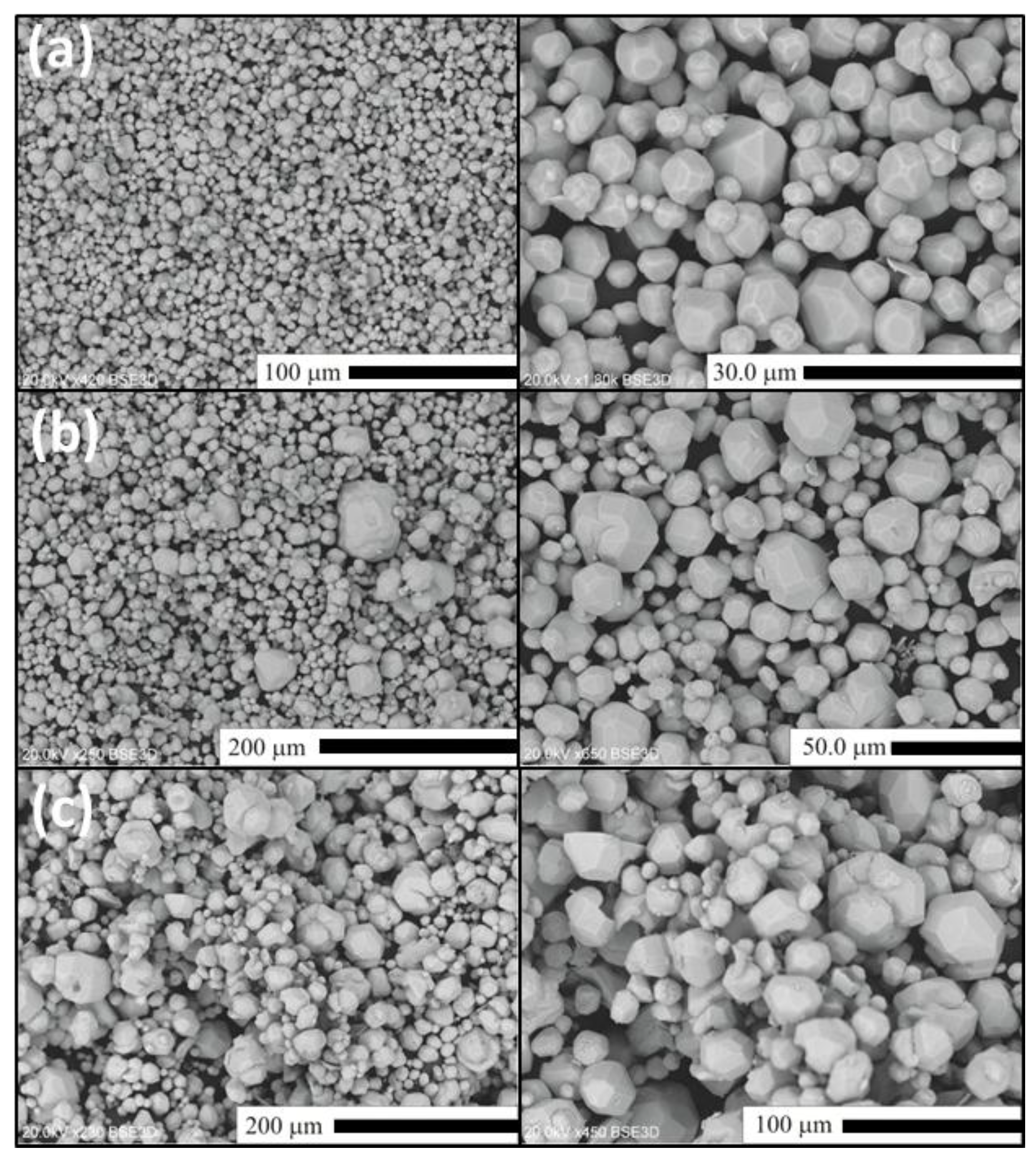

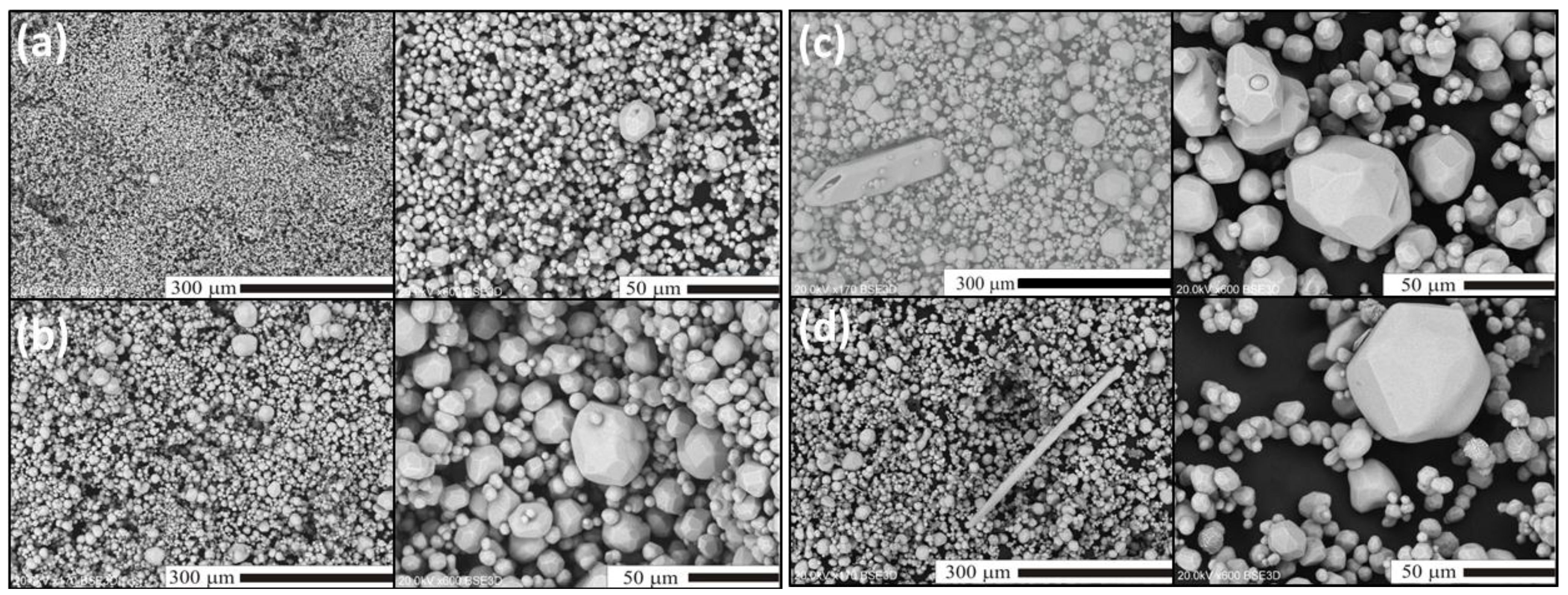

Li2SO4 or (Li2SO4 + SiO2)-mixture fluxes were used to prepare a Lu2O3:Eu powder phosphor as well as an undoped Lu2O3 utilizing commercial lutetia and europia as starting reagents. SEM images showed that the fabricated powders were non-agglomerated and the particles sizes varied from single microns to tens of micrometers depending largely on the flux composition rather than the oxide(s)-to-flux ratio. In the presence of SiO2 in the flux, certain grains grew up to 300–400 μm. The lack of agglomeration and the large sizes of crystallites allowed making single crystal structural measurements and analysis on an undoped Lu2O3 obtained by means of the flux technique. The cubic structure with a = 10.393(2) Å, and Ia space group at 298 K was determined. The most efficient radioluminescence of Lu2O3:Eu powders reached 95%–105% of the commercial Gd2O2S:Eu. View Full-Text
Keywords: lutetium oxide; flux synthesis; single crystal structure; radioluminescence lutetium oxide; flux synthesis; single crystal structure; radioluminescence

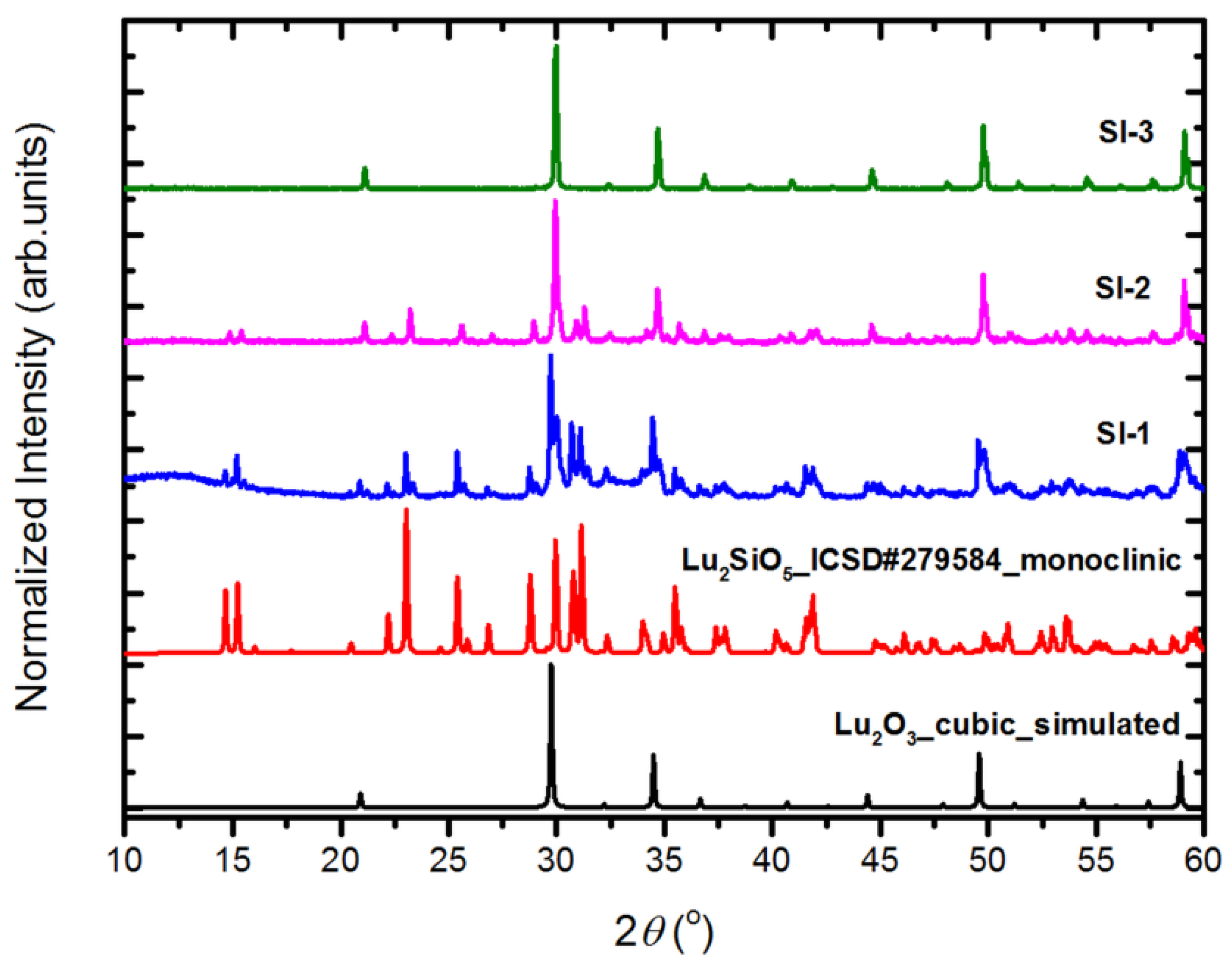

Show Figures

Graphical abstract

MDPI and ACS Style

Zeler, J.; Jerzykiewicz, L.B.; Zych, E. Flux-Aided Synthesis of Lu2O3 and Lu2O3:Eu—Single Crystal Structure, Morphology Control and Radioluminescence Efficiency. Materials 2014, 7, 7059-7072.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
