Effect of Annealing Temperature on the Photoluminescence Blue Shift of Nitrogen-Doped Graphene Quantum Dots

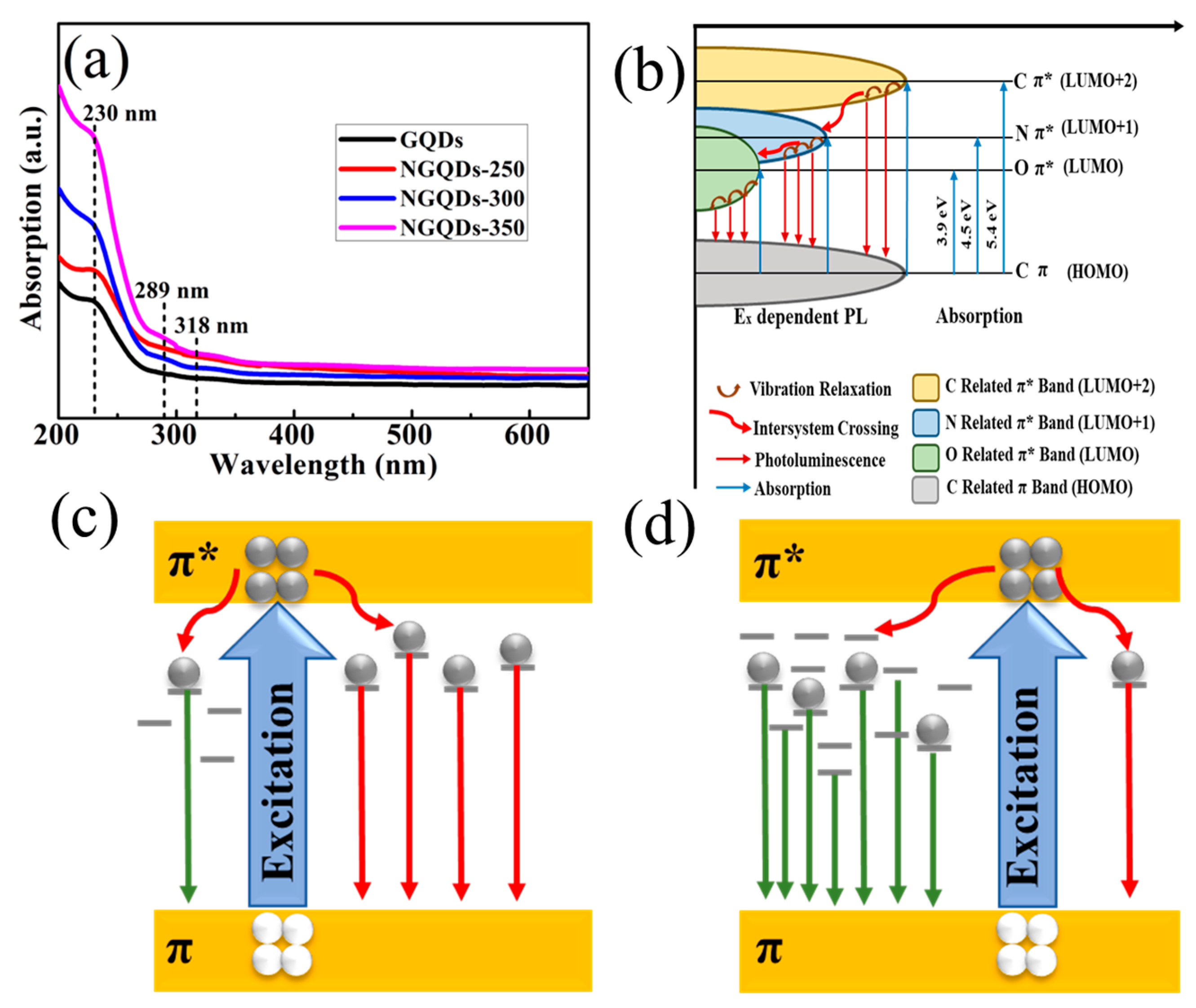

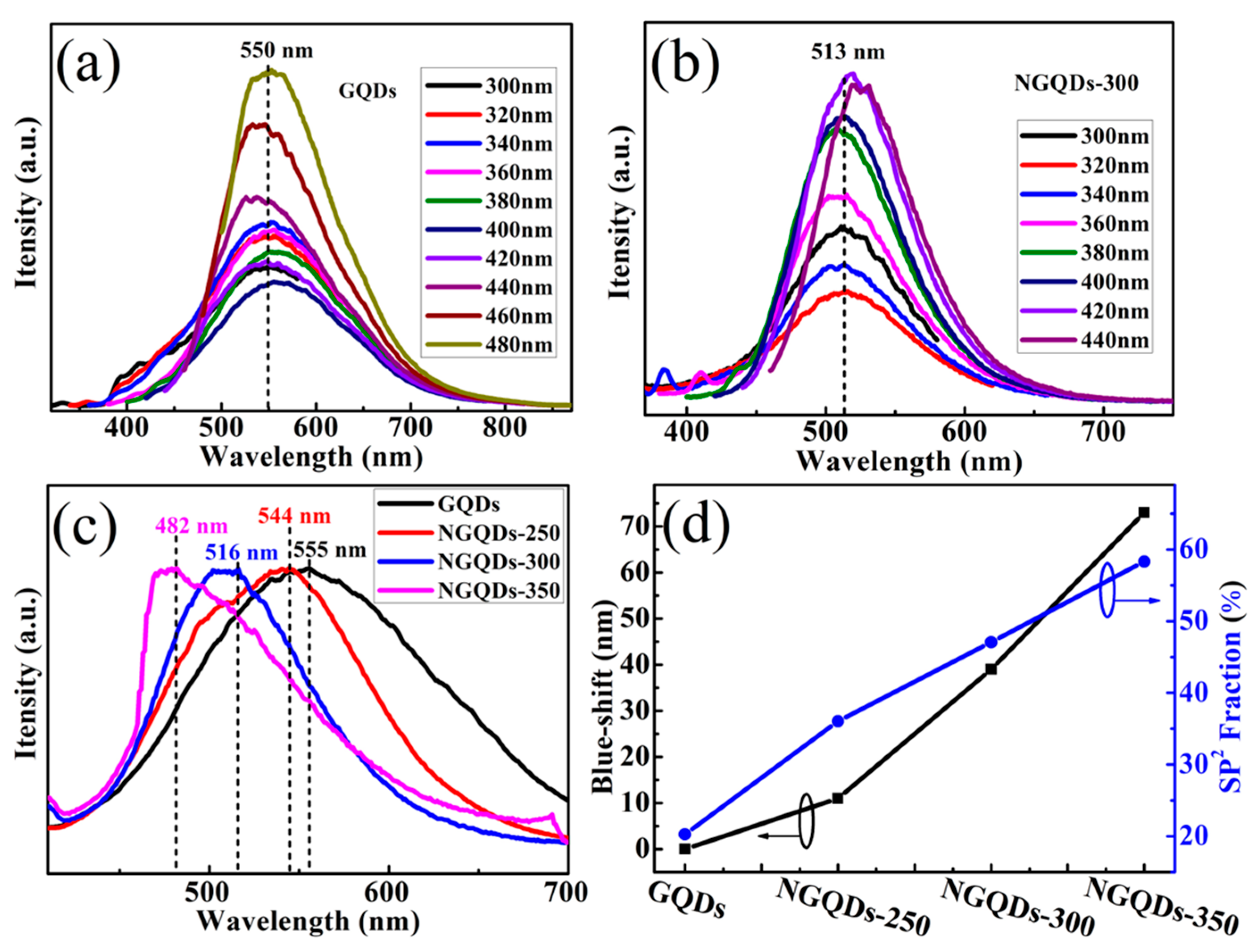

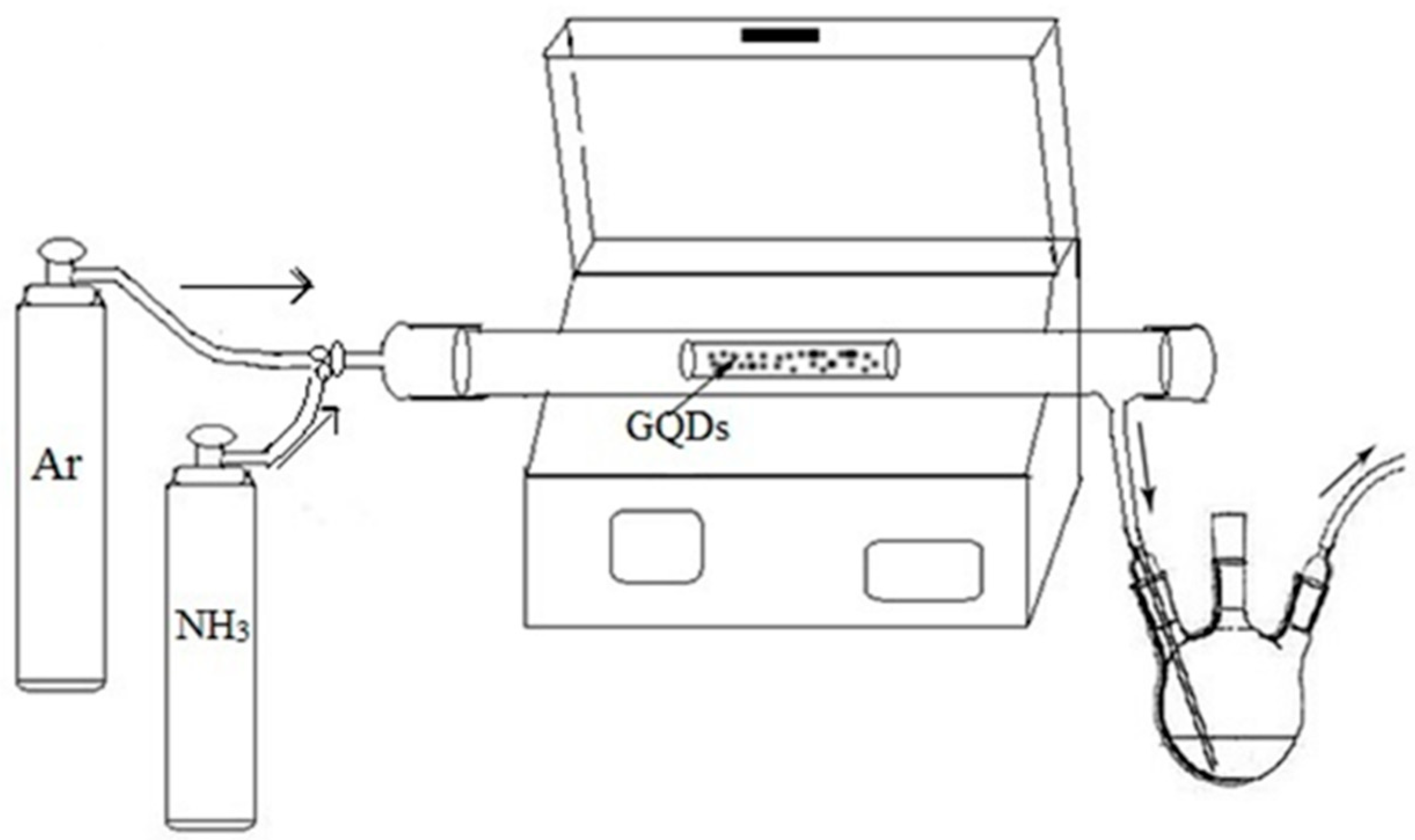

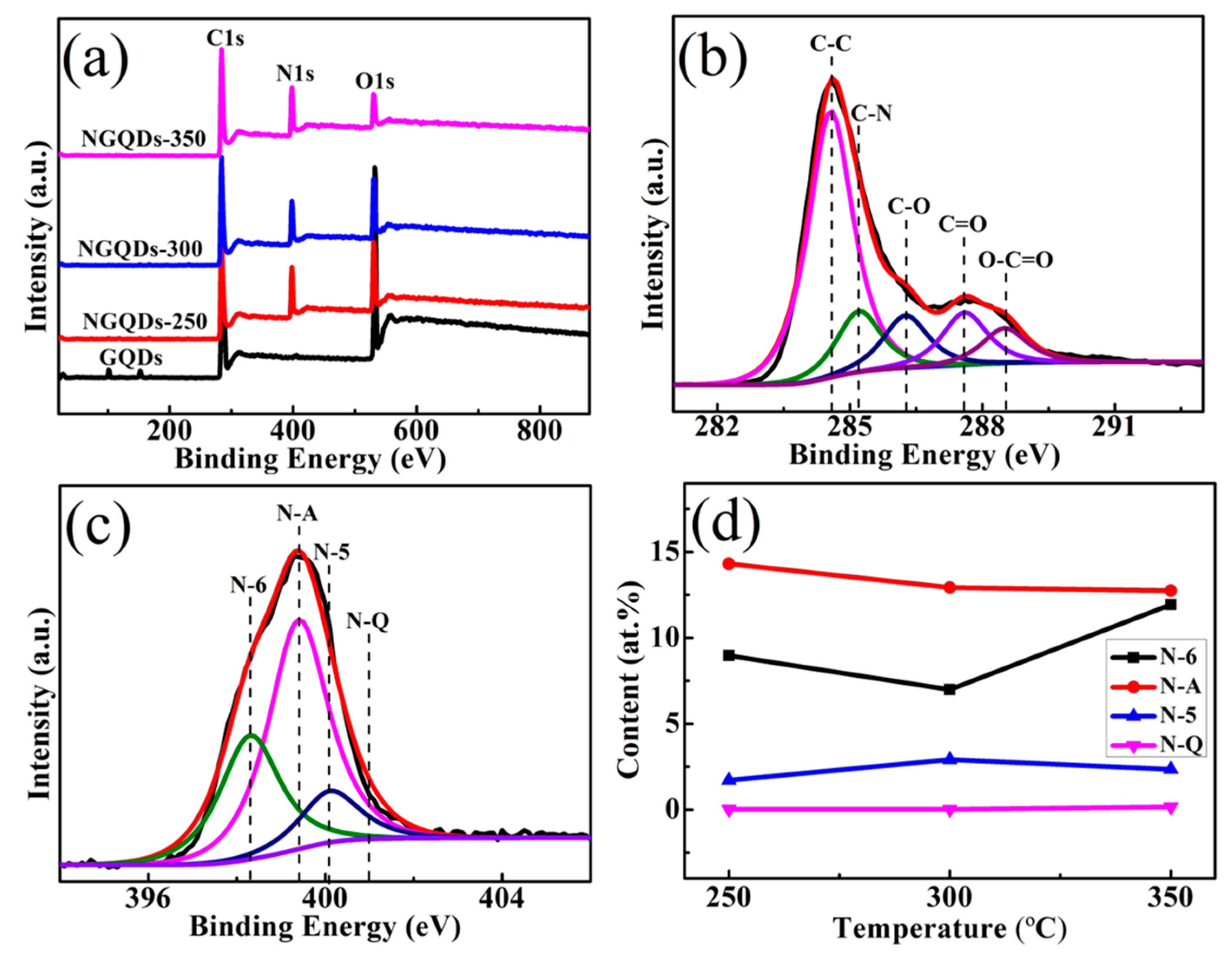

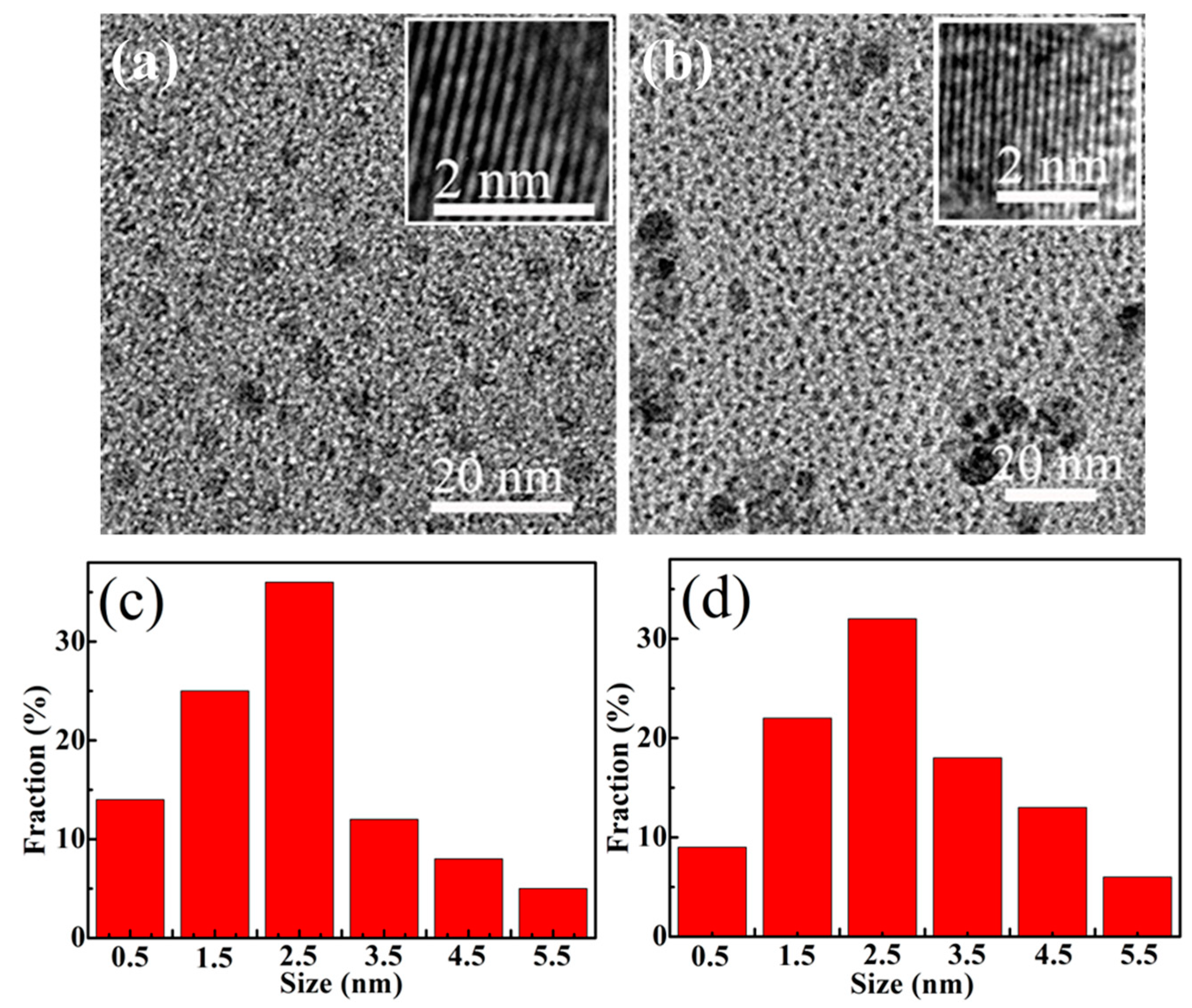

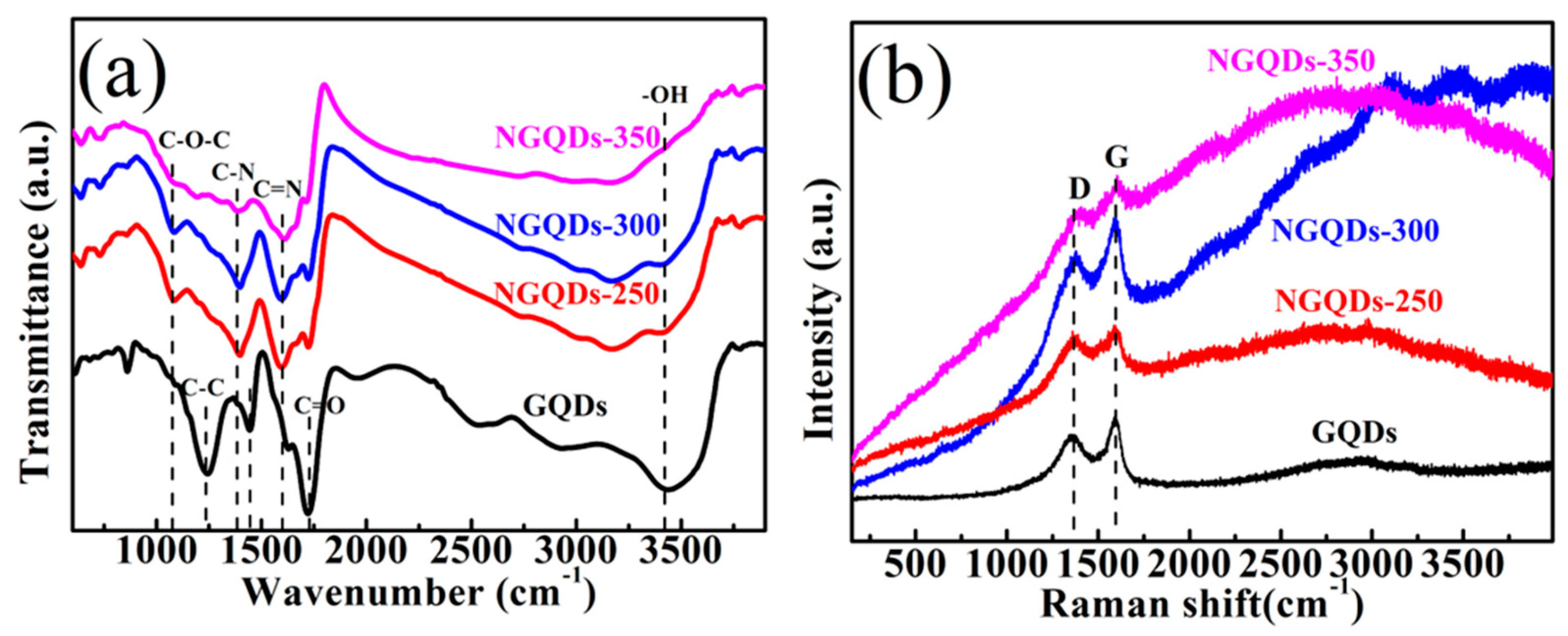

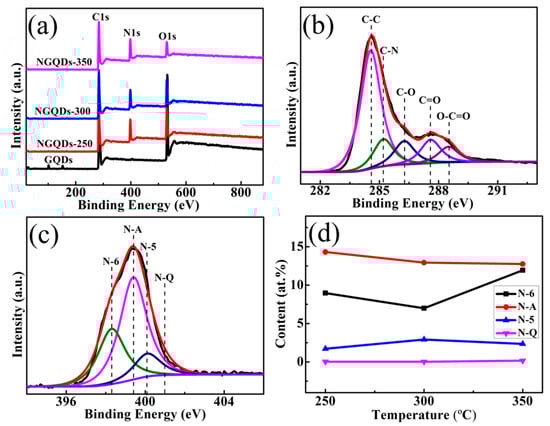

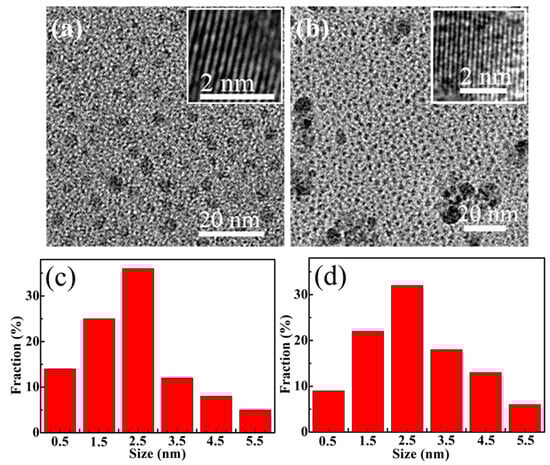

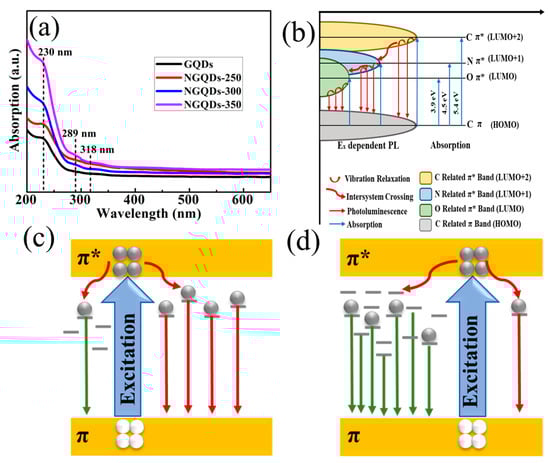

Nitrogen-doped graphene quantum dots (NGQDs) are made by heating a mixture of GQDs and ammonia using a thermochemical method. The optical properties of the samples were studied. Here, the role of the temperature used in the annealing process is investigated. It is found that with the increase in heating temperature, the sp² fraction content continuously increases, and the photoluminescence (PL) blue shift continuously increases. The 550 nm peak of GQDs shifts from 550 nm to 513 nm NGQDs synthesized at 300 °C. The normalized PL intensity shows a significant blue shift in the emission peak of the NGQD samples compared to the GQDs. The peak position of the GQDs is 555 nm, while the peak positions of the NGQDs are 511 nm for NGQDs-250, 488 nm for NGQDs-300, and 480 nm for NGQDs-350. Using a simple thermochemical method, we can effectively dope N into GQDs, and it is evident from the electron energy loss spectra that N doping induces the emergence of a new energy level in the electronic structure, which alters the optical properties of NGQDs.
