# GAM: General Auxetic Metamaterial with Tunable 3D Auxetic Behavior Using the Same Unit Cell Boundary Connectivity

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Description of the Unit Cell

## 3. Examples of Simple Implementations of the Metamaterial

#### 3.1. Shell Generation with Layers of This Metamaterial

#### 3.2. Numerical Testing of the Metamaterial

#### 3.3. Determination of the Mechanical Properties through Inverse Analysis with a Simple ML Model

- Inputs. Geometrical parameters: H, ${H}_{star}$, ${D}_{star}$, ${D}_{joint}$.
- Outputs. Mechanical properties: ${E}_{z}$, ${\nu}_{t}$

`scikit-learn`library from the Python programming language [56]. As a loss function for this model, the mean squared error (MSE) was used, which, denoting the label (output) as y, is expressed as:

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A. Structural Matrix Calculus Model and Equivalent Young’s Modulus and Poisson’s Ratio Calculation

**f**

_{r}at the top face by the cross-sectional area perpendicular to the loading application, the stress ${\sigma}_{zz}$ can be estimated, and therefore the Young’s modulus can be computed as

**Table A1.**Comparison of macroscale variable results between Nastran and the GAM code (code used for the ML examples).

${\mathit{\nu}}_{\mathbf{xz}}$ | ${\mathit{\nu}}_{\mathbf{yz}}$ | ${\mathit{E}}_{\mathit{z}}$ [MPa] | |
---|---|---|---|

Nastran | $-0.84$ | $-0.73$ | 174 |

GAM code | $-0.85$ | $-0.65$ | 186 |

## References

- Kock, W. Metal lens antennas. Proc. IRE
**1946**, 34, 828–836. [Google Scholar] [CrossRef] - Kumar, R.; Kumar, M.; Chohan, J.S.; Kumar, S. Overview on metamaterial: History, types and applications. Mater. Today Proc.
**2022**, 56, 3016–3024. [Google Scholar] [CrossRef] - Jandyal, A.; Chaturvedi, I.; Wazir, I.; Raina, A.; Ul Haq, M.I. 3D printing—A review of processes, materials and applications in industry 4.0. Sustain. Oper. Comput.
**2022**, 3, 33–42. [Google Scholar] [CrossRef] - Kang, J.W.; Ma, Q.X. The role and impact of 3D printing technologies in casting. China Foundry
**2017**, 14, 157–168. [Google Scholar] [CrossRef] [Green Version] - Buchanan, C.; Gardner, L. Metal 3D printing in construction: A review of methods, research, applications, opportunities and challenges. Eng. Struct.
**2019**, 180, 332–348. [Google Scholar] [CrossRef] - Low, Z.X.; Chua, Y.T.; Ray, B.M.; Mattia, D.; Metcalfe, I.S.; Patterson, D.A. Perspective on 3D printing of separation membranes and comparison to related unconventional fabrication techniques. J. Membr. Sci.
**2017**, 523, 596–613. [Google Scholar] [CrossRef] [Green Version] - Berman, B. 3-D printing: The new industrial revolution. Bus. Horizons
**2012**, 55, 155–162. [Google Scholar] [CrossRef] - Fortune Business Insights. 3D Printing Market Size, Share & COVID-19 Impact Analysism By Components, By Technology, By Application, By End-User, and Regional Forecast, 2022–2029. Available online: https://www.fortunebusinessinsights.com/industry-reports/3d-printing-market-101902 (accessed on 15 April 2023).
- Zhou, Y.; Li, Y.; Jiang, D.; Chen, Y.; Xie, Y.M.; Jia, L.J. In-plane impact behavior of 3D-printed auxetic stainless honeycombs. Eng. Struct.
**2022**, 266, 114656. [Google Scholar] [CrossRef] - Mao, J.J.; Wang, S.; Tan, W.; Liu, M. Modular multistable metamaterials with reprogrammable mechanical properties. Eng. Struct.
**2022**, 272, 114976. [Google Scholar] [CrossRef] - Meza, L.R.; Zelhofer, A.J.; Clarke, N.; Mateos, A.J.; Kochmann, D.M.; Greer, J.R. Resilient 3D hierarchical architected metamaterials. Proc. Natl. Acad. Sci. USA
**2015**, 112, 11502–11507. [Google Scholar] [CrossRef] [Green Version] - Bishop-Moser, J.; Spadaccini, C.; Andres, C. Metamaterials Manufacturing: Pathway to Industrial Competitiveness. Technical Report. 2018. Available online: http://mforesight.org/projects-events/metamaterials/ (accessed on 16 April 2023).
- Bertoldi, K.; Vitelli, V.; Christensen, J.; Van Hecke, M. Flexible mechanical metamaterials. Nat. Rev. Mater.
**2017**, 2, 17066. [Google Scholar] [CrossRef] [Green Version] - Barchiesi, E.; Spagnuolo, M.; Placidi, L. Mechanical metamaterials: A state of the art. Math. Mech. Solids
**2019**, 24, 212–234. [Google Scholar] [CrossRef] - Evans, K.E. Auxetic polymers: A new range of materials. Endeavour
**1991**, 15, 170–174. [Google Scholar] [CrossRef] - Love, A.E.H. A treatise on the Mathematical Theory of Elasticity; University Press: Cambridge, UK, 1927. [Google Scholar]
- Almgren, R.F. An isotropic three-dimensional structure with Poisson’s ratio = −1. J. Elast
**1985**, 15, 427–430. [Google Scholar] - Wojciechowski, K.W. Two-dimensional isotropic system with a negative Poisson ratio. Phys. Lett. A
**1989**, 137, 60–64. [Google Scholar] [CrossRef] - Grima, J.N.; Winczewski, S.; Mizzi, L.; Grech, M.C.; Cauchi, R.; Gatt, R.; Attard, D.; Wojciechowski, K.W.; Rybicki, J. Tailoring graphene to achieve negative Poisson’s ratio properties. Adv. Mater.
**2015**, 27, 1455–1459. [Google Scholar] [CrossRef] - Ting, T.; Barnett, D. Negative Poisson’s Ratios in Anisotropic Linear Elastic Media. J. Appl. Mech.
**2005**, 72, 929–931. [Google Scholar] [CrossRef] - Brańka, A.C.; Heyes, D.M.; Wojciechowski, K.W. Auxeticity of cubic materials. Phys. Status Solidi B
**2009**, 246, 2063–2071. [Google Scholar] [CrossRef] - Evans, K.E.; Alderson, A. Auxetic materials: Functional materials and structures from lateral thinking! Adv. Mater.
**2000**, 12, 617–628. [Google Scholar] [CrossRef] - Kolken, H.M.; Zadpoor, A. Auxetic mechanical metamaterials. RSC Adv.
**2017**, 7, 5111–5129. [Google Scholar] [CrossRef] [Green Version] - Lakes, R. Composites and Metamaterials; World Scientific: Singapore, 2020. [Google Scholar]
- Lim, T.C. Mechanics of Metamaterials with Negative Parameters; Springer Nature: Singapore, 2020. [Google Scholar]
- Zhu, Y.; Luo, Y.; Gao, D.; Yu, C.; Ren, X.; Zhang, C. In-plane elastic properties of a novel re-entrant auxetic honeycomb with zigzag inclined ligaments. Eng. Struct.
**2022**, 268, 114788. [Google Scholar] [CrossRef] - Huang, T.T.; Ren, X.; Zeng, Y.; Zhang, Y.; Luo, C.; Zhang, X.Y.; Xie, Y.M. Based on auxetic foam: A novel type of seismic metamaterial for Lamb waves. Eng. Struct.
**2021**, 246, 112976. [Google Scholar] [CrossRef] - Hao, J.; Han, D.; Zhang, X.G.; Zhang, Y.; Jiang, W.; Teng, X.C.; Lang, J.P.; Pan, Y.; Ni, X.H.; Zhang, X.Y.; et al. Novel dual-platform lightweight metamaterials with auxeticity. Eng. Struct.
**2022**, 270, 114891. [Google Scholar] [CrossRef] - Mizzi, L.; Mahdi, E.; Titov, K.; Gatt, R.; Attard, D.; Evans, K.E.; Grima, J.N.; Tan, J.C. Mechanical metamaterials with star-shaped pores exhibiting negative and zero Poisson’s ratio. Mater. Des.
**2018**, 146, 28–37. [Google Scholar] [CrossRef] - Zheng, X.; Guo, X.; Watanabe, I. A mathematically defined 3D auxetic metamaterial with tunable mechanical and conduction properties. Mater. Des.
**2021**, 198, 109313. [Google Scholar] [CrossRef] - Lakes, R. Foam structures with a negative Poisson’s ratio. Science
**1987**, 235, 1038–1040. [Google Scholar] [CrossRef] - Crespo, J.; Duncan, O.; Alderson, A.; Montáns, F.J. Auxetic orthotropic materials: Numerical determination of a phenomenological spline-based stored density energy and its implementation for finite element analysis. Comput. Methods Appl. Mech. Eng.
**2020**, 371, 113300. [Google Scholar] [CrossRef] - Amores, V.J.; San Millan, F.J.; Ben-Yelun, I.; Montans, F.J. A finite strain non-parametric hyperelastic extension of the classical phenomenological theory for orthotropic compressible composites. Compos. Part B Eng.
**2021**, 212, 108591. [Google Scholar] [CrossRef] - Ren, X.; Das, R.; Tran, P.; Ngo, T.D.; Xie, Y.M. Auxetic metamaterials and structures: A review. Smart Mater. Struct.
**2018**, 27, 023001. [Google Scholar] [CrossRef] - Cheng, X.; Zhang, Y.; Ren, X.; Han, D.; Jiang, W.; Zhang, X.G.; Luo, H.C.; Xie, Y.M. Design and mechanical characteristics of auxetic metamaterial with tunable stiffness. Int. J. Mech. Sci.
**2022**, 223, 107286. [Google Scholar] [CrossRef] - Ren, X.; Shen, J.; Ghaedizadeh, A.; Tian, H.; Xie, Y.M. Experiments and parametric studies on 3D metallic auxetic metamaterials with tuneable mechanical properties. Smart Mater. Struct.
**2015**, 24, 095016. [Google Scholar] [CrossRef] [Green Version] - Zhang, Q.; Xu, X.; Lin, D.; Chen, W.; Xiong, G.; Yu, Y.; Fisher, T.S.; Li, H. Hyperbolically patterned 3D graphene metamaterial with negative Poisson’s ratio and superelasticity. Adv. Mater.
**2016**, 28, 2229–2237. [Google Scholar] [CrossRef] - Ren, X.; Shen, J.; Tran, P.; Ngo, T.D.; Xie, Y.M. Design and characterisation of a tuneable 3D buckling-induced auxetic metamaterial. Mater. Des.
**2018**, 139, 336–342. [Google Scholar] [CrossRef] - Zhang, X.Y.; Ren, X.; Zhang, Y.; Xie, Y.M. A novel auxetic metamaterial with enhanced mechanical properties and tunable auxeticity. Thin-Walled Struct.
**2022**, 174, 109162. [Google Scholar] [CrossRef] - Wang, L.; Ulliac, G.; Wang, B.; Iglesias Martínez, J.A.; Dudek, K.K.; Laude, V.; Kadic, M. 3D Auxetic Metamaterials with Elastically-Stable Continuous Phase Transition. Adv. Sci.
**2022**, 2022, 2204721. [Google Scholar] [CrossRef] - Farzaneh, A.; Pawar, N.; Portela, C.M.; Hopkins, J.B. Sequential metamaterials with alternating Poisson’s ratios. Nat. Commun.
**2022**, 13, 1041. [Google Scholar] [CrossRef] [PubMed] - Saucedo-Mora, L.; Carano, G.G.; Gomez, M.A.S.; Leal, F.J.M. Celda Unnidad de Metamaterial y Metamaterial Formado a Partir de Dicha Celda Unidad (In Spanish). ES Patent 2907514 A1, 11 November 2022. [Google Scholar]
- OEPM. INVENES (In Spanish). Available online: https://consultas2.oepm.es/InvenesWeb/faces/busquedaInternet.jsp (accessed on 30 September 2022).
- Office, E.P. EPO Worldwide Bibliographic Data. Available online: https://www.epo.org/searching-for-patents/data/bulk-data-sets/docdb.html (accessed on 18 September 2022).
- Wenzhi, Z.; Dianmin, J.; Zhiwei, L.; Nanxin, S. Three-Dimensional Auxetic Metamaterial Structure with Negative Poisson Ratio. CN110014641A, 16 July 2019. [Google Scholar]
- Yingying, X.; Li, Z.; Jianhui, M. 3D Multi-Component Composite Auxetic Metamaterial Based on Additive Manufacturing. CN114474785A, 13 May 2022. [Google Scholar]
- Fu, Y.; Liu, W. Design of mechanical metamaterial with controllable stiffness using curved beam unit cells. Compos. Struct.
**2021**, 258, 113195. [Google Scholar] [CrossRef] - Ren, C.; Li, Q.; Yang, D. Quasi-static and sound insulation performance of a multifunctional cylindrical cellular shell with bidirectional negative-stiffness metamaterial cores. Int. J. Mech. Sci.
**2020**, 180, 105662. [Google Scholar] [CrossRef] - Fleisch, M.; Thalhamer, A.; Meier, G.; Raguž, I.; Fuchs, P.; Pinter, G.; Schlögl, S.; Berer, M. Functional mechanical metamaterial with independently tunable stiffness in the three spatial directions. Mater. Today Adv.
**2021**, 11, 100155. [Google Scholar] [CrossRef] - Yu, X.; Zhou, J.; Liang, H.; Jiang, Z.; Wu, L. Mechanical metamaterials associated with stiffness, rigidity and compressibility: A brief review. Prog. Mater. Sci.
**2018**, 94, 114–173. [Google Scholar] [CrossRef] - Furche, T.; Gottlob, G.; Libkin, L.; Orsi, G.; Paton, N.W. Data Wrangling for Big Data: Challenges and Opportunities. In Proceedings of the EDBT, Bordeaux, France, 15–16 March 2016; Volume 16, pp. 473–478. [Google Scholar]
- Zheng, A.; Casari, A. Feature Engineering for Machine Learning: Principles and Techniques for Data Scientists; O’Reilly Media, Inc.: Sebastopol, CA, USA, 2018. [Google Scholar]
- Benesty, J.; Chen, J.; Huang, Y.; Cohen, I. Pearson correlation coefficient. In Noise Reduction in Speech Processing; Springer: Berlin/Heidelberg, Germany, 2009; pp. 1–4. [Google Scholar]
- Myers, J.L.; Well, A.D.; Lorch, R.F. Research Design and Statistical Analysis; Routledge: Abingdon, UK, 2013. [Google Scholar]
- Breiman, L. Random forests. Mach. Learn.
**2001**, 45, 5–32. [Google Scholar] [CrossRef] [Green Version] - Pedregosa, F.; Varoquaux, G.; Gramfort, A.; Michel, V.; Thirion, B.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Dubourg, V.; et al. Scikit-learn: Machine Learning in Python. J. Mach. Learn. Res.
**2011**, 12, 2825–2830. [Google Scholar] - Rao, C.R.; Rao, C.R.; Statistiker, M.; Rao, C.R.; Rao, C.R. Linear Statistical Inference and Its Applications; Wiley: New York, NY, USA, 1973; Volume 2. [Google Scholar]
- Przemieniecki, J.S. Theory of Matrix Structural Analysis; Courier Corporation: Chelmsford, MA, USA, 1985. [Google Scholar]

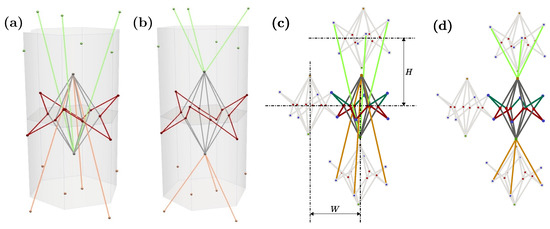

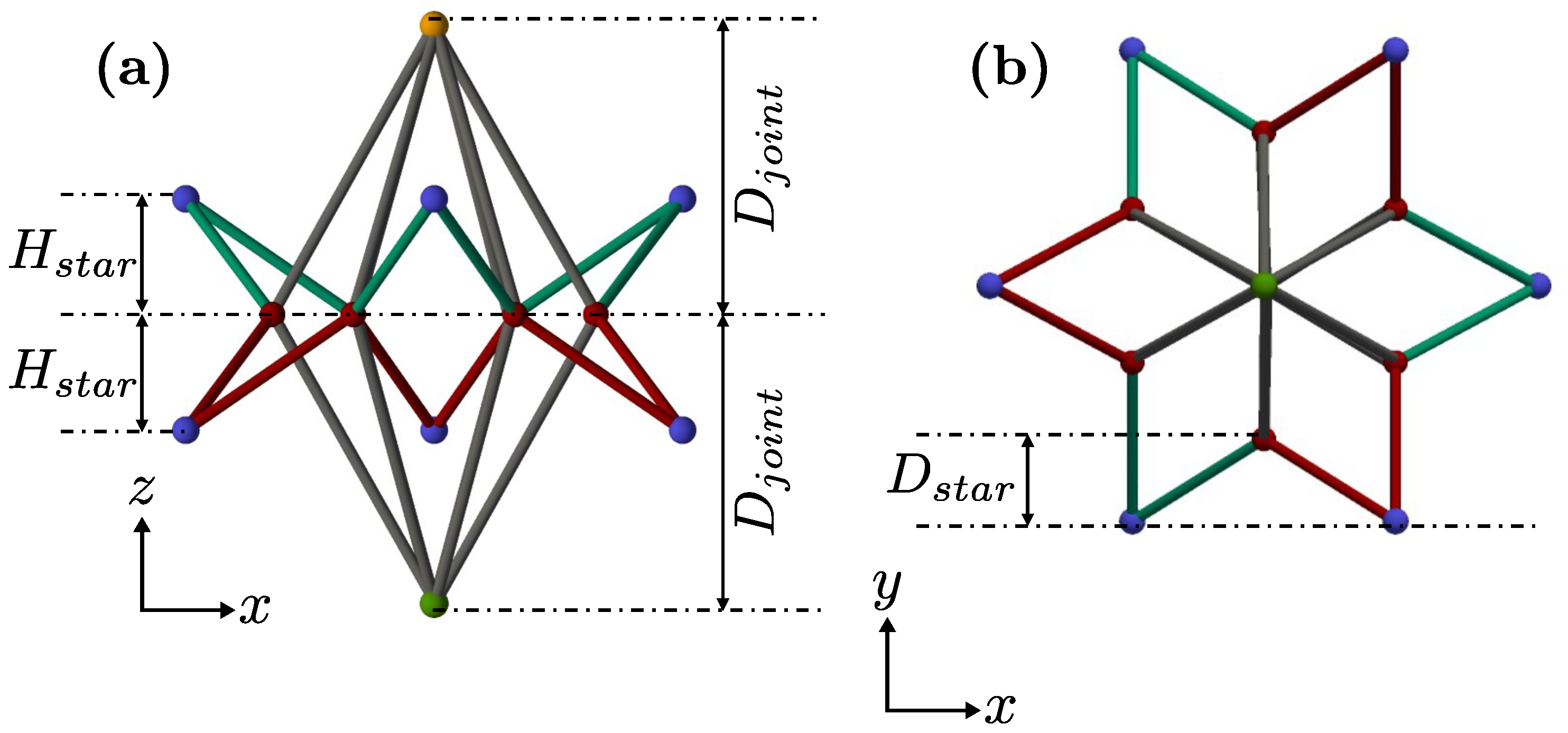

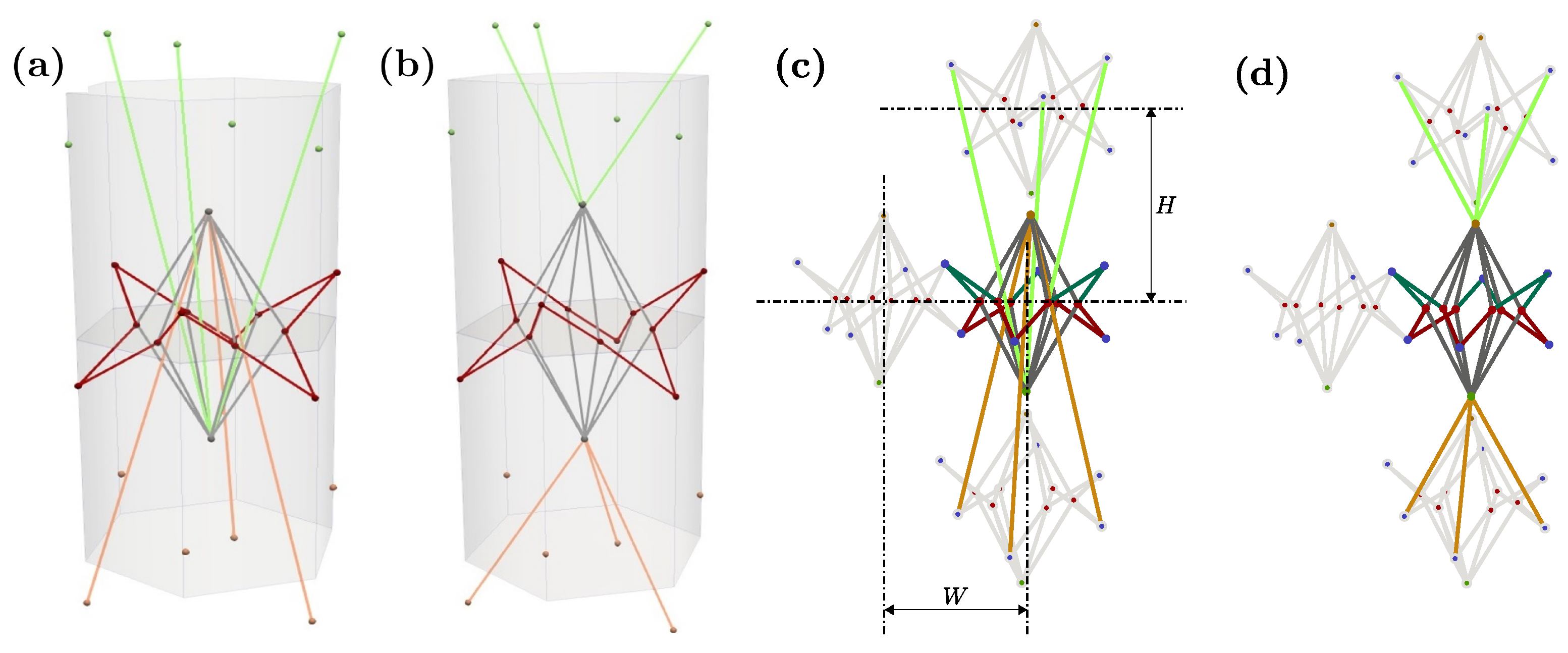

**Figure 1.**The unit cell in auxetic configuration (

**a**), the non-auxetic configuration (

**b**), the connection between the auxetic unit cell with its neighbors (

**c**), and the connection between the conventional unit cell with its neighbors (

**d**).

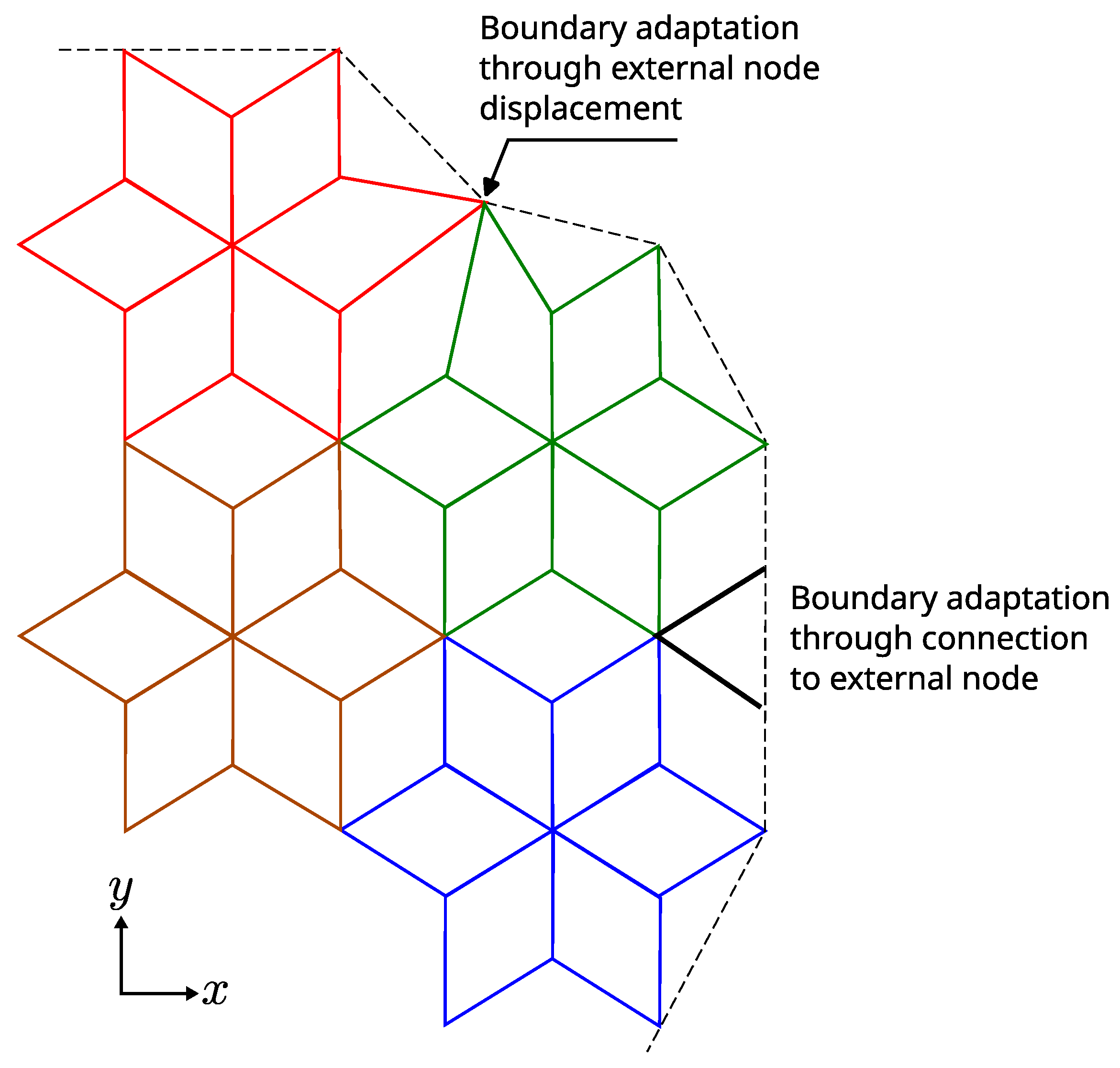

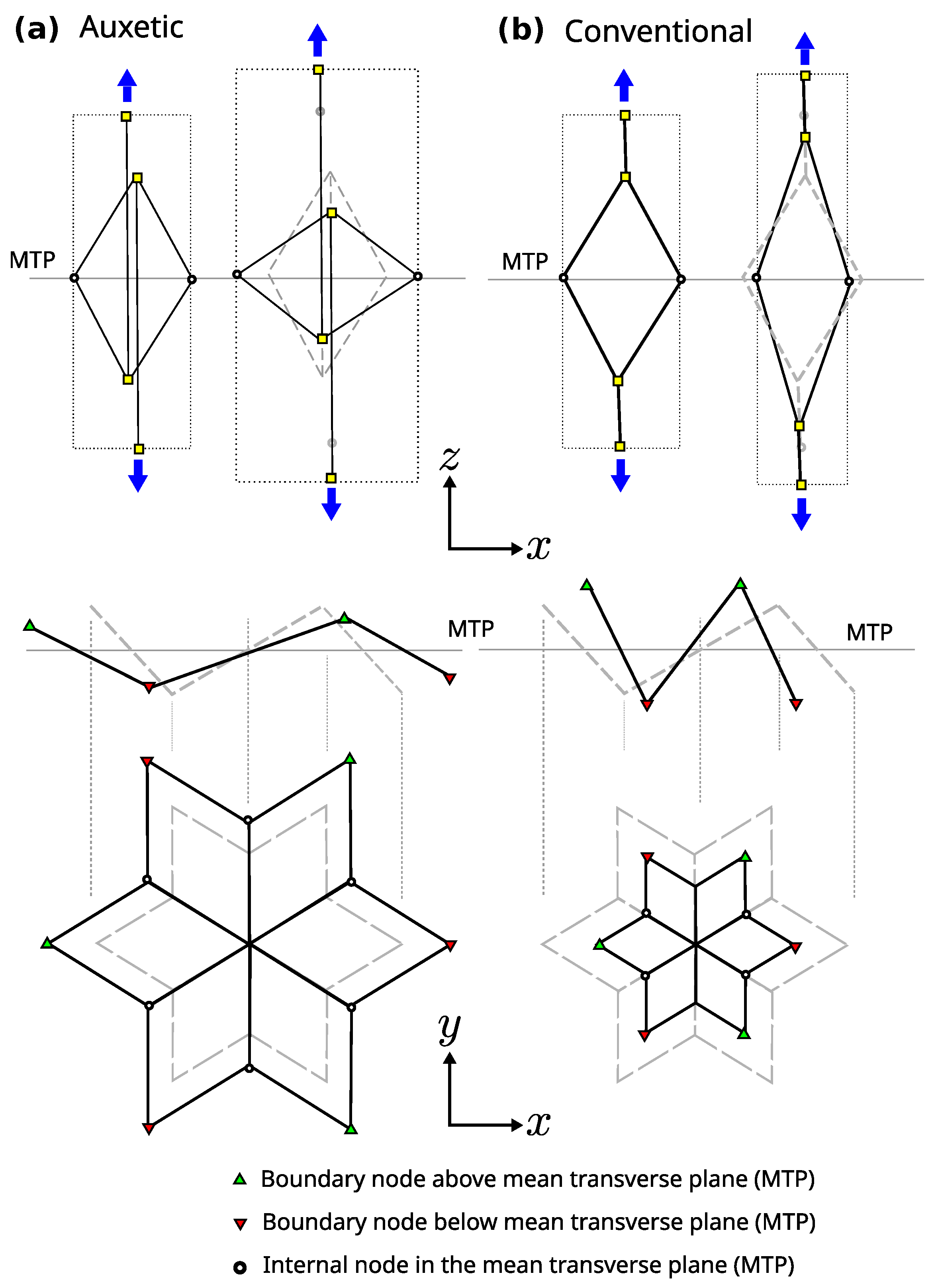

**Figure 3.**Auxetic (

**a**) and conventional (

**b**) lateral and top (plan) schematic views of the unit cells in different configurations.

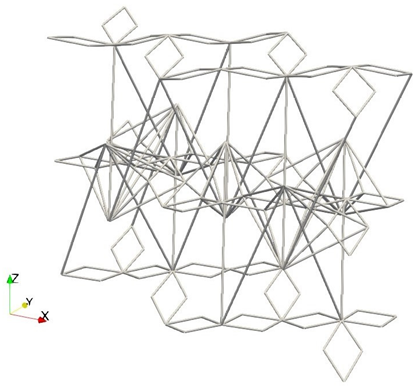

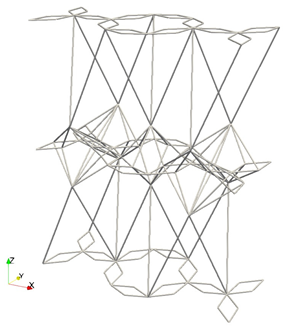

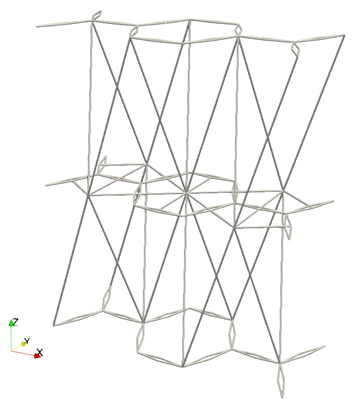

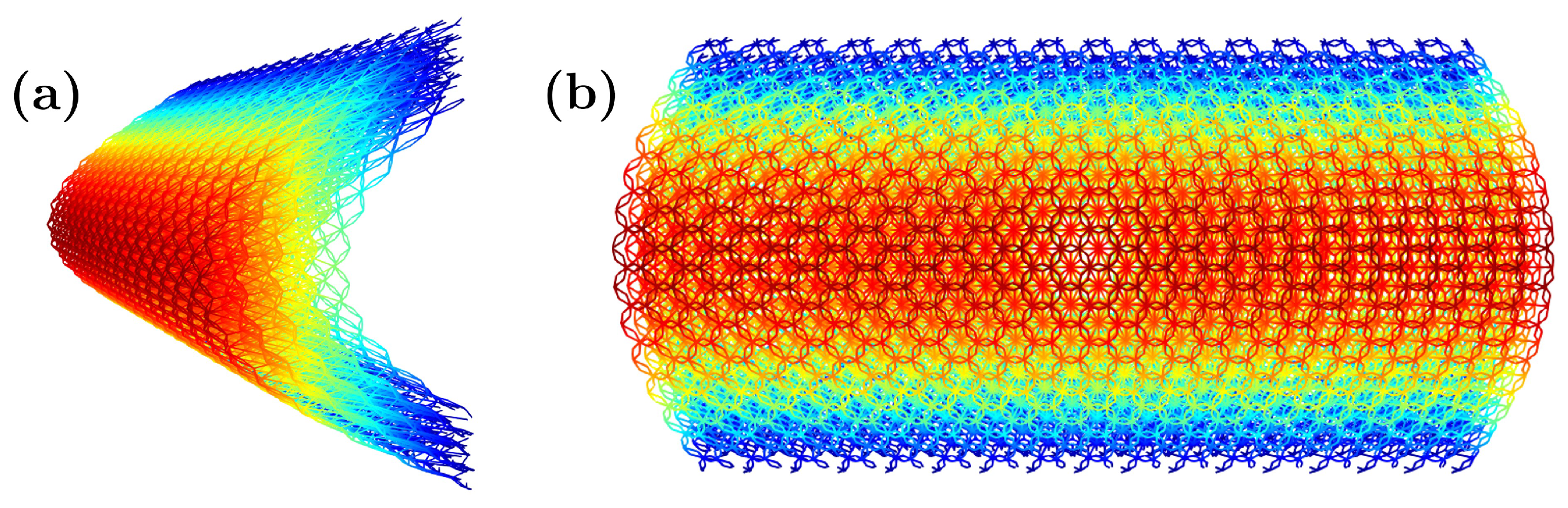

**Figure 5.**Three-dimensional (

**a**) and top (

**b**) views of a shell created from the proposed metamaterial cell simply using $\Delta {z}_{n}=20\phantom{\rule{0.166667em}{0ex}}sin\left(\frac{{y}_{n}}{10}\right)$.

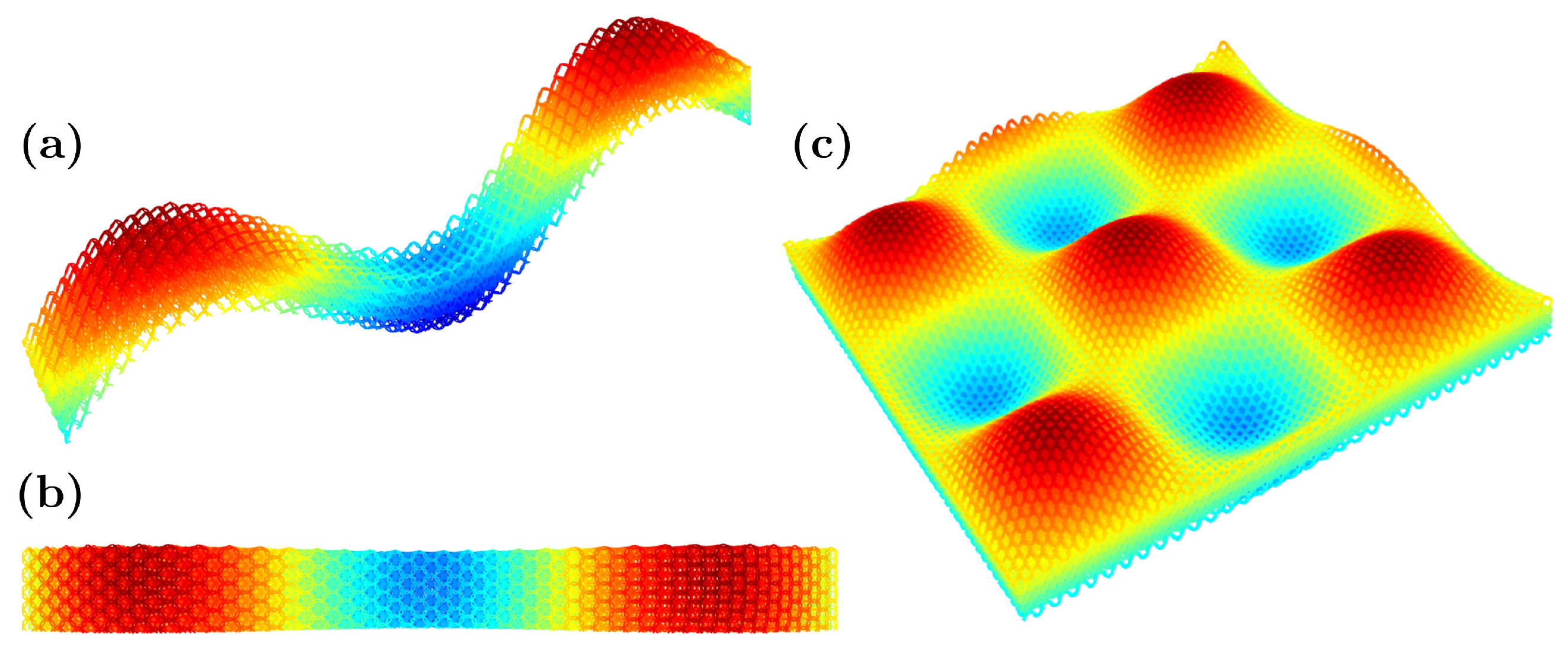

**Figure 6.**Different sections of a shell created from the proposed metamaterial cell using $\Delta {z}_{n}=10\phantom{\rule{0.166667em}{0ex}}sin\left(\frac{{x}_{n}}{10}\right)\phantom{\rule{0.166667em}{0ex}}sin\left(\frac{{y}_{n}}{10}\right)$, where (

**a**) is a slice perpendicular to the x-axis, (

**b**) is a top (plan) view of the previous slice from the z-axis, and (

**c**) represents the whole domain.

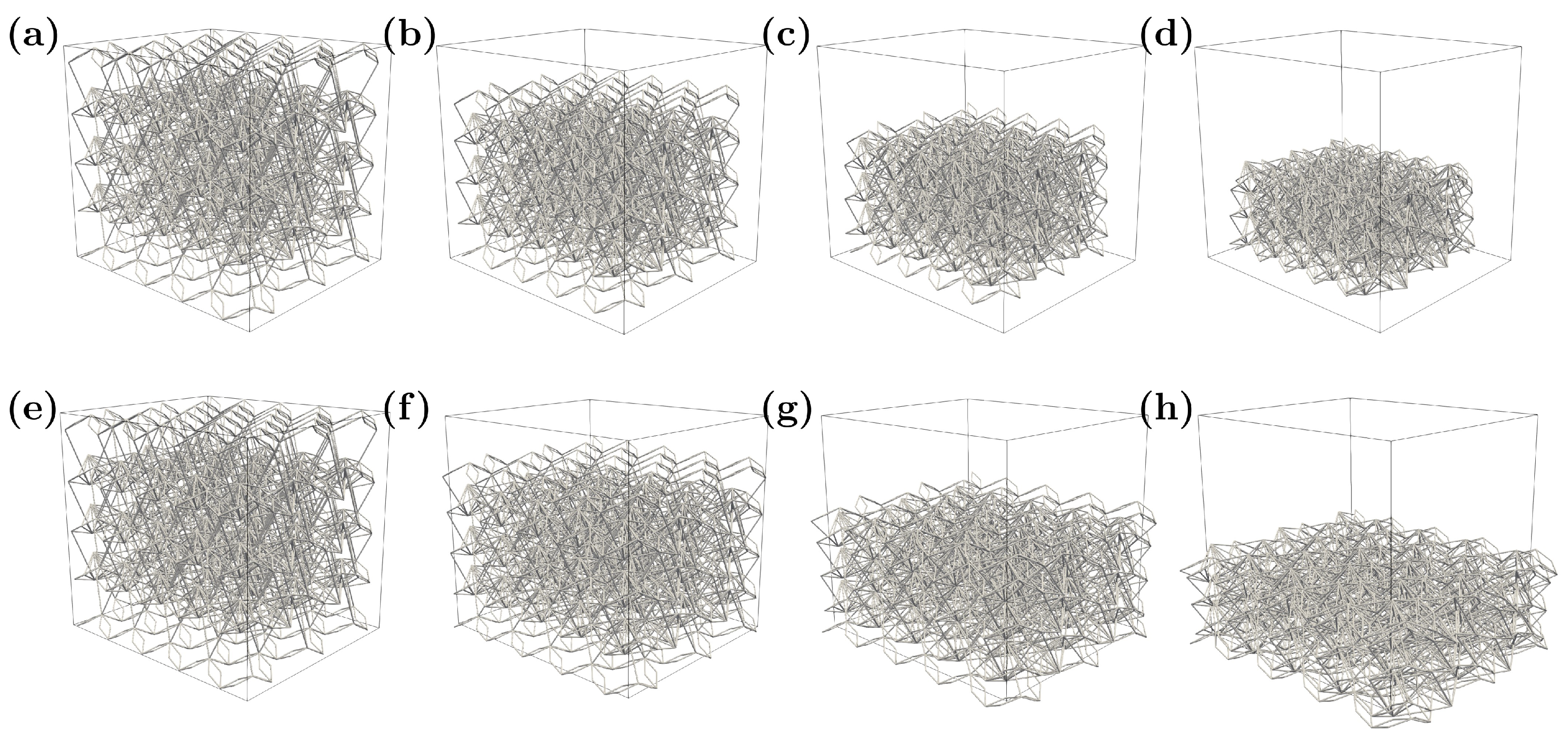

**Figure 7.**Typical numerical results for the auxetic (top,

**a**–

**d**), and non-auxetic (bottom,

**e**–

**h**) configurations. In both configurations, an increasing incremental vertical displacement load is applied—from unloaded (left) to fully loaded (right).

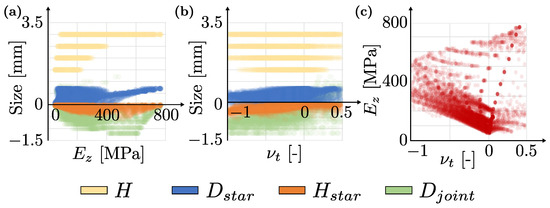

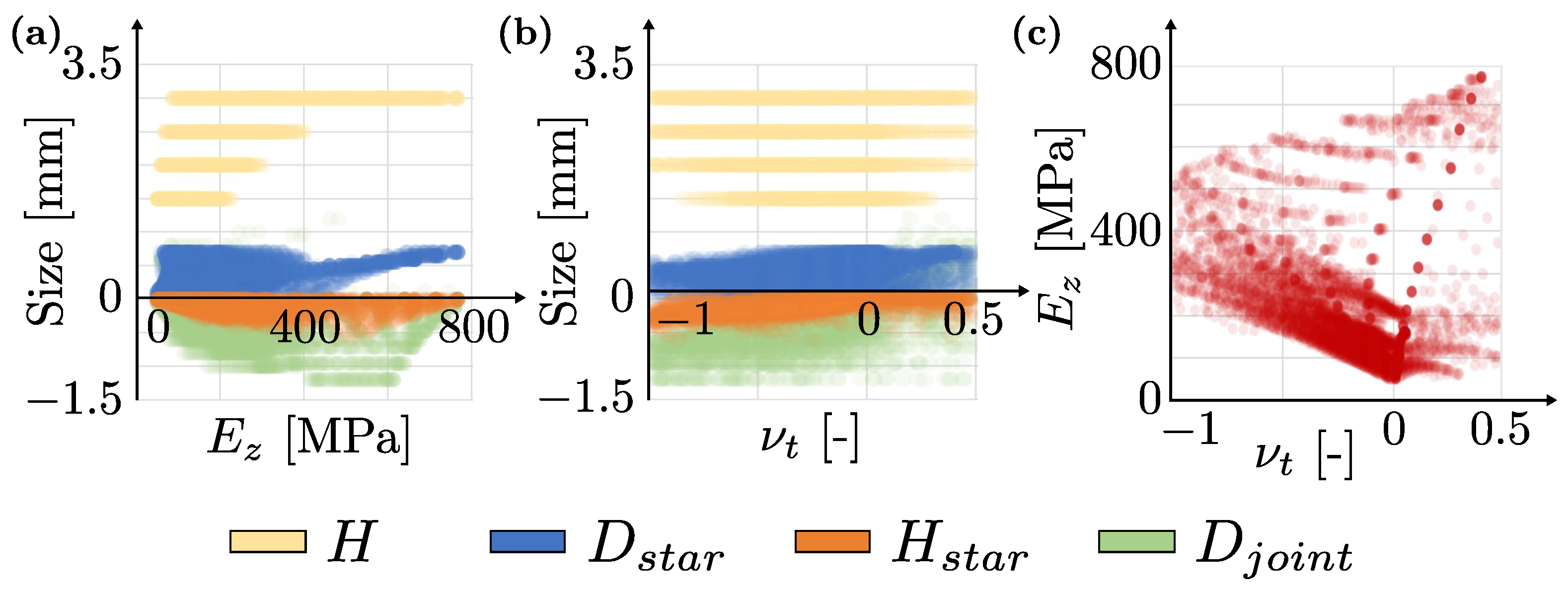

**Figure 8.**Range of mechanical properties obtained from the numerical models, considering different geometries, where (

**a**,

**b**) represent the magnitude (size) of these geometrical variables against the equivalent Young’s modulus ${E}_{z}$ and transverse Poisson’s ratio ${\nu}_{t}$, respectively, and (

**c**) displays the relationship between Young’s modulus and Poisson’s ratio in the simulations.

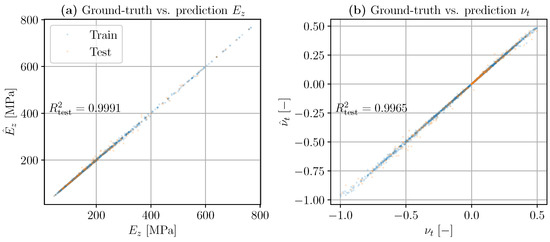

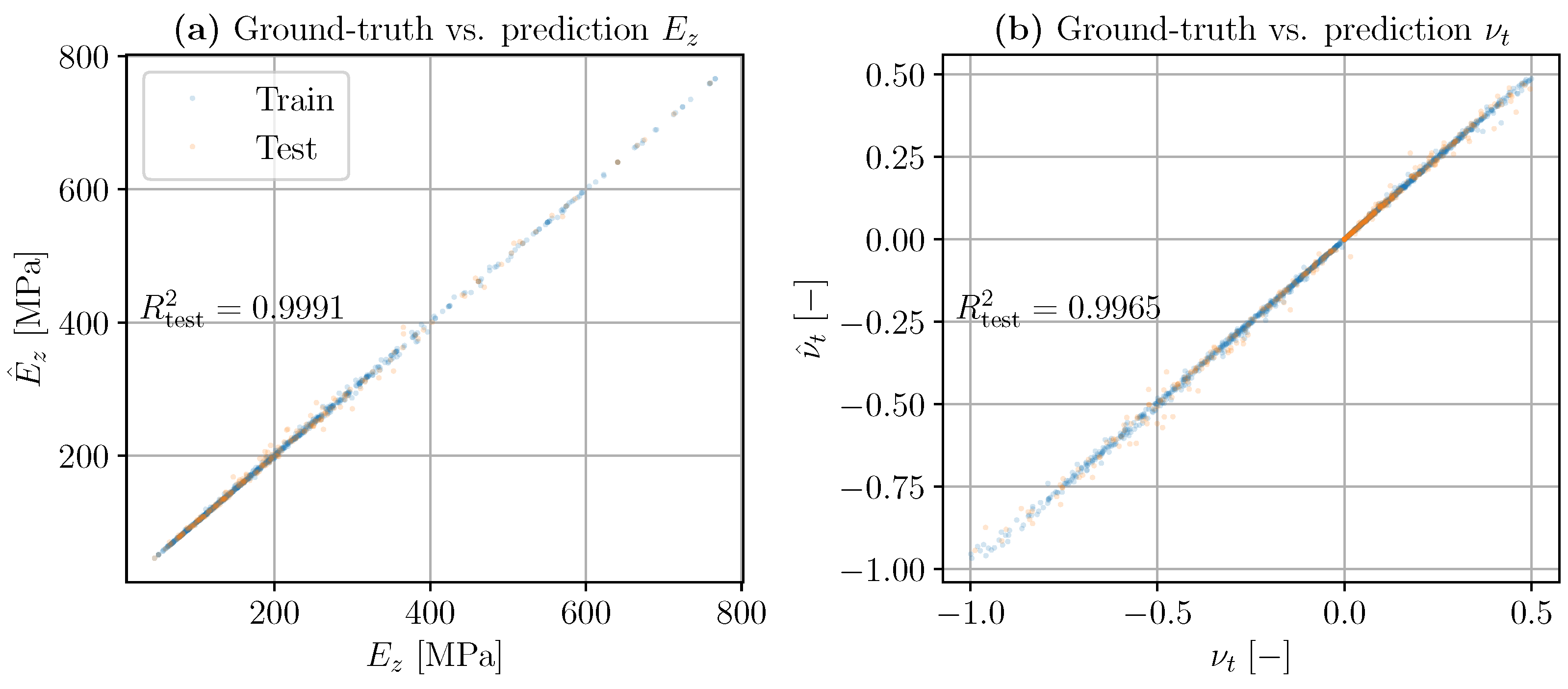

**Figure 9.**The ML model predictions of longitudinal Young’s modulus ${E}_{z}$ (

**a**) and transverse Poisson’s ratio ${\nu}_{t}$ (

**b**), using RF as the regressor. Blue represents the training set, and orange represents the test set. Ground-truth values (from simulations) are on the horizontal axes, while predicted values are on the vertical axes (perfect prediction lies on the bisectrix). A high accuracy is achieved in the test set in terms of the coefficient of determination ${R}^{2}$.

E [GPa] | $\mathit{\nu}$ |
---|---|

200 | $0.33$ |

**Table 2.**Basic statistics of geometrical and mechanical variables of the numerical model, namely the mean, standard deviation (std), minimum, quartiles, and maximum values.

Mean | Std | Min | 25% | 50% | 75% | Max | |
---|---|---|---|---|---|---|---|

${D}_{joint}$ | $-0.38$ | 0.38 | $-1.40$ | $-0.60$ | $-0.36$ | $-0.12$ | 1.2 |

${H}_{star}$ | $-0.09$ | 0.12 | $-0.70$ | $-0.14$ | $-0.06$ | $-0.01$ | 0.4 |

${D}_{star}$ | 0.38 | 0.20 | 0.05 | 0.20 | 0.40 | 0.55 | 0.7 |

H | 2.41 | 0.69 | 1.50 | 2.00 | 2.50 | 3.00 | 3.5 |

${E}_{z}$ [MPa] | 184.78 | 159.64 | 0.00 | 87.78 | 148.62 | 242.30 | 766.2 |

${\nu}_{t}$ | $-0.18$ | 0.28 | $-1.00$ | $-0.33$ | $-0.10$ | 0.00 | 0.5 |

**Table 3.**Cell parameters, Young’s modulus, and schematic representation of three extreme cases for the transverse (to the z-axis) Poisson’s ratio i.e., ${\nu}_{t}\in \{-1,0,0.5\}$.

${\mathit{D}}_{\mathbf{joint}}$ | ${\mathit{H}}_{\mathbf{star}}$ | ${\mathit{D}}_{\mathbf{star}}$ | H | ${\mathit{E}}_{\mathit{z}}$ [MPa] | Representation | |
---|---|---|---|---|---|---|

${\nu}_{t}=-1$ | $-0.8$ | $-0.24$ | 0.25 | 2.0 | 272.03 | |

${\nu}_{t}=0$ | 0.0 | 0.00 | 0.05 | 3.0 | 88.36 | |

${\nu}_{t}=0.5$ | 0.6 | 0.00 | 0.20 | 3.0 | 266.09 |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Ben-Yelun, I.; Gómez-Carano, G.; San Millán, F.J.; Sanz, M.Á.; Montáns, F.J.; Saucedo-Mora, L.
GAM: General Auxetic Metamaterial with Tunable 3D Auxetic Behavior Using the Same Unit Cell Boundary Connectivity. *Materials* **2023**, *16*, 3473.
https://doi.org/10.3390/ma16093473

**AMA Style**

Ben-Yelun I, Gómez-Carano G, San Millán FJ, Sanz MÁ, Montáns FJ, Saucedo-Mora L.
GAM: General Auxetic Metamaterial with Tunable 3D Auxetic Behavior Using the Same Unit Cell Boundary Connectivity. *Materials*. 2023; 16(9):3473.
https://doi.org/10.3390/ma16093473

**Chicago/Turabian Style**

Ben-Yelun, Ismael, Guillermo Gómez-Carano, Francisco J. San Millán, Miguel Ángel Sanz, Francisco Javier Montáns, and Luis Saucedo-Mora.
2023. "GAM: General Auxetic Metamaterial with Tunable 3D Auxetic Behavior Using the Same Unit Cell Boundary Connectivity" *Materials* 16, no. 9: 3473.
https://doi.org/10.3390/ma16093473
