# A Multilevel Physically Based Model of Recrystallization: Analysis of the Influence of Subgrain Coalescence at Grain Boundaries on the Formation of Recrystallization Nuclei in Metals

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mechanisms of Subgrain Structure Evolution under Thermomechanical Effects

## 3. Materials and Methods

_{sb}at the grain facet, the energy E

_{cl}, decreasing locally during coalescence, is calculated as:

_{0}is the initial representative volume of the polycrystal, ${\mathrm{V}}_{r}$ is the recrystallized material volume, ${N}_{r}$ is the number of recrystallized grains, and ${\mathrm{v}}_{r}^{\left(i\right)}=\frac{4}{3}\mathsf{\pi}{r}^{\left(i\right)}{}^{3}$ is the volume of the i-th sphere of the recrystallized grain. Note that the initial volume of the recrystallized grain coincides with that of the recrystallization nucleus (subgrain) for which criterion (1) has been fulfilled.

## 4. Results and Discussion

^{−3}s

^{−1}[88], and (2) at temperature 300 K and deformation velocity 2·10

^{−3}s

^{−1}[89]. For the high-temperature experiment [89], the hardening model parameters were determined prior to the active stage of dynamic recrystallization, i.e., at about 20% deformation. Computational experiments performed at deformation values obtained before the onset of active dynamic recrystallization, i.e., at 10–15% deformation, were also considered.

^{−3}s

^{−1}and temperature $T$ = 550 K) was carried out. In the reference configuration, the special boundary ${\mathsf{\Sigma}}_{3}$ corresponds to the mutual misorientation of the grains rotated by an angle of 60° with respect to the general direction [111]. According to (9), the value of the energy of this grain boundary was 0.225 J/m

^{2}. As the grains deform, they undergo rotations determined by the applied rotation model [83], and the initial special boundary becomes the high-angle grain boundary with a small number of coinciding sites. Figure 7a illustrates the evolution of the grain boundary energy for the initial special boundary 60° [111]; at 5% deformation, the special boundary ceases to be such and its energy increases to that of the high-angle boundary. Figure 7b,c presents the dependencies of the linear mean size of subgrains <d

_{sb}> of the considered grain with high-angle (Figure 7b) and special ${\mathsf{\Sigma}}_{3}$ (Figure 7c) boundaries. In accordance with the identified parameters [34], the high-angle grain boundary energy ${e}_{gb}$ was 0.337 J/m

^{2}. By analyzing the obtained results, the “boundary” (adjacent to high-angle grain boundary) subgrains and the coalescence-induced boundary subgrain clusters were assembled into one group, and the “inside” (non-adjacent to high-angle grain boundary) subgrains into another group (Figure 5). The results given in Figure 7b confirm the previous assumption that coalescence at arbitrary high-angle boundaries develops more intensively compared to the remaining grain volume or at special boundaries (Figure 7c). Thus, the clusters of subgrains with increased dimensions are formed at arbitrary grain boundaries. These clusters serve as energetically favorable nuclei (sites) for further recrystallization. No such effect was observed at a special boundary (Figure 7c). At the end of deformation, the mean subgrain size was 0.375 µm at the incident boundary and 0.270 µm at the special boundary. The evolution of the resulting subgrain cluster at the considered arbitrary grain boundary is demonstrated in Figure 7d for different instants of deformation. In general, the random orientation of the bicrystal with an incident high-angle boundary does not change the nature of the dependencies given in Figure 7; the same is true for the special boundary.

^{−5}s

^{−1}and $T$ = 550 K. Figure 8b presents the same data for the special boundary ${\mathsf{\Sigma}}_{3}$. Similar histograms are given in Figure 8c,d for the case when coalescence is neglected; the high-angle boundary type has no effect on the results. The analysis of the results revealed that almost the same large subgrain clusters as those inside the grain are formed at the special boundary; that is why they will not be considered below.

^{−5}s

^{−1}to 10

^{−3}s

^{−1}and temperatures $T$ from 550 to 775 K. Figure 9a shows how the mean subgrain size changes in the specified ranges of temperatures and deformation velocities. The points corresponding to the onset of recrystallization and the 5% volume fraction of recrystallized material are denoted by symbols “${r}_{0}$” and “${r}_{5}$”, respectively. In this case, the growth of the mean subgrain size significantly depends on the coalescence process, which is actively implemented at elevated temperatures and low velocities of deformation. It is important now to pay attention to the non-monotonic behavior of the plot displaying the dependence of $<{d}_{sb}>$ on the deformation intensity. This behavior is explained by the fact that large subgrains are assigned to the category of individual recrystallized grains, provided that criterion (1) is fulfilled. The evolution of the average size of recrystallized grains $<{d}_{gr}>$ is shown in Figure 9b. The nature of the nonmonotonic curve of the function $<{d}_{gr}>$ (Figure 9b) is caused by two processes: the transition from subgrains to individual recrystallized grains, and the normal growth of recrystallized grains. Note that the recrystallization criterion (1) is fulfilled first for coarse subgrains. For these subgrains, the effect of the energy of the grain boundary (second term in (1)), at which the recrystallization process slows down, is less pronounced. Thus, a sharp increase in the size of recrystallized grains $<{d}_{gr}>$ is seen on the graph at the initial instant of recrystallization (Figure 9b). At low deformation velocities of 10

^{−5}s

^{−1}, the growth of recrystallized grains proceeds more intensively than the subgrain transition as a result of fulfilling the recrystallization criterion for small subgrains; the average grain size increases. At 10

^{−5}s

^{−1}, the rate of transition from subgrains to recrystallized grains exceeds the normal grain growth in a certain deformation segment. Based on the results obtained, it can be concluded that the low deformation velocities and elevated temperatures promote both an increase in the size of subgrains at coalescence and the formation of new recrystallized grains.

^{−5}to 10

^{−3}s

^{−1}and at $T$ from 550 to 775 K is given in Figure 10. The value of recrystallized material ${X}_{r}$ is determined by relations (10)–(12). Figure 10a presents the results of modeling obtained with the consideration of coalescence, and Figure 10b shows these results ignoring coalescence. It can be seen that coalescence induces recrystallization at lower values of deformation and is responsible for the intensive growth of new grains.

^{−5}s

^{−1}, T = 700 K) changes in the bicrystal grains under study. The evolution of the volume fraction of recrystallized material is demonstrated in Figure 11b. Since the initial stored energy depends on the density of subgrain boundary dislocations, then, for equal subgrain misorientations, the difference ${\widehat{e}}_{dst}$ is practically equal to zero. Additionally, vice versa, in the case of varying initial defect structure, this value was different from zero; its subsequent decrease, shown in Figure 11a, is associated with the coalescence-induced stored energy release. The increase in stored energy, visible on all graphs in Figure 11, is associated with the accumulation of defects inside grains. Despite the fact that coalescence is a process in competition with recrystallization regarding the stored energy, an increase in the level of stored energy eventually leads to the fulfillment of the recrystallization criterion (1). The onset of recrystallization and its subsequent evolution is illustrated in Figure 11b. Recrystallization also causes a decrease in the stored energy, which in turn reduces the rate of accumulation of ${\widehat{e}}_{dst}$ (Figure 11a). It can be seen that the implementation of coalescence with equal intensity—“same coalescence”—(the scenario from Figure 3a) slows down recrystallization and increases the critical deformation compared to the coalescence occurred in an inhomogeneous fashion—“various coalescence”—in adjacent grains (scenario from Figure 3b). In both cases, coalescence promotes the earlier onset of recrystallization compared to the case when the coalescence event is ignored. For comparison, the results corresponding to the “no coalescence” scenario are shown in Figure 11a.

## 5. Conclusions

^{−5}s

^{−1}and 700 K, 10

^{−5}s

^{−1}and 775 K, 10

^{−3}s

^{−1}and 775 K, and 10

^{−3}s

^{−1}and 700 K), respectively. To evaluate the above-described effect of the storage energy release during coalescence, the recrystallization criterion was modified with regard to the SIBM mechanism (Equation (8)). This provides a possibility for evaluating a decrease in the coalescence-induced stored energy. In addition to the energy aspect, coalescence leads to the growth of subgrain sizes. It is shown that coarse subgrain clusters, which further become recrystallization nuclei, are formed at high-angle grain boundaries (Figure 9a). High coalescence intensities at favorable conditions (low deformation rates and high temperatures) contribute to an increase in the average subgrain size from 0.25 µm to about 1.7 µm (Figure 9a). This leads to an increase in the growth rate of recrystallized grains (Figure 9b), which reaches a maximum value of 0.0033 µm/s in the case of deformation with a rate of 10

^{−5}s

^{−1}and a temperature of 775 K, and minimum 0.00013 µm/s for 10

^{−3}s

^{−1}, 700 K. Unlike arbitrary boundaries with energy of 0.337 J/m

^{2}, these effects do not appear at special boundaries with reduced energy 0.225 J/m

^{2}, and thus there is no positive effect of special boundaries on coalescence and the formation of recrystallization nuclei. The results of the multilevel modeling of inelastic deformation in the example of a copper bicrystal demonstrate the capabilities of the developed model for describing the material substructure evolution and the influence of coalescence on the recrystallization process. This model is a component of the multilevel one for describing behaviors of representative volume elements of polycrystalline materials.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Zhao, J.; Jiang, Z. Thermomechanical processing of advanced high strength steels. Prog. Mater. Sci.
**2018**, 94, 174–242. [Google Scholar] [CrossRef] - Semiatin, S.L. An Overview of the Thermomechanical Processing of α/β Titanium Alloys: Current Status and Future Research Opportunities. Metall. Mater. Trans. A
**2020**, 51, 2593–2625. [Google Scholar] [CrossRef] - Muramatsu, M.; Aoyagi, Y.; Tadano, Y.; Shizawa, K. Phase-field simulation of static recrystallization considering nucleation from subgrains and nucleus growth with incubation period. Comput. Mater. Sci.
**2014**, 87, 112–122. [Google Scholar] [CrossRef] - Callister, W.D., Jr.; Rethwisch, D.G. Fundamentals of Materials Science and Engineering: An Integrated Approach; John Wiley & Sons: New York, NY, USA, 2020; ISBN 978-1-119-17550-6. [Google Scholar]
- Nishiyama, Z. Martensitic Transformation; Academic Press: New York, NY, USA, 1978. [Google Scholar]
- Gorelik, S.S.; Dobatkin, S.V.; Kaputkina, L.M. Recrystallization of Metals and Alloys; MISIS: Moscow, Russia, 2005. [Google Scholar]
- Rollett, A.; Rohrer, G.S.; Humphreys, J. Recrystallization and Related Annealing Phenomena; Elsevier: Amsterdam, The Netherlands, 2017. [Google Scholar]
- Panin, V.E.; Yegorushkin, V.E.; Makarov, P.V.; Nemirovich-Danchenko, M.M.; Demidov, V.N.; Smolin, I.Y.; Cherepanov, O.I.; Psakhie, S.G.; Negreskul, S.I.; Zolnikov, K.P.; et al. Physical Mesomechanics and Computer Design of Materials; Department of the publishing House “Science”: Novosibirsk, Russia, 1995; Volume 1, ISBN 5-02-030840-4. [Google Scholar]
- Panin, V.E.; Makarov, P.V.; Nemirovich-Danchenko, M.M.; Demidov, V.N.; Smolin, I.Y.; Cherepanov, O.I.; Psakhie, S.G.; Negreskul, S.I.; Zolnikov, K.P.; Korostelev, S.Y.; et al. Physical Mesomechanics and Computer Design of Materials; Department of the publishing House “Science”: Novosibirsk, Russia, 1995; Volume 2, ISBN 5-02-030841-2. [Google Scholar]
- Watanabe, T. Grain boundary engineering: Historical perspective and future prospects. J. Mater. Sci.
**2011**, 46, 4095–4115. [Google Scholar] [CrossRef] - Doherty, R.D.; Hughes, D.A.; Humphreys, F.J.; Jonas, J.J.; Jensen, D.J.; Kassner, M.E.; King, W.E.; McNelley, T.R.; McQueen, H.J.; Rollett, A.D. Current issues in recrystallization: A review. Mater. Sci. Eng. A
**1997**, 238, 219–274. [Google Scholar] [CrossRef] - Rios, P.R.; Siciliano, F., Jr.; Sandim, H.R.Z.; Plaut, R.L.; Padilha, A.F. Nucleation and growth during recrystallization. Mater. Res.
**2005**, 8, 225–238. [Google Scholar] [CrossRef] - Huang, K.; Logé, R.E. A review of dynamic recrystallization phenomena in metallic materials. Mater. Des.
**2016**, 111, 548–574. [Google Scholar] [CrossRef] - Zhang, H.K.; Xiao, H.; Fang, X.W.; Zhang, Q.; Logé, R.E.; Huang, K. A critical assessment of experimental investigation of dynamic recrystallization of metallic materials. Mater. Des.
**2020**, 193, 108873. [Google Scholar] [CrossRef] - Zhang, J.; Yi, Y.; Huang, S.; Mao, X.; He, H.; Tang, J.; Guo, W.; Dong, F. Dynamic recrystallization mechanisms of 2195 aluminum alloy during medium/high temperature compression deformation. Mater. Sci. Eng. A
**2021**, 804, 140650. [Google Scholar] [CrossRef] - Alaneme, K.K.; Okotete, E.A. Recrystallization mechanisms and microstructure development in emerging metallic materials: A review. J. Sci. Adv. Mater. Devices
**2019**, 4, 19–33. [Google Scholar] [CrossRef] - Bailey, J.E.; Hirsch, P.B. The recrystallization process in some polycrystalline metals. Proc. R. Soc. Lond. Ser. Math. Phys. Sci.
**1962**, 267, 11–30. [Google Scholar] [CrossRef] - Doherty, R.D.; Cahn, R.W. Nucleation of new grains in recrystallization of cold-worked metals. J. Common Met.
**1972**, 28, 279–296. [Google Scholar] [CrossRef] - Vandermeer, R.A.; Rath, B.B. Modeling recystallization kinetics in a deformed iron single crystal. Metall. Trans. A
**1989**, 20, 391–401. [Google Scholar] [CrossRef] - Babu, K.A.; Prithiv, T.S.; Gupta, A.; Mandal, S. Modeling and simulation of dynamic recrystallization in super austenitic stainless steel employing combined cellular automaton, artificial neural network and finite element method. Comput. Mater. Sci.
**2021**, 195, 110482. [Google Scholar] [CrossRef] - Derazkola, H.A.; Garcia, E.; Murillo-Marrodán, A.; Fernandez, A.C. Review on modeling and simulation of dynamic recrystallization of martensitic stainless steels during bulk hot deformation. J. Mater. Res. Technol.
**2022**, 18, 2993–3025. [Google Scholar] [CrossRef] - Trusov, P.; Shveykin, A. Multilevel Models of Mono and Polycrystalline Materials: Theory, Algorithms, Application Examples; SO RAN: Novosibirsk, Russia, 2019; ISBN 978-5-7692-1661-9. [Google Scholar]
- Han, F.; Roters, F.; Raabe, D. Microstructure-based multiscale modeling of large strain plastic deformation by coupling a full-field crystal plasticity-spectral solver with an implicit finite element solver. Int. J. Plast.
**2020**, 125, 97–117. [Google Scholar] [CrossRef] - Sun, Z.C.; Wu, H.L.; Cao, J.; Yin, Z.K. Modeling of continuous dynamic recrystallization of Al-Zn-Cu-Mg alloy during hot deformation based on the internal-state-variable (ISV) method. Int. J. Plast.
**2018**, 106, 73–87. [Google Scholar] [CrossRef] - Zhou, G.; Li, Z.; Li, D.; Peng, Y.; Zurob, H.S.; Wu, P. A polycrystal plasticity based discontinuous dynamic recrystallization simulation method and its application to copper. Int. J. Plast.
**2017**, 91, 48–76. [Google Scholar] [CrossRef] - Zecevic, M.; Knezevic, M.; McWilliams, B.; Lebensohn, R.A. Modeling of the thermo-mechanical response and texture evolution of WE43 Mg alloy in the dynamic recrystallization regime using a viscoplastic self-consistent formulation. Int. J. Plast.
**2020**, 130, 102705. [Google Scholar] [CrossRef] - Trusov, P.; Kondratev, N.; Podsedertsev, A. Description of Dynamic Recrystallization by Means of An Advanced Statistical Multilevel Model: Grain Structure Evolution Analysis. Crystals
**2022**, 12, 653. [Google Scholar] [CrossRef] - Hayakawa, Y.; Szpunar, J.A. A comprehensive model of recrystallization for interstitial free steel. Acta Mater.
**1997**, 45, 3721–3730. [Google Scholar] [CrossRef] - Cram, D.G.; Zurob, H.S.; Brechet, Y.J.M.; Hutchinson, C.R. Modelling discontinuous dynamic recrystallization using a physically based model for nucleation. Acta Mater.
**2009**, 57, 5218–5228. [Google Scholar] [CrossRef] - Kondratev, N.S.; Trusov, P.V.; Podsedertsev, A.N. Multilevel model of polycrystals: Application to assessing the effect of texture and grains misorientation on the critical deformation of the dynamic recrystallization initiation. PNRPU Mech. Bull.
**2021**, 4, 82–97. [Google Scholar] - Lebensohn, R.A.; Tomé, C.N.; Castaneda, P.P. Self-consistent modelling of the mechanical behaviour of viscoplastic polycrystals incorporating intragranular field fluctuations. Philos. Mag.
**2022**, 87, 4287–4322. [Google Scholar] [CrossRef] - Zhao, P.; Wang, Y.; Niezgoda, S.R. Microstructural and micromechanical evolution during dynamic recrystallization. Int. J. Plast.
**2018**, 100, 52–68. [Google Scholar] [CrossRef] - Sarrazola, D.A.R.; Muñoz, D.P.; Bernacki, M. A new numerical framework for the full field modeling of dynamic recrystallization in a CPFEM context. Comput. Mater. Sci.
**2020**, 179, 109645. [Google Scholar] [CrossRef] - Kondratev, N.; Trusov, P.; Podsedertsev, A.; Baldin, M. Subgrain Coalescence Simulation by Means of an Advanced Statistical Model of Inelastic Deformation. Materials
**2022**, 15, 5406. [Google Scholar] [CrossRef] - Saetre, T.O.; Ryum, N. On grain and subgrain rotations in two dimensions. Metall. Mater. Trans. A
**1995**, 26, 1687–1697. [Google Scholar] [CrossRef] - Traka, K.; Sedighiani, K.; Bos, C.; Lopez, J.G.; Angenendt, K.; Raabe, D.; Sietsma, J. Topological aspects responsible for recrystallization evolution in an IF-steel sheet—Investigation with cellular-automaton simulations. Comput. Mater. Sci.
**2021**, 198, 110643. [Google Scholar] [CrossRef] - Grand, V.; Flipon, B.; Gaillac, A.; Bernacki, M. Simulation of Continuous Dynamic Recrystallization Using a Level-Set Method. Materials
**2022**, 15, 8547. [Google Scholar] [CrossRef] - Choi, S.H.; Cho, J.H. Primary recrystallization modelling for interstitial free steels. Mater. Sci. Eng. A
**2005**, 405, 86–101. [Google Scholar] [CrossRef] - Saetre, T.O.; Ryum, N.; Evangelista, E. Simulation of subgrain growth by subgrain rotation: A one-dimensional model. Metall. Trans. A
**1991**, 22, 2257–2263. [Google Scholar] [CrossRef] - Takaki, T.; Yamanaka, A.; Tomita, Y. Phase-Field Modeling and Simulation of Nucleation and Growth of Recrystallized Grains. Mater. Sci. Forum
**2007**, 558, 1195–1200. [Google Scholar] [CrossRef] - Li, J.C.M. Possibility of Subgrain Rotation during Recrystallization. J. Appl. Phys.
**1962**, 33, 2958–2965. [Google Scholar] [CrossRef] - Rollett, A.D. Overview of modeling and simulation of recrystallization. Prog. Mater. Sci.
**1997**, 42, 79–99. [Google Scholar] [CrossRef] - Watanabe, T. An approach to grain boundary design for strong and ductile polycrystals. Res. Mech.
**1984**, 11, 47–84. [Google Scholar] - Gao, S.; Hu, Z.; Duchamp, M.; Krishnan, P.S.R.; Tekumalla, S.; Song, X.; Seita, M. Recrystallization-based grain boundary engineering of 316L stainless steel produced via selective laser melting. Acta Mater.
**2020**, 200, 366–377. [Google Scholar] [CrossRef] - Yang, X.; Wang, P.; Huang, M. Grain boundary evolution during low-strain grain boundary engineering achieved by strain-induced boundary migration in pure copper. Mater. Sci. Eng. A
**2022**, 833, 142532. [Google Scholar] [CrossRef] - Humphreys, J.F. Nucleation in Recrystallization. Mater. Sci. Forum.
**2004**, 467, 107–116. [Google Scholar] [CrossRef] - Zhang, J.X.; Ma, M.; Liu, W.C. Effect of initial grain size on the recrystallization and recrystallization texture of cold-rolled AA 5182 aluminum alloy. Mater. Sci. Eng. A
**2017**, 690, 233–243. [Google Scholar] [CrossRef] - Zhao, L.Y.; Yan, H.; Chen, R.S.; Han, E.H. Orientations of nuclei during static recrystallization in a cold-rolled Mg-Zn-Gd alloy. J. Mater. Sci. Technol.
**2021**, 60, 162–167. [Google Scholar] [CrossRef] - Doherty, R.D. The Deformed State and Nucleation of Recrystallization. Met. Sci.
**1974**, 8, 132–142. [Google Scholar] [CrossRef] - Yildirim, C.; Mavrikakis, N.; Cook, P.K.; Rodriguez-Lamas, R.; Kutsal, M.; Poulsen, H.F.; Detlefs, C. 4D microstructural evolution in a heavily deformed ferritic alloy: A new perspective in recrystallisation studies. Scr. Mater.
**2022**, 214, 114689. [Google Scholar] [CrossRef] - Nielsen, J.P. Mechanism for the Origin of Recrystallization Nuclei. JOM
**1954**, 6, 1084–1088. [Google Scholar] [CrossRef] - Jones, A.R.; Ralph, B.; Hansen, N.; Cottrell, A.H. Subgrain coalescence and the nucleation of recrystallization at grain boundaries in aluminium. Proc. R. Soc. Lond. Math. Phys. Sci.
**1979**, 368, 345–357. [Google Scholar] [CrossRef] - Furu, T.; Ørsund, R.; Nes, E. Subgrain growth in heavily deformed aluminium—Experimental investigation and modelling treatment. Acta Metall. Mater.
**1995**, 43, 2209–2232. [Google Scholar] [CrossRef] - Sandström, R. Formation of Cells and Subgrains and Its Influence on Properties. Metals
**2022**, 12, 497. [Google Scholar] [CrossRef] - Cahn, R.W. A New Theory of Recrystallization Nuclei. Proc. Phys. Soc. Sect. A
**1950**, 63, 323–336. [Google Scholar] [CrossRef] - Dillamore, I.L.; Smith, C.J.E.; Watson, T.W. Oriented Nucleation in the Formation of Annealing Textures in Iron. Met. Sci. J.
**1967**, 1, 49–54. [Google Scholar] [CrossRef] - Sakai, T.; Belyakov, A.; Kaibyshev, R.; Miura, H.; Jonas, J.J. Dynamic and post-dynamic recrystallization under hot, cold and severe plastic deformation conditions. Prog. Mater. Sci.
**2014**, 60, 130–207. [Google Scholar] [CrossRef] - Yang, Q.; Wang, X.; Li, X.; Deng, Z.; Jia, Z.; Zhang, Z.; Huang, G.; Liu, Q. Hot deformation behavior and microstructure of AA2195 alloy under plane strain compression. Mater. Charact.
**2017**, 131, 500–507. [Google Scholar] [CrossRef] - Wang, Y.; Zhao, G.; Xu, X.; Chen, X.; Zhang, W. Microstructures and mechanical properties of spray deposited 2195 Al-Cu-Li alloy through thermo-mechanical processing. Mater. Sci. Eng. A
**2018**, 727, 78–89. [Google Scholar] [CrossRef] - Wang, S.; Zhang, M.; Wu, H.; Yang, B. Study on the dynamic recrystallization model and mechanism of nuclear grade 316LN austenitic stainless steel. Mater. Charact.
**2016**, 118, 92–101. [Google Scholar] [CrossRef] - Beck, P.A.; Sperry, P.R. Strain Induced Grain Boundary Migration in High Purity Aluminum. J. Appl. Phys.
**1950**, 21, 150–152. [Google Scholar] [CrossRef] - Bailey, J.E. Electron microscope observations on the annealing processes occurring in cold-worked silver. Philos. Mag. J. Theor. Exp. Appl. Phys.
**1960**, 5, 833–842. [Google Scholar] [CrossRef] - Theyssier, M.C.; Driver, J.H. Recrystallization nucleation mechanism along boundaries in hot deformed Al bicrystals. Mater. Sci. Eng. A
**1999**, 272, 73–82. [Google Scholar] [CrossRef] - Faivre, P.; Doherty, R.D. Nucleation of recrystallization in compressed aluminium: Studies by electron microscopy and Kikuchi diffraction. J. Mater. Sci.
**1979**, 14, 897–919. [Google Scholar] [CrossRef] - Hu, H. Direct observations on annealing of a Si-Fe crystal in electron microscope. Trans. Metall. Soc. AIME
**1962**, 224, 75–84. [Google Scholar] - Sandström, R. On recovery of dislocations in subgrains and subgrain coalescence. Acta Metall.
**1977**, 25, 897–904. [Google Scholar] [CrossRef] - Kuhlmann-Wilsdorf, D.; Thompson, A.W. Work Hardening in Tension and Fatigue; AIME: New York, NY, USA, 1977; pp. 1–43. [Google Scholar]
- Kuhlmann-Wilsdorf, D. Theory of plastic deformation: Properties of low energy dislocation structures. Mater. Sci. Eng. A
**1989**, 113, 1–41. [Google Scholar] [CrossRef] - Kuhlmann-Wilsdorf, D.; Hansen, N. Geometrically necessary, incidental and subgrain boundaries. Scr. Metall. Mater.
**1991**, 25, 1557–1562. [Google Scholar] [CrossRef] - Beucia, B.; Queyreau, S.; Kahloun, C.; Chaubet, D.; Franciosi, P.; Bacroix, B. Plastic strain-induced grain boundary migration (SIBM) in pure aluminum: SEM in-situ and AFM examinations. Int. J. Plast.
**2019**, 115, 29–55. [Google Scholar] [CrossRef] - Zhao, M.; Huang, L.; Zeng, R.; Wen, D.; Su, H.; Li, J. In-situ observations and modeling of static recrystallization in 300 M steel. Mater. Sci. Eng. A
**2019**, 765, 138300. [Google Scholar] [CrossRef] - Xie, B.; Zhang, B.; Ning, Y.; Fu, M.W. Mechanisms of DRX nucleation with grain boundary bulging and subgrain rotation during the hot working of nickel-based superalloys with columnar grains. J. Alloys Compd.
**2019**, 786, 636–647. [Google Scholar] [CrossRef] - Jedrychowski, M.; Bacroix, B.; Tarasiuk, J.; Wroński, S. Monte Carlo modelling of recrystallization in alpha Zirconium. Comput. Mater. Sci.
**2021**, 199, 110742. [Google Scholar] [CrossRef] - Bellier, S.P.; Doherty, R.D. The structure of deformed aluminium and its recrystallization—Investigations with transmission Kossel diffraction. Acta Metall.
**1977**, 25, 521–538. [Google Scholar] [CrossRef] - Sitdikov, O.; Kaibyshev, R. Dynamic Recrystallization in Pure Magnesium. Mater. Trans.
**2001**, 42, 1928–1937. [Google Scholar] [CrossRef] - Zhu, S.Q.; Ringer, S.P. On the role of twinning and stacking faults on the crystal plasticity and grain refinement in magnesium alloys. Acta Mater.
**2018**, 144, 365–375. [Google Scholar] [CrossRef] - Bay, B. Subgrain growth on annealing of thin foils of cold-rolled aluminium. J. Mater. Sci.
**1970**, 5, 617–620. [Google Scholar] [CrossRef] - Doherty, R.D.; Szpunar, J.A. Kinetics of sub-grain coalescence—A reconsideration of the theory. Acta Metall.
**1984**, 32, 1789–1798. [Google Scholar] [CrossRef] - Read, W.T.; Shockley, W. Dislocation Models of Crystal Grain Boundaries. Phys. Rev.
**1950**, 78, 275–289. [Google Scholar] [CrossRef] - Ma, N.; Kazaryan, A.; Dregia, S.A.; Wang, Y. Computer simulation of texture evolution during grain growth: Effect of boundary properties and initial microstructure. Acta Mater.
**2004**, 52, 3869–3879. [Google Scholar] [CrossRef] - Quey, R.; Renversade, L. Optimal polyhedral description of 3D polycrystals: Method and application to statistical and synchrotron X-ray diffraction data. Comput. Methods Appl. Mech. Eng.
**2018**, 330, 308–333. [Google Scholar] [CrossRef] - Kondratev, N.; Podsedertsev, A.; Trusov, P. The polycrystals grain structure formation for modified two-level crystal plasticity statistical models. Procedia Struct. Integr.
**2022**, 40, 239–244. [Google Scholar] [CrossRef] - Kondratev, N.S.; Trusov, P.V. Modeling of subgrain’s crystallographic misorientation distribution. Nanosci. Technol. Int. J.
**2018**, 9, 283–297. [Google Scholar] [CrossRef] - Kondratev, N.S.; Trusov, P.V. Multilevel models of inelastic deformation: Determination of stable low angle boundaries. Mater. Phys. Mech.
**2019**, 42, 784–796. [Google Scholar] [CrossRef] - Kondratev, N.S.; Trusov, P.V. Calculation of the intergranular energy in two-level physical models for describing thermomechanical processing of polycrystals with account for discontinuous dynamic recrystallization. Nanosci. Technol. Int. J.
**2016**, 7, 107–122. [Google Scholar] [CrossRef] - Kronberg, M.L.; Wilson, F.H. Secondary Recrystallization in Copper. JOM
**1949**, 1, 501–514. [Google Scholar] [CrossRef] - Bezverkhy, D.S.; Kondratev, N.S. Application of Coincidence-site Lattice Modification for Grain Boundary Energy Modeling. AIP Conf. Proc. 2023, in press.
- Bronkhorst, C.A.; Kalidindi, S.R.; Anand, L. Polycrystalline plasticity and the evolution of crystallographic texture in FCC metals. Philos. Trans. R. Soc. Lond. Ser. A
**1992**, 341, 443–477. [Google Scholar] [CrossRef] - Blaz, L.; Sakai, T.; Jonas, J.J. Effect of initial grain size on dynamic recrystallization of copper. Met. Sci.
**1983**, 17, 609–616. [Google Scholar] [CrossRef]

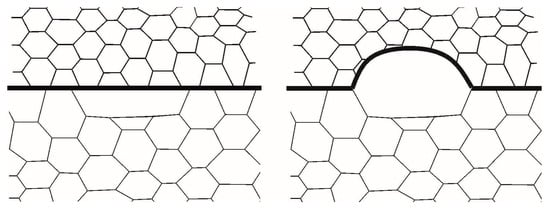

**Figure 1.**Scheme of the formation of a recrystallization nucleus according to the SIBM mechanism (the drawing is based on the scheme given in [46]).

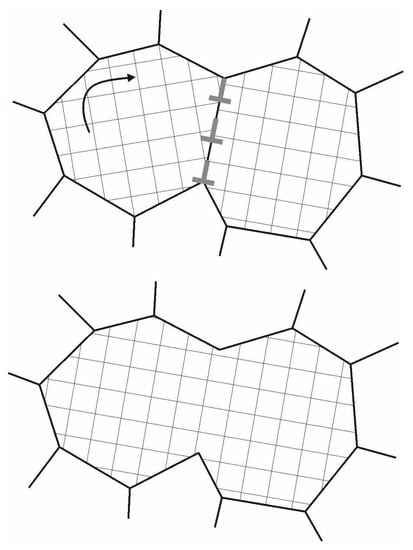

**Figure 2.**Scheme of subgrain rotation at coalescence (based on the scheme from [41]).

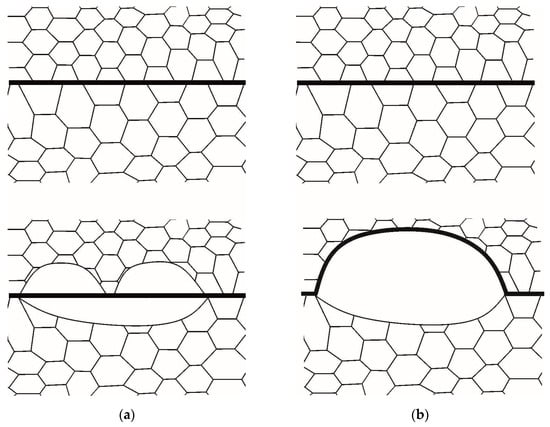

**Figure 3.**Scheme of the formation of a recrystallization nuclei at high-angle boundaries [52]: (

**a**) intensive coalescence in adjacent grains and (

**b**) in one of the grains.

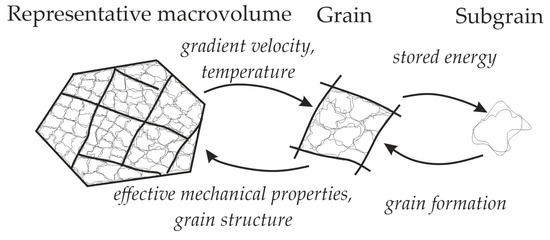

**Figure 4.**Scheme: scale levels and relation between the multilevel model structural elements (thin lines—subgrain boundaries, thick lines—grain boundaries) [27].

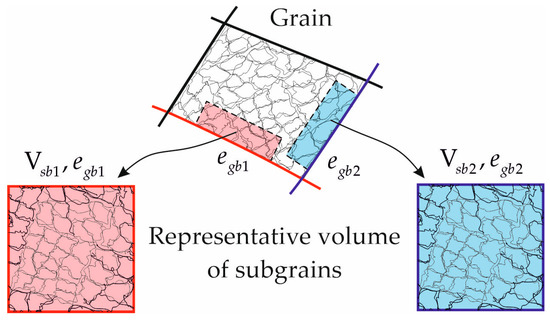

**Figure 5.**Scheme of the formation of a representative volume of subgrains for the grain boundary facet under consideration.

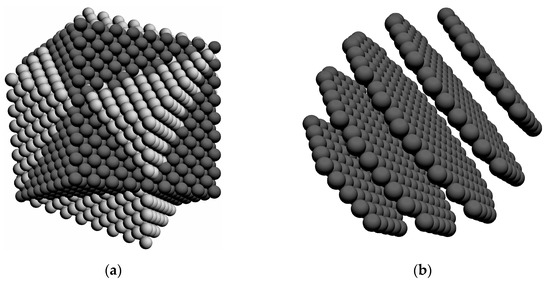

**Figure 6.**(

**a**) Face-centered crystal lattices misoriented towards the [111] direction by the 60° angle; (

**b**) superlattice which corresponds to this special orientation.

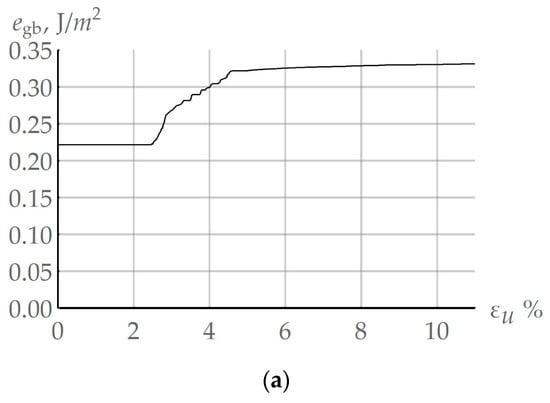

**Figure 7.**(

**a**) Evolution of the grain boundary energy, which corresponds, in the reference configuration, to the special boundary at 60° [111]; (

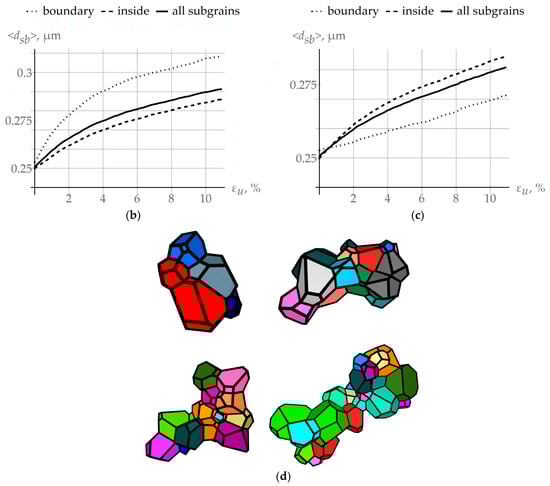

**b**) evolution of the linear mean size of subgrains $<{d}_{sb}>$ placed in different grain parts with respect to the high-angle boundary for high-angle and (

**c**) special boundaries; (

**d**) evolution of the subgrain cluster during coalescence at high-angle boundary, obtained in the numerical quasi-uniaxial deformation experiment ($\dot{\mathsf{\epsilon}}$ = 10

^{−3}s

^{−1}, $T$ = 550 K).

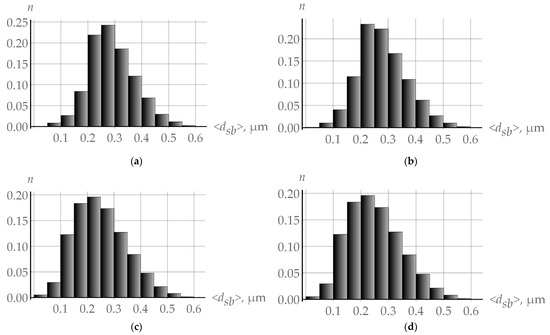

**Figure 8.**Linear subgrain size distribution histograms plotted based on the results obtained in the framework of the multilevel model with consideration of coalescence at (

**a**) high-angle and (

**b**) special boundaries and without consideration of coalescence at (

**c**) high-angle and (

**d**) special boundaries during the quasi-uniaxial deformation test ($\dot{\mathsf{\epsilon}}$ = 10

^{−5}s

^{−1}and $T$ = 550 K).

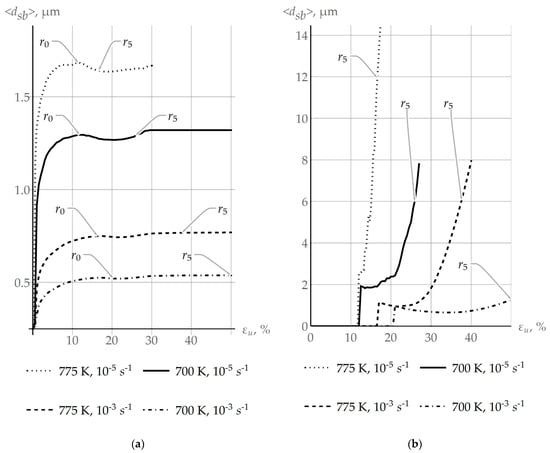

**Figure 9.**(

**a**) Evolution of the mean subgrain size $<{d}_{sb}>$ and (

**b**) recrystallized grains $<{d}_{gr}>$ in the uniaxial deformation experiment at different deformation velocities and temperatures.

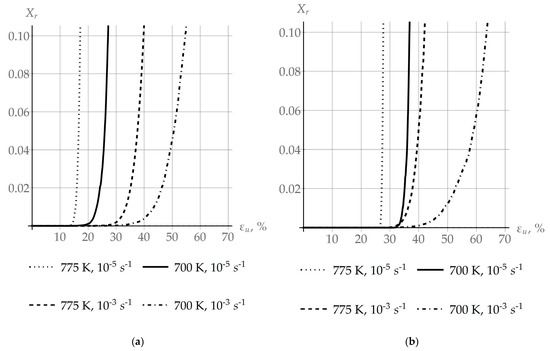

**Figure 10.**Dependence of the volume fraction of recrystallized material ${X}_{r}$ on the strain intensity obtained in the experiment on uniaxial deformation at different deformation velocities and temperatures: (

**a**) coalescence is considered and (

**b**) coalescence is ignored.

**Figure 11.**Evolution of the difference in specific stored energy ${\widehat{e}}_{dst}$ associated with (

**a**) coalescence and (

**b**) the volume fraction of the recrystallized material ${X}_{r}$ on the deformation intensity in the uniaxial deformation experiment.

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Trusov, P.; Kondratev, N.; Baldin, M.; Bezverkhy, D.
A Multilevel Physically Based Model of Recrystallization: Analysis of the Influence of Subgrain Coalescence at Grain Boundaries on the Formation of Recrystallization Nuclei in Metals. *Materials* **2023**, *16*, 2810.
https://doi.org/10.3390/ma16072810

**AMA Style**

Trusov P, Kondratev N, Baldin M, Bezverkhy D.
A Multilevel Physically Based Model of Recrystallization: Analysis of the Influence of Subgrain Coalescence at Grain Boundaries on the Formation of Recrystallization Nuclei in Metals. *Materials*. 2023; 16(7):2810.
https://doi.org/10.3390/ma16072810

**Chicago/Turabian Style**

Trusov, Peter, Nikita Kondratev, Matvej Baldin, and Dmitry Bezverkhy.
2023. "A Multilevel Physically Based Model of Recrystallization: Analysis of the Influence of Subgrain Coalescence at Grain Boundaries on the Formation of Recrystallization Nuclei in Metals" *Materials* 16, no. 7: 2810.
https://doi.org/10.3390/ma16072810
