Effect of Graphene Oxide on the Mechanical Properties and Durability of High-Strength Lightweight Concrete Containing Shale Ceramsite
Abstract
:1. Introduction
2. Materials and Methods

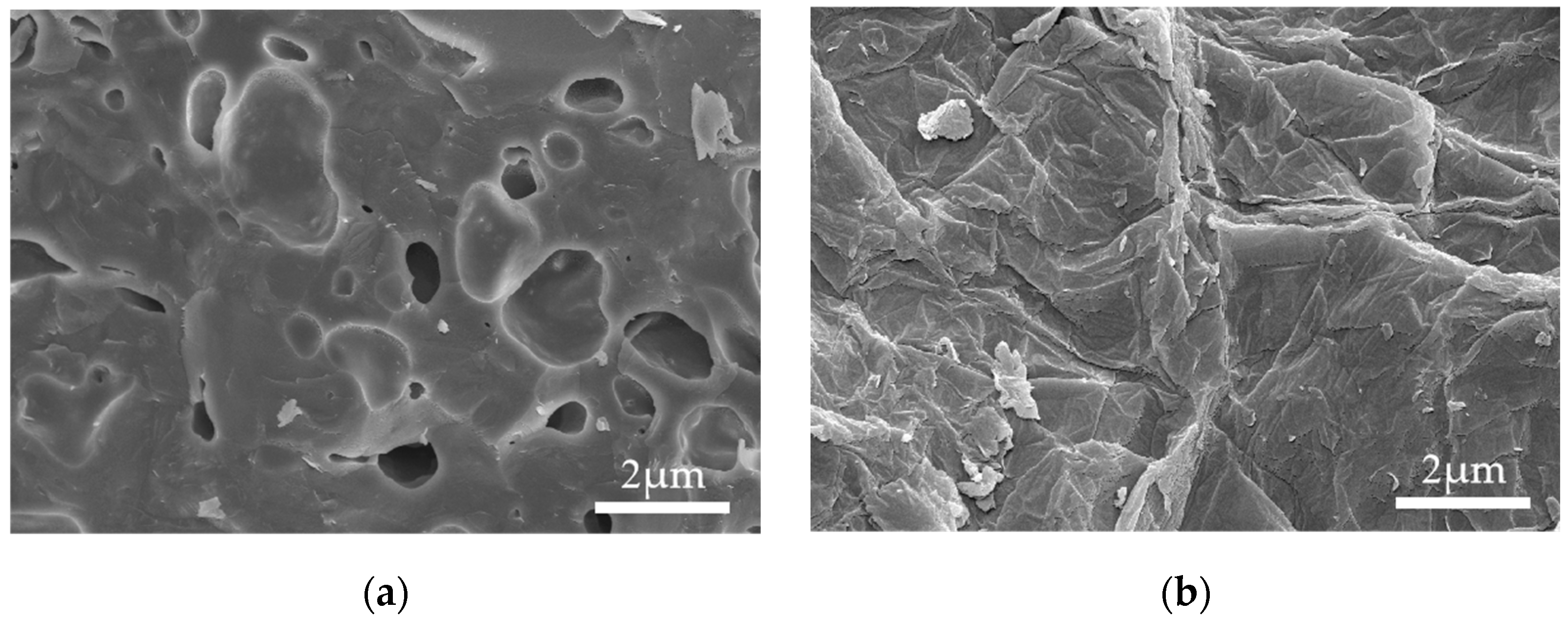

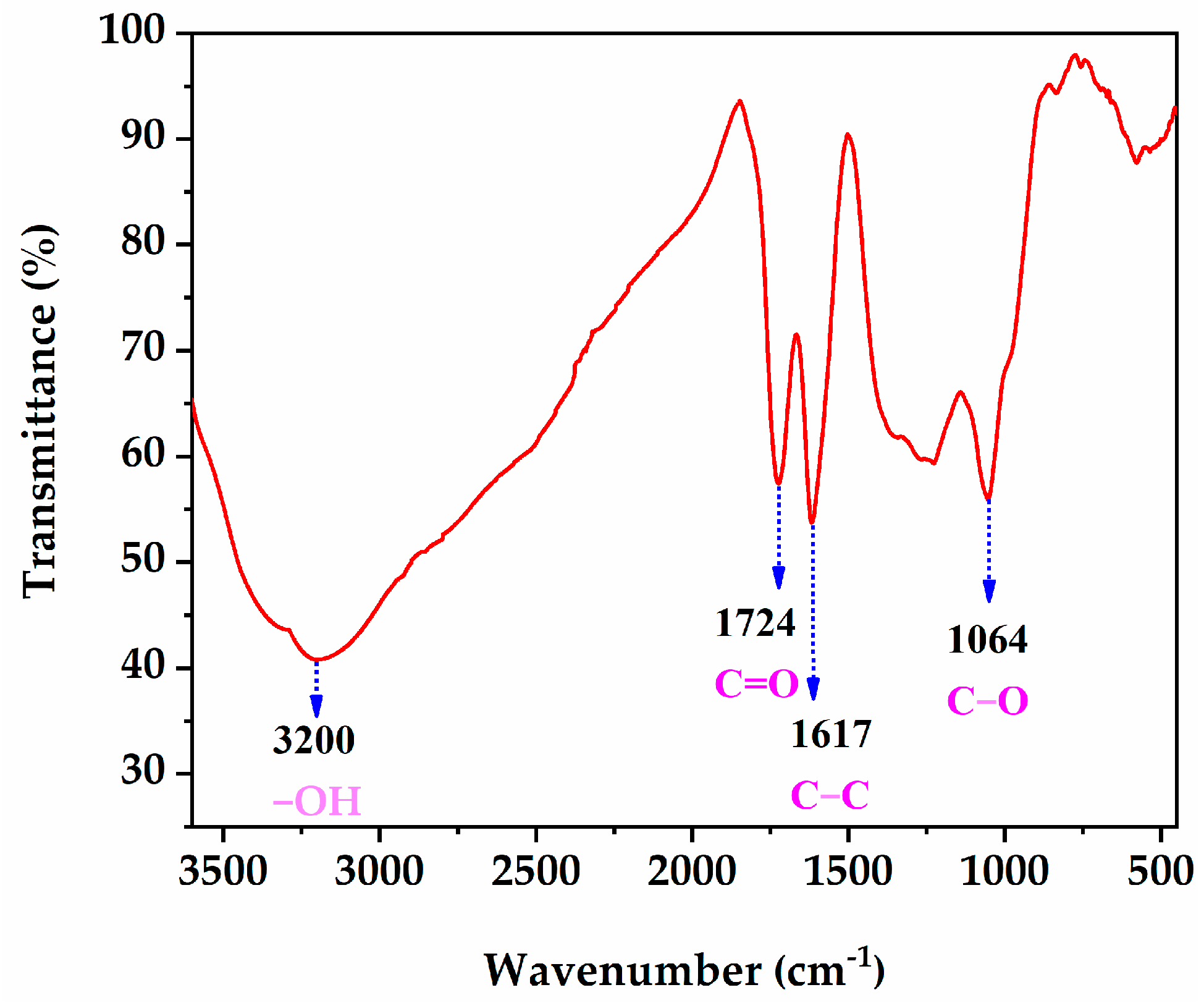

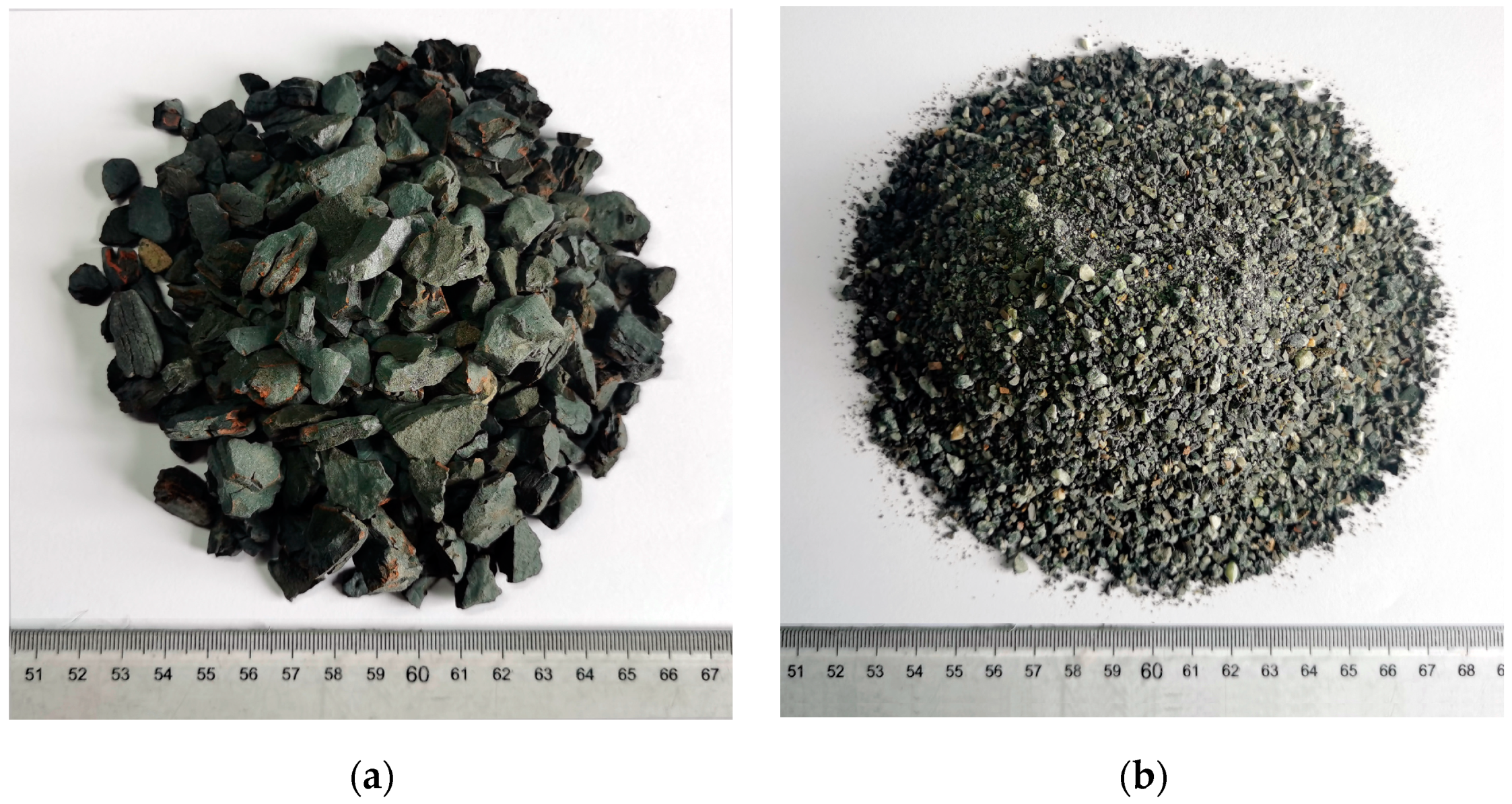

2.1. Materials
2.2. Mix Proportions

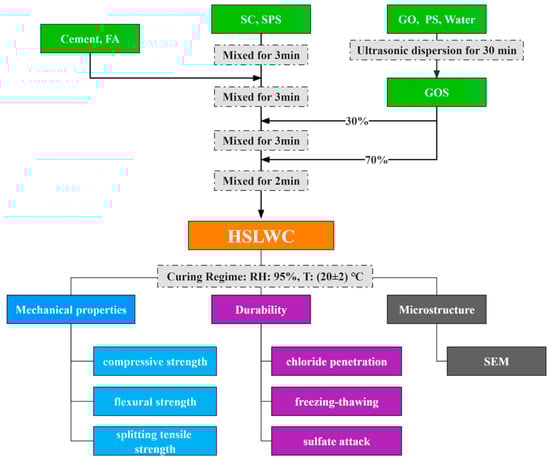

2.3. Preparation and Curing
2.4. Experimental Methodology

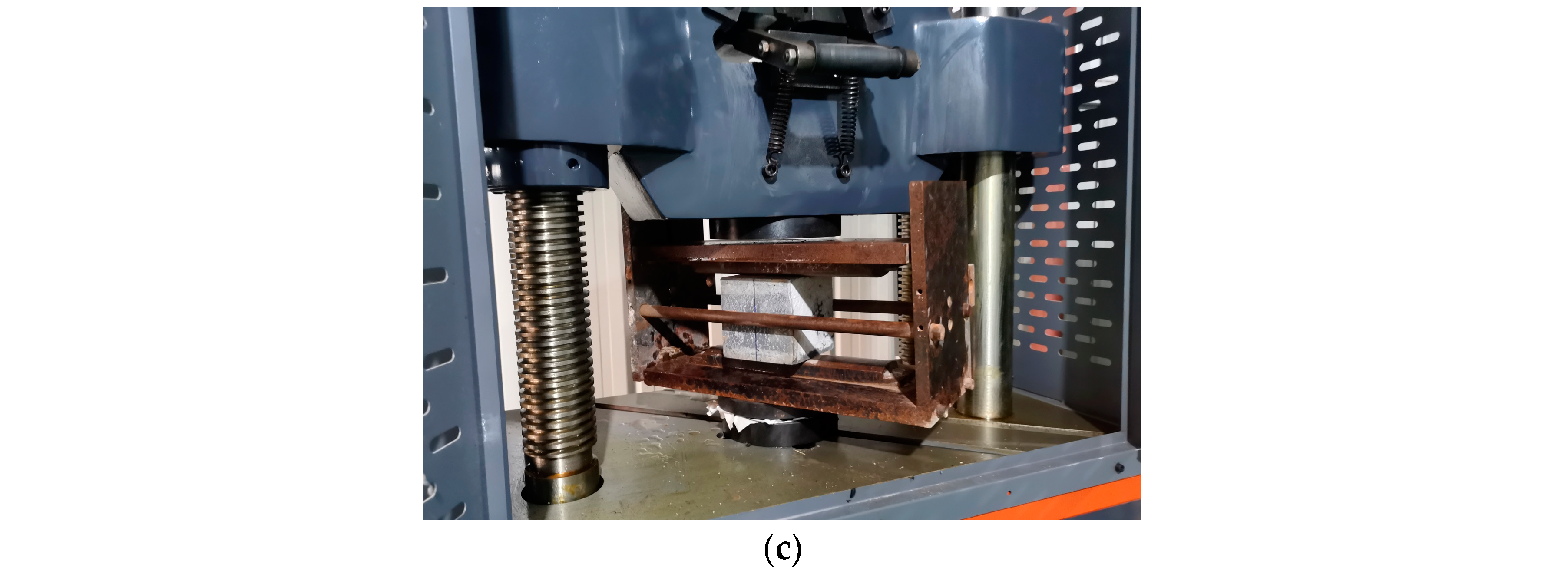

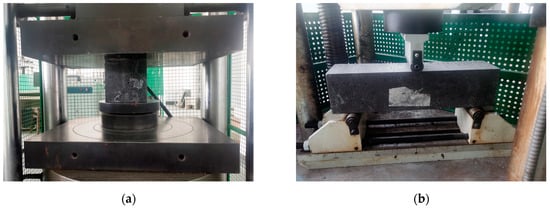

2.4.1. Mechanical Properties

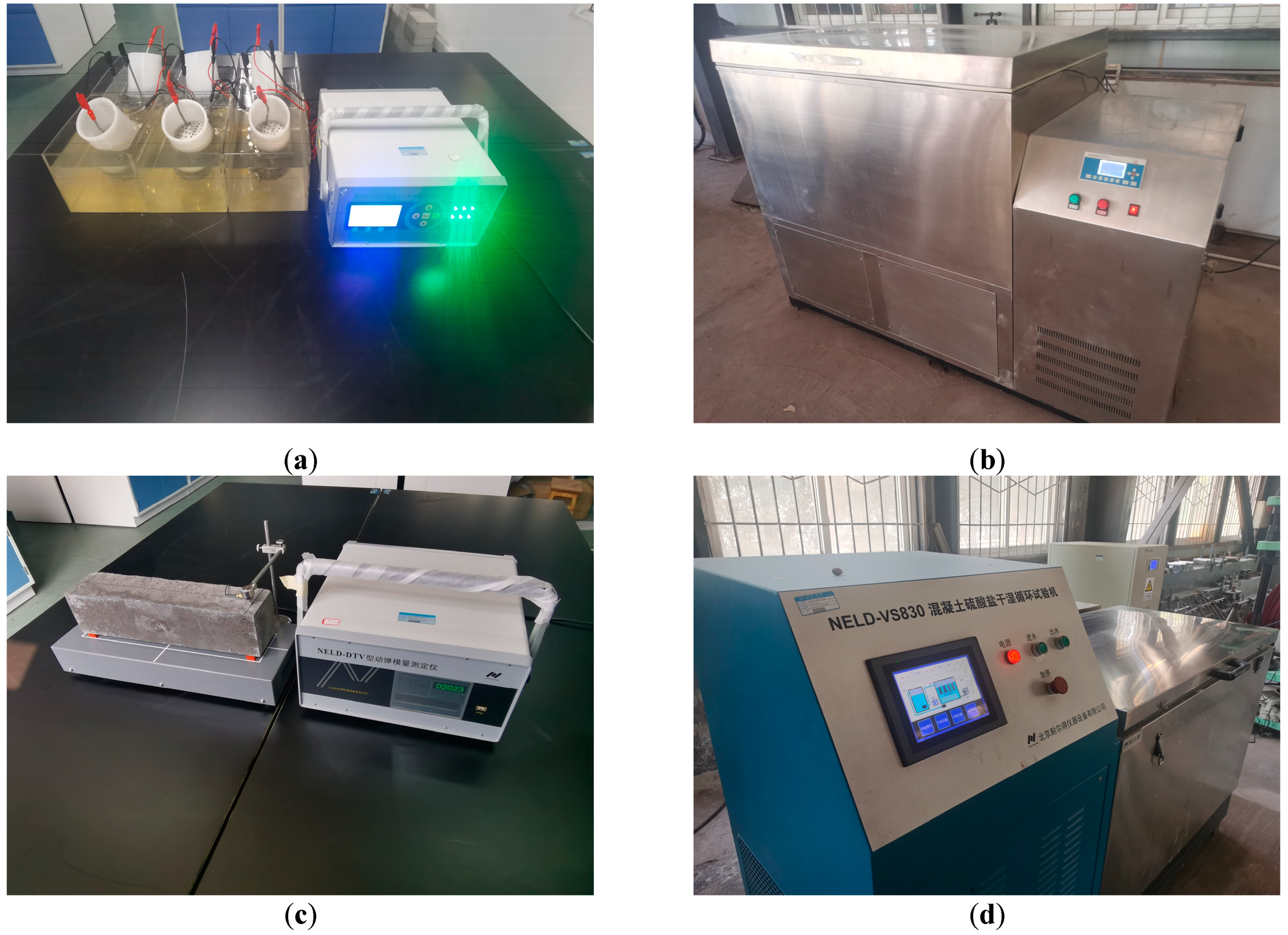

2.4.2. Durability
2.4.3. Microstructure
3. Results and Discussion
3.1. Mechanical Properties

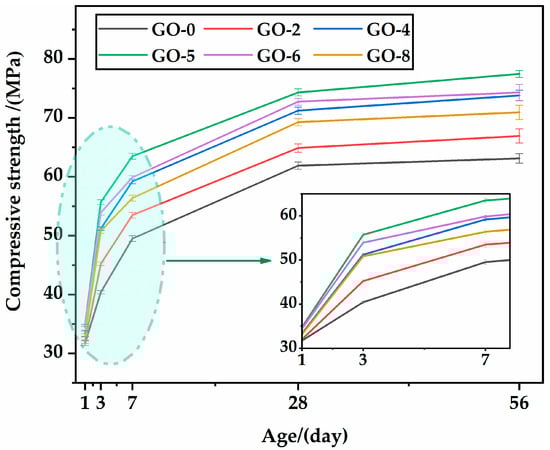

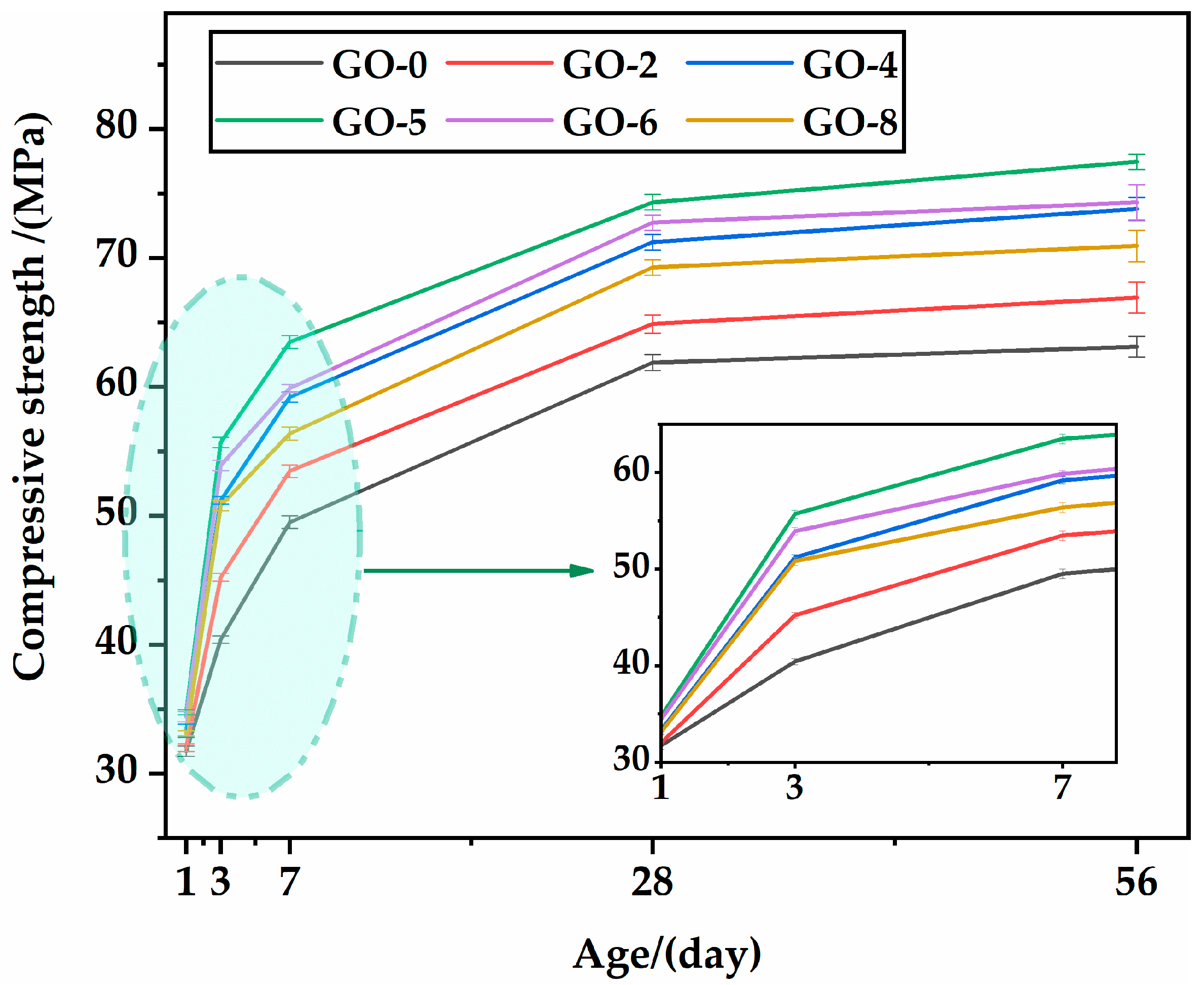

3.1.1. Compressive Strength

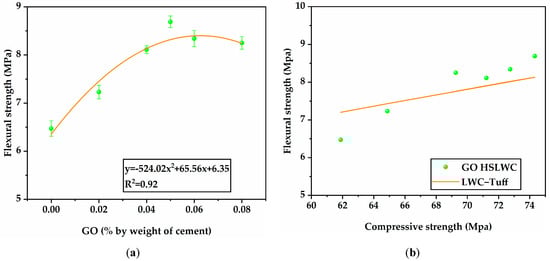

3.1.2. Flexural Strength

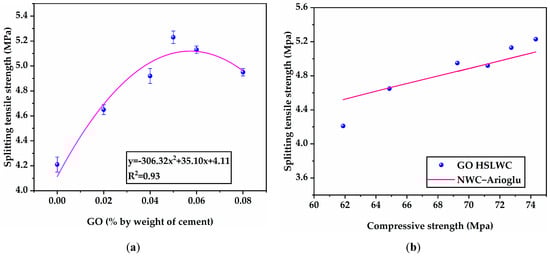

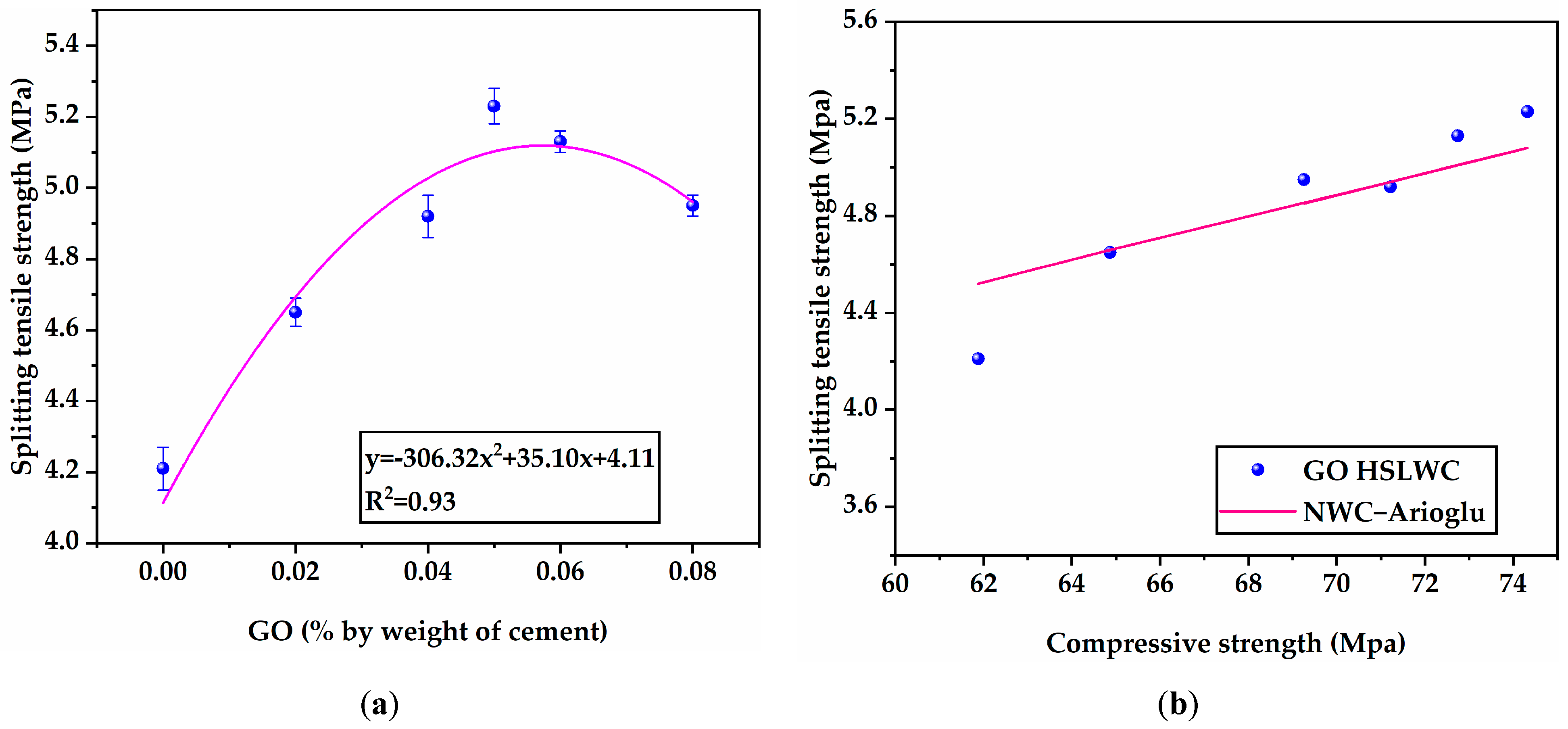

3.1.3. Splitting Tensile Strength
3.2. Durability

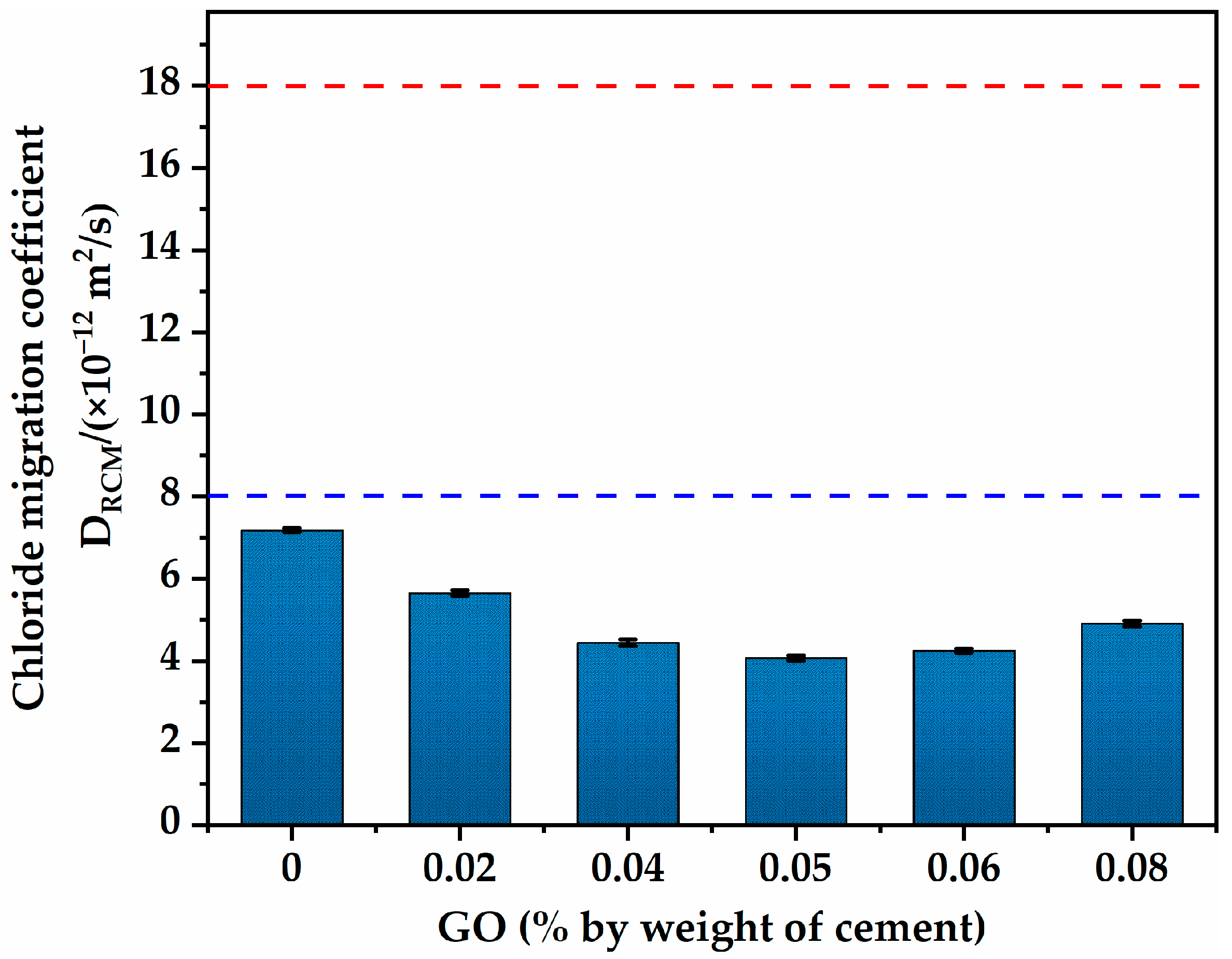

3.2.1. Chloride Penetration Resistance

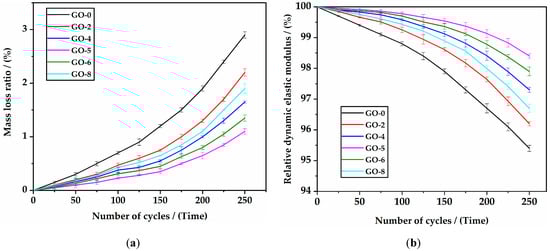

3.2.2. Freezing–Thawing Resistance

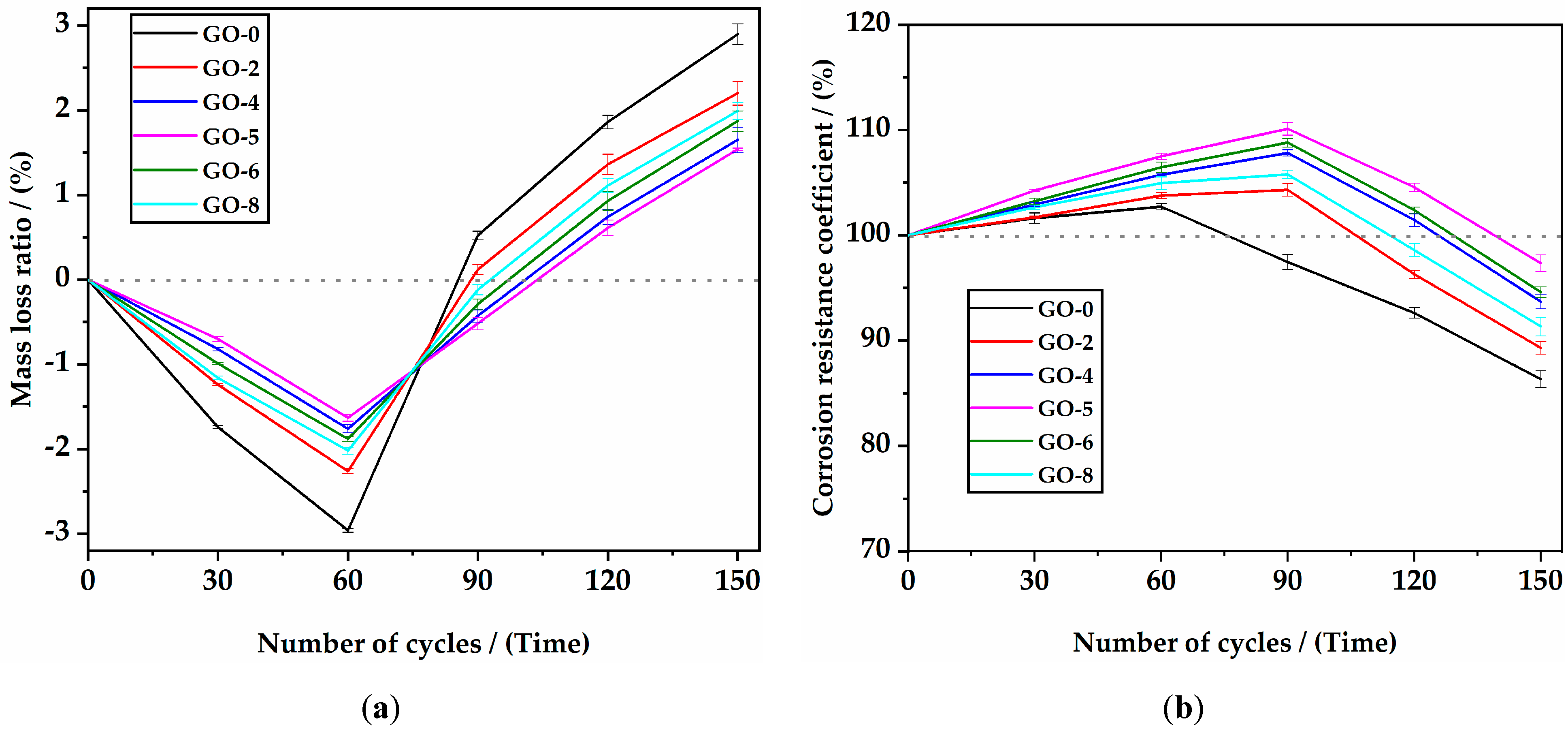

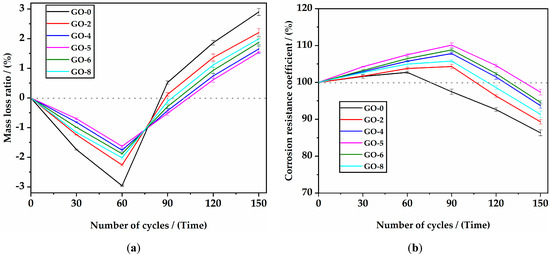

3.2.3. Sulfate Attack Resistance

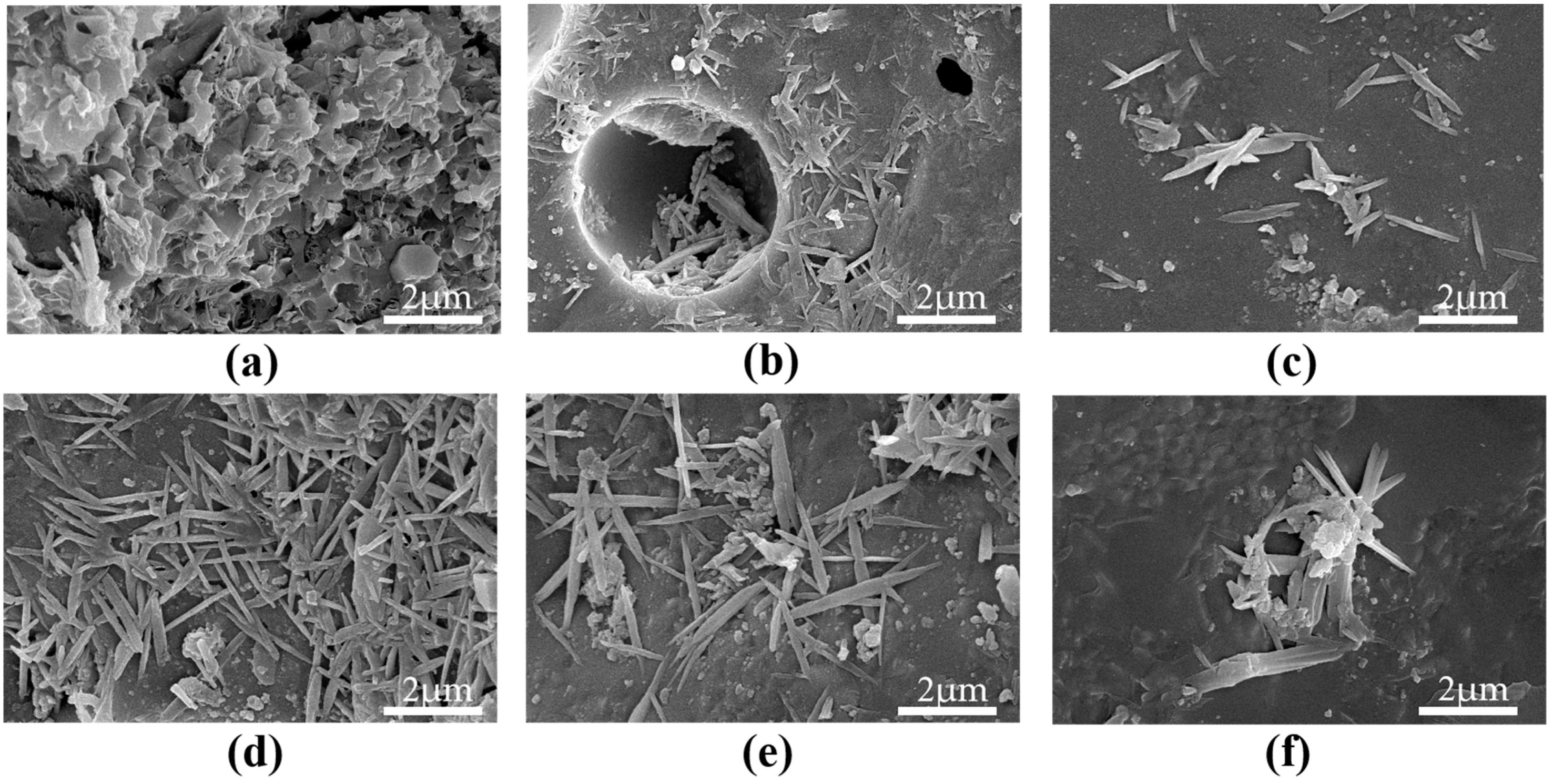

3.3. Microstructure
4. Conclusions
- The specimens with different GO contents had an oven-dry density in the range of 1696–1728 kg/m3 and a compressive strength in the range of 61.88–74.32 MPa, which meet the classification requirements of HSLWC. GO not only adjusted the crystal morphology at an early stage but also maximized the 28-day compressive strength by 20.1%. The specimens with different GO contents had a flexural strength ranging from 6.47 to 8.69 MPa. The addition of GO could increase the flexural strength by 11.7–34.3%. The specimens with different GO contents had a splitting tensile strength ranging from 4.21 to 5.23 MPa. The addition of GO could increase the splitting tensile strength by 10.5–24.2%.
- The chloride-ion migration coefficient of HSLWC with different GO incorporation contents was within the range of 4.07 × 10−12–7.18 × 10−12 m2/s, suggesting that the HSLWC in this study could be well applied to marine environments. GO could help the chloride-ion migration coefficient of HSLWC to reach a maximum reduction of 43%. After 250 freezing and thawing cycles, the specimens with different GO contents had a mass loss rate in the range of 1.10–2.91% and a relative dynamic elastic modulus in the range of 95.4–98.4%. After 150 wet and dry cycles, the specimens with different GO contents had a mass loss rate in the range of 1.54–2.95% and a corrosion resistance coefficient in the range of 86.3–97.4%. These results indicated that GO can improve the freeze–thaw resistance and sulfate attack resistance of HSLWC.
- When the content of GO increased from 0 to 0.08%, all the performance indices of HSLWC showed a nonlinear trend. The peak in performance occurred when the GO content was 0.05%. It could be inferred that the optimal GO addition of HSLWC produced from SC was 0.05%. A low content of GO could adjust the crystal morphology to grow flower-like crystals. The number and size of flower-like crystals had a nonlinear relationship with the content of GO. This may be another important reason for the observed performance improvement.
- The results indicated that a low content GO could contribute better mechanical properties and durability to HSLWC, thereby extending the service life of buildings and reducing maintenance costs. The addition of different amounts of GO produces different reinforcement effects. GO can be used to achieve the application of SC in high-rise and large-span structures as well as in extreme cold or deep sea areas. Therefore, using GO to strengthen HSLWC made of SC has broad application prospects.
- Oxygen content is an important parameter for the affinity and mechanical properties of GO. Despite the significant mechanical and durability enhancements in this study, controlling the oxygen content of GO to accurately adjust the performance of HSLWC still requires further research to achieve wider practical applications.
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Al-Khaiat, H.; Haque, N. Strength and Durability of Lightweight and Normal Weight Concrete. J. Mater. Civ. Eng. 1999, 11, 231–235. [Google Scholar] [CrossRef]
- Kayali, O. Fly Ash Lightweight Aggregates in High Performance Concrete. Constr. Build. Mater. 2008, 22, 2393–2399. [Google Scholar] [CrossRef]
- Real, S.; Gomes, M.G.; Moret Rodrigues, A.; Bogas, J.A. Contribution of Structural Lightweight Aggregate Concrete to the Reduction of Thermal Bridging Effect in Buildings. Constr. Build. Mater. 2016, 121, 460–470. [Google Scholar] [CrossRef]
- Haque, M.N.; Al-Khaiat, H.; Kayali, O. Strength and Durability of Lightweight Concrete. Cem. Concr. Compos. 2004, 26, 307–314. [Google Scholar] [CrossRef]
- Kockal, N.U.; Ozturan, T. Durability of Lightweight Concretes with Lightweight Fly Ash Aggregates. Constr. Build. Mater. 2011, 25, 1430–1438. [Google Scholar] [CrossRef]
- Aslam, M.; Shafigh, P.; Jumaat, M.Z. Oil-Palm by-Products as Lightweight Aggregate in Concrete Mixture: A Review. J. Clean. Prod. 2016, 126, 56–73. [Google Scholar] [CrossRef]
- Kılıç, A.; Atiş, C.D.; Yaşar, E.; Özcan, F. High-Strength Lightweight Concrete Made with Scoria Aggregate Containing Mineral Admixtures. Cem. Concr. Res. 2003, 33, 1595–1599. [Google Scholar] [CrossRef]
- Rossignolo, J.A.; Agnesini, M.V.C.; Morais, J.A. Properties of High-Performance LWAC for Precast Structures with Brazilian Lightweight Aggregates. Cem. Concr. Compos. 2003, 25, 77–82. [Google Scholar] [CrossRef]
- Thomas, M.; Bremner, T. Performance of Lightweight Aggregate Concrete Containing Slag after 25years in a Harsh Marine Environment. Cem. Concr. Res. 2012, 42, 358–364. [Google Scholar] [CrossRef]
- Chai, L.J.; Shafigh, P.; Bin Mahmud, H. Production of High-Strength Lightweight Concrete Using Waste Lightweight Oil-Palm-Boiler-Clinker and Limestone Powder. Eur. J. Environ. Civ. Eng. 2019, 23, 325–344. [Google Scholar] [CrossRef]
- Mansouri, E.; Manfredi, M.; Hu, J.-W. Environmentally Friendly Concrete Compressive Strength Prediction Using Hybrid Machine Learning. Sustainability 2022, 14, 12990. [Google Scholar] [CrossRef]
- Hossain, K.M.A.; Ahmed, S.; Lachemi, M. Lightweight Concrete Incorporating Pumice Based Blended Cement and Aggregate: Mechanical and Durability Characteristics. Constr. Build. Mater. 2011, 25, 1186–1195. [Google Scholar] [CrossRef]
- Chen, S.-H.; Wang, H.-Y.; Jhou, J.-W. Investigating the Properties of Lightweight Concrete Containing High Contents of Recycled Green Building Materials. Constr. Build. Mater. 2013, 48, 98–103. [Google Scholar] [CrossRef]
- Liu, Q.; Su, L.; Xiao, H.; Xu, W.; Yan, W.M.; Xia, Z. Preparation of Shale Ceramsite Vegetative Porous Concrete and Its Performance as a Planting Medium. Eur. J. Environ. Civ. Eng. 2021, 25, 2111–2126. [Google Scholar] [CrossRef]
- Wu, X.; Wang, S.; Yang, J.; Zhao, J.; Chang, X. Damage Characteristics and Constitutive Model of Lightweight Shale Ceramsite Concrete under Static-Dynamic Loading. Eng. Fract. Mech. 2022, 259, 108137. [Google Scholar] [CrossRef]
- Fan, L.F.; Wang, H.; Zhong, W.L. Development of Lightweight Aggregate Geopolymer Concrete with Shale Ceramsite. Ceram. Int. 2023, 01, 1–12. [Google Scholar] [CrossRef]
- Zhuang, Y.-Z.; Chen, C.-Y.; Ji, T. Effect of Shale Ceramsite Type on the Tensile Creep of Lightweight Aggregate Concrete. Constr. Build. Mater. 2013, 46, 13–18. [Google Scholar] [CrossRef]
- Moreno, D.; Zunino, F.; Paul, Á.; Lopez, M. High Strength Lightweight Concrete (HSLC): Challenges When Moving from the Laboratory to the Field. Constr. Build. Mater. 2014, 56, 44–52. [Google Scholar] [CrossRef]
- Ma, Y.; Zhu, B.; Tan, M. Properties of Ceramic Fiber Reinforced Cement Composites. Cem. Concr. Res. 2005, 35, 296–300. [Google Scholar] [CrossRef]
- Choi, J.; Zi, G.; Hino, S.; Yamaguchi, K.; Kim, S. Influence of Fiber Reinforcement on Strength and Toughness of All-Lightweight Concrete. Constr. Build. Mater. 2014, 69, 381–389. [Google Scholar] [CrossRef]
- Zhang, Y.; Sun, X. Synergistic Effects of Nano-Silica and Fly Ash on the Mechanical Properties and Durability of Internal-Cured Concrete Incorporating Artificial Shale Ceramsite. J. Build. Eng. 2023, 66, 105905. [Google Scholar] [CrossRef]
- Garcés, P.; Fraile, J.; Vilaplana-Ortego, E.; Cazorla-Amorós, D.; Alcocel, E.G.; Andión, L.G. Effect of Carbon Fibres on the Mechanical Properties and Corrosion Levels of Reinforced Portland Cement Mortars. Cem. Concr. Res. 2005, 35, 324–331. [Google Scholar] [CrossRef]
- Babak, F.; Abolfazl, H.; Alimorad, R.; Parviz, G. Preparation and Mechanical Properties of Graphene Oxide: Cement Nanocomposites. Sci. World J. 2014, 2014, 1–10. [Google Scholar] [CrossRef] [Green Version]
- Lv, S.; Ma, Y.; Qiu, C.; Sun, T.; Liu, J.; Zhou, Q. Effect of Graphene Oxide Nanosheets of Microstructure and Mechanical Properties of Cement Composites. Constr. Build. Mater. 2013, 49, 121–127. [Google Scholar] [CrossRef]
- Low, F.W.; Lai, C.W.; Abd Hamid, S.B. Easy Preparation of Ultrathin Reduced Graphene Oxide Sheets at a High Stirring Speed. Ceram. Int. 2015, 41, 5798–5806. [Google Scholar] [CrossRef]
- Shen, Y.; Liu, B.; Lv, J.; Shen, M. Mechanical Properties and Resistance to Acid Corrosion of Polymer Concrete Incorporating Ceramsite, Fly Ash and Glass Fibers. Materials 2019, 12, 2441. [Google Scholar] [CrossRef] [Green Version]
- Yang, H.; Cui, H.; Tang, W.; Li, Z.; Han, N.; Xing, F. A Critical Review on Research Progress of Graphene/Cement Based Composites. Compos. Part Appl. Sci. Manuf. 2017, 102, 273–296. [Google Scholar] [CrossRef]
- Lv, S.; Ma, Y.; Qiu, C.; Zhou, Q. Regulation of GO on Cement Hydration Crystals and Its Toughening Effect. Mag. Concr. Res. 2013, 65, 1246–1254. [Google Scholar] [CrossRef]
- Sui, Y.; Liu, S.; Ou, C.; Liu, Q.; Meng, G. Experimental Investigation for the Influence of Graphene Oxide on Properties of the Cement-Waste Concrete Powder Composite. Constr. Build. Mater. 2021, 276, 122229. [Google Scholar] [CrossRef]
- Shang, Y.; Zhang, D.; Yang, C.; Liu, Y.; Liu, Y. Effect of Graphene Oxide on the Rheological Properties of Cement Pastes. Constr. Build. Mater. 2015, 96, 20–28. [Google Scholar] [CrossRef]
- Gong, K.; Pan, Z.; Korayem, A.H.; Qiu, L.; Li, D.; Collins, F.; Wang, C.M.; Duan, W.H. Reinforcing Effects of Graphene Oxide on Portland Cement Paste. J. Mater. Civ. Eng. 2015, 27, A4014010. [Google Scholar] [CrossRef]
- Lv, S.; Liu, J.; Sun, T.; Ma, Y.; Zhou, Q. Effect of GO Nanosheets on Shapes of Cement Hydration Crystals and Their Formation Process. Constr. Build. Mater. 2014, 64, 231–239. [Google Scholar] [CrossRef]
- Li, W.; Li, X.; Chen, S.J.; Liu, Y.M.; Duan, W.H.; Shah, S.P. Effects of Graphene Oxide on Early-Age Hydration and Electrical Resistivity of Portland Cement Paste. Constr. Build. Mater. 2017, 136, 506–514. [Google Scholar] [CrossRef]
- Chu, H.; Zhang, Y.; Wang, F.; Feng, T.; Wang, L.; Wang, D. Effect of Graphene Oxide on Mechanical Properties and Durability of Ultra-High-Performance Concrete Prepared from Recycled Sand. Nanomaterials 2020, 10, 1718. [Google Scholar] [CrossRef]
- Wu, Y.-Y.; Zhang, J.; Liu, C.; Zheng, Z.; Lambert, P. Effect of Graphene Oxide Nanosheets on Physical Properties of Ultra-High-Performance Concrete with High Volume Supplementary Cementitious Materials. Materials 2020, 13, 1929. [Google Scholar] [CrossRef] [Green Version]
- Yu, L.; Wu, R. Using Graphene Oxide to Improve the Properties of Ultra-High-Performance Concrete with Fine Recycled Aggregate. Constr. Build. Mater. 2020, 259, 120657. [Google Scholar] [CrossRef]
- Zeng, H.; Lai, Y.; Qu, S.; Qin, Y. Graphene Oxide-Enhanced Cementitious Materials under External Sulfate Attack: Implications for Long Structural Life. ACS Appl. Nano Mater. 2020, 3, 9784–9795. [Google Scholar] [CrossRef]
- Suo, Y.; Guo, R.; Xia, H.; Yang, Y.; Zhou, B.; Zhao, Z. A Review of Graphene Oxide/Cement Composites: Performance, Functionality, Mechanisms, and Prospects. J. Build. Eng. 2022, 53, 104502. [Google Scholar] [CrossRef]
- Xu, Y.; Zeng, J.; Chen, W.; Jin, R.; Li, B.; Pan, Z. A Holistic Review of Cement Composites Reinforced with Graphene Oxide. Constr. Build. Mater. 2018, 171, 291–302. [Google Scholar] [CrossRef]
- Alkhouzaam, A.; Qiblawey, H.; Khraisheh, M.; Atieh, M.; Al-Ghouti, M. Synthesis of Graphene Oxides Particle of High Oxidation Degree Using a Modified Hummers Method. Ceram. Int. 2020, 46, 23997–24007. [Google Scholar] [CrossRef]
- Zhang, P.; Sha, D.; Li, Q.; Zhao, S.; Ling, Y. Effect of Nano Silica Particles on Impact Resistance and Durability of Concrete Containing Coal Fly Ash. Nanomaterials 2021, 11, 1296. [Google Scholar] [CrossRef] [PubMed]
- Hong, X.; Lee, J.C.; Qian, B. Mechanical Properties and Microstructure of High-Strength Lightweight Concrete Incorporating Graphene Oxide. Nanomaterials 2022, 12, 833. [Google Scholar] [CrossRef]
- Monteiro, J.J.M.; Mehta, P.K. Ettringite Formation on the Aggregate—Cement Paste Interface. Cem. Concr. Res. 1985, 15, 378–380. [Google Scholar] [CrossRef]
- Shafigh, P.; Chai, L.J.; Mahmud, H.B.; Nomeli, M.A. A Comparison Study of the Fresh and Hardened Properties of Normal Weight and Lightweight Aggregate Concretes. J. Build. Eng. 2018, 15, 252–260. [Google Scholar] [CrossRef]
- Evangelista, A.C.J.; Tam, V.W.Y. Properties of High-Strength Lightweight Concrete Using Manufactured Aggregate. Proc. Inst. Civ. Eng. Constr. Mater. 2020, 173, 157–169. [Google Scholar] [CrossRef]
- Aitcin, P.C.; Haddad, G.; Morin, R. Controlling plastic and autogenous shrinkage in high-performance concrete. ACI Specif. Publ. 2004, 220, 69–83. [Google Scholar]
- Omar, W.; Mohamed, R.N. The Performance of Pretensioned Prestressed Concrete Beams Made with Lightweight Concrete. J. Civ. Eng. 2002, 14, 60–70. [Google Scholar]
- Domagała, L. Modification of Properties of Structural Lightweight Concrete with Steel Fibers. J. Civ. Eng. Manag. 2011, 17, 36–44. [Google Scholar] [CrossRef]
- Shafigh, P.; Johnson Alengaram, U.; Mahmud, H.B.; Jumaat, M.Z. Engineering Properties of Oil Palm Shell Lightweight Concrete Containing Fly Ash. Mater. Des. 2013, 49, 613–621. [Google Scholar] [CrossRef]
- Arιoglu, N.; Girgin, Z.C.; Arιoglu, E. Evaluation of Ratio between Splitting Tensile Strength and Compressive Strength for Concretes up to 120 MPa and Its Application in Strength Criterion. ACI Mater. J. 2006, 103, 18–24. [Google Scholar] [CrossRef]
- Burgos, D.M.; Guzmán, Á.; Torres, N.; Delvasto, S. Chloride Ion Resistance of Self-Compacting Concretes Incorporating Volcanic Materials. Constr. Build. Mater. 2017, 156, 565–573. [Google Scholar] [CrossRef]
- Luping, T.; Nilsson, L.O. Chloride diffusivity in high strength concrete at different ages. Nordic Concr. Res. 1992, 11, 162–171. [Google Scholar]
- Meng, W.; Khayat, K.H. Effect of Graphite Nanoplatelets and Carbon Nanofibers on Rheology, Hydration, Shrinkage, Mechanical Properties, and Microstructure of UHPC. Cem. Concr. Res. 2018, 105, 64–71. [Google Scholar] [CrossRef]
- Wang, Y.; Yang, J.; Ouyang, D. Effect of Graphene Oxide on Mechanical Properties of Cement Mortar and Its Strengthening Mechanism. Materials 2019, 12, 3753. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Chuah, S.; Pan, Z.; Sanjayan, J.G.; Wang, C.M.; Duan, W.H. Nano Reinforced Cement and Concrete Composites and New Perspective from Graphene Oxide. Constr. Build. Mater. 2014, 73, 113–124. [Google Scholar] [CrossRef]
Aggregate | Type | Density Rank (kg/m3) | Apparent Density (kg/m3) | Particle Size (mm) | Water Absorption (24 h) (%) |
---|---|---|---|---|---|
SC | coarse | 800 | 1425 | 5–15 | 4.6 |
SPS | fine | 700 | 1638 | 0–3 | 1.36 |
Specific Surface Area (m2/g) | Layers | Thickness (nm) | Diameter (µm) | Purity (%) | Oxygen Content (%) | Carbon Content (%) |
---|---|---|---|---|---|---|
100–300 | 1–2 | ~1 | 10–30 | >95 | >33 | >66 |
No. | Cement | Water | SC | SPS | FA | PS | GO |
---|---|---|---|---|---|---|---|
GO-0 | 440 | 170 | 380 | 380 | 110 | 11 | 0 |
GO-2 | 440 | 170 | 380 | 380 | 110 | 11 | 0.088 |
GO-4 | 440 | 170 | 380 | 380 | 110 | 11 | 0.176 |
GO-5 | 440 | 170 | 380 | 380 | 110 | 11 | 0.220 |
GO-6 | 440 | 170 | 380 | 380 | 110 | 11 | 0.264 |
GO-8 | 440 | 170 | 380 | 380 | 110 | 11 | 0.352 |
Mix No. | Density (kg/m3) | Compressive Strength (MPa) | C/D (kN·m/kg) | Ratio (%) | |
---|---|---|---|---|---|
F/C | S/C | ||||
GO-0 | 1696 | 61.88 | 36.5 | 6.5 | 6.8 |
GO-2 | 1705 | 64.87 | 38.0 | 6.7 | 6.2 |
GO-4 | 1712 | 71.22 | 41.6 | 6.1 | 6.9 |
GO-5 | 1715 | 74.32 | 43.3 | 6.2 | 7.0 |
GO-6 | 1719 | 72.74 | 42.3 | 6.0 | 7.0 |
GO-8 | 1728 | 69.26 | 40.1 | 5.9 | 7.1 |
