On Structural and Magnetic Properties of Substituted SmCo5 Materials

by
Margariti Gjoka
1,
Georgios Sempros
2,
Stefanos Giaremis
2,
Joseph Kioseoglou
2 and
Charalampos Sarafidis
2,*
1
Institute of Nanoscience and Nanotechnology, National Center for Science and Research “Demokritos”, 15341 Athens, Greece
2
Department of Physics, School of Sciences, Aristotle University of Thessaloniki, 54124 Thessaloniki, Greece
*
Author to whom correspondence should be addressed.
Materials 2023, 16(2), 547; https://doi.org/10.3390/ma16020547
Submission received: 10 December 2022 / Revised: 1 January 2023 / Accepted: 4 January 2023 / Published: 5 January 2023
(This article belongs to the Special Issue Quality, Microstructure and Properties of Metal Alloys)
Browse Figures
Versions Notes

Abstract

:
SmCo5 is a well-established material in the permanent magnet industry, a sector which constantly gains market share due to increasing demand but also suffers from criticality of some raw materials. In this work we study the possibility of replacement of Sm with other, more abundant rare earth atoms like Ce-La. These raw materials are usually called “free” rare-earth minerals, appearing as a by-product during mining and processing of other raw materials. Samples with nominal stoichiometry Sm1−xMMxCo5 (x = 0.1–1.0) were prepared in bulk form with conventional metallurgy techniques and their basic structural and magnetic properties were examined. The materials retain the hexagonal CaCu5-type structure while minor fluctuations in unit cell parameters as observed with X-ray diffraction. Incorporation of Ce-La degrade intrinsic magnetic properties, Curie temperature drops from 920 K to 800 K across the series and mass magnetization from 98 Am2/kg to 60 Am2/kg; effects which trade off for the significantly reduced price. Atomistic simulations, implemented based on Density Functional Theory calculations are used in the case of the stoichiometry with x = 0.5 to calculate atomic magnetic moments and provide additional insight in the complex interactions that dominate the magnetic properties of the material.

1. Introduction

Many developments in modern technology are based in permanent magnets (PM), including a plentiful of critical applications in the fields of energy, automotive, robotics and more [1]. This trend is significantly enhanced in recent years, new technologies are utilized in the global fight against climate change and for productivity enhancement by introducing automation and robotics in low skill tasks. Increasing demand has pushed supply chain to its limits and fuels the urgent need for the discovery of PM based on more abundant and thus cheaper raw materials. Reducing the cost of PM can be accomplished not only by completely eliminating rare-earth raw materials, a task that has been proven quite difficult, but also by reducing the content (rare-earth lean PM) and/or by using raw rare-earth elements with larger abundance or less demand and thus less criticality and supply risk. The term Misch Metal used to refer to minerals like monazite which consist of various rare-earth compounds, mostly Ce and La; in our case we will refer strictly to Ce and La in 3:1 ratio, the symbolism MM corresponds to Ce0.75La0.25 [2,3,4,5,6].
Sm-Co system was the first high-performance RE-based PM presenting high anisotropy field (μ0HA ~ 40 T), high Curie temperature (~1000 K) and (BH)max > 150 kJ/m3 [7,8]. Sm is not as expensive as other rare-earth elements for the moment, however, replacing Sm with Ce0.75La0.25 in SmCo5 system is probably viable and has been successfully applied to other systems [9,10,11,12,13]. In the present work we have investigated the effect of introducing Ce and La in SmCo5 material, the structure stabilization, and the basic magnetic properties in order to investigate whether the expected cost reduction of such a material can be combined with adequately intrinsic magnetic properties. Complementary to the economic factors, our results contribute towards the better understanding of the complex nature of exchange interactions that determine the macroscopic properties and the possibility of improving the ab-initio techniques. The computational modelling and atomistic simulations already provide for better materials and thus it is of large importance to investigate and report even on less impressive compounds.

2. Experimental

Ingots of Sm1−xMMxCo5 (x = 0.1–1.0) samples were prepared by arc-melting constituting elements of high purity in Ar atmosphere. All raw materials are typical, commercially available products. Misch Metal consisted of 75–25 wt.% Ce-La 99 wt.%, provided by Alfa Aesar, Germany. Extra Sm was added to compensate for sublimation and all samples were melted multiple times. Materials were subsequently homogenized at temperatures 1100–1200 K for several hours in vacuum. Annealed alloys were manually crashed and ground down to less than 50 μm using a sieve of 50 mesh. Structural characterization of the powders was carried out using X-ray diffraction patterns recorded with a SIEMENS D500 diffractometer (Cu-Kα radiation). Determination of the character of the magnetocrystalline anisotropy was carried out by X-ray diffraction patterns in magnetically oriented powders which were mixed with epoxy glue and allowed to settle for adequate time within magnetic field; oriented perpendicular to the plane of X-ray incidence thus allowing only the reflections which relate to the easy magnetization direction. Magnetic measurements were carried out using a Princeton Applied Research PAR 155 vibrating sample magnetometer (VSM) at room temperature in applied fields up to 2 T while thermomagnetic analysis in low magnetic field (0.02 T) in the temperature range 300–1100 K was used to determine the critical Curie temperature.

3. Computational Details

Overall, Density Functional Theory (DFT) is based on the Kohn-Sham theory [14], which effectively maps the 3N-dimensional problem of explicitly solving the Schrodinger equation for an N-body system of interacting electrons to the treatment of a system of N coupled, 3 dimensional equations, describing a system of non-interacting electrons with the same density as the original one [15]. An integral development towards the Kohn-Sham theory were the Hohenberg-Kohn theorems, which shown that the external potential (and consequently the groundstate Hamiltonian) of a system of electrons can be uniquely expressed as a functional of the electron density, and that the groundstate electron density minimizes the functional of the groundstate energy [16]. The proof of the first part was performed by a reductio ad absurdum argument by E. S. Kryachko [17], who provided an alternative derivation of the first Hohenberg-Kohn theorem. The accuracy of DFT in describing exchange coupling has been studied extensively and has been found that the choice of functional has a substantial impact (e.g., considering the broken symmetry density functional theory (BS-DFT) approximation [18]).
The DFT calculations were performed within the spin polarized and rotationally invariant DFT+U framework by Dudarev et al. [19] and the the Perdew-Burke-Ernzerhof derivation of the gene-ralized gradient approximation pseudo-pontentials [20], with the projector augmented-wave method [21] by using the VASP code [22]. The value of the +U potentials was set to 4.7 eV for the 4f electrons of Sm and Ce and 2.22 eV for the d electrons of Co and La, in agreement with the literature [23]. Calculations were performed on a dataset of 96 atom, 2 × 2 × 4 supercell configurations with the MM0.5Sm0.5Co5 stoichiometry, created with the SUPERCELL code [24]. In this approach, the La and Ce atoms substitute half of the Sm ones in a pseudorandom manner. The structural, electronic, and magnetic properties were extracted from the energetically favourable configuration. The visualization of the atomically resolved DOS was performed with the PyProcar code [25].

4. Results and Discussion

4.1. Structural Characterization

In Figure 1 X-ray diffraction plots of the materials under study are presented. All samples present the typical hexagonal CaCu5-type signature pattern of the SmCo5 system (S.G. No 191, P6/mmm). Small amount of the hexagonal Th2Ni17-type phase (S.G. No 194, P63/mmc) was detected, in most cases up to 5 wt.% and close to 10 wt.%. for x > 0.5. Relative intensity of some reflections is not retained for higher Ce, La Misch Metal content and the quality of the Rietveld analysis is degraded, indicating either a possible preference for the remaining Sm atoms or the introduction of strains in the structure. In all samples we have fixed the rare-earth atomic populations assuming the nominal composition. The stabilization of the hexagonal structure is possible within all the stoichiometry range. In Table 1 the unit cell parameters of the materials are summarized, and they are plotted against Ce0.75La0.25 content in Figure 2.
In Figure 1b X-ray diffraction plots the uniaxial character of all compounds is evident, as expected [26,27,28]. In all cases the (001) and (002) reflections of the CaCu5-type structure are visible, indicating easy-axis type of anisotropy perpendicular to the basal plane of the hexagonal structure. In the case of the sample with x = 0.5 some additional, minor peaks are observed, at two-theta angles of 29.7, 30.7 and 42.8 degrees. The two latter correspond to strong reflections of the P6/mmm hexagonal structure, namely (011) and (111), indicating the possibility of misalignment in the sample. However, the additional peak at 29.7 degrees two theta does not match with any significant reflection of the CaCu5-type, Th2Ni17-type or Th2Zn17-type structures. Therefore, we have to consider the possibility of existence of an unknown minor phase, not possibly detectable in the random powder X-ray diffraction patterns.
In Figure 2, a plot of the sample with x = 0.5 combined with a theoretical fit using Rietveld analysis is provided. The amount of the secondary, Th2Ni17-type phase (S.G. No 194, P63/mmc) is about 9 wt.%. In all cases the amount of secondary phase was between 3 wt.% (x = 0.1) and 10 wt.% (x = 0.7) while the quality of the fit in all cases was about 2–3% higher than Rexp, for example in the case of x = 0.5, Rp = 19%, Rexp = 16%. We have examined the possibility of existence of both main variants of 2:17 phases, Th2Ni17-type and the rhombohedral Th2Zn17-type (S.G. No 166, R −3 m) and a combination of both. Due to the small amount of the secondary phase, there is no clear result. It is known that Sm2Co17 usually crystallizes in the rhombohedral variant and Ce2Co17, La2Co17 mostly in the hexagonal [29,30]; both have the same basal plane, the same orientation of the c-axis and occur from 1:5 with the same amount of replacement of rare-earth atoms with transition metal pairs, their difference is due to the stacking sequence [31].
From the values of the table and the Figure 3 some clear trends are observed. The introduction of Ce, La decreases the basal plane unit cell parameters while it increases the perpendicular c-axis. The c/a ratio increases as well. It is well known [31,32,33] that the hexagonal RCo5 compound crystallizes in a layered structure, where Co only Kagome layers alternate with mixed R-Co layers. The hexagonal Th2Ni17-type phase is very related to the basic structure and is produced by the partial replacement of one third of rare earth atoms with pairs of transition metal, aligned parallel to the c-axis of the structure and called dumbbells. Slightly disordered variations or other impurities are also very common in the system [34]. The incorporation of different rare earth atoms, as in our case, may enhance such effects. The small variations in peak intensities in Figure 1 may relate to such structural and compositional discrepancies. The magnetic properties are obviously sensitive to these parameters but the close structural relation of them is not an obstacle from the applications and industrial manufacturing/processing scope.

4.2. Ab Initio Electronic and Magnetic Properties for x = 0.5

The results of DFT calculations for the atomically resolved, electronic DOS for a Ce0.75La0.25 content of x = 0.5 in the energetically preferable structure are presented in Figure 4. The contribution of the Co sublattice to the electronic states for both the 2c and the 3g sites dominates a broad range close to the Fermi level and pronounces its importance for the magnetic properties of the RE-Co5 structure. The peaks associated to the Ce atoms are close to 4 eV, while the ones associated to the La atoms are close to 3 eV. The contribution of Sm atoms is found to less pronounced and over a broader range above the Fermi level. The respective average magnetic moments for each atom type are also presented in Table 2.
The treatment of the strongly correlated 4f electrons of Sm within DFT is a known challenge. In this work, we employed the implementation so-called standard rare earth model for Sm within VASP and the PAW-PBE-GGA pseudopotentials, which treats the 4f valence electrons of Sm as core states. The SRM was previously demonstrated for SmCo5 to agree with the dynamical mean field calculations with the Hubbard I solver (DMFT–H1A), using the full-potential linear muffin-tin orbital method (FPLMTO), which were claimed to provide the most accurate description for SmCo5, but at an elevated computational cost [35,36], and provide reasonable results for the whole lanthanide series [37]. The explicit treatment of 4f electrons as valence in the planewave PAW formalism is known to lead to self-interaction errors and a spurious pinning of the 4f orbitals of Sm to the Fermi level, and, in turn, demonstrated significantly overestimate the local magnetic moments of Sm atoms [38,39]. The aim of the ab initio simulations in this work was to investigate the local atomic magnetic moments of the system. Therefore, by using PAW-GGA with the SRM as implemented in VASP, in combination with the appropriately parametrized +U approach, we were able to obtain reasonable results for the local atomic magnetic moments and the total magnetization, compared to experimental values.
However, with this approach, we found an overly pronounced value of magnetocrystalline anisotropy energy (MAE) for SmCo5 (~37 meV/f.u., compared to 10.5 meV/f.u. from SRM-FPMLTO calculations of [36], experimental values ranging between 9–16 meV [40,41,42,43,44,45]). In an older study, Larson et al. employed GGA+U calculations within the full-potential, relativistic linearized augmented plane wave (FLAPW) approach with U = 5.2 eV and J = 0.75 eV and found a MAE of 12.6 and 21.6 eV (depending on the approach involved in the implementation of the Hubbard correction in WIEN2K.01 and WIEN2K.02 packages) but their calculated magnetic moments had a discrepancy of 2–3 μB compared to experimental values [46]. They also mention that a lower value of U close to 4 eV leads to a significant overestimation of the MAE at ~40 meV/f.u., which agrees with our results (U = 4.7 eV, MAE = 37 meV/f.u.). Therefore, in our approach, we used a value of U which resulted to a more accurate description of the magnetic moments, which was our main point of interest, at the cost of an overestimated MAE, and we did not investigate the impact of substituting Sm to the latter quantity.

4.3. Magnetic Properties

Thermomagnetic analysis under small, constant magnetic field was used to determine critical transition temperatures (Table 3, Figure 5). For all stoichiometry range a drop in the Curie temperature is observed, almost linear with Ce-La content. Mass magnetization follows the same trend as Curie temperature, reflecting the overall weakening of the magnetic interactions (Figure 4). It is interesting to observe that ab-initio calculations for the sample with x = 0.5 present a larger magnetization compared to the experimental evaluation. Imperfections and minor impurities may account for that difference. The structural effects we have already described are an additional cause for this weakening of the magnetic properties. For low Ce, La Misch Metal content the degradation of the intrinsic magnetic properties is rather small, thus it is reasonable to consider the possibility of using Ce/La dopped SmCo5 as a base material for preparing permanent magnets due to the reduced cost. Chen et al. [19] have demonstrated that such doped Sm-Co / a-Fe nanocomposites present adequate remanence and coercivity and in addition to the other commercial and production factors which have been already discussed here are an interesting choice for PM optimization. We must also take into account the fact that Ce and La are the rare earths with the largest production volume and are considered as oversupplied raw materials [47]. Their large availability and lower price may be considered for confronting the balance problem in the rare earth raw materials supply.

5. Conclusions

Single phase samples of nominal stoichiometry Sm1−x(Ce0.75La0.25)xCo5 (x = 0.1–1.0) were successfully synthesized by conventional metallurgy methods. The hexagonal structure of the mother SmCo5 compound is formed for all stoichiometry range, together with the crystallographically similar Th2Ni17-type compound for high Ce, La content. Main intrinsic magnetic properties, Curie temperature and mass magnetization, are weakening, especially for higher Ce, La replacement for Sm, more than 30%. This effect is minimal for lower Ce-La content; considering the low cost and the availability of the specific minerals we conclude that the possibility of introducing Ce, La Misch Metal in commercial SmCo5 permanent magnets is feasible. The dependence and interconnection of the magnetic properties on the structural parameters provide an insight for further research, the adjustment of the observed trend in this work with additional substitutions, like partial substitution of Co with other transition metals, may compensate for the effect and provide a better material with the additional reduction of Co content; since Co is an even more critical resource this path could be proven important in the future.

Author Contributions

Conceptualization, M.G. and C.S.; methodology, M.G., J.K. and C.S.; software S.G. and J.K., validation, all authors; formal analysis, all authors; investigation, all authors; resources, M.G. and J.K.; data curation, all authors; writing—original draft preparation, all authors; writing—review and editing, all authors; visualization, all authors; supervision, C.S.; project administration, J.K.; funding acquisition, J.K. All authors have read and agreed to the published version of the manuscript.

Funding

Partially supported by the project MIS 5002567, implemented under the “Action for the Strategic Development on the Research and Technological Sector”, funded by the Operational Programme “Competitiveness, Entrepreneurship and Innovation” (NSRF 2014-2020) and co-financed by Greece and the European Union (European Regional Development Fund) and by the Hellenic Foundation for Research and Innovation (HFRI) under the HFRI PhD Fellowship grant (Fellowship Number: 962). Furthermore, this work was supported by computational time granted from the Greek Research & Technology Network (GRNET) in the ‘ARIS’ National HPC infrastructure under the project NOUS (pr012041).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data not already included in the article are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gutfleisch, O.; Willard, M.A.; Brück, E.; Chen, C.H.; Sankar, S.G.; Liu, J.P. Magnetic Materials and Devices for the 21st Century: Stronger, Lighter, and More Energy Efficient. Adv. Mater. 2010, 23, 821–842. [Google Scholar] [CrossRef] [PubMed]
  2. Nakamura, H. The current and future status of rare earth permanent magnets. Scr. Mater. 2018, 154, 273–276. [Google Scholar] [CrossRef]
  3. Zhang, S.; Ding, Y.; Liu, B.; Chang, C. Supply and demand of some critical metals and present status of their recycling in WEEE. Waste Manag. 2017, 65, 113–127. [Google Scholar] [CrossRef] [PubMed]
  4. Weng, Z.; Haque, N.; Mudd, G.M.; Jowitt, S.M. Assessing the energy requirements and global warming potential of the production of rare earth elements. J. Clean. Prod. 2016, 139, 1282–1297. [Google Scholar] [CrossRef]
  5. Strnat, K.J.; Strnat, R.M. Rare earth-cobalt permanent magnets. J. Magn. Magn. Mater. 1991, 100, 38–56. [Google Scholar] [CrossRef]
  6. Skokov, K.; Gutfleisch, O. Heavy rare earth free, free rare earth and rare earth free magnets—Vision and reality. Scr. Mater. 2018, 154, 289–294. [Google Scholar] [CrossRef]
  7. Pan, S. Introduction. In Rare Earth Permanent-Magnet Alloys’ High Temperature Phase Transformation; Springer: Berlin/Heidelberg, Germany, 2013; pp. 1–26. [Google Scholar] [CrossRef]
  8. Strnat, K.; Hoffer, G.; Olson, J.; Ostertag, W.; Becker, J.J. A Family of New Cobalt-Base Permanent Magnet Materials. J. Appl. Phys. 1967, 38, 1001–1002. [Google Scholar] [CrossRef]
  9. Benz, M.G.; Martin, D.L. Initial Observations: Cobalt-Mischmetal-Samarium Permanent Magnet Alloys. J. Appl. Phys. 1971, 42, 1534–1535. [Google Scholar] [CrossRef]
  10. Tewari, R.A. Magnetic properties of a mischmetal-cobalt alloy. Bull. Mater. Sci. 1980, 2, 177–180. [Google Scholar] [CrossRef]
  11. Zuo, W.-L.; Zuo, S.-L.; Li, R.; Zhao, T.-Y.; Hu, F.-X.; Sun, J.-R.; Zhang, X.-F.; Liu, J.P.; Shen, B.-G. High performance misch-metal (MM)-Fe-B magnets prepared by melt spinning. J. Alloy Compd. 2017, 695, 1786–1792. [Google Scholar] [CrossRef]
  12. Li, R.; Shang, R.X.; Xiong, J.F.; Liu, D.; Kuang, H.; Zuo, W.L.; Zhao, T.Y.; Sun, J.R.; Shen, B.G. Magnetic properties of (misch metal, Nd)-Fe-B melt-spun magnets. AIP Adv. 2017, 7, 056207. [Google Scholar] [CrossRef] [Green Version]
  13. Jiang, Q.; Zhong, Z. Research and development of Ce-containing Nd2Fe14 B-type alloys and permanent magnetic materials. J. Mater. Sci. Technol. 2017, 33, 1087–1096. [Google Scholar] [CrossRef]
  14. Kohn, W.; Sham, L.J. Self-consistent equations including exchange and correlation effects. Phys. Rev. 1965, 140, A1133–A1138. [Google Scholar] [CrossRef] [Green Version]
  15. Argaman, N.; Makov, G. Density functional theory: An introduction. Am. J. Phys. 2000, 68, 69–79. [Google Scholar] [CrossRef] [Green Version]
  16. Hohenberg, P.; Kohn, W. Inhomogeneous Electron Gas. Phys. Rev. 1964, 136, B864–B871. [Google Scholar] [CrossRef] [Green Version]
  17. Kryachko, E.S. On the original proof by reductio ad absurdum of the Hohenberg-Kohn theorem for many-electron Coulomb systems. Int. J. Quantum Chem. 2005, 103, 818–823. [Google Scholar] [CrossRef] [Green Version]
  18. David, G.; Guihéry, N.; Ferré, N. What Are the Physical Contents of Hubbard and Heisenberg Hamiltonian Interactions Extracted from Broken Symmetry DFT Calculations in Magnetic Compounds? J. Chem. Theory Comput. 2017, 13, 6253–6265. [Google Scholar] [CrossRef]
  19. Dudarev, S.L.; Botton, G.A.; Savrasov, S.Y.; Humphreys, C.J.; Sutton, A.P. Electron-energy-loss spectra and the structural stability of nickel oxide: An LSDA+U study. Phys. Rev. B 1998, 57, 1505–1509. [Google Scholar] [CrossRef]
  20. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef]
  21. Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1999, 59, 1758–1775. [Google Scholar] [CrossRef]
  22. Kresse, G.; Furthmüller, J. Efficient iterative schemes forab initiototal-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef] [PubMed]
  23. van der Marel, D.; Sawatzky, G.A. Electron-electron interaction and localization in d and f transition metals. Phys. Rev. B 1988, 37, 10674–10684. [Google Scholar] [CrossRef] [PubMed]
  24. Okhotnikov, K.; Charpentier, T.; Cadars, S. Supercell program: A combinatorial structure-generation approach for the local-level modeling of atomic substitutions and partial occupancies in crystals. J. Chemin. 2016, 8, 17. [Google Scholar] [CrossRef] [Green Version]
  25. Herath, U.; Tavadze, P.; He, X.; Bousquet, E.; Singh, S.; Muñoz, F.; Romero, A.H. PyProcar: A Python library for electronic structure pre/post-processing. Comput. Phys. Commun. 2020, 251, 107080. [Google Scholar] [CrossRef] [Green Version]
  26. Bartashevich, M.; Goto, T.; Radwanski, R.; Korolyov, A. Magnetic anisotropy and high-field magnetization process of CeCo5. J. Magn. Magn. Mater. 1994, 131, 61–66. [Google Scholar] [CrossRef]
  27. Gabay, A.; Hu, X.; Hadjipanayis, G. Preparation of YCo5, PrCo5 and SmCo5 anisotropic high-coercivity powders via mechanochemistry. J. Magn. Magn. Mater. 2014, 368, 75–81. [Google Scholar] [CrossRef]
  28. Pang, H.; Qiao, L.; Li, F.S. Calculation of magnetocrystalline anisotropy energy in NdCo5. Phys. Status Solidi B 2009, 246, 1345–1350. [Google Scholar] [CrossRef]
  29. Wei, X.Z.; Hu, S.J.; Zeng, D.C.; Kou, X.C.; Liu, Z.Y.; Bruck, E.; de Boer, F.R. Magnetic and crystallographic properties of Ce2Co17–xGax compounds. J. Alloy Compd. 1998, 279, 301–305. [Google Scholar] [CrossRef]
  30. Liu, Q.; Liang, J.; Rao, G.; Tang, W.; Sun, J.; Chen, X.; Shen, B. Structure and uniaxial magnetocrystalline anisotropy of intermetallic compounds La2Co17−xTix. Appl. Phys. Lett. 1997, 71, 1869–1871. [Google Scholar] [CrossRef]
  31. Khan, Y. On the crystal structures of the R2Co17 intermetallic compounds. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem. 1973, 29, 2502–2507. [Google Scholar] [CrossRef]
  32. Khan, Y. A contribution to the Sm–Co phase diagram. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem. 1974, 30, 861–864. [Google Scholar] [CrossRef]
  33. Johnson, Q.; Wood, D.H.; Smith, G.S.; Ray, A.E. Refinement of Th2Zn17 structure: Pr2Fe. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem. 1968, 24, 274–276. [Google Scholar] [CrossRef]
  34. Chen, J.; Wang, F.; Wang, F.; Meng, F.; Zhang, J. Phase structure and magnetic properties of La/Ce substituted nanocomposite SmCo5/α-Fe magnets prepared by high energy ball milling and subsequent annealing. J. Magn. Magn. Mater. 2020, 521, 167534. [Google Scholar] [CrossRef]
  35. Grånäs, O.; Di Marco, I.; Thunström, P.; Nordström, L.; Eriksson, O.; Björkman, T.; Wills, J. Charge self-consistent dynamical mean-field theory based on the full-potential linear muffin-tin orbital method: Methodology and applications. Comput. Mater. Sci. 2012, 55, 295–302. [Google Scholar] [CrossRef] [Green Version]
  36. Söderlind, P.; Landa, A.; Locht, I.L.M.; Åberg, D.; Kvashnin, Y.; Pereiro, M.; Däne, M.; Turchi, P.E.A.; Antropov, V.P.; Eriksson, O. Prediction of the new efficient permanent magnet SmCoNiFe3. Phys. Rev. B 2017, 96, 100404. [Google Scholar] [CrossRef] [Green Version]
  37. Locht, I.L.M.; Kvashnin, Y.O.; Rodrigues, D.C.M.; Pereiro, M.; Bergman, A.; Bergqvist, L.; Lichtenstein, A.I.; Katsnelson, M.I.; Delin, A.; Klautau, A.B.; et al. Standard model of the rare earths analyzed from the Hubbard I approximation. Phys. Rev. B 2016, 94, 085137. [Google Scholar] [CrossRef] [Green Version]
  38. Brooks, M.S.S.; Eriksson, O.; Wills, J.M.; Johansson, B. Density Functional Theory of Crystal Field Quasiparticle Excitations and theAb InitioCalculation of Spin Hamiltonian Parameters. Phys. Rev. Lett. 1997, 79, 2546–2549. [Google Scholar] [CrossRef]
  39. Giaremis, S.; Katsikas, G.; Sempros, G.; Gjoka, M.; Sarafidis, C.; Kioseoglou, J. Ab initio, artificial neural network predictions and experimental synthesis of mischmetal alloying in Sm–Co permanent magnets. Nanoscale 2022, 14, 5824–5839. [Google Scholar] [CrossRef]
  40. Gabay, A.M.; Larson, P.; Mazin, I.I.; Hadjipanayis, G.C. Magnetic states and structural transformations in Sm(Co,Cu)5 and Sm(Co,Fe,Cu)5 permanent magnets. J. Phys. D Appl. Phys. 2005, 38, 1337–1341. [Google Scholar] [CrossRef]
  41. Coey, J.M.D. Hard Magnetic Materials: A Perspective. IEEE Trans. Magn. 2011, 47, 4671–4681. [Google Scholar] [CrossRef]
  42. Al-Omari, I.; Skomski, R.; Thomas, R.; Leslie-Pelecky, D.; Sellmyer, D. High-temperature magnetic properties of mechanically alloyed SmCo5 and YCo5 magnets. IEEE Trans. Magn. 2001, 37, 2534–2536. [Google Scholar] [CrossRef]
  43. Irkhin, Y.P.; Irkhin, V.Y. The anion and cation effects in the magnetic anisotropy of rare-earth compounds: Charge screening by conduction electrons. Phys. Solid State 2000, 42, 1087–1093. [Google Scholar] [CrossRef]
  44. Chen, C.H.; Walmer, M.S.; Walmer, M.H.; Gong, W.; Ma, B.-M. The relationship of thermal expansion to magnetocrystalline anisotropy, spontaneous magnetization, and Tc for permanent magnets. J. Appl. Phys. 1999, 85, 5669–5671. [Google Scholar] [CrossRef]
  45. Nguyen, M.C.; Yao, Y.; Wang, C.-Z.; Ho, K.-M.; Antropov, V.P. Magnetocrystalline anisotropy in cobalt based magnets: A choice of correlation parameters and the relativistic effects. J. Phys. Condens. Matter 2018, 30, 195801. [Google Scholar] [CrossRef] [Green Version]
  46. Larson, P.; Mazin, I.I.; Papaconstantopoulos, D.A. Calculation of magnetic anisotropy energy in SmCo5. Phys. Rev. B 2003, 67, 214405. [Google Scholar] [CrossRef] [Green Version]
  47. Binnemans, K.; Jones, P.T.; Müller, T.; Yurramendi, L. Rare Earths and the Balance Problem: How to Deal with Changing Markets? J. Sustain. Met. 2018, 4, 126–146. [Google Scholar] [CrossRef] [Green Version]
  48. Coey, J.M.D. Magnetism and Magnetic Materials; Cambridge University Press: Cambridge, UK, 2010; p. 242. [Google Scholar] [CrossRef]
Materials 16 00547 g001 550

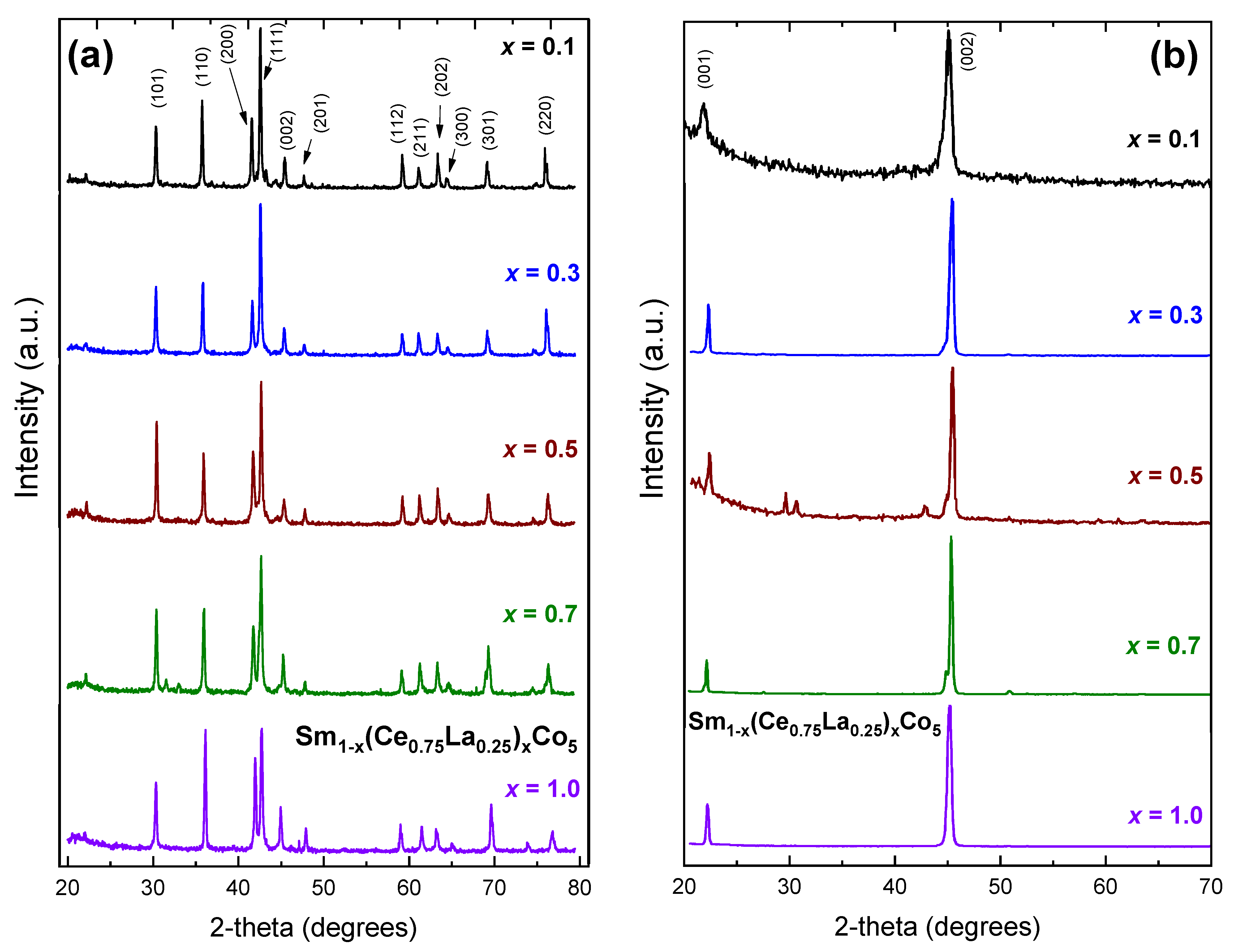

Figure 1. X-ray diffraction plots (Cu Κα radiation) of Sm1−x(Ce0.75La0.25)xCo5 (x = 0.1–1.0) compounds; (a) powder samples; (b) magnetically oriented samples.

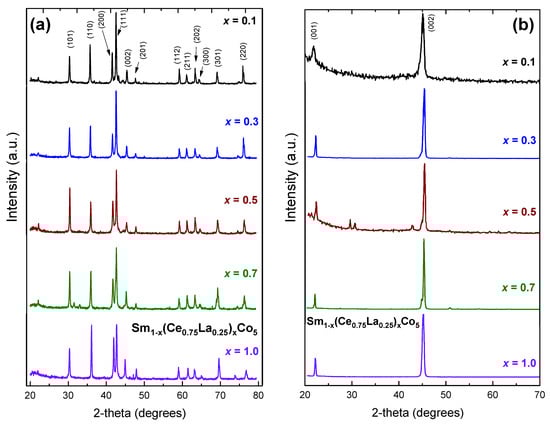

Figure 1. X-ray diffraction plots (Cu Κα radiation) of Sm1−x(Ce0.75La0.25)xCo5 (x = 0.1–1.0) compounds; (a) powder samples; (b) magnetically oriented samples.
Materials 16 00547 g001
Materials 16 00547 g002 550

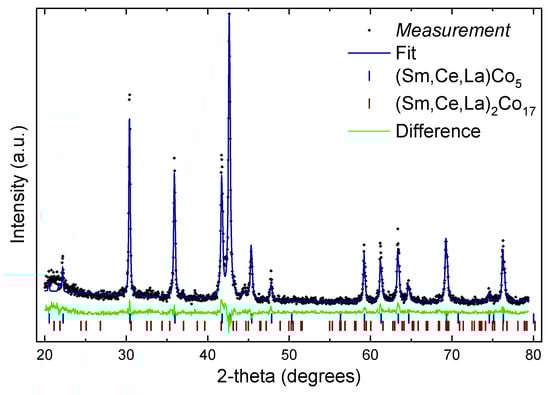

Figure 2. Rietveld analysis of Sm1−x(Ce0.75La0.25)xCo5 (x = 0.5) compound.
Figure 2. Rietveld analysis of Sm1−x(Ce0.75La0.25)xCo5 (x = 0.5) compound.
Materials 16 00547 g002
Materials 16 00547 g003 550

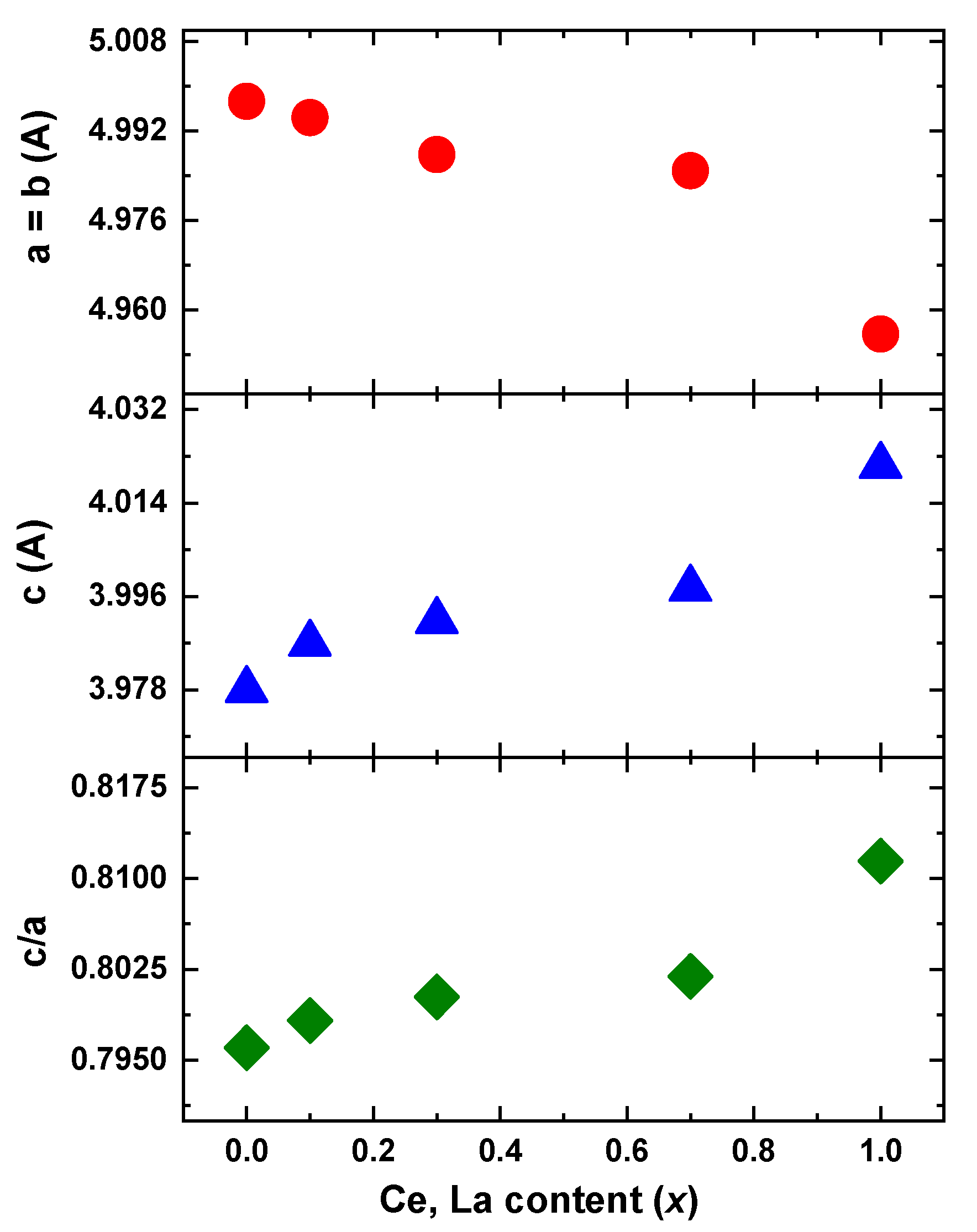

Figure 3. Unit Cell parameters for Sm1−x(Ce0.75La0.25)xCo5 (x = 0.1–1.0) compounds.
Figure 3. Unit Cell parameters for Sm1−x(Ce0.75La0.25)xCo5 (x = 0.1–1.0) compounds.
Materials 16 00547 g003
Materials 16 00547 g004 550

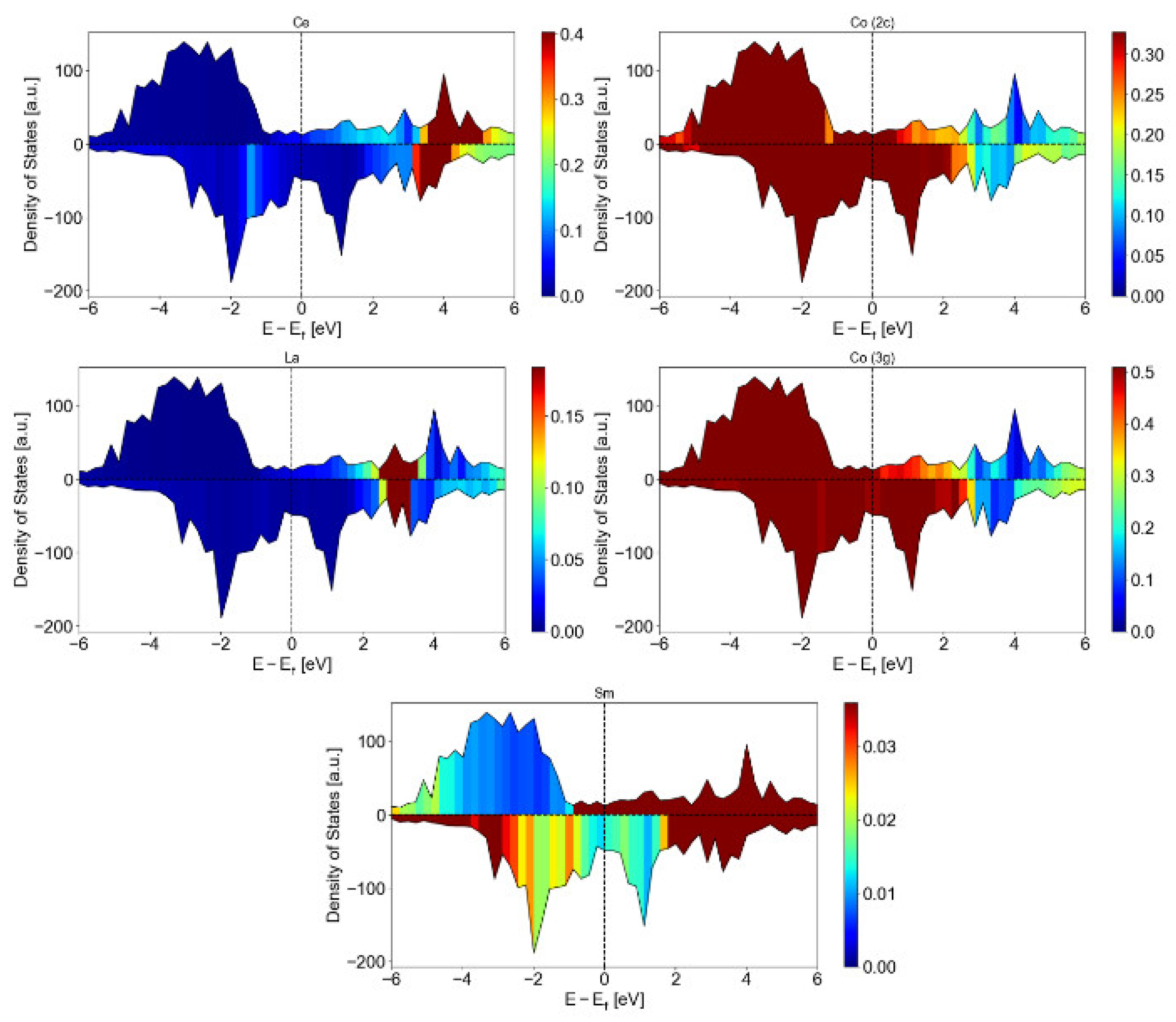

Figure 4. Atomic contribution to the electronic DOS for RE atoms (Ce, La, Sm) and Co (2c and 3g sites) as calculated from the ab initio simulations.
Figure 4. Atomic contribution to the electronic DOS for RE atoms (Ce, La, Sm) and Co (2c and 3g sites) as calculated from the ab initio simulations.
Materials 16 00547 g004
Materials 16 00547 g005 550

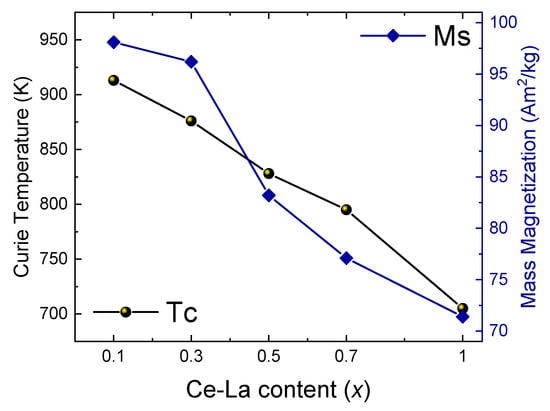

Figure 5. Dependence of magnetic properties with Ce,La content in Sm1−x(Ce0.75La0.25)xCo5 (x = 0.1–1.0) samples.
