Flexible and Polarization Independent Miniaturized Double-Band/Broadband Tunable Metamaterial Terahertz Filter

Abstract

In this paper, the design of a double-band terahertz metamaterial filter with broadband characteristics using a single conducting layer is presented. The design uses a structured top metallic layer over a polyimide material. The proposed design has achieved broadband band-pass transmission characteristics at the resonances of 0.5 THz and 1.65 THz, respectively. The 3-dB bandwidths for these two resonances are 350 GHz and 700 GHz, respectively, which indicates that dual-band resonance with broadband transmission characteristics was obtained. The design has achieved the same transmission characteristics for two different orthogonal polarizations, which was confirmed using numerical simulation. The design was tested for a different angle of incidences and it was observed that this results in angle-independent transmission behavior. In addition, for obtaining tunable resonant behavior, the top conductor layer was replaced by graphene material and a silicon substrate was added below the polymer layer. By varying the Fermi level of graphene, modulation in amplitude and phase was observed in numerical simulation. The physical mechanism of double-band behavior was further confirmed by surface current distribution. The proposed design is simple to fabricate, compact, i.e., the size is λ₀/8, and obtained dual-band/broadband operation.

1. Introduction

Wireless communication plays a significant role in societal development. It actually provides low latency and high-data-rate transmission for end-user applications [1]. Currently, researchers are looking for a spectrum to support high-data-rate communication. The next generation will be utilizing 5G and terahertz spectra for communication-related activities. For supporting high-speed data transmission, broadband communication, technologies and electronic components should be adopted [2,3]. Terahertz is the band of frequencies that lies in the far-infrared range between 0.1 THz and 10 THz. The THz spectrum is gaining attention in the field of research due to its variety of applications, including communication technology, medicine, industries and so forth [4]. The successful development of high power sources and detectors in the terahertz region leads to the further utilization of this spectrum [5,6]. Still, there is a specific need for active and passive components with specific characteristics, such as multi-band operation, high sensitivity, wideband operation, etc., for utilizing the spectrum further [7].

The filter is one such important passive component for providing a better signal-to-noise ratio in to the specified band of frequencies [8]. Band-pass filters are used widely for transmitting the desired frequencies with better selectivity while rejecting other signals [9,10]. These filters could be made by using metamaterial structures. Metamaterials are manmade sub-wavelength periodic structures that provide properties such as a negative index of refraction, epsilon-near-zero, perfect absorption, cloaking, increasing the gain of the antenna, etc., which are not provided by naturally available materials. It is mainly used in sensing, imaging, cloaking, etc. [11,12,13,14,15,16]. Many multi-band, wideband filters are reported in the literature for the THz region [17,18,19,20]. Generally, they involve the use of a multilayer structure, the modified ground plane for obtaining broadband characteristics. It is easier to obtain a fully broadband filter using a simple structure. However, achieving broadband characteristics in multi-band filters is difficult [21,22,23,24,25,26,27]. Additionally, tunable or reconfigurable passive components are in demand [28].

The reconfigurable or tunable properties were achieved by using different mechanisms, such as the properties of being mechanically tunable, electrically tunable, thermally tunable., etc. [29,30]. Graphene is a 2D material and the conducting properties could be changed by varying the applied Fermi energy. Graphene-based electrically tunable metamaterial-based phase modulator was reported [31,32].

In this paper, we present the design and analysis of a double-band terahertz band-pass filter with broadband characteristics using a simple metamaterial structure. The obtained results are compared with the state-of-the-art literature results. It is clear that the proposed structure achieved dual-band resonance with broadband behavior using a single layer patch and was designed with easily available materials. The effect of graphene on amplitude and phase modulation is also studied and discussed. The conductivity of the graphene was varied by varying the applied Fermi level and it indicates the use of the proposed structure in modulator applications. The proposed structure was designed and numerically validated using CST Microwave Studio software, 2022. The proposed structure has the advantages of low profile, i.e., compact (λ₀/8, λ₀ represents the wavelength corresponding to the first resonance), polarization independence, and angular stability. The transmission characteristics were obtained for both transverse electric (TE) and transverse magnetic (TM) modes. The TE and TM modes have no corresponding fields in the direction of propagation, and generally those fields are perpendicular to the direction of propagation.

2. Proposed Metamaterial Design

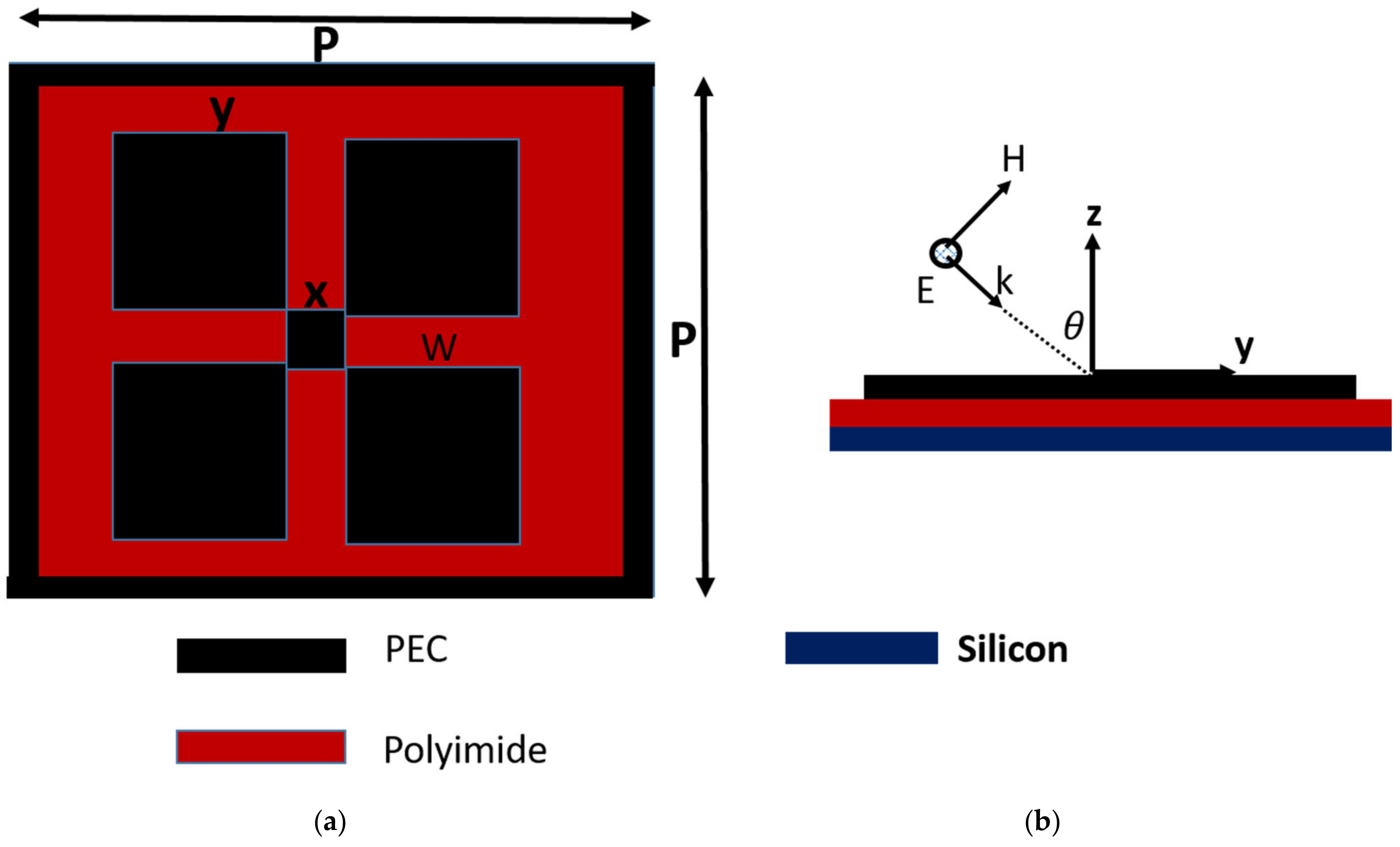

Figure 1a,b show the front and side view of the proposed dual-band terahertz metamaterial. The geometrical parameters are labeled within the front view of the structure. The structure consists of three layers, namely, a top metallic patch, a polyimide thin film, and a bottom silicon (Si) substrate. The thickness of the polyimide material and the Si substrate are 125 µm and 10 µm, respectively. The polyimide layer is assumed as a lossy one for numerical analysis. The polyimide dielectric properties, such as real permittivity (3.46) and the loss tangent (0.008) for the numerical analysis, were obtained from the literature, and the given data are measured at 1 THz. The tunable metamaterial design was achieved by replacing the metallic patch with a 2D graphene material. By adjusting the Fermi levels between the silicon and graphene patch, tunable transmission characteristics have been achieved [31,32,33,34]. In Figure 1b, the angle θ represents the incident angle, i.e., the angle between the incident wave and the normal to the proposed structure.

3. Results and Discussions

The proposed structure was numerically evaluated by using a frequency domain method in CST Microwave Studio software. The evaluation uses unit cell periodic boundary conditions with incident waves normal to the frequency selective surface (FSS) structure. The characterization of the results includes transmission analysis, polarization behavior, angular stability analysis, modulation, and surface current distribution analysis.

3.1. Transmission Analysis

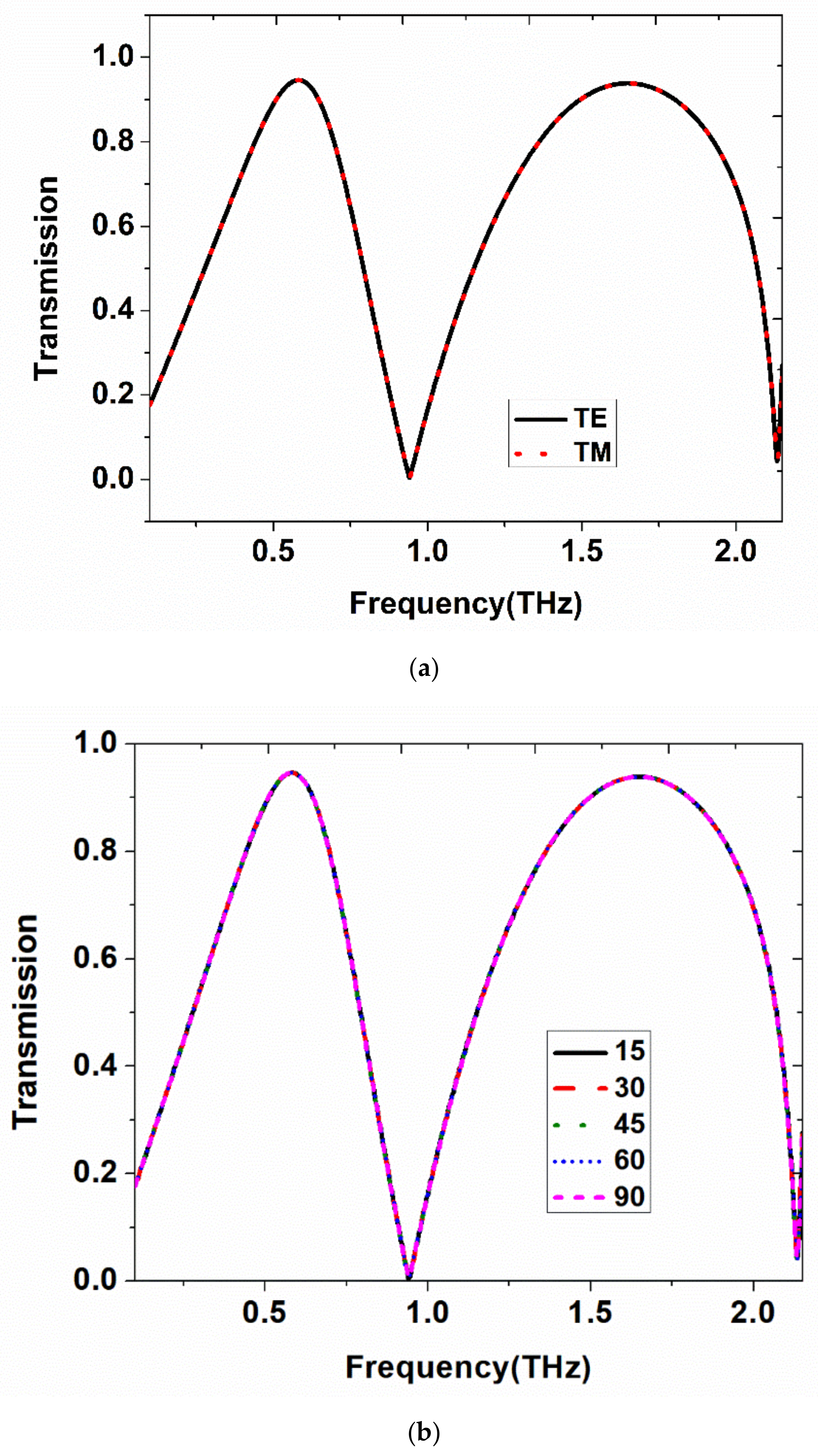

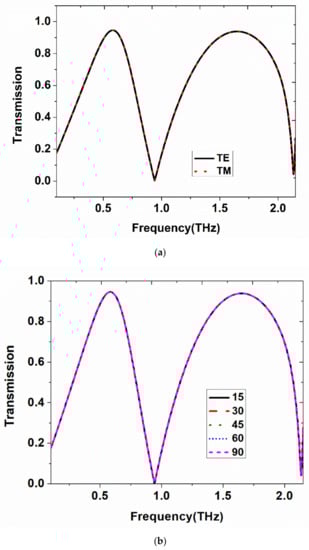

The proposed metamaterial structure resonates at two frequencies, namely 0.5 THz and 1.65 THz. The obtained transmission characteristic for two different orthogonal polarizations (TE and TM) is depicted in Figure 2a. It is confirmed that the designed structure has achieved polarization-independent transmission characteristics. The transmission of above 95% was achieved for the two resonances. The 3-dB bandwidth at the two resonances was 345 GHz and 700 GHz, which indicates the broadband transmission behavior.

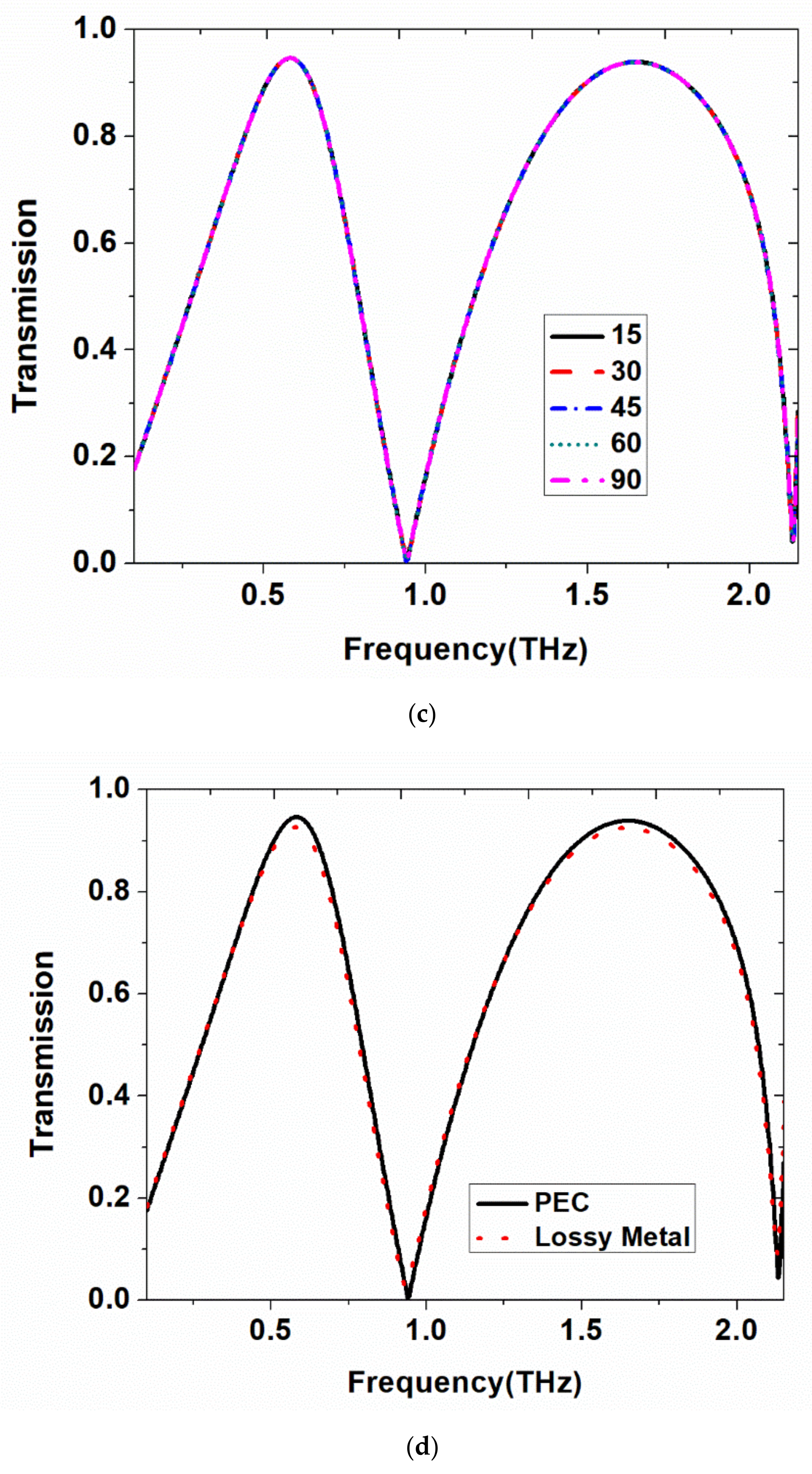

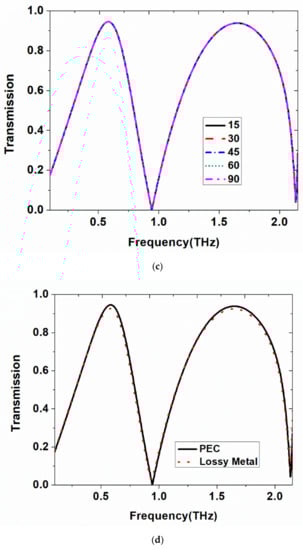

For angular stability analysis, the design was simulated for a different angle of incidences in TE and TM modes, and their corresponding results are shown in Figure 2b,c, respectively. The structure is tested for different angles of incidence varying from 0° to 135°, and it should be noted that angle-independent transmission characteristics were achieved. Still, the structure shows better broadband band-pass characteristics for a wider angle of incidence. This weak angular dispersion was obtained by using a symmetrical resonator [35]. In terms of full width half maximum (FWHM), two resonances have achieved the bandwidth range of 510 GHz and 920 GHz, respectively. The transmission bandwidth of 130 GHz and 300 GHz showed more than 90% transmission at the two resonances, respectively.

3.2. Physical Mechanism

For understanding the physical origin of the dual-band nature of the proposed structure, the simulated current distribution analysis is considered. The design has two resonators: an outer square and inside a butterfly-like structure. On simulating the outer resonator, the structure reveals a high pass filter characteristic. The inner butterfly wings structure without a center square show low pass filter behavior. By adding the inner wings with an outer square resonator, fully broadband band-pass transmission characteristics have been achieved. The comparison of the obtained results with the state-of-the-art literature works is shown in

Table 1. Comparison of the obtained results with the state-of-the-art literature.

Ref.	Dual-band	Broadband	Bandwidth	Reconfigurable	Polarization Insensitive	Complexity
20	Yes	No	26.4 GHz (f1), 23.5 GHz (f2)	Yes	Yes	No
21	Yes	Yes	257 GHz (f1), 8.3 GHz (f2)	No	Yes	No
22	Yes	Yes	500 GHz	No	Yes	No
23	No	Yes	~1 THz	Yes	Yes	No
24	No	Yes	2.9 THz	Yes	No	Yes, Multilayer
25	Yes	No	11 GHz (f1), 58 GHz (f2)	Yes	Yes	Yes, STO * structure
26	No	Yes	8 THz	No	-	Yes, Multilayer ERR *
This work	Yes	Yes	350 GHz (f1), 700 GHz (f2)	Yes	Yes	Single layer patch

* STO—strontium titanate, * ERR—electric ring resonator, f1-resonance 1, f2—resonance 2.

.

In addition, the metal is considered a lossy one at terahertz frequencies, and the simulation results were compared with the PEC-based analysis. This graph is depicted in Figure 2d. The parameters of lossy metal are set by the Drude model, ε_Au = 1 − ω_p²/ω(ω + iω_t), where plasma frequency ω_p = × 1.37 10¹⁶ rad/s, collision frequency ω_t = ×1.2 10¹⁴ rad/s [23]. It is observed that at lower terahertz frequencies, the metal behaves like a good conductor with a thickness greater than the skin-depth value at the desired frequency [36].

The minimum feature size in the proposed design is in the order of few micrometers and the design can be fabricated using ultra-short laser micromachining or standard wet etching facility. The conducting patch on the dielectric substrate can be deposited by using sputtering mechanism which is a standard and straightforward process of depositing thin film metals. This shows that the proposed design is simple and easy to fabricate and an array of them can be fabricated for sensor applications.

For obtaining dual-band characteristics, the center square resonator is attached to the entire structure, i.e., butterfly wings and outer square. The attached center square shows the notch band-stop characteristic. Thus, it has achieved the dual-band band-pass transmission characteristics with broadband behavior. Figure 3 shows the current distribution through the surface of the metamaterial.

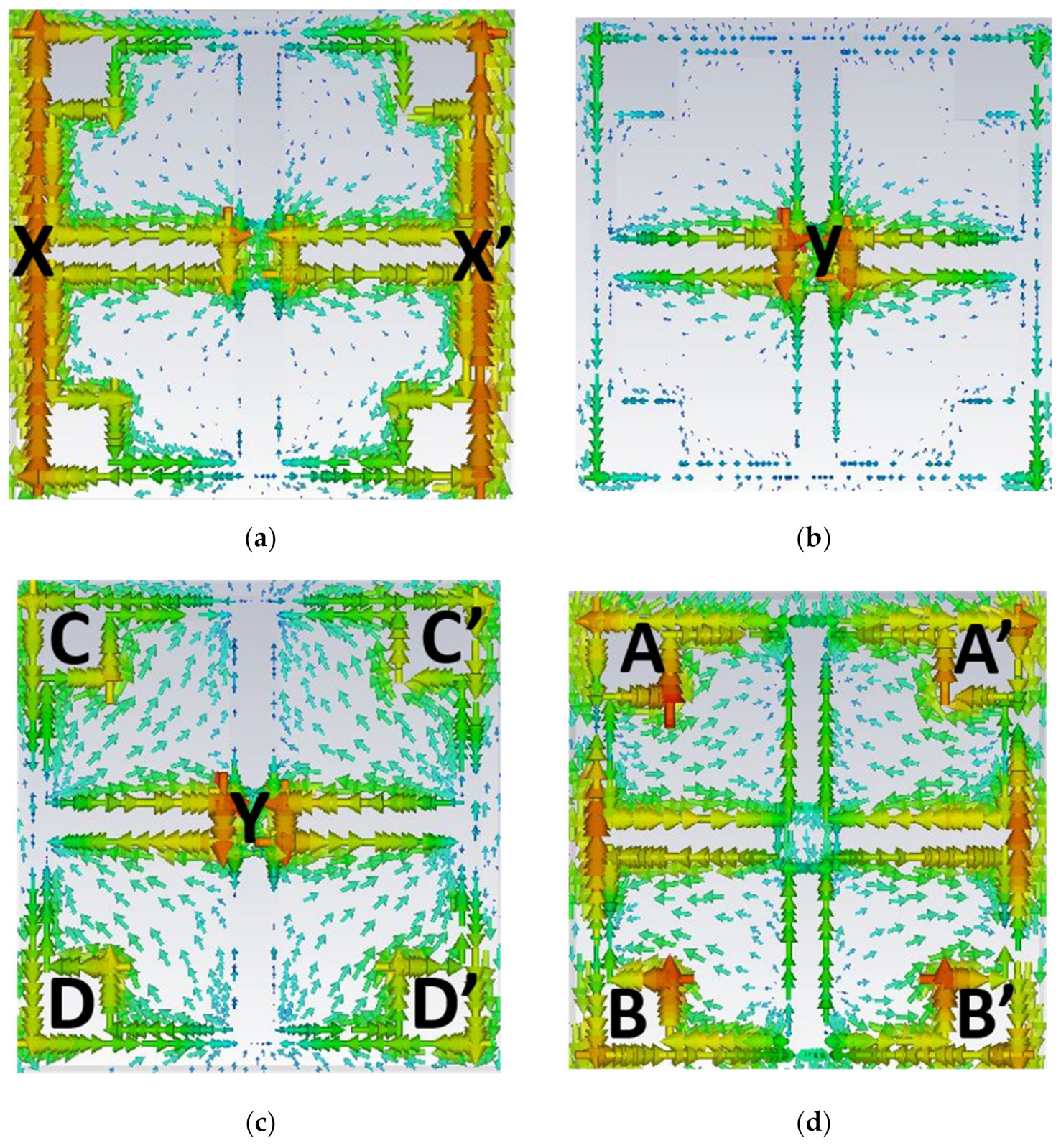

The outer resonator contributes to the first resonance (0.5 THz) and the corresponding current distribution regions (X and X’) are marked and shown in Figure 3a. Figure 3b shows the obtained current distribution (region Y) at 0.9 THz which arises from the center square resonator. The butterfly wings along with the center square give rise to the second broadband resonance centered at 1.65 THz. The current distribution for 1.65 THz and 2 THz are shown in Figure 3c,d, respectively, and the corresponding regions are labeled. Through the current distribution analysis, the double-band/broadband filter characteristics are confirmed.

3.3. Conducting Characteristic of Graphene

Graphene is a 2D material with electrical conductivity that can be varied by altering the applied Fermi energy levels. The conductivity (σ) has two components, namely inter-band (σ_inter) and intra-band (σ_intra) transitions, and it is calculated using the Kubo formula [32]. At terahertz and far-infrared frequency ranges, the inter-band transition is negligible and intra-band transition dominates (when $\hslash$ω < 2E_F):

$$\sigma ={\sigma }_{intra}+{\sigma }_{inter}$$

where ${\sigma }_{intra}=\frac{i{e}^2{k}_{B}T}{\pi {\hslash }^2\left(\omega +i{\tau }^{-1}\right)}\left[\frac{E_F}{k_{B}T}+2ln\left(e^{\frac{-E_F}{k_{B}T}}+1\right)\right]$ and ${\sigma }_{inter}=\frac{e^2}{4\hslash }\left[\theta \left(\omega -2E_F/\hslash \right)-\frac{i}{2\pi }ln\frac{{\left(\omega +2E_F/\hslash \right)}^2}{{\left(\omega -2E_F/\hslash \right)}^2}\right]$.

If E_F > k_BT and E_F > $\hslash$ω, the conductivity follows Drude-like form. Therefore, the conductivity can be deduced as follows:

$${\sigma }_{gra}=\frac{e^2{E}_F}{\pi {\hslash }^2}\frac{i}{\omega +\raisebox{1ex}{$i$}\!\left/ \!\raisebox{-1ex}{$\tau $}\right.}$$

where τ = uE_F/(ev_F²).

The conductivity of the graphene at THz frequencies is calculated based on the above-simplified formula and taken from the literature for the fixed Fermi velocity and carrier mobility [37]. These data were used for the numerical evaluation in this work. The concept of tunable conducting the nature of graphene is utilized for designing tunable metamaterial.

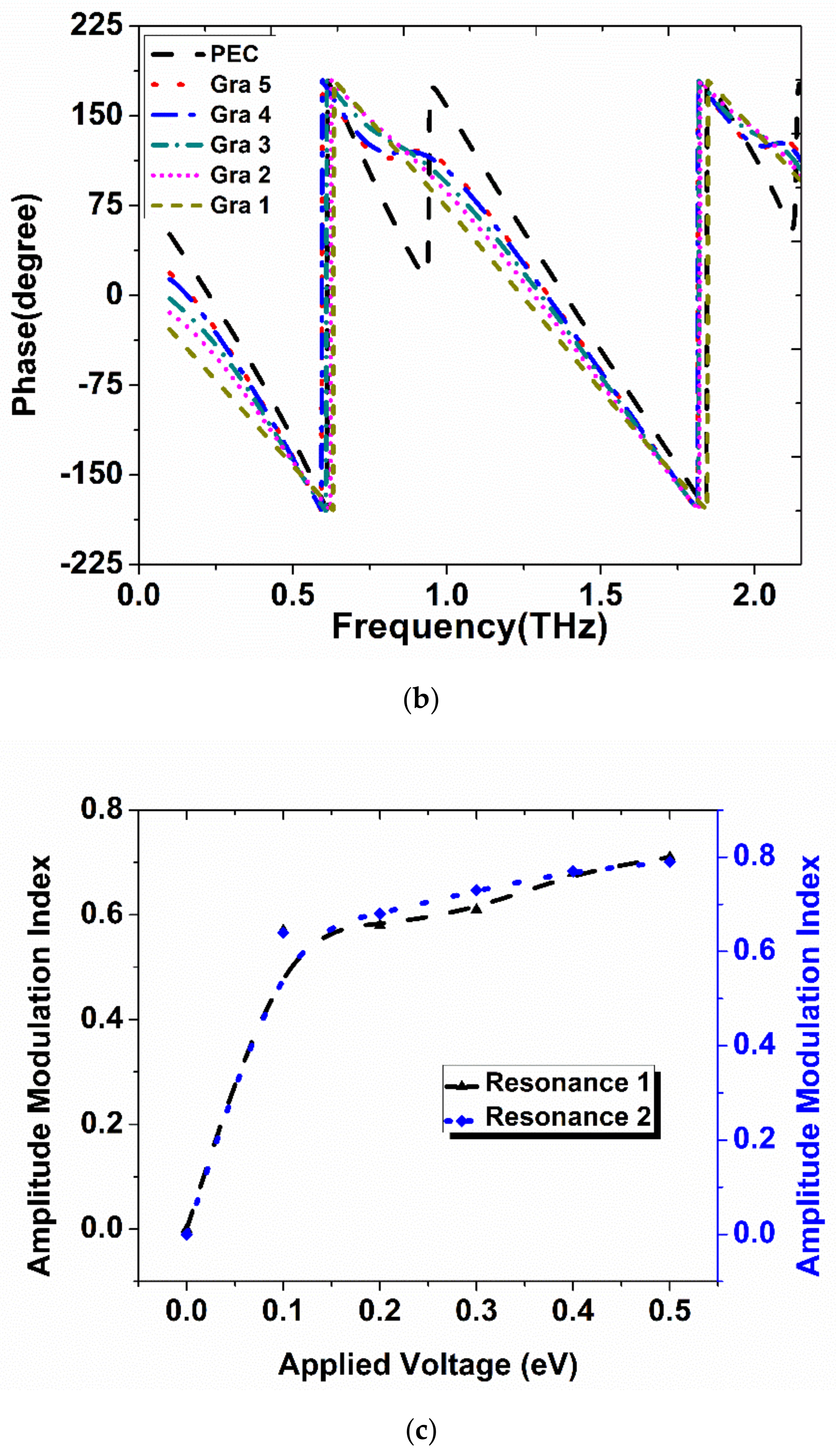

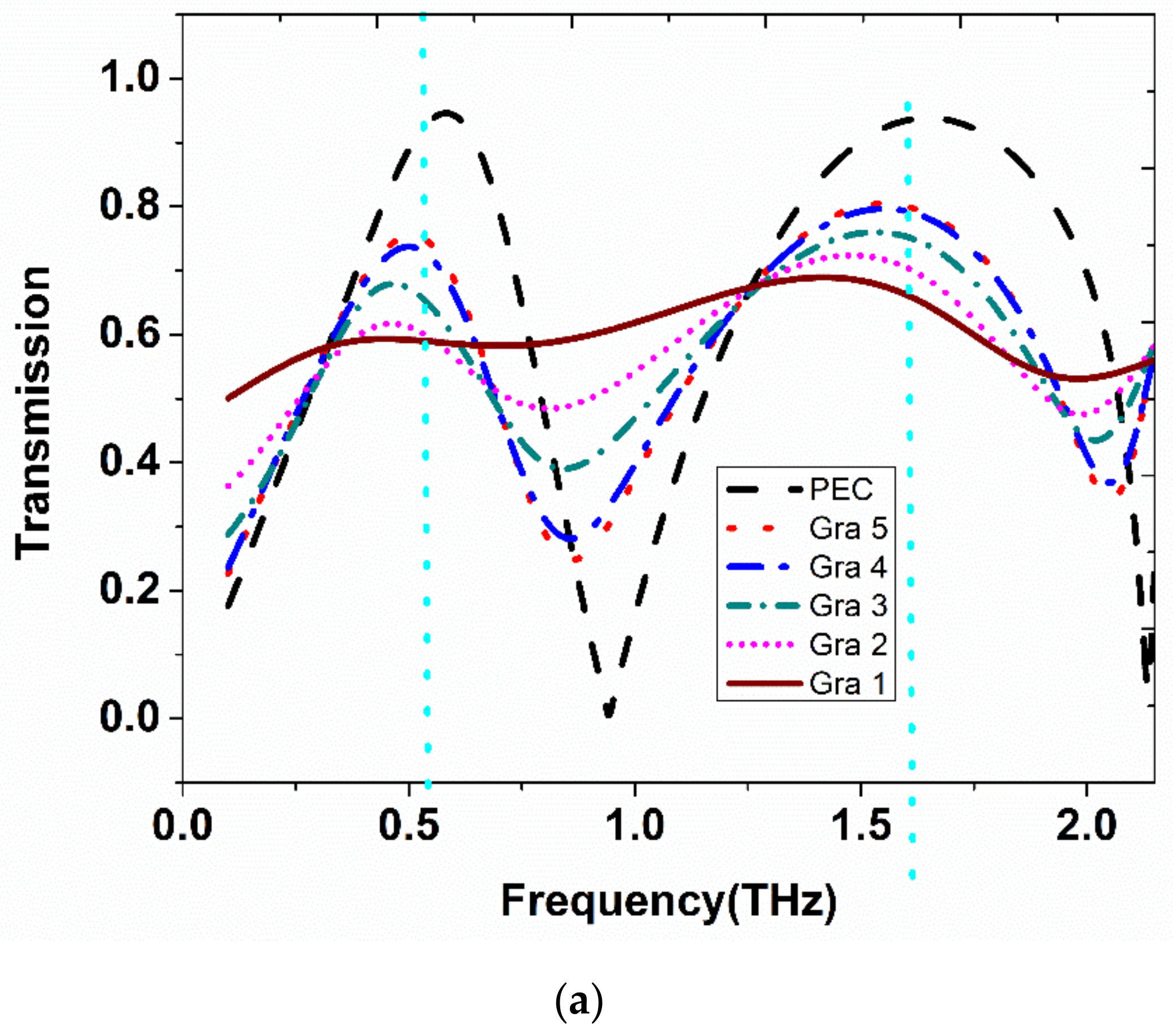

Initially, the metamaterial was designed by considering the top metallic patch as a perfect electric conductor (PEC). Next, the patch was replaced with graphene material. The graphene conductivity values for different Fermi energy levels varied from 0.1 eV to 0.5 eV and were considered in numerical simulation. First, the designed structure was simulated for 0.1 eV and the corresponding transmission spectrum was obtained. Additionally, this continued until the 0.5 eV level. The obtained transmission spectra for these levels are obtained and plotted in Figure 4a. It should be noted that even for a smaller variation in energy level, the change in amplitude in the transmission spectra was significant. It confirms that the graphene-based proposed metamaterial will be useful for reconfigurable applications. The corresponding phase component for different Fermi levels is plotted in Figure 4b. This kind of metamaterial structure could be used for terahertz wave modulation.

The applied Fermi energy level versus amplitude modulation for the two resonances is depicted in Figure 4c. It is evident that the graphene-based metamaterial shows better modulation in amplitude as well as the in-phase component.

4. Conclusions

We have numerically evaluated a double-band terahertz metamaterial structure using a single layer structure. The designed metamaterial has obtained broadband operation in the desired resonances. The surface current distribution confirms the double-band resonance arises from the two resonators. From the transmission spectra, it is evident that the design has achieved polarization-independent and angle-resolved characteristics for two different orthogonal polarizations. The FWHMs for the two resonances are 510 GHz and 920 GHz, respectively, which further confirmed the broadband characteristics. The structure has achieved above 95% of transmission for both resonances. The tunable resonances have been achieved by replacing the metallic patch with graphene material. The graphene Fermi levels varied from 0.1 eV to 0.5 eV, and their corresponding spectra are discussed in this article. It showed better modulation for amplitude and as well as for phase characteristics. This kind of structure could be used in slow-light devices, filters, and so forth.
