Investigations on the Performance of Shotcrete Using Artificial Lightweight Shale Ceramsite as Coarse Aggregate
Previous Article in Journal
Analysis of the Effect of Catalytic Additives in the Agricultural Waste Combustion Process
Previous Article in Special Issue
Adhesive Joints of Additively Manufactured Adherends: Ultrasonic Evaluation of Adhesion Strength
Article

Influence of Pulse–Pause Sequences on the Self-Heating Behavior in Continuous Carbon Fiber-Reinforced Composites under Ultrasonic Cyclic Three-Point Bending Loads

by 1,* and 1,2,3
1
Department for Sustainable Systems Engineering (INATECH), Faculty of Engineering, University of Freiburg, 79110 Freiburg, Germany
2
Freiburg Materials Research Center (FMF), 79104 Freiburg, Germany
3
Fraunhofer Institute for High Speed Dynamics, Ernst-Mach-Institute (EMI), 79104 Freiburg, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Magdalena Rucka
Materials 2022, 15(10), 3527; https://doi.org/10.3390/ma15103527
Received: 8 April 2022 / Revised: 10 May 2022 / Accepted: 12 May 2022 / Published: 13 May 2022
(This article belongs to the Special Issue Ultrasound for Material Characterization and Processing II)

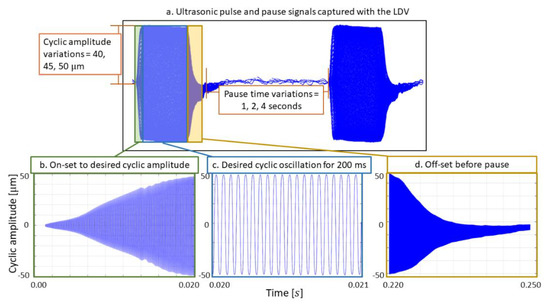

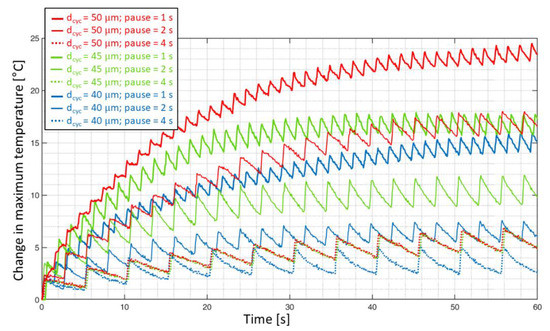

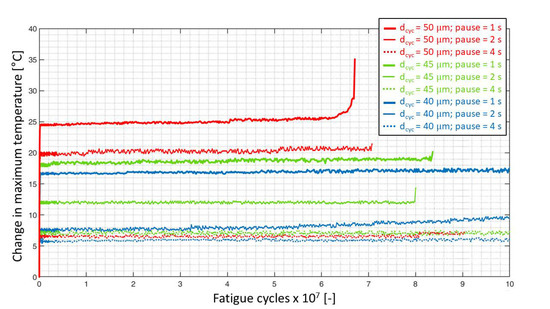

Several studies have been conducted in the Very High Cycle Fatigue (VHCF) regime on Carbon Fiber Reinforced Polymers (CFRP) in search of their fatigue limit beyond their typical service life, which is itself in the order of 108 loading cycles. The ultrasonic fatigue test (UFT) method has been recently gaining attention for conducting fatigue experiments up to 109 loading cycles. This can be attributed to the reduction of testing time, as the testing facility operates at a cyclic frequency of 20 kHz. The fatigue loading in UFT is usually performed in a pulse–pause sequence to avoid specimen heating and undesirable thermal effects. For this study, the pulse–pause combination of the UFT methodology was explored and its influence on the self-heating behavior of the CFRP material was analyzed. This was realized by monitoring the temperature evolution in the CFRP specimens at different pulse–pause combinations and correlating it with their final damage morphologies. From the obtained results, it is concluded that the specimen heating phenomenon depends on several variables such as cyclic loading amplitude, the pulse–pause combination, and the damage state of the material. Finally, it is proposed that the test procedure, as well as the testing time, can be further optimized by designing the experiments based on the self-heating characteristic of the composite and the glass transition temperature (Tg) of the polymer matrix. View Full-Text
Keywords: self-heating; power-ultrasonics; heat generation; ultrasonic fatigue; carbon fiber reinforced polymers; online-monitoring; 20 kHz; material characterization self-heating; power-ultrasonics; heat generation; ultrasonic fatigue; carbon fiber reinforced polymers; online-monitoring; 20 kHz; material characterization
Show Figures

Figure 1

MDPI and ACS Style

Premanand, A.; Balle, F. Influence of Pulse–Pause Sequences on the Self-Heating Behavior in Continuous Carbon Fiber-Reinforced Composites under Ultrasonic Cyclic Three-Point Bending Loads. Materials 2022, 15, 3527. https://doi.org/10.3390/ma15103527

AMA Style

Premanand A, Balle F. Influence of Pulse–Pause Sequences on the Self-Heating Behavior in Continuous Carbon Fiber-Reinforced Composites under Ultrasonic Cyclic Three-Point Bending Loads. Materials. 2022; 15(10):3527. https://doi.org/10.3390/ma15103527

Chicago/Turabian Style

Premanand, Aravind, and Frank Balle. 2022. "Influence of Pulse–Pause Sequences on the Self-Heating Behavior in Continuous Carbon Fiber-Reinforced Composites under Ultrasonic Cyclic Three-Point Bending Loads" Materials 15, no. 10: 3527. https://doi.org/10.3390/ma15103527
