# Numerical Simulation of the Fracture Behavior of High-Performance Fiber-Reinforced Concrete by Using a Cohesive Crack-Based Inverse Analysis

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Material Production and Experimental Campaign

^{3}were also manufactured. All specimens were cured in a climatic chamber until 28 days of age. The cylindrical specimens were used to obtain the compressive strength, the modulus of elasticity, and the tensile strength following EN 12390-3 [34], EN 12390-13 [35], and EN 12390-6 [36], respectively. All tests were conducted at 28 days of age of the material. In Table 3, the results of the mentioned tests can be seen.

_{R}

_{1,}should be at least 40% of the load at the limit of proportionality (f

_{LOP}). Moreover, it should be also checked that the load at a CMOD value of 2.5 mm should be at least 20% of f

_{LOP}, usually termed f

_{R}

_{3}. In Table 4, it can be observed that all concrete formulations exceeded the requirements set by [22].

## 3. Numerical Simulations

**t**transmitted across the crack faces was parallel to the crack displacement vector

**w**(central forces model). If the magnitude of the crack opening vector |

**w**| does not decrease, the relation between both parameters can be stated as appears in (1)

**w**|) is the softening function for pure opening, which, in this manuscript, will be defined by multilinear functions, where unloading and reloading branches are aligned with the origin and the softening function is defined by a set of points.

**t**can be obtained as

**t**is constant along the crack, with h being the triangle height, A representing the area of the element, L representing the crack length,

**σ**representing the stress tensor, and

**n**representing the unit vector normal to that side and to the crack. A more detailed explanation of the implementation can be found in [41].

**E**stands for the elastic tangent tensor, ε

^{α}is the apparent strain vector obtained with the nodal displacements, and

**b**is the gradient vector corresponding to the shape function of the solitary node, as appears in Equation (4):

^{+}**t = σ n**and also using Equations (1) and (3), the following expression could be obtained.

**1**stands for the identity tensor. If an iterative algorithm is used,

**w**could be found to satisfy Equation (5).

_{ct}), the element behaves elastically. The tensile strength influences the limit of proportionality of the experimental curves, being greater as f

_{ct}increases. Nevertheless, if such value is exceeded, the direction of the maximum principal stress is found and a crack perpendicular to such direction is introduced. From that point onwards, the behaviour of the element is governed, if strains keep growing, by the softening function of the material, which relates the stress and the crack opening relation (σ-w). Apart from the tensile strength, the subroutine requires the modulus of elasticity of the material E. Although it is true that the presence of fibres in concrete changes the post-peak behaviour of the material when subjected to compressive stresses, given that for high crack widths the material behaviour is mainly under tensile stresses, no compressive damage was considered in the material implementation. Moreover, no experimental data appeared in [33] regarding the post-peak compressive strength of any of the mixes analysed.

## 4. Results and Discussion

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Brandt, A. Fibre reinforced cement-based (FRC) composites after over 40 years of development in building and civil engineering. Compos. Struct.
**2008**, 86, 3–9. [Google Scholar] [CrossRef] - Naaman, E. Engineered steel fibers with optimal properties for reinforcement of cement composites. J. Adv. Concr. Technol.
**2003**, 1, 241–252. [Google Scholar] [CrossRef] [Green Version] - Zollo, R. Fiber-reinforced concrete: An overview after 30 years of development. Cem. Concr. Compos.
**1996**, 19, 107–122. [Google Scholar] [CrossRef] - Pająk, M.; Ponikiewski, T. Flexural behavior of self-compacting concrete reinforced with different types of steel fibers. Constr. Build. Mater.
**2013**, 47, 397–408. [Google Scholar] [CrossRef] - Giaccio, G.; Tobes, J.M.; Zerbino, R. Use of small beams to obtain design parameters of fibre reinforced concrete. Cem. Concr. Compos.
**2008**, 30, 297–306. [Google Scholar] [CrossRef] - Enfedaque, A.; Alberti, M.G.; Gálvez, J.C. Influence of fiber distribution and orientation in the fracture behavior of polyolefin fiber-reinforced concrete. Materials
**2019**, 12, 220. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lopez, J.A.; Serna, P.; Camacho, E.; Coll, H.; Navarro-Gregori, J. First ultra-high-performance fibre-reinforced concrete footbridge in Spain: Design and construction. Struct. Eng. Int.
**2014**, 24, 101–104. [Google Scholar] [CrossRef] - Jafarifar, N.; Pilakoutas, K.; Bennett, T. The effect of shrinkage cracks on the load bearing capacity of steel-fibre-reinforced roller-compacted-concrete pavements. Mater. Struct.
**2016**, 49, 2329–2347. [Google Scholar] [CrossRef] [Green Version] - De la Fuente, A.; Pujadas, P.; Blanco, A.; Aguado, A. Experiences in Barcelona with the use of fibres in segmental linings. Tunn. Undergr. Space Technol.
**2012**, 27, 60–71. [Google Scholar] [CrossRef] [Green Version] - Yu, T.; Remennikov, A.M. Novel hybrid FRP tubular columns for sustainable mining infrastructure: Recent research at University of Wollongong. Int. J. Min. Sci. Technol.
**2014**, 24, 311–316. [Google Scholar] [CrossRef] - Liu, P.; Zhou, X.; Qian, Q. Experimental investigation of rigid confinement effects of radial strain on dynamic mechanical properties and failure modes of concrete. Int. J. Min. Sci. Technol.
**2021**, 31, 939–951. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C.; Pinillos, L. Structural Cast-in-Place Application of Polyolefin Fiber–Reinforced Concrete in a Water Pipeline Supporting Elements. J. Pipeline Syst. Eng.
**2017**, 8, 05017002. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C. Improving the Reinforcement of Polyolefin Fiber Reinforced Concrete for Infrastructure Applications. Fibers
**2015**, 3, 504–522. [Google Scholar] [CrossRef] [Green Version] - Hossain, K.M.A.; Lachemi, M.; Sammour, M.; Sonebi, M. Strength and fracture energy characteristics of self-consolidating concrete incorporating polyvinyl alcohol, steel and hybrid fibres. Constr. Build. Mater.
**2013**, 45, 20–29. [Google Scholar] [CrossRef] - Okeh, C.A.; Begg, D.W.; Barnett, S.J.; Nanos, N. Behaviour of hybrid steel fibre reinforced self-compacting concrete using innovative hooked-end steel fibres under tensile stress. Constr. Build. Mater.
**2019**, 202, 753–761. [Google Scholar] [CrossRef] [Green Version] - Caggiano, A.; Cremona, M.; Faella, C.; Lima, C.; Martinelli, E. Fracture behavior of concrete beams reinforced with mixed long/short steel fibers. Constr. Build. Mater.
**2012**, 37, 832–840. [Google Scholar] [CrossRef] - Rambo, D.A.S.; de Andrade Silva, F.; Toledo Filho, R.D. Effect of steel fiber hybridization on the fracture behavior of self-consolidating concretes. Cem. Concr. Compos.
**2014**, 54, 100–109. [Google Scholar] [CrossRef] - Caetano, H.; Rodrigues, J.P.C.; Pimienta, P. Flexural strength at high temperatures of a high strength steel and polypropylene fibre concrete. Constr. Build. Mater.
**2019**, 227, 116721. [Google Scholar] [CrossRef] - Sivakumar, A.; Santhanam, M. A quantitative study on the plastic shrinkage cracking in high strength hybrid fibre reinforced concrete. Cem. Concr. Compos.
**2007**, 29, 575–581. [Google Scholar] [CrossRef] - EHE-08, Spanish Structural Concrete Code, Spanish Minister of Public Works, 2008. Available online: https://www.mitma.gob.es/recursos_mfom/contents.pdf (accessed on 28 November 2021).
- CNR-DT 204, Guide for the Design and Construction of Fiber-Reinforced Concrete Structures, Consiglio Nazionale Delle Riserche, Roma, 2006. Available online: http://hdl.handle.net/11386/2293864 (accessed on 28 November 2021).
- MC2010, Fib Model Code; Fédération Internationale du Béton Fib/International Federation for Structural Concrete: Paris, France, 2010.
- Bazant, Z.P.; Oh, B.H. Crack band theory for fracture of concrete. Mater. Struct.
**1983**, 16, 155–177. [Google Scholar] - Zhang, J.; Li, V.C. Simulation of crack propagation in fiber-reinforced concrete by fracture mechanics. Cem. Concr. Res.
**2004**, 34, 333–339. [Google Scholar] [CrossRef] - Hillerborg, A.; Modéer, M.; Petersson, P.E. Analysis of crack formation and crack growth in concrete by means of fracture mechanics and finite elements. Cem. Concr. Res.
**1976**, 6, 773–778. [Google Scholar] [CrossRef] - Awinda, K.; Chen, J.; Barnett, S.; Fox, D. Modelling behaviour of ultra high performance fibre reinforced concrete. Adv. Appl. Ceram.
**2014**, 113, 502–508. [Google Scholar] [CrossRef] [Green Version] - Kazemi, M.T.; Fazileh, F.; Ebrahiminezhad, M.A. Cohesive crack model and fracture energy of steel-fiber-reinforced-concrete notched cylindrical specimens. J. Mater. Civ. Eng.
**2007**, 19, 884–890. [Google Scholar] [CrossRef] - Park, K.; Paulino, G.H.; Roesler, J. Cohesive fracture model for functionally graded fiber reinforced concrete. Cem. Concr. Res.
**2010**, 40, 956–965. [Google Scholar] [CrossRef] - Sucharda, O.; Pajak, M.; Ponikiewski, T.; Konecny, P. Identification of mechanical and fracture properties of self-compacting concrete beams with different types of steel fibres using inverse analysis. Constr. Build. Mater.
**2017**, 138, 263–275. [Google Scholar] [CrossRef] - Gao, D.; Ding, C.; Pang, Y.; Chen, G. An inverse analysis method for multi-linear tensile stress-crack opening relationship of 3D/4D/5D steel fiber reinforced concrete. Constr. Build. Mater.
**2021**, 309, 125074. [Google Scholar] [CrossRef] - Enfedaque, A.; Alberti, M.G.; Gálvez, J.C. Analysis of the Versatility of Multi-Linear Softening Functions Applied in the Simulation of Fracture Behaviour of Fibre-Reinforced Cementitious Materials. Materials
**2019**, 12, 3656. [Google Scholar] [CrossRef] [Green Version] - Suárez, F.; Gálvez, J.C.; Alberti, M.G.; Enfedaque, A. Fracture and size effect of PFRC specimens simulated by using a trilinear softening diagram: A predictive approach. Materials
**2021**, 14, 3795. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C.; Cortez, A. Optimisation of fibre reinforcement with a combination strategy and through the use of self-compacting concrete. Constr. Build. Mater.
**2020**, 235, 117289. [Google Scholar] [CrossRef] - EN 12390-3, Testing Hardened Concrete. Part 3: Compressive Strength of Test Specimens, 2009. Available online: https://www.en-standard.eu/bs-en-12390-3-2019-testing-hardened-concrete-compressive-strength-of-test-specimens/ (accessed on 28 November 2021).
- EN 12390-13, Testing Hardened Concrete—Part 13: Determination of Secant Modulus of Elasticity in Compression, 2013. Available online: https://www.en-standard.eu/csn-en-12390-13-testing-hardened-concrete-part-13-determination-of-secant-modulus-of-elasticity-in-compression-4/ (accessed on 28 November 2021).
- EN 12390-6, Testing Hardened Concrete. Part 6. Tensile Splitting Strength of Test Specimens, 2009. Available online: https://www.en-standard.eu/bs-en-12390-6-2009-testing-hardened-concrete-tensile-splitting-strength-of-test-specimens/ (accessed on 28 November 2021).
- EN 14651:2005+A1, Test Method for Metallic Fibre Concrete. Measuring the Flexural Tensile Strength (Limit of Proportion-Ality (LOP), Residual), 2007. Available online: https://www.en-standard.eu/bs-en-14651-2005-a1-2007-test-method-for-metallic-fibre-concrete-measuring-the-flexural-tensile-strength-limit-of-proportionality-lop-residual/ (accessed on 28 November 2021).
- Barenblatt, G.I. The mathematical theory of equilibrium cracks in brittle fracture. In Advances in Applied Mechanics; Elsevier: Amsterdam, The Netherlands, 1962; Volume 7, pp. 55–129. [Google Scholar]
- Dugdale, D.S. Yielding of steel sheets containing slits. J. Mech. Phys. Solids.
**1960**, 8, 100–104. [Google Scholar] [CrossRef] - Guinea, G.V.; Planas, J.; Elices, M. A general bilinear fit for the softening curve of concrete. Mater. Struct.
**1994**, 27, 99–105. [Google Scholar] [CrossRef] - Enfedaque, A.; Alberti, M.G.; Gálvez, J.; Domingo, J. Numerical simulation of the fracture behaviour of glass fibre reinforced cement. Constr. Build. Mater.
**2017**, 136, 108–117. [Google Scholar] [CrossRef] - Suárez, F.; Gálvez, J.C.; Enfedaque, A.; Alberti, M.G. Modelling fracture on polyolefin fibre reinforced concrete specimens subjected to mixed-mode loading. Eng. Fract. Mech.
**2019**, 211, 244–253. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C.; Reyes, E. Numerical modelling of the fracture of polyolefin fibre reinforced concrete by using a cohesive fracture approach. Compos. Part B Eng.
**2017**, 111, 200–210. [Google Scholar] [CrossRef]

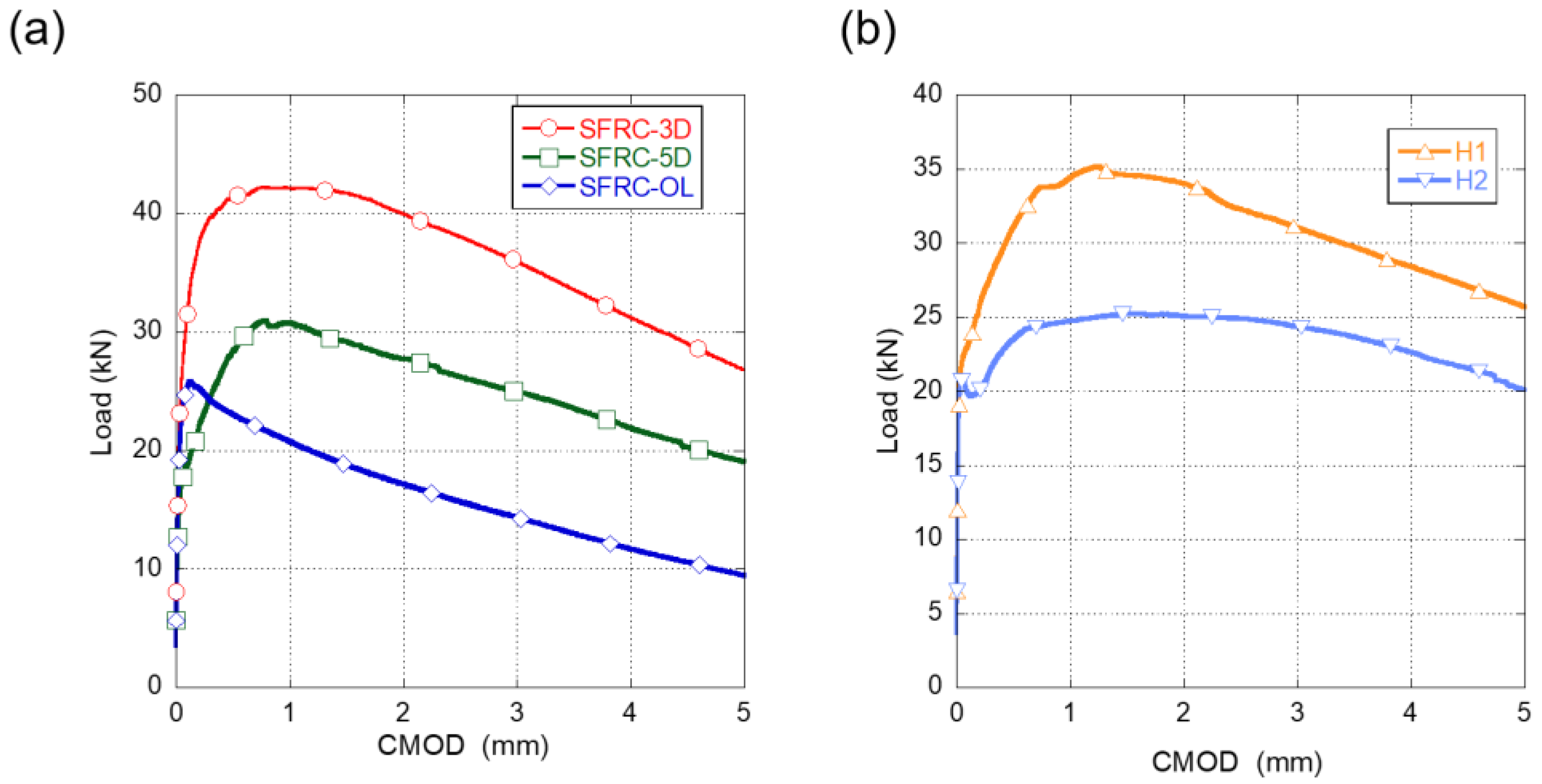

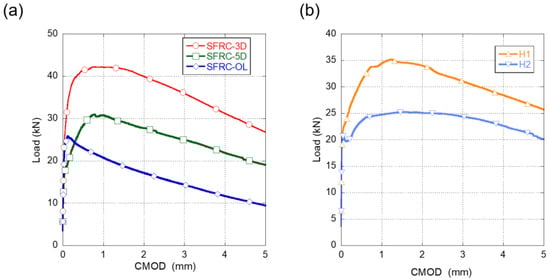

**Figure 2.**(

**a**) Fracture test results of SFRC-OL, SFRC-3D, and SFRC-5D. (

**b**) Fracture test results of H1 and H2.

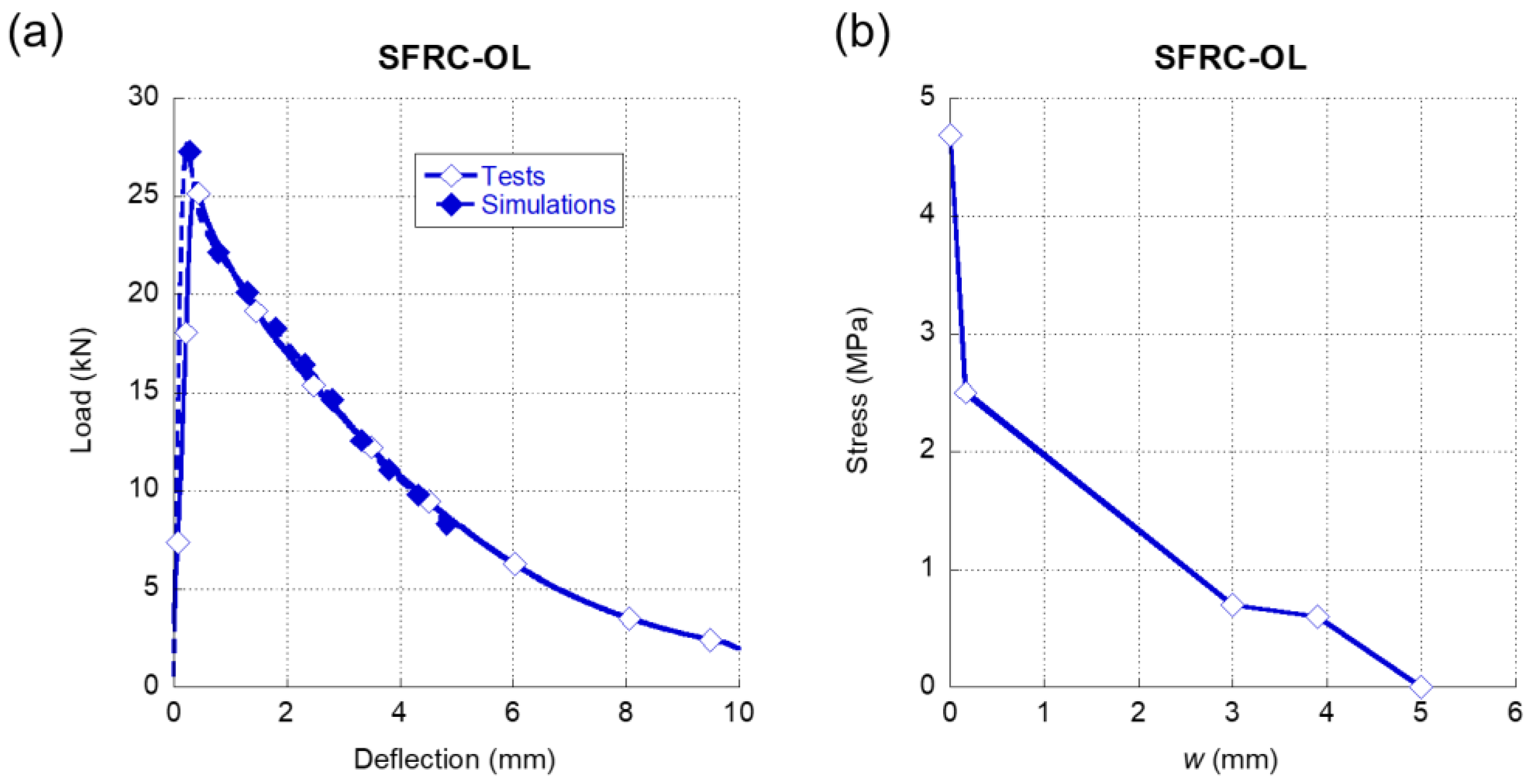

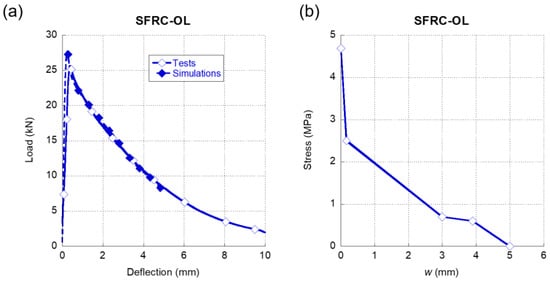

**Figure 4.**(

**a**) Comparison of the average experimental results obtained in the fracture tests of SFRC-OL and the numerical simulation. (

**b**) Softening function used in the simulation shown in (

**a**).

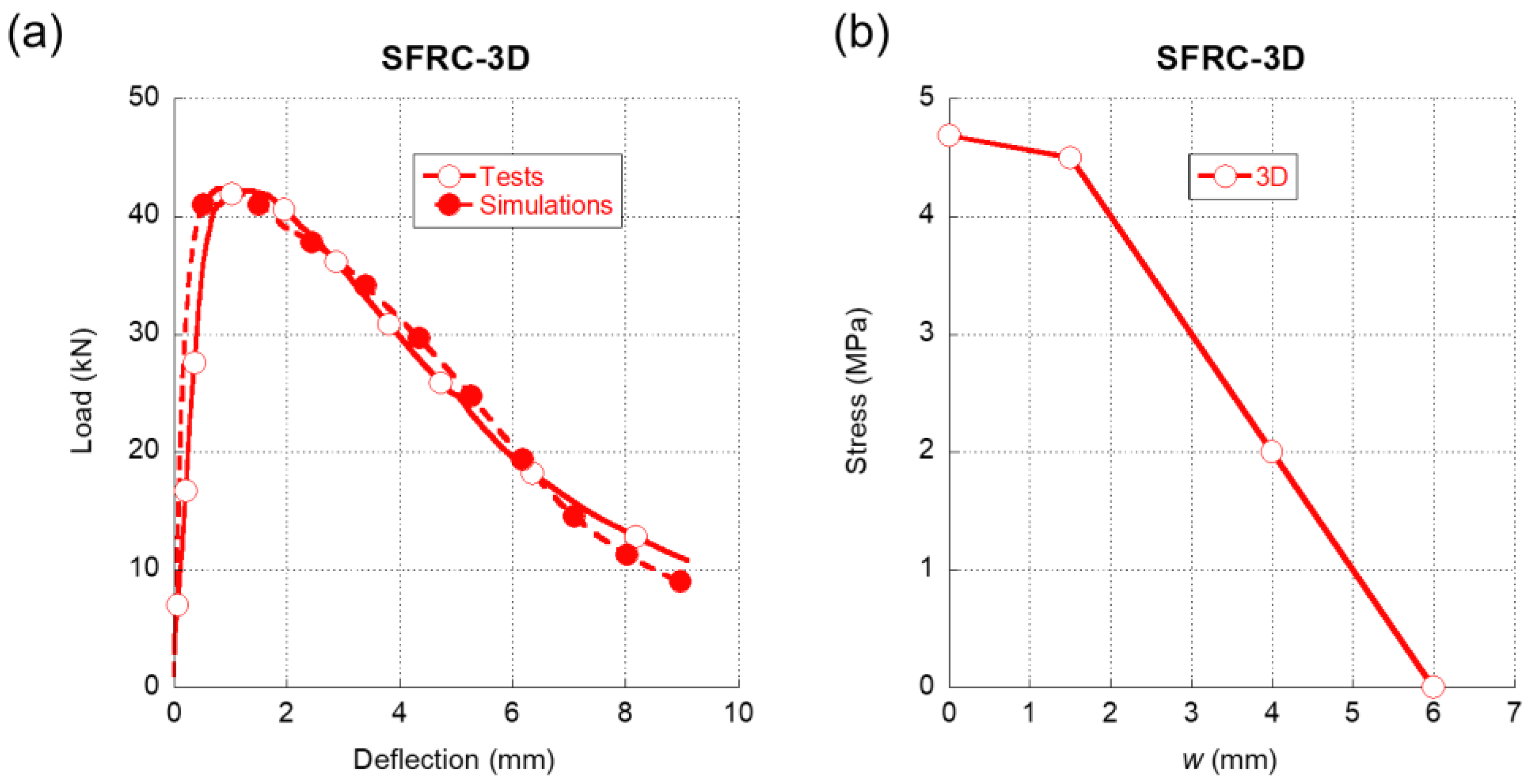

**Figure 5.**(

**a**) Comparison of the average experimental results obtained in the fracture tests of SFRC-3D and the numerical simulation. (

**b**) Softening function used in the simulation shown in (

**a**).

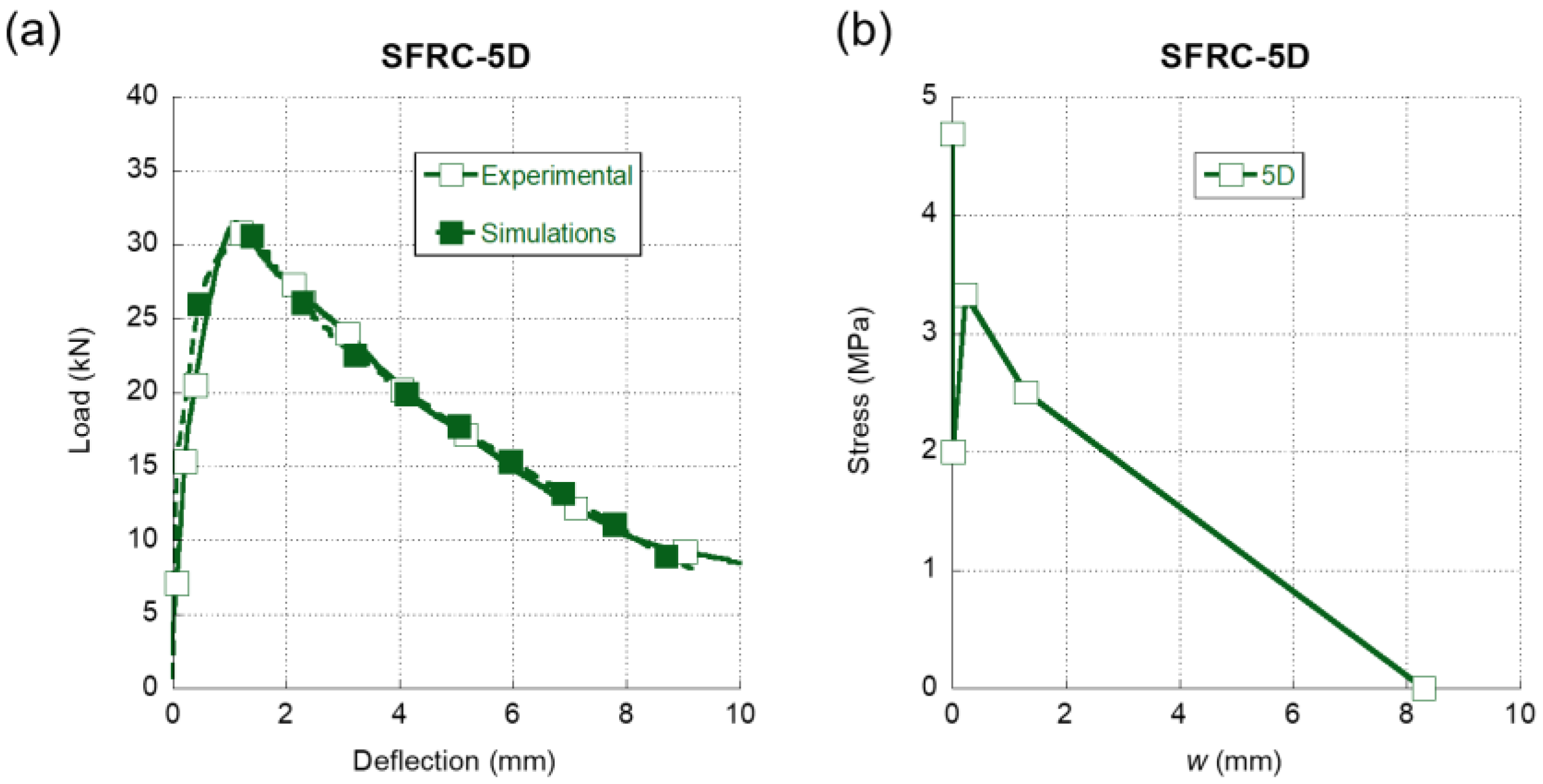

**Figure 6.**(

**a**) Comparison of the average experimental results obtained in the fracture tests of SFRC-5D and the numerical simulation. (

**b**) Softening function used in the simulation shown in (

**a**).

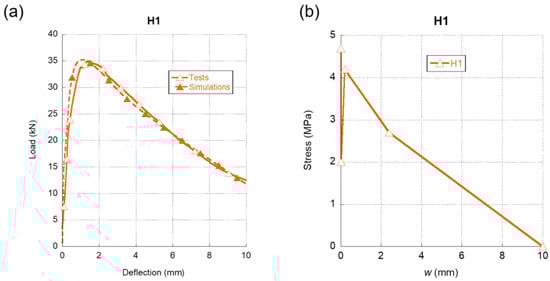

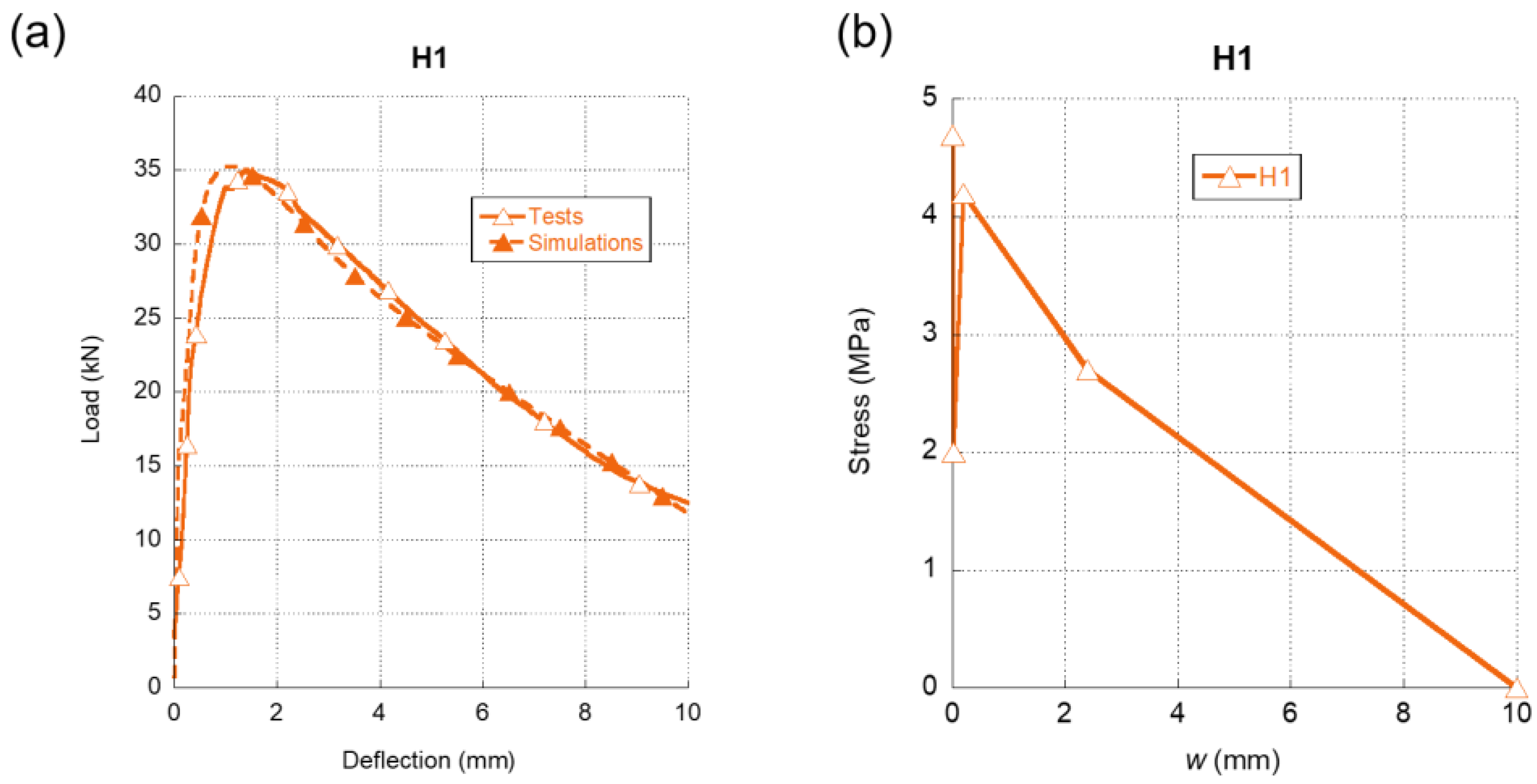

**Figure 7.**(

**a**) Comparison of the average experimental results obtained in the fracture tests of H1 and the numerical simulation. (

**b**) Softening function used in the simulation shown in (

**a**).

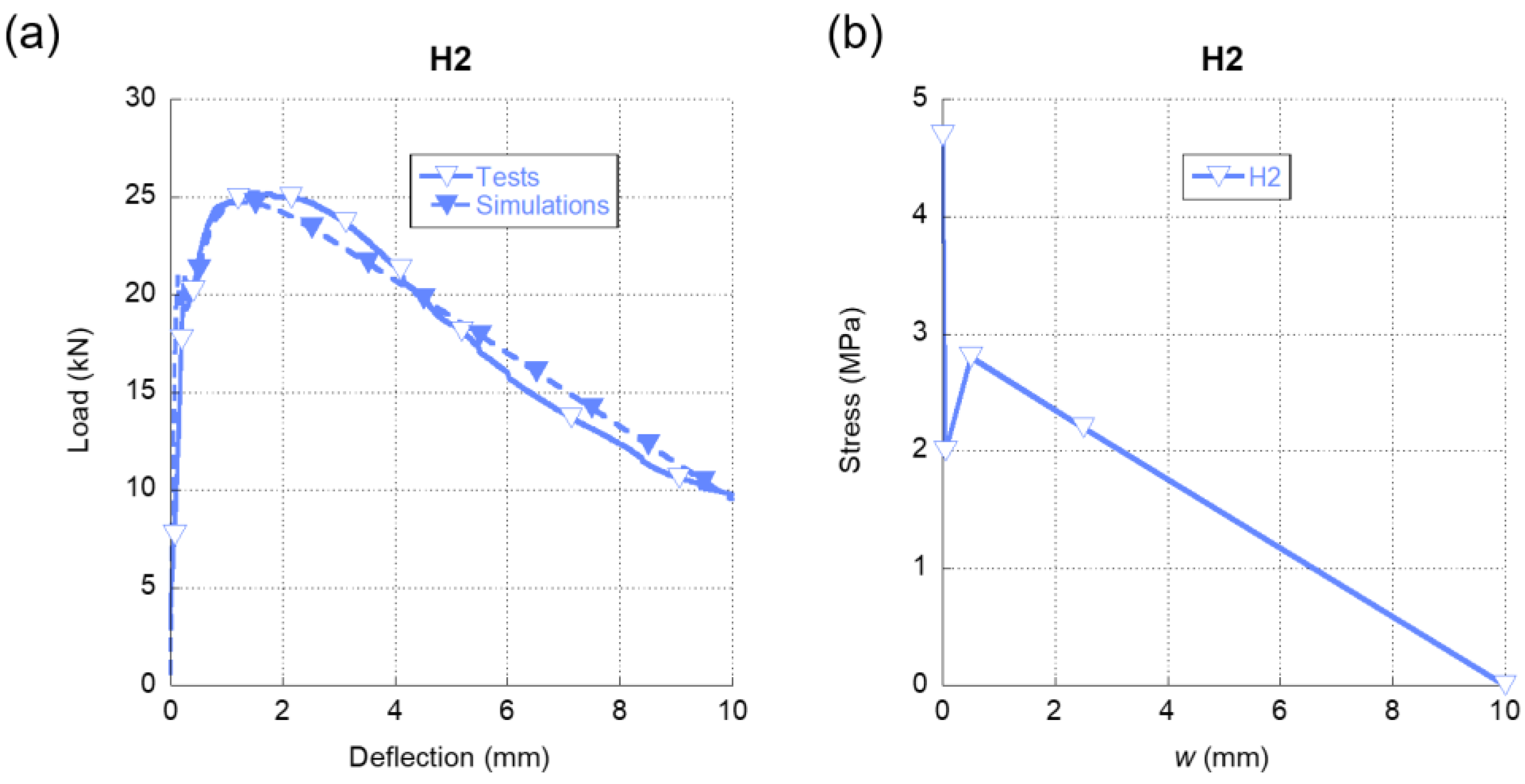

**Figure 8.**(

**a**) Comparison of the average experimental results obtained in the fracture tests of H2 and the numerical simulation. (

**b**) Softening function used in the simulation shown in (

**a**).

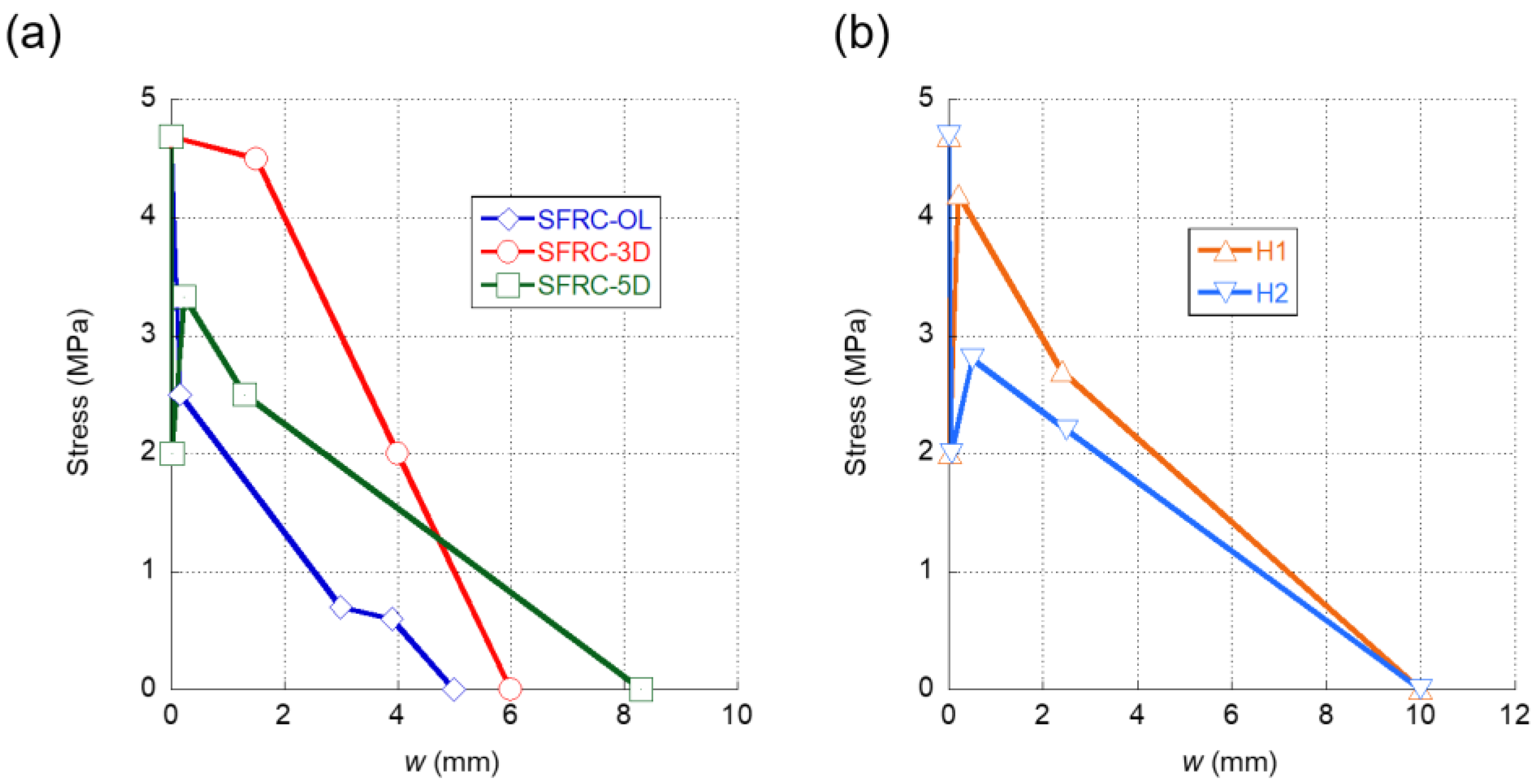

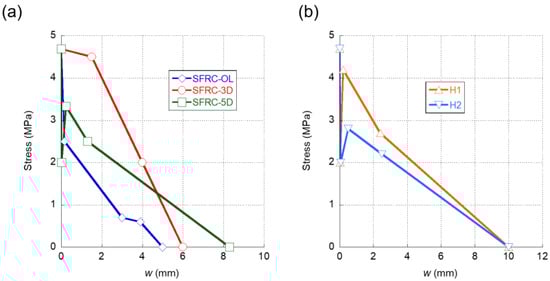

**Figure 9.**(

**a**) Softening functions obtained in the inverse analysis of SFRC-OL, SFRC-3D, and SFRC-5D. (

**b**) Softening functions obtained in the inverse analysis of H1 and H2.

Component | Weight (kg/m^{3}) |
---|---|

Water | 199 |

Cement | 425 |

Limestone filler | 210 |

Sand | 947 |

Gravel | 292 |

Finer gravel | 194 |

Superplasticizer | 5.91 |

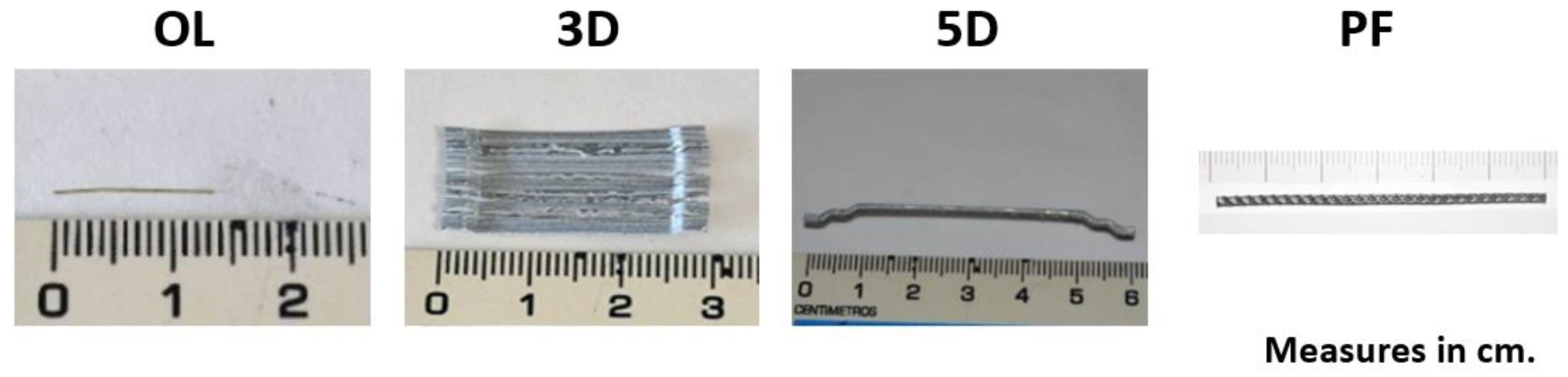

OL | 3D | 5D | PF | |
---|---|---|---|---|

Material | Steel | Steel | Steel | Polyolefin |

Shape | Straight | Hooked | Double-hooked | Straight |

Length (mm) | 13 | 30 | 60 | 60 |

Eq. diameter (mm) | 0.2 | 0.38 | 0.9 | 0.9 |

Tensile strength (MPa) | >2600 | >1160 | >2300 | >500 |

Modulus of elasticity (GPa) | 210 | 210 | 210 | 9 |

Fibres per kg. | 282,556 | 3183 | 3132 | 27,000 |

**Table 3.**Mechanical properties and their corresponding coefficient of variation (c.v.) of the concrete mixes [33].

Formulation | f_{cm} | E | f_{ct} | |||
---|---|---|---|---|---|---|

(MPa) | c.v. | (GPa) | c.v. | (MPa) | c.v. | |

SFRC-OL | 66.9 | 0.05 | 32.8 | 0.01 | 7.15 | 0.03 |

SFRC-3D | 63.1 | 0.04 | 32.7 | 0.02 | 7.96 | 0.04 |

SFRC-5D | 63.8 | 0.02 | 33.9 | 0.02 | 7.69 | 0.09 |

H1 | 64.7 | 0.02 | 40.7 | 0.03 | 8.05 | 0.01 |

H2 | 66.3 | 0.03 | 29.5 | 0.01 | 7.95 | 0.01 |

**Table 4.**Residual strength of the concrete formulation in relation with the requirements set by [22].

Strength (MPa) | f_{LOP} | f_{R}_{1} (0.5 mm) | % f_{LOP} | f_{R}_{3} (2.5 mm) | % f_{LOP} |
---|---|---|---|---|---|

SFRC-OL | 7.3 | 7.39 | 102% | 5.03 | 69% |

SFRC-5D | 5.5 | 8.11 | 148% | 8.40 | 153% |

SFRC-3D | 8.2 | 13.18 | 161% | 12.17 | 148% |

H1 | 7.0 | 9.94 | 142% | 10.33 | 147% |

H2 | 6.6 | 7.51 | 113% | 7.97 | 120% |

Concrete Mix | Experimental W_{f} (kN/mm) | Simulation Wf (kN/mm) | Experimental G_{f} (N/m) | Simulation G_{f} (N/m) | ΔG_{f} (%) |
---|---|---|---|---|---|

SFRC-OL | 98.8 | 97.1 | 5270.4 | 5179.7 | −1.75% |

SFRC-3D | 236.8 | 241.5 | 12,627.8 | 12,878.1 | 1.94% |

SFRC-5D | 170.5 | 172.8 | 9095.8 | 9213.9 | 1.28% |

H1 | 232.4 | 235.2 | 12,396.2 | 12,546.1 | 1.20% |

H2 | 178.9 | 181.1 | 9542.9 | 9657.4 | 1.19% |

Concrete Mix | SFRC-OL | SFRC-3D | SFRC-5D | H1 | H2 | |||||
---|---|---|---|---|---|---|---|---|---|---|

w (mm) | σ (MPa) | w (mm) | σ (MPa) | w (mm) | σ (MPa) | w (mm) | σ (MPa) | w (mm) | σ (MPa) | |

Point 1 | 0.00 | 4.69 | 0.00 | 4.69 | 0.00 | 4.69 | 0.00 | 4.69 | 0.00 | 4.69 |

Point 2 | 0.16 | 2.50 | 1.50 | 4.50 | 0.02 | 2.00 | 0.02 | 2.00 | 0.05 | 2.00 |

Point 3 | 3.00 | 0.70 | 4.00 | 2.00 | 0.23 | 3.33 | 0.20 | 4.20 | 0.50 | 2.80 |

Point 4 | 3.90 | 0.60 | 6.00 | 0.00 | 1.30 | 2.50 | 2.40 | 2.70 | 2.50 | 2.20 |

Point 5 | 5.00 | 0.00 | - | - | 8.30 | 0.00 | 10.00 | 0.00 | 10.00 | 0.00 |
