# Modeling and Experimental Characterization of Bonding Delaminations in Single-Element Ultrasonic Transducer

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Studied Single-Element Transducer

_{r}) is around 1.71 MHz. Material properties of PZ27 are given in Table 1 [22,23], where ρ is the density, ${c}_{ij}^{D}$ are the elastic constants, ${h}_{kj}$ are piezoelectric constants, ${\beta}_{kk}^{S}$ are the dielectric constants, ${\delta}_{m}$ and ${\delta}_{e}$ are the mechanical and dielectric loss factors, and Z is the acoustic impedance.

_{p}, Z

_{f}, and Z

_{m}are the acoustic impedance of the piezoceramic disk, the front loading, and the matching layer, respectively.

#### 2.2. Electromechanical Admittance

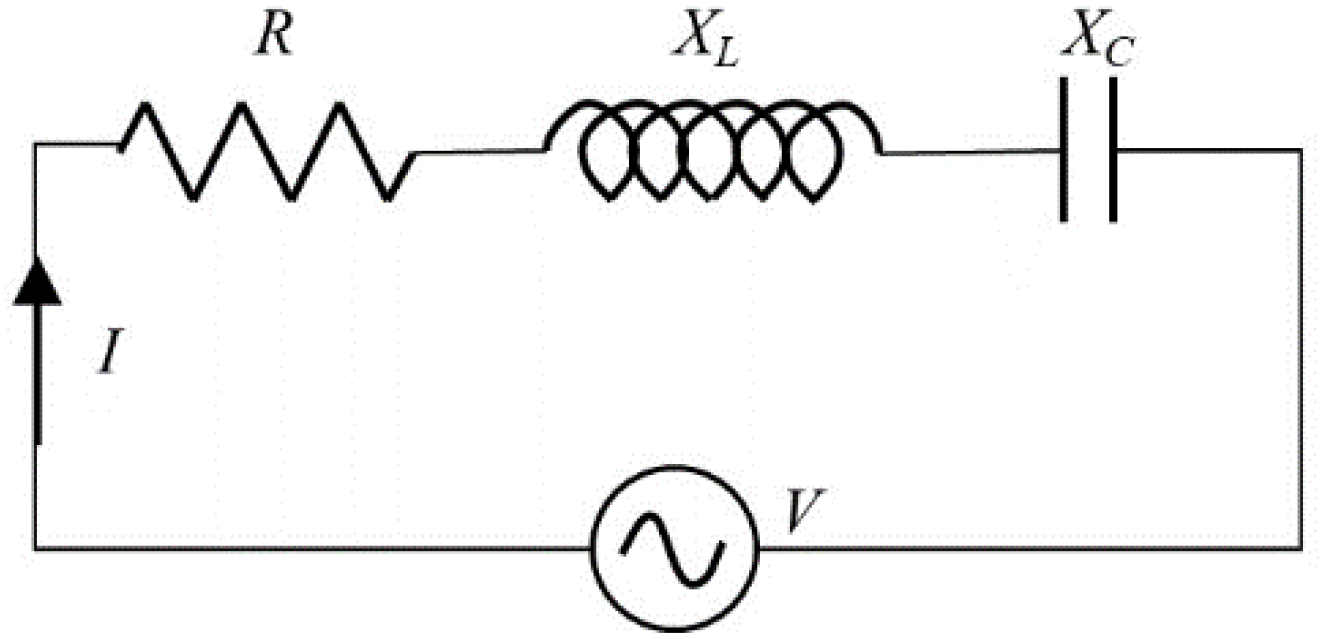

_{L}), and capacitive reactance (X

_{C}) is depicted in Figure 2. It is operated under an alternating voltage source. The complex admittance can be described by a real part (conductance G) and an imaginary part (susceptance B). Relationships between these terms can be expressed as

_{0}(ω) is the reference state.

_{R}) and bandwidth (BW

_{R}) can also be used to quantify the changes. As we know, conductance reaches its maximum value G

_{max}, i.e., A

_{R}, at the resonance frequency f

_{r}. The frequencies corresponding to ${G}_{\mathrm{max}}/\sqrt{2}$ are marked as f

_{1}and f

_{2}, then the −3dB bandwidth (${BW}_{R}^{-3dB}$) is given by

## 3. Finite Element Modeling

^{E}is the elastic stiffness tensor, e is the piezoelectric coupling tensor, and ${\epsilon}^{S}$ is the permittivity tensor. The apostrophe denotes matrix transpose.

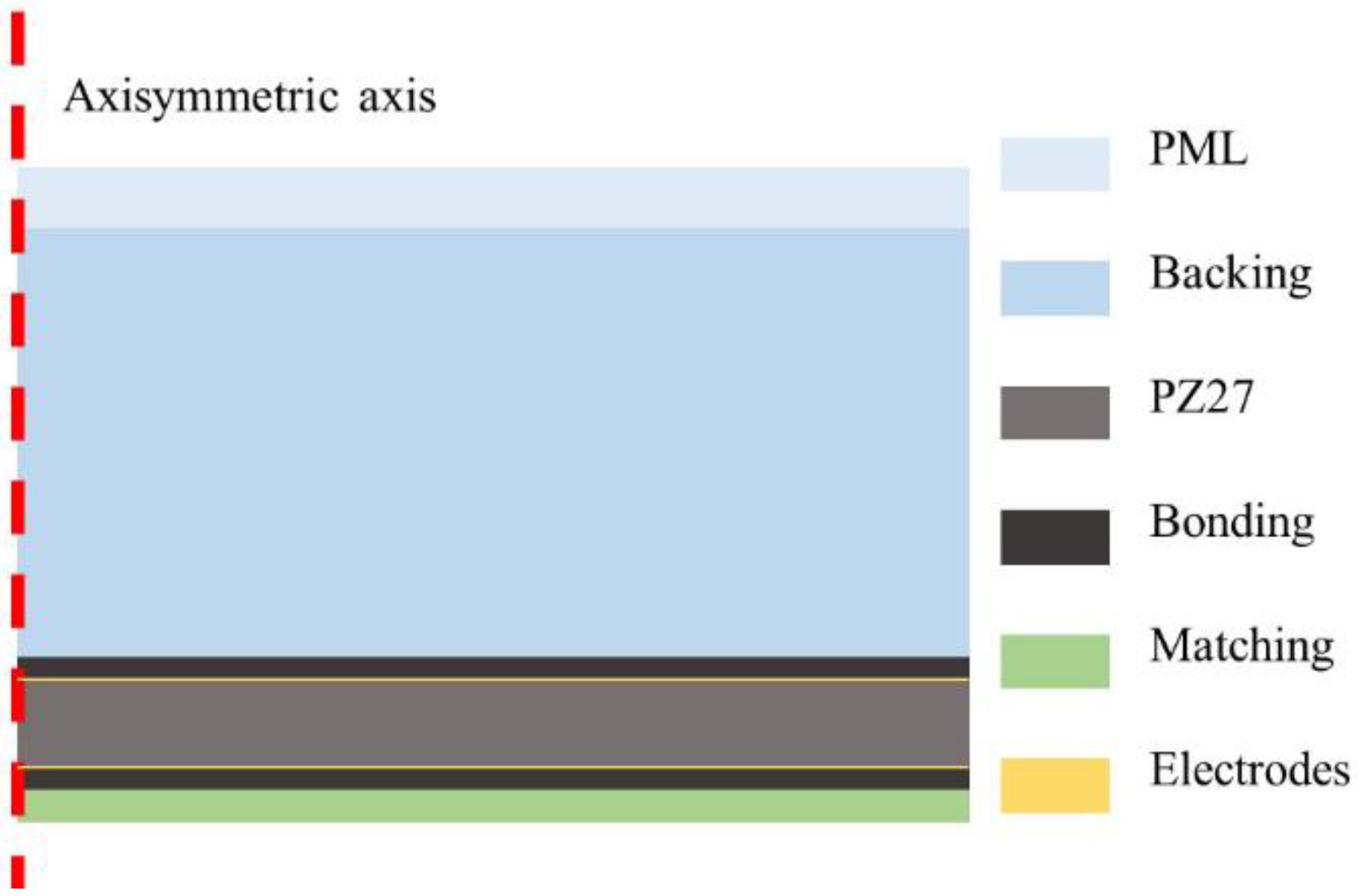

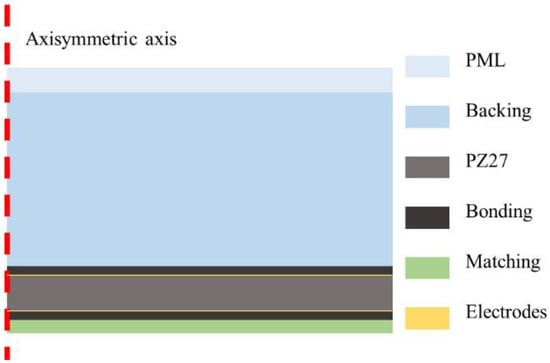

^{®}version 5.4, COMSOLAB, Stockholm, Sweden. Figure 3 shows the FE model of an intact single-element ultrasonic transducer. The backing is always much thicker than the piezoceramic disk to ensure that no reflected waves come back. To reduce the computational cost of the entire structure, a perfectly matched layer (PML) [35,36,37] is added at the rear of the backing. Chosen parameters give this polynomial stretching type PML a maximum of 109 dB attenuation for normal incidence. All simulations are developed in vacuum instead of air, because the loading effect of air on the transducer vibration is negligible [38].

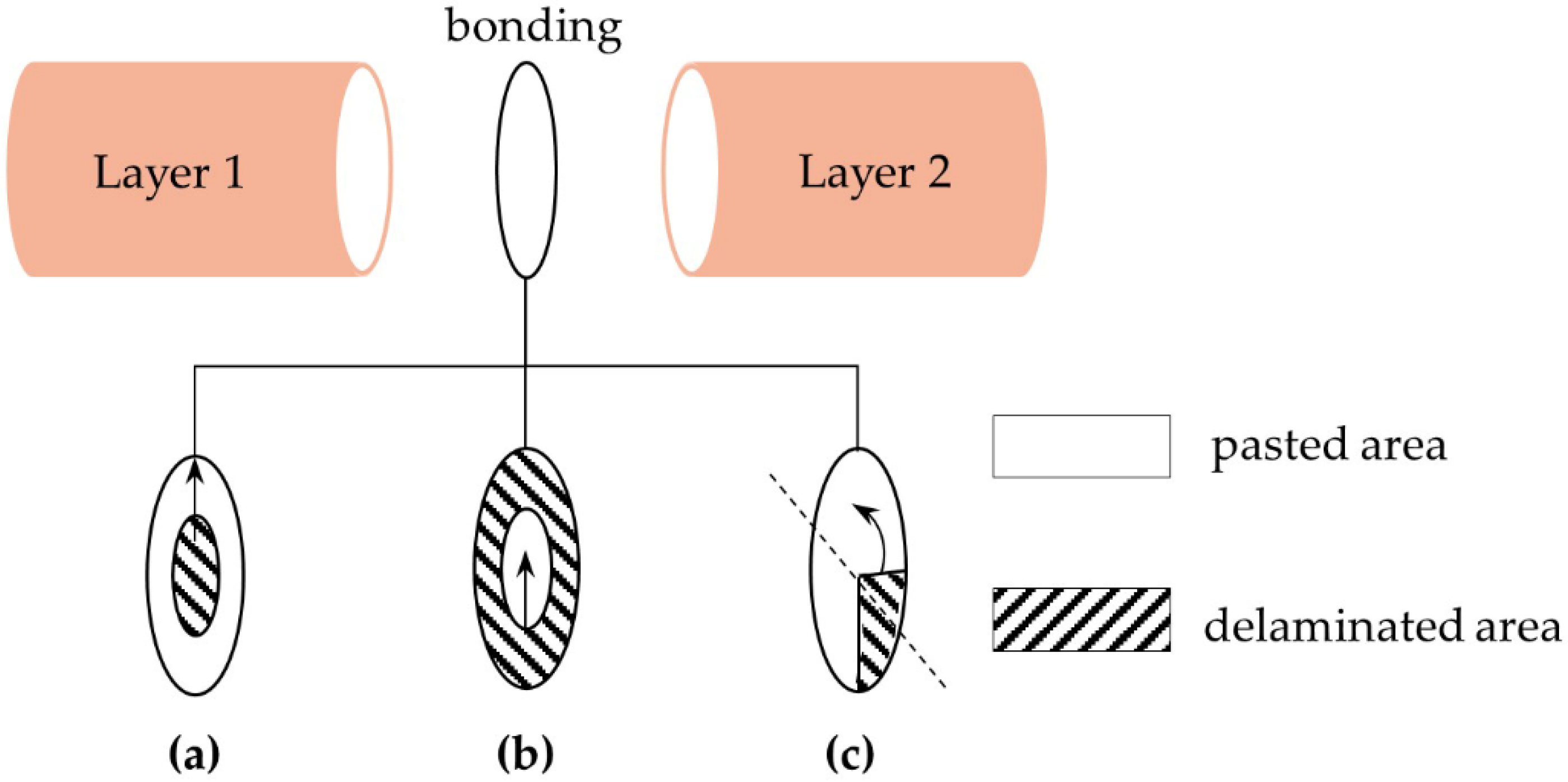

#### 3.1. Delamination Types

#### 3.2. Case I: Delaminations Between Ceramic and Backing

_{R}and ${BW}_{R}^{-3dB}$, versus the delamination ratio η. Resonance amplitude A

_{R}increases but the bandwidth ${BW}_{R}^{-3dB}$ decreases with the increasing η. On the other hand, it can be observed that the three delamination types show different variation patterns. The pattern of DT-III type is between those of the other two. In terms of the damaging influence of delamination on the performance of the ultrasonic transducer, such as the influence on the bandwidth, DT-I delamination makes the most, DT-III less, and DT-II even less. For example, a half delamination of the adhesive layer gives a decrease of ${BW}_{R}^{-3dB}$ from 52.2 kHz to 25.8 kHz (50.6%) for DT-I, 29.9 kHz (42.7%) for DT-III, and 44.8 kHz (14.2%) for DT-II.

#### 3.3. Case II: Delaminations Between Ceramic and Matching Layer

_{r}= 1.7 MHz) gradually appears and rises up. It seems that the two split peaks merge gradually towards the original T1 mode in the middle. This is because the matching layer is losing its function as η increases.

_{R}and ${BW}_{R}^{-3dB}$ since they are only suitable for the characterization of a specific peak. Nevertheless, the statistical based metrics RMSD and DI are still useful: Figure 8 shows the results of the calculation of RMSD and DI in the frequency range from 1 MHz to 2.4 MHz. From an intact state to a complete delaminated state, RMSD and DI increase monotonically up to 150% and 1.25, respectively. The variation patterns of the three types still shows differences, in which the one of DT-III delamination is again in the middle of the other two.

## 4. Experimental Validation

#### 4.1. Experiment Setup

#### 4.2. Comparison Between Experiment and FE modeling

_{R}and ${BW}_{R}^{-3dB}$ with delamination ratio η, extracted from the first split thickness mode peak Ts1. A good agreement is observed between numerical and experimental results. The evolution of the delamination indicators A

_{R}and ${BW}_{R}^{-3dB}$ coincides well and the difference between DT-I to DT-III is also confirmed by experimental results. The maximum discrepancy between experimental and numerical predicated values of A

_{R}(Table 3) are 5.7% for DT-I, 5.5% for DT-II, and 14.9% for DT-III delamination. The maximum discrepancies of ${BW}_{R}^{-3dB}$ (Table 4) are 8.9%, 16.9% and 12.1%, respectively, for these three types of delaminations.

## 5. Conclusions

_{R}and bandwidth ${BW}_{R}^{-3dB}$ of the first split thickness mode are recommended as quantitative delamination indicators. The maximum discrepancies between experimental and numerical predicated values of A

_{R}and ${BW}_{R}^{-3dB}$ are 14.9% and 16.9%, respectively. For the delaminations between ceramic and matching layer, RMSD and DI are recommended. A maximum discrepancy in RMSD of 37.6% is observed. Results obtained by the FE method and experiments are in reasonable agreement.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Kochański, W.; Boeff, M.; Hashemiyan, Z.; Staszewski, W.J.; Verma, P.K. Modelling and Numerical Simulations of In-Air Reverberation Images for Fault Detection in Medical Ultrasonic Transducers: A Feasibility Study. J. Sens.
**2015**, 2015, 1–14. [Google Scholar] [CrossRef] - Weigang, B.; Moore, G.W.; Gessert, J.; Phillips, W.H.; Schafer, M. The Methods and Effects of Transducer Degradation on Image Quality and the Clinical Efficacy of Diagnostic Sonography. J. Diagn. Med. Sonogr.
**2003**, 19, 3–13. [Google Scholar] [CrossRef] - Martensson, M.; Olsson, M.; Segall, B.; Fraser, A.G.; Winter, R.; Brodin, L.-A. High Incidence of Defective Ultrasound Transducers in Use in Routine Clinical Practice. Eur. J. Echocardiogr.
**2009**, 10, 389–394. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Martensson, M.; Olsson, M.; Brodin, L.-A. Ultrasound Transducer Function: Annual Testing Is Not Sufficient. Eur. J. Echocardiogr.
**2010**, 11, 801–805. [Google Scholar] [CrossRef] [Green Version] - Sipilä, O.; Mannila, V.; Vartiainen, E. Quality Assurance in Diagnostic Ultrasound. Eur. J. Radiol.
**2011**, 80, 519–525. [Google Scholar] [CrossRef] [PubMed] - Dudley, N.J.; Woolley, D.J. A Multicentre Survey of the Condition of Ultrasound Probes. Ultrasound
**2016**, 24, 190–197. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dudley, N.J.; Woolley, D.J. Blinded Comparison between an In-Air Reverberation Method and an Electronic Probe Tester in the Detection of Ultrasound Probe Faults. Ultrasound Med. Biol.
**2017**, 43, 2954–2958. [Google Scholar] [CrossRef] - Fabiszewska, E.; Pasicz, K.; Grabska, I.; Skrzyński, W.; Ślusarczyk-Kacprzyk, W.; Bulski, W. Evaluation of Imaging Parameters of Ultrasound Scanners: Baseline for Future Testing. Pol. J. Radiol.
**2017**, 82, 773–782. [Google Scholar] [CrossRef] [Green Version] - Hashemiyan, Z.; Packo, P.; Staszewski, W.J.; Uhl, T.; Verma, P.K. Local Interaction Simulation Approach for Fault Detection in Medical Ultrasonic Transducers. J. Sens.
**2015**, 2015, 1–12. [Google Scholar] [CrossRef] - Quinn, T.; Verma, P.K. The Analysis of In-Air Reverberation Patterns from Medical Ultrasound Transducers. Ultrasound
**2014**, 22, 26–36. [Google Scholar] [CrossRef] [Green Version] - Van Horssen, P.; Schilham, A.; Dickerscheid, D.; van der Werf, N.; Keijzers, H.; van Almere, R.; Kuijer, J.; Peters, R.; Hofman, M. Automated Quality Control of Ultrasound Based on In-Air Reverberation Patterns. Ultrasound
**2017**, 25, 229–238. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dudley, N.J. Ultrasound Probe Acceptance Testing Using the In-Air Reverberation Pattern. Ultrasound Med. Biol.
**2019**, 45, 1475–1482. [Google Scholar] [CrossRef] - Xu, Y.G.; Liu, G.R. A Modified Electro-Mechanical Impedance Model of Piezoelectric Actuator-Sensors for Debonding Detection of Composite Patches. J. Intell. Mater. Syst. Struct.
**2002**, 13, 389–396. [Google Scholar] [CrossRef] - Park, S.; Yun, C.B.; Roh, Y.; Lee, J.-J. Health Monitoring of Steel Structures Using Impedance of Thickness Modes at PZT Patches. Smart Struct. Syst.
**2005**, 1, 339–353. [Google Scholar] [CrossRef] [Green Version] - Giurgiutiu, V. Structural Health Monitoring: With Piezoelectric Wafer Active Sensors; Elsevier: Amsterdam, The Netherlands, 2007. [Google Scholar]
- Dugnani, R.; Zhuang, Y.; Kopsaftopoulos, F.; Chang, F.-K. Adhesive Bond-Line Degradation Detection via a Cross-Correlation Electromechanical Impedance–Based Approach. Struct. Health Monit. Int. J.
**2016**, 15, 650–667. [Google Scholar] [CrossRef] - Naidu, A.S.K.; Soh, C.K. Identifying Damage Location with Admittance Signatures of Smart Piezo-Transducers. J. Intell. Mater. Syst. Struct.
**2004**, 15, 627–642. [Google Scholar] [CrossRef] - Providakis, C.; Voutetaki, M. Electromechanical Admittance–Based Damage Identification Using Box-Behnken Design of Experiments. Struct. Durab. Health Monit.
**2007**, 3, 211. [Google Scholar] [CrossRef] - Rautela, M.; Bijudas, C.R. Electromechanical Admittance Based Integrated Health Monitoring of Adhesive Bonded Beams Using Surface Bonded Piezoelectric Transducers. Int. J. Adhes. Adhes.
**2019**, 94, 84–98. [Google Scholar] [CrossRef] - Ai, D.; Luo, H.; Zhu, H. Numerical and Experimental Investigation of Flexural Performance on Pre-Stressed Concrete Structures Using Electromechanical Admittance. Mech. Syst. Signal Process.
**2019**, 128, 244–265. [Google Scholar] [CrossRef] - Tinoco, H.A.; Rosas-Bastidas, D.A. Experimental Study of the Debonding Effects on the Electromechanical Impedance of Piezo Wafer Active Sensors. In Proceedings of the Third International Conference on Advanced Mechatronics, Design, and Manufacturing Technology (AMDM 2016), Cali, Colombia, 13–15 April 2016; pp. 13–15. [Google Scholar]
- Ding, W.; Bavencoffe, M.; Lethiecq, M. Health Monitoring of Single-Element Piezoelectric Transducer Using Its Electromechanical Admittance. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2020**, 1. [Google Scholar] [CrossRef] - Ferroperm Piezoceramic Material Data for Modelling. Available online: https://www.meggittferroperm.com (accessed on 22 April 2019).
- 3D Printer Filaments. Available online: https://www.raise3d.com (accessed on 22 April 2019).
- Desilets, C.S.; Fraser, J.D.; Kino, G.S. The Design of Efficient Broad-Band Piezoelectric Transducers. IEEE Trans. Sonic. Ultrason.
**1978**, 25, 115–125. [Google Scholar] [CrossRef] - Torchinsky, D.H.; Johnson, J.A.; Nelson, K.A. A Direct Test of the Correlation between Elastic Parameters and Fragility of Ten Glass Formers and Their Relationship to Elastic Models of the Glass Transition. J. Chem. Phys.
**2009**, 130, 064502. [Google Scholar] [CrossRef] [PubMed] - Park, S.; Yun, C.-B.; Inman, D.J. Structural Health Monitoring Using Electro-Mechanical Impedance Sensors. Fatigue Fract. Eng. Mat. Struct.
**2008**, 31, 714–724. [Google Scholar] [CrossRef] - Buethe, I.; Moix-Bonet, M.; Wierach, P.; Fritzen, C.-P. Check of Piezoelectric Transducers Using the Electro-Mechanical Impedance. In Proceedings of the EWSHM—7th European Workshop on Structural Health Monitoring, Nantes, France, 8–11 July 2014. [Google Scholar]
- Mueller, I.; Fritzen, C.-P. Inspection of Piezoceramic Transducers Used for Structural Health Monitoring. Materials
**2017**, 10, 71. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lerch, R. Simulation of Piezoelectric Devices by Two- and Three-Dimensional Finite Elements. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**1990**, 37, 233–247. [Google Scholar] [CrossRef] [PubMed] - Medina, J.; Buiochi, F.; Adamowski, J.C. Numerical Modeling of a Circular Piezoelectric Ultrasonic Transducer Radiating in Water. In Proceedings of the ABCM Symposium Series in Mechatronics, Ouro Preto, Brazil, 6–11 November 2005; Volume 2, pp. 458–464. [Google Scholar]
- Lethiecq, M.; Patat, F.; Pourcelot, L.; Tran-Huu-Hue, L. Measurement of Losses in Five Piezoelectric Ceramics between 2 and 50 MHz. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**1993**, 40, 232–237. [Google Scholar] [CrossRef] - Uchino, K.; Zheng, J.H.; Chen, Y.H.; Du, X.H.; Ryu, J.; Gao, Y.; Ural, S.; Priya, S.; Hirose, S. Loss Mechanisms and High Power Piezoelectrics. J. Mater. Sci.
**2006**, 41, 217–228. [Google Scholar] [CrossRef] - Lakes, R.S. Viscoelastic Solids; CRC Press: Boca Raton, FL, USA, 1998. [Google Scholar]
- Berenger, J.P. A Perfectly Matched Layer for the Absorption of Electromagnetic Waves. J. Comput. Phys.
**1994**, 114, 185–200. [Google Scholar] [CrossRef] - Matar, O.B.; Preobrazhensky, V.; Pernod, P. Two-Dimensional Axisymmetric Numerical Simulation of Supercritical Phase Conjugation of Ultrasound in Active Solid Media. J. Acoust. Soc. Am.
**2005**, 118, 2880–2890. [Google Scholar] [CrossRef] - Bavencoffe, M.; Morvan, B.; Hladky, A.C.; Matar, O.B.; Izbicki, J.L. Development of a Suitable PML for an Harmonic Study of a Finite 1D Phononic Crystal. J. Acoust. Soc. Am.
**2008**, 123, 3038. [Google Scholar] [CrossRef] [Green Version] - Kocbach, J. Finite Element Modeling of Ultrasonic Piezoelectric Transducers. Ph.D. Thesis, University of Bergen, Bergen, Norway, 2000. [Google Scholar]
- Abboud, N.N.; Wojcik, G.L.; Vaughan, D.K.; Mould, J., Jr.; Powell, D.J.; Nikodym, L. Finite Element Modeling for Ultrasonic Transducers. In Proceedings of the Medical Imaging 1998: Ultrasonic Transducer Engineering; Shung, K.K., Ed.; SPIE: Bellingham, WA, USA, 1998. [Google Scholar]
- Impedance Analyzer IM3570. Available online: https://www.hioki.com/en/products/detail/?product_key=5539 (accessed on 28 December 2020).

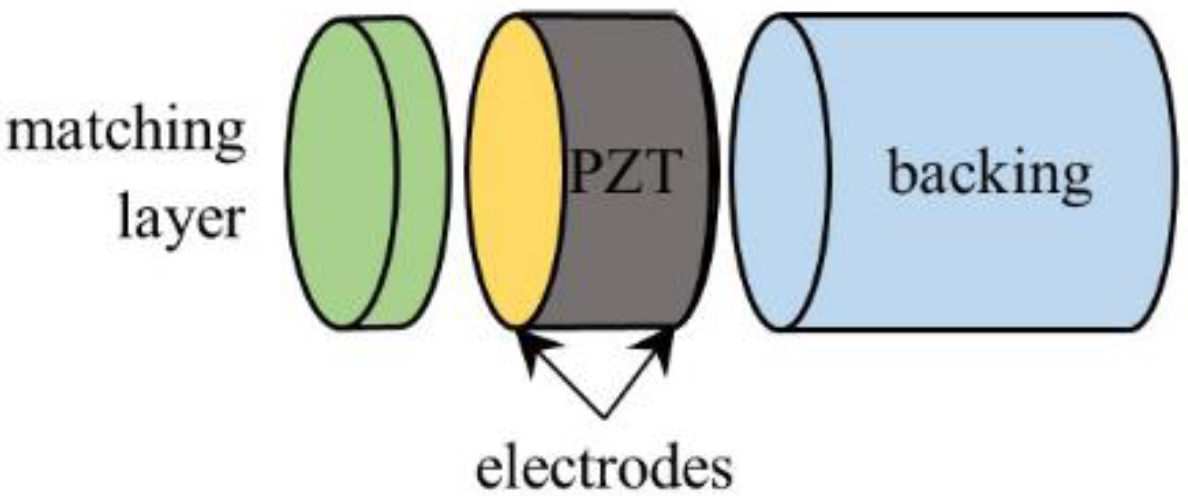

**Figure 1.**Diagram of a single-element transducer made of a matching layer, a piezoelectric disk (PZT) and a backing.

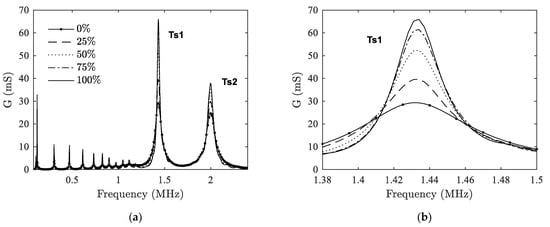

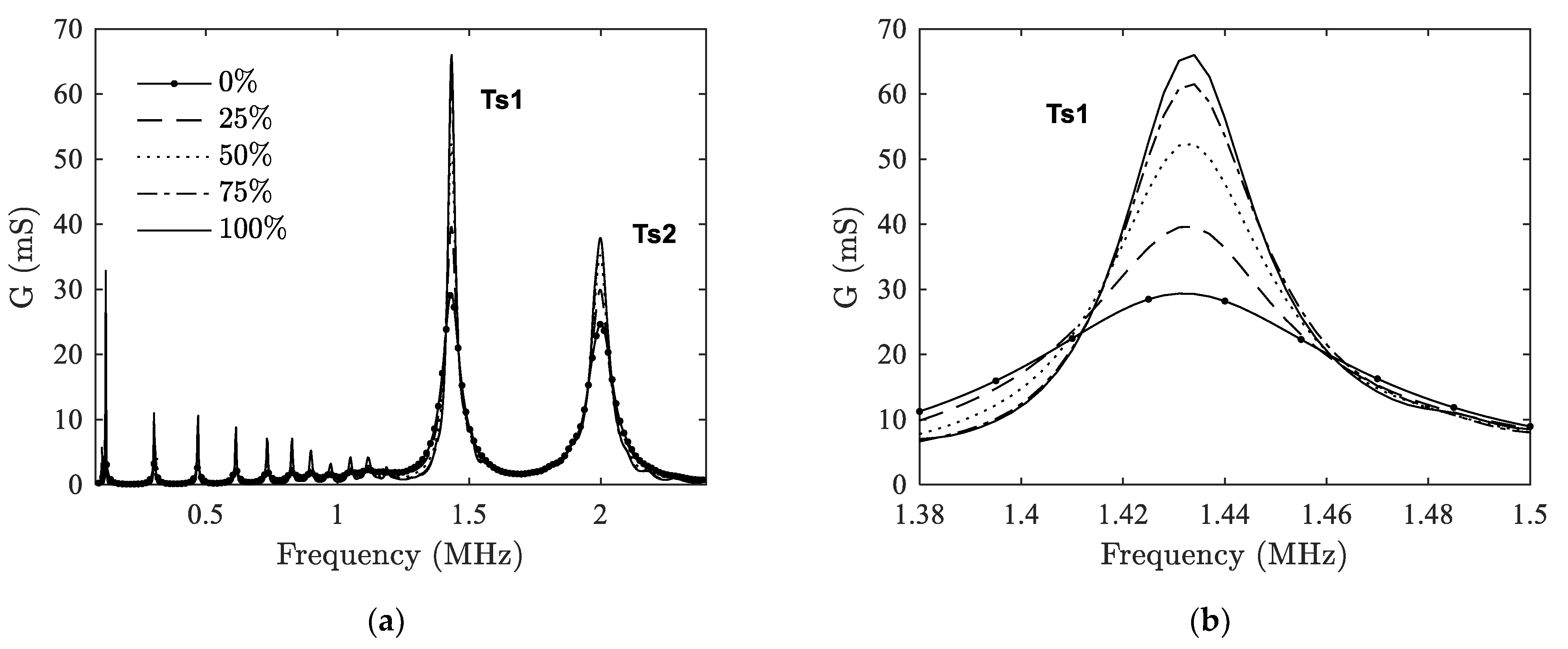

**Figure 5.**Case I: Influence of DT-I delamination on the electromechanical admittance. (

**a**) frequency range 0–2.4 MHz; (

**b**) peak at the first split thickness mode Ts1.

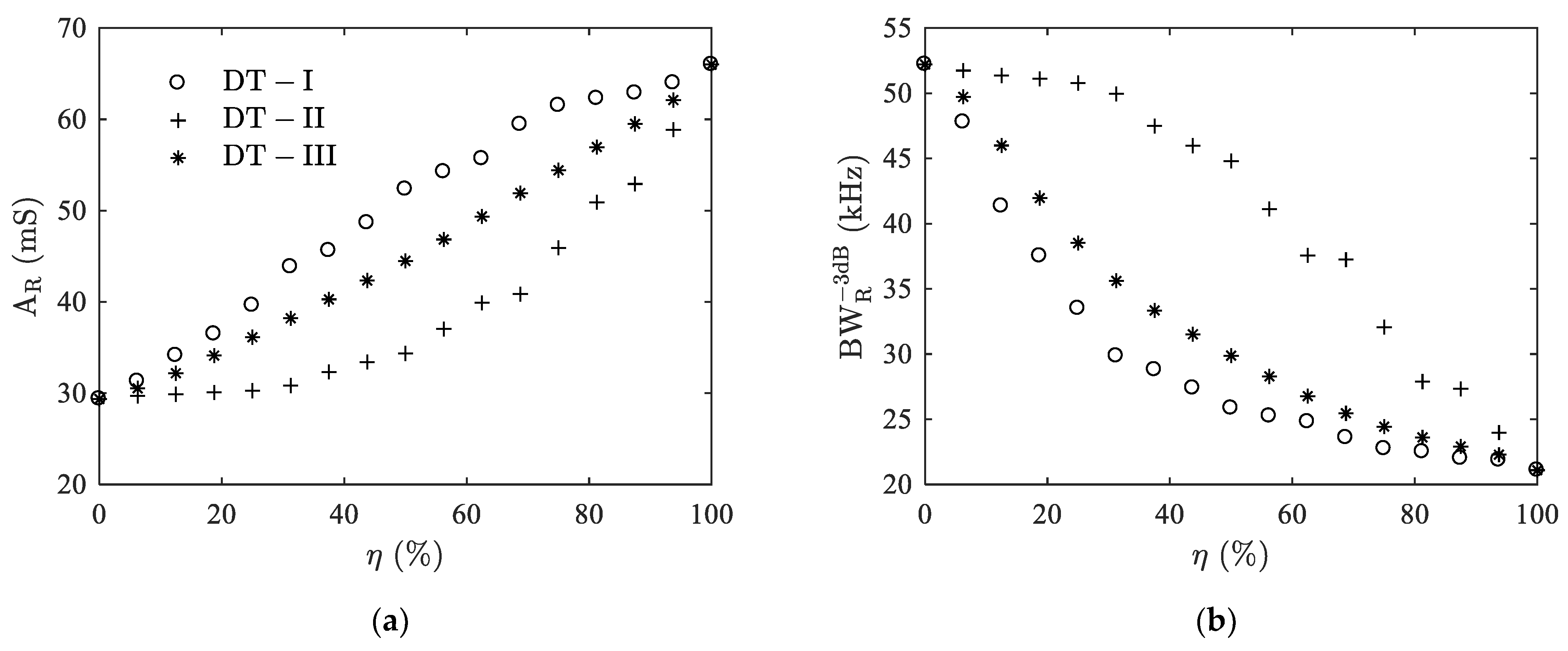

**Figure 6.**Case I: Variations of resonance amplitude (

**a**) and −3 dB bandwidth (

**b**) with delamination ratio η for the first split thickness mode Ts1.

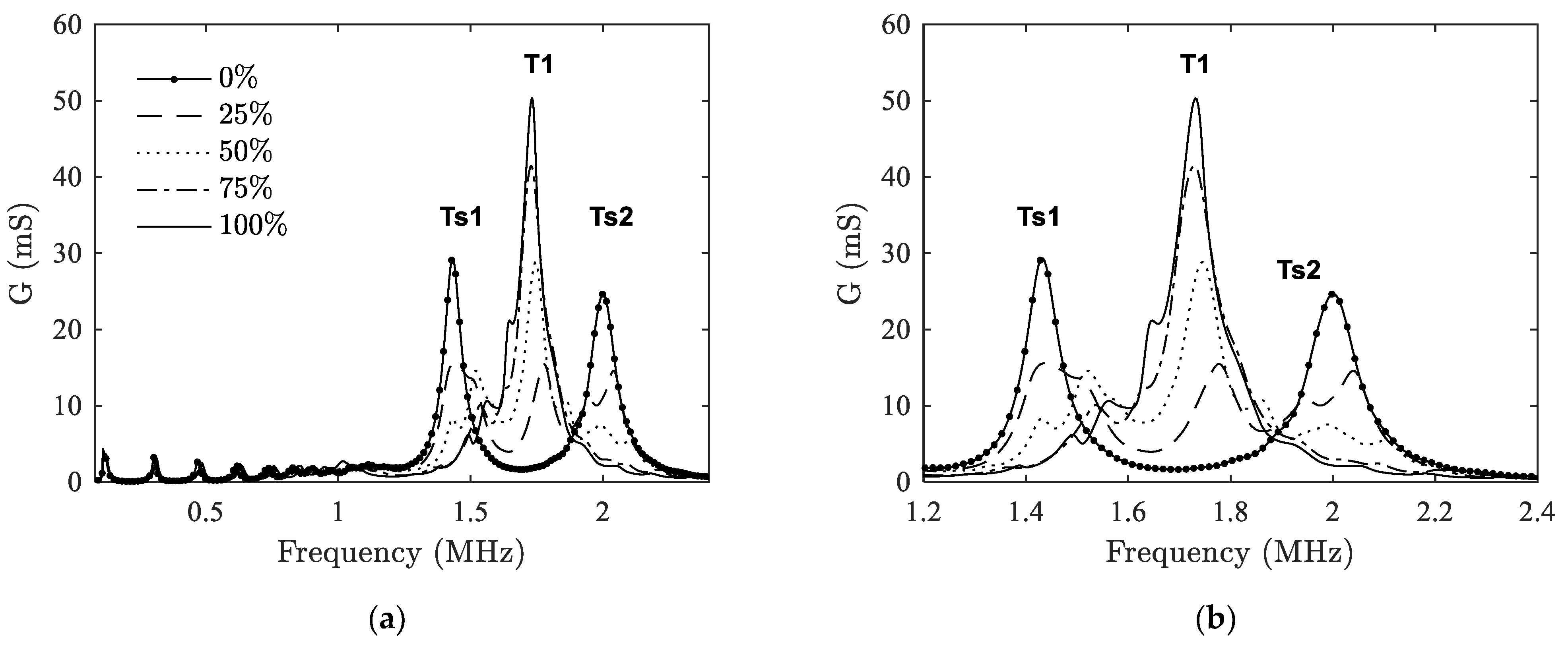

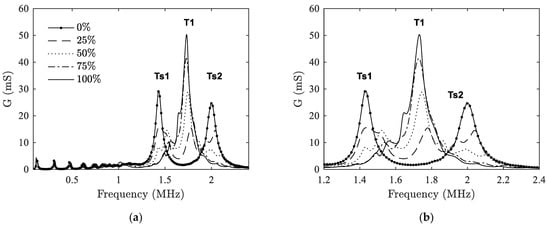

**Figure 7.**Case II: Influence of DT-I delamination on the electromechanical admittance. (

**a**) frequency range 0–2.4 MHz; (

**b**) peaks around the thickness mode.

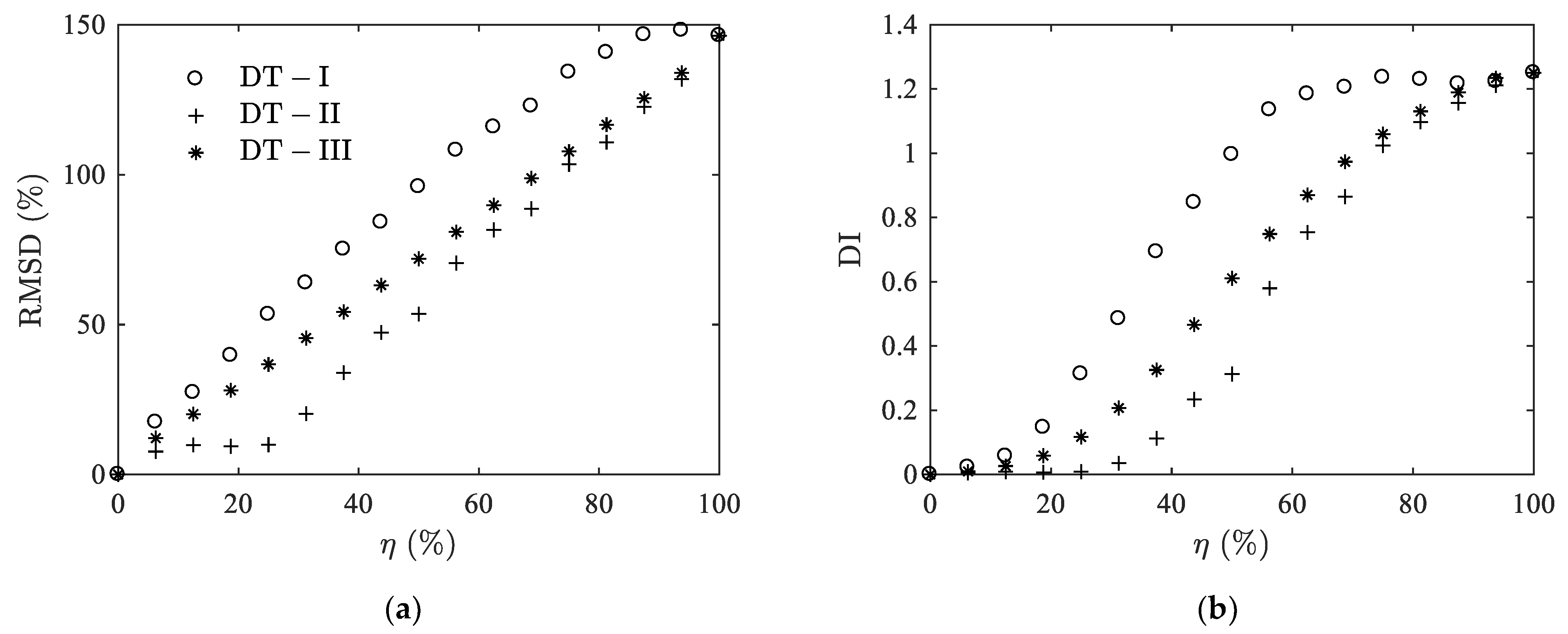

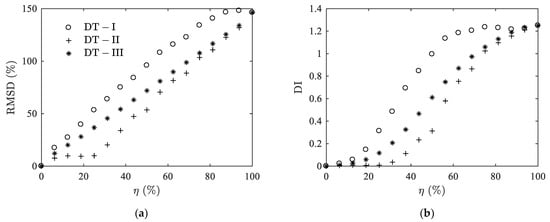

**Figure 8.**Case II: Variations of RMSD (

**a**) and DI (

**b**) with delamination ratio η for the thickness mode.

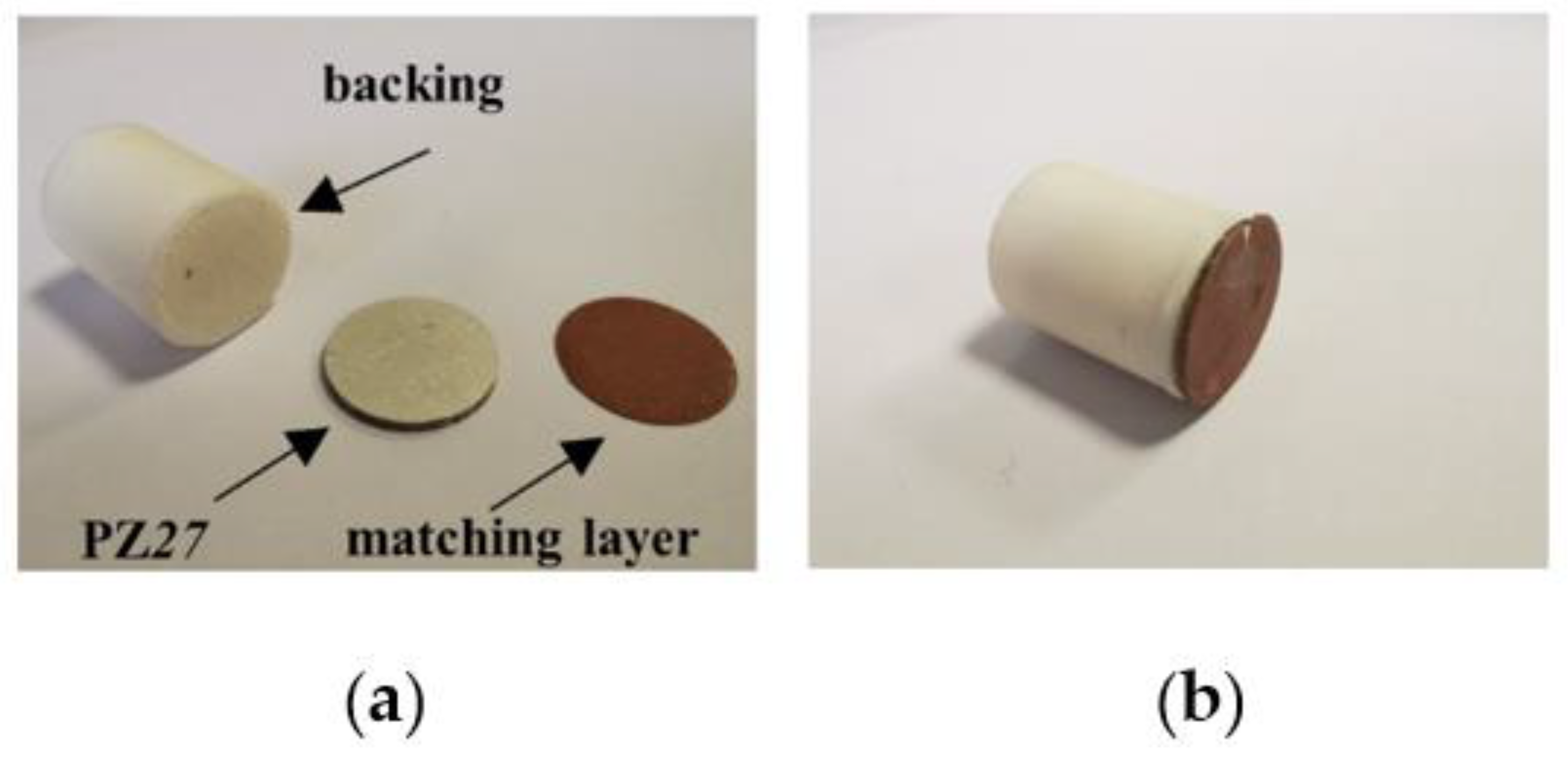

**Figure 9.**Transducer components. (

**a**) a piezoceramic disk PZ27, a PLA backing and a copper-filled PLA matching layer; (

**b**) an intact mounted single-element transducer.

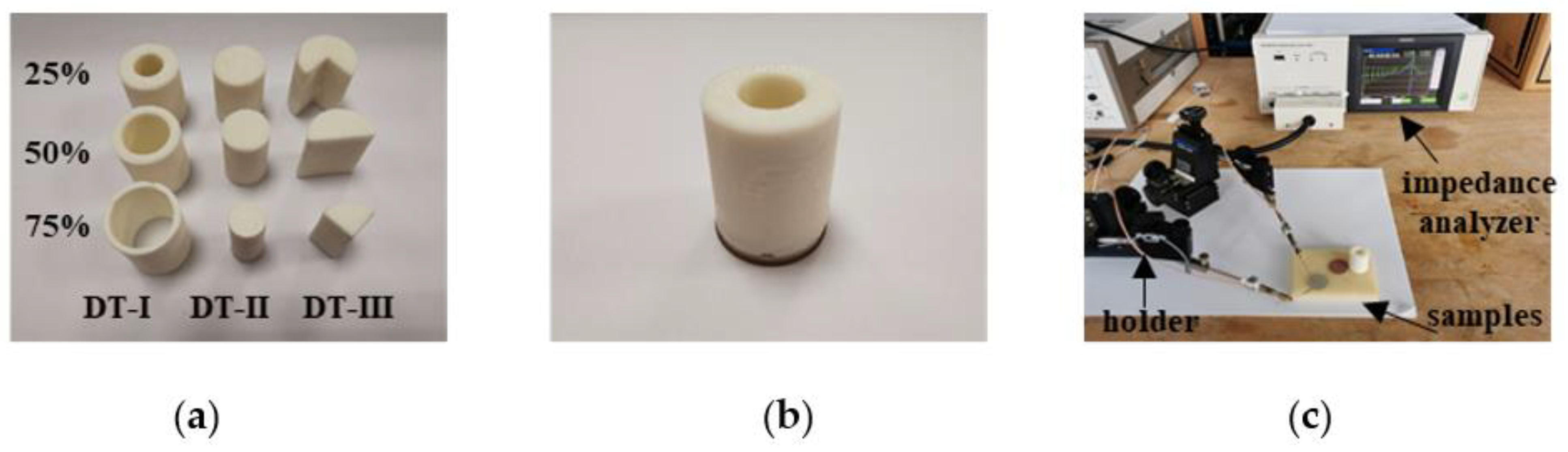

**Figure 10.**Samples and measurement setup. (

**a**) nine 3D printed PLA backings; (

**b**) a sample during the measurements; (

**c**) experiment setup.

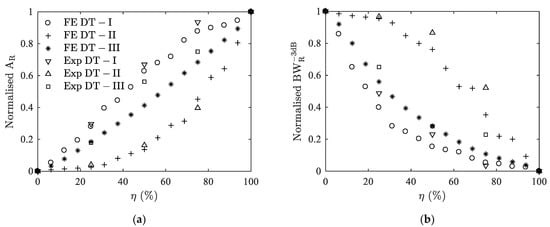

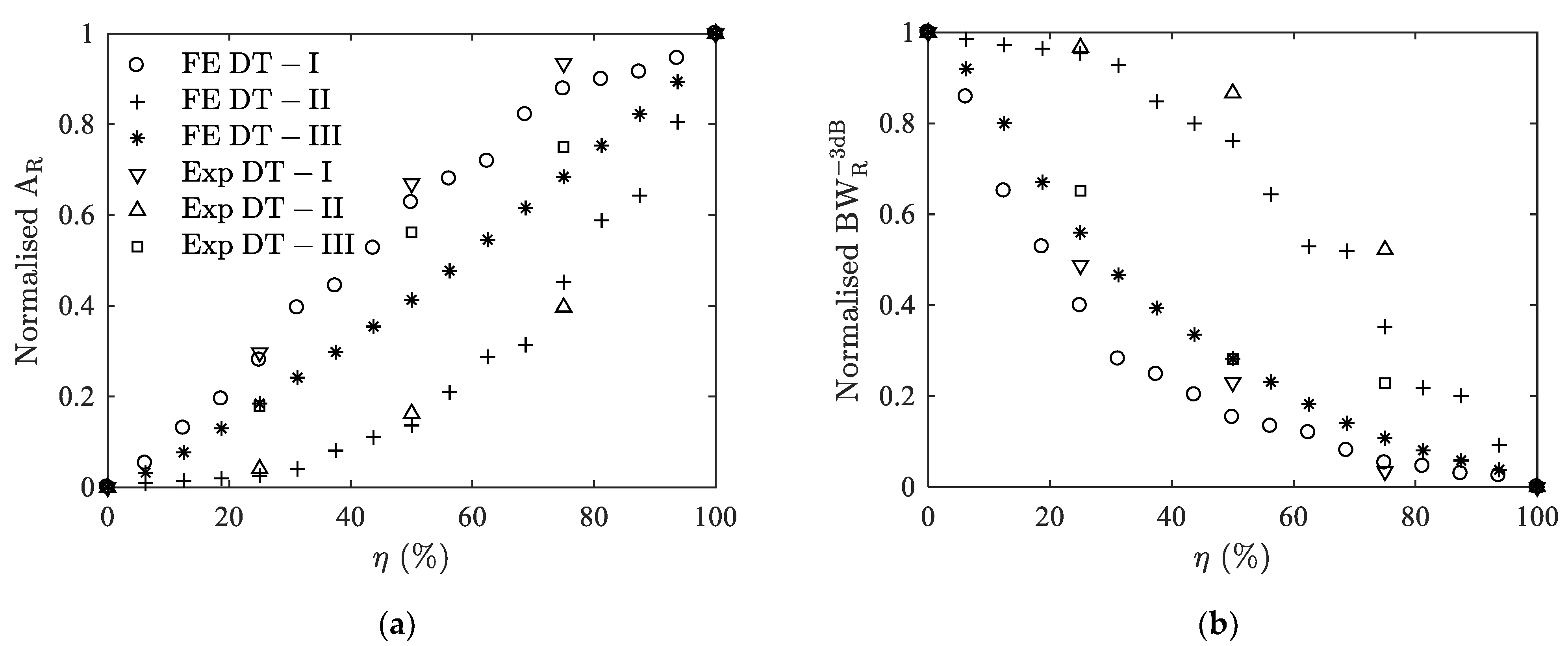

**Figure 11.**Comparison between results from FE modeling (FE) and experiments (Exp) for case I. (

**a**) normalized A

_{R}versus η; (

**b**) normalized ${BW}_{R}^{-3dB}$ versus η.

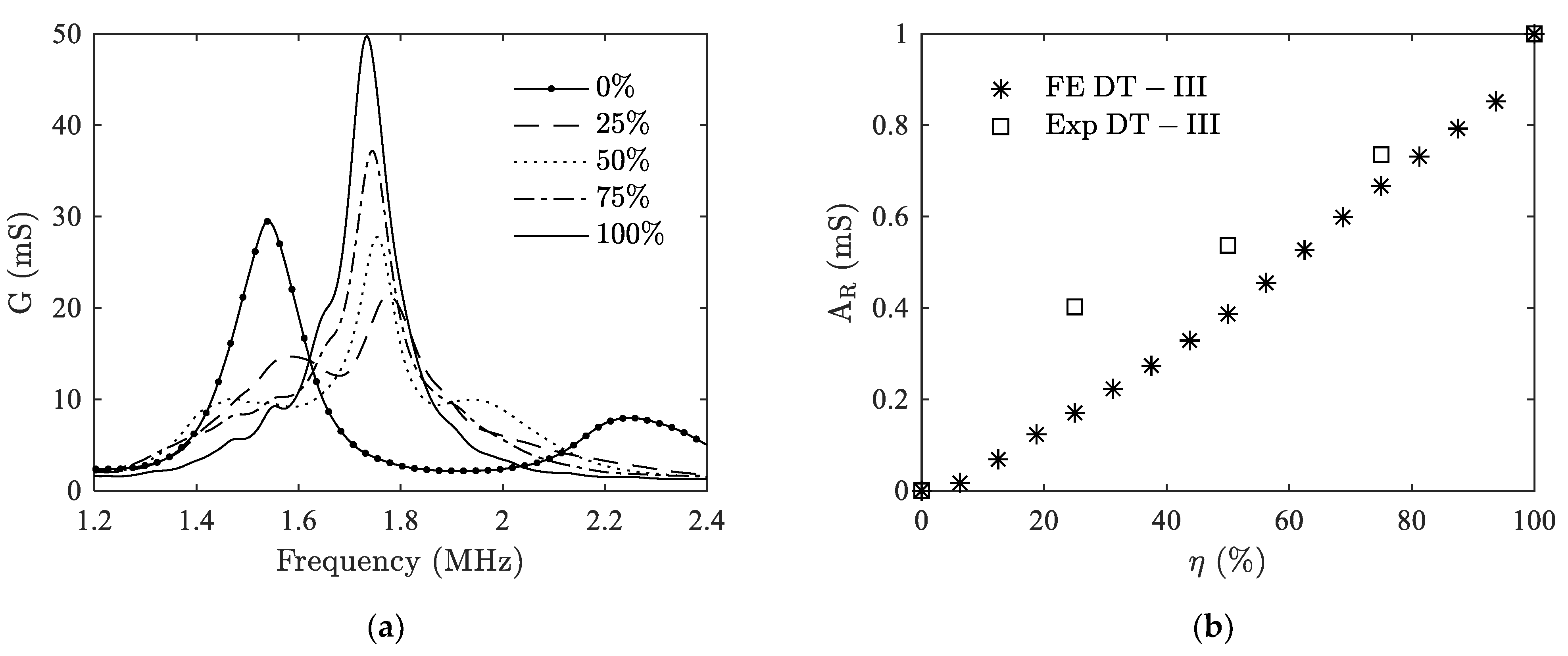

**Figure 12.**Comparison between results from FE modeling (FE) and experiments (Exp) for case II. (

**a**) conductance versus frequency; (

**b**) RMSD versus η.

ϕ (mm) | t (mm) | ρ (kg/m^{3}) | ${\mathit{c}}_{\mathbf{11}}^{\mathit{D}}$ (GPa) | ${\mathit{c}}_{\mathbf{12}}^{\mathit{D}}$ (GPa) | ${\mathit{c}}_{\mathbf{13}}^{\mathit{D}}$ (GPa) | ${\mathit{c}}_{\mathbf{33}}^{\mathit{D}}$ (GPa) | ${\mathit{c}}_{\mathbf{44}}^{\mathit{D}}$ (GPa) |
---|---|---|---|---|---|---|---|

16 | 1.13 | 7879.5 | 148.6 | 106.1 | 87.5 | 144.4 | 36.6 |

${h}_{31}$ (GV/m) | ${h}_{33}$ (GV/m) | ${h}_{15}$ (GV/m) | ${\beta}_{11}^{S}$ (Gm/F) | ${\beta}_{33}^{S}$ (Gm/F) | ${\delta}_{m}$ (%) | ${\delta}_{e}$ (%) | Z (MRayl) |

−0.38 | 1.98 | 1.16 | 9.99 | 0.12 | 0.45 | 0.27 | 33.7 |

Components | ϕ (mm) | t (mm) | ρ (kg/m^{3}) | ${\mathit{c}}_{\mathit{L}}$ (m/s) | ${\mathit{c}}_{\mathit{T}}$ (m/s) | ${\mathit{\delta}}_{\mathit{m}}$ (%) | Z (MRayl) |
---|---|---|---|---|---|---|---|

Backing | 16 | 20 | 1135 | 1738 | 952.2 | 5 | 1.97 |

Matching | 16 | 0.18 | 3284 | 1246 | 740.2 | 5 | 4.09 |

Bonding | 16 | 0.002 | 1250 | 2369 | 994 | 1 | 2.96 |

**Table 3.**Discrepancy of resonance amplitude of the first split thickness mode depending on the delamination ratio (η).

η (%) | DT-I (%) | DT-II (%) | DT-III (%) |
---|---|---|---|

25 | 1.7 | 1.6 | 0.6 |

50 | 4.2 | 2.7 | 14.9 |

75 | 5.7 | 5.5 | 6.6 |

**Table 4.**Discrepancy of -3dB bandwidth of the first split thickness mode depending on the delamination ratio (η).

η (%) | DT-I (%) | DT-II (%) | DT-III (%) |
---|---|---|---|

25 | 8.9 | 1.3 | 9.2 |

50 | 7.7 | 10.4 | 0.1 |

75 | 1.8 | 16.9 | 12.1 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Ding, W.; Bavencoffe, M.; Lethiecq, M.
Modeling and Experimental Characterization of Bonding Delaminations in Single-Element Ultrasonic Transducer. *Materials* **2021**, *14*, 2269.
https://doi.org/10.3390/ma14092269

**AMA Style**

Ding W, Bavencoffe M, Lethiecq M.
Modeling and Experimental Characterization of Bonding Delaminations in Single-Element Ultrasonic Transducer. *Materials*. 2021; 14(9):2269.
https://doi.org/10.3390/ma14092269

**Chicago/Turabian Style**

Ding, Wenxiang, Maxime Bavencoffe, and Marc Lethiecq.
2021. "Modeling and Experimental Characterization of Bonding Delaminations in Single-Element Ultrasonic Transducer" *Materials* 14, no. 9: 2269.
https://doi.org/10.3390/ma14092269
