The Efficiency of Utilisation of High-strength Steel in Tubular Profiles
Abstract
:1. Introduction
2. Test Program

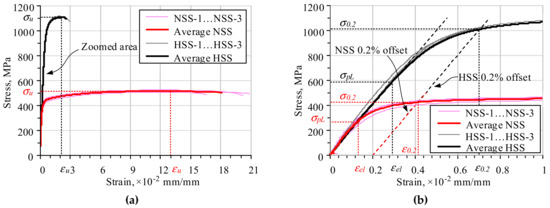

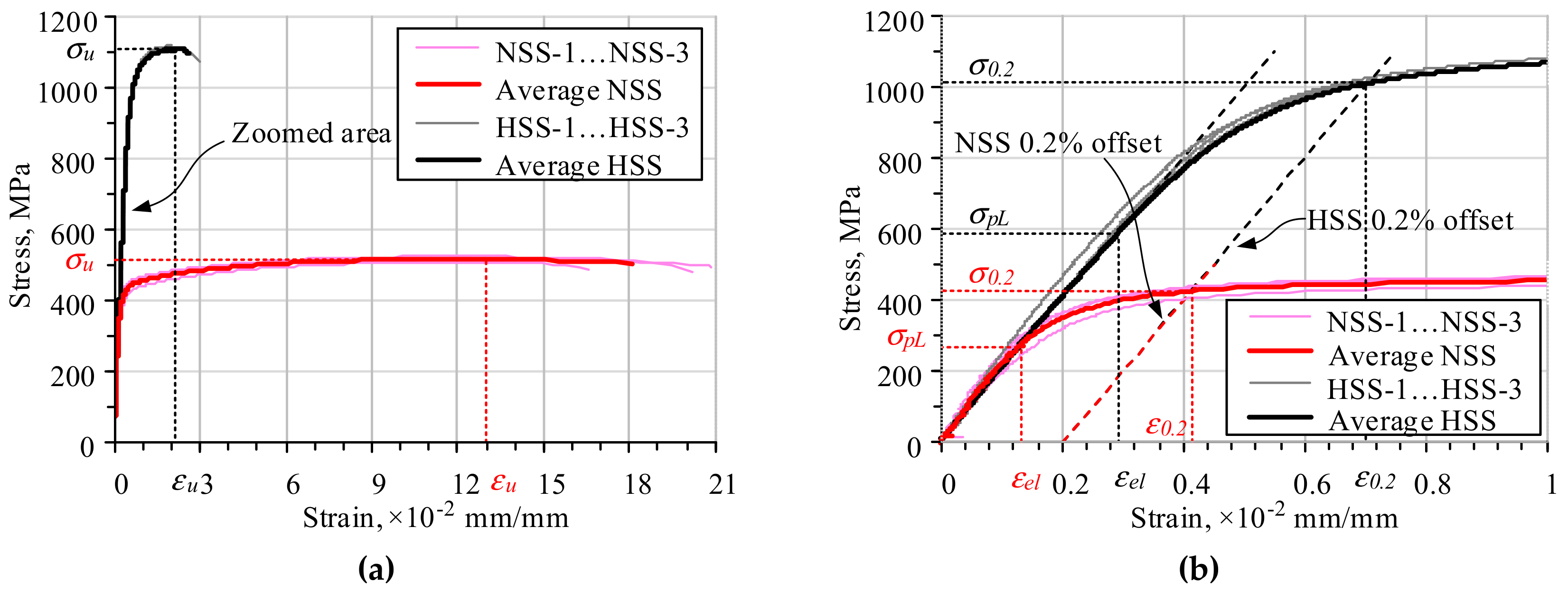

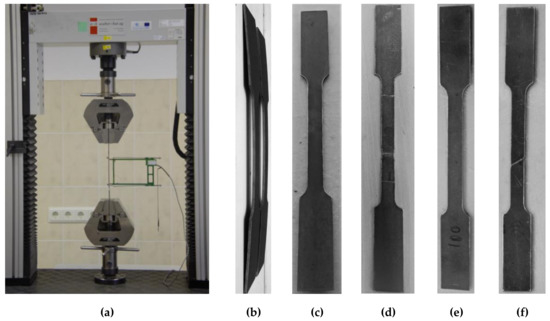

2.1. Characterisation of the Materials

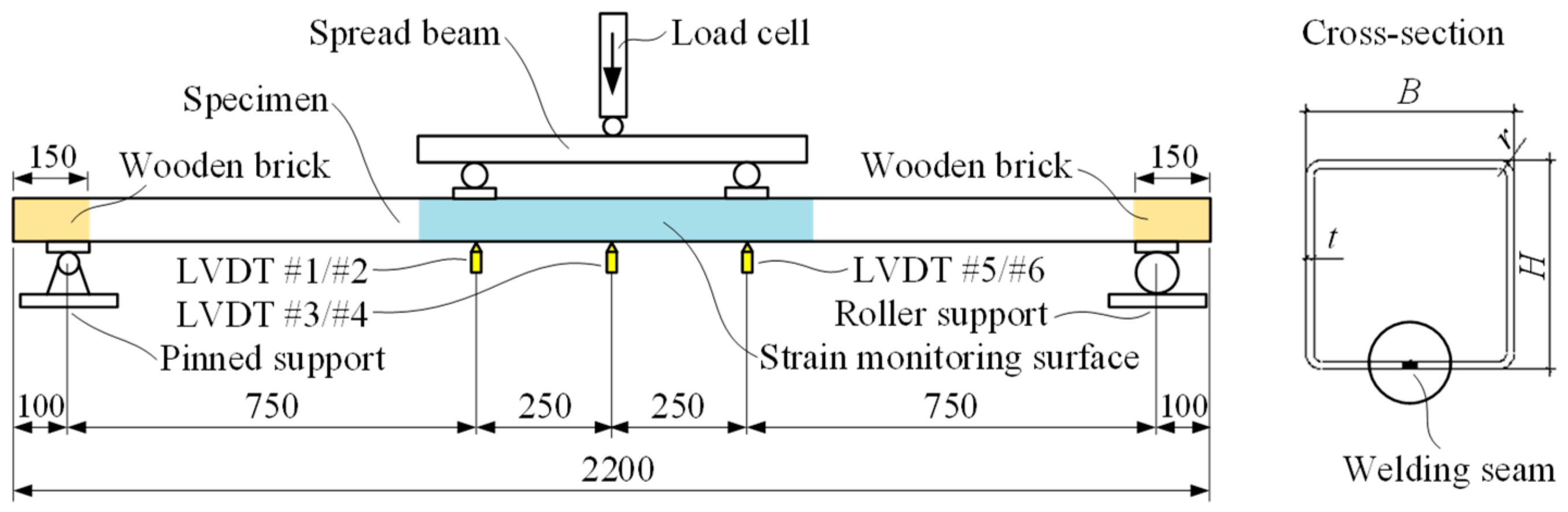

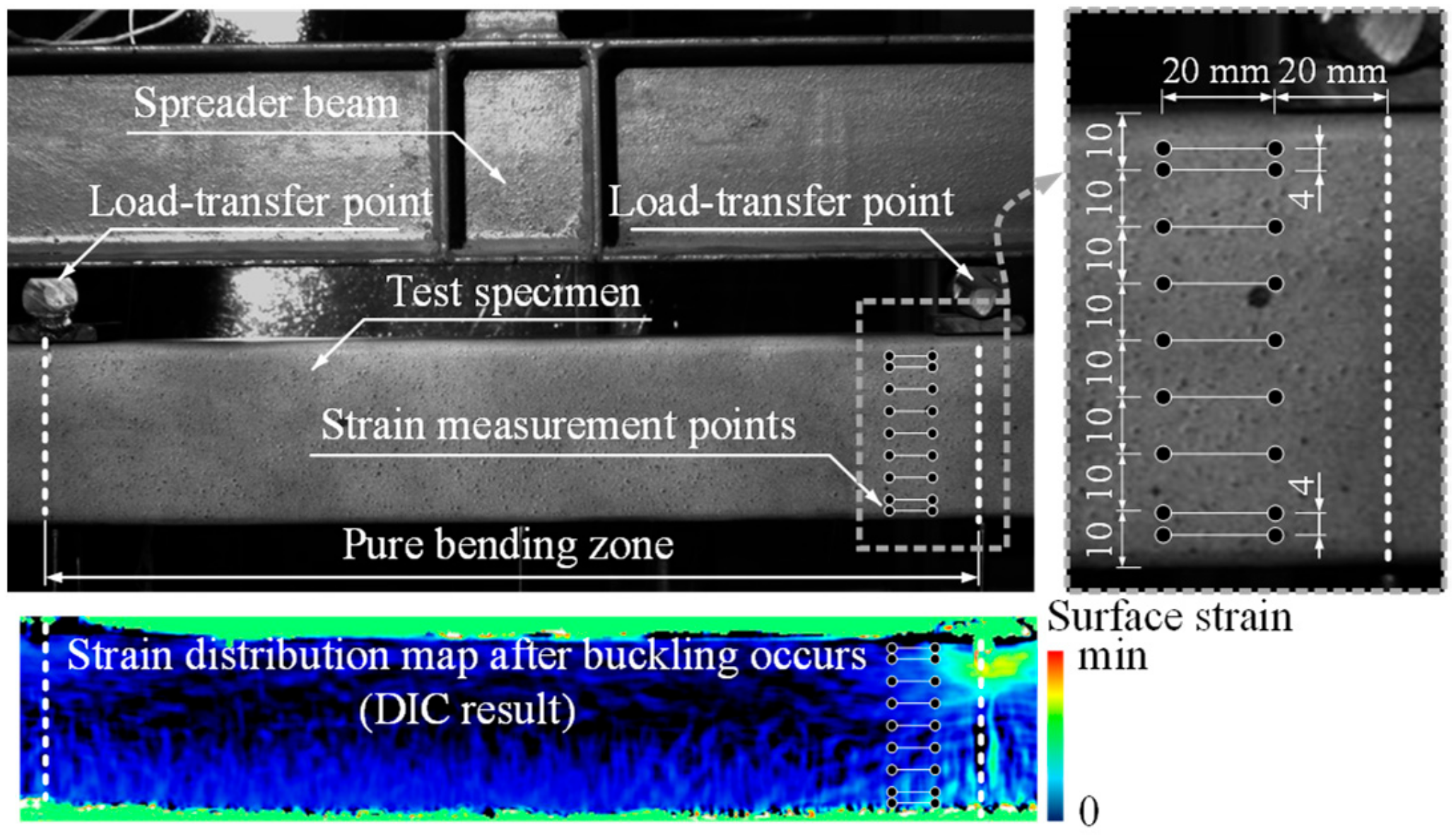

2.2. Beam Tests

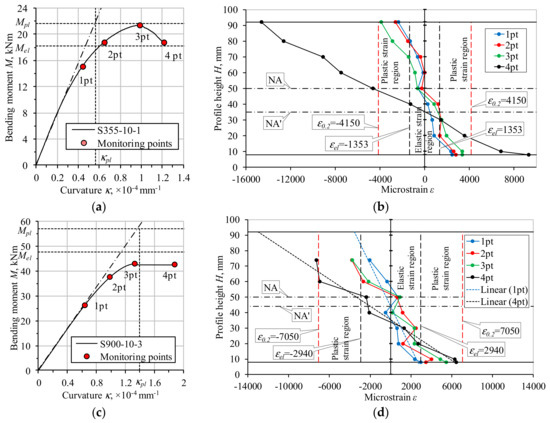

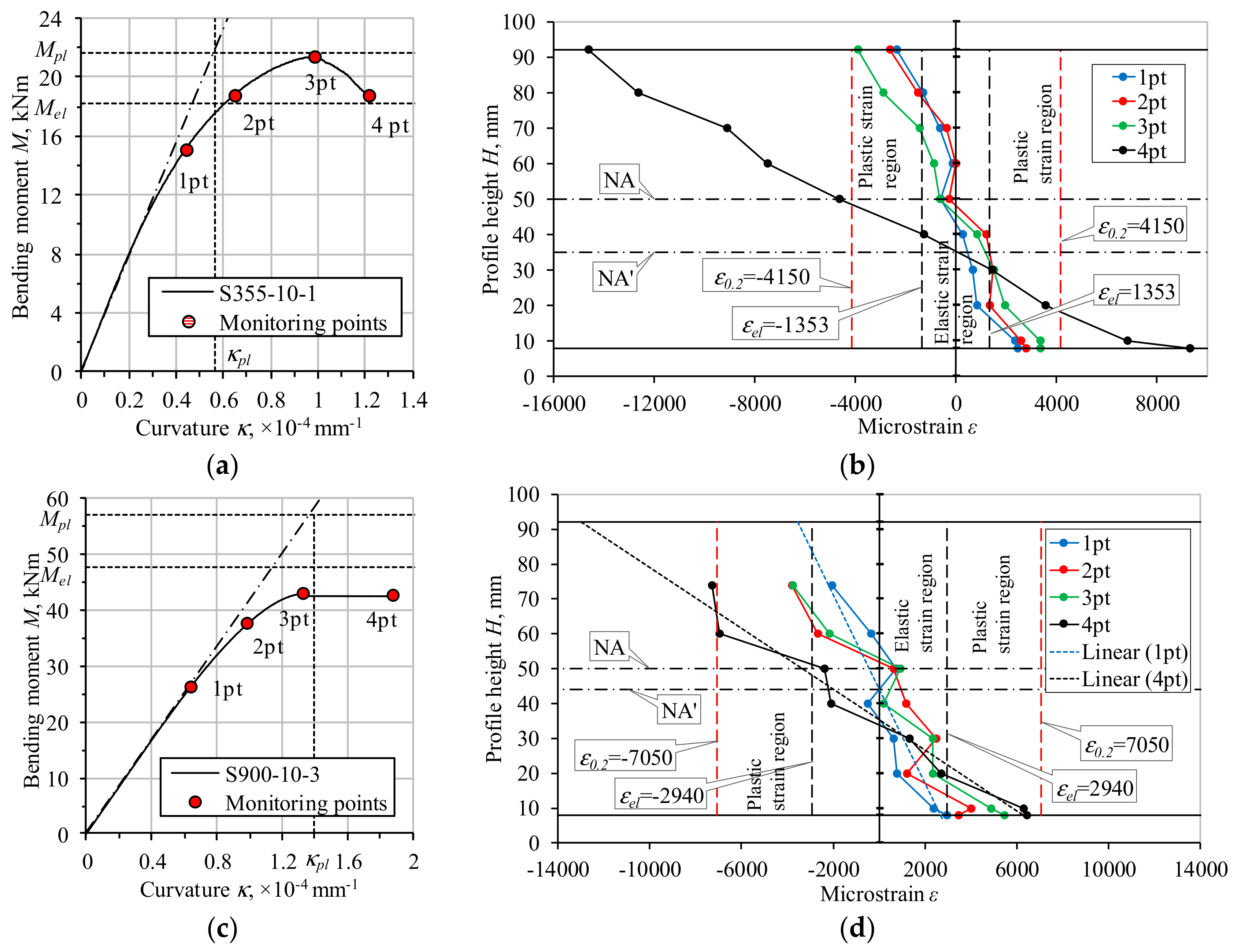

3. Test Results
4. Discussion of the Results
- NSS: The beam specimens were capable of attaining the load-bearing resistance comparable to the theoretical plastic moment Mpl. The considered geometry of SHS enabled the efficient utilisation of the material. The Mu/Mel ratio given in Table 4 defined the average increase of the theoretical load-bearing capacity by 18%.
- HSS: A premature local buckling limited the load-bearing capacity of the tubular specimen. The considered geometry and structural performance of the profile disabled the ability to utilise HSS efficiently due to local bearing failure. The Mu/Mel ratio (Table 4) demonstrated the 9% deficit of the ultimate load, considering the theoretical elastic moment as the reference.
5. Conclusions
- An almost identical initial elastic modulus was characteristic of the considered steel grades S355 (NSS) and S900 (HSS). This parameter predominantly controlled the deformation behaviour of the elements.

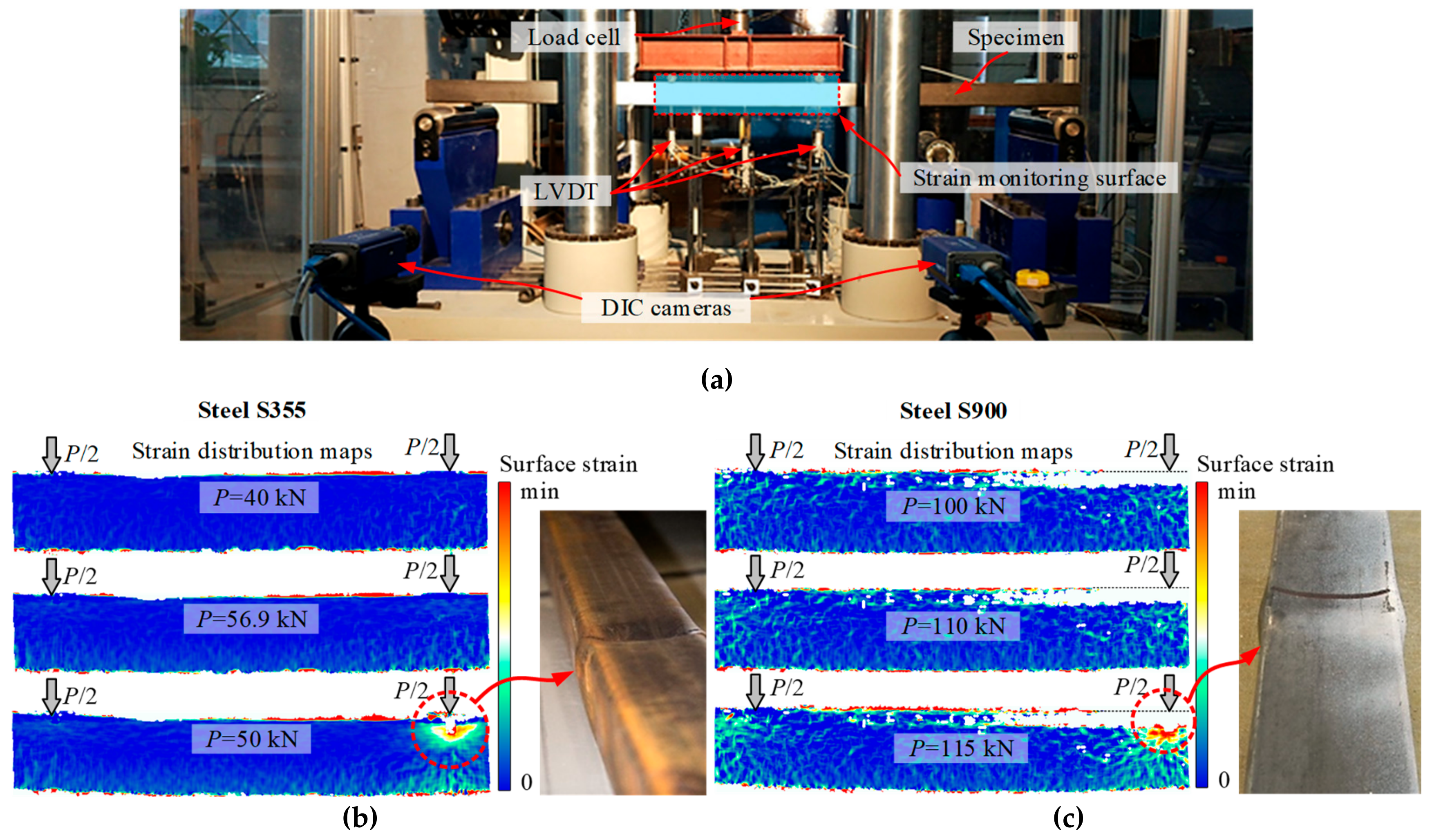

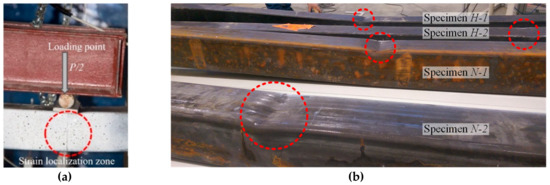

- The failure of all beam specimens was a consequence of the deformation localisation process identified by using a digital image correlation system. Although the deformed shape of the profiles looked similar, the corresponding deformation mechanisms were different. The strain localisation in the NSS profile corresponded to the descending branch of the loading diagram, whereas the HSS element continuously demonstrated increased deformations until the ultimate loading stage.
- The actual bending resistance of the NSS profiles was comparable to the theoretical plastic bending moment Mpl. This meant that the strength term controlled the load-bearing capacity of the NSS elements. The Mu/Mel ratio gave the average increase of the theoretical load-bearing capacity at 18%. Alternatively, the stiffness condition governed the failure behaviour of the HSS specimens; the load-bearing capacity was below the theoretical value Mel at 9%. The identification of the optimum configuration of the cross-section should be the subject for further research.

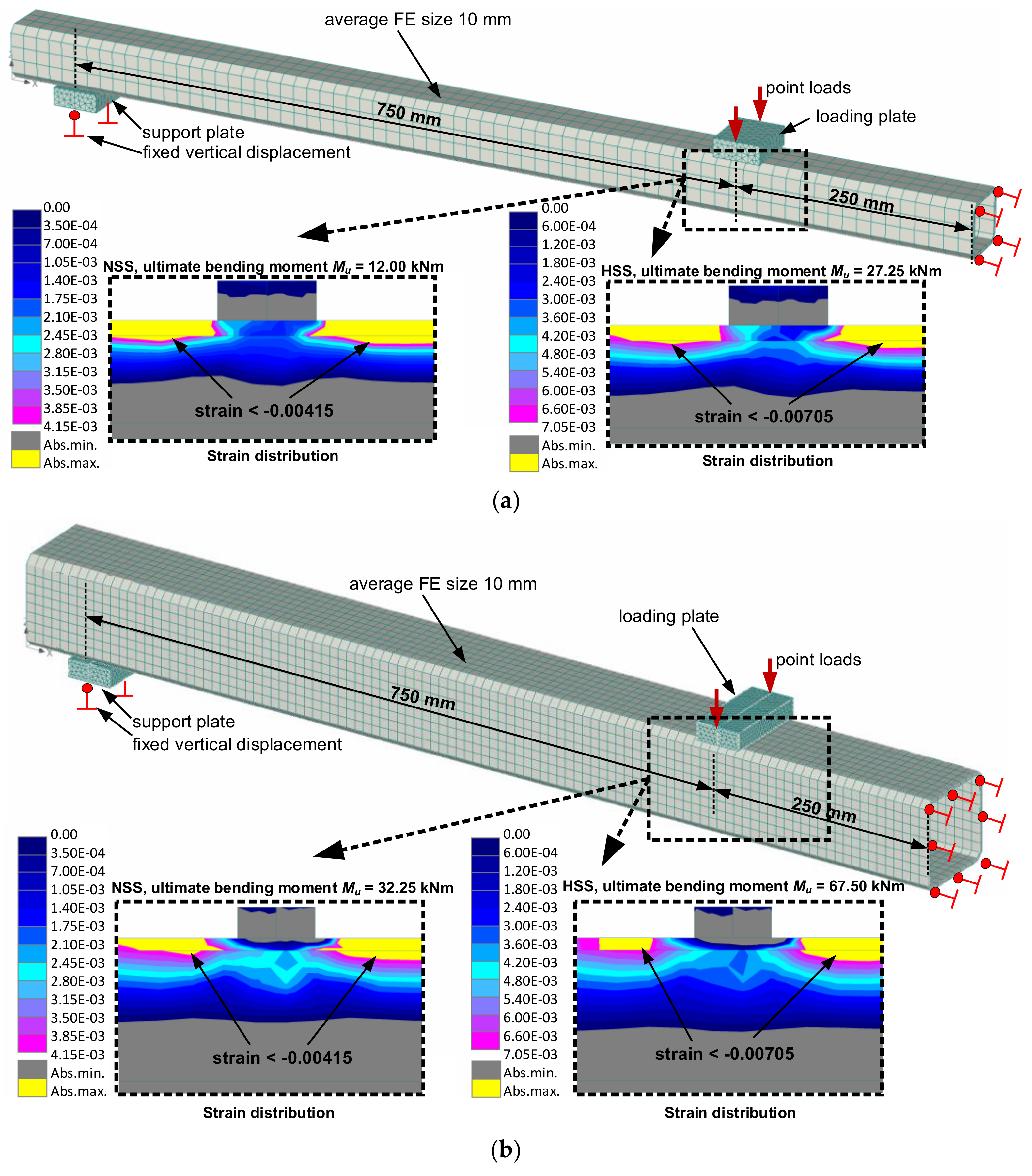

- The numerical analysis demonstrated that the HSS utilisation efficiency was dependent on the shape of the cross-section. The ratio cef was found as being equal to 89% for the 100 × 100 × 4 mm profile, whereas it increased up to 96% for the 60 × 60 × 4 mm cross-section. The actual efficiency of the utilisation of HSS in the 100 × 100 × 4 mm specimen was less substantial than that obtained in the physical tests (cef = 85%). This was a consequence of the idealised approximation of the deformation localisation process in the tubular profiles assumed in FE analysis.
