Next Article in Journal
Insights into In Vitro Wound Closure on Two Biopolyesters—Polylactide and Polyhydroxyoctanoate
Next Article in Special Issue
Influence of Orthodontic Anchor Screw Anchorage Method on the Stability of Artificial Bone: An In Vitro Study
Previous Article in Journal
The Effect of the Cooling Process on the Crystalline Morphology and Dielectric Properties of Polythene
Previous Article in Special Issue
In Vitro Effects of Cyclic Dislodgement on Retentive Properties of Various Titanium-Based Dental Implant Overdentures Attachment System
Open AccessArticle

A 3D-Printed Ultra-Low Young’s Modulus β-Ti Alloy for Biomedical Applications

1
Department of Industrial Engineering, University of Trento, 38123 Trento, Italy
2
Laboratory of Preclinical and Surgical Studies, IRCCS-Istituto Ortopedico Rizzoli, 40136 Bologna, Italy
3
SISMA Spa, 36013 Piovene Rocchette (VI), Italy
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(12), 2792; https://doi.org/10.3390/ma13122792
Received: 22 May 2020 / Revised: 14 June 2020 / Accepted: 17 June 2020 / Published: 20 June 2020
(This article belongs to the Special Issue Titanium and Titanium Based Materials in Biomedical Applications)

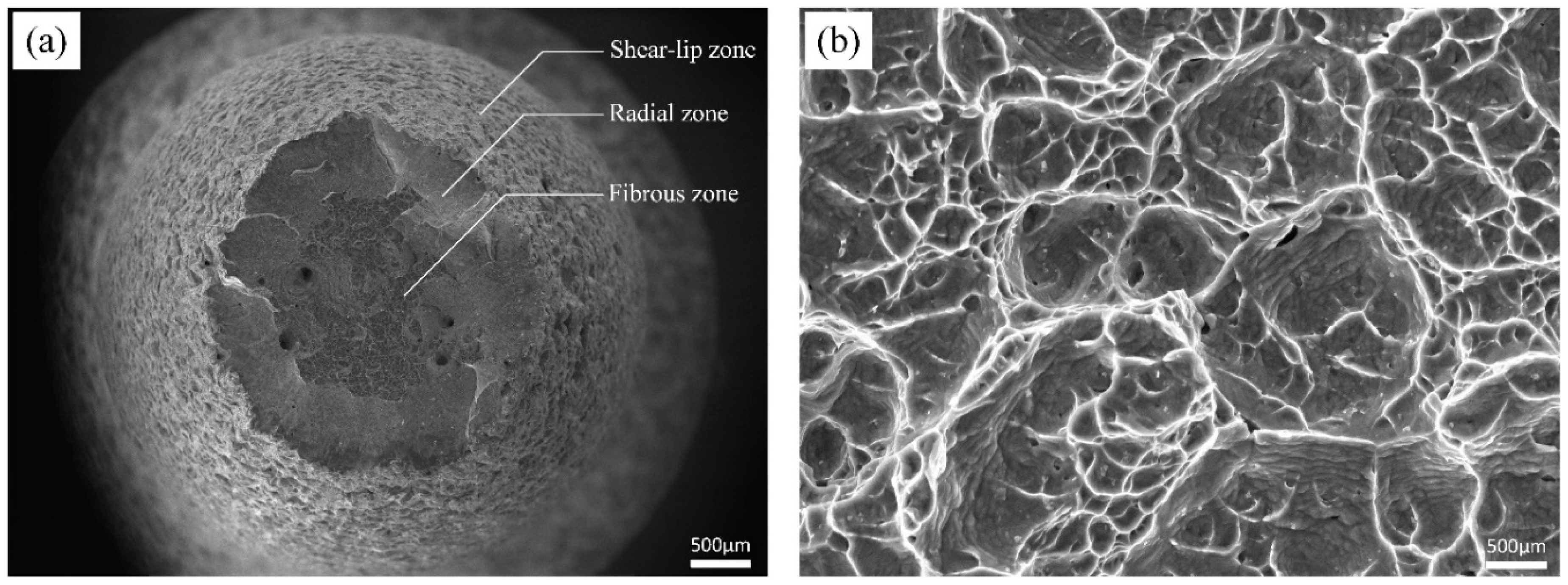

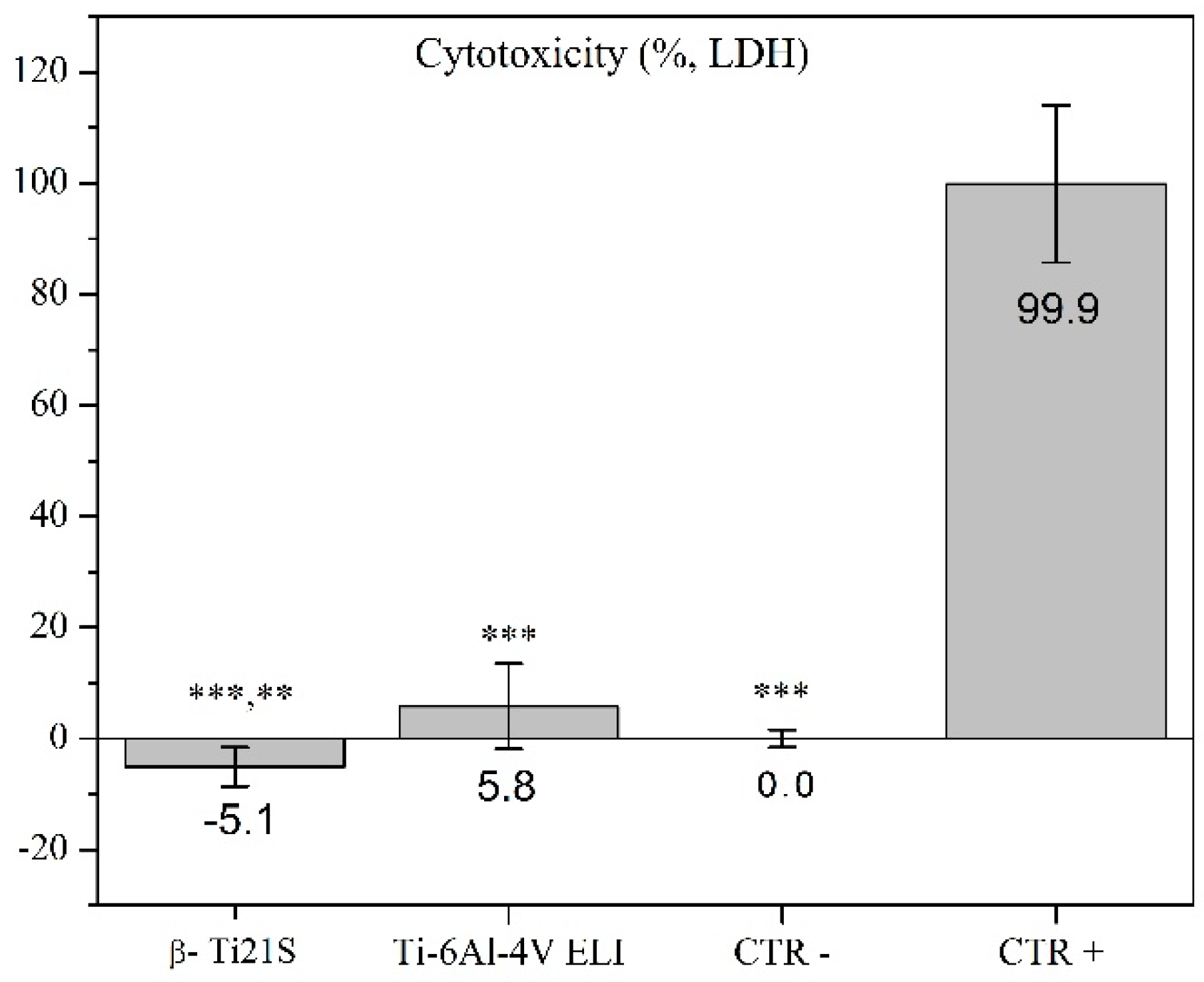

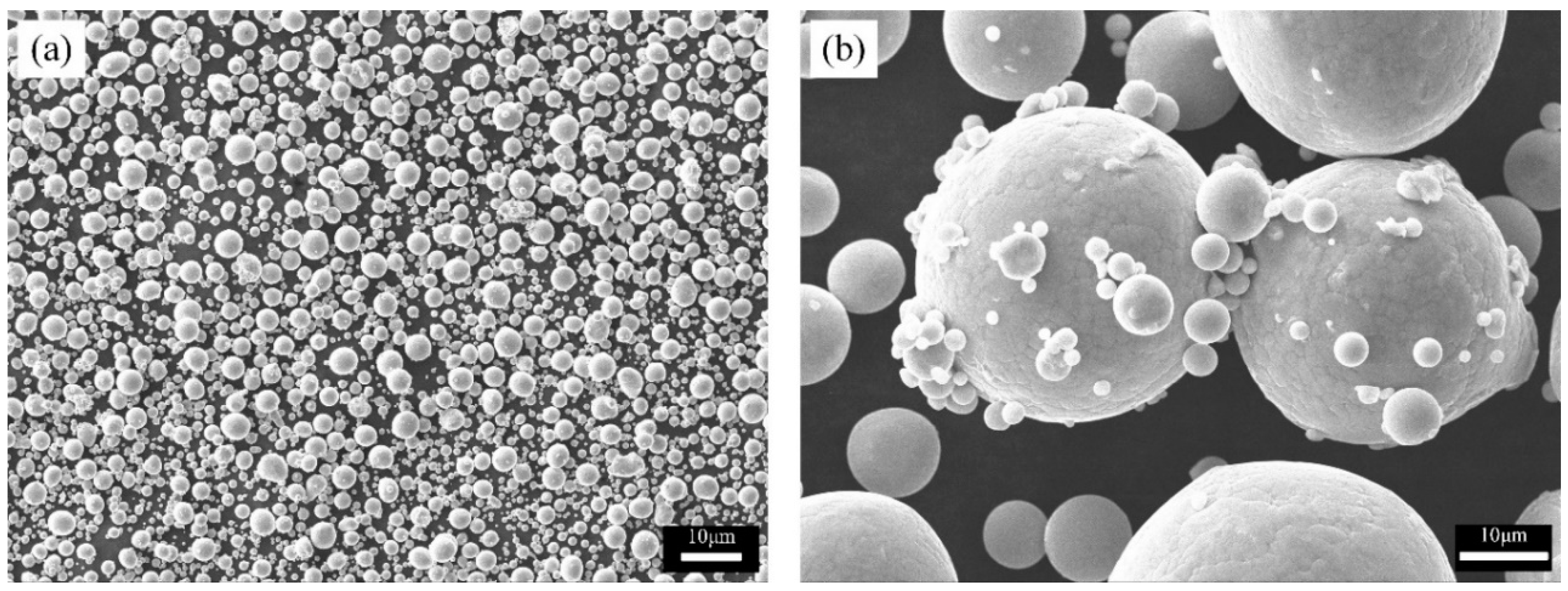

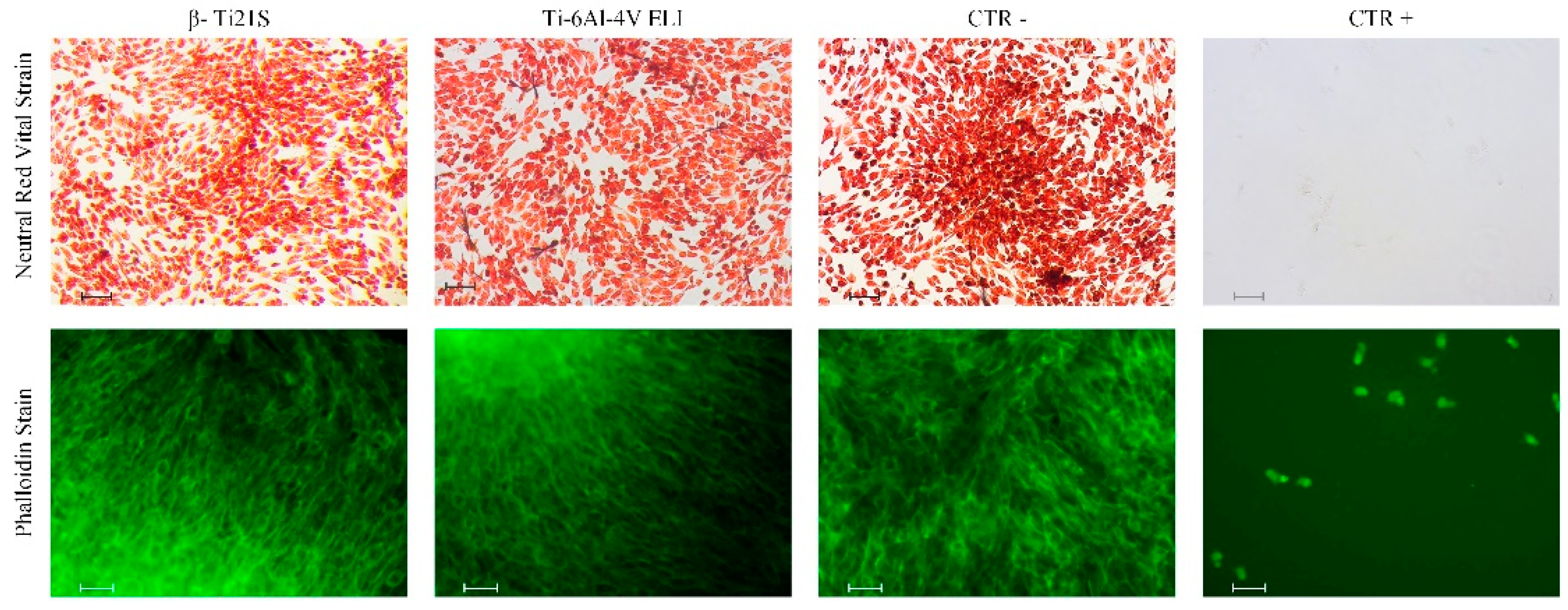

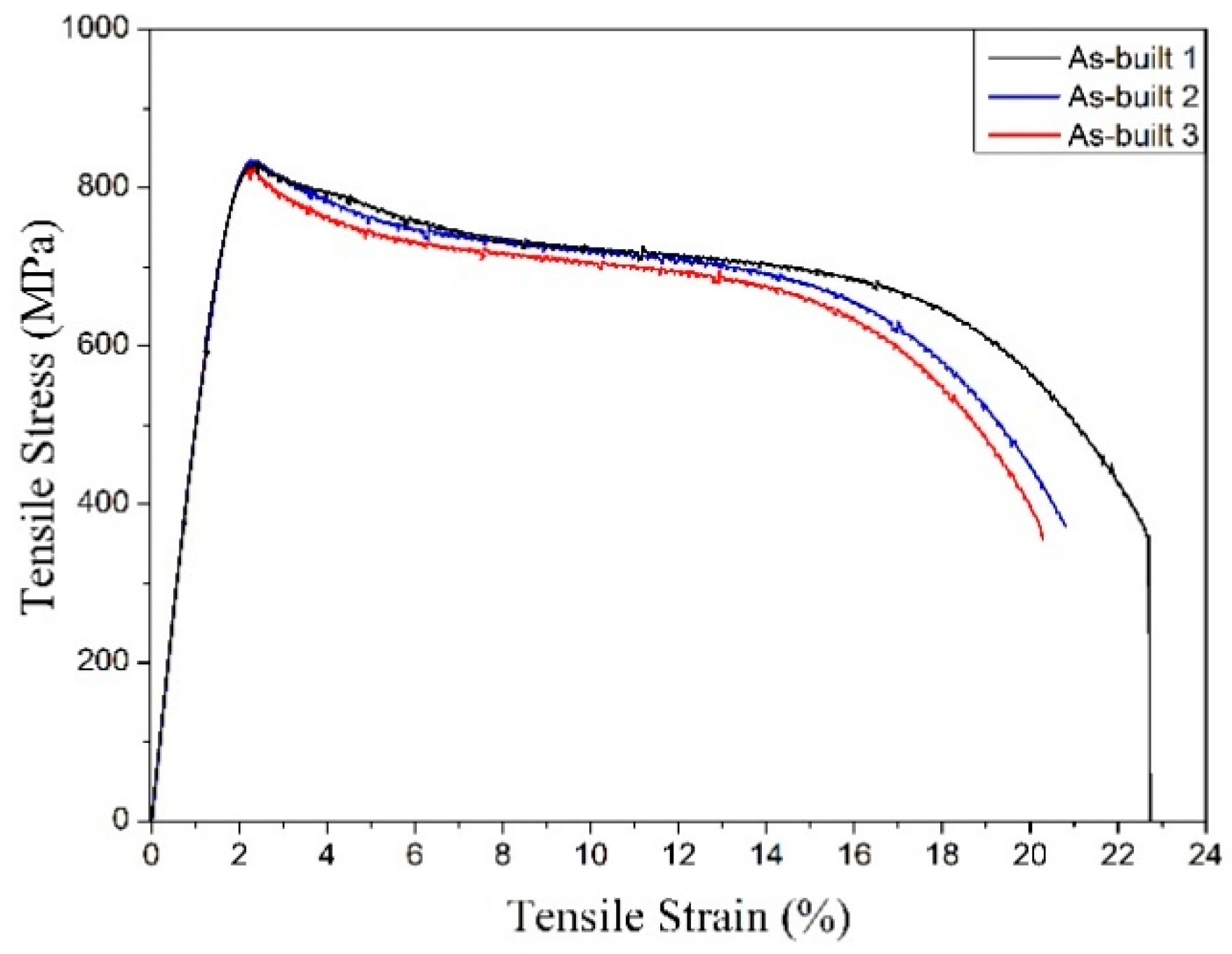

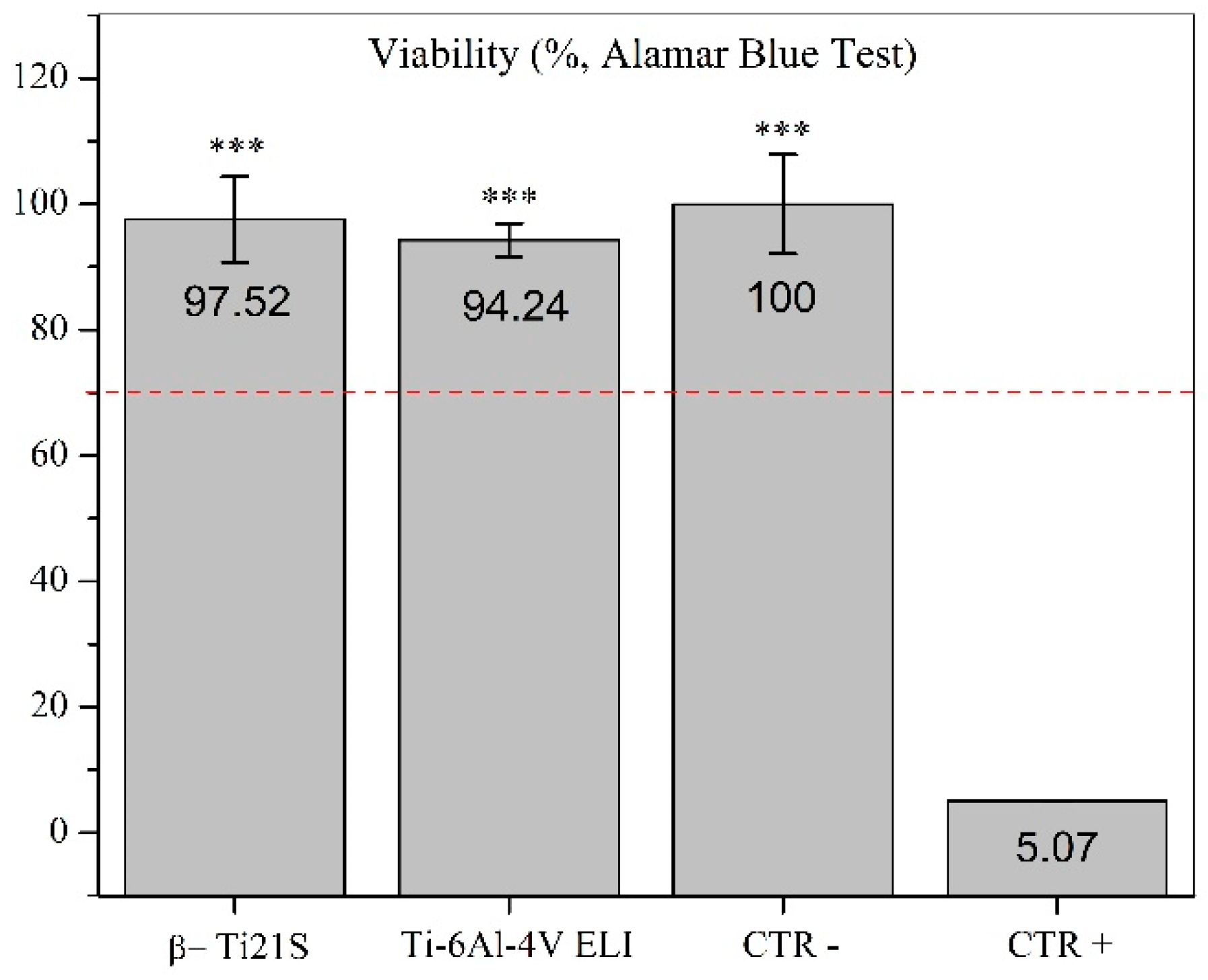

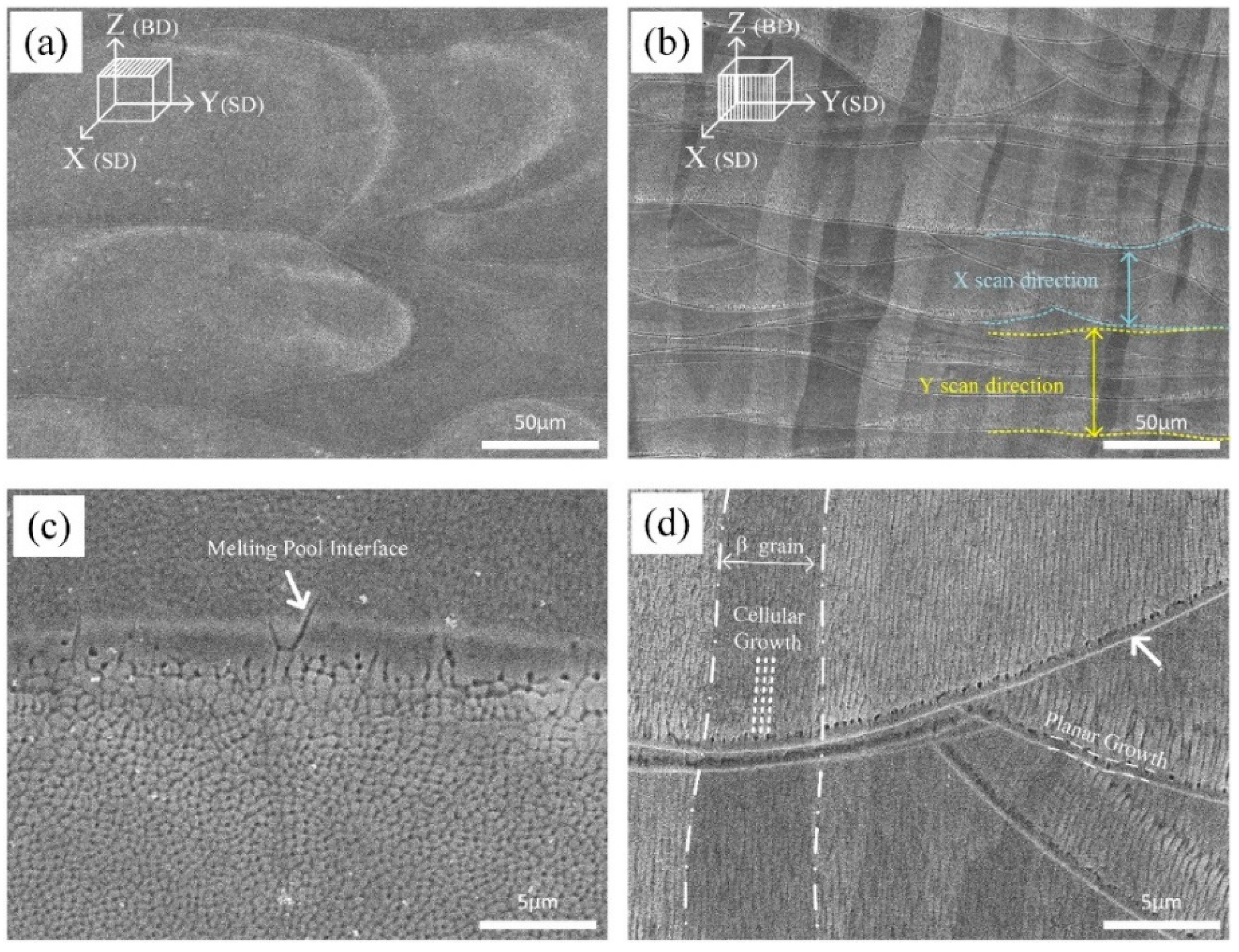

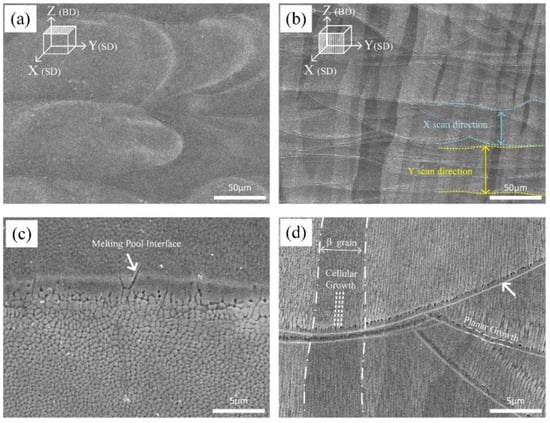

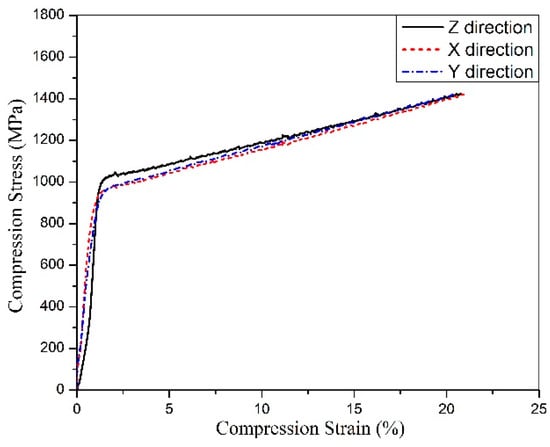

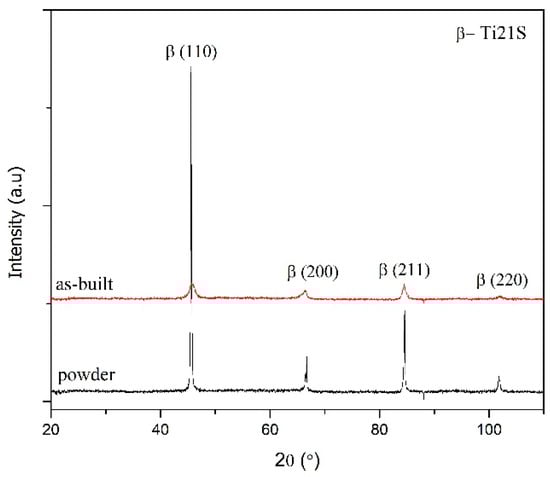

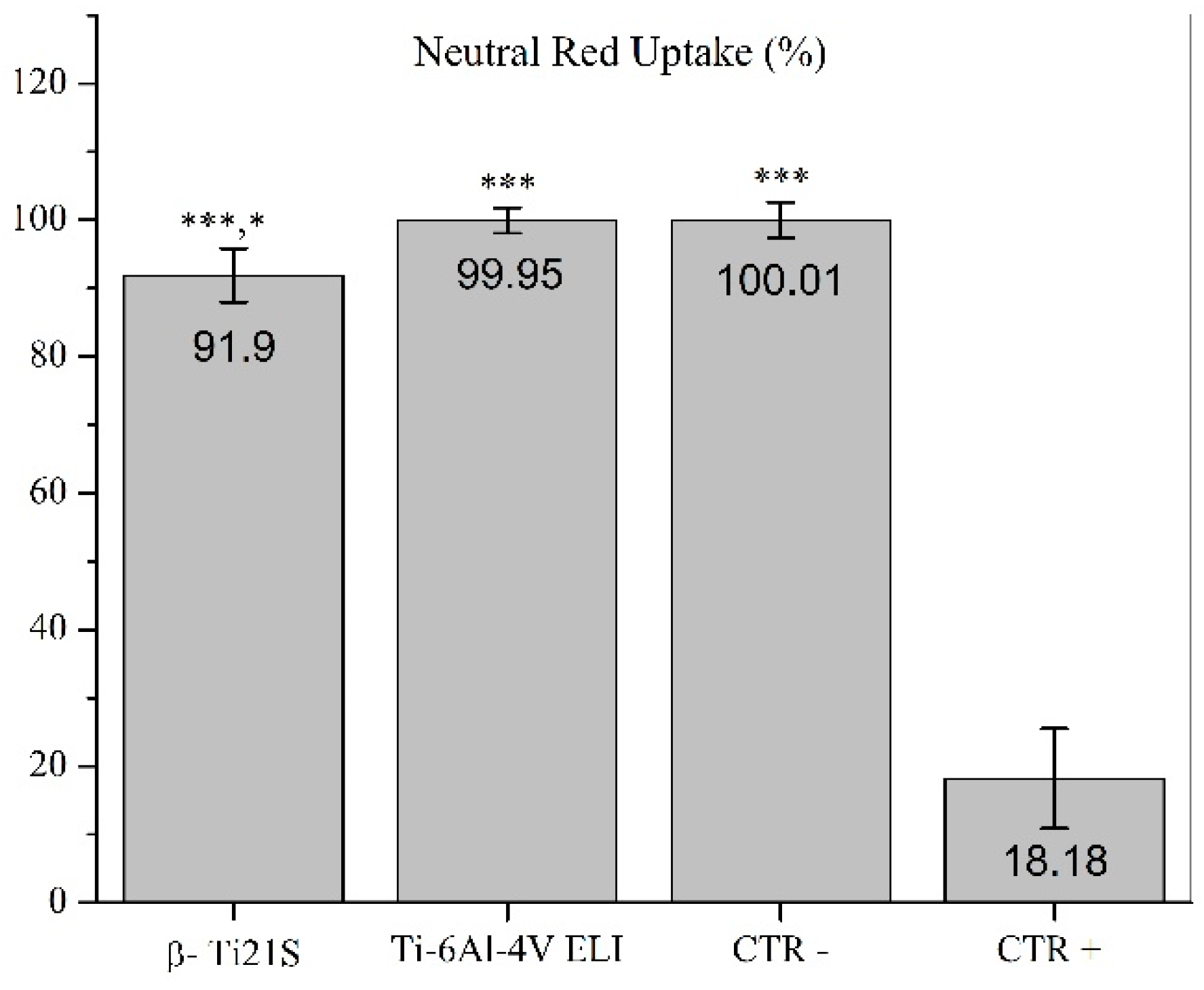

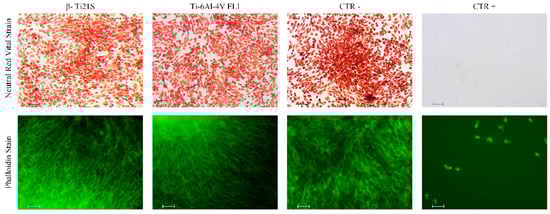

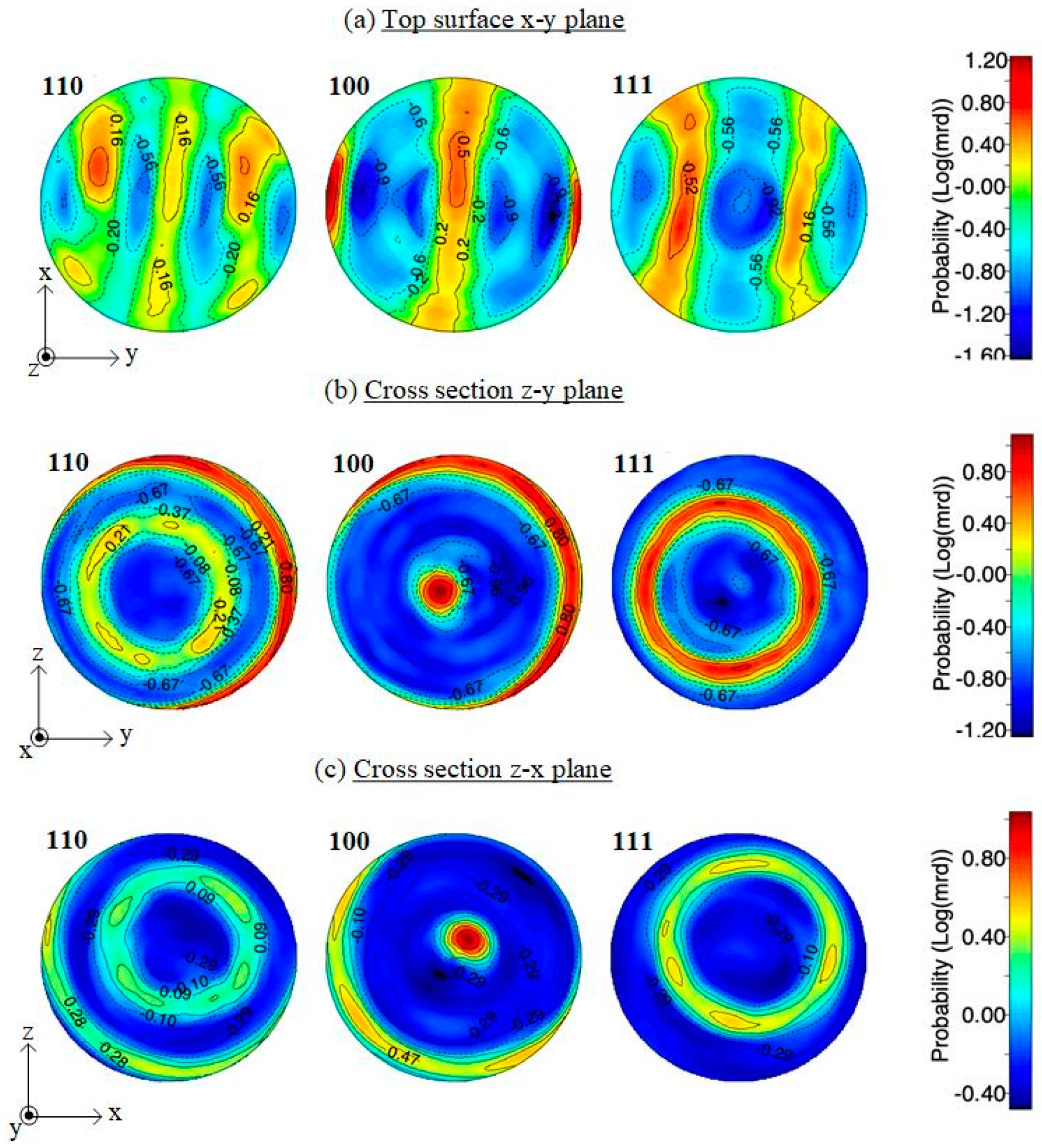

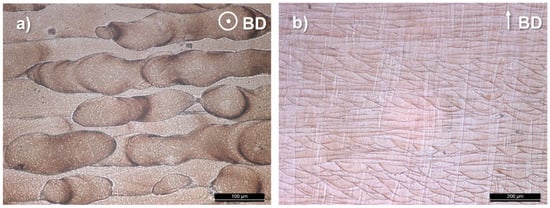

The metastable β-Ti21S alloy is evaluated as a potential candidate for biomedical parts. Near fully dense (99.75 ± 0.02%) samples are additively manufactured (that is, 3D-printed) by laser powder-bed fusion (L-PBF). In the as-built condition, the material consists of metastable β-phase only, with columnar grains oriented along the building direction. The material exhibits an extremely low Young’s modulus (52 ± 0.3 GPa), which was never reported for this type of alloy. The combination of good mechanical strength (σy0.2 = 709 ± 6 MPa, ultimate tensile strength (UTS) = 831 ± 3 MPa) and high total elongation during tensile test (21% ± 1.2%) in the as-built state, that is, without any heat treatment, is close to that of the wrought alloy and comparable to that of heat treated Ti grade 5. The good biocompatibility attested by cytotoxicity tests confirms its great suitability for biomedical applications. View Full-Text
Keywords: 3D-printing; orthopaedic biomaterials; bone prosthesis; β-Titanium alloy; Young’s modulus; cytotoxicity 3D-printing; orthopaedic biomaterials; bone prosthesis; β-Titanium alloy; Young’s modulus; cytotoxicity
Show Figures

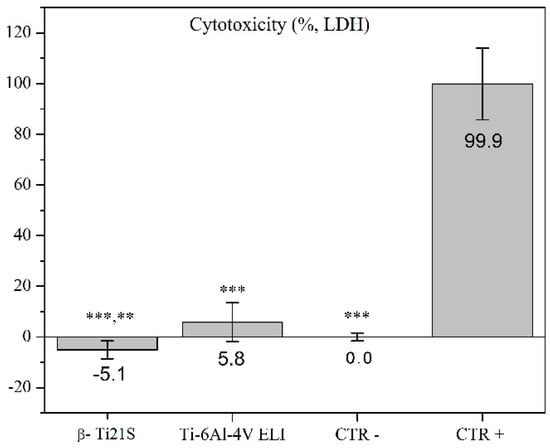

Graphical abstract

MDPI and ACS Style

Pellizzari, M.; Jam, A.; Tschon, M.; Fini, M.; Lora, C.; Benedetti, M. A 3D-Printed Ultra-Low Young’s Modulus β-Ti Alloy for Biomedical Applications. Materials 2020, 13, 2792.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
