Next Article in Journal
High Oxygen and Water-Vapor Transmission Rate and In Vitro Cytotoxicity Assessment with Illite-Polyethylene Packaging Films
Next Article in Special Issue
Current Status and Prospects of Polymer Powder 3D Printing Technologies
Previous Article in Journal
Mixed Valence of Ce and Its Consequences on the Magnetic State of Ce9Ru4Ga5: Electronic Structure Studies
Previous Article in Special Issue
Collaborative Optimization of Density and Surface Roughness of 316L Stainless Steel in Selective Laser Melting
Open AccessArticle

Microstructure Evolution, Mechanical Properties and Deformation Behavior of an Additively Manufactured Maraging Steel

1
Planetary and Space Science Centre, University of New Brunswick, Fredericton, NB E3B 5A3, Canada
2
Voestalpine Additive Manufacturing Centre Ltd., Mississauga, ON L5N 7Y3, Canada
3
Department of Mechanical Engineering, Ecole de Technologie Supérieure, Montréal, QC H3C 1K3, Canada
4
Department of Mechanical Engineering, University of New Brunswick, Fredericton, NB E3B 5A3, Canada
*
Author to whom correspondence should be addressed.
These authors equally contributed to this work.
Materials 2020, 13(10), 2380; https://doi.org/10.3390/ma13102380
Received: 30 April 2020 / Revised: 16 May 2020 / Accepted: 18 May 2020 / Published: 21 May 2020
(This article belongs to the Special Issue Advances in Additive Manufacturing)

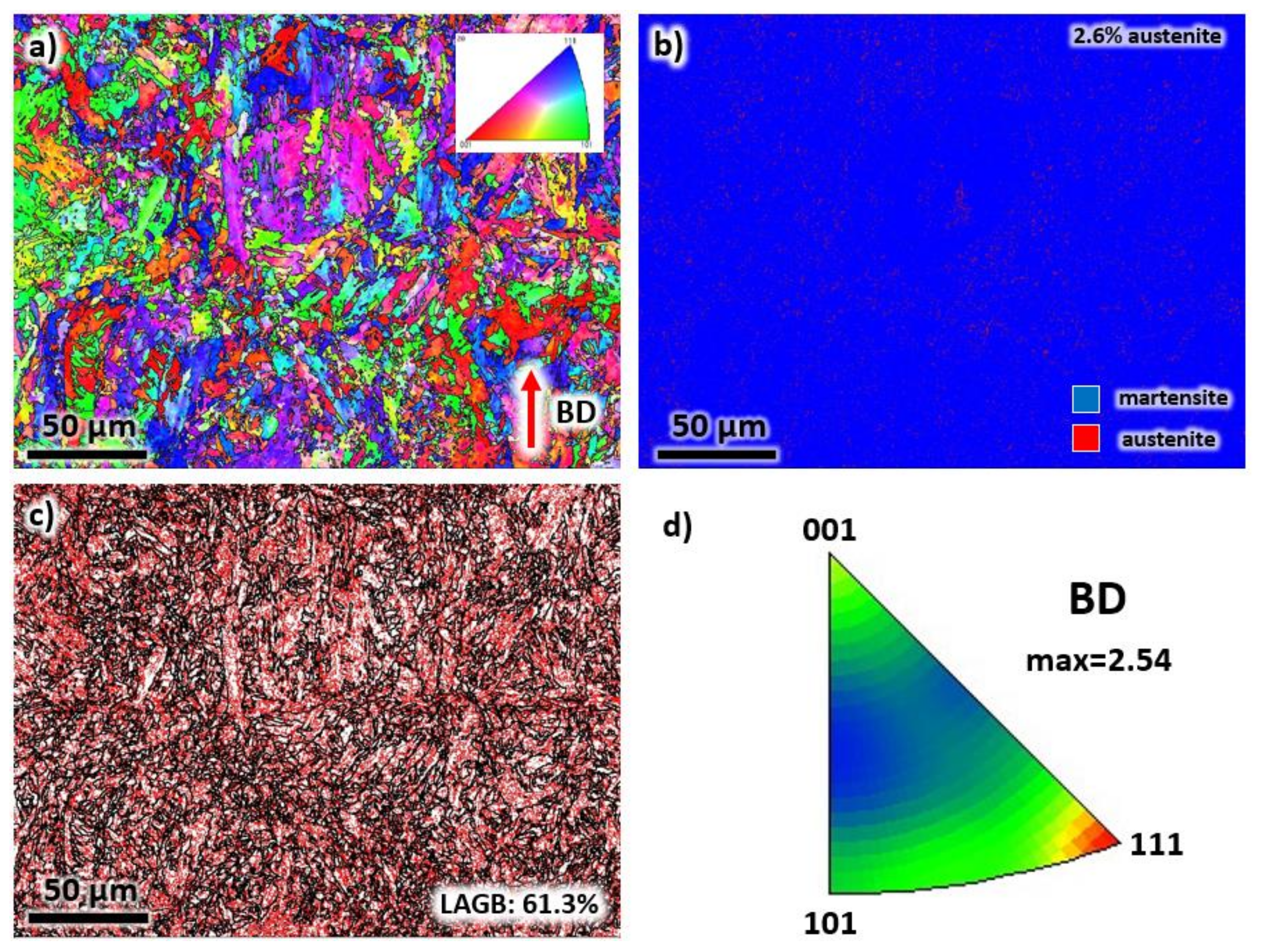

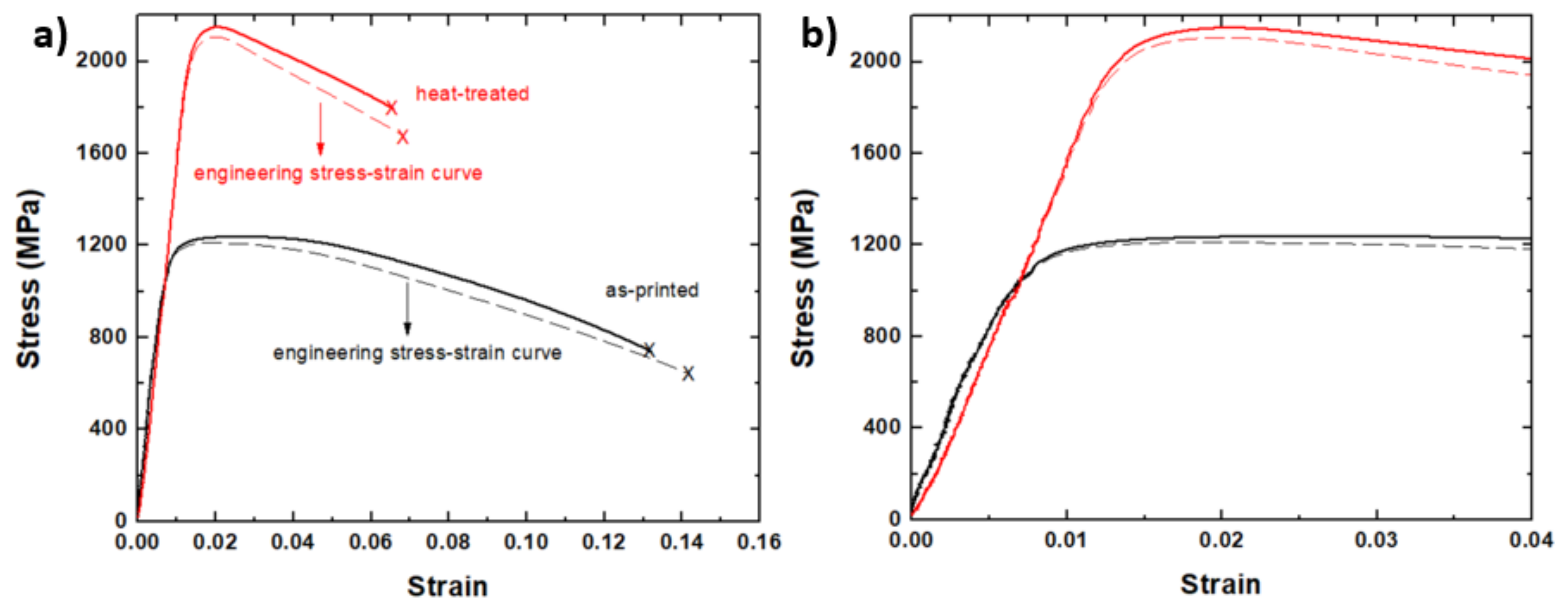

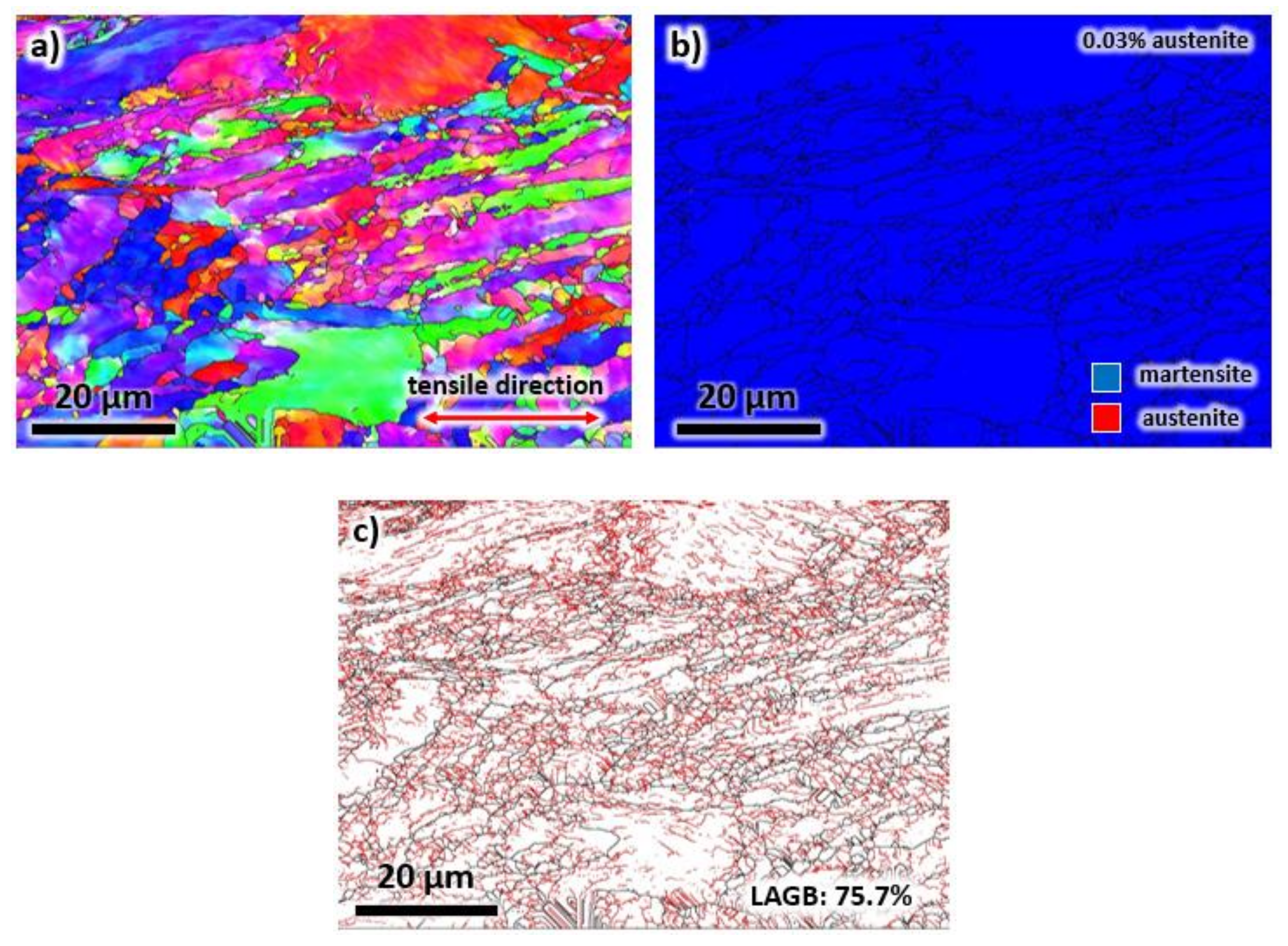

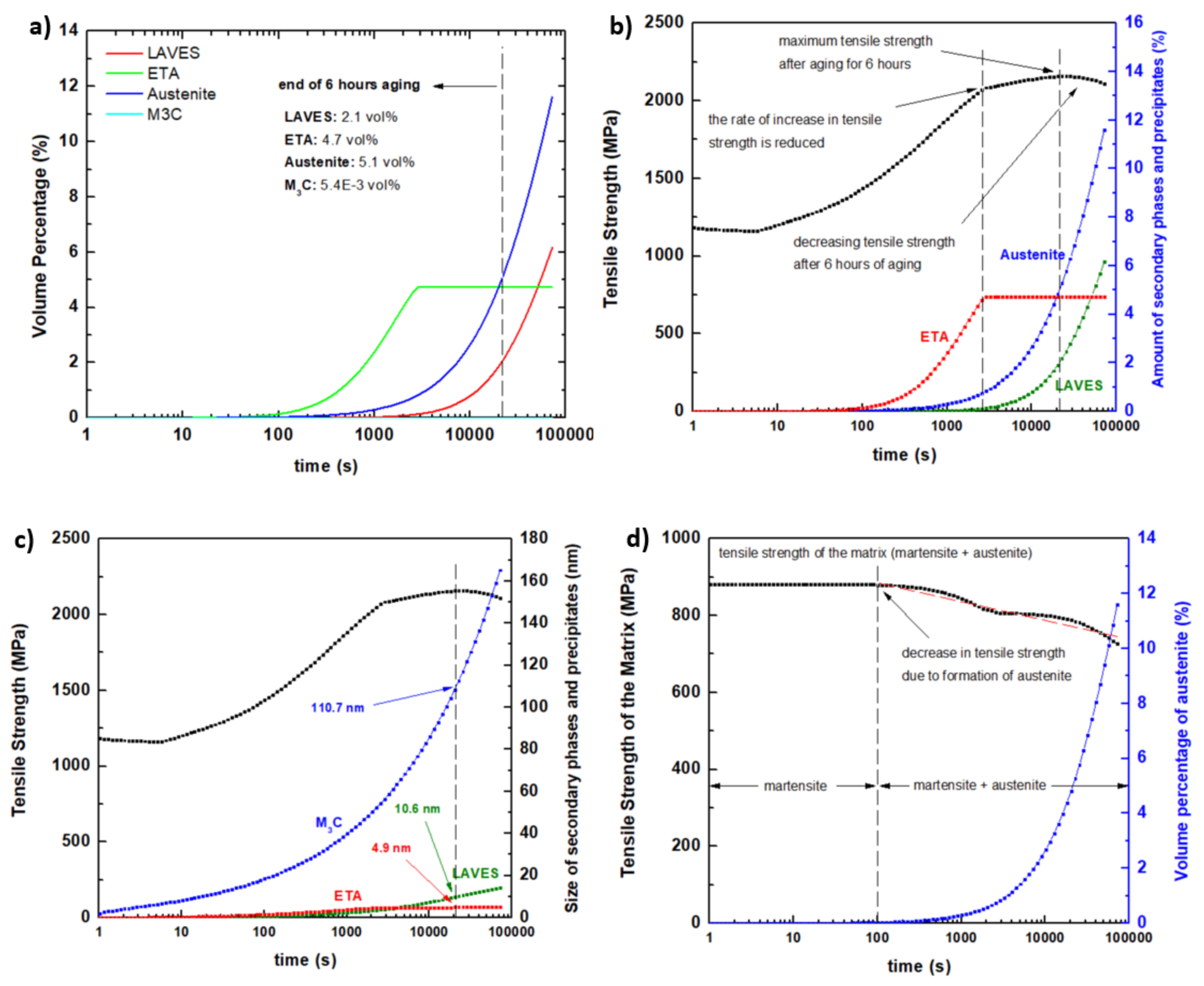

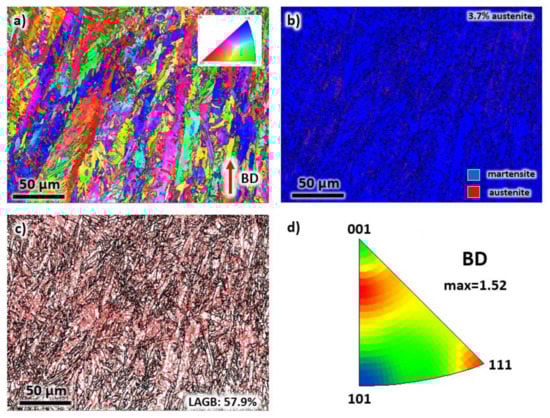

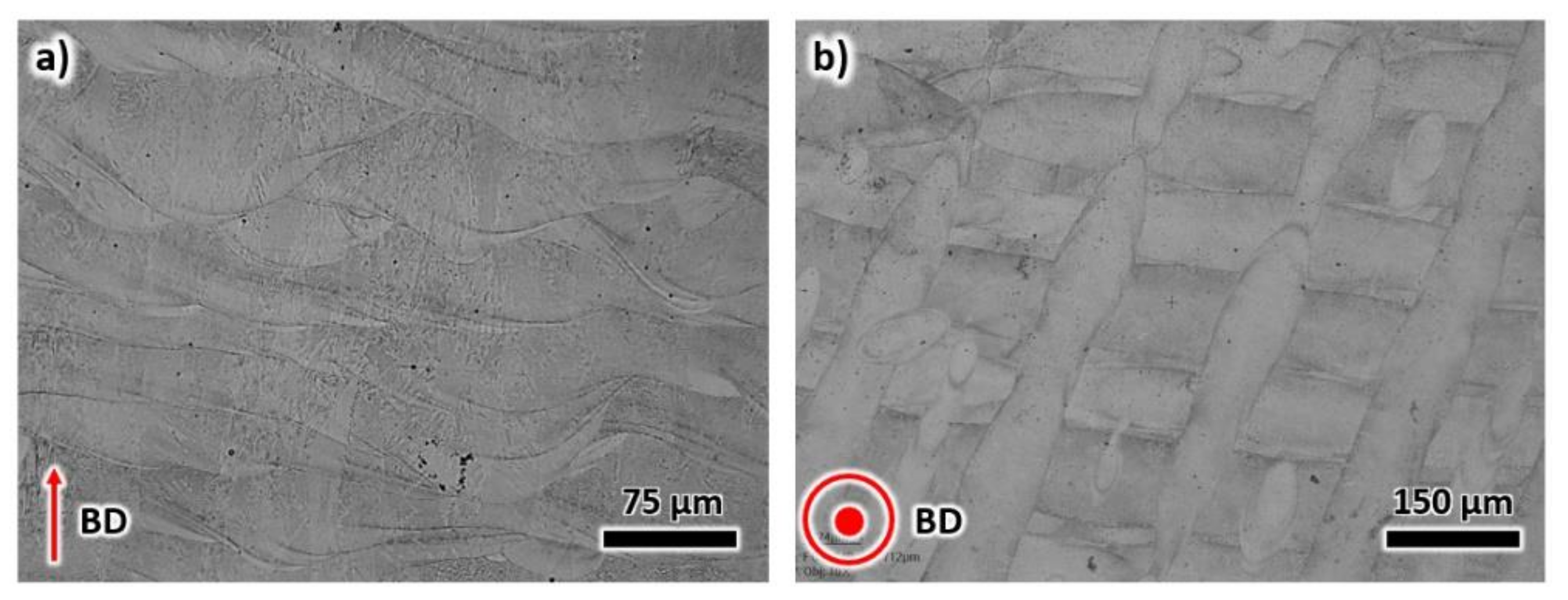

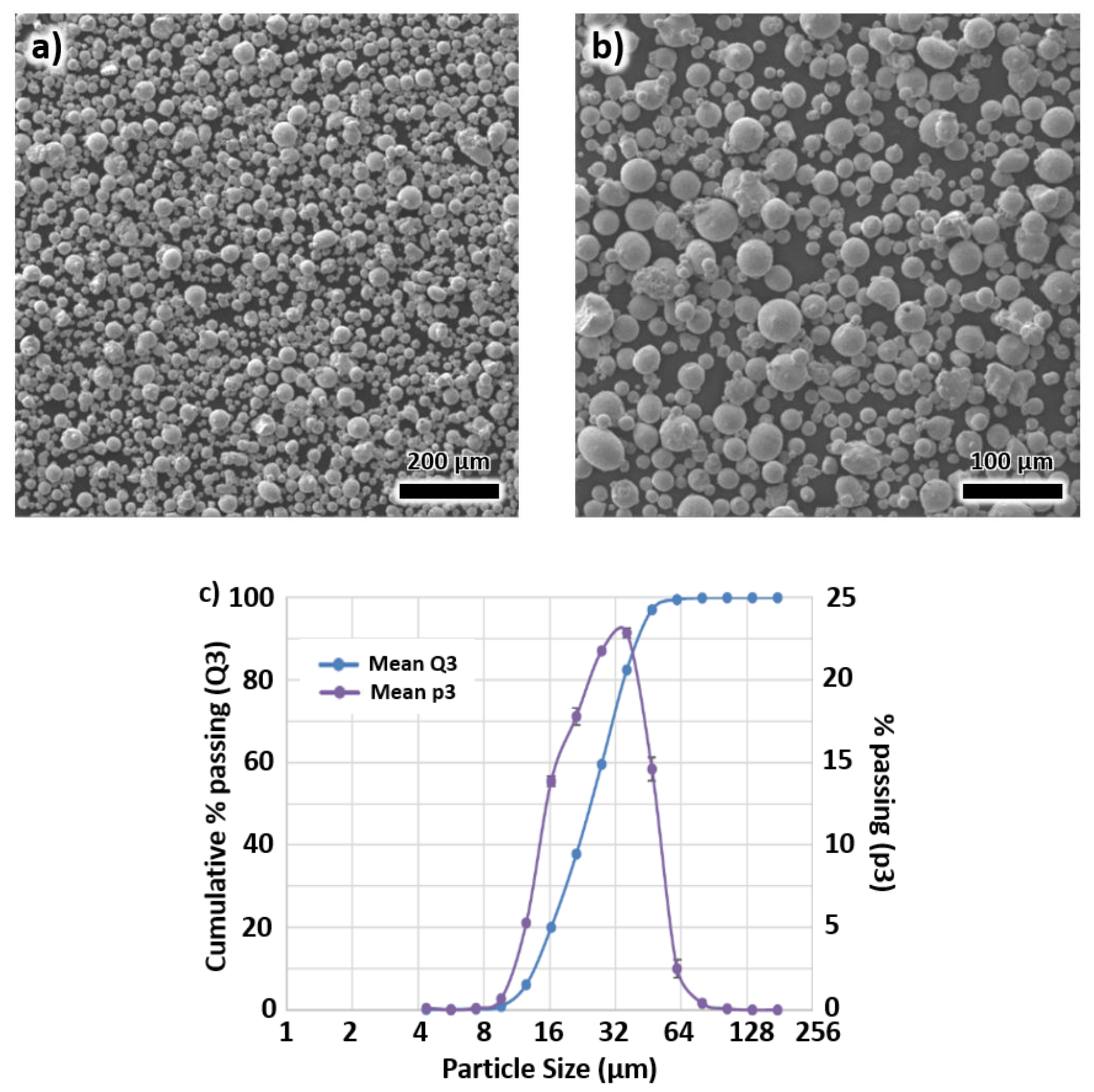

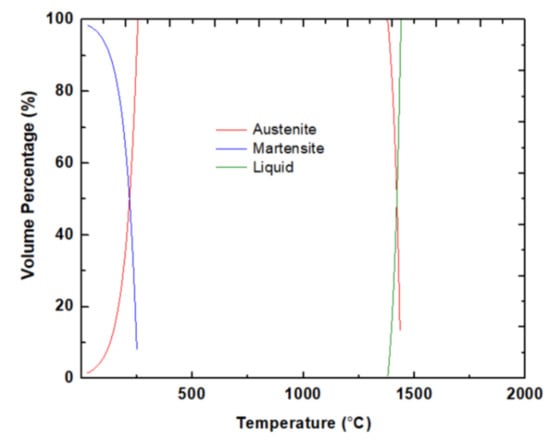

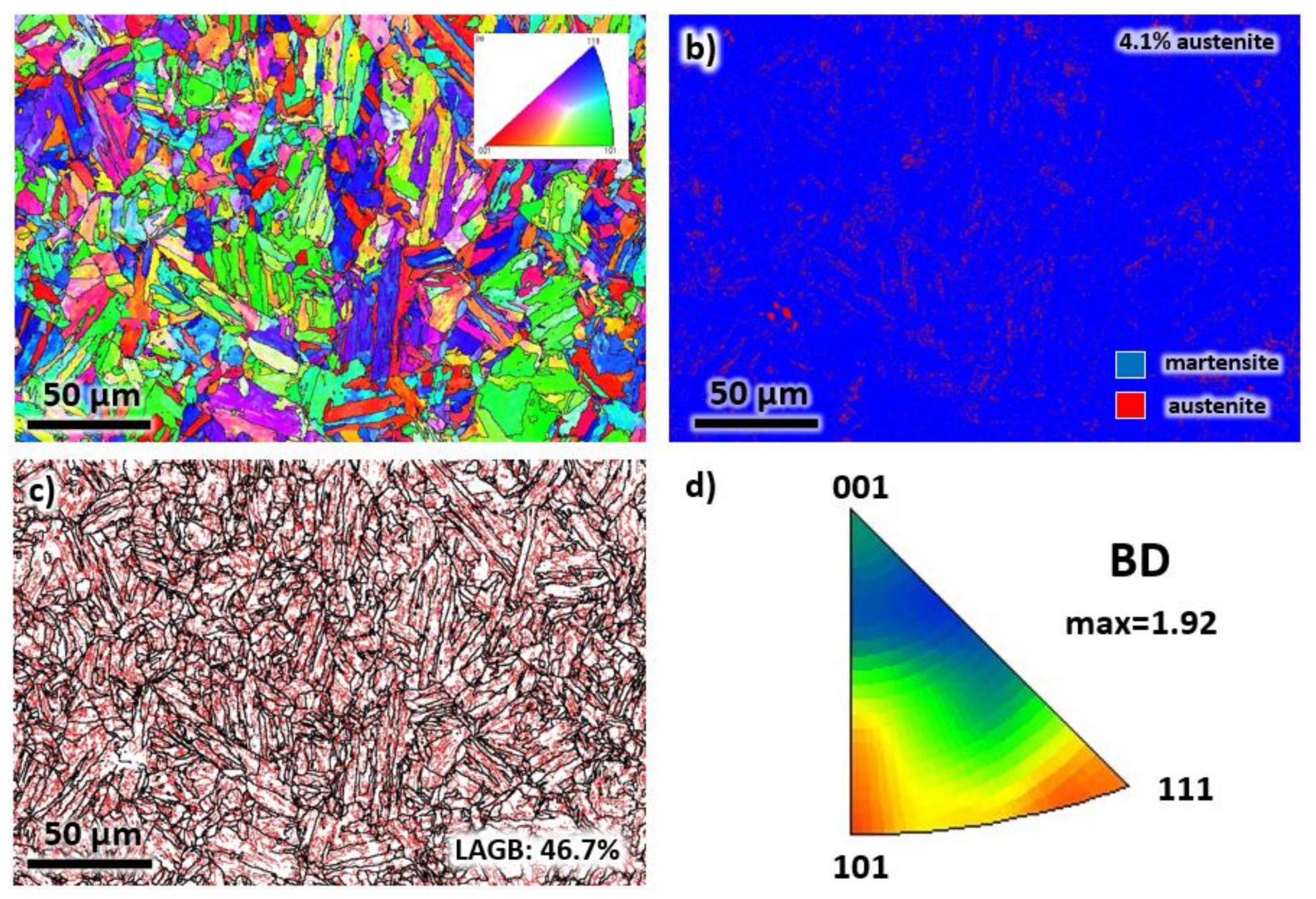

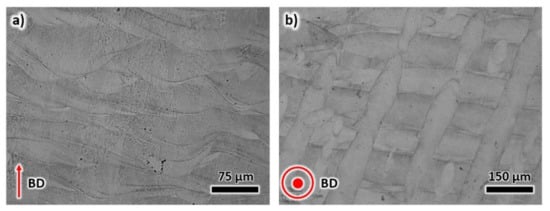

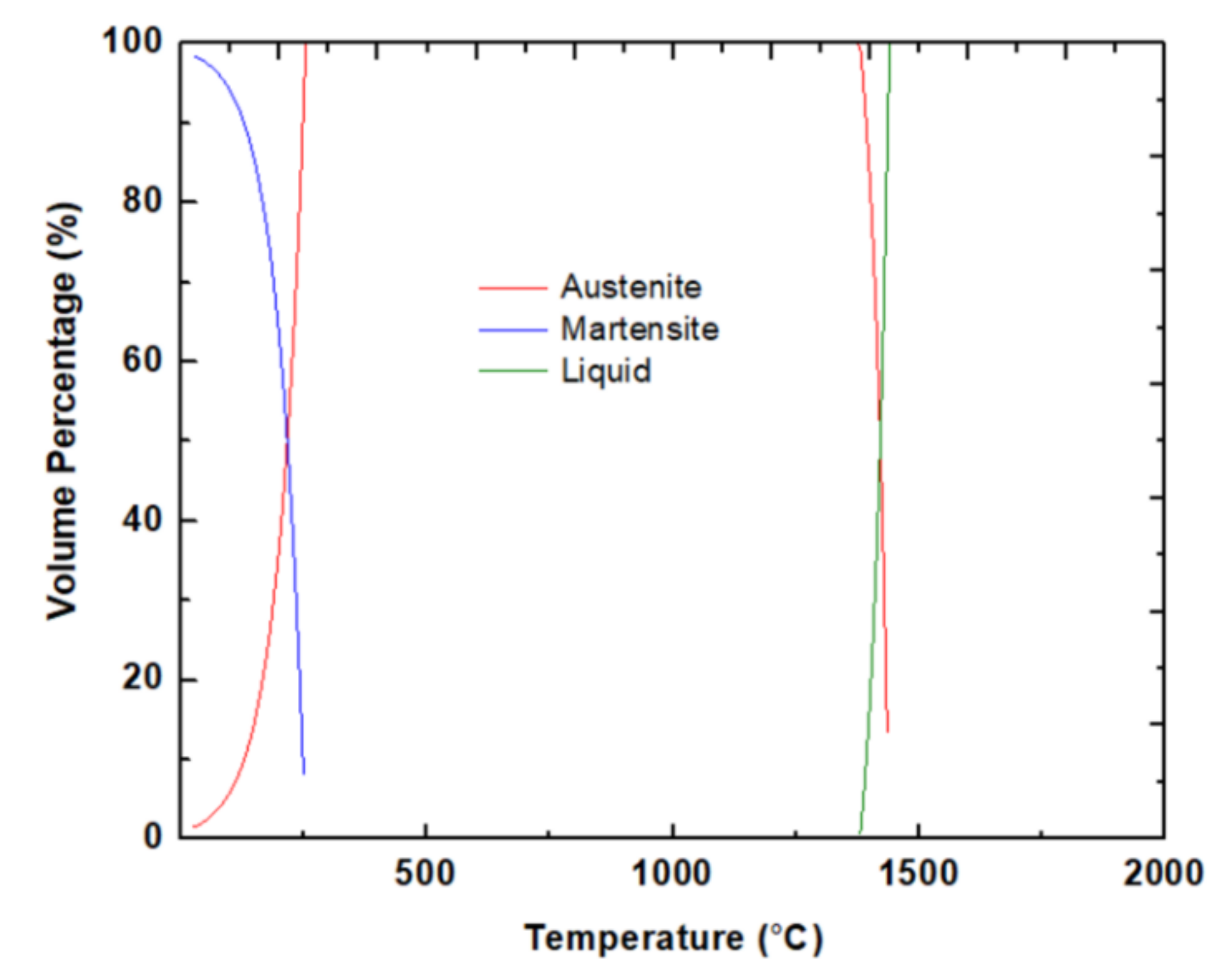

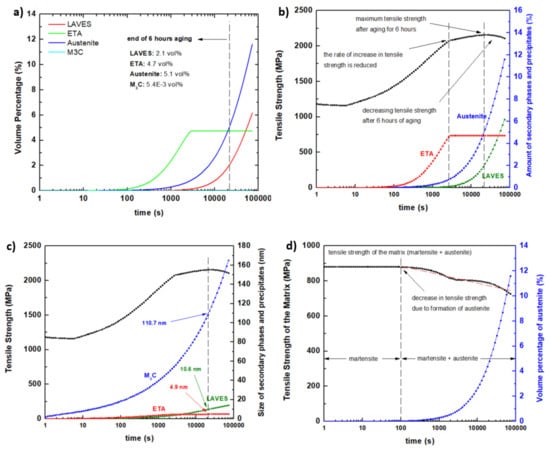

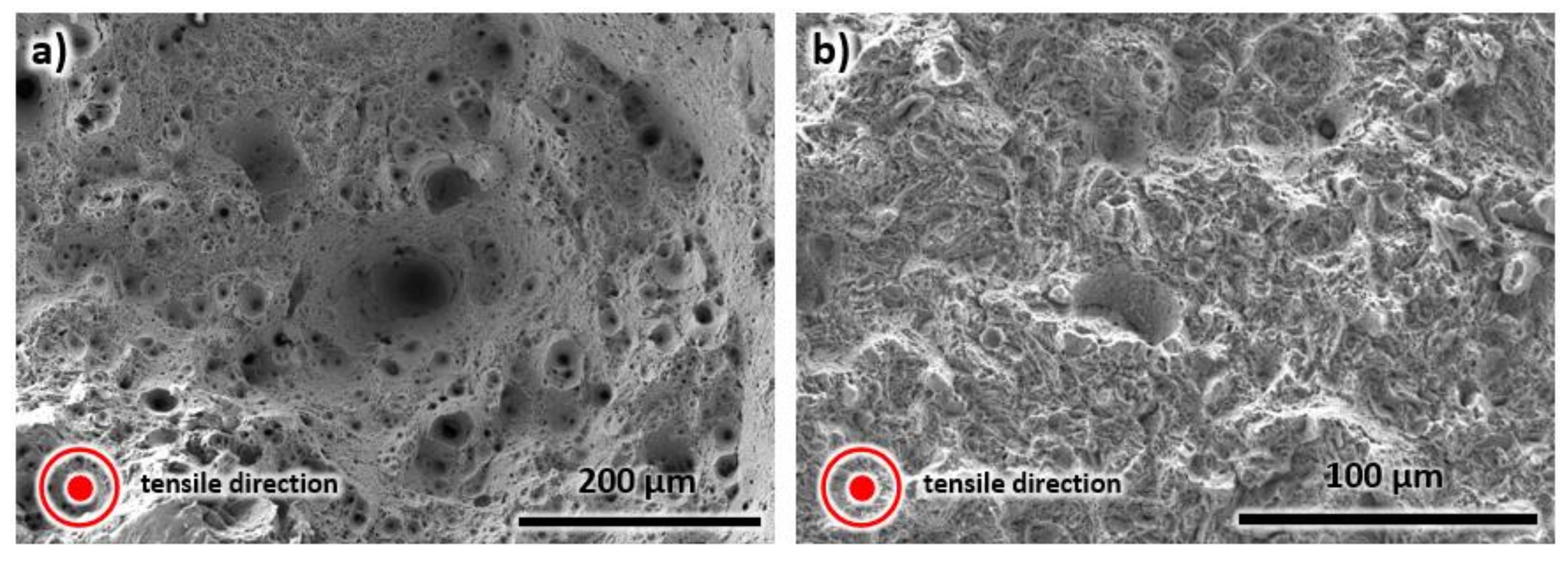

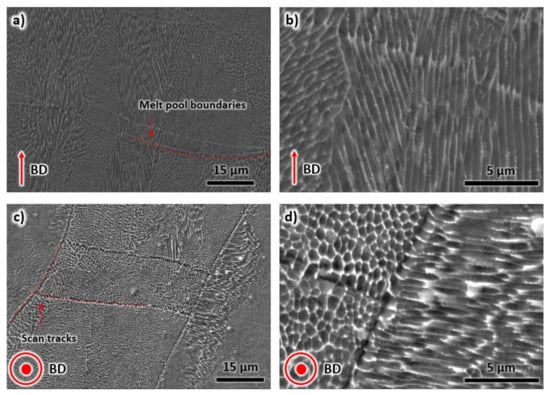

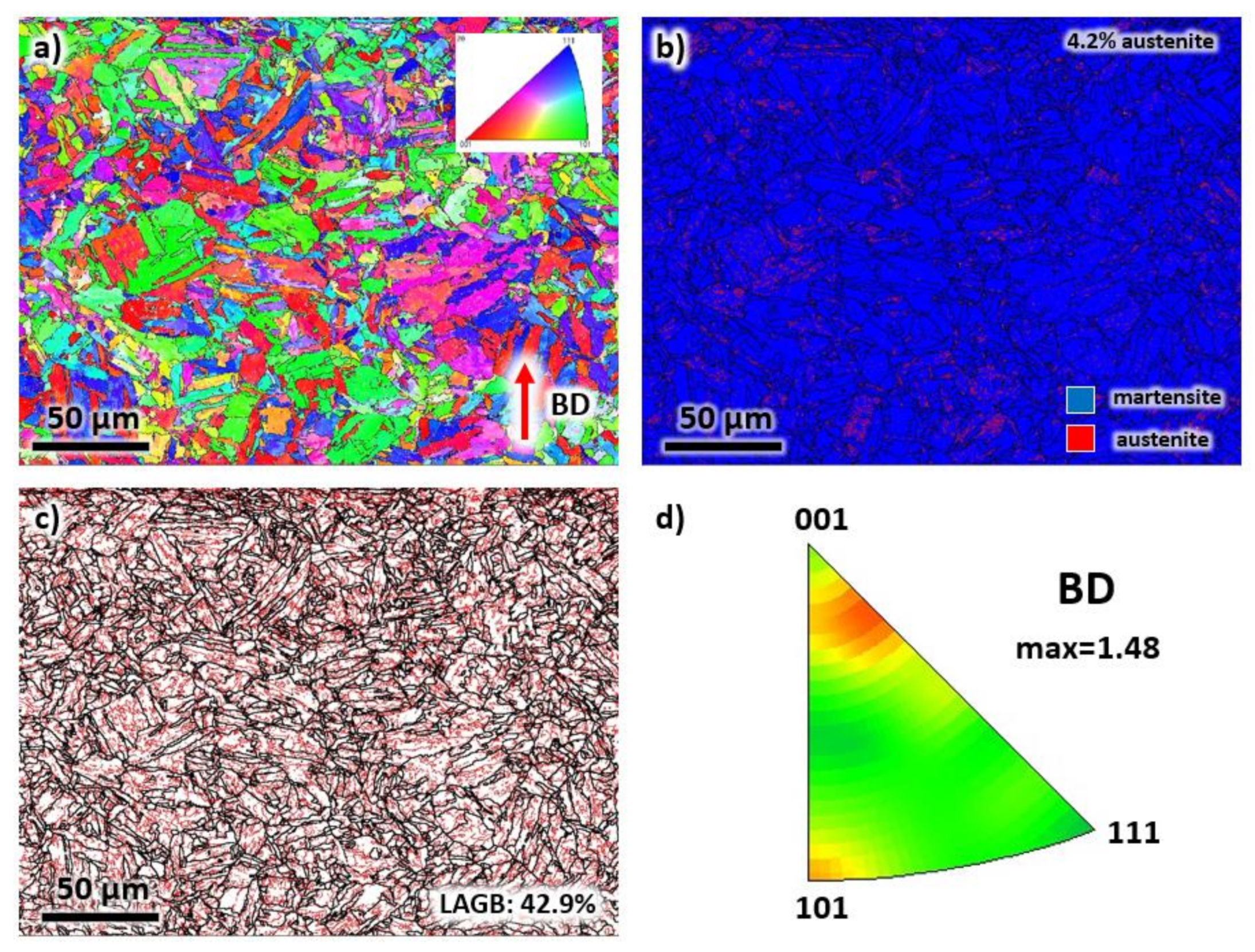

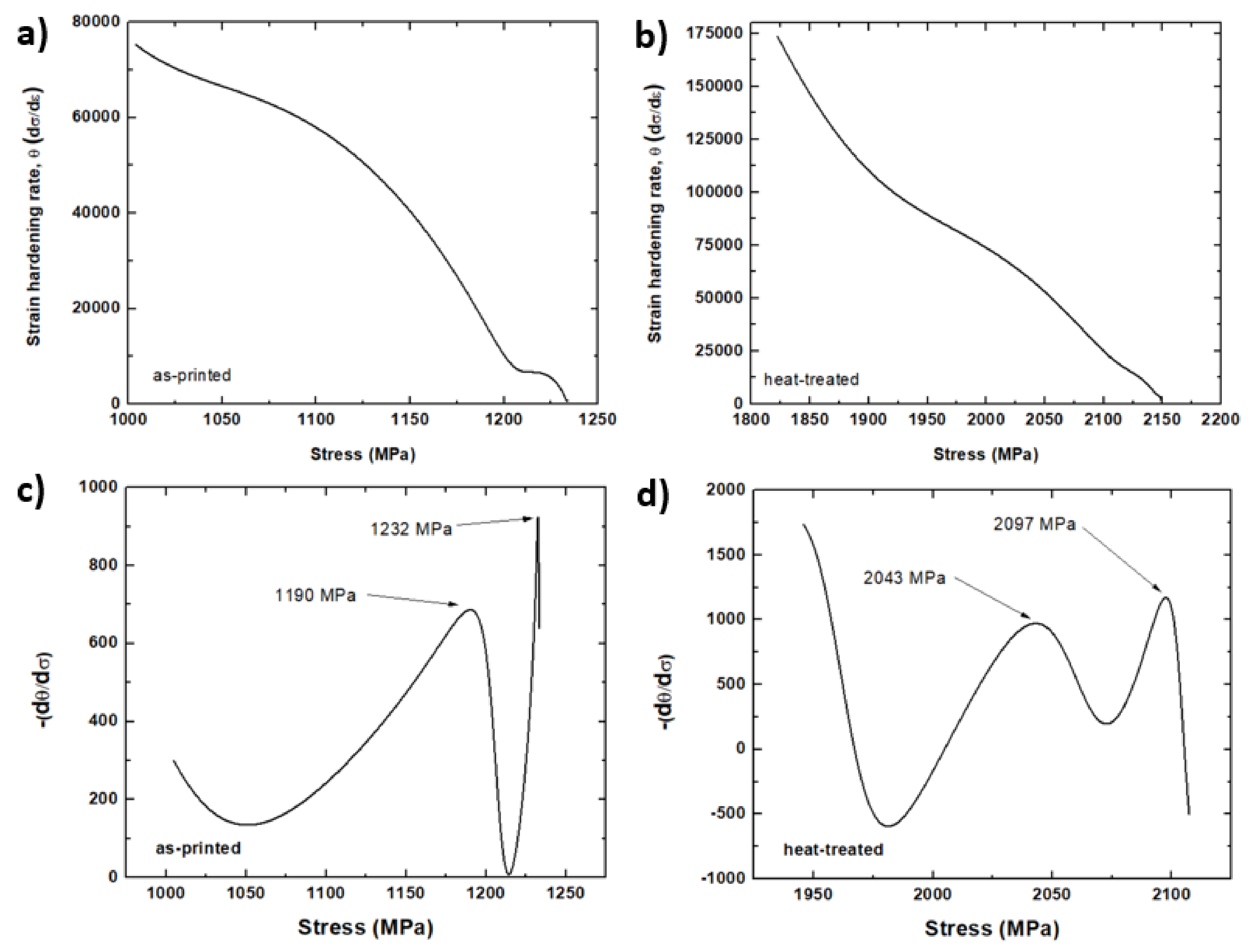

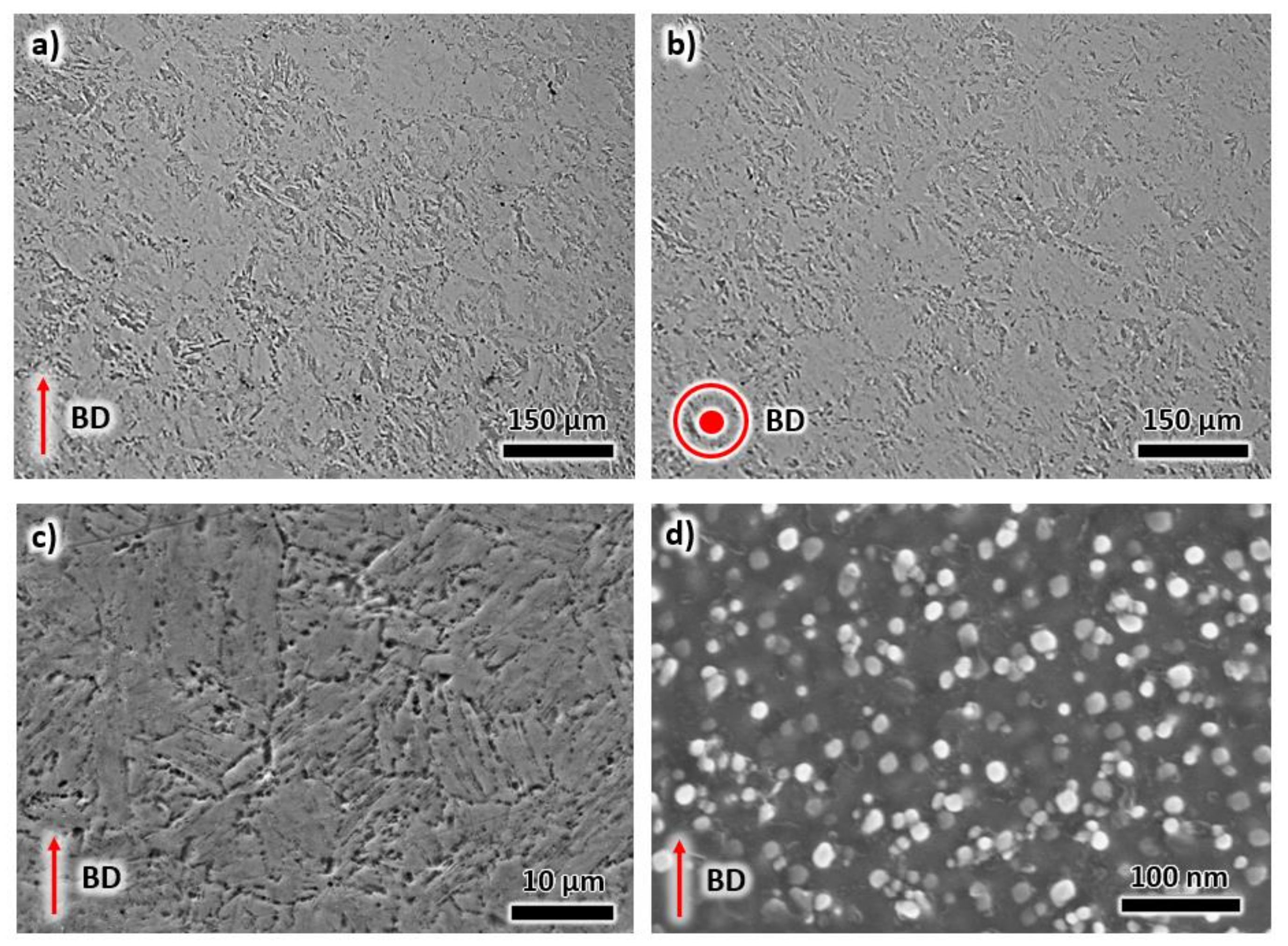

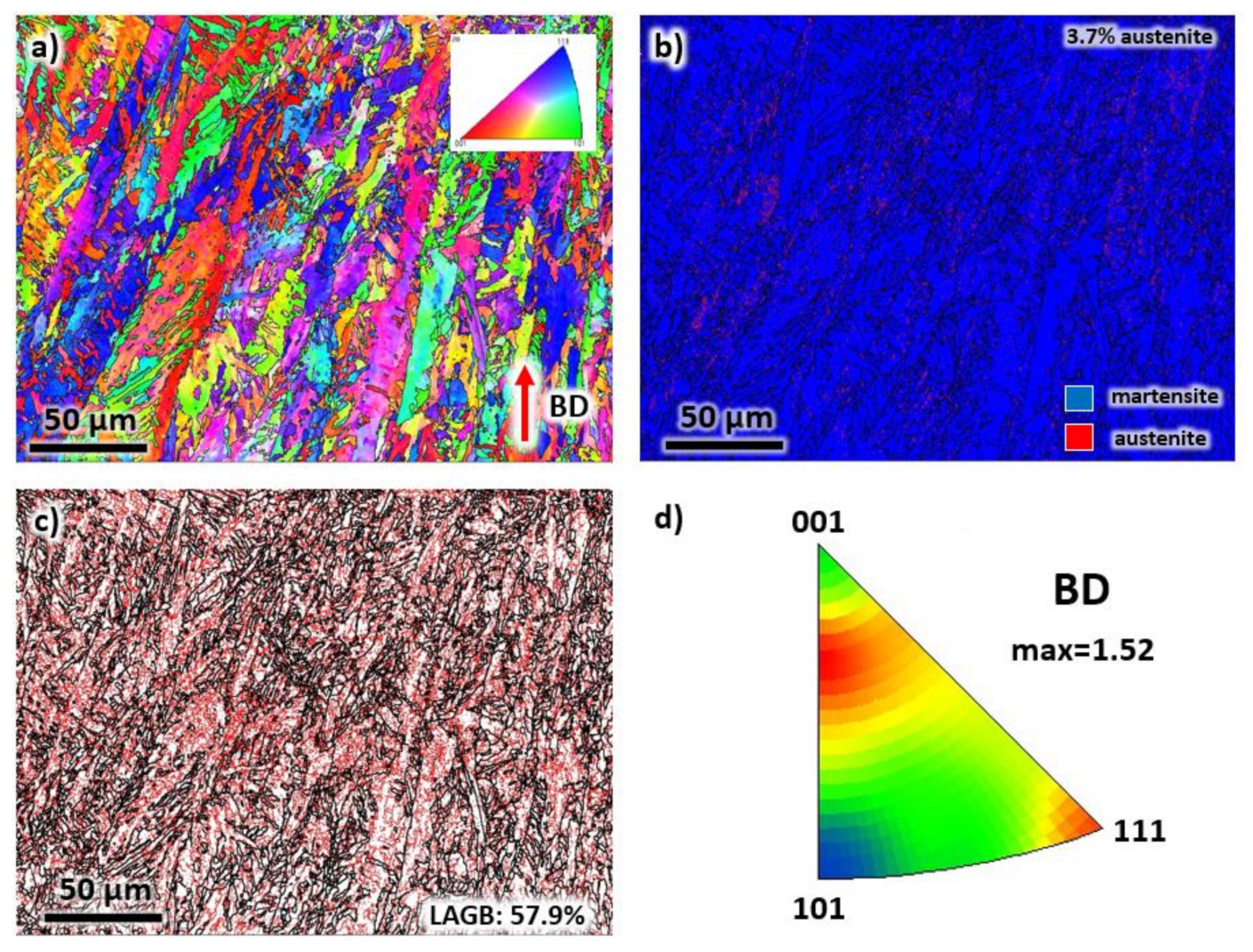

In this work, the microstructure and mechanical properties of an additively manufactured X3NiCoMoTi18-9-5 maraging steel were determined. Optical and electron microscopies revealed the formation of melt pool boundaries and epitaxial grain growth with cellular dendritic structures after the laser powder bed fusion (LPBF) process. The cooling rate is estimated to be around 106 °C/s during solidification, which eliminates the nucleation of any precipitates. However, it allows the formation of austenite with a volume fraction of about 5% and dendritic structures with primary arm spacing of 0.41 ± 0.23 µm. The electron backscatter diffraction analysis showed the formation of elongated grains with significant low-angle grain boundaries (LAGBs). Then, a solutionizing treatment was applied to the as-printed samples to dissolve all the secondary phases, followed by aging treatment. The reverted austenite was evident after heat treatment, which transformed into martensite after tensile testing. The critical plastic stresses for this transformation were determined using the double differentiation method. The tensile strength of the alloy increased from 1214 MPa to 2106 MPa after the aging process due to the formation of eta phase. The experimental data were complemented with thermodynamic and mechanical properties simulations, which showed a discrepancy of less than 3%. View Full-Text
Keywords: maraging steel; X3NiCoMoTi18-9-5; laser powder bed fusion; reverted austenite maraging steel; X3NiCoMoTi18-9-5; laser powder bed fusion; reverted austenite
Show Figures

Figure 1

MDPI and ACS Style

Chadha, K.; Tian, Y.; Bocher, P.; Spray, J.G.; Aranas, C., Jr. Microstructure Evolution, Mechanical Properties and Deformation Behavior of an Additively Manufactured Maraging Steel. Materials 2020, 13, 2380.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
