Next Article in Journal
Surface Modification of Carbon Fibers by Grafting PEEK-NH2 for Improving Interfacial Adhesion with Polyetheretherketone
Previous Article in Journal
Aggregates Obtained by Alkali Activation of Fly Ash: The Effect of Granulation, Pelletization Methods and Curing Regimes
Article Menu
Issue 5 (March-1) cover image

Export Article

Open AccessArticle
Materials 2019, 12(5), 777;

Textured Sr2Sc0.1Nb0.1Co1.5Fe0.3O6−2δ Thin Film Cathodes for IT-SOFCs

School of Physical Science and Technology, ShanghaiTech University, 393 Middle Huaxia Road, Pudong, Shanghai 201210, China
Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
University of Chinese Academy of Sciences, Beijing 100049, China
Jiangsu National Synergetic Innovation Center for Advanced Materials (SICAM), State Key Laboratory of Materials-Oriented Chemical Engineering, College of Chemical Engineering, Nanjing Tech University, No.5 Xin Mofan Road, Nanjing 210009, China
Authors to whom correspondence should be addressed.
Received: 15 January 2019 / Revised: 19 February 2019 / Accepted: 24 February 2019 / Published: 7 March 2019
Full-Text   |   PDF [2582 KB, uploaded 7 March 2019]   |

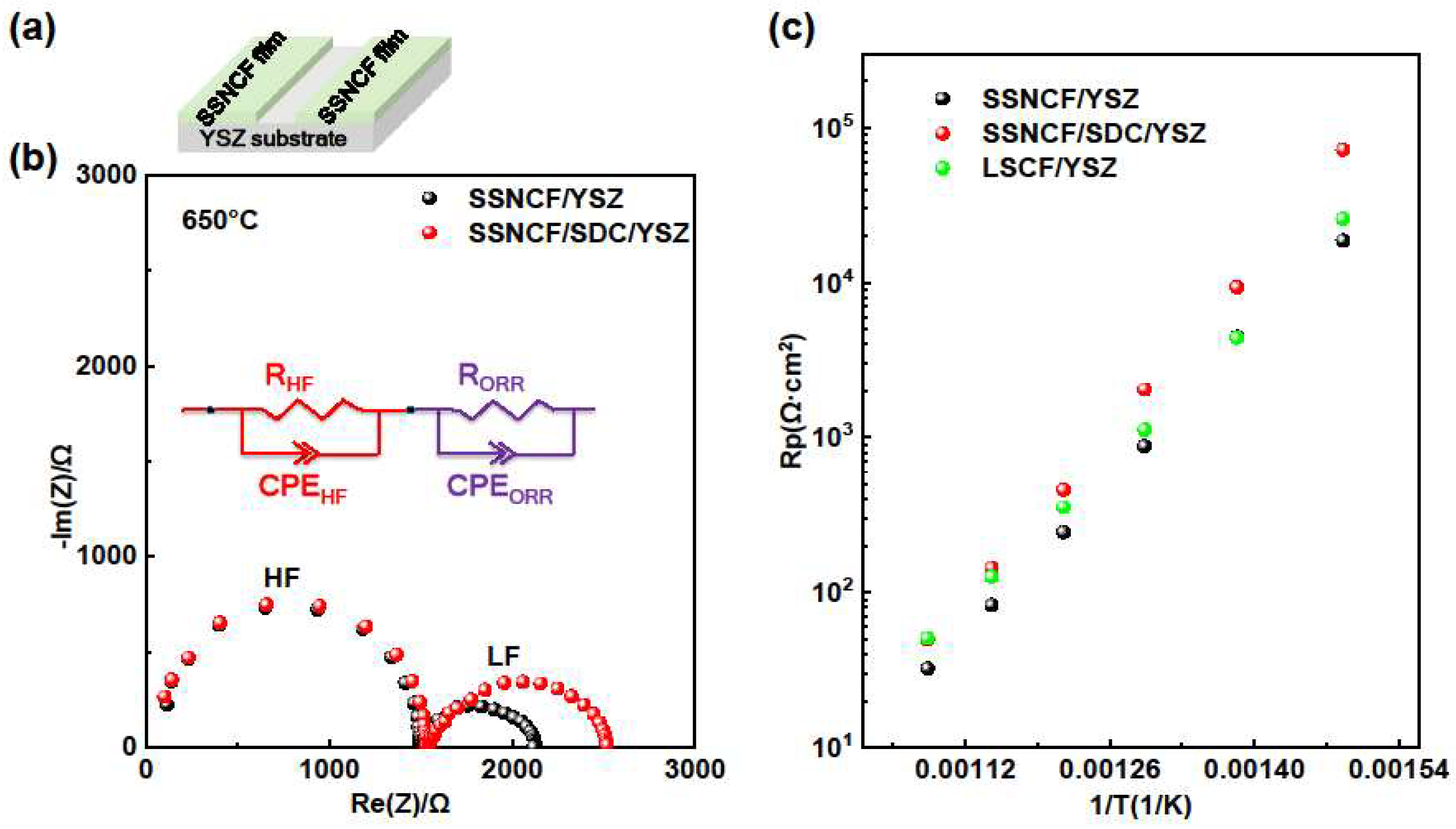

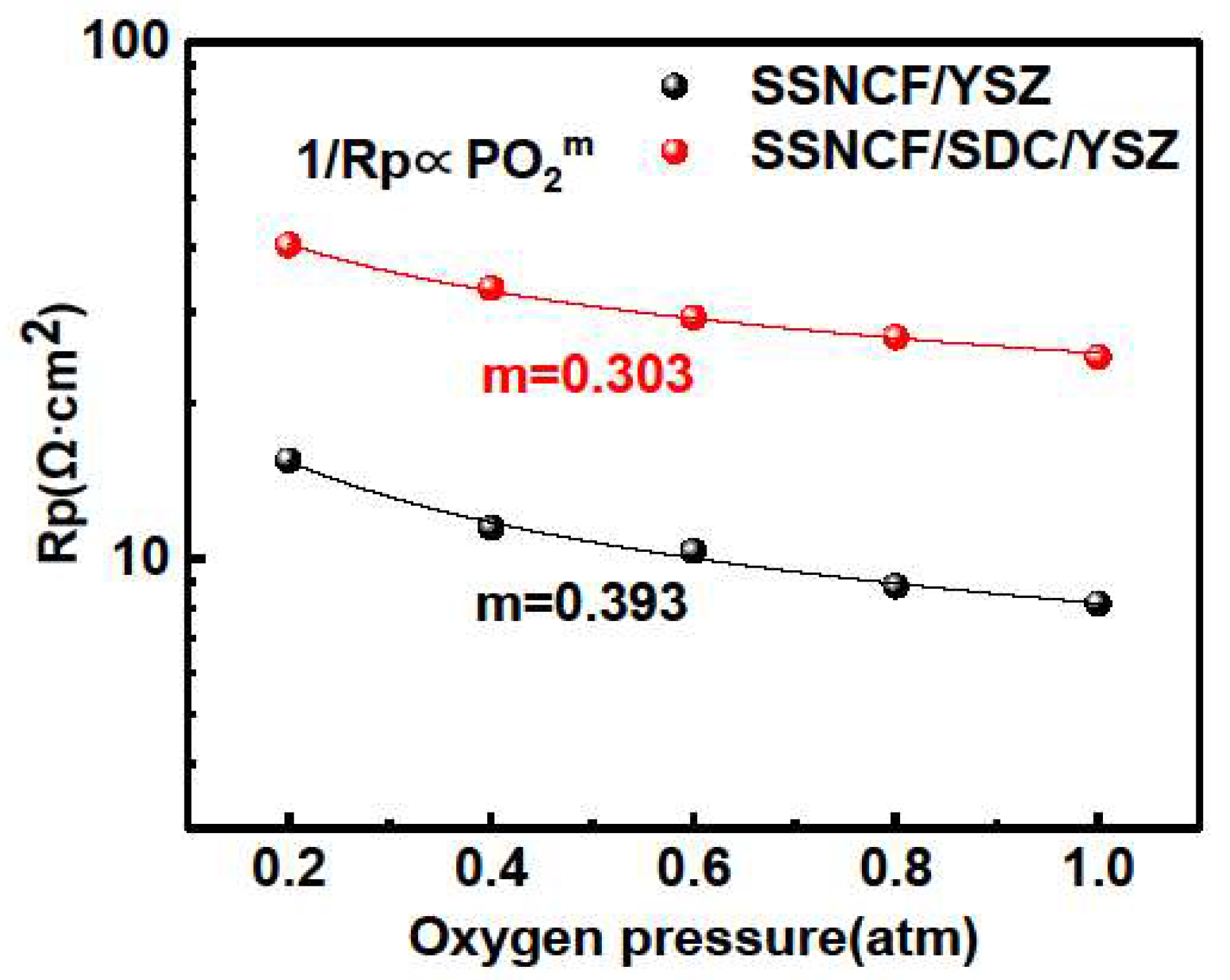

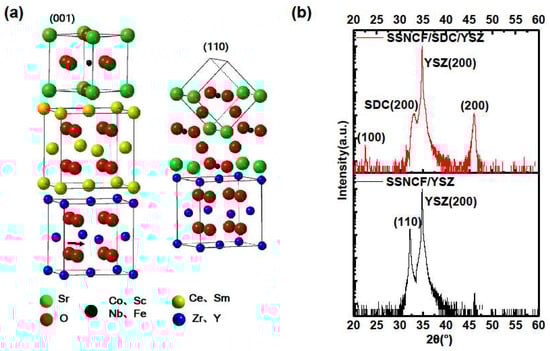

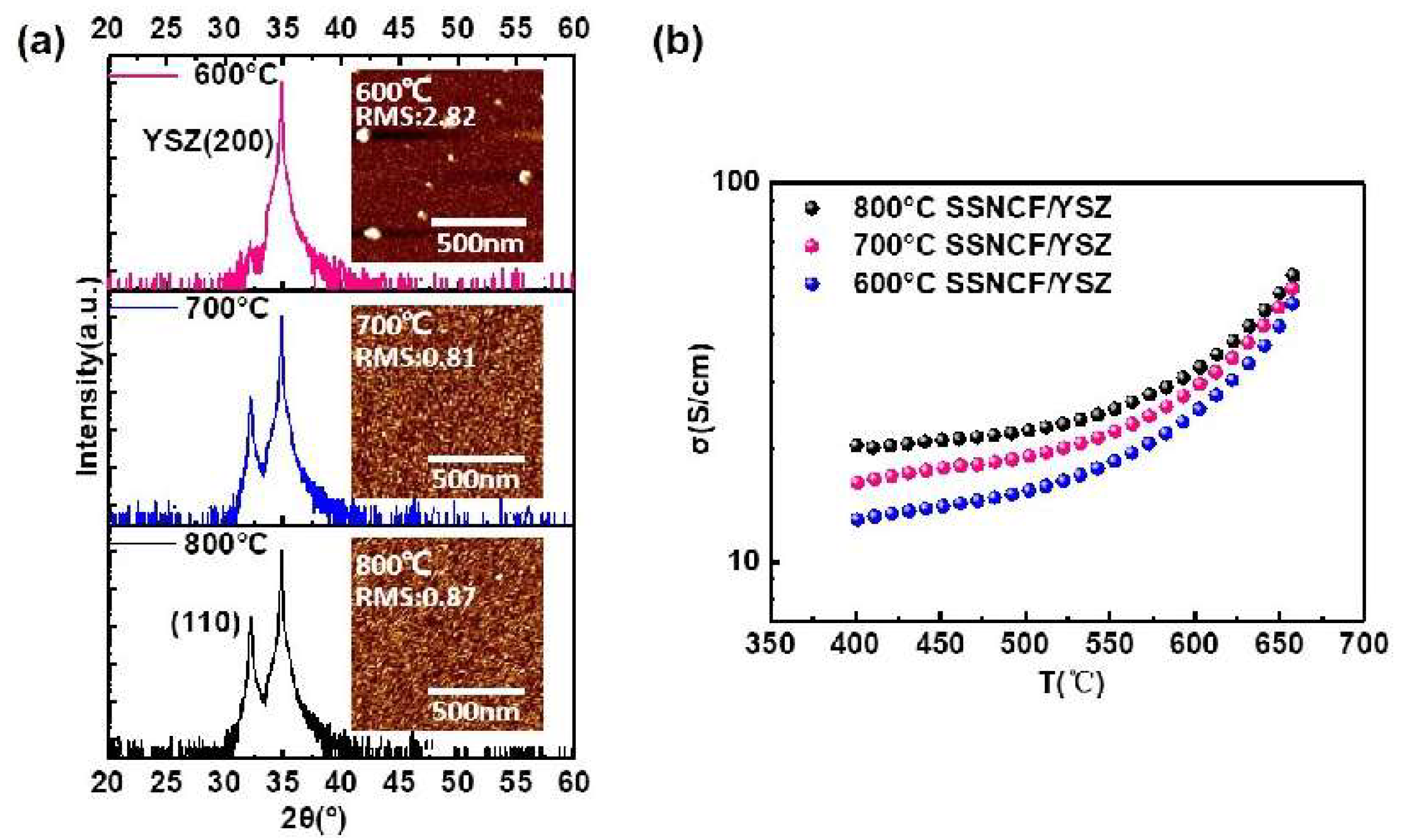

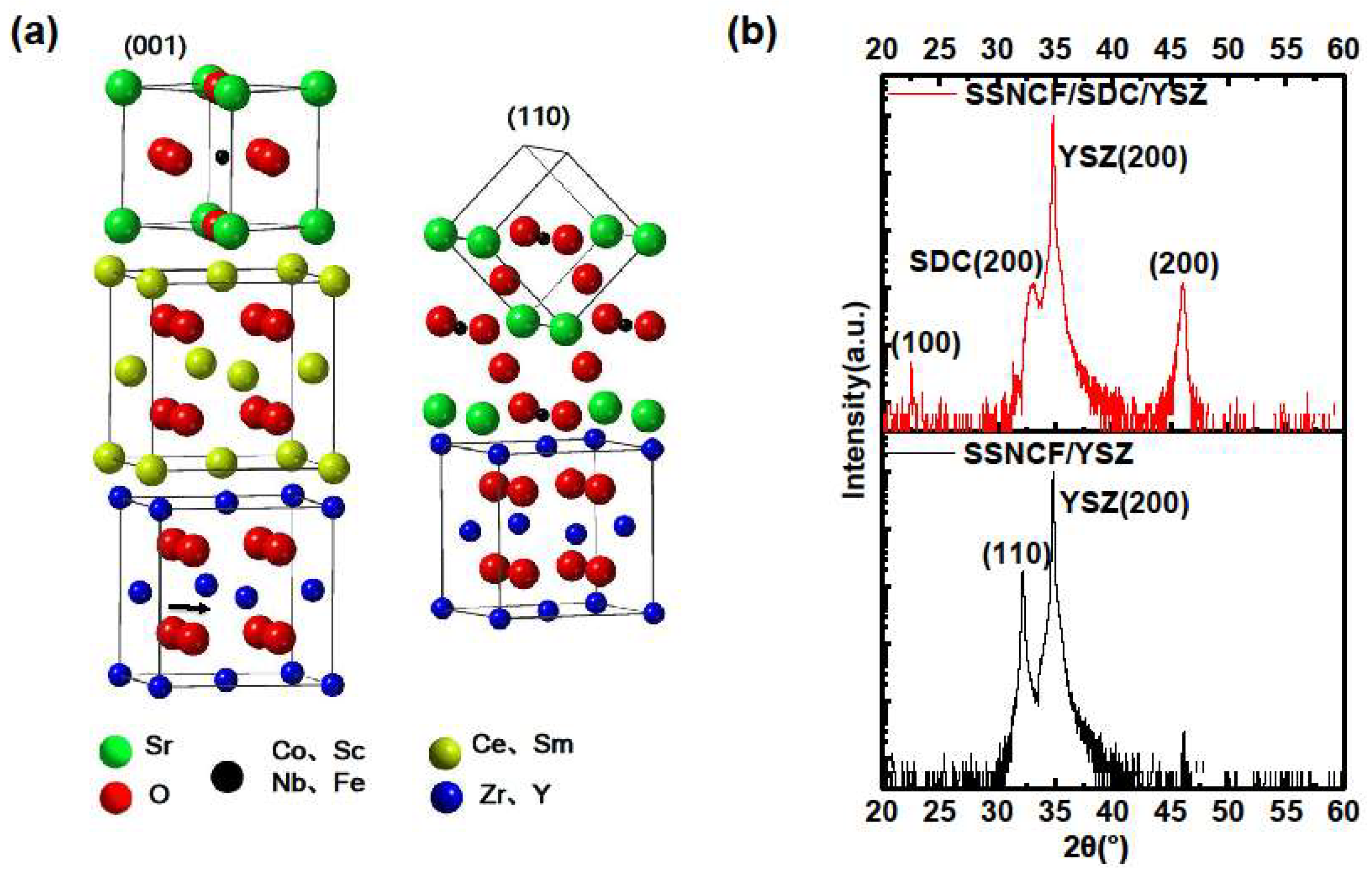

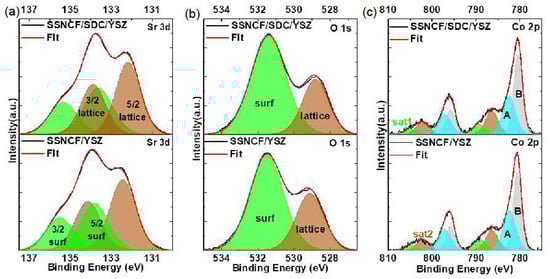

Reducing the operating temperature of solid oxide fuel cells (SOFCs) to intermediate (650–850 °C) or even lower levels (400–650 °C) is an important practical requirement. However, the main obstacle to lowering the operating temperature is the poor oxygen reduction reaction (ORR) activity on the cathode side and, therefore, it is essential to explore cathode materials with good ORR activity in these temperature ranges. In this work, we investigated the possibility of using Sr2Sc0.1Nb0.1Co1.5Fe0.3O6−2δ (SSNCF) as a suitable intermediate temperature cathode material. SSNCF thin films with different orientations were prepared using the pulsed laser deposition technique, and the relationship of the surface chemical states and ORR activity was discussed in terms of crystallographic orientation. The results showed that the SSNCF/YSZ grown along the [110] direction exhibited superior ORR activity compared to the SSNCF/SDC/YSZ thin film electrode grown along the [100] direction. This was explained by the variation in the Sr-surface enrichment and cobalt ion oxidation state using X-ray photoemission spectroscopy. View Full-Text
Keywords: SOFCs; mixed ionic electronic conductor; ORR; thin films; surface chemistry SOFCs; mixed ionic electronic conductor; ORR; thin films; surface chemistry

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Zhu, Z.; Zhou, C.; Zhou, W.; Yang, N. Textured Sr2Sc0.1Nb0.1Co1.5Fe0.3O6−2δ Thin Film Cathodes for IT-SOFCs. Materials 2019, 12, 777.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
