Investigation of Sheet Metal Forming Using a Rapid Compression Machine

1
Institute of General Mechanics, RWTH Aachen University, Templergraben 64, 52062 Aachen, Germany
2
Physico-Chemical Fundamentals of Combustion (PCFC), RWTH University, Aachen, Schinkelstrasse 8, 52062 Aachen, Germany
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Materials 2019, 12(23), 3957; https://doi.org/10.3390/ma12233957
Received: 31 October 2019 / Revised: 25 November 2019 / Accepted: 27 November 2019 / Published: 29 November 2019
(This article belongs to the Special Issue Advanced Metal Forming Processes)

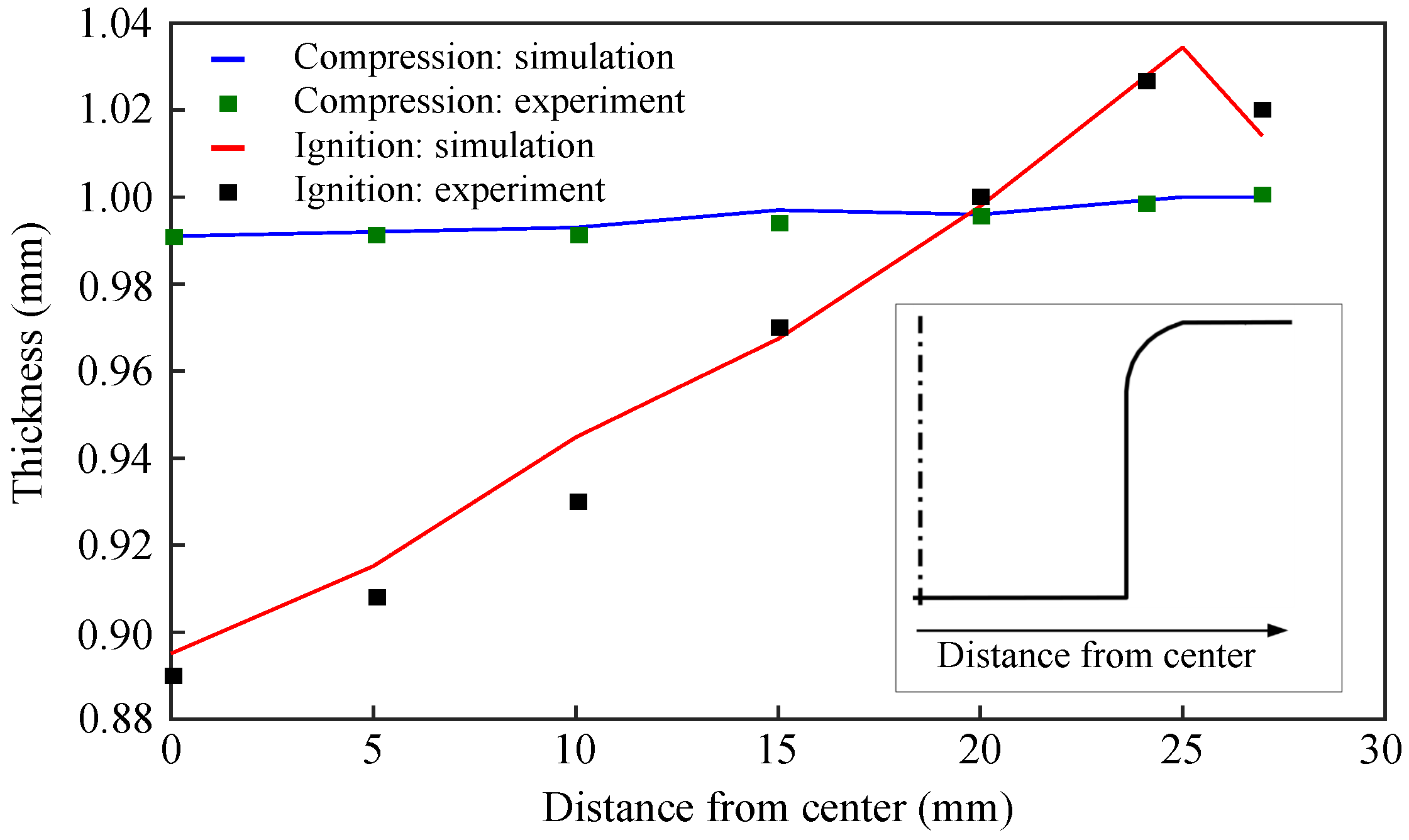

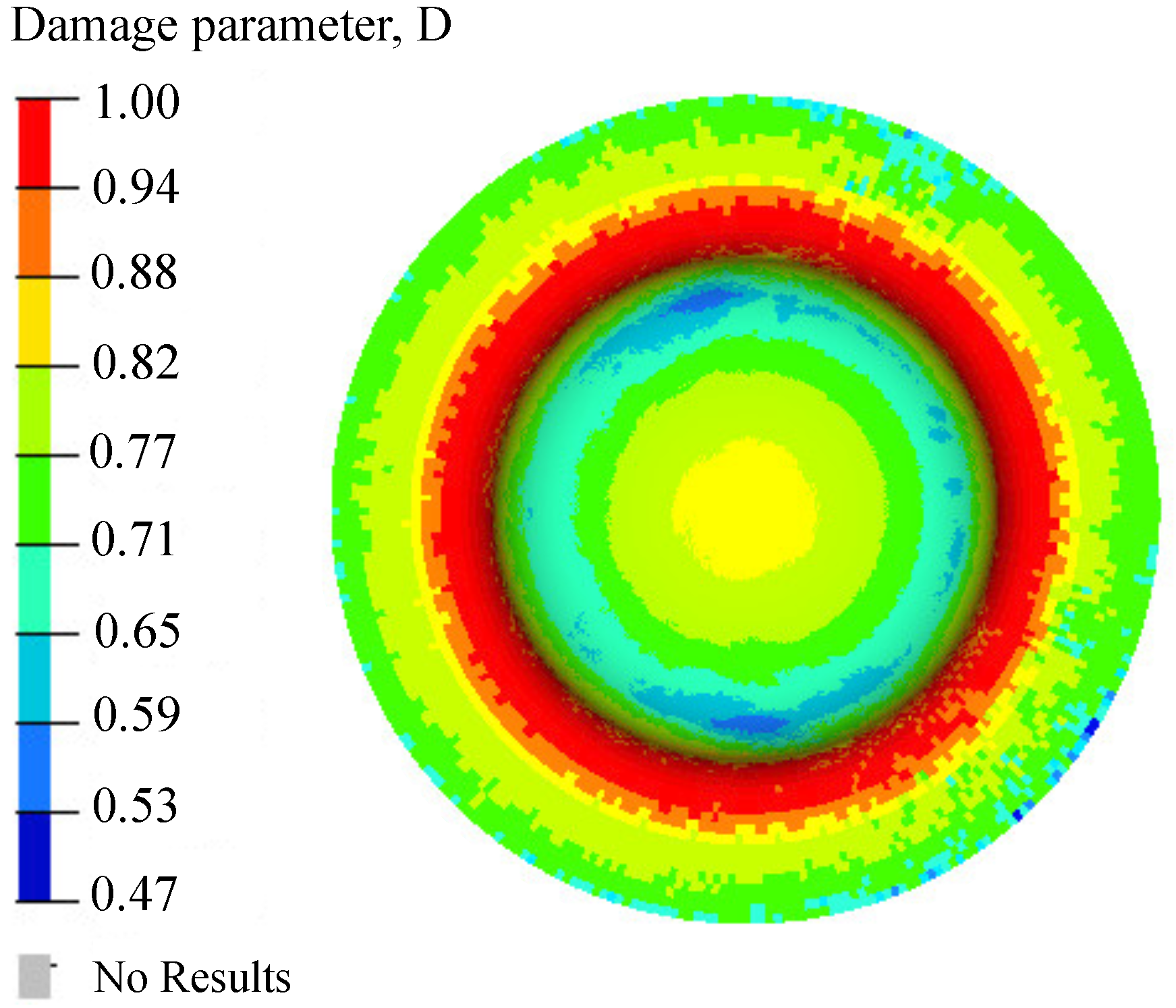

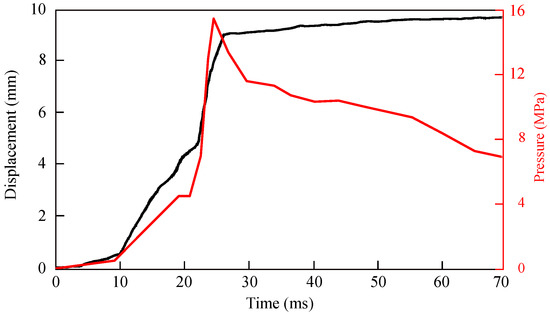

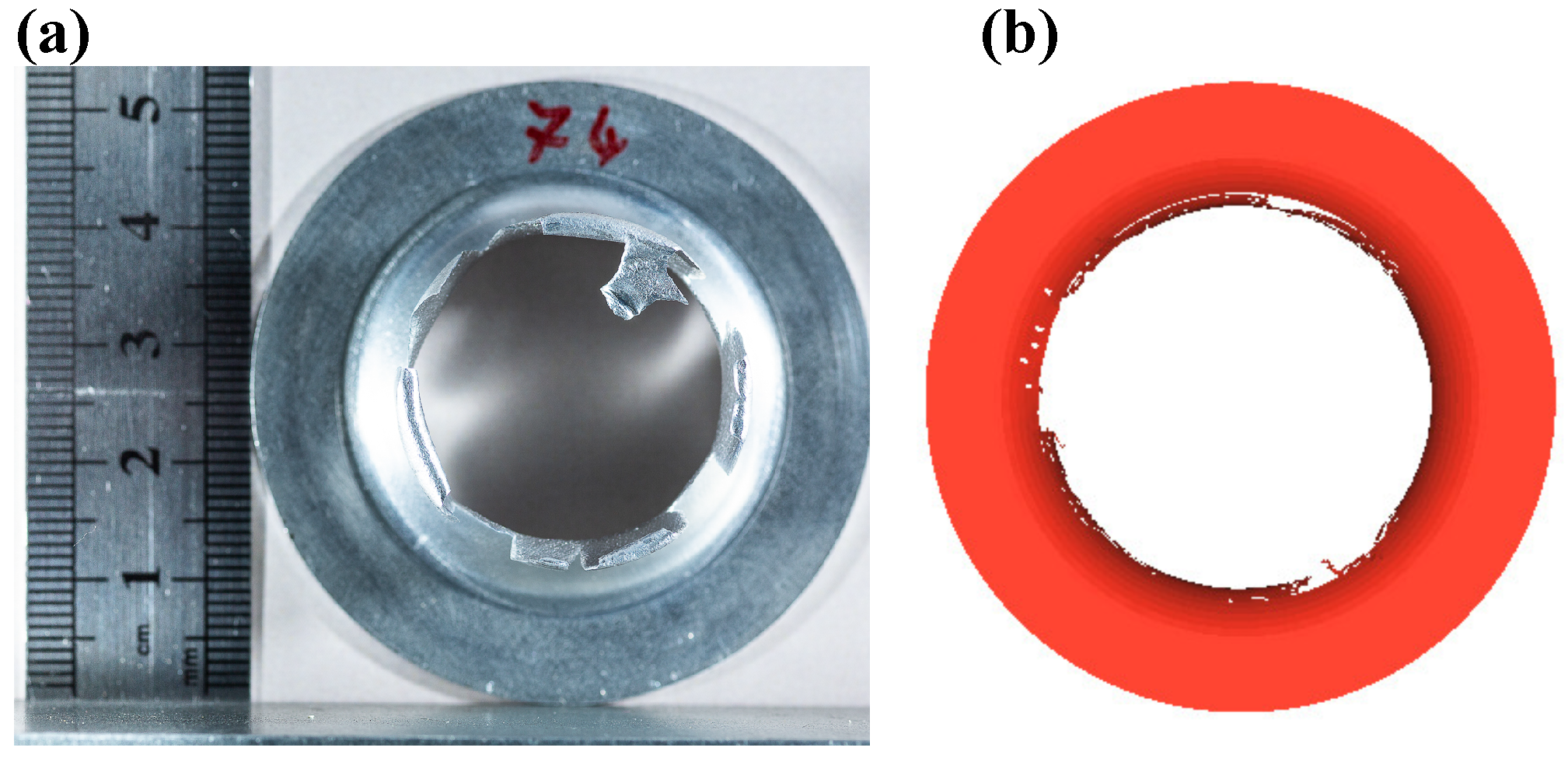

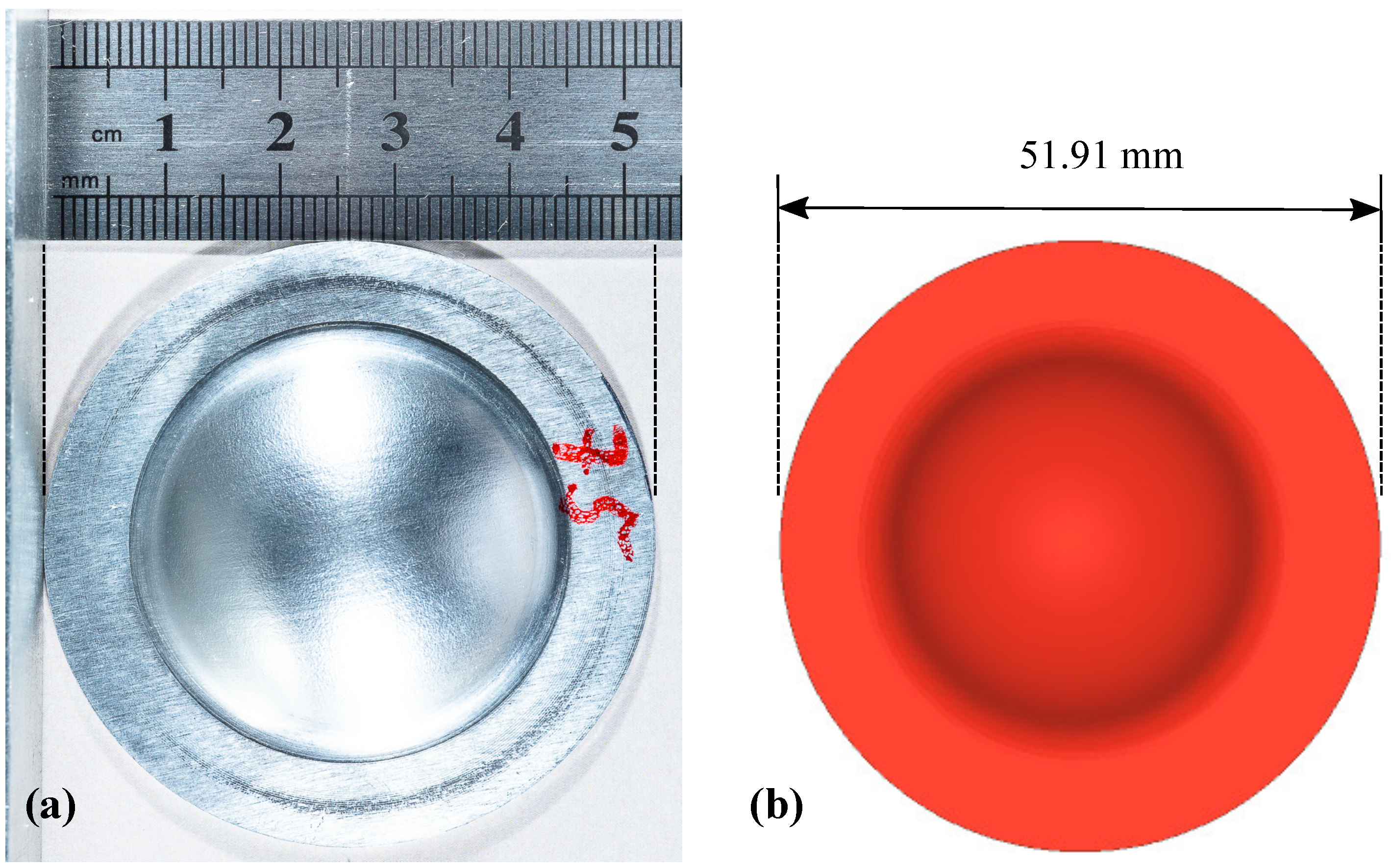

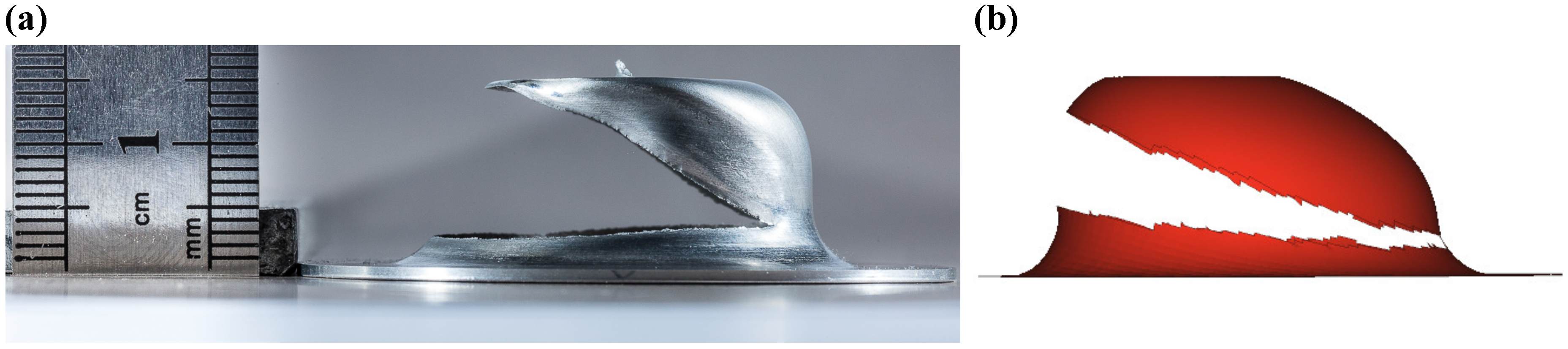

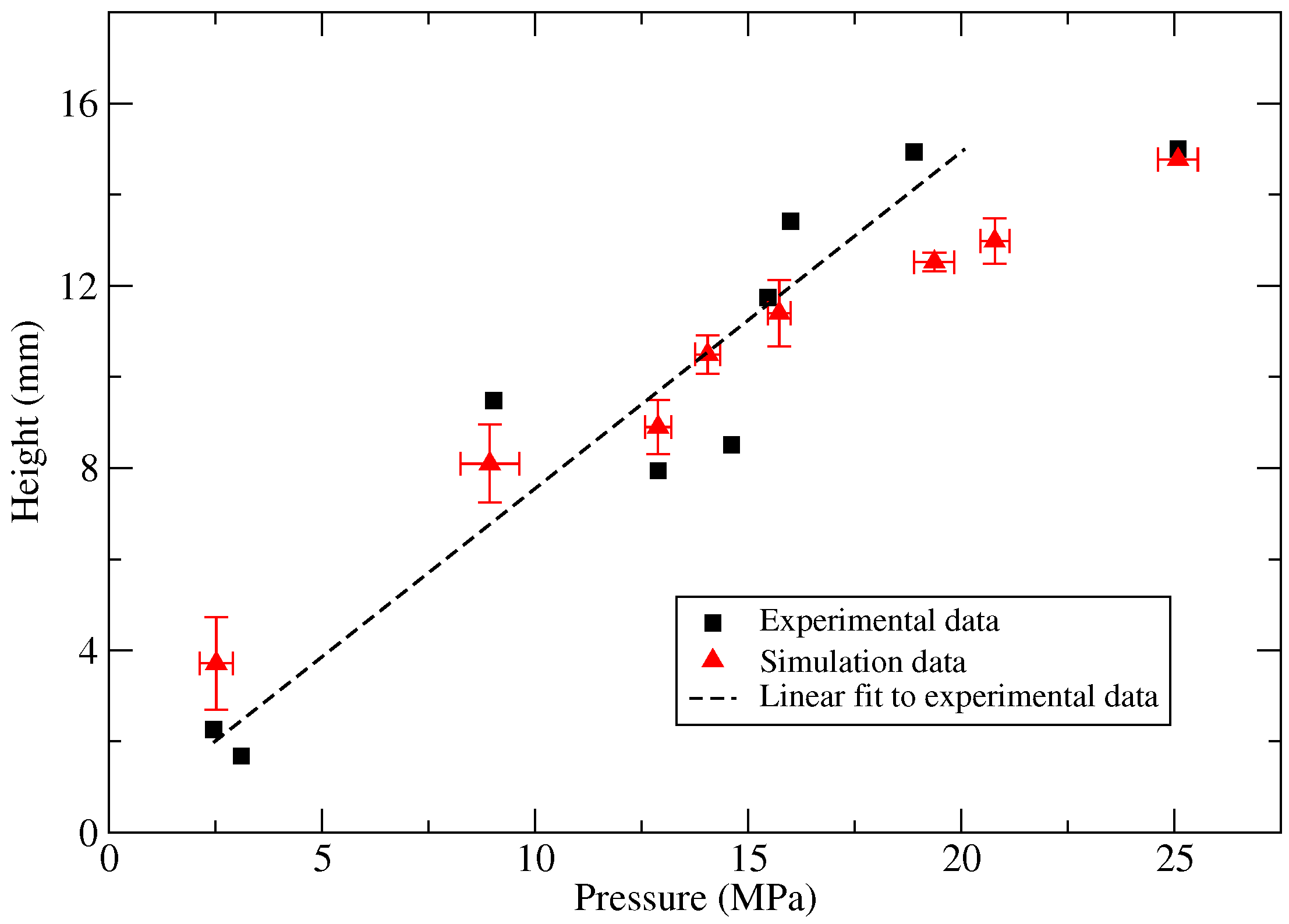

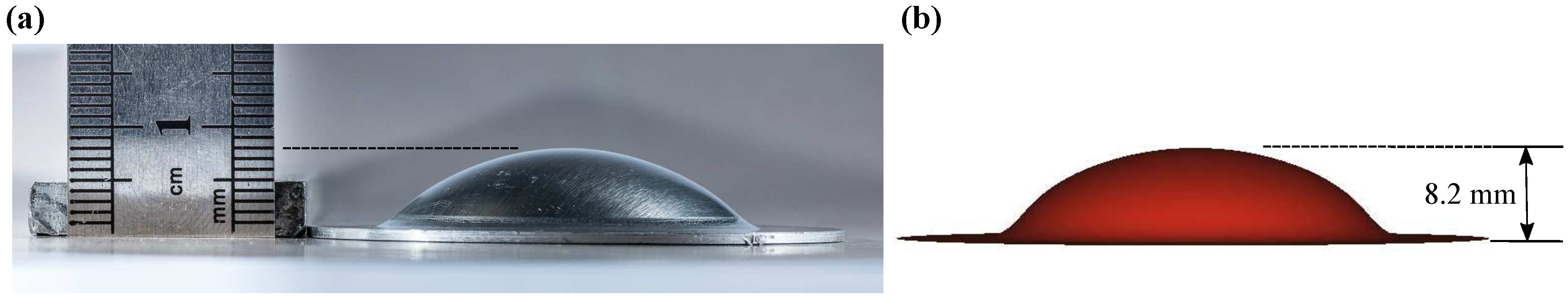

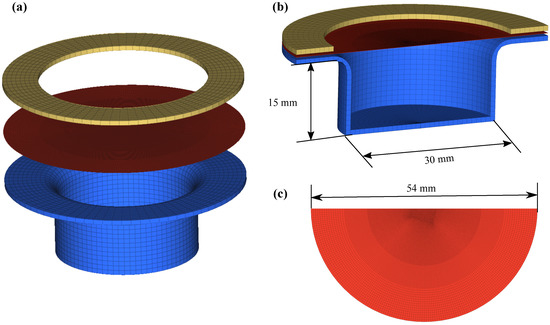

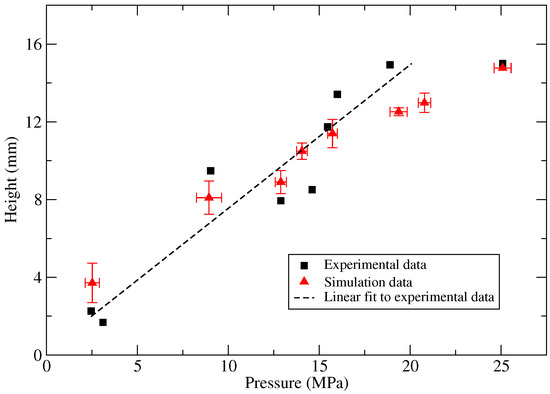

The primary goal of this work is to understand the deformation behavior of an aluminum alloy (Al) workpiece by using a rapid compression machine (RCM). The primary novelty in this work is that this is the first study on sheet metal forming using RCM. Numerical simulation and experimental results are in excellent agreement, e.g., the dome-shape, the maximum height, the final outer diameter, and the thickness distribution of the deformed workpiece. We demonstrate that the maximum deformation height grows linearly with the peak pressure with an intercept tending to zero. The proposed linear relationship can be effectively used for designing new components for a specific application. Moreover, the proposed numerical model was competent in reproducing the experimental results of damage initiation and evolution in case of high peak pressure as well as the initial misalignment of the workpiece. The results of this investigation revealed that a rapid compression machine can be utilized efficiently for the controlled forming of complex shapes of metal sheets. View Full-Text
Keywords: rapid compression machine; numerical simulations; sheet metal forming rapid compression machine; numerical simulations; sheet metal forming
Show Figures

Graphical abstract

MDPI and ACS Style

Patil, S.P.; Fenard, Y.; Bailkeri, S.; Heufer, K.A.; Markert, B. Investigation of Sheet Metal Forming Using a Rapid Compression Machine. Materials 2019, 12, 3957.
