Forming of Dynamic Microstructure of Flexible Polymer

Department of Mechanical and Energy Engineering, National Chiayi University, Chiayi City 60004, Taiwan
Materials 2019, 12(20), 3332; https://doi.org/10.3390/ma12203332
Received: 19 September 2019 / Revised: 4 October 2019 / Accepted: 11 October 2019 / Published: 12 October 2019

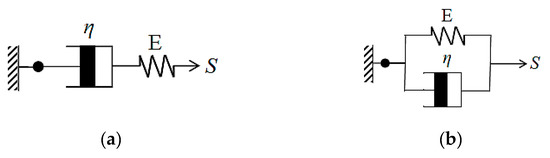

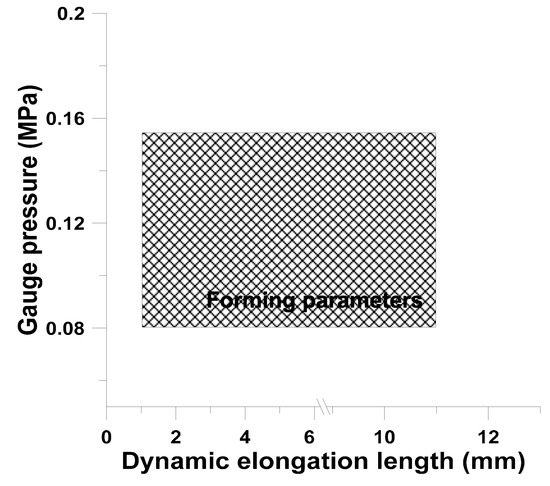

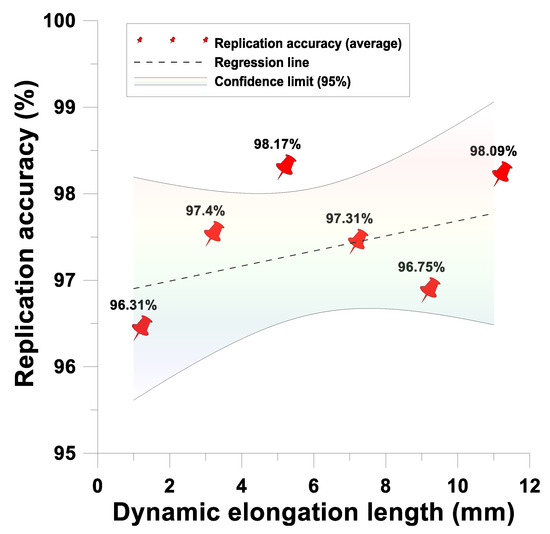

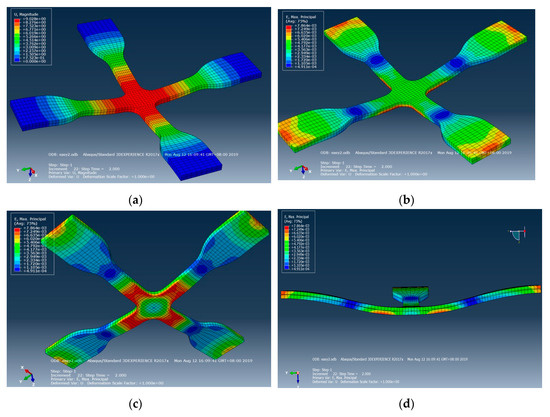

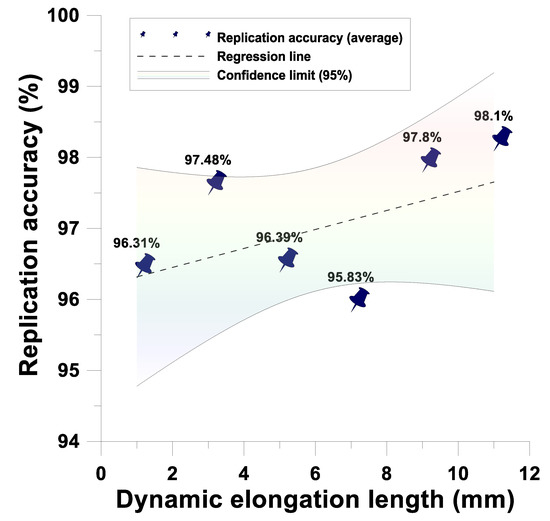

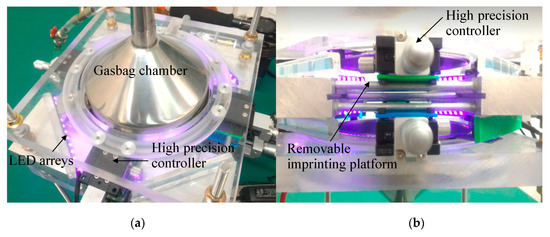

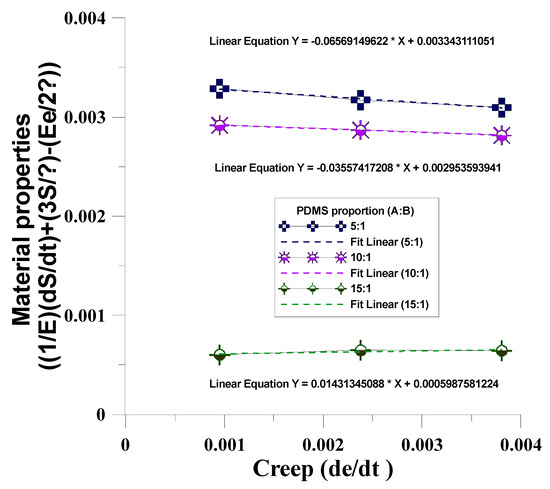

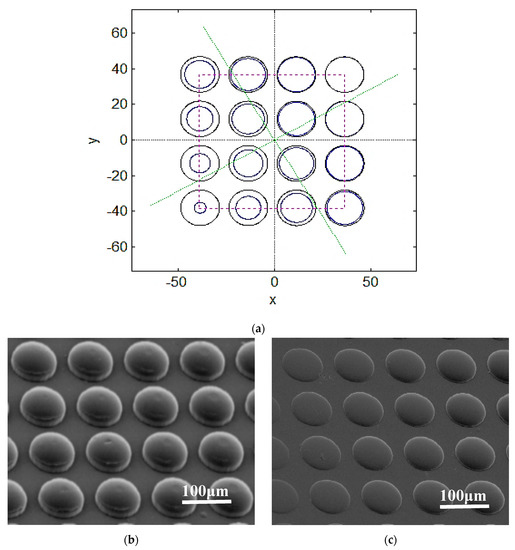

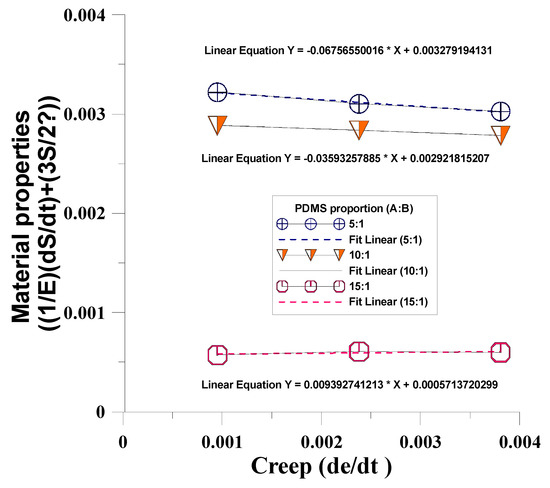

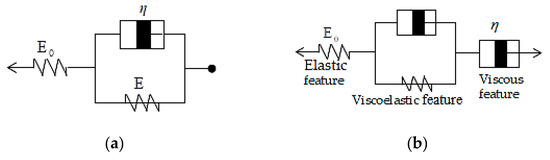

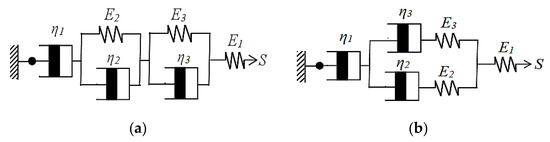

This study focuses on the forming of dynamic microstructure of flexible polymer. The dynamic tensile control microstructure of the polymer mold, along with the gasbag, was used to exert pressure to achieve forming. This study simulated the dynamic control of the flexible mold, and proposed four mechanical models of material viscoelastic response for modeling and evaluation. MATLAB software was used to calculate the imprint prediction calculation theory construction according to the imprint result of curved surface and asymmetric imprint forming. This study designed and developed a gasbag-assisted dynamic forming system, and tested the proposed system for verification. The test results showed that the mechanical stability, curved surface, and asymmetric imprint prediction calculation of the mechanical model of the viscoelastic response of flexible mold material, as proposed in this study, can display the geometric features of the imprinted microstructure. The dynamic mold microstructure control process can accurately transfer a bifacial microstructure and construct the confidence interval for transfer printing forming. View Full-Text
Keywords: bifacial gasbag; microstructure; dynamic forming; cross mold; modeling and simulation bifacial gasbag; microstructure; dynamic forming; cross mold; modeling and simulation
Show Figures

Figure 1

MDPI and ACS Style

Weng, Y.-J. Forming of Dynamic Microstructure of Flexible Polymer. Materials 2019, 12, 3332.
