Next Article in Journal
The Preparation of FeCo/ZnO Composites and Enhancement of Microwave Absorbing Property by Two-Step Method
Previous Article in Journal
Yield Stress and Reversible Strain in Titanium Nickelide Alloys after Warm Abc Pressing
Open AccessArticle

Interfacial Reactions and Mechanical Properties Studies of C-Coated and C/B4C Duplex-Coated SiC Fiber-Reinforced Ti2AlNb Composites

1
State Key Laboratory of Metastable Materials Science and Technology, Yanshan University, Qinhuangdao 066004, China
2
AECC Beijing Institute of Aeronautical Materials, P.O.Box: 81-15, Beijing 100095, China
3
State Key Laboratory of Superhard Materials, Department of Materials Science, Key Laboratory of Automobile Materials, MOE, Jilin University, Changchun 130012, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(19), 3257; https://doi.org/10.3390/ma12193257
Received: 22 August 2019 / Revised: 1 October 2019 / Accepted: 3 October 2019 / Published: 6 October 2019
(This article belongs to the Section Advanced Composites)

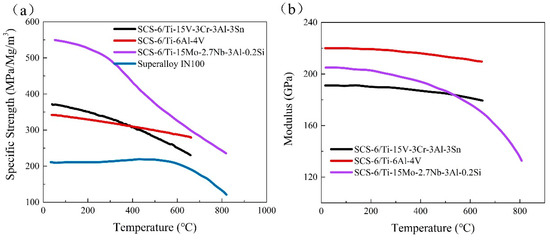

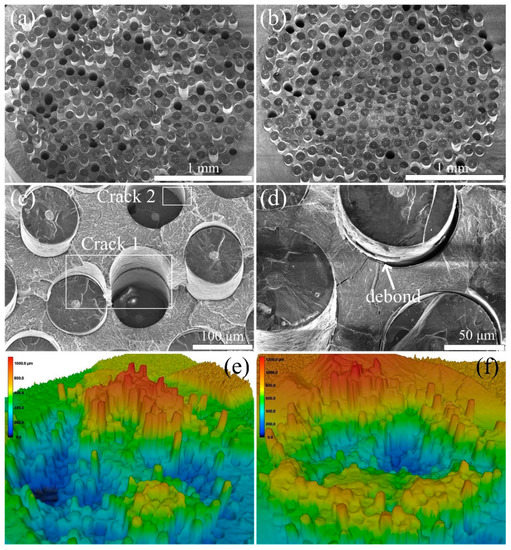

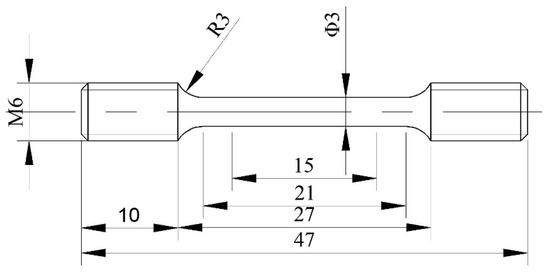

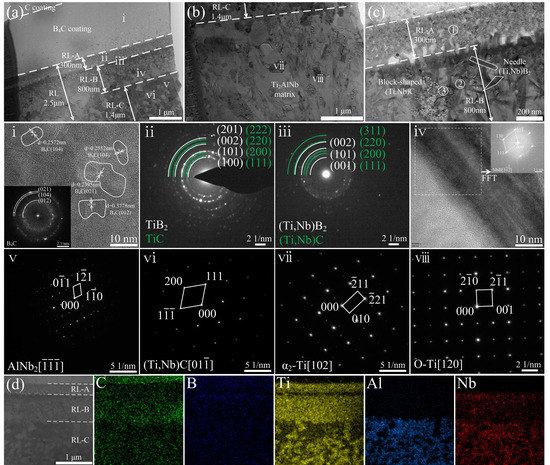

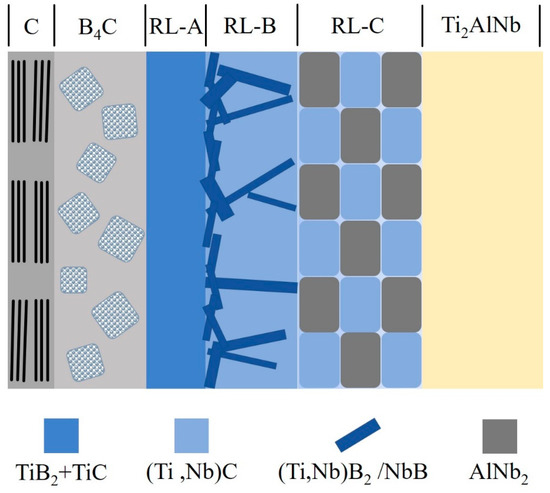

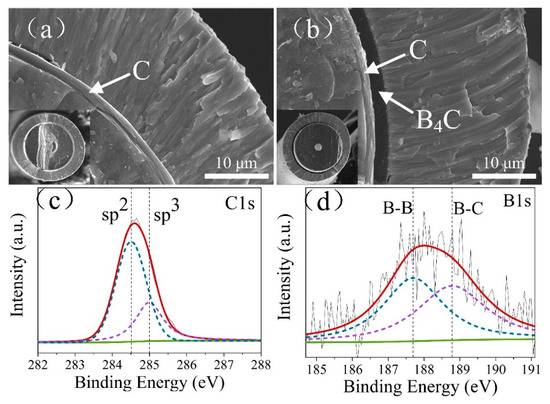

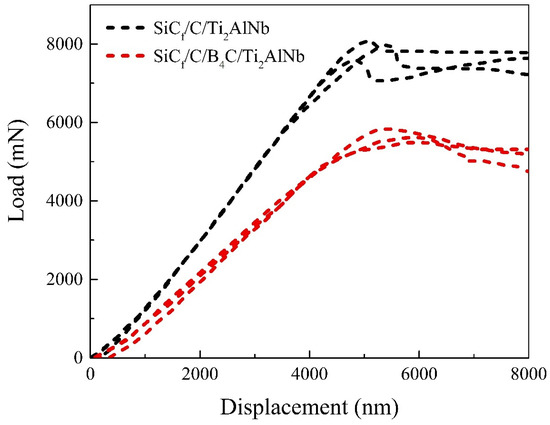

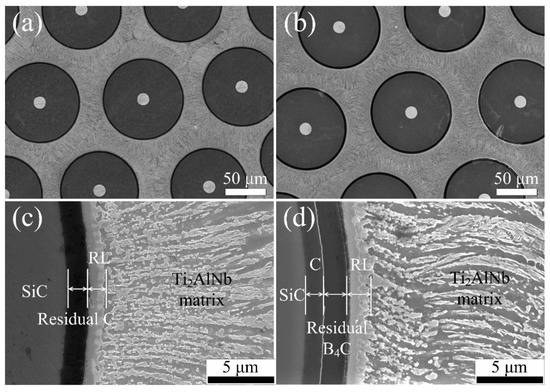

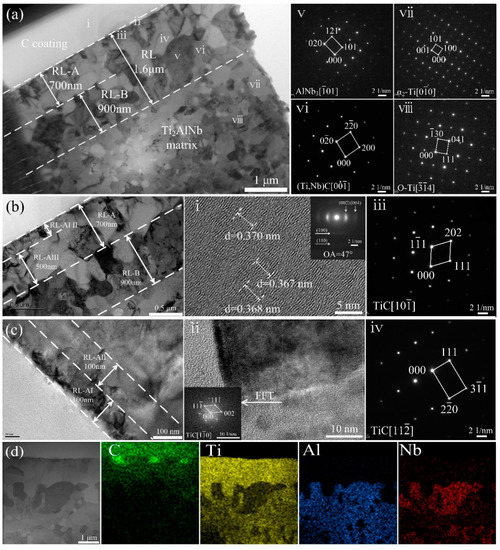

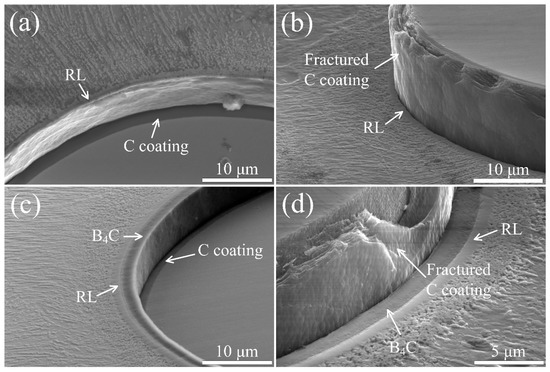

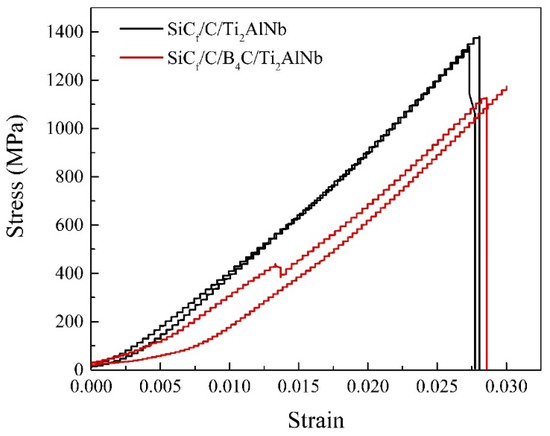

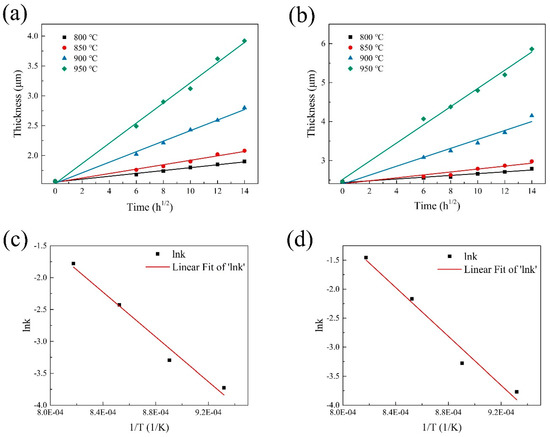

Continuous SiC fiber-reinforced Ti2AlNb matrix composites have a great potential for high-temperature aviation structure applications, and their properties strongly depend on the microstructure of the interfacial reaction layer. Notably, introducing diffusion barrier coatings has still been a popular strategy for optimizing the interfacial structure and interfacial properties of SiCf/Ti. In this work, C coating and C/B4C duplex coating were successfully fabricated onto SiC fibers via chemical vapor deposition (CVD), then consolidated into the SiCf/C/Ti2AlNb and the SiCf/C/B4C/Ti2AlNb composites, respectively, via hot isostatic pressing (HIP) under the condition of 970 °C, 150 MPa, 120 min, and finally furnace cooled to room temperature. The C- and C/B4C-dominated interfacial reactions in the SiCf/C/Ti2AlNb and the SiCf/C/B4C/Ti2AlNb were explored, revealing two different reaction products sequences: The different-sized TiC and the coarse-grained (Ti,Nb)C + AlNb3 for the SiCf/C/Ti2AlNb; and the fine-grained TiB2 + TiC, the needle-shaped (Ti,Nb)B2/NbB + (Ti,Nb)C, the coarse-grained (Ti,Nb)C + AlNb2 for the SiCf/C/B4C/Ti2AlNb. Annealing experiments were further carried out to verify the different reaction kinetics caused by C coating and C/B4C duplex coating. The reaction layer (RL)-dominated interfacial strength and tensile strength estimations showed that higher interface strength and tensile strength occurred in the SiCf/C/Ti2AlNb instead of the SiCf/C/B4C/Ti2AlNb, when the same failure mode of fiber push-out took place. View Full-Text
Keywords: SiCf/Ti2AlNb composite; C coating; C/B4C duplex coating; interfacial reaction; tensile strength SiCf/Ti2AlNb composite; C coating; C/B4C duplex coating; interfacial reaction; tensile strength
Show Figures

Figure 1

MDPI and ACS Style

Zhang, S.; Wang, M.; Wen, M.; Chen, J.; Li, H.; Xie, C.; Fan, W.; Wang, Q.; Huang, H. Interfacial Reactions and Mechanical Properties Studies of C-Coated and C/B4C Duplex-Coated SiC Fiber-Reinforced Ti2AlNb Composites. Materials 2019, 12, 3257.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
