Next Article in Journal
Comparison of Laser Milling Performance against Difficult-To-Cut Alloys: Parametric Significance, Modeling and Optimization for Targeted Material Removal
Next Article in Special Issue
Effect of Graphene Oxide on the Crystallization of Calcium Carbonate by C3S Carbonation
Previous Article in Journal
Effect of Heat Treatment on Microstructures and Mechanical Properties of a Novel β-Solidifying TiAl Alloy
Previous Article in Special Issue
Revealing the Microstructure Evolution and Carbonation Hardening Mechanism of β-C2S Pastes by Backscattered Electron Images
Article Menu
Issue 10 (May-2) cover image

Export Article

Open AccessArticle

Effect of CaSO4 Incorporation on Pore Structure and Drying Shrinkage of Alkali-Activated Binders

Department of Civil and Environmental Engineering, Korea Advanced Institute of Science and Technology, 291 Daehak-ro, Yuseong-gu, Daejeon 34141, Korea
*
Author to whom correspondence should be addressed.
Materials 2019, 12(10), 1673; https://doi.org/10.3390/ma12101673
Received: 25 April 2019 / Revised: 15 May 2019 / Accepted: 17 May 2019 / Published: 23 May 2019
(This article belongs to the Special Issue Microstructures and Durability of Cement-Based Materials)
  |
PDF [3016 KB, uploaded 23 May 2019]
  |

Abstract

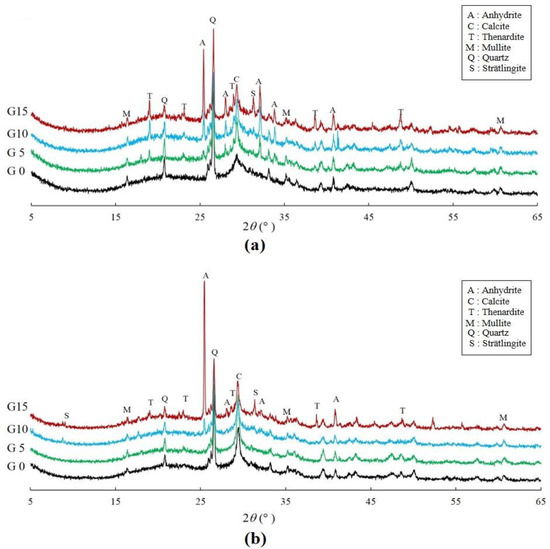

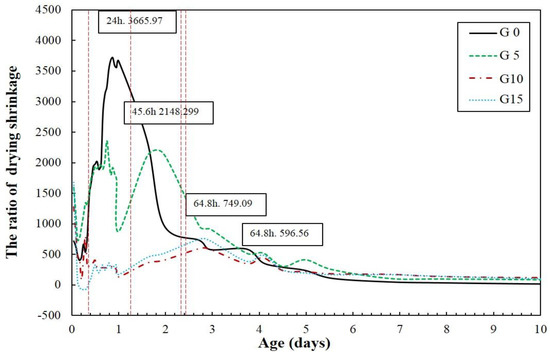

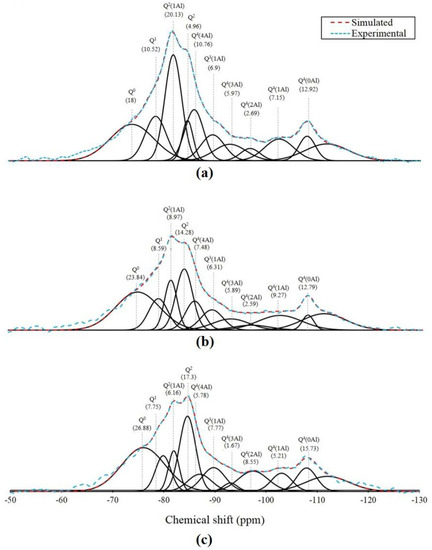

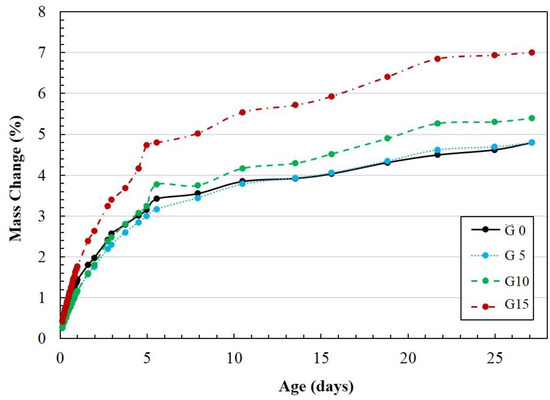

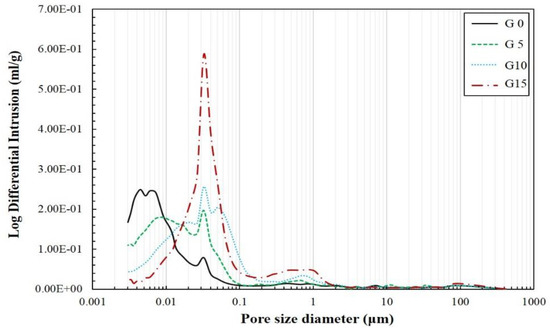

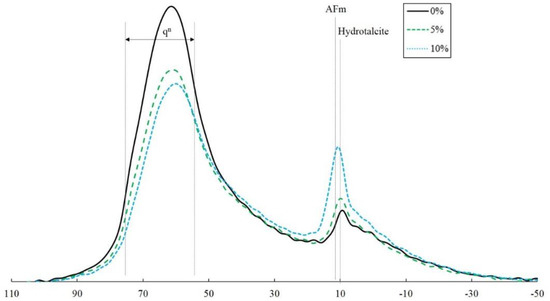

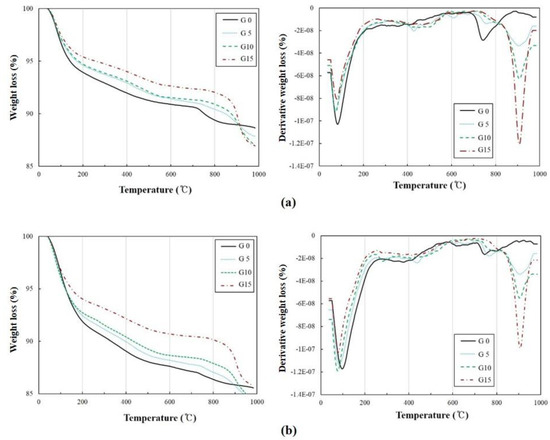

This present study investigates the effects of CaSO4 incorporation on the pore structure and drying shrinkage of alkali-activated slag and fly ash. The slag and fly ash were activated at a 5:5 ratio by weighing with a sodium silicate. Thereafter, 0%, 5%, 10%, and 15% of CaSO4 were incorporated to investigate the changes in phase formation and internal pore structure. X-Ray Diffraction (XRD), thermogravimetry (TG)/derivative thermogravimetry (DTG), mercury intrusion porosimetry (MIP), nuclear magnetic resonance (NMR), and drying shrinkage tests were carried out to find the correlation between the pore structure and drying shrinkage of the specimens. The results showed that CaSO4 incorporation increased the formation of thenardite, and these phase changes affected the pore structure of the activated fly ash and slag. The increase in the CaSO4 content increased the pore distribution in the mesopore. As a result, the capillary tension and drying shrinkage decreased. View Full-Text
Keywords: slag; fly ash; CaSO4; pore structure; drying shrinkage slag; fly ash; CaSO4; pore structure; drying shrinkage
Figures

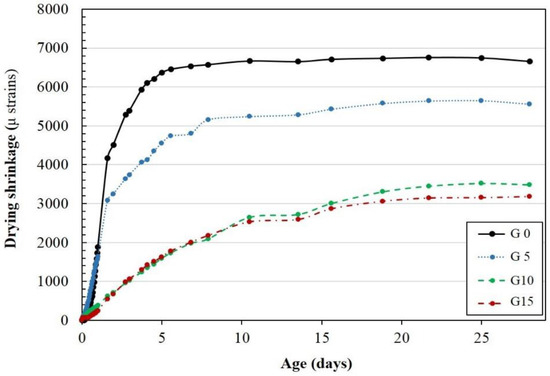

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Son, H.; Park, S.M.; Seo, J.H.; Lee, H.K. Effect of CaSO4 Incorporation on Pore Structure and Drying Shrinkage of Alkali-Activated Binders. Materials 2019, 12, 1673.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
