Next Article in Journal
CO Adsorption Performance of CuCl/Activated Carbon by Simultaneous Reduction–Dispersion of Mixed Cu(II) Salts
Previous Article in Journal
Structural, Magnetic and Electronic Properties of 3d Transition-Metal Atoms Adsorbed Monolayer BC2N: A First-principles Study
Article Menu
Issue 10 (May-2) cover image

Export Article

Open AccessArticle

Effects of T6 Treatment, Tensile Temperature, and Mass Fraction of SiC on the Mechanical Properties of SiCp/6061Al Composites

1
School of Mechanical and Aerospace Engineering, Jilin University, Changchun 130025, China
2
Key Laboratory of CNC Equipment Reliability, Ministry of Education, Jilin University, Changchun 130025, China
3
College of Construction Engineering, Jilin University, Changchun 130012, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(10), 1602; https://doi.org/10.3390/ma12101602
Received: 4 April 2019 / Revised: 30 April 2019 / Accepted: 14 May 2019 / Published: 16 May 2019
  |
PDF [7088 KB, uploaded 16 May 2019]
  |

Abstract

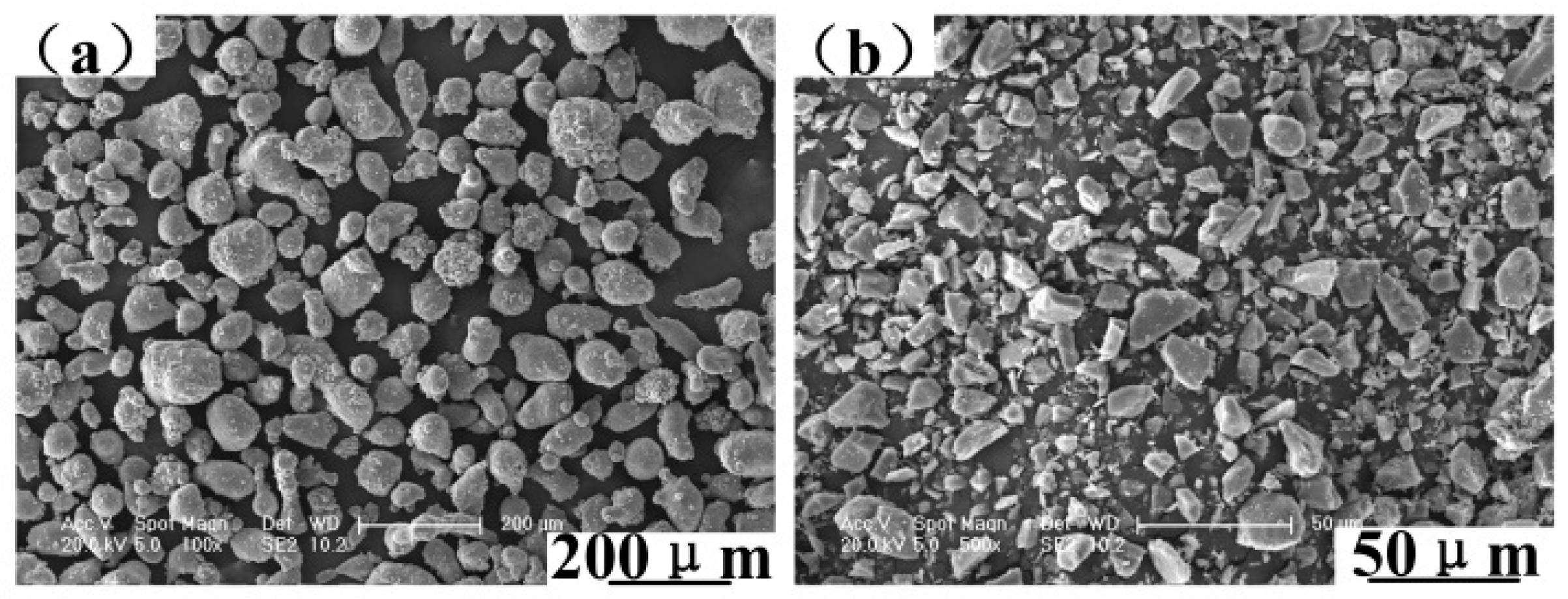

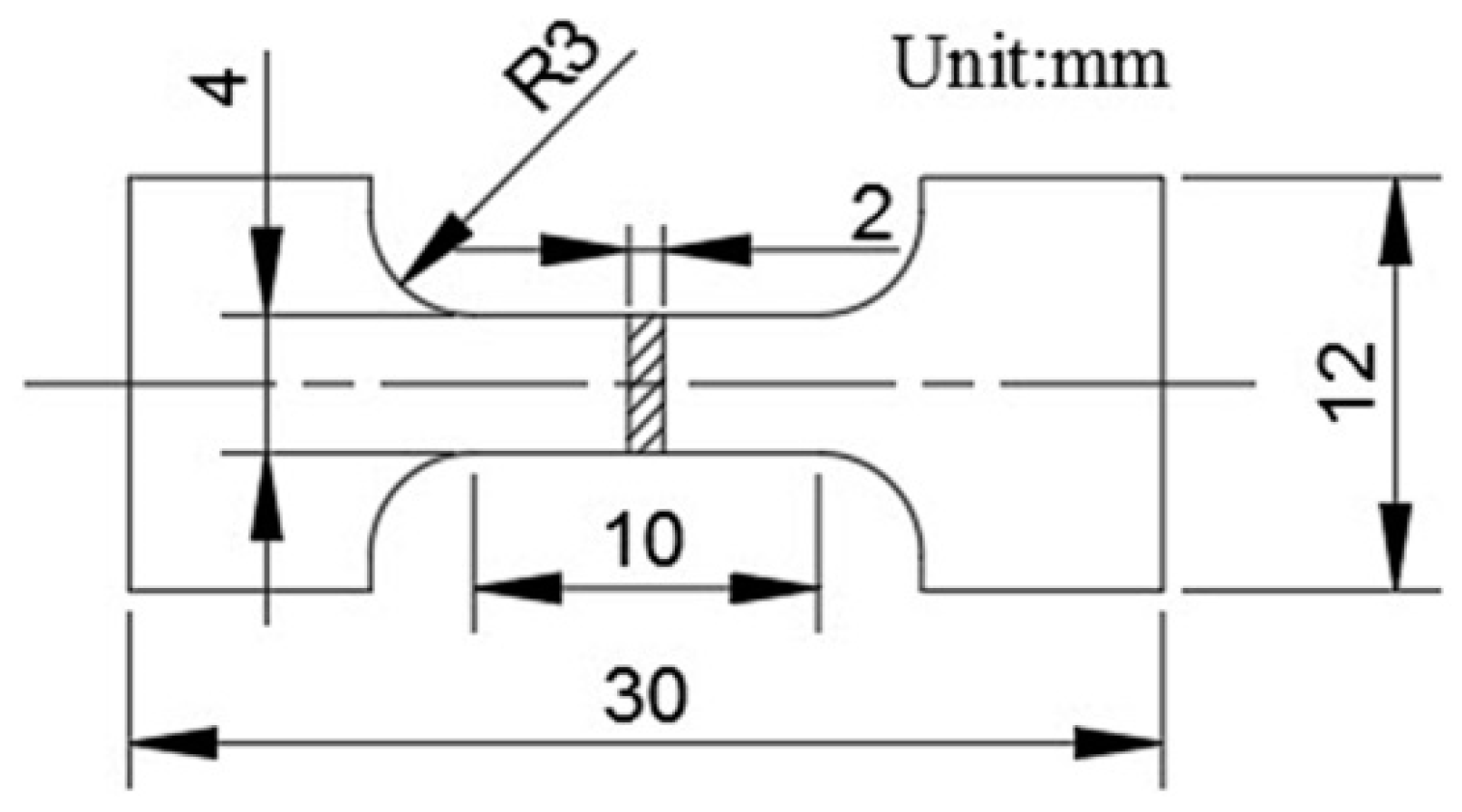

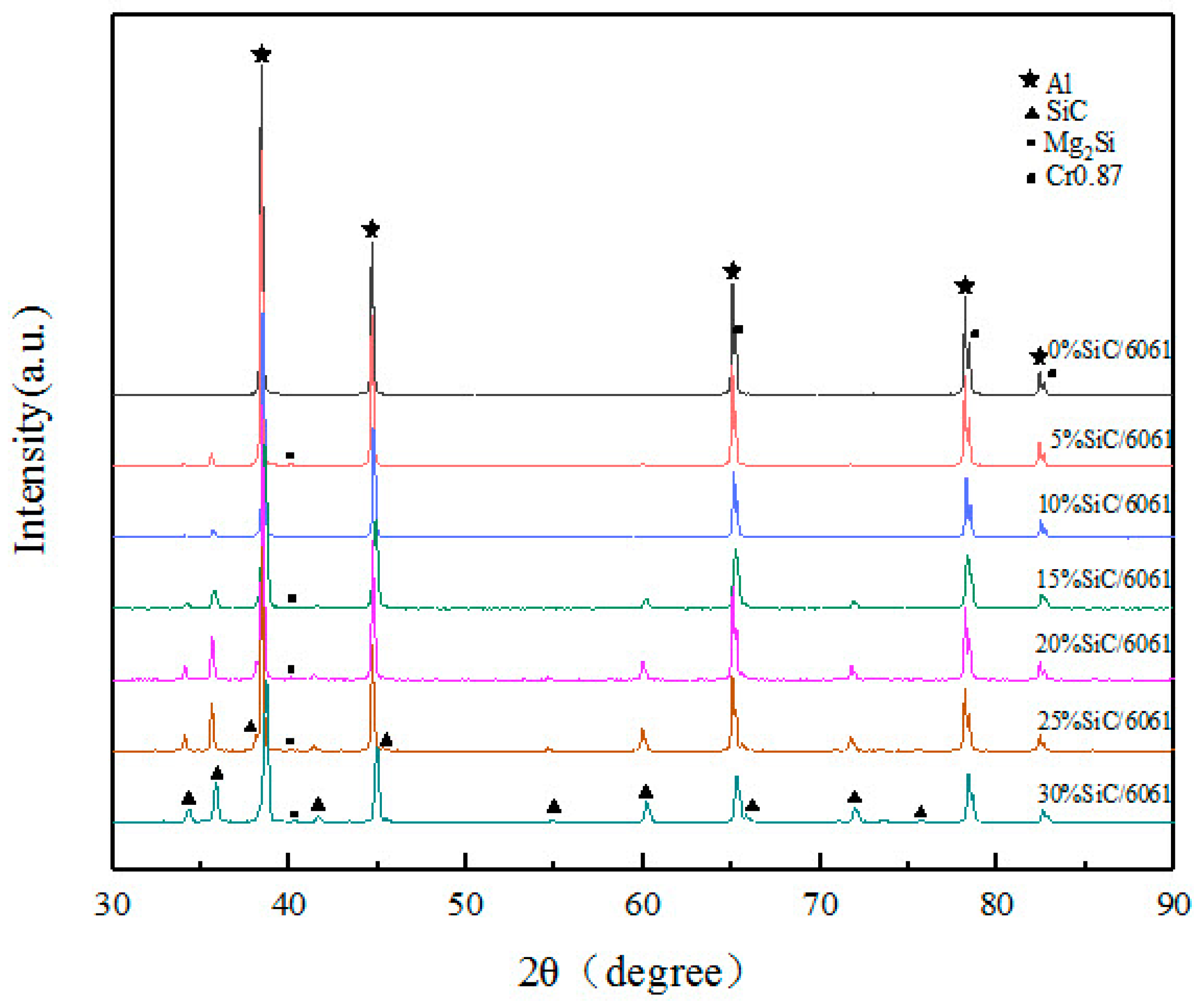

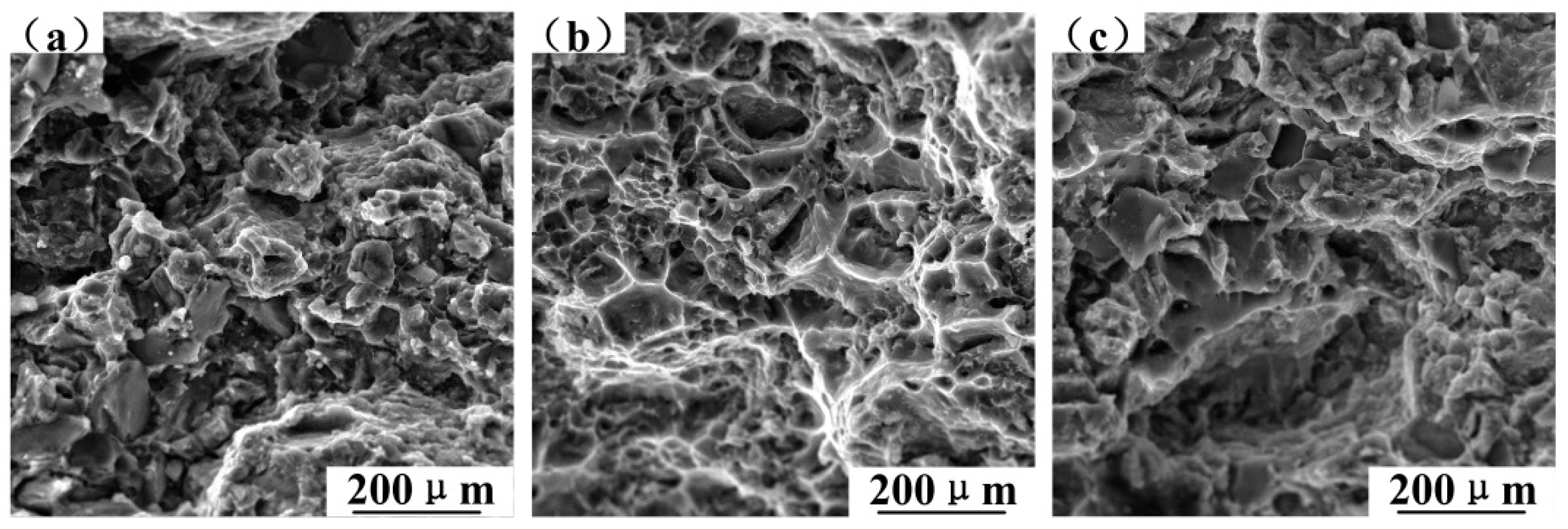

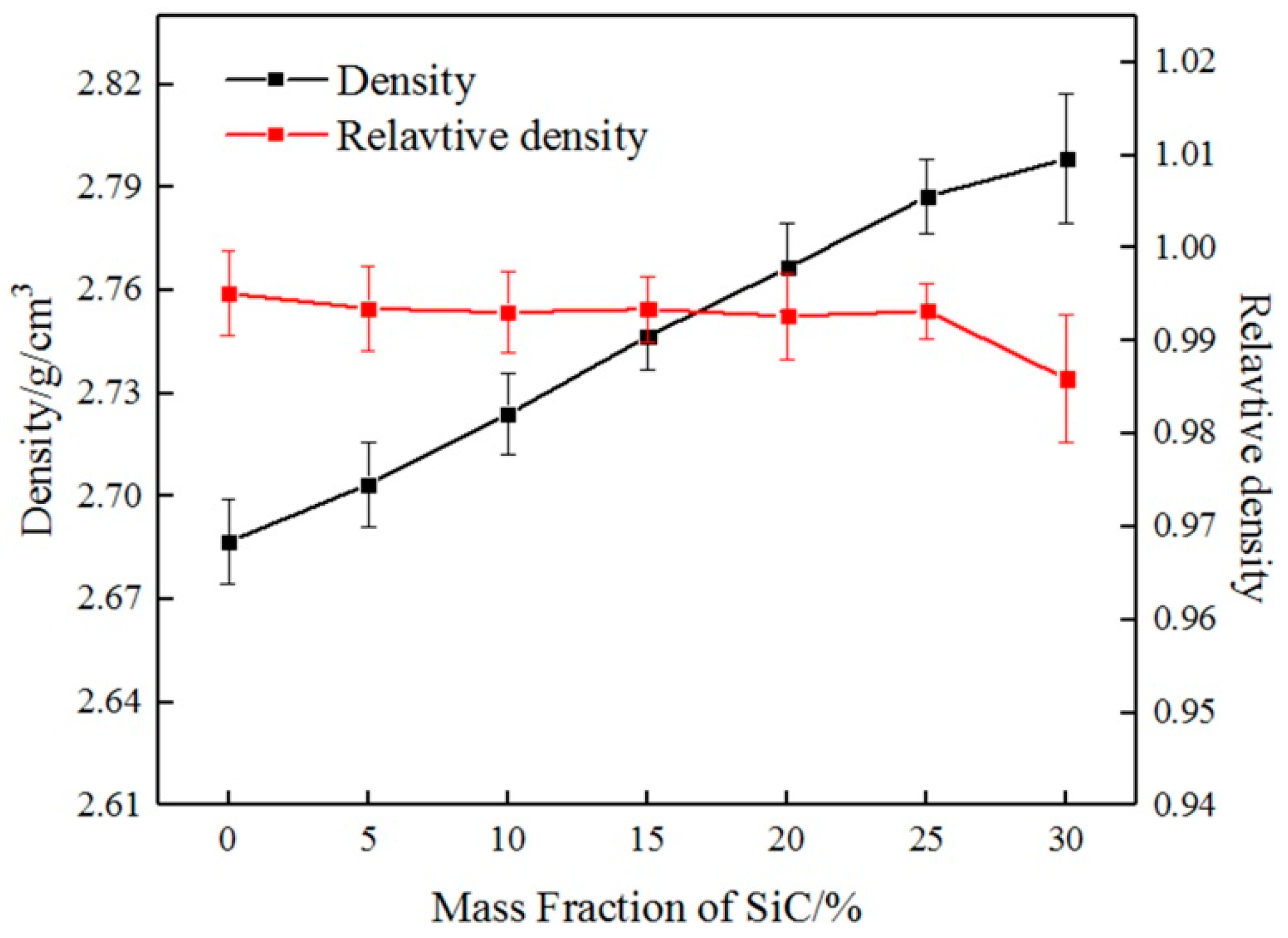

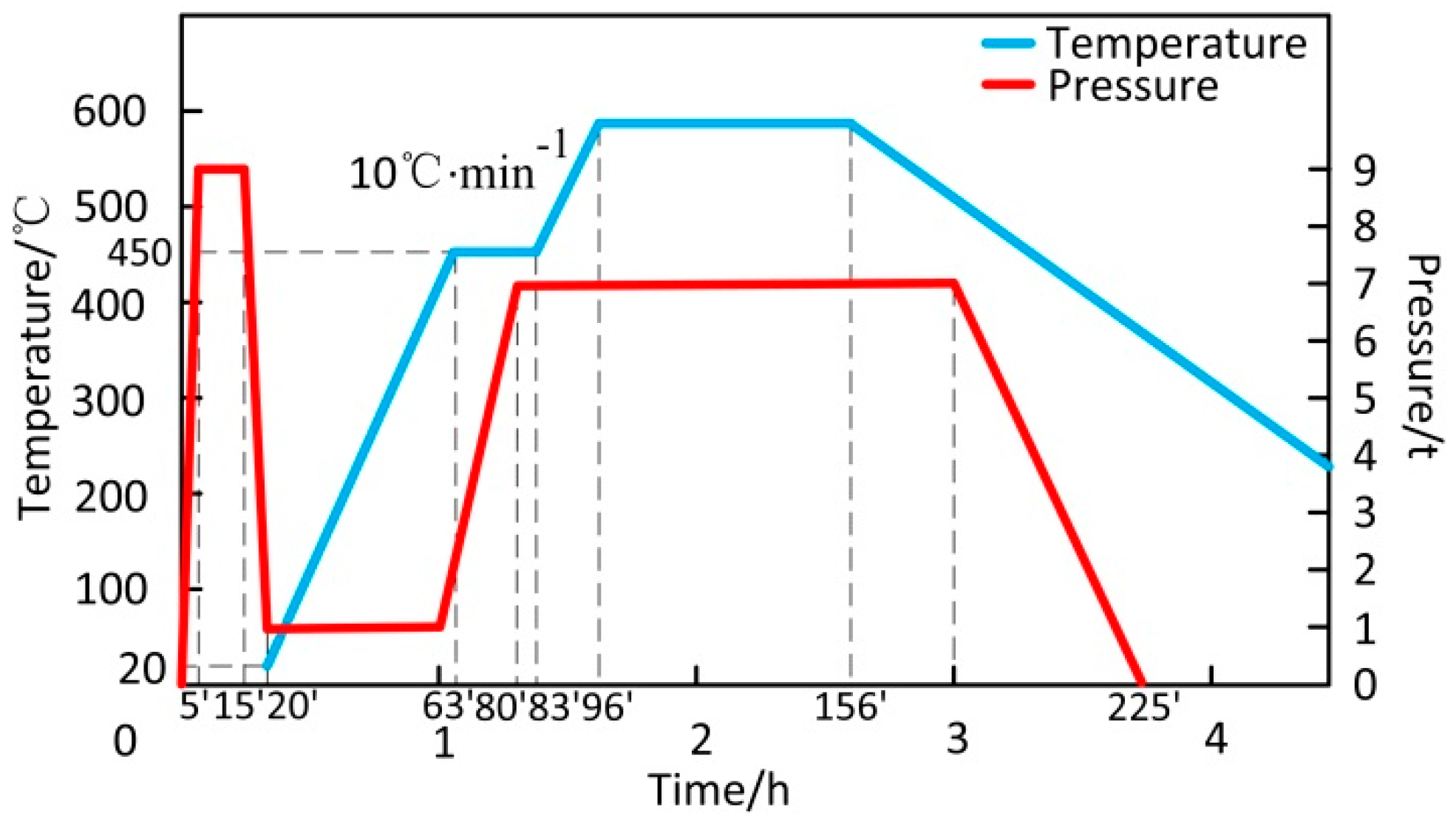

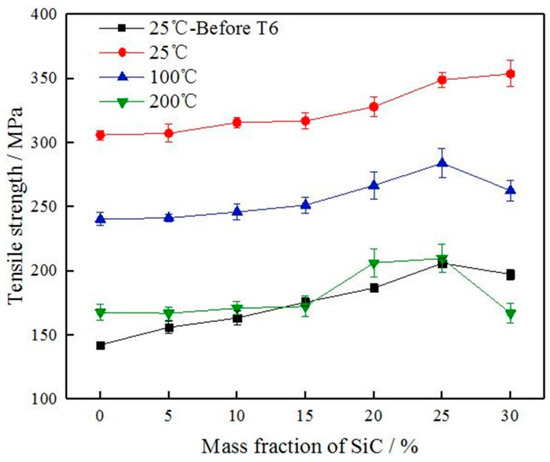

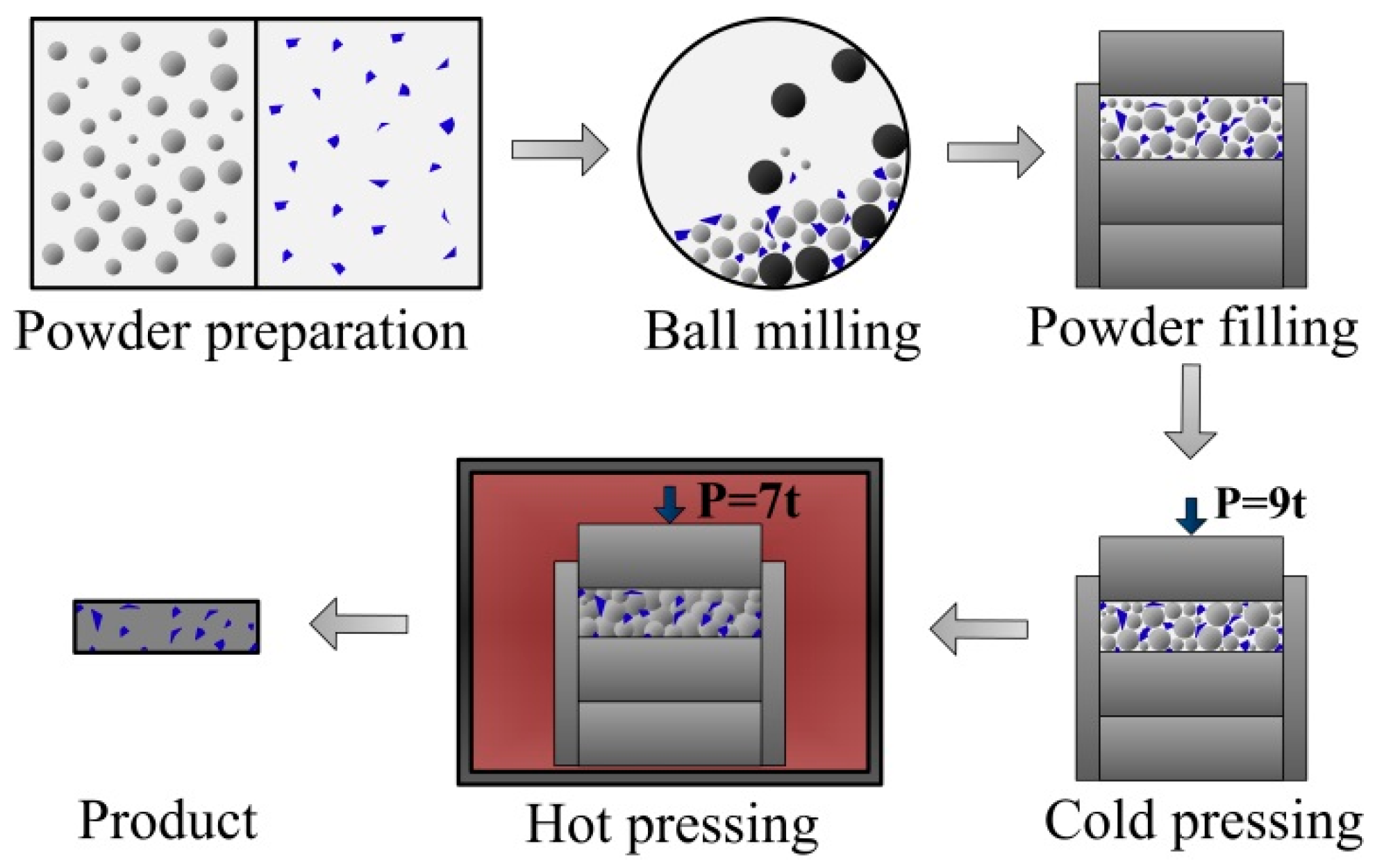

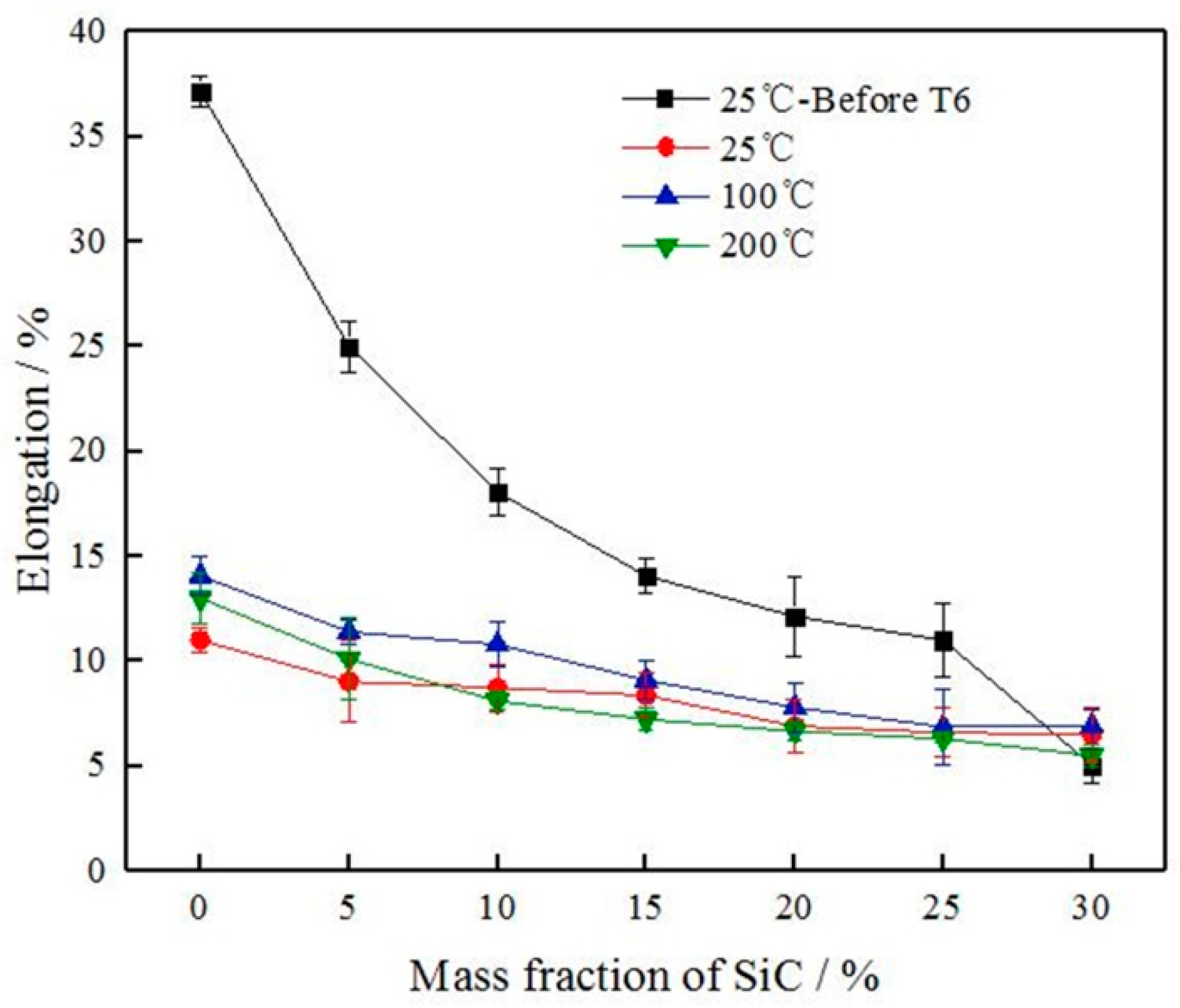

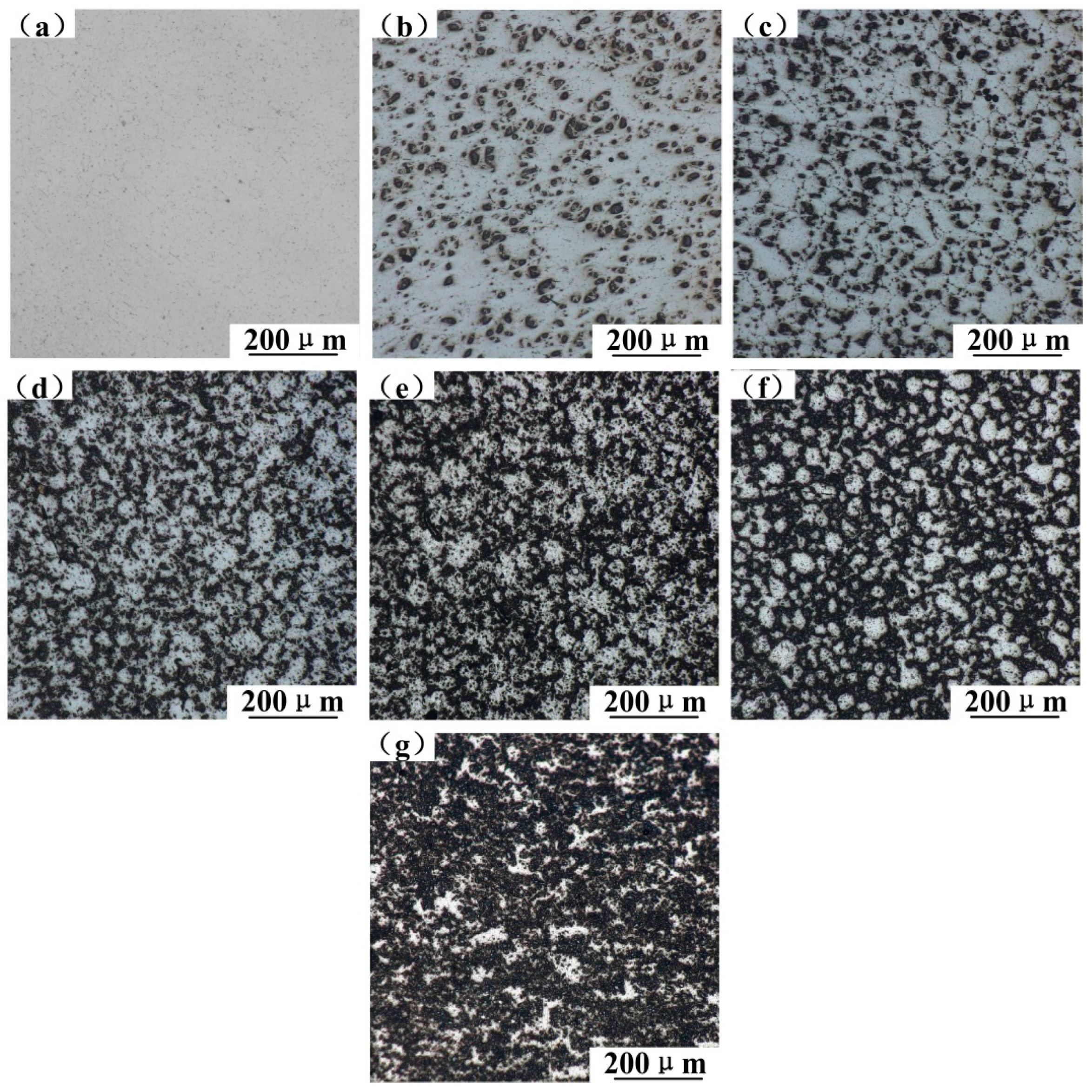

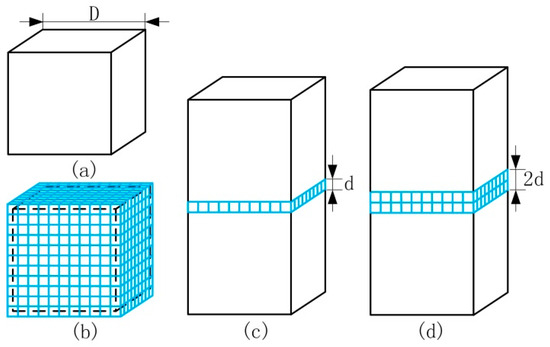

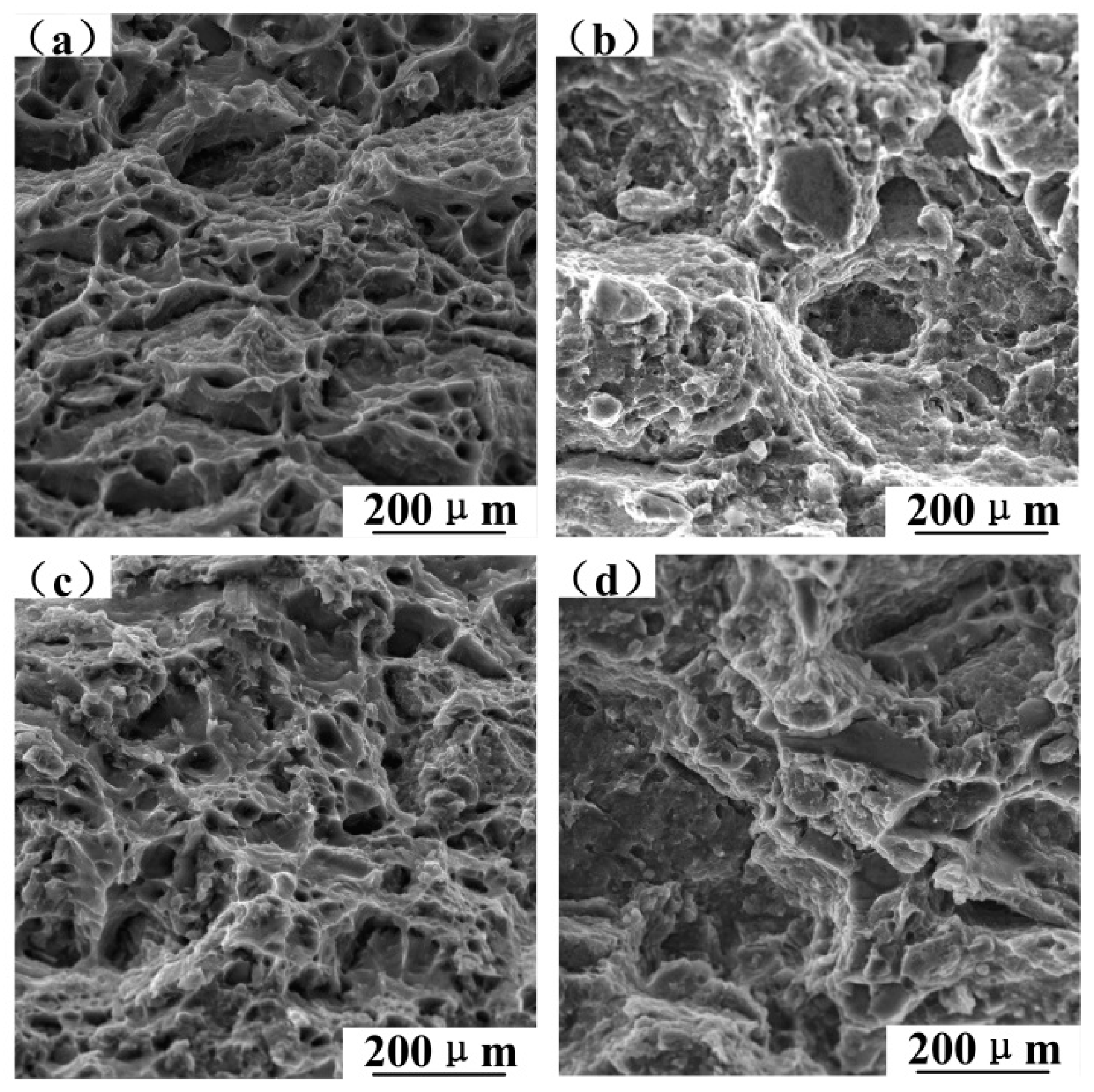

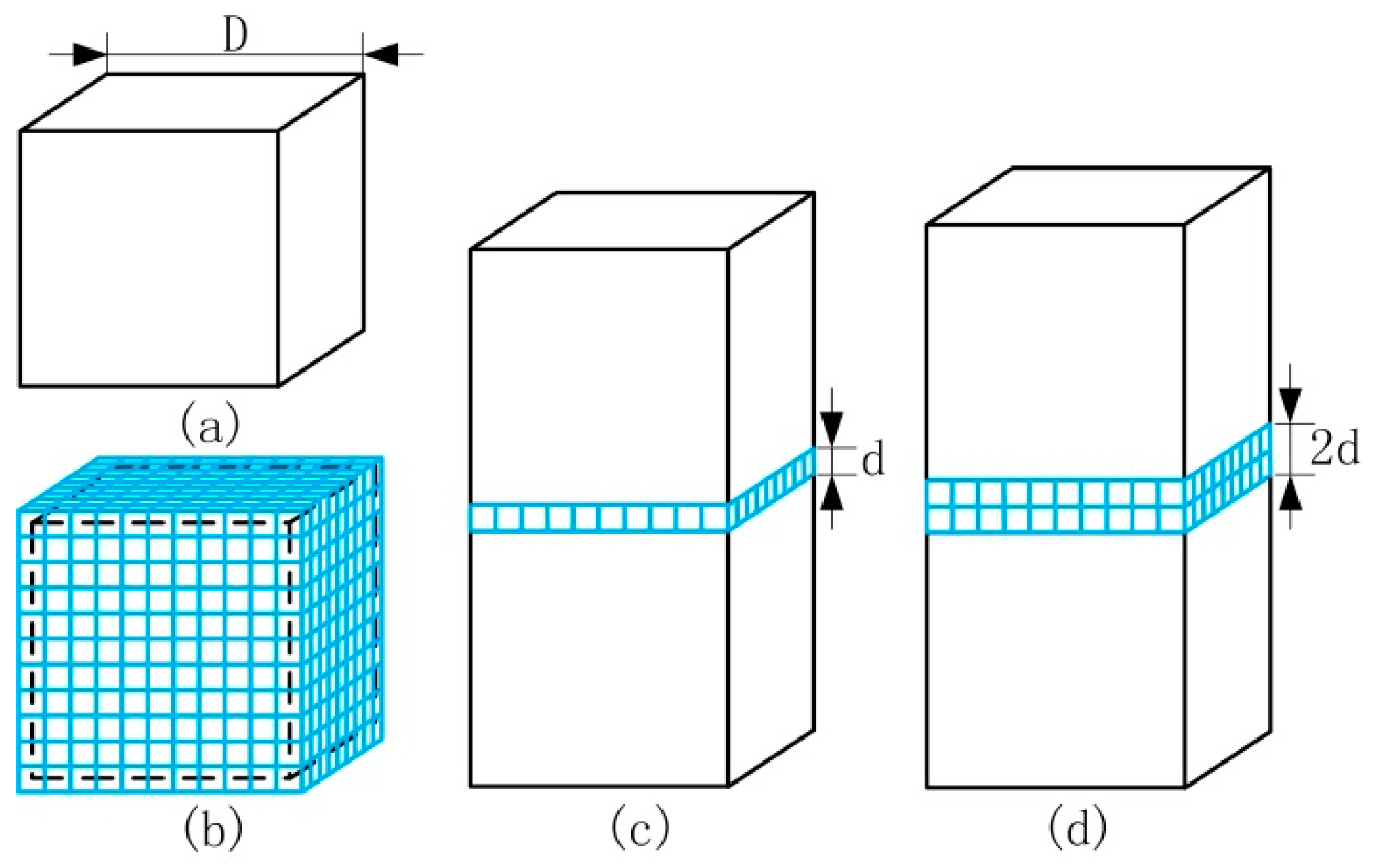

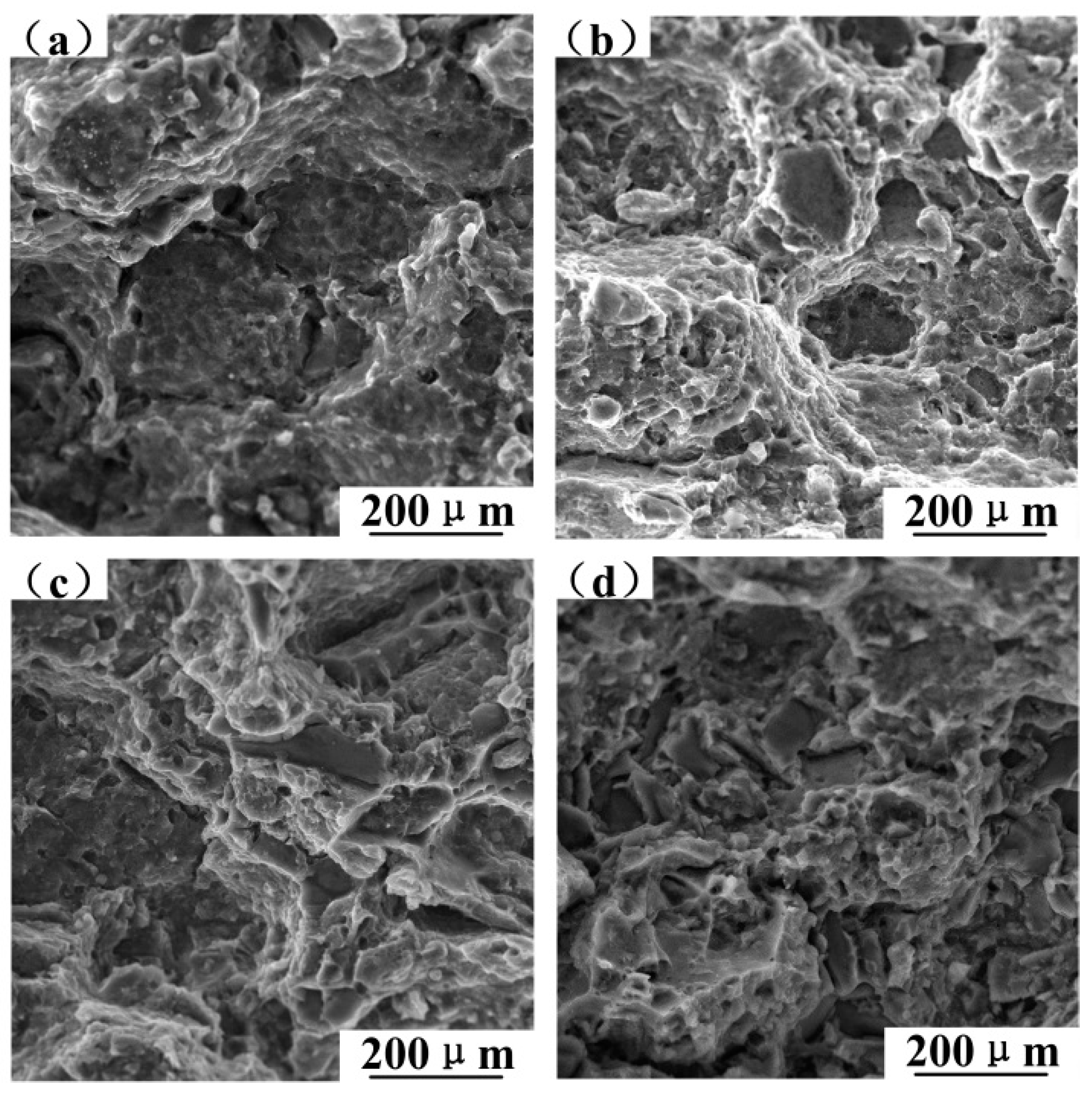

SiCp/6061Al composites have been developed and widely applied in many fields, such as automobile, aerospace, shipping, and so on. Considering heat treatment, service environment, and strength of composites, this paper comprehensively studies the mechanical properties of SiCp/6061Al composites with a large range of SiC mass fractions under T6 treatments and different tensile temperatures. SiCp/6061Al composites were successfully prepared by hot press sintering at various SiC mass fractions (0–30%), and the influences of SiC concentration and T6 treatment on the mechanical properties of composites were characterized via tensile tests at room temperature, 100, and 200 °C. Microstructure and fracture surfaces of composites with various SiC concentrations were further analyzed by optical microscope and SEM. The formula for the biggest critical reinforcement concentration for the saturated distribution of SiC is proposed to reveal the strengthening rule of different SiC concentrations. Results show that the effect of T6 treatment on the mechanical properties of composites is a marked increase in tensile strength and an obvious decrease in elongation. The increase in the SiC mass fraction, except at 30%, is able to bring an increase in tensile strength and a decrease in elongation, and the change of the elongation is insignification in T6-treated specimens. The tensile strength of T6-treated specimens decreases as temperature increases, and the composite has a maximum elongation at 100 °C. View Full-Text
Keywords: SiCp/6061Al composites; microstructure; critical reinforcement concentration; relative density; tensile property; fracture morphology SiCp/6061Al composites; microstructure; critical reinforcement concentration; relative density; tensile property; fracture morphology
Figures

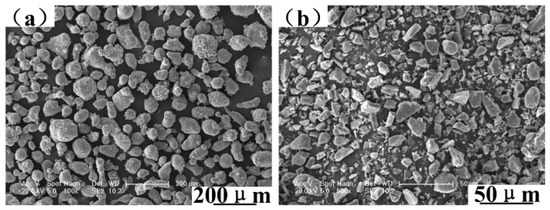

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Hu, Y.; Wu, T.; Guo, Y.; Wang, W.; Song, M.; Qian, L.; Zhao, H.; Wang, M. Effects of T6 Treatment, Tensile Temperature, and Mass Fraction of SiC on the Mechanical Properties of SiCp/6061Al Composites. Materials 2019, 12, 1602.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
