?-Bridge Effect on Symmetric Carbazole-Based Small Molecules for Realizing Ultraviolet Fluorescent Emission

by
Siyang Liu
1,
Pengju Lin
1,
Fangfang Niu
1,
Pengju Zeng
1,* and
Bin Zhang
1,2,*
1
Key Laboratory of Optoelectronic Devices and Systems of Ministry of Education and Guangdong Province, College of Optoelectronic Engineering, Shenzhen University, Shenzhen 518060, China
2
School of Materials Science and Engineering, Jiangsu Engineering Laboratory of Light-Electricity-Heat Energy-Converting Materials and Applications, Jiangsu Key Laboratories of Environment-Friendly Polymers, National Experimental Demonstration Center for Materials Science and Engineering, Changzhou University, Changzhou 213164, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(4), 617; https://doi.org/10.3390/ma11040617
Submission received: 14 March 2018 / Revised: 11 April 2018 / Accepted: 14 April 2018 / Published: 17 April 2018
(This article belongs to the Section Advanced Materials Characterization)
Browse Figures
Versions Notes

Abstract

:
A series of symmetric carbazole derivatives (CzP-H, CzP-CN, CzP-Me, and CzP-OMe), which comprise electron-donating and electron-drawing groups appending on a phenyl core, was synthesized and characterized in detail. These compounds exhibit excellent thermal stabilities, with thermal decomposition temperatures exceeding 400 °C. From the fluorescent spectra in film, CzP-H, CzP-Me, and CzP-OMe showed UV to blue-violet emission, with peaks at 396 nm, 402 nm, and 392 nm, respectively. The E00 energies of CzP-H, CzP-CN, CzP-Me, and CzP-OMe were 3.39 eV, 2.83 eV, 3.50 eV, and 3.35 eV, respectively. From the electrochemical measurements, the highest occupied molecular orbital (HOMOs) energy levels were −5.30 eV, −5.64 eV, −5.46 eV, and −5.24 eV for CzP-H, CzP-CN, CzP-Me, and CzP-OMe, respectively. Through calculations from HOMO energy levels and E00 energies, the lowest unoccupied molecular orbital (LUMOs) energy levels of CzP-H, CzP-CN, CzP-Me, and CzP-OMe were −1.91 eV, −2.81 eV, −1.96 eV, and −1.89 eV, respectively. Therefore, the introduction of different substitutes in phenyl cores would distinctly affect the photophysical properties. These results indicate that the prepared carbazole derivatives could be potential candidates for realizing ultraviolet or blue-violet emission.

Graphical Abstract

1. Introduction

Recently, organic electronics (OEs) are becoming more attractive due to their unique merits in low cost, lightweight, large-scale fabrication and flexibility. Until now, plenty of functional small molecules and polymers have been developed for optoelectronic devices, including organic light-emitting diodes (OLEDs) [1], organic solar cells (OSCs) [2], organic field-effect transistors (OFETs) [3] and organic photodetectors (OPDs) [4]. Among them, some are utilized dramatically in the market, ascribing to their versatile characteristics, such as OLEDs.
The technology of OLEDs is a promising solution for realizing full-color and high-resolution flat-panel displays and flexible devices. Since their discovery in 1987 [5], the stable and efficient ultraviolet emitters have become quite crucial for commercial applications. In general, three primary light emitters (red, green, and blue) have basically satisfied the commercial requirements for their electroluminescent devices with high efficiencies, long lifetimes, and pure Commission International de l’Eclairage (CIE) coordinates [6,7]. Although important progress has been achieved, there is increasingly urgency to design and manufacture much more extensive applications of OLEDs in medical and health facilities. Unlike present gas-based ultraviolet light sources, ultraviolet OLED emitters show versatile advantages such as their high efficiency, low-driving voltage, self-emitting properties, pure color, high brightness and environmentally-green characteristics [8,9]. Due to the tough requirements of the intrinsic wide band gaps in ultraviolet materials, weak conjugation [10] is commonly proposed for designing and preparing molecules; however, this could lead to low carrier mobility and difficult carrier injection from both anode and cathode electrodes [11,12]. As a result, the development of stable and high-efficiency organic ultraviolet materials in OLEDs is a significant issue.
Both the obvious shortages of traditional ultraviolet light apparatuses and the promising future of OLEDs in medical and health care have prompted research studies focused on developing efficient wide band-gap organic materials for realizing ultraviolet emission. In addition, the continual improvements of OLEDs provide steady backup for designing and preparing new ultraviolet materials. Even though organics-based ultraviolet materials possess these advantages, obtaining high-performance ultraviolet organic materials still faces lots of obstacles. The traditional deep-blue fluorophores, such as anthracene [13], aromatic hydrocarbons [14], dihydrodinaphthoheptacene [15], carbazole [16], fluorene [17], triphenylamine [18], phenylene [19], pyrene [20] and phosphorescent iridium complexes [21] showed good performance in dilute solution, but urgent demands for further improvements remain regarding ultraviolet color purity, intermolecular stacking, solid-state morphology, efficiency and device lifetime. For instance, the negative aggregation of molecules in the solid state could induce red-shifted emissions and aggregation quench, the consequences limit the realization of pure ultraviolet emission. Furthermore, some of these materials failed to provide dense films and the thin films tended to crystalize during deposition and produced the rough surface, grain boundaries or pin holes leading to current leakage. To achieve high-performance ultraviolet molecules, a number of small molecules and polymers have been designed and developed, including π-conjugated organics via modification of chemical structures, asymmetric non-planar molecules [22], donor-acceptor typed dopants [23], phosphorescent emitters [24], star-shaped polyfluorenes [25], cationic iridium complexes [26], dihydroindenofluorene [27] and monodisperse macromolecules [28]. However, most of them were not good enough for shorter wavelength emission with high color purity. Recently, a series of versatile star-shaped carbazole derivatives were reported, which comprised various aryl groups appending in the 1, 3, 6, and 8 positions of 9-alkyl-carbazole. These molecules exhibited the ultraviolet emission at about 394 nm with a narrow full width at half maxima (FWHM) of 42 nm, and versatile thermal stability with thermal decomposition temperatures ranging from 321 to 485 °C. However, these carbazole derivatives were still facing photoluminescence quantum yields (PLQY, Φf) as low as 3.4% [29].
However, the new series of carbazole-based ultraviolet emitters in terms of larger band gaps, high quantum efficiency and high color purity remain to be explored [30,31,32,33]. Carbazole-based small molecules exhibit excellent performance in ultraviolet/deep-blue OLEDs; for example, they demonstrate large conjugation stability, high hole mobility and high thermal properties. However, they also suffer from some defects that lead to the limited application in OLEDs. Therefore, intense investigations have been carried out to improve the performance of carbazole-based ultraviolet molecules [34,35,36,37]. Herein, we designed a series of symmetric ultraviolet small molecules based on 1,4-Bis (9-phenyl-9H-carbazol-3-yl) bearing different phenyl cores. Through modifying different substitutes in phenyl cores, such as cyan as an electron-withdrawing group, and methyl and methoxy as electron donors, four small molecules were synthesized. Their photophysical properties were investigated in detail with the aim of understanding structure–property relationships and providing distinct information for further developing novel carbazole-based ultraviolet molecules.

2. Experimental Section

2.1. Characterization and Instrumentation

All of the reagents were utilized as received from commercial sources. The solvents used in this study were further purified via standard methods.
1H- and 13C-nuclear magnetic resonance (NMR) spectra were performed on a Brüker AVANCE 400M spectrometer (Bruker, Billerica, MA, USA) by using deuterated chloroform solution. Time-of-flight (TOF) mass spectra were tested on a Bruker BIFLEXIII (Bruker, Billerica, MA, USA). Elemental analyses were carried out on an Elementar Vario (Elementar, Langenselbold, Germany). Differential scanning calorimetry (DSC) was carried out on a Netzsch DSC-204 (Netzsch, Selb, Germany) under nitrogen atmosphere with heating and cooling rates of 10 °C·min−1 and 70 °C·min−1, respectively. The thermogravimetric analyses (TGA) were tested on a TA TGA Q50 instrument (TA Instruments, New Castle, DE, USA) with a heating rate of 10 °C·min−1. The results of the UV-vis spectra were obtained from a PerkinElemer LAMBDA spectrophotometer (PerkinElemer, Waltham, MA, USA). The photoluminescence (PL) spectra were performed via using a PerkinElmer LS-45 fluorescence spectrophotometer (PerkinElemer, Waltham, MA, USA). The fluorescent quantum yields were recorded in dichloromethane at 297 K with quinine (0.05 mol·L−1 sulfate) as reference. Cyclic voltammetry (CV) measurements were performed at Princeton Applied Research PARSTAT 2273 (AMETEK Inc., Berwyn, PAa, USA) with a scan rate of 50 mV·s−1 under nitrogen, in which the tetra(n-butyl)ammoniumhexafluorophosphate (n-Bu4NPF6, 0.1 M) in acetonitrile or dichloromethane was used as the supporting electrolyte, and the conventional three-electrode configuration was utilized, consisting of glassy carbon as the work electrode, saturated calomel as reference electrode and platinum plate as counter electrode, respectively.

2.2. Synthesis of Targeting Molecules

2.2.1. Synthesis of 1,4-Bis(9-phenyl-9H-carbazol-3-yl)benzene (CzP-H)

A mixture of N-phenyl-3-carbazolylboronic acid (1.25 g, 4.4 mmol) and 1,4-Dibromo benzene (0.475 g, 2 mmol) was added to a three-necked flask and dissolved in freshly distilled toluene (50 mL) under a nitrogen atmosphere. K2CO3 aqueous solution (2 M, 5 mL) was then added. Pd(PPh3)4 (0.12 g) was added in one portion to the reaction mixture, which was then heated (99 °C) and refluxed for 24 h. The mixture was cooled to room temperature, concentrated, and extracted with chloroform. The organic layer was purified using column chromatography on a silica gel with petroleum ether/dichloromethane (2:1) as the eluent to give CzP-H (0.896 g, 80% yield) as a white powder (melting point (m.p.) 239°C). 1H-NMR (CDCl3, 400 MHz, δ): 7.30~7.33 (1H, m); 7.43~7.44 (2H, t); 7.47~7.51 (2H, d); 7.60~7.66 (4H, d); 7.72~7.75 (1 H, d); 7.84 (2H, s); 8.21~8.23 (1H, s); 8.43 (1H, s). 13C-NMR (CDCl3, 400 MHz, δ): 76.68, 76.99, 77.31; 109.94; 110.07; 118.66; 120.09; 120.39; 123.55; 123.99; 125.40; 126.14; 127.12; 127.53; 127.67; 129.92; 133.16; 137.76; 140.25; 140.46; 141.44. MALDI-TOF: m/z 560.3 (M+). Anal. Calcd for C42H28N2: C 89.97, H 5.03, N 5.00; found: C 89.58; H 5.12; N 4.69.

2.2.2. Synthesis of 2,5-bis(9-phenyl-9H-carbazol-3-yl)terephthalonitrile (CzP-CN)

A mixture of N-phenyl-3-carbazolylboronic acid (1.25 g, 4.4 mmol) and 2,5-dibromoterephthalonitrile (0.567 g, 2 mmol) was added to a three-necked flask with toluene (50 mL) under the protection of nitrogen atmosphere. The Pd(PPh3)4 (0.12 g) and K2CO3 aqueous solutions (2 M, 5 mL) were added in one portion, respective. Then, the reaction system was heated (99 °C) and refluxed for 24 h. The mixture was then cooled to room temperature, and extracted with dichloromethane three times. The crude products were purified by column chromatography with petroleum ether/dichloromethane (2:1) as the eluent to give CzP-CN (0.854 g, 70% yield) as a green solid (m.p. 351 °C). 1H-NMR (CDCl3, 400 MHz, δ): 7.34~7.37 (2H, t); 7.43~7.50 (4H, t); 7.52~7.57 (4H, t); 7.60~7.69 (10H, m); 8.08 (2H, s); 8.22 (1H, s); 8.24 (1H, s); 8.39 (2H, s). MALDI-TOF: m/z 610.3 (M+). Anal. Calcd for C44H26N4: C 86.53, H 4.29, N 9.17; found: C 85.28; H 4.23; N 8.89.

2.2.3. Synthesis of 3,3′-(2,5-dimethyl-1,4-phenylene)bis(9-phenyl-9H-carbazole) (CzP-Me)

A mixture of N-phenyl-3-carbazolylboronic acid (1.25 g, 4.4 mmol) and 1,4-dibromo-2,5-dimethylbenzene (0.524 g, 2 mmol) was added to a three-necked flask with toluene (50 mL) under the protection of nitrogen atmosphere. The Pd(PPh3)4 (0.12 g) and K2CO3 aqueous solutions (2 M, 5 mL) were added in one portion, respectively. Then, the reaction system was heated (99 °C) and refluxed for 24 h. The mixture was cooled to room temperature, and extracted with dichloromethane three times. The crude products were purified using column chromatography on a silica gel with petroleum ether/dichloromethane (2:1) as the eluent to give CzP-Me (0.965 g, 82% yield) as a white powder (m.p. 277 °C). 1H-NMR (CDCl3, 400 MHz, δ): 2.39 (3H, s); 7.30~7.34 (2H, d); 7.43~7.50 (5H, m); 7.62 (2H, s); 7.64 (2H, s); 8.16 (1H, s); 8.17 (1H, s). 13C-NMR (CDCl3, 400 MHz, δ): 20.18; 76.67; 76.99; 77.31; 109.27; 109.87; 119.99; 120.31; 120.82; 123.47; 123.31; 126.02; 127.12; 127.47; 129.89; 132.34; 132.93; 133.81; 137.83; 139.93; 141.23; 141.31. MALDI-TOF: m/z 588.4 (M+). Anal. Calcd for C44H32N2: C 89.76, H 5.48, N 4.76; Found: C 88.21; H 5.30; N 4.49.

2.2.4. Synthesis of 3,3′-(2,5-dimethoxy-1,4-phenylene)bis(9-phenyl-9H-carbazole) (CzP-OMe)

A mixture of N-phenyl-3-carbazolylboronic acid (1.25 g, 4.4 mmol) and 1,4-dibromo-2,5-dimethoxybenzene (0.588 g, 2 mmol) was added to a three-necked flask with toluene (50 mL) under the protection of nitrogen atmosphere. The Pd(PPh3)4 (0.12 g) and K2CO3 aqueous solutions (2 M, 5 mL) were added in one portion, respectively. Then, the reaction system was heated (99 °C) and refluxed for 24 h. The mixture was cooled to room temperature, and extracted with dichloromethane three times. The crude products were purified using column chromatography on a silica gel with petroleum ether/dichloromethane (2:1) as the eluent to give CzP-OMe (0.992 g, 80% yield) as a white solid (m.p. 297 °C). 1H-NMR (CDCl3, 400 MHz, δ): 3.85 (3H, t); 7.16 (1H, s); 7.25 (1H, s); 7.42~7.44 (2H, d); 7.46~7.49 (2H, d); 7.61~7.65 (4H, d); 7.78~7.70 (1H, d); 8.20 (1H, s); 8.37 (1H, s). 13C-NMR (CDCl3, 400 MHz, δ): 56.71; 76.68; 77.00; 77.31; 109.43; 109.83; 115.46; 119.96; 120.40; 121.14; 123.40; 123.59; 125.94; 127.12; 127.46; 127.77; 129.88; 130.36; 130.84; 137.80; 140.16; 141.29. MALDI-TOF: m/z 620.4 (M+). Anal. Calcd for C44H32N2O2: C 85.14, H 5.20, N 4.51; Found: C 85.17; H 5.25; N 4.24.

3. Results and Discussion

3.1. Synthesis

Scheme 1 shows the detailed synthetic procedures for CzP-H, CzP-CN, CzP-Me, and CzP-OMe. All of the desired compounds were readily obtained by one-pot Suzuki coupling reaction via using the commercially available N-phenyl-3-carbazolylboronic acid and 1,4-dibromo benzene derivatives directly. To promote the reaction yields and simplify the procedures of obtaining target compounds, the previous reaction systems of tetrabutylammonium bromide (TBAB), PdCl2, and the solvent of acetone were replaced by Pd(pph3)4 and toluene, respectively [29,30]. These improvements could successfully control the reaction to get the target products with high yields (>70%). The CzP-H, CzP-Me and CzP-OMe are readily dissolved in common organic solvents such as toluene, chloroform, THF and chlorobenzene. However, the CzP-CN is poorly soluble in these solvents, which is possibly resulting from the introduction of electron-withdrawing cyano groups that the intermolecular force are stronger in CzP-CN than in CzP-H, CzP-Me and CzP-OMe.

3.2. Thermal Stability

The thermal properties of CzP-H, CzP-CN, CzP-Me, and CzP-OMe were evaluated by thermogravimetric analysis (TGA), respectively. The pertinent data are summarized in Table 1. In Figure 1a, the TGA test suggests that all of these small molecules exhibit excellent thermal stabilities, with decomposition temperatures (Td) at 5% weight loss ranging from 403 °C to 421 °C. On the basis of the thermal properties, all of these four small molecules show very high thermal stability, which is significantly beneficial for realizing stable ultraviolet materials.

3.3. Theoretical Calculation

To understand the electronic properties theoretically, the density functional theory (DFT) calculations were carried out to analyze these four small molecules via using the Gaussian 09 program at the B3LYP/6-31G(d) level, and the relative electronic structures are presented in Figure 2. For CzP-H, CzP-CN, CzP-Me, and CzP-OMe, the highest occupied molecular orbitals (HOMOs) and lowest unoccupied molecular orbital (LUMOs) were spread out the entire molecule backbones with distinct locations, indicating that the different substitutes in the phenyl cores could influence the distribution of electron density in the carbazole-based backbones. The HOMO orbitals of these four compounds reside much more intensively on both carbazole and phenyl cores, which is possibly due to the π-bridge effect on symmetric carbazole units. However, the LUMO orbitals are quite different from the HOMOs. Compared with CzP-H, it can be clearly observed that the LUMOs reside on the phenyl core, with a cyano group for CzP-CN, resulting from the strong electron-withdrawing properties of the cyano groups. For CzP-Me and CzP-OMe, the substitutes in the phenyl core have similar electron-donating groups, but the LUMO state of CzP-Me is only localized on one carbazole unit, while the LUMO state of CzP-OMe is the closest to CzP-H. This is possibly because the methoxyl group in CzP-OMe is much more flexible than the methyl in CzP-Me, resulting in the more planar structure of CzP-OMe than CzP-Me. The distinction of the electron density of the HOMOs and LUMOs implies that the different substitutes in the phenyl cores can successfully change the twist angle of molecular structure, even though the π-bridge effect or intermolecular interactions could be influenced. Hence, the molecular orbital analysis clearly indicates that the substituents at the 2,4-positions of the phenyl cores alter the energy levels of the symmetric carbazole-based small molecules.

3.4. Photophysical Properties

The UV-visible absorption and PL spectra of CzP-H, CzP-CN, CzP-Me, and CzP-OMe in solution and film are shown in Figure 3, and the relative data are summarized in Table 2. For the absorption spectra of CzP-H, CzP-CN, CzP-Me and CzP-OMe in dichloromethane (DCM), the maximal absorption can be detected at 243 nm and 304 nm for CzP-H, 241 nm and 296 nm for CzP-CN, 248 nm and 299 nm for CzP-Me, and 246 nm, 289 nm, and 325 nm for CzP-OMe, respectively. The absorption spectra in film are slightly different, with the maximal absorption at 212 nm and 308 nm for CzP-H, 220 nm, 250 nm and 412 nm for CzP-CN, 216 nm and 302 nm for CzP-Me, and 246, and 328 nm and 332 nm for CzP-OMe, respectively. In addition, the red-shifted absorption at 330 nm for CzP-OMe can be illustrated as the more planar structure than CzP-Me. From the intersection of normalized absorption and PL spectra in film, the E00 of CzP-H, CzP-CN, CzP-Me, and CzP-OMe were 3.39 eV, 2.83 eV, 3.50 eV, and 3.35 eV, respectively (Figure S12). These results show that CzP-Me has a larger band gap (Eg) than CzP-H, where the CzP-CN has the smallest Eg. The PL spectra in solution and in film show identical UV or deep-blue emissions, where the emission peaks are at 377 nm and 396 nm for CzP-H, 465 nm and 480 nm for CzP-CN, and 369 nm and 402 nm for CzP-Me, 388 nm and 392 nm for CzP-OMe in solution and in film, respectively. CzP-Me shows a shorter emission wavelength, which proves that the steric electron-donating methyl groups can successfully increase the twist angle in their molecule structure and reach the UV emission. The emission at 465 nm for CzP-CN in solution is probably caused by the intramolecular donor–acceptor charge-transfer state. The spectra in film are slightly red-shifted compared with those in solution; however, the bathochromic shift of CzP-Me is 33 nm and CzP-OMe is 4 nm, respectively. This possibly because the largest twist angle of CzP-Me in film has been restricted, and imposes less influence in the planar structure of CzP-OMe.
Compared with CzP-H, CzP-CN, and CzP-Me, the UV-vis absorption and PL spectra of CzP-CN are obviously different, and both of them show the greater red-shifted spectra, which is possibly because cyano is a strong electron-withdrawing unit that would form the obvious intramolecular charge-transfer state from the carbazole unit to CN-substituted phenyl moiety [36]. These phenomena are also illustrated by the theoretical computation. It can be seen that these four compounds have almost the same distributions of electron clouds in the HOMO energy levels. However, there are completely different distributions in the LUMOs. Furthermore, strong electron-donating carbazole units and strong electron-drawing cyano units turn CzP-CN into a donor–acceptor (D-A)-type blue emission, which would be a promising candidate of the blue fluorescent compound. The PL spectra of CzP-CN show a broad full width at half maximum (FWHM), which indicate that the D-A system extends π-conjugation, inducing a large bathochromic shift and impairing the color purity. In general, CzP-H, CzP-Me and CzP-OMe exhibit UV to blue-violet emission with maxima emission from 369 nm to 402 nm. As shown in Table 2, the photoluminescence quantum yield (PLQY) of CzP-H, CzP-Me, and CzP-OMe are 71%, 49%, and 35%, respectively. CzP-H shows the highest PLQY, and CzP-OMe shows the lowest one. Since CzP-CN is hard to solve in organic solvents, it is difficult to test the PLQY. Therefore, these as-prepared carbazole derivatives can be used potentially as excellent candidates for the blue-violet to UV OLEDs. Through considering these optical properties penetratingly, it is proposed that the absorption and PL spectra are affected by the properties of peripheral substituents. As shown in Figure 3, the absorption and PL spectra of CzP-CN in solution and in film are obviously red-shifting compared with CzP-H, CzP-Me, and CzP-OMe. The almost 100-nm red-shift in PL can be ascribed to the strong electron-withdrawing nature of cyano presented in CzP-CN. However, CzP-Me shows the nearly same absorption and PL spectra as the original compound CzP-H, and only a small blue-shift in PL spectra due to the steric structure via the introduction of methyl. Additionally, the capabilities of peripheral substituents (-H, -Me and -OMe) present little effect on the photophysical properties.

3.5. Electrochemical Properties

The cyclic voltammetry measurements were used to study the electrochemical properties of these four small molecules. The ferrocene was used as a standard internal reference in this study, and the ferrocene/ferrocenium (Fc/Fc+) redox shows a half-wave potential (E1/2) at 0.47 V. The CV curves are presented in Figure 4, and the relative data are concluded in Table 3. The highest occupied molecular orbital (HOMO) energy levels were calculated according to the empirical formula EHOMO = −e(Eox + 4.8 − E1/2,(Fc/Fc+)) [30], where Eox is the onset of the oxidation potential. From Figure 4, the Eoxs are 0.97 eV, 1.31 eV, 1.13 eV and 0.91 eV for CzP-H, CzP-CN, CzP-Me and CzP-OMe, respectively. Through the calculation, the HOMOs of these four small molecules were −5.30 eV, −5.64 eV, −5.46 eV, and −5.24 eV for CzP-H, CzP-CN, CzP-Me and CzP-OMe, respectively. Since we can’t get the reductive curves from the CV test, the lowest unoccupied molecular orbital (LUMO) energy levels are calculated from the empirical equation of ELUMO = EHOMO + E00, where the E00 is the intersection of the normalized absorption spectra with the PL spectra. Through the calculation, the LUMOs of CzP-H, CzP-CN, CzP-Me, and CzP-OMe are −1.91 eV, −2.81 eV, −1.96 eV, and −1.89 eV, respectively. It shows that CzP-CN has the lowest HOMO level, indicating that the existence of the electron-withdrawing substituent (cyano) can decrease the HOMO energy levels. Alternatively, the HOMO of CzP-Me are 0.16 eV lower than the HOMO of CzP-H, but CzP-OMe is 0.06 eV higher than the HOMO of CzP-H. This is possibly because the methyl group will twist the molecular structure of CzP-Me, leading to the lower HOMO energy level, while the electron-donating methoxyl group could promote the HOMO level distinctly. These are in agreement with not only the results from the UV and PL spectra, but also the theoretical calculations. In addition, from the calculation data of LUMOs, these results can also well illustrate that CzP-CN has the lowest LUMO energy level, and CzP-OMe has the highest. It implies that the strong CN groups can form the charge-transfer state efficiently; however, the methyl groups may twist and restrict the conjugation of carbazoles to generate UV light emission.

4. Conclusions

Through chemical substitution, four small molecules based on carbazole derivatives with symmetrical configurations anchoring different peripheral substituents, such as methyl, methoxyl, and nitrile, were investigated in detailed. These four compounds have high melting points and thermal decomposition temperatures, which demonstrates that they possess very high thermal stabilities. Theoretical calculations, photophysical properties, and electrochemical properties suggest that electron-donating groups will increase the HOMO energy levels, and electron-withdrawing units could lower the LUMO energy levels efficiently in these kinds of molecular configurations with different peripheral substituents. In addition, the PL spectra of these compounds display UV to blue-violet fluorescence (λmax= 392–402 nm) in films with narrow FWHM (30–45 nm). Furthermore, the CzP-H shows the highest PLQY of 72%, and CzP-Me gives the shortest fluorescent emission of 392 nm with a PLQY of 50%. Therefore, the introduction of π bridges with different substitutes between two carbazole units would affect the photophysical properties efficiently. These results indicate that the prepared carbazole derivatives would be potentially versatile candidates for constructing high-efficiency UV and blue-violet organic light emitting materials.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/11/4/617/s1. Figure S1: 1H NMR spectrum of CzP-H; Figure S2: 1H NMR spectrum of CzP-CN; Figure S3: 1H NMR spectrum of CzP-Me; Figure S4: 1H NMR spectrum of CzP-OMe; Figure S5: 13C NMR spectrum of CzP-H; Figure S6: 13C NMR spectrum of CzP-Me; Figure S7: 13C NMR spectrum of CzP-OMe; Figure S8: HR-MS spectrum of CzP-H; Figure S9: HR-MS spectrum of CzP-CN; Figure S10: HR-MS spectrum of CzP-Me; Figure S11: HR-MS spectrum of CzP-OMe; Figure S12: Normalized absorption spectra and normalized PL spectra.

Acknowledgments

This work was financially supports by the National Nature Science Foundation of China (No. 61505123, U1663229, 51473140), the Shenzhen fundamental R&D program under grant (No. JCYJ20160520175355048, JCYJ20150525092940976), Hunan Postgraduate Science Foundation for Innovation (No. CX2016-B261), Open Project for the National Key Laboratory of Luminescent Materials and Devices (No. 2017-skllmd-12), Brand Specialty & Preponderant Discipline Construction Projects of Jiangsu Higher Education Institutions.

Author Contributions

Pengju Zeng and Bin Zhang conceived and designed the experiments; Siyang Liu performed the experiments; All the authors analyzed the data; Siyang Liu and Bin Zhang wrote the paper.

Conflicts of Interest

There are no conflicts to declare.

References

  1. Jou, J.-H.; Lin, Y.-P.; Hsu, M.-F.; Wu, M.-H.; Lu, P. High efficiency deep-blue organic light-emitting diode with a blue dye in low-polarity host. Appl. Phys. Lett. 2008, 92, 193314. [Google Scholar] [CrossRef]
  2. Liang, Y.; Xu, Z.; Xia, J.; Tsai, S.T.; Wu, Y.; Li, G.; Ray, C.; Yu, L. For the bright future-bulk heterojunction polymer solar cells with power conversion efficiency of 7.4%. Adv. Mater. 2010, 22, E135–E138. [Google Scholar] [CrossRef] [PubMed]
  3. Chen, G.; Sun, S.; Lan, L.; Yang, Y.; Yang, W.; Zhang, B.; Cao, Y. A Solution-Processed and Low Threshold Voltage p-Type Small Molecule Based on Indolocarbazole- and Benzothiophene-Fused Rings. Dyes Pigments 2017, 144, 32–40. [Google Scholar] [CrossRef]
  4. Yu, G.; Gao, J.; Hummelen, J.C.; Wudl, F.A.; Heeger, A.J. Polymer photovoltaic cells: Enhanced efficiencies via a network of internal donor-acceptor heterojunctions. Science 1995, 270, 1789–1791. [Google Scholar] [CrossRef]
  5. Tang, C.W.; Vanslyke, S.A. Organic electroluminescent diodes. Appl. Phys. Lett. 1987, 51, 913–915. [Google Scholar] [CrossRef]
  6. Yang, Z.F.; Xu, B.; He, J.T.; Xue, L.L.; Guo, Q.; Xia, H.J.; Tian, W.J. Solution-processable and thermal-stable triphenylamine-based dendrimers with truxene cores as hole-transporting materials for organic light-emitting devices. Org. Electron. 2009, 10, 954–956. [Google Scholar] [CrossRef]
  7. Kuwabara, Y.; Ogawa, H.; Inada, H.; Noma, N.; Shirota, Y. Thermally Stable Multilared Organic Electroluminescent Devices Using Novel Starburst Molecules, 4,4′,4″-Tri(N-carbazolyl) riphenylamine (TCTA) and 4,4′,4″-Tris(3-methylphenylphenyl-amino)triphenylamine (m-MTDATA), as Hole-Transport Materials. Adv. Mater. 1994, 69, 677–679. [Google Scholar] [CrossRef]
  8. Kim, Y.-H.; Shin, D.C.; Kim, S.-H.; Ko, C.-H.; Yu, H.-S.; Chae, Y.-S.; Kwon, S.-K. Novel blue emitting material with high color purity. Adv. Mater. 2001, 13. [Google Scholar] [CrossRef]
  9. Sasabe, H.; Onuma, N.; Nagai, Y.; Ito, T.; Kido, J. High power efficiency blue-to-green organic light-emitting diodes using isonictinonitrile-based fluorescent emitters. Chem. Asian J. 2017, 12, 648–654. [Google Scholar] [CrossRef] [PubMed]
  10. Tang, X.; Yao, L.; Liu, H.; Shen, F.; Zhang, S.; Zhang, H.; Lu, P.; Ma, Y. An efficient AIE-active blue-emitting molecule by incorporating multifunctional groups into tetraphenylsilane. Chem. Eur. J. 2014, 20, 7589–7592. [Google Scholar] [CrossRef] [PubMed]
  11. Endo, J.; Matsumoto, T.; Kido, J. Organic electroluminescent devices with a vacuum-deposited Lewis-acid-doped hole-injecting layer. J. Appl. Phys. 2002, 41, L358–L360. [Google Scholar] [CrossRef]
  12. Vanslyke, S.A.; Chen, C.H.; Tang, C.W. Organic electroluminescent devices with improved stability. Appl. Phys. Lett. 1996, 69, 2160–2162. [Google Scholar] [CrossRef]
  13. Kwak, S.W.; Lee, K.M.; Lee, J.E.; Yoo, J.; Yi, Y.; Kwon, H.; Lee, H.; Park, M.H.; Chung, Y. Synthesis and electroluminescence properties of 3-(Trifluoromethyl)phenyl-substituted 9,10-Diarylanthracene derivatives for blue organic light-emitting diodes. J. Mater. Chem. 2011, 21, 1109–1114. [Google Scholar] [CrossRef]
  14. Liu, F.; Huang, W.; Cao, Y. Facile synthesis of spirocyclic aromatic hydrocarbon derivatives based on o-halobiaryl route and domino reaction for deep-blue organic semiconductors. Org. Lett. 2009, 11, 3850–3853. [Google Scholar] [CrossRef] [PubMed]
  15. Romain, M.; Quinton, C.; Roisnel, T.; Jacques, E.; Rault-Berthelot, J.; Poriel, C. A Dihydrodinaphthoheptacene. J. Org. Chem. 2018, 83, 1891–1897. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, Z.; Chi, Z.; Zhou, L.; Zhang, X.; Chen, M.; Xu, B.; Wang, C.; Zhang, Y.; Xu, J. Blue-light-emitting carbazole derivatives with high thermal stability. Opt. Mater. 2009, 32, 398–401. [Google Scholar] [CrossRef]
  17. Zhao, Z.; Xu, X.; Chen, X.; Wang, X.; Lu, P.; Yu, G.; Liu, Y. Synthesis and characterization of deep blue emitters from starburst carbazole/fluorine compounds. Tetrahedron 2008, 64, 2658–2668. [Google Scholar] [CrossRef]
  18. Tokito, S.; Tanaka, H.; Okuda, A. High-temperature operation of an electroluminescent device fabricated using a novel triphenylamine derivative. Appl. Phys. Lett. 1996, 69, 878–880. [Google Scholar] [CrossRef]
  19. Yang, Z.; Chi, Z.; Yu, T.; Yu, T.; Zhang, X.; Chen, M.; Xu, B.; Liu, S.; Zhang, Y.; Xu, J. Triphenylethylene carbazole derivatives as a new class of AIE materials with strong blue light emission and high glass transition temperature. J. Mater. Chem. 2009, 19, 5541–5546. [Google Scholar] [CrossRef]
  20. Kumchoo, T.; Promarak, V.; Sudyoadsuk, T.; Sukwattanasinitt, M.; Rashatasakhon, P. Dipyrenylcarbazole derivatives for blue organic light-emitting diodes. Chem. Asian J. 2010, 5, 2162–2167. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, S.; Yao, L.; Peng, Q.; Li, W.; Pan, Y.; Xiao, R.; Gao, Y.; Gu, C.; Wang, Z.; Lu, P.; et al. Achieving a significantly increased efficiency in nondoped pure blue fluorescent OLED: A quasi-equivalent hybridized excited state. Adv. Funct. Mater. 2015, 25, 1755–1762. [Google Scholar] [CrossRef]
  22. Wee, K.-R.; Han, W.-S.; Kim, J.-E.; Kim, A.-L.; Kwon, S.; Kang, S.O. Asymmetric anthracene-based blue host materials: Synthesis and electroluminescence properties of 9-(2-naphthyl)-10-arylanthracenes. J. Mater. Chem. 2011, 1115–1123. [Google Scholar] [CrossRef]
  23. Li, W.; Liu, D.; Shen, F.; Ma, D.; Wang, Z.; Feng, T.; Xu, Y.; Yang, B.; Ma, Y. A twisting donor-acceptor molecule with an intercrossed excited state for highly efficient, deep-blue electroluminescence. Adv. Funct. Mater. 2012, 22, 2797–2803. [Google Scholar] [CrossRef]
  24. Poriel, C.; Rault-Berthelot, J. Structure-property relationship of 4-substituted-spirobifluorenes as hosts for phosphorescent organic light emitting diodes: An overview. J. Mater. Chem. C 2017, 5, 3869–3897. [Google Scholar] [CrossRef]
  25. Huang, H.; Fu, Q.; Zhuang, S.; Liu, Y.; Wang, L.; Chen, J.; Ma, D.; Yang, C. Novel deep blue OLED emitters with 1,3,5-Tri(anthracen-10-yl)-benzene-centered starburst oligofluorenes. J. Phys. Chem. C 2011, 115, 4872–4878. [Google Scholar] [CrossRef]
  26. He, L.; Duan, L.; Qiao, J.; Wang, R.; Wei, P.; Wang, L.; Qiu, Y. Blue-Emitting Cationic Iridium Complexes with 2-(1H-Pyrazol-1-yl)pyridine as the Ancillary Ligand for Efficient Light-Emitting Electrochemical Cells. Adv. Funct. Mater. 2008, 18, 2123–2131. [Google Scholar] [CrossRef]
  27. Romain, M.; Thiery, S.; Shirinskaya, A.; Declairieux, C.; Tondelier, D.; Geffroy, B.; Jeannin, O.; Rault-Berthelot, J.; Métivier, R.; Poriel, C. ortho-, meta-, and para-Dihydroindenofluorene Derivatives as Host Materials for Phosphorescent OLEDs. Angew. Chem. Int. Ed. 2015, 54, 1176–1180. [Google Scholar] [CrossRef] [PubMed]
  28. Lai, S.-L.; Tong, Q.-X.; Chan, M.-Y.; Ng, T.-W.; Lo, M.-F.; Lee, S.-T.; Lee, C.-S. Distinct electroluminescent properties of triphenylamine derivatives in blue organic light-emitting devices. J. Mater. Chem. 2011, 21, 1206–1211. [Google Scholar] [CrossRef]
  29. Niu, F.; Niu, H.; Lian, J.; Zeng, P. Synthesis, Characterization and Application of Starburst 9-Alkyl-1,3,6,8-tetraaryl-carbazole derivatives for organic light-emitting diodes. RSC Adv. 2011, 1, 415–423. [Google Scholar] [CrossRef]
  30. Yang, Y.; Liang, J.; Hu, L.; Zhang, B.; Yang, W. Synthesis and optical and electrochemical properties of polycyclic aromatic compounds with S,S-dioxide benzothiophene fused seven rings. New J. Chem. 2015, 39, 6513–6521. [Google Scholar] [CrossRef]
  31. Lee, J.; Chen, H.-F.; Batagoda, T.; Coburn, C.; Djurovich, P.I.; Thompson, M.E.; Forrest, S.R. Deep blue phosphorescent organic light-emitting diodes with very high brightness and efficiency. Nat. Mater. 2016, 13. [Google Scholar] [CrossRef] [PubMed]
  32. Kawamura, M.; Kawamura, Y.; Mizuki, Y.; Funahashi, M.; Kuma, H.; Hosokawa, C. Highly efficient fluorescent blue OLEDs with efficiency-enhancement layer. SID Int. Symp. Dig. Tech. Pap. 2010, 41, 560–563. [Google Scholar] [CrossRef]
  33. Liu, C.; Li, Y.; Zhang, Y.; Yang, C.; Wu, H.; Qin, J.; Cao, Y. Bisanthrance-based donor-acceptor-type light-emitting dopants: Highly efficient deep-blue emission in organic light-emitting device. Adv. Funct. Mater. 2014, 24, 2064–2071. [Google Scholar] [CrossRef]
  34. Liu, C.; Li, Y.; Zhang, Y.; Yang, C.; Wu, H.; Qin, J.; Cao, Y. Solution-processed, undoped, deep-blue organic light-emitting diodes based on starburst oligofluorenes with a planar triphenylamine core. Chem. Eur. J. 2012, 18, 6928–6934. [Google Scholar] [CrossRef] [PubMed]
  35. Prachumrak, N.; Namuangruk, S.; Keawin, T.; Jungsuttingwong, S.; Sudyoadsuk, T.; Promarak, V. Synthesis and characterization of 9-(Fluren-2-yl)anthrancene derivatives as efficient non-doped blue emitters for organic light-emitting diodes. Eur. J. Org. Chem. 2013, 3825–3834. [Google Scholar] [CrossRef]
  36. Miwa, T.; Kubo, S.; Shizu, K.; Komino, T.; Adachi, C.; Kaji, H. Blue organic light-emitting diodes realizing external quantum efficiency over 25% using thermally activated delayed fluorescence emitters. Sci. Rep. UK 2017, 7, 284. [Google Scholar] [CrossRef] [PubMed]
  37. Im, Y.; Byun, S.Y.; Kim, J.H.; Lee, D.R.; Oh, C.S.; Yook, K.S.; Lee, J.Y. Recent progress in high-efficiency blue-light-emitting materials for organic light-emitting diodes. Adv. Funct. Mater. 2017, 27, 1603007. [Google Scholar] [CrossRef]
Materials 11 00617 sch001 550

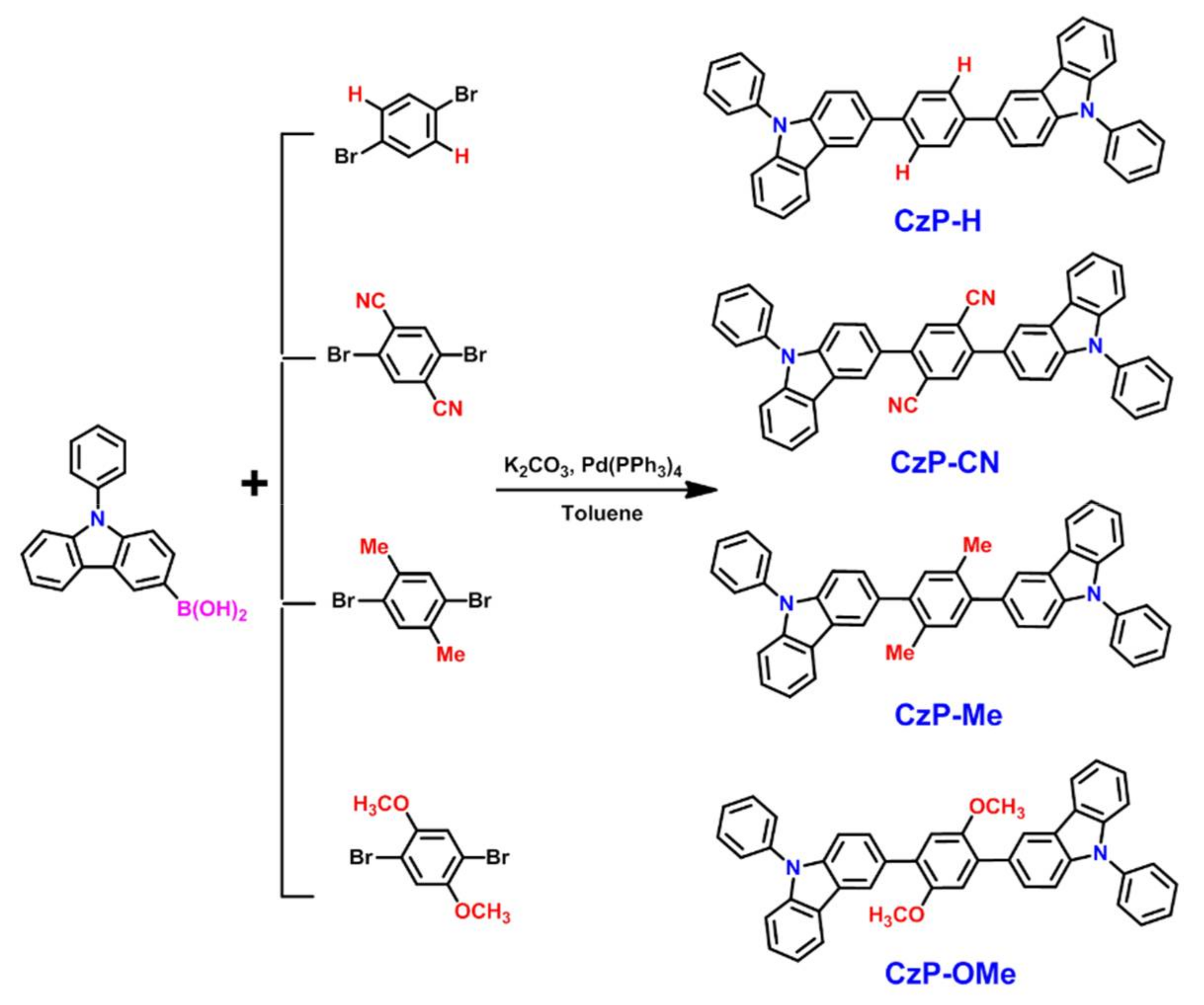

Scheme 1. Synthetic routes of the CzP-H, CzP-CN, CzP-Me, and CzP-OMe.
Scheme 1. Synthetic routes of the CzP-H, CzP-CN, CzP-Me, and CzP-OMe.
Materials 11 00617 sch001
Materials 11 00617 g001 550

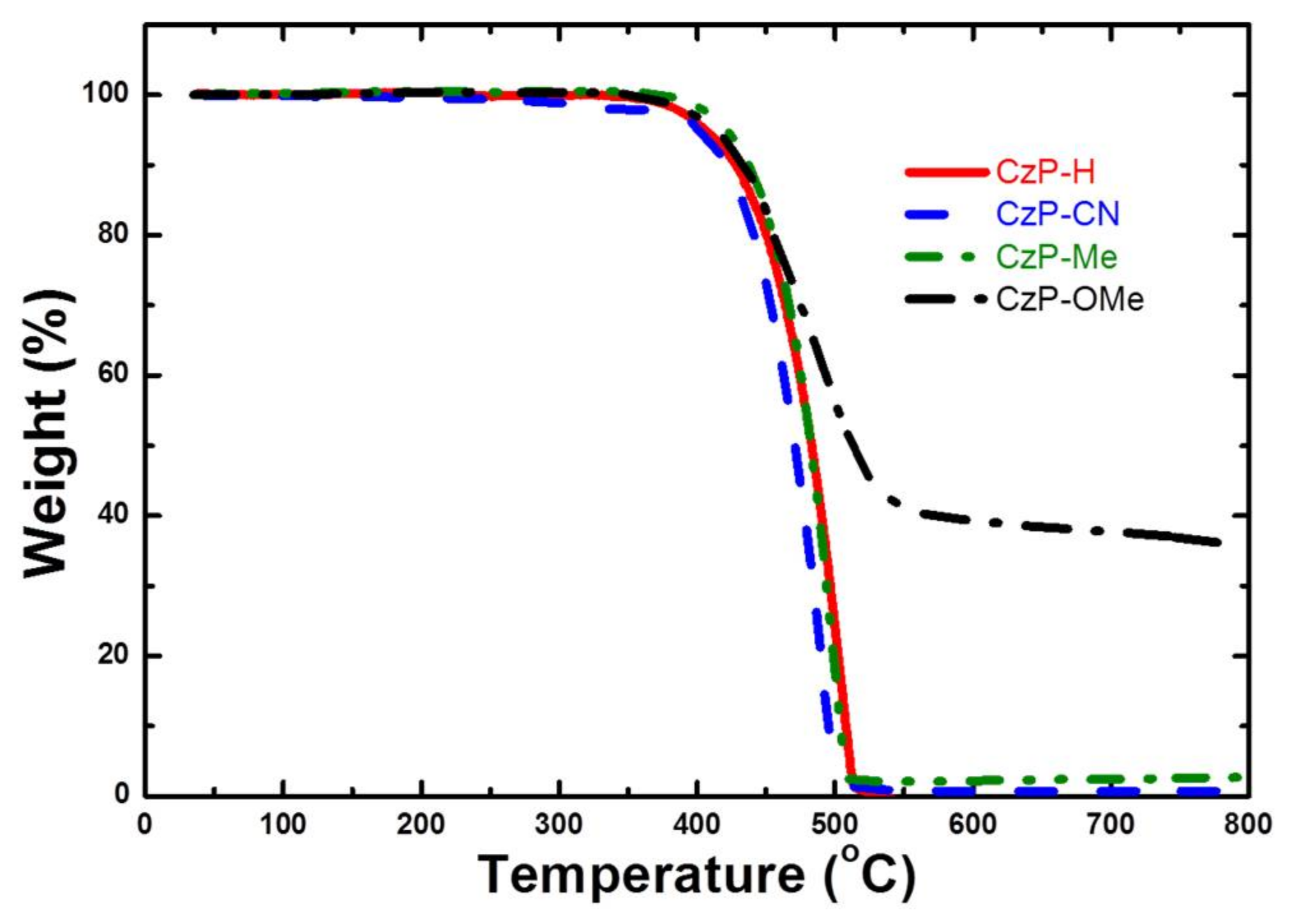

Figure 1. Thermogravimetric analysis (TGA) curves for CzP-H, CzP-CN, CzP-Me, and CzP-OMe.
Figure 1. Thermogravimetric analysis (TGA) curves for CzP-H, CzP-CN, CzP-Me, and CzP-OMe.
Materials 11 00617 g001
Materials 11 00617 g002 550

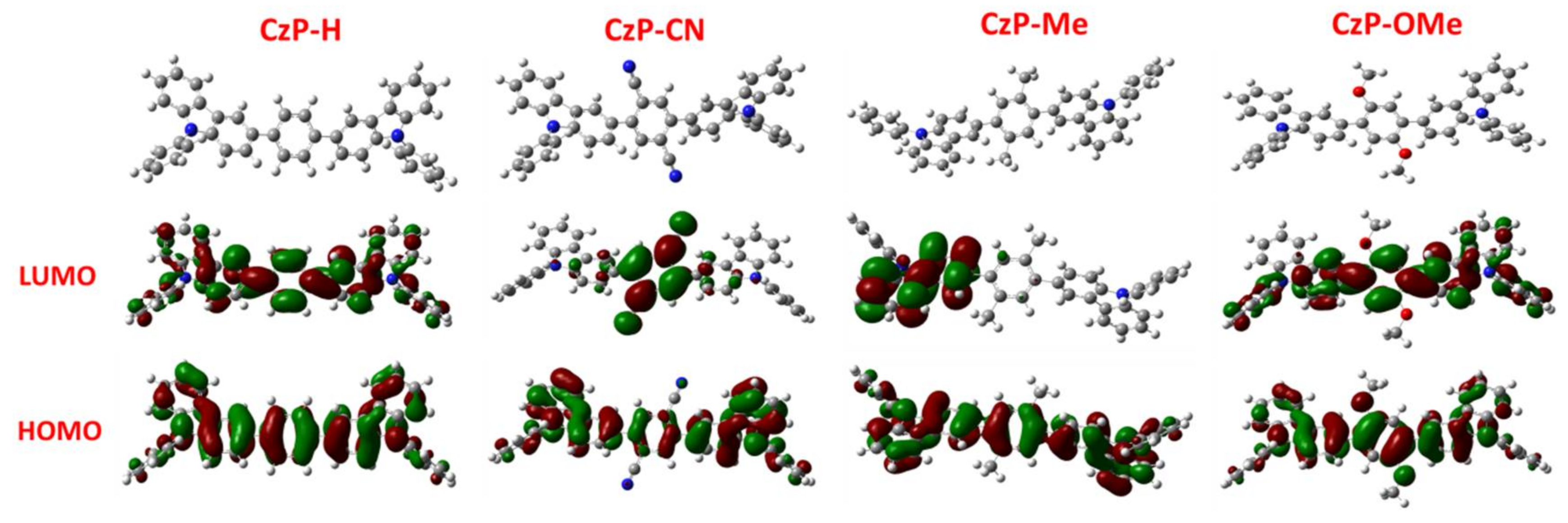

Figure 2. Highest occupied molecular orbitals (HOMOs) and lowest unoccupied molecular orbitals (LUMOs) for CzP-H, CzP-CN, CzP-Me, and CzP-OMe by density functional theory (DFT) calculations at the B3LYP/6-31G(d) level.
Figure 2. Highest occupied molecular orbitals (HOMOs) and lowest unoccupied molecular orbitals (LUMOs) for CzP-H, CzP-CN, CzP-Me, and CzP-OMe by density functional theory (DFT) calculations at the B3LYP/6-31G(d) level.
Materials 11 00617 g002
Materials 11 00617 g003 550

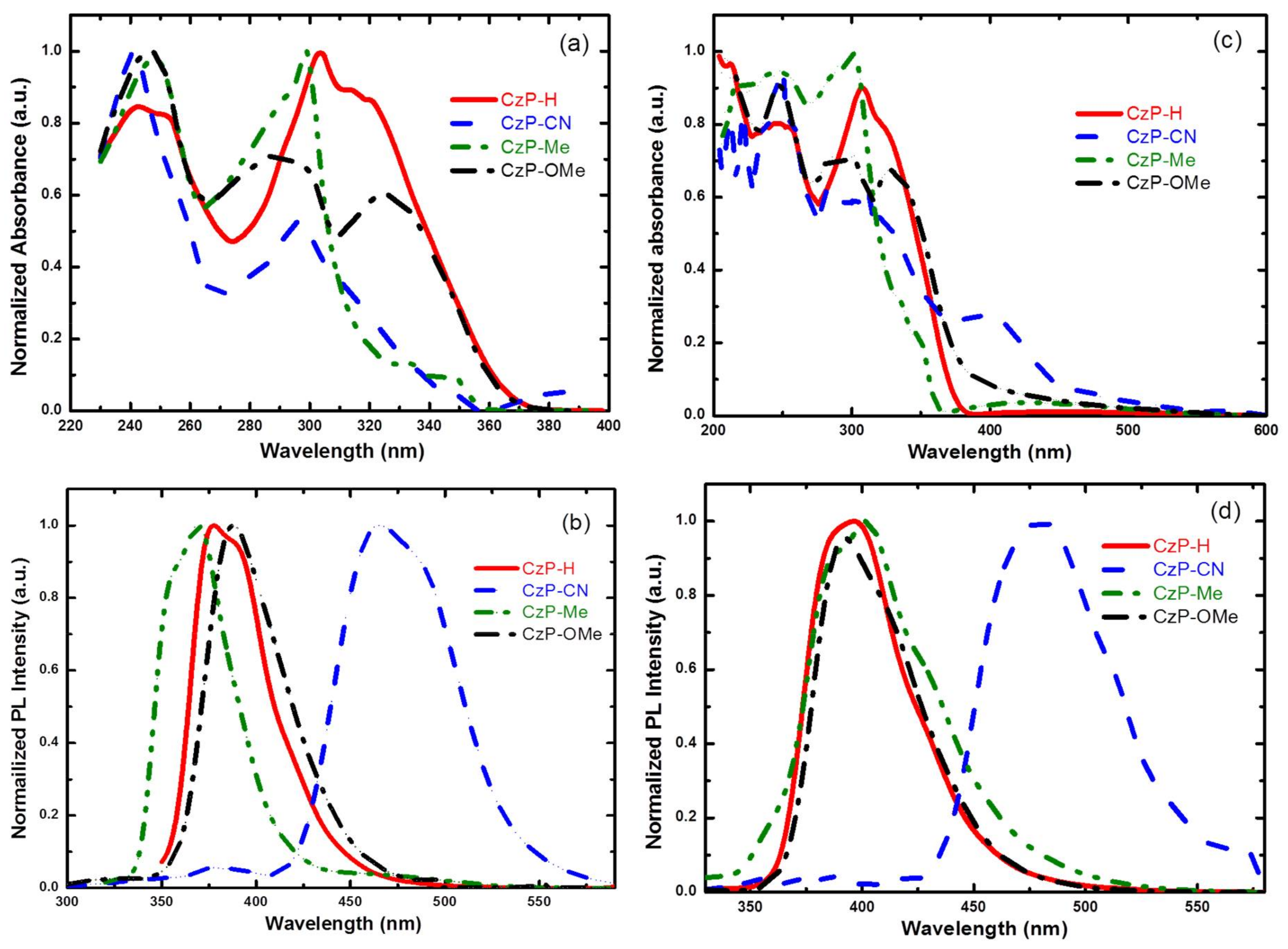

Figure 3. (a) Ultraviolet-visible and (b) PL spectra of CzP-H, CzP-CN, CzP-Me, and CzP-OMe in DCM solvent; (c) Ultraviolet-visible and (d) PL spectra of CzP-H, CzP-CN, CzP-Me, and CzP-OMe in films.
Figure 3. (a) Ultraviolet-visible and (b) PL spectra of CzP-H, CzP-CN, CzP-Me, and CzP-OMe in DCM solvent; (c) Ultraviolet-visible and (d) PL spectra of CzP-H, CzP-CN, CzP-Me, and CzP-OMe in films.
Materials 11 00617 g003
Materials 11 00617 g004 550

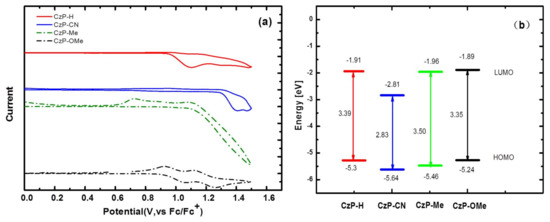

Figure 4. (a) Cyclic voltammogram curves of CzP-H, CzP-CN, CzP-Me, and CzP-OMe in solutions and (b) an energy-level diagram for CzP-H, CzP-CN, CzP-Me, and CzP-OMe.
Figure 4. (a) Cyclic voltammogram curves of CzP-H, CzP-CN, CzP-Me, and CzP-OMe in solutions and (b) an energy-level diagram for CzP-H, CzP-CN, CzP-Me, and CzP-OMe.
Materials 11 00617 g004
Table
Table 1. Thermal properties of CzP-H, CzP-CN, CzP-Me and CzP-OMe.
Table 1. Thermal properties of CzP-H, CzP-CN, CzP-Me and CzP-OMe.
CompoundTm (°C)Td (°C)
CzP-H239406
CzP-CN351403
CzP-Me277421
CzP-OMe297413
Table
Table 2. Photophysical properties of the compounds.
Table 2. Photophysical properties of the compounds.
Compoundλabs,DCM (nm)λabs,film (nm)λPL,DCM (nm)λPL,film (nm)E00 (eV)Φf (%)
CzP-H243, 304212, 3083773963.3971
CzP-CN241, 296220, 250, 4124654802.83-
CzP-Me248, 299216, 3023694023.5049
CzP-OMe246, 289, 325246, 328, 3323883923.3535
Table
Table 3. Electrochemical properties of the compounds.
Table 3. Electrochemical properties of the compounds.
CompoundEox (V)EHOMO (eV)ELUMO (eV)
CzP-H0.97−5.30−1.91
CzP-CN1.31−5.64−2.81
CzP-Me1.13−5.46−1.96
CzP-OMe0.91−5.24−1.89
