Structure and Electrochemical Properties of Mn₃O₄ Nanocrystal-Coated Porous Carbon Microfiber Derived from Cotton

Abstract

Biomorphic Mn₃O₄ nanocrystal/porous carbon microfiber composites were hydrothermally fabricated and subsequently calcined using cotton as a biotemplate. The as-prepared material exhibited a specific capacitance of 140.8 F·g⁻¹ at 0.25 A·g⁻¹ and an excellent cycle stability with a capacitance retention of 90.34% after 5000 cycles at 1 A·g⁻¹. These characteristics were attributed to the introduction of carbon fiber, the high specific surface area, and the optimized microstructure inherited from the biomaterial.

1. Introduction

Electrochemical supercapacitors (ESs) have many desirable properties, including long lifetime, high power density, and high rate capability. Thus, ESs are attracting worldwide attention as an efficient energy storage device for portable electronic devices and vehicles [1,2]. Transition metal oxides (TMOs) such as CoO_x, NiO, and MnO_x have been extensively investigated as promising electrode materials for ES applications. These oxides deliver higher specific capacitances than those of carbonaceous materials due to reversible faradaic redox reactions [2]. Manganese oxide has been considered a highly attractive TMO due to its high theoretical specific capacitance, good electrochemical stability, low cost, and natural abundance [3]. MnO_x-based composites with various microstructures and morphologies, such as wires, sheets, tubes, and flowers, have been developed [4,5,6,7]. Although these active materials exhibit enhanced pseudocapacitance properties, their low electronic conductivity and insufficient interface contact can substantially reduce the experimental specific capacitance and hamper their extensive commercial application.

To address these issues, scholars have proposed the fabrication of many MnO_x/carbon composites in recent years [8,9]. Among the carbon materials, using low-cost natural resources, biowaste, and food waste are highly effective ways to achieve the large-scale production of electrode materials [10,11,12]. Natural biomaterials usually possess irregular microstructures that are difficult to duplicate, and these structures are often highly suitable as energy storage materials. For example, cotton wool [6], coconut shell [13], and human hair [14] have been introduced as excellent flexible carbon substrates for hybrid composites. These materials exhibit high specific capacitance, good electronic conductivity, good cycle stability, and excellent flexibility. Therefore, a simple and cheap approach using porous carbon microfiber (PCM) derived from cotton wool was studied in our work.

Herein, we prepared a biomorphic porous composite fabricated using Mn₃O₄ nanocrystals supported on PCMs (Mn₃O₄/PCM) with cotton fiber as the biotemplate and carbon skeleton. Benefitting from the unique morphology, large specific surface area, and existence of carbon fiber, the as-prepared composites exhibit an excellent electrochemical performance.

2. Experimental

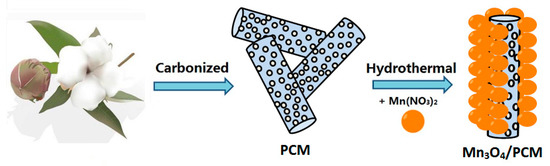

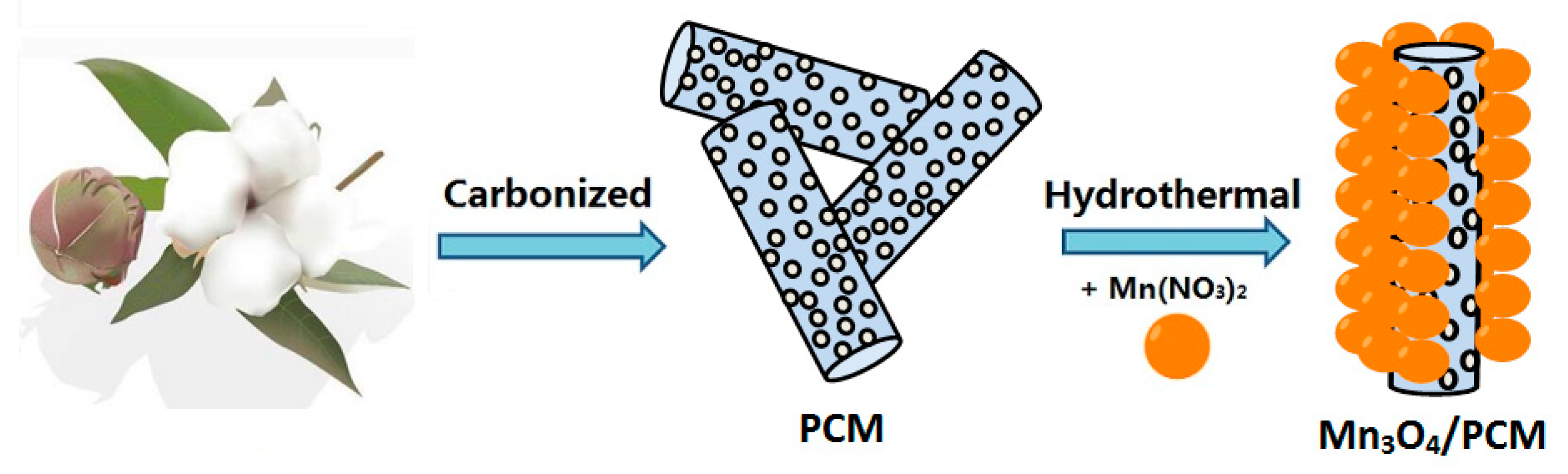

The preparation process of Mn₃O₄/PCM is schematically illustrated in Scheme 1. Dry cotton wool (Xinghua health cotton wool Co. LTD, Xinghua, China) was cut into short pieces and carbonized for 1 h at 350 °C under an argon atmosphere. The as-prepared sample is denoted as PCM. Then, 2.5 g PCM was immersed in 50 mL of 1 mol·L⁻¹ Mn(NO₃)₂·6H₂O solution. The dispersed solution was transferred to a 100 mL autoclave and reacted for 12 h at 180 °C. The hydrothermal reaction product was filtered, washed, dried, and annealed in a tubular furnace at 400 °C in air for 1 h, and the product was labeled as Mn₃O₄/PCM. For comparison, pristine Mn₃O₄ was hydrothermally synthesized by decomposing the solution of Mn(NO₃)₂·6H₂O at 180 °C for 12 h without cotton.

Field emission scanning electron microscopy (FE-SEM) images were taken with a Zeiss Sigma 500 microscope (Carl Zeiss A G, Jena, German) and an Oxford X-Max energy dispersive spectroscope (EDS, Oxford instruments, Oxford, UK). Transmission electron microscopy (TEM) images were taken using a FEI Talos F200S microscope (Thermo fisher Scientific, Waltham, MA, USA) with an accelerating voltage of 200 kV. Powder X-ray diffraction (XRD) patterns were obtained at ambient temperature on a Rigaku Smart Lab 3 kW diffractometer (Rigaku, Tokyo, Japan) using Cu K radiation (λ = 1.5418 Å) under an accelerating voltage of 36 kV. Raman spectroscopy was tested with the range of 300–2000 cm⁻¹ on a LABRAM HR-800 spectrometer (Horiba, Kyoto, Japan), and the excitation source was a 532 nm laser. Specific surface area and porosity measurements were carried out on a Quantachrome Autosorb-iQ instrument (Quantachrome instruments, Boynton Beach, FL, USA) using the Brunauer–Emmett–Teller (BET) method. X-ray photoelectron spectroscopy (XPS) measurements were performed on a VG Escalab MK II spectrometer (Thermo fisher Scientific, Waltham, MA, USA) with non-monochromatic Al Kα X-ray (1486.6 eV). The TG-DTA were measured on an integrated thermal analyzer (TG, STA 449C, NETZSCH-Gerätebau GmbH, Selb, Germany) with a 10 °C/min heating rate from room temperature to 750 °C under air atmosphere. The working electrode was prepared by mixing the prepared composites, acetylene black, and polytetrafluoroethylene with a mass ratio of 75:15:10, while electrode of the bulk Mn₃O₄ was 50:40:10. The net weight of Mn₃O₄ in electrodes was ~3 mg. Subsequently, the mixture was coated onto a nickel foam current collector (1.5 cm²), pressed at 10 MPa, and dried under vacuum at 60 °C. All the measurements were performed with a three-electrode system (Hg/HgO and platinum as the reference and counter electrode, respectively) and a two-electrode system (Mn₃O₄/PCM and commercial active carbon (CAC)) in 3 mol·L⁻¹ KOH aqueous electrolyte.

3. Results and Discussion

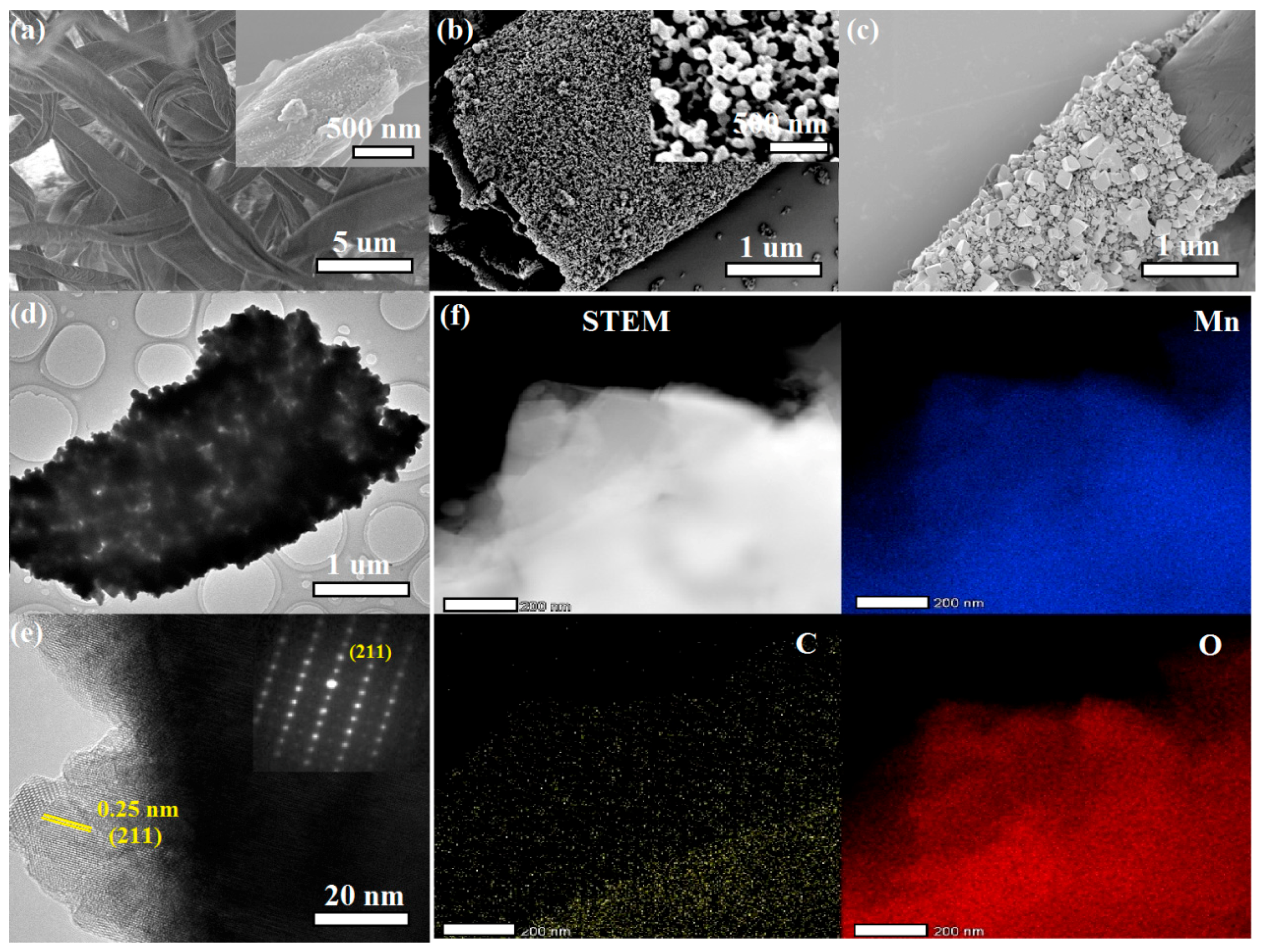

The carbon fiber of the cotton became remarkably porous after carbonization (Figure 1a). The Mn₃O₄/PCM composite prepared using cotton as template had a tubular morphology (Figure 1b,c) similar to cotton. At the start of the hydrothermal reaction, the cotton was immersed into the precursor solution, the Mn²⁺ was partly oxidized to Mn³⁺ ions, and Mn₃O₄ formed. Mn ions were then bonded onto the oxygen-rich group of the cotton fibers through O‒H, C=O groups, and so on (Figure 1b) [15,16,17]. The size of nanocrystals increased from several to dozens of nanometers (Figure 1b,c) with a reaction time from 5 h to 12 h. When the hydrothermal product was calcined at 400 °C, the precise replication of cotton texture could be achieved after the removal of most of the template substance. Part of the organic template was carbonized into a porous carbon stick with irregular pores (Figure 1d). The high-resolution TEM (HRTEM) image (Figure 1e) clearly demonstrates that the biomorphic Mn₃O₄ was monocrystalline and derived from the lattice arrangement (inset of Figure 1e). The interplanar spacing was about 0.25 nm for the {211} lattice planes. The distribution of Mn (44.8 wt.%), C (31.7 wt.%), and O (23.5 wt.%) in the as-prepared sample was uniform (Figure 1f).

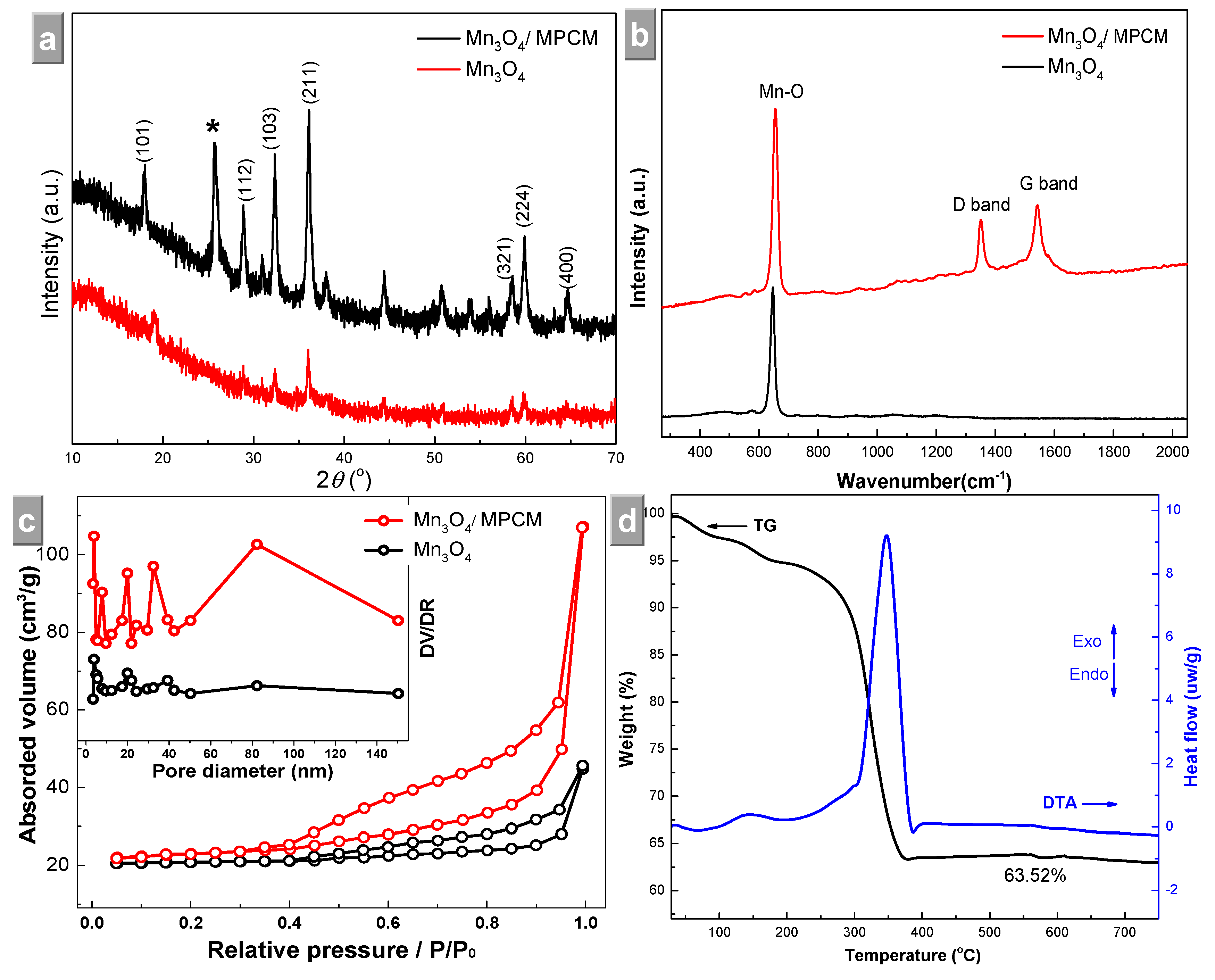

The XRD patterns of Mn₃O₄/PCM and bulk Mn₃O₄ are shown in Figure 2a. The diffraction peaks of the composite can be ascribed to tetragonal Mn₃O₄ (JCPDS 18-0803) [18], and the diffraction peak at 25.24° was ascribed to the carbon fabric (graphitic carbon: JCPDS75-1621), which was marked with an asterisk symbol (*). Raman characterizations (Figure 2b) showed features from Mn–O in 600–700 cm⁻¹ and carbon fibers in the 1200‒1600 cm⁻¹ region in Mn₃O₄/PCM [4,9,16], while only an Mn–O peak at lower wavenumber in Mn₃O₄.

The N₂ adsorption–desorption isotherm of Mn₃O₄/PCM exhibited a distinct H3 hysteresis loop at p·p₀⁻¹ > 0.40 (Figure 2c). The isotherms of composite and pristine Mn₃O₄ exhibited features of mesoporous materials. The pore size distribution of Mn₃O₄/PCM appeared with a wide range having two pore extremes at 24.2 and 82.5 nm. The BET specific surface area of the Mn₃O₄/PCM was determined to be 51.9 m²·g⁻¹, which was much larger than that of pristine Mn₃O₄ (10.8 m²·g⁻¹). The higher surface area and pore volume is beneficial to the contact of the electrolytes with the active materials, and can further increase the electrochemical properties [6,8,10]. The TG-DTA curves of the hydrothermal product are shown in Figure 2d. Two endothermic peaks were observed in the range of 100‒200 °C because of the adsorbed water. A weight loss of ~30% was found between 250 and 380 °C, which can be attributed to the decomposition of organic substances in cotton similar to other biomorphic oxides [13,14].

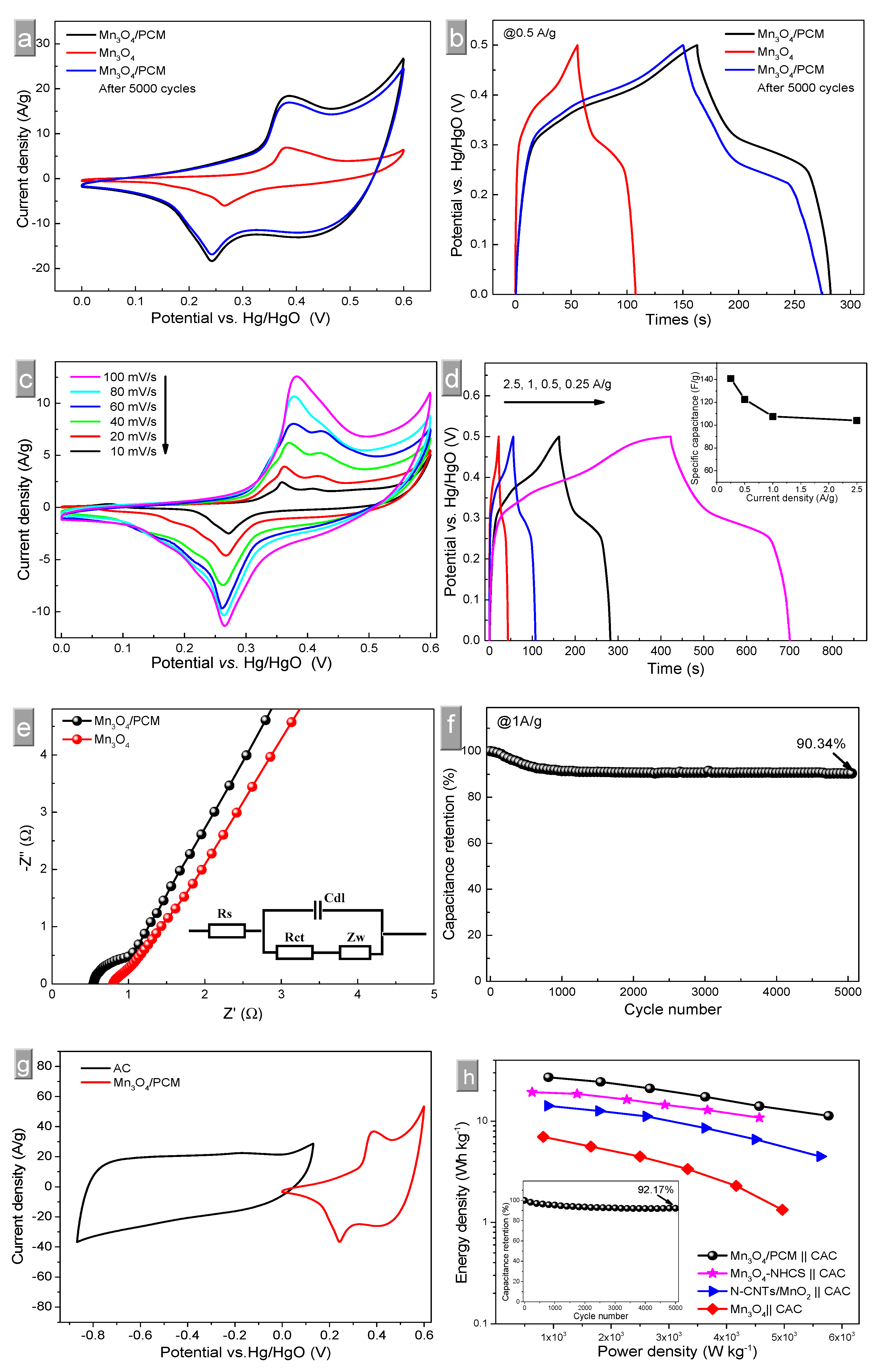

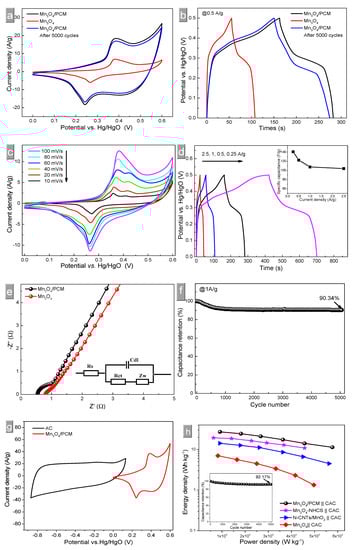

As shown in Figure 3a,b, the cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) curves of Mn₃O₄/PCM and bare Mn₃O₄ demonstrated that the electrochemical properties of the former were better than those of the latter. The specific capacitances were calculated to be 120.8 and 52.2 F·g⁻¹, respectively, which were attributed to the higher specific surface area of Mn₃O₄/PCM, the existence of carbon fiber, and its special hierarchical porous morphology derived from the biotemplate. As illustrated in Figure 3c, Mn₃O₄/PCM and pristine Mn₃O₄ had a pair of redox peaks located at ~0.25 and ~0.4 V, which correspond to almost the same component and chemical conversion between different manganese oxidation states in alkaline medium (Mn₃O₄ ⇔ MnOOH) [18,19]. The GCD curves of Mn₃O₄/PCM displayed remarkable pseudocapacitance properties. A slight reduction of specific capacitance was noted at high current densities (Figure 3d), indicating that the as-prepared composite has a good electrochemical stability [4,14].

The electrochemical impedance spectroscopy (EIS) measurements of the biomorphic Mn₃O₄/PCM and bulk Mn₃O₄ are shown in Figure 3e. The charge-transfer resistance (R_ct) (radius of the semicircle) of biomorphic electrode (≤0.5 Ω) was obviously lower than that of pristine Mn₃O₄ (>0.6 Ω), suggesting the substantially improved reaction kinetics (e.g., increased charge transfer rate) for microtubular Mn₃O₄/PCM. The increase in rate enables additional rapid redox reaction and facilitates electron transport, and thus improves the specific capacitance. As shown in Figure 3f, the long-term cycling stability of Mn₃O₄/PCM electrode was tested at 1 A·g⁻¹ for 5000 cycles. This result indicates that the electrode maintained more than 90% of its initial value after 5000 cycles, suggesting the excellent cyclic stability of the electrode. At the same time, the CV and GCD profiles after 5000 cycles migrated slightly from values before cycling (Figure 3a,b). The superior electrochemical performance of Mn₃O₄/PCM can be attributed to the special tubular morphology, high specific surface area, and porous carbon microfibers inside.

After assembling into an asymmetric supercapacitor using the two-electrode system of Mn₃O₄/PCM and CAC, the working voltage could be expanded to 0–1.4 V (Figure 3g) while the three-electrode system was 0–0.6 V. As shown in Figure 3h, the specific capacitance of Mn₃O₄/PCM||CAC was 110.8 F·g⁻¹ at a current density of 1 A·g⁻¹. The inset of Figure 3h is a Ragone plot of the asymmetric electrode. The energy density of the cell configuration was 27.13 Wh·kg⁻¹ at a power density of 0.41 kW·kg⁻¹. Even at a high power density of 4.76 kW·kg⁻¹, the energy density still maintained at 11.34 Wh·kg⁻¹. Our results were better than previous reports concerned with special morphologies of Mn₃O₄-based composites used as supercapacity electrodes (Figure 3h) [4,20]. There was still specific capacitance of 92.17% retained in the cell after 5000 cycles (inset of Figure 3h), suggesting that the electrode has a high reversibility and good electrochemical stability.

4. Conclusions

This work successfully prepared a biomorphic Mn₃O₄/PCM composite via a simple hydrothermal route by using cotton as a biotemplate. The as-obtained Mn₃O₄/PCM was composed of Mn₃O₄ nanocrystal-coated carbon fiber, inherited the morphology and microstructure of cotton, and exhibited the excellent electrochemical properties of a specific capacitance of 140.8 F·g⁻¹ at 0.25 A·g⁻¹ and long cycling life with 90.34% of the capacitance after 5000 cycles. This work provides an example of the fabrication of biomorphic porous TMOs for developing promising electrode materials in energy storage and conversion.
