# Influence of Partially Debonded Interface on Elasticity of Syntactic Foam: A Numerical Study

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Geometric and Physical Model Concepts

- Mixed model (Figure 1a): There is a mixture of microspheres having both bonded and debonded interfaces. For each microsphere, the interface is either fully bonded or fully debonded.
- Partially debonded model (Figure 1b): Each microsphere has an interface which consists of two distinctly divided regions of bonded and debonded states. When the debonded region is smaller than the bonded region, there is a cap-type gap in one side of the interface. The cap-type connection exists in the opposite situation.
- Discontinuously bonded model (Figure 1c): The interface is discontinuously bonded meaning the microsphere and matrix are sparsely interconnected at the interface.

## 3. Numerical Results

#### 3.1. Mixed Model

#### 3.2. Partially Debonded Model

#### 3.3. Discontinuously Bonded Model

## 4. Discussion

## 5. Conclusions

## Supplementary Materials

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Narkis, M.; Kenig, S.; Puterman, M. Three-phase syntactic foams. Polym. Compos.
**1984**, 5, 159–165. [Google Scholar] [CrossRef] - Gladysz, G.M.; Perry, B.; Mceachen, G.; Lula, J. Three-phase syntactic foams: Structure-property relationships. J. Mater. Sci.
**2006**, 41, 4085–4092. [Google Scholar] [CrossRef] - Tagliavia, G.; Porfiri, M.; Gupta, N. Influence of moisture absorption on flexural properties of syntactic foams. Compos. Part B
**2012**, 43, 115–123. [Google Scholar] [CrossRef] - Gupta, N.; Zeltmann, S.E.; Shunmugasamy, V.C.; Pinisetty, D. Applications of polymer matrix syntactic foams. JOM
**2014**, 66, 245–254. [Google Scholar] [CrossRef] - Ibrahim, I.A.; Mohamed, F.A.; Lavernia, E.J. Particulate reinforced metal matrix composites—A review. J. Mater. Sci.
**1991**, 26, 1137–1156. [Google Scholar] [CrossRef] - Ahmed, S.; Jones, F.R. A review of particulate reinforcement theories for polymer composites. J. Mater. Sci.
**1990**, 25, 4933–4942. [Google Scholar] [CrossRef] - Fu, S.Y.; Feng, X.Q.; Lauke, B.; Mai, Y.W. Effects of particle size, particle/matrix interface adhesion and particle loading on mechanical properties of particulate–polymer composites. Compos. Part B
**2008**, 39, 933–961. [Google Scholar] [CrossRef] - Gupta, N.; Ye, R.; Profiri, M. Comparison of tensile and compressive characteristics of vinyl ester/glass microballoon syntactic foams. Compos. Part B
**2010**, 41, 236–245. [Google Scholar] [CrossRef] - Lee, K.J.; Westmann, R.A. Elastic properties of hollow-sphere-reinforced composites. J. Compos. Mater.
**1970**, 4, 242–252. [Google Scholar] [CrossRef] - Huang, J.S.; Gibson, L.J. Elastic moduli of a composite of hollow spheres in a matrix. J. Mech. Phys. Solids
**1993**, 41, 55–75. [Google Scholar] [CrossRef] - Nielsen, L.E. Elastic modulus of syntactic foams. J. Polym. Sci.
**1983**, 21, 1567–1568. [Google Scholar] [CrossRef] - Nielsen, L.E.; Landel, R.F. Mechanical Properties of Polymers and Composites; Marcel Dekker: New York, NY, USA, 1994. [Google Scholar]
- Tagliavia, G.; Porfiri, M.; Gupta, N. Analysis of particle-to-particle elastic interactions in syntactic foams. Mech. Mater.
**2011**, 43, 952–968. [Google Scholar] [CrossRef] - Sanders, W.S.; Gibson, L.J. Mechanics of BCC and FCC hollow-sphere foams. Mater. Sci. Eng. A
**2003**, 352, 150–161. [Google Scholar] [CrossRef] - Sanders, W.S.; Gibson, L.J. Mechanics of hollow sphere foams. Mater. Sci. Eng. A
**2003**, 347, 70–85. [Google Scholar] [CrossRef] - Marur, P.R. Numerical estimation of effective elastic moduli of syntactic foams. Finite Elem. Anal. Des.
**2010**, 46, 1001–1007. [Google Scholar] [CrossRef] - Yu, M.; Zhu, P.; Ma, Y. Effects of particle clustering on the tensile properties and failure mechanisms of hollow spheres filled syntactic foams: A numerical investigation by microstructure based modeling. Mater. Des.
**2013**, 47, 80–89. [Google Scholar] [CrossRef] - Bardella, L.; Sfreddo, A.; Ventura, C.; Porfiri, M.; Gupta, N. A critical evaluation of micromechanical models for syntactic foams. Mech. Mater.
**2012**, 50, 53–69. [Google Scholar] [CrossRef] - Bardella, L.; Malanca, F.; Ponzo, P.; Panteghini, A.; Porfiri, M. A micromechanical model for quasi-brittle compressive failure of glass-microballoons/thermoset-matrix syntactic foams. J. Eur. Ceram. Soc.
**2014**, 34, 2605–2616. [Google Scholar] [CrossRef] - Panteghini, A.; Bardella, L. On the compressive strength of glass microballoons-based syntactic foams. Mech. Mater.
**2015**, 82, 63–77. [Google Scholar] [CrossRef] - Shams, A.; Panteghini, A.; Bardella, L.; Porfiri, M. A micromechanical model to study failure of polymer-glass syntactic foams at high strain rates. Comput. Mater. Sci.
**2017**, 135, 189–204. [Google Scholar] [CrossRef] - Marur, P.R. Influence of imperfect interface on the elastic moduli of syntactic foams. Comput. Mater. Sci.
**2009**, 46, 327–332. [Google Scholar] [CrossRef] - Yu, M.; Zhu, P.; Ma, Y. Identification of the interface properties of hollow spheres filled syntactic foams: An inverse strategy combining microstructural modeling with Kriging metamodel. Compos. Sci. Technol.
**2013**, 74, 179–185. [Google Scholar] [CrossRef] - Tagliavia, G.; Porfiri, M.; Gupta, N. Analysis of flexural properties of hollow-particle filled composites. Compos. Part B
**2010**, 41, 86–93. [Google Scholar] [CrossRef] - Tagliavia, G.; Porfiri, M.; Gupta, N. Elastic interaction of interfacial spherical-cap cracks in hollow particle filled composites. Int. J. Solid Struct.
**2011**, 48, 1141–1153. [Google Scholar] [CrossRef] - Widom, B. Random sequential addition of hard spheres to a volume. J. Chem. Phys.
**1966**, 44, 3888–3894. [Google Scholar] [CrossRef] - Huet, C. Application of variational concepts to size effects in elastic heterogeneous bodies. J. Mech. Phys. Solid
**1990**, 38, 813–841. [Google Scholar] [CrossRef] - Cho, Y.J.; Lee, W.J.; Park, Y.H. Effect of boundary conditions on the numerical solutions of representative volume element problems for random heterogeneous composite microstructures. Metal. Mater. Int.
**2014**, 20, 1085–1093. [Google Scholar] [CrossRef] - Cho, Y.J.; Lee, W.J.; Park, Y.H. Effect of boundary conditions on plasticity and creep behavior analysis of particle reinforced composites by representative volume element approach. Comput. Mater. Sci.
**2015**, 100, 67–75. [Google Scholar] [CrossRef] - Ferrari, M.; Marzari, N. Textural and micromorphological effects on the overall elastic response of macroscopically anisotropic composites. J. Appl. Mech.
**1992**, 59, 269–275. [Google Scholar] - Odegard, G.M.; Gates, T.S.; Wise, K.E.; Park, C.; Siochi, E.J. Constitutive modeling of nanotube–reinforced polymer composites. Compos. Sci. Technol.
**2003**, 63, 1671–1687. [Google Scholar] [CrossRef] - Smith, B.L.; Schäffer, T.E.; Viani, M.; Thompson, J.B.; Frederick, N.A.; Kindt, J.; Belcher, A.; Stucky, G.D.; Morse, D.E.; Hansma, P.K. Molecular mechanistic origin of the toughness of natural adhesives, fibres and composites. Nature
**1999**, 399, 761–763. [Google Scholar] [CrossRef] - Rousseau, C.E.; Plume, G.; Goñi, M.; Ale, B. Behavior of syntactic foam under plate impact. Mech. Res. Commun.
**2017**, 83, 1–5. [Google Scholar] [CrossRef]

**Figure 1.**Schematics of debonding geometries for (

**a**) the mixed model, (

**b**) the partially debonded model and (

**c**) the discontinuously bonded model.

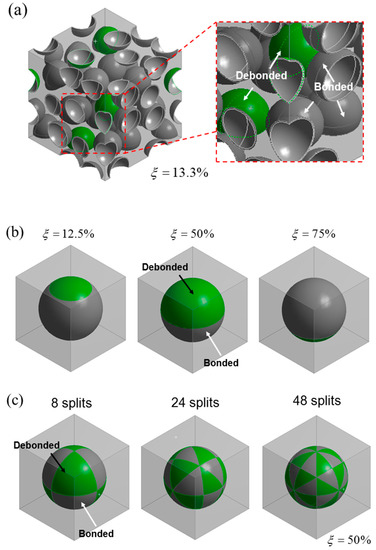

**Figure 2.**(

**a**) Model geometry for the mixed model, with 30 randomly distributed microspheres, showing the debonded geometry for a debonding fraction of 13.3% (four microspheres out or a total of 30 microspheres are debonded); (

**b**) Representative model geometries of the partially debonded model for $\xi $ = 12.5%, 50% and 75%; (

**c**) Model geometries for the discontinuously bonded models.

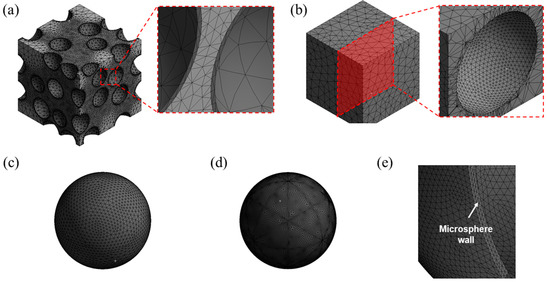

**Figure 3.**Finite element meshes for (

**a**) the mixed model; (

**b**) matrix for the partially debonded and discontinuously bonded models; (

**c**) microsphere of the partially debonded model; (

**d**) microsphere of the discontinuously bonded model; and (

**e**) cross-section image of meshes used for the microsphere wall in the partially debonded model.

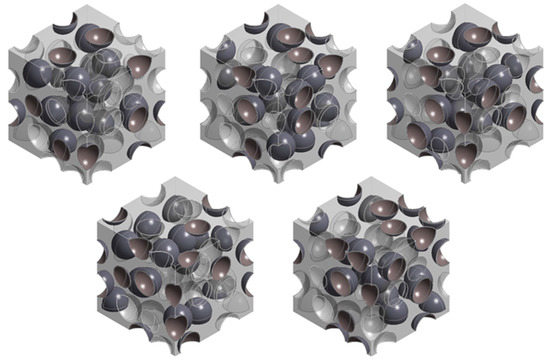

**Figure 4.**Five different representative elementary volumes (RVEs) for the mixed model, having the same $\xi $ = 50% with differently selected debonded microspheres. In the figure, bonded microspheres are shown in dark grey and debonded microspheres are transparent.

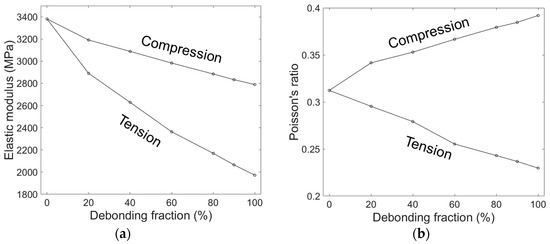

**Figure 5.**(

**a**) Elastic modulus and (

**b**) Poisson’s ratio obtained by the mixed model for a microsphere volume fraction of 30%, as a function of debonding fraction in tension and compression.

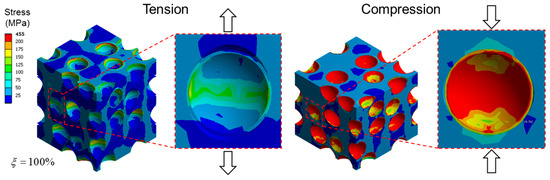

**Figure 6.**Equivalent stress fields at 1% tensile and compressive loads for the mixed model, with $\xi $ = 100% which is complete debonding for all microspheres. Strains are magnified by a factor of 10 for better visualization.

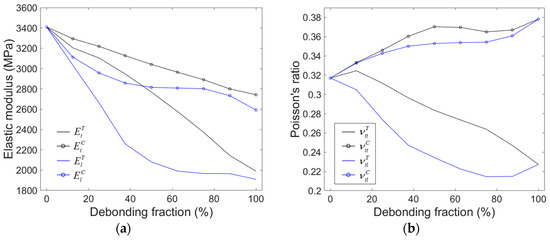

**Figure 7.**(

**a**) Elastic moduli and (

**b**) Poisson’s ratios obtained by the partially debonded model for a microsphere volume fraction of 30%, as a function of the debonding fraction. Black and blue lines represent directions in the isotropic plane and out-of-plane, respectively. Lines with and without circular marks indicate compressive and tensile elastic components, respectively.

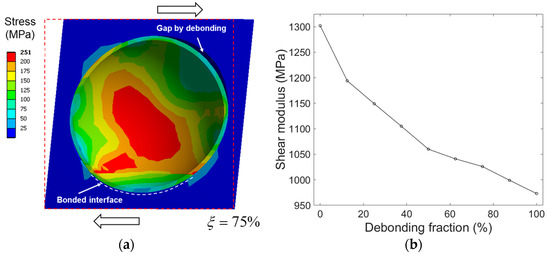

**Figure 8.**(

**a**) Cross-section view of the equivalent stress field of the partially debonded model subjected to 1% shear loading ($\xi $ = 75 %). Strain is 10 times larger than actual for easier visualization. (

**b**) Evolution of shear modulus ${G}_{tl}$ with increasing $\xi $.

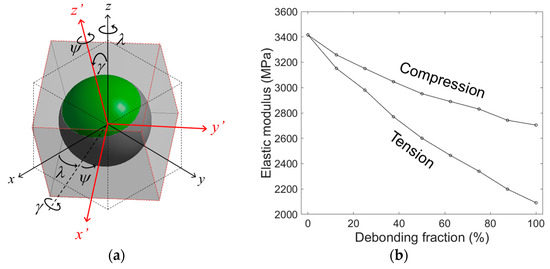

**Figure 9.**(

**a**) Schematic of rotation of coordinates and (

**b**) elastic moduli of the partially debonded model with random orientation of debonding direction.

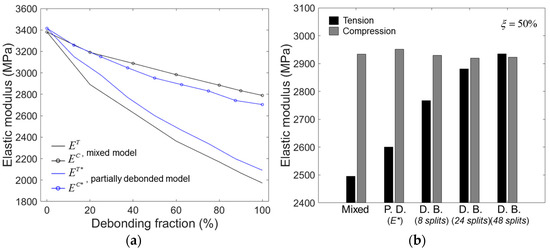

**Figure 10.**(

**a**) Elastic moduli as a function of $\xi $ for the mixed and partially debonded models. (

**b**) Compressive and tensile moduli for $\xi $ = 50%, obtained by different models. The abbreviations used are: P.D. (partially debonded) and D.B. (discontinuously bonded).

**Figure 11.**Equivalent stress distributions in microspheres for models with $\xi $ = 50%. (

**a**) Mixed model; (

**b**) partially debonded model; and (

**c**) discontinuously bonded model.

**Table 1.**Compressive and tensile elastic moduli obtained by the mixed model for $\xi $ = 50% with five different RVEs consisting of randomly selected debonded microspheres.

Model No.1 | Model No.2 | Model No.3 | Model No.4 | Model No.5 | Average | |
---|---|---|---|---|---|---|

Compressive modulus (MPa) | 3035.8 | 3027.8 | 3033.5 | 3033.5 | 3039.2 | 3033.9 ± 3.7 |

Tensile modulus (MPa) | 2496.1 | 2504.8 | 2510.3 | 2500.4 | 2515.7 | 2505.5 ± 7.0 |

Model Type | 8 Splits | 24 Splits | 48 Splits |
---|---|---|---|

Compressive modulus (${E}^{c}$, MPa) | 2929.4 | 2919.4 | 2922.5 |

Tensile modulus (${E}^{t}$, MPa) | 2767.4 | 2881.2 | 2934.9 |
