Open AccessArticle
Materials 2017, 10(8), 860;

Ion Beam Modification of Carbon Nanotube Yarn in Air and Vacuum

Department of Nuclear Engineering, Texas A&M University, College Station, TX 77843, USA
Department of Textile Engineering, Chemistry and Science, North Carolina State University, Raleigh, NC 27695, USA
Author to whom correspondence should be addressed.
Received: 20 June 2017 / Revised: 13 July 2017 / Accepted: 18 July 2017 / Published: 27 July 2017
(This article belongs to the Special Issue Ion Beam Analysis, Modification, and Irradiation of Materials)
Full-Text   |   PDF [3685 KB, uploaded 27 July 2017]   |

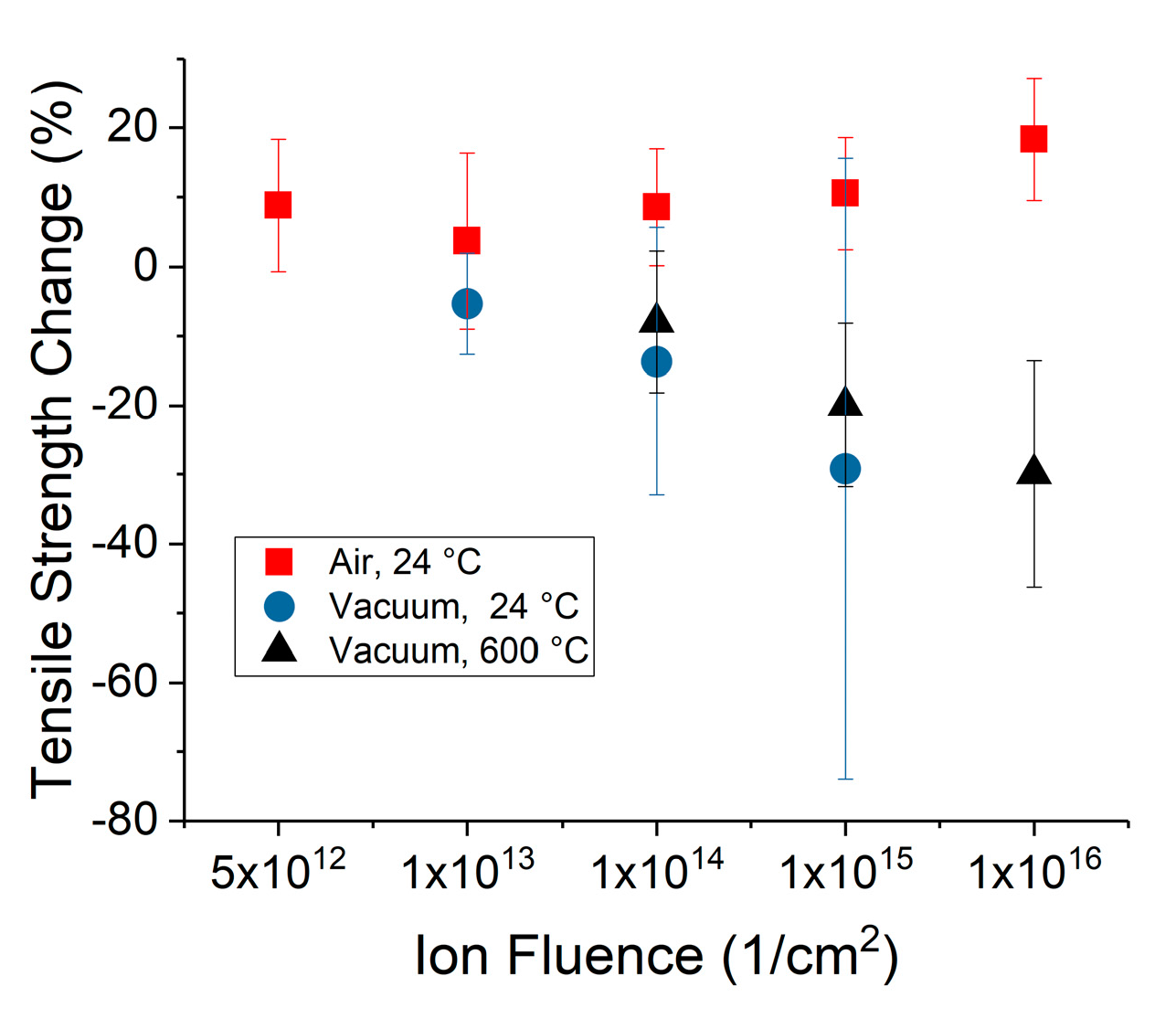

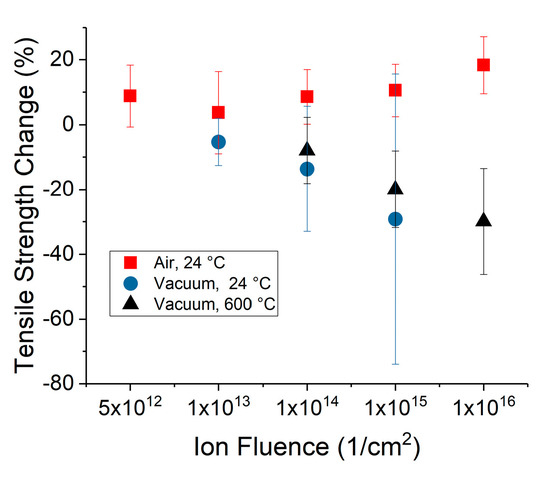

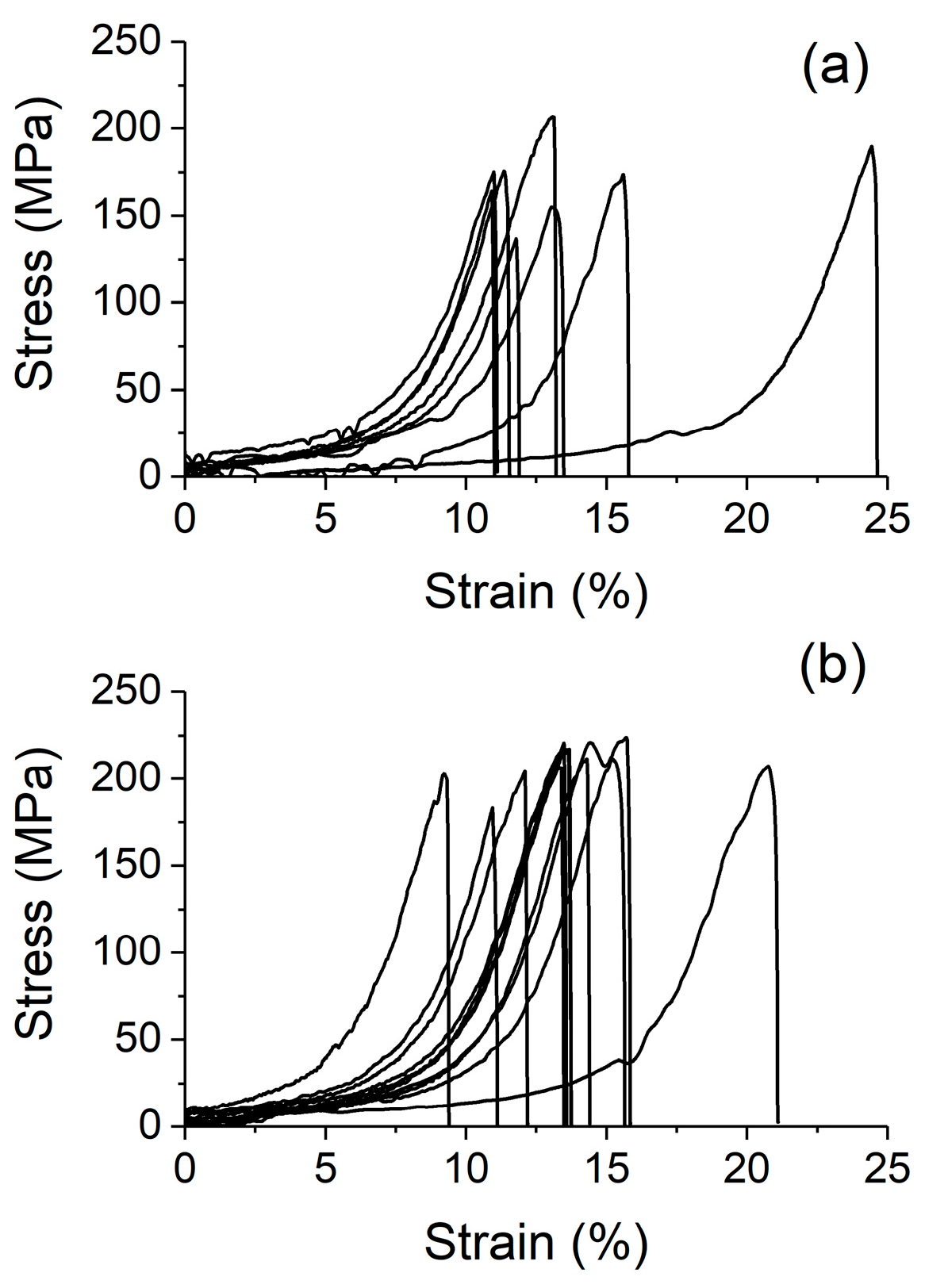

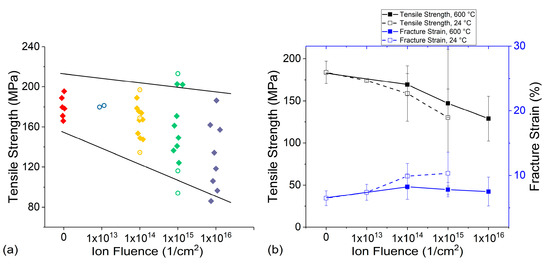

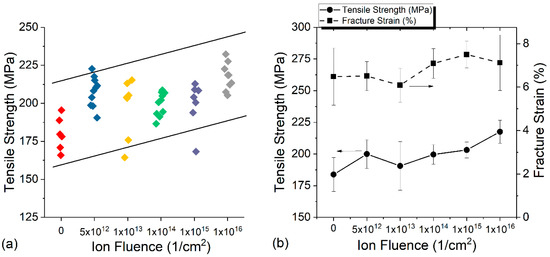

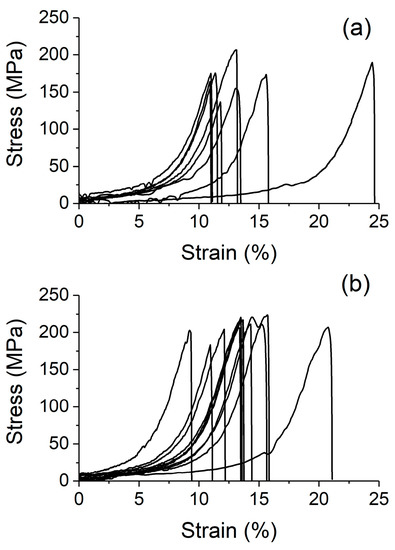

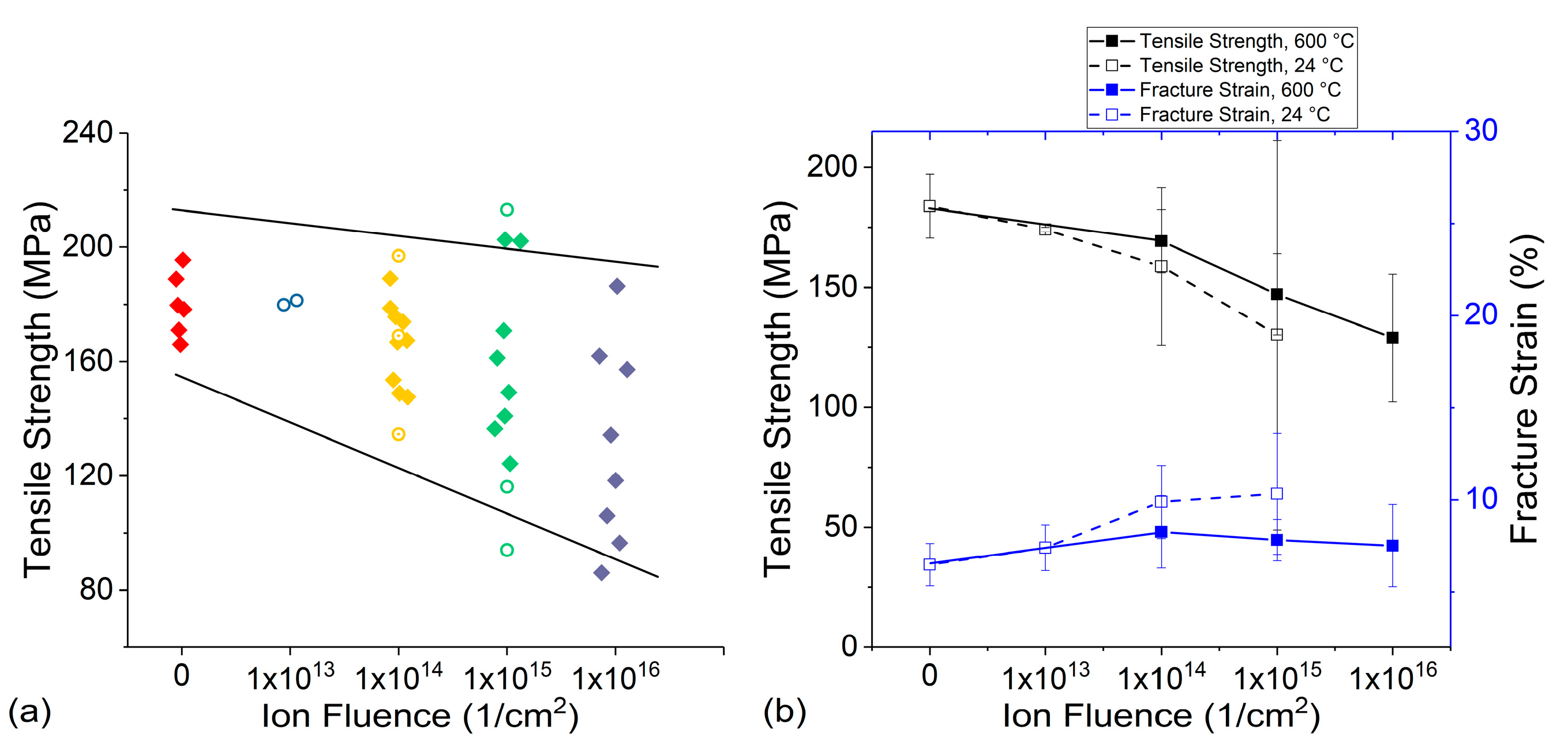

We studied the effects ion beam irradiation on carbon nanotube (CNT) yarns. CNT yarn was fabricated by drawing and spinning CNT sheets from a vertically aligned CNT forest. The yarn was irradiated by 2.5 MeV protons in either vacuum or air. Irradiation in air was achieved by directing the proton beam through a 0.025 mm thick Ti window. Irradiation in vacuum occurred at a pressure of <10−6 torr at room temperature and at an elevated temperature of 600 °C. Tensile testing revealed that CNT yarn irradiated in air increased in tensile strength with increasing proton fluence. For yarn irradiated in vacuum, however, the strength decreased with increasing fluence. We believe that irradiation-induced excitation and trapping/bonding of gas atoms between tubes may play a role for the mechanical property changes. View Full-Text
Keywords: ion-solid interaction; carbon nanotubes; ion beam welding; carbon nanotube yarn ion-solid interaction; carbon nanotubes; ion beam welding; carbon nanotube yarn

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
