Next Article in Journal
Fatigue Damage and Lifetime of SiC/SiC Ceramic-Matrix Composite under Cyclic Loading at Elevated Temperatures
Next Article in Special Issue
Improving the Strength of ZTA Foams with Different Strategies: Immersion Infiltration and Recoating
Previous Article in Journal
One-Pot Route towards Active TiO2 Doped Hierarchically Porous Cellulose: Highly Efficient Photocatalysts for Methylene Blue Degradation
Previous Article in Special Issue
Textural, Structural and Biological Evaluation of Hydroxyapatite Doped with Zinc at Low Concentrations
Open AccessArticle

The Production of Porous Hydroxyapatite Scaffolds with Graded Porosity by Sequential Freeze-Casting

Department of Materials Science and Engineering, Seoul National University, Seoul 151-744, Korea
School of Chemical and Biomedical Engineering, Nanyang Technological University, 70 Nanyang Drive, Singapore 637457, Singapore
Biomedical Implant Convergence Research Center, Advanced Institutes of Convergence Technology, Suwon 443-270, Korea
Liquid Processing & Casting Technology R&D Group, Korea Institute of Industrial Technology, Incheon 406-840, Korea
Author to whom correspondence should be addressed.
Academic Editor: Tobias Fey
Materials 2017, 10(4), 367;
Received: 30 January 2017 / Revised: 15 March 2017 / Accepted: 27 March 2017 / Published: 31 March 2017
(This article belongs to the Special Issue Porous Ceramics)

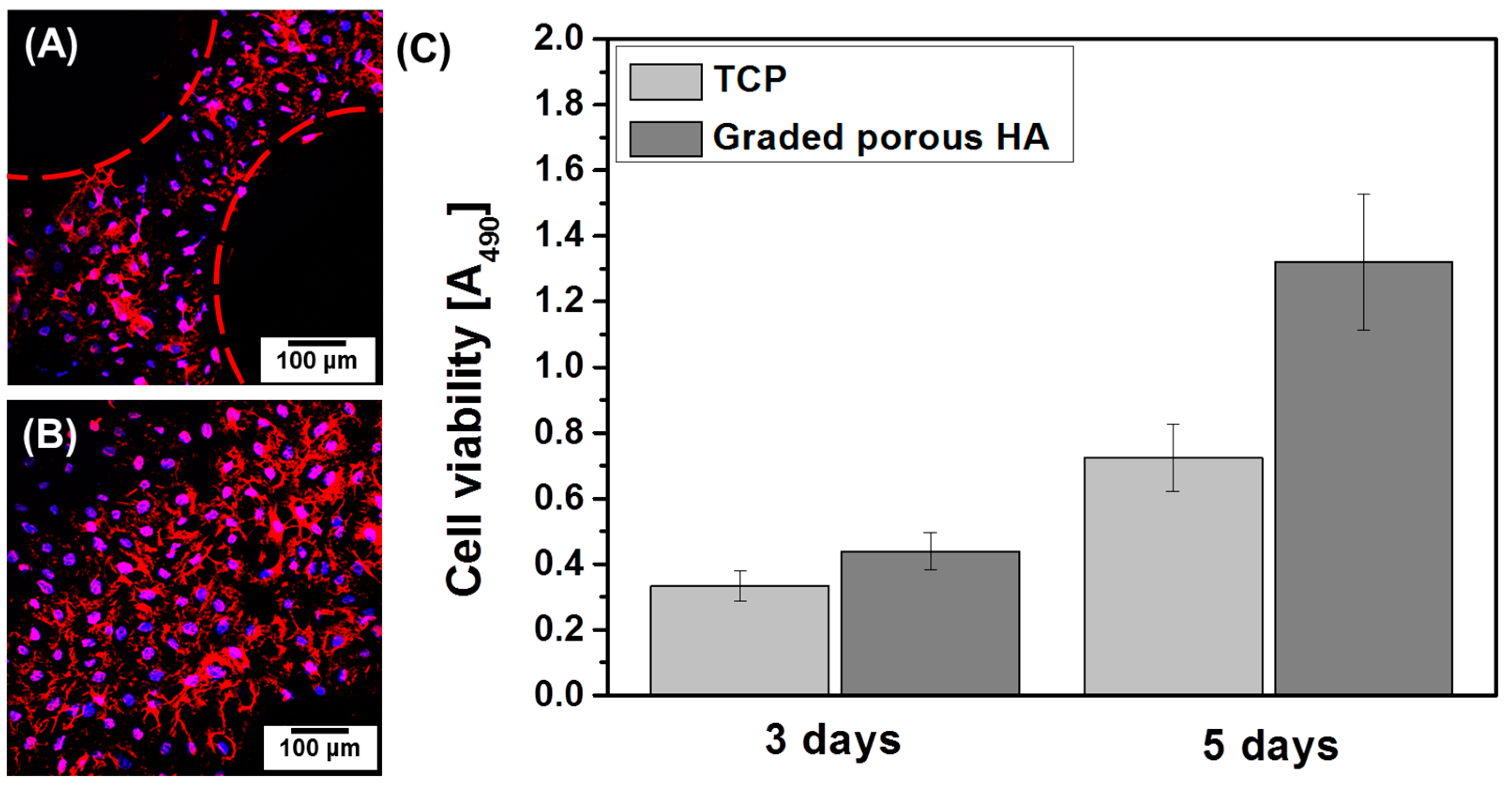

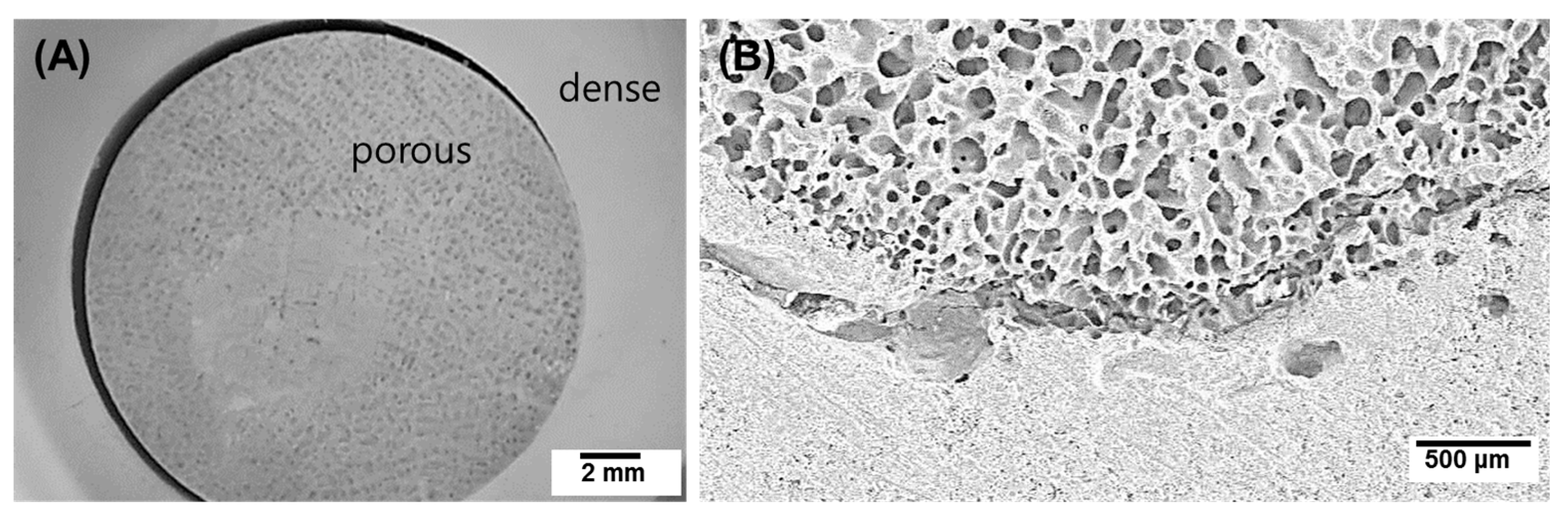

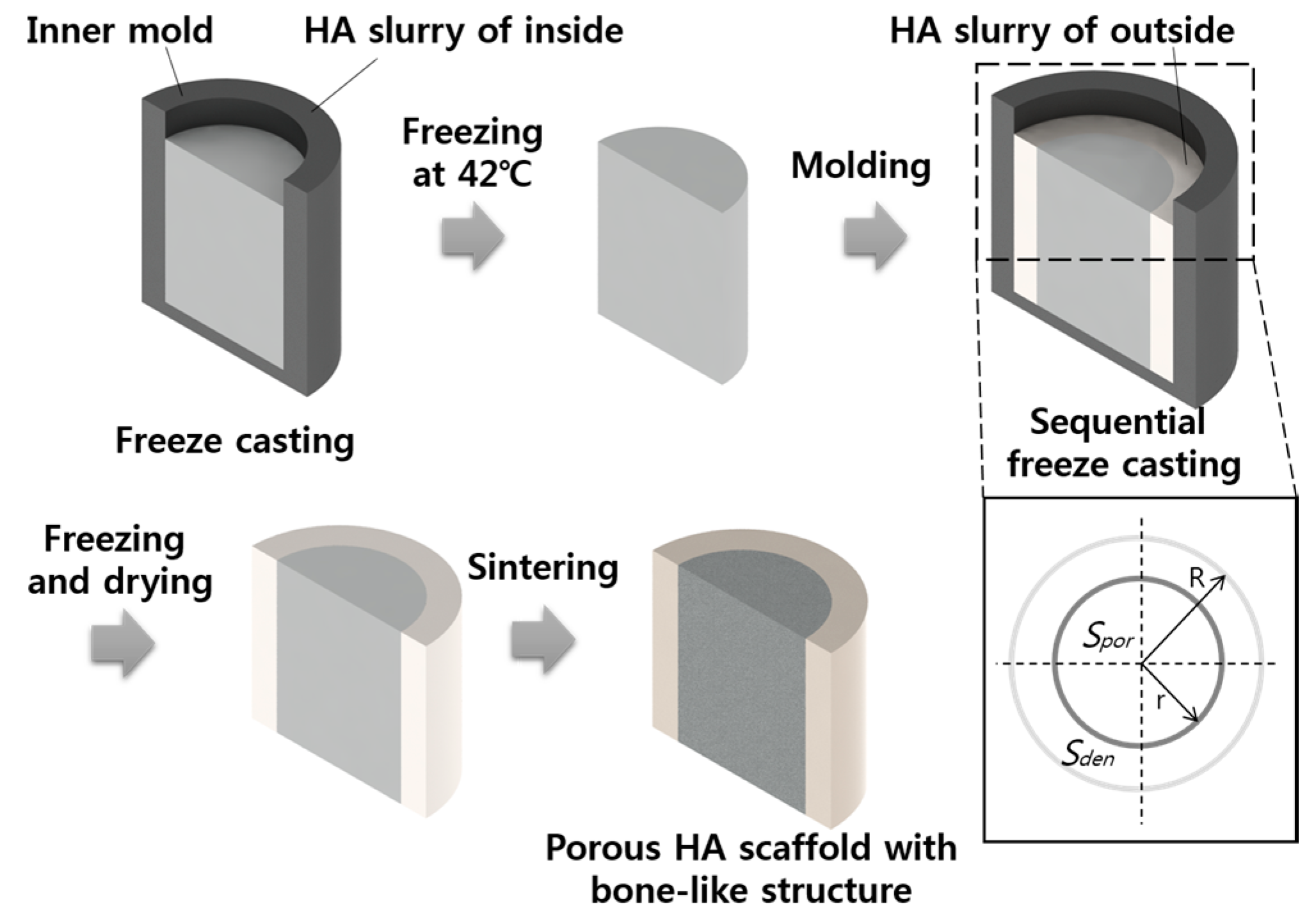

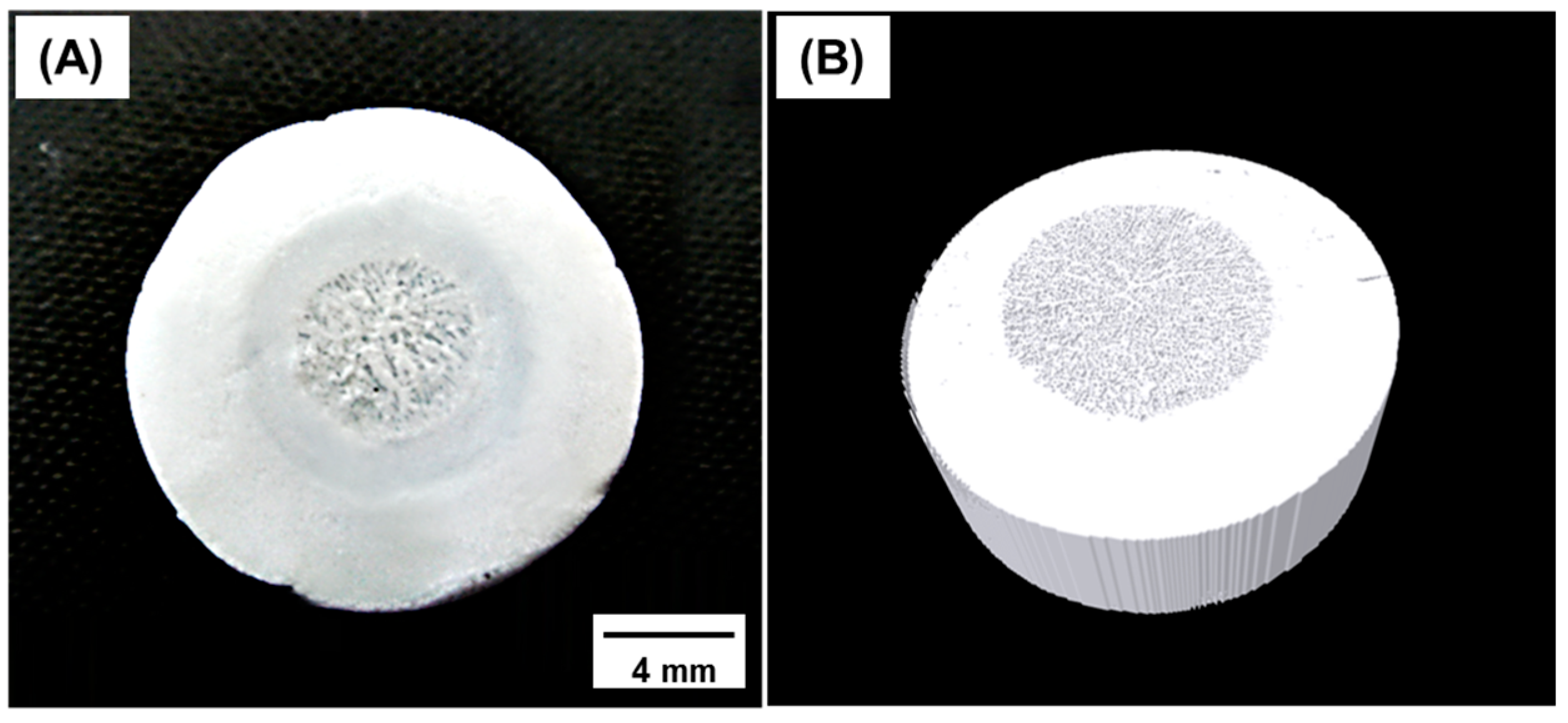

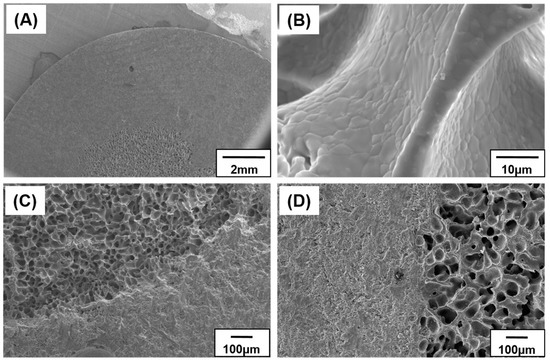

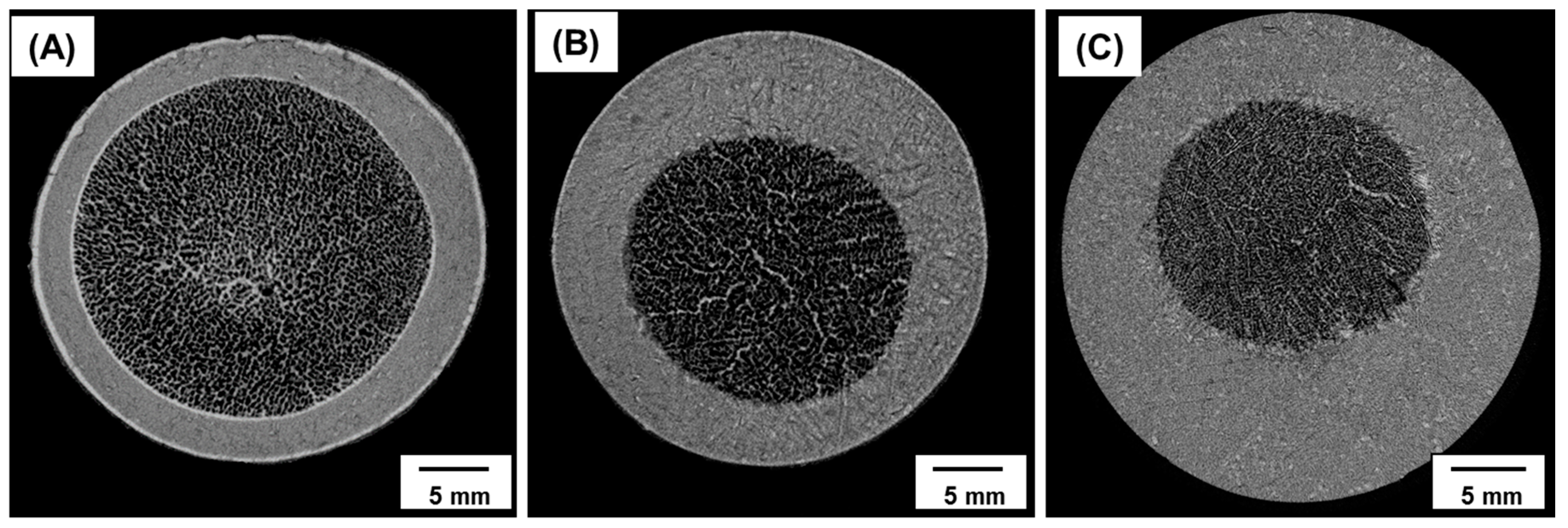

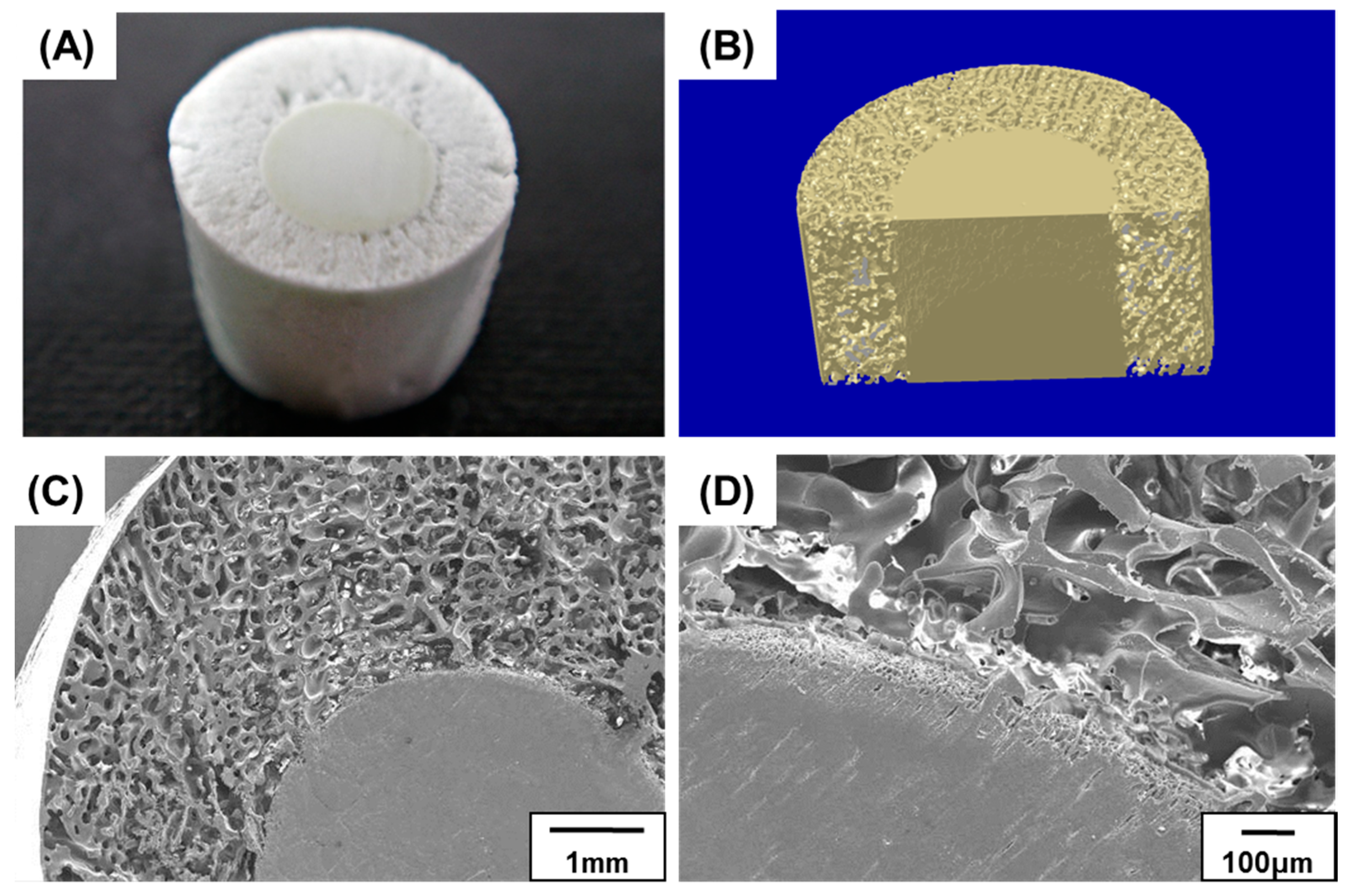

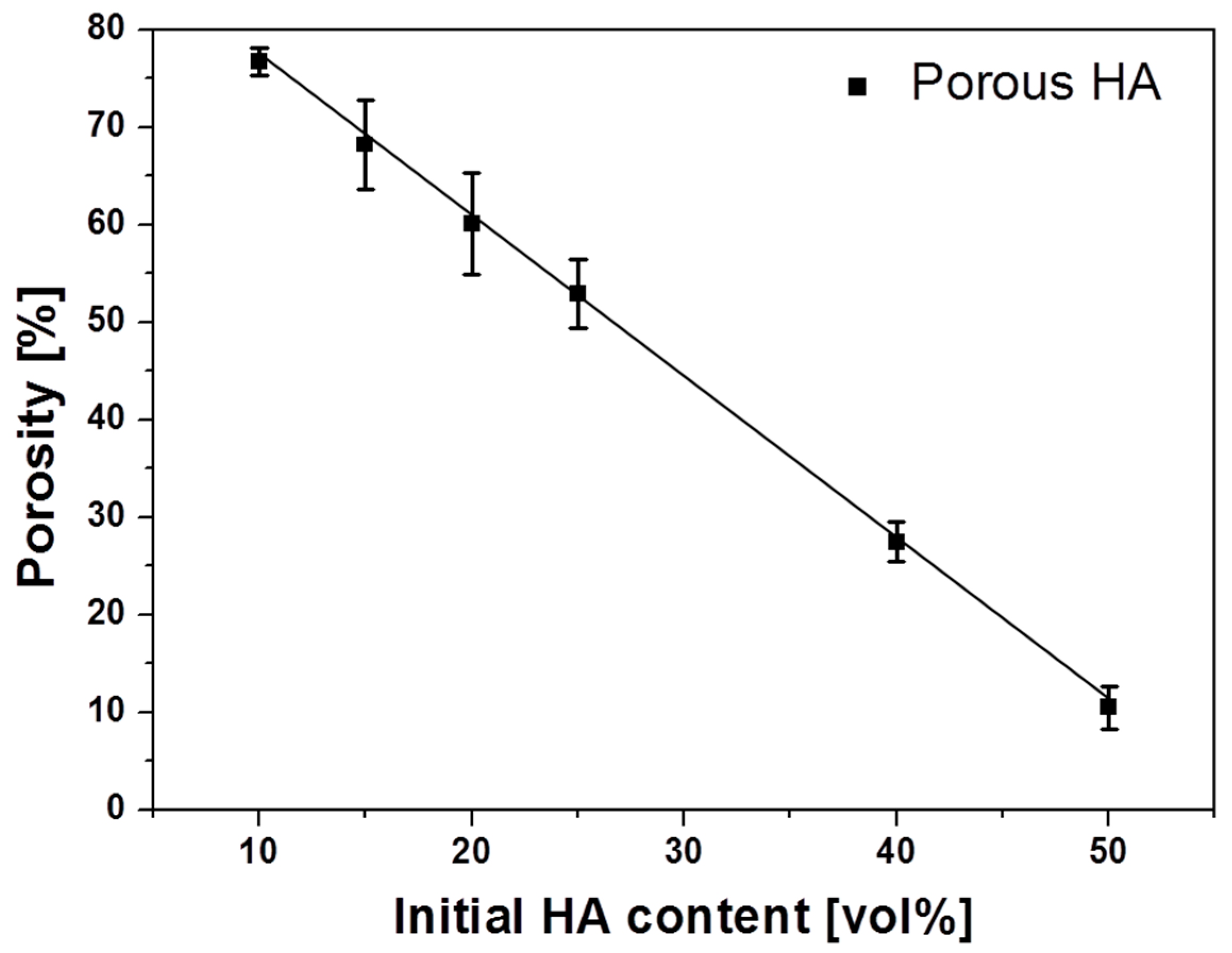

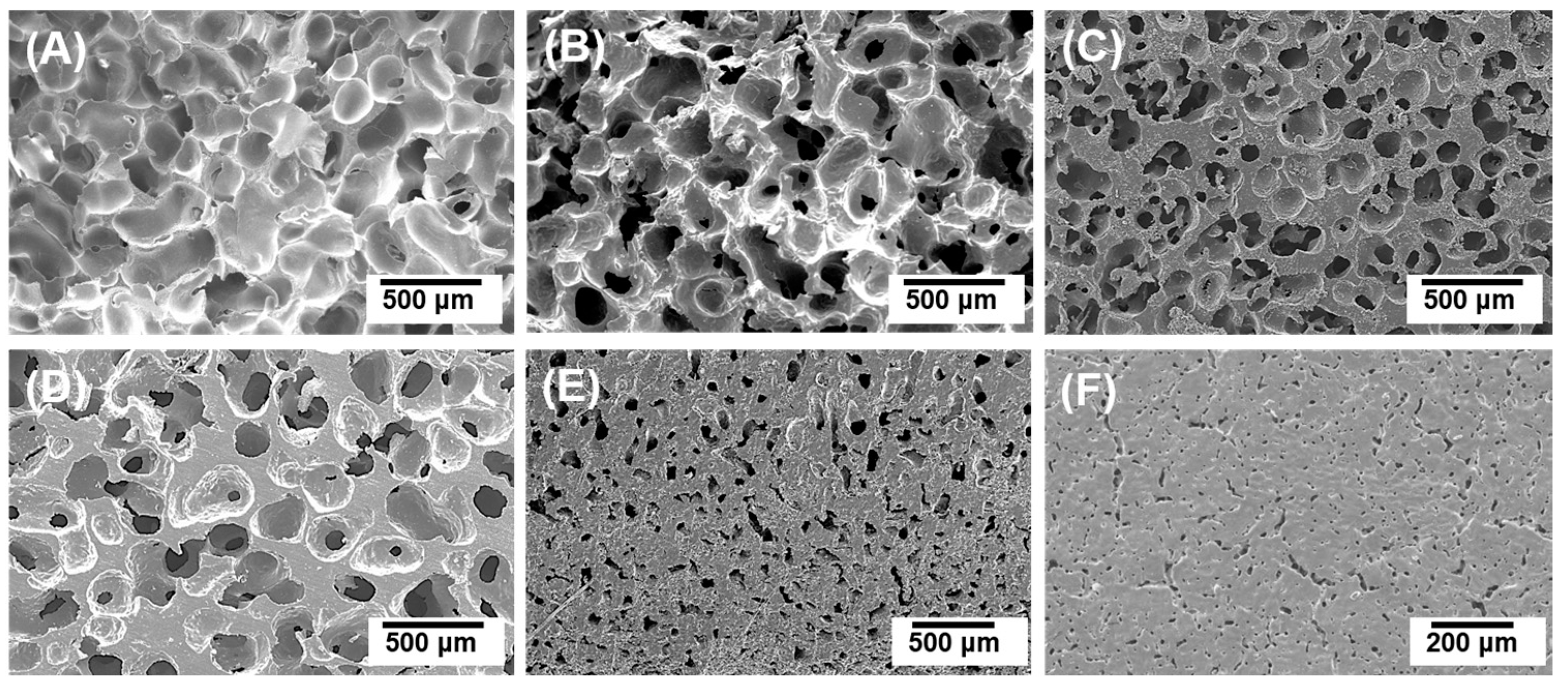

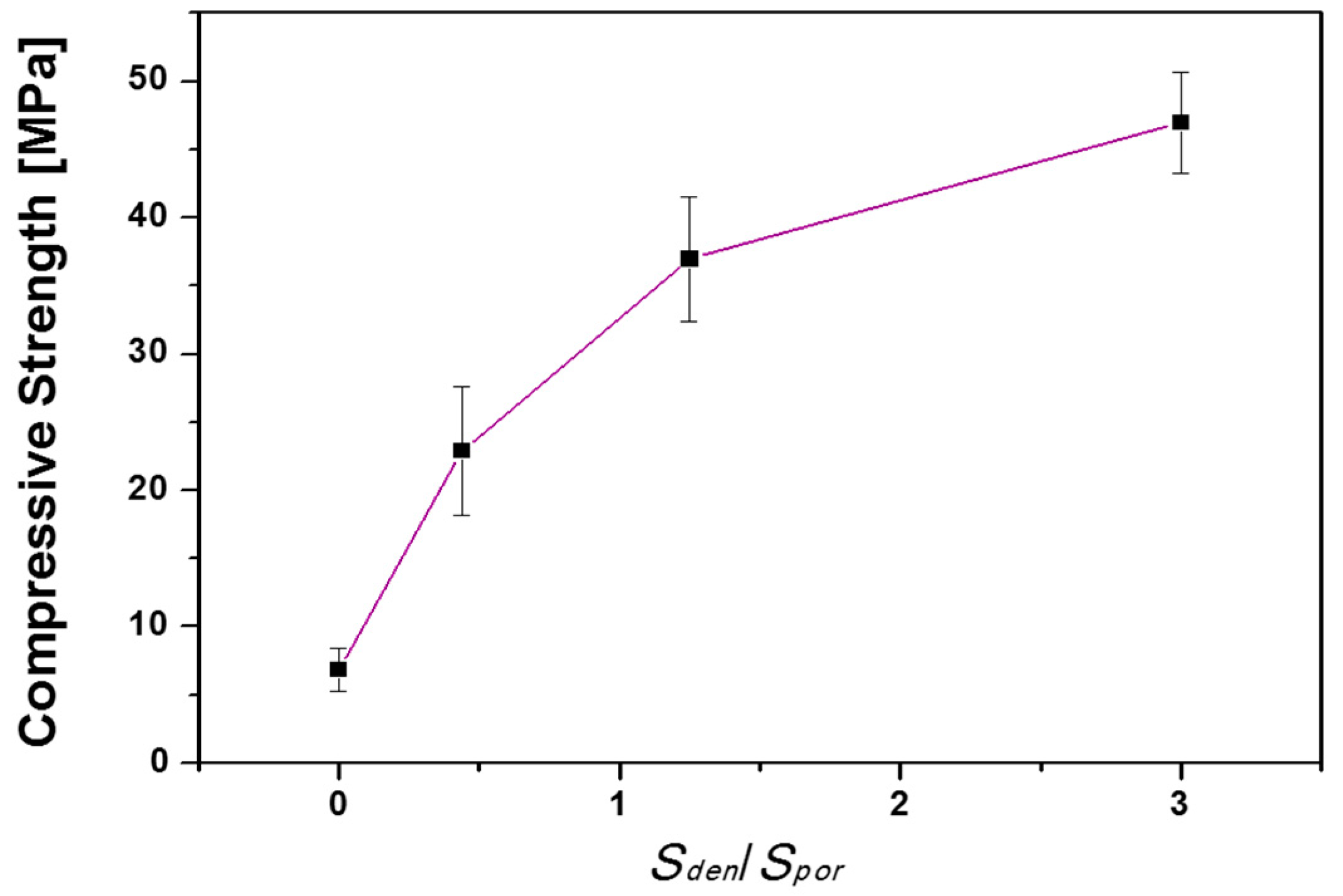

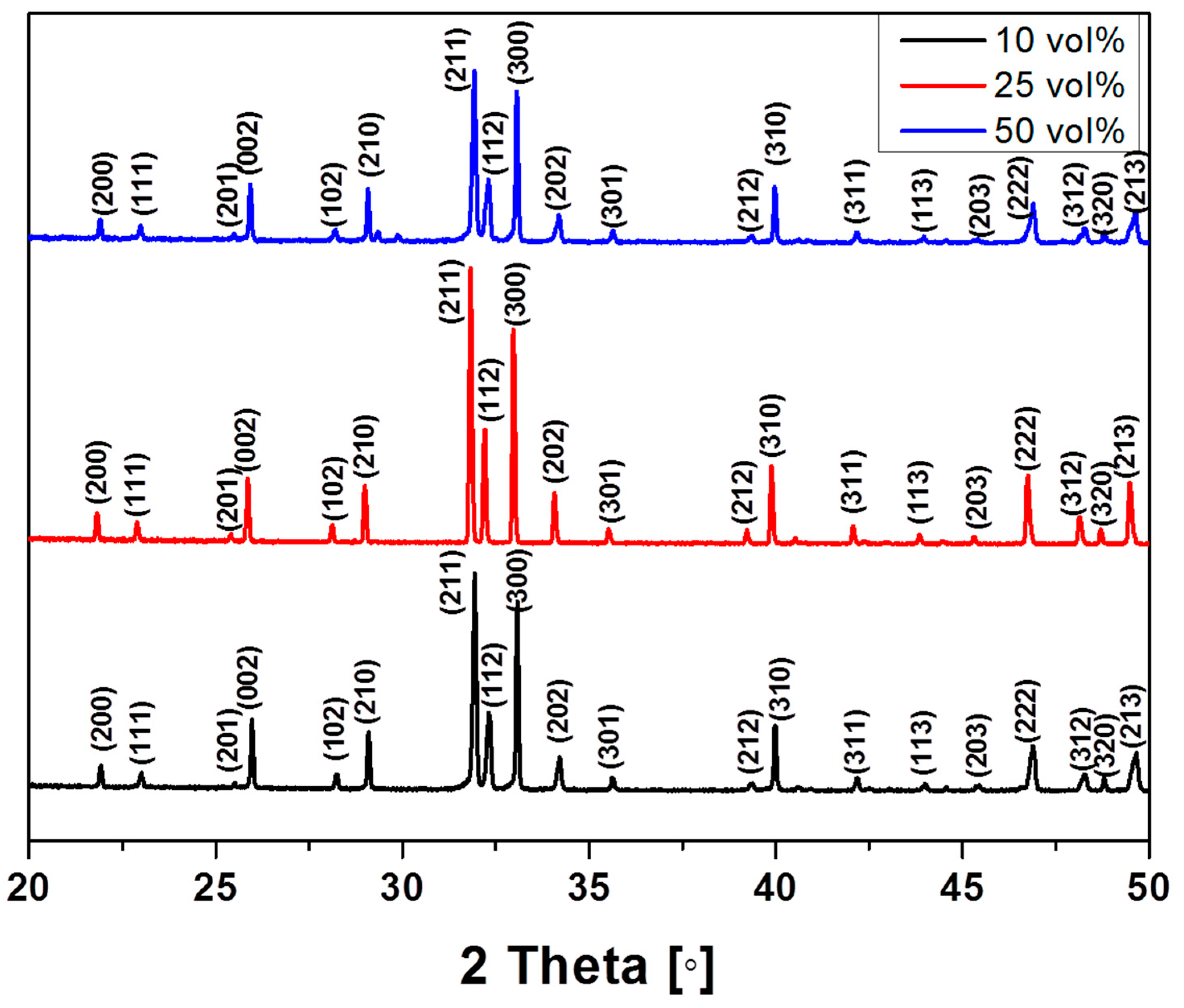

Porous hydroxyapatite (HA) scaffolds with porosity-graded structures were fabricated by sequential freeze-casting. The pore structures, compressive strengths, and biocompatibilities of the fabricated porous HA scaffolds were evaluated. The porosities of the inner and outer layers of the graded HA scaffolds were controlled by adjusting the initial HA contents of the casting slurries. The interface between the dense and porous parts was compact and tightly adherent. The porosity and compressive strengths of the scaffold were controlled by the relative thicknesses of the dense/porous parts. In addition, the porous HA scaffolds showed good biocompatibility in terms of preosteoblast cell attachment and proliferation. The results suggest that porous HA scaffolds with load-bearing parts have potential as bone grafts in hard-tissue engineering. View Full-Text
Keywords: freeze-casting; porous materials; porosity; graded structure; compressive strengths freeze-casting; porous materials; porosity; graded structure; compressive strengths
Show Figures

Figure 1

MDPI and ACS Style

Lee, H.; Jang, T.-S.; Song, J.; Kim, H.-E.; Jung, H.-D. The Production of Porous Hydroxyapatite Scaffolds with Graded Porosity by Sequential Freeze-Casting. Materials 2017, 10, 367.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
