# Adaptive Droop Control for Microgrids Based on the Synergetic Control of Multi-Agent Systems

^{*}

## Abstract

**:**

## 1. Introduction

- Distributed synergetic control is used to design the droop parameters adaptively, in which each DG only requires the local and neighbor’s information.
- The general synergetic control algorithm considering the time-delays in communication network is proposed to adjust the initial frequency ${\omega}_{0}$ and voltage ${V}_{0}$ in droop control adaptively, which are used to compensate the frequency and voltage drops, respectively. Therefore, the system frequency and voltage are always at the expected value.
- The improved control strategy can effectively reduce the effects of the disturbance on the control precision and stability of the communication.
- Under the proposed control, the MG system has the globally asymptotic stability which has been verified by the direct Lyapunov method. Therefore, the effect of droop coefficients on stability in traditional and improved controls has been eliminated.

## 2. Dynamic Model of VSC-Based DG

_{Ni}[10], which is equivalent to $\frac{{P}_{1}}{{P}_{N1}}=\frac{{P}_{2}}{{P}_{N2}}=\cdots =\frac{{P}_{n}}{{P}_{Nn}}$, where P

_{N}is the rated active power.

## 3. Adaptive Droop Control Based on MAS

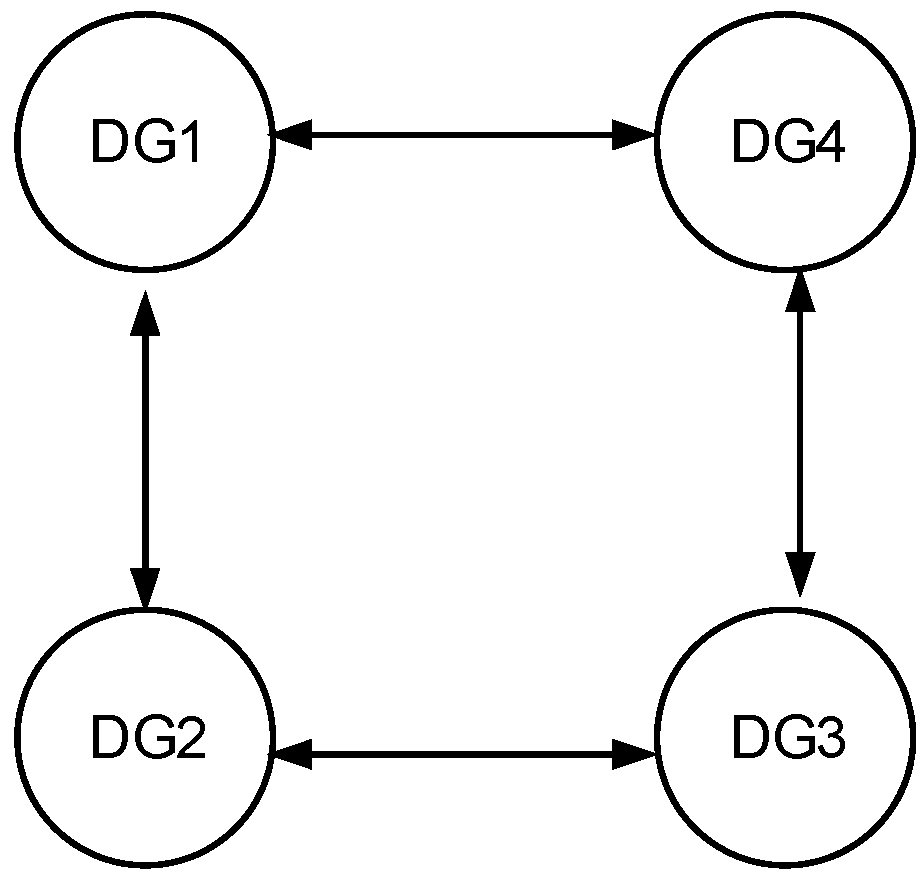

#### 3.1. Graph Theorem

**V**, and the associated adjacency matrix $A=\left[{a}_{ij}\right]\in {R}^{N\times N}$. In this paper, the communication network is assumed to be time-invariant, and

**A**is constant. In $G$, the edge $\left({v}_{j},{v}_{i}\right)$ means that node i receives the information from node j, and $\left({v}_{i},{v}_{i}\right)$ denotes the edge from node i to itself, which is usually neglected. ${a}_{ij}$ is the weight of edge $\left({v}_{j},{v}_{i}\right)$, and ${a}_{ij}>0$, if $\left({v}_{j},{v}_{i}\right)\in \epsilon $, which means that node j is a neighbor of node i; otherwise ${a}_{ij}=0$. In a diagraph, the set of neighbors of node i is denoted as ${N}_{i}=\left\{{v}_{j}|\left({v}_{j},{v}_{i}\right)\in \epsilon \right\}$. In the MG, because DGs exchange information through a communication bus, the non-directed diagraph is considered, which means that node i not only receives the information from node j, and also sends the corresponding information to node j at the same time. Usually, the Laplacian matrix of the digraph is used to express the communication relation defined as $L=\left[{l}_{ij}\right]\u03f5{R}^{n\times n}$, where ${l}_{ij}=-{a}_{ij}$ if $i\ne j$, and ${l}_{ii}=0$. In this paper, the weight of each edge is 1, the Laplacian matrix of the test MG is:

#### 3.2. Active Power Control

- (1)
- $V(0)=0$;
- (2)
- $V(x)>0$, for all $x\ne 0$;
- (3)
- $V(x)\to \infty $ as $\Vert x\Vert \to \infty $;
- (4)
- $\dot{V}(x)<0$ for all $x\ne 0$.

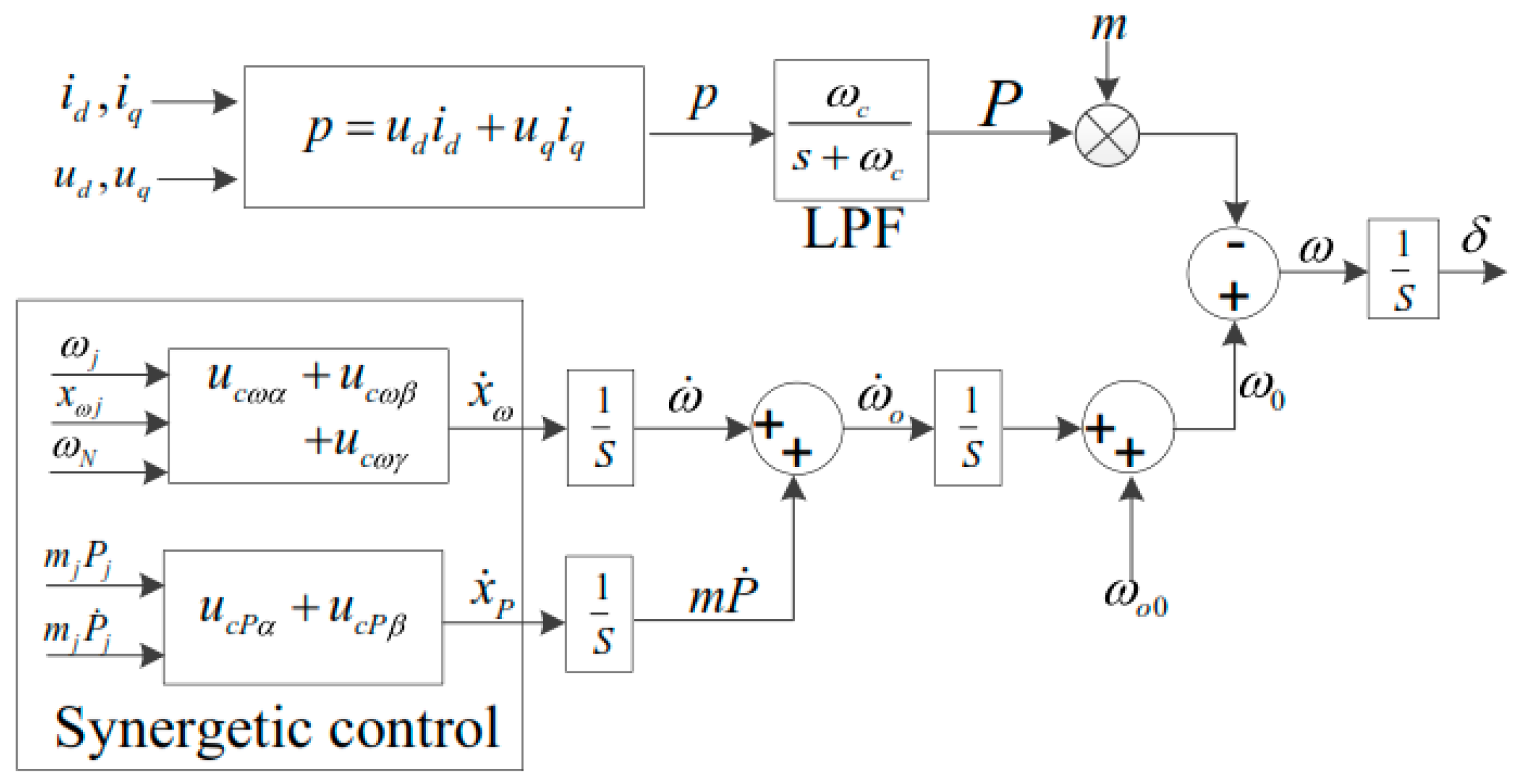

#### 3.3. Active Power-Frequency Droop Control

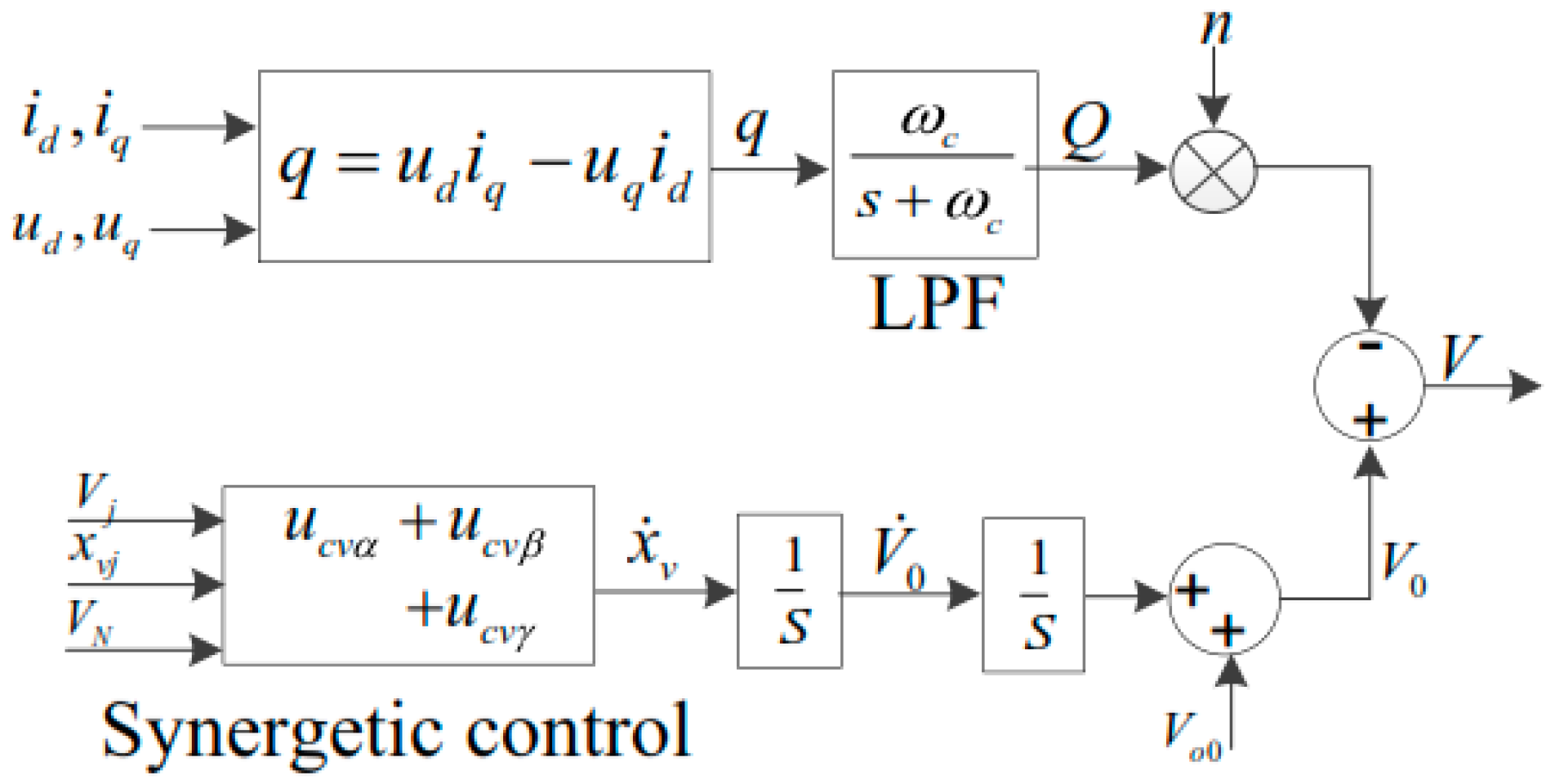

#### 3.4. Reactive Power-Voltage Droop Control

#### 3.5. Performance with Disturbance in Communication Network

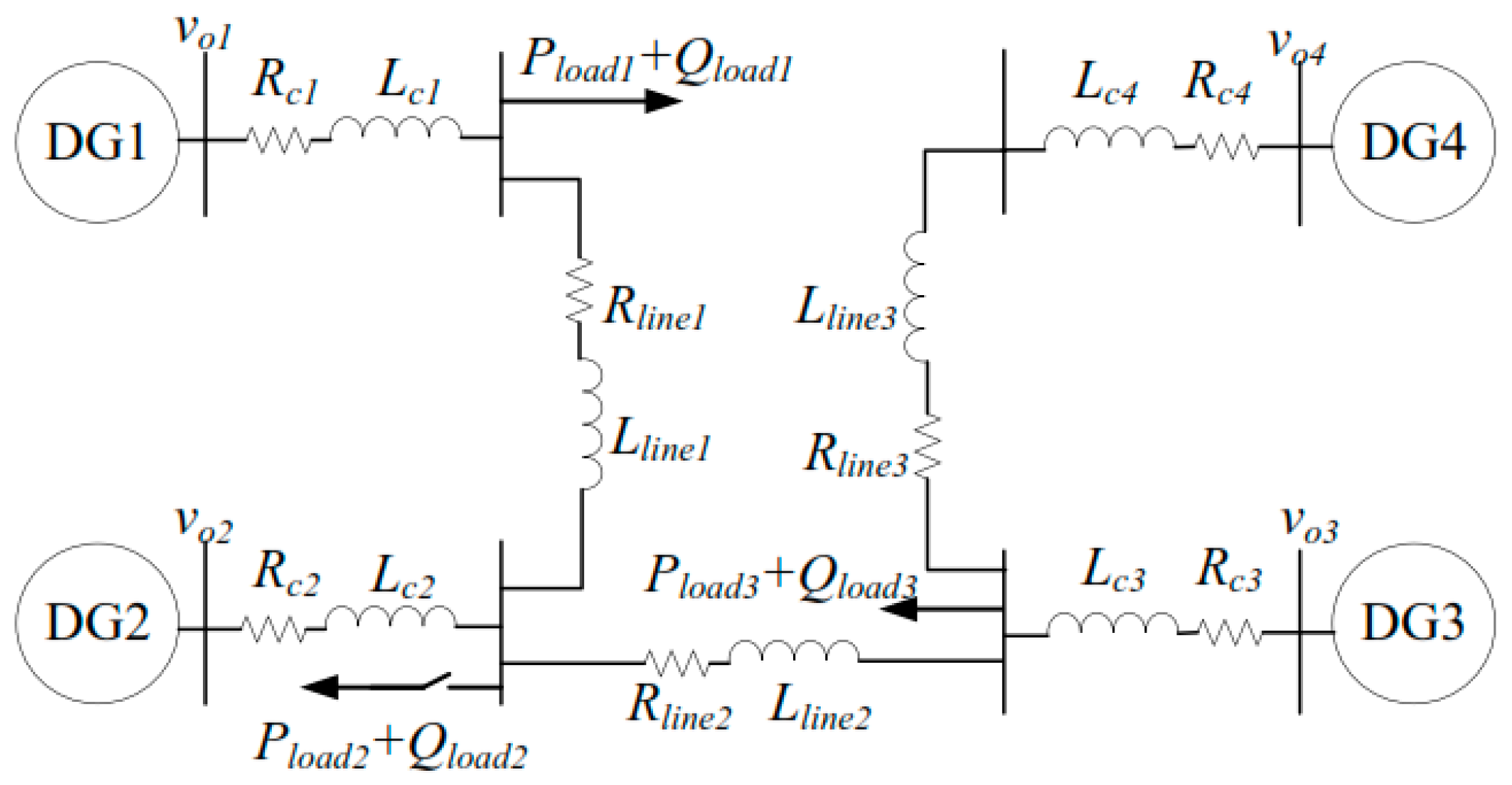

## 4. Simulation and Results

^{k}when k is odd.

#### 4.1. Case Study I: Simulation without Time-Delays and Disturbance

_{2}connects to the grid at t = 2 s. Figure 9 and Figure 10 depicts the results of the proposed control and the traditional control, respectively.

#### 4.2. Case Study II: Simulation with Time-Delays

#### 4.3. Case Study 3: Simulation with Time-Delays and Disturbance

_{j}to DG

_{i}, where ${\delta}_{\omega j}=1.25\mathrm{sin}(2\pi 500t)$ and ${\delta}_{Pj}=50\mathrm{sin}(2\pi 500t)$ are the disturbances for frequency and active power, respectively. The time-delays is also 0.5 s. The simulation results are illustrated in Figure 12.

## 5. Analysis and Discussion

_{2}connects to the grid at t = 2 s due to the constant value of ${\omega}_{oi}$. Meanwhile, in Figure 9a, we know that all DGs work to the expected frequency after a regulation time of about 0.6 s. Therefore, the synergetic control can keep the system frequency near the expected value, and prevent the disturbances while the loads change. At the same time, the active power allocation among DGs is in inverse proportion to the droop coefficients under the operation of synergetic control without leaders, which is the same with that in traditional droop control, as illustrated in Figure 9b and Figure 10b.

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Abbreviations

P_{L} | the active power in the transmission line |

Q_{L} | the reactive power in the transmission line |

P_{i} | the active power of DG_{i} |

Q_{i} | the reactive power of DG_{i} |

V | amplitude voltage of the node |

$\delta $ | voltage phase of the node |

R | resistance of the transmission line |

X | reactance of the transmission line |

$\Delta \delta $ | power angle |

$\Delta V$ | voltage drop |

${\omega}_{i}$ | frequency of DG_{i} |

${V}_{di}^{*}$ | amplitude voltage in d-axis |

${V}_{qi}^{*}$ | amplitude voltage in q-axis |

${\omega}_{0i}$ | frequency when the active power is zero |

${V}_{0i}$ | voltage when there active power is zero |

m_{i} | droop coefficient in active power control |

n_{i} | droop coefficient in reactive power control |

${x}_{\omega}$ | frequency first derivative in Rad/s |

${x}_{v}$ | voltage first derivative in V/s |

${x}_{P}$ | active power first derivative in W/s |

${u}_{c\omega i}$ | control variables in frequency control |

${u}_{cvi}$ | control variables in voltage control |

${u}_{cPi}$ | control variables in active power control |

t_{d} | time-delays in communication |

${k}_{P1},{k}_{p2}$ | control gains in active power control |

${k}_{\omega 1}$, ${k}_{\omega 2},{k}_{\omega 3}$ | control gains in frequency control |

${k}_{v1}$, ${k}_{v2},$ ${k}_{v3}$ | control gains in voltage control |

## References

- Erseghe, T.; Tomasin, S. Power flow optimization for smart microgrids by SDP relaxation on linear networks. IEEE Trans. Smart Grid
**2013**, 4, 751–762. [Google Scholar] [CrossRef] - Ahn, S.-J.; Nam, S.-R.; Choi, J.-H.; Moon, S.-I. Power scheduling of distributed generators for economic and stable operation of a microgrid. IEEE Trans. Smart Grid
**2013**, 4, 398–405. [Google Scholar] [CrossRef] - Su, X.; Han, M.; Guerrero, J.; Sun, H. Microgrid Stability Controller Based on Adaptive Robust Total SMC. Energies
**2015**, 8, 1784–1801. [Google Scholar] [CrossRef] - Pourmousavi, S.A.; Nehrir, M.H.; Colson, C.M.; Wang, C. Real-time energy management of a stand-alone hybrid wind-microturbine energy system using particle swarm optimization. IEEE Trans. Sustain. Energy
**2010**, 1, 193–201. [Google Scholar] [CrossRef] - Wang, W.; Zeng, X.; Tang, X.; Tang, C. Analysis of microgrid inverter droop controller with virtual output impedance under non-linear load condition. IET Power Electron.
**2014**, 7, 1547–1556. [Google Scholar] [CrossRef] - Arul, P.G.; Ramachandaramurthy, V.K.; Rajkumar, R.K. Control strategies for a hybrid renewable energy system: A review. Renew. Sustain. Energy Rev.
**2015**, 42, 597–608. [Google Scholar] [CrossRef] - Majumder, R.; Ledwich, G.; Ghosh, A.; Chakrabarti, S.; Zare, F. Droop control of converter-interfaced microsources in rural distributed generation. IEEE Trans. Power Deliv.
**2010**, 25, 2768–2778. [Google Scholar] [CrossRef] [Green Version] - Yao, W.; Chen, M.; Matas, J.; Guerrero, J.M.; Qian, Z.-M. Design and analysis of the droop control method for parallel inverters considering the impact of the complex impedance on the power sharing. IEEE Trans. Ind. Appl.
**2011**, 58, 576–588. [Google Scholar] [CrossRef] - Balaguer, I.J.; Lei, Q.; Yang, S.; Supatti, U.; Peng, F.Z. Control for grid-connected and intentional islanding operations of distributed power generation. IEEE Trans. Ind. Appl.
**2011**, 58, 147–157. [Google Scholar] [CrossRef] - Pogaku, N.; Prodanovic, M.; Green, T.C. Modeling, analysis and testing of autonomous operation of an inverter-based microgrid. IEEE Trans. Power Electron.
**2007**, 22, 613–625. [Google Scholar] [CrossRef] - Abdelaziz, M.M.A.; Farag, H.E.; El-Saadany, E.F. Optimum droop parameter settings of islanded microgrids with renewable energy resources. IEEE Trans. Sustain. Energy
**2014**, 5, 434–445. [Google Scholar] [CrossRef] - Barklund, E.; Pogaku, N.; Prodanovic, M.; Hernandez-Aramburo, C.; Green, T.C. Energy management in autonomous microgrid using stability-constrained droop control of inverters. IEEE Trans. Power Electron.
**2008**, 23, 2346–2352. [Google Scholar] [CrossRef] - Diaz, G.; Gonzalez-Moran, C.; Gomez-Aleixandre, J.; Diez, A. Scheduling of droop coefficients for frequency and voltage regulation in isolated microgrids. IEEE Trans. Power Syst.
**2010**, 25, 489–496. [Google Scholar] [CrossRef] - Kim, J.; Guerrero, J.M.; Rodriguez, P.; Teodorescu, R.; Nam, K. Mode adaptive droop control with virtual output impedances for an inverter-based flexible AC microgrid. IEEE Trans. Power Electron.
**2011**, 26, 689–701. [Google Scholar] [CrossRef] - He, J.; Li, Y.W. Analysis, design, and implementation of virtual impedance for power electronics interfaced distributed generation. IEEE Trans. Ind. Appl.
**2001**, 47, 2525–2538. [Google Scholar] [CrossRef] - Azadani, E.N.; Hosseinian, S.H.; Divshali, P.H.; Vahidi, B. Stability constrained optimal power flow in deregulated power systems. Electr. Power. Compon. Syst.
**2011**, 39, 713–732. [Google Scholar] [CrossRef] - Majumder, R.; Chaudhuri, B.; Ghosh, A.; Majumder, R.; Ledwich, G.; Zare, F. Improvement of stability and load sharing in an autonomous microgrid using supplementary droop control loop. IEEE Trans. Power Syst.
**2010**, 25, 796–808. [Google Scholar] [CrossRef] - Divshali, P.H.; Hosseinian, S.H.; Azadani, E.N.; Abedi, M. Application of bifurcation theory in dynamic security constrained optimal dispatch in deregulated power system. Electr. Eng.
**2011**, 93, 157–166. [Google Scholar] [CrossRef] - Divshali, P.H.; Hosseinian, S.H.; Abedi, M. A novel multi-stage fuel cost minimization in a VSC-based microgrid considering stability, frequency and voltage constraint. IEEE Trans. Power Syst.
**2013**, 28, 931–939. [Google Scholar] [CrossRef] - Vasquez, J.C.; Guerrero, J.M.; Luna, A.; Rodriguez, P.; Teodorescu, R. Adaptive droop control applied to voltage-source inverters operating in grid-connected and islanded modes. IEEE Trans. Ind. Appl.
**2009**, 56, 4088–4096. [Google Scholar] [CrossRef] - Rowe, C.N.; Summers, T.J.; Betz, R.E.; Cornforth, D.J.; Moore, T.G. Arctan power-frequency droop for improved microgrid stability. IEEE Trans. Power Electron.
**2013**, 28, 3747–3759. [Google Scholar] [CrossRef] - Hu, J.; Zhu, J.; Dorrell, D.G.; Guerrero, J.M. Virtual flux droop method—A new control strategy of inverters in microgrids. IEEE Trans. Power Electron.
**2014**, 29, 4704–4711. [Google Scholar] [CrossRef] - Golsorkhi, M.S.; Lu, D.D.C.; Guerrero, J.M. A GPS-Based Decentralized Control Method for Islanded Microgrids. IEEE Trans. Power Electron.
**2017**, 32, 1615–1625. [Google Scholar] [CrossRef] - Zhu, Y.; Zhuo, F.; Wang, F.; Liu, B.; Zhao, Y. A Wireless Load Sharing Strategy for Islanded Microgrid Based on Feeder Current Sensing. IEEE Trans. Power Electron.
**2015**, 30, 6706–6719. [Google Scholar] [CrossRef] - Behjati, H.; Davoudi, A. Reference-change response assignment for pulse-width-modulated dc-dc converters. IET Power Electron.
**2014**, 7, 1414–1423. [Google Scholar] [CrossRef] - Jiang, Z.; Dougal, R.A. Synergetic control of power converters for pulse current charging of advanced batteries from a fuel cell power source. IEEE Trans. Power Electron.
**2004**, 19, 1140–1150. [Google Scholar] [CrossRef] - Bidram, A.; Davoudi, A.; Lewis, F.L.; Guerrero, J.M. Distributed cooperative secondary control of microgrids using feedback linearization. IEEE Trans. Power Syst.
**2013**, 28, 3462–3470. [Google Scholar] [CrossRef] - Bidram, A.; Davoudi, A.; Lewis, F.L.; Qu, Z. Secondary control of microgrids based on distributed cooperative control of multi-agent system. IET Gener. Transm. Distrib.
**2013**, 7, 822–831. [Google Scholar] [CrossRef] - Yu, Z.; Ai, Q.; Gong, J.; Piao, L. A novel secondary control for microgrid based on synergetic control of multi-agent system. Energies
**2016**, 9, 243. [Google Scholar] [CrossRef] - Wang, Z.; Wu, W.; Zhang, B. A fully distributed power dispatch method for fast frequency recovery and minimal generation cost in autonomous microgrids. IEEE Trans. Smart Grid
**2016**, 7, 19–31. [Google Scholar] [CrossRef] - Shuai, Z.; Sun, Y.; Shen, Z.J.; Tian, W.; Tu, C.; Li, Y.; Yin, X. Microgrid stability: Classification and a review. Renew. Sustain. Energy Rev.
**2016**, 58, 167. [Google Scholar] [CrossRef] - Komurcugil, H.; Altin, N.; Ozdemir, S.; Sefa, I. An extended lyapunov-function-based control strategy for single-phase UPS inverters. IEEE Trans. Power Electron.
**2015**, 30, 3976–3983. [Google Scholar] [CrossRef] - Lopez-Martinez, M.; Delvenne, J.C.; Blonde, V.D. Optimal sampling time for consensus in time-delayed networked systems. IET Control Theory Appl.
**2012**, 6, 2467–2476. [Google Scholar] [CrossRef]

**Figure 9.**Simulation results without time-delays and disturbance. (

**a**) Frequency; (

**b**) active power of each DG; (

**c**) voltage; (

**d**) reactive power of each DG; (

**e**) adaptive ${\omega}_{oi}$; (

**f**) adaptive ${V}_{oi}$.

**Figure 10.**Simulation results with the traditional droop control. (

**a**) Frequency; (

**b**) active power of each DG; (

**c**) voltage; (

**d**) reactive power of each DG.

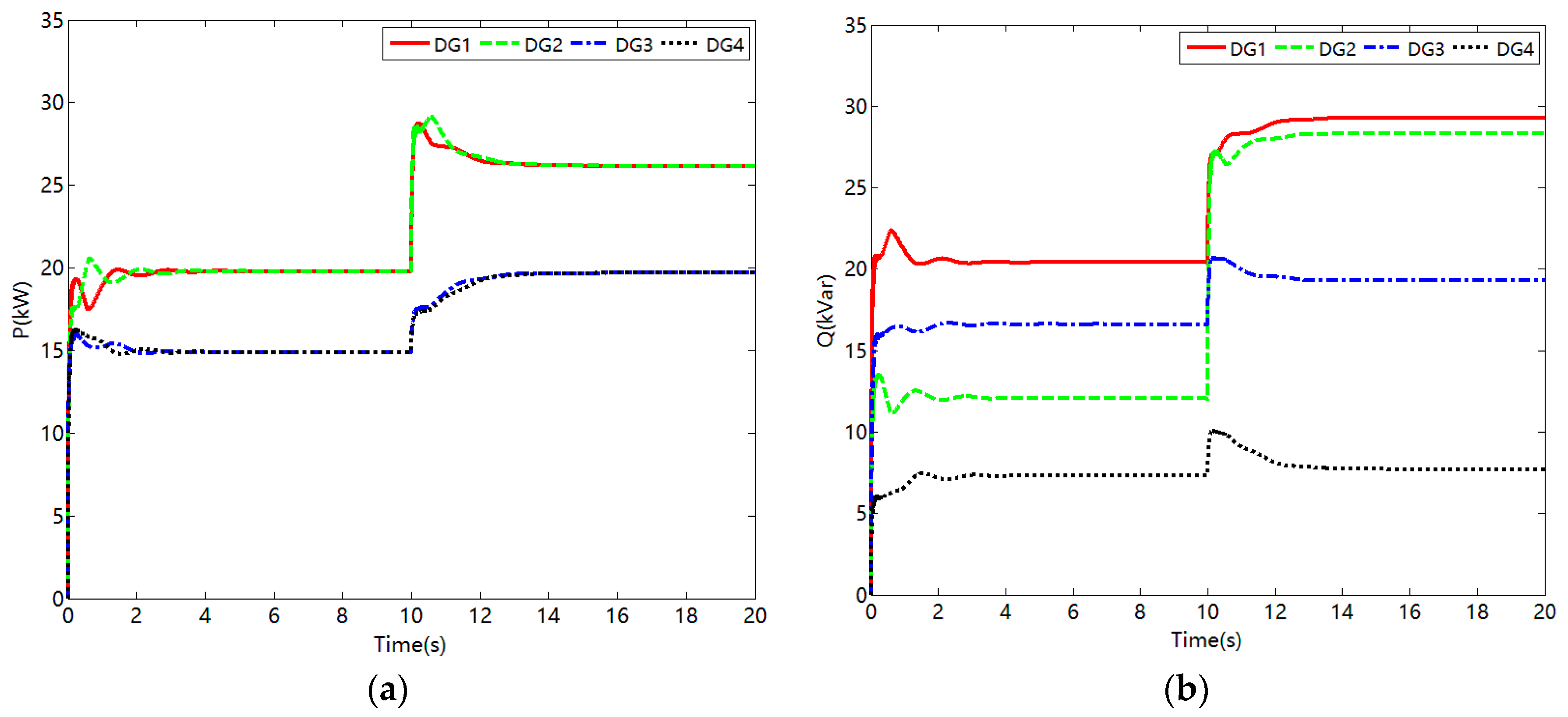

**Figure 12.**Simulation results with time-delays and disturbances. (

**a**) Active power; (

**b**) reactive power.

DGs | R_{c}_{1} = R_{c}_{2} = R_{c}_{3} = R_{c}_{4} | L_{c}_{1} = L_{c}_{2} = L_{c}_{3} = L_{c}_{4} | ||

0.2 Ω | 1 mH | |||

Lines | Line_{1} and Line_{3} | Line_{2} | ||

R_{Line}_{1} = R_{Line}_{3} | L_{Line}_{1} = L_{Line}_{3} | R_{Line}_{2} | L_{Line}_{2} | |

0.23 Ω | 0.318 mH | 0.35 Ω | 1.847 mH | |

Loads | Load_{1} | Load_{3} | ||

P_{1} (kW) | Q_{1} (kVar) | P_{3} (kW) | Q_{3} (kVar) | |

36 | 36 | 45.9 | 22.8 | |

Load_{2} | ||||

P_{2} (kW) | Q_{2} (kVar) | |||

36 | 36 |

Primary Control | m_{P1} = m_{P2} | n_{Q1} = n_{Q2} | m_{P3} = m_{P4} | n_{Q3} = n_{Q4} |

0.000094 | 0.0013 | 0.000125 | 0.0015 | |

${V}_{oi}$ | ${\omega}_{oi}$ | |||

330 V | 325.3 rad/s | |||

Control Gains | Frequency | ${k}_{\omega 1}$ | ${k}_{\omega 2}$ | ${k}_{\omega 3}$ |

50 | 0.8 | 800 | ||

Voltage | ${k}_{v1}$ | ${k}_{v2}$ | ${k}_{v3}$ | |

150 | 0.8 | 3 | ||

Active power | ${k}_{P1}$ | ${k}_{P2}$ | ||

500 | 0.8 |

Control Strategy [Reference] | Communication | Frequency Error | Voltage Error | System Stability | Active Power Allocation |
---|---|---|---|---|---|

Synergetic control | necessary | No | No | stable | proportional to the rated |

[17] | unnecessary | No | Yes | stable | proportional to the rated |

[21] | unnecessary | Yes | Yes | stable | nonlinear with the frequency |

[22] | unnecessary | No | Yes | SSS | proportional to the rated |

[24] | unnecessary | Yes | Yes | SSS | proportional to the rated |
