# Design, Modeling and Control of Magnetic Bearings for a Ring-Type Flywheel Energy Storage System

^{*}

## Abstract

**:**

## 1. Introduction

- A low energy consumption ring-type FESS is proved to be feasible. The ring-type flywheel possesses higher moment of inertia and allows for higher energy storage.
- Magnetic force model of the ring-type HMB with Halbach array configuration is established.
- Magnetic force model of the ring-type PMB with Halbach array configuration is established.

## 2. System Modeling

#### 2.1. Description of Flywheel Energy Storage System

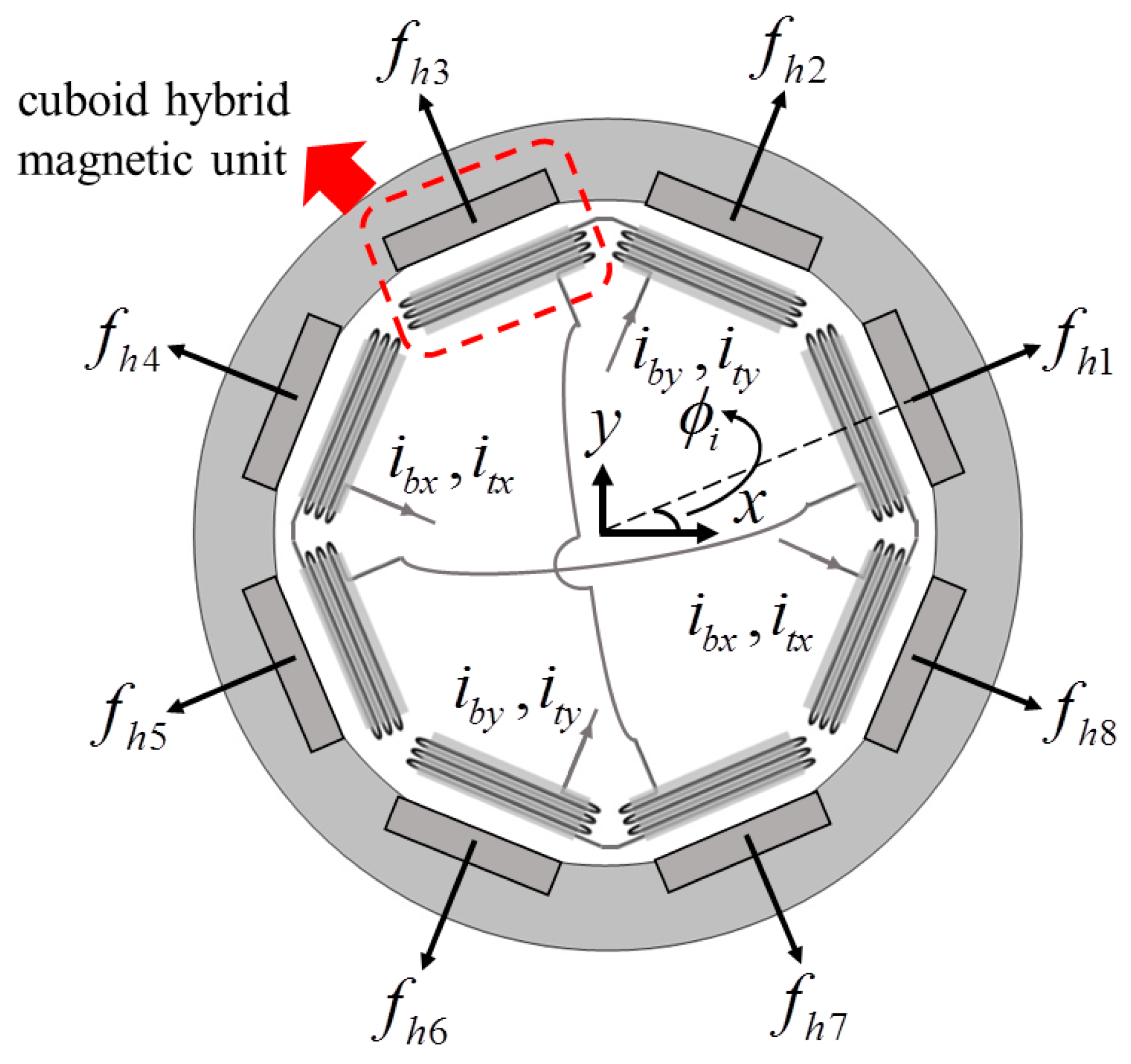

^{3}and specific energy of 4.74 kJ/kg. The system consists of axial PMB, radial HMB, and back-up ball bearings. Recall that this study focuses on the magnetic force modeling and static levitation of magnetic bearing, and hence the motor is not included here. The locations of PMB and HMB with Halbach array are also indicated in Figure 1. There are two sets of radial HMB, one at the top and the other at the bottom of the FESS, for the active control of four DOFs of the rotor. The schematic of the radial HMB is shown in Figure 2. On the rotor side of HMB, there are three layers of permanent magnet rings arranged in a Halbach array, and the corresponding actuator coils are mounted on the stator side of HMB. The rotor can be actively stabilized by the attraction and repulsion forces provided by the HMB, depending on positive or negative currents. Note that no vertical force will be generated with this configuration.

#### 2.2. Hybrid Magnetic Bearing

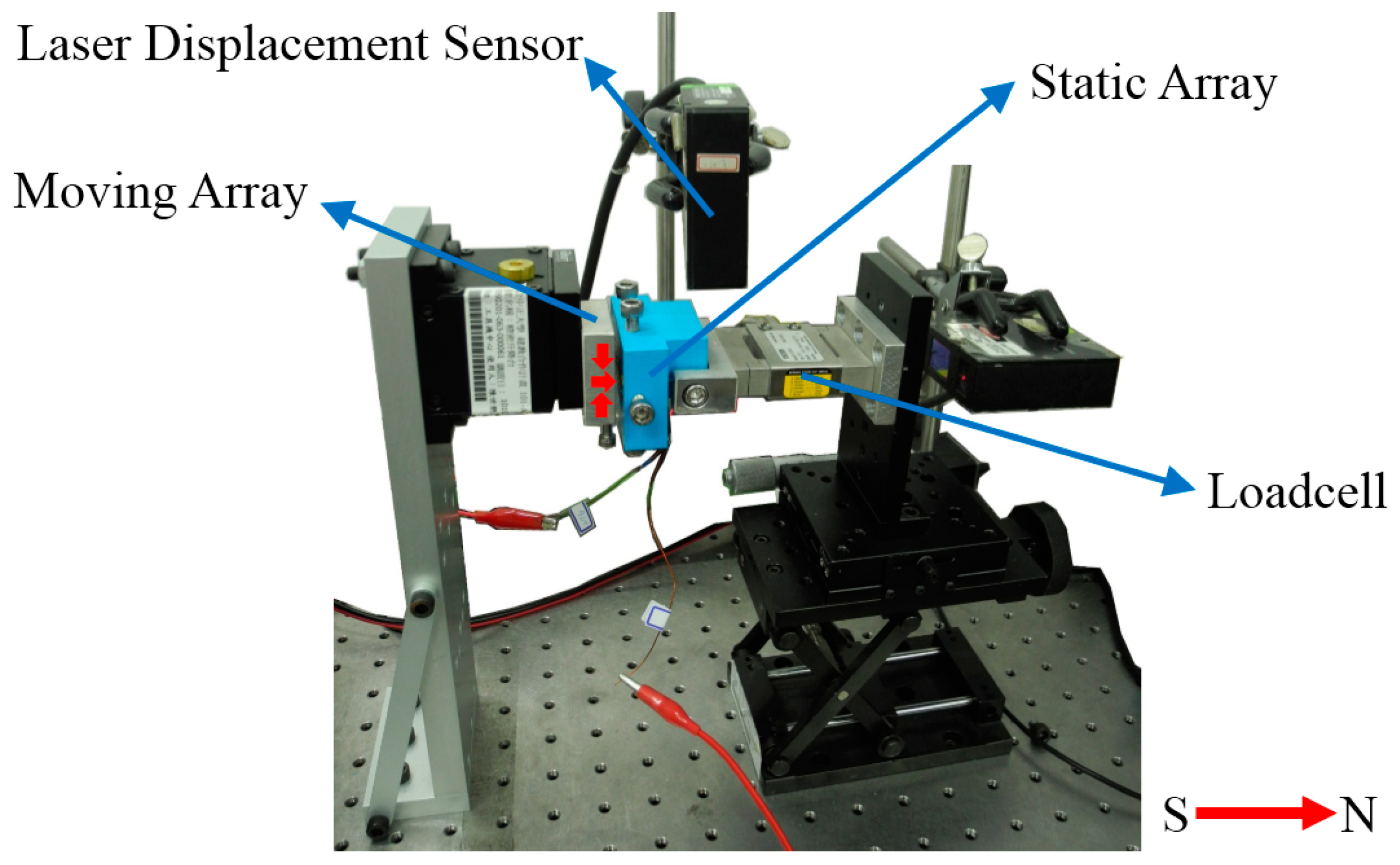

^{2}, and no iron core in the coil. For the Halbach array, each permanent magnet block is of 8 mm × 8 mm × 30 mm (a = 8 mm and b = 8 mm in Figure 2) with different polarity, and the material is Neodymium magnet (Nd-Fe-B).

^{2}value is 0.9997, indicating the excellent goodness of the fit. The results reveal different characteristic of the force model from the conventional electromagnet, where the force is proportional to the square of coil current and inversely proportianal to the square of air gap.

#### 2.3. Passive Magnetic Bearing

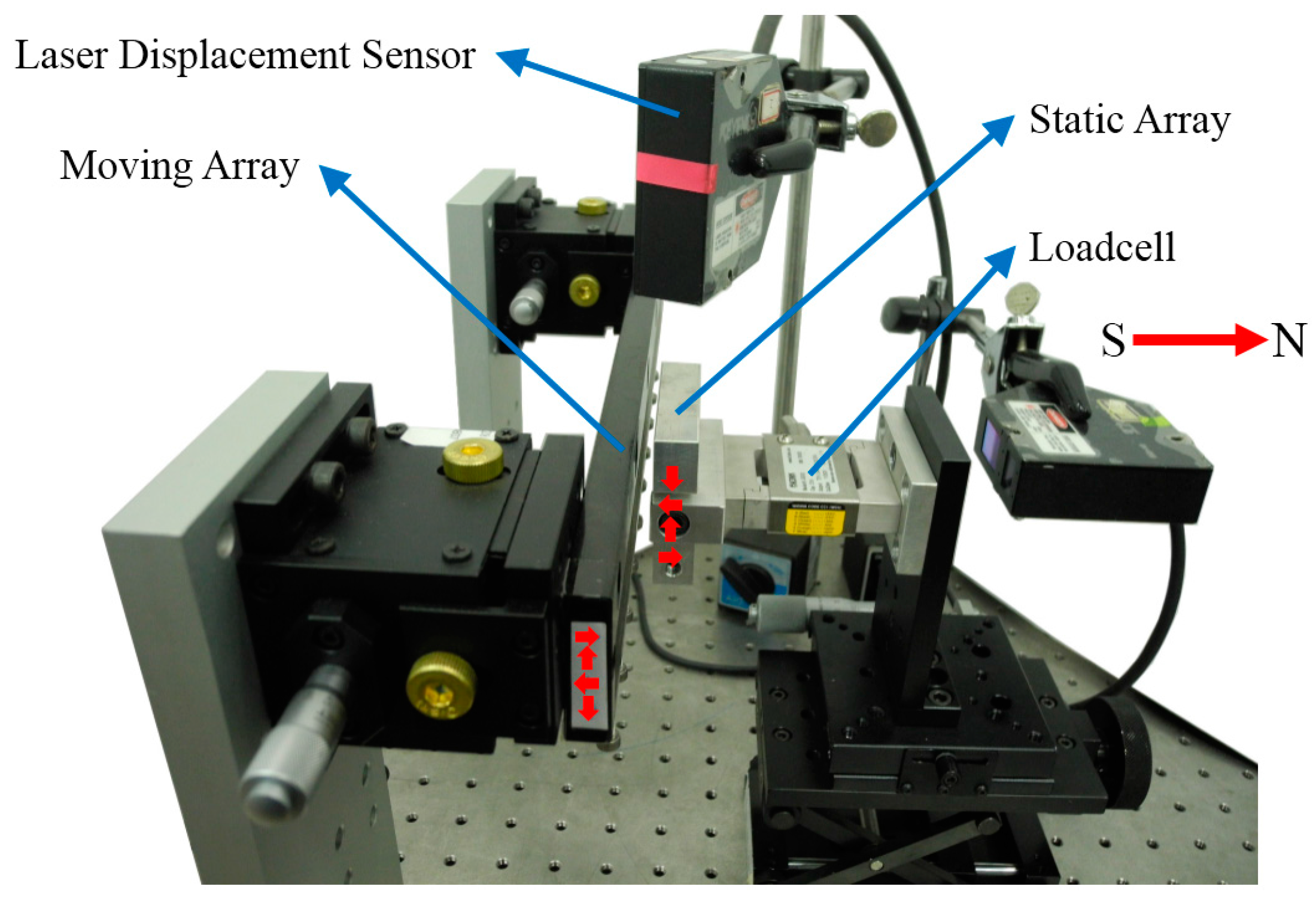

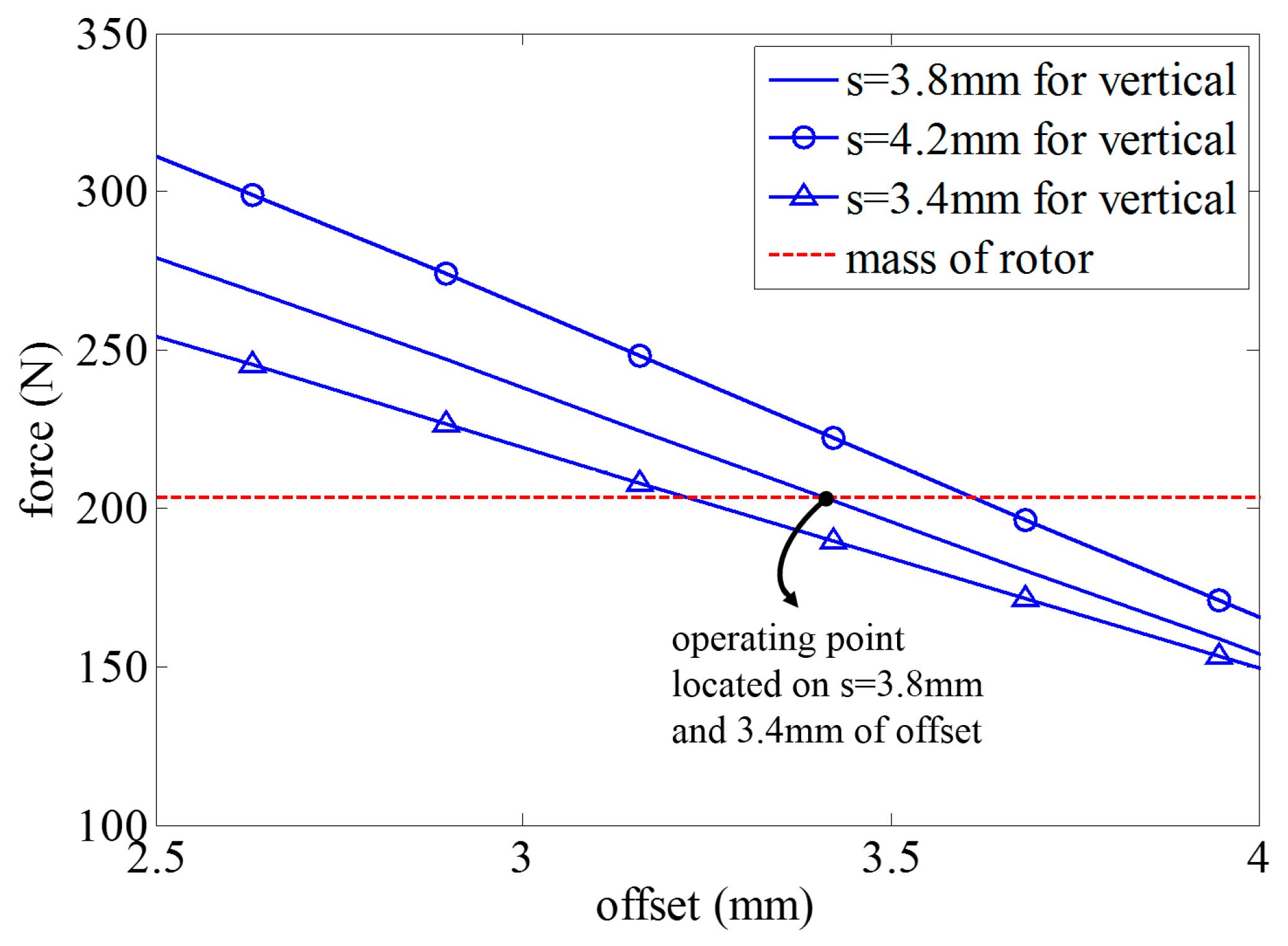

^{2}values for the fitted vertical and radial force functions are 0.9915 and 0.9819, respectively. Again, the results indicate the excellent goodness of the fit.

#### 2.4. Governing Equation

_{t}. From Equations (13)–(16), it is obvious that HMB requires no bias current theoretically if the rotor is stabilized at the center position (i.e., ${x}_{t}=0$, ${x}_{b}=0$, ${y}_{t}=0$, ${y}_{b}=0$).

## 3. Controller Design

#### 3.1. State Space Model

#### 3.2. Integral Sliding Mode Control

_{1}and b

_{2}are positive constants. If the system state is on the sliding manifold $\mathsf{\sigma}=0$ and can be maintained on the manifold ($\dot{\mathsf{\sigma}}=0$), the system dynamics will be like:

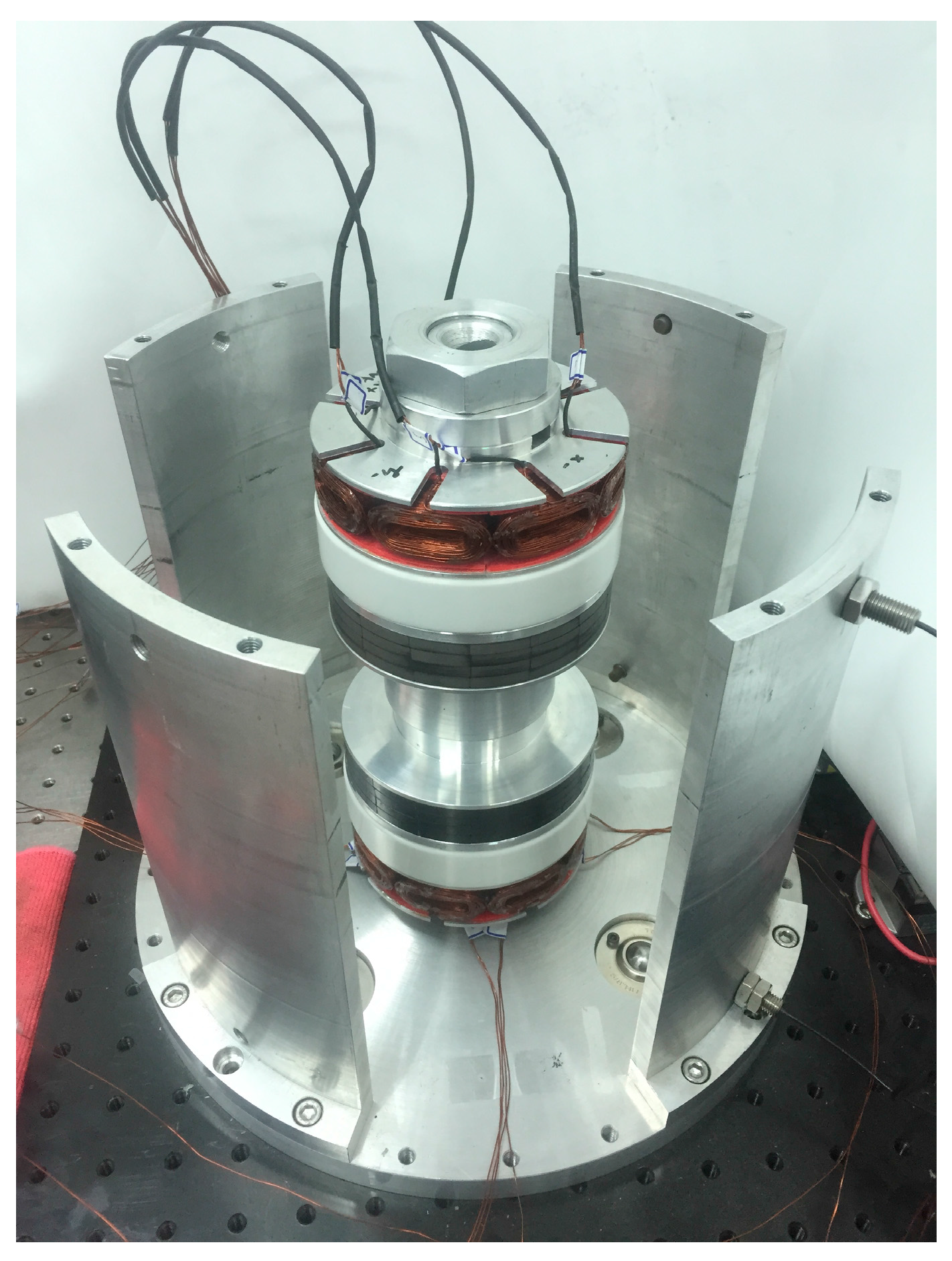

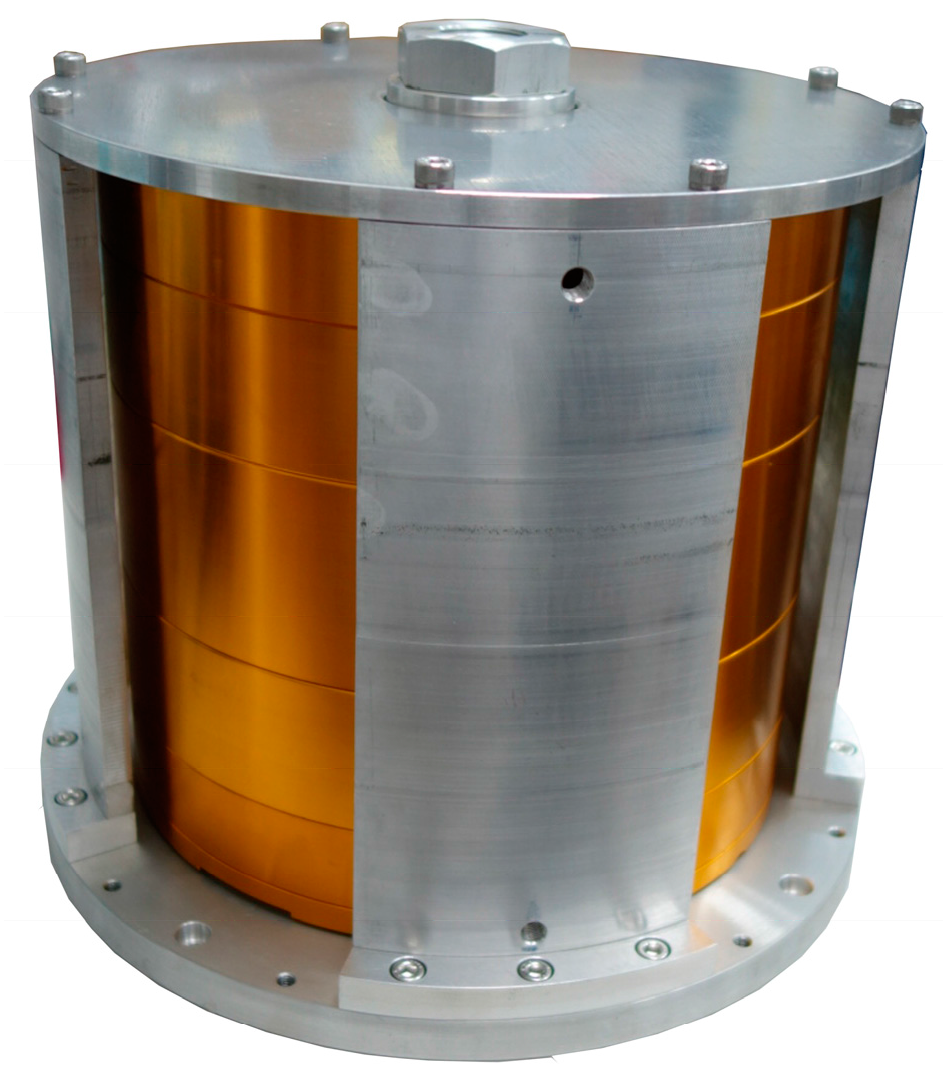

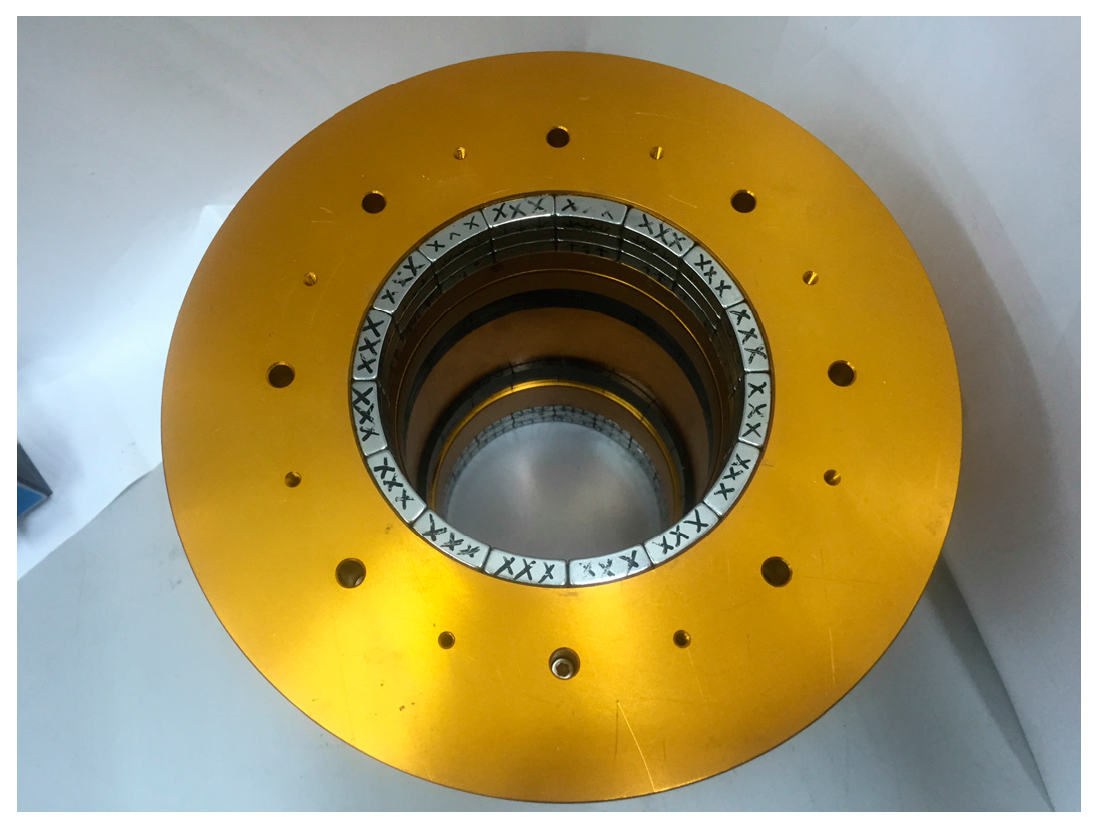

## 4. Experimental Results

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- World Energy Council. 2014 World Energy Issues Monitor. 2014. Available online: https://www.worldenergy.org/wp-content/uploads/2014/01/World-Energy-Issues-Monitor-2014.pdf (accessed on 8 August 2016).
- European Commission. The Future Role and Challenges of Energy Storage. 2012. Available online: https://ec.europa.eu/energy/sites/ener/files/energy_storage.pdf (accessed on 8 August 2016).
- U.S. Department of Energy. Grid Energy Storage. December 2013. Available online: http://energy.gov/sites/prod/files/2013/12/f5/Grid Energy Storage December 2013.pdf (accessed on 8 August 2016). [Google Scholar]
- Arnold, S.M.; Salee, A.F.; Al-Zoubi, N.R. Deformation and Life Analysis of Composite Flywheel Disk and Multi-Disk Systems; National Aeronautics and Space Administration, Glenn Research Center: Cleveland, OH, USA, 2001.
- Bolund, B.; Bernhoff, H.; Leijon, M. Flywheel energy and power storage systems. Renew. Sustain. Energy Rev.
**2007**, 11, 235–258. [Google Scholar] [CrossRef] - Hansen, G.R.; O’Kain, U. An Assessment of Flywheel High Power Energy Storage Technology for Hybrid Vehicles. Available online: http://www.compositesworld.com/cdn/cms/ORNL Flywheel Assessment for Hybrid Vehicles 2011.pdf (accessed on 8 August 2016).
- Fiske, O.J.; Ricci, M.R. Third generation flywheels for high power electricity storage. In Proceedings of the 19th International Conference on Magnetically Levitated Systems and Linear Drives, Dresden, Germany, 13–15 September 2006.
- Schweitzer, G.; Eric, H. Maslen. Magnetic Bearings; Springer: Berlin/Heidelberg, Germany, 2009. [Google Scholar]
- Abrahamsson, J.; Hedlund, M.; Kamf, T.; Bernhoff, H. High-Speed Kinetic Energy Buffer: Optimization of Composite of Composite Shell and Magnetic Bearings. IEEE Trans. Ind. Electron.
**2014**, 61, 3012–3021. [Google Scholar] [CrossRef] - Han, B.; Xu, Q.; Yuan, Q. Multiobjective Optimization of a Combined Radial-Axial Magnetic Bearing for Magnetically Suspended Compressor. IEEE Trans. Ind. Electron.
**2016**, 63, 2284–2293. [Google Scholar] - Le, Y.; Sun, J.; Han, B. Modeling and Design of 3-DOF Magnetic Bearing for High-Speed Motor Including Eddy-Current Effects and Leakage Effects. IEEE Trans. Ind. Electron.
**2016**, 63, 3656–3665. [Google Scholar] [CrossRef] - Cheng, S.; Day, S.W. Design and Control of Hybrid Magnetic Bearings for Maglev Axial Flow Blood Pump. In Proceedings of the 2010 IEEE/ASME International Conference on Advanced Intelligent Mechatronics, Montreal, QC, Canada, 6–9 July 2010; pp. 187–192.
- Zhang, W.; Hu, Y. A Prototype of Flywheel Energy Storage System Suspended by Active Magnetic Bearings with PID controller. In Proceedings of the Asia-Pacific power and Energy Engineering Conference (APPEEC 2009), Wuhan, China, 27–31 March 2009; pp. 1–4.
- Schuhmann, T.; Hofmann, W.; Werner, R. Improving Operational Performance of Active Magnetic Bearings Using Kalman Filter and State Feedback Control. IEEE Trans. Ind. Electron.
**2012**, 59, 821–829. [Google Scholar] [CrossRef] - Rundell, A.E.; Drakunov, S.V.; DeCarlo, R.A. A Sliding Mode Observer and Controller for Stabilization of Rotatinal Motion of a Vertical Shaft Magnetic Bearing. IEEE Trans. Control Syst. Technol.
**1996**, 4, 598–608. [Google Scholar] [CrossRef] - Jiang, K.; Zhu, C.; Chen, L. Unbalance Compensation by Recursive Seeking Unbalance Mass Position in Active Magnetic Bearing-Rotor System. IEEE Trans. Ind. Electron.
**2015**, 62, 5655–5664. [Google Scholar] - Halbach, K. Design of permanent multipole magnets with oriented rare earth cobalt material. Nuclear Instrum. Methods
**1980**, 169, 1–10. [Google Scholar] [CrossRef] - Jang, S.M.; Lee, S.H.; Cho, H.W.; Cho, S.K. Analysis of unbalanced force for high-speed slotless permanent magnetic machine with Halbach array. IEEE Trans. Magn.
**2003**, 39, 3265–3267. [Google Scholar] [CrossRef] - Sun, J.; Ren, Y.; Fang, J. Passive axial magnetic bearing with Halbach magnetized array in magnetically suspended control moment gyro application. J. Magn. Magn. Mater.
**2011**, 323, 2103–2107. [Google Scholar] - Choi, Y.M.; Gweon, D.G. A high-precision dual-servo stage using halbach linear active magnetic bearings. IEEE/ASME Trans. Mechatron.
**2011**, 16, 925–931. [Google Scholar] [CrossRef] - Gruber, W.; Huber, M.; Jungmayr, G.; Amrhein, W. Passive tilt bearings with zero translational Stiffness composed of two permanent magnet rings. In Proceedings of the Twelfth International Symposium on Magnetic Bearings, Wuhan, China, 23–25 August 2010; pp. 21–26.
- Tian, L.L.; Ai, X.P.; Tian, Y.Q. Analytical model of magnetic force for axial stack permanent-magnet bearings. IEEE Trans. Magn.
**2012**, 48, 2592–2599. [Google Scholar] [CrossRef] - Bachovchin, K.D.; Hoburg, J.F.; Post, R.F. Magnetic fields and forces in permanent magnet levitated bearings. IEEE Trans. Magn.
**2012**, 48, 2112–2120. [Google Scholar] [CrossRef] - Bachovchin, K.D.; Hoburg, J.F.; Post, R.F. Stable levitation of a passive magnetic bearing. IEEE Trans. Magn.
**2013**, 49, 609–616. [Google Scholar] [CrossRef] - Wang, N.; Wang, D.; Chen, K.; Wu, H. Research on analytical model and design formulas of permanent magnetic bearings based on Halbach array with arbitrary segmented magnetized angle. J. Magn. Magn. Mater.
**2016**, 401, 257–264. [Google Scholar] [CrossRef] - Khalil, H.K. Nonlinear Systems, 2nd ed.; Prentice-Hall: Upper Saddle River, NJ, USA, 1996. [Google Scholar]

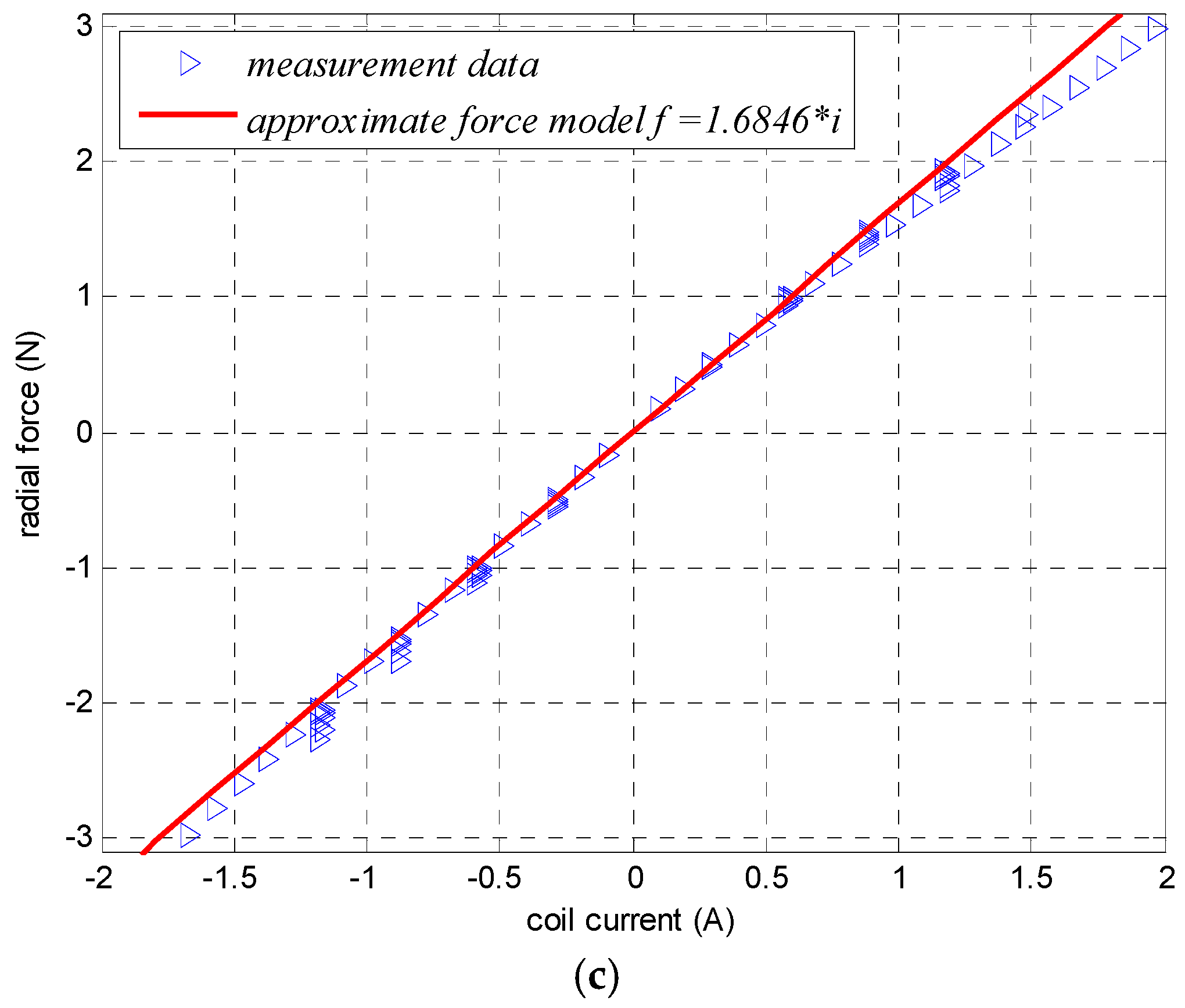

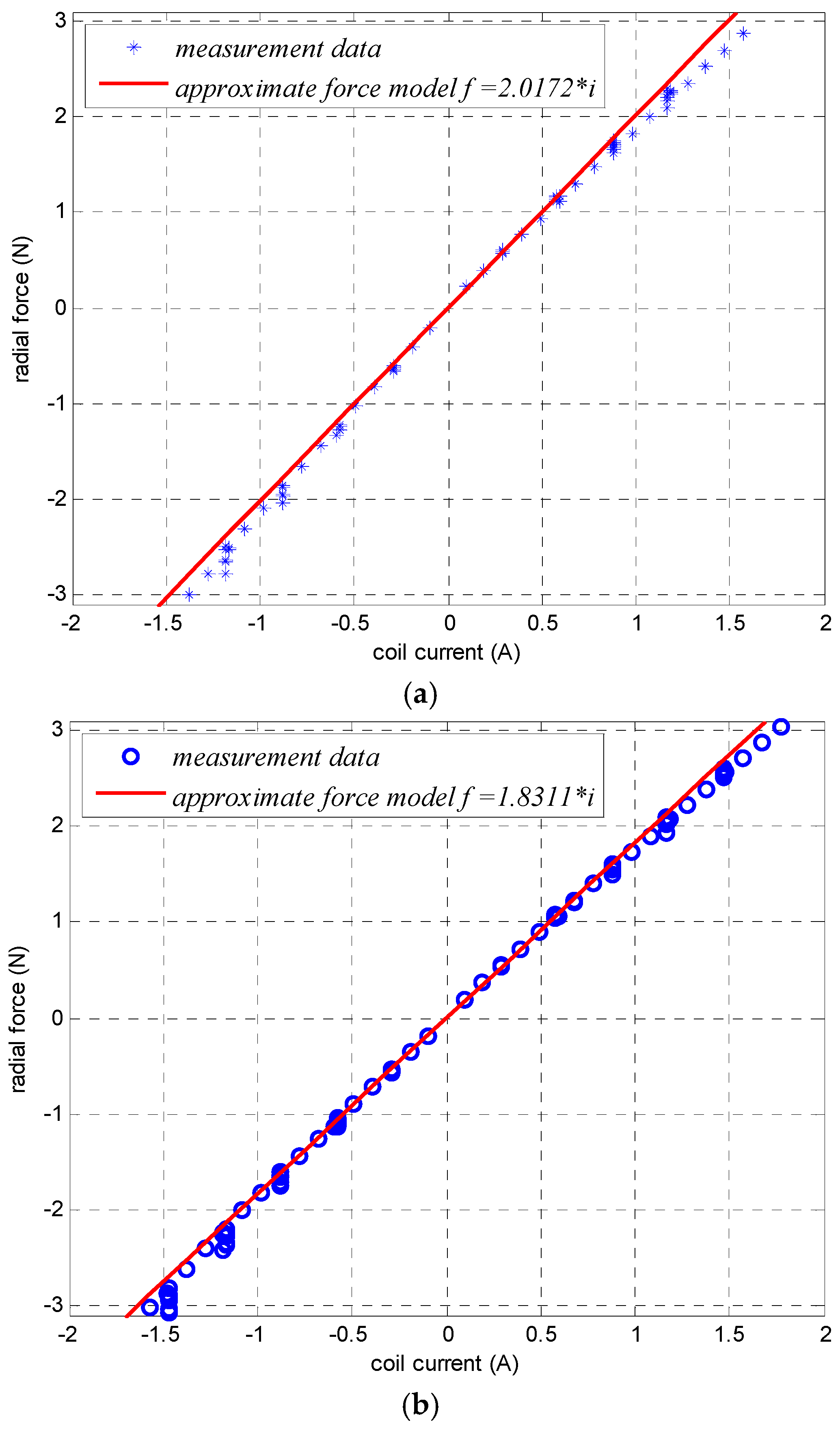

**Figure 5.**The magnetic force of a hybrid magnetic unit (N = 350): (

**a**) s = 1.5 mm; (

**b**) s = 2.0 mm; and (

**c**) s = 2.5 mm.

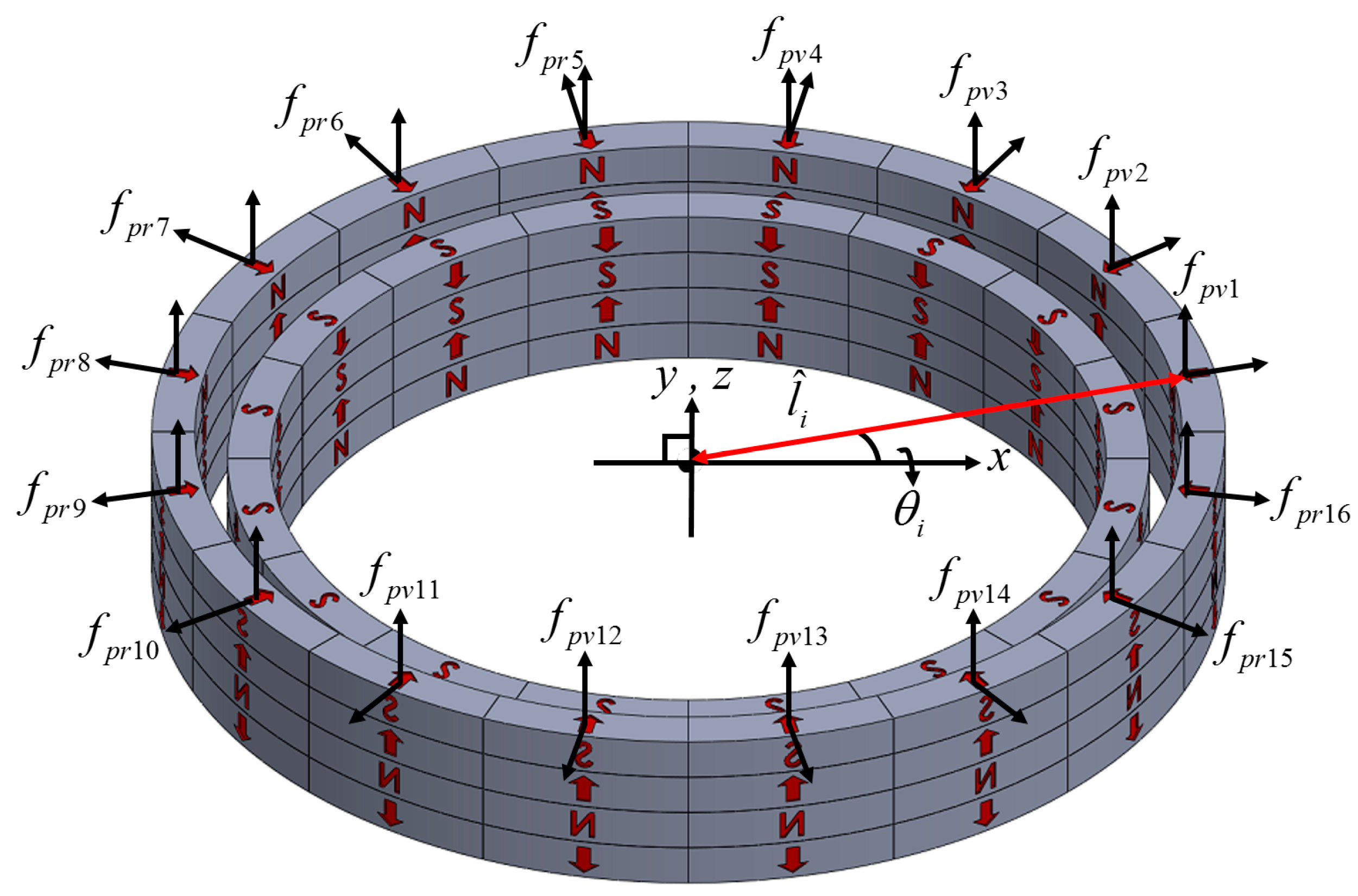

**Figure 10.**The moments caused by the vertical force ${f}_{pv}$ of 16 sets of passive magnetic units about X-axis and Y-axis.

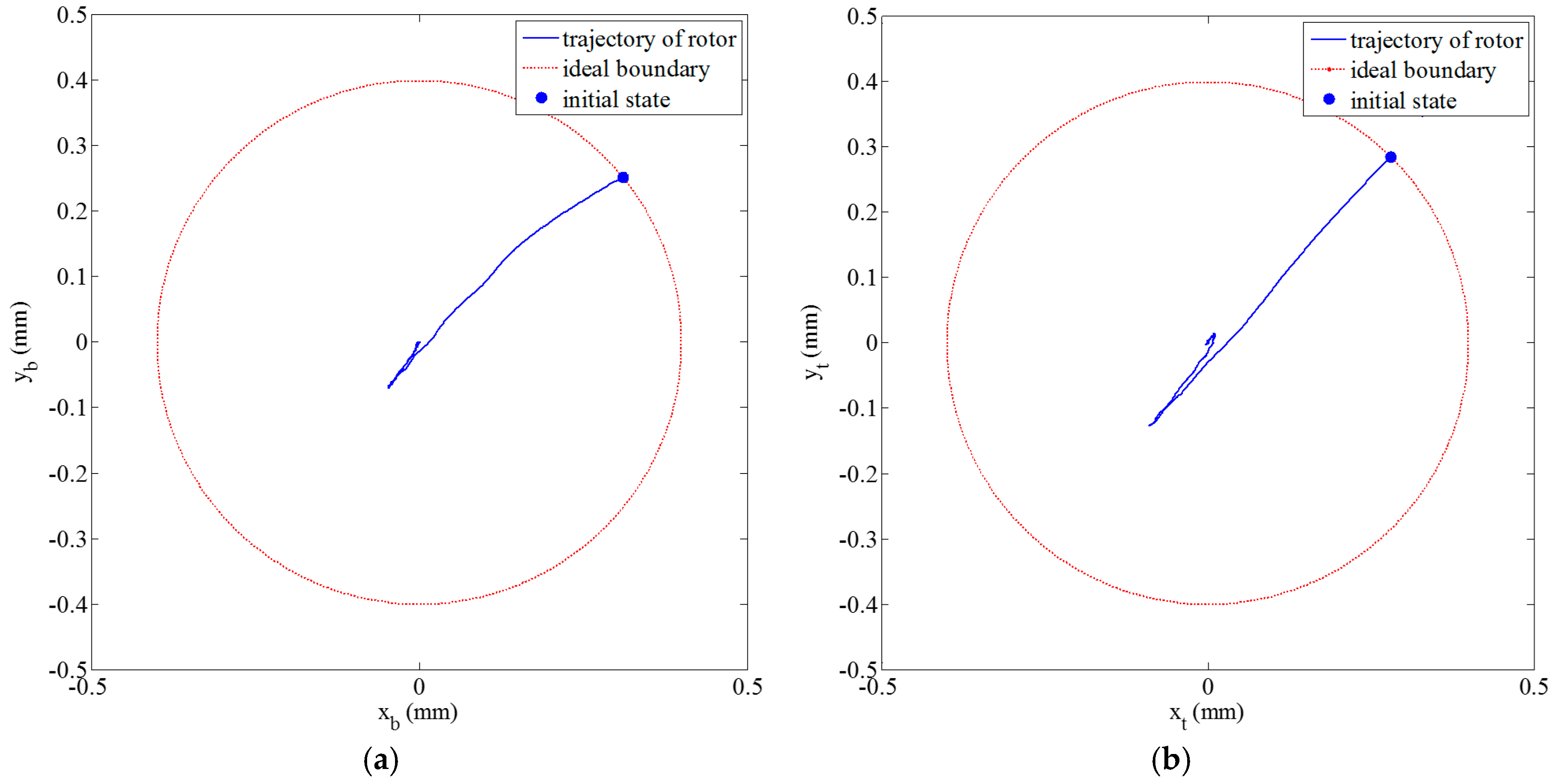

**Figure 17.**Experimental results: (

**a**) rotor trajectory at the bottom HMB; and (

**b**) rotor trajectory at the top HMB.

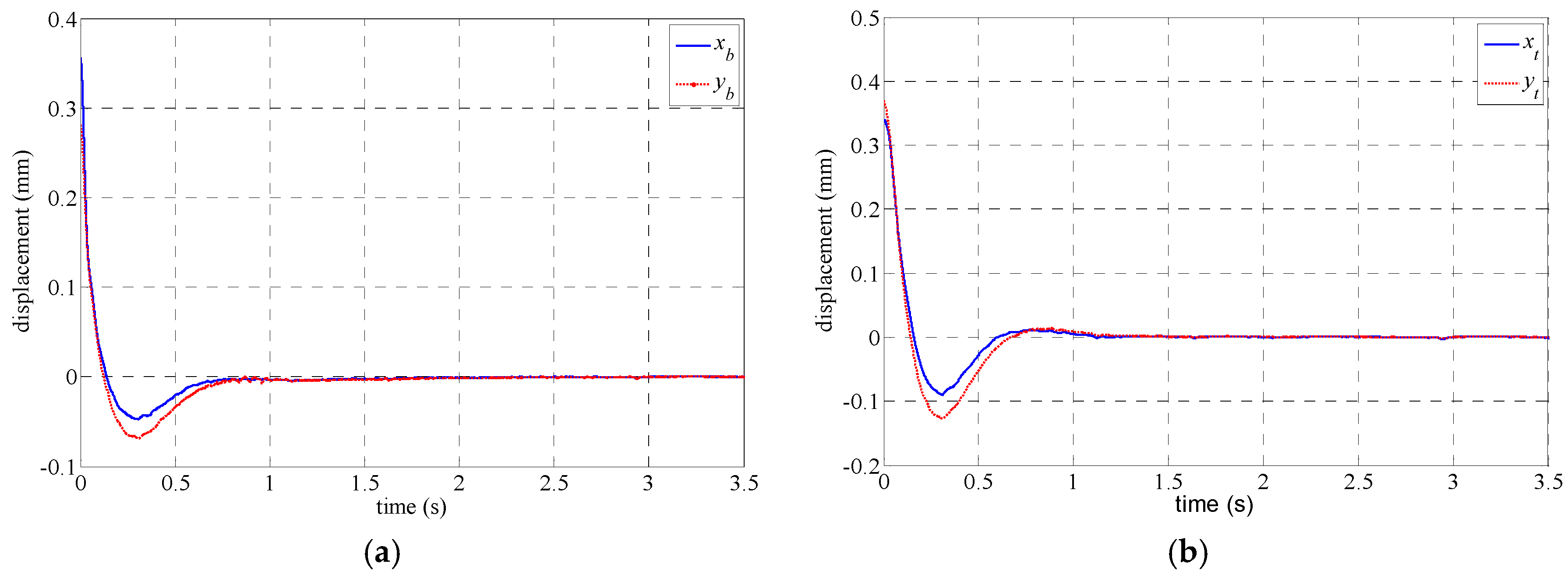

**Figure 18.**Experimental results: (
