# Numerical Model of a Variable-Combined-Cycle Engine for Dual Subsonic and Supersonic Cruise

^{*}

## Abstract

**:**

## 1. Introduction

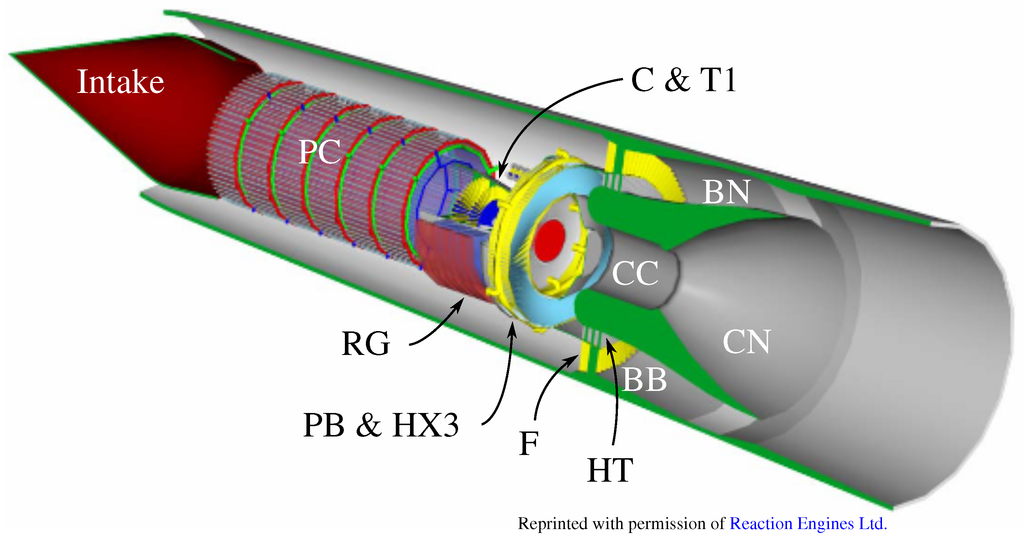

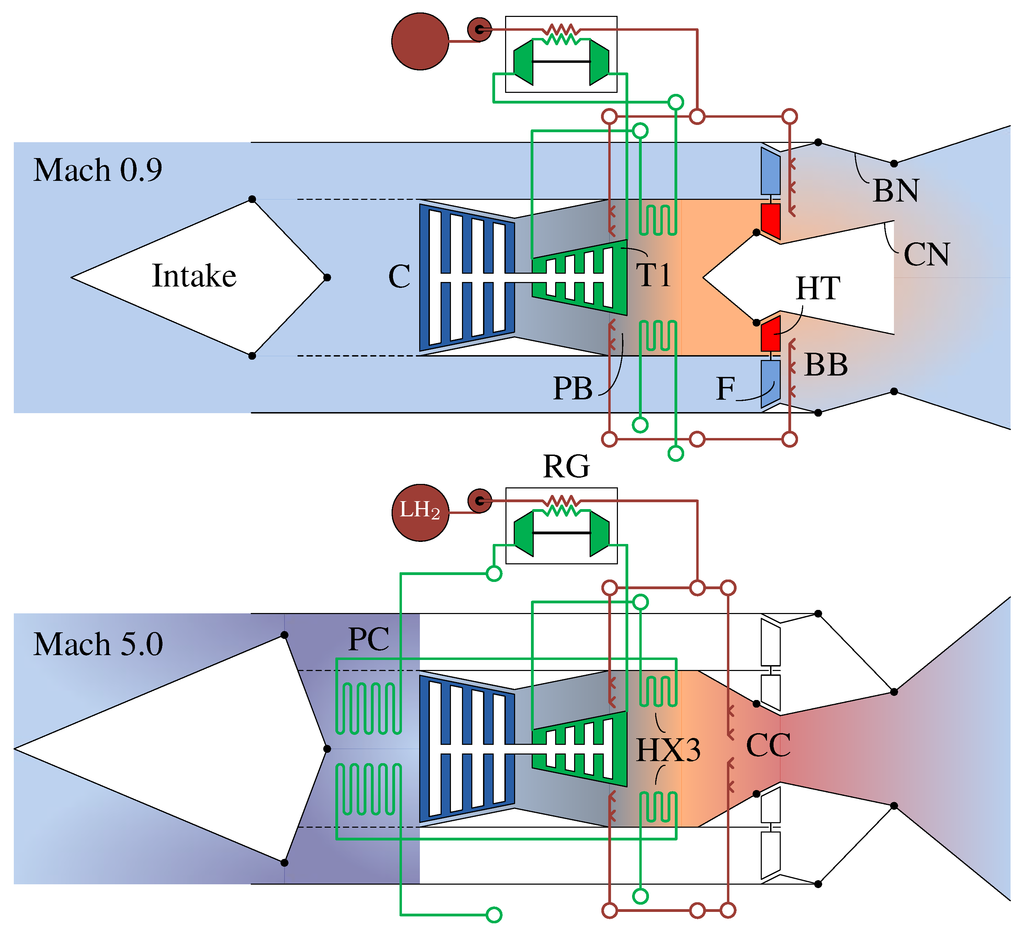

Mach Range | Regime | Mode | Bypass Burner | Bypass Nozzle |
---|---|---|---|---|

0.0–0.9 | Subsonic Acceleration | Turbofan | On | Open |

0.9 | Subsonic Cruise | Turbofan | Off | Fully Open |

0.9–2.5 | Supersonic Acceleration | Turbofan | On | Open |

2.5–5.0 | Supersonic Acceleration | Ramjet + ATR | On | Open |

5.0 | Supersonic Cruise | ATR | Off | Closed |

## 2. Numerical Model

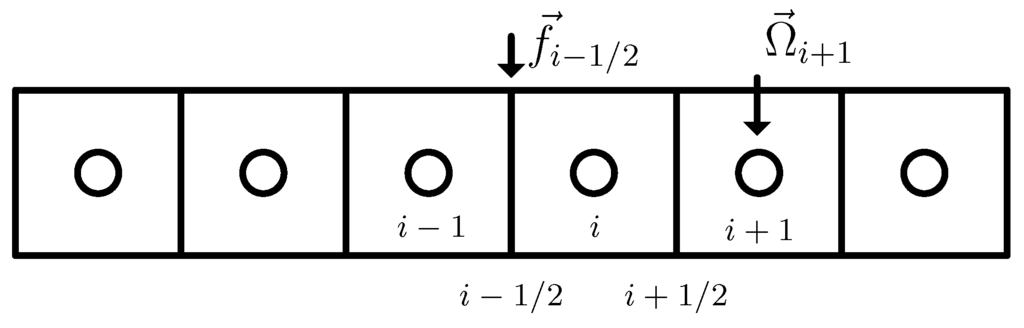

#### 2.1. Intake

#### 2.2. Combustion Chambers and Nozzle

#### 2.3. Heat Exchangers

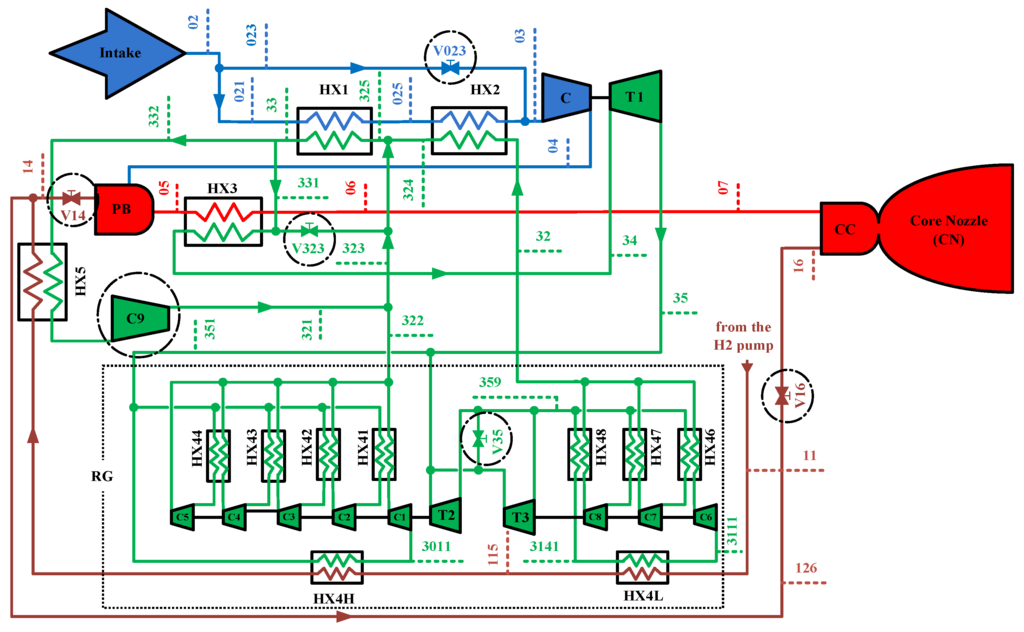

**Figure 4.**Scheme of the air turbo-rocket numerical model: the station and component labeling are shown; the engine control devices are enclosed in circles.

#### 2.3.1. Precooler

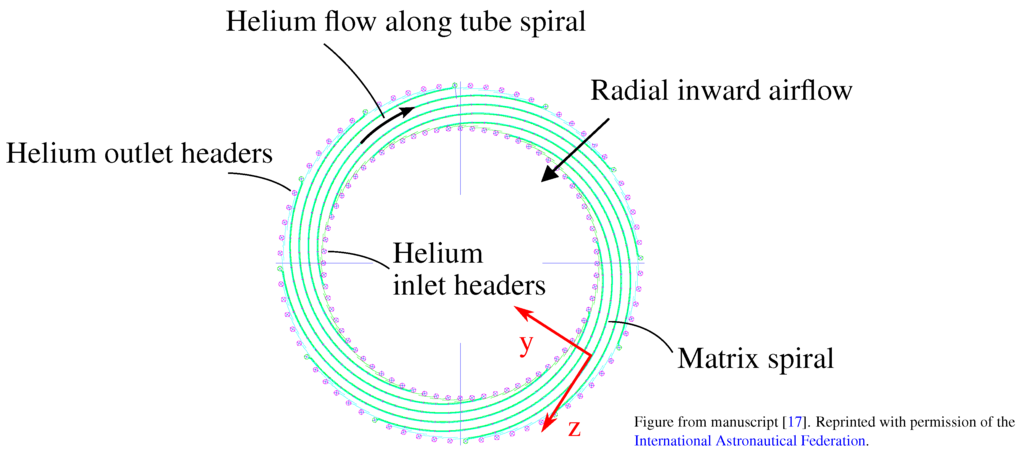

**Figure 5.**Frontal view of the precooler module [17].

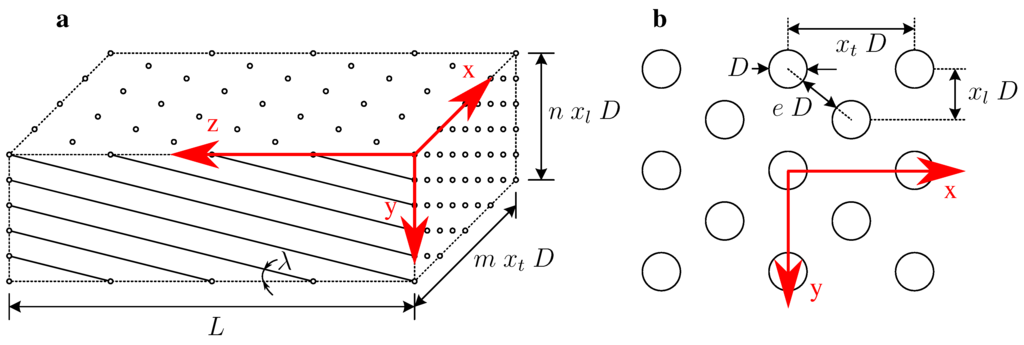

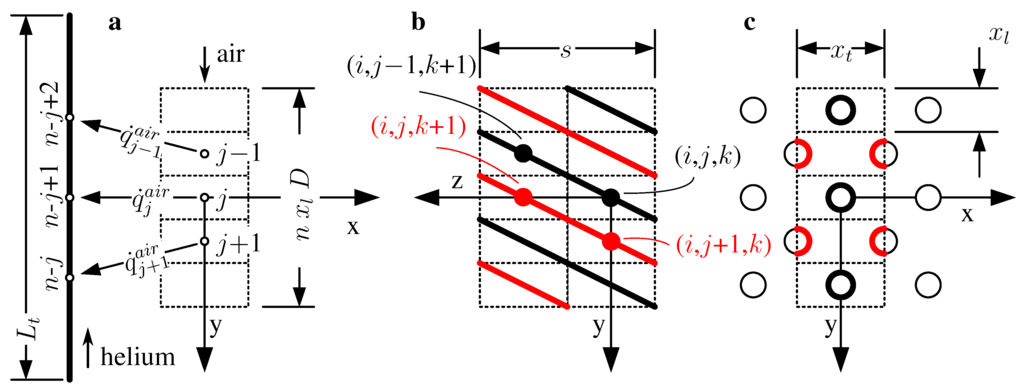

**Figure 7.**Computational domain for the periodic flow field: thermal field in counterflow disposition (

**a**), longitudinal cut (

**b**) and transversal cut (

**c**) of the tube matrix.

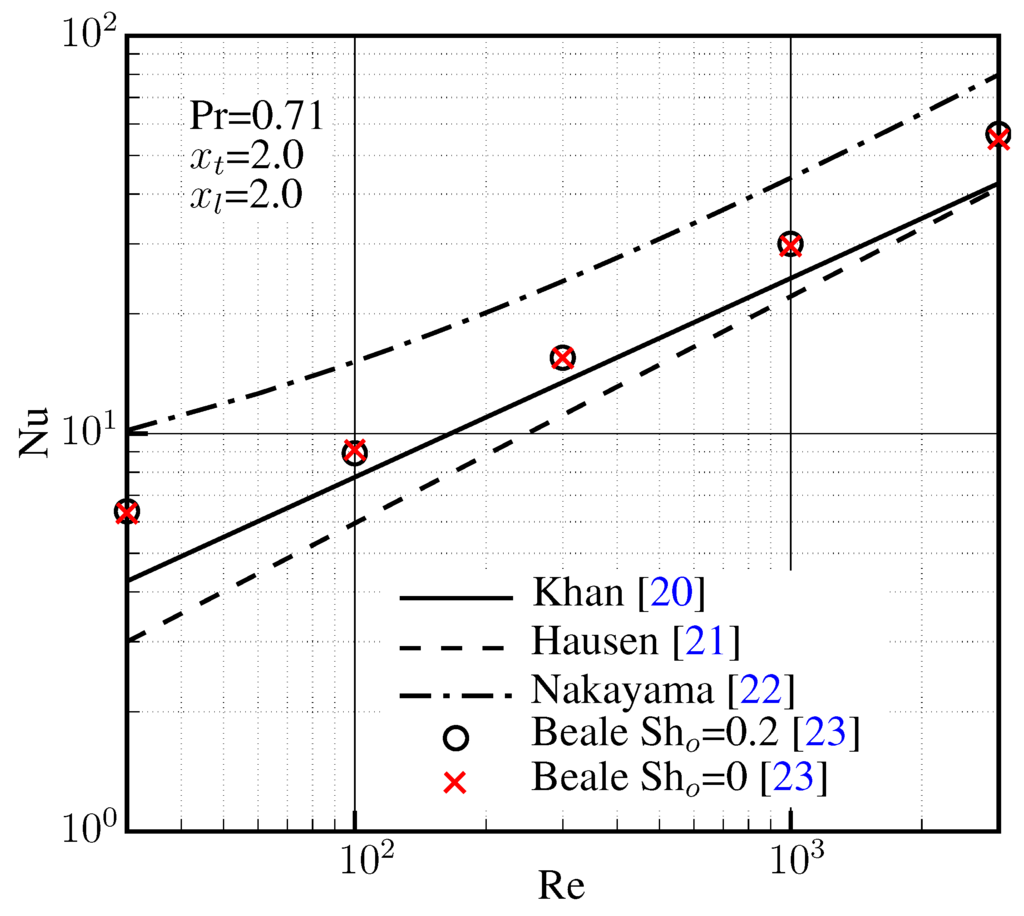

^{th}root of the sum of the ${n}^{th}$ powers of the limiting solutions of the independent variable [18]. The following ad hoc power-mean combination was used to define the laminar-turbulent transitional zone:

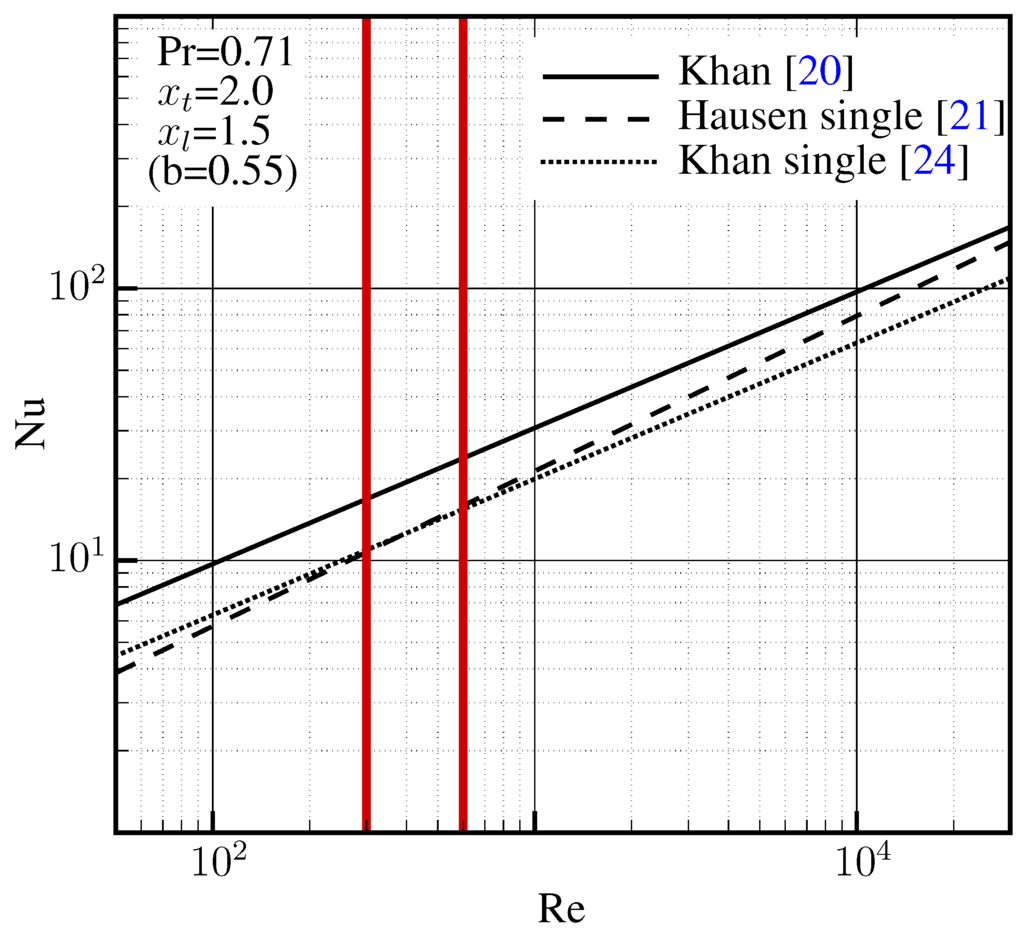

**Figure 9.**Comparison of different correlations for the Nusselt number for the precise geometry of the precooler. The operational range of the current application is shown between red lines.

#### 2.3.2. Reheater

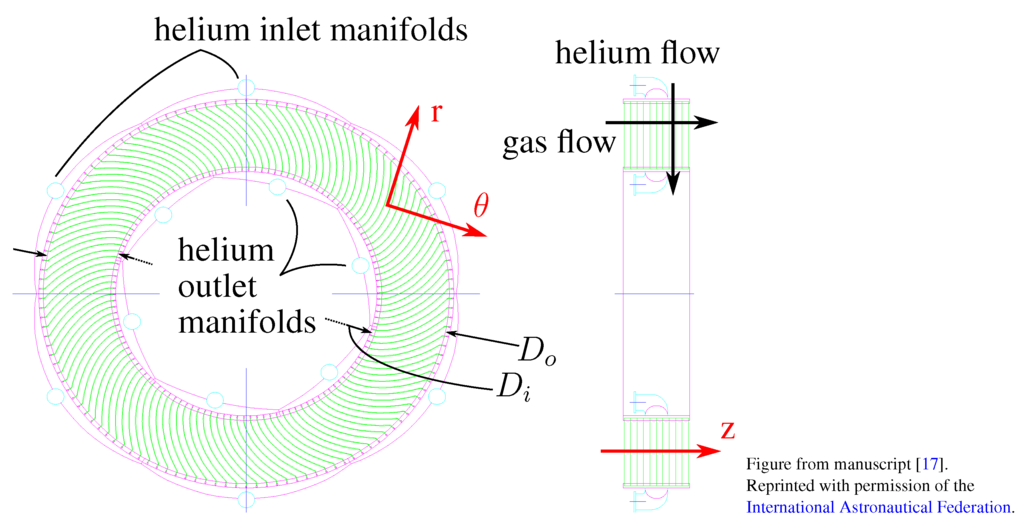

**Figure 10.**Frontal and side view of the reheater module [17].

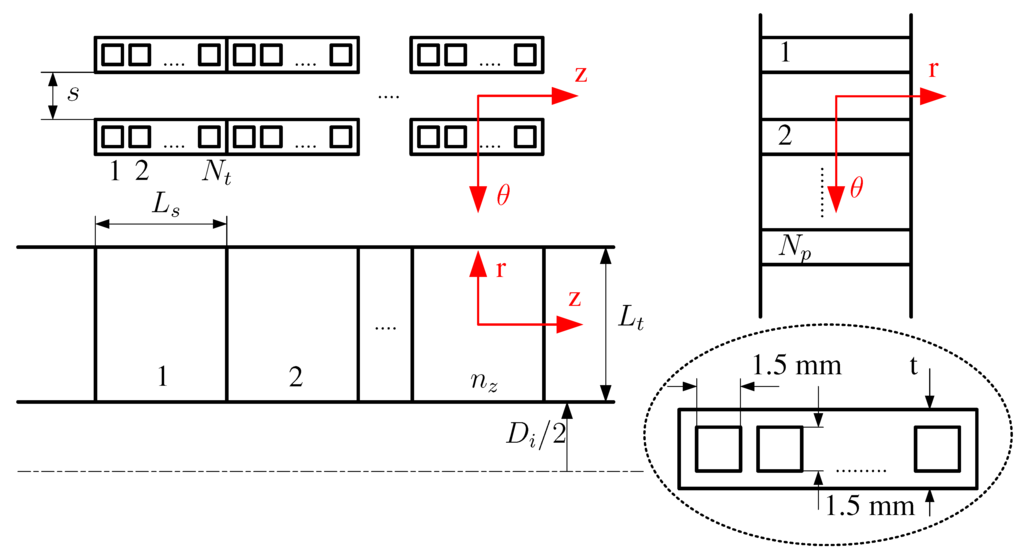

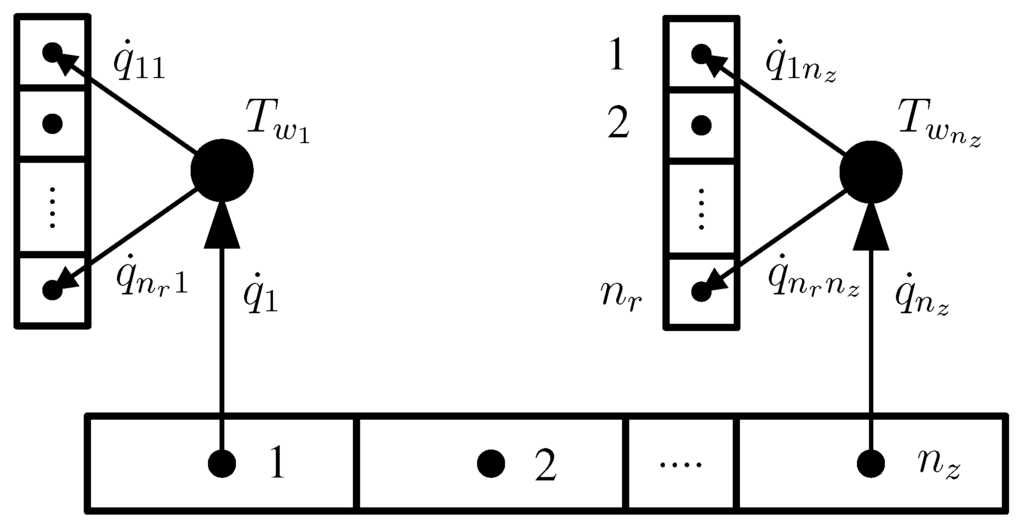

#### 2.3.3. Regenerator

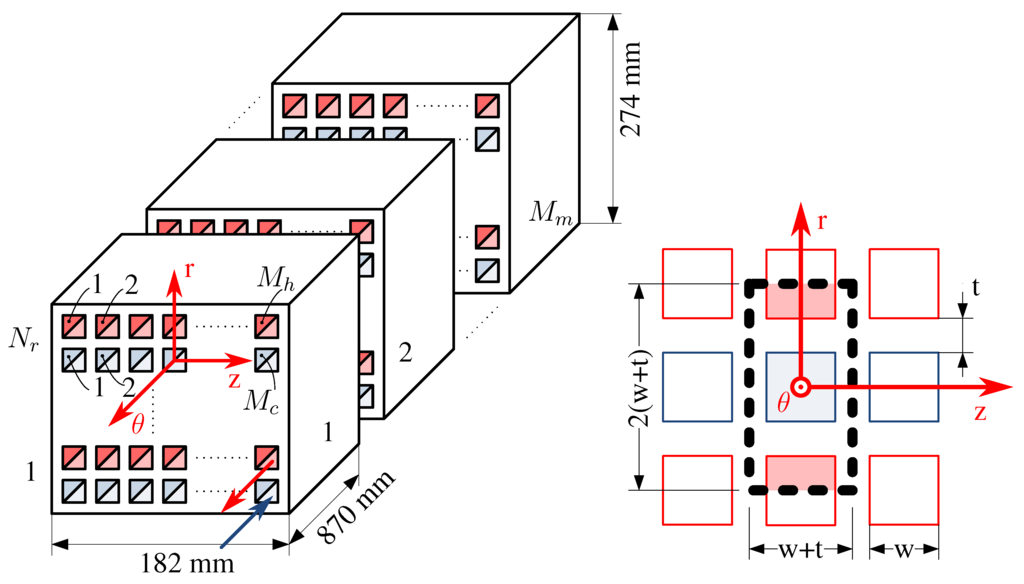

**Figure 13.**Geometry of the regenerator units (

**left**) and cross section of the periodic domain representative of the overall unit (

**right**).

#### 2.4. Turbomachinery

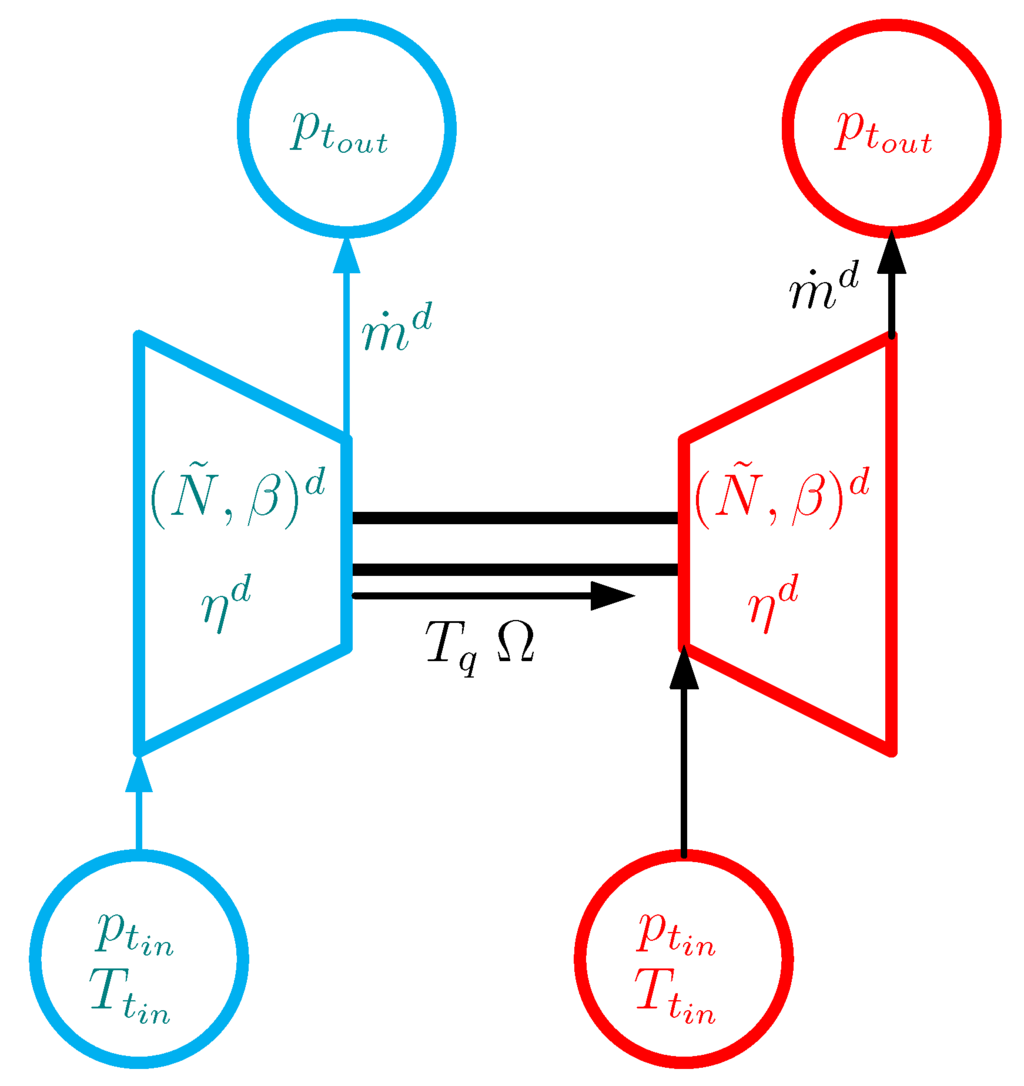

**Figure 14.**Compressor-turbine matching: compressor and turbine input data are shown respectively in blue and red, dependent variables are shown in black.

${\overrightarrow{B}}^{d}$ | |||||||||||||

${p}_{{t}_{in}}^{d}$ | ${T}_{{t}_{in}}^{d}$ | ${\dot{m}}^{d}$ | ${\eta}^{d}$ | ${N}^{d}$ | $\left(\right)open="|"\; close="|">{T}_{q}^{d}$ | ${I}_{sq}$ | Scaling factors | ||||||

Label | [bar] | [K] | [kg s ${}^{-}$] | ${\pi}^{d}$ | [%] | ${\beta}^{d}$ | ${\tilde{N}}^{d}$ | [rpm] | [hN m] | [kg m ${}^{2}$] | ${K}_{\dot{m}}$ | ${K}_{\pi}$ | ${K}_{\eta}$ |

C | 2.9 | 648 | 172.6 | 4.2 | 86 | 0.74 | 0.75 | 10,471 | 594 | 0.51 | 1.54 | 2.27 | 0.99 |

C1 | 129.6 | 296 | 11.2 | 1.5 | 94 | 0.63 | 0.72 | 48,340 | 7 | 0.01 | 0.40 | 0.39 | 1.11 |

C2 | 129.5 | 371 | 11.2 | 1.5 | 94 | 0.63 | 0.72 | 48,340 | 9 | 0.01 | 0.45 | 0.39 | 1.11 |

C3 | 129.4 | 458 | 11.2 | 1.5 | 94 | 0.63 | 0.72 | 48,340 | 11 | 0.01 | 0.50 | 0.39 | 1.11 |

C4 | 129.3 | 559 | 11.2 | 1.5 | 94 | 0.63 | 0.72 | 48,340 | 13 | 0.01 | 0.55 | 0.39 | 1.11 |

C5 | 129.2 | 676 | 11.2 | 1.5 | 94 | 0.63 | 0.72 | 48,340 | 16 | 0.01 | 0.61 | 0.39 | 1.11 |

C6 | 50.9 | 33 | 11.2 | 3.9 | 90 | 0.63 | 0.65 | 48,357 | 4 | 0.01 | 0.45 | 2.71 | 1.08 |

C7 | 51.4 | 75 | 11.2 | 3.9 | 90 | 0.63 | 0.65 | 48,357 | 8 | 0.01 | 0.62 | 2.67 | 1.08 |

C8 | 51.3 | 151 | 11.2 | 3.9 | 90 | 0.63 | 0.65 | 48,357 | 15 | 0.01 | 0.86 | 2.68 | 1.08 |

T1 | 195.7 | 1000 | 89.6 | 1.5 | 91 | 0.20 | 1.00 | 10,471 | 594 | 0.51 | 1.03 | 1.05 | 0.96 |

T2 | 130.1 | 863 | 22.5 | 2.5 | 89 | 0.35 | 1.00 | 48,340 | 56 | 1.00 | 2.40 | 1.00 | 1.02 |

T3 | 130.1 | 863 | 11.1 | 2.5 | 88 | 0.35 | 1.00 | 48,357 | 27 | 1.00 | 1.18 | 1.00 | 1.01 |

## 3. Engine Control

## 4. Results

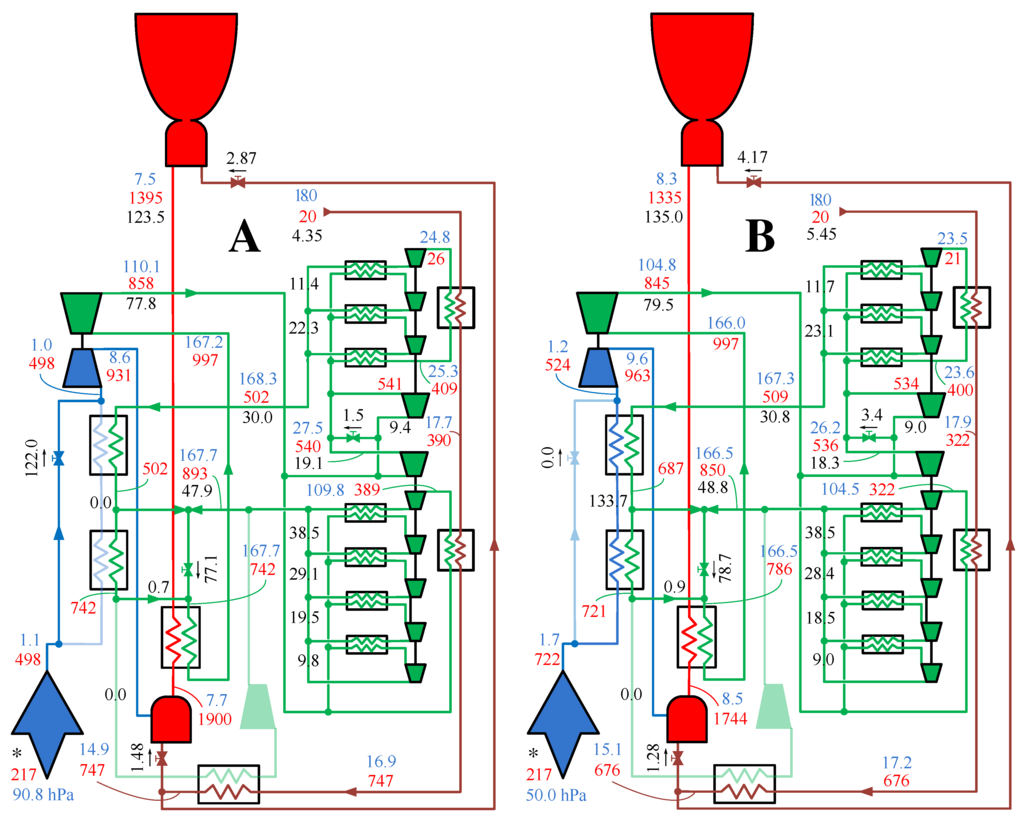

**Figure 15.**Station total pressures (${\text{blue numerals, bar}}$), total temperatures (${\text{red numerals, K}}$) and mass flows (black numerals, kg/s) during acceleration (

**A**and

**B**). Fluid lines and components working with air, helium, hydrogen and combustion gases are drawn respectively in blue, green, brown and red colors. The ambient (static) conditions are labeled with (*).

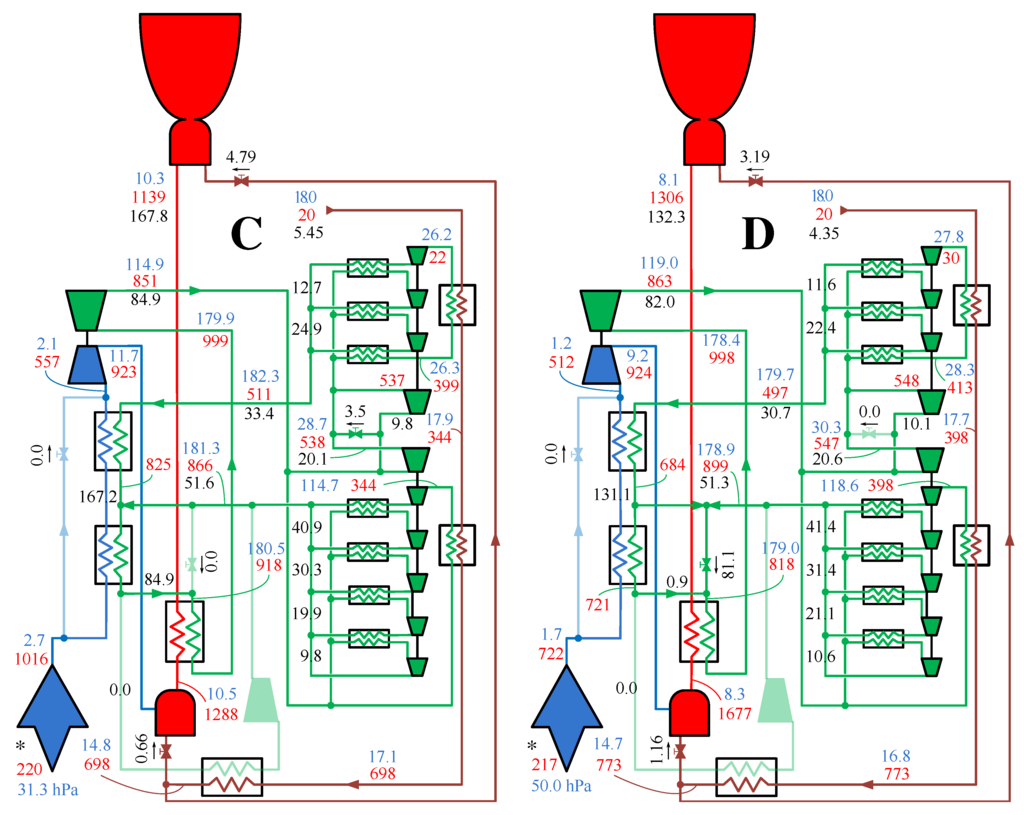

**Figure 16.**Station total pressures (${\text{blue numerals, bar}}$), total temperatures (${\text{red numerals, K}}$) and mass flows (black numerals, kg/s) during acceleration (

**C**and

**D**). Fluid lines and components working with air, helium, hydrogen and combustion gases are drawn respectively in blue, green, brown and red colors. The ambient (static) conditions are labeled with (*).

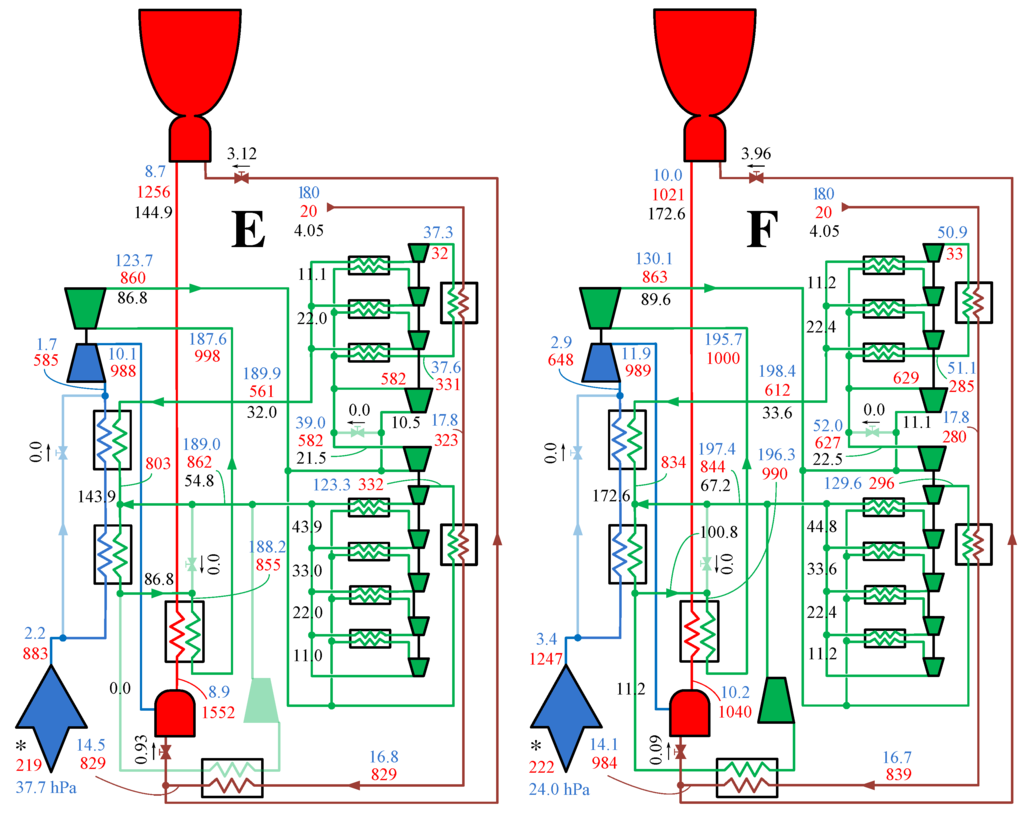

**Figure 17.**Station total pressures (${\text{blue numerals, bar}}$), total temperatures (${\text{red numerals, K}}$) and mass flows (black numerals, kg/s) during acceleration (

**E**) and cruise (

**F**). Fluid lines and components working with air, helium, hydrogen and combustion gases are drawn respectively in blue, green, brown and red colors. The ambient (static) conditions are labeled with (*).

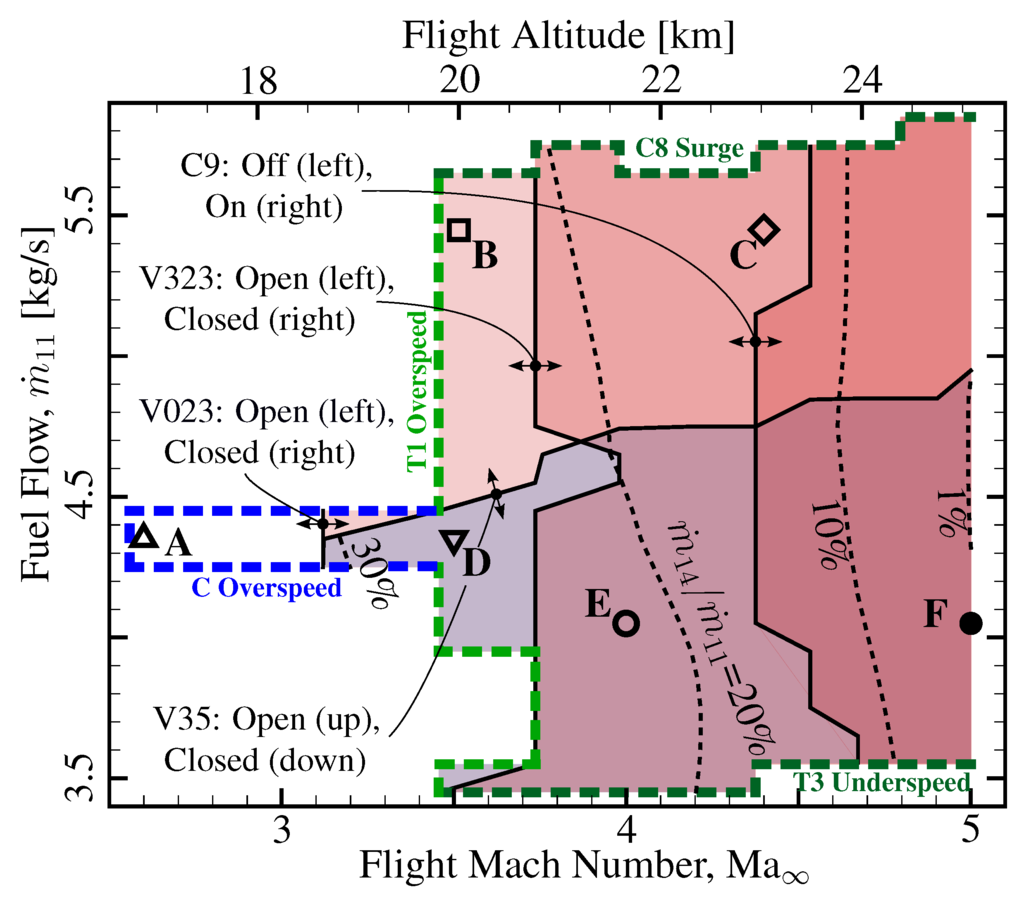

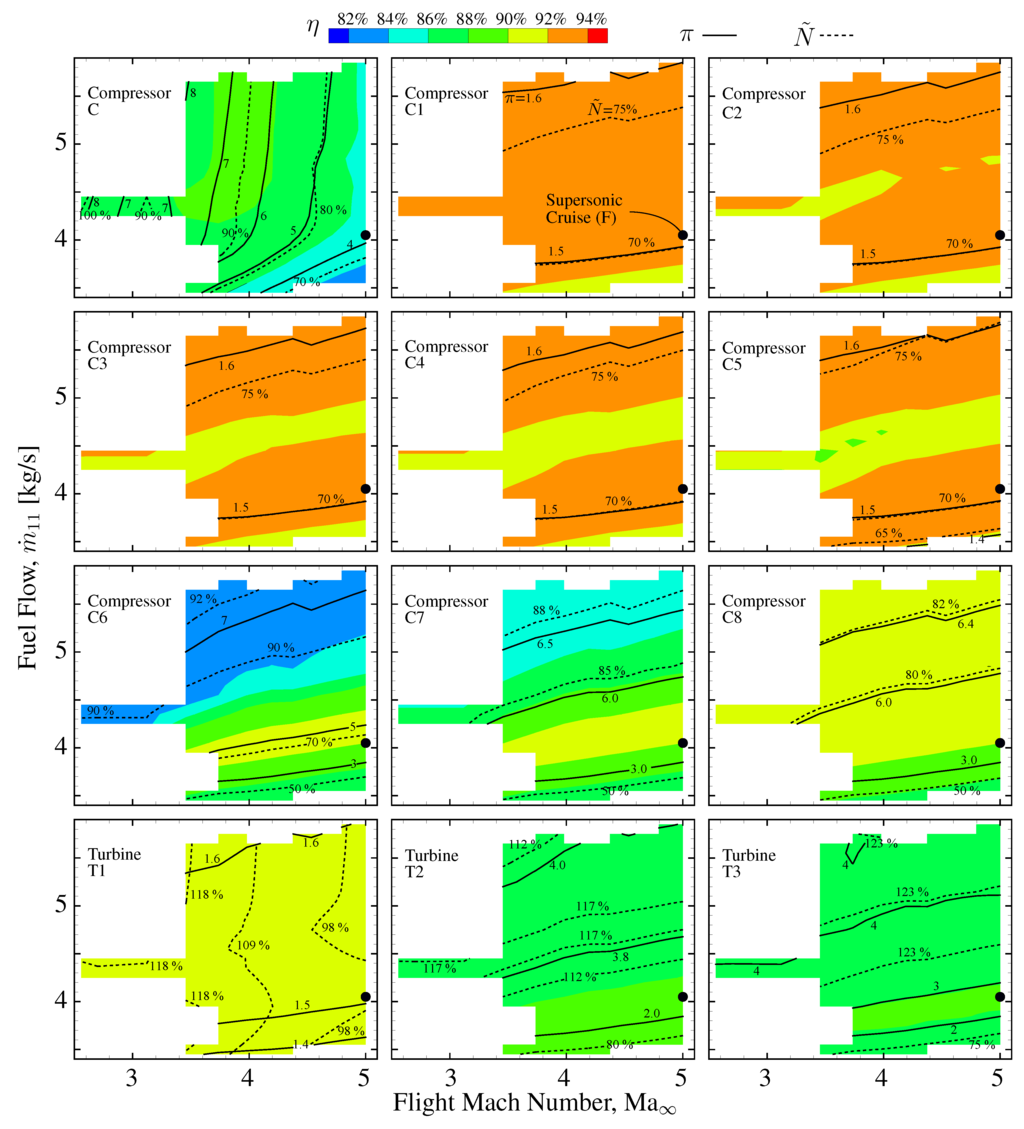

**Figure 19.**Turbomachinery performance: adiabatic efficiency (η), pressure ratio (π) and corrected speed ($\tilde{N}$) vs. flight Mach number (Ma${}_{\infty}$) and throttling level (${\dot{m}}_{11}$).

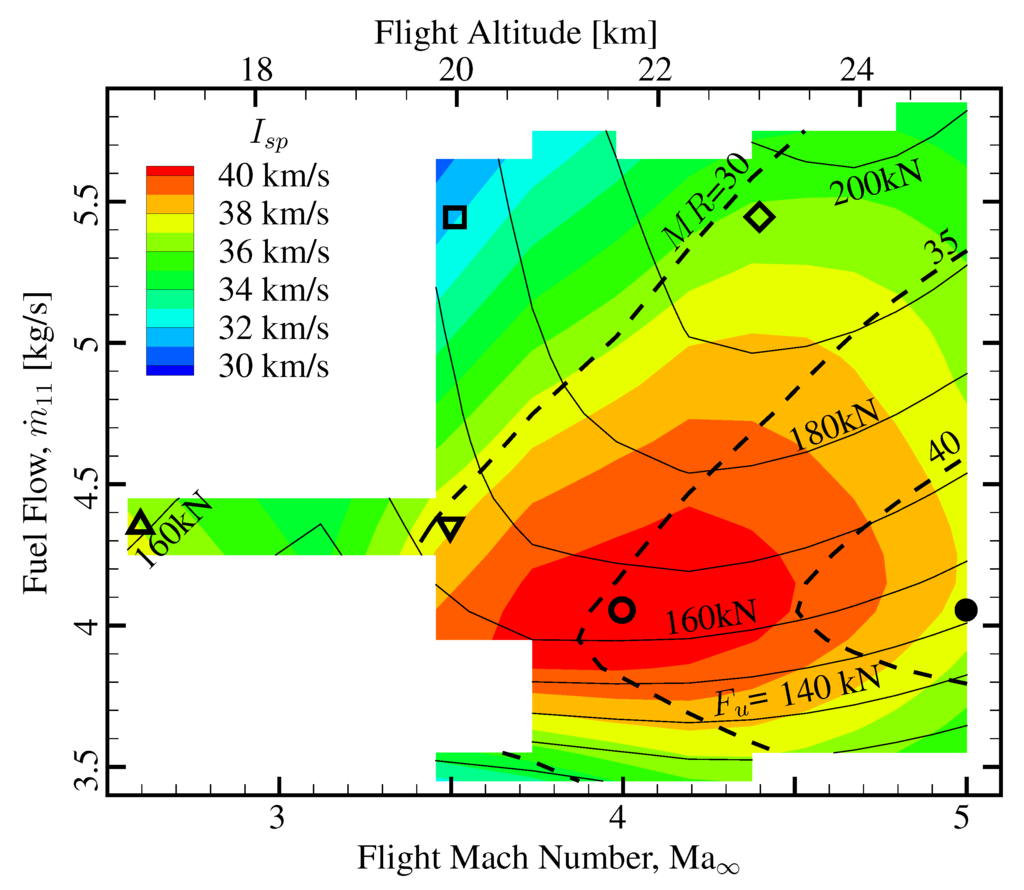

**Figure 20.**Scimitar core operational range: uninstalled thrust and specific impulse vs. fuel consumption and flight condition.

## 5. Conclusions

## Acknowledgements

## Nomenclature:

A | = transversal area [m${}^{2}$] |

${A}_{t}$ | = cross section of the reheater helium channels [m${}^{2}$] |

a | = speed of sound [m s${}^{-1}$] |

${a}_{ji}$ | = total mass of chemical element j in the chemical species i |

b | = blockage ratio of the tubes in crossflow |

${b}_{j}$ | = total mass of chemical element j in the gas mixture |

C | = heat capacity [m${}^{2}$ K${}^{-1}$ s${}^{-2}$] |

${C}_{p}$ | = specific heat at constant pressure [m${}^{2}$ K${}^{-1}$ s${}^{-2}$] |

D | = diameter [m] |

${D}_{h}$ | = hydraulic diameter [m] |

e | = tube minimum distance to diameter ratio or total specific energy
($e=u+0.5\phantom{\rule{4pt}{0ex}}{v}^{2}$) [m${}^{2}$ s${}^{-2}$] |

${F}_{u}$ | = uninstalled thrust [kg m s${}^{-2}$] |

$\mathcal{F}$ | = mathematical function whose root defines the constraint which the turbomachinery design parameters ${\pi}^{d}$, ${T}_{q}^{d}{\Omega}^{d}$ and ${\dot{m}}^{d}$ must satisfy |

G | = Gibbs potential [kg m${}^{2}$ s${}^{-2}$] |

${\mathcal{G}}_{\dot{m}}$ | = mathematical function whose root defines the locus of turbomachinery operational points which satisfy the fluid dynamical constraint imposed by the turbomachine discharge duct |

${\mathcal{G}}_{\Omega}$ | = mathematical function whose root defines the locus of turbomachinery operational points which satisfy the mechanical constraint imposed by the turbomachine shaft |

$\mathcal{H}$ | = adiabatic efficiency characteristic of the unscaled turbomachine |

h | = specific enthalpy [m${}^{2}$ s${}^{-2}$] |

${h}_{c}$ | = convective heat transfer coefficient [kg K${}^{-1}$ s${}^{-3}$] |

${I}_{sh}$ | = shaft inertia [kg m${}^{2}$] |

${I}_{sp}$ | = specific impulse [m s${}^{-1}$] |

k | = thermal conductivity [kg K${}^{-1}$ m s${}^{-3}$] or controller sensitivity |

${K}_{\dot{m}}$ | = mass flow scaling factor |

${K}_{\eta}$ | = efficiency scaling factor |

${K}_{\pi}$ | = pressure ratio scaling factor |

L | = length [m] |

${L}_{c}$ | = characteristic length [m] |

${L}_{s}$ | = axial length of the reheater module strips [m] |

${l}_{th}$ | = characteristic thermal entry length [m] |

Ma | = Mach number |

${M}_{c}$ | = number of coolant channels per row in the regenerator module |

${M}_{h}$ | = number of heatant channels per row in the regenerator module |

${M}_{m}$ | = number of modules in each regenerator unit |

$\mathcal{M}$ | = mass flow characteristic of the unscaled turbomachine [kg s${}^{-1}$] |

m | = mass [kg] |

$\dot{m}$ | = mass flow rate [kg s${}^{-1}$] |

$\tilde{\dot{m}}$ | = corrected mass flow rate [Equation (38)] [kg s${}^{-1}$] |

N | = number of mols or rotational speed [rpm] |

${N}_{p}$ | = number of plates of the reheater module |

${N}_{r}$ | = number of rows of heatant / coolant channels per regenerator module |

${N}_{t}$ | = number of helium channels per strip of the reheater module |

$\tilde{N}$ | = corrected speed [Equation (37)] |

n | = number of nodes |

${n}_{z}$ | = number of strips per plate of the reheater module |

Nu | = Nusselt number |

Nu${}_{tur}$ | = Nusselt number in turbulent flow |

Nu${}_{lam}^{q}$ | = Nusselt number in laminar fully developed flow with uniform heat flux boundary condition |

Nu${}_{lam}^{T}$ | = Nusselt number in laminar fully developed flow with isothermal boundary condition |

Pr | = Prandtl number |

p | = pressure [kg m${}^{-1}$ s${}^{-2}$] |

$\dot{q}$ | = heat flux [kg s${}^{-3}$] |

R | = ideal gas constant [K${}^{-1}$ m${}^{2}$ s${}^{-2}$] |

${R}_{c}$ | = curvature radius [m] |

Re | = Reynolds number |

Sh | = Strouhal number |

${\mathcal{S}}_{\dot{m}}$ | = mathematical function whose root defines the locus of the turbomachinery steady operational points which satisfy the fluid dynamical constraint imposed by the turbomachine discharge duct |

${\mathcal{S}}_{\Omega}$ | = mathematical function whose root defines the locus of turbomachinery operational points which satisfy the mechanical constraint imposed by the turbomachine shaft |

s | = tangential pitch between the reheater plates [m] |

T | = temperature [K] |

${T}_{q}$ | = torque [kg m${}^{2}$ s${}^{-2}$] |

t | = reheater plate thickness [m] or time [s] |

${t}_{c}$ | = characteristic time [s] |

v | = velocity [m s${}^{-1}$] |

${x}_{l}$ | = ratio of precooler tube longitudinal pitch to external diameter |

${x}_{t}$ | = ratio of precooler tube transversal pitch to external diameter |

Greek | |
---|---|

β | = coordinate of the turbomachine map parametrization |

Γ | = perimeter [m] |

γ | = ratio of specific heats |

$\Delta x$ | = increment of x |

δ | = dimensionless turbomachine equivalent inlet pressure ($p/{p}_{std}$) |

${\u03f5}_{r}$ | = rugosity [m] |

η | = adiabatic efficiency |

${\eta}_{k}$ | = intake kinetic efficiency |

${\eta}_{n}$ | = nozzle efficiency |

Θ | = dimensionless turbomachine equivalent inlet temperature [Equation (39)] |

λ | = tube stagger angle [rad] |

μ | = viscosity [kg m${}^{-1}$ s${}^{-1}$] |

ξ | = friction factor [m${}^{-1}$] |

Π | = pressure ratio characteristic of the unscaled turbomachine |

π | = turbomachine compression (compressor) or expansion (turbine) ratio |

ρ | = density [kg m${}^{-3}$] |

σ | = constant of Stefan-Boltzmann [kg K${}^{-4}$ s${}^{-3}$] |

τ | = valve response time [s] |

Ω | = rotational speed [rad s${}^{-1}$] |

Subscripts | |
---|---|

c | = relative to the compressor |

i | = relative to the i ^{th} grid node or element in the set |

$in$ | = relative to the inlet |

$out$ | = relative to the outlet |

s | = corresponding to an isentropic evolution |

$st$ | = relative to the stream tube |

$std$ | = standard |

t | = stagnation quantity or relative to the turbine |

$th$ | = relative to the nozzle throat |

w | = relative to the wall |

∞ | = free stream conditions |

Superscript | |
---|---|

$\dot{x}$ | = time derivative |

${x}^{d}$ | = design value |

${x}^{0}$ | = reference value |

Acronyms | |
---|---|

BB | = bypass burner |

BN | = bypass nozzle |

CC | = main combustion chamber |

DASSL | = differential algebraic system solver algorithm |

ESPSS | = European Space Propulsion System Simulation |

F | = by-pass fan |

HT | = hub turbine |

MR | = mixture ratio, i.e., ratio of air to fuel mass flows |

NIST | = National Institute of Standards and Technology |

PB | = preburner |

PC | = precooler |

RG | = regenerator |

TPR | = intake total pressure recovery (${p}_{{t}_{out}}/{p}_{{t}_{in}}$) |

## References

- Luidens, R.W.; Weber, R.J. An Analysis of Air-Turborocket Engine Performance Including Effects of Components Changes; Technical Report RM E55H04a; NACA Lewis Flight Propulsion Laboratory: Cleveland, OH, USA, 1956. [Google Scholar]
- Escher, W.J.D. Cryogenic hydrogen-induced air-liquefaction technologies for combined-cycle propulsion applications. In Proceedings of Rocket-Based Combined-Cycle (RBCC) Propulsion Technology Workshop; NASA Lewis Research Center: Cleveland, OH, USA, March 1992; No. 92N21526. [Google Scholar]
- Balepin, V.; Tanatsugu, N.; Sato, T. Development study of precooling for ATREX engine. In Proceedings of 12th International Symposium on Air Breathing Engines; American Institute of Aeronautics and Astronautics: Melbourne, Australia, September 1995; No. ISABE 95-7015. [Google Scholar]
- Schmidt, D.K.; Lovell, T.A. Mission Performance and Design Sensitivities of Air-Breathing Hypersonic Launch Vehicles. J. Spacecr. Rocket.
**1997**, 34, 158–164. [Google Scholar] [CrossRef] - Steelant, J. Sustained Hypersonic Flight in Europe: First Technology Achievements within LAPCAT II. In Proceedings of 17th AIAA International Space Planes and Hypersonic Systems and Technologies Conference; American Institute of Aeronautics and Astronautics: San Francisco, CA, USA, April 2011; No. AIAA-2011-2243. [Google Scholar]
- Jivraj, F.; Varvill, R.; Bond, A.; Paniagua, G. The Scimitar Precooled Mach 5 Engine. In Proceedings of 2nd European Conference for Aerospace Sciences (EUCASS), Brussels, Belgium, July 2007.
- Moral, J.; Pérez Vara, R.; Steelant, J.; de Rosa, M. ESPSS Simulation Platform. In Space Propulsion 2010; European Space Agency: San Sebastian, Spain, May 2010. [Google Scholar]
- Petzold, L.R. DASSL: Differential Algebraic System Solver; Technical Report; Sandia National Laboratories: Livermore, CA, USA, 1983. [Google Scholar]
- ESA; Astrium-Bremen; Cenaero; Empresarios Agrupados Int.; Kopoos. ESPSS EcosimPro Libraries User Manual; Version 2.0; Technical Report TN-4140; ESA European Space Research and Technology Centre: Noordwijk, The Netherlands, 2010. [Google Scholar]
- Gordon, S.; McBride, B.J. Computer Program for the Calculation of Complex Chemical Equilibrium Compositions with Applications; I Analysis; Technical Report RP 1311; NASA Glenn Research Center: Cleveland, OH, USA, 1994. [Google Scholar]
- Churchill, S.W. Friction-Factor Equation Spans All Fluid-Flow Regimes. Chem. Eng.
**1977**, 84, 91–92. [Google Scholar] - Lemmon, E.W.; McLinden, M.O.; Friend, D.G. Thermophysical Properties of Fluid Systems. In NIST Chemistry WebBook; NIST Standard Reference Database No. 23; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2007. [Google Scholar]
- Heiser, W.H. Hypersonic Airbreathing Propulsion; American Institute of Aeronautics and Astronautics: Washington, DC, USA, 1994; ISBN 1563470357. [Google Scholar]
- U.S. Standard Atmosphere, 1976; Technical Report NASA-TM-X-74335; NOAA-NASA-USAF: Washington, DC, USA, 1976.
- Bartz, D.R. Turbulent Boundary-Layer Heat Transfer from Rapidly Accelerating Flow of Rocket Combustion Gases and of Heated Air. Adv. Heat Transf.
**1965**, 2, 1–108. [Google Scholar] - Martinez-Sanchez, M. Liquid Rocket Propulsion Theory. In Spacecraft Propulsion; Von Karman Institute: Rhode-Saint-Genèse, Belgium, 1993; VKI LS 1993-01. [Google Scholar]
- Varvill, R. Heat Exchanger Development at Reaction Engines Ltd. In Proceedings of 59th International Astronautical Congress; International Astronautical Federation: Glasgow, UK, September–October 2008; IAC-08-C4.5.2.
- Churchill, S.W.; Usagi, R. A general expression for the correlation of rates of transfer and other phenomena. AIChE J.
**1972**, 18, 1121–1128. [Google Scholar] [CrossRef] - Bejan, A.; Kraus, A.D. Heat Transfer Handbook; Number ISBN 0-471-39015-1; John Wiley & Sons: Hoboken, NJ, USA, 2003; p. 1480. [Google Scholar]
- Khan, W.A.; Culham, J.R.; Yovanovich, M.M. Convection Heat Transfer from Tube Banks in Crossflow: Analytical Approach. Int. J. Heat Mass Transf.
**2006**, 49, 4831–4838. [Google Scholar] [CrossRef] - Hausen, H. Heat Transfer in Counterflow, Parallel Flow and Cross Flow; McGraw-Hill: New York, NY, USA, 1983. [Google Scholar]
- Nakayama, A.; Kuwahara, F.; Hayashi, T. Numerical Modelling for Three-Dimensional Heat and Fluid Flow Through a Bank of Cylinders in Yaw. J. Fluid Mech.
**2004**, 498, 139–159. [Google Scholar] [CrossRef] - Beale, S.B.; Spalding, D.B. A Numerical Study of Unsteady Fluid Flow in In-Line and Staggered Tube Banks. J. Fluid. Struct.
**1999**, 13, 723–754. [Google Scholar] [CrossRef] - Khan, W.A.; Culham, J.R.; Yovanovich, M.M. Fluid Flow and Heat Transfer from a Cylinder Between Parallel Planes. J. Thermophys. Heat Transf.
**2004**, 18, 395–403. [Google Scholar] [CrossRef] - Webber, H.; Feast, S.; Bond, A. Heat Exchanger Design in Combined Cycle Engines. In Proceedings of 59th International Astronautical Congress; International Astronautical Federation; Glasgow, UK, September–October 2008; IAC-08-C4.5.1.
- Colgan, E.G.; Furman, B.; Gaynes, M.; Graham, W.S.; LaBianca, N.C. A Practical Implementation of Silicon Microchannel Coolers for High Power Chips. IEEE Trans. Compon. Packag. Technol.
**2007**, 30, 218–225. [Google Scholar] [CrossRef] - Kim, S.J.; Kim, D. Forced Convection in Microstructures for Electronic Equipment Cooling. J. Heat Transf.
**1999**, 121, 639–645. [Google Scholar] [CrossRef] - Sui, Y.; Lee, P.S.; Teo, C.J. An Experimental Study of Flow Friction and Heat Transfer in Wavy Microchannels with Rectangular Cross Section. Int. J. Therm. Sci.
**2011**, 50, 2473–2482. [Google Scholar] [CrossRef] - Gong, L.; Kota, K.; Tao, W.; Joshi, Y. Parametric Numerical Study of Flow and Heat Transfer in Microchannels with Wavy Walls. J. Heat Transf.
**2011**, 133, 051702:1–051702:10. [Google Scholar] [CrossRef] - Riegler, C.; Bauer, M.; Kurzke, J. Some aspects of modeling compressor behavior in gas turbine performance calculations. J. Turbomach.
**2001**, 123, 372–378. [Google Scholar] [CrossRef] - Dixon, S.L. Fluid Mechanics, Thermodynamics of Turbomachinery; Butterworth-Heinemann: Oxford, UK, 1998. [Google Scholar]
- Cumpsty, N. Jet Propulsion—A Simple Guide to the Aerodynamic and Thermodynamic Design and Performance of Jet Engines; Cambridge University Press: Cambridge, UK, 1997; p. 115. [Google Scholar]
- Paniagua, G.; Szokol, S.; Kato, H.; Manzini, G. Contrarotating Turbine Aerodesign for an Advanced Hypersonic Propulsion System. J. Propuls. Power
**2008**, 24, 1269–1277. [Google Scholar] [CrossRef] - Kurzke, J. Component Map Collection; Joachim Kurzke: Dachau, Germany, 2004; Issue 2. [Google Scholar]
- Coverse, G.L. Extended Parametric Representation of Compressor Fans and Turbines; Technical Report NASA-CR-174646; NASA Lewis Research Center: Cleveland, OH, USA, 1984; Volume 2. [Google Scholar]
- Kurzke, J.; Riegler, C. A New Compressor Map Scaling Procedure for Preliminary Conceptual Design of Gas Turbines; ASME IGTI Turbo Expo: Munich, Germany, 2000; 2000-GT-0006. [Google Scholar]
- Brenan, K.E.; Campbell, S.L.; Petzold, L.R. Numerical Solution of Initial-Value Problems in Differential Algebraic Equations; SIAM: Philadelphia, PA, USA, 1996. [Google Scholar]

© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).

## Share and Cite

**MDPI and ACS Style**

Fernandez-Villace, V.; Paniagua, G.
Numerical Model of a Variable-Combined-Cycle Engine for Dual Subsonic and Supersonic Cruise. *Energies* **2013**, *6*, 839-870.
https://doi.org/10.3390/en6020839

**AMA Style**

Fernandez-Villace V, Paniagua G.
Numerical Model of a Variable-Combined-Cycle Engine for Dual Subsonic and Supersonic Cruise. *Energies*. 2013; 6(2):839-870.
https://doi.org/10.3390/en6020839

**Chicago/Turabian Style**

Fernandez-Villace, Victor, and Guillermo Paniagua.
2013. "Numerical Model of a Variable-Combined-Cycle Engine for Dual Subsonic and Supersonic Cruise" *Energies* 6, no. 2: 839-870.
https://doi.org/10.3390/en6020839
