Implementation of a Sensorless Control System with a Flying-Start Feature for an Asynchronous Machine as a Ship Shaft Generator

Abstract

Squirrel-cage induction generators often perform better without a mechanical speed sensor. Eliminating an encoder or resolver removes one of the most fragile and failure-prone components, while modern control algorithms can estimate speed with sufficient accuracy. Shaft-mounted sensors are vulnerable to heat, vibration, dust, moisture, and electrical noise; they require precise mounting and additional cabling and typically fail long before the machine itself. In many industrial and marine applications, unplanned shutdowns are more often caused by damaged sensors or cables than by the generator. Unlike sensorless speed-detection methods developed for motoring operation, the proposed approach targets the generator mode, where both phase currents and the DC-link voltage are measured. It uses two indicators: the magnitude and sign of the active current, and the instantaneous rise in DC-link voltage when the converter output frequency matches the machine’s shaft speed. Because active current remains negative over a wide frequency range during start-up, its sign change alone cannot uniquely identify the synchronization point. In generator operation, however, the DC-link capacitor voltage provides an additional criterion: the speed at which power reverses sign, indicated by a change in the sign of the DC-voltage derivative. As the inverter frequency approaches the machine rotational frequency from below, the DC voltage increases, reaches a maximum at maximum slip, and then decreases once the inverter frequency exceeds the machine speed. The article demonstrates how these signals can be used in practice to identify the rotational speed of a squirrel-cage generator.

1. Introduction

The growing integration of electric propulsion, power-electronic converters, energy storage modules, and variable-speed prime movers has accelerated the transition from traditional alternating current (AC) distribution architectures to direct current (DC) shipboard grids [1,2]. DC systems offer several technical advantages: elimination of reactive power flow, improved efficiency, higher power density, and the ability to interface diverse sources and loads using inherently DC-compatible converters. These benefits have made DC architecture particularly attractive for offshore support ships, dynamic-positioning units, and hybrid-electric commercial ships, where system flexibility and energy efficiency are critical design drivers.

In a DC grid, power distribution is achieved through a controlled network of converters connected to a common DC bus. Generators with some limitations in squirrel-cage machines equipped with active rectifiers supply a converter’s intermediate circuit with a controlled DC voltage. Consumers such as propulsion drives, hotel loads, and other systems are mainly fed through DC/AC converters which provide local voltage and current control. The absence of frequency constraints allows for the variable-speed operation of prime movers, improving fuel efficiency [3,4,5] and reducing mechanical stress. Another advantage given by the use of the DC grid is the weight and mass of electrical equipment reduction by 20 and 30%, respectively [6,7].

As mentioned, such systems can use cheap and robust machines like squirrel-cage machines which do not use expensive permanent magnets [8]. Integrating a squirrel-cage induction generator (SCIG) with a fully controlled active rectifier provides several significant advantages in modern shipboard DC power systems. The combination leverages the mechanical robustness of the induction machine and the controllability of power electronics, creating a flexible and resilient energy source for variable-speed prime mover applications.

A standalone SCIG normally requires external magnetizing current. With a machine-side inverter, such a generator becomes electrically autonomous; it can feed a non-energized DC bus (contributing to black-start capability if energy storage is present) and work in the sensorless mode [9,10,11]. Sensorless speed control refers to estimating the rotor speed and flux using electrical measurements (stator voltages and currents) instead of relying on a physical speed sensor such as an encoder or resolver. In modern induction motor drives, this is typically realized through model-based observers, MRAS (Model Reference Adaptive Systems) [12,13], sliding-mode observers, or reduced-order Luenberger observers integrated into field-oriented control (FOC) or direct torque control (DTC) schemes. The aforementioned methods are currently used in motor applications, while there are little available research and information on sensorless generator operation of squirrel-cage machines, where the external DC voltage loop controls not the shaft rotation speed but the DC voltage of the intermediate circuit [14,15], and where the presented methods use a PLL and an analysis of sign changes in active and reactive currents. However, as the reported results show, there are large discrepancies between the estimated and the actual values. To improve the effectiveness of the method for detecting the rotational speed of an induction generator, the paper proposes a method based on analyzing sign changes in the DC-link voltage. The selection of the method for estimating the shaft rotation speed is important for a specific method of controlling the generator and its converter, because the operation of such a system can provide an estimate of the speed or the rotor flux angle [16]. The latter variable is necessary for the proper operation of the field-oriented control method. Due to its good dynamic properties and the possibility of decoupling virtual computational DCs responsible for stabilizing the DC voltage of the intermediate circuit and the current responsible for magnetizing the stator and rotor cores, the authors chose the FOC method for testing, although it is possible to use the DTC method, as shown in [17].

This article presents the theoretical foundations of machine control in generating mode operation, the necessary state equations, and transformations that allow their discretization and implementation in a control system based on a DSP processor and FPGA circuit. Selected results of simulation and experimental tests obtained at the test site were presented, and a discussion of selected results was held.

2. Mathematical Model of the Squirrel-Cage Generator and Sensorless Control

The introduction of the spatial vectors of the voltages, currents, and associated currents of the stator and rotor, accordingly, allows the depiction of a symmetrical three-phase machine with a system of equations given by [18] as follows:

$${\overline{\mathit{u}}}_s=R_s{\overline{\mathit{i}}}_s+{\displaystyle \frac{d}{dt}}{\overline{\mathit{\Psi }}}_s$$

(1)

$${\overline{\mathit{u}}}_r=R_r{\overline{\mathit{i}}}_r+{\displaystyle \frac{d}{dt}}{\overline{\mathit{\Psi }}}_r$$

(2)

$${\overline{\mathit{\Psi }}}_s={\mathit{L}}_s{\overline{\mathit{i}}}_s+\mathit{M}{e}^{\mathrm{j}\mathsf{\theta }}{\overline{\mathit{i}}}_r$$

(3)

$${\overline{\mathit{\Psi }}}_r={\mathit{L}}_r{\overline{\mathit{i}}}_r+\mathit{M}{e}^{\mathrm{j}\mathsf{\theta }}{\overline{\mathit{i}}}_s$$

(4)

In (1)–(4), the mutual inductance coefficient M is determined by the following equation:

$$\mathit{M}={\displaystyle \frac{3}{2}}{\displaystyle \frac{z_a}{z_A}}{L}_{\mathrm{MA}}={\displaystyle \frac{3}{2}}{\displaystyle \frac{z_A}{z_a}}{L}_{\mathrm{MA}}$$

(5)

The stator and rotor windings self-inductances Ls, Lr are given as follows:

$$L_s=L_{\mathrm{MA}}\left({\displaystyle \frac{3}{2}}+{\sigma }_s\right)$$

(6)

$$L_r=L_{\mathrm{Ma}}\left({\displaystyle \frac{3}{2}}+{\sigma }_r\right)$$

(7)

where L_MA—principal inductance of the stator windings; L_Ma—principal inductance of the rotor windings; σ_s—stator solidity coefficient; σ_r—rotor solidity coefficient.

The stator electrical quantities are written in a stationary frame of reference, while the equations of the rotor are written in a rotating frame of reference. The system of Equations (1)–(4) can be transformed into any orthogonal coordinate system, rotating at the selected angular velocity ω_b.

Supplementing the system of Equations (1)–(4) with the equation of dynamics of rotor motion, converting the rotor quantities to the stator circuit, and transforming them into a rotating system with a velocity ω_b, according to [19], we obtain the following:

$${\overline{\mathit{u}}}_{\mathrm{sb}}=R_s{\overline{\mathit{i}}}_{\mathrm{sb}}+{\displaystyle \frac{d}{dt}}{\overline{\mathit{\Psi }}}_{\mathrm{sb}}+\mathrm{j}{\mathsf{\omega }}_b{\overline{\mathit{\Psi }}}_{\mathrm{sb}}$$

(8)

$${\overline{{\mathit{u}}^{\prime }}}_{\mathrm{rb}}=R_r^{\prime }{\overline{{\mathit{i}}^{\prime }}}_{\mathrm{rb}}+{\displaystyle \frac{d}{dt}}{\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}+j\left({\omega }_b-{\omega }_r\right){\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}$$

(9)

$${\overline{\mathit{\Psi }}}_{\mathrm{sb}}=L_{s\sigma }{\overline{\mathit{i}}}_{\mathrm{sb}}+L_m\left({\overline{\mathit{i}}}_{\mathrm{sb}}+{\overline{{\mathit{i}}^{\prime }}}_{\mathrm{rb}}\right)$$

(10)

$${\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}=L_{r\sigma }{\overline{{\mathit{i}}^{\prime }}}_{\mathrm{rb}}+L_m\left({\overline{\mathit{i}}}_{\mathrm{sb}}+{\overline{{\mathit{i}}^{\prime }}}_{\mathrm{rb}}\right)$$

(11)

$${\displaystyle \frac{d}{dt}}{\omega }_r={\displaystyle \frac{1}{J}}\left(T_e-T_L\right)$$

(12)

where ω_b—angular velocity of rotation of the coordinate system; ω_r—angular velocity of the rotor; L_sσ—scattering inductance of the stator winding; L_rσ—scattering inductance of the rotor winding; L_m—principal inductance; T_e—electromagnetic moment of the motor; T_L—mechanical load torque.

Since the machine operates in the generator regime with an imposed rotational speed, Equation (12) can be omitted.

In relations (8)–(12) the quantities are given the index “b”, which means that they are represented in a common system of orthogonal coordinates, rotating at the velocity ω_b. The rotor reference quantities were converted to the stator plane quantitates, which is indicated by the index “prim”. An important feature of Equations (8)–(11) is that there is constant coefficient in the flux-current equations because of the transformation performed.

The quantities appearing in the formulas are vectors represented in the coordinate system on the Gaussian plane. Therefore, it is possible to write them in the form of complex numbers, in which the real and imaginary parts are separated.

The equations of the state of an induction machine can be presented in a form that is beneficial for their later use. To do this, it transforms these equations so that the obtained dependencies are dependent on the values of the current of the stator windings and the rotor flux. After applying some transformation, (11) can be depicted as the following:

$${\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}=\left(L_{r\sigma }+L_m\right){\overline{{\mathit{i}}^{\prime }}}_{\mathrm{rb}}+L_m{\overline{\mathit{i}}}_{\mathrm{sb}}$$

(13)

$${\overline{{\mathit{i}}^{\prime }}}_{\mathrm{rb}}={\displaystyle \frac{{\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}-L_m{\overline{\mathit{i}}}_{\mathrm{sb}}}{L_{\mathrm{r}\mathsf{\sigma }}+L_m}}$$

(14)

After inserting (14) into (9) and ordering, an equation is obtained in which only the rotor flux and stator current vectors are present. Equations (8) and (9) then are rearranged into the following:

$${\overline{\mathit{u}}}_{\mathrm{sb}}=R_s{\overline{\mathit{i}}}_{\mathrm{sb}}+{\displaystyle \frac{d}{dt}}{\overline{\mathit{\Psi }}}_{\mathrm{sb}}+\mathrm{j}{\mathsf{\omega }}_b{\overline{\mathit{\Psi }}}_{\mathrm{sb}}$$

(15)

$${\overline{{\mathit{u}}^{\prime }}}_{\mathrm{rb}}={\displaystyle \frac{R_r^{\prime }}{L_{\mathrm{r}\mathsf{\sigma }}+L_m}}{\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}+{\displaystyle \frac{R_r^{\prime }{L}_m}{L_{\mathrm{r}\mathsf{\sigma }}+L_m}}{\overline{\mathit{i}}}_{\mathrm{sb}}+{\displaystyle \frac{d}{dt}}{\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}+\mathrm{j} \left({\omega }_b-{\omega }_r\right){\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}$$

(16)

After substituting (13) to (10), the stator flux is described by the relationship:

$${\overline{\mathit{\Psi }}}_{\mathrm{sb}}=\left(L_{\mathrm{s}\mathsf{\sigma }}+{\displaystyle \frac{L_m{L}_{\mathrm{r}\mathsf{\sigma }}}{L_m+L_{\mathrm{r}\mathsf{\sigma }}}}\right){\overline{\mathit{i}}}_{\mathrm{sb}}+{\displaystyle \frac{L_m}{L_{\mathrm{r}\mathsf{\sigma }}+L_m}}{\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}$$

(17)

By substituting (17) into (15) and assuming the voltage in the short-circuit winding of the rotor is zero, after appropriate transformations, a system of two vector differential equations is obtained, describing the inductive machine in a system of orthogonal coordinates rotating at any angular speed ω_b.

$${\displaystyle \frac{d{\overline{\mathit{i}}}_{\mathrm{sb}}}{dt}}=-\left({\displaystyle \frac{R_s}{\mathsf{\sigma }{\mathrm{L}}_s}}+{\displaystyle \frac{R_r(1-\sigma )}{\mathsf{\sigma }{\mathrm{L}}_r}}+\mathrm{j}{\mathsf{\omega }}_b\right){\overline{\mathit{i}}}_{\mathrm{sb}}+\left({\displaystyle \frac{L_m{R}_r}{\mathsf{\sigma }{\mathrm{L}}_s{L}_r^2}}-j{\displaystyle \frac{L_m{\omega }_r}{\mathsf{\sigma }{\mathrm{L}}_r{L}_s}}\right){\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}+{\displaystyle \frac{1}{\mathsf{\sigma }{\mathrm{L}}_s}}{\overline{\mathit{u}}}_{\mathrm{sb}}$$

(18)

$${\displaystyle \frac{d{\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}}{dt}}={\displaystyle \frac{L_m{R}_r}{L_r}}{\overline{\mathit{i}}}_{\mathrm{sb}}-\left({\displaystyle \frac{R_r}{L_r}}+j({\omega }_s-{\omega }_r)\right){\overline{{\mathit{\Psi }}^{\prime }}}_{\mathrm{rb}}$$

(19)

3. State Observer Used in Rotor Flux Calculations

One of the well-known and eagerly used methods of calculating non-measurable state variables is the use of the machine state observer. This is a digitized model of the system, supplemented with corrective signals from measured quantities of feedback. Signals are determined based on a comparison of the output variables calculated from the observer and their measured values. Luenberger’s theory is presented in [20].

For a dynamic linear system described by a system of equations,

$$\stackrel{•}{\mathit{x}}=\mathit{A}\mathit{x}+\mathit{B}\mathit{u}$$

(20)

$$\mathit{y}=\mathit{C}\mathit{x}$$

(21)

you can create a state observer given by the following:

$$\stackrel{•}{\stackrel{\wedge }{\mathit{x}}}=\mathit{A}\stackrel{\wedge }{\mathit{x}}+\mathit{B}\mathit{u}+\mathit{G}\left[\mathit{y}-\stackrel{\wedge }{\mathit{y}}\right]$$

(22)

$$\stackrel{\wedge }{\mathit{y}}=\mathit{C}\stackrel{\wedge }{\mathit{x}}$$

(23)

where the vectors of the estimated state variables and output variables are depicted with the symbols $\stackrel{\wedge }{\mathit{y}}$ and $\stackrel{\wedge }{\mathit{x}}$, respectively, and the matrix G is the observer correction matrix. The estimated vector of the output variables is compared with the vector of the measured output variables. Their difference, i.e., the estimation error, is used to correct the observer which is denoted as G in the diagram of the machine state observer shown in Figure 1.

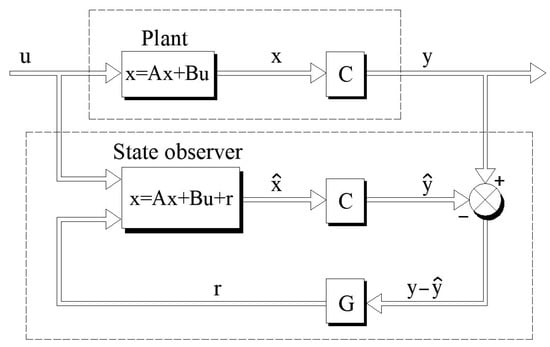

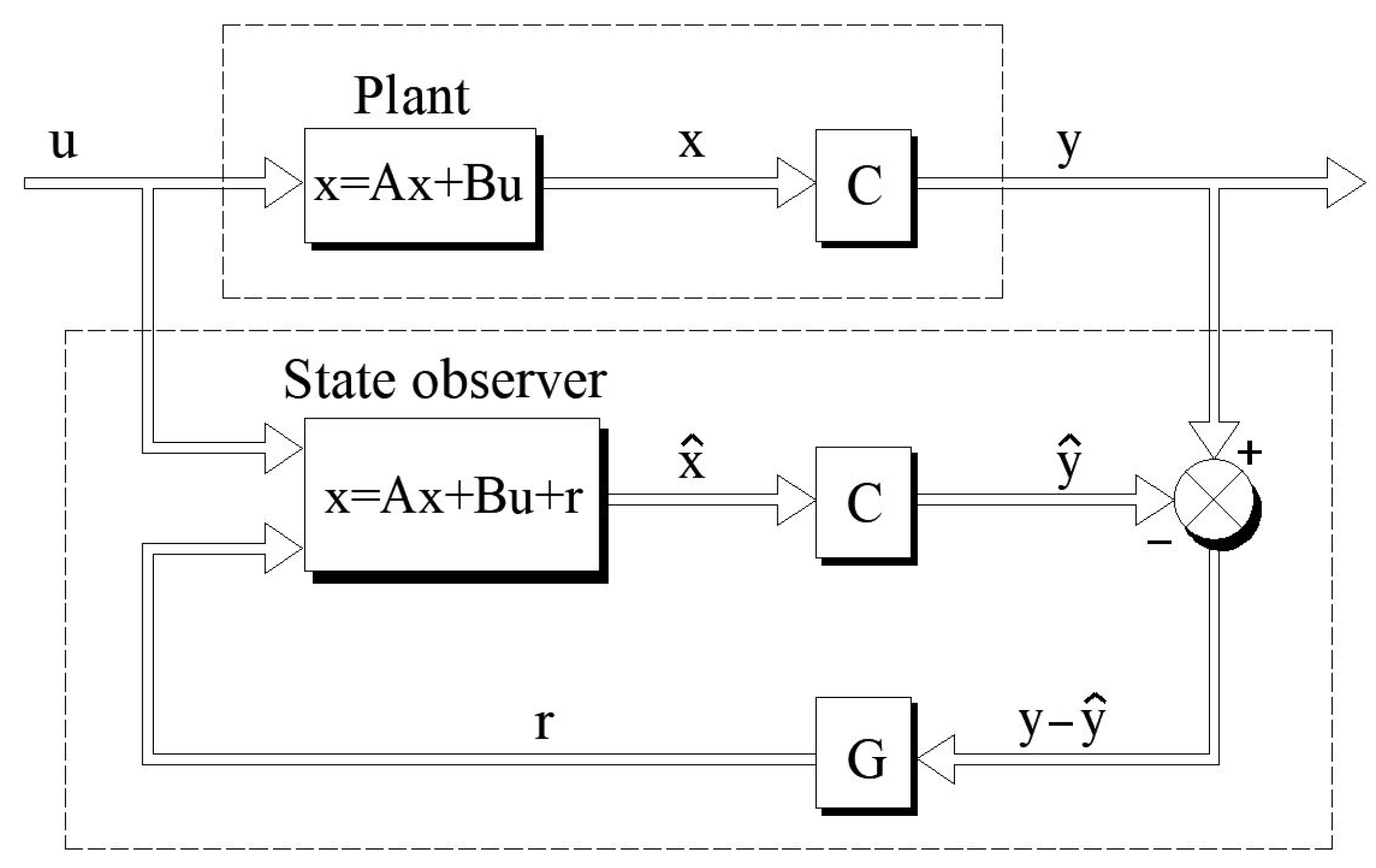

Figure 1. Machine state observer structure.

After applying some manipulations to (7), the observer equation takes the form:

$$\stackrel{•}{\stackrel{\wedge }{\mathit{x}}}=(\mathit{A}-\mathit{G}\mathit{C})\stackrel{\wedge }{\mathit{x}}+\mathit{B}\mathit{u}+\mathit{G}\mathit{y}$$

(24)

The state observer of the squirrel-cage generator presented in the paper uses the model projected in the α-β plane, the state variables of which are estimated components of the stator current ${\widehat{i}}_{s\alpha }$, ${\widehat{i}}_{s\beta }$, and the rotor magnetic flux ${\widehat{\Psi }}_{r\alpha }$, ${\widehat{\Psi }}_{r\beta }$. The input variables, on the other hand, are the actual components of the stator voltage $u_{s\alpha }$, $u_{s\beta }$.

The observer correction consists of comparing the measured and estimated components of the stator current in the α-β axes, which are treated as output y variables in Equation (24).

Assuming a description of the generator in coordinates α-β according to (36)–(39), the matrix G and the estimation error vector can be represented in the following form:

$$\begin{gathered} \mathit{G}=\left[\begin{array}{cc}{g}_{11}& 0\\ 0& g_{22}\\ 0& 0\\ 0& 0\end{array}\right] \\ \left[\mathit{y}-\stackrel{\wedge }{\mathit{y}}\right]=\left[\begin{array}{c}{i}_{\alpha }-{\stackrel{\wedge }{i}}_{\alpha }\\ i_{\beta }-{\stackrel{\wedge }{i}}_{\beta }\end{array}\right] \end{gathered}$$

(25)

In the matrix denoted G, only two non-zero elements are assumed, related to the error correction of the estimation of the stator current components. The elements of the matrix, i.e., correction factors, were selected by trial and error.

The machine state observer which utilizes a discretized model of the machine calculates the components of the rotor stream, allowing for field-oriented control with or without speed measurement operation in the generating mode.

The structure of the generator control system with the machine state observer is shown in Figure 2. The accuracy of an estimator depends mainly on the accuracy of the model parameters and on the precision of the measurement of input and output variables. In the case of an induction machine, there may be an error in the estimation of the parameter values (e.g., caused by a change in the temperature of the machine during operation) as well as an error (interference) in the measurement of voltages and currents.

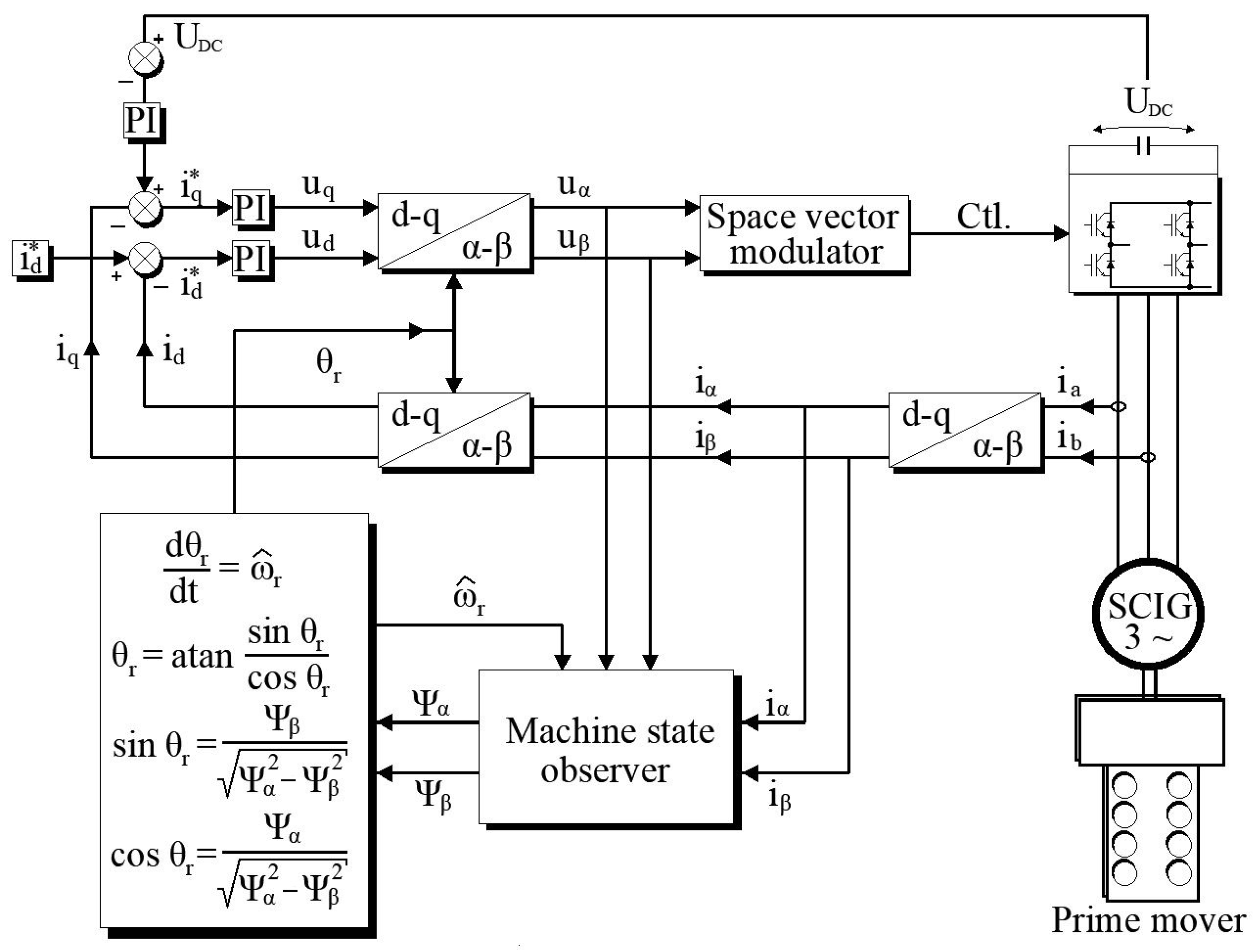

Figure 2. Sensorless control with machine state observer module.

After discretizing the relationships (22) and (23) according to the assumptions, the equations of the machine observer in the α-β reference frame are as follows.

$$\mathit{x}(kT+T)=\mathit{\Phi }\mathit{x}\left(kT\right)+\mathit{\Gamma }\mathit{u}\left(kT\right)+\mathit{\Xi } \left[\mathit{y}\right(kT)-\stackrel{\wedge }{\mathit{y}}(kT\left)\right]$$

(26)

$$\stackrel{\wedge }{\mathit{y}}\left(kT\right)=\mathit{C}\stackrel{\wedge }{\mathit{x}}\left(kT\right)$$

(27)

$$\mathbf{x}(kT)=\left[\begin{array}{c}{i}_{s\alpha }\left(kT\right)\\ i_{s\beta }\left(kT\right)\\ {\Psi }_{r\alpha }\left(kT\right)\\ {\Psi }_{r\beta }\left(kT\right)\end{array}\right]$$

(28)

$$\mathit{u}(kT)=\left[\begin{array}{c}{u}_{s\alpha }\left(kT\right)\\ u_{s\beta }\left(kT\right)\end{array}\right]$$

(29)

The machine state discretized matrix and associated coefficient matrices can be presented in the following form:

$$\mathit{\Phi }=\left[\begin{array}{cccc}1-({\displaystyle \frac{R_s}{\sigma L_s}}-{\displaystyle \frac{R_r(1-\sigma )}{L_r\sigma }})\cdot T& 0& {\displaystyle \frac{L_m{R}_r}{\sigma L_s{L}_r^2}}\cdot T& {\displaystyle \frac{{\widehat{\omega }}_r{L}_m}{\sigma L_r{L}_s}}\cdot T\\ 0& 1-({\displaystyle \frac{R_s}{\sigma L_s}}-{\displaystyle \frac{R_r(1-\sigma )}{L_r\sigma }})\cdot T& -{\displaystyle \frac{{\widehat{\omega }}_r{L}_m}{\sigma L_r{L}_s}}\cdot T& {\displaystyle \frac{L_m{R}_r}{\sigma L_s{L}_r^2}}\cdot T\\ {\displaystyle \frac{L_m{R}_r}{L_r}}\cdot T& 0& 1-{\displaystyle \frac{R_r}{L_r}}\cdot T& -{\widehat{\omega }}_r\cdot T\\ 0& {\displaystyle \frac{L_m{R}_r}{L_r}}\cdot T& {\widehat{\omega }}_r\cdot T& 1-{\displaystyle \frac{R_r}{L_r}}\cdot T\end{array}\right]$$

(30)

$$\mathit{\Gamma }=\left[\begin{array}{cc}{\displaystyle \frac{T}{\sigma L_s}}& 0\\ 0& {\displaystyle \frac{T}{\sigma L_s}}\\ 0& 0\\ 0& 0\end{array}\right]$$

(31)

$$\mathit{{\rm E}}=\left[\begin{array}{cc}{\xi }_{11}& 0\\ 0& {\xi }_{22}\\ 0& 0\\ 0& 0\end{array}\right]$$

(32)

$$\mathit{\Xi } [\mathit{y}(kT)-\stackrel{\wedge }{\mathit{y}}(kT)]=\left[\begin{array}{c}{i}_{s\alpha }(kT)-{\stackrel{\wedge }{i}}_{s\alpha }(kT)\\ i_{s\beta }(kT)-{\stackrel{\wedge }{i}}_{s\beta }(kT)\end{array}\right]$$

(33)

Based on the dependencies (26)–(33), both a simulation program and a real-time control algorithm written in C++ DSP flavor were created for a sensorless cage generator system tested in a laboratory testbed. In the case of sensorless control, the value of the rotor flux position is determined using the atan2 function (arcus tangent) from the estimated rotor flux components, and then the resulting angle value is differentiated to obtain the synchronous speed value. This value, after filtering out with the use of the low-pass, filters the interference errors caused by numerical differentiation and is inserted into the observer’s equations in the next step of the observer’s calculation. There is a problem with the start of the observer algorithm due to the lack of an initial velocity value in the first step of the calculation. The accuracy with which the angular speed is estimated affects the solutions of the equations of state in the next calculation steps, which is directly related to the accuracy of determining control variables of the SCIG.

4. Estimation of Angular Speed in a Sensorless System

The problem of determining the angular velocity of an induction squirrel-cage machine operating without speed sensors mounted on the shaft is a subject of very extensive literature. In this paper, the method of determining the rotor flow vector in the form of its components in α-β coordinates was used. Based on the knowledge of the α-β components of the flux, the angle of position of this vector in relation to one of the phase axes of the chosen stator and the angular velocity of shaft rotation are calculated according to the following formulas:

$${\mathsf{\theta }}_{\mathrm{r}}=\arctan ({\displaystyle \frac{{\mathsf{\Psi }}_{\mathrm{r}\mathsf{\beta }}}{{\mathsf{\Psi }}_{\mathrm{r}\mathsf{\alpha }}}})$$

(34)

$${\mathsf{\omega }}_{\mathrm{s}}={\displaystyle \frac{\mathrm{d}{\mathsf{\theta }}_{\mathrm{r}}}{\mathrm{d}\mathrm{t}}}$$

(35)

$${\mathsf{\omega }}_{\mathrm{r}}={\mathsf{\omega }}_{\mathrm{s}}-{\mathsf{\omega }}_{\mathrm{s}\mathrm{l}}$$

(36)

To calculate the angular velocity of the rotor shaft, the slip pulsation ω_sl must be subtracted from the estimated synchronous stator flux.

Due to the necessity of using a low-pass filter for the speed calculated from (36), there may be a partial loss of information regarding the speed value. If sensorless methods are used, which require the current angle to be determined using a filtered, estimated value of rotational speed, the calculated value of the rotor flux angle shall be corrected. The correction in the form of empirically selected correction coefficients added to the calculated angle in the presented solution was applied. The value of the correction coefficient depends on the speed and parameters of the machine. The entire speed range can be divided into several sectors, for which these correctors should be selected experimentally. Due to the used method of determining the angle of the rotor flux vector θ_r, which should be limited to the range of the angle from 0 to 2π, it is necessary to switch the values of this angle at the boundaries of the interval of variation. Differentiation of such a changing function of the angle θ_r for the determination of the synchronous flux speed at the sampling boundaries can result in the negative, false value of velocity. To eliminate such a problem, a differentiation operation is performed in a narrowed range of angle changes which means that if the value of the rotor flux angle changes above or below the limitation, the actual current calculated value of the ω_s is maintained (see Figure 3). Since angle differential operation is performed within a limited angle range, for a short period of time outside the limitation range, the rotational speed value is not actual. However, this issue is not of great importance since the dynamics of the studied electrical part of the whole system are much faster than the mechanical processes, so this property does not have any significant impact on the performance.

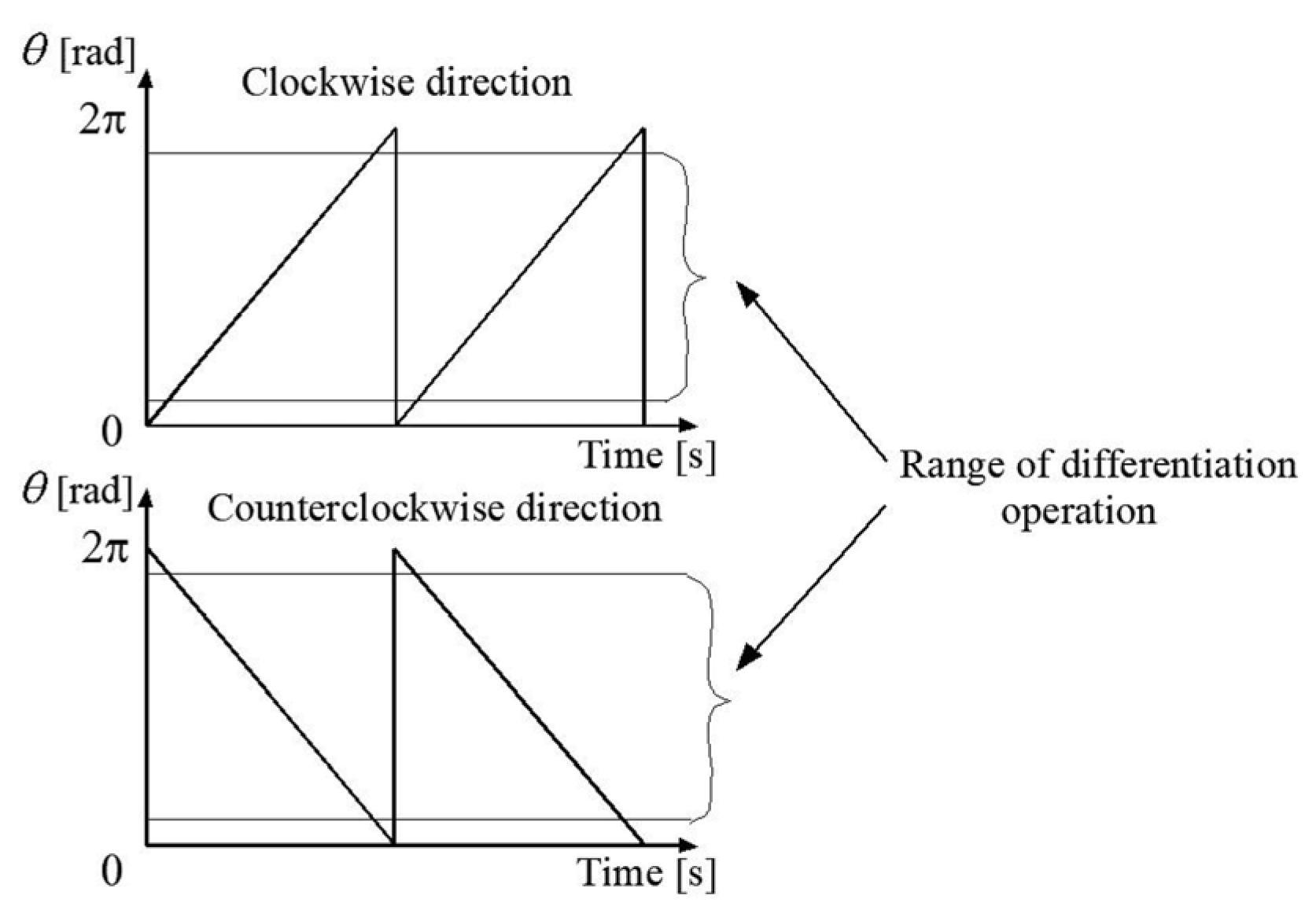

Figure 3. Waveform depicting position angle of the rotor flux vector for two directions of shaft rotation.

The differential operation used introduces some errors to the value of the estimated angular speed, so the filtering operation is used and becomes necessary to avoid the real-time running DSP program entering an algebraic loop. In such a system, the value of the variable is calculated, which is also needed at the very time to determine it. This can be remedied by adding, for example, a delaying element in the calculation path containing a feedback loop [21].

In the presented estimation method, the rotational speed and the angle of the rotor flux vector are determined from the values of voltages and currents, which are determined in the next calculation cycle of the control program using these variables. In this way, an algebraic loop would be created if the additional inertia resulting from the filtering operation was not introduced.

To filter the estimated speed signal, a first-order low-pass filter was used, given by (37) and then discretized into a DSP code:

$${\displaystyle \frac{\mathrm{d}\stackrel{\wedge }{{\mathsf{\omega }}_{\mathrm{r}}}}{\mathrm{d}\mathrm{t}}}={\displaystyle \frac{1}{{\mathsf{\tau }}_{\mathrm{c}}}}({\mathsf{\omega }}_{\mathrm{r}}-\stackrel{\wedge }{{\mathsf{\omega }}_{\mathrm{r}}})$$

(37)

where ${\mathsf{\tau }}_{\mathrm{c}}={\displaystyle \frac{1}{2\mathsf{\pi }{\mathrm{f}}_{\mathrm{c}}}}$ is a filter time constant; f_c denotes filter cutoff frequency.

The cutoff frequency value was selected empirically, so that filtering operation was effective while maintaining good dynamics of the system and results are compared in the Figure 4.

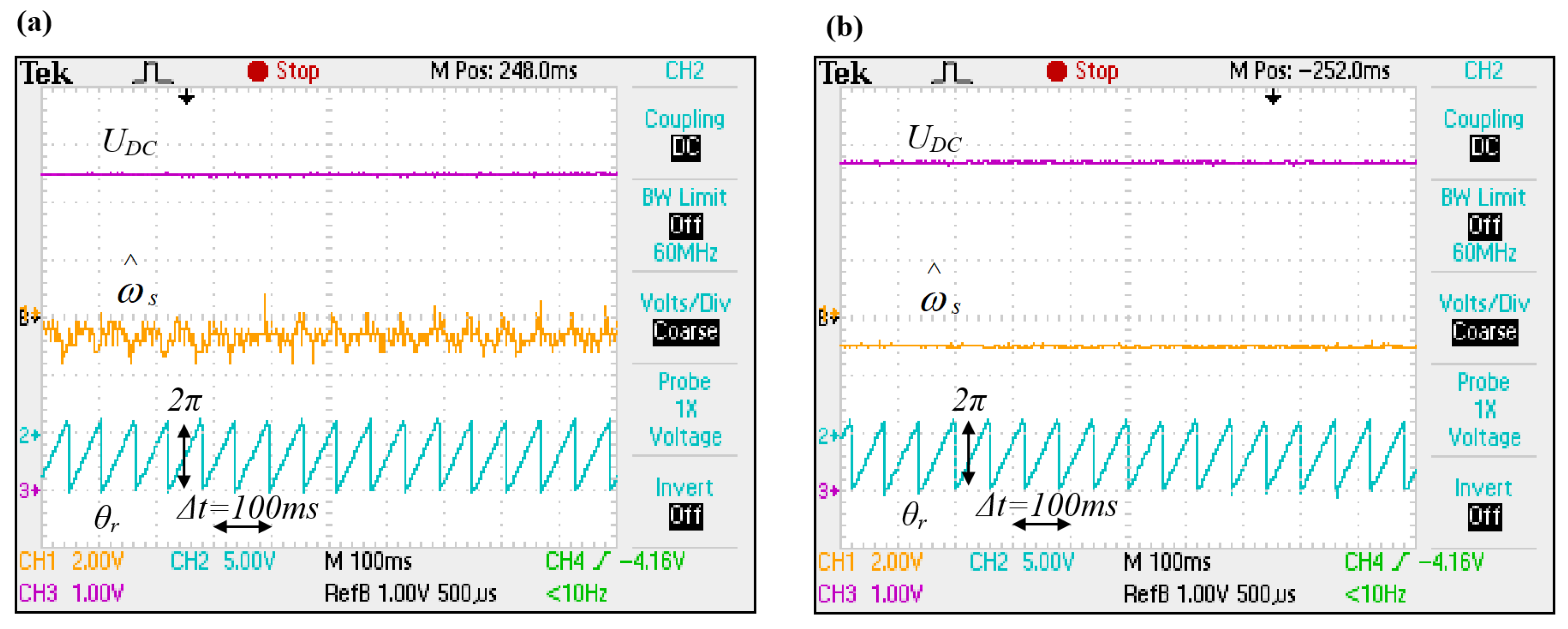

Figure 4. Numerical interference resulting from differentiation operations (a) without LPF and (b) with low-pass filter. Oscillograms’ time base: 100 ms.

5. Starting and Initial Excitation of a Rotating Generator in a Sensorless System

An important issue of generator startup operation in a sensorless system is to determine the correct frequency of the inverter aligned with the rotational speed of the shaft. This problem does not occur in drive systems because the angular velocity of the motor shaft is imposed by the frequency of the voltage generated by the inverter powering the stator windings. The matching of the inverter frequency and the angular velocity of the rotor occurs during the motor start-up process, noting that the inverter starts with zero initial conditions, i.e., from zero frequency and the rotor from zero speed, respectively. A discrepancy between the angular velocity of the rotor and the frequency of the inverter can only occur in emergency conditions, e.g., after a temporary loss of voltage supplying the motor. In this case, some converter manufacturers for drives with an induction motor use the so-called interception procedure, i.e., re-synchronization of the angular velocity of the rotor and the frequency of the inverter [22].

The analysis of the problem shows that due to the assumed lack of charging of the capacitor during the start-up of the SCIG, it is necessary to limit the value of the inverter output voltages during the frequency search procedure so that the currents flowing through the windings are not too excessive. The method consists of, similarly to the algorithms of “capturing” the rotation of motor shaft, a rapid change in the frequency of the inverter, with the actual modification concerning the direction of changes in the frequency of the inverter (see Figure 5). In the considered issue, it is more advantageous to change the voltage frequency of the machine inverter from the minimum frequency to the maximum value provided for in the control algorithm. The advantage of such a solution is that the system works at a frequency lower than the frequency resulting from the rotational speed, i.e., in the generator mode during the search for rotational speed. In this case, there will be no situation in which the generator goes into a motoring mode.

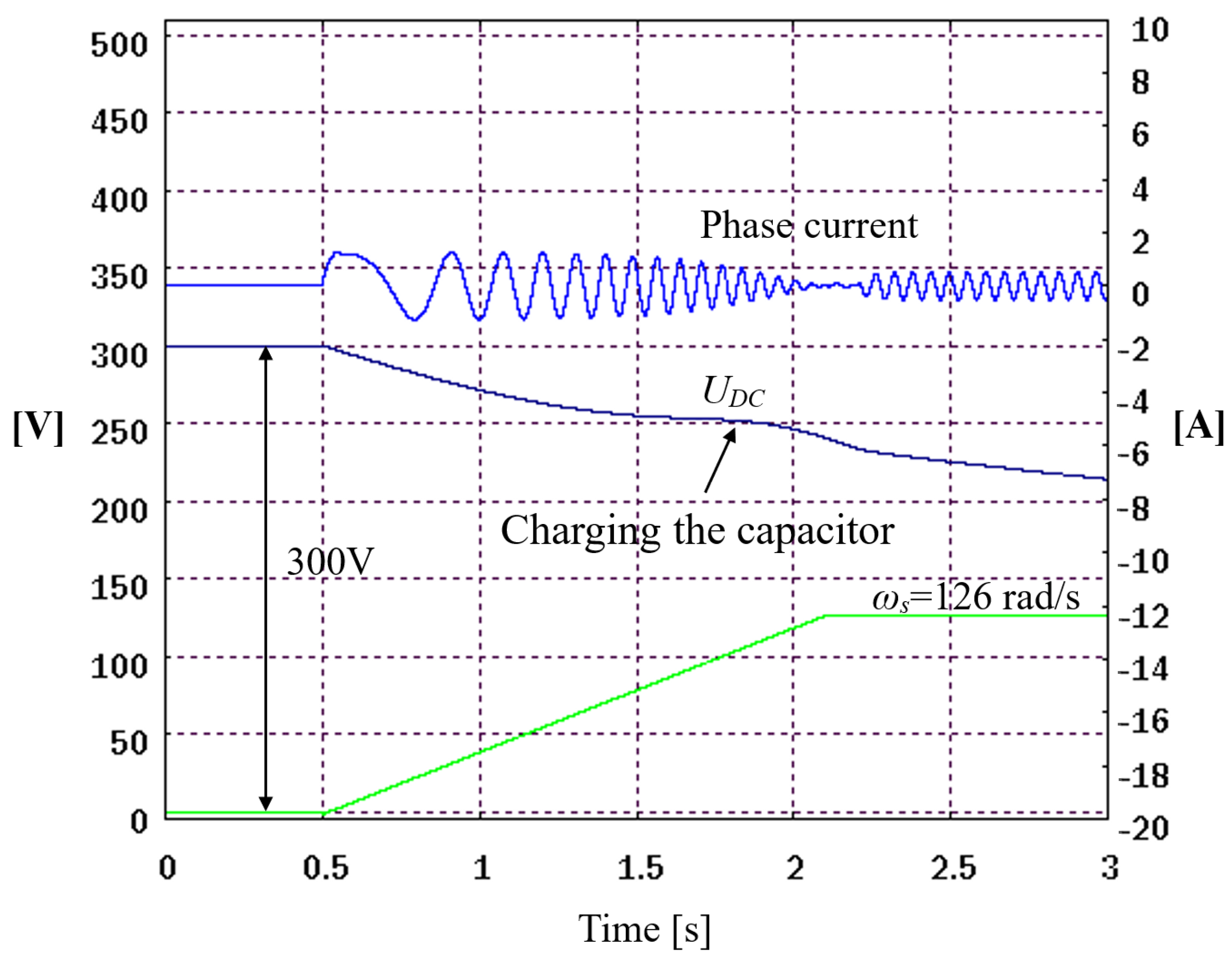

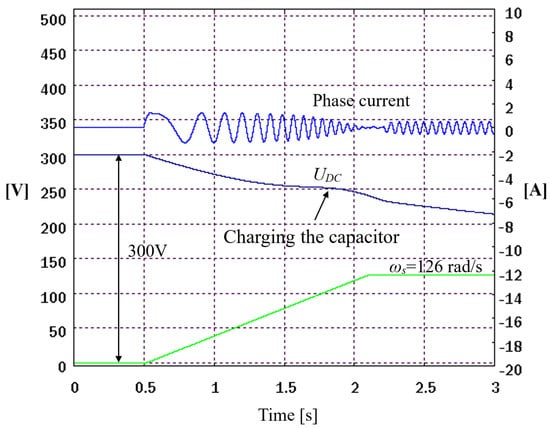

Figure 5. Example waveforms of the results of the inverter frequency detection simulation for the initial voltage in the intermediate circuit of 300 V and at a rotational speed of 126 rad/s.

Another advantage of this method is when the inverter frequency approaches the desired value of rotational speed. The generator, despite the greatly reduced voltage, is able to visibly recharge the capacitor of the intermediate circuit.

In the intermediate DC bus waveform, when the frequency of the output voltage of the inverter is aligned with the frequency of shaft rotation, the phenomenon of charging the electrolytic capacitor occurs. At this moment, the system, operating at a reduced voltage, has a slip suitable for producing such a value on the SEM terminals so the machine starts to generate current. In the proposed system, this property of the machine is used as one of the elements for determining the rotational speed of the rotating machine. Information about the frequency of the angular speed, coming only from the measurement of voltage on DC rails, is insufficient to accurately determine the quantity due to the lack of the slip value at a given moment and the possible disturbances in the voltage measurement. The algorithm for determining the angular velocity of the rotor works in such a way that the values of currents in the d-q system are constantly calculated using the angle of the flux vector, determined by integrating the frequency. Due to the small amplitude of the voltage and the differences in the frequency of rotation of the shaft and the frequency of the inverter, the waveforms of the currents calculated in this way are not decoupled quantities. When the frequency value of the inverter approaches the rotation frequency of the machine shaft, the active current approaches a value close to zero, while on the other hand, the reactive current takes positive values.

Since the active current has a negative value over a wide frequency range at the start-up procedure, this means that the examination of only the sign change in the current also does not clearly determine the exact moment when the rotational speed of the machine equals the frequency of the inverter. To determine the speed precisely, a voltage sign change condition should be introduced. Since the DC voltage value on the capacitor of the intermediate circuit is measured in the generating mode of operation, it is possible to check the moment and the corresponding speed at which the power sign, i.e., the sign of the DC voltage derivative on the capacitor, changes. In the case where the frequency of the inverter approaches from below to the rotational frequency of the machine, the DC voltage increases, reaches its maximum when the slippage has a maximum value, and decreases when the inverter’s generated voltage exceeds the value of the rotational frequency of the machine. Such information is sufficient to determine the rotational speed of the generator.

Table 1 summarizes the numerical simulation results of the error in determining the angular velocity of the rotor using the presented method at a fixed initial voltage depending on the rotational speed.

Table 1. Results of simulation studies for the determination of angular speed error.

ωr [rad/s]	126	189	251	314
$\widehat{{\mathsf{\omega }}_r}$ [rad/s]	128.39	191.24	253.18	316.14
Δωr [%]	1.89	1.18	0.86	0.68

The error value decreases with speed, which is related to the higher torque of the machine generating higher currents at a high shaft speed; as a result, the DC increased voltage when the frequency of the rotor and the power supply of the machine were equal.

After determining the initial value of the rotational speed, the obtained value is input into the generator control algorithm. Since the sensorless control methods used with a voltage–current model and a machine state observer are based on the values used for the control, it is impossible to start the control system without the initial conditions. The initial velocity value determined in the manner described above in a sensorless system does not carry additional information regarding the determined initial values of currents and voltages, which makes it necessary to pre-control the generator by another method which does not require knowledge of the initial conditions. After determination of the rotor velocity value, the calculations are carried out using an algorithm based on the machine current model.

6. Selected Simulation Tests of Cage Generator Excitation in the Sensorless Mode

Before setting up and programming the experimental stand, several simulation tests were carried out to verify the correctness of the theoretical assumptions as well as the original algorithms used. During the digital simulations, the operation of the cage generator system was checked at constant and variable speeds and under load. For this part of the simulation research, the model of the machine discussed in Section 3 was used, together with the model of the converter, which was created based on [23]. The waveforms presented in Figure 6 were performed for the starting settings of the U_DC voltage regulator, resulting in the relatively high error value (approx. 6–7 V) in the steady state. For this reason, the times taken to reach values close to the set values are also shorter. The optimal parameters of the controllers were set after the start-up time and for a system operating with a load, the active current limitation was set to the rated value.

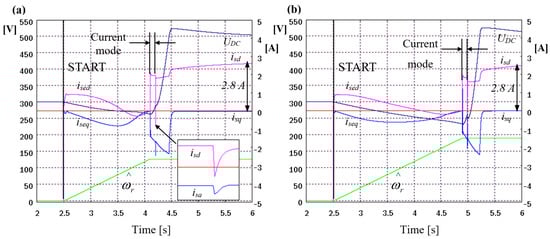

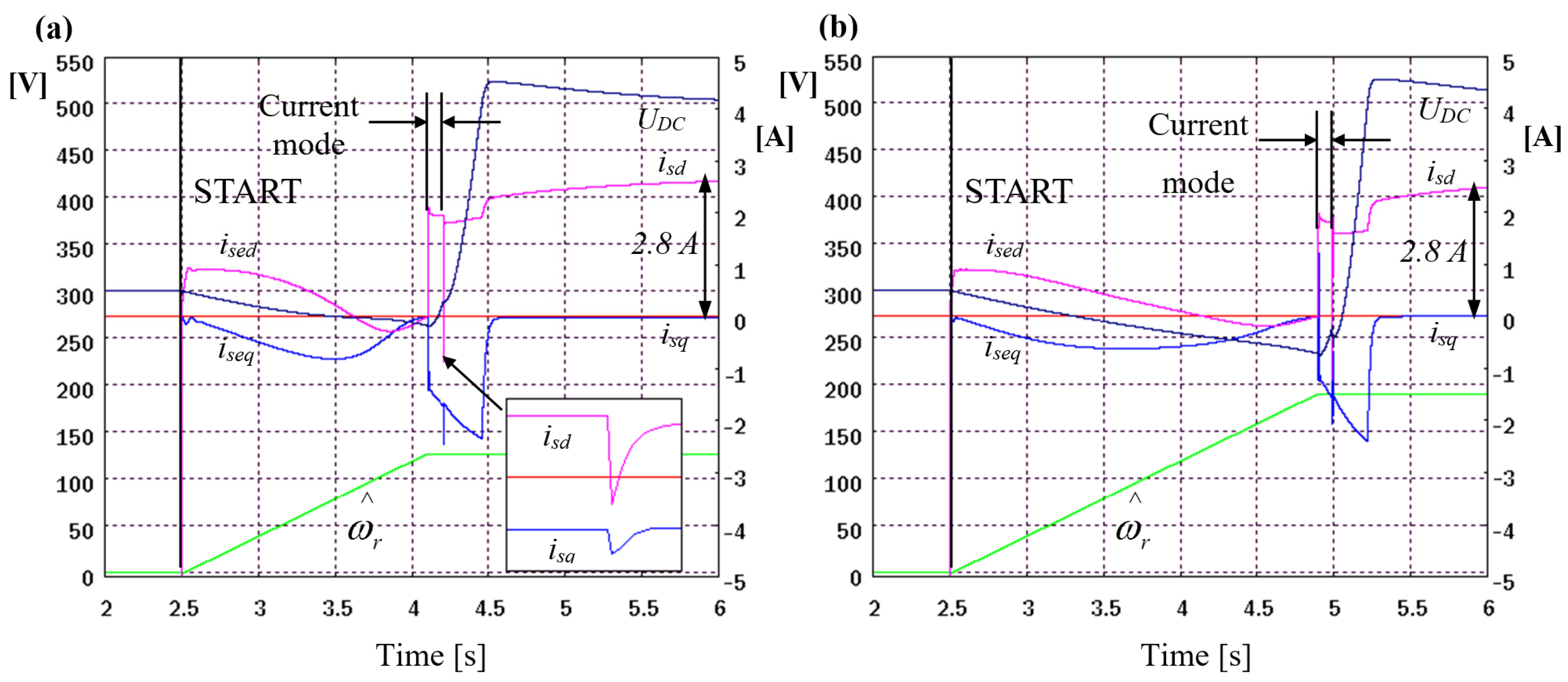

Figure 6. Tracking the initial rotational speed and excitation of the SCIG in a sensorless control system with a current–voltage model for selected rotational speeds. Rotational speeds: (a) 126 rad/s; (b) 189 rad/s.

SCIG start-up and excitation simulation tests for a sensorless-controlled system were performed for the same angular velocities as presented in Figure 6.

The beginning of the angular speed-seeking algorithm is marked in Figure 6a,b as START. Figure 6a shows the current waveforms i_sd and i_sq when the generator is switched from current mode into the sensorless mode of operation.

As presented, there is an overshoot of the stator voltages u_sd and u_sq related mainly to the difference in real rotational speed, which is estimated in the current model mode and in the current–voltage model. The differences between these values affect the determination of the angle of the rotor flux vector, which results in the calculation of different values of currents and, on this basis, the setting of the converter voltages. The selection of the minimum operating time in the current mode depends primarily on the settings of the i_sd and i_sq current regulators and actual DC bus voltage. Dynamic-improving settings result in faster setpoints being obtained at the expense of faster discharge of the intermediate circuit capacitor. The results of simulation studies show that it is possible to excite a machine without external sources charging the capacitor during the process of tracking the rotational speed and excitation in both sensorless control systems.

7. Experimental Test Stand and Chosen Results

The parameters of the replacement circuit of the induction machine are important for the creation of control programs and the implementation of complex control methods. Some parameters are not specified by manufacturers, so they should be determined using methods used to identify machine parameters [24].

Using the no-load (idle run) test, the excitation current, and mechanical losses (bearing torque, cooling-fan losses) can be determined. The test consists of supplying a voltage of the rated amplitude and frequency of the motor stator windings at idle, where part of the power is transferred to losses in the core and windings. In such a system, the machine operates at a rotational speed not much lower than the synchronous speed, which gives approximately zero slippage value. A substitute scheme for such a sample is shown in Figure 7.

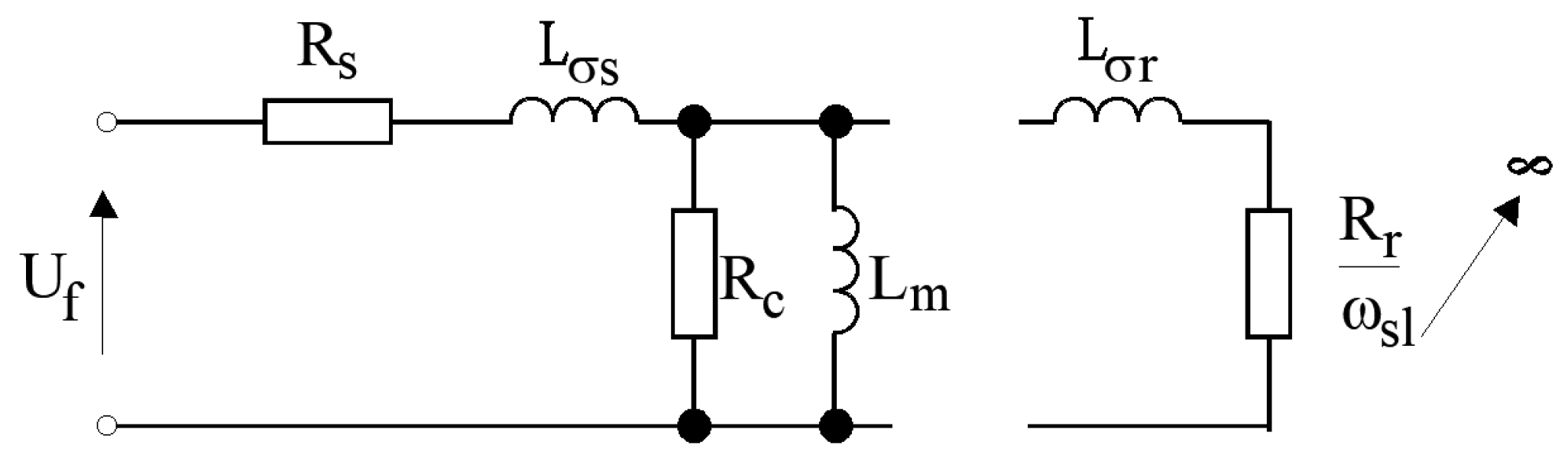

Figure 7. Idle test SCIG circuit.

The values measured in the idle test are the rms values of the phase currents and supply voltage of the stator winding. From this data, the total power delivered to the machine at idle was calculated. All these parameters were summarized in the Table 2.

Table 2. Results obtained in the no-load induction machine test.

Uf0—phase voltage	230 V
If0—phase current	2.1 A
If0max—Idle current amplitude	3.0 A
fs—supply voltage frequency	50 Hz
Pf0—idle run power drawn	100 W

Assuming that R_c is much larger than R_s and X_lr, it is possible to determine R_c and L_m from the substitute diagram.

The test with the locked motor shaft, similarly to the test of short-circuiting the transformer, allows us to obtain information about the dissipation impedances and rotor resistance.

During the second test, the rotor was blocked and the machine was supplied with a voltage lowered by the autotransformer at such a value as to induce a rated current flow in the stator windings. The phase voltage and power of one phase were measured.

The determined parameters of the SCIG were used to create their computer models utilized in numerical simulation studies and then to arrange the control programs of the experimental system.

Based on the previously presented theoretical considerations and simulation studies of the squirrel-cage generator system, the voltage value on the capacitor of the U_DC intermediate circuit at the time of switching on the system depends to a large extent on the parameters of the machine. To verify the correctness of the adopted model, a series of experimental studies of the real system presented in the Figure 8 was carried out.

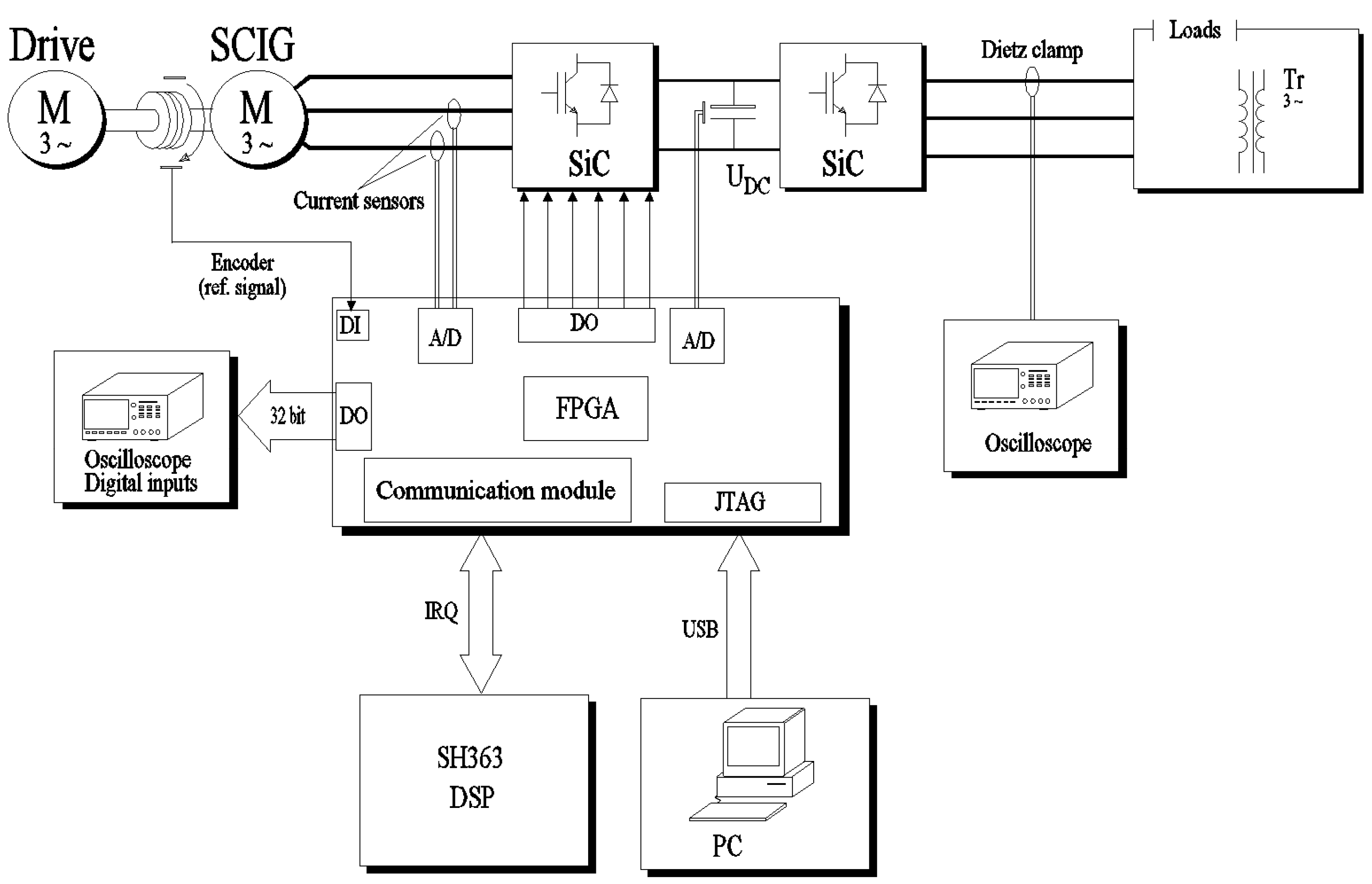

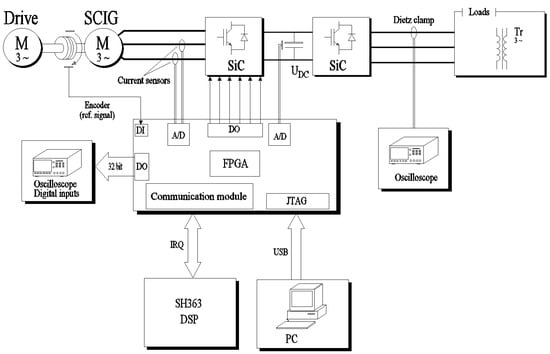

Figure 8. Diagram of the experimental rig.

Based on the results of simulation tests, a program for the experimental system was created, aimed at checking the correctness of the method of searching for the rotational speed of a rotating generator proposed in the article. According to the assumptions adopted during the simulation tests, the capacitor of the intermediate circuit was initially charged to a voltage of 300 V; then, the power source was disconnected, and the initial speed search procedure was started. The small amplitude current generated by the converter switching with carrier frequency of 10 kHz caused the capacitor to discharge. The additional voltage loss of the capacitor resulted from the flow of current through the discharge resistors which can be observed in waveforms in Figure 9. In a practical (industrial) application, the possibility of increasing the value of these resistors during start-up should of course be considered to reduce or eliminate loss currents; in the paper, the results with permanently attached resistors discharging voltage on the inverter were presented. The correctness of the algorithm was proven by a series of experimental studies, which consisted of supplying the machine windings with a set, non-zero u_sd voltage with a value reduced from the nominal value, for several speeds selected from the assumed range. Selected results of experimental studies of the applied algorithm for tracking initial angular speed of a generator are presented in Figure 9.

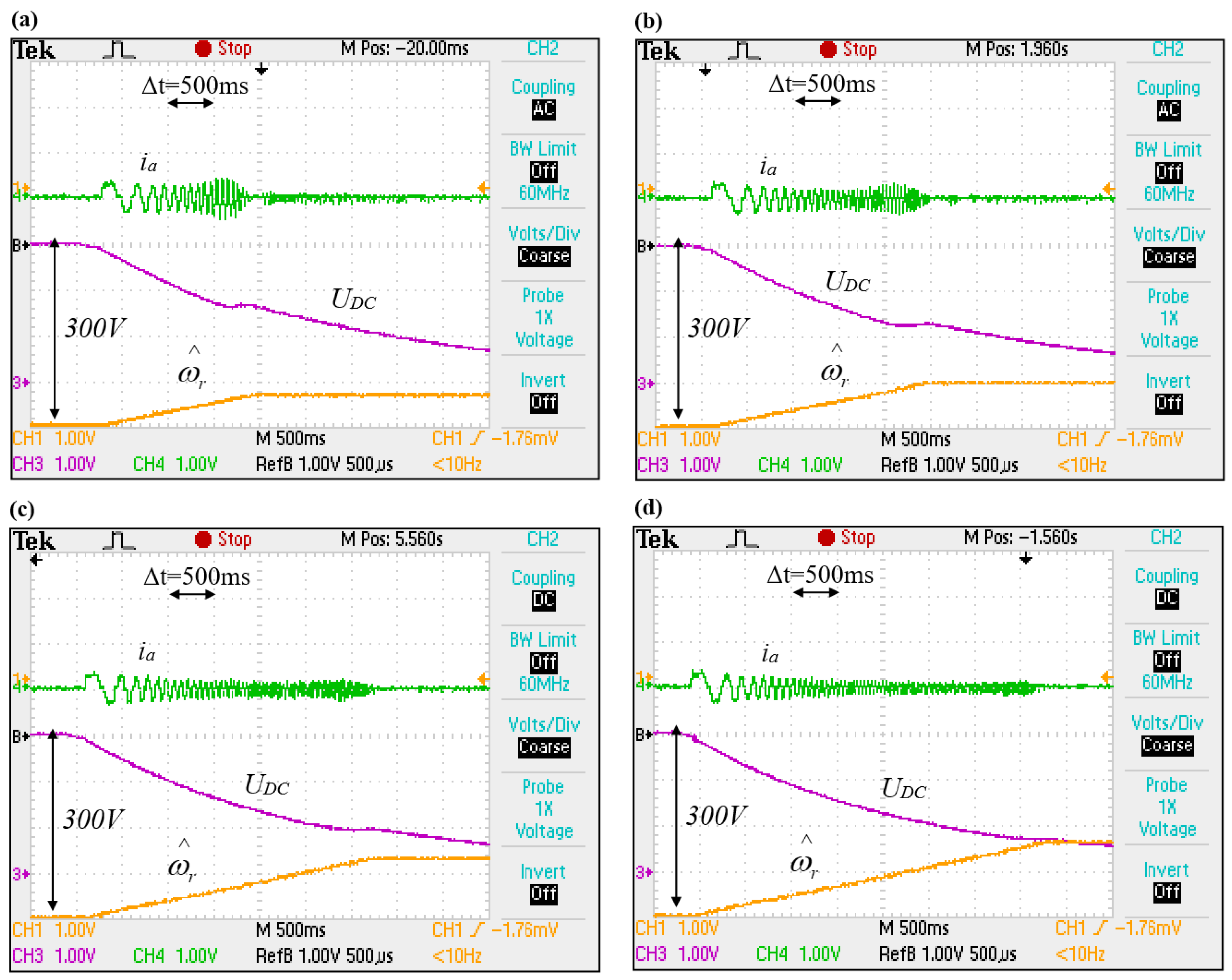

Figure 9. Experimentally determined results of the tracking for the angular speed of a cage generator. Rotational speeds: (a) 126 rad/s, (b) 189 rad/s, (c) 251 rad/s, (d) 314 rad/s. Oscillograms’ time base: 500 μs.

Analyzing the above figures, the higher the rotational speed of the shaft, the greater the voltage drop on the capacitor of the intermediate circuit. This is clear because it takes a longer time for the “test” pulsation to capture the higher rotor speed, during which the testing pulsation reaches a value close to the rotational speed of the shaft. A question arises about whether the generator will be able to excite in such an unfavorable case, where the voltage level of the intermediate circuit is low. As shown by the results of simulation tests, the excitation phenomena should proceed correctly at the assumed voltage range at the assumed speeds. For this purpose, the algorithm for tracking the speed values has been supplemented with the procedure for the starting and excitation of the sensorless-controlled cage generator described previously. Figure 10 shows experimental waveforms illustrating the process of detecting generator speed and excitation for different rotational speeds. As seen, when the control algorithm is switched from current to sensorless mode of operation, the value of the active current increases significantly when the capacitor is charged to the set value of the voltage; it then stabilizes to a value close to zero. This increase is caused by the rapid change in the current limitation to the maximum value of the active current in the sensorless current–voltage control which can be mitigated by introducing speed-dependent PI controller coefficients. The results shown (see Figure 10) prove that after switching to sensorless mode, the system works stably, the estimated speed is consistent with the set, and the voltage on the capacitor reaches the set value.

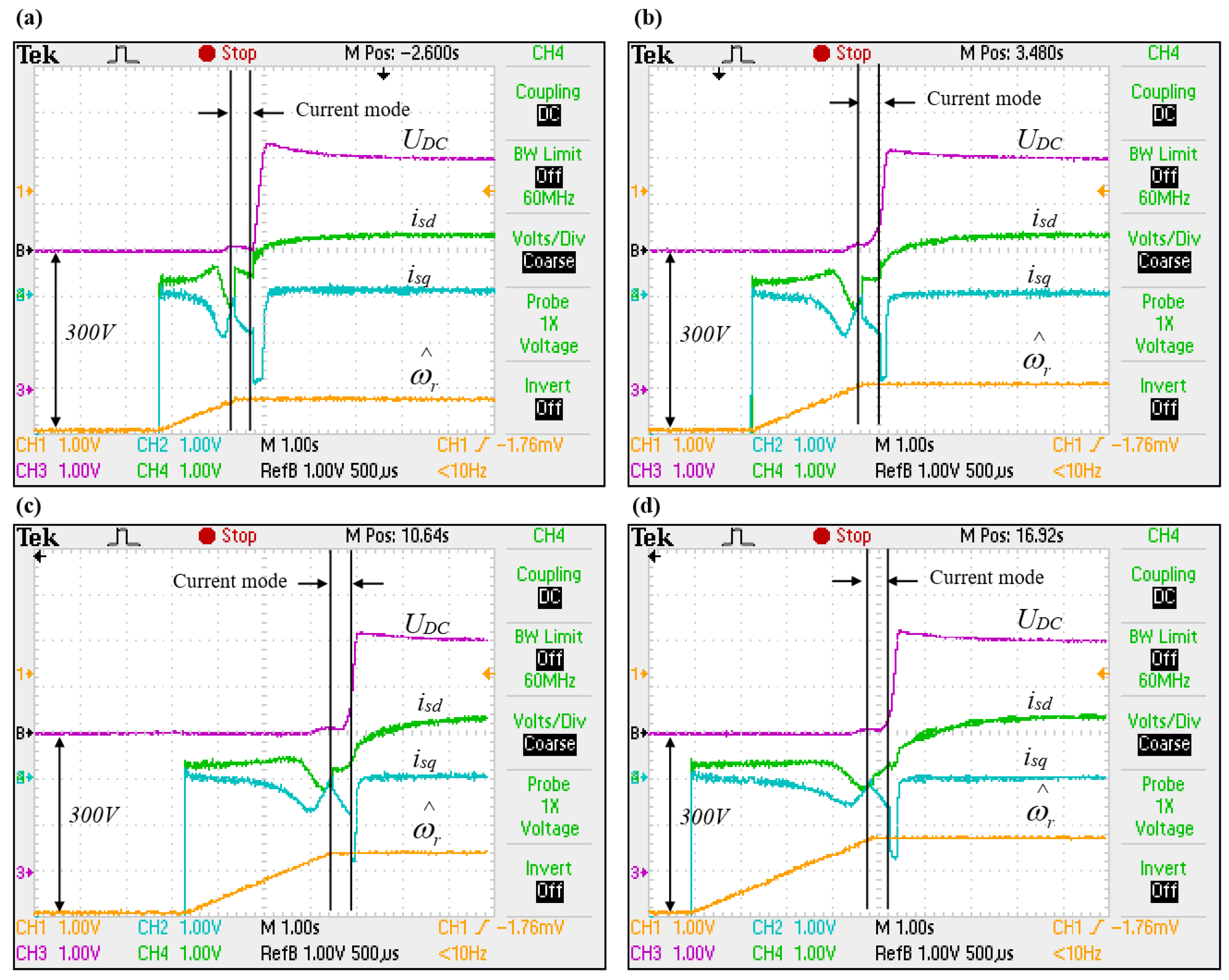

Figure 10. Experimental results of angular speed tracking and an excitation process of a cage generator. Rotational speeds: (a) 126 rad/s, (b) 189 rad/s, (c) 251 rad/s, (d) 314 rad/s. Oscillograms’ time base: 1 s.

As further experimental trials have shown, the proposed velocity and excitation search system is equally effective for sensorless control using the machine state observer. The experimental results obtained during the research of the process of starting a cage generator in a sensorless system are highly consistent with the results obtained with numerical simulations which conclude that the method developed by the author is substantively and physically correct.

In addition to the presented results, several additional experimental studies were carried out in terms of the impact of the initial value capacitor voltage control in the intermediate circuit of the cage generator excitation process.

The other tests included testing the voltage stabilization of the intermediate circuit after start-up and idle run at different speeds of the generator in the range of 40 to 100 percent of the rated speed, as well as testing the stabilization of the voltage of the intermediate circuit under a load at variable speed values.

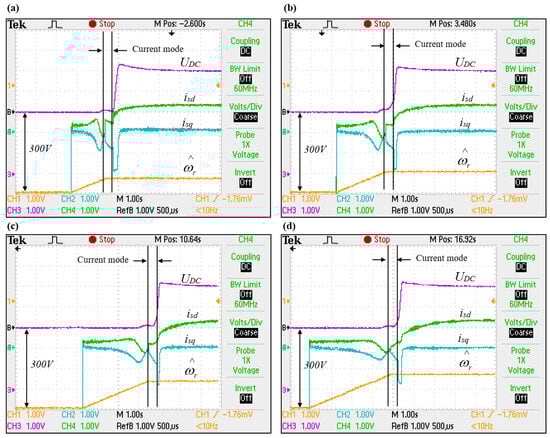

Figure 11a shows a failed excitation attempt caused by too low initial DC-link voltage and premature discharge of the intermediate circuit capacitor. Figure 11b shows a successful start-up and excitation, with the voltage being two times higher than the first attempt.

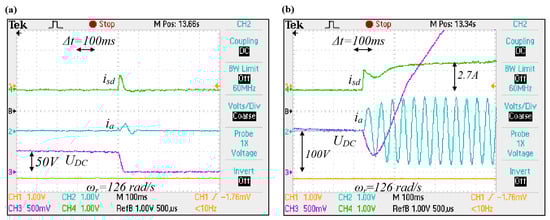

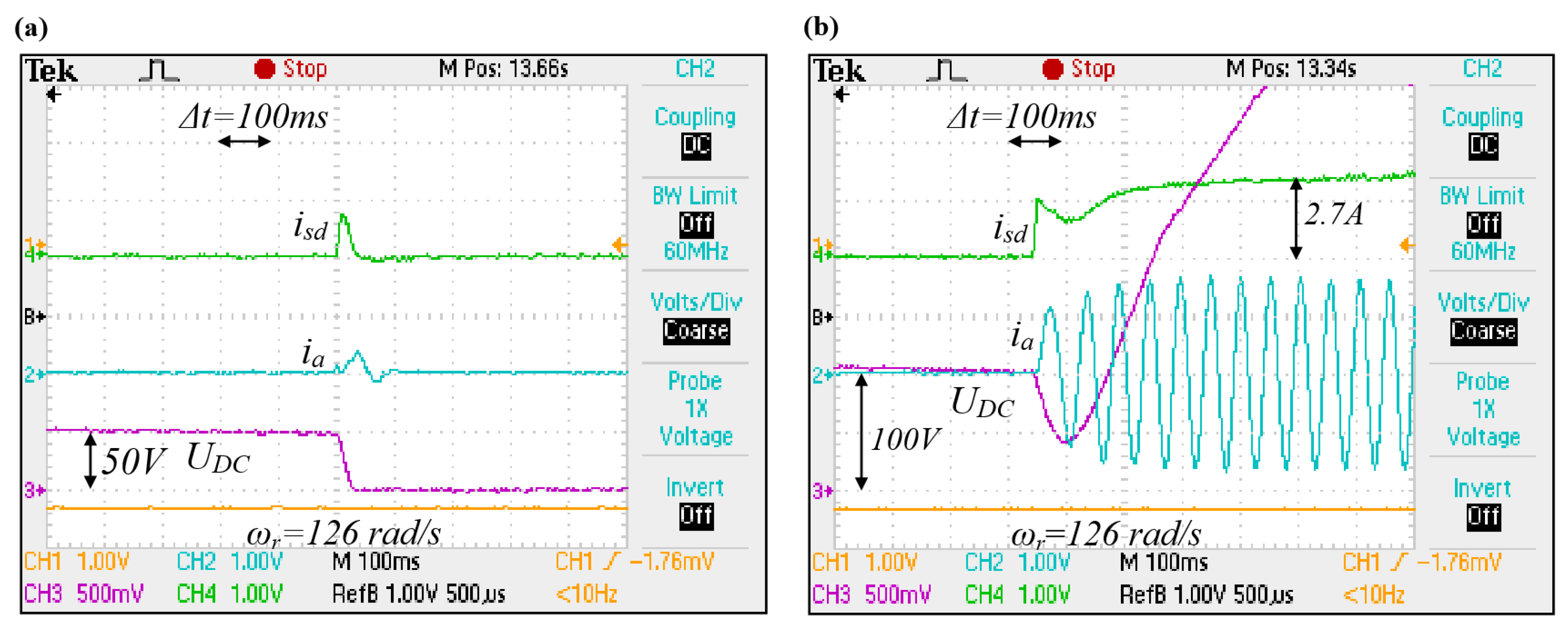

Figure 11. Sample experimental results of the induction generator excitation process. Initial DC capacitor voltages: (a) 50 V, (b) 100 V. Oscillograms’ time base: 100 ms.

Overall, the experiments confirmed stable operation after switching to sensorless control: the estimated speed matched the reference, and the DC-link capacitor voltage reliably reached the set value. The proposed rotational speed track approach proved equally effective when using a machine state observer, and the measured waveforms closely agreed with numerical simulations, supporting the physical correctness of the method. For the assumed parameter set, the study achieved 100% effectiveness in detecting the initial rotational speed across the conducted trials, while additional tests clarified how the minimally required initial DC-link voltage depends primarily on the generator’s initial speed, the active-current limit during the search, and the DC-link capacitance.

8. Conclusions and Further Work

The paper presents the theoretical framework and the results of simulation and experimental studies on the start-up and excitation of a squirrel-cage generator without a rotational speed sensor. In all experimental measurements, the regulator settings were kept identical. Prior to testing, the machine was started and loaded to stabilize the rotor temperature, so that changes in the rotor time constant had as little influence as possible on the results.

The experiments showed that exciting a squirrel-cage induction generator supplied by a transistor converter under decoupled control requires imposing a rated magnetizing current in the stator windings. This magnetizing current establishes rotor flux, which is essential for generator operation. In addition, a small active current must be supplied to cover machine and converter losses and to compensate for residual coupling effects and currents arising from imperfect decoupling [25].

Successful excitation also depends on maintaining a sufficiently high DC-link (intermediate-circuit) voltage so that, despite the voltage drop associated with producing the required currents, the machine can be properly excited. With an appropriately selected DC-link capacitance and assuming no recharging of the DC link, the minimum required voltage is governed by several factors, most notably being the level of current-related losses in the machine-side converter system. Although parameter-selection strategies (e.g., tuning the transistor switching frequency) can reduce these losses, accurately quantifying them typically requires preliminary experimental characterization of the real system.

Further tests confirmed that, when the system operates at reduced voltage, active-current losses increase as the supply voltage drops below a critical threshold. In this region, power consumption changes only slightly; therefore, as the voltage decreases, the current must increase, resulting in faster discharge of the DC-link capacitor.

The recorded experimental waveforms show that, at higher rotational speeds, speed detection based on the sign change in the DC-voltage derivative occurs when the capacitor voltage drop is substantial due to the longer discharge time. Consequently, the minimum initial DC-link precharge voltage required for successful excitation was determined.

The study also focused on implementing sensorless generator-control methods and defining excitation conditions for generators supplied by a transistor-based machine-side inverter. For this purpose, original simulation software written in C++ was developed, and the experimental system software was subsequently created based on the simulation results. Because the DSP original software created by the authors is also written in C++, all tested control algorithms and regulators were transferred directly from the simulation environment. This approach allowed the authors to concentrate on hardware implementation challenges and on minimizing interference in the experimental setup. The results obtained during excitation and steady-state operation indicate that sensorless control of a squirrel-cage generator achieves operating performance comparable to encoder-based systems and may even surpass them under high-disturbance conditions. During generator excitation and start-up in the sensorless configuration, a current model was used to determine the initial conditions for the machine models employed in sensorless control. The research demonstrated that this solution is sufficiently universal to be applied with virtually any sensorless control method while maintaining high effectiveness.

The conducted research did not consider wide changes in rotor windings temperature, variable switching frequencies, and other types of sensorless control algorithms such as MRAS; therefore, it seems very interesting to continue research taking into account the changes in parameters and searching for optimal operating conditions of the presented sensorless speed detection method. The original method of detecting generator initial rotational speed is independent of the control method; however, it is crucial and required to determine the active current value and measure the voltage on the DC link, which is not always performed in the case of electric drives so topology of circuitry should include intermediate circuit voltage measurement.
