Vertical-Ordered Electrogenic Biofilms Engineered Through Substrate-Electric Field Synergy for Enhanced Microbial Fuel Cell Performance

Abstract

Microbial fuel cell (MFC) is a novel and environmentally friendly technology for wastewater treatment and pollutant resource utilization. Although advances have been made in various aspects including electrode materials and synthetic biology approaches, the overall performance of MFC still requires improvement, with mass transfer efficiency and structural stability of biofilms emerging as key bottlenecks constraining their practical applications. This study investigated the regulation of substrate type and electrode potential during bioanode culture to optimize biofilm structure and enhance MFC performance. Results demonstrated that bioanodes cultured with glucose at −0.3 V formed vertically ordered biofilms that exhibited significant advantages in mass transfer characteristics, electrocatalytic activity, and structural stability. Under these culture conditions, enriched fermentative microorganisms facilitated the construction of porous biofilm scaffolds, while the electric field generated by the −0.3 V potential further induced vertical orientation and ordered arrangement of the biofilm. The superior mass transfer characteristics enabled the inner, middle, and outer layers of the biofilm to maintain high microbial activity (>50%), thereby maximizing the catalytic activity of electroactive microorganisms in each layer and enhancing biofilm structural stability. This study proposes a bioanode culture strategy centered on biofilm structural optimization, providing new theoretical foundations and technical pathways for achieving long-term stable and efficient MFC operation.

1. Introduction

With the escalating global energy crisis and growing environmental governance demands, organic matter in municipal wastewater not only constitutes a significant pollution source but also harbors tremendous energy potential. Research indicates that when wastewater contains organic matter exceeding 300 mg COD L⁻¹, its theoretical energy recovery can reach 1.65 kWh m⁻³, which is 5.7 times higher than the current average energy consumption for municipal wastewater treatment (0.29 kWh m⁻³) [1,2]. Microbial fuel cells (MFCs), as a renewable energy technology that simultaneously addresses pollutant removal and energy recovery, demonstrate broad application prospects in wastewater treatment, environmental remediation, and biosensing. In recent years, researchers have enhanced both pollutant degradation efficiency and power generation in MFCs through various approaches, including electrode modification [3,4], functional microbial screening and community construction [5,6], and electron transfer pathway optimization [7,8]. However, during long-term operation, anodic biofilms in MFCs still commonly encounter challenges, including mass transfer limitations, declining electroactivity, and structural instability [9].

During the operation of MFCs, electrogenic microorganisms typically exhibit preferential attachment to electrode surfaces to access electron acceptors, thereby forming a dense inner biofilm layer. Outer-layer microorganisms subsequently adhere to this active layer to achieve more efficient electron transfer through microbial nanowires or electron mediators [10]. As outer-layer microorganisms continue to accumulate and extracellular polymeric substances (EPS) secretion increases, the biofilm gradually thickens and evolves into a multi-layered, densely packed structure [11,12]. However, this stratified architecture further prolongs the diffusion pathways for substrates and protons within the biofilm [13], leading to progressive deactivation of inner-layer microorganisms due to substrate depletion and localized acidification [14]. The progressively thickening layers of dead cells and EPS deposition not only clog pore channels but also weaken the structural connectivity between the biofilm and electrode interface, disrupting electron transfer pathways from outer-layer exoelectrogens to the electrode [15]. This ultimately results in biofilm structural instability and declining electroactivity during long-term operation. Therefore, regulating biofilm structure and mass transfer characteristics to maintain inner-layer exoelectrogenic microbial activity has emerged as a critical direction for enhancing both MFC performance and long-term stability.

Substrates serve as the primary carbon source and electron donor for electrogenic microorganisms, representing a critical factor in determining microbial metabolic pathways and biofilm community structure. Consequently, substrate regulation is recognized as an effective strategy for optimizing bioanode electricity-generation performance. Previous studies have employed various organic compounds (such as acetate, glucose, amino acids, lactate, etc.) as culture substrates to compare the electricity-generation performance of different bioanodes [16,17,18]. For instance, Yogesh Sharma et al. [19] reported that bioanodes cultured with acetate exhibited approximately 38% higher coulombic efficiency compared to those cultured with glucose, while their output power density was approximately 9% lower. Yu et al. [20] further confirmed that glucose-cultured MFCs generated approximately 21% higher output current density than those cultured with acetate. These performance variations were commonly attributed to substrate-induced changes in microbial community composition, which subsequently affected the abundance and functional performance of dominant electrogenic microorganisms, leading to differences in extracellular electron transfer (EET) efficiency or fermentation-related metabolic pathways [21,22]. Recently, Lu et al. proposed that adding 10% L-aspartic acid to glucose substrates could promote the formation of dense electroactive inner biofilms while effectively inhibiting excessive accumulation of oxygen-consuming outer biofilms, thereby enhancing overall MFC performance [11]. This finding indicated the potential feasibility of substrate regulation in optimizing biofilm structure. However, whether substrate regulation can achieve directional control over biofilm microstructure, as well as the underlying mechanisms affecting mass transfer characteristics and bioanode structural stability, remains to be further investigated.

Electric fields represent a critical physical factor in bioelectrochemical systems, directly providing the driving force for interfacial electron transfer between microorganisms and electrodes. Early studies demonstrated that ammonia treatment to enhance positive charge density on electrode surfaces resulted in approximately 50% improvement in bioanode electricity generation, revealing for the first time the pivotal role of electric field forces in the enrichment process of electrogenic microorganisms [23]. Recent investigations have further elucidated the significant role of electric fields in the formation and evolution of electroactive biofilms. For instance, Yalcin et al. [24] reported that electric fields could stimulate Geobacter to secrete cytochrome OmcZ nanowires, thereby enhancing EET efficiency. Simultaneously, electric fields facilitated the selective enrichment of dominant electrogenic microorganisms. For example, Geobacter anodireducens and G. sulfurreducens exhibited distinct adaptive strategies under electric field conditions, resulting in differential relative abundances during long-term culture [25]. Notably, electric field effects extended beyond electrogenic microorganisms. In anaerobic membrane bioreactors, moderate applied electric fields (such as 0.5 V) significantly promoted the activity and metabolic upregulation of non-electroactive bacteria, consequently accelerating biofilm formation [26]. Therefore, electrode potential regulation may provide a viable pathway for optimizing electrode biofilm physical structure.

In this study, substrate and electrode potential regulations were used to change the electrode biofilm structure to improve the mass transfer characteristics of the bioanode and then obtain a bioanode with high electricity-generation performance and structural stability. Cyclic voltammetry, chronoamperometry, and degradation kinetics tests were used to analyze the differences in electricity-generation performances of bioanodes; linear sweep voltammetry in different substrate solutions was used to analyze catalytic characteristics of different bioanodes; electrochemical impedance spectroscopy and the Tafel test were used to evaluate mass transfer characteristics of different bioanodes; open-circle operation was used to test the structural stability of electrode biofilms. 16s rRNA high-throughput sequencing, SEM, and FISH were used to characterize the microbial community and biofilm structure of bioanodes, respectively, to explain the differences in electricity-generation performance, catalytic activity, mass transfer characteristics and structural stability of different bioanodes. This study established a bioanode culture strategy oriented to biofilm structure optimization.

2. Materials and Methods

2.1. Inoculation, and Cultivation of the Bioanode

The bioanode was cultured in a bioelectrochemical system (BES) in order to facilitate the control of operating parameters, including substrate and electrode potential. A dual-chamber bioelectrochemical reactor with three-electrode configuration was assembled and interfaced with an electrochemical analyzer (Bio-Logic, Claix, France), following the methodology described in the previous study [27]. Microbial enrichment was conducted on a circular graphite sheet (20 mm diameter, 2 mm thickness) serving as the bioanode. The reactor configuration included an air cathode as the counter electrode [28] and a cation exchange membrane separating the two compartments (Figure S1). The anodic and cathodic chambers had working volumes of 30 mL and 10 mL, respectively. The reference electrode consisted of Ag/AgCl (+197 mV vs. SHE) positioned in the anodic compartment. All electrode potentials reported herein were referenced to the Ag/AgCl electrode.

Bioanode inoculation was performed using a 1:1 (v/v) mixture of anoxic sludge obtained from municipal wastewater treatment facilities and anodic medium. The anodic medium consisted of 50 mM phosphate buffer solution (PBS; 11.466 g L⁻¹ Na₂HPO₄∙12H₂O, 2.75 g L⁻¹ NaH₂PO₄∙2H₂O) supplemented with trace minerals (12.5 mL L⁻¹) [29], NH₄Cl (0.62 g L⁻¹), vitamins (5 mL L⁻¹), KCl (0.26 g L⁻¹) and carbon substrate (1.50 g COD L⁻¹ glucose or acetate). Daily replacement of the inoculum mixture was performed during the initial 5-day inoculation period, after which electrodes were cultured using anodic medium alone in fed-batch mode with daily medium renewal. Prior to addition to the anode chamber, all solutions were deoxygenated by nitrogen sparging for 20 min. The cathode chamber was supplied with substrate-free PBS medium (50 mM) containing equivalent concentrations of trace minerals, NH₄Cl, vitamins and KCl, with medium replacement performed every 7 days. During the bioanode culture, the working electrode potentials were set to −0.2 V, −0.3 V and −0.4 V, respectively. The cultured bioanodes were referred to as A-02 (acetate; −0.2 V), A-03 (acetate; −0.3 V), A-04 (acetate; −0.4 V), G-02 (glucose; −0.2 V), G-03 (glucose; −0.3 V) and G-04 (glucose; −0.4 V) according to the substrate and electrode potential used. All experiments were carried out in a constant temperature environment of 30 °C.

2.2. Electrochemical Characterization

Bioelectrochemical characterization employed multiple electrochemical techniques. Cyclic voltammetry (CV) assessed bioanode electroactivity at 2 mV s⁻¹ scan rate across −0.6 to −0.1 V potential window in 50 mM PBS supplemented with 500 mg COD L⁻¹ substrate (acetate or glucose corresponding to culture conditions). Substrate degradation kinetics were evaluated through chronoamperometry (CA) at culture-specific potentials (−0.2 V, −0.3 V, or −0.4 V) in PBS containing 1500 mg COD L⁻¹ acetate or glucose. Catalytic performance was analyzed using linear sweep voltammetry (LSV) following chamber solution replacement and 2 h CA operation. LSV measurements spanned −0.55 to −0.1 V at 1 mV s⁻¹ in PBS containing substrate concentrations ranging from 0 to 1500 mg COD L⁻¹. Mass transfer characteristics were determined through polarization analysis of assembled MFC configurations, where bioanode and air cathode were connected via variable external resistances (150–1000 Ω) with 20 min equilibration periods. Power density calculations were derived from voltage–current relationships across the resistance range. Electrochemical kinetics were evaluated through Tafel analysis conducted at 2 mV s⁻¹ within ±0.3 V versus open-circuit potential in PBS containing 1000 mg COD L⁻¹ substrate. Charge transfer resistance was quantified using electrochemical impedance spectroscopy (EIS) over 0.01 Hz to 100 kHz frequency range at −0.2 V applied potential in acetate-supplemented PBS (500 mg COD L⁻¹), comparing bioanodes before and after 12 h of open circuit operation (OCO). Chemical oxygen demand analysis employed spectrophotometric detection at 620 nm wavelength using a DR2800 spectrophotometer (HACH CO., Chicago, IL, USA). All experiments were performed in triplicate to ensure reproducibility. Data analysis was conducted using MATLAB software (R2024a, MathWorks, Natick, MA, USA).

2.3. Characterization of Electrode Biofilm

Biofilm structural characterization employed fluorescence in situ hybridization (FISH) and scanning electron microscopy (SEM) techniques. Cell viability assessment was conducted using LIVE/DEAD BacLight Bacterial Viability Kit (Invitrogen, Carlsbad, CA, USA) containing SYTO9 and propidium iodide fluorescent dyes, which differentiate viable cells (green fluorescence) from membrane-compromised cells (red fluorescence) based on membrane integrity [14]. Confocal laser scanning microscopy was performed using a TCS SPE system with DMI 4000B microscope (Leica, Solms, Germany) at excitation/emission wavelengths of 485/535 nm and 498/617 nm [30].

For SEM analysis, biofilm samples underwent fixation with 2.5% glutaraldehyde followed by phosphate buffer rinsing (100 mM, pH 7.0). Secondary fixation was achieved using 1% osmium tetroxide for 1–2 h, followed by triple phosphate buffer washing. Dehydration was performed through graded ethanol series (30–100%). Critical-point drying with liquid CO₂ and gold sputter coating preceded examination using a ZEISS GEMINI (New York, NY, USA) 300 scanning electron microscope at 3.0 kV acceleration voltage, with digital image capture at 1000–10,000× magnification.

Microbial community analysis utilized 16S rRNA high-throughput sequencing of biofilm samples scraped from graphite electrodes and collected in sterile centrifuge tubes. Genomic DNA extraction employed isolation kit (PowerSoil, Superior, WI, USA), with biomass quantification based on total DNA concentration [31]. Community profiling involved PCR amplification targeting V3-V4 hypervariable regions using primer pairs F: 5’-ACTCCTACGGGAGGCAGCAG-3’ and R: 5’-GGACTACHVGGGT-WTCTAAT-3’, followed by amplicon purification, library preparation, and Illumina MiSeq sequencing [14].

3. Results

3.1. Effects of Substrate and Electrode Potential on Bioanode Performances

To evaluate the effects of substrate type and electrode potential on bioanode performance, bioanodes cultured under different conditions were subjected to CV in acetate solution, with biooxidation electroactivity quantified by maximum oxidation current. As shown in Figure 1A, acetate-cultured bioanodes exhibited potential-dependent bioelectroactivity, with maximum oxidation currents of 1.45 mA (−0.2 V) > 1.38 mA (−0.3 V) > 0.006 mA (−0.4 V). In contrast, glucose-cultured bioanodes demonstrated distinct performance characteristics, achieving peak oxidation current of 2.2 mA at −0.3 V, followed by 1.66 mA at −0.2 V and 0.56 mA at −0.4 V (Figure 1B). The reduced electroactivity at −0.4 V could be attributed to two aspects: first, as the applied potential became more negative, the increased overpotential reduced the kinetic efficiency of extracellular electron transfer (EET) processes in electrogenic bacteria [32]; second, from a microbial energetics perspective, the Gibbs free energy (ΔG) available to microorganisms depends on the potential difference between electron donor oxidation and electron acceptor reduction, and the excessively negative anode potential might have created thermodynamically unfavorable conditions for electrogenic bacteria, thereby affecting their metabolic activity [33]. The highest bioelectroactivity achieved with glucose cultivation exceeded that of acetate by 52%, consistent with previous reports [19,20], demonstrating the superior capacity of glucose for developing highly electroactive bioanodes. Notably, acetate-cultured bioanodes performed similarly at −0.2 V and −0.3 V with only 5% variation, whereas glucose-cultured bioanodes exhibited 33% higher bioelectroactivity at −0.3 V compared to −0.2 V. Differences in the optimal potential between acetate- and glucose-cultured bioanodes suggested that substrate type and electrode potential interacted to determine bioanode performance. This finding highlights the need to further investigate their interaction to develop high-performance bioanode culture strategies.

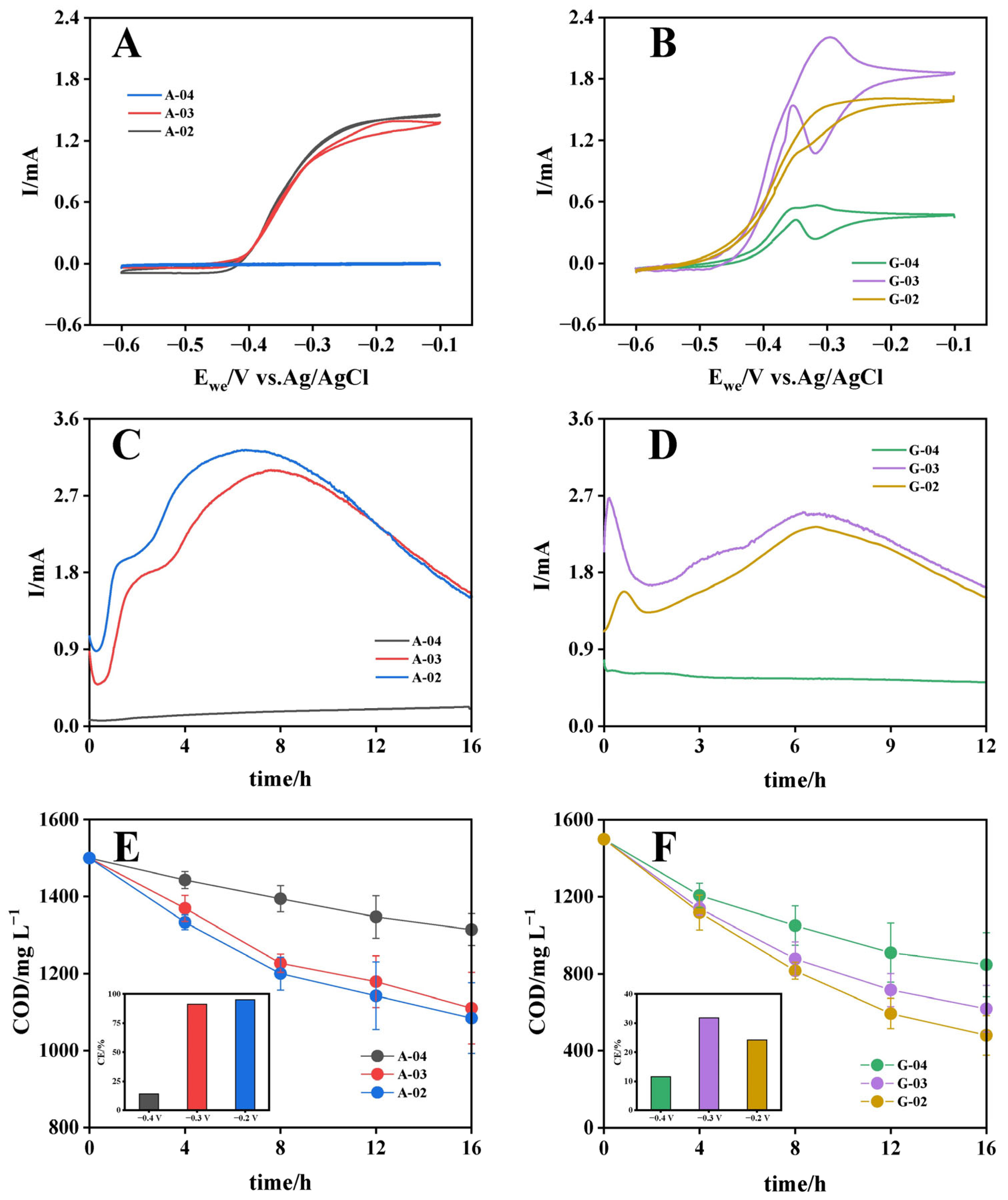

Figure 1. Electrochemical performance of bioanodes cultured with acetate (A,C,E) and glucose (B,D,F) at different potentials. (A,B) Cyclic voltammograms; (C,D) chronoamperometric current profiles; (E,F) COD degradation kinetics with coulombic efficiency (insets).

CA tests were conducted on different bioanodes under their respective culture conditions (Figure 1C,D). The acetate-cultured bioanodes (A-02 and A-03) exhibited current outputs that initially increased to peak currents (3.2 mA and 2.8 mA, respectively) at 6–8 h, then decreased progressively as substrates were consumed. A-04 maintained consistently low current output below 0.4 mA throughout the test period. Compared to acetate-cultured bioanodes, the glucose-cultured bioanodes demonstrated more sustained and stable current output at relatively high levels, which might be attributed to the multi-step metabolic pathways of glucose degradation, with intermediate metabolites continuously supplying electron donors for electricity generation. Degradation kinetics were further analyzed. For acetate-cultured bioanodes, the average organic matter removal rates (calculated as COD) were 26.0 mg COD L⁻¹ h⁻¹ (−0.2 V), 24.4 mg COD L⁻¹ h⁻¹ (−0.3 V) and 11.6 mg COD L⁻¹ h⁻¹ (−0.4 V), respectively, accounting for only 41%, 44%, and 28.4% of the rates observed for glucose-cultured bioanodes at the corresponding potentials (63.8 mg COD L⁻¹ h⁻¹ (−0.2 V), 55.1 mg COD L⁻¹ h⁻¹ (−0.3 V) and 40.8 mg COD L⁻¹ h⁻¹ (−0.4 V)) (Figure 1E,F). Despite demonstrating higher organic matter removal rates across all potentials, glucose-cultured bioanodes exhibited significantly lower coulombic efficiency (CE) compared to acetate-cultured bioanodes. This discrepancy might be attributed to the extensive participation of non-electrogenic microorganisms during glucose metabolism and incomplete utilization of intermediate metabolic products by electrogenic microorganisms. Based on the comprehensive assessment of biooxidation electroactivity and substrate utilization efficiency (CE), A-02 and G-03 represented the bioanodes with optimal electricity-generation performance in the acetate and glucose groups [34], respectively, suggesting that the optimal culture potential for bioanodes was substrate-dependent. However, despite the enrichment of more non-electrogenic microorganisms and the presence of organic components that were difficult for electrogenic microorganisms to utilize electrochemically, glucose-cultivated bioanodes still demonstrated higher biooxidation electroactivity, the underlying mechanisms of which warranted further investigation.

3.2. Effects of Substrate and Electrode Potential on Bioanode Catalytic Properties and Microbial Community

The bioanodes with high electricity-generation performance (A-02 and G-03) were evaluated for their catalytic properties using LSV in acetate and glucose solutions. Immediately after replacing the working electrode chamber solution, the glucose-cultured bioanode exhibited substantial oxidation currents in both acetate and glucose media, with maximum values of 2.42 mA and 1.30 mA, respectively (Figure 2B), indicating its ability to utilize both substrates for electricity generation. In contrast, the acetate-cultured bioanode generated detectable oxidation current only in acetate solution (Figure 2A). In the absence of reports on electrogenic microorganisms catalyzing direct bioelectrochemical glucose oxidation, this finding suggested that the glucose-cultured bioanode might enrich not only electrogenic microorganisms but also microorganisms capable of degrading macromolecular organics, such as fermentation bacteria. Furthermore, several weak oxidation current peaks were observed in the potential range of −0.46 V to −0.1 V in the LSV of the glucose-cultured bioanode, likely originating from the bioelectrochemical oxidation of intermediate metabolites produced during glucose metabolism. These results indicated that glucose-cultured bioanodes possessed the capacity to degrade a wider range of organic compounds, making them more suitable for application in actual wastewater with complex organic compositions. After 2 h of CA operation, the oxidation currents of both acetate- and glucose-cultured bioanodes were higher than those measured immediately after solution replacement, suggesting that their bioelectrochemical oxidation might involve indirect electron transfer processes, which were enhanced by increased secretion of electron mediators.

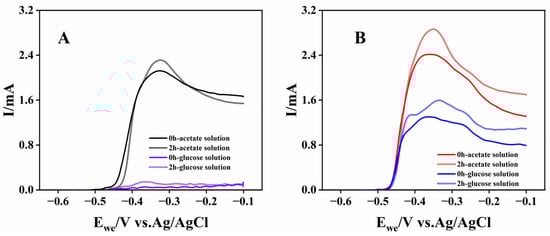

Figure 2. LSV curves of acetate-cultured bioanodes (A) and glucose-cultured bioanodes (B) at different operating times and in different solutions.

The microbial community showed that bioanodes cultured with acetate and glucose were gradually enriched with electrogenic microorganisms, including Geobacter [35], Escherichia-Shigella [36], Parabacteroides [37], Klebsiella [38], Zoogloea [39], Tolumonas [40], and Arcobacter [41], among which Geobacter was the main electrogenic microorganism on bioanodes with the relative abundance exceeding 36% (Figure 3A). The relative abundances of electrogenic microorganisms on bioanodes gradually increased with the positive shift of the culture-used electrode potential. Specifically, the relative abundance of electrogenic microorganisms on acetate-cultured bioanodes was 55.4% (−0.2 V) > 54.4% (−0.3 V) > 13.5% (−0.4 V), and that on the glucose-cultured bioanodes was 51.5% (−0.2 V) > 45.4% (−0.3 V) > 12.2% (−0.4 V). It can be found that the relative abundance of electrogenic microorganisms and the biooxidation electroactivity of the bioanode did not show a complete positive correlation. Similarly, G-03 had the highest biooxidation electroactivity among tested bioanodes, but the relative abundance of electrogenic microorganisms on the bioanode was lower than that of G-02 (35.2% vs. 48.2%). In addition, the relative abundance of fermentation microorganisms (including Aeromonas [40], Parabacteroides [42], Dysgonomonas [43], Klebsiella [44], Raoultella [43], Acidaminococcus [43], Veillonella [45], and Streptococcus [46]) in the glucose-cultured bioanode was significantly higher than the acetate-cultured bioanode, with the highest relative abundance reaching 55.8% (Figure 3B). Different relative abundance of fermentation microorganisms explained the difference in the ability of acetate-cultured and glucose-cultured bioanodes to use glucose to produce electricity (0.03 mA vs. 1.30 mA) (Figure 2). Enrichment of fermentation microorganisms could partly explain the low relative abundance of electrogenic microorganisms on the glucose-cultured bioanode with high biooxidation electroactivity. However, most of the fermentation microorganisms belonged to heterotrophic microorganisms that could compete with electrogenic microorganisms for substrates. From the perspective of substrate competition, the G-02 possessed a lower relative abundance of fermentation microorganisms and a higher relative abundance of electrogenic microorganisms should have higher biooxidation electroactivity than that of G-03, but the results were quite the opposite. Therefore, the microbial community may also affect the electricity-generation performance of bioanode in other aspects and needs to be further explored.

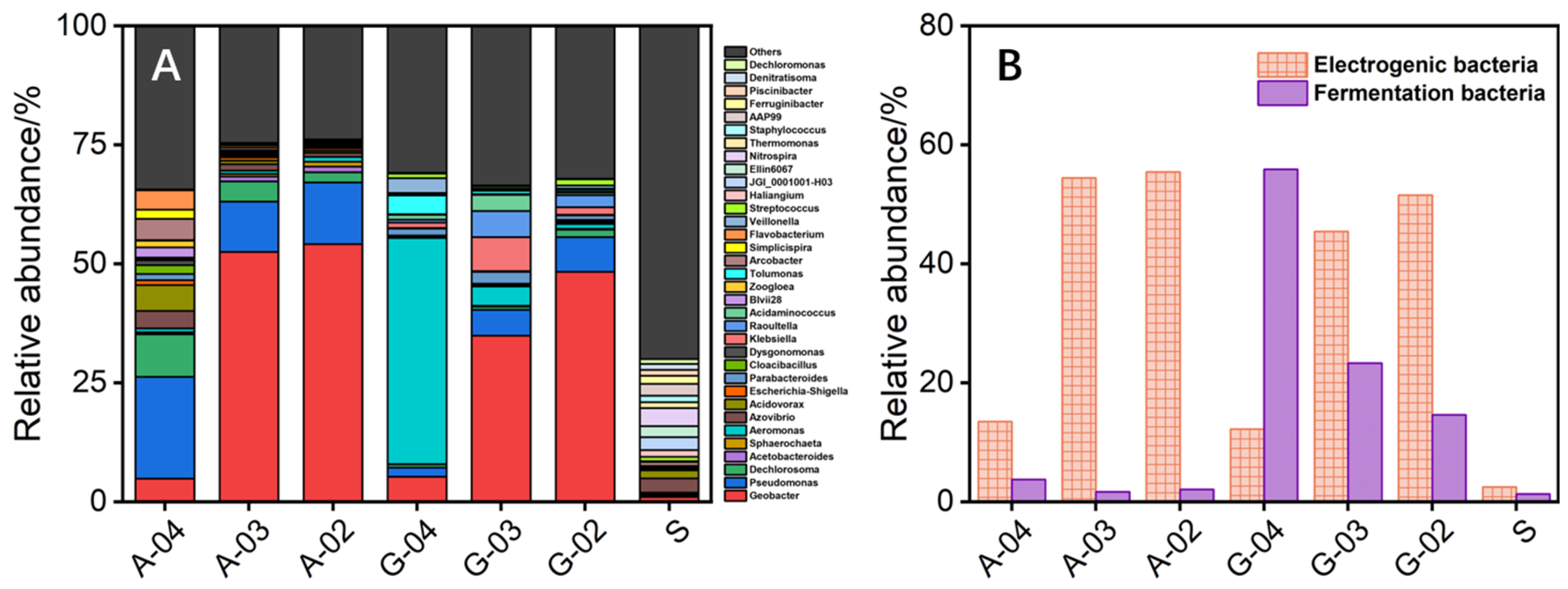

Figure 3. The genus level of microbial community in sludge inoculum (S) and bioanodes (A); and the relative abundance of electrogenic and fermentation microorganisms in S and bioanodes (B).

3.3. Effect of Substrate and Electrode Potential on Biofilm Structure

The bioanodes with high electricity-generation performance (A-02 and G-03) were used to construct MFCs for polarization tests. The polarization curves (Figure 4A) showed that the maximum output power of the MFC with the glucose-cultured bioanode was 0.472 mW, 1.21 times that of the MFC with the acetate-cultured bioanode (0.389 mW). The tested MFCs used the same cathode, so it could be considered that the difference in the maximum output power came from different bioanode performances. Notably, the output power of MFCs dropped suddenly after reaching the maximum output current (1.88 mA/2.05 mA; A-02/G-03). The rapid decrease of MFC output power at a high current value was due to the fact that the mass transfer on the electrode surface cannot meet the requirements of a high bioelectrochemical reaction rate [47]. Therefore, the above phenomenon suggested that the bioanode cultured with glucose had better mass transfer characteristics than acetate. Tafel analysis was then performed on bioanodes cultured with acetate and glucose in acetate solutions. The results showed that the glucose-cultured bioanode exhibited a higher charge-transfer coefficient (α_gl = 11.789) compared to the acetate-cultured bioanode (α_ac = 2.944), indicating more favorable electrochemical kinetics at the electrode–biofilm interface.

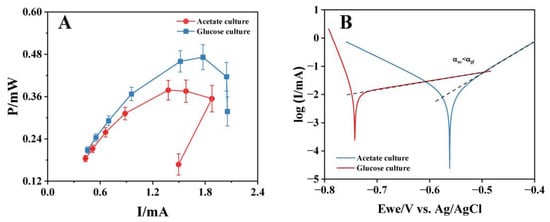

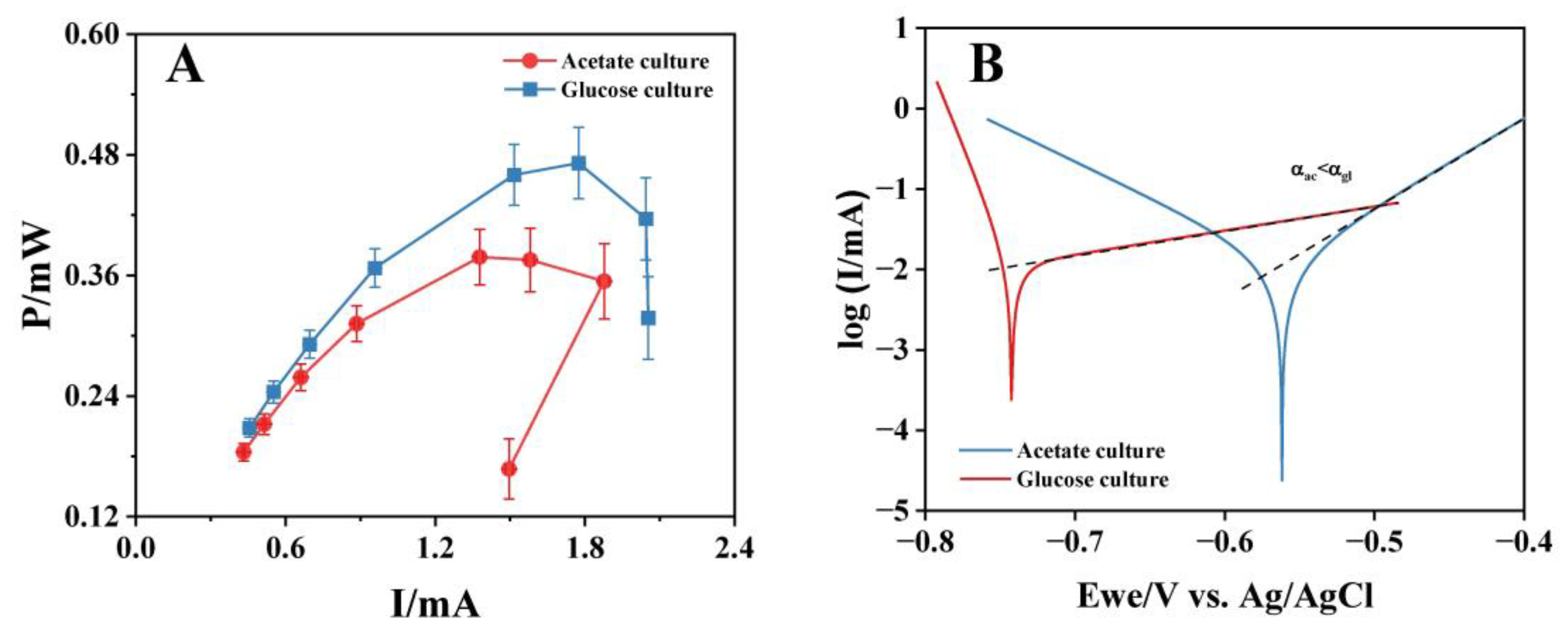

Figure 4. The polarization curves (A) and Tafel curves (B) of bioanodes cultured with acetate and glucose. Dashed lines represent the linear fitting region of the Tafel slope.

Bioanodes were operated under open-circuit conditions (OCO) for 12 h to evaluate changes in their performance and assess the structural stability of the electrode biofilm after removal of the electric field force. The electricity-generation performance of the acetate-cultured bioanode declined sharply after 12 h OCO, whereas the performance decrease in the glucose-cultured bioanode was minimal (Figure 5). EIS revealed that the electron transfer resistance (R_c) of the acetate-cultured bioanode increased dramatically from 24.3 Ω to 3404 Ω after OCO. Consistent with these findings, the LSV oxidation currents of the acetate-cultured bioanode at various substrate concentrations were markedly lower than those before OCO, with the maximum reduction exceeding 90%. These results indicated that the biooxidation electroactivity of the acetate-cultured bioanode was severely impaired following 12 h OCO. In contrast, both R_c and LSV oxidation currents of the glucose-cultured bioanode remained relatively stable after OCO, with negligible change in oxidation current at low substrate concentrations. Given that bioelectrochemical reaction rates at low substrate concentrations were diffusion-controlled [48], these observations suggested that the mass transfer characteristics of the glucose-cultured bioanode were essentially unaffected by 12 h OCO.

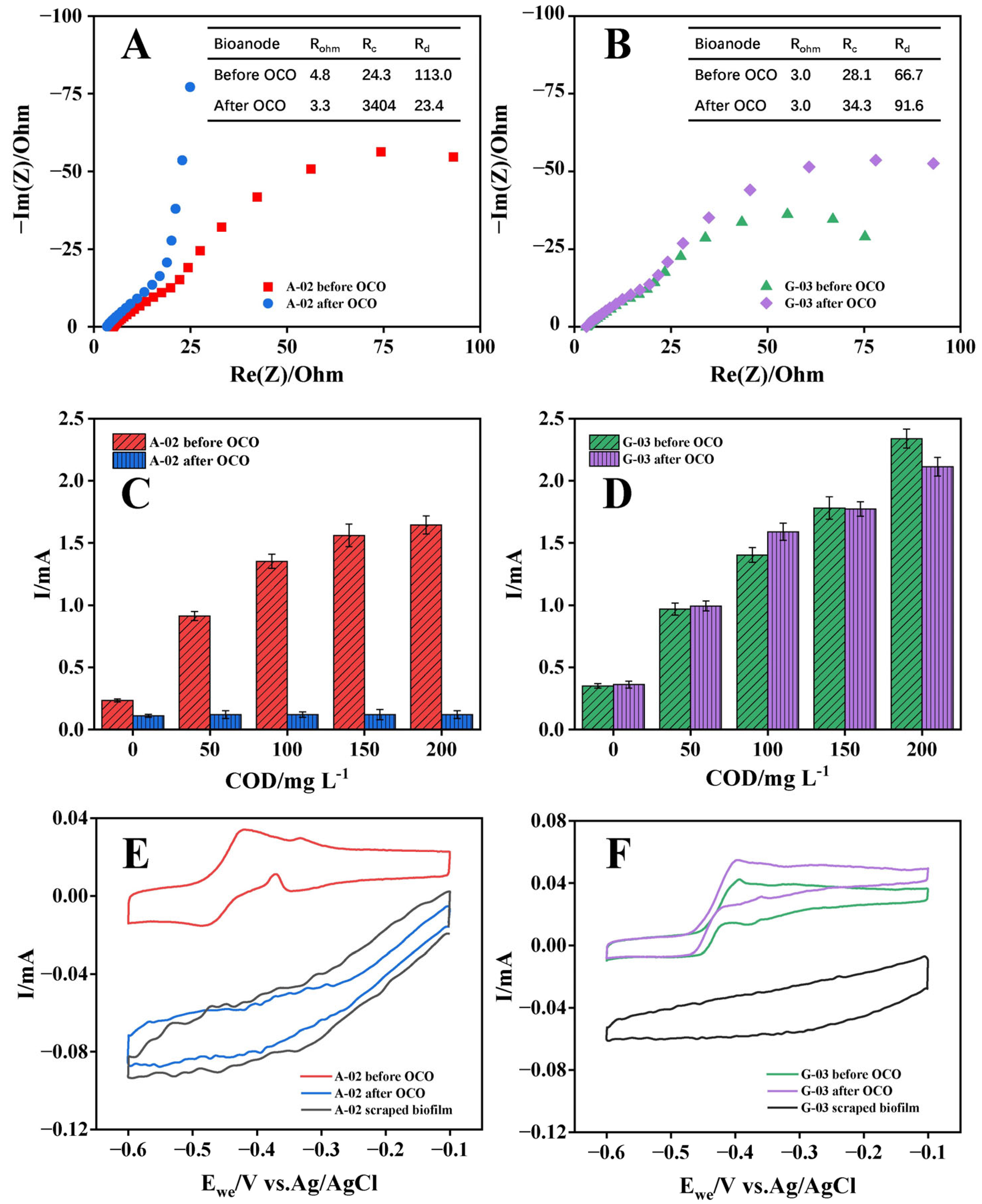

Figure 5. EIS curves in 50 mM PBS adding 1000 mg COD L⁻¹ acetate, LSV curves under different substrate concentrations of 0~200 mg COD L⁻¹ and CV scan curves in 50 mM PBS of the A-02 (A,C,E) and G-03 (B,D,F) before and after OCO. In (A,B), the symbols represent the test values, the lines represent the fitted values, and the inset table shows the fitting results of the impedance in the bioelectrochemical oxidation of bioanodes for the equivalent circuit.

To explore the reasons for the change of bioanode performance, the redox-active substances and biofilm structures of the bioanodes were characterized before and after OCO. For the acetate-cultured bioanode, the CV curve obtained in 50 mM PBS after 12 h OCO was similar to that of the electrode with its biofilm removed, indicating that the surface redox functionality was almost completely lost. In contrast, the glucose-cultured bioanode exhibited only a 28% decrease in CV oxidation current after 12 h OCO, which could be attributed to the microbial respiration during OCO consuming bioelectrochemically degradable compounds such as extracellular polymeric substances (EPS). CLSM and SEM imaging further revealed that, after 12 h OCO, the biofilm of the acetate-cultured bioanode experienced severe detachment and structural collapse, whereas the glucose-cultured bioanode retained a relatively intact biofilm architecture, with only a reduction in polysaccharide content (Figure S1). These findings indicated that glucose-cultured biofilms exhibited stronger attachment to the electrode surface and greater structural stability than acetate-cultured biofilms.

To investigate the reasons underlying the differences in mass transfer characteristics and structural stability of bioanodes, the distribution of live and dead microorganisms as well as the biofilm morphology under different substrate and electrode potential culture conditions were examined using CLSM and SEM, respectively. As shown in Figure 6A–F, acetate-cultured bioanodes (except A-04) formed a compact and dense biofilm structure on the electrode surface, whereas glucose-cultured bioanodes also enriched a large number of microorganisms but exhibited significantly higher biofilm porosity compared to the acetate-cultured group. In acetate-cultured bioanodes, a large number of dead microorganisms were uniformly distributed in the inner layer of the biofilm, predominantly rod-shaped and consistent with Geobacter, the main electrogenic bacterium. In contrast, glucose-cultured bioanodes contained fewer and more scattered dead microorganisms in the inner layer, mainly filamentous in shape and consistent with Aeromonas, the dominant fermentative bacterium. CLSM cross-sectional images (Figure 6G–L) revealed that the biofilms of acetate-cultured bioanodes (A-02 and A-03) contained a distinct dead microorganism-dominated layer adjacent to the electrode surface, with a thickness exceeding one-third of the total biofilm thickness. Due to the weak adhesion between this layer and the electrode surface, the biofilm was prone to detachment after losing the effect of the electric field force, ultimately leading to the marked decline in electricity-generation performance observed after 12 h OCO. In contrast, glucose-cultured biofilms exhibited vertically oriented pore structures and a lower proportion of dead microorganisms, which facilitated the formation of efficient mass transfer channels, maintained the activity of microorganisms in the inner biofilm layer, and enhanced structural stability. Among them, G-03 showed higher biofilm thickness and porosity compared with G-04 and G-02.

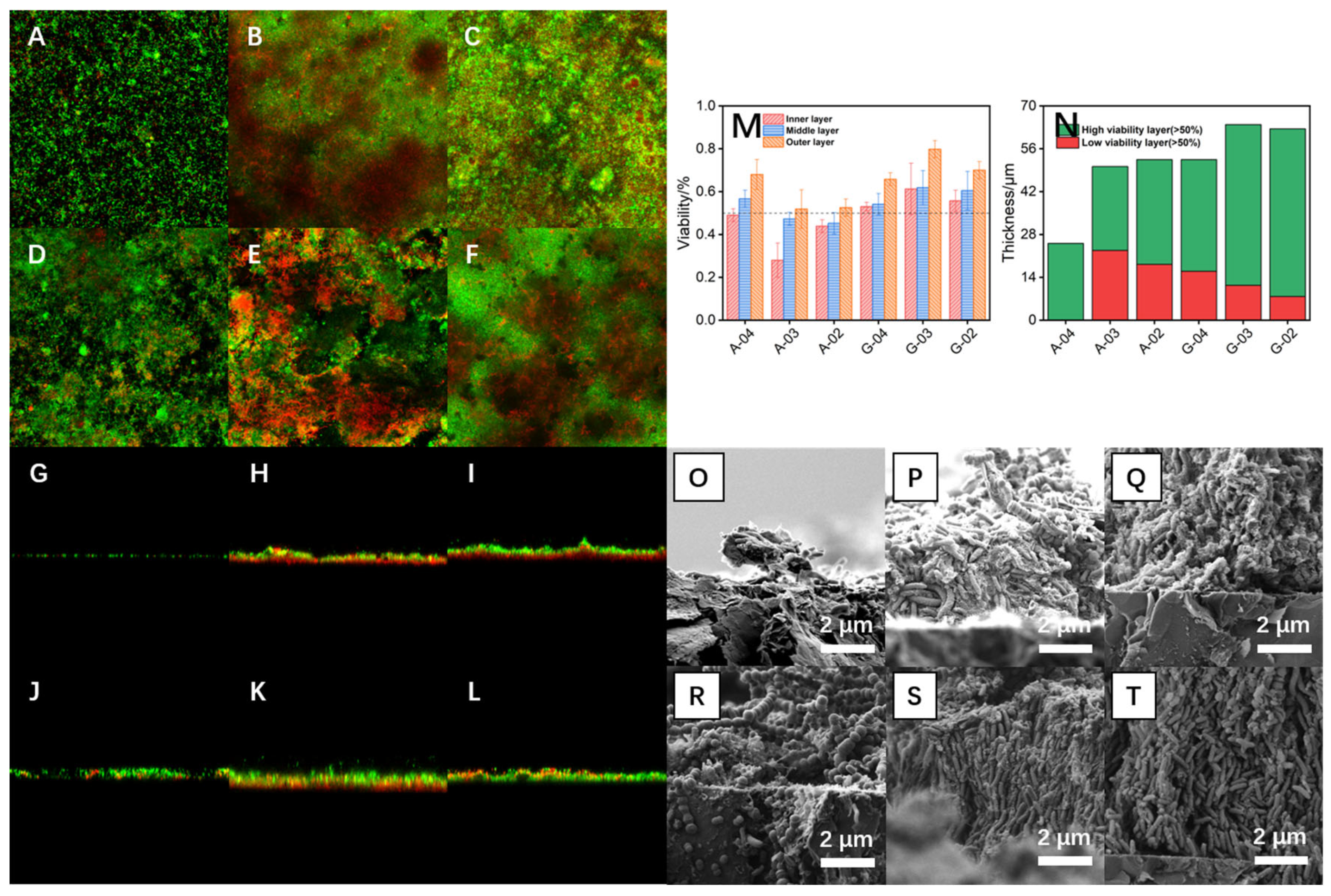

Figure 6. CLSM plan views (A–F), CLSM section views (G–L)) and SEM section views (O–T) of bioanodes A-04, A-03, A-02, G-04, G-03 and G-02. The microbial activity in inner, middle and outer layers of different bioanode biofilms (M) and the distribution of highly and weakly active layers of biofilms (N).

As shown in Figure 6M, each biofilm was divided into inner, middle, and outer layers based on its total thickness, and the microbial activity of each layer was quantified using Fiji (ImageJ 1.53t, National Institutes of Health, Bethesda, MD, USA). The activity percentage was calculated by analyzing the ratio of green fluorescence (live cells) to total fluorescence (green + red) intensity from CLSM live/dead staining images. Layers with microbial activity below 50% were defined as low-activity layers and those above 50% as high-activity layers, to enable quantitative comparison of biofilm functionality under different culture conditions. At −0.4 V, no significant differences in activity were observed between the layers, likely due to the relatively thin biofilm and favorable mass transfer characteristics. At −0.2 V and −0.3 V, the activity of all layers in acetate-cultured bioanodes was lower than that in glucose-cultured bioanodes, particularly in the inner and middle layers where activity was below 50%, corresponding to the dead microorganism-dominated layer near the electrode side observed in CLSM cross-sections. Figure 6N shows the total biofilm thickness and the relative proportion of high-activity versus low-activity layers under different culture conditions. The results showed that glucose-cultured bioanodes possessed thinner low-activity layers and thicker high-activity layers, consistent with their superior electricity-generation performance and stable biofilm structure. Furthermore, the thickness of the low-activity layer decreased with a positive shift in electrode potential, possibly because higher overpotentials promoted bioelectrochemical oxidation reactions by electrogenic microorganisms for energy harvesting, while the stronger electric field enhanced mass transfer and provided sufficient substrates for microbial growth.

High-magnification SEM images (Figure 6O–T) demonstrated that microorganisms in acetate-cultured biofilms were stacked and irregularly arranged, whereas those in glucose-cultured biofilms were vertically and orderly arranged, forming efficient mass transfer channels within the bioanode and ensuring the activity of inner-layer microorganisms. Abundant filamentous microorganisms were observed on the surface of glucose-cultured bioanodes, interweaving with other microorganisms to form highly porous biofilm structures. Based on microbial relative abundance and attachment relationship analysis, these filamentous microorganisms were inferred to be fermentative bacteria. In this synergistic system, fermentative bacteria first decomposed glucose into intermediate metabolites such as acetate, lactate, or ethanol, which were subsequently oxidized by non-fermentative electrogenic bacteria (such as Geobacter spp.) that transferred electrons to the electrode. Therefore, the growth and metabolism of electrogenic bacteria depended on electron donors provided by fermentative bacteria, forming a biofilm structure based on fermentative bacterial scaffolds. This metabolic interaction mode offered dual advantages: it provided electrogenic bacteria with stable electron donor sources, promoting their enrichment and activity maintenance at the electrode surface; meanwhile, the three-dimensional scaffold structure constructed by filamentous fermentative bacteria significantly enhanced biofilm porosity and mass transfer channel connectivity, improved the diffusion efficiency of substrates and metabolic products, and thereby enhanced overall mass transfer characteristics. Among glucose-cultured bioanodes, biofilms formed at −0.3 V exhibited the highest degree of vertical and ordered arrangement, likely because this potential ensured efficient bioelectrochemical oxidation while avoiding the adverse effects of excessive electric field force on structural order. The optimal biofilm architecture of G-03 provided the best mass transfer characteristics, explaining its highest electricity-generation performance. A schematic comparison of the biofilm architectures of bioanodes cultured with glucose and acetate is provided in Figure S3, offering a visual summary of these structural differences. And a performance comparison with related MFC studies is provided in Table S1 [49,50,51,52,53,54,55], demonstrating the competitive electrochemical performance of the optimized bioanode.

However, it should be noted that although structural optimization markedly enhanced the electricity-generation performance and stability of bioanodes, the presence of abundant non-electrogenic bacteria in glucose-cultured systems led to lower coulombic efficiency, thereby constraining overall energy conversion. In practical applications, coulombic efficiency could be further improved by optimizing substrate concentration to balance microbial metabolism, regulating the ratio of fermentative to electrogenic bacteria to enhance electron transfer efficiency, and adopting staged feeding strategies to prevent substrate accumulation and intermediate losses. These strategies would help maintain the structural advantages of glucose-cultured bioanodes while achieving higher net energy recovery.

4. Conclusions

This study successfully constructed high-performance bioanodes with vertically ordered structures through the synergistic regulation of substrate type and electrode potential. Compared with acetate-fed systems, glucose-cultured bioanodes exhibited approximately 52% higher bioelectroactivity and demonstrated superior mass transfer efficiency. Structural and microbial analyses revealed that glucose-cultured bioanodes developed composite biofilms in which filamentous fermentative bacteria acted as structural scaffolds for the attachment and sustained activity of electrogenic bacteria such as Geobacter spp., thereby enhancing biofilm porosity and structural stability. Under appropriate electrode potentials, the combined effects of electric field forces and microbial interactions promoted the formation of vertically ordered biofilm structures with efficient mass transfer channels and improved inner-layer activity. These findings indicate that a structure-oriented culture strategy based on coordinated control of substrate and potential can effectively enhance electricity-generation performance and biofilm stability, providing technical guidance for the development of efficient and long-term stable bioelectrochemical systems applicable to complex organic wastewater treatment and real-time biosensing.
