# Numerical Investigation of Pressure Loss in a Rectangular Channel with a Sharp 180-Degree Turn: Influence of Design Variables and Geometric Shapes

^{1}

^{2}

^{*}

## Abstract

**:**

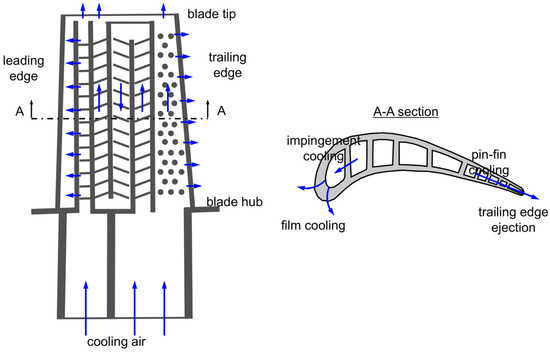

## 1. Introduction

## 2. Geometrical Details and Mathematical Method

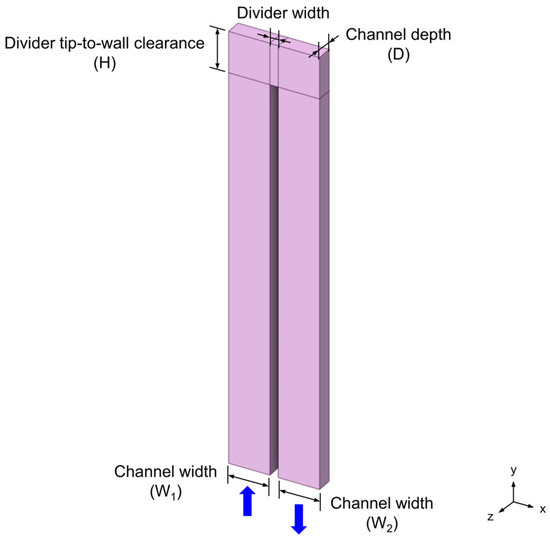

#### 2.1. Model Description

#### 2.2. Numerical Method

^{−5}.

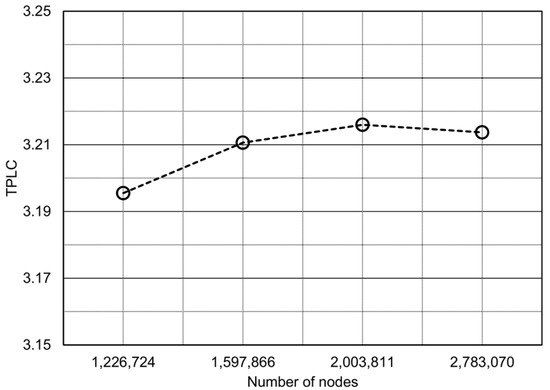

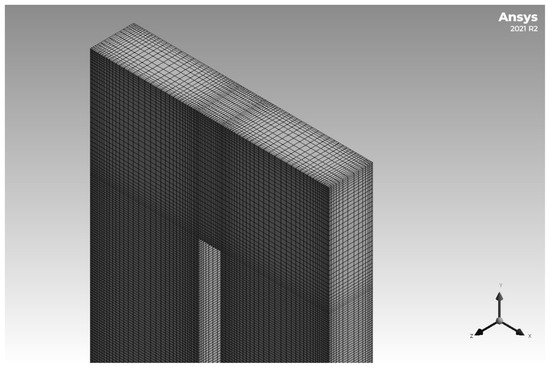

#### 2.3. Grid Sensitivity

#### 2.4. Validation of Simulation

## 3. Parameter and Optimization Study

## 4. Results and Discussion

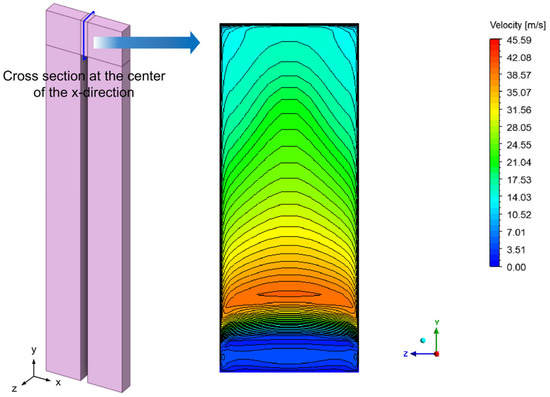

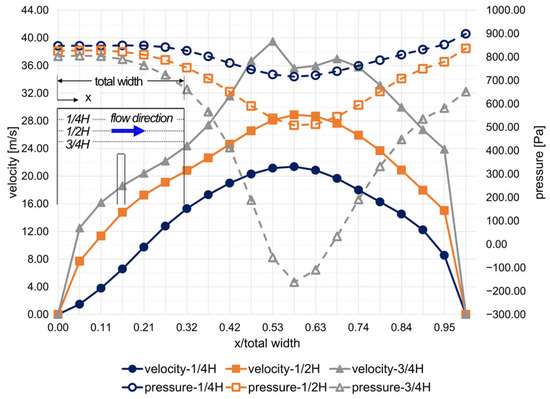

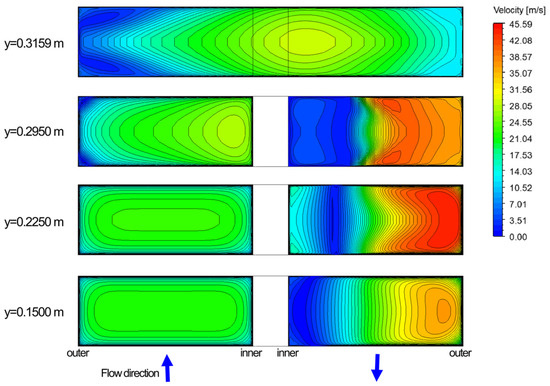

#### 4.1. Basic Study Results

#### 4.2. Results of Parameter and Optimization Studies

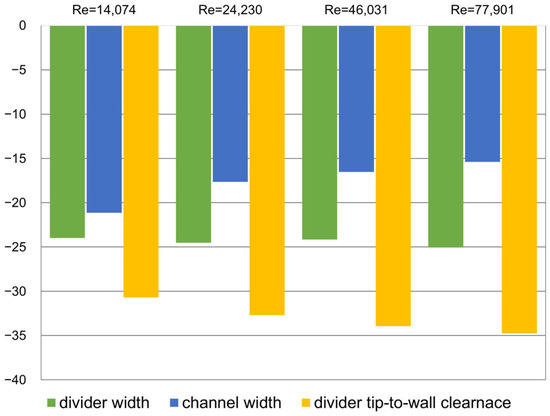

#### 4.2.1. Response Surface

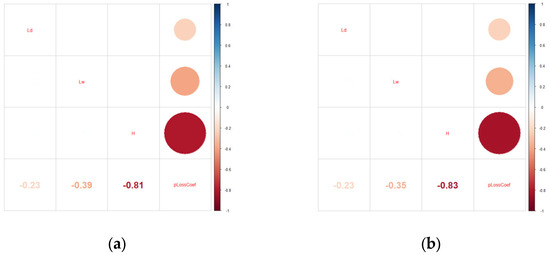

#### 4.2.2. Regression Analysis

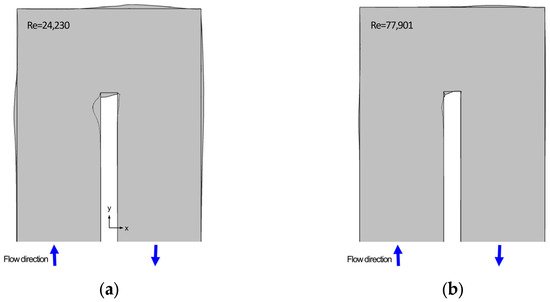

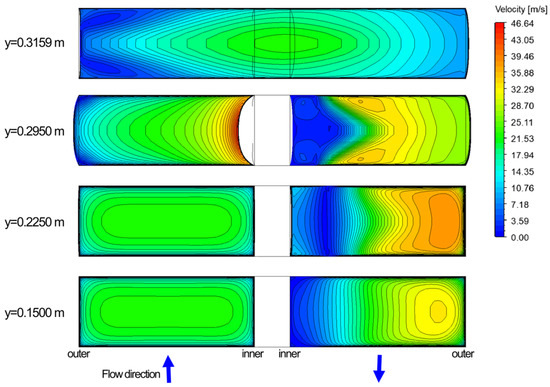

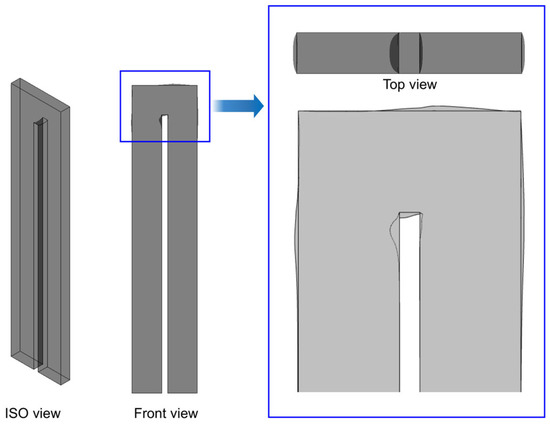

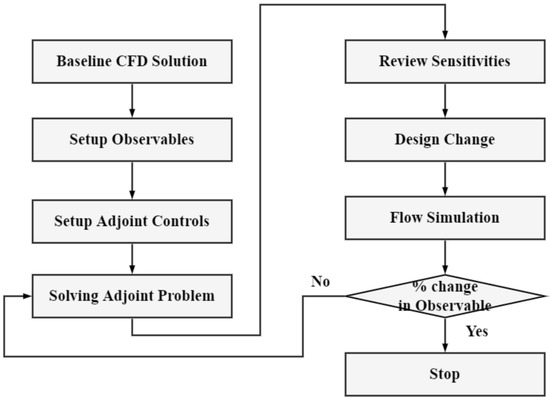

#### 4.2.3. Adjoint Method

## 5. Conclusions

- The contribution of the channel geometry design variables to the TPLC at four Reynolds numbers was investigated by the response surface and regression analysis. The influence of the divider tip-to-wall clearance on TPLC prediction was the highest, and this influence increased with an increasing Reynolds number. Two candidate points satisfying the objective function of minimizing the total pressure drop were obtained from the response surface for each Reynolds number, with a maximum improvement in the TPLC of 20.87% at the best candidate point compared to the original model.
- Regression analysis was used to derive predictive models consisting of design variables and Reynolds numbers based on the data set. The prediction based on the proposed model was improved using the interaction terms. The maximum difference between the predictive model with interaction terms and the CFD was 2.29%.
- Using the adjoint solver, the TPLC was improved by approximately 26% and 11% when compared to the original model at the representative Reynolds numbers of 24,130 and 77,901 respectively; it was more effective at lower Reynolds numbers than higher Reynolds numbers. The adjoint solver showed more improvement in the TPLC with less computational cost and less geometric change when compared to the effect of the candidate points from the response surface.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Han, J.C.; Dutta, S.; Ekkad, S. Gas Turbine Heat Transfer and Cooling Technology, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2013; p. 20. [Google Scholar]
- Metzger, D.E.; Plevich, C.W.; Fan, C.S. Pressure loss through sharp 180 deg turns in smooth rectangular channels. J. Eng. Gas Turbines Power
**1984**, 106, 677–681. [Google Scholar] [CrossRef] - Metzger, D.E.; Sahm, M.K. Heat transfer around sharp 180-deg turns in smooth rectangular channels. J. Heat Transf.
**1986**, 108, 500–506. [Google Scholar] [CrossRef] - Fan, C.S.; Metzger, D.E. Effects of Channel Aspect Ratio on Heat Transfer in Rectangular Passage Sharp 180-Deg Turns. In Proceedings of the 32nd International Gas Turbine Conference and Exhibition, Anaheim, CA, USA, 31 May–4 June 1987. [Google Scholar]
- Hirota, M.; Fujita, H.; Tanaka, A.; Araki, S.; Tanaka, T. Local heat (mass) transfer characteristics in rectangular ducts with a sharp 180-degree turn. Energy Convers. Manag.
**1997**, 38, 1155–1168. [Google Scholar] [CrossRef] - Han, J.C.; Chandra, P.R.; Lau, S.C. Local heat/mass transfer distributions around sharp 180 deg turns in two-pass smooth and rib-roughened channels. J. Heat Transf.
**1988**, 110, 91–98. [Google Scholar] [CrossRef] - Han, J.C.; Zhang, P. Pressure loss distribution in three-pass rectangular channels with rib turbulators. J. Turbomach.
**1989**, 111, 515–521. [Google Scholar] [CrossRef] - Chandra, P.R.; Han, J.C. Pressure drop and mass transfer in two-pass ribbed channels. J. Thermophys. Heat Transf.
**1989**, 3, 315–320. [Google Scholar] [CrossRef] - Park, J.S.; Han, J.C.; Huang, Y.; Ou, S.; Boyle, R.J. Heat transfer performance comparisons of five different rectangular channels with parallel angled ribs. Int. J. Heat Mass Transf.
**1992**, 35, 2891–2903. [Google Scholar] [CrossRef] - Mochizuki, S.; Murata, A.; Fukunaga, M. Effects of rib arrangements on pressure drop and heat transfer in a rib-roughened channel with a sharp 180 deg turn. J. Turbomach.
**1995**, 119, 610–616. [Google Scholar] [CrossRef] - Zhao, C.Y.; Tao, W. Pressure loss through sharp 180 deg turn in a relatively short two-pass smooth and rib-roughened channel. J. Therm. Sci.
**1995**, 4, 109–116. [Google Scholar] [CrossRef] - Chyu, M.K. Regional heat transfer in two-pass and three-pass passages with 180-deg sharp turns. J. Heat Transf.
**1991**, 113, 63–70. [Google Scholar] [CrossRef] - Syuhada, A.; Hirota, M.; Fujita, H.; Araki, S.; Yanagida, M.; Tanaka, T. Heat (mass) transfer in serpentine flow passage with rectangular cross-section. Energy Convers. Manag.
**2001**, 42, 1867–1885. [Google Scholar] [CrossRef] - Hirota, M.; Fujita, H.; Syuhada, A.Z.; Araki, S.; Yoshida, T.; Tanaka, T. Heat/mass transfer characteristics in two-pass smooth channels with a sharp 180-deg turn. Int. J. Heat Mass Transf.
**1999**, 42, 3757–3770. [Google Scholar] [CrossRef] - Hirota, M.; Fujita, H.; Cai, H.L.; Nakayama, H.; Yanagida, M.; Syafa’at, A. Heat (mass) transfer in rectangular cross-sectioned two-pass channels with an inclined divider wall. Int. J. Heat Mass Transf.
**2002**, 45, 1093–1107. [Google Scholar] [CrossRef] - Cardone, G.; Astarita, T.; Carlomagno, G.M. Heat transfer in a 180 deg turn channel, Quant. InfraRed Thermogr. J.
**1996**, 123–128. Available online: https://www.qirt.org/archives/qirt1996/papers/020.pdf (accessed on 26 February 2023). - Schabacker, J.; Boelcs, A.; Johnson, B.V. PIV Investigation of the Flow Characteristics in an Internal Coolant Passage With 45deg Rib Arrangement. In Proceedings of the International Gas Turbine and Aeroengine Congress and Exhibition, Indianapolis, IN, USA, 7–10 June 1999. [Google Scholar]
- Liou, T.M.; Chen, C.C.; Tzeng, Y.; Tsai, T. Non-intrusive measurements of near-wall fluid flow and surface heat transfer in a serpentine passage. Int. J. Heat Mass Transf.
**2000**, 43, 3233–3244. [Google Scholar] [CrossRef] - Liou, T.-M.; Tzeng, Y.-Y.; Chen, C.-C. Fluid flow in a 180 deg sharp turning duct with different divider thicknesses. J. Turbomach.
**1999**, 121, 569–576. [Google Scholar] [CrossRef] - Astarita, T.; Cardone, G. Thermofluidynamic analysis of the flow in a sharp 180° turn channel. Exp. Therm. Fluid Sci.
**2000**, 20, 188–200. [Google Scholar] [CrossRef] - Nakayama, H.; Hirota, M.; Fujita, H.; Yamada, T.; Koide, Y. Fluid flow and heat transfer in two-pass smooth rectangular channels with different turn clearances. J. Turbomach.
**2006**, 128, 772–785. [Google Scholar] [CrossRef] - Murata, A.; Mochizuki, S.; Fukunaga, M. Detailed Measurement of Local Heat Transfer in a Square-Cross-Section Duct with a Sharp 180-Deg Turn. In Proceedings of the International Heat Transfer Conference Digital Library, Brighton, UK, 14–18 August 1994; Begel House Inc.: Brighton, UK, 1994. [Google Scholar]
- Astarita, G.; Cardone, G.; Carlomagno, G.M. Heat Transfer and Surface Flow Visualization around a 180 Deg Turn in a Rectangular Channel. In Proceedings of the International Mechanical Engineering Congress and Exhibition, San Francisco, CA, USA, 12–17 November 1995. [Google Scholar]
- Ekkad, S.V.; Pamula, G.; Shantiniketanam, M. Detailed heat transfer measurements inside straight and tapered two-pass channels with rib turbulators. Exp. Therm. Fluid Sci.
**2000**, 22, 155–163. [Google Scholar] [CrossRef] - Rao, D.V.; Prabhu, S.V. Effect of Guide Vanes on Pressure Drop in a Rib Roughened Square Channel with a Sharp Cornered 180 Deg Bend. In Proceedings of the 1st International Energy Conversion Engineering Conference (IECEC), Portsmouth, VA, USA, 17–21 August 2003. [Google Scholar]
- Rao, D.V.; Babu, C.; Prabhu, S.V. Effect of Turn Region Treatments on the Pressure Loss Distribution in a Smooth Square Channel with Sharp 180° Bend. Int. J. Rotating Mach.
**2004**, 10, 459–468. [Google Scholar] [CrossRef] [Green Version] - Cai, L.; Ota, H.; Hirota, M.; Nakayama, H.; Fujita, H. Influence of channel aspect ratio on heat transfer characteristics in sharp-turn connected two-pass channels with inclined divider wall. Exp. Therm. Fluid Sci.
**2004**, 28, 513–523. [Google Scholar] [CrossRef] - Wang, T.; Chyu, M.K. Heat convection in a 180-deg turning duct with different turn configurations. J. Thermophys. Heat Transf.
**1994**, 8, 595–601. [Google Scholar] [CrossRef] - Jiang, Y.; Chen, C.P.; Chyu, M.K. A Numerical Computation of Convective Heat Transfer in Two-Pass Rectangular Ducts with a 180-Degree Sharp Turn. In Proceedings of the 28th Aerospace Sciences Meeting, Reno, NV, USA, 8–11 January 1990. [Google Scholar]
- Walker, D.; Zausner, J. RANS Evaluations of Internal Cooling Passage Geometries: Ribbed Passages and a 180 Degree Bend. In Proceedings of the Power for Land, Sea, and Air, Montreal, QU, Canada, 14–17 May 2007. [Google Scholar]
- Shevchuk, I.V.; Jenkins, S.C.; Weigand, B.; Wolfersdorf, J.V.; Neumann, S.O.; Schnieder, M. Validation and analysis of numerical results for a varying aspect ratio two-pass internal cooling channel. J. Heat Transf.
**2011**, 133, 051701. [Google Scholar] [CrossRef] - Schűler, M.; Zehnder, F.; Weigand, B.; Wolfersdorf, J.V.; Neumann, S.O. The effect of turning vanes on pressure loss and heat transfer of a ribbed rectangular two-pass internal cooling channel. J. Turbomach.
**2011**, 133, 021017. [Google Scholar] [CrossRef] - Amano, R.S.; Lucci, J.M.; Guntur, K.; Song, B. Numerical study of the thermal development in a rotating cooling passage. J. Heat Mass Transf.
**2012**, 48, 1011–1022. [Google Scholar] [CrossRef] - ANSYS Fluent User’s Guide 2022R1; Southpointe 2600 Ansys Drive Canonsburg; ANSYS, Inc.: Canonsbur, PA, USA, 2022.
- ANSYS DesignXplorer User’s Guide 2022R1; Southpointe 2600 Ansys Drive Canonsburg; ANSYS, Inc.: Canonsbur, PA, USA, 2022.

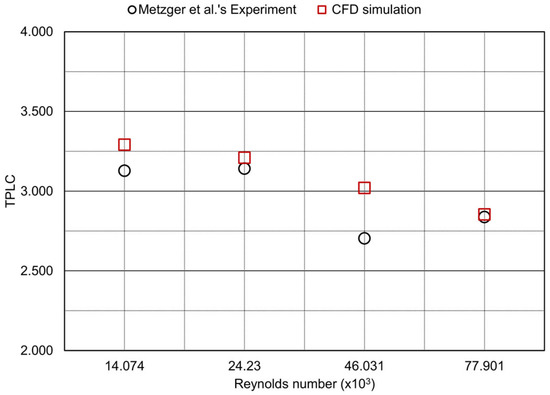

**Figure 5.**Comparison of the TPLC for different Reynolds numbers [2].

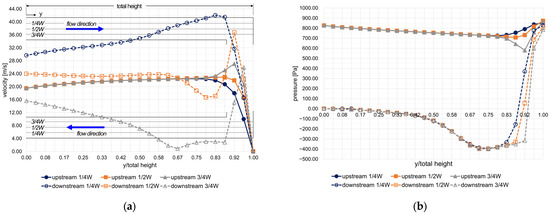

**Figure 9.**Flow characteristics of the upstream and downstream channels (Re = 24,230): (

**a**) velocity distribution; (

**b**) pressure distribution.

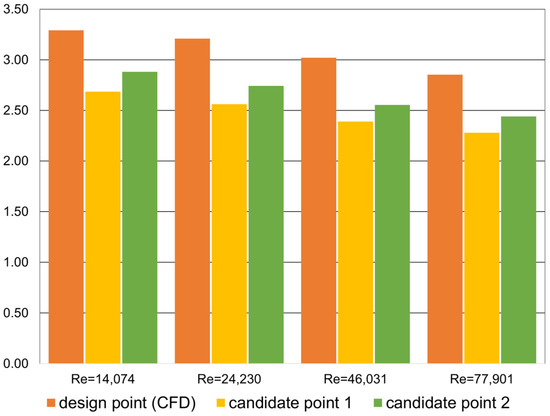

**Figure 12.**Comparison of the TPLC between the design point and two candidate points for four Reynolds numbers.

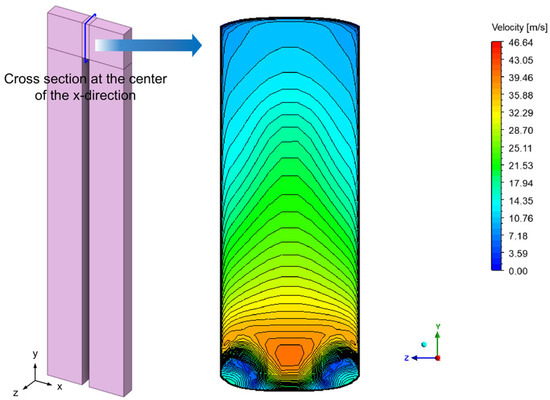

**Figure 16.**Velocity contour at the center of the x-coordinate using the adjoint solver (Re = 24,230).

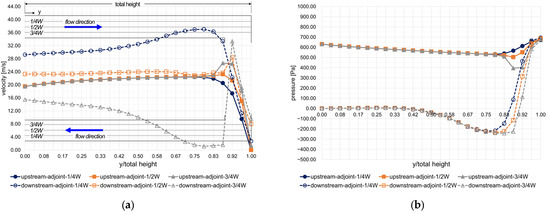

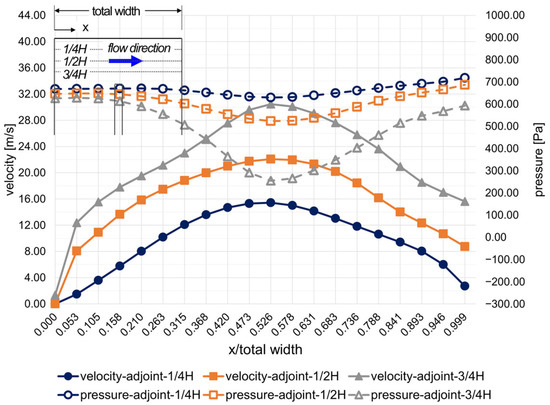

**Figure 17.**Flow characteristics in the upstream and downstream channels by the adjoint solver (Re = 24,230): (
