# Biomass Combustion Modeling Using OpenFOAM: Development of a Simple Computational Model and Study of the Combustion Performance of Lippia origanoides Bagasse

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

_{2}excess values. Those models studied the combustion of wood pellets. As examples of analyses with other biomasses, we can mention the works of Karim and Naser published in 2018 [2,16], which report the modeling of two combustion systems: a small fixed bed combustor and an industrial moving grate boiler; they used them to study the combustion of the systems fueled by different kinds of lignocellulosic biomasses. A complete review of the subject is given in the works of Dernbecher et al. [11], Karim and Naser [17], Khodaei et al. [8], Bhuiyan et al. [6] and García et al. [18,19]. However, it is still a field in development due to its complexity; several submodels and high computational resources are required for simulations [11,17,20,21,22,23]. OpenFOAM is an advanced and robust open-source CFD package with rising adoption in industry and academia due to its advantages, such as a continuously growing set of features and the absence of license costs [24]. Nowadays, there are relatively few works about solid combustion modeling developed in OpenFOAM, although there has been a growing interest in the subject in recent years [19]. This work reports on the development of a bidimensional CFD model to study the combustion performance of several solid biomass fuels and its application in the analysis of Lippia origanoides bagasse combustion. The model was implemented in OpenFOAM and validated against experimental data of ignition front propagation velocity and the maximum temperature taken from a combustor tube fueled by three biomasses: wood pellets, olive stone and almond shell. The experimental data were taken from the work of Patiño [25]. The model uses an Eulerian–Lagrangian approach to simulate freeboard (continuous phase) and fuel bed (dispersed phase) behavior. In the continuous phase, governing equations are solved, and in the disperse phase, particles are tracked and the mass, momentum, species and energy transfer between those particles and the continuous phase are calculated. It employs the k-epsilon, P1 and partially stirred reactor (PaSR) submodels for turbulence, radiation and gas combustion, respectively. The novelty of this research lies in the development of a simple computational model to simulate solid combustion using OpenFOAM, and in the analysis of the combustion performance of a kind of residual biomass that had not been previously considered as a fuel.

## 2. Materials and Methods

#### 2.1. Fuel Properties

_{p}is the real density of the particles and ρ

_{a}is the bulk density of the biomass bed. The properties of the first three fuels which were used for validation were taken from the work of Patiño [25]. The elemental and proximate analyses and the densities of Lippia origanoides bagasse (LO) were determined experimentally in the laboratories of the Industrial University of Santander in Bucaramanga, Colombia, while the lower heating value was determined by Equation (2) [26]:

_{M}is the percentage by mass of moisture, X

_{H}is the percentage by mass of hydrogen and HHV is the higher heating value calculated from the proximate composition by Sheng and Azevedo’s [27] Equation (2).

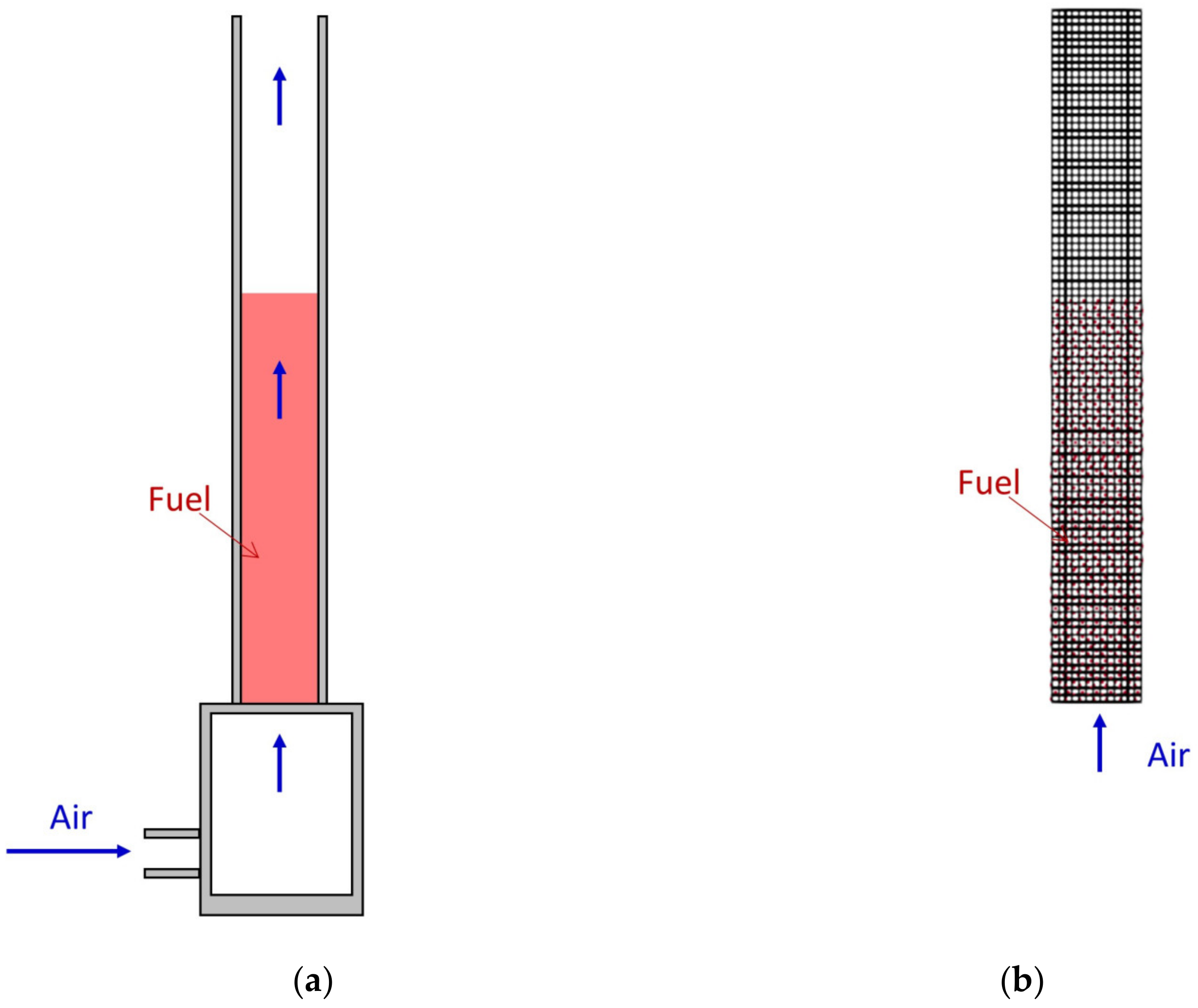

#### 2.2. Experimental Setup and Computational Domain

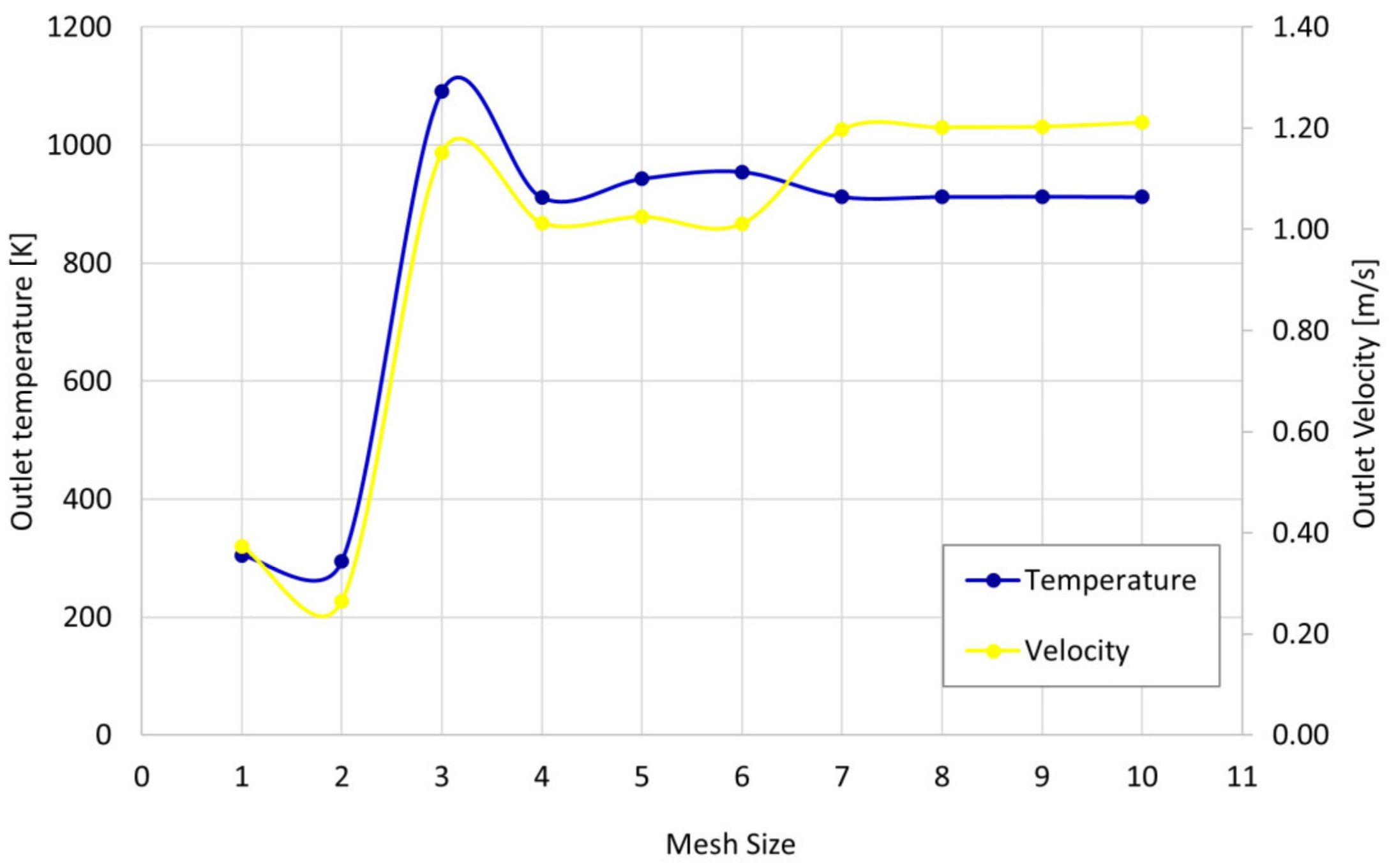

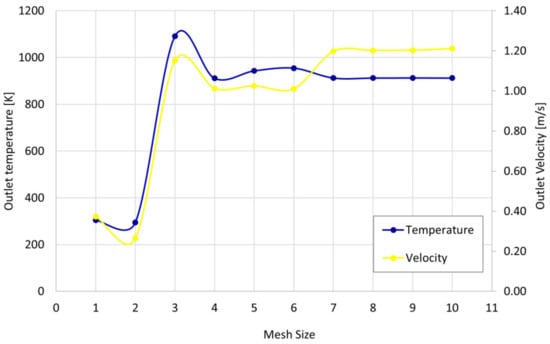

#### 2.3. Mesh Independence Analysis

#### 2.4. Model Description

_{i}is the mass fraction of the species, R

_{g}is the Reynolds stress term and α

_{eff}and D

_{eff}are the effective thermal and mass diffusivities. The source terms can come from the combustion model (c), the Lagrangian particles (p) or the radiation model (r). The ones that come from the interaction with particles may be further decomposed according to the process they represent: drying (ev), devolatilization (dv), heat transfer by convection (cv) or the reaction to the particle drag force (dr). Therefore, the source terms may be decomposed as [29]:

_{p}), mass (m

_{p}) and temperature (T

_{p}) (Equations (11)–(13)) were solved and used to update their properties before each continuous phase time step.

_{dr}and F

_{grav}. The parcel’s mass variation (Equation (12)) is expressed as the sum of the variation during evaporation devolatilization, which comes from the respective drying and pyrolysis models. The temperature equation (Equation (13)) comes from the balance of energy; the rate of change in energy in the parcel is equal to the sum of the rate of change in specific enthalpy due to evaporation, devolatilization, radiation and convection.

#### 2.5. Submodels

#### 2.5.1. Drying

#### 2.5.2. Devolatilization

_{j}is the mass of the jth volatile component in biomass, E is the activation energy, A is the pre-exponential factor, R is the universal gas constant and T

_{p}is the parcel temperature. The volatile production rate was used to determine the source terms related to devolatilization in Equations (7)–(10) (${S}_{p,m}^{dv}$, ${S}_{p,h}^{dv}$, ${S}_{p,u}^{dv}$ and ${S}_{p,y}^{dv}$).

#### 2.5.3. Heat Transfer

_{p}is the emission contribution of the particles; σ is the Stefan–Boltzmann coefficient and T is the gas temperature. The source term in the gas phase energy equation can be expressed as:

_{p}is the incident radiation at the particle position and A

_{s}is the particle surface area. Convection was taken into account, employing the Ranz–Marshall correlation [32,33], with which the particle Nusselt number (Nu

_{p}) was calculated, and the rate of change in specific enthalpy due to convection (${\dot{h}}_{p}^{cv}$) and the source term due to convection in the energy equation (${S}_{p,h}^{cv}$) were determined:

_{s}and Pr

_{s}are the surface Reynolds and Prandlt numbers, h is the convective heat transfer coefficient, k is the particle thermal conductivity and V

_{c}is the volume of a cell with i particles inside it.

#### 2.5.4. Combustion

_{0}to a value c due to chemical reactions; in the second stage, the reactive mixture c is mixed with the unreactive one c

_{0}due to the turbulence during a mixing time τ

_{mix}, resulting in the averaged concentration c

_{1}. The reaction rate fm is defined as [34]:

_{c}is the chemical time and τ

_{mix}is obtained from the k-ε model:

_{mix}varies between 0.001 and 0.3 depending on the flow. In this work, it was taken as 0.03, as in other similar studies [35].

#### 2.5.5. Reaction Mechanism

## 3. Results

^{−2}s

^{−1}. As an example, Figure 3 shows the temperature profiles of wp combustion at 1000, 3500 and 7000 s, and an airflow rate of 0.2 kg.m

^{−2}s

^{−1}. The results of the ignition front velocities and maximum temperatures were compared with experimental data from the combustor fueled by the same fuels, which are presented in Figure 4 and Table 3. Table 3 shows the relative error between the calculated and experimental data (%E =|Experimental Value − Calculated Value|⁄Experimental Value).

## 4. Discussion

## 5. Conclusions

- This paper presents a two-dimensional model of solid biomass combustion. The model is useful for studying the performance of a combustion system fueled by different kinds of biomass and under different airflow rates. Unlike other similar studies, this is an efficient numerical model implemented in OpenFOAM, which is a popular computational tool rarely used in this type of application.
- The model was validated by comparing its results with those obtained in a cylindrical combustor fueled with three types of biomass, with relative error values lower than 13% in most cases, which is similar to the errors obtained in recent studies on this subject.
- The stems of Lippia origanoides bagasse show a similar performance to that of other biomass used as solid fuels, while the leaves and mixtures of the same plant present lower performance.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Saeed, M.A.; Niedzwiecki, L.; Arshad, M.Y.; Skrinsky, J.; Andrews, G.E.; Phylaktou, H.N. Combustion and Explosion Characteristics of Pulverised Wood, Valorized with Mild Pyrolysis in Pilot Scale Installation, Using the Modified ISO 1 m3 Dust Explosion Vessel. Appl. Sci.
**2022**, 12, 12928. [Google Scholar] [CrossRef] - Karim, M.R.; Naser, J. CFD modelling of combustion and associated emission of wet woody biomass in a 4 MW moving grate boiler. Fuel
**2018**, 222, 656–674. [Google Scholar] [CrossRef] - Said, Z.; Nguyen, T.H.; Sharma, P.; Li, C.; Ali, H.M.; Nguyen, V.N.; Pham, V.V.; Ahmed, S.F.; Van, D.N.; Truong, T.H. Multi-attribute optimization of sustainable aviation fuel production-process from microalgae source. Fuel
**2022**, 324, 124759. [Google Scholar] [CrossRef] - Gobierno de la Republica de Colombia. Estrategia Nacional de Economía Circular. Cierre de Ciclos de Materiales, Innovación Tecnológica, Colaboración y Nuevos Modelos de Negocio; Presidencia de la República; Ministerio de Ambiente y Desarrollo Sostenible; Ministerio de Comercio, Industria y Turismo: Bogotá, Colombia, 2019.
- Unidad de Planeación Minero Energética—UPME. Balance Energético Colombiano—BECO. 2018. Available online: http://www1.upme.gov.co/InformacionCifras/Paginas/BalanceEnergetico.aspx (accessed on 27 July 2021).
- Bhuiyan, A.A.; Karim, M.R.; Naser, J. Chapter 11—Modeling of Solid and Bio-Fuel Combustion Technologies. In Thermofluid Modeling for Energy Efficiency Applications; Khan, M.M.K., Hassan, N.M.S., Eds.; Academic Press: Cambridge, MA, USA, 2016; pp. 259–309. ISBN 978-0-12-802397-6. [Google Scholar]
- Bhuiyan, A.A.; Naser, J. CFD modelling of co-firing of biomass with coal under oxy-fuel combustion in a large scale power plant. Fuel
**2015**, 159, 150–168. [Google Scholar] [CrossRef] - Khodaei, H.; Al-Abdeli, Y.M.; Guzzomi, F.; Yeoh, G.H. An overview of processes and considerations in the modelling of fixed-bed biomass combustion. Energy
**2015**, 88, 946–972. [Google Scholar] [CrossRef] - Szemmelveisz, K.; Szűcs, I.; Palotás, Á.B.; Winkler, L.; Eddings, E.G. Examination of the combustion conditions of herbaceous biomass. Fuel Process. Technol.
**2009**, 90, 839–847. [Google Scholar] [CrossRef] - Yang, Y.B.; Sharifi, V.N.; Swithenbank, J. Effect of air flow rate and fuel moisture on the burning behaviours of biomass and simulated municipal solid wastes in packed beds. Fuel
**2004**, 83, 1553–1562. [Google Scholar] [CrossRef] - Dernbecher, A.; Dieguez-Alonso, A.; Ortwein, A.; Tabet, F. Review on modelling approaches based on computational fluid dynamics for biomass combustion systems. Biomass Conv. Bioref.
**2019**, 9, 129–182. [Google Scholar] [CrossRef] - Campo, Y.C. Estudio de La Composición Química y Las Actividades Antioxidante y Fotoprotectora de Los Extractos de Damiana y Orégano de Monte, Cultivadas en Santander. Doctorado, Universidad Industrial de Santander, Bucaramanga, Colombia, 2020. [Google Scholar]
- Stashenko, E.E.; Martínez, J.R.; Durán, D.C.; Córdoba, Y.; Caballero, D. Estudio comparativo de la composición química y la actividad antioxidante de los aceites esenciales de algunas plantas del género Lippia (Verbenaceae) cultivadas en Colombia. Rev. Acad. Colomb. Cienc. Exactas Físicas Nat.
**2014**, 38, 89–105. [Google Scholar] [CrossRef] [Green Version] - Rajh, B.; Gómez, M.A.; Álvarez-Bermúdez, C.; Cid, N.; Míguez, J.L. Assessment of experimental 1D and analytical 3D steady approaches of packed bed thermal conversion through the simulation of a 60-kW biomass boiler operating at half and full load. Energy Convers. Manag.
**2022**, 268, 116003. [Google Scholar] [CrossRef] - Gómez, M.A.; Martín, R.; Chapela, S.; Porteiro, J. Steady CFD combustion modeling for biomass boilers: An application to the study of the exhaust gas recirculation performance. Energy Convers. Manag.
**2019**, 179, 91–103. [Google Scholar] [CrossRef] - Karim, M.R.; Naser, J. Numerical study of the ignition front propagation of different pelletised biomass in a packed bed furnace. Appl. Therm. Eng.
**2018**, 128, 772–784. [Google Scholar] [CrossRef] - Karim, M.R.; Naser, J. Progress in Numerical Modelling of Packed Bed Biomass Combustion. In Proceedings of the 19th Australasian Fluid Mechanics Conference, Melbourne, Australia, 8–11 December 2014. [Google Scholar]
- García Sánchez, G.; Chacón Velasco, J.; Fuentes Díaz, D.; Jaramillo Ibarra, J.; Martínez Morales, J. CFD modelling of biomass boilers—A review of the state of the art. Respuestas
**2020**, 25, 3. [Google Scholar] [CrossRef] - García Sánchez, G.F.; Chacón Velasco, J.L.; Rueda-Ordoñez, Y.J.; Fuentes Díaz, D.A.; Martínez Morales, J.R. Solid biomass combustion modeling: Bibliometric analysis and literature review of the latest developments in OpenFOAM based simulations. Bioresour. Technol. Rep.
**2021**, 15, 100781. [Google Scholar] [CrossRef] - Rodríguez, M.Á.G. Contribuciones al Desarrollo de un Modelo de Simulación de Combustión de Sólidos. Universidade de Vigo, España. 2014. Available online: https://dialnet.unirioja.es/servlet/tesis?codigo=138954 (accessed on 8 June 2019).
- Buchmayr, M.; Gruber, J.; Hargassner, M.; Hochenauer, C. Spatially resolved chemical species concentrations above the fuel bed of a small grate-fired wood-chip boiler. Biomass Bioenergy
**2016**, 95, 146–156. [Google Scholar] [CrossRef] - Gómez, M.A.; Porteiro, J.; Patiño, D.; Míguez, J.L. CFD modelling of thermal conversion and packed bed compaction in biomass combustion. Fuel
**2014**, 117, 716–732. [Google Scholar] [CrossRef] - Chaney, J.; Hao, L.; Jinxing, L. An overview of CFD modelling of small-scale fixed-bed biomass pellet boilers with preliminary results from a simplified approach—ScienceDirect. Energy Convers. Manag.
**2012**, 63, 149–156. [Google Scholar] [CrossRef] - Towara, M.; Schanen, M.; Naumann, U. MPI-Parallel Discrete Adjoint OpenFOAM. Procedia Comput. Sci.
**2015**, 51, 19–28. [Google Scholar] [CrossRef] [Green Version] - Patiño Vilas, D. Análisis Experimental de Combustión de Biomasa en un Quemador de Lecho Fijo. Universidade de Vigo. 2009. Available online: https://dialnet.unirioja.es/servlet/tesis?codigo=139004 (accessed on 21 February 2022).
- Rueda-Ordóñez, Y.J.R.; Tannous, K.K. Análisis cinético de la descomposición térmica de biomasas aplicando un esquema de reacciones paralelas independientes. Rev. UIS Ing.
**2017**, 16, 119–128. [Google Scholar] [CrossRef] [Green Version] - Sheng, C.; Azevedo, J.L.T. Estimating the higher heating value of biomass fuels from basic analysis data. Biomass Bioenergy
**2005**, 28, 499–507. [Google Scholar] [CrossRef] - García Fernández, R. Modelización Cinética y Optimización de Parámetros de Combustión en Calderas de Biomasa. Ph.D. Thesis, Universidad de Oviedo, Oviedo, Spain, 2014. Available online: http://digibuo.uniovi.es/dspace/handle/10651/28947 (accessed on 8 June 2019).
- Dunn, C. Computational Modeling of Coal Devolatilization and Soot Formation in OpenFoam. Master’s Thesis, University of Wyoming, Laramie, WY, USA, 2018. [Google Scholar]
- Van Kuijk, H.A.J.A. Grate Furnace Combustion: A Model for the Solid Fuel Layer. Ph.D. Thesis, Technische Universiteit Eindhoven, Eindhoven, The Netherlands, 2008. [Google Scholar] [CrossRef]
- Haller, J.; Hartmann, I.; König, M.; Ortwein, A. Basic Studies on the Development of Micro Combustion Systems for Biomass. In Proceedings of the European Combustion Meeting, Lund, Sweden, 25–28 June 2013; Available online: https://www.researchgate.net/publication/256715286 (accessed on 13 March 2023).
- Ranz, W.E.; Marshall, W.R. Evaporation from drops: Part I. Chem. Eng. Prog.
**1952**, 48, 141–146. [Google Scholar] - Ranz, W.E.; Marshall, W.R. Evaporation from drops: Part II. Chem. Eng. Prog.
**1952**, 48, 173–180. [Google Scholar] - Nordin, P.A.N. Complex Chemistry Modeling of Diesel Spray Combustion. 2001. Available online: https://research.chalmers.se/en/publication/724 (accessed on 3 December 2019).
- Cordiner, S.; Mulone, V.; Manni, A.; Rocco, V. Biomass furnace study via 3D numerical modeling. Int. J. Numer. Methods Heat Fluid Flow
**2016**, 26, 515–533. [Google Scholar] [CrossRef] - Collazo, J.; Porteiro, J.; Patiño, D.; Granada, E. Numerical modeling of the combustion of densified wood under fixed-bed conditions. Fuel
**2012**, 93, 149–159. [Google Scholar] [CrossRef]

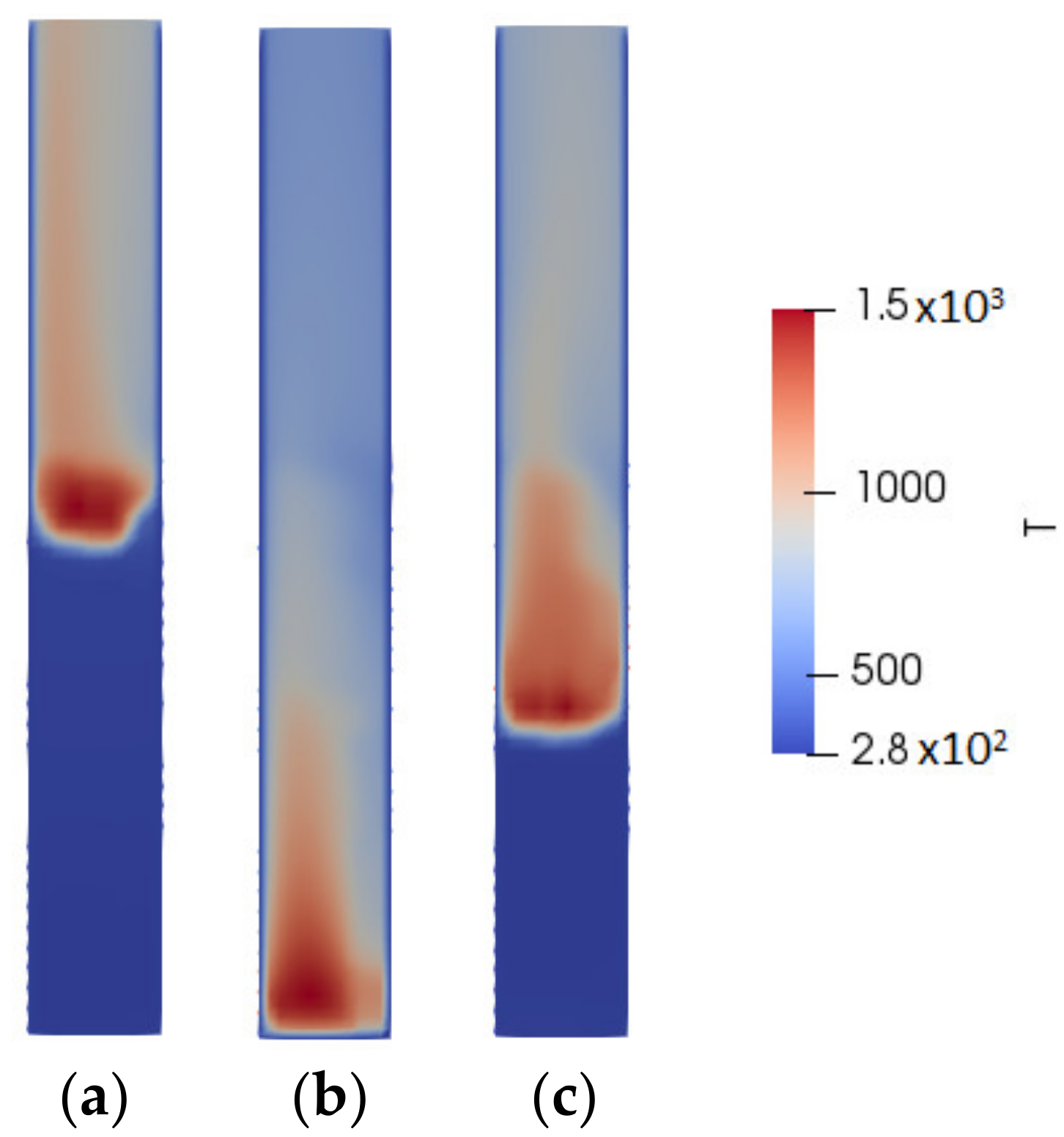

**Figure 3.**Temperature profiles for wood pellets (wp) at an airflow rate of 0.2 kg.m

^{−2}s

^{−1}, at three different moments: (

**a**) 1000 s; (

**b**) 3500 s and (

**c**) 7000 s. Temperatures are measured on the Kelvin scale.

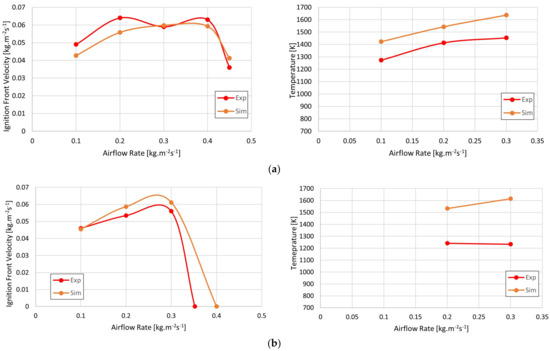

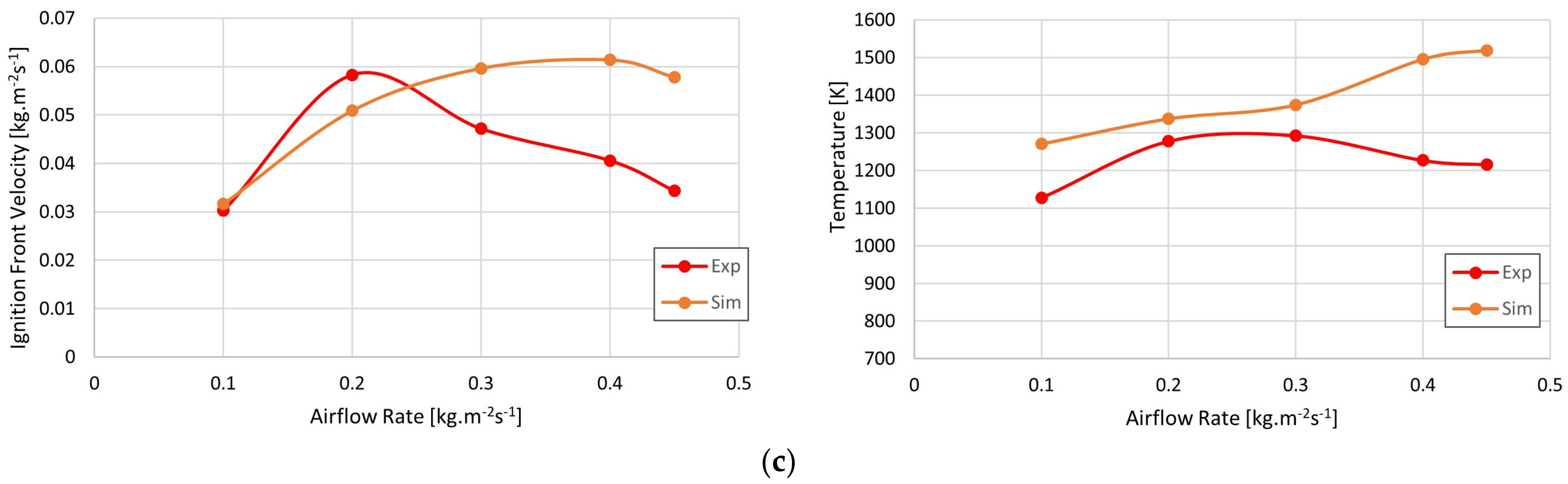

**Figure 4.**Experimental and simulated curves of ignition front velocity and maximum temperature at different airflow rates: (

**a**) wood pellets (wp); (

**b**) olive stone (os) and (

**c**) almond shell (as).

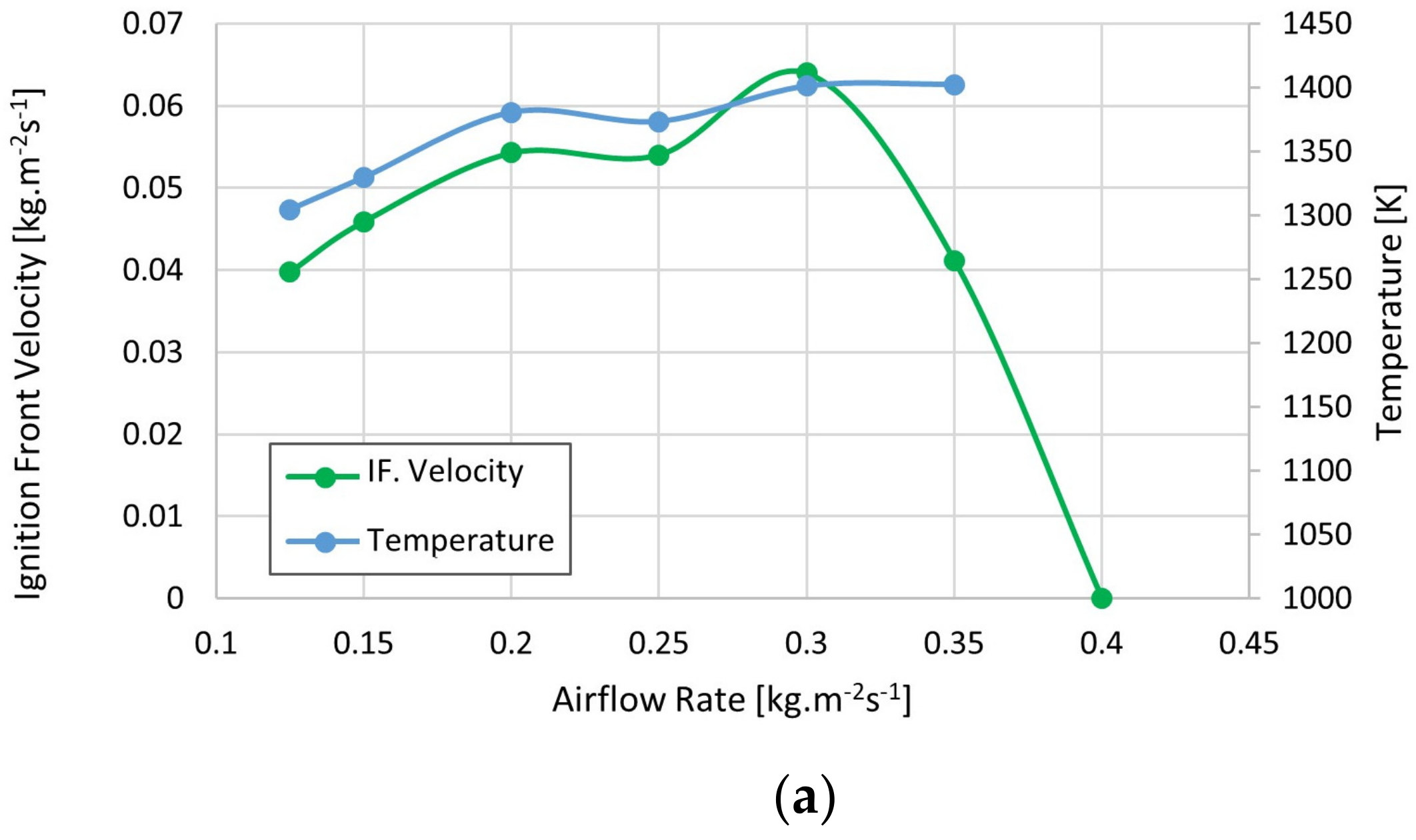

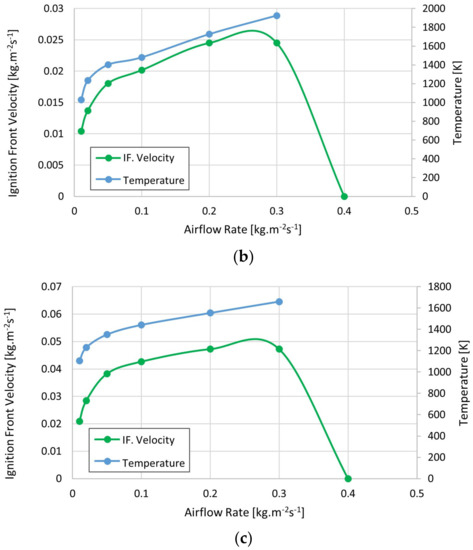

**Figure 5.**Ignition front velocity and maximum temperature at different airflow rates for Lippia origanoides bagasse samples: (

**a**) stems (S); (

**b**) leaves (L) and (

**c**) mixture of stems and leaves (M).

Fuel | Empirical Formula | Proximate Analysis [wt%] | LHV [MJ/kg] | ρ_{p} [kg/m^{3}] | ρ_{a} [kg/m^{3}] | |||
---|---|---|---|---|---|---|---|---|

Water | Volat. | Char | Ash | |||||

Wood pellets (wp) | CH_{1.71}O_{0.70} | 7.3 | 69.0 | 23.0 | 0.7 | 16.6 | 1240 | 690 |

Olive stone (os) | CH_{1.50}O_{0.64} | 13 | 61.3 | 25.1 | 0.6 | 15.3 | 1070 | 620 |

Almond shell (as) | CH_{1.40}O_{0.68} | 11.9 | 64.1 | 23.4 | 0.6 | 15.6 | 920 | 360 |

LO leaves (L) | CH_{1.48}O_{0.92} | 9.5 | 66.4 | 14.8 | 9.4 | 14.5 | 120.9 | 23.1 |

LO stems (S) | CH_{1.32}O_{0.75} | 9.3 | 68.7 | 17.1 | 5.0 | 15.6 | 594.2 | 308.8 |

LO mixture (M) | CH_{1.39}O_{0.83} | 9.9 | 67.4 | 16.4 | 6.3 | 15.1 | 371.8 | 174.5 |

Homogeneous Reactions | |
---|---|

R1 | ${\mathrm{C}}_{6}{\mathrm{H}}_{6}+\frac{9}{2}{\mathrm{O}}_{2}\to 6\mathrm{C}\mathrm{O}+3{\mathrm{H}}_{2}\mathrm{O}$ |

R2 | $\mathrm{C}{\mathrm{H}}_{4}+\frac{3}{2}{\mathrm{O}}_{2}\to \mathrm{C}\mathrm{O}+2{\mathrm{H}}_{2}\mathrm{O}$ |

R3 | ${\mathrm{H}}_{2}+\frac{1}{2}{\mathrm{O}}_{2}\to {\mathrm{H}}_{2}\mathrm{O}$ |

R4 | $\mathrm{C}\mathrm{O}+\frac{1}{2}{\mathrm{O}}_{2}\to {\mathrm{C}\mathrm{O}}_{2}$ |

R5 | ${\mathrm{H}}_{2}\mathrm{O}+\mathrm{C}\mathrm{O}\to {\mathrm{C}\mathrm{O}}_{2}+{\mathrm{H}}_{2}$ |

R6 | ${\mathrm{C}\mathrm{O}}_{2}+{\mathrm{H}}_{2}\to {\mathrm{H}}_{2}\mathrm{O}+\mathrm{C}\mathrm{O}$ |

**Table 3.**Relative error (%E) of values of simulated ignition front velocity (F. Velocity) and maximum temperature (Tmax).

Airflow [kg/m ^{2}s] | wp | os | as | |||
---|---|---|---|---|---|---|

F. Velocity | Tmax. | F. Velocity | Tmax. | F. Velocity | Tmax. | |

0.1 | 12.69 | 11.77 | 1.16 | - | 4.43 | 12.71 |

0.2 | 12.80 | 9.19 | 9.74 | 23.48 | 12.62 | 4.64 |

0.3 | 1.29 | 12.62 | 9.21 | 30.97 | 26.46 | 6.32 |

0.4 | 5.88 | - | - | - | 51.19 | 21.86 |

0.45 | 14.54 | - | - | - | - | - |
