A Selective Solar Absorber for Unconcentrated Solar Thermal Panels

Abstract

A new Selective Solar Absorber, designed to improve the Sun-to-thermal conversion efficiency at mid temperatures in high vacuum flat thermal collectors, is presented. Efficiency has been evaluated by using analytical formulas and a numerical thermal model. Both results have been experimentally validated using a commercial absorber in a custom experimental set-up. The optimization procedure aimed at obtaining Selective Solar Absorber is presented and discussed in the case of a metal dielectric multilayer based on Cr₂O₃ and Ti. The importance of adopting a real spectral emissivity curve to estimate high thermal efficiency at high temperatures in a selective solar absorber is outlined. Optimized absorber multilayers can be 10% more efficient than the commercial alternative at 250 $°$C operating temperatures, reaching 400 $°$C stagnation temperature without Sun concentration confirming that high vacuum flat thermal collectors can give important contribution to the energy transition from fossil fuels to renewable energy for efficient heat production.

1. Introduction

Solar energy plays a key role in the energy transition from fossil fuels to renewable energy [1]: several works showed that the adoption of energy-efficient and clean energy resources is crucial in reducing greenhouse gas emissions and pollution [2,3]. More than one fourth of the energy resources in the developed countries is nowadays used for heating and cooling [4,5], and industry represents a promising area of application [6]. Such a large fraction of energy can be provided by solar thermal collectors converting solar energy directly into heat with high efficiency. The core component of a solar thermal collector is the Selective Solar Absorber (SSA). An ideal SSA should perfectly absorb solar radiation (solar absorptance $\alpha$ = 1), whereas its thermal emission should be minimal (thermal emittance $\epsilon$ = 0). However, the Kirchhoff’s law of thermal radiation (Equation (1)) states that, for a given surface, in thermodynamic equilibrium, absorptivity and emissivity must be equal [7]

$${\alpha }_{\lambda }\left(\lambda \right)={\epsilon }_{\lambda }\left(\lambda \right).$$

(1)

Moreover, in samples with zero transmissivity the energy conservation implies that the reflectivity is the complement of absorptivity, as in the following Equation (2)

$${\alpha }_{\lambda }\left(\lambda \right)={\epsilon }_{\lambda }\left(\lambda \right)=1-{\rho }_{\lambda }\left(\lambda \right).$$

(2)

The Kirchhoff’s law has been demonstrated to be valid on several surfaces and solar absorbers, including layered black metals [8,9]. Solar absorptance and temperature dependent thermal emittance (also referred as spectrally averaged absorptivity and spectrally averaged emissivity) are then calculated from the spectral emissivity curves as in the following Equations (3) and (4):

$${\alpha }_S=\frac{{\int }_{{}_{0.3 \mathsf{\mu }\mathrm{m}}}^{{}^{2.5 \mathsf{\mu }\mathrm{m}}}\alpha \left(\lambda \right)·S_{Sun}\left(\lambda \right)d\lambda }{{\int }_{{}_{0.3 \mathsf{\mu }\mathrm{m}}}^{{}^{2.5 \mathsf{\mu }\mathrm{m}}}{S}_{Sun}\left(\lambda \right)d\lambda },$$

(3)

$$\epsilon \left(T\right)=\frac{\int \epsilon \left(\lambda \right)·E_{bb}(\lambda ,T)d\lambda }{\int E_{bb}(\lambda ,T)d\lambda },$$

(4)

with $S_{Sun}$ and $E_{bb}$ being the solar spectral irradiance and the blackbody radiation, respectively. The integral is calculated in the wavelength regions where $S_{Sun}$ ($\lambda$) and $E_{bb}$ ($\lambda$,T) are different from zero.

As consequence, the ideal SSA spectral emissivity is assumed to be a step function which flips from 1 to 0 [10] and the wavelength at which the transition happens is commonly named cut-off wavelength (${\lambda }_{cut-off}$) [7,11]. The formal definition of ${\lambda }_{cut-off}$ leads to energetic considerations: it is the wavelength that maximizes the absorber thermal performance and it depends on the working temperature and on the solar incoming power (i.e., solar concentration ratio) [12]. It was generally verified that ${\lambda }_{cut-off}$ is the wavelength at which the blackbody emission curve crosses the solar radiation spectrum [11,13].

At low temperature, blackbody emission and solar spectrum barely overlap, and the optimization of the SSA limits the maximization of the solar absorption, since the demanded emissivity transition (from high absorptance in solar range and low thermal emittance in black body emission spectrum) is easily reached in a wide wavelengths range. When the operating temperature increases over 200 $°$C, the blackbody emission starts to overlap the solar spectrum and the sharpness of the transition assumes a greater importance.

The SSA idea was introduced at the end of 1950, and thenceforward several works have been devoted to SSA optimization [10,14]. To realize an SSA with an emissivity curve close to the ideal one, different designs have been analyzed by several authors in the past years [15,16]: nanomultilayer [17], ceramic and metal structures (known as cermet) [13], multilayers [18,19,20], photonic designs [21], structured graphene metamaterial [22], multi-layered cermets [12]. However, a very sharp transition was never obtained and recently Yang et al. [23] studied the effect of non-ideal SSA properties on the overall performances in a Concentrated Solar Power (CSP) system: their simulated SSA has a finite constant slope in the cut-off transition (instead of the ideal step function) and a not ideal SSA emissivity. Dealing with a real SSA, the relative importance of solar absorptance and thermal emittance to calculate the absorber efficiency has to be taken into account. Cao [13] introduced a Weighting Factor, (w), that indicates the relative weight of $\alpha$ and $\epsilon$(T) in the efficiency of a solar absorber. In Figure 1a w is reported as a function of the absorber temperature and solar concentration.

All the previous selective absorbers, in literature as in commerce, were optimized for concentrated collectors or flat plate collectors without vacuum insulation: in this conditions $w<1$ and hence $\alpha$ weights more than $\epsilon$(T). The only exception is [24], which obtained a stagnation temperature of about 230 $°$C under vacuum that could be increased to about 300 $°$C with further optimization.

The importance of vacuum insulation in a solar thermal panel has already been highlighted [25]; however, only recently TVP Solar [26] presented a new High Vacuum insulated Flat plate solar thermal Panel (HVFP) [27]. High vacuum insulation reduces the internal gas convective and conductive losses to a negligible level, keeping high conversion efficiency at high working temperature. In this case the thermal radiation is the main loss mechanism and the radiative properties of SSA are an aspect of primary importance. It is worth noting that thermal emittance gains weight over the absorptance as the working temperature increases (green arrow in Figure 1a) and that HVFPs represent the only commercial product with $w>1$. Several absorbers are commercially available, such as Mirotherm and Sunselect from Alanod [28], and several types of Tinox from Almeco [29]. They are based on cermet structures with lower and higher metal content to enhance the absorptance [13]. When tested in unconcentrated solar panels under high vacuum they do not differ in a significant way from each other with a stagnation temperature of about 310 $°$C [30]. Currently HVFPs include the absorber Mirotherm^® from Alanod, a commercial SSA optimized for low working temperatures (up to about 150 $°$C). It results in excellent performance up to 180 $°$C, but at higher temperatures the low selectivity of the absorber increases the thermal radiation losses, affecting the panel efficiency and limiting the stagnation temperature at about 320 $°$C with an illumination of 1000 W/m${}^2$. The increased panel efficiency due to high vacuum has been studied also from other researchers [31] and the superior performance up to 250 $°$C have been predicted [32], if an optimized SSA was mounted in HVFP. However, the authors did not give any indication on how to produce such optimized SSA.

In this work, a new absorber coating optimized to work at mid temperature in a high-vacuum system without concentration was developed. Multilayer absorbers were chosen, since they allow us to control thermal emission while guaranteeing high solar absorption and excellent thermal stability [33]. The new SSA is based on Cr₂O₃/Ti/Cr₂O₃ trilayer. The Cr₂O₃/Cr structure has been already deeply studied in form of cermet and it also used in some commercial absorber such as Mirotherm. The multilayer Cr₂O₃/Cr/Cr₂O₃ deposited by e-beam has also been studied: it presents quite good optical properties [18] and good thermal stability [34]. The chromium metallic layer has been replaced with titanium with the aim to improve the limited solar absorptance reported in previous works [18,34].

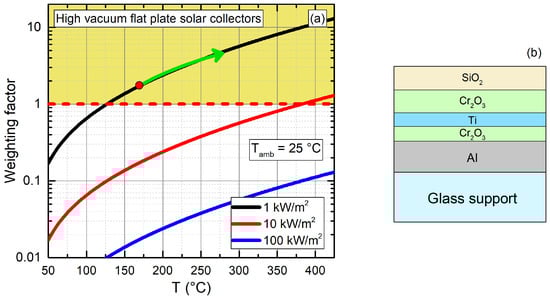

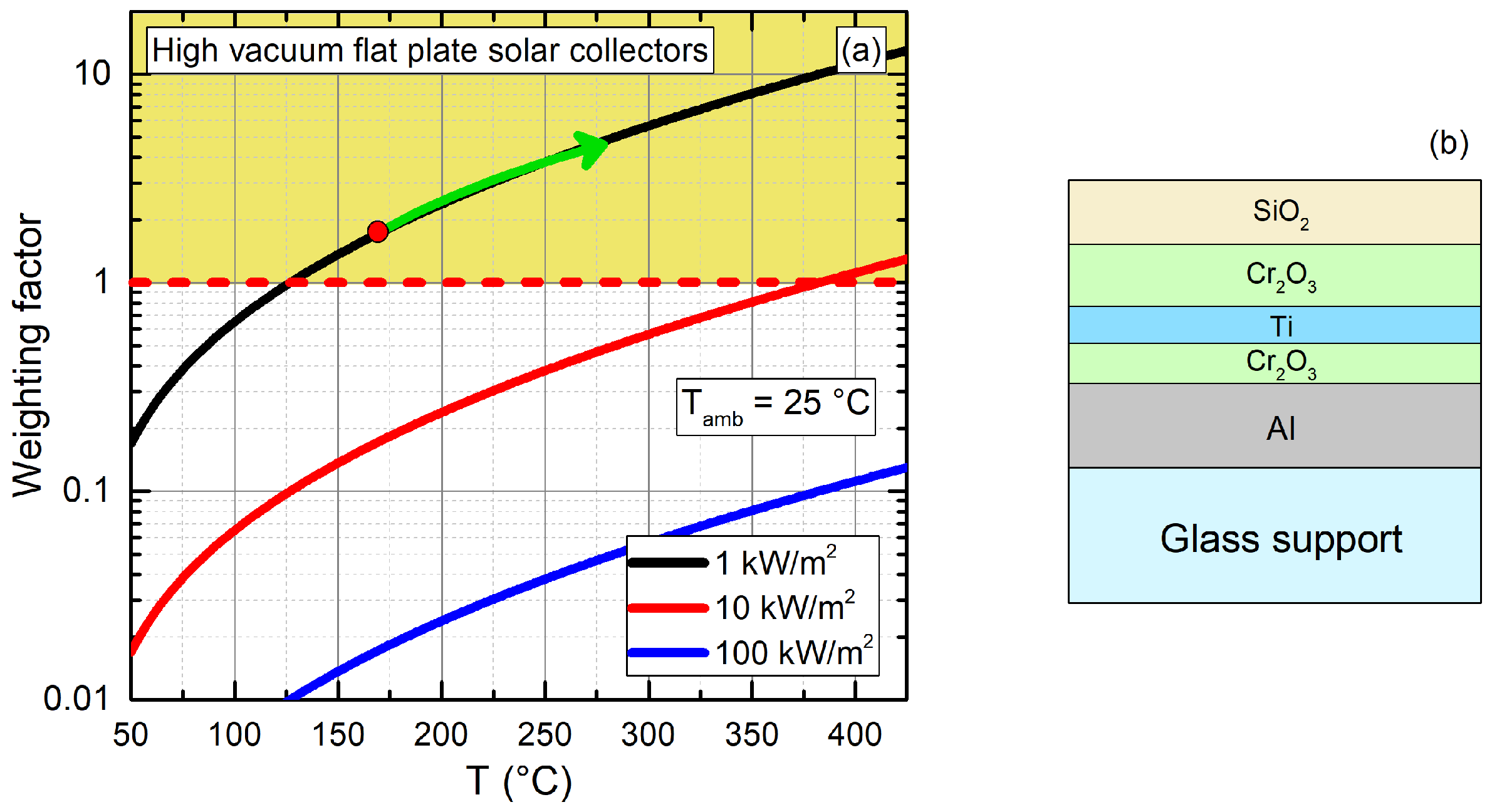

A single SiO₂ layer is used as antireflective coating to improve absorptance; a sketch of absorber structure is reported in Figure 1b. The simulated spectral emissivity curves are used to evaluate the temperature dependent thermal emittance which in turn allows us to evaluate the radiative losses and the SSA efficiency. The efficiency of the new absorber is discussed in comparison with the efficiency of commercially available absorber currently used in HVFPs. The optimized absorber has been deposited by e-beam on aluminum on glass substrate and the results are reported.

2. Materials and Methods

Multilayer SSAs consist of stacks of alternating dielectric layers (high absorptance in the visible range, transparent in the Infrared region) and metal absorption layers (thin enough to allow for partial transparency). Absorption is guaranteed by multiple reflections at interfaces, while thermal emittance is mainly due to the low-emissive metal substrate (IR reflector) [19,33,35]. In this study a tri-layered structure has been investigated. A Titanium absorbing layer is sandwiched between two Chromium Oxide (Cr₂O₃) dielectric layers on an aluminum substrate acting as IR reflector. Al₂O₃ natural passivation layer of the Al substrate has been included in the numerical simulations model. The multilayer structure is completed by an antireflective coating (ARC) based on SiO₂ to further enhance solar absorption.

The complex refractive index of the materials used to simulate the solar selective absorber have been experimentally determined. The materials were deposited by e-beam evaporation on an aluminum film on glass substrate and their complex refractive index were experimentally estimated by ellipsometry measurement [36].

2.1. Samples Preparation

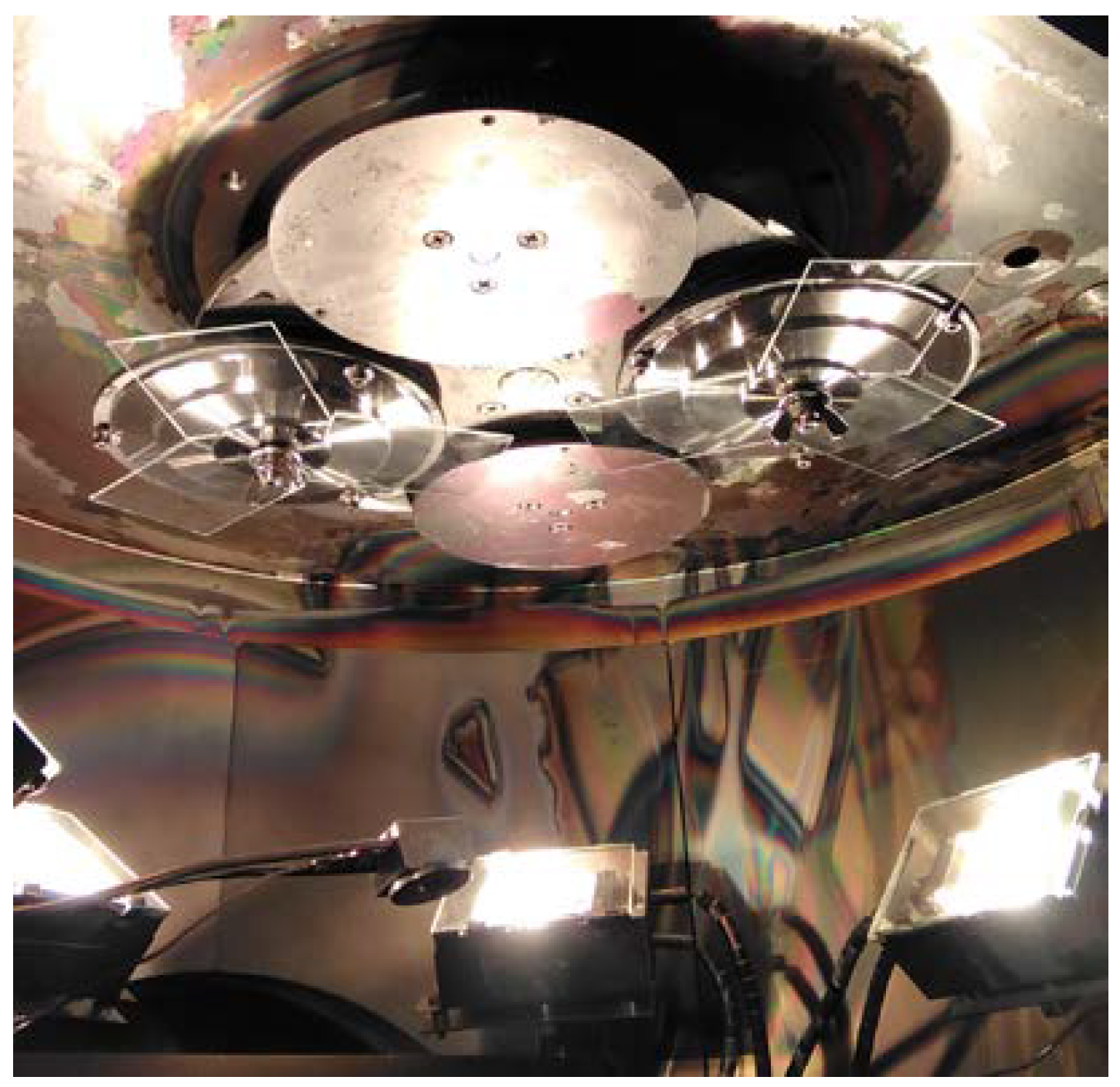

The materials composing the multilayer solar absorber coatings were deposited on smooth glass substrates (roughness 1 nm) using e-beam evaporation physical deposition technique. The glass slides (TED Pella inc. #260230 made from optical grade soda lime glass) were cut in pieces of 25 mm × 50 m and cleaned using soapy water and ultrasonic washing in acetone and isopropanol baths. Substrates temperature was monitored during the deposition process and it never exceeded 80 $°$C. The e-beam system used is equipped with a rotating planetary that guarantees the samples thickness uniformity and the deposition of several substrates in the same conditions (see Figure 2).

The evaporating materials are Al, (Cr₂O₃) and Ti pellets with a purity of 99.999%. Prior to depositions, the vacuum chamber was pumped down to a base pressure of ${10}^{-5}$ Pa and the materials were slowly outgassed to remove unwanted trapped gases (impurities).

The deposition was controlled by a thickness monitor (Inficon model XTC/3) based on an exposed oscillating quartz crystal whose frequency decreases as material accumulates. The tooling factor of the thickness monitor was calibrated depositing a thicker layer (about 500 nm) that was measured using a profilometer (KLA Tencor P-15). The step to be measured was obtained by lift-off procedure in acetone, using standard photolitographic technique.

Evaporation rates were set on 0.2 nm/s for Al and Ti layers and on 0.1 nm/s for Cr₂O₃ layer. The thickness monitor controls the e-beam current, to keep the evaporation rate constant, as well as a shutter that stops the deposition once the desired thickness has been deposited. A careful calibration allowed us to obtain a thickness control in the order of 1 nm. To facilitate optical studies all coatings have been deposited an aluminum coated glass substrates that have been exposed to air in order to obtain a reproducible Al₂O₃ natural passivation layer similar to that of the commercial aluminum rolls. The final SiO₂ anti-reflective layer was deposited by RF magnetron sputtering from a four inches high purity (99.995%) SiO₂ target. The deposition was performed at 200 W in a pure argon atmosphere (Ar pressure 2.5 ×${10}^{-1}$ Pa) and deposition rate was 0.11 nm/s, determined using the same procedure described before.

2.2. Samples Characterization

Aluminum film thickness has been chosen to be optical opaque and fixed to 250 nm for all produced samples. The Cr₂O₃ layer thicknesses have been varied from 5 nm up to 200 nm to study the possible influence of layer thickness on the optical properties. The film thickness was measured using a profilometer (KLA Tencor P-15) with scan repeatability 0.8 nm or 0.1% of step height, whichever is greater, and the reproducibility is 1.5 nm or 0.25% of step height, whichever is greater. The measured heights were then confirmed by ellipsometric analysis. The refractive index of the coatings were investigated using a phase modulated spectroscopic ellipsometer (UVISEL by Jobin Yvon Horiba). The ellipsometer is equipped with a xenon lamp and two detectors: it can analyze the optical response in the wavelength range from 190 nm to 2100 nm. In the optical model the dispersion of the Cr₂O₃ the Forouhi-Bloomer formulation [37] was verified to reproduce our data very well, while Titanium was well described by a classical Drude dispersion model. For Aluminum, Al₂O₃ and SiO₂ layers literature data have been used [38,39,40] since from optical analysis they proved to fit well experimental data. Figure 3a,b reports the refractive index obtained by the characterization procedure and used in the numerical simulation of the multilayer solar absorber coating. The reported refractive index was able to fit Cr₂O₃ layer from 15 nm up to 200 nm and was obtained fitting 6 different samples. The use of glass substrates allows us to obtain very smooth surfaces and, as consequence, the optical response can be fitted without including any surface roughness. The refractive index data outside the explored wavelength range were extrapolated using the theoretical model [36].

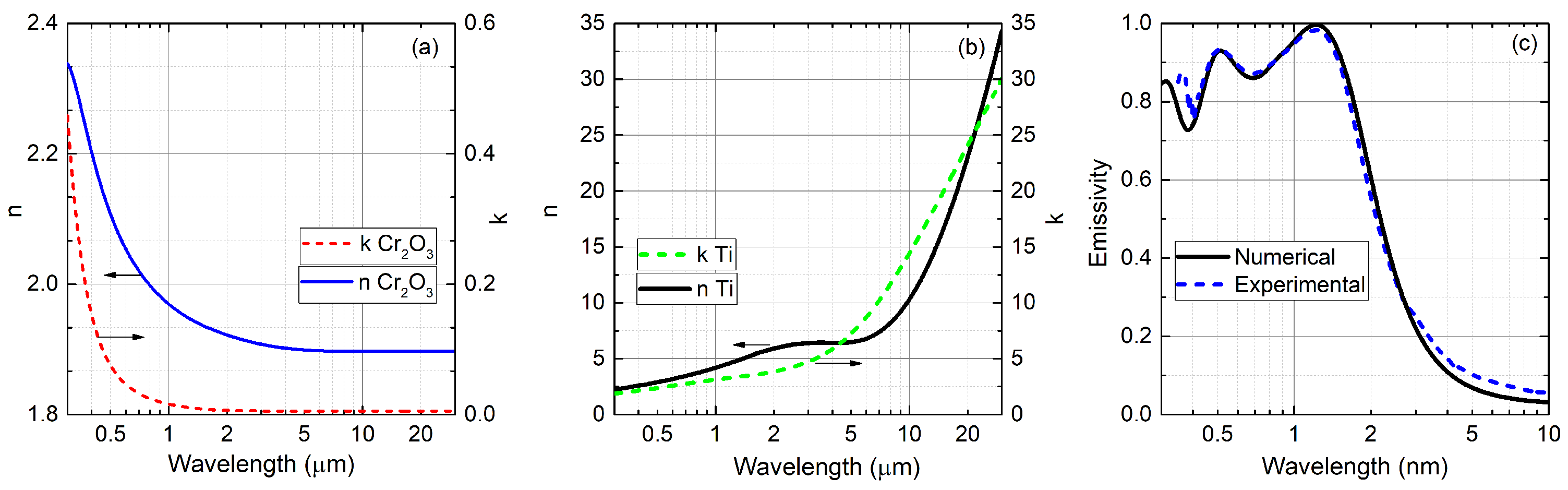

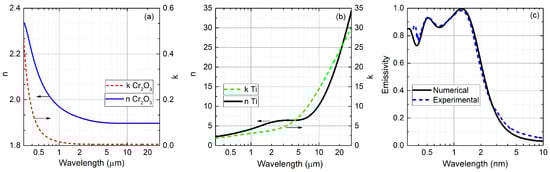

Before proceeding with the multilayer optimization, it has been verified that the measured refractive indices and the numerical simulation program provide the correct multilayer optical response. Numerical simulations have been performed using IMD software [41], which allows us to estimate the optical response of a multi-layer structure. A multilayer with the following layer thicknesses: $70/10/70$ nm has been first simulated and then deposited on aluminum on glass substrate by e-beam evaporation (the ARC layer was not deposited in this case). In Figure 3c are reported the numerical simulation and the experimental measurements showing the good agreement. The experimental optical response of the produced multilayer has been measured from 300 nm to 10 μm. To cover the whole spectral range we used an Optical Spectrum Analyzer (OSA) (300 nm up to 1700 nm) and a Fourier-Transform InfraRed (FTIR) spectroscopy (from 1200 nm up to 10 μm). The almost perfect agreement in the overlapping region confirms the measurement quality as well as the simulation and deposition accuracy.

2.3. Optimization Procedure

A genetic algorithm is used to adjust layer thicknesses, including the ARC layer, in order to fit a target curve. The genetic algorithm creates a starting population of individuals (in our case multilayers with different layer thicknesses) and a Figure of Merit (FOM) is determined; only individuals with best FOM will be retained. FOM function is defined as follows in Equation (5):

$$FOM=\frac{{\sum }_{i=1}^{N_{mo}}w\left[i\right]·{\left|Y\left[i\right]-Y_{mo}\left[i\right]\right|}^n}{{\sum }_{i=1}^{N_{mo}}w\left[i\right]}$$

(5)

where w[i] is the weighting factor for the ith point, Y[i] is the value of the function being optimized for the ith point, $Y_{mo}\left[i\right]$ is the value of the target function for the ith point. $\Delta \left(FOM\right)/FOM<\zeta$ (with $\zeta$ the convergence tolerance value) determines the convergence of the algorithm. $\Delta \left(FOM\right)=<FOM>-FOM$ and the quantity $<FOM>$ corresponds to the average of $FOM$ over the previous X generations of individuals. The exponent n has been set equal to 2.

The spectral emissivity curve of an ideal selective solar absorber with a temperature dependent ${\lambda }_{cut-off}$ defined as in [13] was used as a target function ($Y_{mo}$). Y functions, representing individuals spectral emissivity curves, are calculated by optical simulations once multi-layer materials thicknesses and the ARC layer thickness are fixed.

2.4. The Mini-Test-Box Set-Up

The Mini-Test-Box (MTB) is a custom experimental apparatus used to measure the absorptance and thermal emittance of SSA in operating conditions. It consists of a stainless steel high-vacuum chamber, closed by an extra-clear float glass, which can host a flat absorber suspended by four springs of negligible thermal conductivity. A detailed description of the measurement can be found in [42,43]. The behaviour of an absorber mounted in the MTB has been numerically simulated using Comsol Multiphysics [44]. In present work the experimental data were obtained illuminating the absorber with different light power using a calibrated LED illumination system described in [45] and recording the absorber stagnation temperature. In such configuration the power losses are equal to absorbed power $\epsilon \left(T_{AS}\right)·{\sigma }_{SB}(T_{AS}^4-T_{amb}^4)+{\epsilon }_{Sub}·{\sigma }_{SB}(T_{AS}^4-T_{amb}^4)={\tau }_{Glass}{\alpha }_{LED}{P}_{LED}\left(T_{AS}\right)$, where ${\alpha }_{LED}$ is the absorptance $\alpha$ evaluated as in Equation (3), where the solar spectrum is replaced by the spectrum of the LED lump used to illuminate the absorber [41], $P_{LED}\left(T_{AS}\right)$ is the light power provided by the calibrated LED system and $T_{AS}$ is the absorber stagnation temperature at the given LED power. As consequence, at $T=T_{AS}$ the efficiency can be calculated, as reported below in Equation (6):

$$\eta \left(T\right)={\tau }_{Glass}·{\alpha }_S-\frac{{\tau }_{glass}·{\alpha }_{LED}·P_{LED}\left(T_{AS}\right)}{H_{abs}}$$

(6)

where $H_{abs}$ is Sun irradiated power set to 1000 Wm${}^{-2}$, ${\tau }_{glass}$ = 0.91, ${\alpha }_S$ = 0.95 in the case of Mirotherm.

3. Results and Discussion

The optimization procedure described in Section 2.3 has been repeated for four working temperature from 200 $°$C up to 350 $°$C, corresponding to different optimal ${\lambda }_{cut-off}$.

Table 1. Optimization temperature, ${\lambda }_{cut-off}$ for desired operating temperature, layer thickness obtained from the optimization process, solar absorptance ${\alpha }_S$ and thermal emittance $\epsilon \left(T\right)$ at 200 $°$C, 250 $°$C, 300 $°$C and 350 $°$C calculated from Equations (3) and 4, for 5 multilayer absorbers. Sample E was designed to have a ${\lambda }_{cut-off}$ = 1.50 μm. In the last column the absorptance and emittance values of Mirotherm are reported [28].

Sample	A	B	C	D	E	Mirotherm
Optimization Temperature ($°$C)	200	250	300	350	-	-
${\lambda }_{cut-off}$ [13] (m)	2.47	2.37	2.19	1.79	1.50	≈2.5
Top dielectric layer thickness (nm)	110	98	81	59	46	-
Metal layer thickness (nm)	16	16	15	13	12	-
Bottom dielectric layer thickness (nm)	42	38	32	25	20	-
SiO2 Anti-Reflective Coating (nm)	70	67	63	60	52	-
Solar absorptance ${\alpha }_S$	0.91	0.91	0.91	0.89	0.86	0.95
Thermal Emittance $\epsilon$ (200 $°$C)	0.056	0.050	0.041	0.031	0.026	0.058
Thermal Emittance $\epsilon$ (250 $°$C)	0.067	0.060	0.048	0.035	0.029	0.067
Thermal Emittance $\epsilon$ (300 $°$C)	0.080	0.071	0.057	0.041	0.034	0.076
Thermal Emittance $\epsilon$ (350 $°$C)	0.094	0.083	0.066	0.047	0.038	0.087

sums up the values of ${\lambda }_{cut-off}$, layer thicknesses, solar absorptance ${\alpha }_S$, and thermal emittance $\epsilon \left(T\right)$ for each selective coating, as resulting from the optimization procedure. In the Table 1 are also reported Mirotherm solar absorptance and thermal emittance. Reported values have been obtained measuring the emissivity curve as described in Section 2.2 and they are in agreement with values declared from the producer [28].

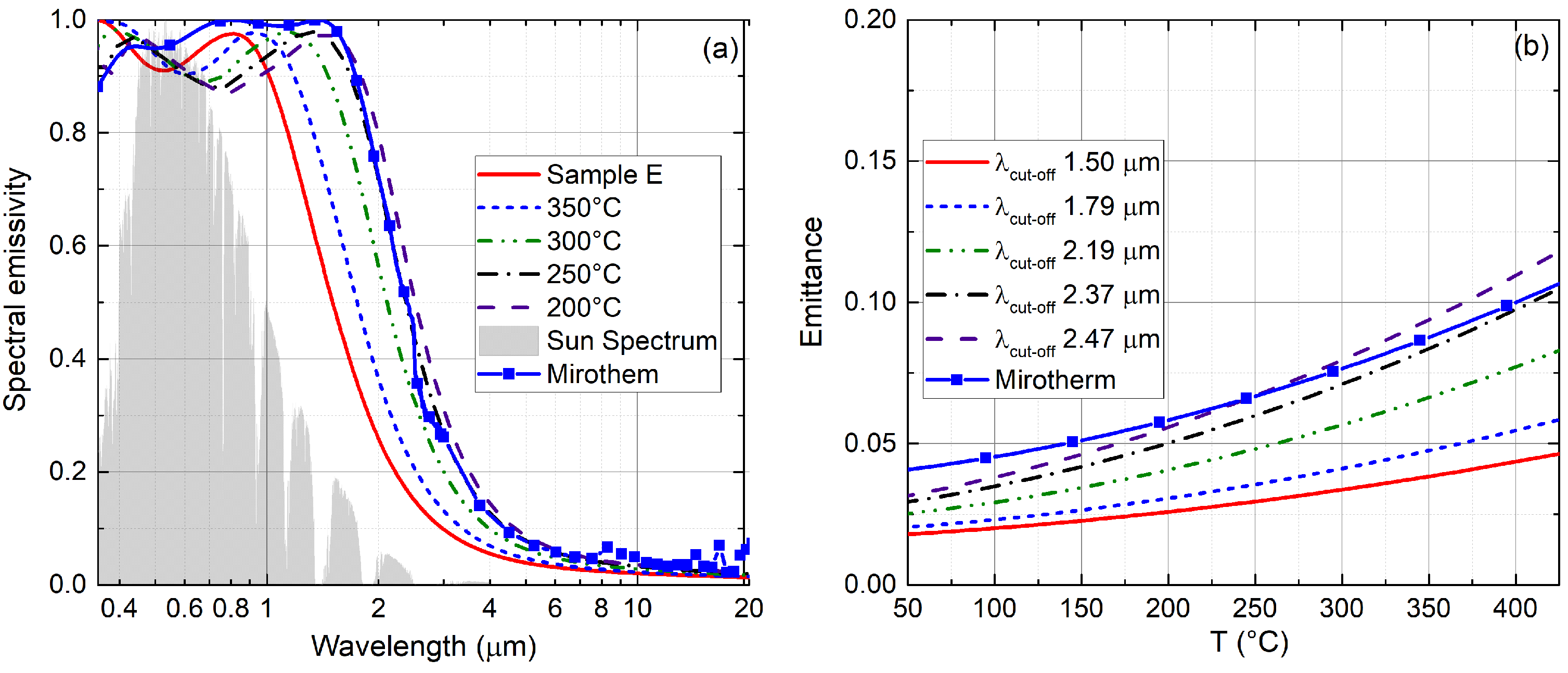

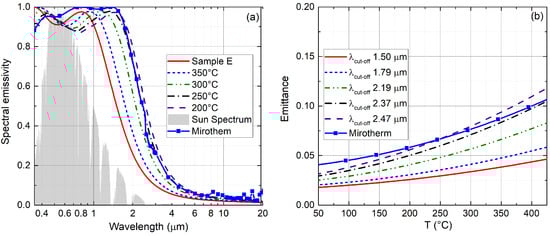

Figure 4a shows the spectral emissivity curve of the four optimized multi-layer absorbers and the emissivity curve resulting from the optimization process obtained for ${\lambda }_{cut-off}$ = 1.5 μm. The results are compared with the Mirotherm commercial absorber (blue line with square markers in Figure 4) and they show that the SSA ${\lambda }_{cut-off}$ can be adjusted by varying the layer thicknesses, preserving a high solar absorption and a low thermal emission.

In Figure 4b, the temperature dependent thermal emittance of multi-layers, calculated according to Equation (4), is compared with the commercial coating currently used in high-vacuum solar collectors (blue line with dots). Multi-layers with lower ${\lambda }_{cut-off}$ can reduce the thermal emittance and its temperature dependence, resulting in a more than 50% emittance reduction at all temperature values.

The SSA efficiency can be written as following:

$${\eta }_{coat}=\frac{q_h}{H_{abs}}={\alpha }_S-\frac{\epsilon \left(T\right)·{\sigma }_{SB}(T^4-T_{amb}^4)}{H_{abs}}$$

(7)

where ${\eta }_{coat}$ is the coating efficiency, ${\alpha }_S$ the solar absorptance, $\epsilon \left(T\right)$ the temperature dependent thermal emittance, $q_h$ the heat flux to the thermal system (Wm${}^{-2}$), T the absorber temperature (K), $T_{amb}$ the environmental temperature (K), and ${\sigma }_{SB}$ the Stefan-Boltzmann constant (Wm${}^{-2}$K${}^{-4}$).

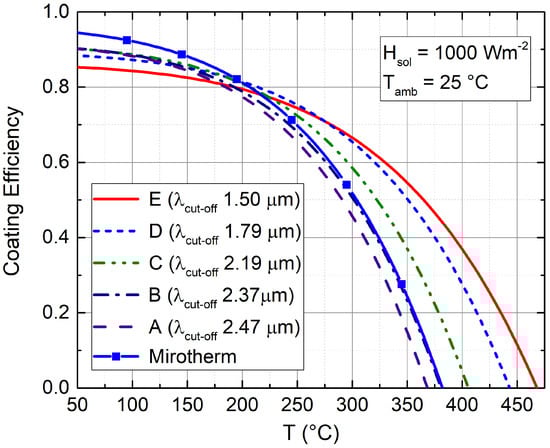

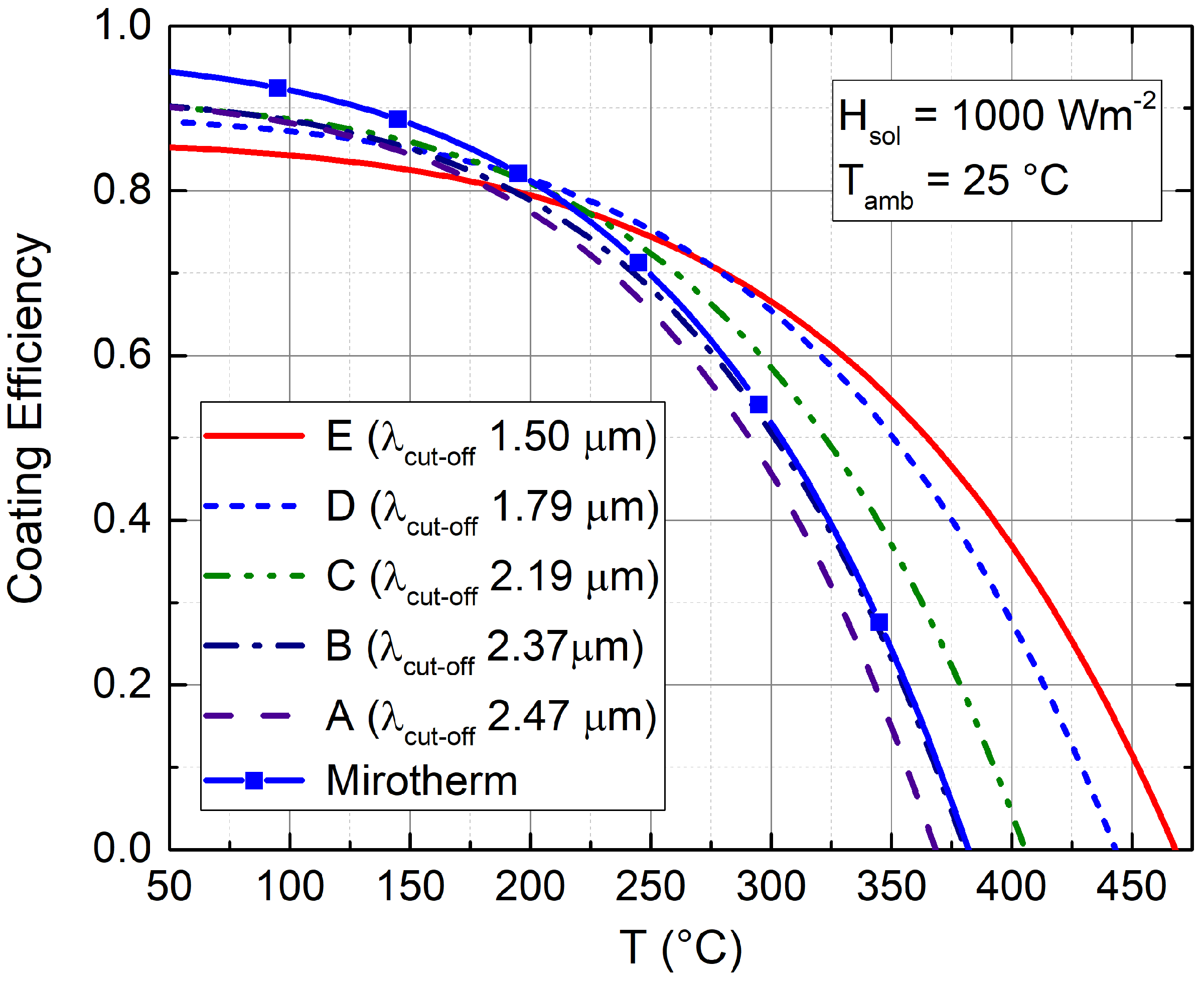

The SSA efficiency for the simulated multilayers and the commercial absorber, calculated from Equation (7), is plotted in Figure 5. The graph shows how temperature dependent thermal emittance shapes the selective absorber performance curves. Mirotherm^® commercial absorber is optimized for standard flat-plate solar collectors: it shows the highest efficiency for lower values of operating temperature because of its higher solar absorption coefficient and a relatively low thermal emittance (see Figure 4b). Multilayers A and B are good options for mid temperature applications: although these two coatings have a lower solar absorptance ${\alpha }_S$ with respect to the commercial absorber, the improvement in thermal emittance (Figure 4b, Table 1) results comparable performances for high working temperatures. Multilayer C and D offer the highest stagnation temperatures thanks to the lowest thermal emittance, but a slightly lower efficiency in low to mid temperatures range. This is due to the low cut-off that reduces the power achievable from the Sun spectrum, resulting in a lower absorptance. However, starting from 200 $°$C, they present a coating efficiency higher than the other absorbers, including the Mirotherm^®.

In Figure 5 is also reported the efficiency of sample E, whose spectral emissivity was designed to have a ${\lambda }_{cut-off}=1.5$ μm. Its cut-off is outside the typically explored wavelength interval, since it corresponds to a region of zero intensity in the Sun spectrum, one of the so-called hidden regions [13]. Despite the relative low absorptance of sample E (0.86 respect to 0.95 for Mirotherm), starting from 220 $°$C, its coating efficiency is higher than Mirotherm thanks to its lower thermal emittance (0.029 respect to 0.067 of Mirotherm).

A further reduction in ${\lambda }_{cut-off}$ below 1.5 μm can result in a further increase in the stagnation temperature, but drastically reduces the efficiency at lower temperatures (the curves are not reported here). This is due to the specific features of the solar irradiance spectrum, which rises very fast when wavelength reduces below 1.4 μm.

Equation (7) allows us to evaluate the coating efficiency without taking into account boundary conditions (such as the glass optical losses, conductive losses and substrate radiative losses due to the heat exchange between the back side of the absorber and the collector vessel). In case of negligible conductive and convective losses (as in the case of an absorber suspended in a high vacuum envelope), Equation (7) can be modified in order to evaluate the overall absorber efficiency, ${\eta }_{all}$ of a flat absorber as following:

$${\eta }_{all}={\tau }_{Glass}·{\alpha }_S-\frac{\epsilon \left(T\right)·{\sigma }_{SB}(T^4-T_{amb}^4)}{H_{abs}}-\frac{{\epsilon }_{Sub}·{\sigma }_{SB}(T^4-T_{amb}^4)}{H_{abs}}$$

(8)

where ${\tau }_{Glass}$ is the glass transmittance, and ${\epsilon }_{Sub}$ is the equivalent thermal emittance relative to the absorber back-side and the vessel and it is assumed to be temperature independent. A previous work [43] has shown that for aluminum substrate ${\epsilon }_{Sub}=0.045$ provides an excellent fit to experimental data; it is in agreement with the thermal emittance calculated by FTIR measurement. Equation (8) was validated by using the MTB (the custom-made experimental setup described in Section 2.4), which allows us to evaluate the overall efficiency of the absorber by performing stagnation temperature measurements in high vacuum.

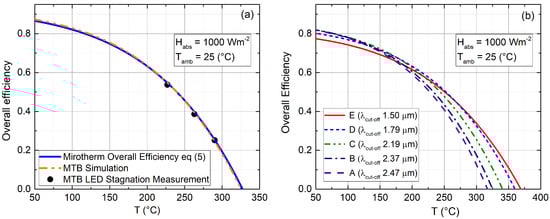

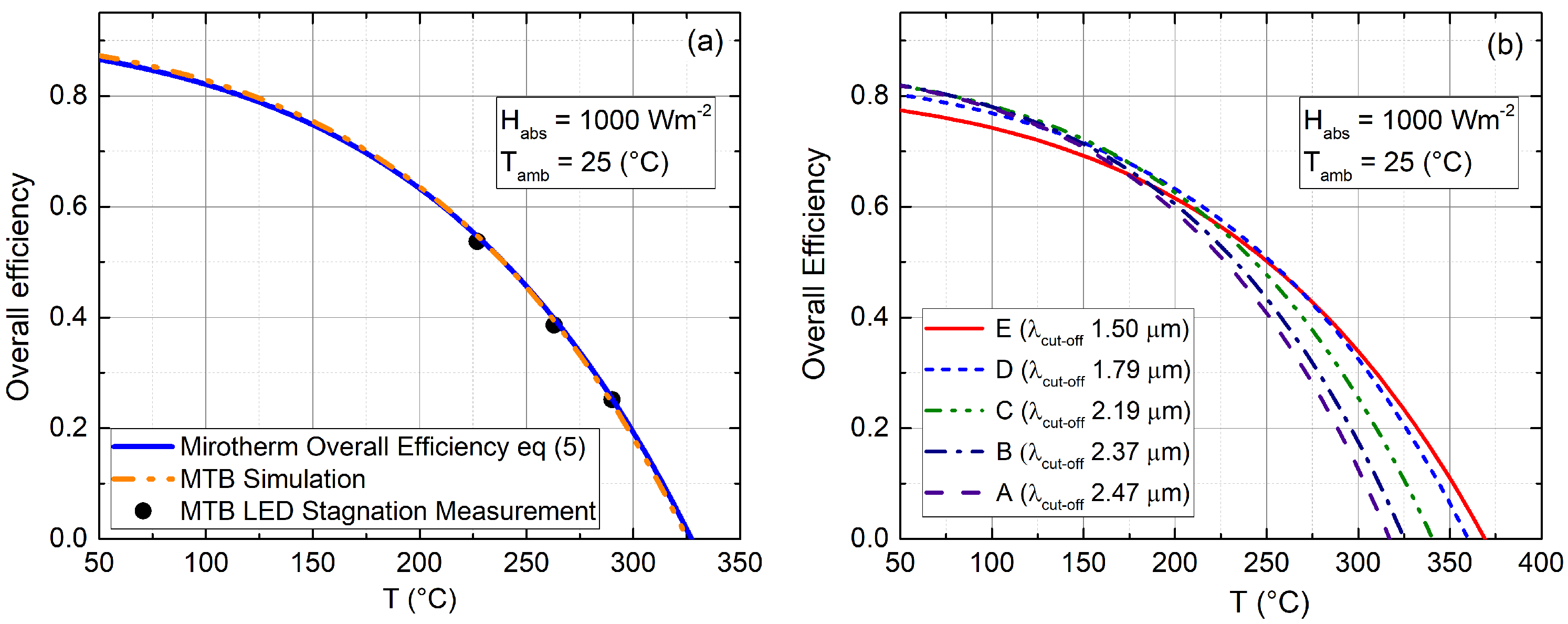

Figure 6a reports the Mirotherm^® overall efficiency (as from Equation (8)) when placed in the MTB (blue solid line), the numerical simulation of the experimental setup (orange dash-dot line) and the overall efficiency experimentally measured using Equation (8) (black dots). The excellent agreement among numerical simulations, measured data obtained by Equation (6), and values descending from Equation (8) confirms that, if the conductive losses are negligible and the proper ${\epsilon }_{Sub}$ is taken in to account, the Equation (8) is a valid instrument to evaluate the overall absorber efficiency. Figure 6b shows the overall efficiency calculated from Equation (8) for the coating with different cut-off and an equivalent thermal emittance of aluminum substrate of 0.045. The equivalent substrate thermal emittance is assumed to be constant with temperature.

When estimating the overall efficiency for all the designed samples, it should be noted that the reduction in the ${\lambda }_{cut-off}$ affects in a less pronounced way the performances at low temperature, being all the values around 0.8 except for 1.5 μm case. In turn, when the temperature increases, the low thermal emittance plays a major role in preserving efficiency and, at temperature higher than 300 $°$C, the sample E shows the best performances with respect to the others and the stagnation temperature can be higher than 350 $°$C.

Moreover, it should be noted that for coating with ${\lambda }_{cut-off}<2$ μm the coating thermal emittance is lower than the industrial aluminum substrate emissivity. Hence the adoption of a substrate with a lower thermal emittance can significantly improve the efficiency. This result is not surprising: looking at the commercial absorber it is clear that the uncoated side of the absorber has a relative high roughness (Ra = 1.65 μm) and thermal emittance increases with roughness. The commercial absorbers have been developed for standard flat panels, for which the absorber uncoated side is insulated by rock wool, while the coated side is in air or inert atmosphere and it is not useful to provide a better surface finishing to further reduce aluminum emissivity.

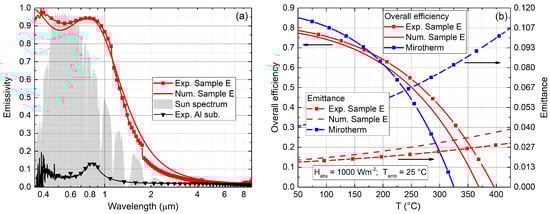

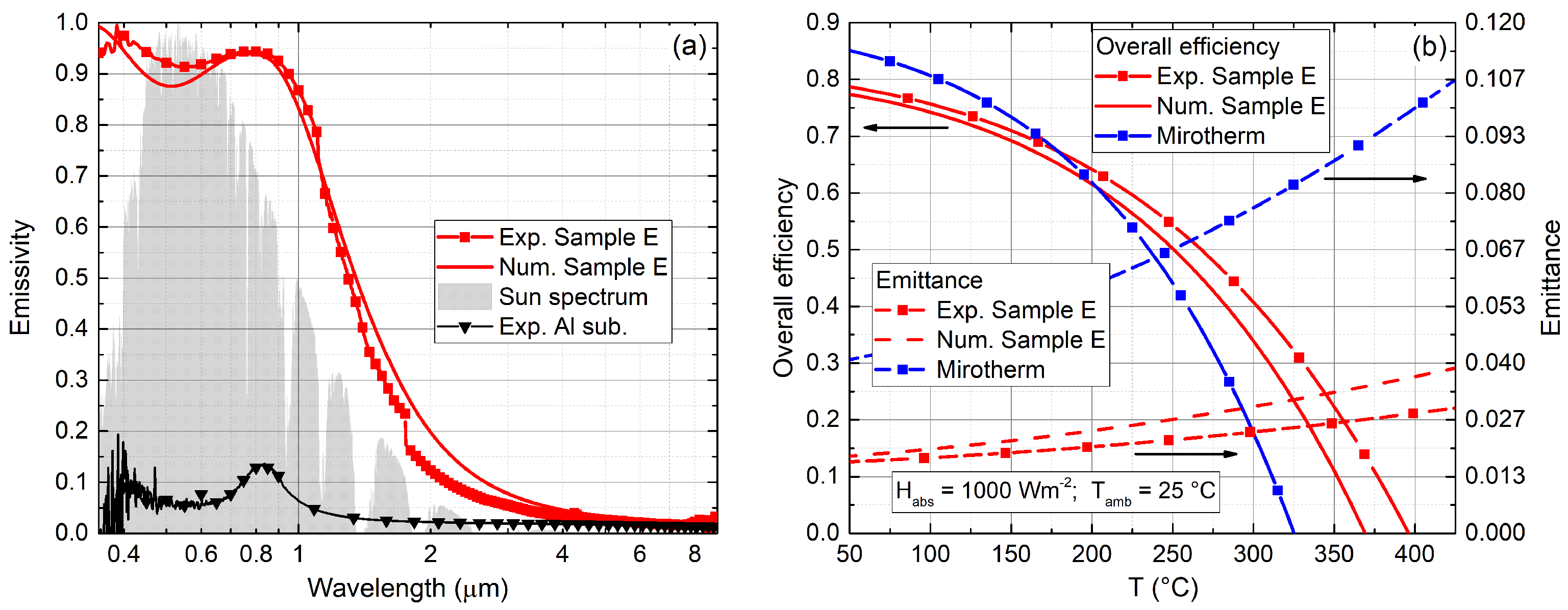

The multilayer E has been realized on aluminum on glass substrate and the experimental results are reported in Figure 7 as lines with square markers. In Figure 7a) are also reported the simulated spectral emissivity of the multilayer E (red line) and the experimentally measured spectral emissivity of aluminum on glass substrate (black line with diamond markers). Since the refractive indices of the materials used in the simulations were experimentally measured, an almost perfect agreement between the simulation and the measured emissivity is obtained.

In Figure 7b is reported on the right axis the temperature dependent thermal emittance $\epsilon \left(T\right)$ of the deposited multilayers (red dashed lines with square dots). The multilayer has a thermal emittance slightly lower than the numerical simulation (red dashed line).

On the left axis of Figure 7b is also reported the overall efficiency calculated according to Equation (8) using the numerical simulation (red line) and experimental values of $\alpha$ and $\epsilon \left(T\right)$ (red line with square markers). The efficiency calculated from experimental values is higher than the calculated from numerical simulation, particularly at high temperatures, where the thermal emittance plays a major role. The improvement in efficiency and the stagnation temperature highlights the importance of thermal emittance and a well chosen cut-off. In particular, it is possible to achieve overall efficiency higher than 50% at temperature up to 267 $°$C and a stagnation temperature of 395 $°$C. In particular, at 260 $°$C the overall efficiency increases from 41% of Mirotherm to 52% with optimized coatings, resulting in 25% relative increase.

It is interesting to note that due to the entropy not all radiation is available for useful work [46] and this introduce to the concept of exergy analysis which is of particular importance in the case of photovoltaic panels. However, the exergy analysis is beyond the scope of the present work.

Finally, it worth remembering that our results have been obtained on an aluminum on glass substrate with the aim to address the optical properties neglecting the roughness. Before to move to industrial production, the results have to be repeated on industrial susbtrates and ageing studies have to be performed.

4. Conclusions

Our results show that a reduction in thermal emittance is essential to reach high operating and/or high stagnation temperatures in solar thermal unconcentrated applications. An efficiency of 52% can be achieved up to 260 $°$C with a 27% relative increase respect to the commercial absorber on aluminum. The stagnation temperature can also be increased to about 400 $°$C without concentration.

Such performances, if confirmed on industrial substrates, will allow HVFP to contribute to the energy transition from fossil fuels to renewable energy for efficient heat production. It is worth mentioning that using the presented absorber on aluminum industrial substrate the radiation losses from coating would represent only 35% of the total radiation losses at 300 $°$C and contribution from the uncoated aluminum side accounts for the remaining 65%. The HVFP performances would benefit from a substrate thermal emittance reduction. Such reduction could be obtained with a better finishing of the back side of the aluminum substrate or using a substrate with a lower thermal emittance (such as copper or silver).
