# Verification and Improving the Heat Transfer Model in Radiators in the Wide Change Operating Parameters

## Abstract

**:**

## 1. Introduction

- ${K}_{T},m$—radiator constants based on the test results.
- $\Delta {T}_{w}$—water temperature drop in the radiator

## 2. Description of the Existing State

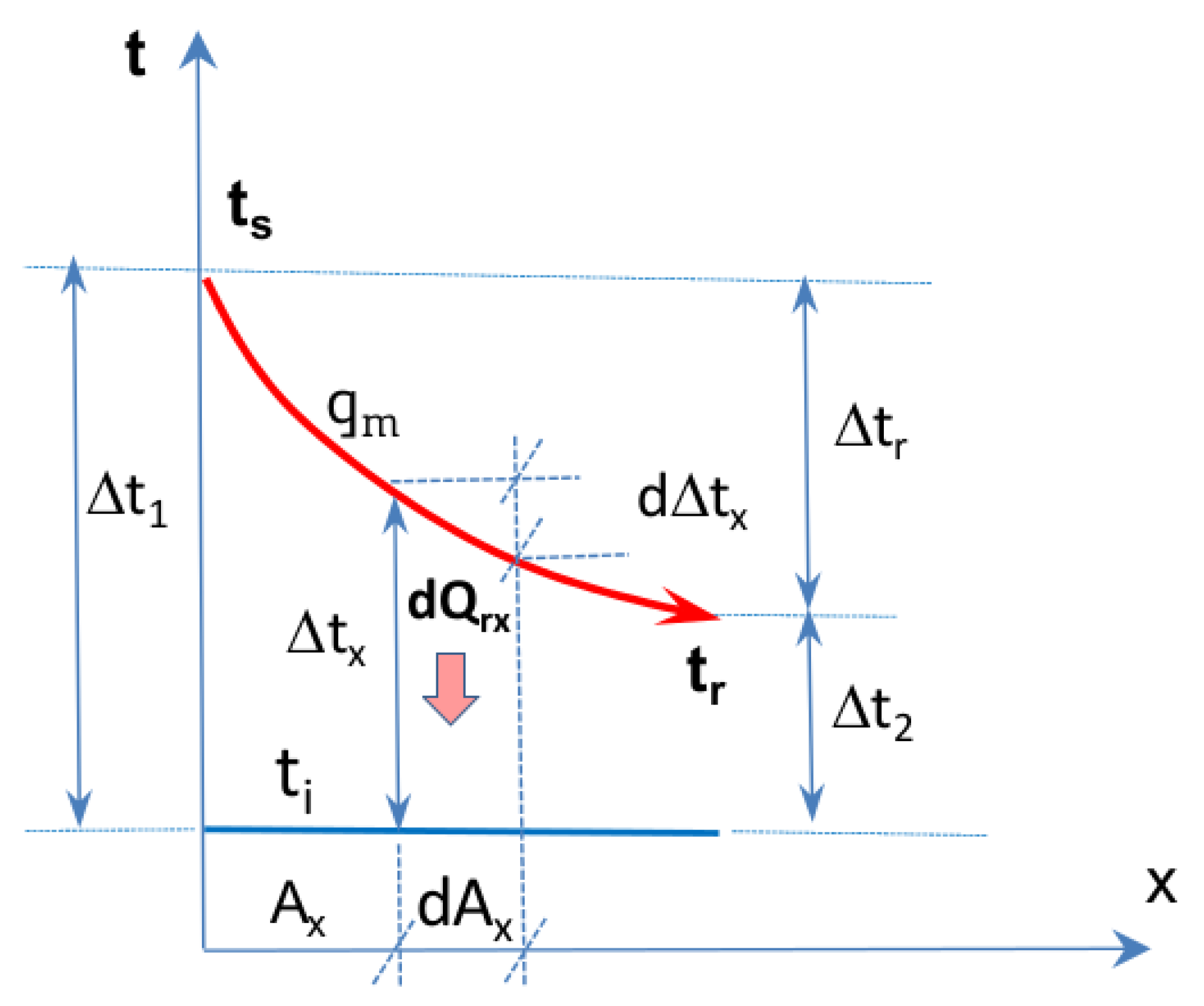

## 3. NEHTMiR—New Extended Model of the Heat Transfer in Radiators

## 4. Purpuse and Scope of the Studies Carried Out

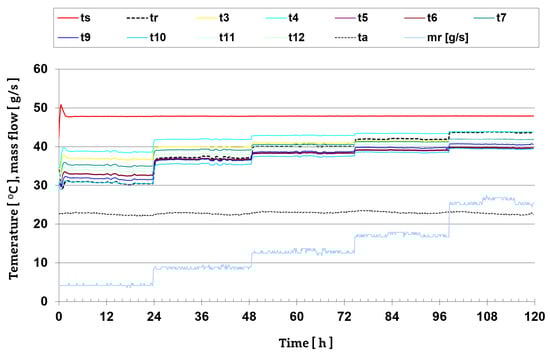

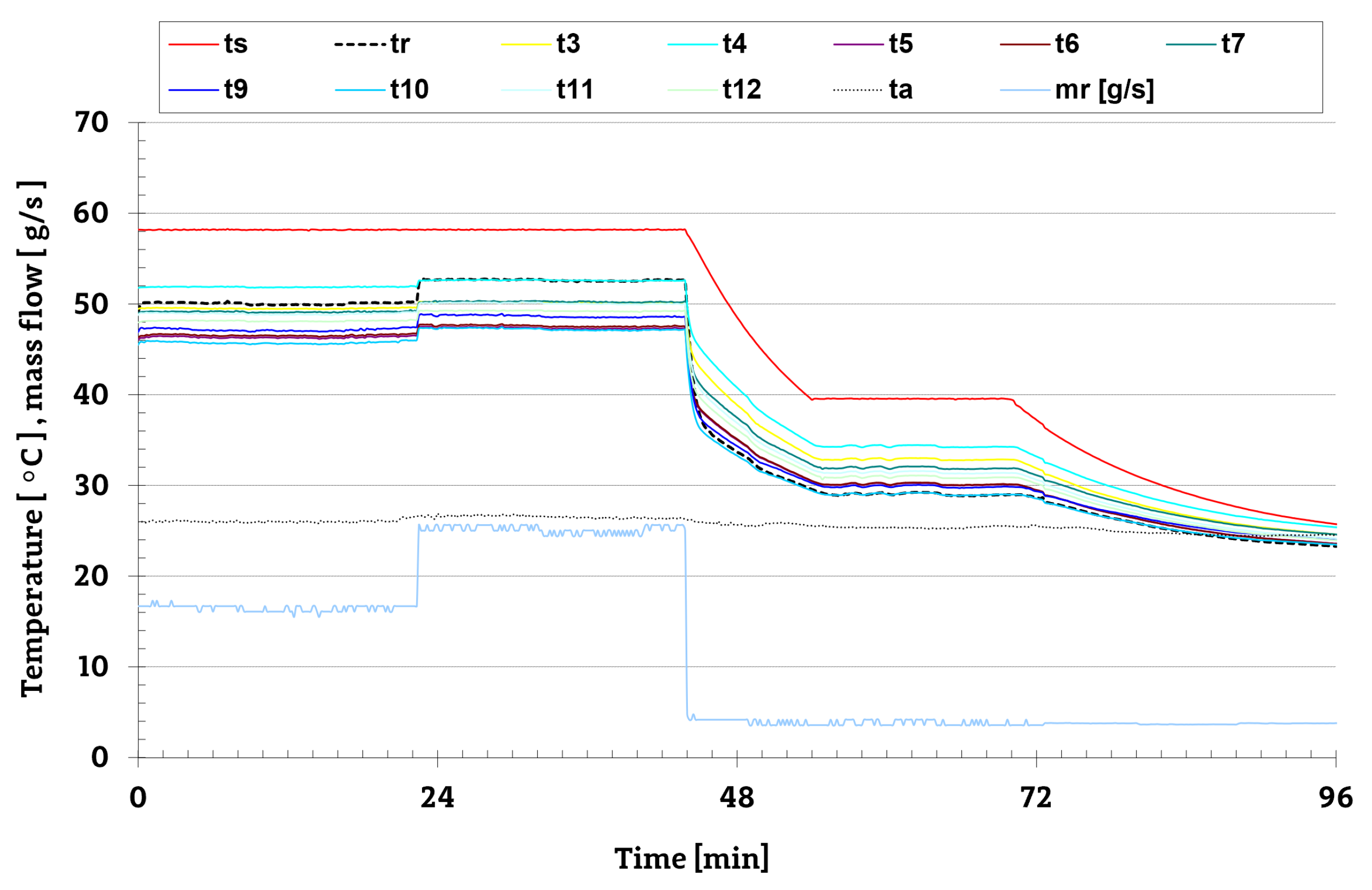

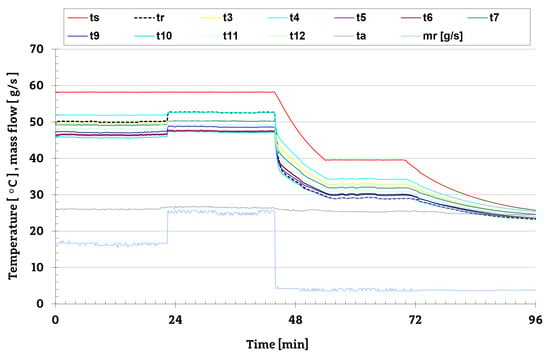

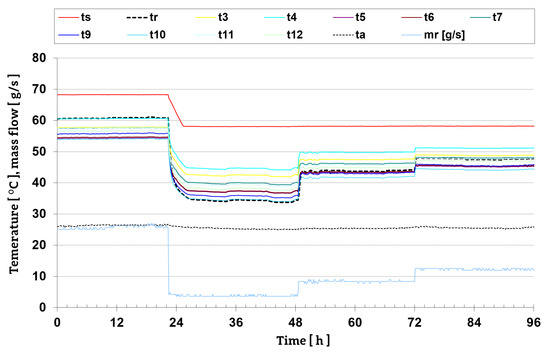

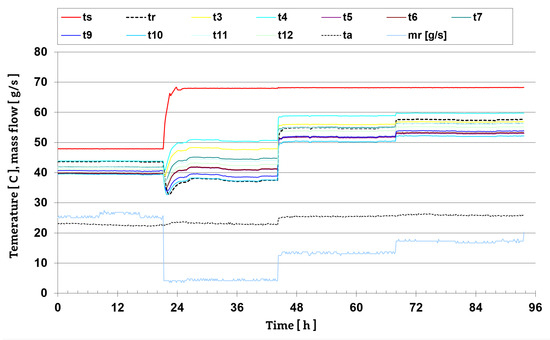

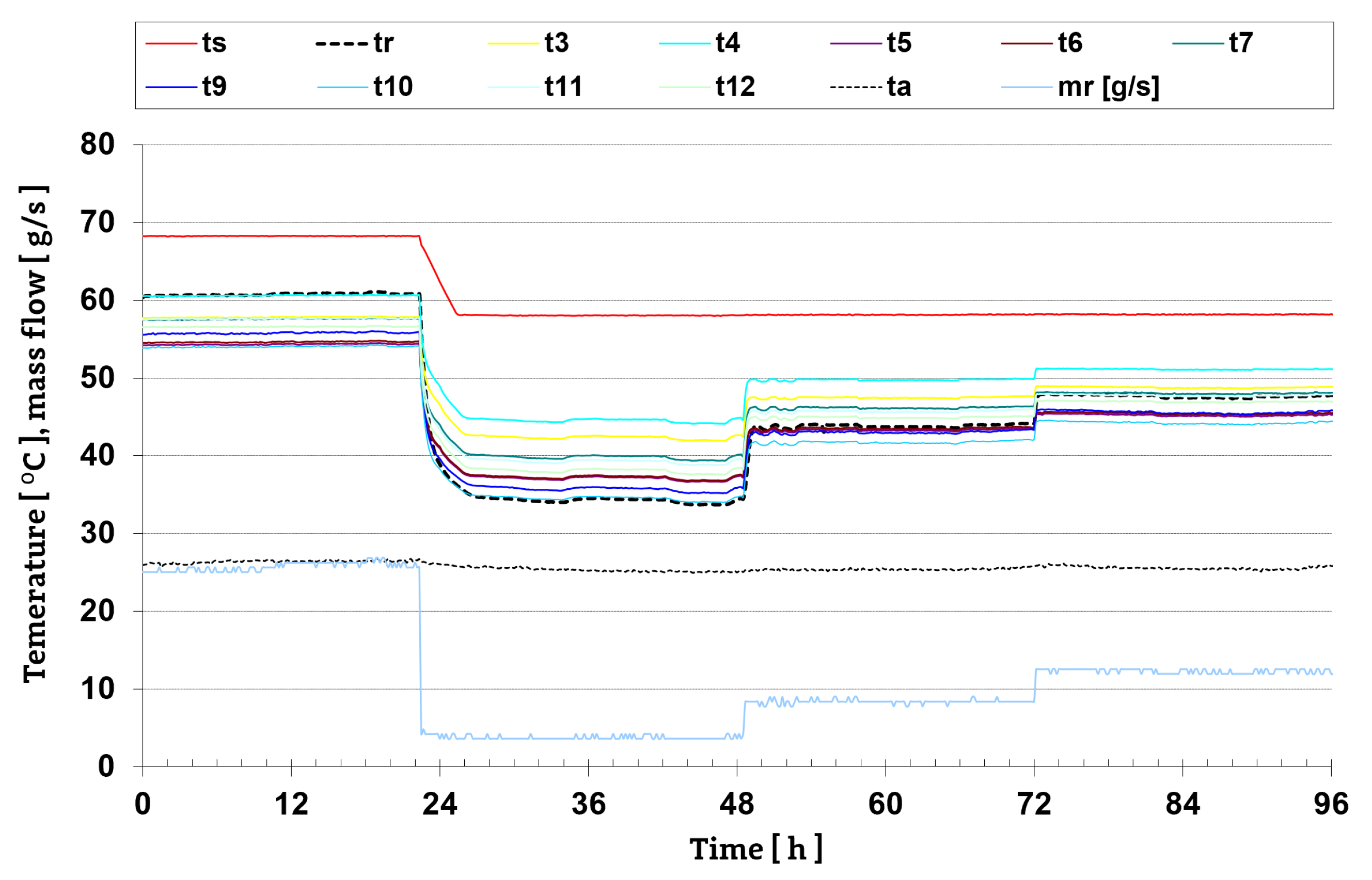

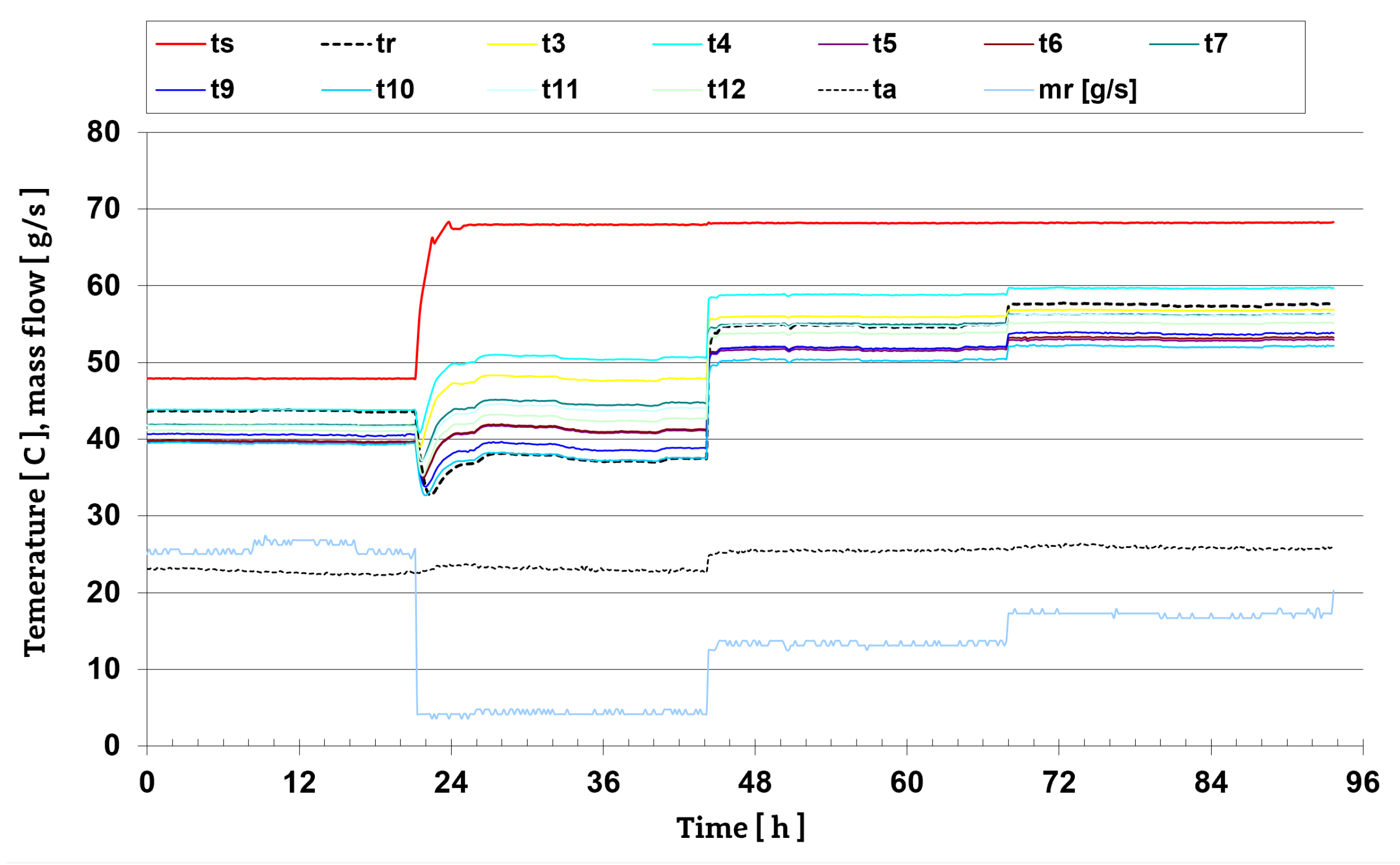

#### Test Methodology

- -

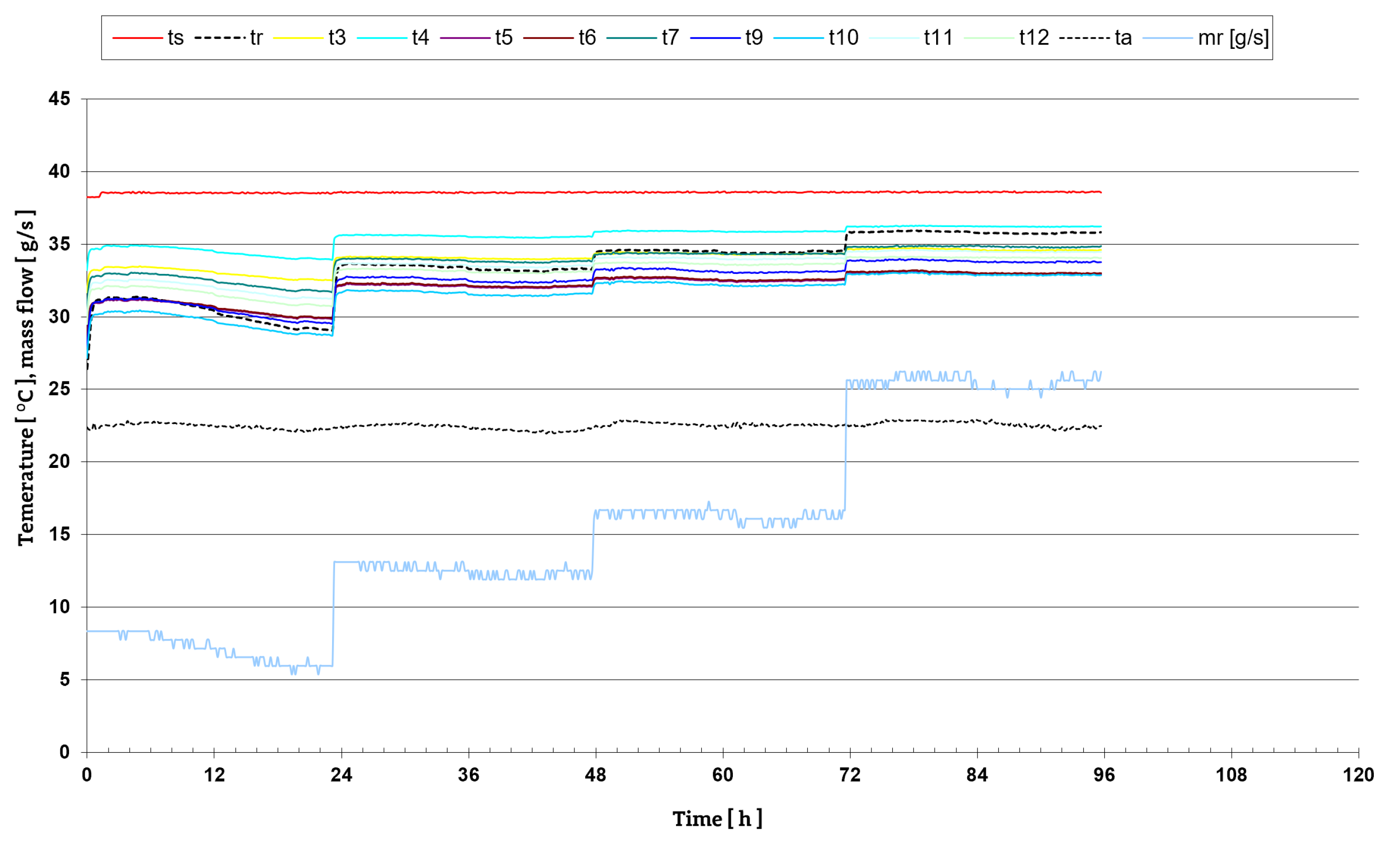

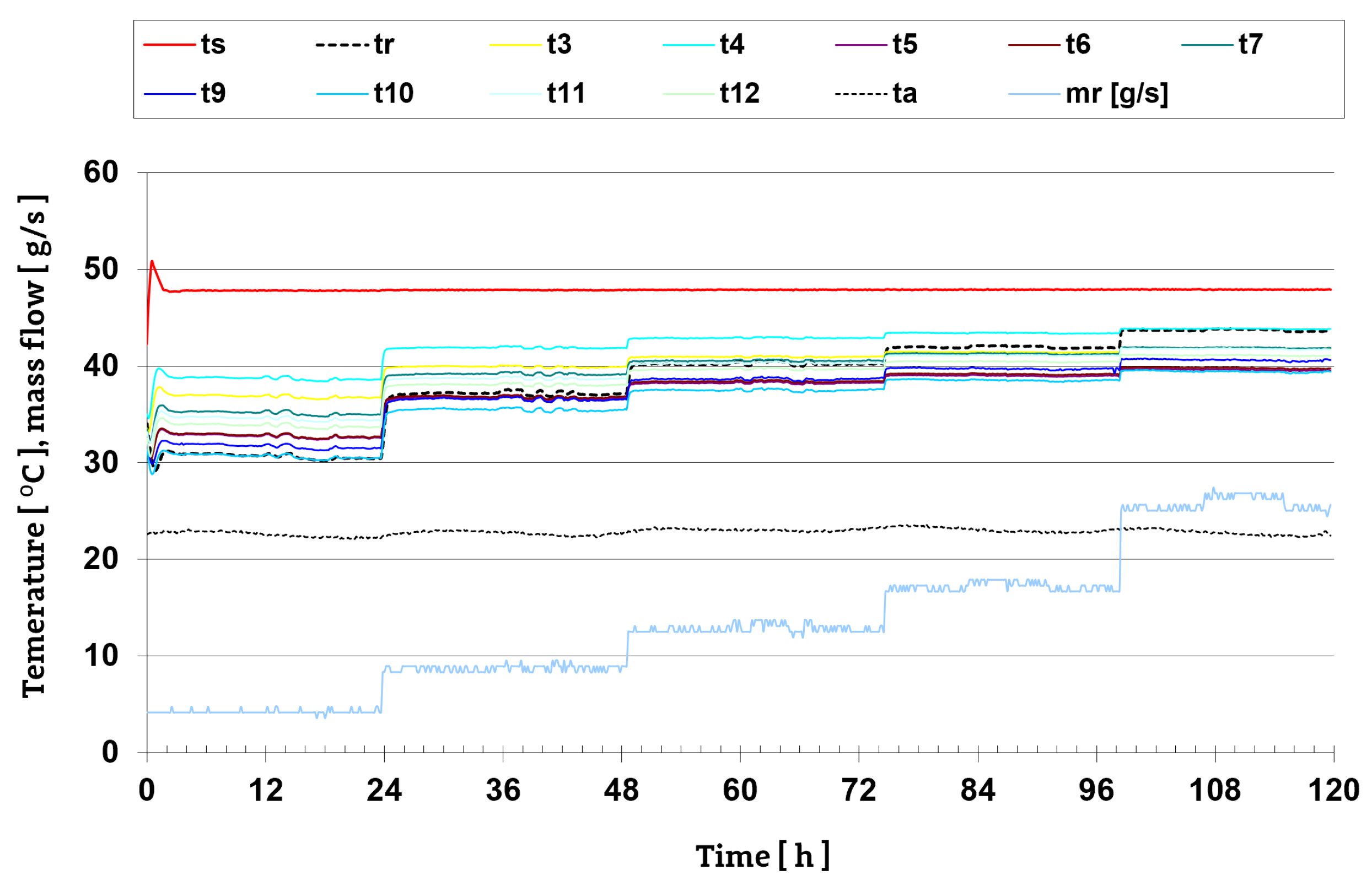

- temperature of the radiator supply water changed from 37.7 ${}^{\circ}$C to 68.8 ${}^{\circ}$C, the average value 51.2 ${}^{\circ}$C.
- -
- temperature of return from the radiator changed from 25.6 ${}^{\circ}$C to 60.8 ${}^{\circ}$C, the average value 40.0 ${}^{\circ}$C.
- -
- the radiator water mass flow varies from 0.0036 kg/s, 29.6% (nominal value) to 0.0256 kg/s, 212.1% (nominal value)—the average water mass flow 0.0121 kg/s
- -
- the radiator heat output varies from 122.9 W to 788.6 W—the average heat output 409.0 W.

- -

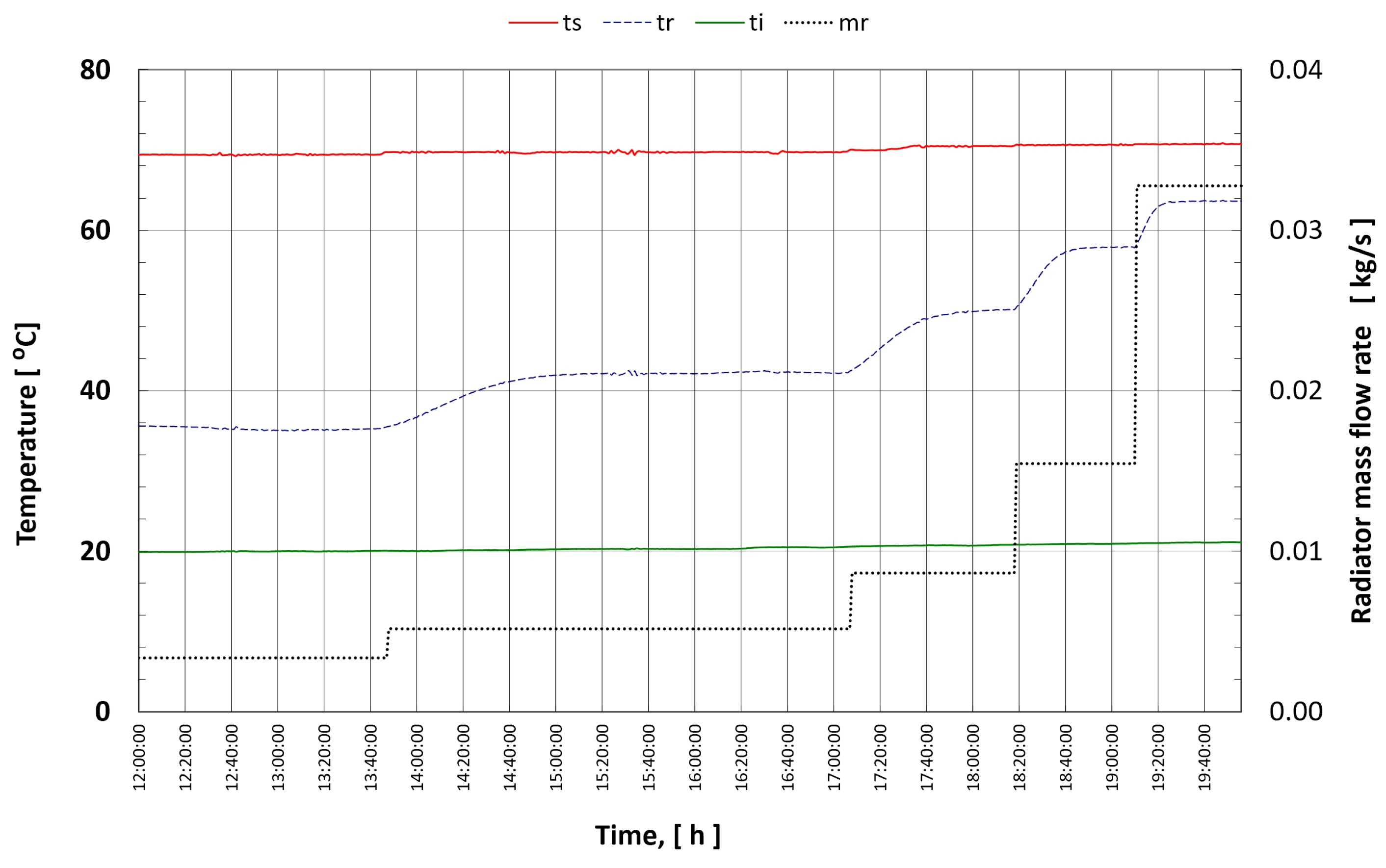

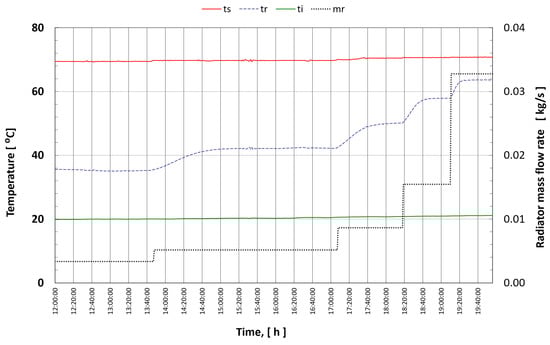

- temperature of the radiator supply water 70.2 ${}^{\circ}$C + −0.4 K,
- -
- return temperature from the radiator changed from 35.3 ${}^{\circ}$C to 63.4 ${}^{\circ}$C,
- -
- the radiator water mass flow varies changed from 0.0034 kg/s (39.0% nominal value) to 0.031 kg/s (356.0% nominal value)
- -
- the radiator heat output varies from 481 W to 924 W.

## 5. Result and Analysis

## 6. Calculations Examples

#### 6.1. Implementation of the “NEHTMiR”—Iron Elements Radiator T-1

**Example**

**1.**

**Example**

**2.**

**Example**

**3.**

**Example**

**4.**

**Example**

**5.**

#### The Discrepancy

#### 6.2. Implementation of the “NEHTMiR” for 2-Row Delonghi-22 Ribbed Radiator

**Example**

**6.**

**Example**

**7.**

**Example**

**8.**

**Example**

**9.**

#### The Discrepancy

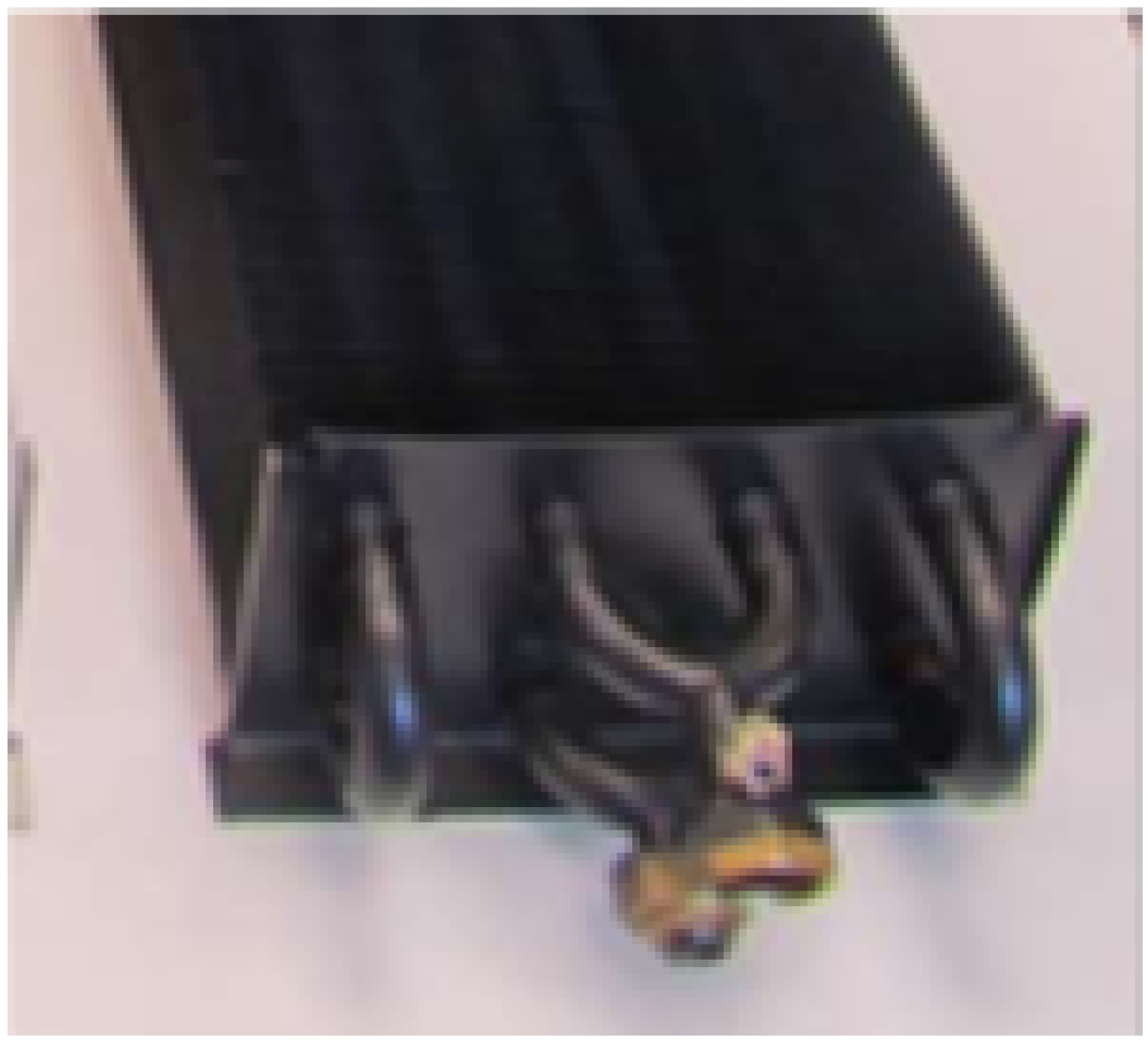

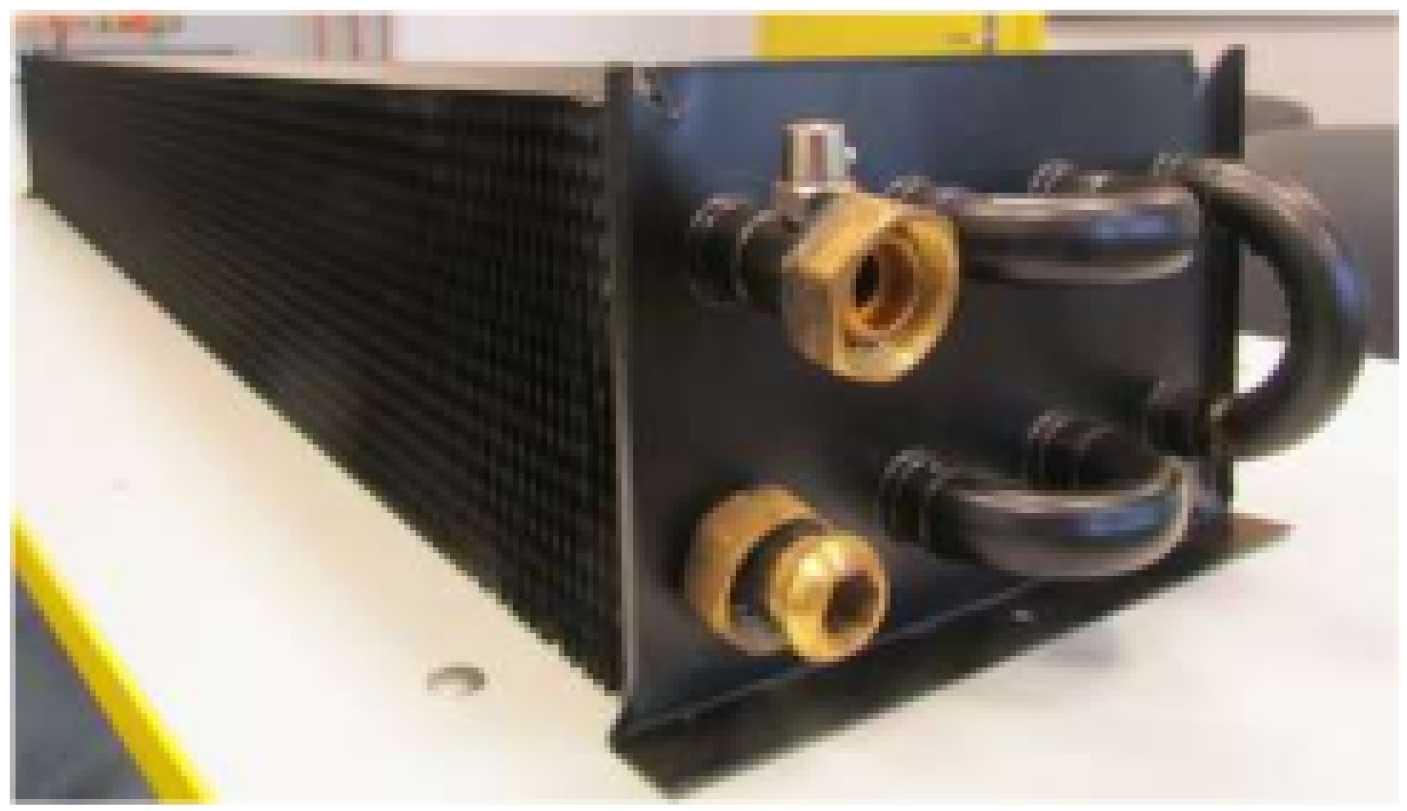

#### 6.3. Implementation of the “$NEHTMi{R}_{md}$” for High Ribbed Convective Radiator type-8RR

**Example**

**10.**

**Example**

**11.**

**Example**

**12.**

**Example**

**13.**

#### The Discrepancy

## 7. Conclusions

- directly assessing the actual energy efficiency of the heating system in the heating season.
- improve the indications of the heat allocator due their proper programming in the Individual Heating Costs Allocation Systems [14].
- to establish the suitable conditions for $operational$ regulation of the Central Heating Installations especially in existing buildings after their refurbishment as well as for the District Heating Systems with $substantial$ oversized heat exchangers.

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## Abbreviations

DOAJ | Directory of open access journals |

TLA | Three letter acronym |

LD | Linear dichroism |

## References

- EN 442-1. Radiators and Convectors—Part 1: Technical Specification and Requirements; European Committee for Standardization: Brussels, Belgium, 2014. [Google Scholar]
- EN 442-2. Radiators and Convectors—Part 2: Test Methods and Rating; European Committee for Standardization: Brussels, Belgium, 2014. [Google Scholar]
- Calisir, T.; Baskaya, S.; Yazar, H.O.; Yucedag, S. Experimental investigation of panel radiator heat output enhancement for efficient thermal use under actual operating conditions. EPJ Web Conf.
**2015**, 92, 02010. [Google Scholar] [CrossRef][Green Version] - Nusselt, W. Fundamental Law of Heat Transfer—Natural and Forced Convection. Gesundheits Ing.
**1915**, 38, 477–496. Available online: https://nrc-publications.canada.ca/eng/view/ft/?id=36494c75-ac61-4b40-b5cc-12fb6484532b (accessed on 1 July 2021). - Erdogmus, A.B. Simulations of the Heater Test Room Defined by EN 442 Standard and Virtual Testing of Different Type of Heaters. Ph.D. Thesis, Graduate School of Engineering and Science, Department of Mechanical Ingeneering, Izmir Institute of Technology, Urla, Turkey, 2011. [Google Scholar]
- Marchesi, R.; Rinaldi, F.; Tarini, C.; Aroino, F.; Cortellessa, G.; Dell’isola, M.; Ficco, G. Experimental Analysis of Radiators’ Thermal output for heat accounting. Therm. Sci.
**2019**, 23, 989–1002. [Google Scholar] [CrossRef][Green Version] - Dzierzgowski, M. Influence of behaviour of energy-saving inhabitants on accuracy of individual cost accounts for heating energy in multi-family buildings with increased thermal isolation of inner partitions. Dist. Heating Heating Vent. (COW)
**2004**, 37, 27–31. Available online: https://www.infona.pl/resource/bwmeta1.element.baztech-article-BAR5-0001-0592 (accessed on 1 July 2021). - Dzierzgowski, M.; Rabjasz, R. Research and Analysis of the Factors Influencing the Efficiency of the Use of Heat Provided by the Central Heating Installation in Thermoinsulated Buildings, 3rd ed.; Print. Scientific Works; Environmental Engineering, Warsaw University of Technology: Warsaw, Poland, 1999. [Google Scholar]
- Wasilewski, W. Changing the rules for selecting the size of heaters in water heating installations. J. Sanit. Tech. Probl. Rev.
**1969**. Unpublished. (In Polish) [Google Scholar] - Wasilewski, W. Convection Heaters in Central Heating Installations; CZSBM (Central Union of Construction Cooperatives): Warsaw, Żurawia, 1970; Unpublished. (In Polish) [Google Scholar]
- Rabjasz, R. Thermal Characteristics of Convection Heaters and Their Influence on the Room Temperature under the Conditions of Fixed Heat Exchange; Print. Scientific Works; Environmental Engineering, Warsaw University of Technology: Warsaw, Poland, 1974; Available online: http://katkart.bg.pw.edu.pl/przeszukiwanie.html (accessed on 1 July 2021).
- Rabjasz, R. Static and Dynamic Thermal Properties of Convection Heaters; Print. Scientific Works; Warsaw University of Technology Publishing House, Warsaw University of Technology: Warsaw, Poland, 1974. (In Polish) [Google Scholar]
- Dzierzgowski, M.; Rabjasz, R.; Turlejski, S. System and Quality Criteria for Accounting for Heating Costs in Domestic Conditions Determined by the Multivariate Analysis Method; Research Project No. 7 T07 G005 15; State Committee for Scientific Research: Warsaw, Poland, 2001; Unpublished. (In Polish) [Google Scholar]
- EN 834. Heat Cost Allocators for the Determination of the Consumption of Room Heating Radiators. Appliances with Electrical Energy Supply; European Committee for Standardization: Brussels, Belgium, 2013. [Google Scholar]

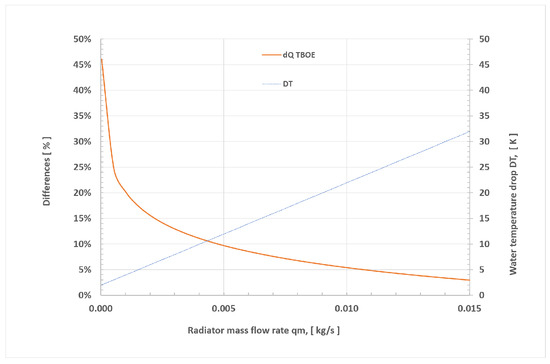

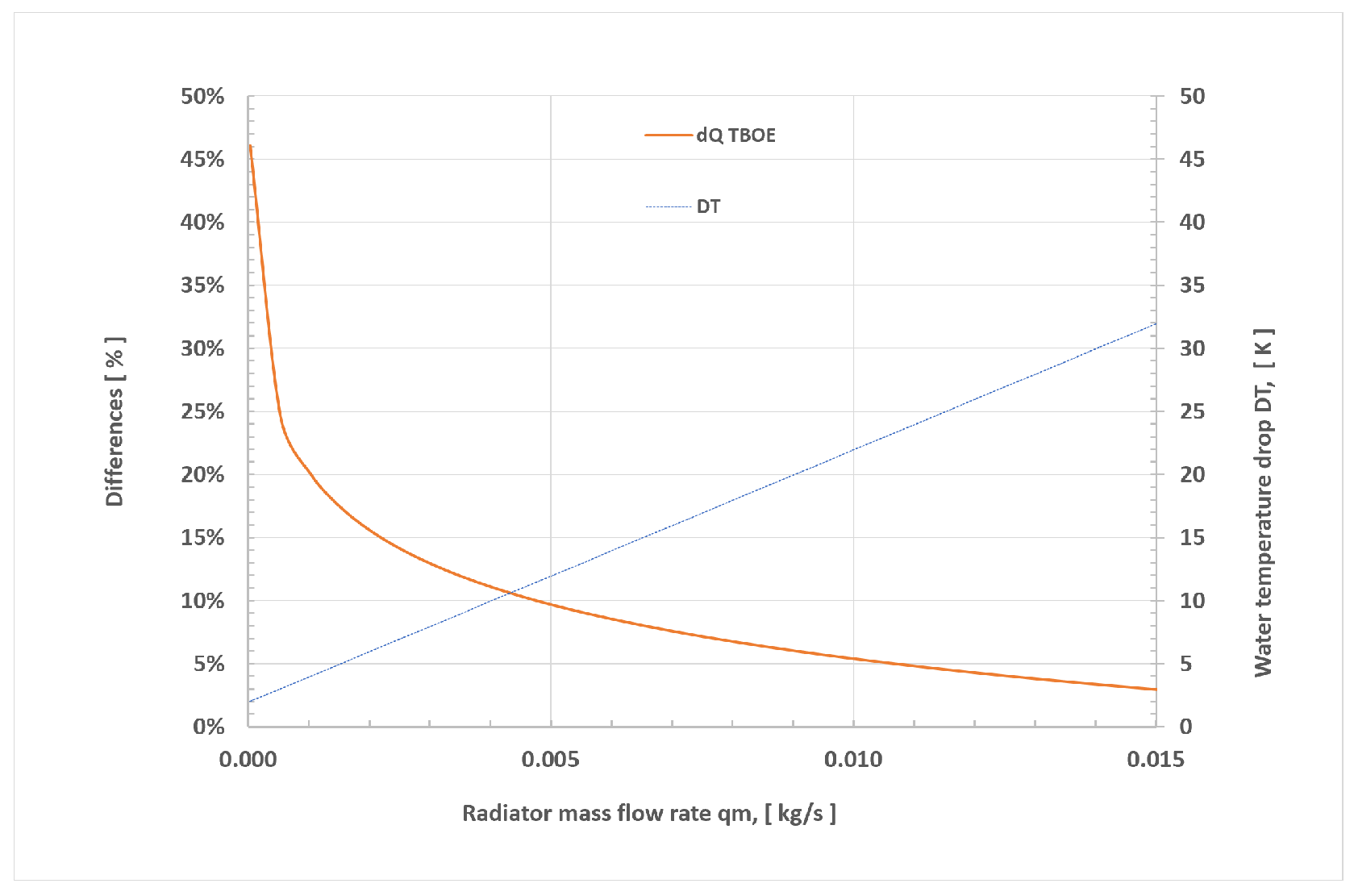

**Figure 1.**The discrepancy between the actual radiator power heat output and calculated according to the equation for the $TBOE$ system.

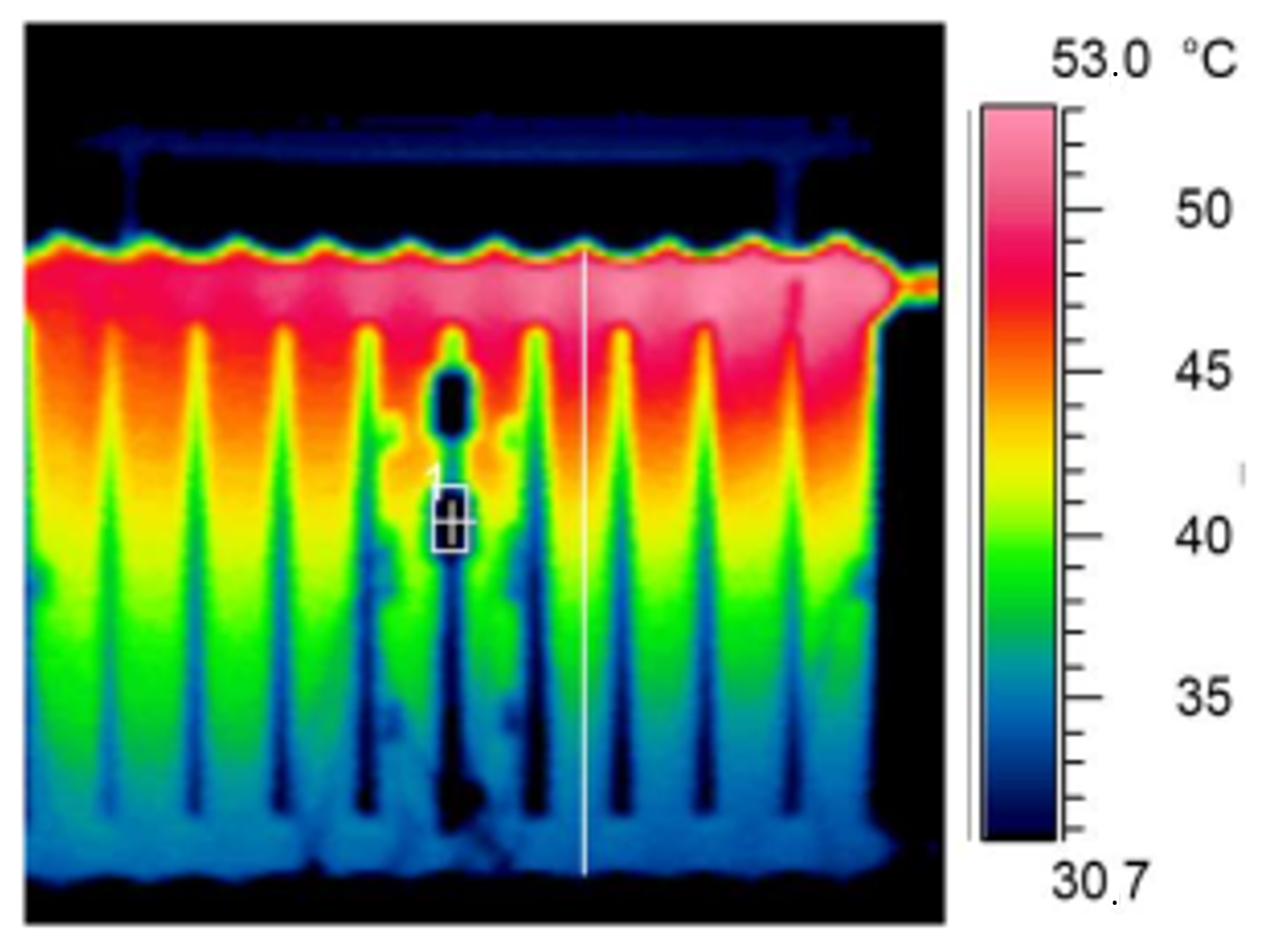

**Figure 3.**An example of a temperature distribution on the surface of heater T1 according to thermography measurements—measurement 2.

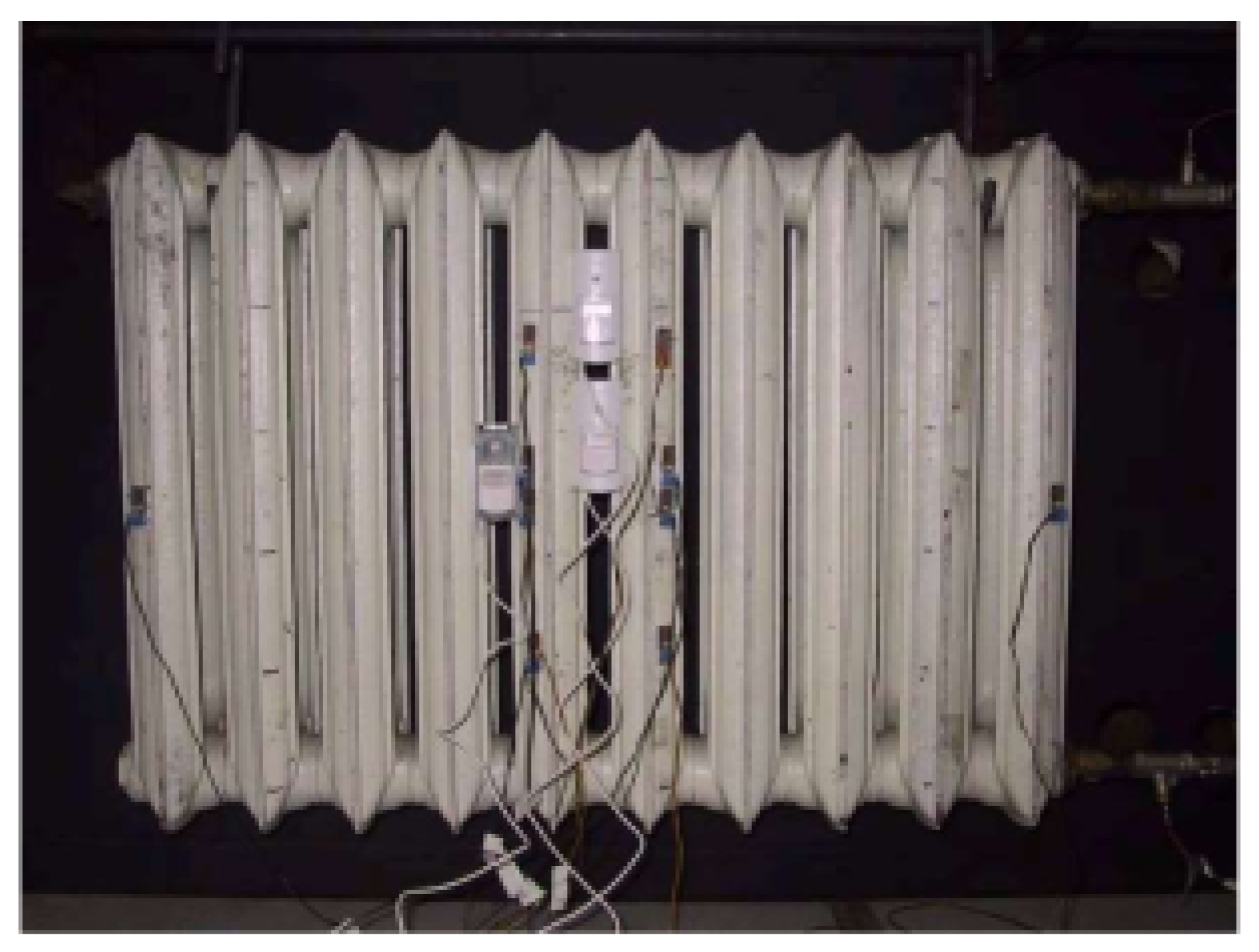

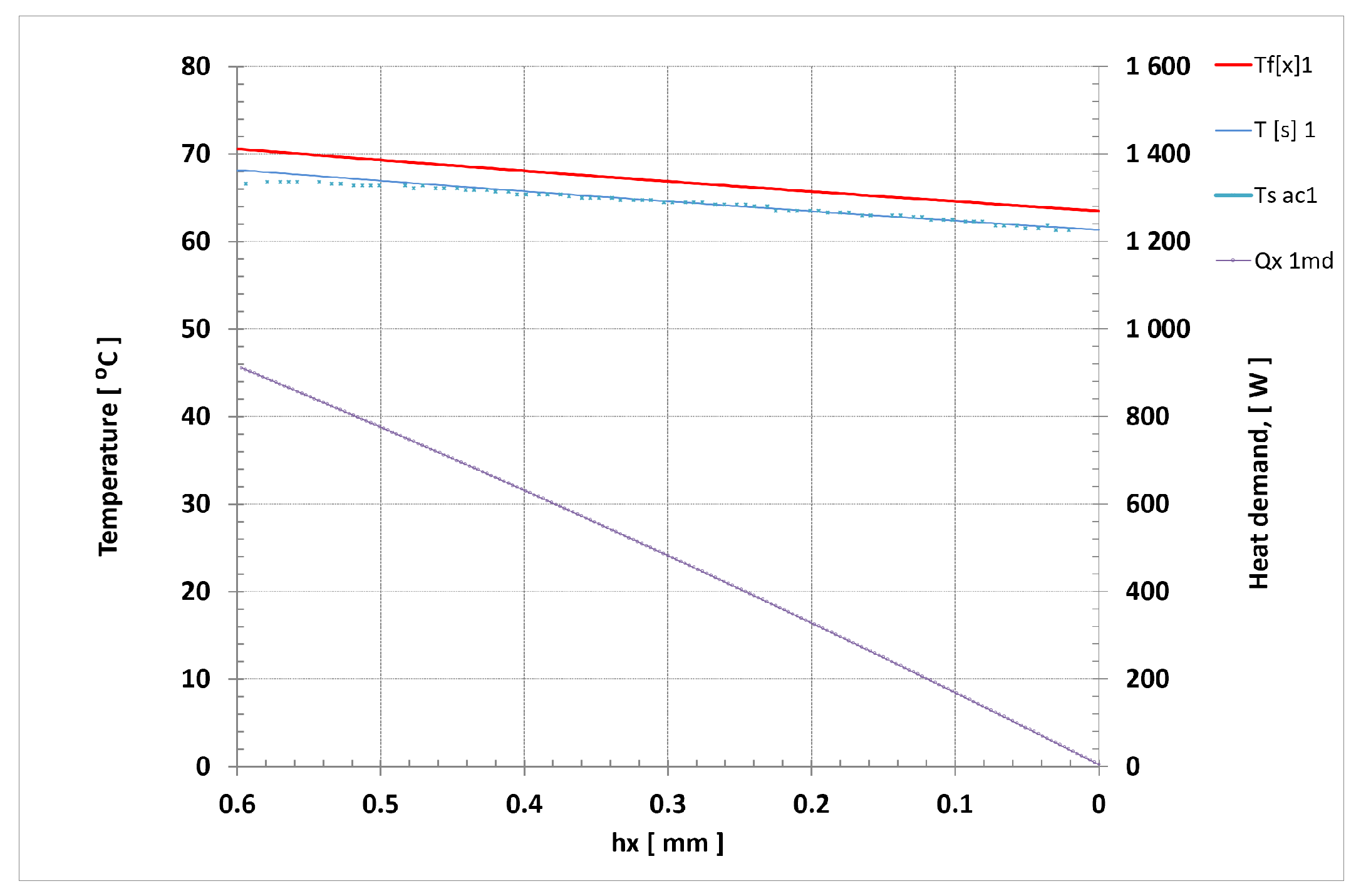

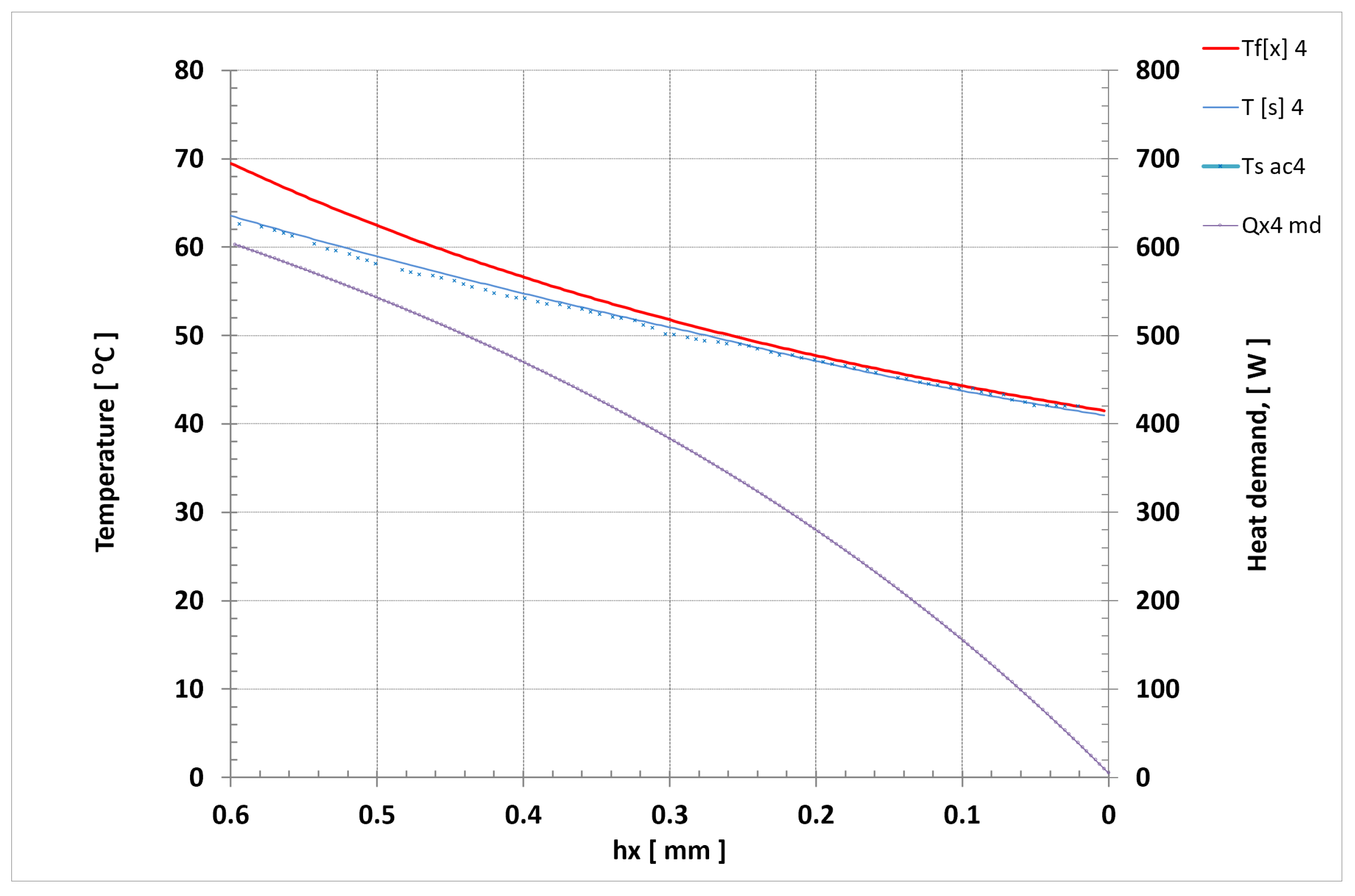

**Figure 11.**Comparison of measurement and calculations results of water temperature, radiator surface temperature and radiator heat out distribution—measurement 1: ${t}_{s}=70.0{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{r}=63.4{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=21.1{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${m}_{r}$ = 0.0307 kg/s $\left({m}_{rmax}\right)$.

**Figure 12.**Comparison of measurement and calculations results of water temperature, radiator surface temperature and radiator heat out distribution—measurement 4: ${t}_{s}=69.7{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{r}=42.2{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=20.3{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${m}_{r}$ = 0.0051 kg/s $\left({m}_{rmin}\right)$.

**Figure 13.**Profile of the radiator surface temperature temperature change, radiator T1. ${t}_{s}=70.2{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, $qmx$ from $39\%$ to $356\%$ $qmo$ (nominal flow rate).

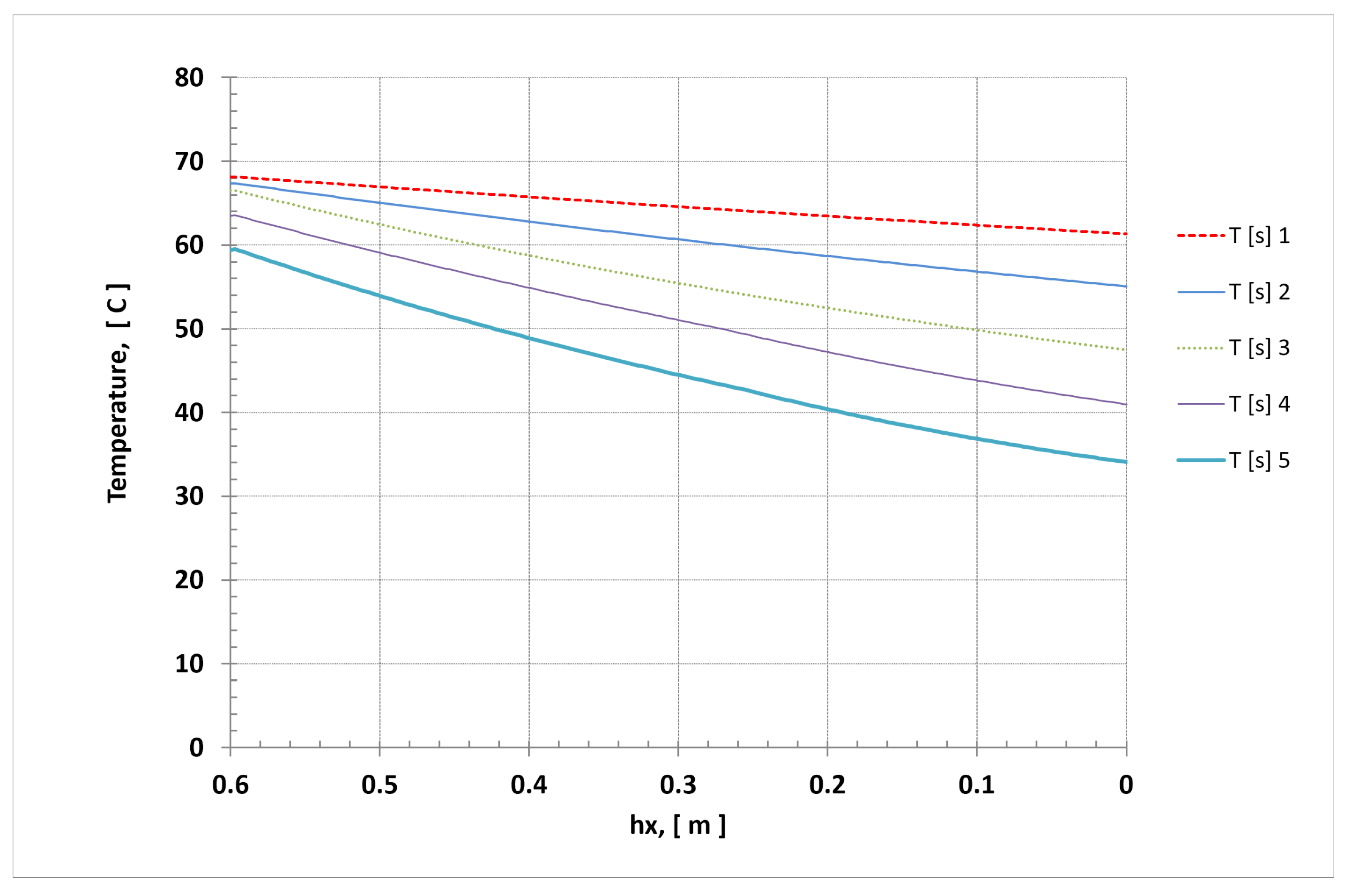

**Figure 14.**Profile of the radiator surface temperature temperature change, radiator T1. ${t}_{s}$ = $70.2{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, $qmx$ from $39\%$ to $356\%$ $qmo$ (nominal flow rate).

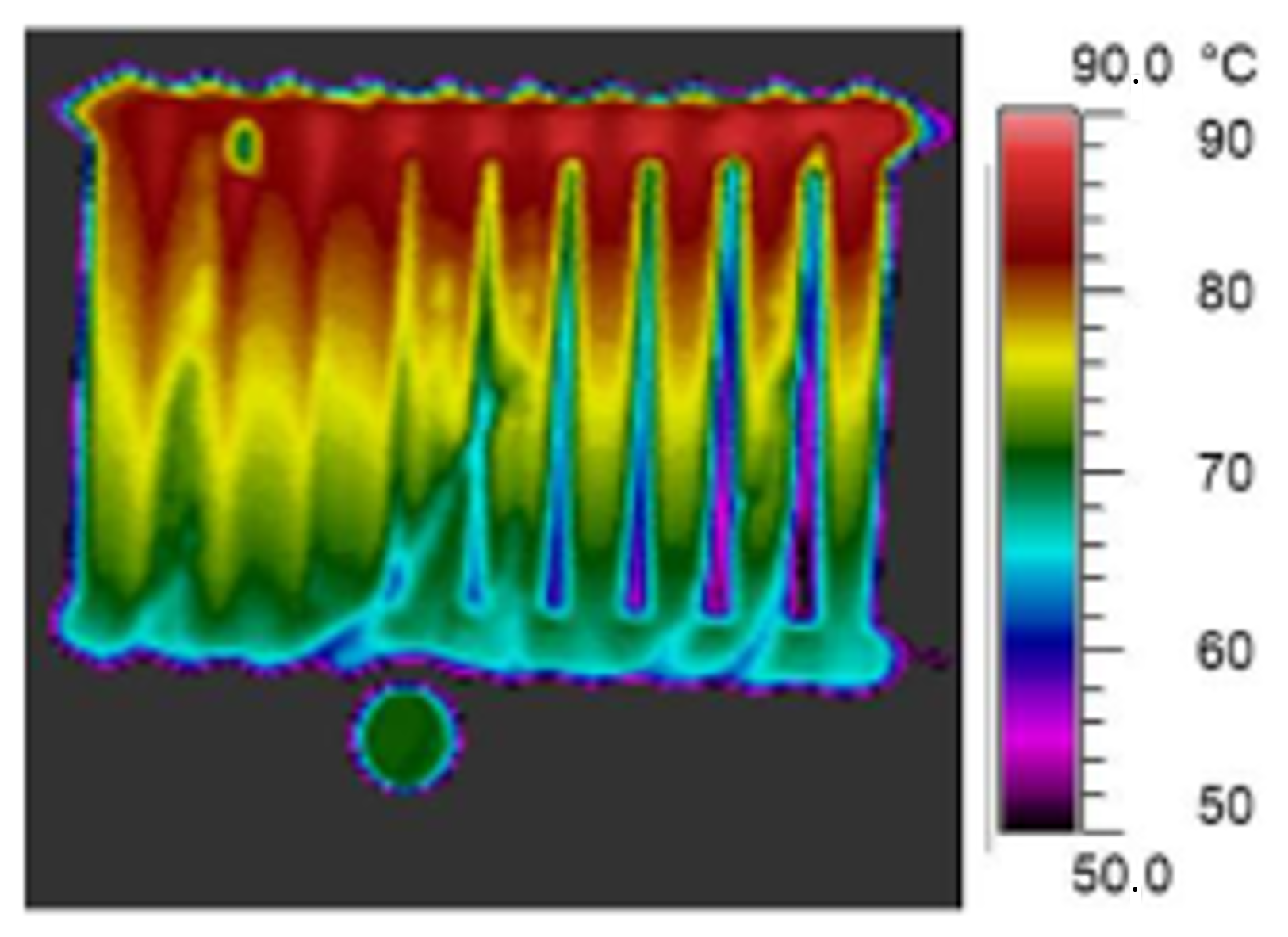

**Figure 15.**Radiator T1 surface temperature distribution according thermography measurements, measurements 1, flow ${q}_{mx}$ = $0.0307$ kg/s (${q}_{max}$)—356% nominal value.

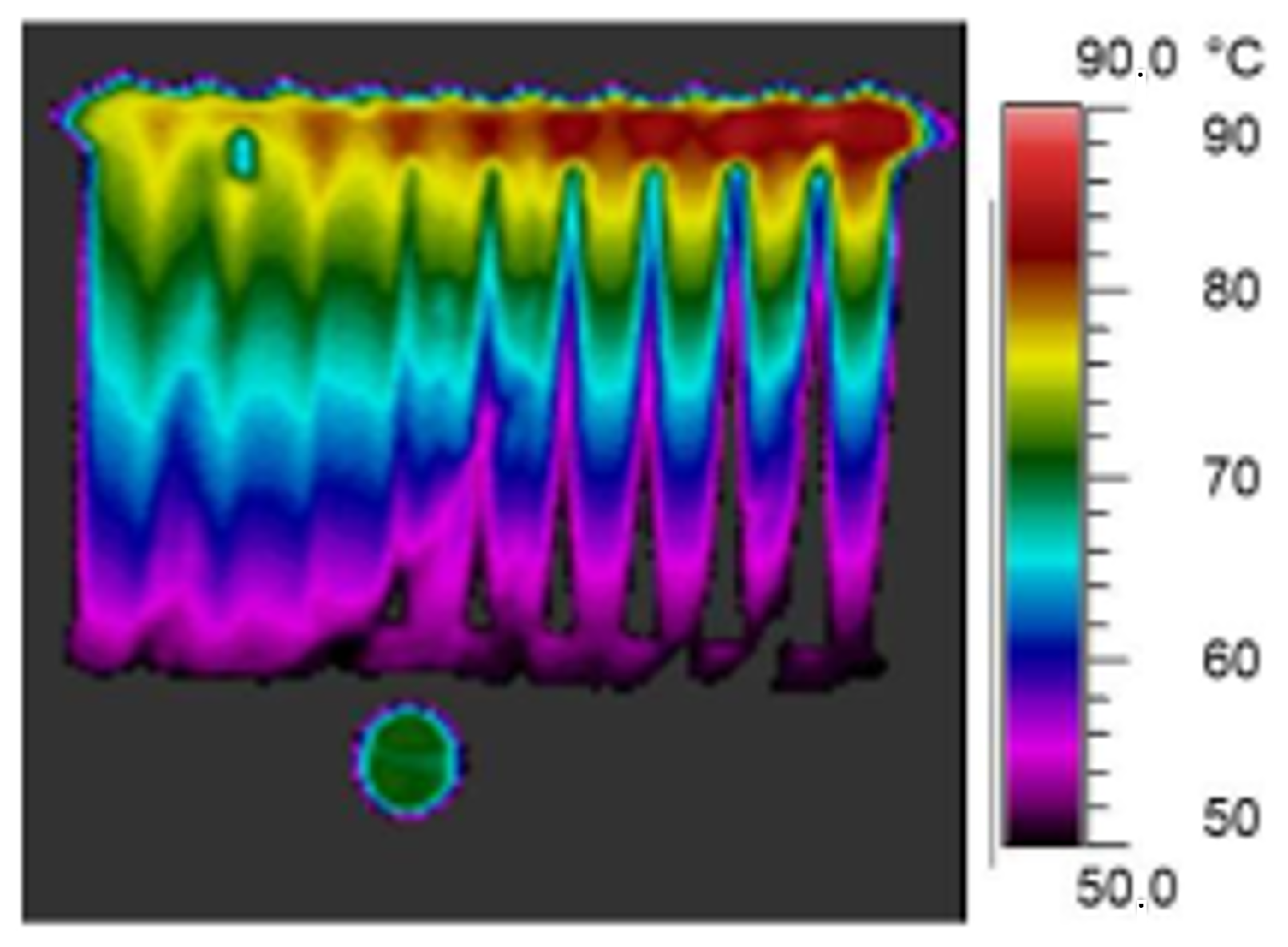

**Figure 16.**Radiator T1 surface temperature distribution according thermography measurements, measurements 4, flow ${q}_{mx}$ = $0.0051$ kg/s—59% nominal value.

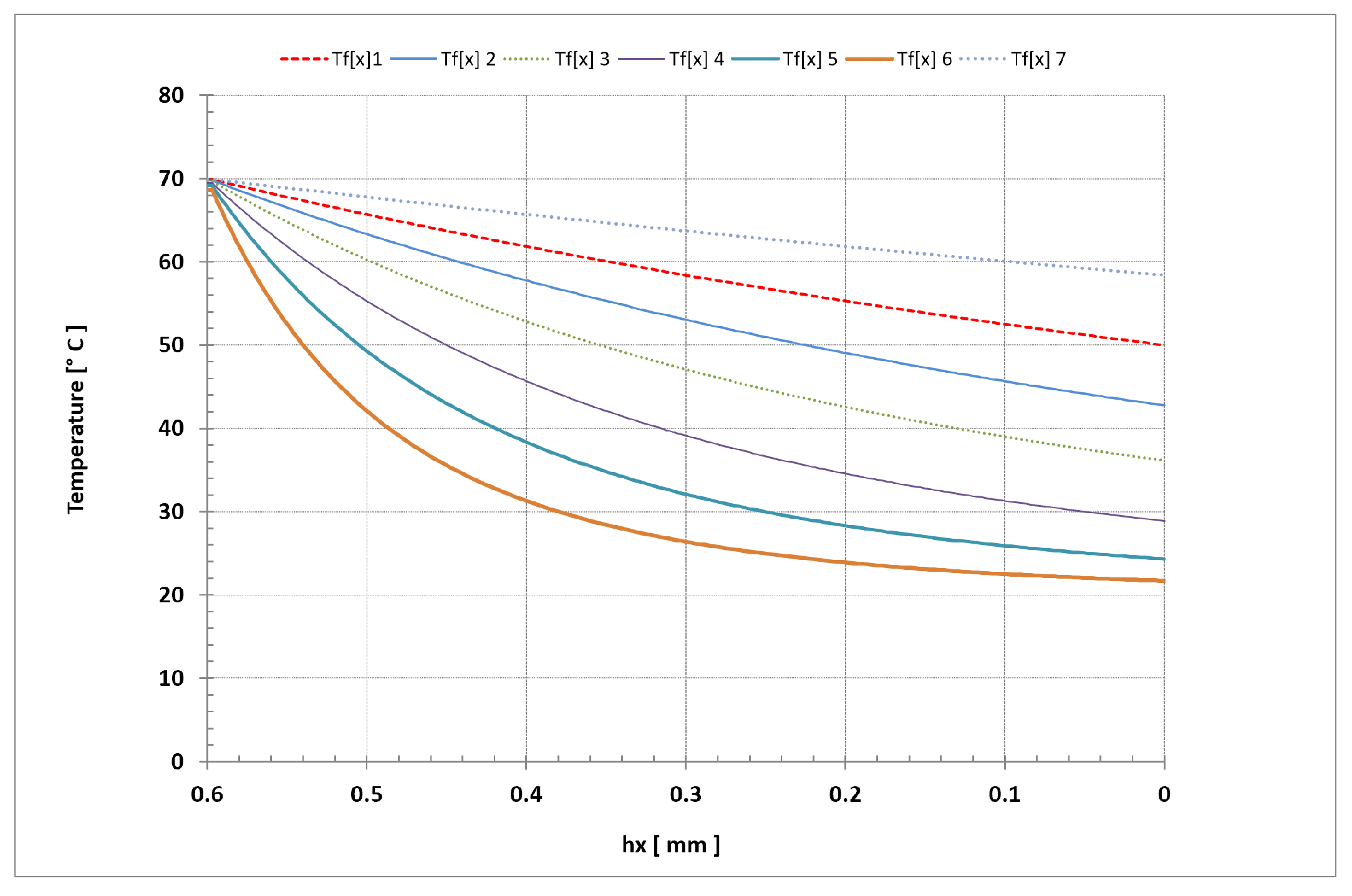

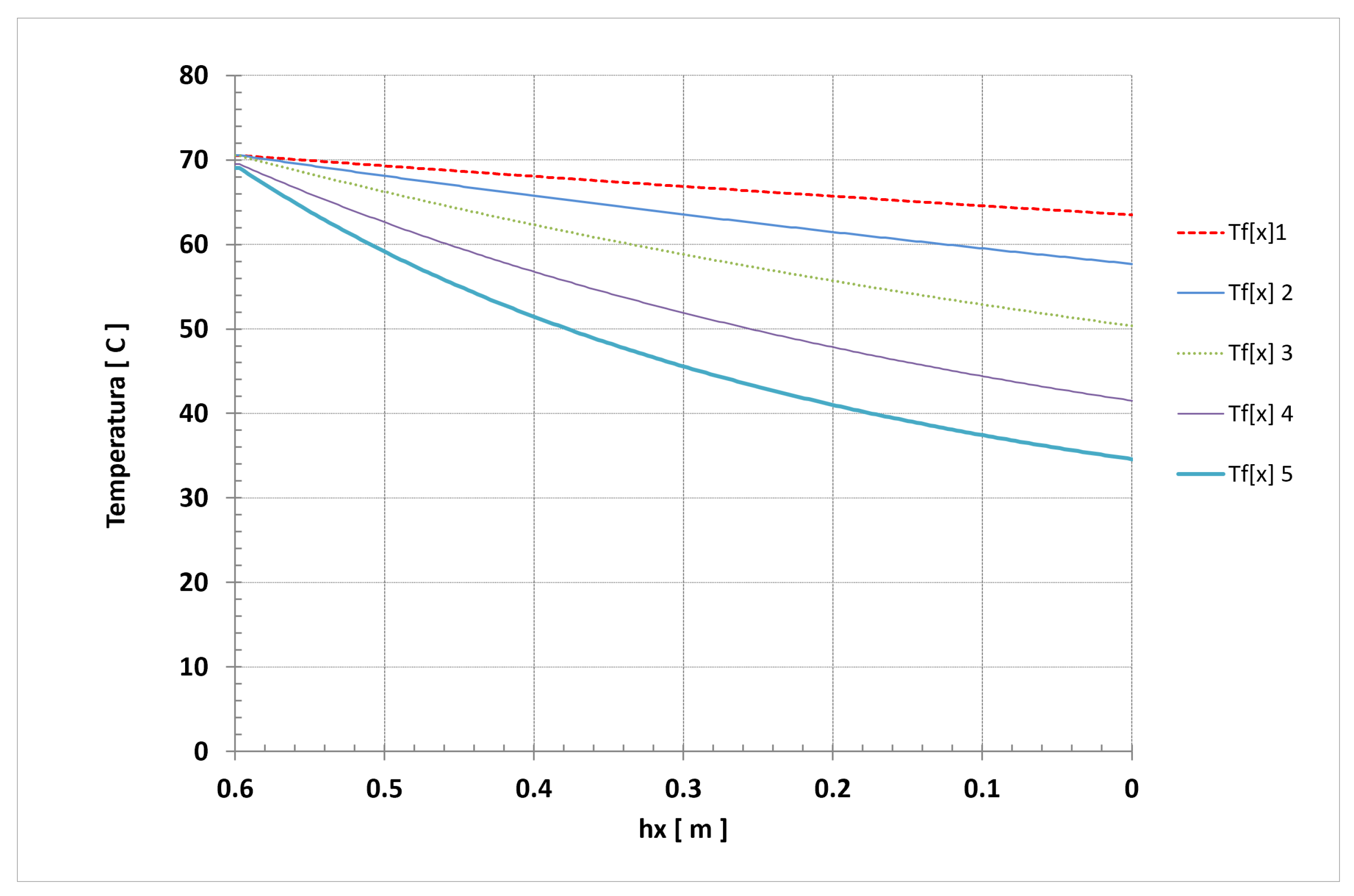

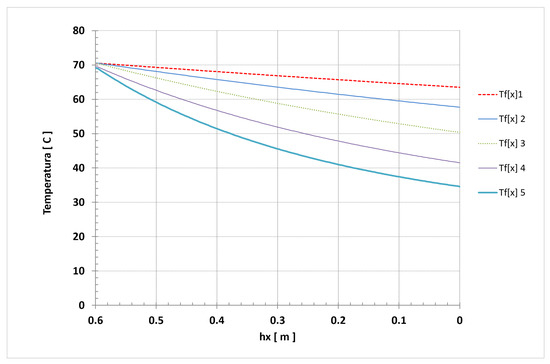

**Figure 17.**Iron Element Radiator T1 type—water temperature distribution according $simulation$$calculations$, ${t}_{s}$ = $89.7{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, mass flow ${q}_{mx}$ from 24% to 153% nominal value.

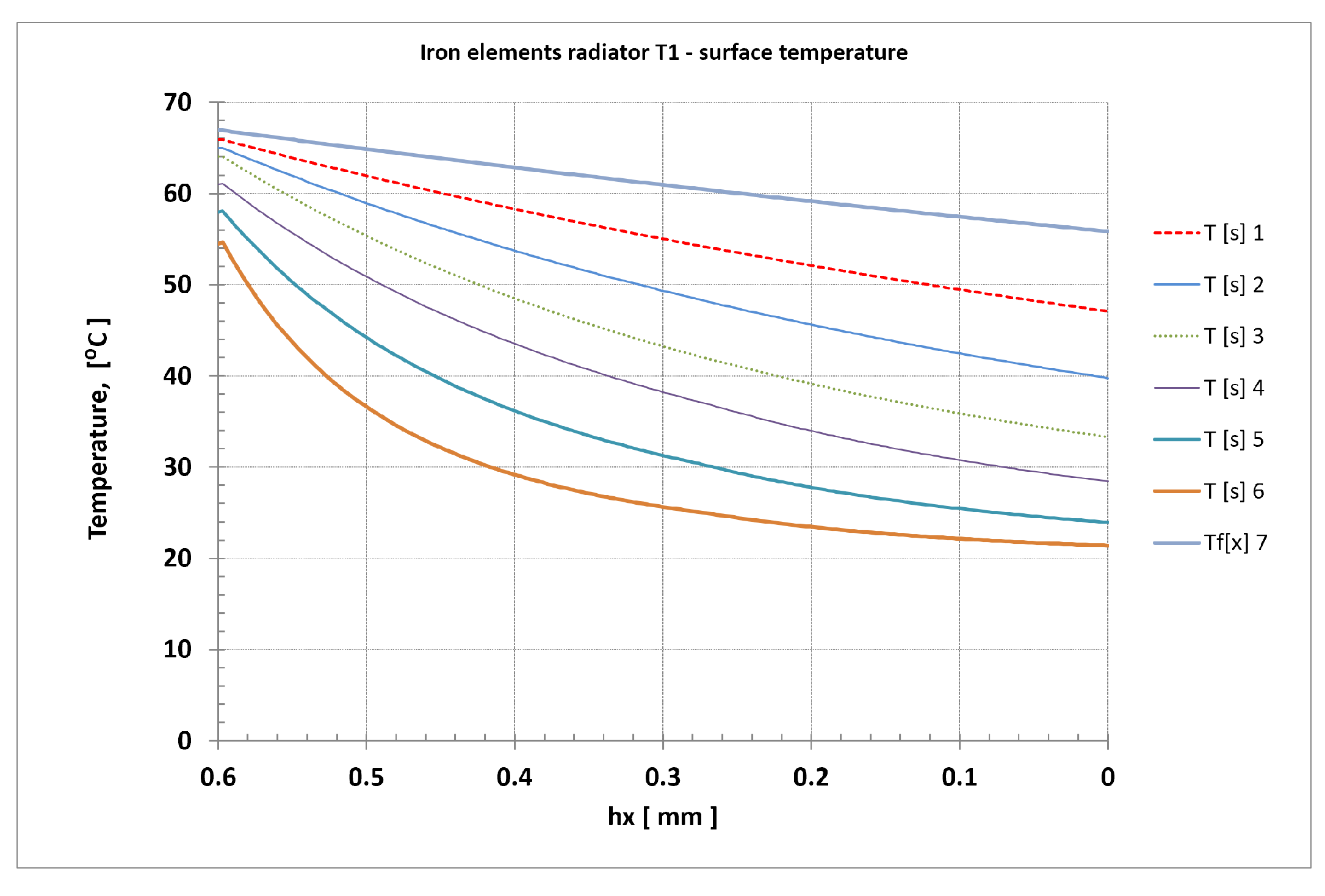

**Figure 18.**Iron Element Radiator T1 type—surface temperature distribution according $simulation$$calculations$, ${t}_{s}$ = $89.7{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, mass flow ${q}_{mx}$ from 24% to 153% nominal value.

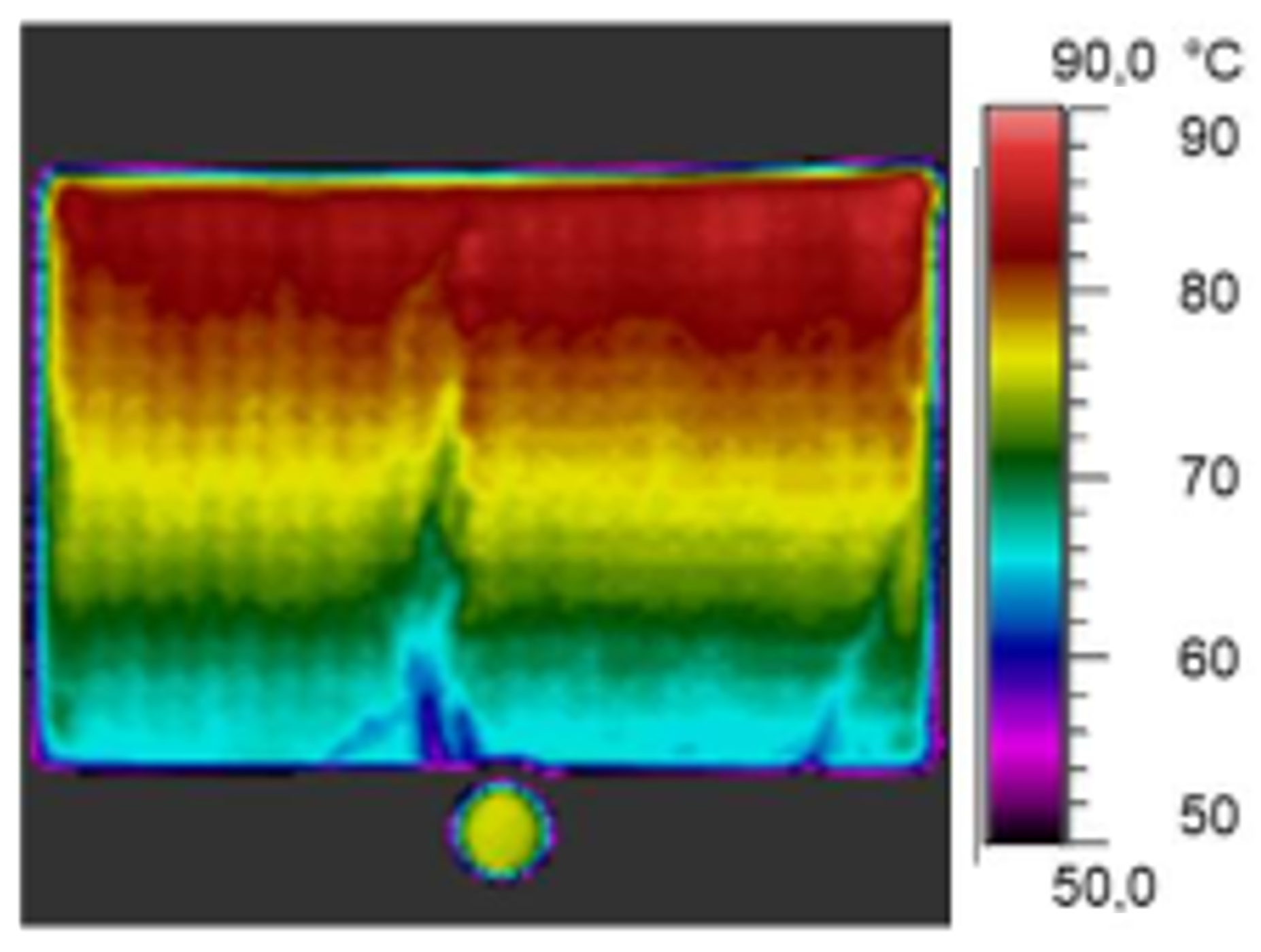

**Figure 19.**$Delonghi$-22 radiator—surface temperature distribution according thermography measurements, ${t}_{s}$ = $89.6{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{r}=69.3{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=19.5{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, mass flow rate${q}_{m}$ = $0.0247$ kg/s—measurement 2.

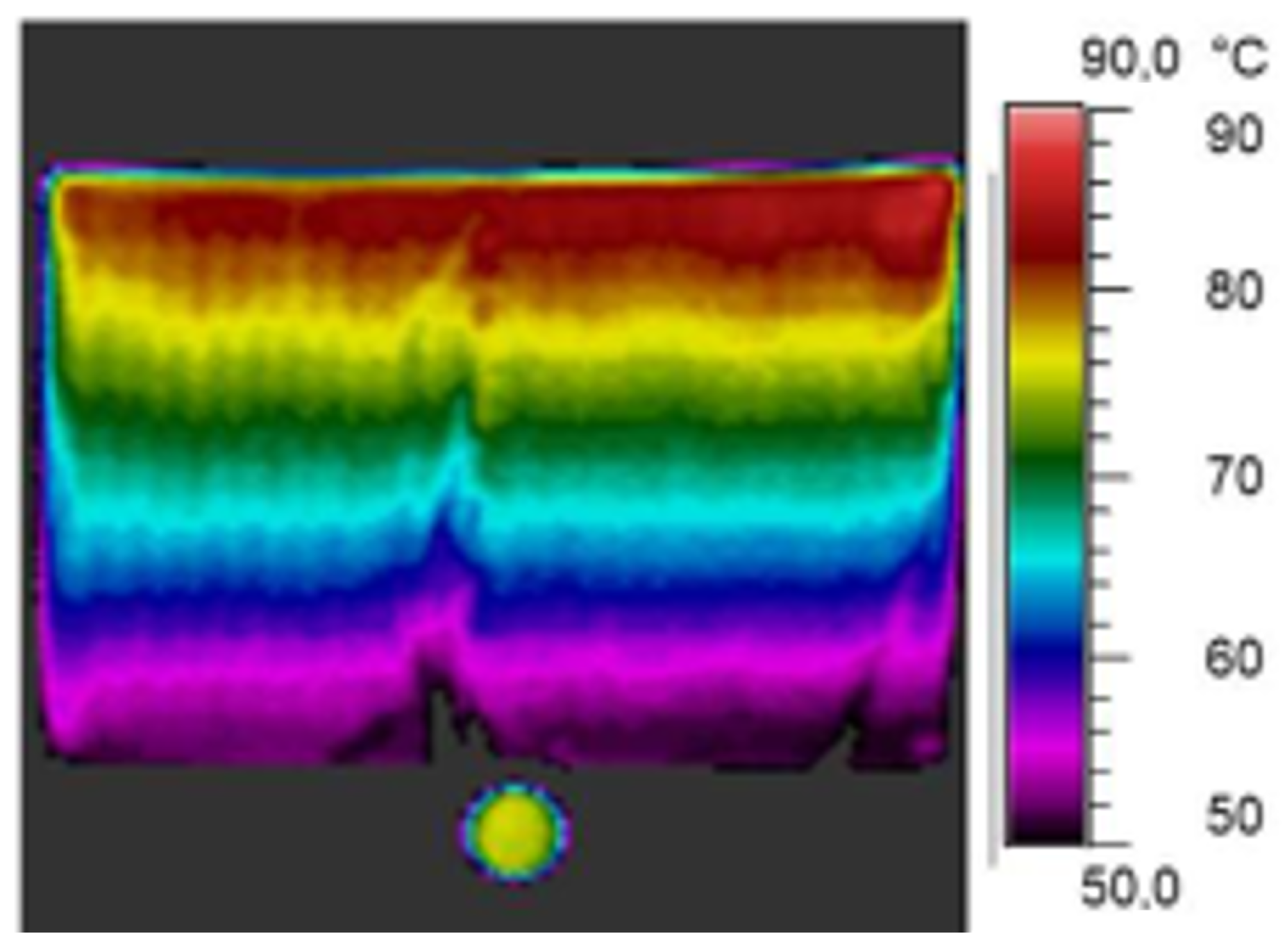

**Figure 20.**$Delonghi$-22 radiator—surface temperature distribution according thermography measurements, ${t}_{s}=89.8{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C. ${t}_{r}=54.0{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=19.7{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, $mass$$flow$$rate$${q}_{m}$ = 0.0120 kg/s—measurement 3.

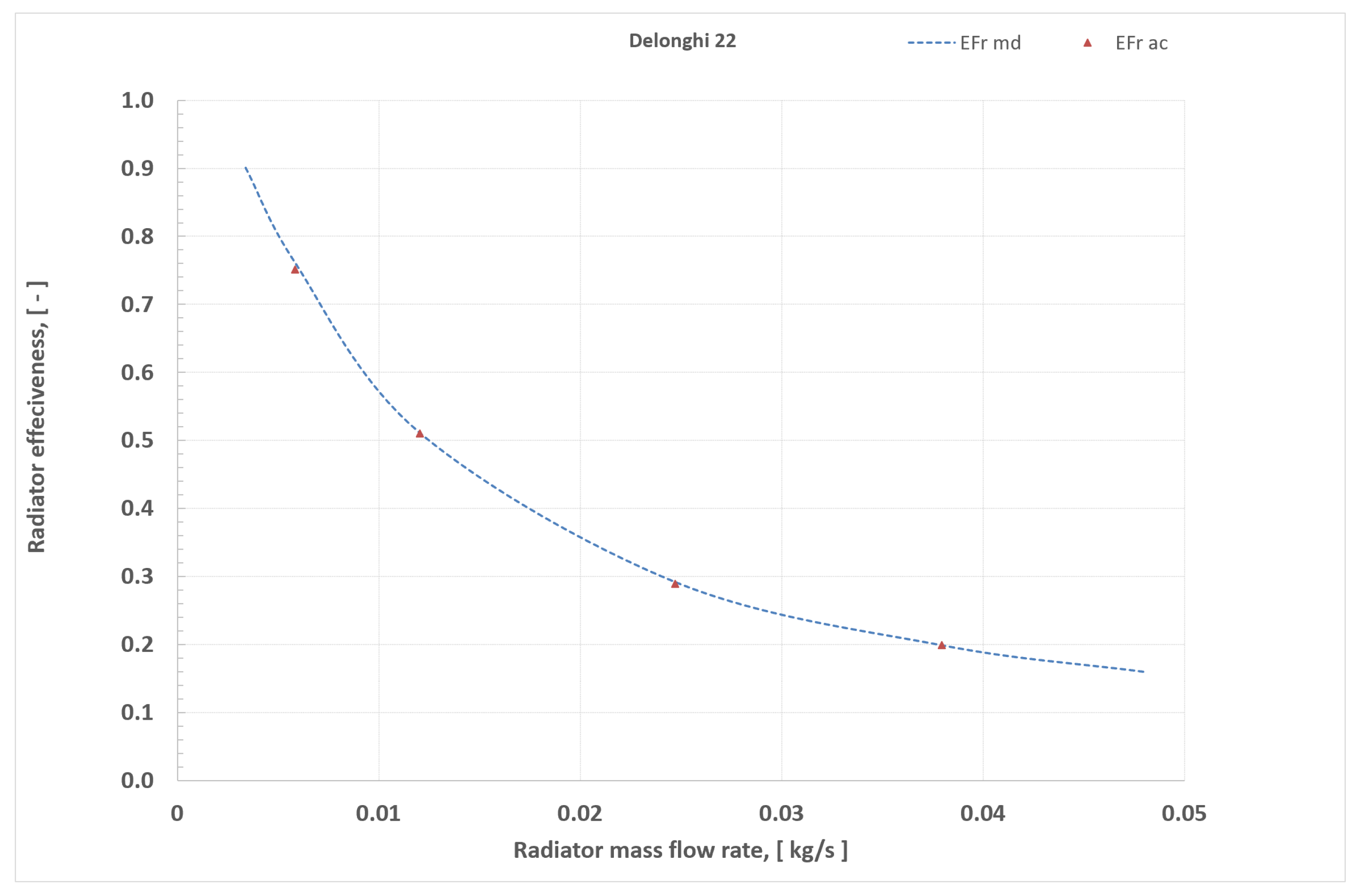

**Figure 21.**Comparison of measurement and calculations results of the $Delonghi$-22 radiator effectiveness, measurement 1–4.

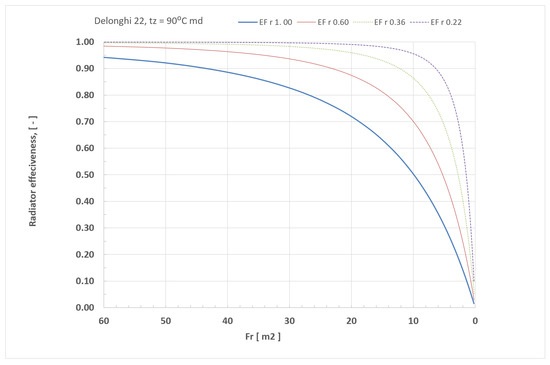

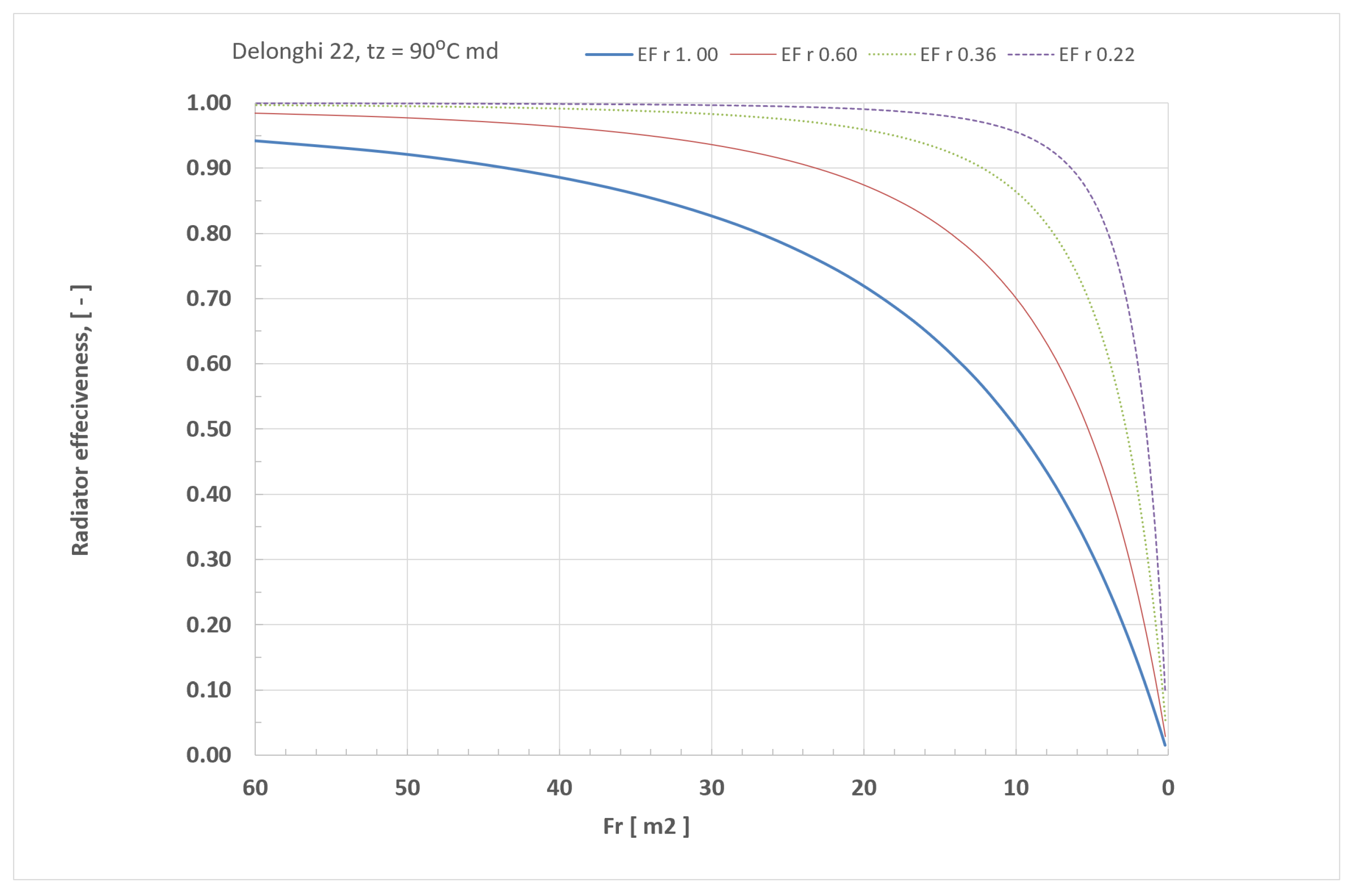

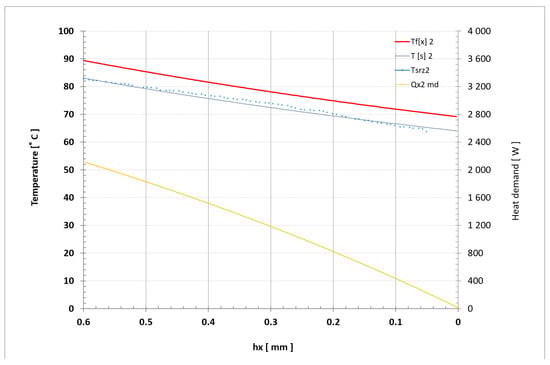

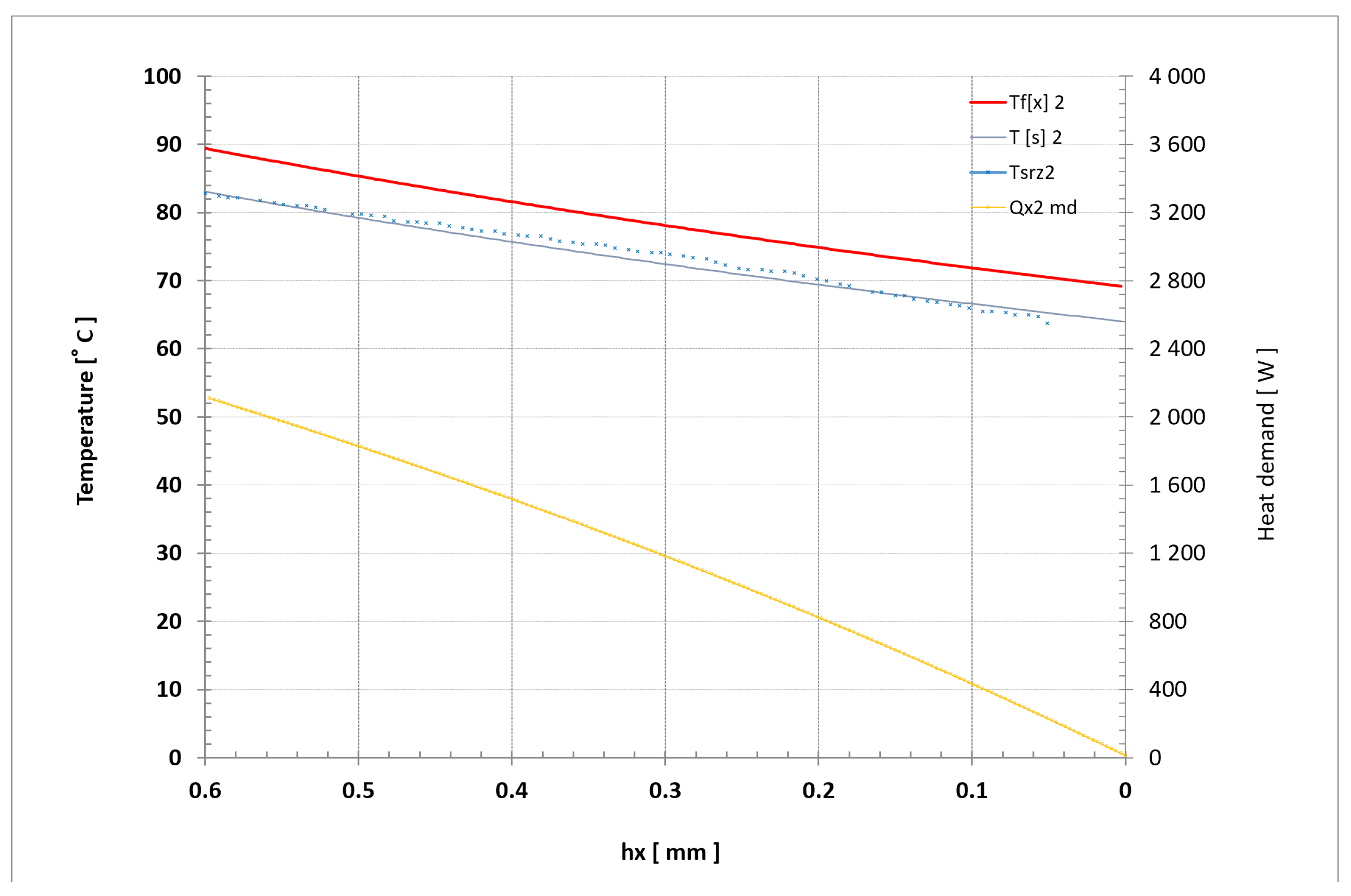

**Figure 23.**$Delonghi$-22 comparison of measurement and calculations results of water temperature, radiator surface temperature and radiator heat out distribution—measurement 1, ${t}_{s}=89.8{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{r}=75.9{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=19.9{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${q}_{mx}$ = $0.0379$ kg/s, (${q}_{m.max}).$

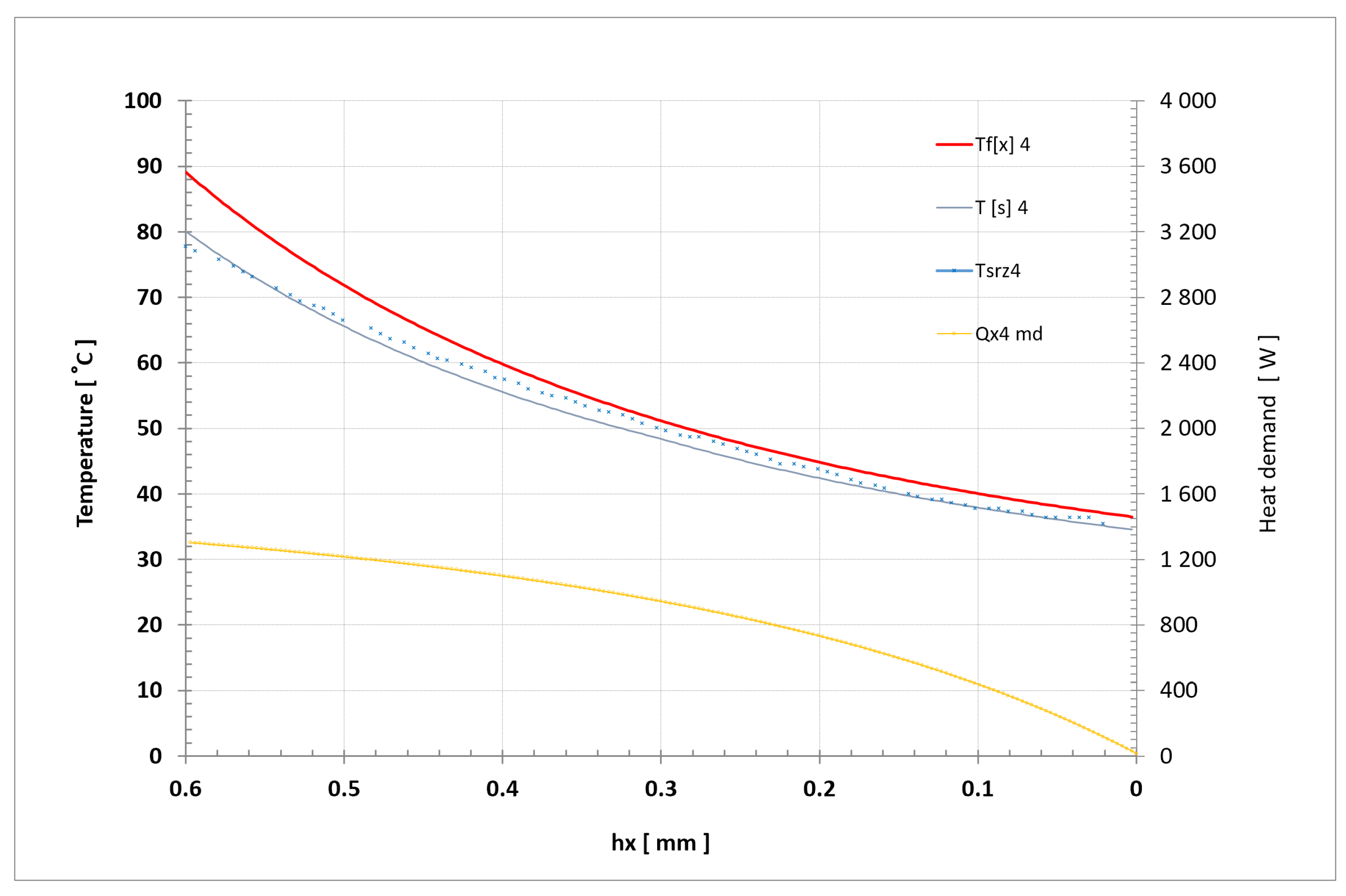

**Figure 24.**$Delonghi$-22 comparison of measurement and calculations results of water temperature, radiator surface temperature and radiator heat out distribution—measurement 4, ${t}_{s}=89.7{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{r}=37.1{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=19.7{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${q}_{mx}$ = 0.0059 kg/s, (${q}_{m.min})$.

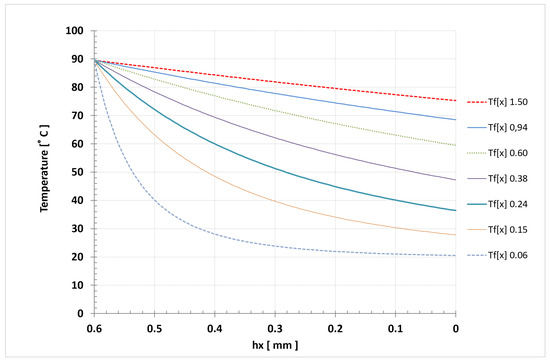

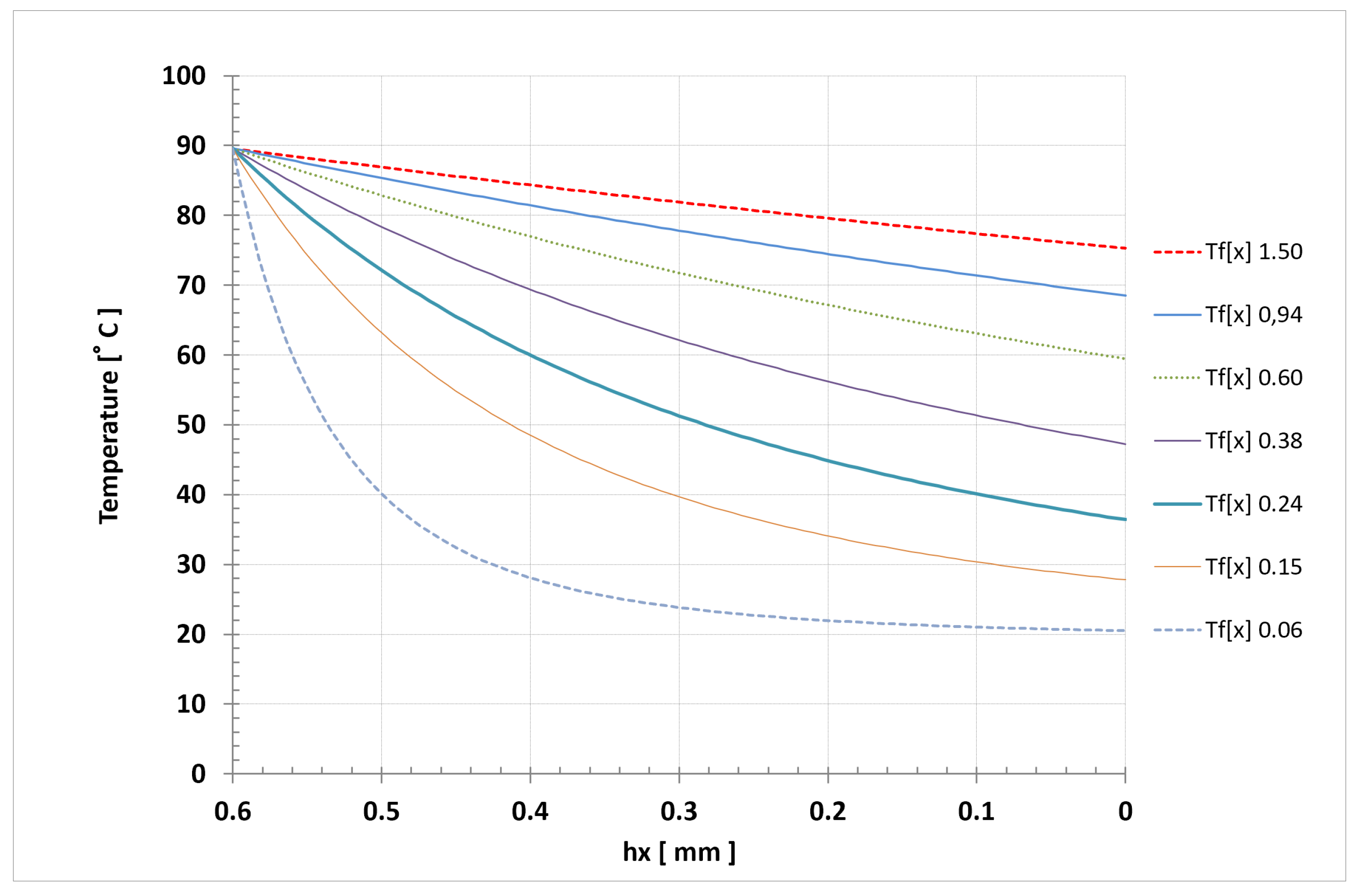

**Figure 25.**$Delonghi$-22 water temperature change profile, ${t}_{s}=90.0{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=19.9{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${q}_{mx}$ from $6.0\%$ to $150\%$, (${q}_{nom}$).

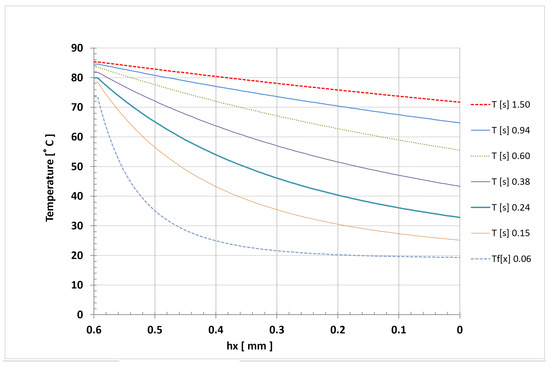

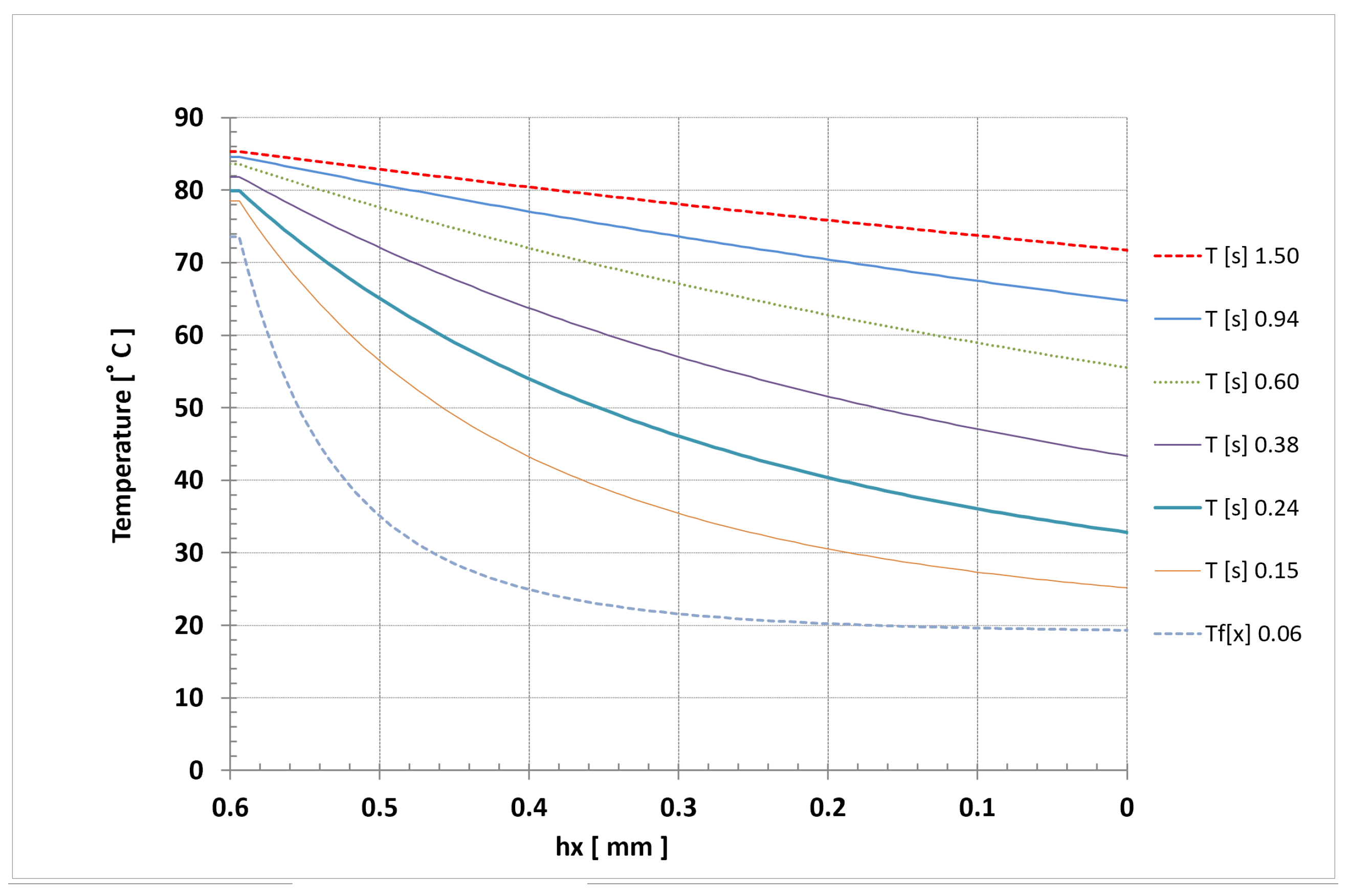

**Figure 26.**$Delonghi$-22 surface temperature change profile, ${t}_{s}=90.0{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${t}_{i}=19.9{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, ${q}_{mx}$ from $6.0\%$ to $150\%$, (${q}_{nom}$).

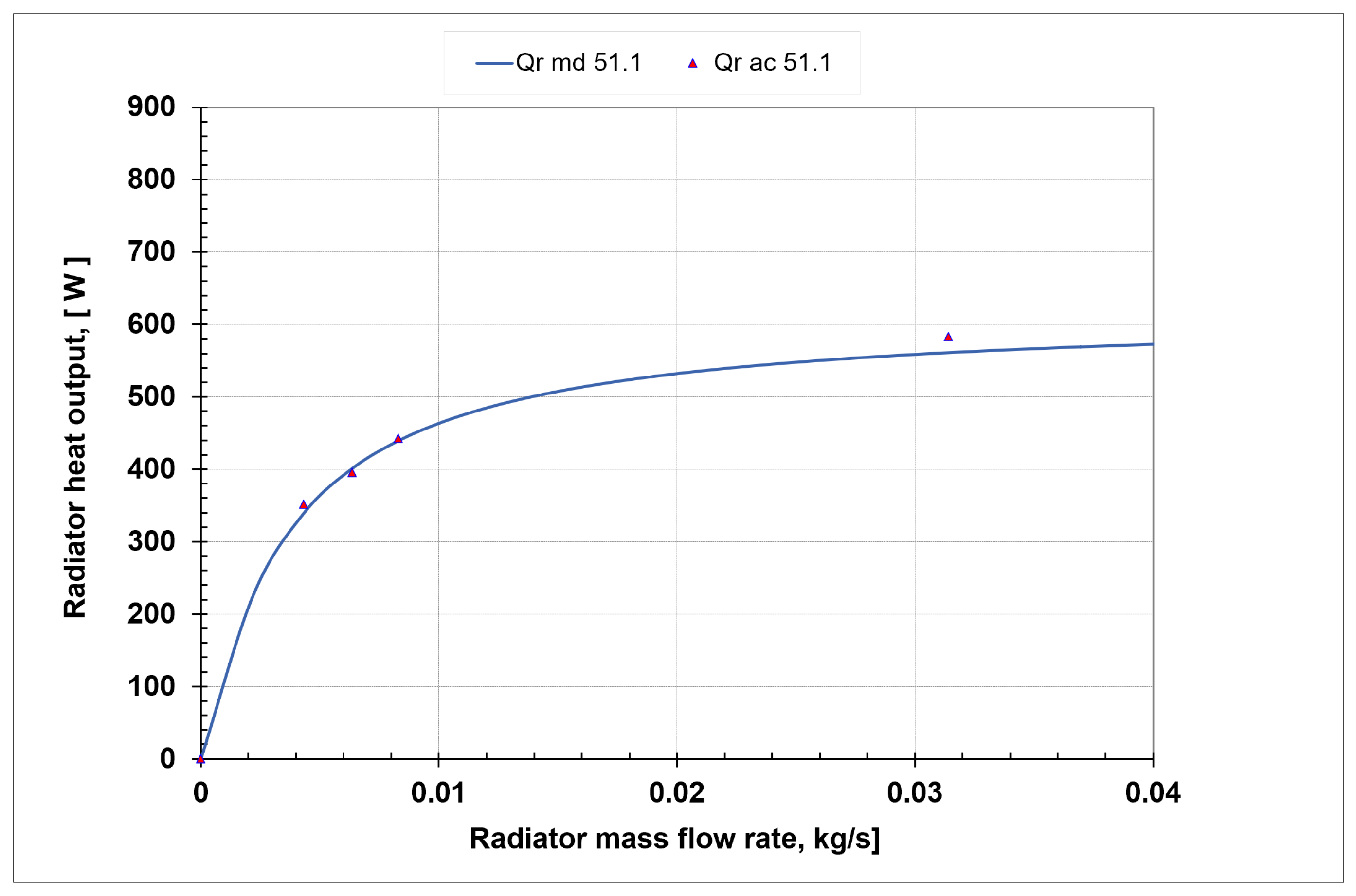

**Figure 29.**Comparison of the test and calculations results of the convection radiator type-8RR heat output change as a function of the mass flow rate, ${t}_{s}$ = $51.1{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

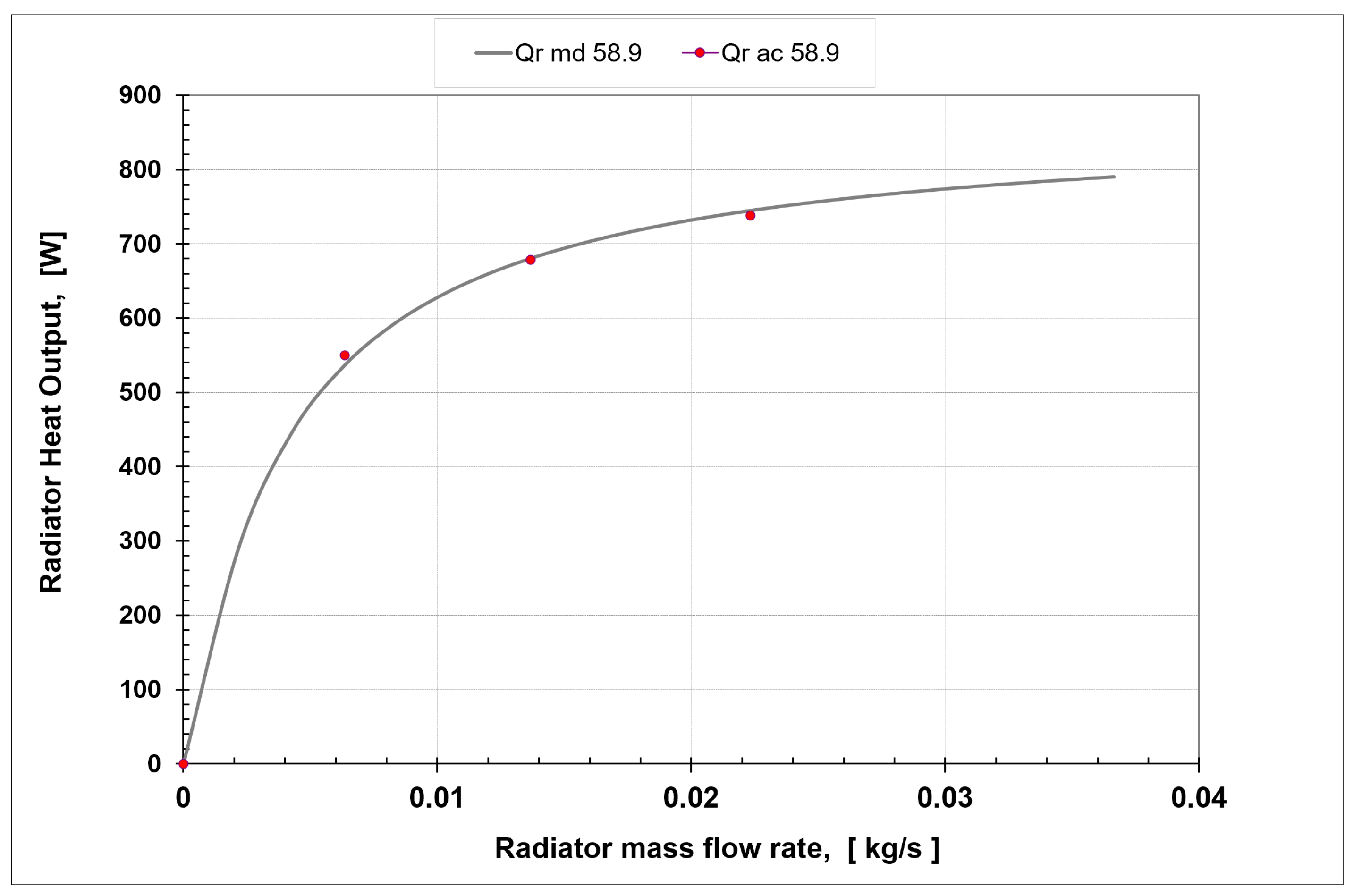

**Figure 30.**Comparison of test and calculations results of the convector radiator type-8RS heat output change as a function of the mass flow rate, ${t}_{s}=58.9{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

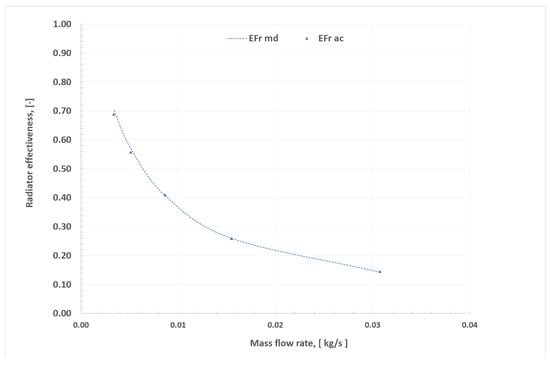

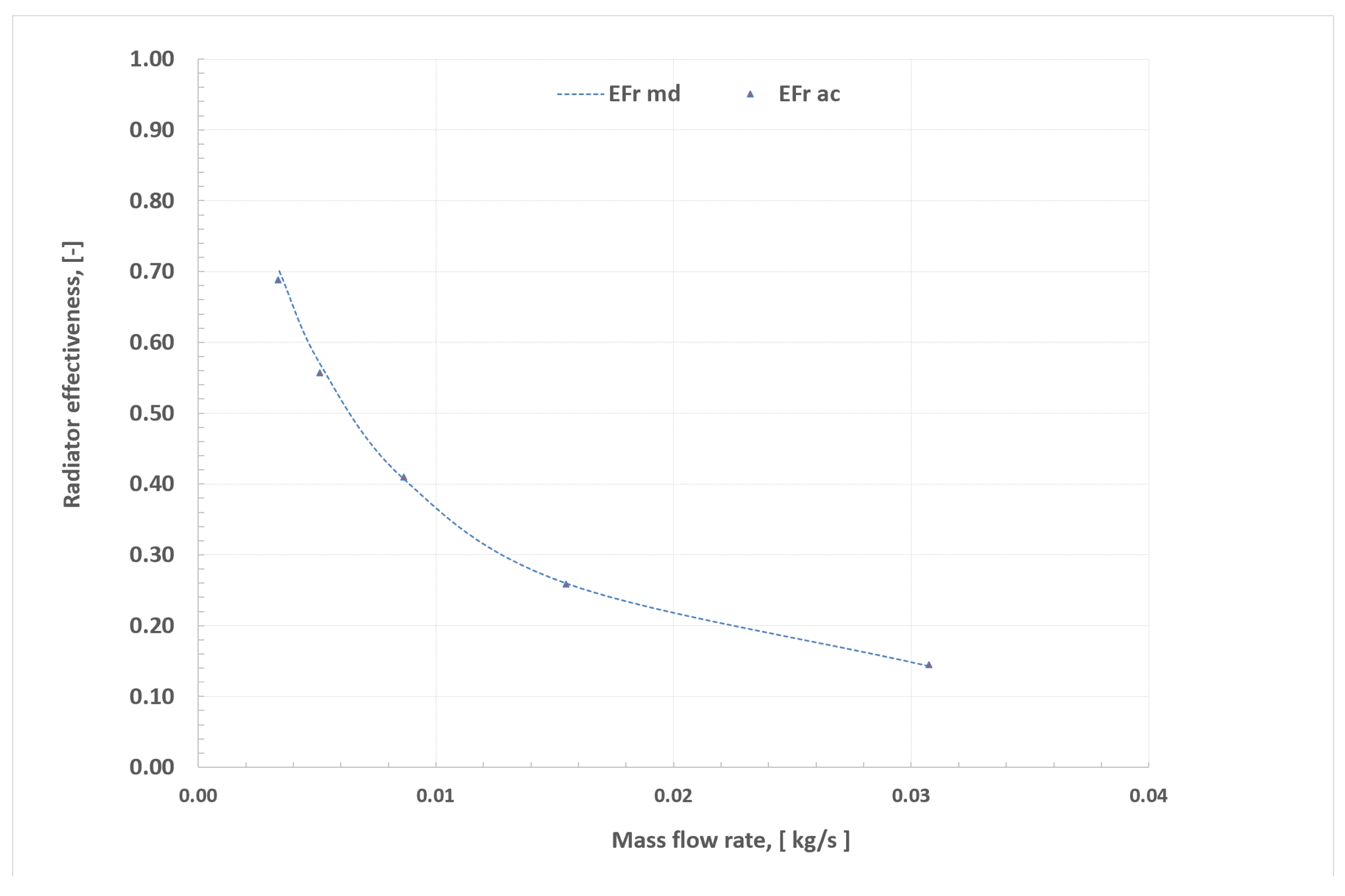

**Figure 31.**$Radiator$T-1, effectiveness according to the tests and simulations calculations by “$NEHTMi{R}_{md}$” in the mass flow range ${m}_{r}$ from 39% to 356% of the nominal value.

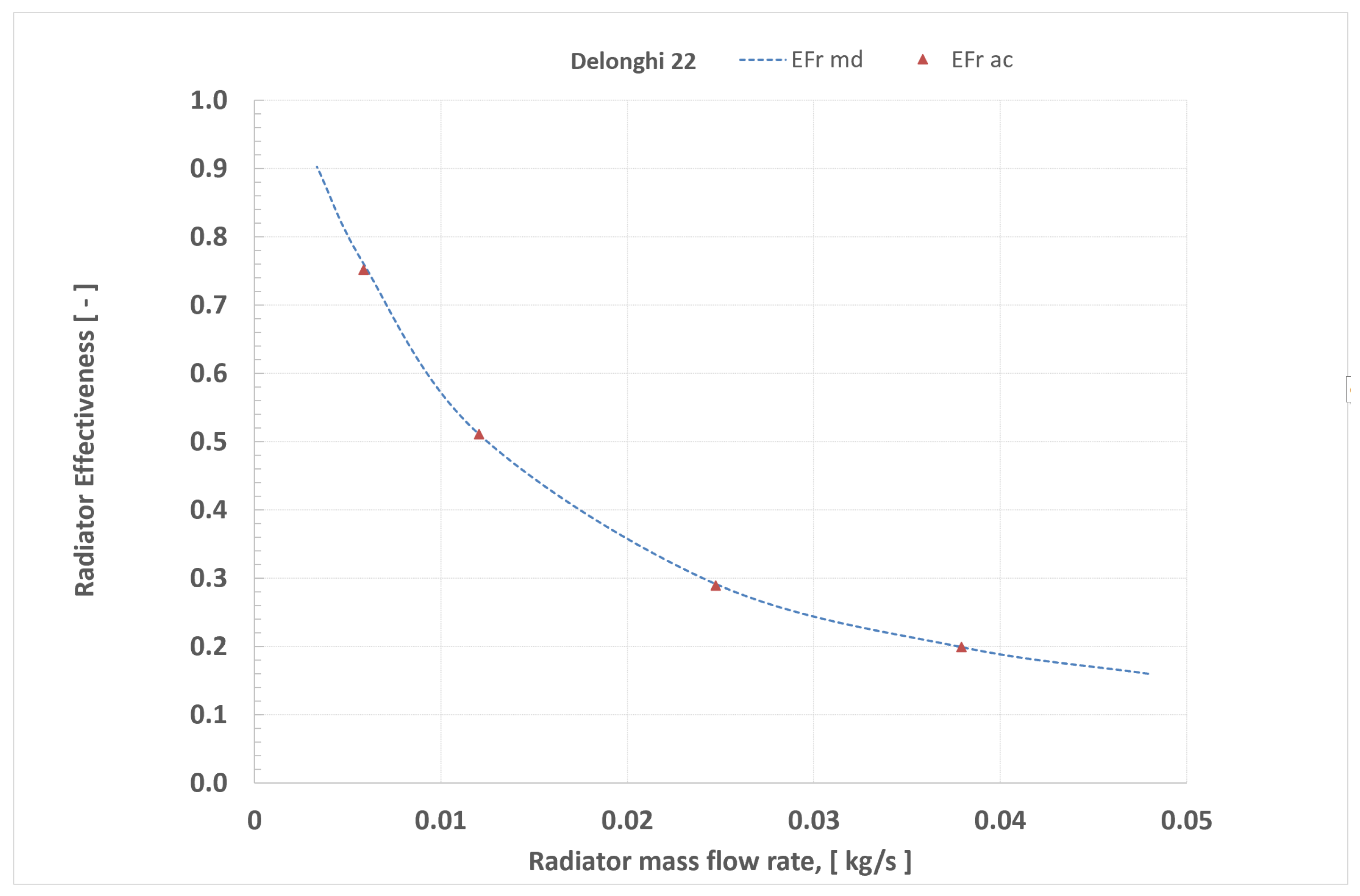

**Figure 32.**$Radiator$ Delonghi-type 22—effectiveness according to the tests and simulations calculations by “$NEHTMi{R}_{md}$” in the mass flow range ${m}_{r}$ from 20% to 150% of the nominal value.

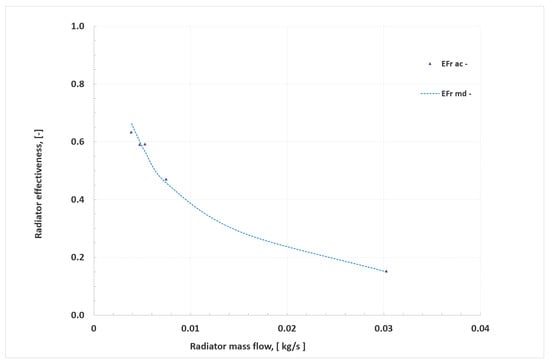

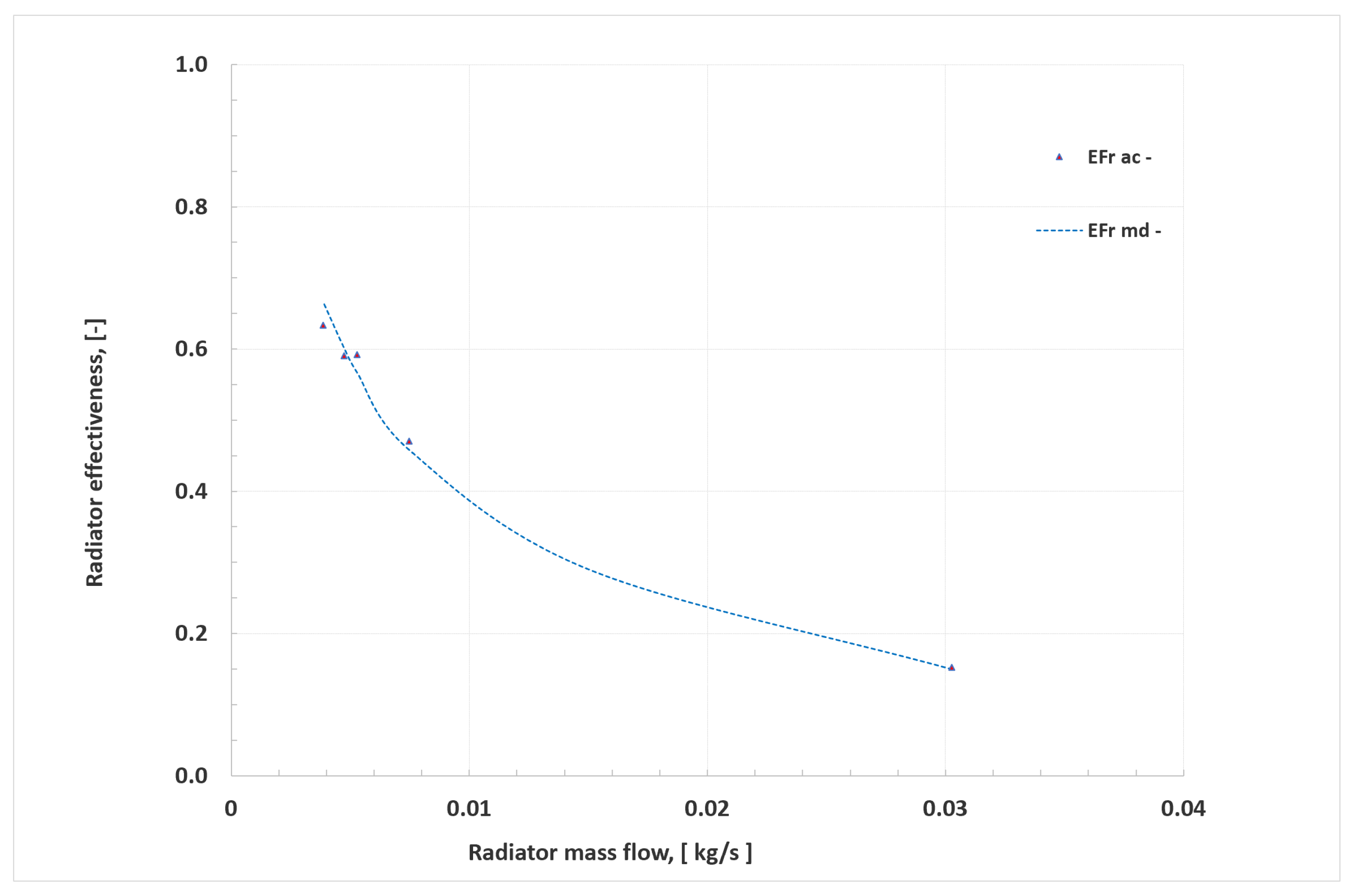

**Figure 33.**$Convector$$Radiator$-$8RR$—effectiveness according to the tests and simulations calculations by “$NEHTMi{R}_{md}$” in the mass flow range ${m}_{r}$ from 23% to 150% of the nominal value.

**Table 1.**The comparison between the measurement and the calculations results Radiator T1. ${t}_{s}=70.0{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

No. | ${\mathit{t}}_{\mathit{s}}$ | ${\mathit{t}}_{\mathit{r}}$ | ${\mathit{t}}_{\mathit{i}}$ | qm | Qr ac | Qr EN | dQr EN | Qr md | dQr md | qmx/qmo |
---|---|---|---|---|---|---|---|---|---|---|

- | °C | °C | °C | kg/s | W | W | % | W | % | - |

1 | 70.6 | 63.4 | 21.1 | 0.0307 | 924 | 913 | 1.2 | 911 | 1.3 | 3.56 |

2 | 70.6 | 57.8 | 20.9 | 0.0155 | 832 | 847 | 1.8 | 837 | −0.6 | 1.79 |

3 | 70.5 | 50.1 | 20.7 | 0.0086 | 737 | 756 | 2.6 | 733 | 0.5 | 1.00 |

4 | 69.7 | 42.2 | 20.3 | 0.0051 | 588 | 662 | 12.7 | 602 | −2.5 | 0.59 |

5 | 69.4 | 35.3 | 19.9 | 0.0034 | 481 | 588 | 22.3 | 491 | −2.2 | 0.39 |

**Table 2.**The comparison between the measurement and the calculations results Radiator T1. ${t}_{s}$ = $70{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

No. | ${\mathit{t}}_{\mathit{s}}$ | ${\mathit{t}}_{\mathit{r}}$ | ${\mathit{t}}_{\mathit{i}}$ | qm | Qr ac | EFr md | EFr ac | dEFr | tr md | dtr | Ts 0.75 | qmx/qmo |
---|---|---|---|---|---|---|---|---|---|---|---|---|

- | °C | °C | °C | kg/s | W | - | °C | % | °C | % | - | |

1 | 70.6 | 63.4 | 21.1 | 0.0307 | 924 | 0.1430 | 0.1450 | −1.3 | 63.5 | −1.3 | 66.1 | 3.56 |

2 | 70.6 | 57.8 | 20.9 | 0.0155 | 832 | 0.2601 | 0.2585 | 0.6 | 57.7 | 0.6 | 63.3 | 1.79 |

3 | 70.5 | 50.1 | 20.7 | 0.0086 | 737 | 0.4075 | 0.4097 | −0.5 | 50.2 | −0.5 | 60.3 | 1.00 |

4 | 69.7 | 42.2 | 20.3 | 0.0051 | 588 | 0.5709 | 0.5571 | 2.5 | 41.5 | 2.5 | 56.2 | 0.59 |

5 | 69.4 | 35.3 | 19.9 | 0.0034 | 481 | 0.7039 | 0.6885 | 2.2 | 34.6 | 2.2 | 50.4 | 0.39 |

**Table 3.**The comparison between the measurement and the calculations results Radiator Delonghi 22, ${t}_{s}$ = $89.8{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

No. | ${\mathit{t}}_{\mathit{s}}$ | ${\mathit{t}}_{\mathit{r}}$ | ${\mathit{t}}_{\mathit{i}}$ | qm | Qr ac | Qr EN | dQr EN | Qr md | dQr md | Ts 0.75 | qmx/qmo |
---|---|---|---|---|---|---|---|---|---|---|---|

- | °C | °C | °C | kg/s | W | W | % | W | % | C | - |

1 | 89.8 | 75.9 | 19.9 | 0.0379 | 2222 | 2277 | −2.46 | 2208 | 0.34 | 80.4 | 1.53 |

2 | 89.6 | 69.3 | 19.5 | 0.0247 | 2103 | 2135 | −1.52 | 2115 | −0.55 | 77.5 | 1.00 |

3 | 89.8 | 54.0 | 19.7 | 0.0120 | 1806 | 1779 | 1.46 | 1804 | 0.09 | 57.0 | 0.49 |

4 | 89.7 | 37.1 | 19.7 | 0.0059 | 1289 | 1407 | −9.16 | 1304 | −1.19 | 60.5 | 0.24 |

**Table 4.**The comparison between the measurement and the calculations results Radiator Delonghi 22, ${t}_{s}$ = $89.8{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

No. | ${\mathit{t}}_{\mathit{s}}$ | ${\mathit{t}}_{\mathit{r}}$ | ${\mathit{t}}_{\mathit{i}}$ | qm | Qr ac | EFr ac | EFr md | dEFr | tr md | dtr | Ts 0.75 | qmx/qmo |
---|---|---|---|---|---|---|---|---|---|---|---|---|

- | °C | °C | °C | kg/s | W | - | - | % | C | % | C | - |

1 | 89.8 | 75.9 | 19.9 | 0.0379 | 2222 | 0.1989 | 0.1989 | 0.0 | 75.9 | 0.0 | 80.4 | 1.53 |

2 | 89.6 | 69.3 | 19.5 | 0.0247 | 2103 | 0.2892 | 0.2915 | −0.8 | 69.2 | 0.2 | 77.5 | 1.00 |

3 | 89.8 | 54.0 | 19.7 | 0.0120 | 1806 | 0.5106 | 0.5108 | 0.0 | 54.0 | 0.0 | 57.0 | 0.49 |

4 | 89.7 | 37.1 | 19.7 | 0.0059 | 1289 | 0.7513 | 0.7602 | −1.2 | 36.5 | 1.7 | 60.5 | 0.24 |

**Table 5.**The comparison between the measurement results and the simulation calculations Convector Radiator type-8RR, ${t}_{s}$ = $51.1{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

No. | ${\mathit{t}}_{\mathit{s}}$ | ${\mathit{t}}_{\mathit{r}}$ | ${\mathit{t}}_{\mathit{i}}$ | qm | Qr ac | Qr md | dQr md | EFr ac | EFr md | dEFr | tr | dtr | qmx/qmo |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

- | °C | °C | °C | kg/s | W | W | % | - | - | % | °C | % | - |

1 | 51.2 | 46.6 | 21.0 | 0.0303 | 583 | 573 | 1.7 | 0.152 | 0.14944 | 1.7 | 46.7 | −0.2 | 2.16 |

2 | 51.1 | 36.9 | 21.0 | 0.0075 | 443 | 432 | 2.5 | 0.4702 | 0.45838 | 2.5 | 37.3 | −1.0 | 0.53 |

3 | 51.1 | 33.2 | 20.9 | 0.0053 | 396 | 379 | 4.3 | 0.5918 | 0.56656 | 4.3 | 34.0 | −2.3 | 0.38 |

4 | 51.0 | 33.3 | 21.0 | 0.0047 | 352 | 358 | −1.9 | 0.5907 | 0.60201 | −1.9 | 32.9 | 1.0 | 0.34 |

**Table 6.**The comparison between the measurement results and the simulation calculations Convector Radiator type-8RS, ${t}_{s}$ = $58.9{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C.

No. | ${\mathit{t}}_{\mathit{s}}$ | ${\mathit{t}}_{\mathit{r}}$ | ${\mathit{t}}_{\mathit{i}}$ | qm | Qr ac | Qr md | dQr md | qmx/qmo |
---|---|---|---|---|---|---|---|---|

- | °C | °C | °C | kg/s | W | W | % | - |

1 | 58.6 | 32.1 | 21.0 | 0.0035 | 388 | 399.1 | −2.8 | 0.26 |

2 | 59.0 | 39.9 | 21.0 | 0.0064 | 511 | 531.9 | −4.1 | 0.47 |

3 | 59.0 | 46.9 | 20.9 | 0.0131 | 662 | 658.6 | 0.5 | 0.97 |

4 | 59.0 | 51.5 | 21.0 | 0.0226 | 709 | 720.9 | −1.7 | 1.68 |

**Table 7.**The comparison between the measurement results and the simulation calculations Convector Radiator type-8RS, ${t}_{s}$ = $58.9{\phantom{\rule{3.33333pt}{0ex}}}^{\circ}$C, Part 2.

No. | ${\mathit{t}}_{\mathit{s}}$ | ${\mathit{t}}_{\mathit{r}}$ | ${\mathit{t}}_{\mathit{i}}$ | qm | EFr ac | EFr md | dEFr | tr md | dtr | qmx/qmo |
---|---|---|---|---|---|---|---|---|---|---|

- | °C | °C | °C | kg/s | - | - | % | °C | % | - |

1 | 58.6 | 32.1 | 20.8 | 0.0035 | 0.7011 | 0.71998 | −2.7 | 31.4 | 2.2 | 0.26 |

2 | 59.0 | 39.9 | 21.4 | 0.0064 | 0.509 | 0.53006 | −4.1 | 39.1 | 2.0 | 0.47 |

3 | 59.0 | 46.9 | 21.7 | 0.0131 | 0.3236 | 0.32204 | 0.5 | 47.0 | −0.1 | 0.97 |

4 | 59.0 | 51.5 | 22.0 | 0.0226 | 0.2024 | 0.20584 | −1.7 | 51.4 | 0.2 | 1.68 |
