# Co-Design Optimization of Direct Drive PMSGs for Offshore Wind Turbines Based on Wind Speed Profile

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Optimal Design Methodology

- The time-dependent control variables are the d–q axis currents ${i}_{oq}\left(t\right)$ and ${i}_{od}\left(t\right)$. In our method, they will be analytically expressed for the two control strategies considered.
- The rotor variable ${B}_{fm}$, the magnitude of the air-gap flux density created by the magnets represented in the circuit via the electromotive force ${e}_{0}\left(t\right)$. It will be optimized analytically to minimize the energy losses for the considered working cycle. Note that the magnets are sized (shape and remanence) afterwards, from ${B}_{fmopt}$.

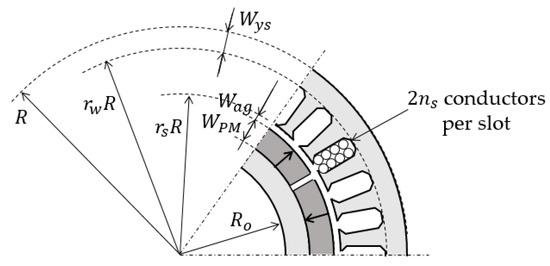

- The stator geometry variables are $R$, ${r}_{s}$, ${r}_{w}$, ${w}_{mag}$, ${n}_{s},{\tau}_{LR}$ $p$ and $q$ (see Figure 2), which are in the expressions of coefficient ${k}_{\varphi}$, armature reactance ($X\left(t\right)$) and resistance (${\mathcal{R}}_{c}$,${\mathcal{R}}_{\mu}\left(t\right)$) (see Figure 1). These parameters will be optimized by the use of a genetic algorithm to minimize both the mass and the energy losses.

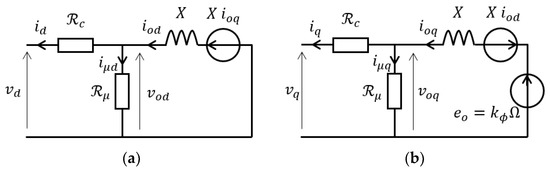

#### 2.1. Basics Equations

#### 2.2. Analytical Expressions of $d$- and $q$-Axis Currents

#### 2.3. Analytical Expression of ${B}_{fmopt}$

#### 2.4. Analytical Expression of Energy Losses

## 3. Modeling

#### 3.1. Electromagnetic Model

#### 3.2. Mass Calulcation

#### 3.3. Thermal Constraint

^{2}K (for air cooled convection). The time-dependent temperature at node $i$ is evaluated with (36).

#### 3.4. Saturation Constraint

#### 3.5. Electrical Constraint

#### 3.6. Mechanical Constraints

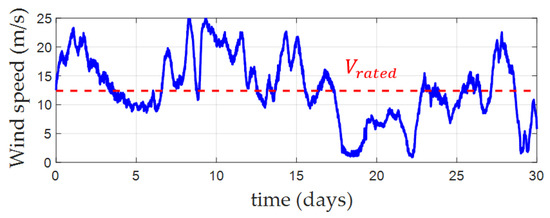

## 4. Design Optimization

#### 4.1. Results

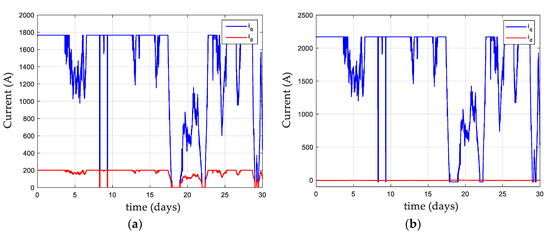

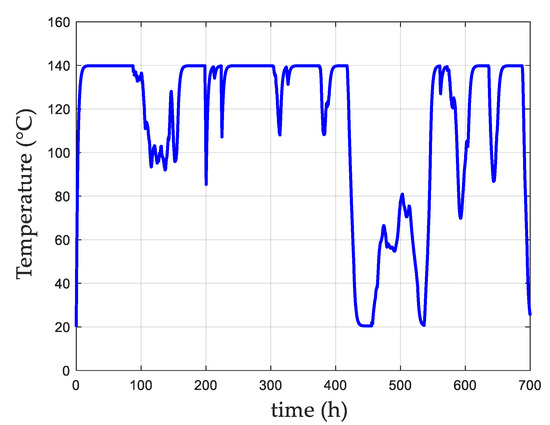

#### 4.2. Optimal Machine

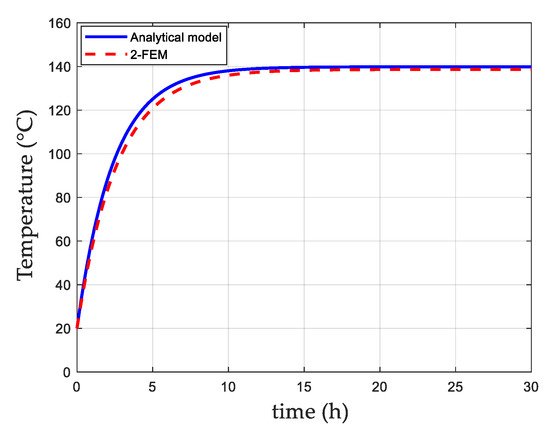

#### 4.3. FEA Validation

## 5. Conclusions

## 6. Patents

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

${v}_{d}$,${v}_{q}$ | d-and q- axis terminal voltages (V) |

${i}_{d}$,${i}_{q}$ | d- and q- axis currents (A) |

${e}_{0}$ | back electromotive force (V) |

${\mathcal{R}}_{c}$ | armature resistance (Ω) |

${\mathcal{R}}_{\mu}$ | iron loss resistance (Ω) |

$X$ | synchronous reactance |

${P}_{c}$ | copper losses (W) |

${P}_{mg}$ | iron losses (W) |

${k}_{ad}$ | additional iron loss coefficient |

${k}_{ec}$ | eddy currents specific loss coefficient |

${k}_{h}$ | hysteresis specific loss coefficient |

${k}_{f}$ | slot fill factor |

${k}_{t}$ | tooth opening to the slot pitch ratio |

${k}_{L}$ | coefficient for correcting the active length |

$L$ | active length |

${\tau}_{LR}$ | length to outer stator radius ratio |

$R$ | outer stator radius |

${R}_{o}$ | inner rotor radius (m) |

${R}_{s}$ | inner stator radius |

${R}_{r}$ | outer rotor radius |

${r}_{s}$ | reduced inner stator radius |

${R}_{w}$ | outer winding radius |

${r}_{w}$ | reduced outer winding radius |

${w}_{ag}$ | air-gap thickness |

${w}_{mag}$ | magnetic airgap (magnet + mechanical airgap) (m) |

${w}_{PM}$ | permanent magnet height (m) |

${w}_{t}$ | slot width (m) |

${w}_{y}$ | armature yoke thickness (m) |

${b}_{PM}$ | permanent magnet width (m) |

${n}_{s}$ | number of turns per phase per pole |

$p$ | number of pole pairs |

$q$ | number of phases |

${\beta}_{PM}$ | electrical magnet pole arc (rad) |

${\sigma}_{c}$ | electric conductivity |

${\Omega}_{m}$ | machine mechanical angular velocity (rad/s) |

${\theta}_{max}$ | maximal permissible temperature (°C) |

${\theta}_{c}$ | temperature in the copper (°C) |

${\theta}_{amb}$ | ambient temperature (°C) |

${h}_{eq}$ | heat transfer coefficient (W/m^{2}K) |

${\rho}_{c}$ | copper density (kg/m^{3}) |

${\rho}_{Fe}$ | steel density (kg/m^{3}) |

${\rho}_{PM}$ | permanent magnet density (kg/m^{3}) |

${C}_{pc}$ | specific heat capacity of copper (J/Kg/K) |

${C}_{pFe}$ | specific heat capacity of steel (J/Kg/K) |

## References

- Dhar, M.K.; Thasfiquzzaman, M.; Dhar, R.K.; Ahmed, M.T.; Al Mohsin, A. Study on pitch angle control of a variable speed wind turbine using different control strategies. In Proceedings of the 2017 IEEE International Conference on Power, Control, Signals and Instrumentation Engineering (ICPCSI-2017), Chennai, India, 21–22 September 2017; pp. 285–290. [Google Scholar]
- Xin, W.; Ceng, S.; Yong, L.; Xin, L.; Bin, Q.; Wang, X. The key control technologies in the direct drive PMSG offshore wind turbine system. In Proceedings of the 27th Chinese Control and Decision Conference (2015 CCDC), Qingdao, China, 23–25 May 2015; pp. 5058–5063. [Google Scholar]
- Stuebig, C.; Seibel, A.; Schleicher, K.; Haberjan, L.; Kloepzig, M.; Ponick, B. Electromagnetic design of a 10 MW permanent magnet synchronous generator for wind turbine application. In Proceedings of the 2015 IEEE International Electric Machines & Drives Conference (IEMDC), Coeur d’Alene, ID, USA, 10–13 May 2015; pp. 1202–1208. [Google Scholar]
- Wang, J.; Qu, R.; Tang, Y.; Liu, Y.; Zhang, B.; He, J.; Zhu, Z.; Fang, H.; Su, L. Design of a Superconducting Synchronous Generator With LTS Field Windings for 12 MW Offshore Direct-Drive Wind Turbines. IEEE Trans. Ind. Electron.
**2015**, 63, 1618–1628. [Google Scholar] [CrossRef] - Moghadam, F.K.; Nejad, A.R. Evaluation of PMSG-based drivetrain technologies for 10-MW floating offshore wind turbines: Pros and cons in a life cycle perspective. Wind. Energy
**2020**, 23, 1542–1563. [Google Scholar] [CrossRef] - Sethuraman, L.; Maness, M.; Dykes, K. Optimized Generator Designs for the DTU 10-MW Offshore Wind Turbine using GeneratorSE. In Proceedings of the 35th Wind Energy Symposium, Grapevine, TX, USA, 9–13 January 2017. [Google Scholar] [CrossRef] [Green Version]
- Dang, L.; Bernard, N.; Bracikowski, N.; Berthiau, G. Design Optimization with Flux Weakening of High-Speed PMSM for Electrical Vehicle Considering the Driving Cycle. IEEE Trans. Ind. Electron.
**2017**, 64, 9834–9843. [Google Scholar] [CrossRef] - Kalt, S.; Wolff, S.; Lienkamp, M. Impact of Electric Machine Design Parameters and Loss Types on Driving Cycle Efficiency. In Proceedings of the 2019 8th International Conference on Power Science and Engineering (ICPSE), Dublin, Ireland, 2–4 December 2019; pp. 6–12. [Google Scholar]
- Lazari, P.; Member, S.; Wang, J.; Member, S.; Chen, L. A Computationally Efficient Design Technique for Electric-Vehicle Traction Machines. IEEE Trans. Ind. Appl.
**2014**, 50, 3203–3213. [Google Scholar] [CrossRef] - Li, Q.; Fan, T.; Wen, X.; Li, Y.; Wang, Z.; Guo, J. Design optimization of interior permanent magnet sychronous machines for traction application over a given driving cycle. In Proceedings of the IECON 2017–43rd Annual Conference of the IEEE Industrial Electronics Society, Beijing, China, 5–8 November 2017; pp. 1900–1904. [Google Scholar]
- Fatemi, A.; Demerdash, N.A.O.; Nehl, T.W.; Ionel, D.M. Large-Scale Design Optimization of PM Machines Over a Target Operating Cycle. IEEE Trans. Ind. Appl.
**2016**, 52, 3772–3782. [Google Scholar] [CrossRef] - Dang, L.; Samb, S.O.; Bernard, N. Design optimization of a direct-drive PMSG considering the torque-speed profile Application for Offshore wind energy. In Proceedings of the 2020 International Conference on Electrical Machines (ICEM), Gothenburg, Sweden, 23–26 August 2020; pp. 1875–1881. [Google Scholar]
- Urasaki, N.; Senjyu, T.; Uezato, K. A novel calculation method for iron loss resistance suitable in modeling permanent-magnet synchronous motors. IEEE Trans. Energy Convers.
**2003**, 18, 41–47. [Google Scholar] [CrossRef] - Zhang, H.; Dou, M.; Deng, J. Loss-Minimization Strategy of Nonsinusoidal Back EMF PMSM in Multiple Synchronous Reference Frames. IEEE Trans. Power Electron.
**2019**, 35, 8335–8346. [Google Scholar] [CrossRef] - Bernard, N.; Missoum, R.; Dang, L.; Bekka, N.; Ben Ahmed, H.; Zaim, M.E.-H. Design Methodology for High-Speed Permanent Magnet Synchronous Machines. IEEE Trans. Energy Convers.
**2016**, 31, 477–485. [Google Scholar] [CrossRef] [Green Version] - Mellor, P.; Roberts, D.; Turner, D. Lumped parameter thermal model for electrical machines of TEFC design. IEE Proc. B Electr. Power Appl.
**1991**, 138, 205–218. [Google Scholar] [CrossRef] - Bernard, N.; Ahmed, H.B.; Multon, B.; Kerzreho, C.; Delamare, J.; Faure, F. Flywheel energy storage systems in hybrid and distributed electricity generation. In Proceedings of the PCIM 2003, Nuremberg, Gemany, 22–24 May 2003. [Google Scholar]
- Yaramasu, V.; Wu, B.; Sen, P.C.; Kouro, S.; Narimani, M. High-power wind energy conversion systems: State-of-the-art and emerging technologies. Proc. IEEE
**2015**, 103, 740–788. [Google Scholar] [CrossRef] - Blaabjerg, F.; Ma, K. Wind Energy Systems. Proc. IEEE
**2017**, 105, 2116–2131. [Google Scholar] - Chivite-Zabalza, J.; Larrazabal, I.; Zubimendi, I.; Aurtenetxea, S.; Zabaleta, M. Multi-megawatt wind turbine converter configurations suitable for off-shore applications, combining 3-L NPC PEBBs. In Proceedings of the 2013 IEEE Energy Conversion Congress and Exposition, Denver, CO, USA, 15–19 September 2013; pp. 2635–2640. [Google Scholar] [CrossRef]
- Shrestha, G.B.; Polinder, H.; Ferreira, J. Scaling laws for direct drive generators in wind turbines. In Proceedings of the 2009 IEEE International Electric Machines and Drives Conference, Miami, FL, USA, 3–6 May 2009; pp. 797–803. [Google Scholar]
- Polinder, H.; Bang, D.; Van Rooij, R.; McDonald, A.; Mueller, M. 10 MW Wind Turbine Direct-Drive Generator Design with Pitch or Active Speed Stall Control. In Proceedings of the 2007 IEEE International Electric Machines & Drives Conference, Antalya, Turkey, 3–5 May 2007; Volume 2, pp. 1390–1395. [Google Scholar]
- Damiano, A.; Marongiu, I.; Monni, A.; Porru, M. Design of a 10 MW multi-phase PM synchronous generator for direct-drive wind turbines. In Proceedings of the IECON 2013—39th Annual Conference of the IEEE Industrial Electronics Society, Vienna, Austria, 10–13 November 2013; pp. 5266–5270. [Google Scholar]
- Li, H.; Chen, Z.; Polinder, H. Optimization of Multibrid Permanent-Magnet Wind Generator Systems. IEEE Trans. Energy Convers.
**2009**, 24, 82–92. [Google Scholar] [CrossRef] - Liu, D.; Polinder, H.; Abrahamsen, A.B.; Wang, X.; Ferreira, A.J. Comparison of Superconducting Generators and Permanent Magnet Generators for 10-MW Direct-Drive Wind Turbines. In Proceedings of the 19th International Conference on Electrical Machines and Systems (ICEMS), Chiba, Japan, 13–16 November 2016. [Google Scholar]
- Available online: https://vortexfdc.com/ (accessed on 9 December 2019).
- Sohoni, V.; Gupta, S.C.; Nema, R.K. A Critical Review on Wind Turbine Power Curve Modelling Techniques and Their Applications in Wind Based Energy Systems. J. Energy
**2016**, 2016, 1–18. [Google Scholar] [CrossRef] [Green Version] - Kim, K.-H.; Van, T.L.; Lee, D.-C.; Song, S.-H.; Kim, E.-H. Maximum Output Power Tracking Control in Variable-Speed Wind Turbine Systems Considering Rotor Inertial Power. IEEE Trans. Ind. Electron.
**2012**, 60, 3207–3217. [Google Scholar] [CrossRef] - Kalyanmoy, D.; Amrit, P.; Sameer, A.; Meyarivan, T. A Fast and Elitist Multiobjective Genetic Algorithm: NSGA II. IEEE Trans Evol. Comput.
**2002**, 6, 182–197. [Google Scholar] - Available online: https://fr.mathworks.com/matlabcentral/fileexchange/49806-matlab-code-for-constrained-nsga-ii-dr-s-baskar-s-tamilselvi-and-p-r-varshini (accessed on 9 November 2019).

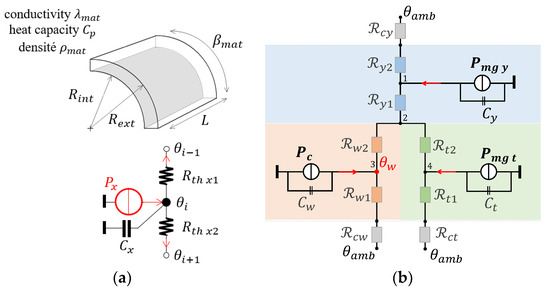

**Figure 3.**(

**a**) Thermal equivalent circuit of a cylindrical element; (

**b**) lumped parameter thermal model of PMSG.

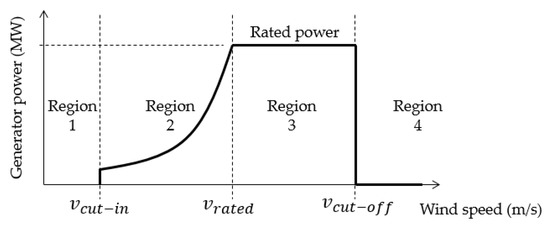

Parameters | Values |
---|---|

Blade radius | 82 m |

Maximal power | 10 MW |

Cut-in speed | 2.5 m/s |

Rated speed | 12 m/s |

Cut-out wind speed | 25 m/s |

Parameters | Values |
---|---|

${B}_{sat}$ | 1.6 T |

${V}_{limit}$ | 2.5 kV |

${W}_{tmin}$ | 20 mm |

${W}_{ymin}$ | 40 mm |

${k}_{ad}$ | 2 |

${k}_{ec}$ | 0.035 |

${k}_{h}$ | 30 |

${h}_{int}$ | 10 W/m^{2}k |

${h}_{ext}$ | 100 W/m^{2}k |

${\theta}_{max}$ | 140 °C |

${\theta}_{amb}$ | 20 °C |

${\rho}_{c}$ | 8960 Kg/m^{3} |

${\rho}_{Fe}$ | 7800 Kg/m^{3} |

${\rho}_{PM}$ | 7600 Kg/m^{3} |

${C}_{pc}$ | 390 J/Kg/K |

Parameters | Min | Max |
---|---|---|

$p$ | 20 | 200 |

${r}_{s}$ | 0 | 1 |

${r}_{w}$ | 0 | 1 |

$R$ | 2 | 5 |

${\tau}_{LR}\left(L/2R\right)$ | 0.2 | 0.6 |

${W}_{mag}$ | 10 mm | 100 mm |

${n}_{s}$ | 1/2 | 10 |

q = 3 | q = 5 | |||
---|---|---|---|---|

FW | MTPA | FW | MTPA | |

Cost of magnets (kEUR) | 371 | 218 | 458 | 311 |

Cost of iron (kEUR) | 135 | 126 | 141 | 138 |

Cost of copper (kEUR) | 296 | 228 | 315 | 299 |

Total material cost (kEUR) | 802 | 572 | 914 | 748 |

Parameter | Value |
---|---|

$q$ | 3 |

$p$ | 156 |

$R$ | 5 m |

$L$$\text{}({\tau}_{LR})$ | 1.15 m (0.23) |

${r}_{s}$ | 0.968 |

${r}_{w}$ | 0.992 |

${B}_{r}$ | 1.2 T |

${B}_{fm}$ | 1 T |

${B}_{tm}$ | 1.59 T |

${B}_{ym}$ | 0.79 T |

${W}_{ag}$ | 8 mm |

${W}_{PM}$ | 18.7 mm |

Total active material weight | 61.75 tons |

Iron weight | 42.2 tons |

Copper weight | 15.2 tons |

Magnet weight | 4.36 tons |

Average losses | 253 kW |

$\mathrm{Nominal}\text{}\mathrm{voltage}\text{}{V}_{s}$ | 2990 V |

$\mathrm{Nominal}\text{}\mathrm{current}\text{}{I}_{s}$ | 1030 A |

$\mathrm{Nominal}\text{}cos\phi $ | 0.98 |

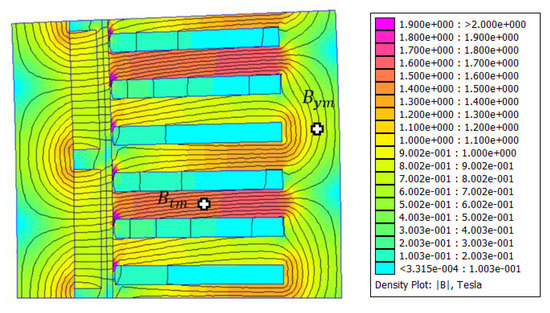

Quantity | Analytical Model | FEA | Variation |
---|---|---|---|

${B}_{tm}$ | 1.59 | 1.6 | 0.7% |

${B}_{ym}$ | 0.79 | 0.84 | 6.3 |

Torque (MNm) | 8.6 | 8.13 | 5.47% |

Magnitude of the EMF (1st harmonic) (kV) | 3.02 | 2.96 | 2% |

Analytical Model | FEA | Variation | |
---|---|---|---|

Iron losses in the yoke | 20 kW | 13 kW | −35% |

Iron losses in the teeth | 139 kW | 173 kW | 25% |

Total iron of the stator | 159 kW | 163kW | 3% |

Copper losses | 173 kW |
