# Identification of DC Thermal Steady-State Differential Inductance of Ferrite Power Inductors

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Impact of Losses in an Inductor for DC–DC Converter

#### 2.2. Experimental Method for the Differential Inductance Measurement

_{SAT}= 150 A) was added in series. For each load current condition, after a reasonable amount of time passed to reach thermal equilibrium, the choke was short-circuited, and the inductor voltage and current were quickly measured, assuming the temperature was unchanged. Measurements were performed with a digital oscilloscope, using a differential probe to measure inductor voltage and a current probe to measure the relative current (Figure 1). The measured voltage was corrected from the winding resistive voltage drop, as described in [9]

_{L}(t), Φ(t) is obtained as

_{L}) characteristic is obtained. Due to the magnetic dissipative effects, it is a loop with a non-zero area [20]. The measurements were performed at duty cycle δ = 0.5, allowing us to assume the loss in the two half-periods was equal. Thus, the loop was symmetrical. Therefore, the average characteristic was adopted as the experimental Φ(i

_{L}) one. Assuming that in an appropriately defined range of current sweep around the average current, the Φ(i

_{L}) characteristic is linear, as shown in Figure 2; the differential inductance at each tested load current value is determined as

- input voltage: 24 V;
- duty cycle: 0.5;
- switching frequency: 500 kHz;
- output current: 1–5.6 A.

_{L}) curve is now parametrized according to [4]

_{H}, L

_{L}, σ, I*] that better describe the experimental curve were obtained with a deterministic pattern search optimization algorithm [21], minimizing an objective function (f

_{min}) defined as the difference between the experimental and the parametrized differential inductance profile [9]:

- input voltage: 24 V;
- duty cycle: 0.5;
- switching frequency: 500 kHz;
- output current: 1–6.2 A.

## 3. Current Waveform Simulation Results

_{L}) characteristics, referring to the thermal behavior of the inductor caused by DC losses only, could be used to simulate current waveforms under different operating conditions tested experimentally. The nonlinear differential equations of a saturable inductor in a DC–DC buck converter circuit were solved through the polarization fixed point method [22,23].

#### 3.1. MSS1260T-273 Inductor

#### 3.2. SER1390-333 Inductor

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

I_{SAT} | DC current at 25 °C that causes a 30% inductance drop from its value without current. Declared by the manufacturer. |

v_{L,exp} | Measured voltage across the inductor. |

v_{L} | Inductive component of the voltage across the inductor. |

R_{s} | Winding resistance. |

i_{L} | Inductive current. |

Φ | Magnetic flux. |

L(i_{L}) | Differential inductance. |

L_{H} | Upper horizontal asymptote of the differential inductance curve. |

L_{L} | Lower horizontal asymptote of the differential inductance curve. |

I* | Abscissa of the inflection point of the differential inductance curve. |

σ | Coefficient proportional to the slope of the curve in I*. |

I_{L,max} | Maximum value of the tested average current. |

I_{L,min} | Minimum value of the tested average current. |

L_{exp} | Experimental differential inductance curve. |

L_{par} | Parametrised differential inductance curve. |

f_{min} | Objective function of the optimization problem. |

## References

- Trovão, J.P.; Pereirinha, P.G.; Ferreira, F.J.T.E.; Jorge, H.M. Study of inductor effects in a bidirectional DC-DC converter for electrical vehicle. In Proceedings of the XIX International Conference on Electrical Machines-ICEM 2010, Rome, Italy, 6–8 September 2010; pp. 1–6. [Google Scholar] [CrossRef]
- Safaee, A.; Bakhshai, A.; Jain, P. A resonant bidirectional dc-dc converter for aerospace applications. In Proceedings of the 2011 IEEE Energy Conversion Congress and Exposition, Phoenix, AZ, USA, 17–22 September 2011; pp. 3075–3079. [Google Scholar] [CrossRef]
- Bojoi, R.; Fusillo, F.; Raciti, A.; Musumeci, S.; Scrimizzi, F.; Rizzo, S. Full-Bridge DC-DC Power Converter for Telecom applications with Advanced Trench Gate MOSFETs. In Proceedings of the 2018 IEEE International Telecommunications Energy Conference (INTELEC), Turin, Italy, 7–11 October 2018; pp. 1–7. [Google Scholar] [CrossRef]
- IEC TC 51 Strategic Business Plan. Available online: https://assets.iec.ch/public/miscfiles/sbp/51.pdf (accessed on 25 March 2021).
- Kaiser, J.; Dürbaum, T. An Overview of Saturable Inductors: Applications to Power Supplies. IEEE Trans. Power Electron.
**2021**, 36, 10766–10775. [Google Scholar] [CrossRef] - Milner, L.; Rincón-Mora, G.A. Small saturating inductors for more compact switching power supplies. IEEJ Trans. Electr. Electron. Eng.
**2012**, 7, 69–73. [Google Scholar] [CrossRef] [Green Version] - Di Capua, G.; Femia, N.; Stoyka, K. Validation of inductors sustainable-saturation-operation in switching power supplies design. In Proceedings of the 2017 IEEE International Conference on Industrial Technology (ICIT), Toronto, ON, Canada, 22–25 March 2017; pp. 242–247. [Google Scholar] [CrossRef]
- Lodi, M.; Oliveri, A.; Storace, M. A low-cost online estimator for switch-mode power supplies with saturating ferrite-core inductors. In Proceedings of the 2019 26th IEEE International Conference on Electronics, Circuits and Systems (ICECS), Genoa, Italy, 27–29 November 2019; pp. 851–854. [Google Scholar] [CrossRef]
- Solimene, L.; Musumeci, S.; Ragusa, C. Saturable Ferrite Inductor Parameters Obtained Through a Double Step Optimization. In Proceedings of the 2020 55th International Universities Power Engineering Conference (UPEC), Turin, Italy, 1–4 September 2020; pp. 1–6. [Google Scholar] [CrossRef]
- Di Capua, G.; Femia, N. A Novel Method to Predict the Real Operation of Ferrite Inductors With Moderate Saturation in Switching Power Supply Applications. IEEE Trans. Power Electron.
**2016**, 31, 2456–2464. [Google Scholar] [CrossRef] - Stoyka, K.; Femia, N.; di Capua, G. Power Inductors Behavioral Modeling Revisited. IEEE Trans. Circuits Syst. I Regul. Pap.
**2020**, 67, 5636–5649. [Google Scholar] [CrossRef] - Salas, R.A.; Pleite, J. Equivalent Electrical Model of a Ferrite Core Inductor Excited by a Square Waveform Including Saturation and Power Losses for Circuit Simulation. IEEE Trans. Magn.
**2013**, 49, 4257–4260. [Google Scholar] [CrossRef] - Gurleyen, H.; Mese, E.; Kim, J.H.; Sarlioglu, B. Nonlinear analytical model of an inductance considering saturation and temperature variation. In Proceedings of the 2017 IEEE Energy Conversion Congress and Exposition (ECCE), Cincinnati, OH, USA, 1–5 October 2017; pp. 3150–3154. [Google Scholar] [CrossRef]
- Scirè, D.; Rosato, S.; Lullo, G.; Vitale, G. A Temperature Dependent Non-Linear Inductor Model for a DC/DC Boost Converter. In Proceedings of the 2018 15th International Conference on Synthesis, Modeling, Analysis and Simulation Methods and Applications to Circuit Design (SMACD), Prague, Czech Republic, 2–5 July 2018; pp. 237–239. [Google Scholar] [CrossRef]
- Oliveri, A.; di Capua, G.; Stoyka, K.; Lodi, M.; Storace, M.; Femia, N. A Power-Loss-Dependent Inductance Model for Ferrite-Core Power Inductors in Switch-Mode Power Supplies. IEEE Trans. Circuits Syst. I Regul. Pap.
**2019**, 66, 2394–2402. [Google Scholar] [CrossRef] - MSS1260T Series High Temperature Power Inductors|Coilcraft’. Available online: https://www.coilcraft.com/ (accessed on 25 March 2021).
- ‘SER1390-333|Coilcraft’. Available online: https://www.coilcraft.com/ (accessed on 25 March 2021).
- Musumeci, S.; Solimene, L.; Ragusa, C.; Palma, M.; de la Barriere, O. Saturable Inductor Modelling in GaN FETs Based Synchronous Buck Converter. In Proceedings of the 2020 International Symposium on Power Electronics, Electrical Drives, Automation and Motion (SPEEDAM), Sorrento, Italy, 24–26 June 2020; pp. 396–401. [Google Scholar] [CrossRef]
- ‘EPC90122–80 V, 40 A Development Board’. Available online: https://epc-co.com/epc/Products/DemoBoards/EPC90122.aspx (accessed on 25 March 2021).
- Solimene, L.; Ragusa, C.; Musumeci, S.; de la Barrière, O.; Fiorillo, F. Modeling of Saturable Inductors for Application in DC-DC Converters. In Proceedings of the 2019 26th IEEE International Conference on Electronics, Circuits and Systems (ICECS), Genoa, Italy, 27–29 November 2019; pp. 839–842. [Google Scholar] [CrossRef]
- Rosenbrock, H.H. An Automatic Method for Finding the Greatest or Least Value of a Function. Comput. J.
**1960**, 3, 175–184. [Google Scholar] [CrossRef] [Green Version] - Ragusa, C.; Solimene, L.; Musumeci, S.; de la Barrière, O.; Fiorillo, F.; di Capua, G.; Femia, N. Computation of current waveform in ferrite power inductors for application in buck-type converters. J. Magn. Magn. Mater.
**2020**, 502, 166458. [Google Scholar] [CrossRef] - Dlala, E.; Arkkio, A. Analysis of the Convergence of the Fixed-Point Method Used for Solving Nonlinear Rotational Magnetic Field Problems. IEEE Trans. Magn.
**2008**, 44, 473–478. [Google Scholar] [CrossRef] - Hilal, A.; Raulet, M.A.; Martin, C. Magnetic Components Dynamic Modeling With Thermal Coupling for Circuit Simulators. IEEE Trans. Magn.
**2014**, 50, 1–4. [Google Scholar] [CrossRef] [Green Version] - Wilson, P.R.; Ross, J.N.; Brown, A.D. Simulation of magnetic component models in electric circuits including dynamic thermal effects. IEEE Trans. Power Electron.
**2002**, 17, 55–65. [Google Scholar] [CrossRef]

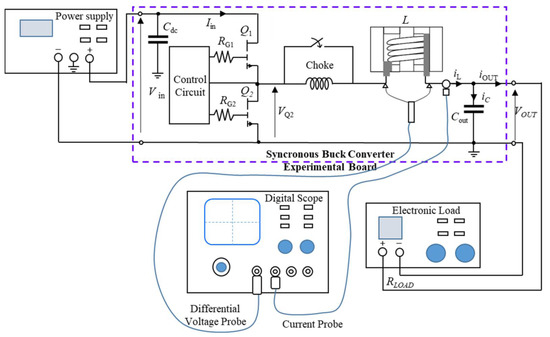

**Figure 1.**Circuit diagram of the experimental setup for DC thermal steady-state differential inductance identification. A high inductance choke allows imposing negligible current ripple on the inductor under test. After reaching the DC thermal steady-state for a given average output current, the choke is short-circuited, and the inductor voltage and current waveforms are measured with a digital oscilloscope.

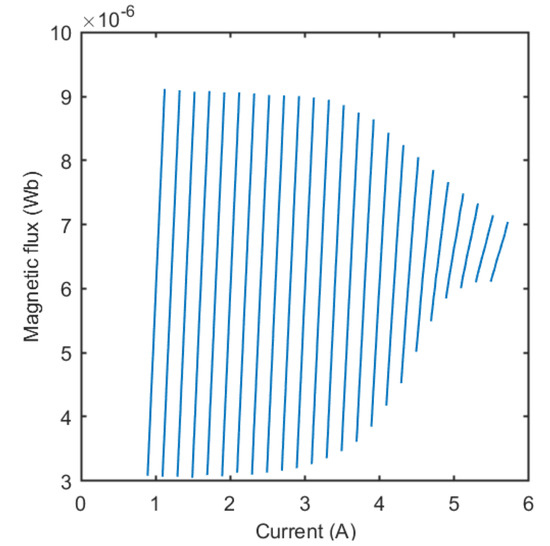

**Figure 2.**Average Φ(i

_{L}) characteristics obtained for each measured output current value. The magnetic flux of each section is defined minus a constant term.

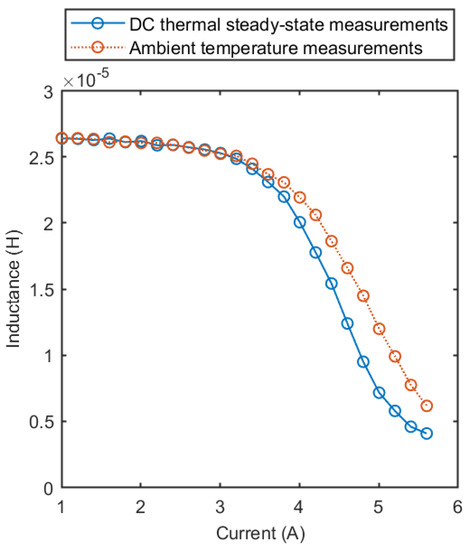

**Figure 3.**Experimental DC thermal steady-state differential inductance curve for the Coilcraft MSS1260T-273 inductor compared to the curve obtained from ambient temperature measurements (25 °C).

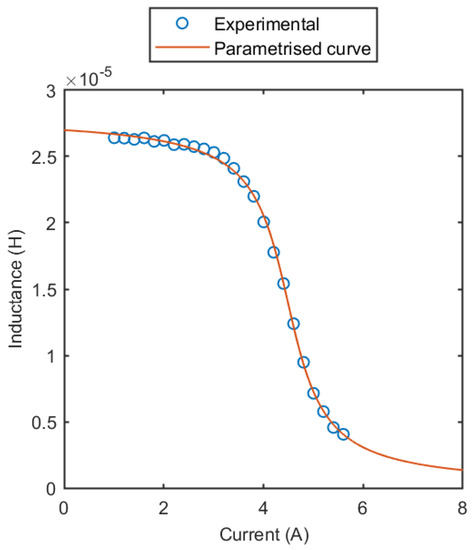

**Figure 4.**Fitting of the parametrized characteristic on the experimental differential inductance curve for the Coilcraft MSS1260T-273 inductor.

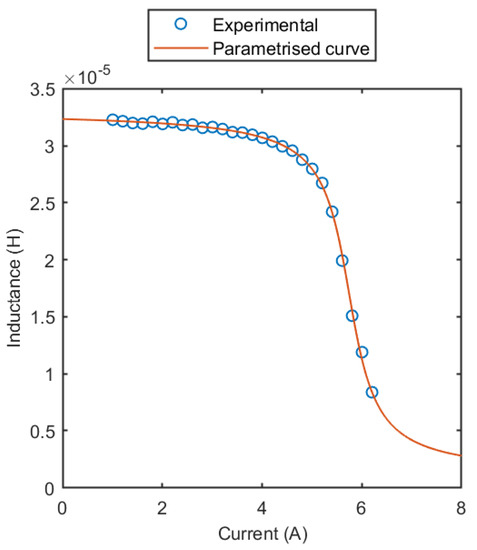

**Figure 5.**Fitting of the parametrized characteristic on the experimental differential inductance curve for the Coilcraft SER1390-333 inductor.

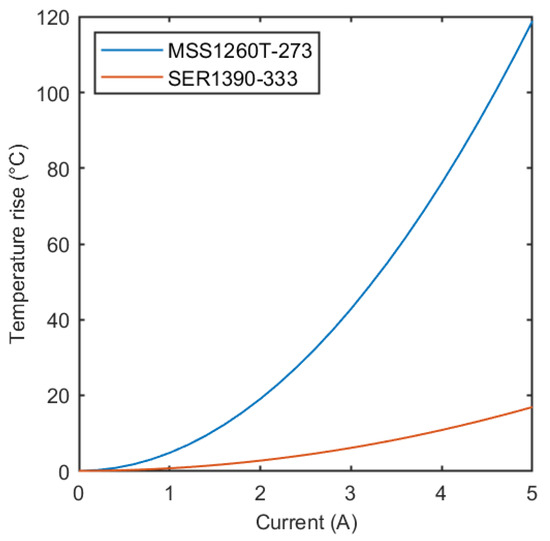

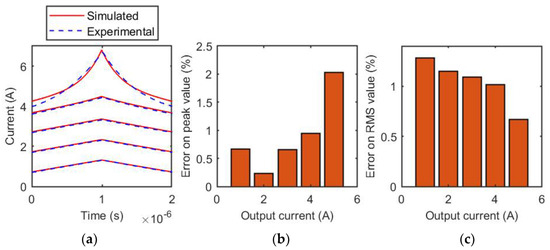

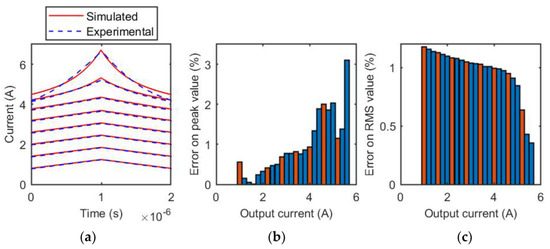

**Figure 7.**Coilcraft MSS1260T-273 inductor, 500 kHz. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range; (

**c**) relative error of the estimation of the RMS value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range.

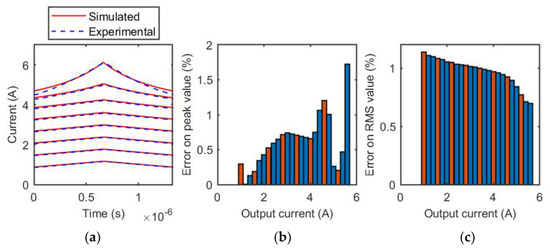

**Figure 8.**Coilcraft MSS1260T-273 inductor, 750 kHz. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current values. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range; (

**c**) relative error of the estimation of the RMS value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range.

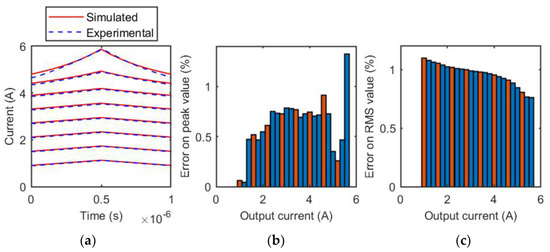

**Figure 9.**Coilcraft MSS1260T-273 inductor, 1 MHz. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range; (

**c**) relative error of the estimation of the RMS value of the inductive current, for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range.

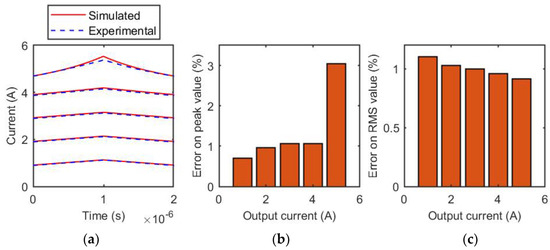

**Figure 10.**Coilcraft MSS1260T-273 inductor, 12 V. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current; (

**c**) relative error of the estimation of the RMS value of the inductive current.

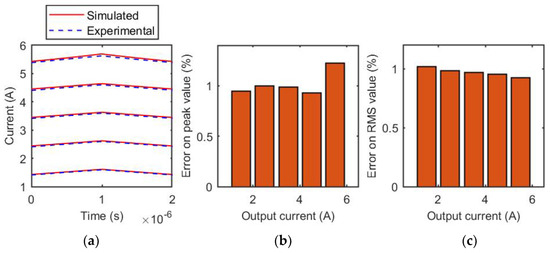

**Figure 11.**Coilcraft MSS1260T-273 inductor, 32 V. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current; (

**c**) relative error of the estimation of the RMS value of the inductive current.

**Figure 12.**Coilcraft SER1390-333 inductor, 500 kHz. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range; (

**c**) relative error of the estimation of the RMS value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range.

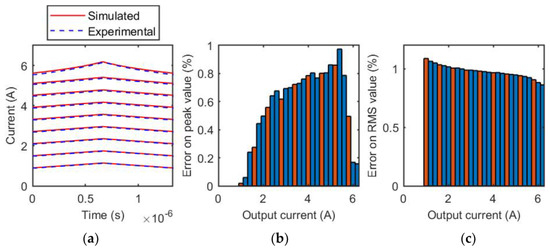

**Figure 13.**Coilcraft SER1390-333 inductor, 750 kHz. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range; (

**c**) relative error of the estimation of the RMS value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range.

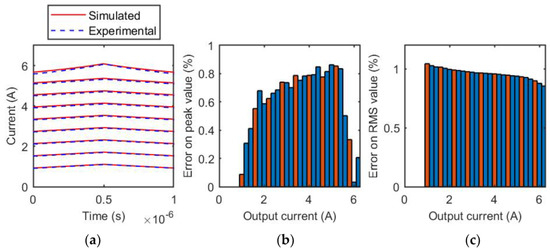

**Figure 14.**Coilcraft SER1390-333 inductor, 1 MHz. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range; (

**c**) relative error of the estimation of the RMS value of the inductive current for each tested output current value. The orange bars represent the test cases reported in (

**a**), the blue bars are related to the other measurements of the evaluated current range.

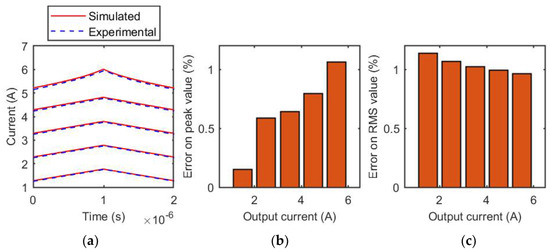

**Figure 15.**Coilcraft SER1390-333 inductor, 12 V. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current value; (

**c**) relative error of the estimation of the RMS value of the inductive current for each tested output current value.

**Figure 16.**Coilcraft SER1390-333 inductor, 32 V. (

**a**) Comparison of experimental and simulated current waveforms for different output current values; (

**b**) relative error of the estimation of the peak value of the inductive current for each tested output current value; (

**c**) relative error of the estimation of the RMS value of the inductive current for each tested output current value.

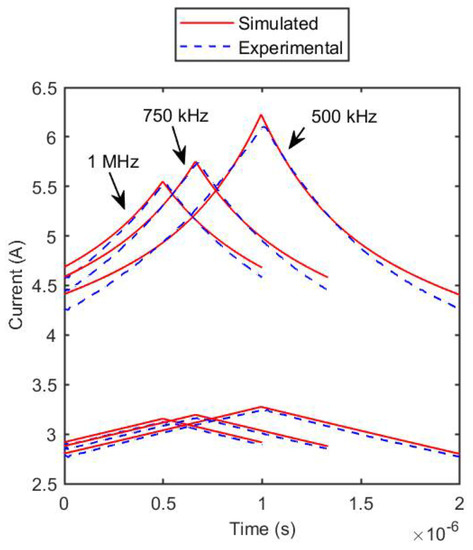

**Figure 17.**Coilcraft MSS1260T-273 inductor. Comparison of experimental and simulated current waveforms for different output current values and different switching frequencies.

MSS1260T-273 (I_{SAT} = 4.7 A) | |||||

Input Voltage (V) | Duty Cycle | Switching Frequency (kHz) | Output Current (A) | DC Losses (mW) | AC Losses (Core + AC Winding) (mW) |

24 | 0.5 | 500 | 4 | 768 | 74 |

32 | 0.5 | 500 | 4 | 768 | 132 |

24 | 0.5 | 1000 | 4 | 768 | 31 |

SER1390-333 (I_{SAT} = 4.8 A) | |||||

Input Voltage (V) | Duty Cycle | Switching Frequency (kHz) | Output Current (A) | DC Losses (mW) | AC Losses (Core + AC Winding) (mW) |

24 | 0.5 | 500 | 4 | 336 | 44 |

32 | 0.5 | 500 | 4 | 336 | 79 |

24 | 0.5 | 1000 | 4 | 336 | 34 |
