Turbine Characteristics of Wave Energy Conversion Device for Extraction Power Using Breaking Waves

Abstract

A new type of wave energy converter which harnesses electricity from onshore breaking waves has been studied at Okinawa Institute of Science and Technology Graduate University (OIST) since 2014. This concept has been demonstrated at a coral beach on the Maldives since 2018. Wave energy conversion is possible when waves approaching the shore steepen due to decreased water depth resulting in wave breaks near the surface. A steepened wave reaches the critical velocity of 4~6 m/sec shoreward before it breaks. A rotating blade takes advantage of this breaking phenomenon to convert the wave energy into electricity. The work presented here includes an experimental and numerical investigation of a prototype model of the wave energy converter. The turbine having five blades of variable chord lengths, twist angles, and constant thickness profile from hub to tip was simulated under similar flow as well as testing conditions, to predict the turbine performance. A commercial computational fluid dynamic tool SolidWorks Flow Simulation 2018 was used for the simulations at various rotation speeds with a uniform inlet velocity. The modified k-ε with a two-scale wall function turbulence closure model was selected. The validation performed for different test cases showed that the present computational results match in good agreement with the experimental results. Additionally, details performance of the turbine running, and generator characteristics have been reported in this paper.

1. Introduction

The ocean waves hold a vast amount of energy and represent viable solution to solve our ever-growing energy demand. Although its easy availability, immature energy extraction technology restricts the commercialization of wave energy converters (WEC) [1]. Several authors have been proposed various types of design and investigated for wave energy conversion devices [2,3,4]. One of the most observed wave energy converters types is Oscillating Water Column (OWC) type WEC [2,5]. This device utilized a water column trapped inside a chamber with the bottom still connected into the ocean. As the wave passes, the water column moves up and down, forcing the air out and into the chamber via a power take-off mechanism. This power take-off mechanism consists of a unique bi-directional turbine that will rotate in the same direction even if the airflow comes from the top or the bottom section of the turbine. Over the years, many iterations of this state-of-the-art turbine have been made. This became a valuable lesson in turbine design and optimization processes.

Table 1 provides the list of design modifications of most popular bi-directional turbines, Wells and impulse turbines, used in an OWC type WEC and their outcome on performance. Earlier literature revealed that various efforts have been made and methods have been proposed to increase the performance of Wells and impulse turbines. Similar investigations have revealed that modifications of design parameters such as blade sweep, shape, variable pitch angle, blade solidity, end-wall, guide vane, bi-plane, the skew blade can certainly improve the performance of the turbine.

Table 1. Some prominent studies of Wells and Impulse turbines for wave energy conversion.

Wells Turbine
Design Modification	Advantage	Description	Profile
Sweep with and without guide vane [6]	Higher operating range	Bypass pressure-relief valve produced higher electrical energy.	NACA0015
Aerofoil shape [7]	Increased power output (average relative gain: +11.3% Improved efficiency: 1%	Incident angle varied: 5 to 14°	NACA0021
Blade sweep [8]	Overall efficiency improved	30° backward sweep	NACA0015
Blade sweep [9]	Improved overall performance	Blade sweep range: 0.25–0.75	NACA0020
Pitch angle [10]	Improved efficiency: 2.3% and AOP efficiency: 6.2%.	Optimum pitch angle: 0.3°	NACA0021
Pitch angle [11]	Average increase in efficiency: 3.4%, power: 1%.	Optimum pitch angle: 0.6°	NACA0021
Endplate [12]	Improved efficiency by 4%	Endplate thickness: 0.5 mm and plate margin: 0 to 0.3 mm	NACA0020
Blade profile Thickness [13]	The NACA0021 produced peak efficiency. Efficiency drop: ~10% with blade roughened blade.	Thicker and modified aerofoil blades improved the performance of the turbine.	NACA0024, NACA0021, NACA0015H, NACA0015, NACA0012
Blade sweep and pitch angle [14]	Improved turbine performance	30° backward sweep and blade pitch angle: 0 to 20°	NACA0015
Blade profile [15]	Efficiency improved at an angle of attack < 7°. Stall angle = 10°.	Fan-shaped blades with different sweep angles	NACA0021, NACA0012
Blade profile [16]	Higher peak efficiency	Optimum blade profile: NACA0015	NACA0015, NACA0020, CA9, HSIM 15-262133-1576
Blade geometry [17]	The stall margin is higher with a higher hub-tip ratio.	Optimum blade sweeps ratio of 0.35 and solidity of ~0.67.	NACA0020
Blade profile [18]	Higher power output	Preferable rotor blade profile CA9	NACA0015, NACA0020, CA9, HSIM 15-262133-1576
Casing groove [19]	Higher power output and operating range	Introduced circumferential casing groove	NACA0015
Blade sweep and thickness [20]	Stall margin and power enhanced by 22.2% and 33%, respectively.	Optimize the blade sweep and thickness	NACA0015
Blade sweep [21]	Stall margin and power enhanced by 18% and 29%, respectively.	Optimize the blade sweep angle	NACA0015
Sweep, thickness and casing groove [22]	8% increment efficiency and 17.4% decrement in torque.	Optimize the Blade sweep and thickness along with the casing groove	NACA0015
Static extended trailing edge [23]	Improved relative mean torque by 23.4% and, reduced relative mean efficiency by 5.4%, before stall condition	Static extended trailing edge with 5% chord length	NACA0015
Radiused edge blade tip, static extended trailing edge, and thickness [24]	22% and 97% relative stall margin and the turbine power.	Fixed SETE at LE and extending TE without altering the original features of the airfoil. Length, thickness, and deflection are fixed as 5% C, 0.25mm and 0°, respectively	NACA0015
Impulse Turbine
Blade thickness [25]	Improved efficiency.	Camber line iterative design	Circular – elliptical
Number of blades and GVs [26]	Enhance efficiency 13%	Surrogate-based optimization	Circular – elliptical
Hub and tip thickness [27]	10.4% efficiency improvement	Surrogate-based optimization	Circular – elliptical
Number of blades and GVs along with GV angle and profile. [28]	24% efficiency enhancement for the entire flow range	Surrogate-based optimization	Circular – elliptical

All of the improvements were good news for the device efficiency. However, none of the authors reported how much energy can be extracted from the ocean breaking wave. Imagining that the density of water is 1000 times higher than air, we may obtain better power output if we extracted energy directly from the seawater. This idea led to the first novel concept and design procedure of harnessing energy from the ocean breaking wave, which explained in [29]. He investigated the water velocity at the seashore breaking wave zone and performed the first experimental tests of such a wave energy converter (WEC) in June 2015. This experiment continued to a real sea deployment testing which reported in [30,31,32,33]. It is observed that the maximum peak power obtained was about 400 W for an incoming wave velocity of 3.1 m/s.

In this paper, firstly a previously done experiment to validate the numerical data is presented in Section 2 (Experimental setup) and Section 3 (Experimental results). Next, the Reynolds-averaged Navier–Stokes Equations (RANS) solver was used for in the numerical simulation. The Advanced Boundary Cartesian Meshing technique was deployed for the entire geometry. A detailed geometry, solution procedure, analysis of the results, and characteristics of the turbine are discussed in Section 4 (Numerical methodology). The results of the numerical analysis will be compared with the experimental results and discussed in Section 5. Electricity generation characteristics will be presented in Section 6. Finally, the conclusions will be drawn in Section 7.

2. Experimental Setup

Figure 1 summarized a more detail schematic layout of the turbine testing using the water tunnel at West Japan Fluid Engineering Laboratory Co., Ltd as reported in [33]. The water tunnel is 1.5 m long, 1.25 m width and 6 m height. It consists of an open boat with a rotor blade, calibrated pitot tube, motor controller and a data logger including dynamic strain gauges, torque meter. The open boat is placed 0.46 m below the water surface. A torque transducer and a load cell are attached to a rotor shaft which connected to a motor and data logger. These sensors measure the torque, flow speed, and control blade rotational speed, respectively. A calibrated pitot tube is connected to the differential pressure transducer, which is set 1.0 m upwind of the rotor and 0.4 mm below the water surface, to calculate the velocity profile.

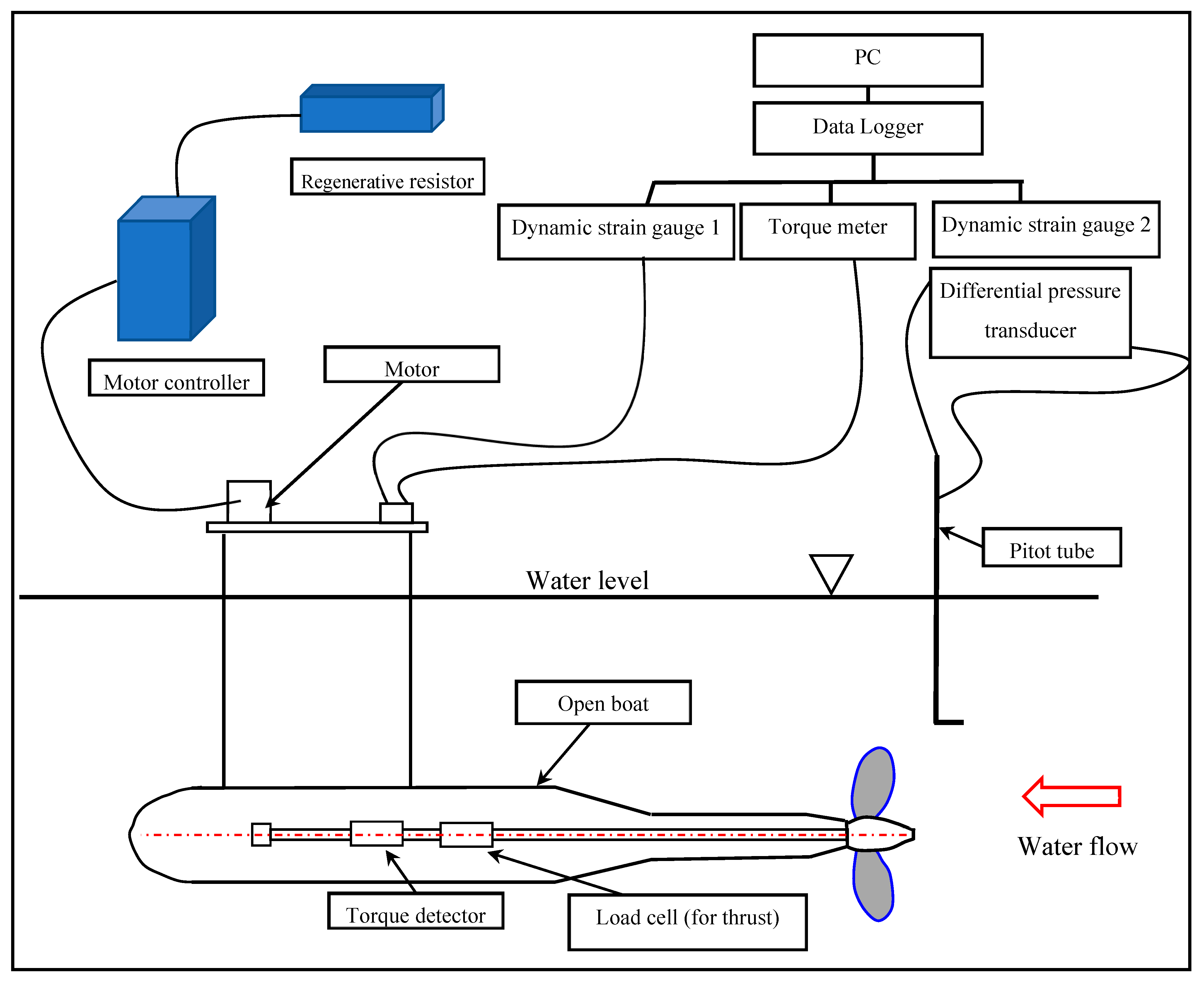

Figure 1. Schematic diagram of 0.35 m diameter test section at West Japan Fluid Engineering Laboratory Co., Ltd.

3. Experimental Results

The performance of the turbine is calculated by the rotational speed (ω), inlet velocity (V), the torque generated by the blade (T), and blade swept area (S). The results are articulated in the form of the power coefficient, Cp, and tip speed ratio (TSR). The non-dimensional performance parameters are given below:

$$\mathrm{Power}\mathrm{Coefficient},c_p=\frac{T\omega }{\frac{1}{2}\rho V_0^{3}S}$$

(1)

$$\mathrm{Tip}\mathrm{Speed}\mathrm{Ratio}\left(TSR\right)= \frac{\omega R}{V_0}$$

(2)

The experimental test was carried out under steady conditions at a constant inlet velocity in the range of 1.0–3.0 m/s as mentioned in [33]. A wider range of inlet velocity effect on the turbine performance is shown in Figure 2 against a wider TSR. It is noticed that, as the inlet velocity increases, the peak Cp also increases, and the maximum power is obtained for TSR = 2.5 at velocity 1.50 m/s. Further increasing velocity, the peak power also increases. At velocity 2.50 m/s, the maximum power is almost the same as the velocity 1.50 m/s. Further increasing velocity, the peak power decreases which caused the adverse pressure gradient. In the present work, the optimum inlet velocity of 2.50 m/s is considered for the numerical study.

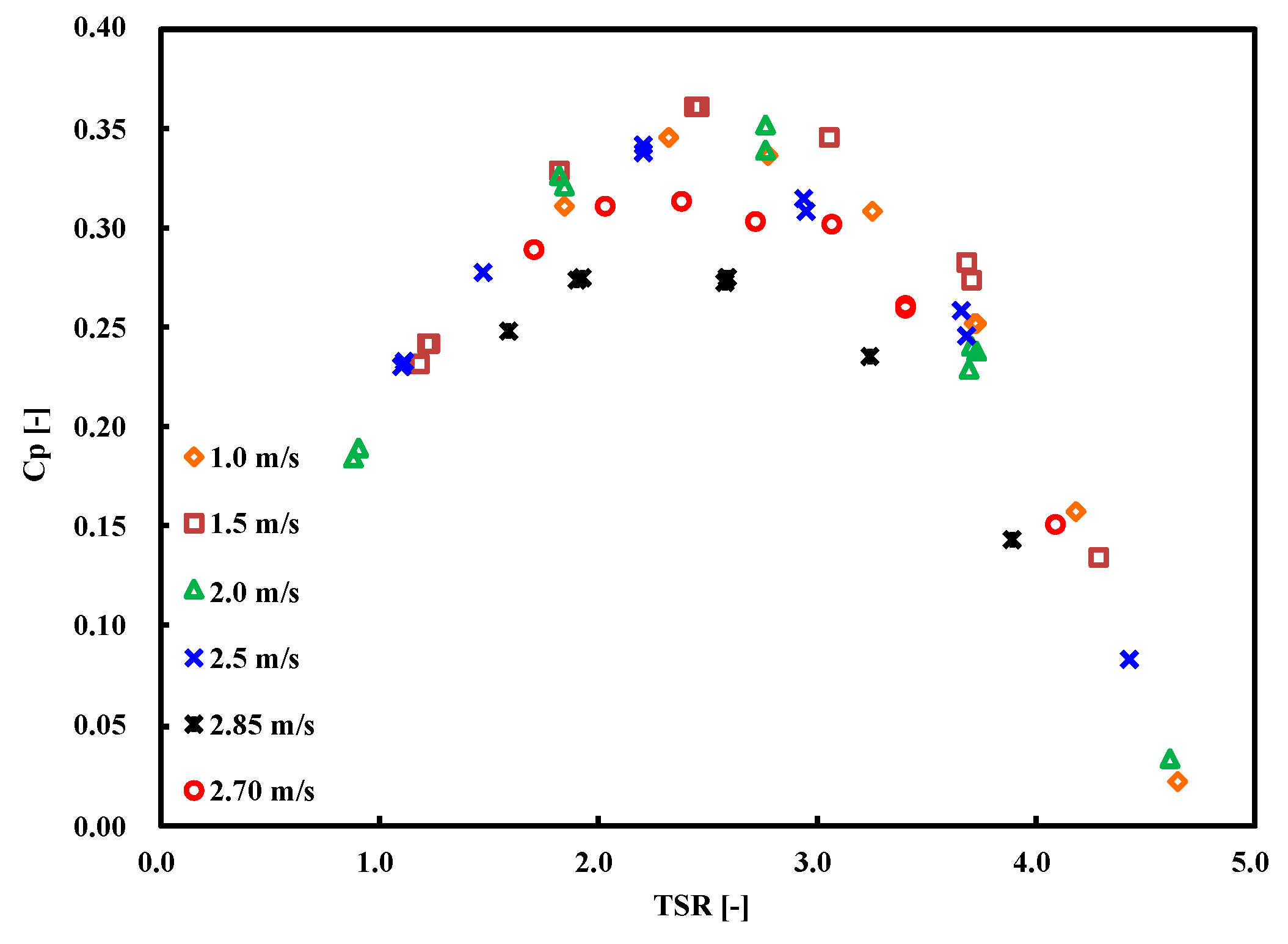

Figure 2. Cp vs. TSR of the half scale turbine at different inlet velocity; Experimental results [33].

4. Numerical Methodology

The reference full-scale wave breaking turbine design and geometry were adopted based on the optimum design parameter [29]. The blade has a tip diameter (D_t) of 0.7 m, hub to tip ratio (D_h/D_t) of 0.214, a chord length (C), at hub and tip section based on TSR 2 and 4, respectively and a blade twist angle (θ), varies from hub to tip with constant tip speed ratio (TSR = 2) as shown in Figure 3 and Figure 4. The twist angle and chord length, C, are defined as:

$$\text{Twist angle}, \theta =\frac{2R}{3\lambda r}$$

(3)

$$\mathrm{Chord}\mathrm{length},\mathrm{C}= \frac{\eta }{C_l} \frac{2\pi r/Z}{\left[\raisebox{1ex}{$4$}\!\left/ \!\raisebox{-1ex}{$9$}\right.+{\left(\raisebox{1ex}{$\lambda r$}\!\left/ \!\raisebox{-1ex}{$R$}\right.\right)}^2\right]}$$

(4)

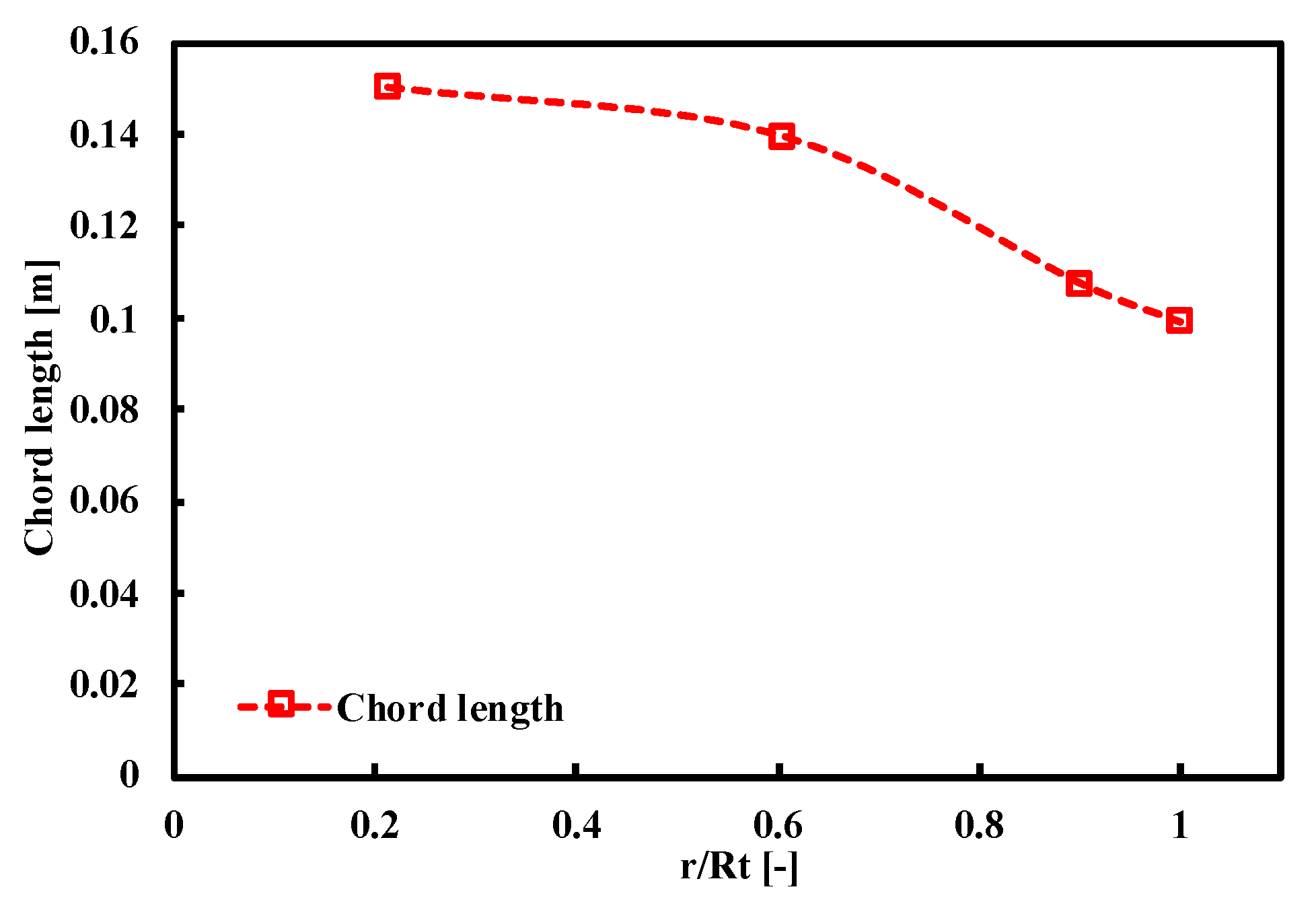

Figure 3. Chord length distribution along the blade span.

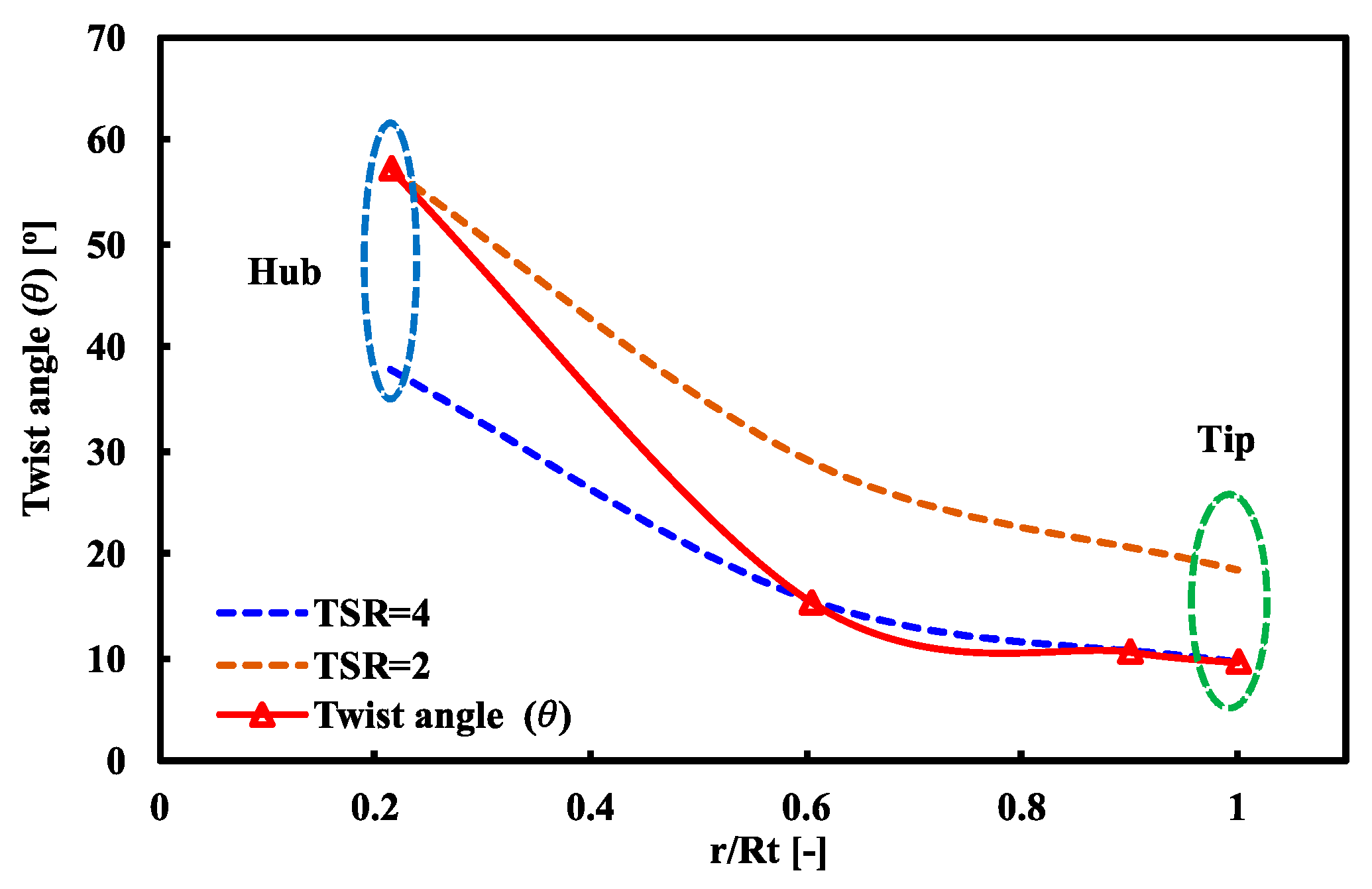

Figure 4. Twist angle distribution along the blade span.

Assume small angle of attack C_l = 0.3 and $\eta$ = 0.3.

The turbine consists of five blades with constant blade thickness, t. The 2-D blade and 3-D Computer-Aided Design (CAD) model of the turbine are shown in Figure 5a,b, respectively.

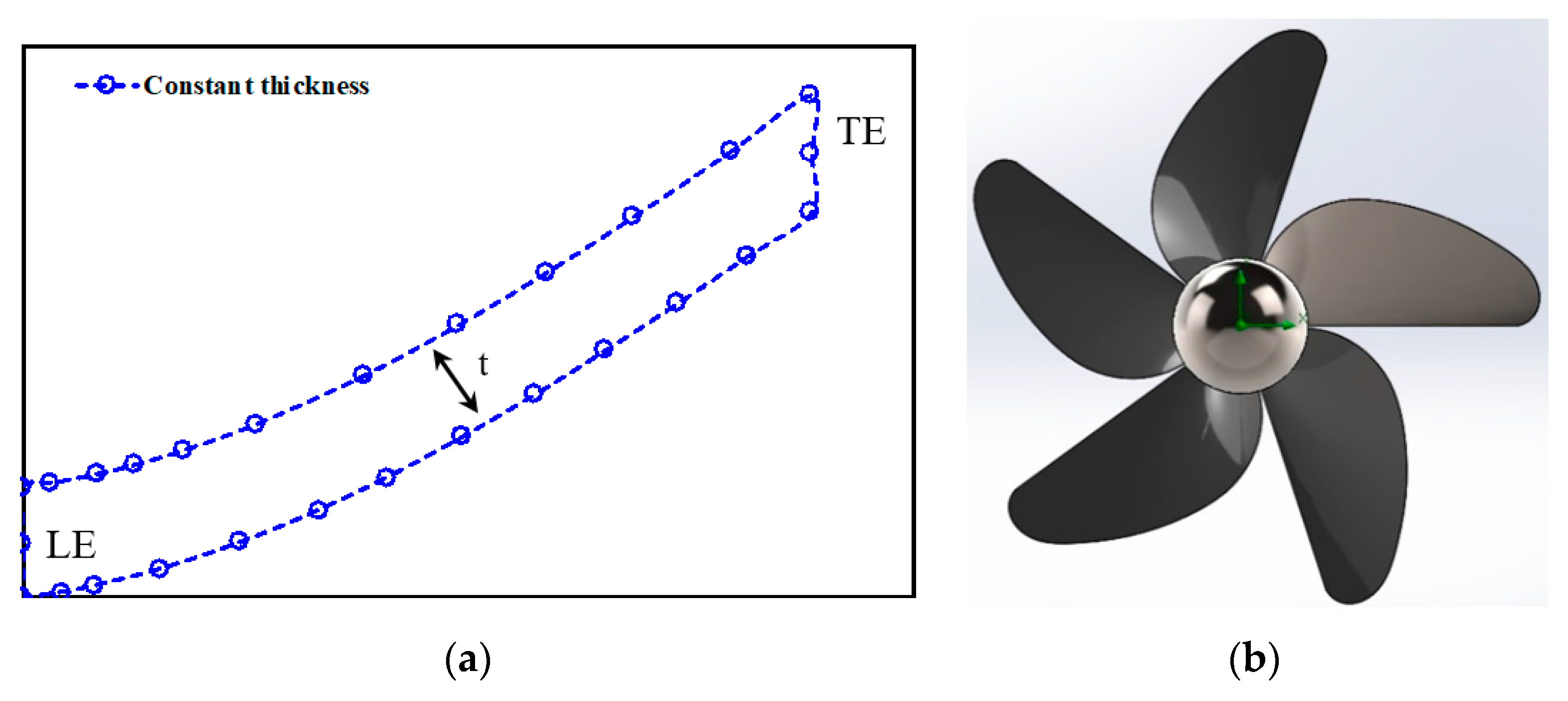

Figure 5. Definition of the blade: (a) Definition of 2-D blade profile; (b) 3-D CAD model.

The computational work was carried out by solving 3-D incompressible, steady Reynolds-averaged Navier–Stokes (RANS) equations, which were discretized based on finite volume approach. A Finite Volume Method (FVM) based commercial Computational Fluid Dynamics (CFD) solver SolidWorks Flow Simulation (SWFs), which includes the semi-implicit method for pressure linked equations (SIMPLE) algorithm was adopted. The modified κ-ε with two-scale wall function was used as the turbulence closure model with equations are as follows [34].

(i) Modified κ-ε Turbulence Model:

$$\frac{\partial \rho k}{\partial t}+\frac{\partial \rho k{u}_i}{\partial x_i}= \frac{\partial }{\partial x_i}\left(\left(\mu +\frac{{\mu }_i}{{\sigma }_k}\right)\frac{\partial k}{\partial x_i}\right)+\tau { }_{ij}^R \frac{\partial u_i}{\partial x_j}-\rho \epsilon + {\mu }_i{P}_B$$

(5)

$$\frac{\partial \rho \epsilon }{\partial t}+\frac{\partial \rho \epsilon u_i}{\partial x_i}= \frac{\partial }{\partial x_i}\left(\left(\mu +\frac{{\mu }_i}{{\sigma }_{\epsilon }}\right)\frac{\partial \epsilon }{\partial x_i}\right)+C_{\epsilon 1}\frac{\epsilon }{k}\left(f_1{\tau }_{ij}^R\frac{\partial u_i}{\partial x_j}+C_B{\mu }_t{P}_B \right)-f_2{C}_{s2}\frac{\sigma {\epsilon }^2}{k}$$

(6)

$${\tau }_{ij}=\mu s_{ij}, {\tau }_{ij}^R= {\mu }_t{s}_{ij}-\frac{2}{3}\sigma k{\delta }_{ij}, s_{ij}=\frac{\partial u_i}{\partial x_j}+\frac{\partial u_j}{\partial x_i}- \frac{2}{3}{\delta }_{ij}\frac{\partial u_k}{\partial x_k}, P_B=-\frac{g_i}{{\sigma }_B}\frac{1}{\sigma }\frac{\partial p}{\partial x_i}$$

where

$$C_{\mu }=0.09, C_{\epsilon 1}=1.44, C_{\epsilon 2}=1.92;{\sigma }_k=1,{\sigma }_{\epsilon }=1.3, {\sigma }_B=0.9,C_B=1 if P_B >0, C_B=0$$

$$if P_B <0$$

The turbulent viscosity is defined as:

$${\mu }_t=f_n.\frac{C_p\rho k^2}{\epsilon }$$

(7)

Damping function f_μ is obtained from Lam and Bremhorst’s functions:

$$f_{\mu }={\left(1-e^{-0.025R_y}\right)}^2.\left(1+\frac{20.5}{R_t}\right)$$

(8)

where

$$R_y=\frac{\rho \sqrt{ky}}{\mu };R_t=\frac{\rho k^2}{\mu \epsilon }$$

and $y$ is the distance from a point to the Wall and Lam.

f₁ and f₂ are Bremhorst’s damping function which evaluated from:

$$f_1=\left(1+\frac{0.05}{f_{\mu }}\right); f_2=1-e^{R_t^2}$$

Damping function f, f_1, and f₂ which decrease turbulent viscosity and turbulent energy and increase the turbulent dissipation rate when the Reynolds number R_y based on the average velocity of fluctuations and distance from wall becomes too small, when f_μ= 1, f₁ = 1 and f₂ = 1 the approach obtains the original k-ε model.

(ii) Two scale wall function

The two-scale wall functions incorporate the modified k−ε turbulence model. The SWFS is used for computational mesh in immersed boundary non-body fitted cartesian meshing technique, which is required near the wall distance very small, y+ [34]:

$$y^{+}=\frac{\sqrt{\rho {\tau }_{w}y}}{\mu }$$

(9)

The solutions were converged when the maximum goal values were in the order of 5 for the selected output parameters. The inlet turbulence intensity was kept at 2%, and the solution was iterated until the maximum goal was achieved.

The blade geometry closer to the physical model has been considered, see Figure 6. No-slip boundary condition was applied at the hub and rotor blade, and a local averaging rotating domain with variable angular velocity was applied. A constant velocity profile was adopted at the inlet. Table 2 represents the details of boundary conditions used in the present analysis.

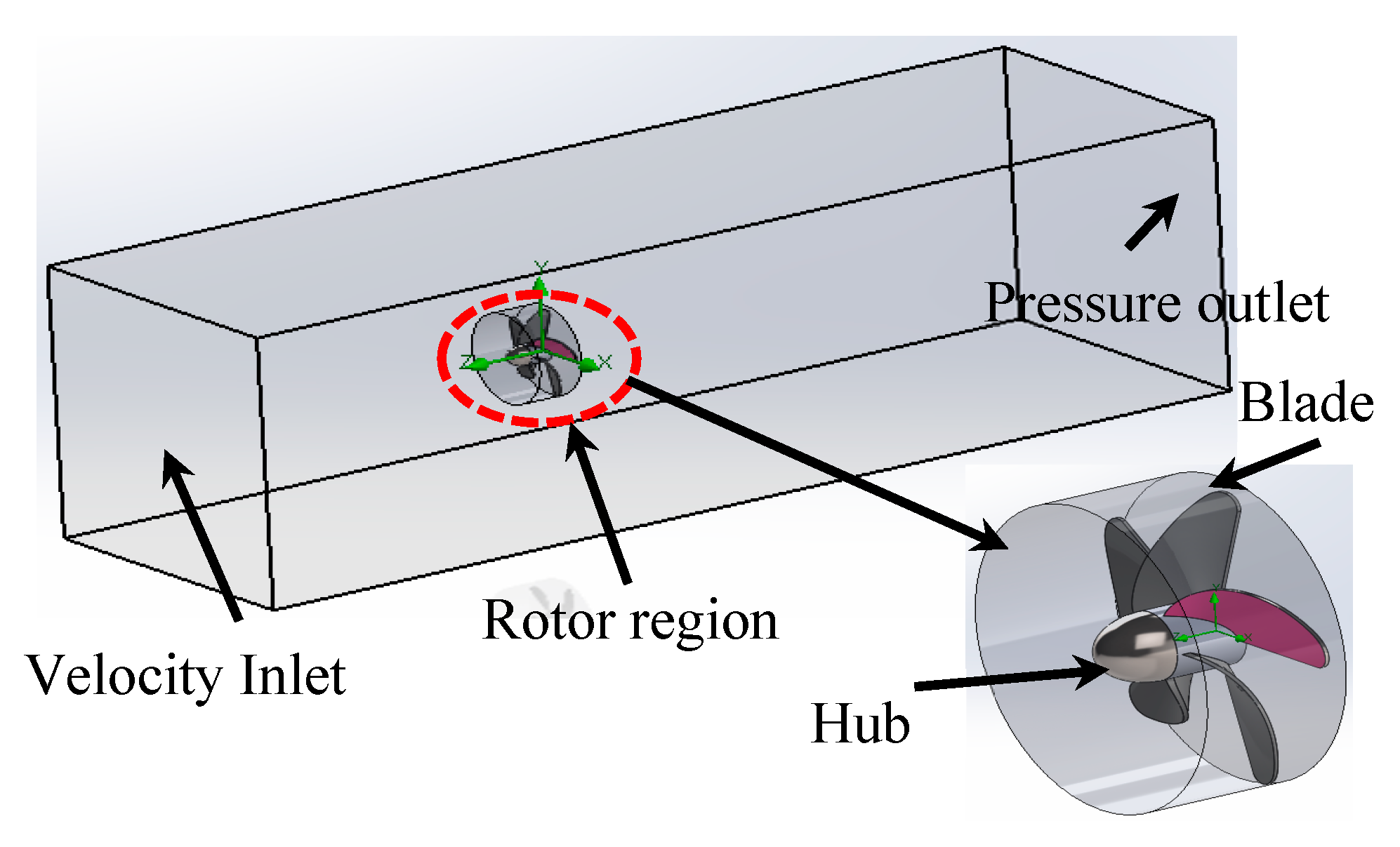

Figure 6. Computational domain with boundary conditions.

Table 2. Meshing and boundary conditions.

Parameter	Description
CAD Model	SolidWorks
CFD Package	SolidWorks Flow Simulation (SWFs)
Flow domain	Full blade
Mesh/Nature	Immersed Boundary Cartesian Meshing Techniques
Reference frame	Local averaging frame
Working fluid	Water (assume temperature 20 °C)
Turbulence Model	Modified κ-ε with two-scale wall function
Inlet	Uniform velocity
Hub, rotor blade	No-slip wall
Outlet	Pressure outlet
Goal convergence	5

Figure 7 displays the mesh, which generated in SolidWorks Flow Simulation (SWFs), used in the computational domain. The Advanced Boundary Cartesian Meshing Technique was applied over the entire computational domain. The dense mesh was applied near the rotating region to capture the flow behavior near the blade region. The number of mesh was gradually increased in five steps from 210,901 to 1,044,949 nodes to check the grid-convergence, as shown in Figure 8. Here, a maximum deviation of 1.1% in the coefficient of power is obtained. Figure 8 also shows that the optimum number of mesh is about 0.63 million nodes.

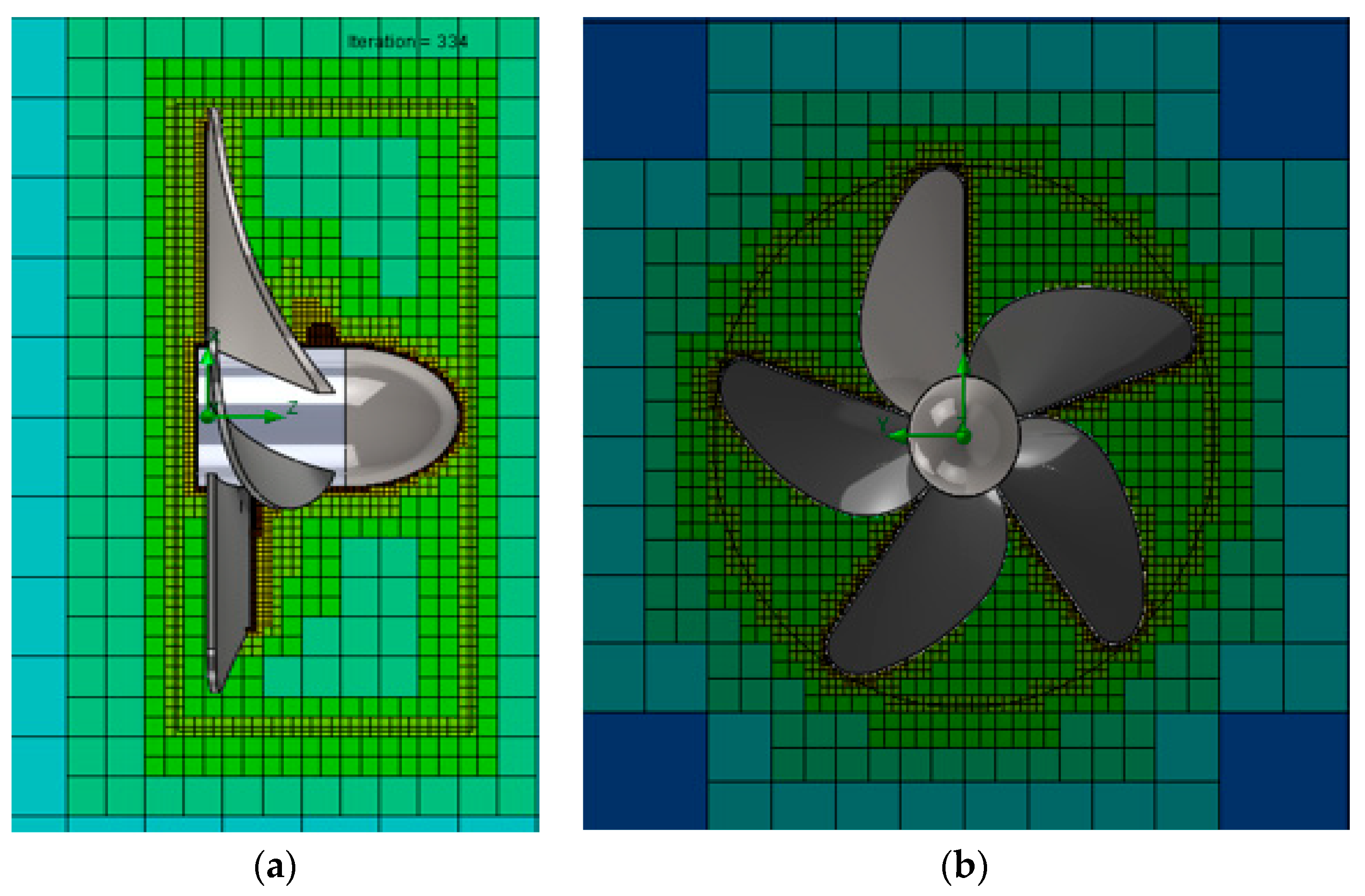

Figure 7. Computational Mesh around the rotor blade: (a) Side view; (b) Front view.

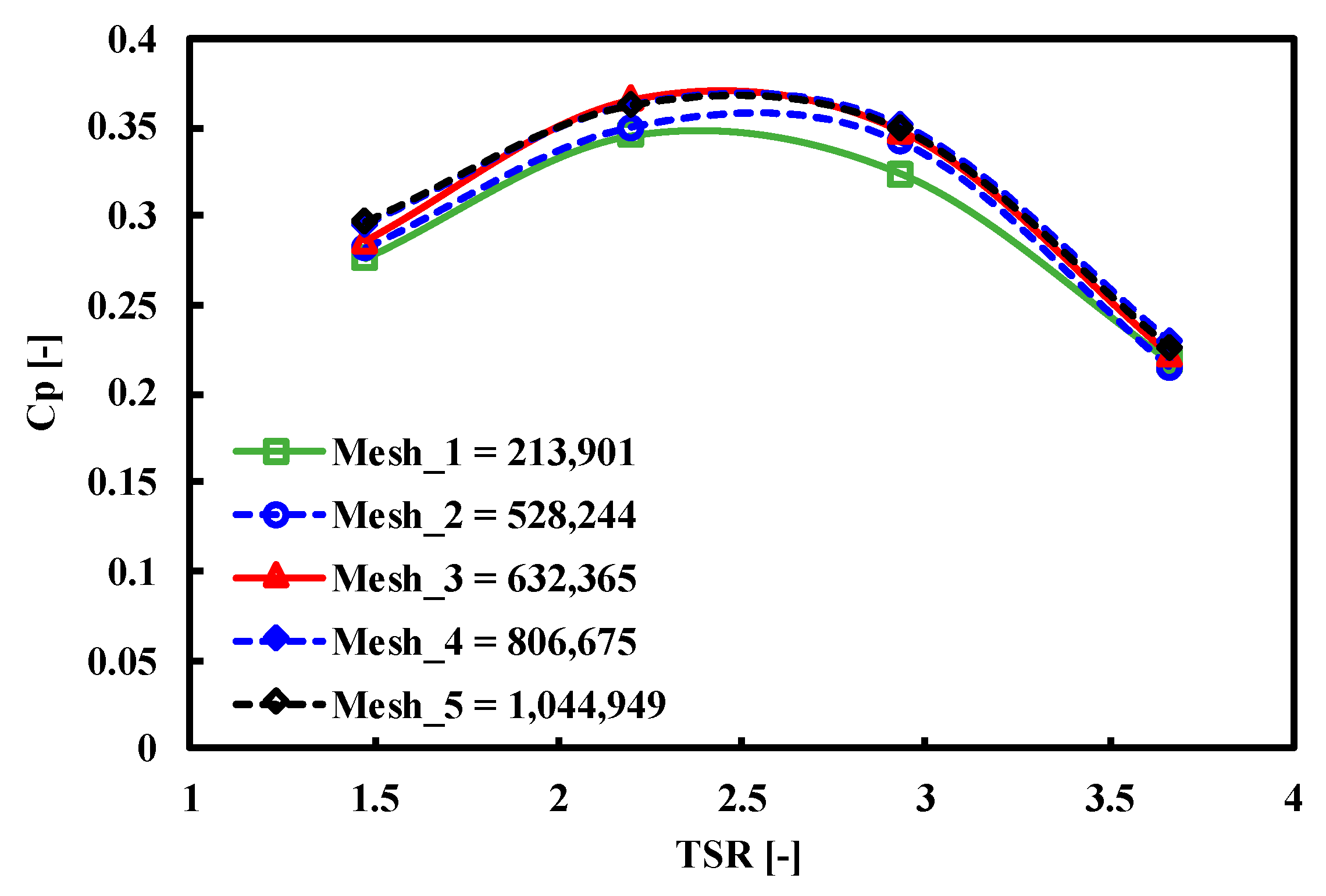

Figure 8. Grid sensitivity study (Power coefficient with mesh size at various TSR).

Finally, eight partitions in the Dell Precision, with cluster specifications of Intel® Xeon ® CPU E3-1505M v6 @ 3.00 GHz processor was used to carry out the simulation.

5. Results and Discussion

Numerical Validation

Present computational results are then compared with the experimental results shown in Figure 9. The turbine performance is obtained by plotting the coefficient of power against the TSR. It can be observed that the CFD results slightly over the experimental results, with the exception of TSR = 3.5, where the experimental measurement results are higher than the numerical simulation. The average deviation between the CFD and experimental results is about 4.5%.

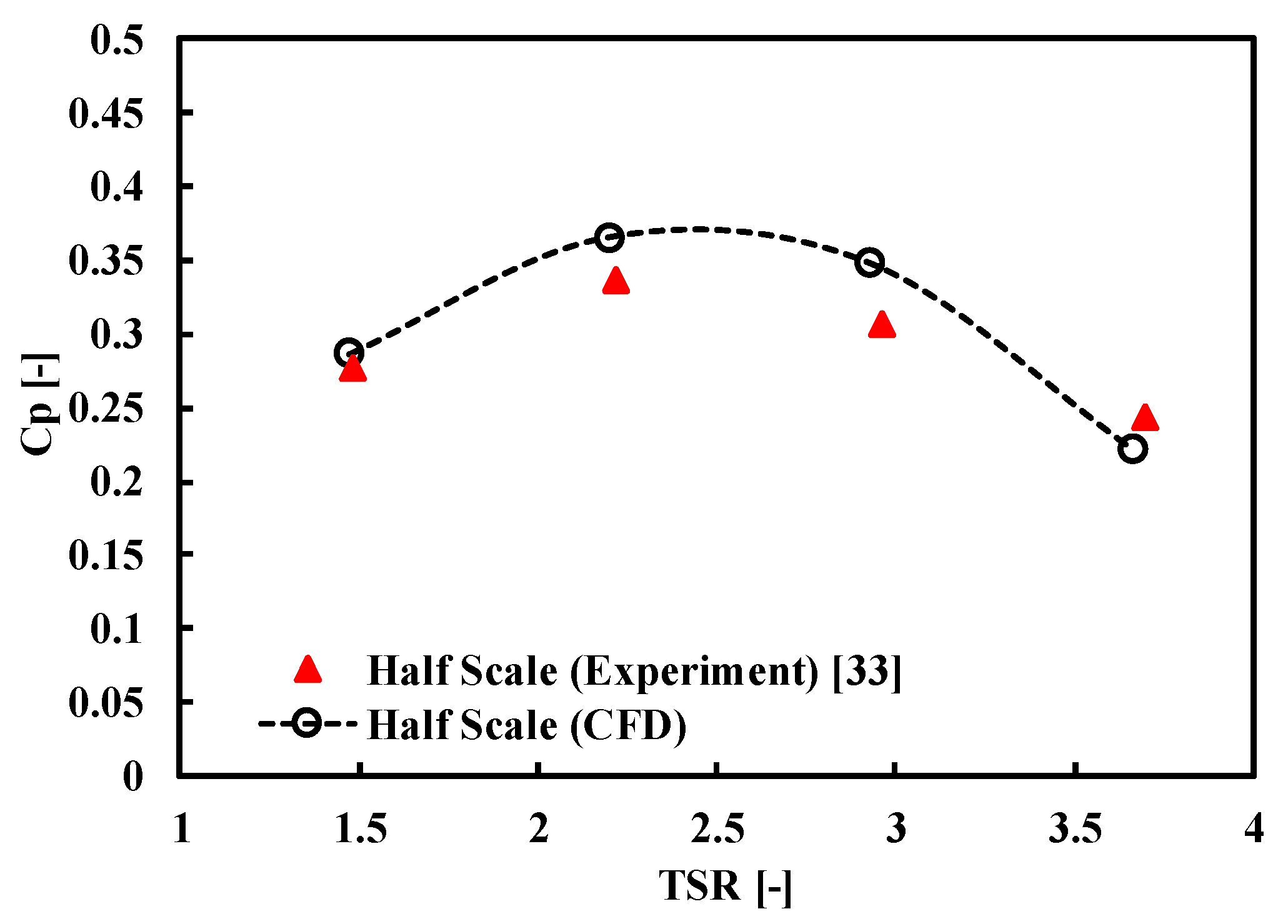

Figure 9. Comparison between experimental and numerical results (optimum inlet velocity is adopted at 2.5 m/s for computational study).

Figure 10a–c displays the streamline distribution on the blade pressure side for a wider TSR. The red dotted line indicates the separation on the blade PS. For low TSR (=1), the flow separates at the LE near the hub surface. However, as velocity increases, the separation line moves towards the LE to TE due to the increased angle of attack (AOA). At higher TSR (=4), the flow has separated more than 90% of the blade surface which most likely implies a post-stall condition.

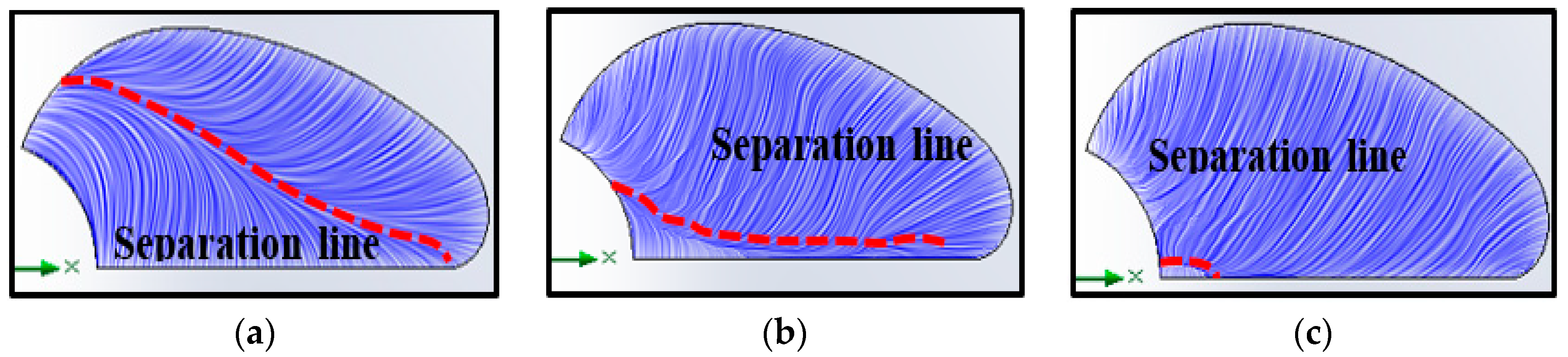

Figure 10. Streamline distribution on the blade pressure side at various TSR: (a) TSR = 1.0; (b)TSR = 2.0; (c) TSR = 4.0.

Figure 11 and Figure 12 illustrate the variation of the pressure contour at different TSR on the blade pressure side and suction side. At low TSR (=1.0), the higher-pressure region is observed near the blade leading edge on the blade pressure side (Figure 11a). The results indicated that the higher-pressure region increases with increasing in TSR and shifts towards the leading edge to trailing edge on the blade pressure side. At higher TSR (=4), the low-pressure region is noticed near the hub surface at leading-edge which implies the recirculation (Figure 11c). On the other side, the low-pressure region is observed on the blade suction side near the leading edge and along with the increase in TSR, the low-pressure region is also increasing (Figure 12).

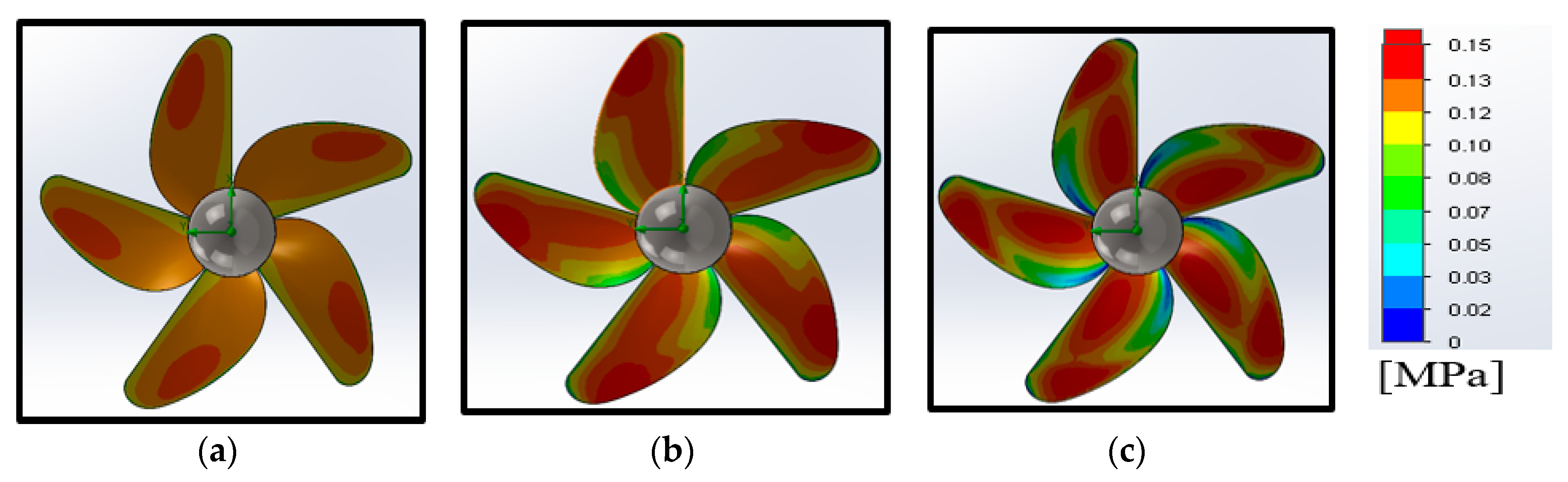

Figure 11. Contour of pressure on the blade pressure side for various TSR: (a) TSR = 1.0; (b) TSR = 2.5; (c) TSR = 4.0.

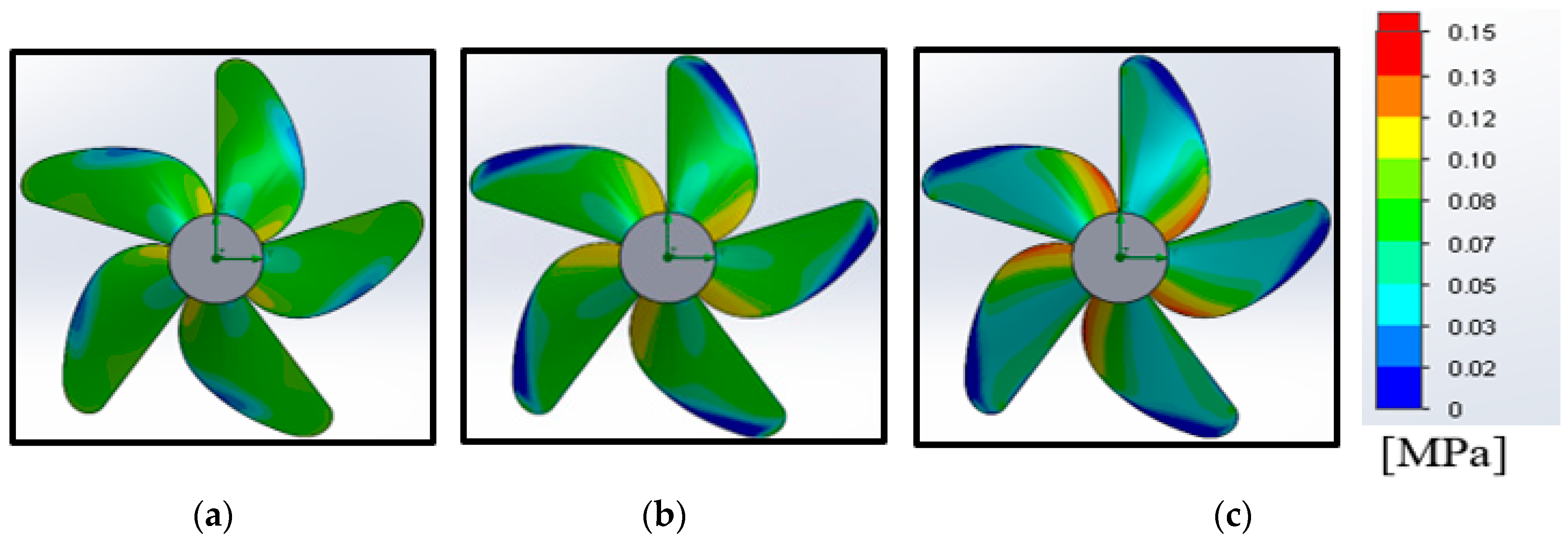

Figure 12. Contour of pressure on the blade suction side for different TSR: (a) TSR = 1.0; (b) TSR = 2.5; (c) TSR = 4.0.

Figure 13 illustrates the pressure contours at the mid-span of the flow passage at various TSR. It can be seen that the higher-pressure region moves from LE towards the TE of the blade at higher TSR. At TSR = 1.0, the higher-pressure region covers almost 95% of the blade pressure side while the low-pressure region is found only at the blade leading edge of the blade suction side (SS). The higher-pressure region moves from the LE towards the TE of the blade at higher TSR. At TSR = 2.5, a maximum-pressure region covers more than 40% of the pressure side with mostly located around the middle (Figure 13b). This may imply maximum performance conditions. Further increase in TSR makes the maximum pressure region moves towards the TE of the blade and the low-pressure region developed near the leading edge of the blade’s pressure side because the stagnation point moves towards the blade suction side.

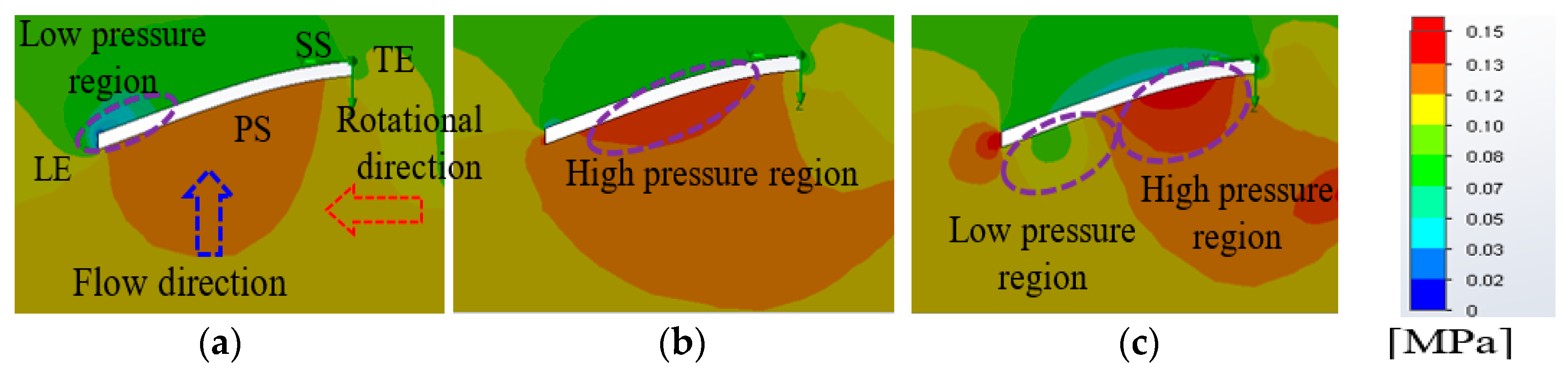

Figure 13. Pressure distribution mid span of the flow passage for various TSR: (a) TSR = 1.0; (b) TSR = 2.5; (c) TSR = 4.0.

The turbine is designed to operate in a wide range of TSR due to various angles of attack of the blade leading edge (LE). As the flow travels along the blade’s leading edge, it may separate if the inlet velocity or angle of attack is high. Figure 14a shows that the angle difference between axial flow (V_a) and relative flow (V_r) is small. This indicates that the flow is attached to the blade’s pressure side (PS). With an increase in inlet velocity, the angle between inlet flow and relative flow should also increase, which indicates that the stagnation point should move towards the blade suction side (SS) (as described in Figure 13) and flow separates. At TSR = 4, it is observed that the recirculation region found on the leading edge of the blade’s PS.

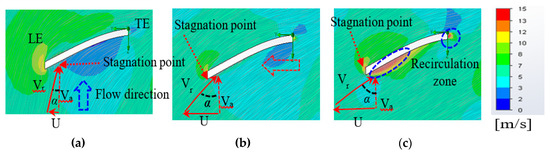

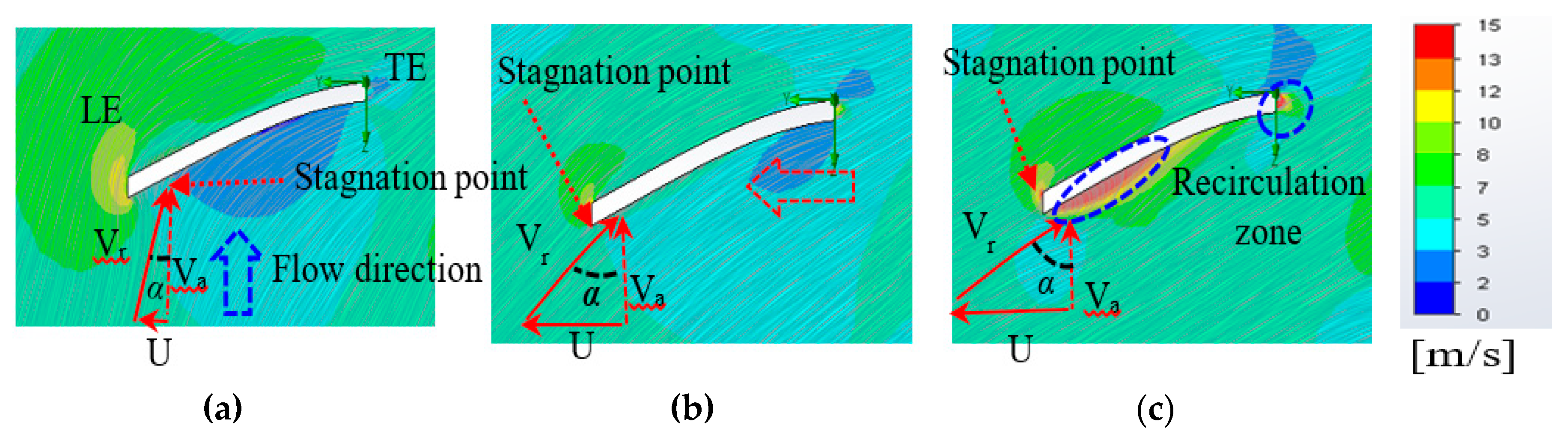

Figure 14. Velocity distribution mid span of the flow passage for various TSR: (a) TSR = 1.0; (b) TSR = 2.5; (c) TSR = 4.0.

6. Generator and Turbine Running Characteristics

Figure 15 and Figure 16 show the distribution of output power and drag force at various RPM, for a range of TSR from 0.5 to 4. It can be observed that for a given velocity, the blade torque at zero is directly proportional to the rotational speed. On the other side, with an increase in rpm, the drag force increases for given inlet velocity as inferred in Figure 16.

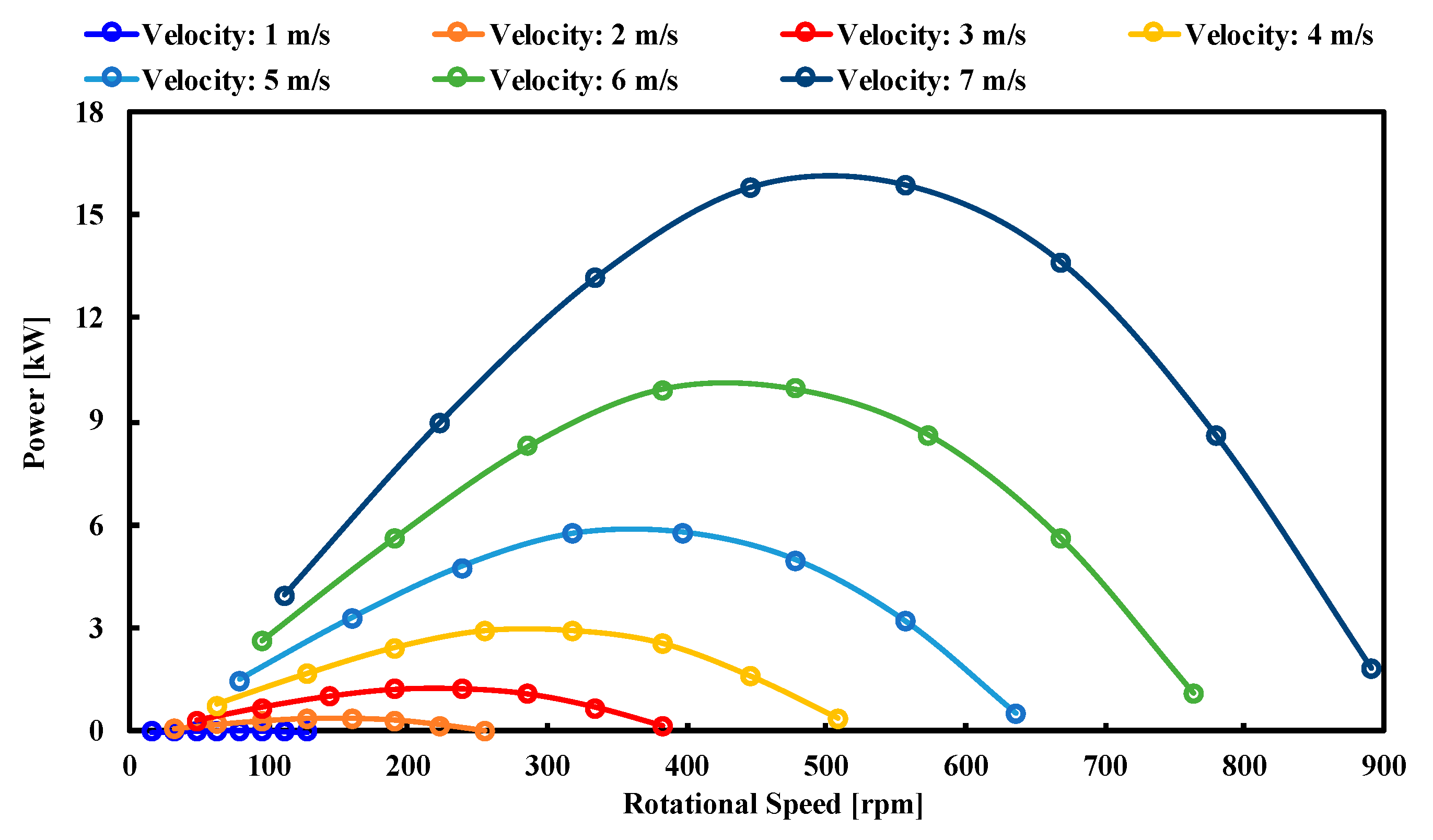

Figure 15. Power at different rotational speed.

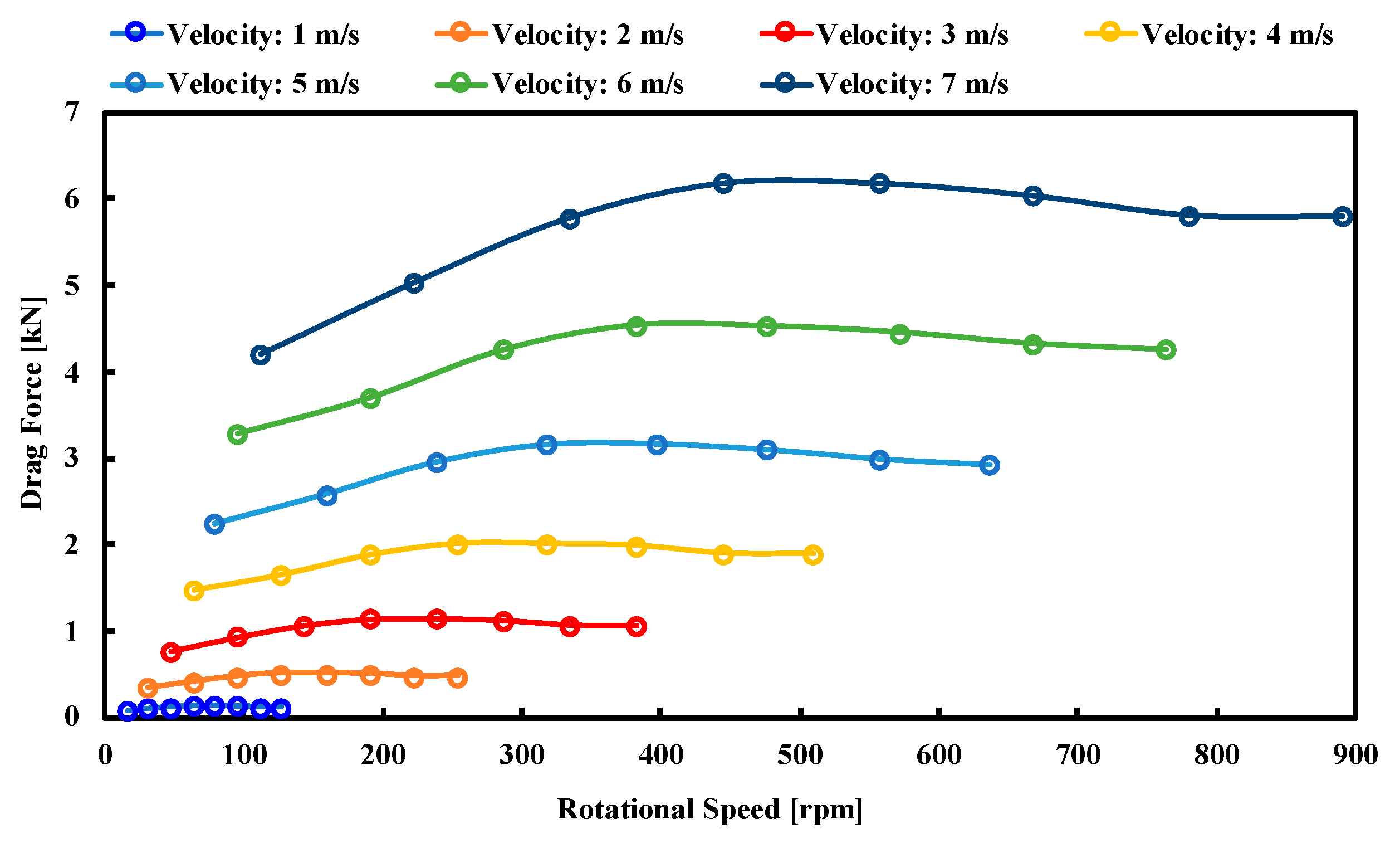

Figure 16. Drag force at different rotational speed.

Measured mechanical load input and electrical load output distribution against different RPM, for impedance range of 4.7–34.9 Ω, are shown in Figure 17 and Figure 18. For a given voltage, the low and high impedance implies low and high resistance, respectively. It is noticed that the mechanical and electrical power output decrease with an increase in impedance for a given voltage. On the other side, the electrical power out is slightly low as compared to the mechanical power input due to transmission loss. Subsequently, two different impedances of 4.7 Ω and 34.9 Ω are adopted for further studies. By incorporating these two impedances in Figure 15, the unique correlation between generator and turbine performance can be retrieved. The results are plotted in a dimensional form in Figure 19. It is important to be noted that the obtained correlation here is only as a function of impedance and independent of power output, drag force, rotational velocity, and blade torque.

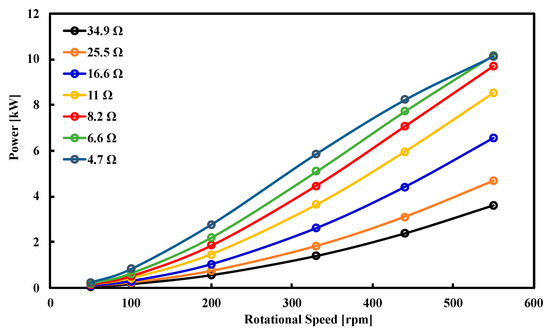

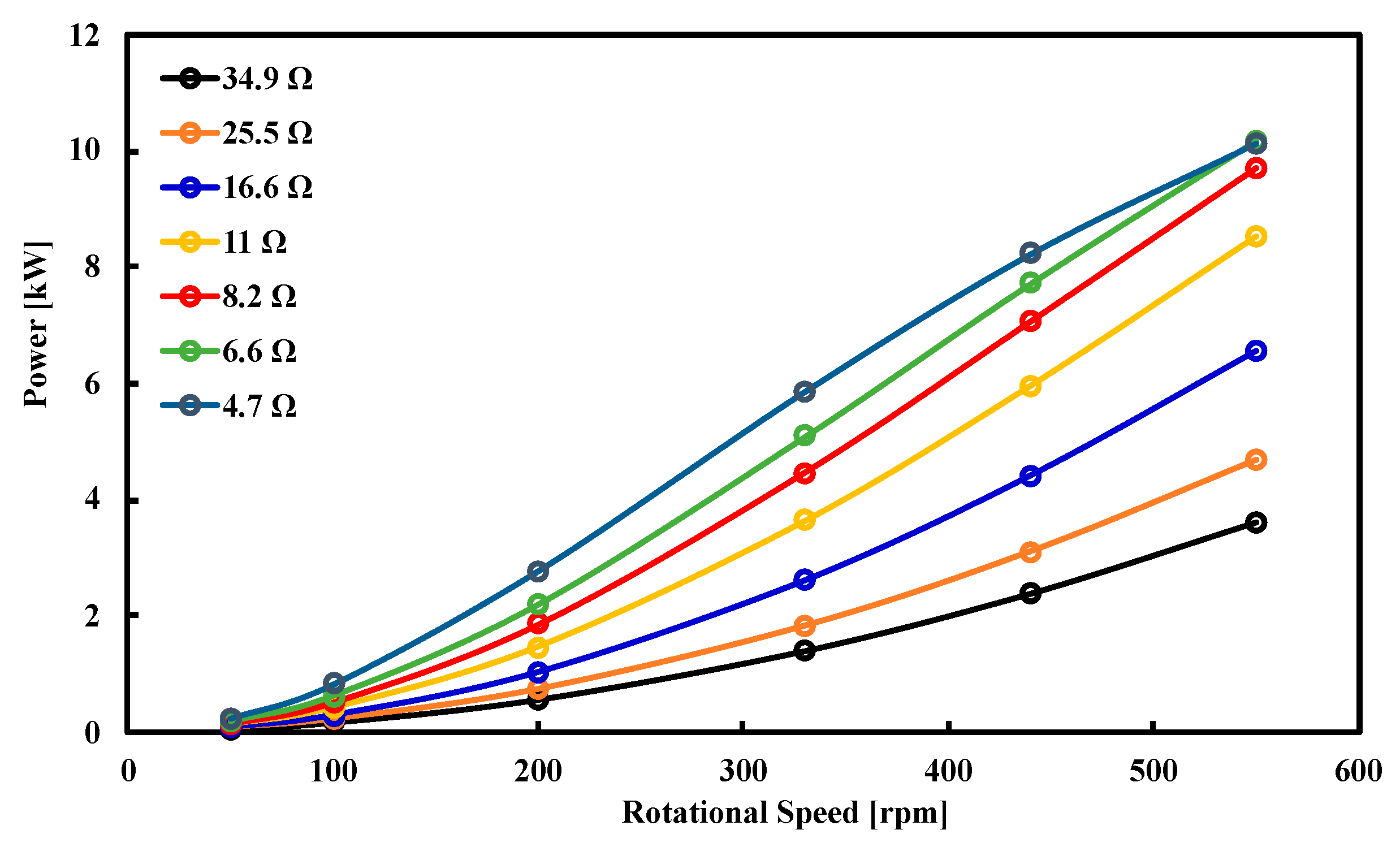

Figure 17. Measured Mechanical load input power and rotational speed of the full-scale generator in various load resistance: R_3ph = 4.7–34.9 Ω.

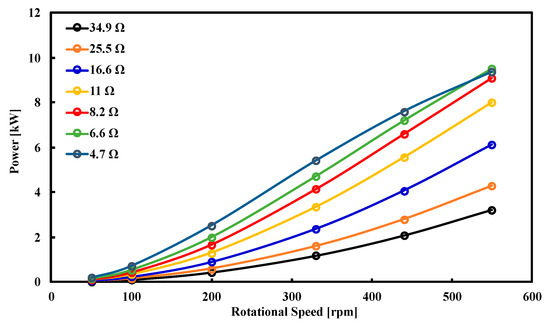

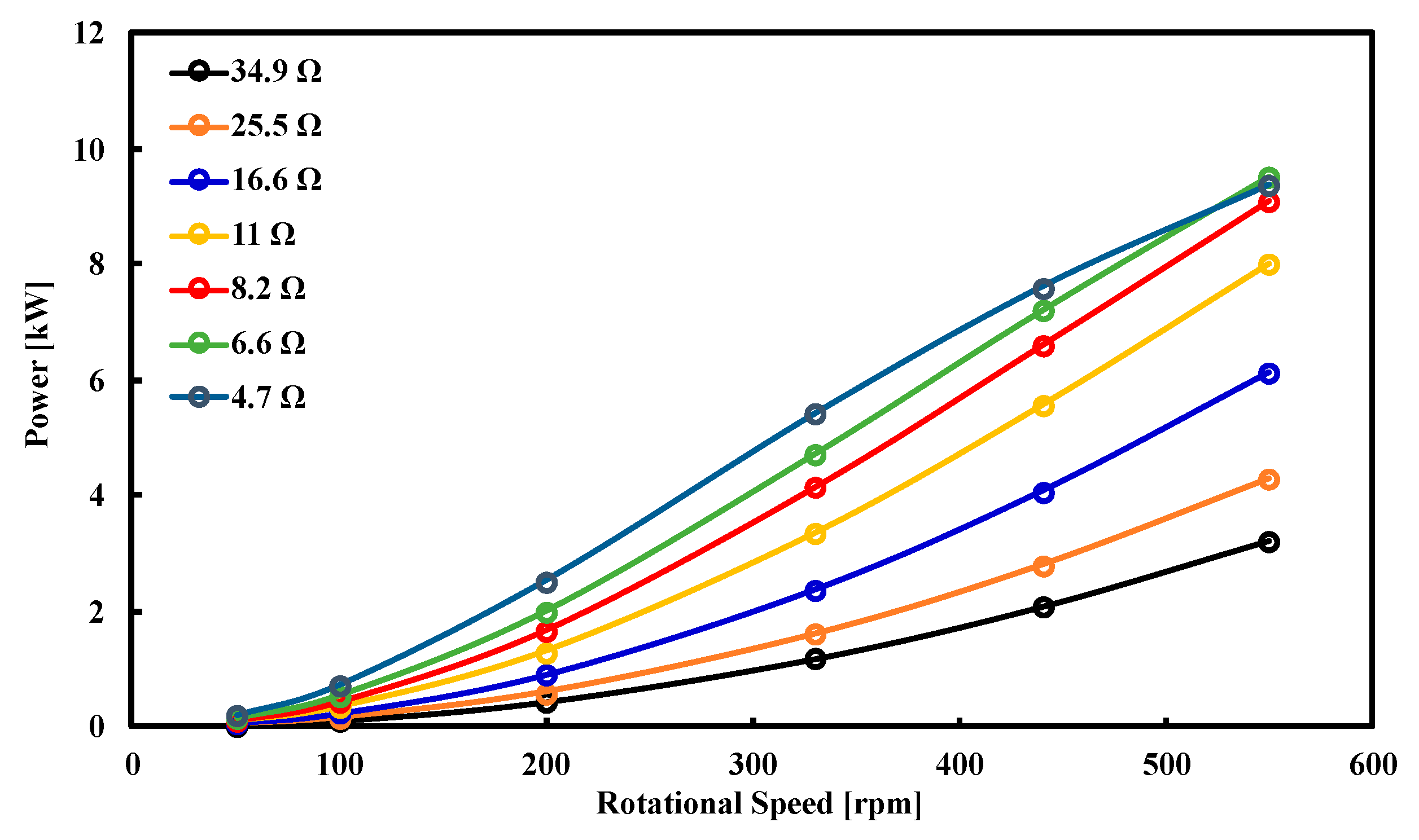

Figure 18. Measured Electrical load output power and rotational speed of the full-scale generator in various load resistance: R_3ph = 4.7–34.9 Ω.

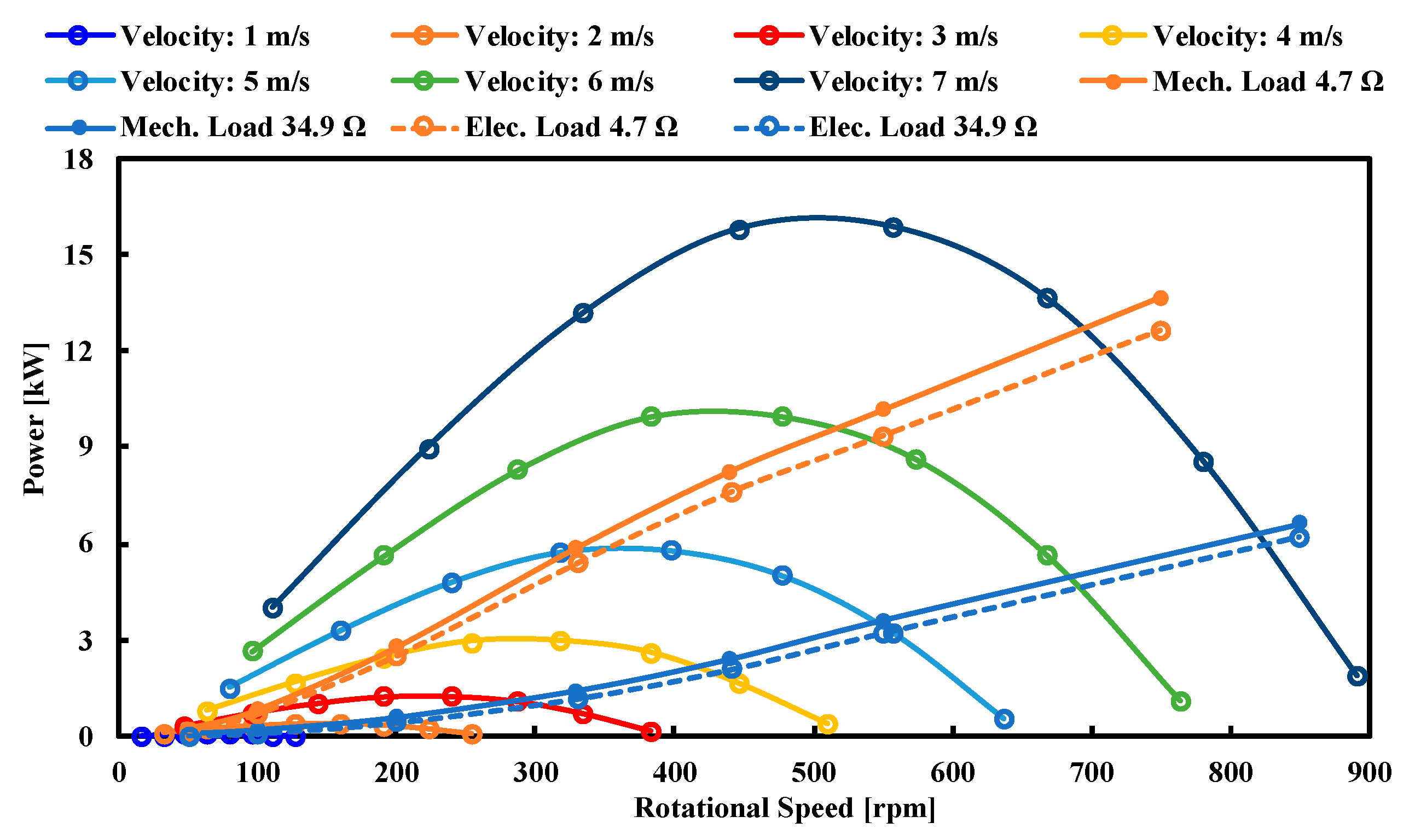

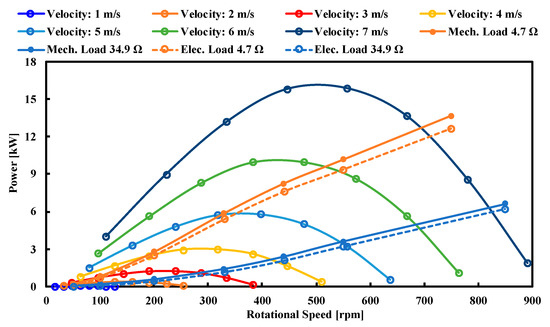

Figure 19. Power at different rotational speed.

Figure 20a,b show the power output for mechanical and electrical load against the inlet velocity for the mechanical load and electrical load, respectively. It can be observed that both mechanical and electrical loads results show a higher power achieved with lower impedance (4.7 Ω) compared to the higher impedance (34.9 Ω) at velocity > 4.0 m/s. Below 4.0 m/s, on the other hand, both yield similar results in power. Furthermore, the rotational speed is much higher for higher impedance as shown in Figure 21. The drag force, however, is almost the same for both impedances for a given inlet flow as demonstrated in Figure 22. On the other hand, the torque is much higher for lower impedance than higher impedance as shown in Figure 23. This may be caused by the low resistance of the lower impedance.

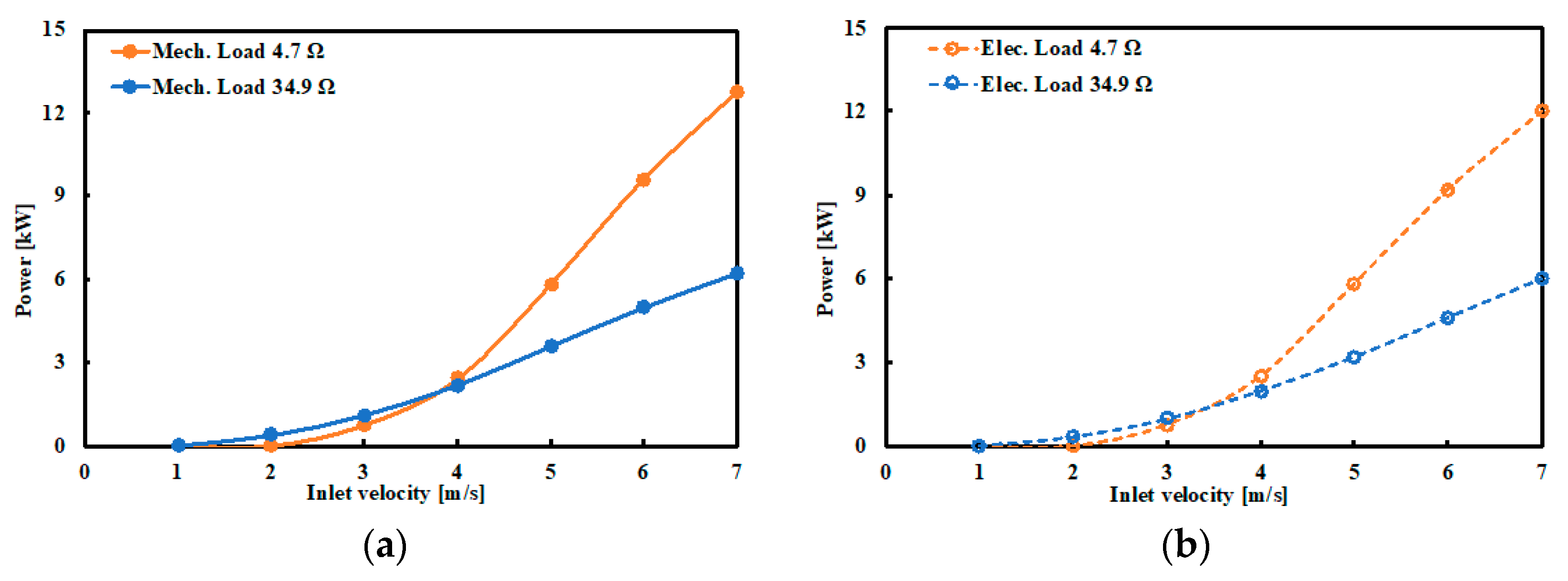

Figure 20. Power at different inlet velocity: (a) Mechanical Load; (b) Electrical Load.

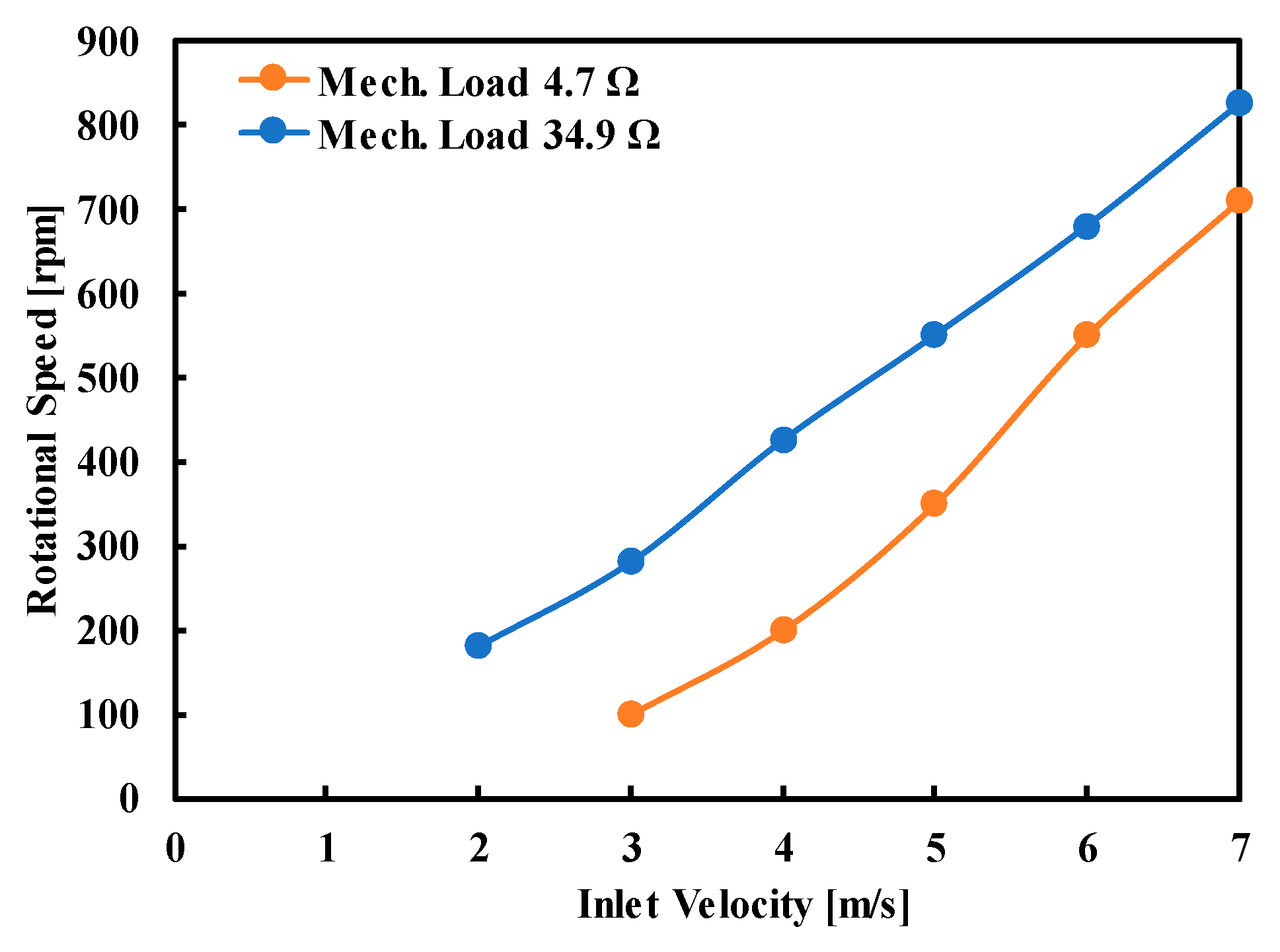

Figure 21. Rotational speed and inlet velocity co-relation.

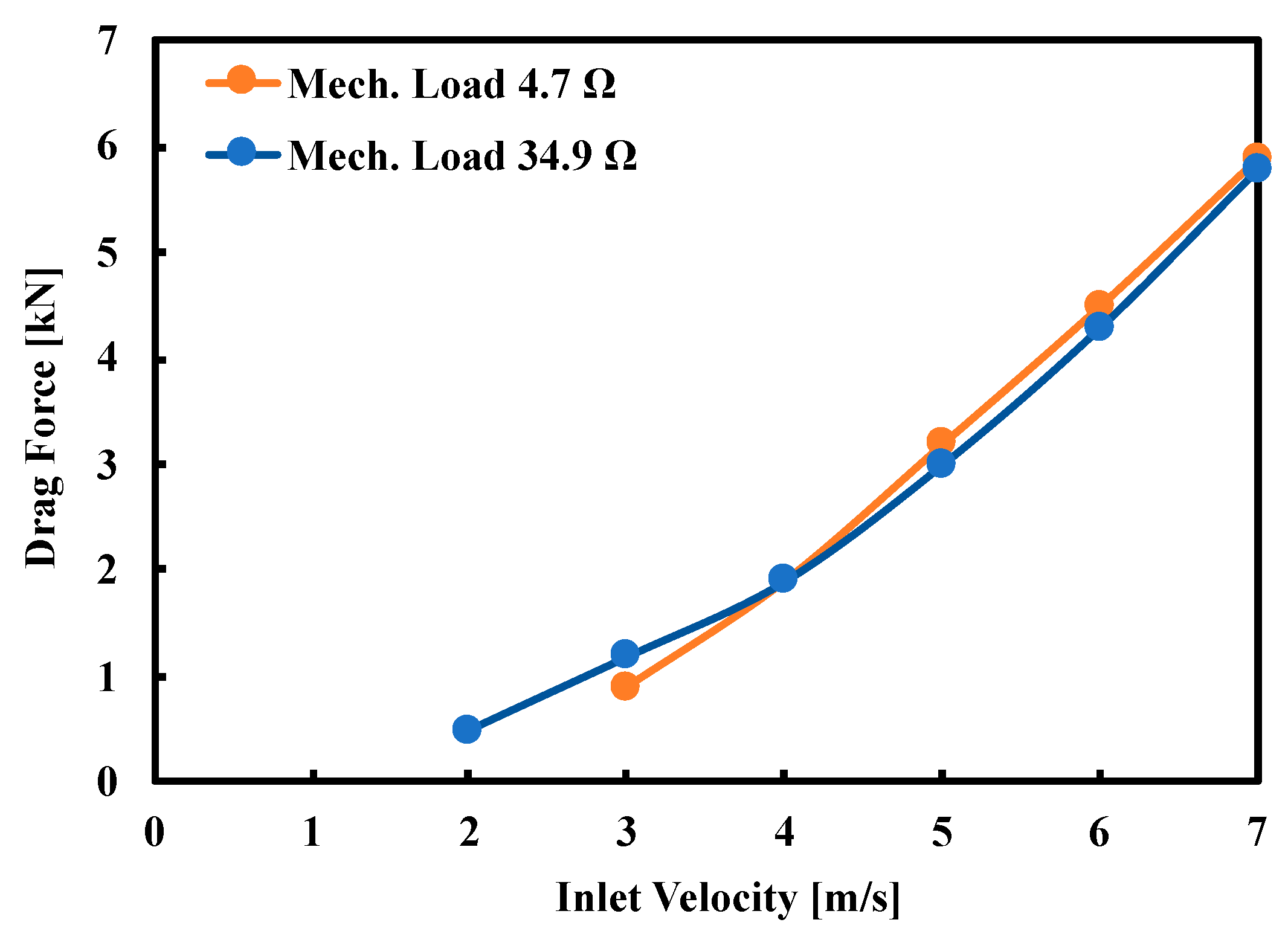

Figure 22. Drag force Vs Inlet velocity.

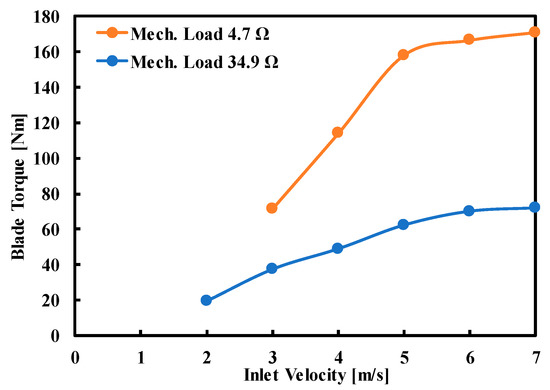

Figure 23. Blade torque vs. Inlet velocity.

Table 3, Table 4 and Table 5 show output parameters for a mechanical load of 4.7 Ω, 34.9 Ω, and electrical impedance of both, respectively. From this table, the turbine output and electrical output for a given input condition can be obtained. For example, the electrical load output is 34.9 Ω, and the power output is 3200 W or 3.2 kW for a corresponding generator rotational speed of 550 rpm. Therefore, for a given rpm and electrical load output, we can evaluate the turbine power, drag force, incoming water velocity and blade torque for the corresponding machinal load.

Table 3. Mechanical Load output of 4.7 Ω.

Vel. (m/s)	RPM	Power (W)	Ω (rad/s)	T (Nm)	Drag Force (N)
1	0	0	0	0	0
2	0	0	0	0	0
3	100	750	10.47	71.62	900
4	200	2390	20.94	114.11	1900
5	350	5800	36.65	158.25	3190
6	550	9600	57.60	166.68	4500
7	710	12,725	74.35	171.15	5900

Table 4. Mechanical load output of 34.9 Ω.

Vel. (m/s)	RPM	Power (W)	Ω (rad/s)	T (Nm)	Drag Force (N)
1	0	0	0	0	0
2	180	370	18.85	19.63	500
3	280	1100	29.32	37.52	1190
4	425	2180	44.51	48.98	1900
5	550	3590	57.60	62.33	3000
6	680	4990	71.21	70.07	4300
7	825	6220	86.39	72.00	5800

Table 5. Electrical load output at different impedance.

Inlet Velocity	Load 34.9 Ω		Load 4.7 Ω
Vel. (m/s)	RPM	Power (W)	RPM	Power (W)
1	0	41	0	0
2	180	350	0	0
3	280	990	100	760
4	425	1990	200	2500
5	550	3200	350	5820
6	680	4610	550	9200
7	825	6000	710	12,000

7. Conclusions

The performance of a wave energy conversion device has been investigated by an experimental model and numerical simulation. The numerical analysis has been investigated by solving the steady, incompressible RANS equations with a modified κ-ε with a two-scale wall function turbulence closure model. The results have been compared with those of wave energy devices. The main conclusion obtained are outlined as follows:

• It is observed that the maximum Cp is 0.38 at TSR 2.5.
• The separation line moves from leading edge to trailing edge when increase in the TSR is noticed.
• It can be seen that impedance is a critical factor in determining the turbine starting characteristics.
• It is noticed that drag force increases with increase in inlet velocity.
• The running characteristics of the turbine are controlled by wave frequency and incoming velocity.
• Turbine output performance characteristics have been presented in Table 3, Table 4 and Table 5 so that for a given impedance and RPM, the power output can be estimated.
• It is recommended to investigate the effect of blade shape along with twist angle and chord length on the performance would be a future study.
