Article

Irradiation Flux Modelling for Thermal–Electrical Simulation of CubeSats: Orbit, Attitude and Radiation Integration

1
Department of Mechanical Engineering, Federal University of Santa Catarina, Florianópolis 88040-900, Brazil
2
Graduate Program in Applied Computer Science, University of Vale do Itajaí, Itajaí 88302-901, Brazil
3
Department of Electrical Engineering, Federal University of Santa Catarina, Florianópolis 88040-900, Brazil
4
Expert Systems and Applications Lab., E.T.S.I.I of Béjar, University of Salamanca, 37008 Salamanca, Spain
5
VALORIZA, Research Center for Endogenous Resources Valorization, Instituto Politécnico de Portalegre, 7300-555 Portalegre, Portugal
*
Authors to whom correspondence should be addressed.
Energies 2020, 13(24), 6691; https://doi.org/10.3390/en13246691
Received: 13 November 2020 / Revised: 12 December 2020 / Accepted: 15 December 2020 / Published: 18 December 2020
(This article belongs to the Special Issue Advanced Space Power Systems)

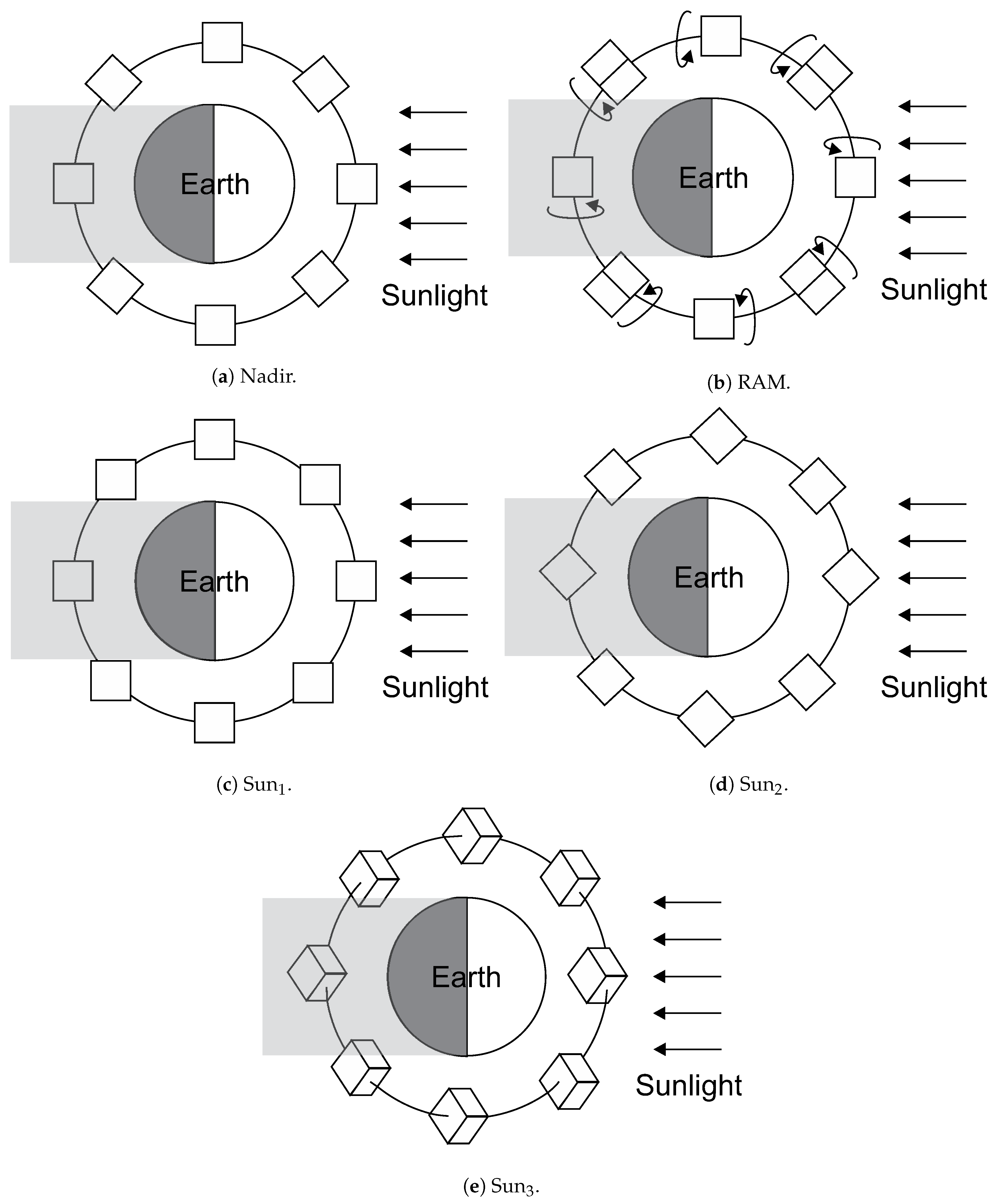

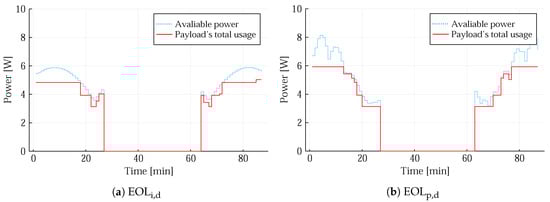

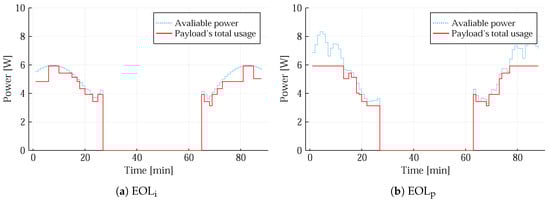

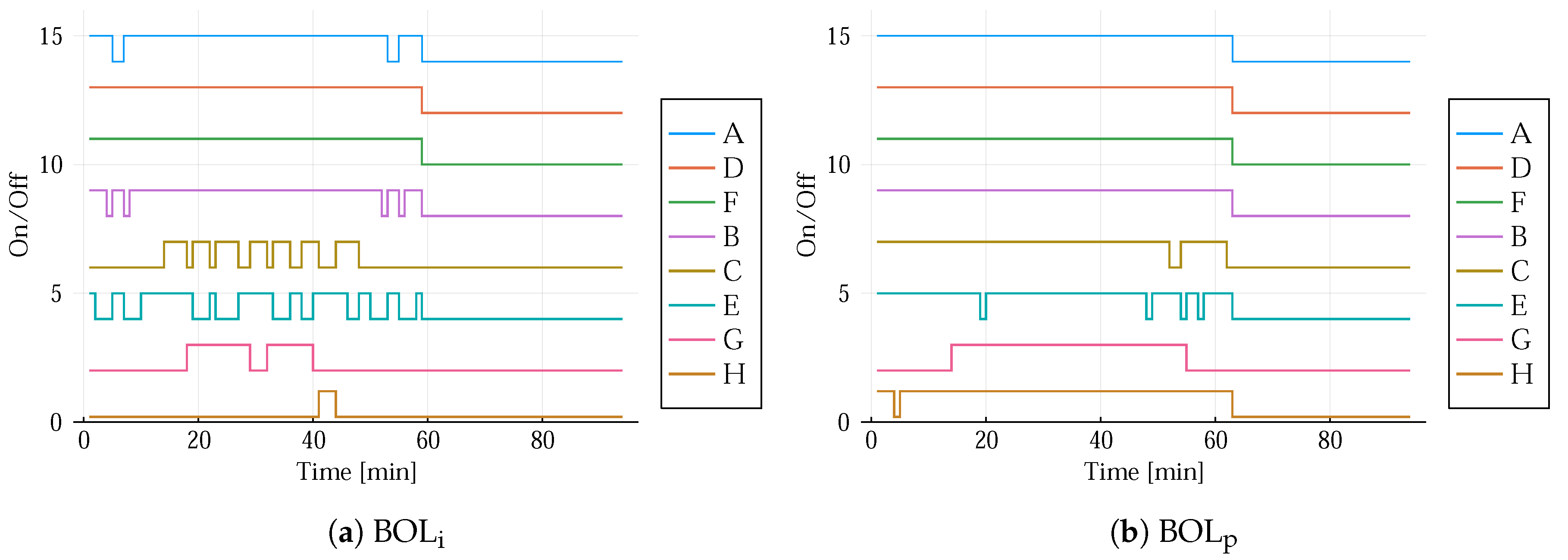

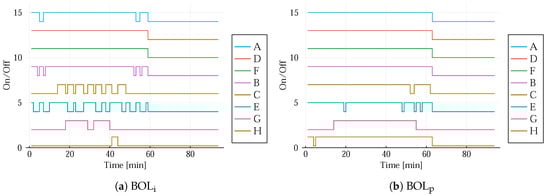

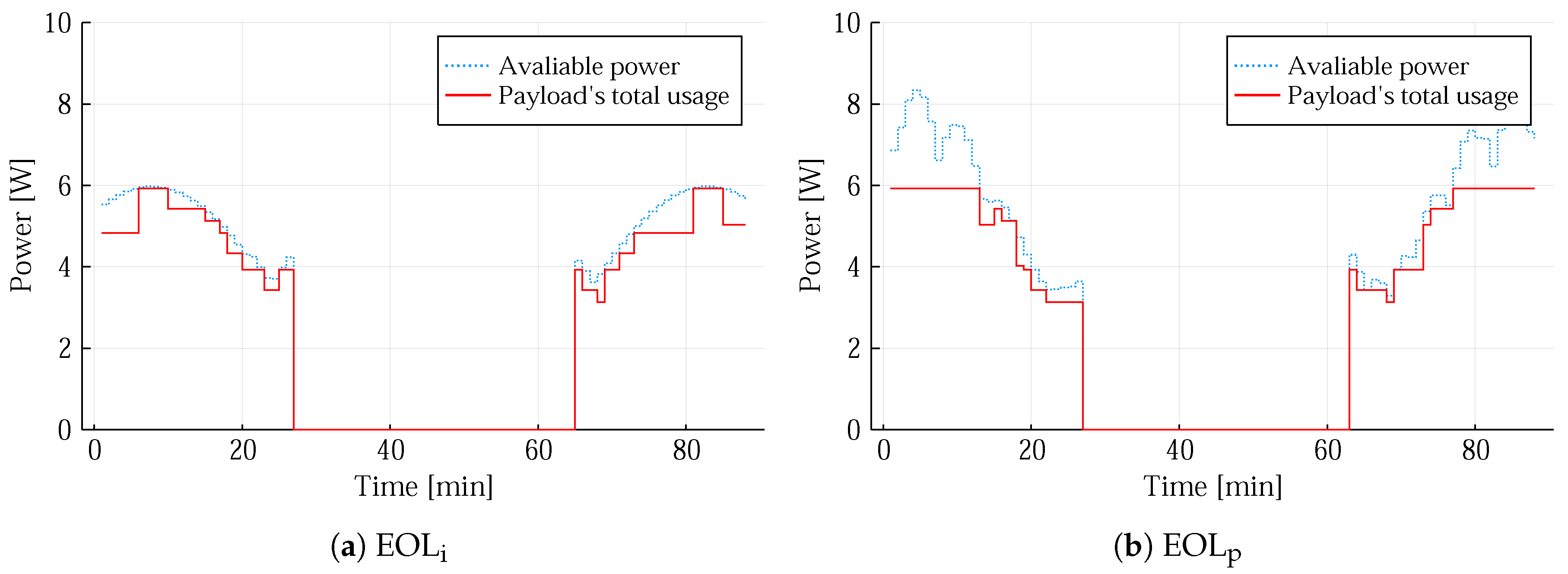

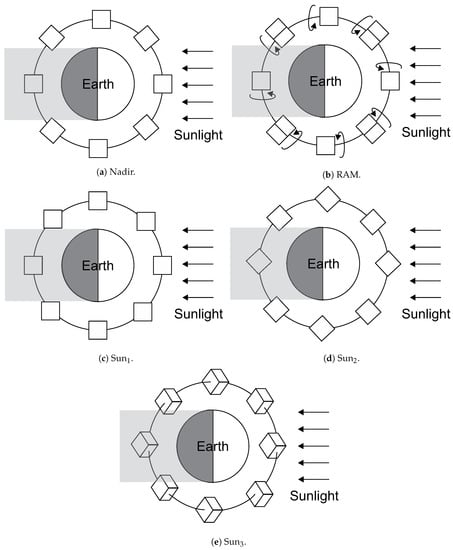

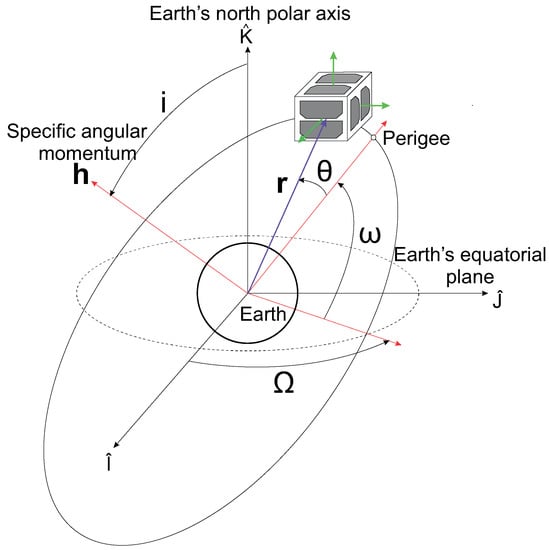

During satellite development, engineers need to simulate and understand the satellite’s behavior in orbit and minimize failures or inadequate satellite operation. In this sense, one crucial assessment is the irradiance field, which impacts, for example, the power generation through the photovoltaic cells, as well as rules the satellite’s thermal conditions. This good practice is also valid for CubeSat projects. This paper presents a numerical tool to explore typical irradiation scenarios for CubeSat missions by combining state-of-the-art models. Such a tool can provide the input estimation for software and hardware in the loop analysis for a given initial condition and predict it along with the satellite’s lifespan. Three main models will be considered to estimate the irradiation flux over a CubeSat, namely an orbit, an attitude, and a radiation source model, including solar, albedo, and infrared emitted by the Earth. A case study illustrating the tool’s abilities is presented for a typical CubeSats’ two-line element set (TLE) and five attitudes. Finally, a possible application of the tool as an input to a CubeSat task-scheduling is introduced. The results show that the complete model’s use has considerable differences from the simplified models sometimes used in the literature. View Full-Text
Keywords: CubeSat; orbit perturbation; attitude; lifespan; irradiation; task scheduling CubeSat; orbit perturbation; attitude; lifespan; irradiation; task scheduling
