# Evaluation of Filtered Spark Gap on the Lightning Protection of Distribution Transformers: Experimental and Simulation Study

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Filtered Spark Gap-Based Model

#### 2.1. High Voltage Laboratory Experimental Setup

^{2}wire, resistance 571.8 $m\mathsf{\Omega}$, inductance 119 μH and (2) dimension 110 mm × 400 mm, 33 turns approximately, 0.33 mm

^{2}HV cable, resistance 450.8 $m\mathsf{\Omega}$, inductance 35 μH.

#### 2.2. Software Simulation Setup

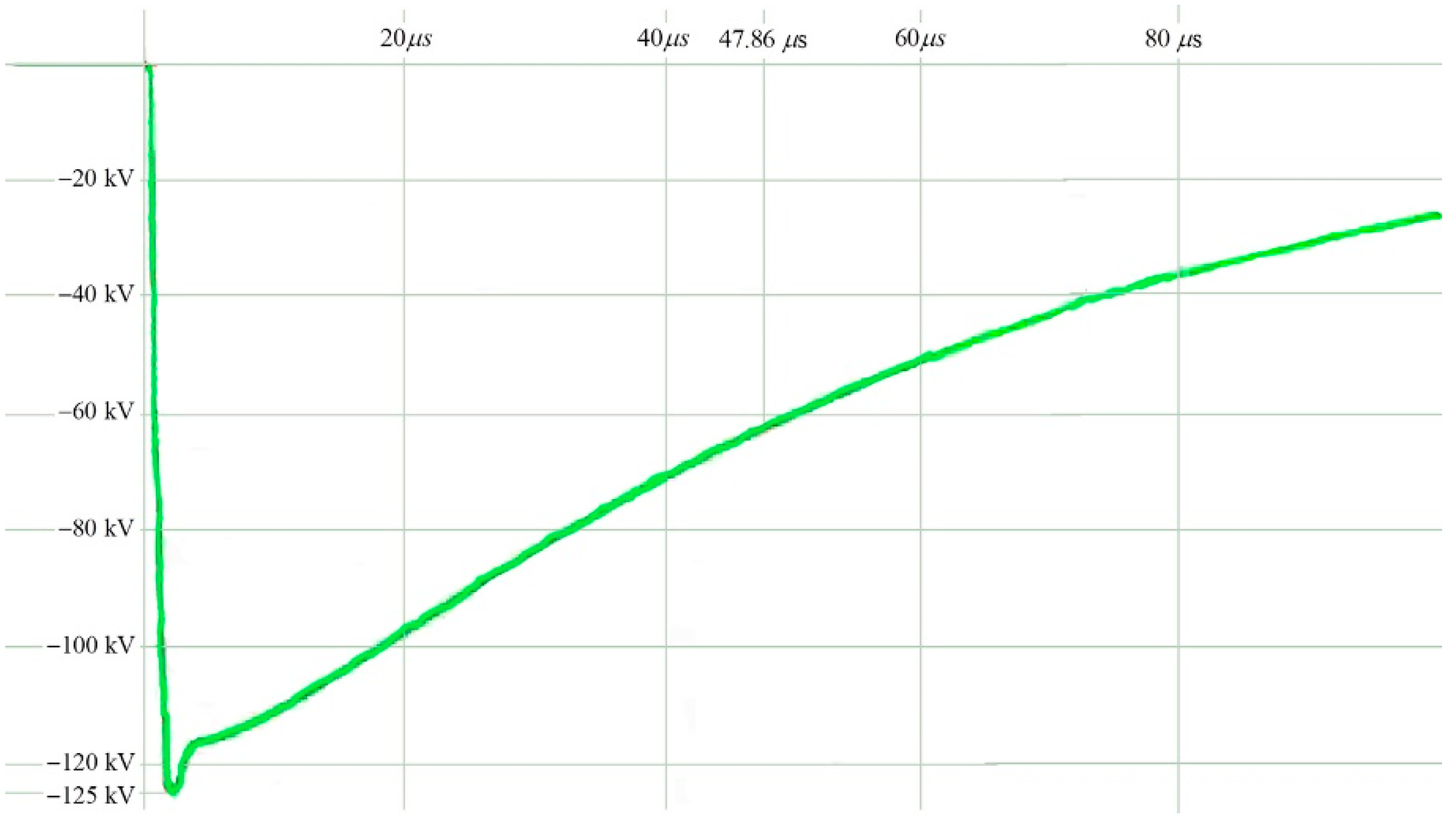

#### 2.2.1. Applied Impulse

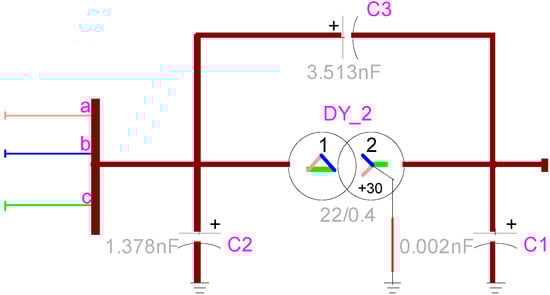

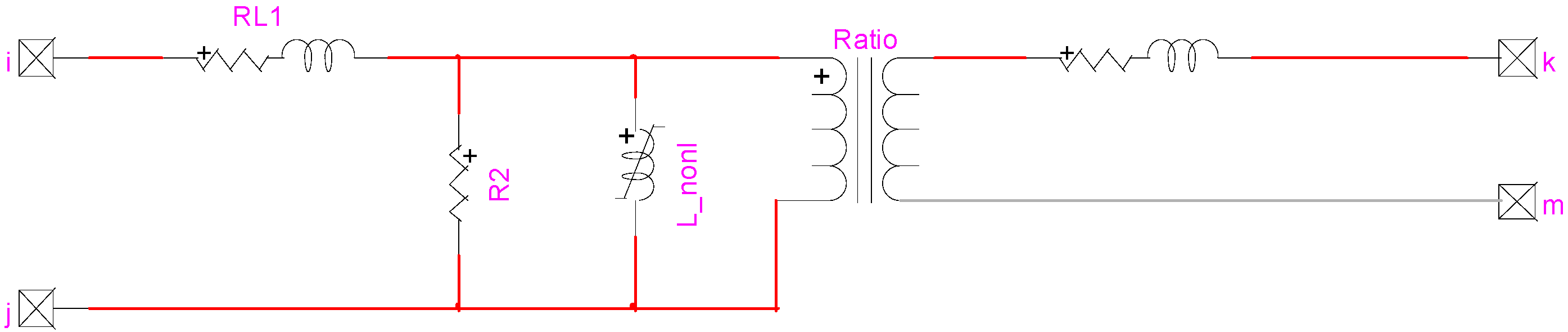

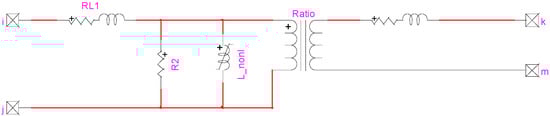

#### 2.2.2. Transformer Model

#### 2.2.3. Spark Gap

_{0}that the gap voltage becomes greater than v

_{0}, to time t in which the integral becomes greater than or equal to D.

_{0}are determined via the volt–time curve of the system and observing the withstand voltage of the dielectric under standard lightning overvoltages. Analytical and statistical methods are used to predict the behavior of the spark gap and calculate the best values for the aforementioned parameters [31]. However, more often than not, for the sake of simplicity and under the standard overvoltage impulses, k is set to 1.00 and the other two parameters are adjusted accordingly [30,32] as described in Section 3.

#### 2.2.4. Placement of the Inductor-Based Filter

## 3. Model Validation

#### 3.1. Test 1) Applying 110 kV and 125 kV Impulses in the Presence of the Spark Gap

#### 3.2. Test 2) Applying 110 kV and 125 kV Impulses in the Presence of the Proposed Filtered Spark Gap

## 4. Case Studies

#### 4.1. Case 1) Applying 110 kV and 125 kV Impulses in the Presence of the Filtered Spark Gap with Large and Small Inductors

#### 4.2. Case 2) Sensitivity Analysis over the Inductor Size Under 110 kV and 125 kV Impulses in the Presence of the Filtered Spark Gap

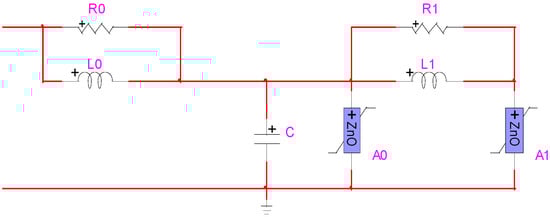

## 5. Comparisons and Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Hou, M.; Gao, H.; Zhang, S.; Wang, F. Simulation study on lightning protection of distribution transformer with zinc oxide arrester. In Proceedings of the 2015 5th International Conference on Electric Utility Deregulation and Restructuring and Power Technologies (DRPT), Changsha, China, 26–29 November 2015; pp. 1763–1767. [Google Scholar]
- Furgał, J. Influence of Lightning Current Model on Simulations of Overvoltages in High Voltage Overhead Transmission Systems. Energies
**2020**, 13, 296. [Google Scholar] [CrossRef][Green Version] - Li, W.; Liu, L.; Sun, L.; Hu, J.; Wang, J.; Xie, Y. Analysis and countermeasures of the tilt of lightning rod in transformer substation. IOP Conf. Ser. Earth Environ. Sci.
**2019**, 358, 042073. [Google Scholar] [CrossRef] - Piantini, A. Analysis of the effectiveness of shield wires in mitigating lightning-induced voltages on power distribution lines. Electr. Power Syst. Res.
**2018**, 159, 9–16. [Google Scholar] [CrossRef] - Brignone, M.; Mestriner, D.; Procopio, R.; Piantini, A.; Rachidi, F. Evaluation of the Mitigation Effect of the Shield Wires on Lightning Induced Overvoltages in MV Distribution Systems Using Statistical Analysis. IEEE Trans. Electromagn. Compat.
**2018**, 60, 1400–1408. [Google Scholar] [CrossRef] - Yokoyama, S. Designing Concept on Lightning Protection of Overhead Power Distribution Line. In Proceedings of the IX International Symposium on Lightning Protection, Foz do Iguaçu, Brazil, 26–30 November 2007; pp. 1–16. [Google Scholar]
- Araneo, R.; Andreotti, A.; Brandao Faria, J.A.; Celozzi, S.; Assante, D.; Verolino, L. Utilization of Underbuilt Shield Wires to Improve the Lightning Performance of Overhead Distribution Lines hit by Direct Strokes. IEEE Trans. Power Deliv.
**2019**. [Google Scholar] [CrossRef] - Piantini, A. Lightning-induced voltages on distribution lines with shield wires. In Proceedings of the 2016 33rd International Conference on Lightning Protection (ICLP), Aveiro, Portugal, 25–30 September 2016; pp. 1–5. [Google Scholar]
- Florkowski, M.; Furgał, J.; Kuniewski, M. Propagation of Overvoltages in the Form of Impulse, Chopped and Oscillating Waveforms in Transformer Windings—Time and Frequency Domain Approach. Energies
**2020**, 13, 304. [Google Scholar] [CrossRef][Green Version] - AIEE Committee on Electrical Machinery—Transformer Subcommittee. Protection of Power Transformers Against Lighting Surges. Trans. Am. Inst. Electr. Eng.
**1941**, 60, 568–577. [Google Scholar] [CrossRef] - Cigre Working Group 02 (Internal Overvoltages) of Study Committee 33. Guidelines for Representation of Network Elements when Calculating Transients; CIGRÉ: Paris, France, 1990; p. 30. [Google Scholar]
- Mahmood, F.; Rizk, M.E.M.; Lehtonen, M. Evaluation of Lightning Overvoltage Protection Schemes for Pole-Mounted Distribution Transformers. Int. Rev. Electr. Eng.
**2015**, 10, 616. [Google Scholar] [CrossRef] - Sabiha, N.A.; Lehtonen, M. Lightning-Induced Overvoltages Transmitted Over Distribution Transformer With MV Spark-Gap Operation—Part I: High-Frequency Transformer Model. IEEE Trans. Power Deliv.
**2010**, 25, 2472–2480. [Google Scholar] [CrossRef] - Sabiha, N.A.; Lehtonen, M. Lightning-Induced Overvoltages Transmitted Over Distribution Transformer With MV Spark-Gap Operation—Part II: Mitigation Using LV Surge Arrester. IEEE Trans. Power Deliv.
**2010**, 25, 2565–2573. [Google Scholar] [CrossRef] - Somogyi, A.; Vizi, L. Overvoltage protection of pole mounted distribution transformers. Period. Polytech. Electr. Eng.
**1997**, 41, 27–40. [Google Scholar] - Christodoulou, C.A.; Vita, V.; Maris, T.I. On the optimal placement of surge arresters for the efficient protection of medium voltage distribution networks against atmospheric overvoltages. In Proceedings of the 2019 54th International Universities Power Engineering Conference (UPEC), Bucharest, Romania, 3–6 September 2019; pp. 1–4. [Google Scholar]
- Rocha, G.V.S.; de Souza Barradas, R.P.; Muniz, J.R.S.; Bezerra, U.H.; de Araújo, I.M.; de Souza Avelar da Costa, D.; da Silva, A.C.; Nunes, M.V.A.; e Silva, J.S. Optimized Surge Arrester Allocation Based on Genetic Algorithm and ATP Simulation in Electric Distribution Systems. Energies
**2019**, 12, 4110. [Google Scholar] [CrossRef][Green Version] - Opsahl, A.M.; Brookes, A.S.; Southgate, R.N. Lightning Protection for Distribution Transformers. Trans. Am. Inst. Electr. Eng.
**1932**, 51, 245–251. [Google Scholar] [CrossRef] - Borghetti, A.; Ferraz, G.M.F.; Napolitano, F.; Nucci, C.A.; Piantini, A.; Tossani, F. Lightning protection of a multi-circuit HV-MV overhead line. Electr. Power Syst. Res.
**2020**, 180, 106119. [Google Scholar] [CrossRef] - Heine, P.; Lehtonen, M.; Oikarinen, A. Overvoltage protection, faults and voltage sags. In Proceedings of the 2004 11th International Conference on Harmonics and Quality of Power (IEEE Cat. No.04EX951), New York, NY, USA, 12–15 September 2004; pp. 100–105. [Google Scholar]
- Mahmood, F.; Elkalashy, N.I.; Lehtonen, M. Modeling of flashover arcs in medium voltage networks due to direct lightning strikes. Int. J. Electr. Power Energy Syst.
**2015**, 65, 59–69. [Google Scholar] [CrossRef] - Pourakbari-Kasmaei, M.; Mahmoud, F.; Krbal, M.; Pelikan, L.; Orságová, J.; Toman, P.; Lehtonen, M. Transformer with Serial Inductors and Protection Spark Gap. Available online: https://drive.google.com/file/d/1ztdvBW2QNNZx1t6XsAY6IMTzq-nxAlVc/view?usp=sharing (accessed on 15 July 2020).
- The GAMS Development Corporation Website. Available online: https://www.gams.com/ (accessed on 15 July 2020).
- CONOPT, a Solver for Large-Scale Nonlinear Optimization (NLP). Available online: http://www.conopt.com/ (accessed on 15 July 2020).
- Electromagnetic Transients Program-Restructured Version (EMTP-RV). Available online: https://www.emtp-software.com/ (accessed on 15 July 2020).
- MATLAB and Statistics Toolbox Release 2018b. Available online: https://se.mathworks.com/products/matlab.html (accessed on 15 July 2020).
- Miyazaki, S.; Goshima, H.; Amano, T.; Shinkai, H.; Yashima, M.; Wakimoto, T.; Ishii, M. Uncertainty of Peak-value Measurement of Lightning Impulse High Voltage By National-Standard-Class Measuring System. In Proceedings of the XVII International Symposium on High Voltage Engineering, Hannover, Germany, 22–26 August 2011; pp. 1–6. [Google Scholar]
- Kuffel, E.; Zaengl, W.S.; Kuffel, J. High Voltage Engineering Fundamentals; Elsevier: Amsterdam, The Netherlands, 2000; ISBN 9780750636346. [Google Scholar]
- Pourakbari-Kasmaei, M.; Mahmoud, F.; Krbal, M.; Pelikan, L.; Orságová, J.; Toman, P.; Lehtonen, M. Optimal Adjustment of Double Exponential Model Parameters to Reproduce the Laboratory Volt-Time Curve of Lightning Impulse. In Proceedings of the 21st International Conference on Electricity Distribution International Scientific Conference on Electric Power Engineering (EPE), Prague, Czech Republic, 19–21 October 2020. [Google Scholar]
- Savadamuthu, U.; Udayakumar, K.; Jayashankar, V. Modified disruptive effect method as a measure of insulation strength for non-standard lightning waveforms. IEEE Trans. Power Deliv.
**2002**, 17, 510–515. [Google Scholar] [CrossRef] - Rodrigues, A.R.; Guimarães, G.C.; Boaventura, W.C.; Lima, J.L.C.; Chaves, M.L.R.; Silva, A.M.B. Volt–Time Curve Prediction of Distribution Insulators Under Standard and Typical Lightning Overvoltages Using the Disruptive Effect Method. J. Control Autom. Electr. Syst.
**2017**, 28, 259–270. [Google Scholar] [CrossRef] - Krithika, G.; Usa, S. v-t Characteristics using extended disruptive effect model for impulses of varying front times. IEEE Trans. Dielectr. Electr. Insul.
**2015**, 22, 2191–2195. [Google Scholar] [CrossRef] - Darveniza, M. The generalized integration method for predicting impulse volt-time characteristics for non-standard wave shapes—A theoretical basis. IEEE Trans. Electr. Insul.
**1988**, 23, 373–381. [Google Scholar] [CrossRef] - IEEE Working Group 3.4.11: Application of Surge Protective Devices Subcommittee-Surge Protective Device Committee. Modeling of metal oxide surge arresters. IEEE Trans. Power Deliv.
**1992**, 7, 302–309. [Google Scholar] [CrossRef] - Christodoulou, C.A.; Assimakopoulou, F.A.; Gonos, I.F.; Stathopulos, I.A. Simulation of metal oxide surge arresters behavior. In Proceedings of the 2008 IEEE Power Electronics Specialists Conference, Rhodes, Greece, 15–19 June 2008; pp. 1862–1866. [Google Scholar]

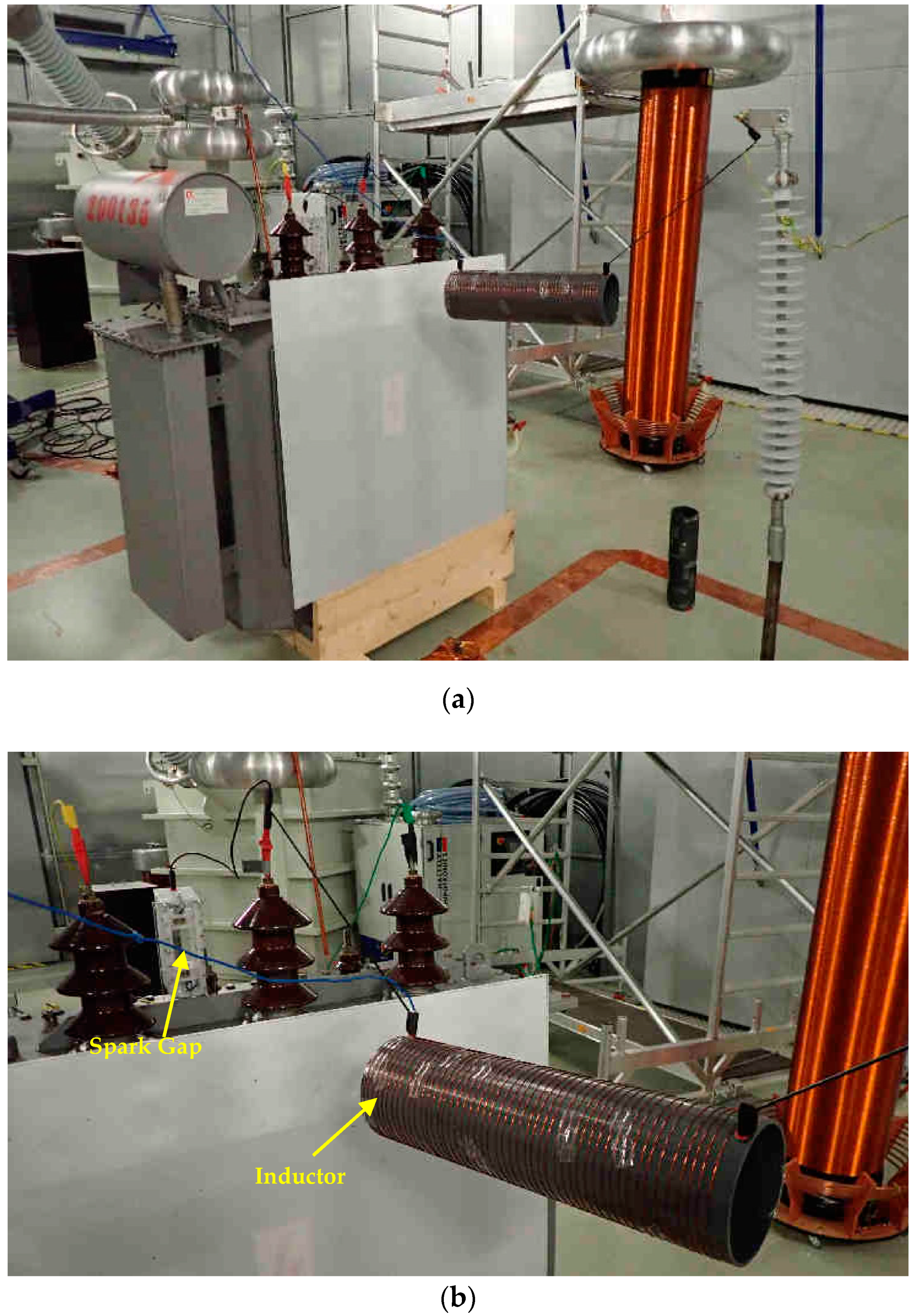

**Figure 1.**Laboratory setup: (

**a**) complete laboratory setup and (

**b**) close-up for connecting the inductor and spark gap to the transformer terminal.

**Figure 2.**(

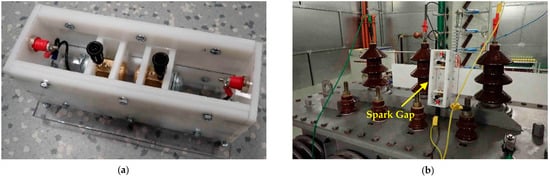

**a**) Adjustable spark gap with a brass electrode and (

**b**) connection of the spark gap to the middle terminal.

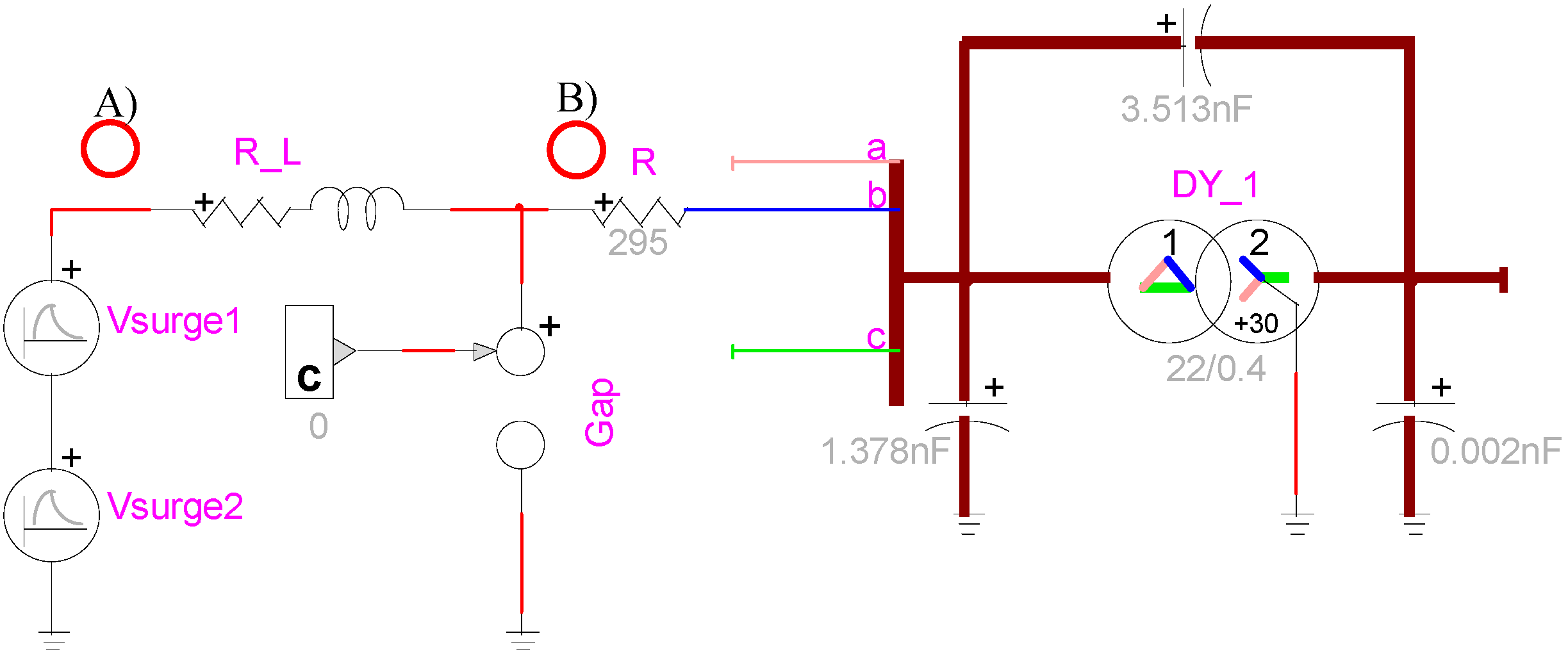

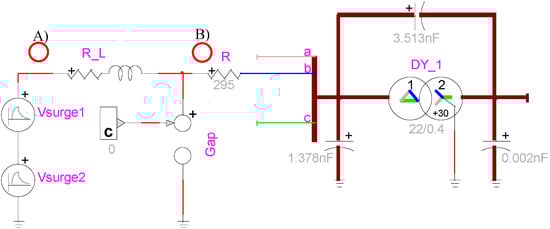

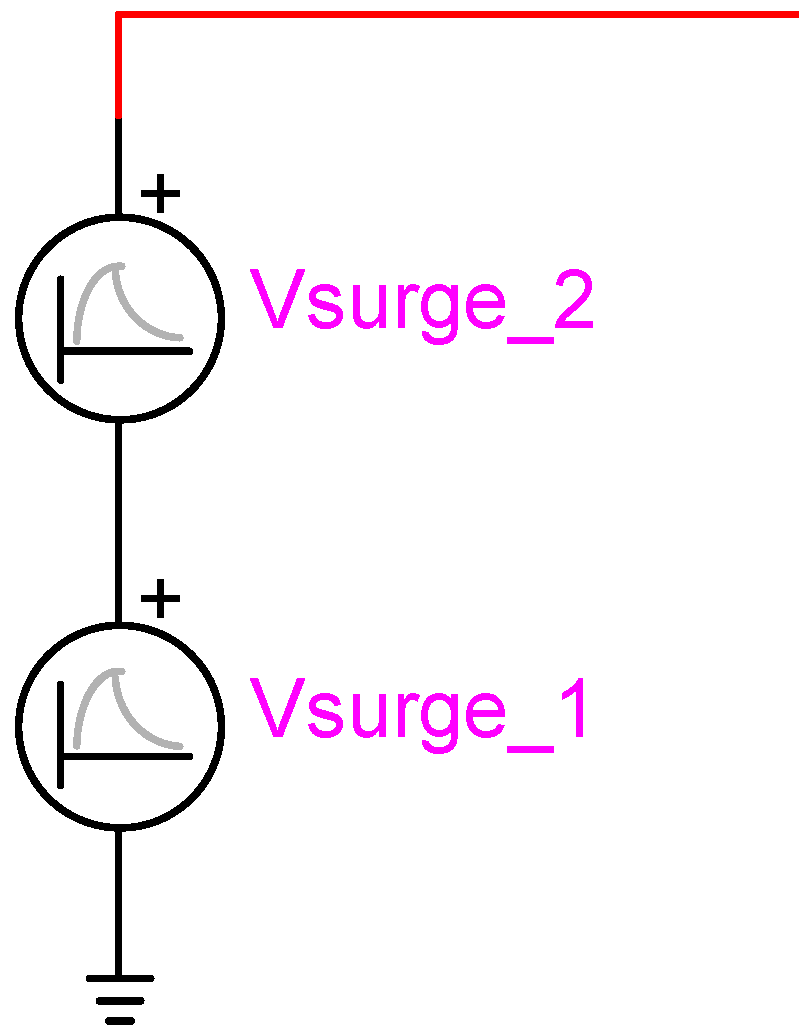

**Figure 4.**Connecting two voltage surges in series in Electromagnetic Transients Program-Restructured Version (EMTP-RV).

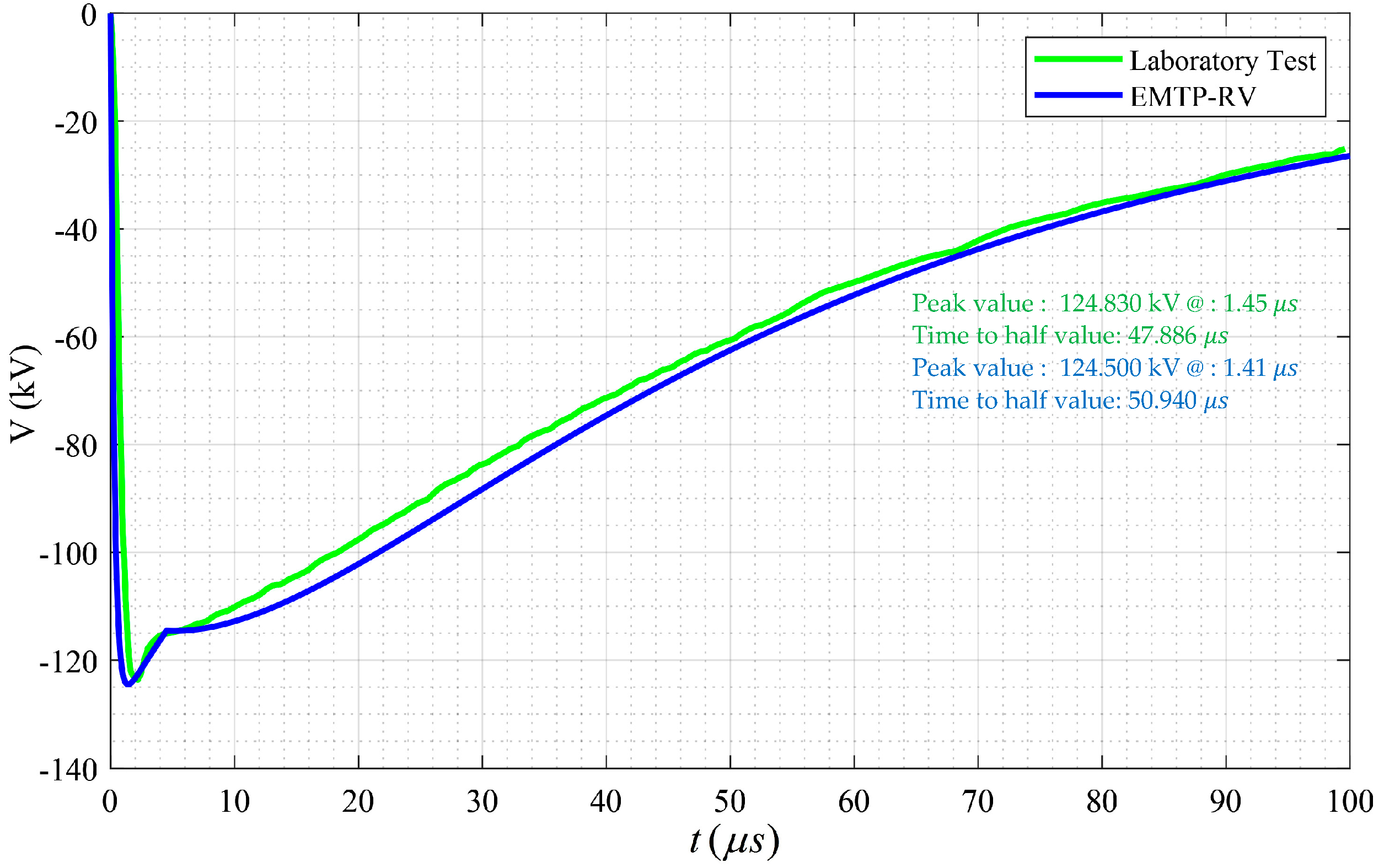

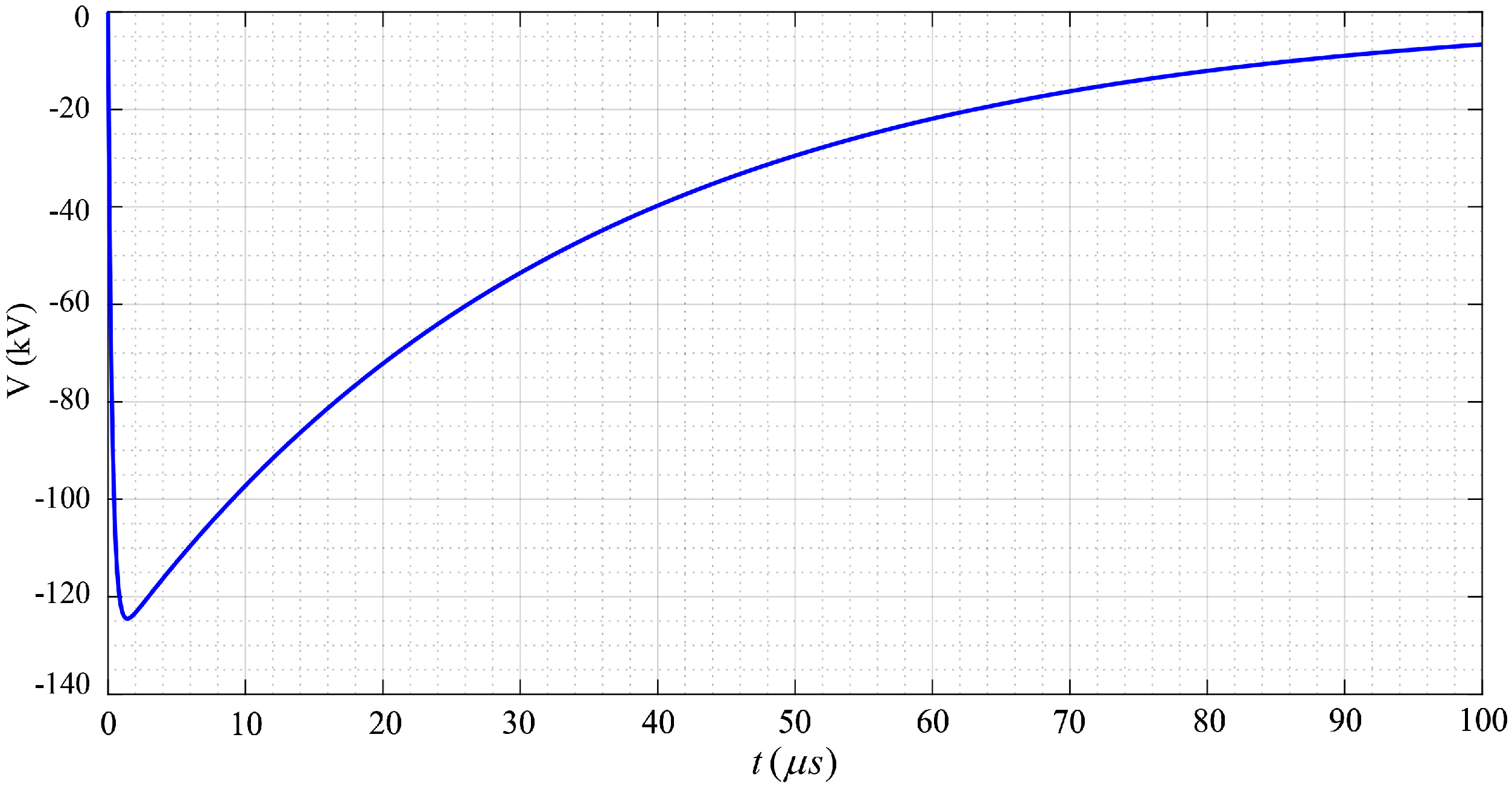

**Figure 6.**Generated lightning impulse voltage by connecting two surges in series, 125 kV, Laboratory Test and EMTP-RV model.

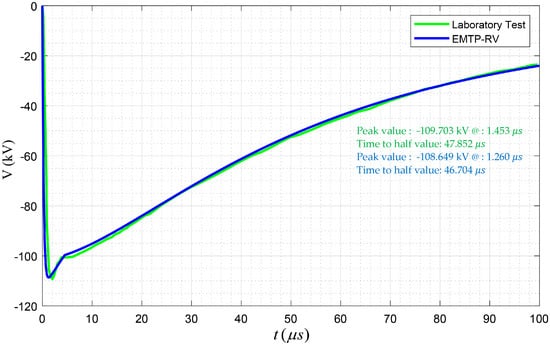

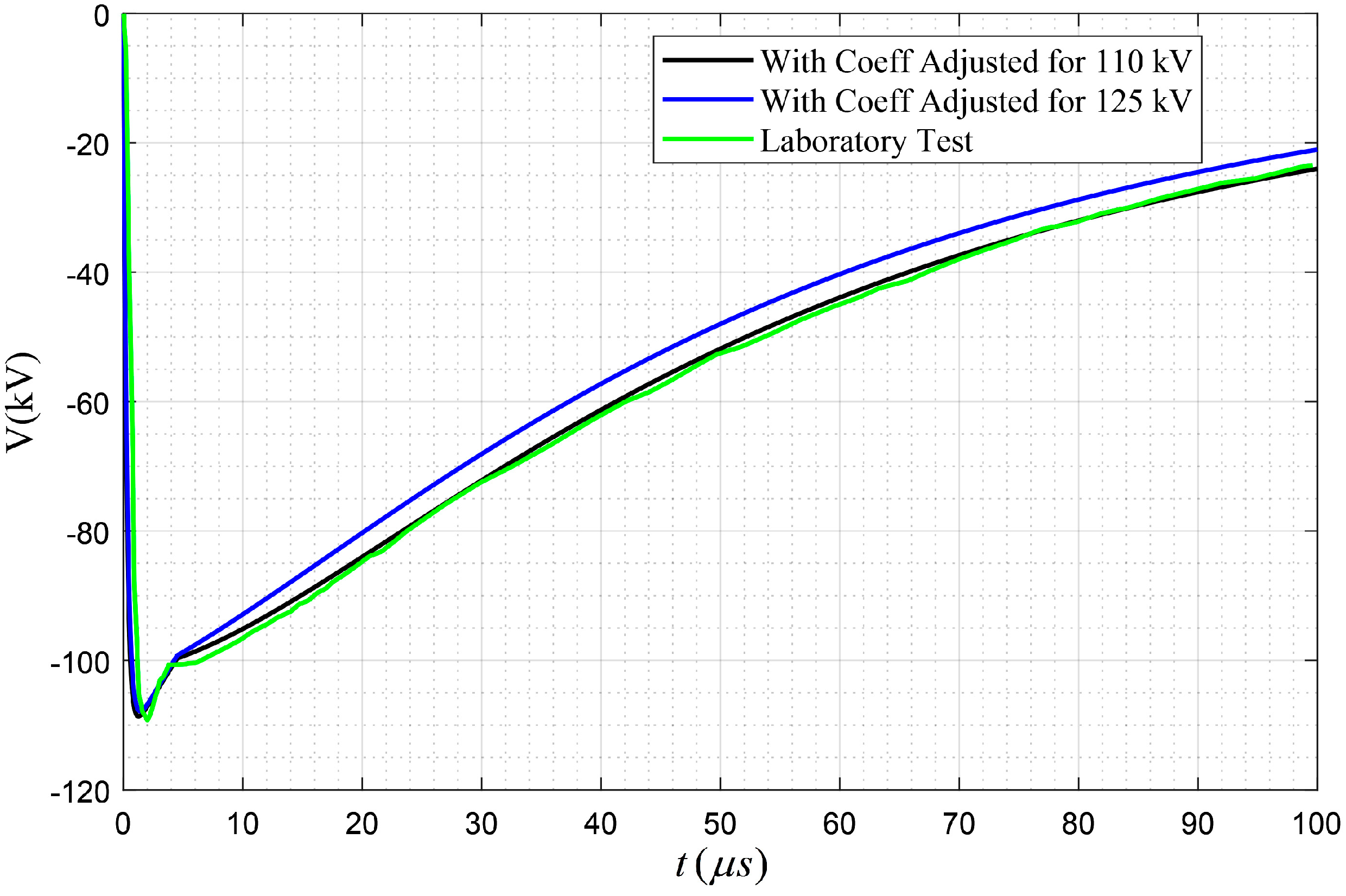

**Figure 10.**Comparison of the 110 kV laboratory impulse voltage with the impulses simulated in EMTP-RV by using the coefficients of double exponential functions adjusted for the 110 kV and 125 kV impulses.

**Figure 11.**Applied impulse 110 kV in the presence of the spark gap, laboratory test and EMTP-RV model.

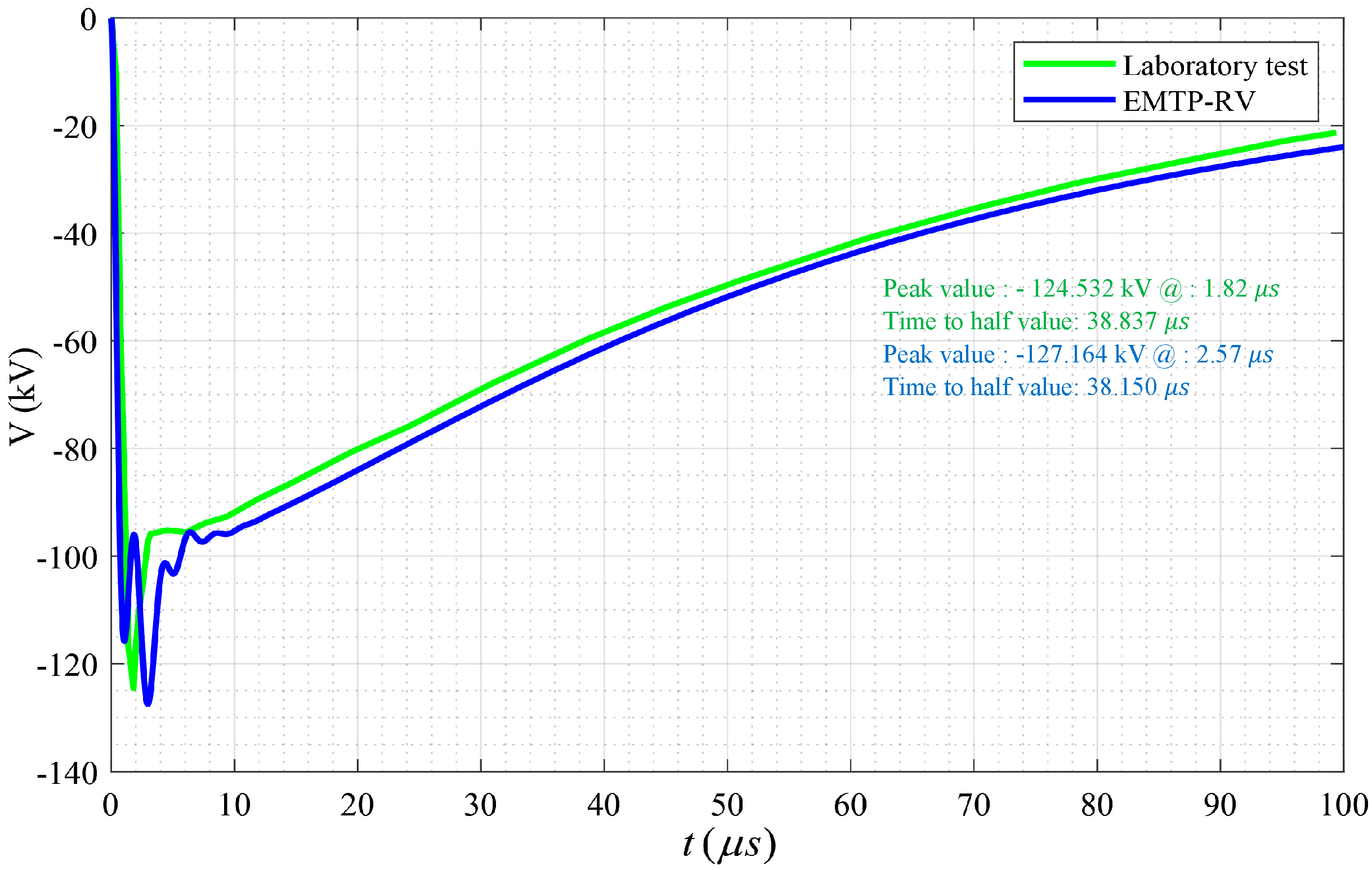

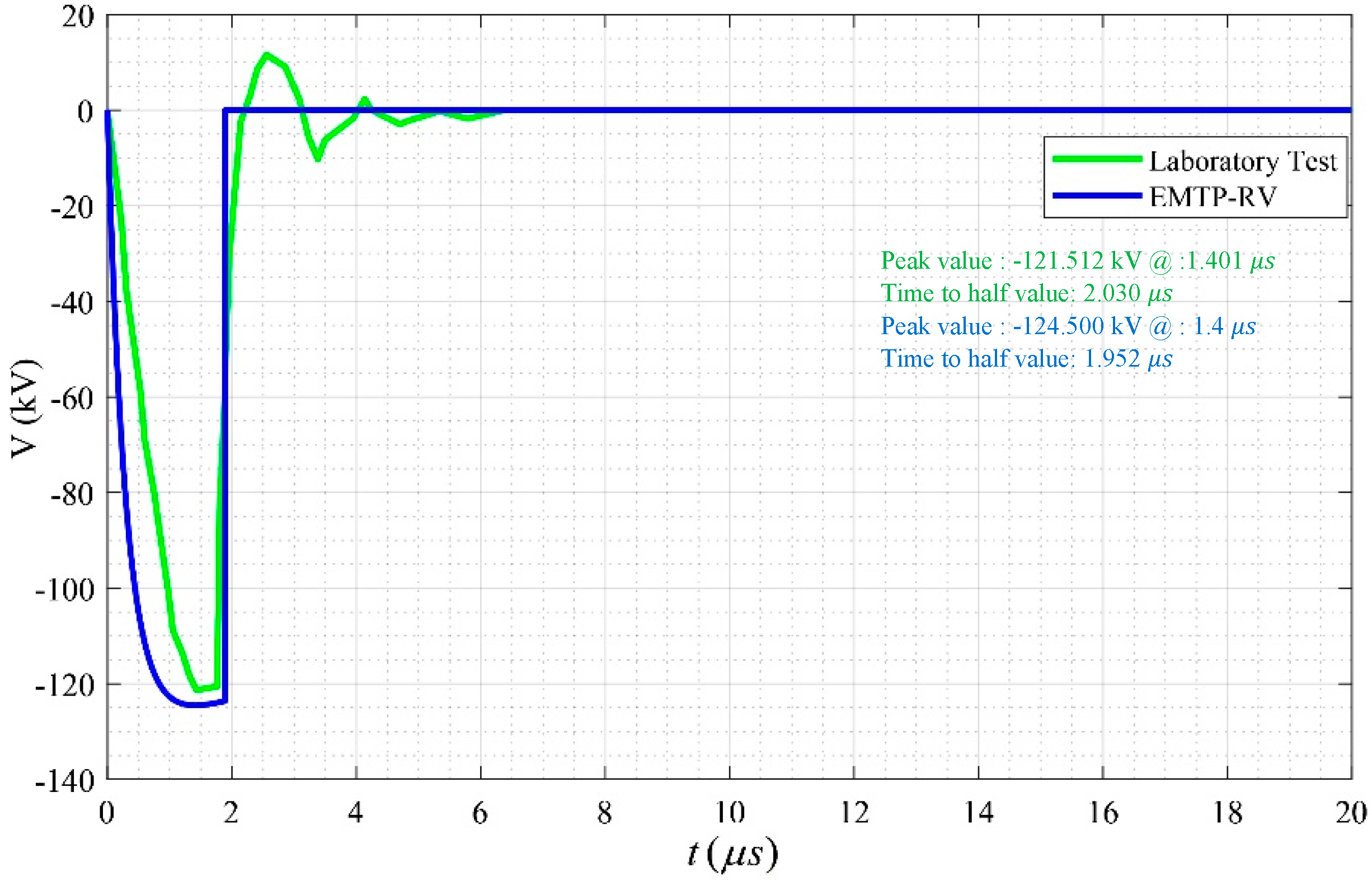

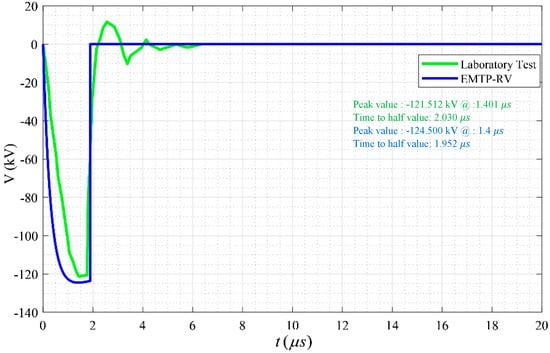

**Figure 12.**Applied impulse 125 kV in the presence of the spark gap, laboratory test and EMTP-RV model.

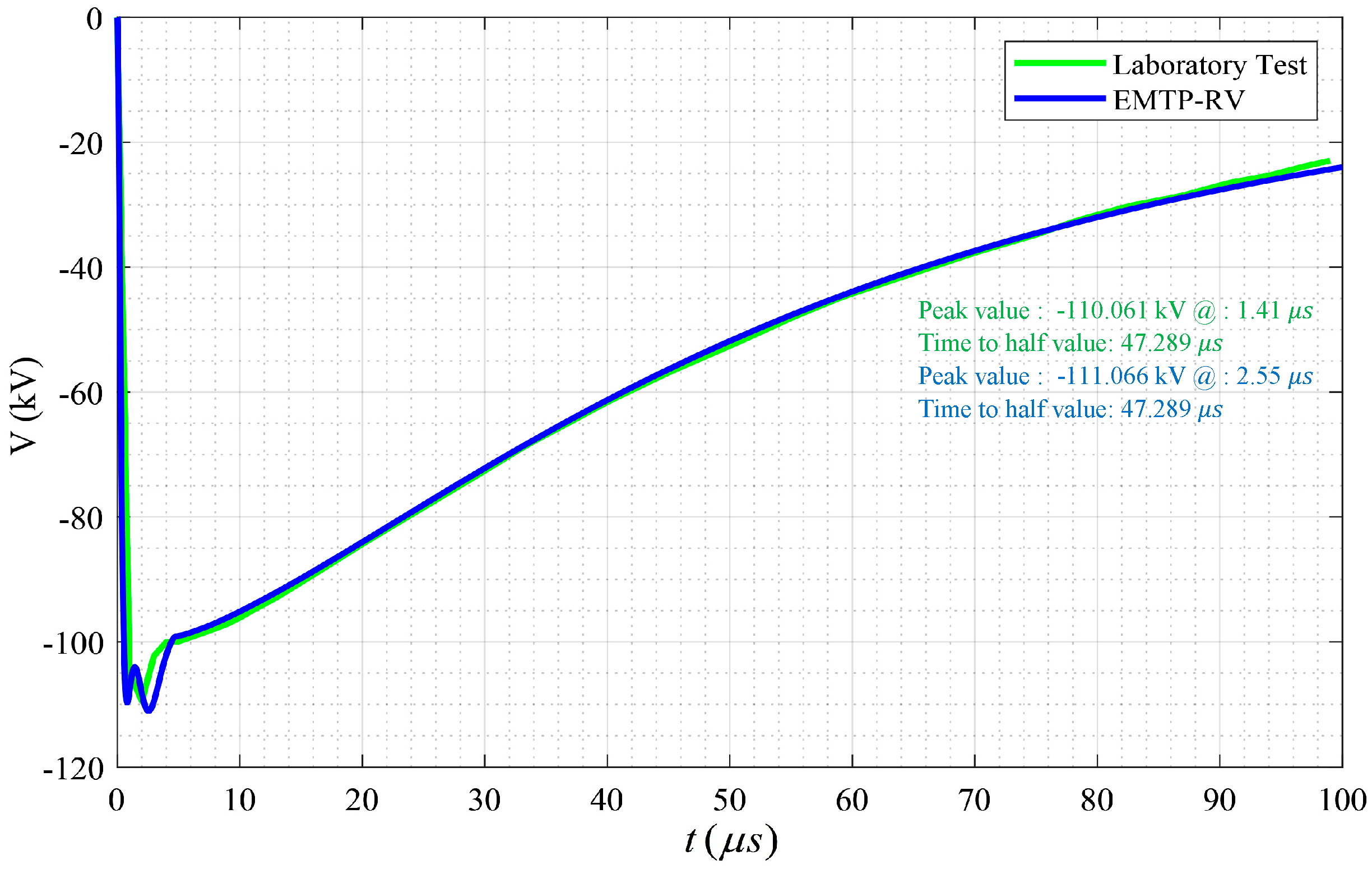

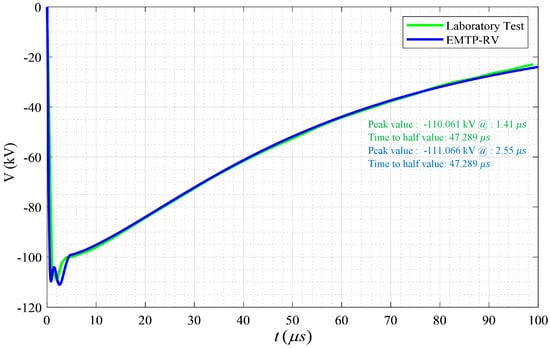

**Figure 13.**Applied impulse 110 kV in the presence of 35$\mathsf{\mu}\mathrm{H}$ filtered spark gap, laboratory test and EMTP-RV model.

**Figure 14.**Applied impulse 110 kV in the presence of 119$\mathsf{\mu}\mathrm{H}$ filtered spark gap, laboratory test and EMTP-RV model.

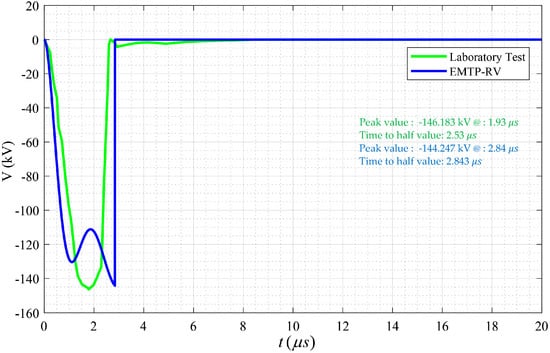

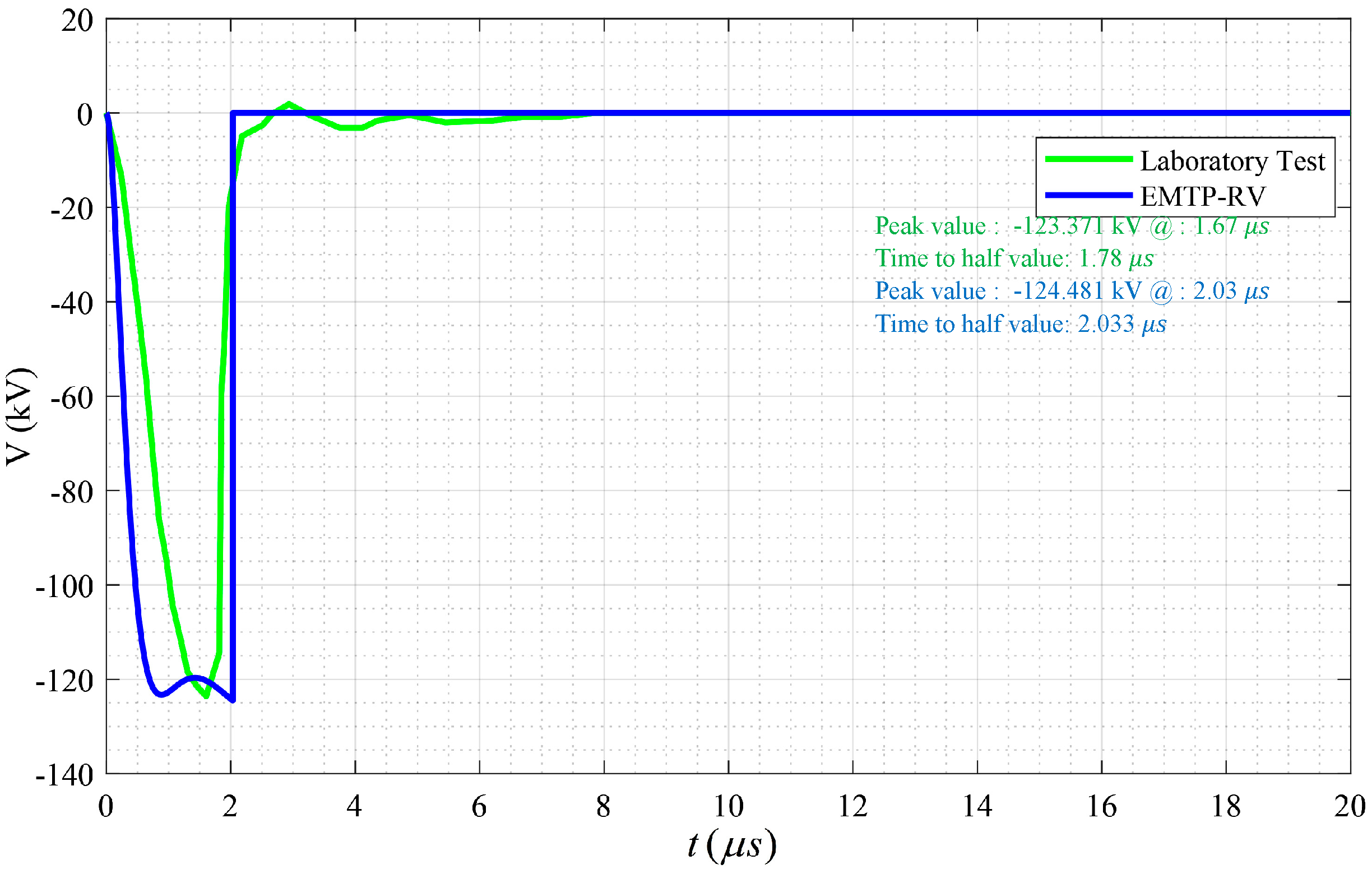

**Figure 15.**Applied impulse 125 kV in the presence of the 35$\mathsf{\mu}\mathrm{H}$ filtered spark gap, laboratory test and EMTP-RV model.

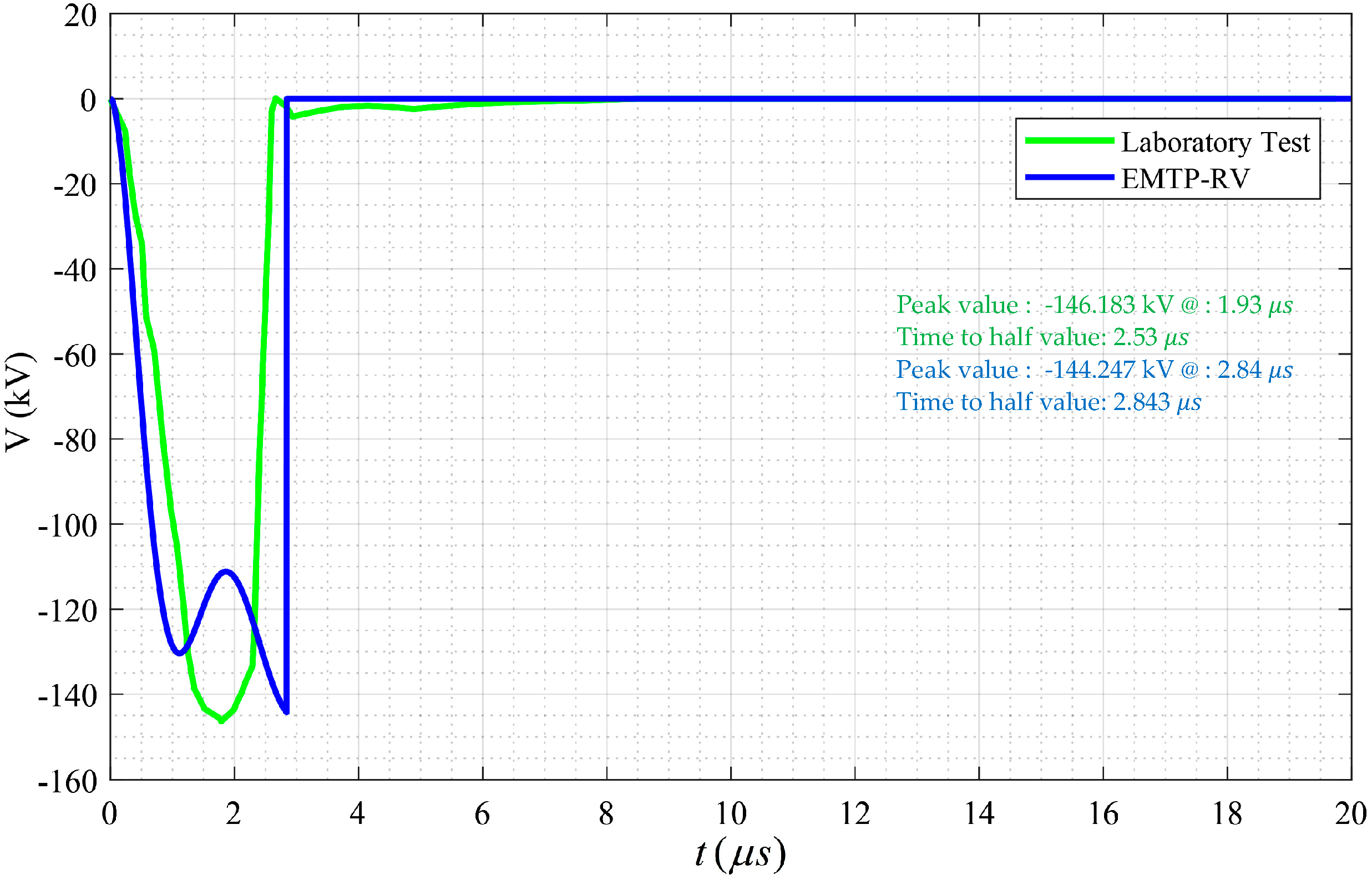

**Figure 16.**Applied impulse 125 kV in the presence of 119$\mathsf{\mu}\mathrm{H}$ filtered spark gap, laboratory test and EMTP-RV model.

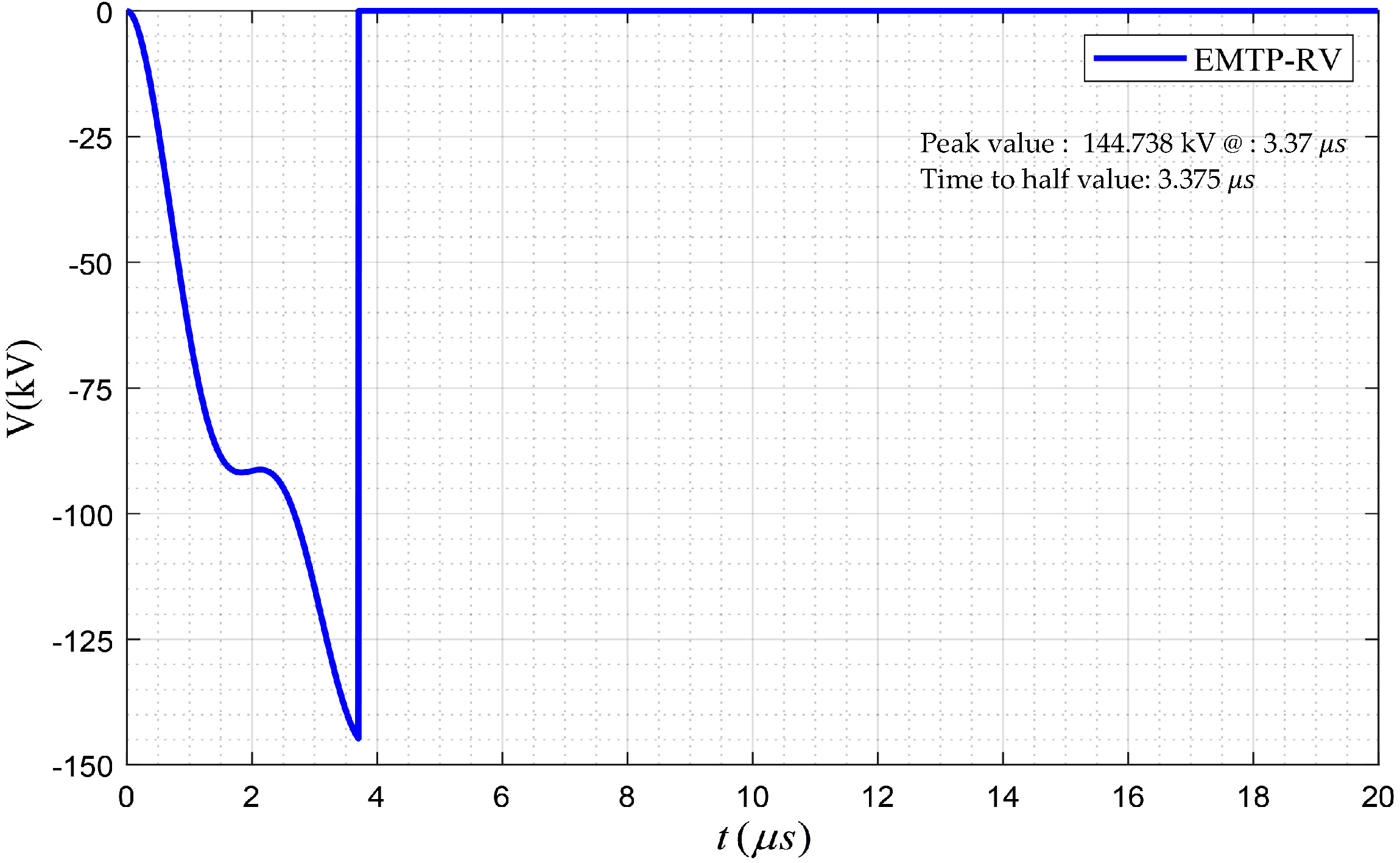

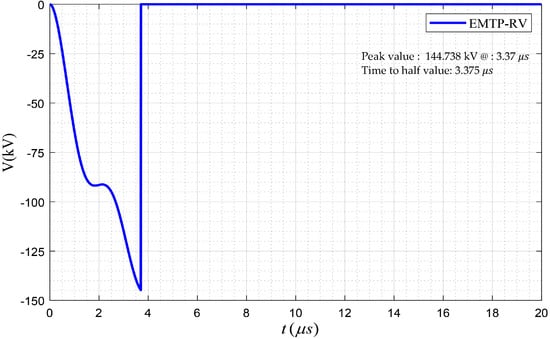

**Figure 17.**Applied impulse 110 kV in the presence of 500$\text{}\mathsf{\mu}\mathrm{H}$ filtered spark gap, EMTP-RV model.

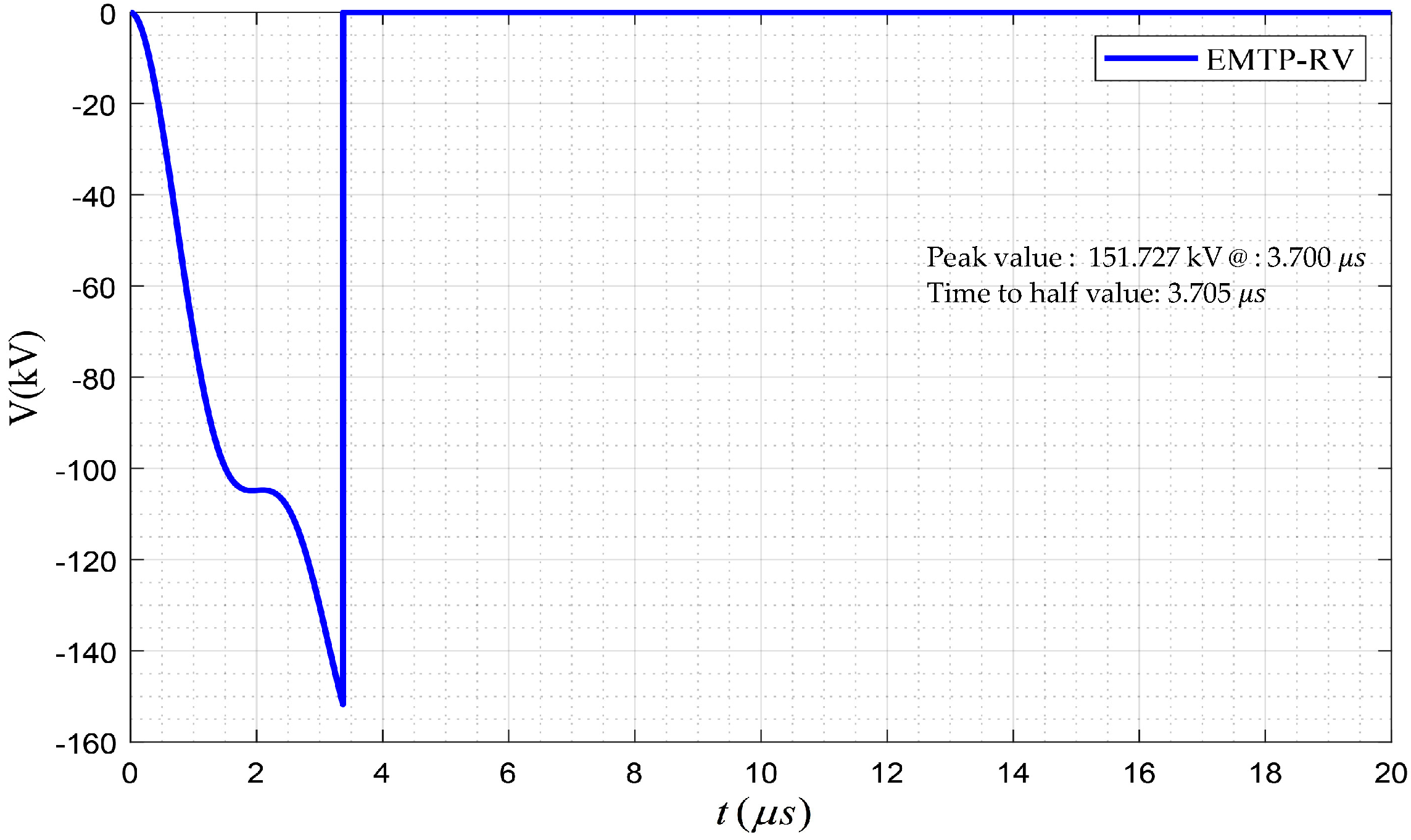

**Figure 18.**Applied impulse 125 kV in the presence of 500$\mathsf{\mu}\mathrm{H}$ filtered spark gap, EMTP-RV model.

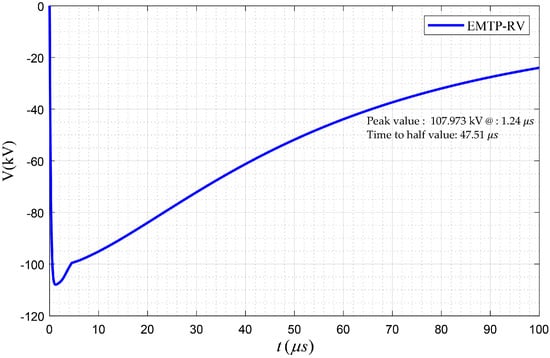

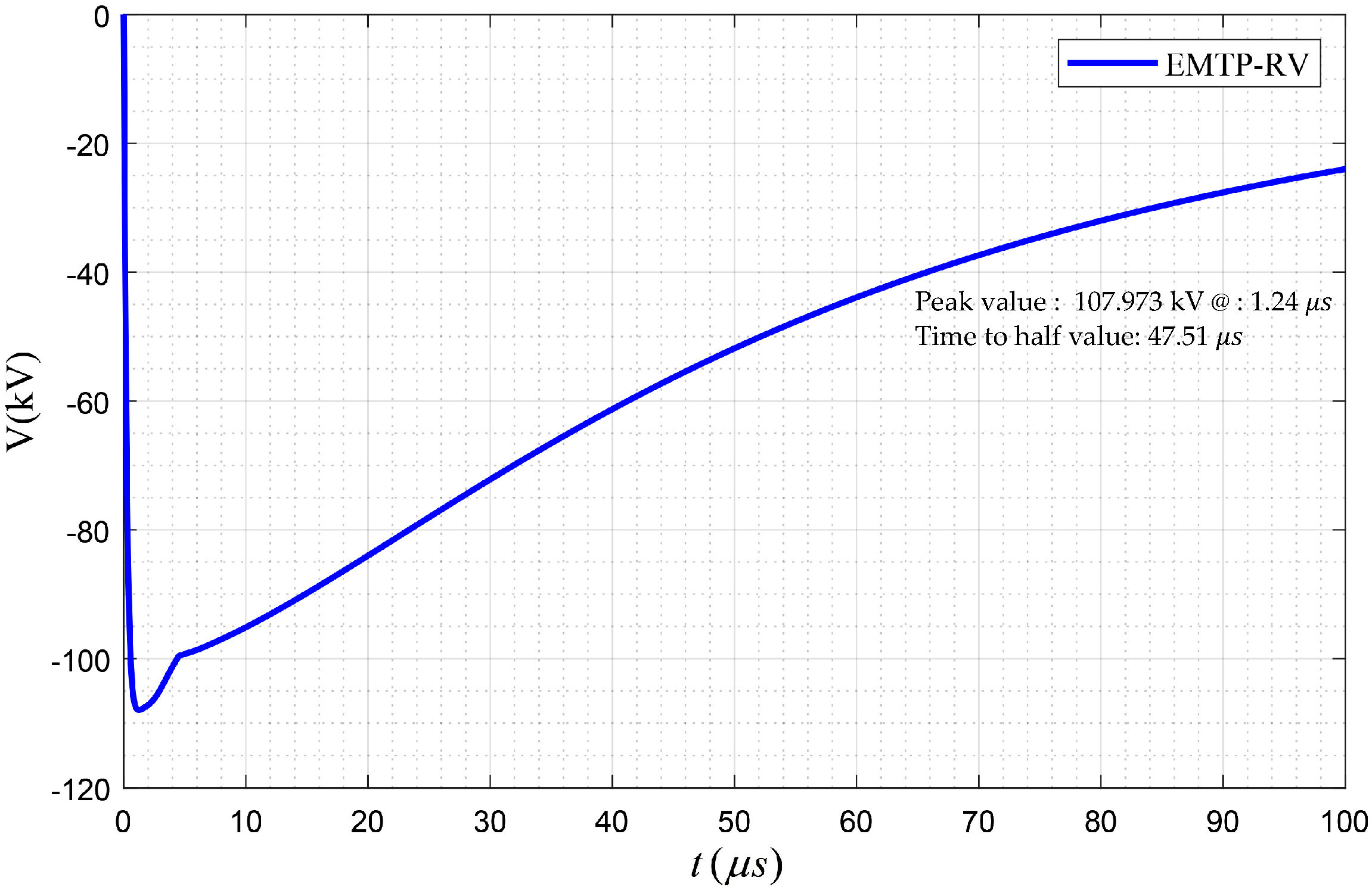

**Figure 19.**Applied impulse 110 kV in the presence of the 5$\text{}\mathsf{\mu}\mathrm{H}$ filtered spark gap, EMTP-RV model.

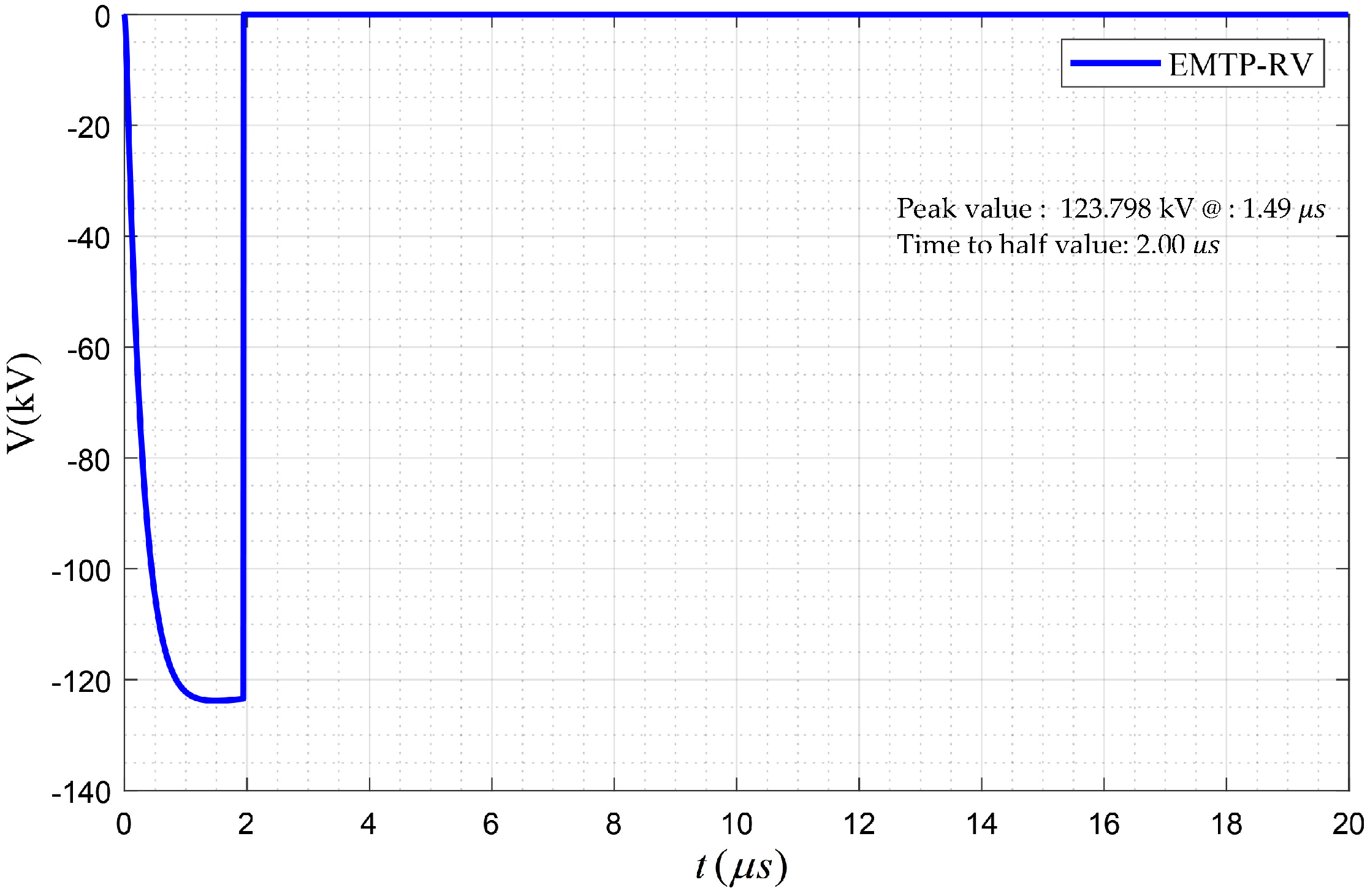

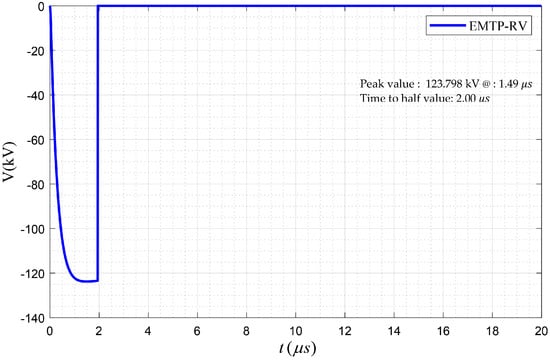

**Figure 20.**Applied impulse 125 kV in the presence of the 5$\mathsf{\mu}\mathrm{H}$ filtered spark gap, EMTP-RV model.

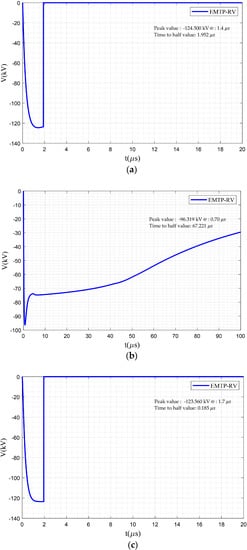

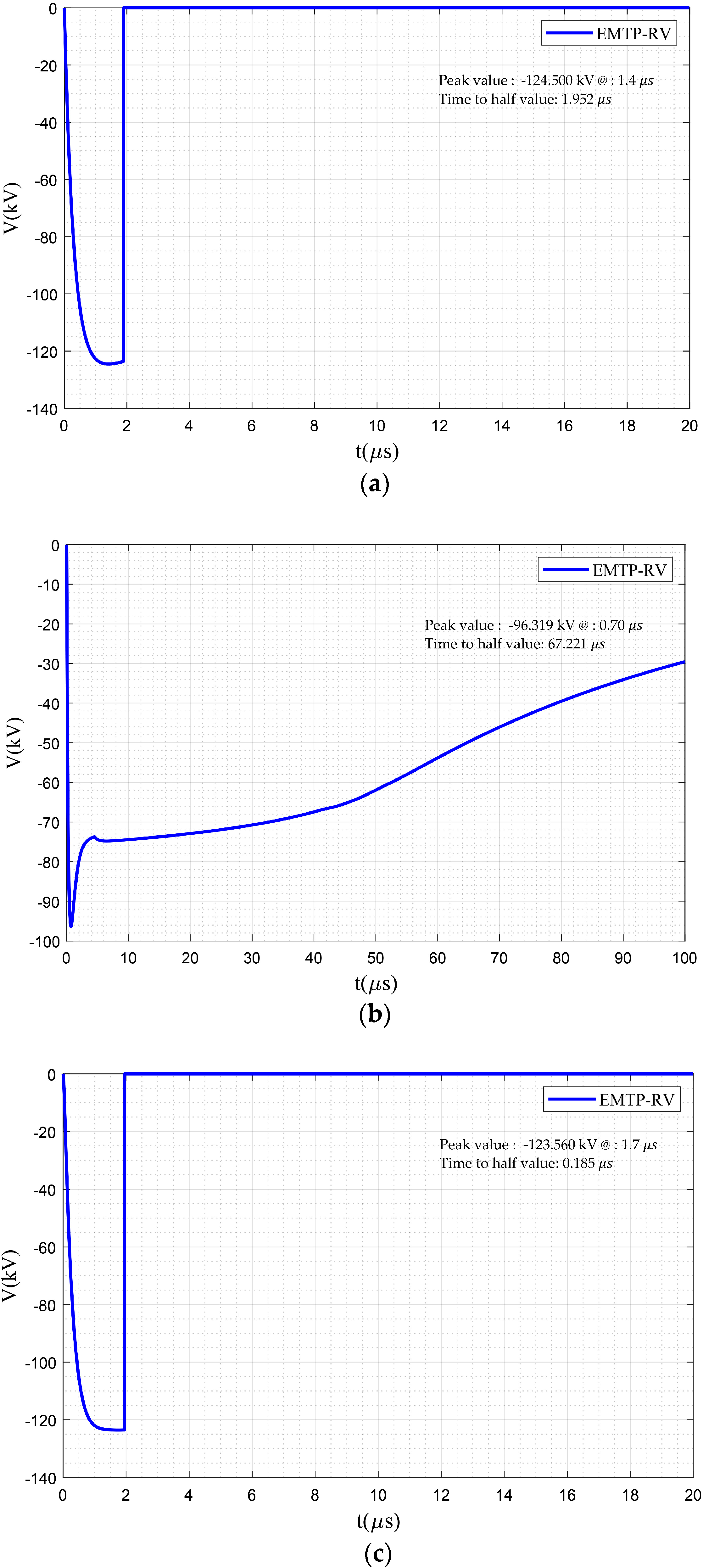

**Figure 22.**Applied impulse 125 kV in the presence of the (

**a**) spark gap, (

**b**) surge arrester, and (

**c**) filtered spark gap.

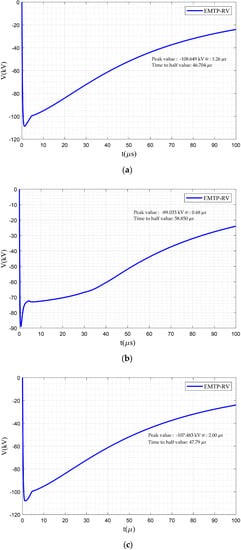

**Figure 23.**Applied impulse 110 kV in the presence of the (

**a**) spark gap, (

**b**) surge arrester, and (

**c**) filtered spark gap.

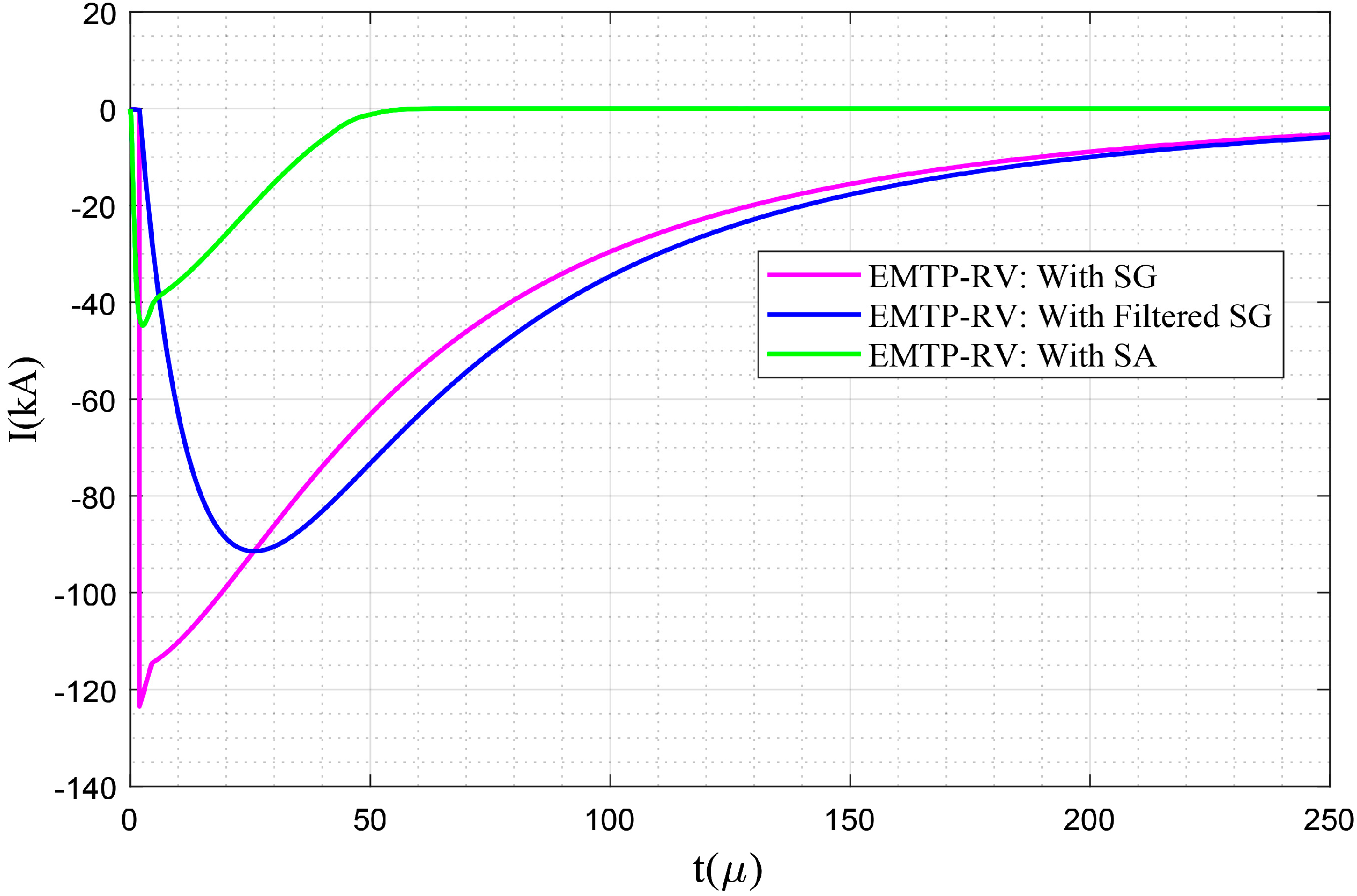

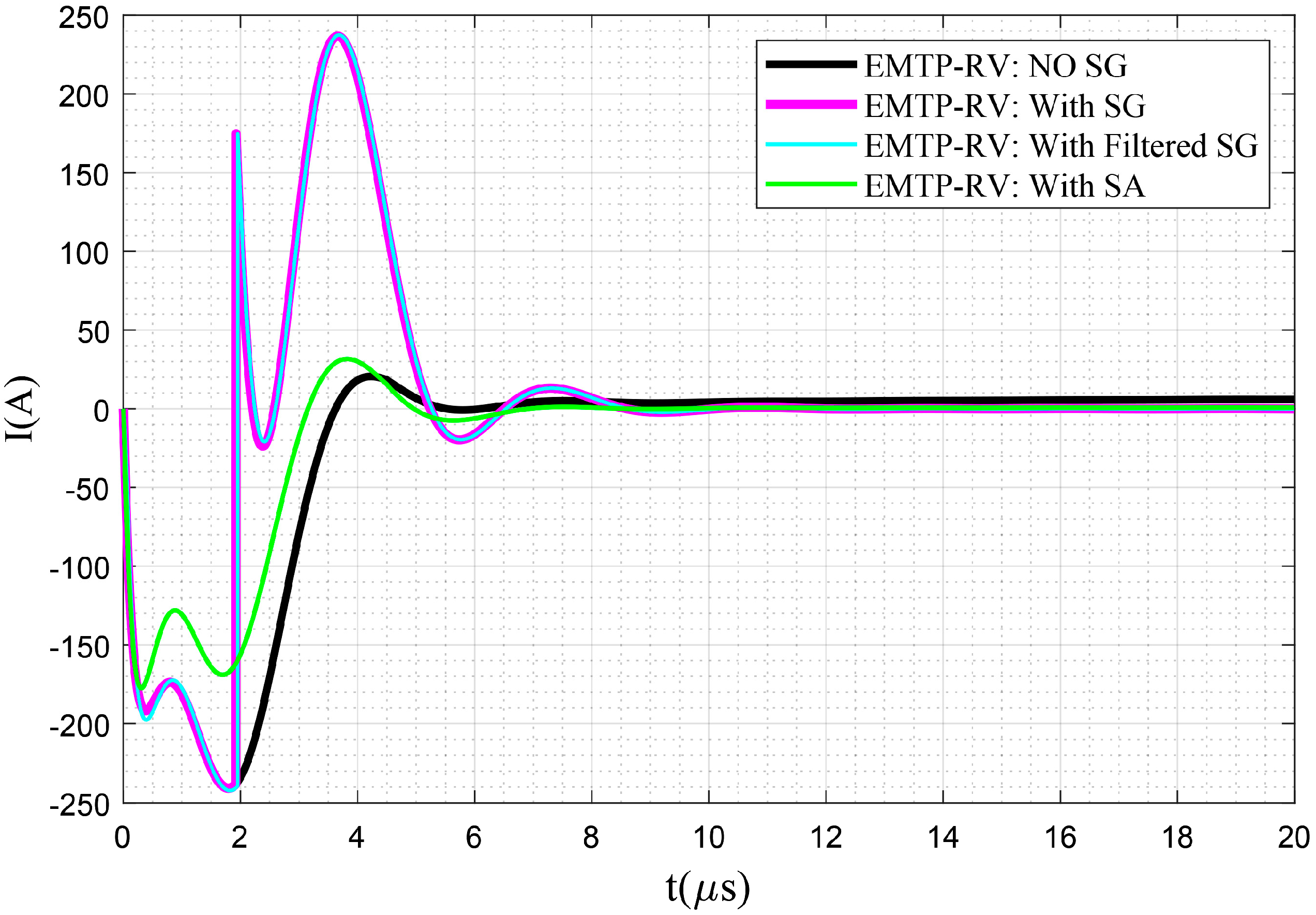

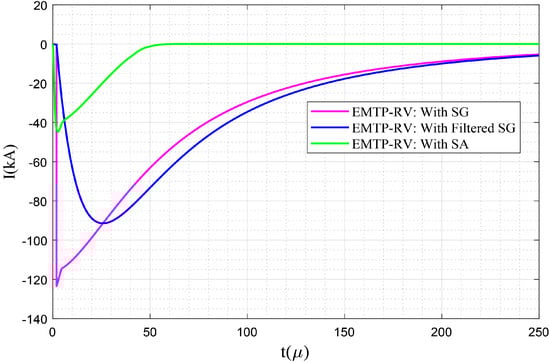

**Figure 24.**Comparison of the current flows after the connection points of the spark gap (SG) and surge arrester (SA).
